USER MANUAL OCEAISH2000W3 OCEANIC

Blank white rectangular object with a thin black horizontal line at the top (no text or symbols)

OCEAISH1000W3

OCEAISH1500W3

OCEAISH2000W3

oceanic

MERCI DE BIEN VOULOIR LIRE LES CONSIGNES DE SÉCURITÉ ATTENTIVEMENT AVANT D'UTILISER L'APPAREIL ET LES CONSERVER.

Technical diagram of a device with labeled components and an inset showing a mechanical component with motion arrows.

②

Pure mechanical diagram showing a beam supported by two vertical supports with directional arrows indicating force or motion (no text or symbols)

③

Technical diagram showing a mechanical setup with labeled components and directional arrows, including a circular symbol labeled 'A' and a circular symbol labeled 'l'.

Simple line drawing of a mechanical component or bracket with no text or symbols

Simple line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Simple line drawing of a door with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

⑤

19.0 °C oceanic PRG M

PLEASE READ SAFETY INSTRUCTIONS CAREFULLY BEFORE USING THE UNIT AND SAVE IT.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

• If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• The appliance should not be placed immediately below a socket.

- WARNINGS : In order to avoid overheating, do not cover the heater.

- Do not use this heater with a programmer, timer, separate remote control system or any other device that turns on the heater automatically because there is a risk of fire if the device is covered or placed incorrectly. Use only a remote control device connected by the pilot cable.

- The device must be powered by a Residual Current Device (RCD) with a rated operating differential current of not more than 30 mA.

- Warning: if this appliance is installed in a bathroom, it must be installed at least 60 cm from a bath or shower (volume 2), in accordance with the requirements of the French electrical installation standard NFC 15 -100.

- The device must be connected to a circuit independent electric protected by a bipolar circuit breaker according to the standard electrical installation NF C 15-100.

- Means for disconnection from the supply mains having a contact separation in all poles must be incorporated in the fixed wiring in accordance with the wiring rules.

• With respect to the details of how to install the appliance onto the wall, refer to the "INSTALLATION" section.
• Regarding the detailed information on the connection of the electric cable, refer to the section "ELECTRICAL CONNECTION".

INSTALLATION

RECOMMENDATIONS IMPORTANT READ BEFORE INSTALLATION

• Do not install the unit directly below a socket.
• Do not use the appliance outdoors.
• Do not install the unit in an air current that could disrupt its regulation.
• Do not place the unit near a barrier limiting the airflow around it.
• Attach the heater vertically to the wall as described below.
• Choose screws and plugs suitable for the wall material and weight of the unit.

RECOMMENDATIONS FOR WALL MOUNTING

Do not make any changes to the unit or its mounting bracket on the wall!

Before installing the device, check the condition of the wall on which it will be fixed: the wall must be in good condition, it must not show any damage (cracks, sagging, humidity, ...).

Do not drill holes near old holes, even when they are

closed.

It is imperative that you consult a building professional to use the anchoring system (screws, dowels, etc.) appropriate for the material that constitutes your wall, as well as the weight of the appliance. Observe the diameter of the fixing screws indicated in this manual.

Do not modify the holes for securing the unit or its mounting bracket to the wall.

Drill the wall with a drill of the appropriate size for the anchoring system. Remove debris and dust.

Regularly check the mounting points of the device on the wall. Tighten them if necessary.

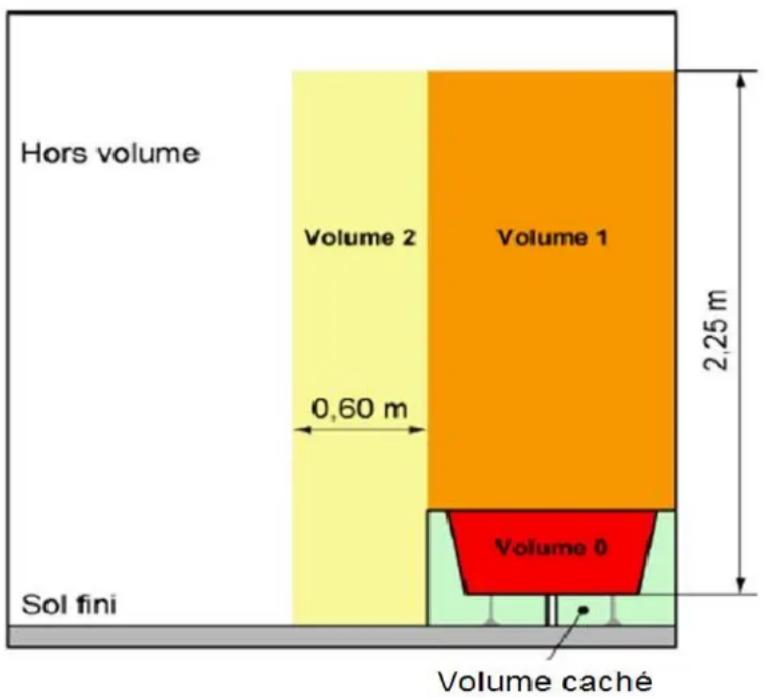

INSTALLATION IN THE BATHROOM

Warning: this product shall be used in volume 2 and out of volume only according to the national wiring rules (For France NF C 15-100)

Note: The drawing is for reference only.

We suggest that you contact a professional electrician for assistance.

Hors volume Volume 2 Volume 1 0,60 m 2,25 m Sol fini Volume 0 Volume caché

ELECTRICAL CONNECTION

CAUTION: Before working, turn off the electricity at the main circuit breaker.

• The installation must be carried out in the rules of the art and meet the standards in force in the country (NF C 15-100 in France).
• The unit must be connected to a standard wall box placed at least 25 cm from the floor.
• The appliance must not be connected to an outlet with a power plug.
• The appliance must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA.
• The appliance must not be connected to the earth wire (yellow and green wire).

ELECTRICAL CONNECTION

Blue or light gray wire connect to Neutral (230V)

Brown or red wire connect to Phase (230V)

Black wire connect to pilot wire. (Optional function to use in case of control by pilot wire box)

WARNING! (Do not connect the black wire to the ground).

- In the absence of pilot wire, insulate the bare end of the black wire to prevent electrical contact with the other wires or ground.

WALL-MOUNTED KITS (not provided)

Description	Drawing	Spec	QTY
Screw		4 x 30 mm	4
Wall plug		Φ8	4

INSTALLATION

To hang the heater on the wall:

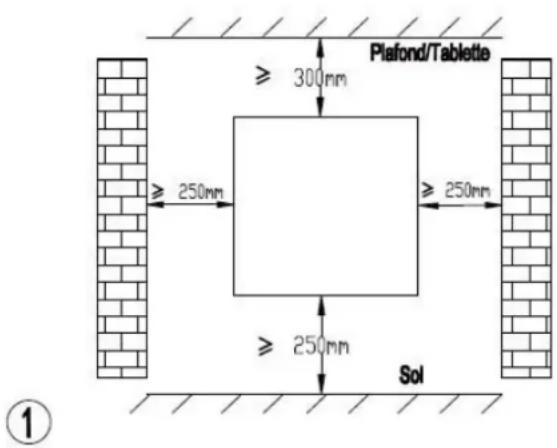

Plafond/Tabletle ≥ 300mm ≥ 250mm ≥ 250mm Sol ①

Choose a suitable location for the radiator (respect the minimum distances)

Technical diagram of a device with labeled components and a circular annotation indicating rotation or motion direction.

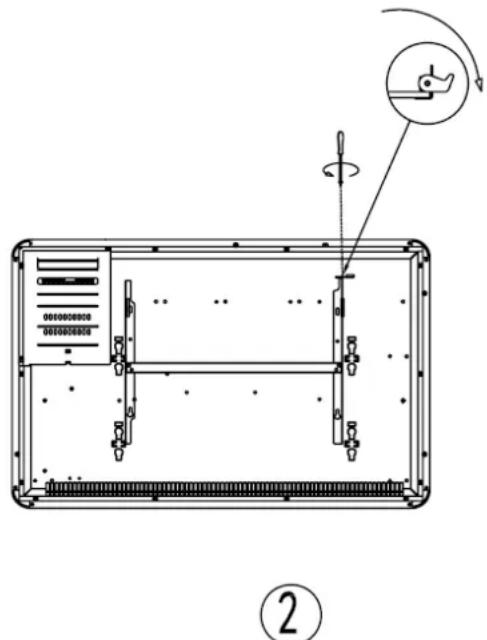

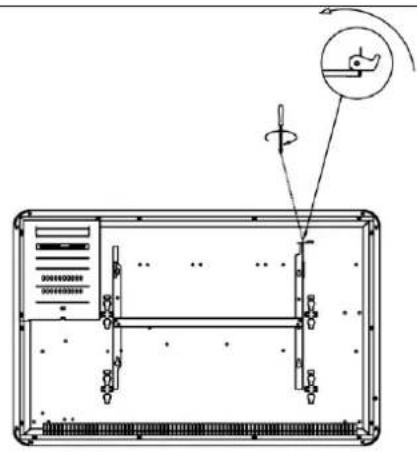

Loosen the bracket fixing screw without unscrewing it completely. Slide the metal latch out of the hole. Remove the bracket by pulling down.

Pure mechanical diagram showing two vertical supports with directional arrows, no text or symbols present

③

Position the wall bracket where you want it. Make sure the spirit level is horizontal.

Mark the location of the 4 wall fixing screws.

Drill the wall to fix the appropriate anchoring system.

Fix the bracket to the wall.

A ④

Simple line drawing of a mechanical component or bracket with no text or symbols

Simple line drawing of a mechanical component with label 'C' and directional arrow (no text or symbols beyond label)

Simple line drawing of a door with an arrow indicating direction (no text or symbols)

Place the heater against its wall mount bracket:

A: Position the radiator so that its lower holes align with the hooks on the mounting bracket.
B: Push the heater down until the hooks fit into the holes.
C: Position the radiator so that its upper holes align with the hooks on the mounting bracket.
D: Pull the unit down.

Technical diagram of a device with labeled components and a mechanical component, showing internal structure and motion direction.

5

Slide the metal latch into the hole.

Tighten the screw to lock the radiator on the bracket.

LCD DISPLAY

1 2 3 4 5 6 7 88:88 °C 0 6 12 18 24h

Functions of the icons on the LCD:

Symbol	Function
➊	Mode Standby (the appliance doesn’t work but with power on)
	Mode Anti-freeze (the appliance maintains the temperature around 7°C)
	Mode Comfort (set the desired temperature)
	Mode ECO (ECO maintains the temperature that is 3.5 °C lower to comfort temperature. This mode reduces the temperature without disturbing the desired temperature in comfort mode)
p	Mode P (under this mode, control the appliance via external pilot device)keyboard lock
	Window detector function
	Heating indicator (When appliance is heating up, this icon will show on the screen. The icon will disappear when detected temperature reach the set temperature.)
°C	Temperature (centigrade)
	Mode Comfort active
	Mode ECO active

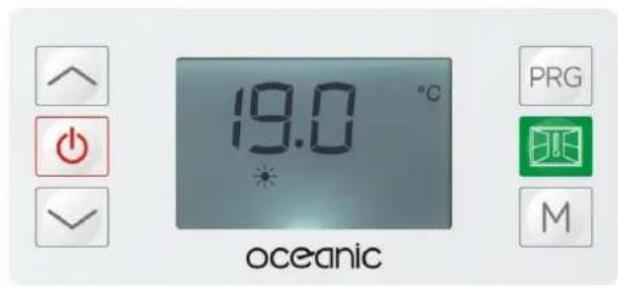

CONTROL PANEL

19.0 °C oceanic PRG M

Button	Function
	Standby
PRG	To choose the weekly personalized program
	To select Window detector function
M	Mode comfortMode ecoMode anti-freezeP1 / P2 / P3 / P

OPERATION

1. Setting the time and turning on the device

For the first time you use the device, after connection to the power supply:

Press to toggle between hours / minutes / day of the week (1-7). Press the button

√ to set the hours / minutes / day of the week. Press the button (↓) to complete the setting and return to standby mode, otherwise after 10 seconds without action the unit will automatically return to standby mode.

If the device is in operation (changing the time setting):

Press both and buttons at the same time and enter the time setting. Press

to toggle between hours / minutes / day of the week (1-7). Press the button to set the hours / minutes / day of the week. Press any button other than or to save the setting, otherwise after 10 seconds without action the setting is automatically saved.

2. Touch M

Press M button to toggle among the modes: Comfort mode ⚙, Economic mode ⚡, Antifreeze mode ⚗P1/P2/P3/P.

In Pilot mode P, set the heating using the external timer. When the external programmer is set to another mode, the display shows:

External Mode Setting	Icon Displayed
Comfort mode
Comfort mode	[HY23]
Comfort mode [HTXT]	[Y408]
Economic mode	[S45K]
Antifreeze mode
Standby mode	[X027]

Pre-installed programs P1/P2/P3:

P 1	Mon-Sun	00:00 08:00
P 2	day workablesweekends	00:00 05:00 19:0001:00 11:00 16:00 24:00 00:00 08:00 13:00 20:00
P 3	day workables	01:00 09:00 16:00 24:00[00:00 05:00 12:00 18:00
	weekends	01:00 24:00[00:00 05:00

3. Touch PRG

Press the PRG button to choose one of the programs.

In PRG mode, Press PRG button to select between "day (1 for Monday -7 for Sunday)" and "heating mode of different periods (00:00-24:00)".

Select the desired day (1-7) by pressing / buttons.

Press the PRG button to set the "heating mode of different period (00:00-24:00)"

Press button to choose hours, and to choose among function: comfort, economic. After 30 seconds it will automatically finish.

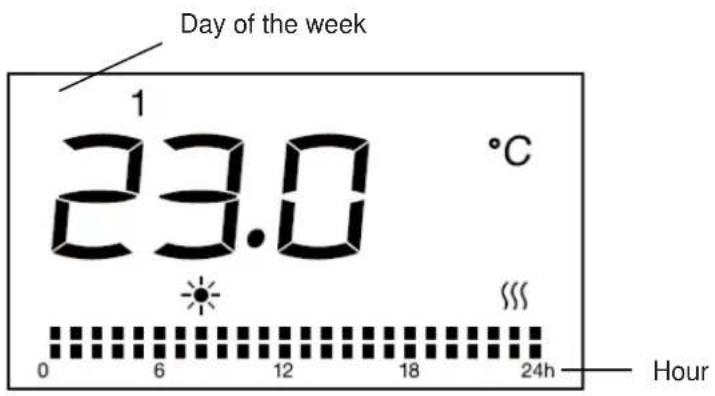

For example: to select the day 1, temperature of 23^ C, comfort mode for 24 hours:

1. Press PRG, then 7 buttons to choose day 1.

Day of the week 1 23.0 °C 0 6 12 18 24h Hour

1. Press the PRG button again, press to choose the hour, to choose comfort

mode and then repeat for the entire 24 hours.

1. After 30 seconds without action, the setting is saved.

4. Temperature setting

In comfort modes, or pilot P or Eco (excluding anti-freeze mode), press or to select the desired set temperature. The temperature range for comfort mode and pilot mode is between 5°C and 29°C and for Eco mode is between 1.5°C and 25.5°C. The temperature difference between the ECO mode and the COMFORT mode is 3.5°C. Each time you press the buttons to adjust the temperature, you increase or decrease the temperature by 0.5°C. Press

any other button except / to finish the setting, otherwise after 5 seconds without action

the setting is saved. When the room temperature is higher than the selected temperature, the heater will stop heating.

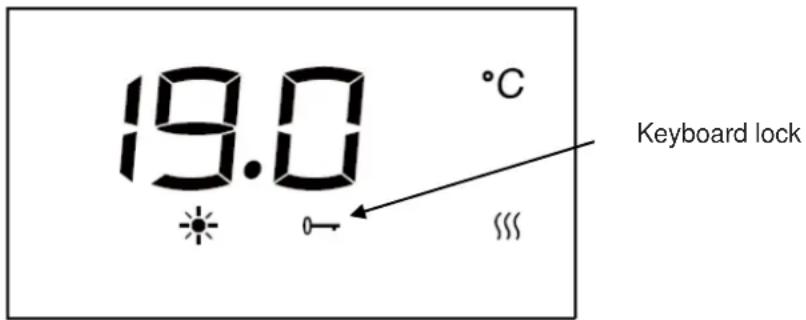

5. Keyboard lock

Press M button for three seconds to activate the keyboard lock function, in order to unlock, press M again for three seconds.

19.0 °C Keyboard lock ###

Remarks:

1. The keyboard lock function doesn't lock the standby ⏻ button.
2. The keyboard lock function will automatically be deactivated under below circumstances.
   1) the appliance is put into standby mode by pressing standby ⏻ button.
   2) the appliance suffers power disconnection.
   You need to set again by pressing M for 3 seconds if you need this function.

6. Window detector function

Press 📄 to enter window detector function. Then press “/” to choose “ON” or “OFF”. If “ON” is selected, the window detection function is activated and 📄 icon will show on the screen. When temperature decrease detected, the appliance will automatically enter anti-freeze mode with 📄 icon flashing. If temperature rises up, the appliance will go back to previous mode with 📄 icon on. You can choose “OFF” to inactivate the window detection function. Remarks: the window detector function is not available under anti-freeze mode.

7. In case of power failure

All the above settings for temperature, time, the date of week and the programs remain valid until the electric power is not cut.

In case of power failure, the device keeps in memory only the parameters, temperature and operating mode. When power is restored, the clock must be set again to operate the various programs correctly.

TECHNICAL CHARACTERISTICS

Model / Ref	HT10PMB1/ OCEAISH1000W3	HT15PMB1 / OCEAISH1500W3	HT20PMB1 / OCEAISH2000W3
Nominal voltage	230 V ~	230 V ~	230 V ~
Rated frequency	50 Hz	50 Hz	50 Hz
Nominal power	1000 W	1500 W	2000 W
Class	II	II	II
IP	IPX4	IPX4	IPX4
Pilot wire	6 orders	6 orders	6 orders

Model identifier(s): HT10PMB1 (Ref: OCEAISH1000W3)
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	0,8	kW		manual heat charge control, with integrated thermostat	NA
Minimum heat output (indicative)	Pmin	NA	kW		manual heat charge control with room and/or outdoor temperature feedback	NA
Maximum continuous heat output	Pmax,c	0,8	kW		electronic heat charge control with room and/or outdoor temperature feedback	NA
Auxiliary electricity consumption					fan assisted heat output	NA
At nominal heat output	elmax	0	kW		Type of heat output/room temperature control (select one)
At minimum heat output	elmin	0	kW		single stage heat output and no room temperature control	[no]
In standby mode	elsB	0	kW		Two or more manual stages, no room temperature control	[no]
					with mechanic thermostat room temperature control	[no]
					with electronic room temperature control	[no]
					electronic room temperature control plus day timer	[no]
					electronic room temperature control plus week timer	[yes]
					Other control options (multiple selections possible)
					room temperature control, with	[no]
					presence detection
					room temperature control, with open window detection	[yes]
					with distance control option	[no]
					with adaptive start control	[no]
					with working time limitation	[no]
					with black bulb sensor	[no]
Contact details	OCEANIC120-126 quai de BacalanCS 1158433000 BORDEAUX

Model identifier(s): HT15PMB1 (Ref: OCEAISH1500W3)
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	1,1	kW		manual heat charge control, with integrated thermostat	NA
Minimum heat output (indicative)	P_min	NA	kW		manual heat charge control with room and/or outdoor temperature feedback	NA
Maximum continuous heat output	Pmax,c	1,1	kW		electronic heat charge control with room and/or outdoor temperature feedback	NA
Auxiliary electricity consumption					fan assisted heat output	NA
At nominal heat output	el_max	0	kW		Type of heat output/room temperature control (select one)
At minimum heat output	el_min	0	kW		single stage heat output and no room temperature control	[no]
In standby mode	el_SB	0	kW		Two or more manual stages, no room temperature control	[no]
					with mechanic thermostat room temperature control	[no]
					with electronic room temperature control	[no]
					electronic room temperature control plus day timer	[no]
					electronic room temperature control plus week timer	[yes]
					Other control options (multiple selections possible)
					room temperature control, with	[no]
					presence detection
					room temperature control, with open window detection	[yes]
					with distance control option	[no]
					with adaptive start control	[no]
					with working time limitation	[no]
					with black bulb sensor	[no]
Contact details	OCEANIC120-126 quai de BacalanCS 1158433000 BORDEAUX

Model identifier(s): HT20PMB1 (Ref: OCEAISH2000W3)
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	1,5	kW		manual heat charge control, with integrated thermostat	NA
Minimum heat output (indicative)	P_min	NA	kW		manual heat charge control with room and/or outdoor temperature feedback	NA
Maximum continuous heat output	Pmax,c	1,5	kW		electronic heat charge control with room and/or outdoor temperature feedback	NA
Auxiliary electricity consumption					fan assisted heat output	NA
At nominal heat output	eI_max	0	kW		Type of heat output/room temperature control (select one)
At minimum heat output	eI_min	0	kW		single stage heat output and no room temperature control	[no]
In standby mode	eI_SB	0	kW		Two or more manual stages, no room temperature control	[no]
					with mechanic thermostat room temperature control	[no]
					with electronic room temperature control	[no]
					electronic room temperature control plus day timer	[no]
					electronic room temperature control plus week timer	[yes]
					Other control options (multiple selections possible)
					room temperature control, with	[no]
					presence detection
					room temperature control, with open window detection	[yes]
					with distance control option	[no]
					with adaptive start control	[no]
					with working time limitation	[no]
					with black bulb sensor	[no]
Contact details	OCEANIC120-126 quai de BacalanCS 1158433000 BORDEAUX

IN CASE OF PROBLEMS

Problem	Solution
The appliance does not heat	Ensure that the circuit breakers are switched on the installation, or the shedder did not cut the power supply (if the installation has one).
	Select the COMFORT mode.
	Increase the temperature setting.
The device heats permanently	Ensure that the device is not in a draft.
	Reduce the temperature setting.

CARE AND CLEANING

1. Before cleaning the appliance, switch off the appliance supply and wait until it is completely cooled.
2. Use a damp cloth to clean the housing of the device.
3. Clean grilles and air outlet regularly. Never immerse the appliance in water or allow water to

ENVIRONMENTAL PROTECTION

This symbol is known as the 'Crossed-out Wheelie Bin Symbol'. When this symbol is marked on a product or battery, it means that it should not be disposed of with your general household waste. Some chemicals contained within electrical/electronic products or batteries can be harmful to health and the environment. Only dispose of electrical/electronic/battery items in separate collection schemes, which cater for the recovery and recycling of materials contained within. Your co-operation is vital to ensure the success of these schemes and for the protection of the environment.

Oceanic

120-126 Quai de Bacalan

CS 11584

33000 Bordeaux

IMPORTED BY :

A.M.C.

123, QUAI JULES GUESDE

94400 VITRY SUR SEINE

France

oceanic

www.oceanic.eu
