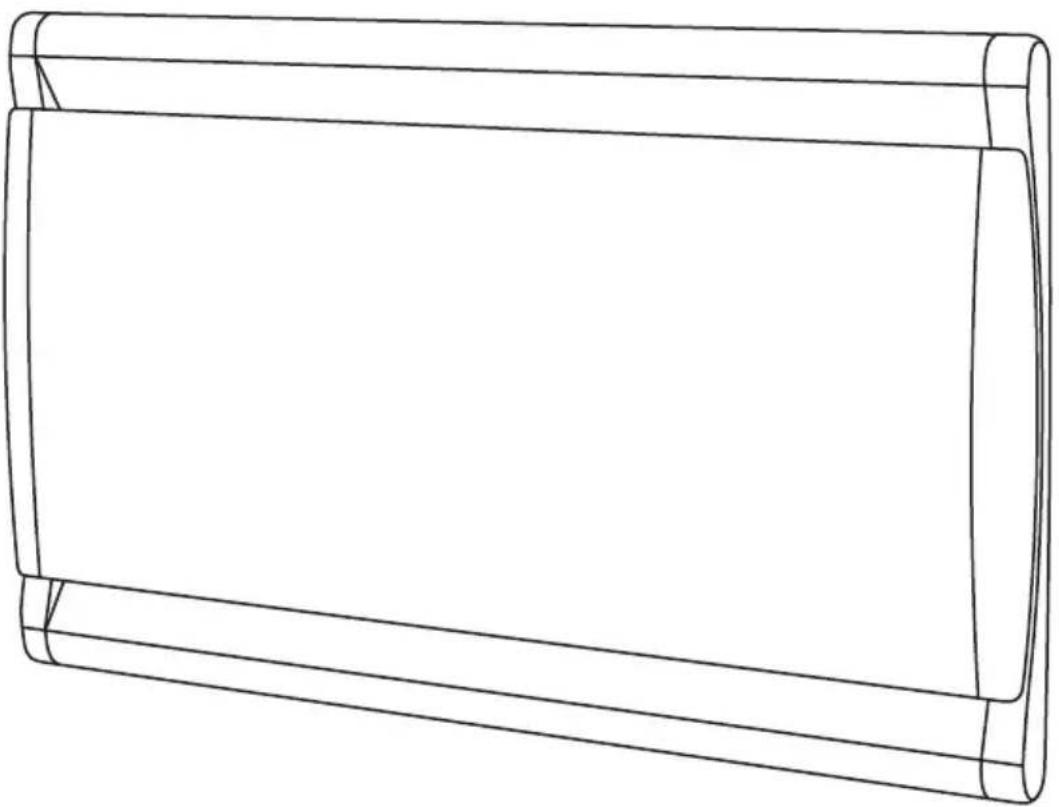

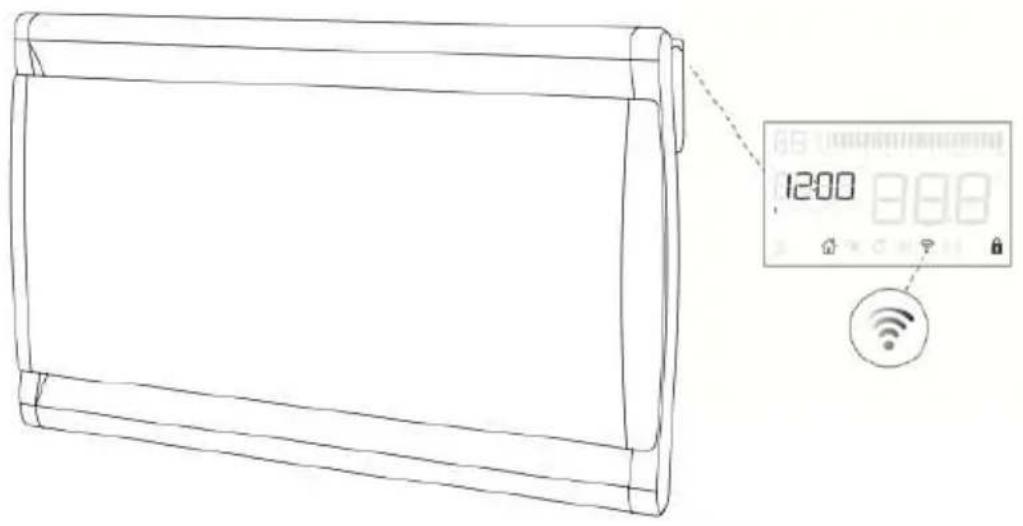

Ceramic Panel Heater

Line drawing of a rolled-up document or scroll (no text or symbols)

OCEAISHC1000W / OCEAISHC1500W / OCEAISHC2000W

oceanic

- Phase: Marron- Neutre: Bleu

- Fil pilote: Noir

Réf: OCEAISHC1000W / OCEAISHC1500W / OCEAISHC2000W

Ø10mm H L

Modèle	H/mm	L/mm
OCEAISHC1000W	130	176
OCEAISHC1500W	130	326
OCEAISHC2000W	130	496

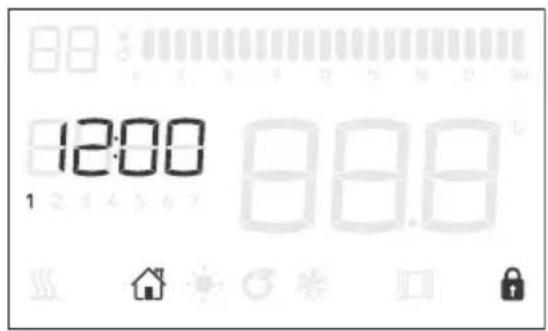

12:00 15.5°C

Hors Gel Veille 12:00 87.0°C 1

88 12:00 88.8 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88

Important safety requirements

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children of less than 3 years should be kept away unless continuously supervised.

- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- CAUTION - Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- CAUTION: In order to avoid a hazard due to inadvertent

resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

- The heater must not be located immediately below a socket-outlet.

- Means for disconnection having a contact separation in all poles must be incorporated in the fixed wiring in accordance with the wiring rules.

- For correct installation on the wall, thanks to refer to ‘Installation on wall’ part.

- Fixed heaters are to be installed so that switches and other controls cannot be touched by a person in the bath or shower.

- Connect the two conductors and the pilot wire of the supply cord to a connection box in respecting the following polarities:- Live: Brown- Neutral: Blue

- Pilot wire: Black

- WARNING: In order to avoid overheating, do not cover the heater.

Warning: this product shall be installed in the volume 2 or hors volume only according to the national wiring rules (For France NF C 15-100)

Note: The below drawing is for reference only.

We suggest you to contact a professional electrician for assistance.

In the case as of buildings room, a room receiving a bath or a shower and socket-outlets lower or equal to 32 A the

circuit corresponding must be protected by a device with differential residual current (RCD) lower or equal to 30 mA.

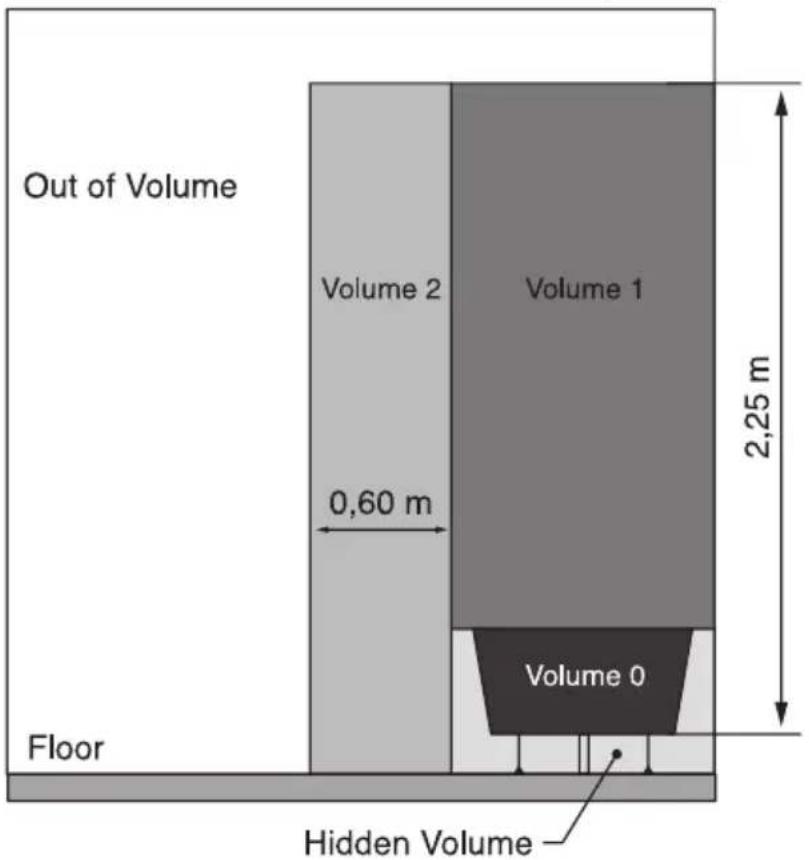

Out of Volume Volume 2 Volume 1 0,60 m 2,25 m Volume 0 Floor Hidden Volume

Reference No: OCEAISHC1000W / OCEAISHC1500W / OCEAISHC2000W

Model: EPC05-10RW / EPC05-15RW / EPC05-20RW

Operating Frequency transmitting power: <100mW

Operating Frequency: 802.11b, 802.11g and 802.11n (HT20):2412MHz\~2472MHz

The undersigned, OCEANIC, declares that the radio equipment of the type Electric heating ref. OCEAISHC1000W, OCEAISHC1500W, OCEAISHC2000W complies with Directive 2014/53 / EU. The full text of the EU declaration of conformity is available at the following internet address: www.oceanic.eu.

II. Technical description

• Digital LCD screen
  ● Temperature adjustment via digital display
• Clock
  ● Weekly calendar

- 2 modes of use:

o Manual
o Automatic with weekly presetting

• 24h timer, custom setting.
• 7 different daily presets
• 6 orders pilot wire

● Frost protection function (Maintains temperature at 7^ C)

Model	Power	Voltage / Frequency	Class	IP Class
OCEAISHC1000W	1000W	230V ~ 50Hz	Class II	IP24
OCEAISHC1500W	1500W	230V ~ 50Hz	Class II	IP24
OCEAISHC2000W	2000W	230V ~ 50Hz	Class II	IP24

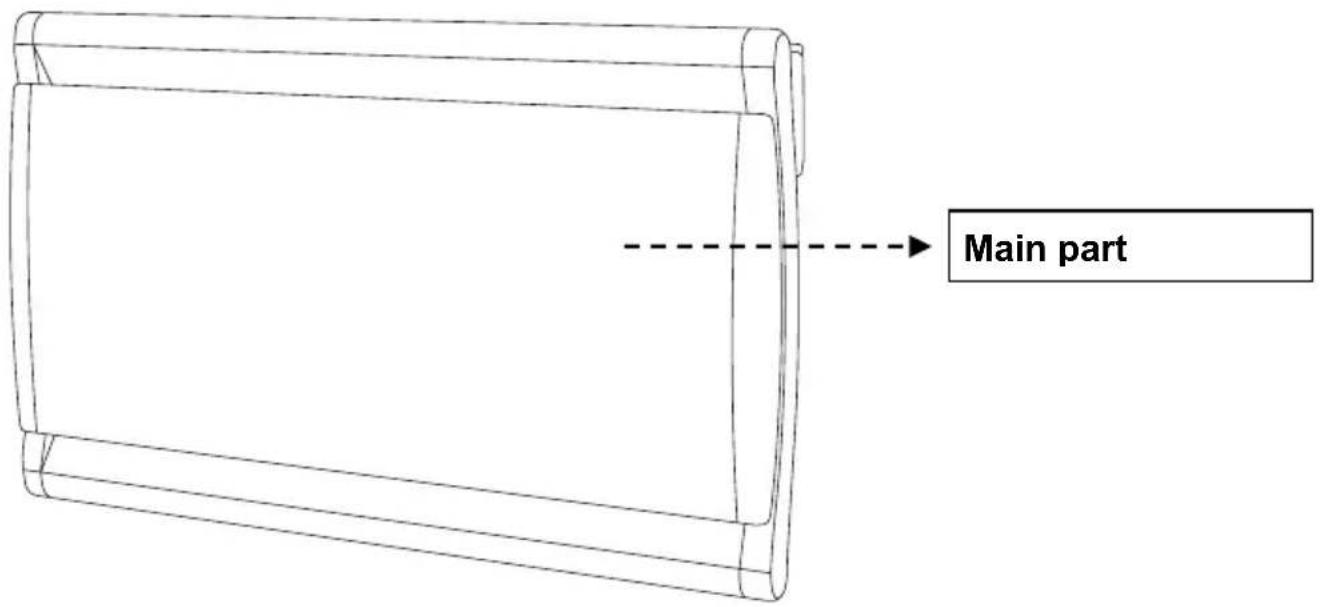

Main part

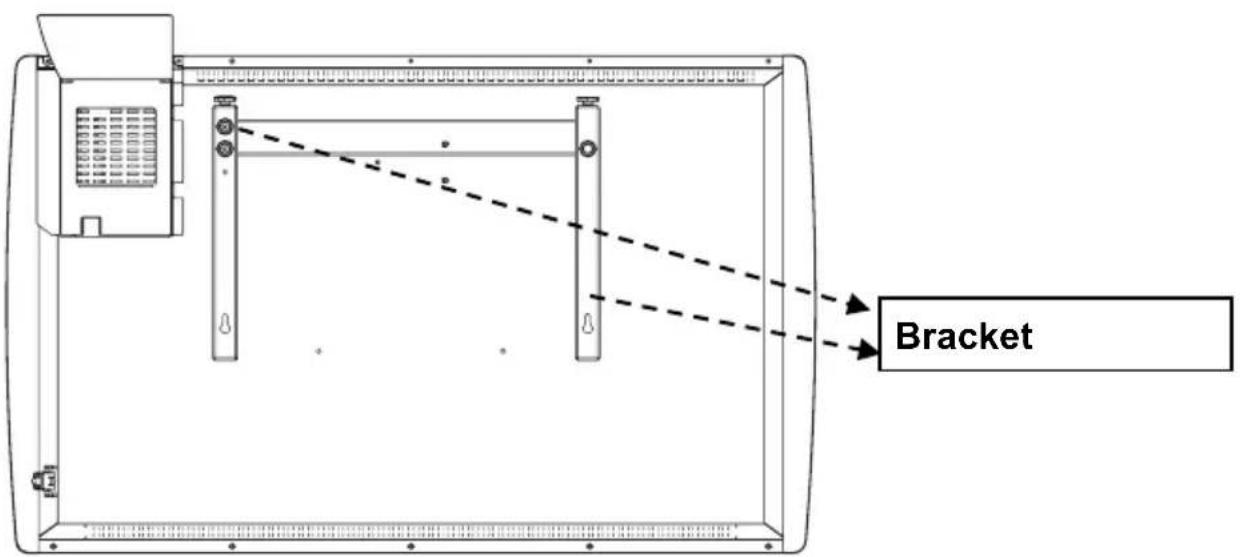

Bracket

III. Installation

Determine the appropriate location:

The appliance must only be used and installed in a fixed position in accordance with NFC 15-100.

The installation must be carried out by a qualified electrician, to avoid any danger.

• Important! Make sure there are no electrical wiring or other installations (eg water pipe) near the locations where holes will be drilled. Be sure to fix the unit vertically and firmly to the wall.
• Installation and interior use only.
• The appliance must not be placed directly under a power outlet.

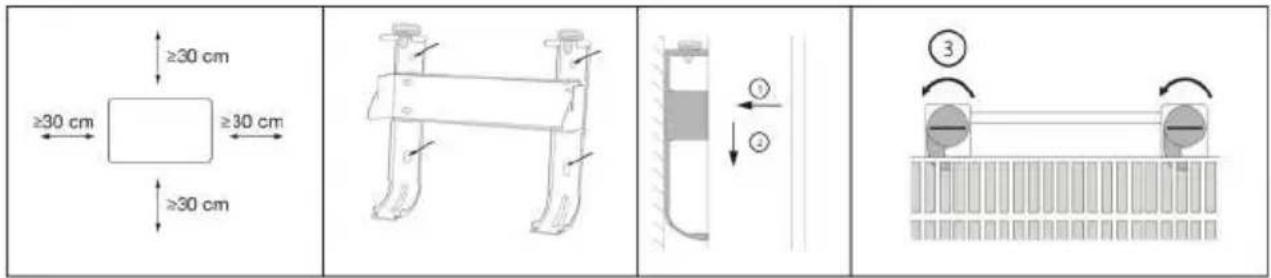

• Respect the minimum distances between the appliance and the walls, the floor, the furniture, curtains, etc.

≥30 cm ≥30 cm ≥30 cm ≥30 cm ① ② ③

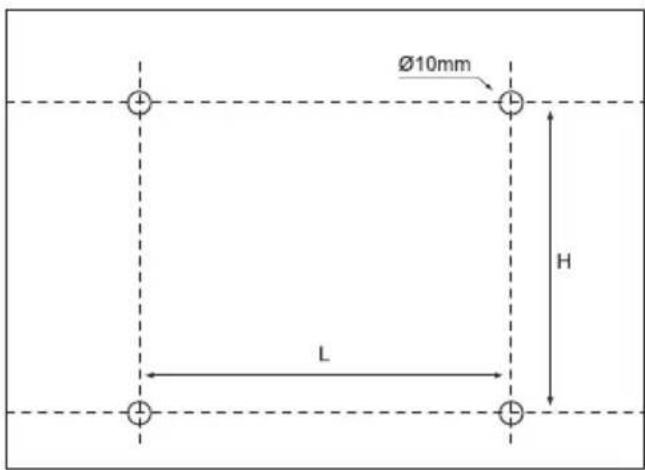

1) Drill holes on the wall according to the instruction inside the box.

Warning: Be sure to keep the safety distances as shown on the above drawing.

Ø10mm H L

Model	H/mm	L/mm
OCEAISHC1000W	130	176
OCEAISHC1500W	130	326
OCEAISHC2000W	130	496

2) Fit the fasten tube in the hole and fit the bracket on the wall with screws
3) Hang the unit on the bracket gently, after ensuring the unit is right fixed, turn the lock in the bracket as picture show.

Warning: Before using the heater, make sure it's mounted tightly on the wall.

IV. How to use

1) Control panel and screen.

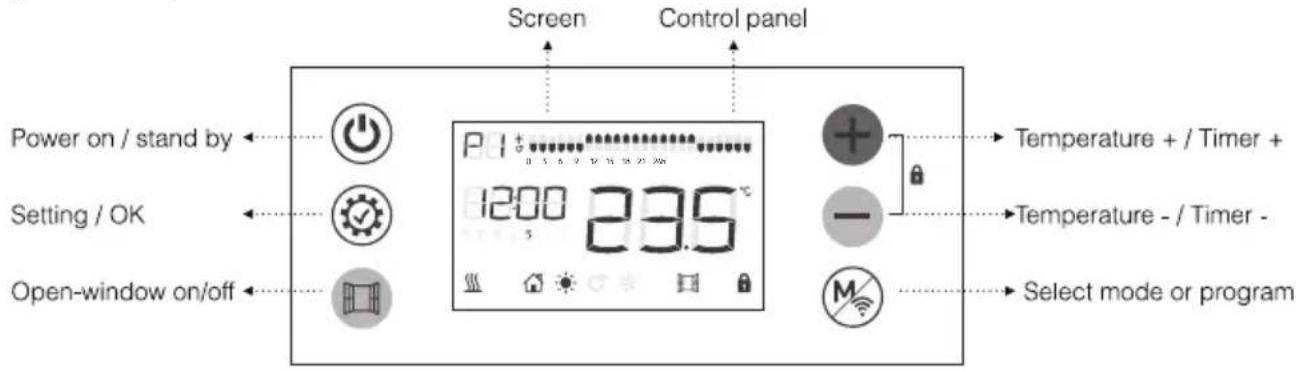

Screen Control panel Power on / stand by Setting / OK Open-window on/off 1200 23.5 °C Temperature + / Timer + Temperature - / Timer - Select mode or program

6 Button:

Power on /stand by

Increasing; Keep pressing for quick increasing; Forward the hour in 24 hour am setting.

Decreasing; Keep pressing for quick decreasing; Backward the hour in 24 hour am setting.

This button is used to select different operating modes or different settings /sing this button for 5 seconds resets the WIFI settings of the device as originally.

Setting / OK

Open-window on/off

2) Quick start

Press ⏻ to turn on the screen, the equipment will work under COMFORT mode, press + - to set the desired temperature.

3) Clock setting:

For first using of program, the clock will required setting before use the P1/P2/P3, only when the clock setting is finished, the program can work.

When in clock setting, the hour will twinkle first, press +/- to set the right time (0-23) and press ⏻ to get into minute setting, press +/- to set the right time (0-59) and press ⏻ to get into date setting, press +/- to set the date from 1-7, press ⏻ to finish the date setting.

Clock modification: Long press 3 seconds to modify the clock.

4) Function setting:

Press Ⓜ to choose the mode or

1.

the program;

1. Press Ⓤ to choose the temperature.

Different modes and preprogrammed programs

Comfort mode: Setting temp. from 5°C to 35°C

ECO mode: Setting temp. from 1.5^ C to 31.5^ C ; 3.5^ C less than comfort, when you set up the temp. of comfort mode.

The ECO and COMFORT mode temperatures are linked. Changing one of them causes the other to change automatically. The ECO mode temperature is always 3.5^ lower than that of the COMFORT mode.

Anti-frost mode: Setting 7°C for room temp; Cannot change the temp.

Program factory presetting:

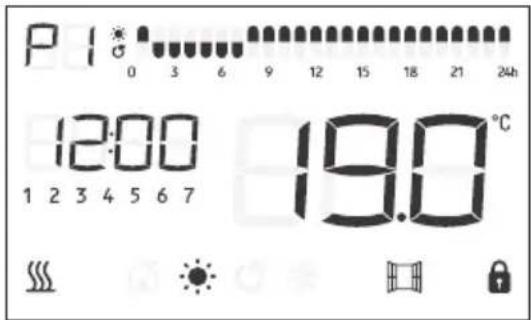

P1: Same program from Monday to Sunday, custom can modify the program.

P 0 3 6 9 12 15 18 21 24h 12:00 1 2 3 4 5 6 7 19.0°C

P2: Same program from Monday to Friday and same program from Saturday to Sunday.

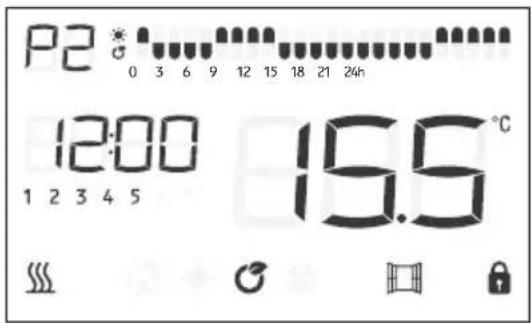

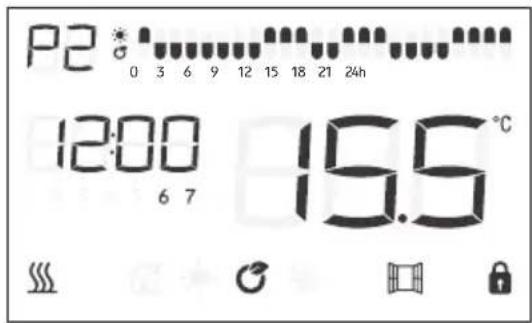

P2 0 3 6 9 12 15 18 21 24h 12:00 1 2 3 4 5 15.5°C S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S

Working day

P2 0 3 6 9 12 15 18 21 24h 12:00 6 7 15.5°C ###

Weekend

P3: Can set different program for each day.

Factory presetting is with same program from Monday to Friday, same program from Saturday to Sunday.

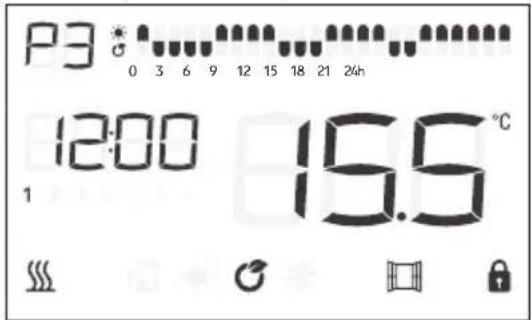

P3 0 3 6 9 12 15 18 21 24h 12:00 15.5 °C 1

Working day

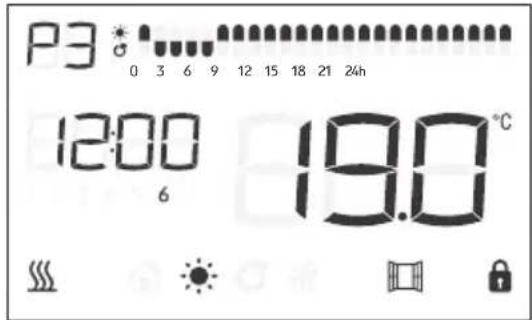

P3 0 3 6 9 12 15 18 21 24h 12:00 6 19.0°C

Weekend

5. Program modification P1

- When under program P1 , press Ⓤ once, the symbol P1 and the symbol first hour 0 start flashing.

- Press M to choose the operating mode of the corresponding time:

EN

• Means Mode Confort;
• Means Mode Eco;
• means Anti-frost mode ;

Once your choice is pressed ═ to go to the next time. If you made a mistake you can return to the previous time setting by pressing ⏊.

- Once 24h customization is complete, press ⏻ to confirm the setting and exit the menu.

6. Program modification P2

• When under program P2, press ⚙ once, the symbol P2 and the symbol first hour 0 start flashing.
  • The first 5 days of the week 1 2 3 4 5 are displayed on the screen. You are adjusting the program for the days of the week from Monday to Friday.

• Press M to choose the operating mode of the corresponding time:

• Means Mode Confort;

• Means Mode Eco;
• means Anti-frost mode ;

- Once your choice is pressed ╙ to go to the next time. If you made a mistake you can return to the previous time setting by pressing ⏚.

• Once 24h customization is complete, press ⏻ to confirm the setting and exit the menu.
  • The last 2 days of the week 67 are displayed on the screen, You are adjusting the program for the weekend Saturday and Sunday.

• Press M to choose the operating mode of the corresponding time:

• Means Mode Confort;

• Means Mode Eco;

- means Anti-frost mode ;

• Once your choice is pressed ╙ to go to the next time. If you made a mistake you can return to the previous time setting by pressing ⏚.
• Once 24h customization is complete, press Ⓞ to confirm the setting and exit the menu.

7. Program modification P3

- When under program P3, press ⏱ once, the symbol P3 and the symbol

first hour 0 start flashing.

• The first day of the week is displayed on the screen. You are adjusting the program for the first day of the week Monday.

• Press Ⓜ to choose the operating mode of the corresponding time:

• Means Mode Confort;

• Means Mode Eco;
• means Anti-frost mode ;

Once your choice is pressed ╗ to go to the next time. If you made a mistake you can return to the previous time setting by pressing ⏊.

Once the 24h customization is complete, press hours and move to the next day setting.

2 is displayed on the screen, corresponding to Tuesday. Perform the same operation as before to set the modes for each hour of the day.

Once the 24h personalization is completed, press ⏻ to confirm the setting of the hours and move to the next day setting so on until you have your choice pressed ⚠ to go to the next time. If you made a mistake you can return to the previous time setting by pressing ⏱

Once you have finished customizing the 24h, press 📋 to confirm the setting and exit the menu.

NOTE: the block against the clock will twinkle when the block against the program is working.

8. Pilot mode:

In this mode, the heater will be controlled by pilot wire. Client can only change the temperature and open-window on/off.

Comfort

12:00 19.0°C

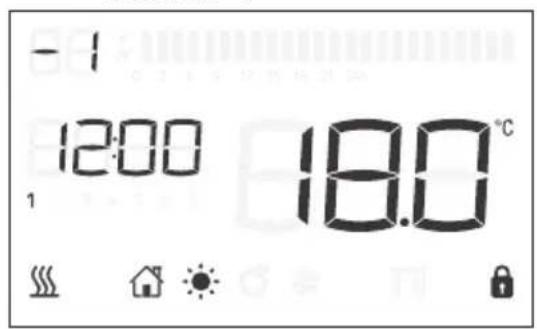

Comfort -1

- 1 12:00 18.0°C 1

Comfort -2
ECO

-2 12:00 17.0°C 1

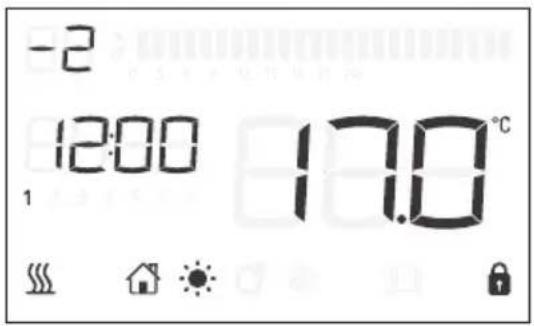

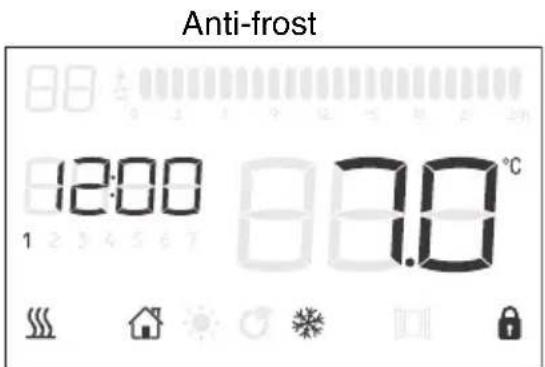

Anti-frost 12:00 8.7.0 °C 1 2 3 4 5 6 7

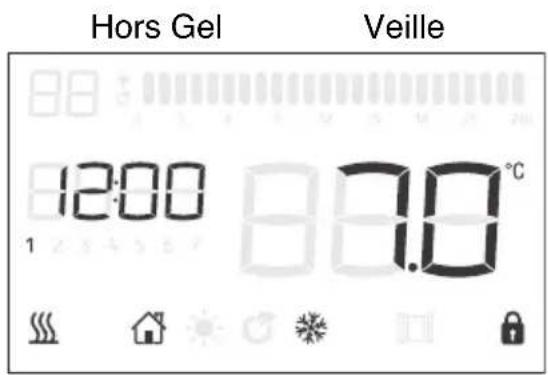

Stand-by

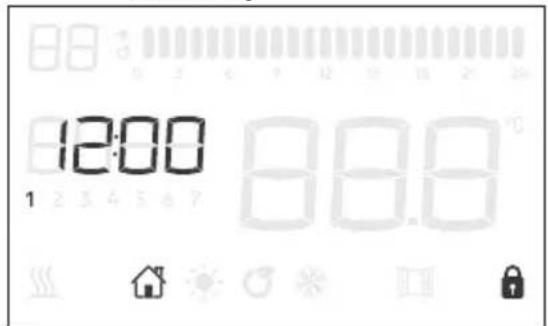

88 12:00 1 2 3 4 5 6 7 88.8 88.8 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7 2 3 4 5 6 7 2 3 4 5 6 7 2 3 4 5 6 7 2 3 4 5 6 7 2 3 4 5 6 7 2 3 4 5 6 7 2 3 4 5 6 7 2 3 4 5 6 7 2 3

NOTE: When in Comfor-1 or Confort-2, the temperature can't get set.

9. Windows detector function:

Press ☐ to turn on/off the windows function, when the logo display in the screen, it means window function is on. If temperature goes down 2°C in 2 minutes, heater will stop working and the window logo is twinkling. Press ☐, the heater will go back to former running program, then the windows logo stop twinkling.

10. Screen lock

No operation for 1 min, keyboard lock automatically.

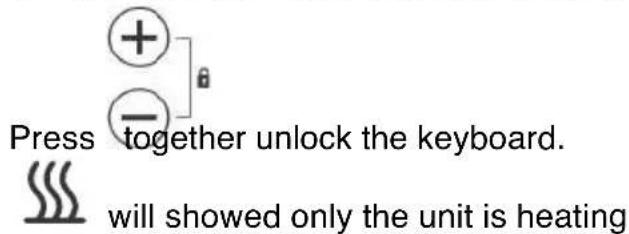

Press together unlock the keyboard. will show only the unit is heating

V. Cleaning & maintenance

- Switch off from the power supply before cleaning.

- Using a soft, moist cloth, with or without a mild soap solution, carefully clean the exterior surface of the product.

- CAUTION: Allow the product to completely cool before handling or cleaning it.

- Do not allow water or other liquids to run into the interior of the product, as this could create a fire and/or electrical hazard.

- We also recommend the periodic cleaning of this appliance by lightly running a vacuum cleaner nozzle over the guards to remove any dust or dirt that may have accumulated inside or on the unit.

- CAUTION: Do not use harsh detergents, chemical cleaners or solvents as they may damage the surface finish of the plastic components.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

OCEANIC

120-126 Quai de Bacalan CS 11584 33000 Bordeaux

IMPORTED BY:

A.M.C.

123, QUAI JULES GUESDE 94400 VITRY SUR SEINE France

LOT#: amc082019

Information requirements for electric local space heaters

Model identifier(s): OCEAISHC1000W
Item Item			Unit			UnitSyr
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	0,6	kW		Manual heat charge control, with integrated thermostat	[no]
Minimum heat output (indicative)	P_min	0	kW		Manual heat charge control with room and/or outdoor temperature feedback	[no]
Maximum continuous heat output	P_max,c	0,6	kW		Electronic heat charge control with room and/or outdoor temperature feedback	[no]
Auxiliary electricity consumption					Fan assisted heat output	[no]
At nominal heat output	el_max	N/A	kW		Type of heat output/room temperature control (select one)
At minimum heat output	el_min	N/A	kW		Single stage heat output and no room temperature control	[no]
In standby mode	el_sb	0.000	kW		Two or more manual stages, no room temperature control	[no]
					With mechanic thermostat room temperature control	[no]
					With electronic room temperature control	[no]
					Electronic room temperature control plus day timer	[no]
					Electronic room temperature control plus week timer	[yes]
					Other control options (multiple selections possible)
					Room temperature control, with presence detection	[no]
					Room temperature control, with open window detection	[yes]
					With distance control option	[yes]
					With adaptive start control	[no]
					With working time limitation	[no]
					With black bulb sensor	[no]
Contact details	OCEANIC 120-126 quai de Bacalan CS 11584 33000 BORDEAUX France IMPORTE PAR A.M.C.

Information requirements for electric local space heaters

Model identifier(s): OCEAISHC1500W
Item Item			Unit			UnitSyr
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	0,9	kW	Manual heat charge control, with integrated thermostat	[no]
Minimum heat output (indicative)	P_min	0	kW	Manual heat charge control with room and/or outdoor temperature feedback	[no]
Maximum continuous heat output	P_max,c	0,9	kW	Electronic heat charge control with room and/or outdoor temperature feedback	[no]
Auxiliary electricity consumption				Fan assisted heat output	[no]
At nominal heat output	el_max	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	el_min	N/A	kW	Single stage heat output and no room temperature control	[no]
In standby mode	el_sb	0.000	kW	Two or more manual stages, no room temperature control	[no]
				With mechanic thermostat room temperature control	[no]
				With electronic room temperature control	[no]
				Electronic room temperature control plus day timer	[no]
				Electronic room temperature control plus week timer	[yes]
				Other control options (multiple selections possible)
				Room temperature control, with presence detection	[no]
				Room temperature control, with open window detection	[yes]
				With distance control option	[yes]
				With adaptive start control	[no]
				With working time limitation	[no]
				With black bulb sensor	[no]
Contact details	OCEANIC 120-126 quai de Bacalan CS 11584 33000 BORDEAUX France IMPORTE PAR A.M.C.
Model identifier(s): OCEAISHC2000W
Item Item			Unit			UnitSyn
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1,2	kW	Manual heat charge control, with integrated thermostat	[no]
Minimum heat output (indicative)	P_min	0	kW	Manual heat charge control with room and/or outdoor temperature feedback	[no]
Maximum continuous heat output	P_max,c	1,2	kW	Electronic heat charge control with room and/or outdoor temperature feedback	[no]
Auxiliary electricity consumption				Fan assisted heat output	[no]
At nominal heat output	el_max	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	el_min	N/A	kW	Single stage heat output and no room temperature control	[no]
In standby mode	el_sb	0.000	kW	Two or more manual stages, no room temperature control	[no]
				With mechanic thermostat room temperature control	[no]
				With electronic room temperature control	[no]
				Electronic room temperature control plus day timer	[no]
				Electronic room temperature control plus week timer	[yes]
				Other control options (multiple selections possible)
				Room temperature control, with presence detection	[no]
				Room temperature control, with open window detection	[yes]
				With distance control option	[yes]
				With adaptive start control	[no]
				With working time limitation	[no]
				With black bulb sensor	[no]
Contact details	OCEANIC120-126 quai de Bacalan CS 11584 33000 BORDEAUX France IMPORTE PAR A.M.C.

1200 888 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5

Download the Oceanic app and create your user name and password.

Sign up

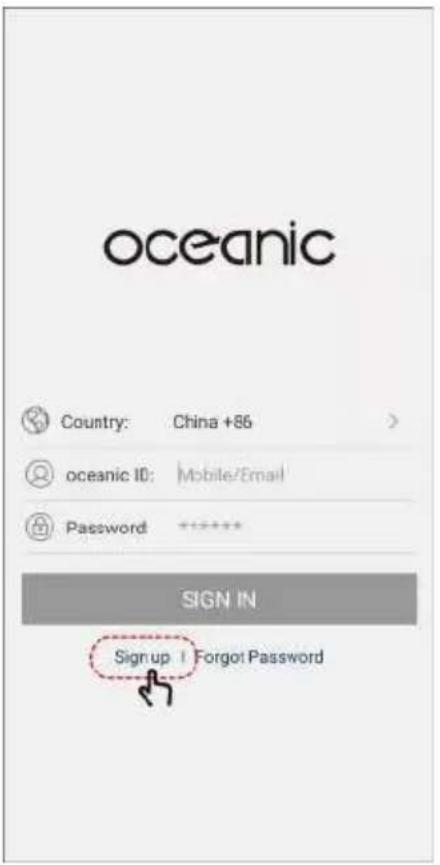

oceanic Country: China +86 oceanic ID: Mobile/Email Password ***** SIGN IN Sign up 1 Forgot Password

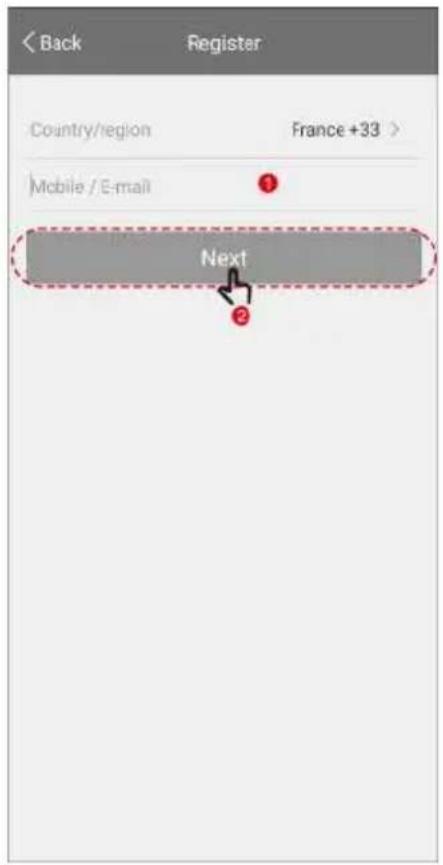

< Back Register Country/region France +33 > Mobile / E-mail Next

E-mail sign up Mobile sign up

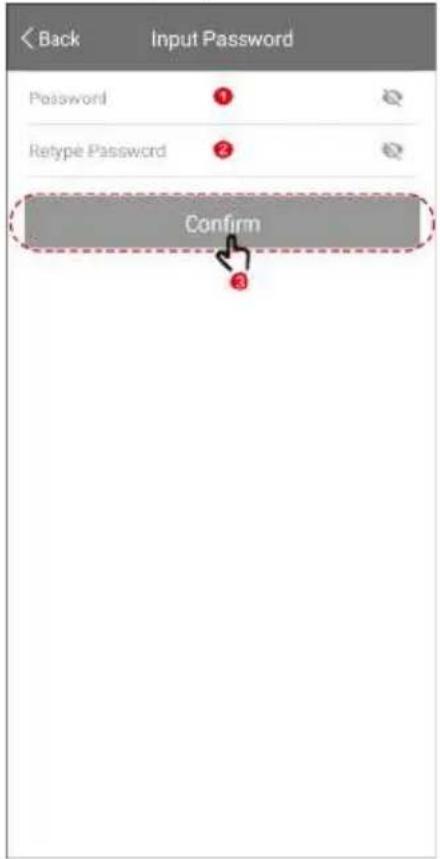

Back Input Password Password ③ Retype Password ② Confirm ③

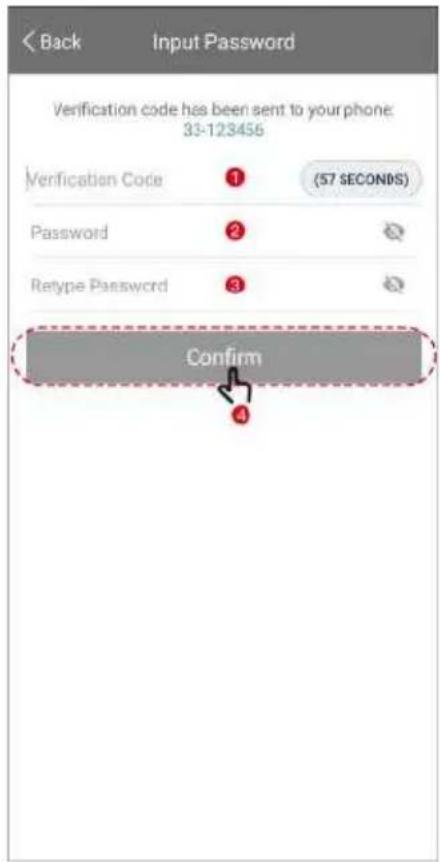

Back Input Password Verification code has been sent to your phone: [phone] Verification Code ① (57 SECONDS) Password ② Retype Password ③ Confirm ④

Connection (Quick connect mode)

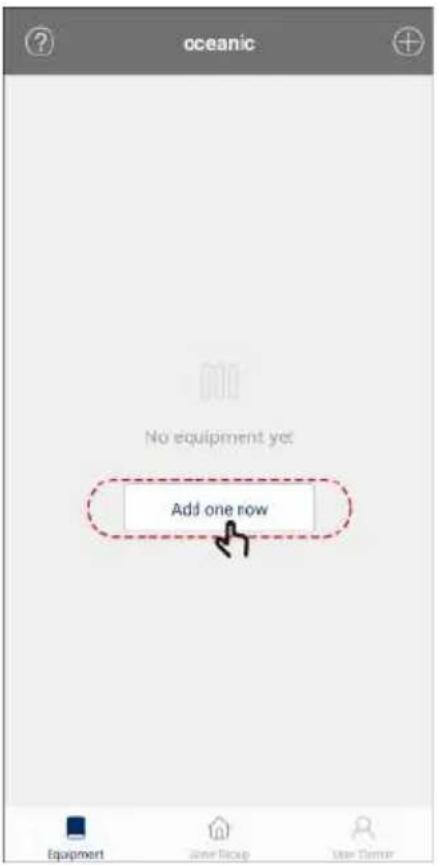

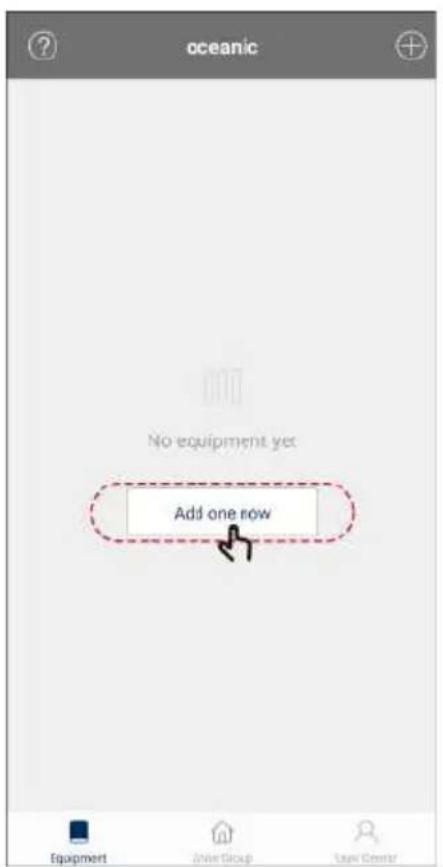

oceanic No equipment yet Add one row Equipment One Group User Demir

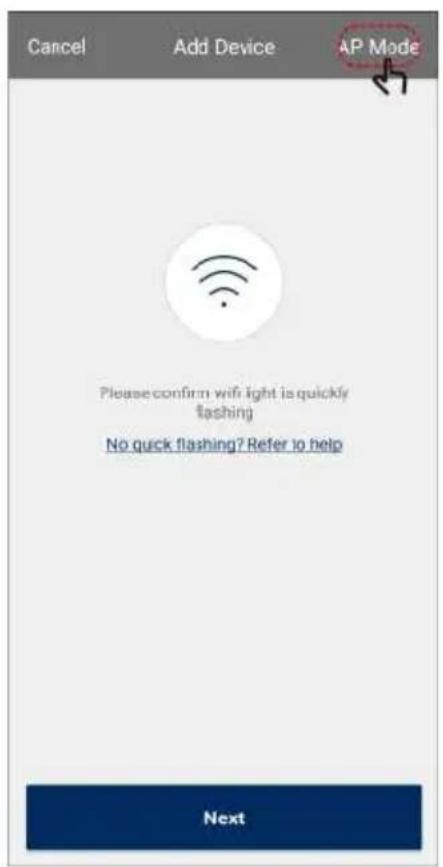

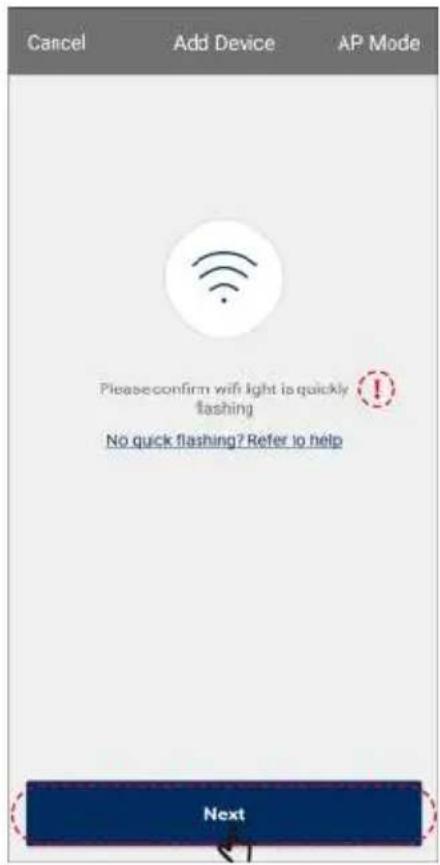

Cancel Add Device AP Mode Please confirm wifi light is quickly flashing No quick flashing? Refer to help Next

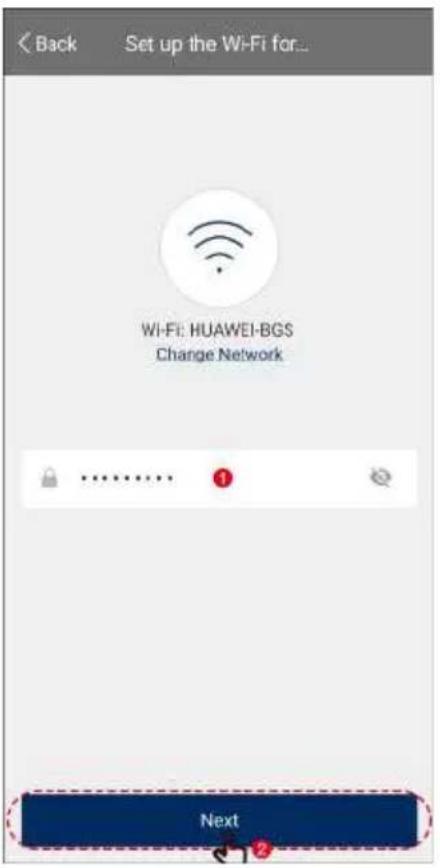

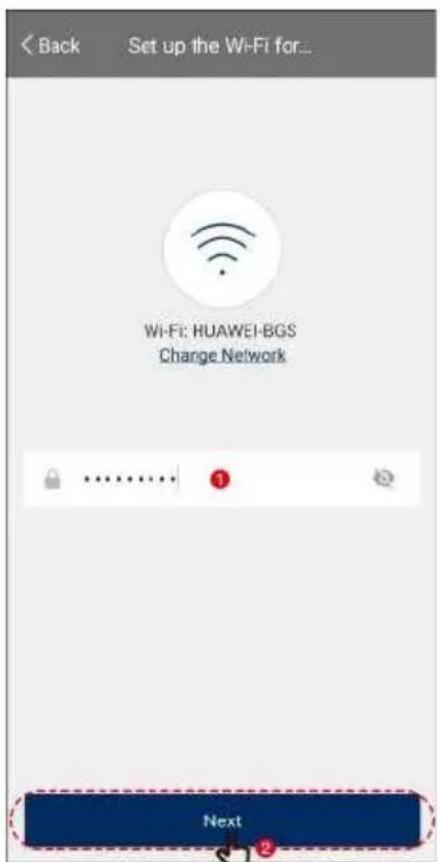

Back Set up the Wi-Fi for... Wi-Fi: HUAWEI-BGS Change Network Next

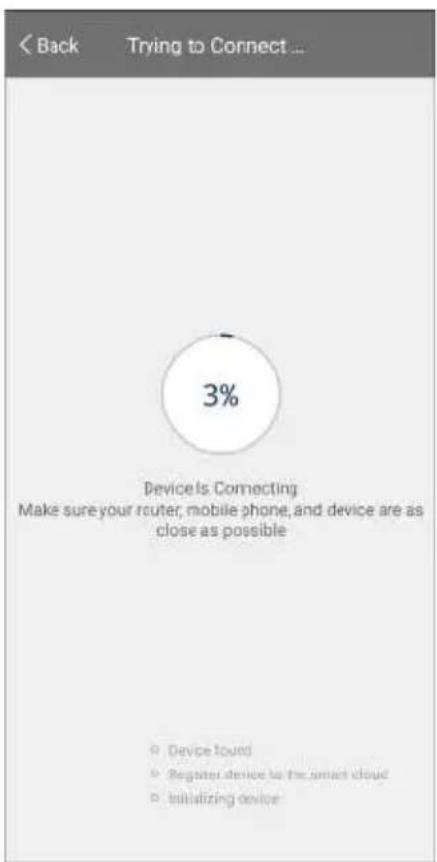

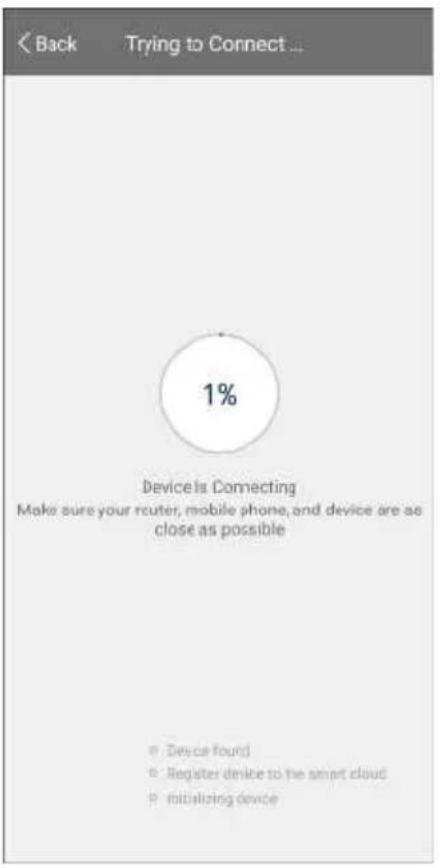

< Back Trying to Connect ... 3% Device Is Connecting Make sure your router, mobile phone, and device are as close as possible • Device found • Register device to the smart cloud • Initializing device

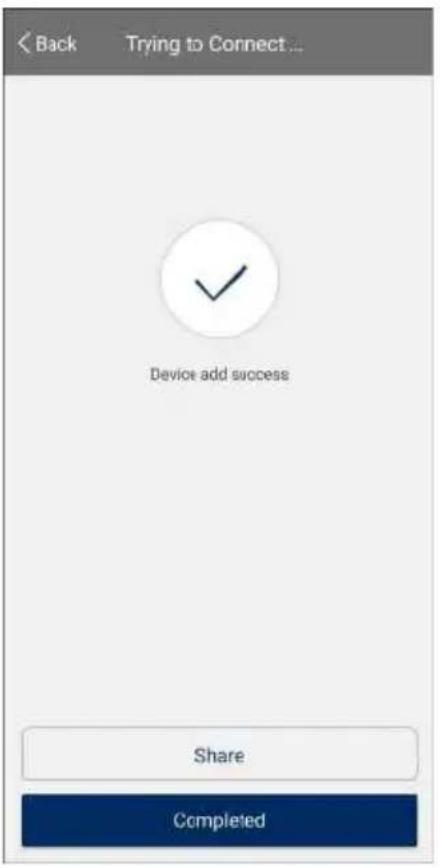

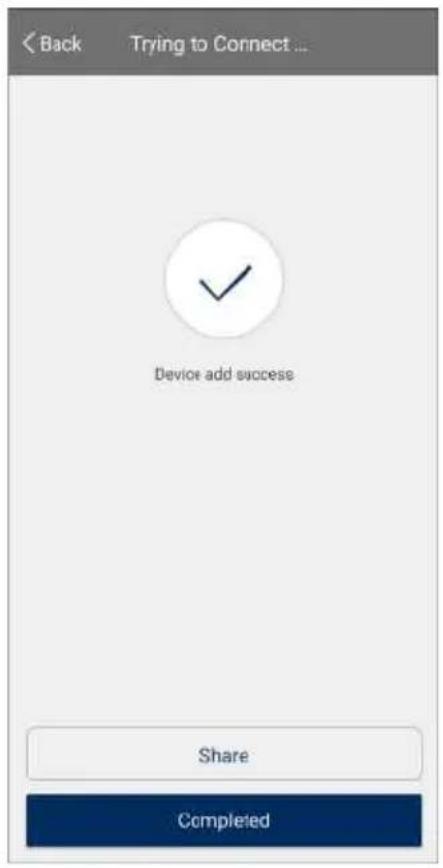

< Back Trying to Connect ... Device add success Share Completed

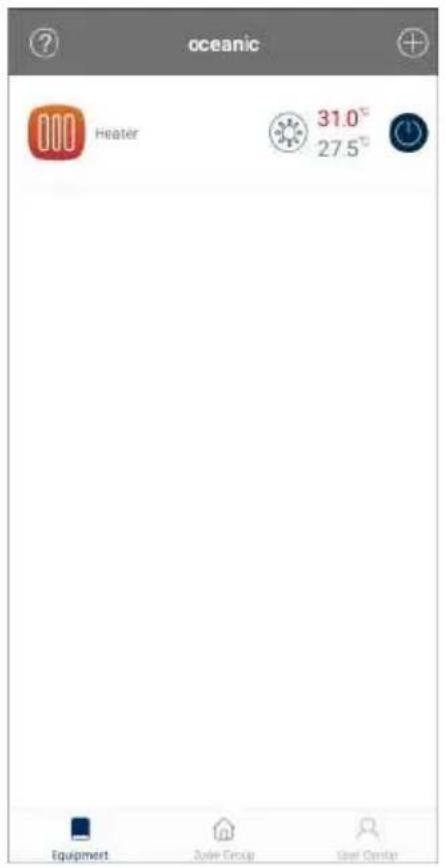

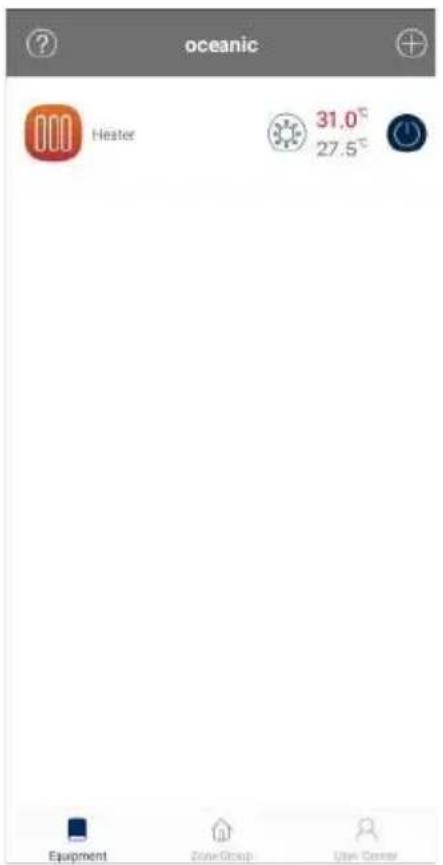

oceanic Heater 31.0°C 27.5°C Equipment Tools Group User Center

Connection (Hotspot mode)

oceanic No equipment yet Add one row Equipment Group Law Center

Cancel Add Device AP Mode Please confirm wifi light is quickly flashing No quick flashing? Refer to help Next

Back Set up the Wi-Fi for... Wi-Fi: HUAWEI-BGS Change Network Next

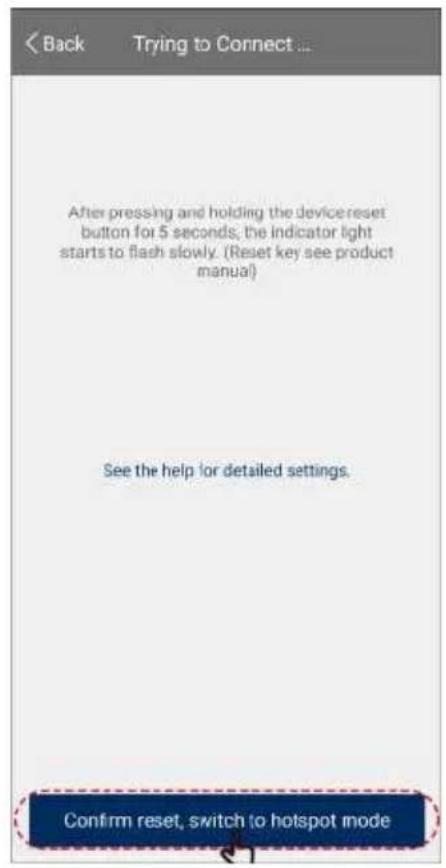

Back Trying to Connect ... After pressing and holding the device reset button for 5 seconds; the indicator light starts to flash slowly. (Reset key see product manual) See the help for detailed settings. Confirm reset, switch to hotspot mode

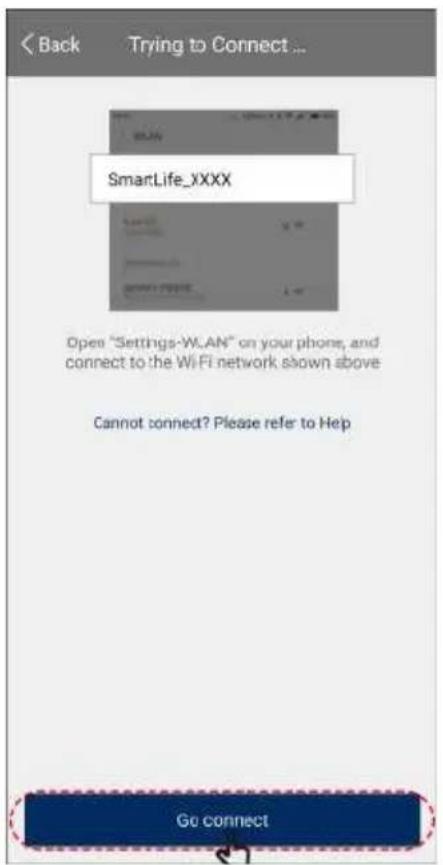

Back Trying to Connect ... SmartLife_XXXX Open "Settings-WLAN" on your phone, and connect to the Wi-Fi network shown above Cannot connect? Please refer to Help Go connect

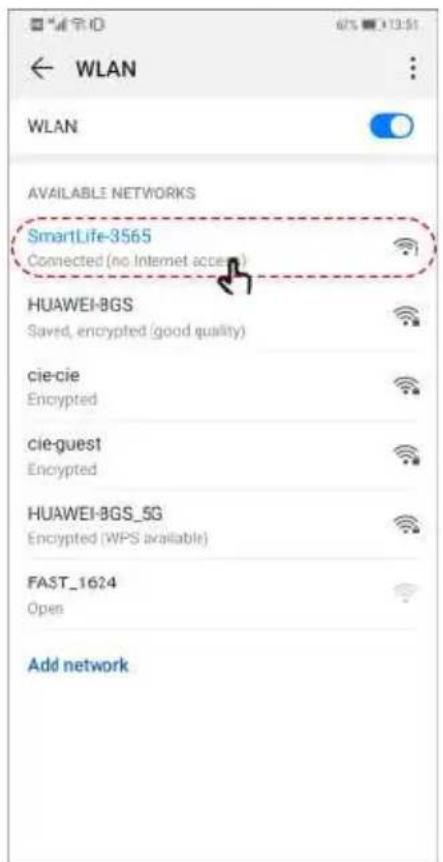

SmartLife-3565 Connected (no Internet access) HUAWEI-BGS Saved, encrypted (good quality) cie-cie Encrypted cie-guest Encrypted HUAWEI-BGS_5G Encrypted (WPS available) FAST_1624 Open Add network

Please go back to "oceanic" APP to continue setting.

< Back Trying to Connect ... 1% Device Is Connecting Make sure your router, mobile phone, and device are as close as possible • Device found • Register device to the smart cloud • Initializing device

Back Trying to Connect ... Device add success Share Completed

oceanic Heater 31.0°C 27.5°C Equipment Zone Group User Center

Connection failure

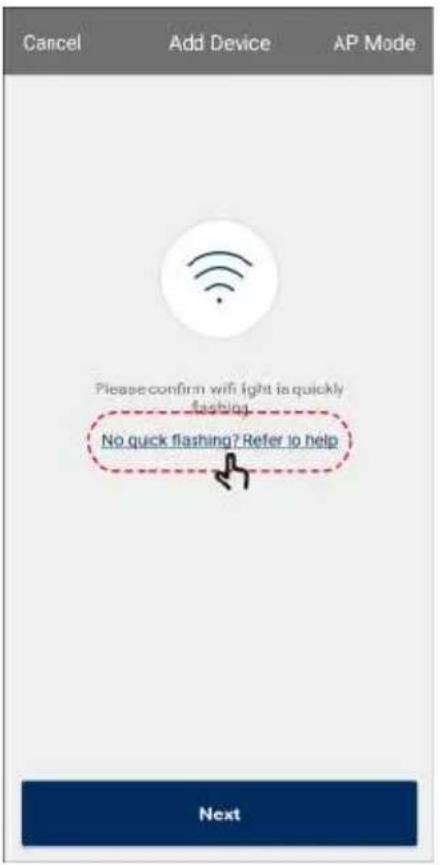

Cancel Add Device AP Mode Please confirm wifi light is quickly flashing No quick flashing? Refer to help Next

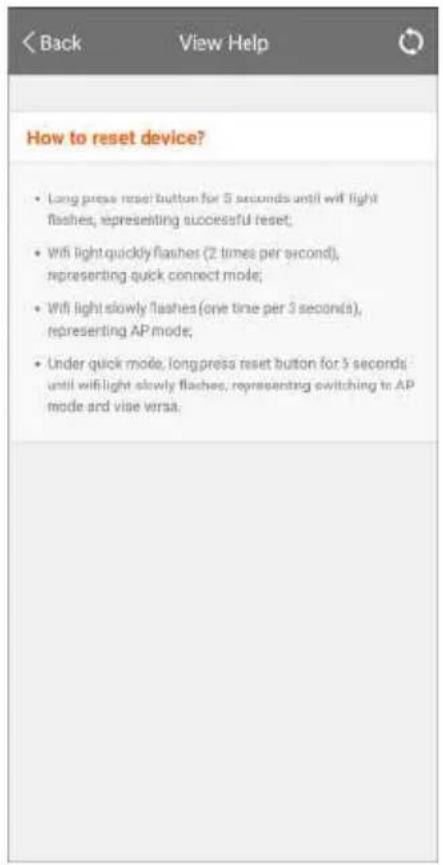

Back View Help How to reset device? • Long press reset button for 5 seconds until wifi light flashes, representing successful reset; • Wifi light quickly flashes (2 times per second), representing quick connect mode; • Wifi light slowly flashes (one time per 5 seconds), representing AP mode; • Under quick mode, long press reset button for 5 seconds, until wifi light slowly flashes, representing switching to AP mode and viase versa.

Help

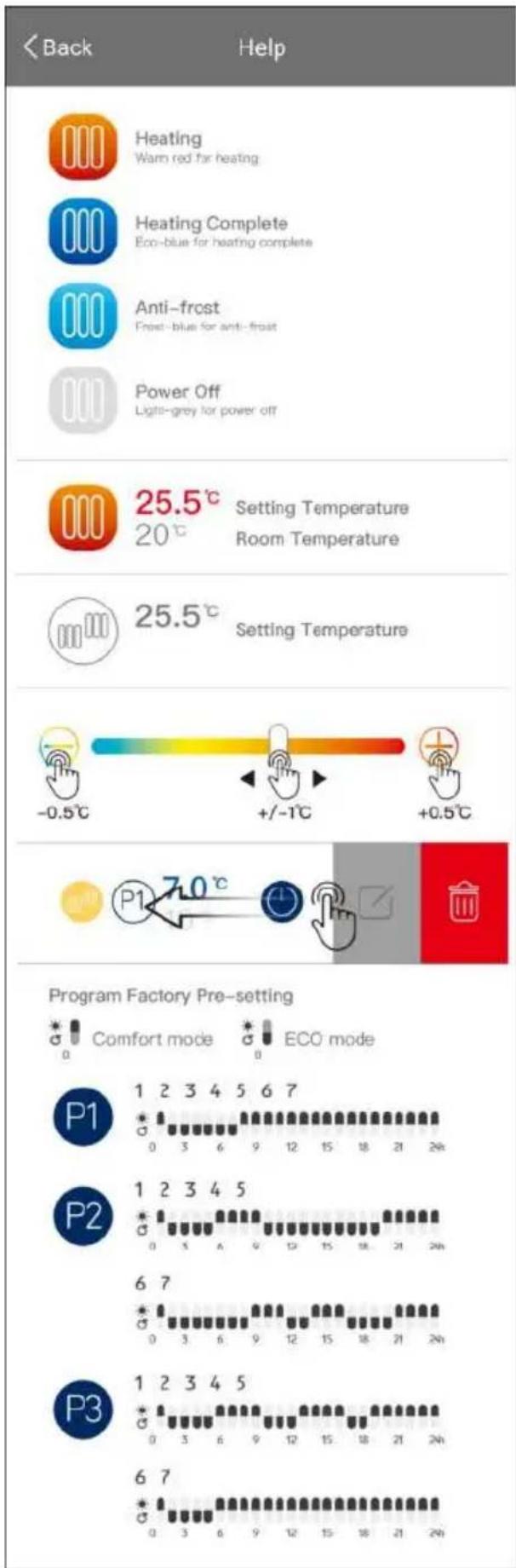

< Back Help Heating Warm red for heating Heating Complete Eco-blue for heating complete Anti-frost Frost-blue for anti-frost Power Off Light-grey for power off 25.5°C Setting Temperature 20°C Room Temperature 25.5°C Setting Temperature -0.5°C +/-1°C +0.5°C P1 7.0°C Program Factory Pre-setting Comfort mode ECO mode P1 1 2 3 4 5 6 7 0 3 6 9 12 15 18 21 24h P2 1 2 3 4 5 0 3 6 9 12 15 18 21 24h 6 7 0 3 6 9 12 15 18 21 24h P3 1 2 3 4 5 0 3 6 9 12 15 18 21 24h 6 7 0 3 6 9 12 15 18 21 24h

oceanic

www.oceanic.eu
