USER MANUAL MP2024W FAR

White rectangular refrigerator with black buttons at the bottom (no visible text or symbols)

MP2024W

MANUEL D'UTILISATION

MP2024W

Installation ....FR-9

Diagram of a refrigerator interior with numbered parts for identification

Close-up of a metallic mechanical component with a dark rectangular base and circular end caps (no visible text or symbols)

ENTRETIEN

DÉGIVRAGE DU RÉFRIGÉRATEUR

Technical line drawing of a mechanical component with an inset showing a circular component inserted into a housing (no text or symbols)

BRUIT DE L'APPAREIL

https://sav-client.conforama.fr

09 69 32 05 05

MISE AU REBUT

Thank you to have chosen the FAR quality. This product has been created by our professional team and according to the European regulation. For a better use of your new device, we recommend you to read carefully this user manual and keep it for record.

TABLE OF CONTENTS

Safety instructions ....GB-2

Description of the device ....GB-7

Installation ....GB-8

Use......GB-8

Reverse door......GB-13

Maintenance ....GB-17

Cleaning ....GB-20

Troubleshooting ....GB-23

Accessories ....GB-24

Technical information GB-25

Disposal ....GB-28

Disposal of old electrical appliances ....GB-28

SAFETY INSTRUCTIONS

• IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
- This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;

- This product is not intended for use in the following applications

- catering and other similar applications and retail

• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• If the refrigerant circuit is damaged:
• Avoid naked flames and sources of ignition.

• Thoroughly ventilate the room in which the appliance is situated.

• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

• WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• Regarding the information for the installation, operation, maintenance and disposal of the device, refer to the following paragraph of the instruction manual.
• Gas warning

WARNING: risk of fire / flammable materials

- To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

WARNINGS

• If you are discarding an old freezer or refrigerator with a lock / catch fitted to the door, ensure that it is left in a disabled condition to prevent the entrapment of young children when playing.
• Please according to local regulations regarding disposal of the appliance for its flammable blowing gas.
• Unplug the appliance from the mains socket when not in operation and before cleaning.
• Remove food before cleaning the appliance.
• Do not insert oversized food as this could cause incorrect operation.
• Extreme caution must be used when moving an appliance.
• To turn the appliance off, turn the thermostat knob fully anticlockwise to OFF, then remove the plug from the mains socket.
• Do not give children ice-cream and water ices direct from the freezer as the low temperature may cause 'freezer burns' on the lips.
• The appliance must be installed on the ground, on a flat, horizontal surface, making sure that the ventilation openings are completely clear.
• This refrigerating appliance is not intended to be used as a built-in appliance.
• In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat. For this reason, sufficient clear space should be available around the refrigerator.

ENGLISHENGLISH

• To save energy, please avoid keeping the door open for a long time when using the appliance.
- Replacing certain parts of your household electrical appliance may lead to a danger. Please ensure that you have the necessary skills and own all tools required to carry out the self-repair operations safely. Otherwise, please contact a qualified professional.
- This refrigerating appliance is not suitable for freezing foodstuffs.
- Regarding the information of the method for replacing illuminating lamps, thanks to refer to the below paragraph of the manual.
- Regarding the details for safe storage of food, installation and maintenance, Please refer to the relevant sections of the manual.

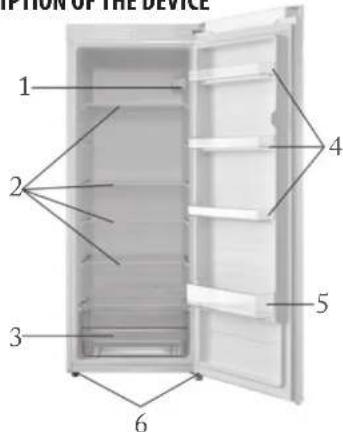

DESCRIPTION OF THE DEVICE

1 2 3 4 5 6

1. Temperature control

2. Adjustable feet

3. Glass shelf

4. Shelf bar

5. Vegetable box

6. Bottle shelf bar

NOTE: The appliance design is subject to change without prior notice.

INSTALLATION

Position the appliance and allow it to stand for two to three hours before it is turned on for the first time to allow the system to settle. Do not position next to any heat source e.g. cooker, boiler or in direct sunlight etc.

Allow at least 10 cm of space at the top and 10 cm of space on both sides of the appliance and between the back of the appliance and the wall for adequate air circulation. The appliance is not designed for recessed installation (“building in”). Install on a good firm level surface, and any unevenness of the floor should be corrected prior to installation, slight unevenness can be overcome by adjusting the front feet.

NOTE: If the appliance is positioned on a carpet, soft floor covering you should readjust the front feet once the appliance has had time to settle.

USE

- Remove all packaging materials from the appliance. Wash the inside of the cabinet with lukewarm water and bicarbonate of soda (5 ml to 0.5 liter of water). Dry the appliance thoroughly.

SETTING THE THERMOSTAT KNOB

The refrigerator is controlled with a thermostat knob located inside the fridge, towards the upper right-hand corner. Turn the knob from the STOP (OFF) position towards the higher number for colder temperatures. The know can be adjusted from setting MIN to MAX.

Changes of the ambient temperature affect temperature in the interior of the appliance so choose a correct setting of the temperature control knob, depending on your ambient conditions.

In the STOP (OFF) position the appliance does not operate (the cooling system is switched off), but power supply is not interrupted.

Set the thermostat knob to a middle position to get 4 to 6°C in the fridge.

Place the food in different compartments according to the following table.

	Type of food
Door or balconies of fridge compartment	· Foods with natural preservatives, such as jams, juices, drinks, condiments. (Use within 1-2 days)Do not store perishable foods.·
Crisper drawer (salad drawer)	Fruits, herbs and vegetables should be placed separately in the crisper bin. (Use within 1-2 days)Do not store bananas, onions, potatoes,garlic in the refrigerator.
Fridge shelf – bottomChiller (box/drawer)	Raw meat, poultry, fish (for short-term storage)
Fridge shelf – middle	Dairy products, eggs (Use within the recommended time)
Fridge shelf – top	Foods that do not need cooking, such as ready-to-cat foods, deli meats, leftovers. (keep for only 1-2 days)

Please Note:

If the appliance is switched off you must wait at least 5 minutes before restarting the appliance or re-inserting the plug into the wall outlet. This is to allow the protection device in the compressor to reset.

If the compressor fails to start correctly remove the plug and wait for 5 minutes before you try again then the compressor should restart normally. The storage temperature may be affected by:

• The room temperature
• How often the door is opened
• How much food is stored
• Position of the appliance

When you set the correct temperature, all these factors mentioned above shall be taken into account.

ENGLISHENGLISH

TEMPERATURE INDICATE

In order to help you get the correct adjustment of your device, it is equipped with a temperature gauge placed in the coldest area.

For the proper storage of food in your refrigerator and in particular in the coldest area, make sure that «OK» appears in the temperature indicator.

The symbol on the left side indicates the location of the coldest area of your refrigerator. It defines the height of this area.

If «OK» is not displayed, the average temperature in this area will be very high. You ought to adjust the thermostat to a colder setting.

For every modification of your thermostat, you are supposed to wait for the stabilization of the temperature inside the unit before proceeding, if necessary, to a new setting. Do change the position of the thermostat gradually and wait at least 12 hours before re-checking.

NOTE: after charging the device for fresh food or after repeated or prolonged door openings,

ENGLISHEN

it is normal that the inscription «OK» does not appear in the temperature indicator.

Wait at least 12 hours before readjusting the thermostat.

ENERGY-SAVING TIPS

Install the fridge in a cool place out of direct sunlight and away from cookers, heaters, dishwashers or any hot air emitting items.

Do not set the temperatures lower than necessary. Set the internal temperature within the correct range e.g. adjust the thermostat at middle position for 4^ C in the fridge compartment.

Let pre-cooked foods cool down before placing them in the fridge. This will prevent the internal temperature of the fridge from rising.

Keep your fridge full, but not over crowded, Try to leave about 20% free space for air circulation.

To prevent cold air escaping, limit the frequency of opening door. When retuning from shopping, sort foods to be kept in your freezer before opening the door. Only open the door to put food in or take it out.

Make sure the door seal is clean and in good condition. It should hold a piece of paper tightly in place when shut.

The combination of the drawers, baskets and shelves shown in the device description is optimal for efficient energy savings. Changing the combination proposition could alter the efficiency.

REVERSE DOOR

This refrigerator can be opened either from the left or right side. The default way of opening the door is from the left side. If you want to open the door from the right side, please follow the instructions below.

Tools Required: Phillips style screwdriver / Flat blated screwdriver / Hexagonal spanner.

- If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.

- Ensure the unit is unplugged and empty.

- Adjust the two levelling feet to their highest position.

ENGLISHEN

• To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
- All parts removed must be saved to do the reinstallation of the door.
• The refrigerator inclination angle should be less than 45^ .
- Do not lay the unit fat as this may damage the coolant system.
- You should rest the Appliance on something solid e.g. a chair just below the top panel.
• We recommend that 2 people handle the unit during assembly.

Follow the following stages to reverse the door from its initial position.

Deposit doors

1. Remove the top right hinge cover

1. Unscrew and remove the hinge with a cross-slot screwdriver.

1. A. Return the hinge, take off the axle and fix it at the other side.

Two views of a metal bracket with mounting holes, shown from different angles (no text or symbols visible)

B. Take off the door, then remove the door limit block and place it to the opposite side.

C. Remove the top left hinge cover and put it on the right side.

1. A. Disassemble the leveller

B. Unscrew the bottom right hinge
C. Install the leveller to the other side
D. Fix the bottom hinge on this opposite side

1. Reinstall the door on the hinge properly, take care about the vertical alignment.

1. Fix firmly the top hinge on the other side and put on hinge cover.

ENGLISHEN

1. Adjust two levellers to make sure the cabinet level.

Close-up of a metallic industrial component with a dark rectangular base and circular side elements (no visible text or symbols)

MAINTENANCE

FRIDGE DEFROSTING

The fridge defrosting process is carried out automatically every time the compressor stops.

The defrost water is automatically routed to the drain port and into a tray placed on the top of the compressor to the rear of the appliance from which it evaporates.

Make sure the drain port on the fridge at the rear of the appliance is kept clear.

Technical line drawing of a mechanical component with an inset showing a circular cross-section (no text or symbols)

GB-17GB-16

ENGLISHEN

NOISE FROM YOUR APPLIANCE

You may notice some rather unusual noises. The noises are caused by circulation of refrigerant in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your fridge.

PROLONGED OFF PERIODS

If the appliance is not in use for a long period of time, proceed as follows:

1. Disconnect from the mains supply.
2. Clean and dry the inside (see 'Cleaning and maintenance').
3. Leave the door open to prevent any unpleasant smells from building up while the appliance is not in use.

NOTES FOR USE

Do clean and defrost your appliance regularly. Do check contents of the compartments every so often.

Do store commercially prepared food in accordance with the instructions given on the packets.

Do choose high quality fresh food and be sure it is thoroughly clean before freezing it.

Do wrap all food in food quality polythene bags or air tight containers and make sure any air is excluded.

Do Not store poisonous or any dangerous substances in your freezer. It is designed for the freezing of edible foodstuffs only.

Do Not consume food which has been frozen for an excessive length of time.

Do Not leave the door open for long periods, as this will make the appliance more costly to run and cause excessive ice formation.

Do Not use sharp objects such as knives to remove the ice from the appliance. Only use a plastic scraper.

Do Not put hot food into the appliance. Let it cool down to room temperature.

Do Not put liquid-filled bottles or sealed cans containing carbonated liquids into the freezer as they may burst.

Do Not give children ice-cream and water ices direct from the freezer as the low temperature may cause 'freezer burns' on the lips.

Do Not try to keep frozen food which has thawed; it should be eaten within 24 hours or cooked and re-frozen.

ENGLISHENGLISH

Changing the LED light

The LED light of this appliance cannot be changed by user. Contact aftersale or repair service for replacement.

CLEANING

1. Unplug the appliance.
2. Remove all substances.
3. Clean the inside and outside walls with a clean sponge or soft cloth using warm water or 1 teaspoon of bicarbonate of soda to 1.2 liters of water.
4. Rinse well and wipe dry with a clean soft cloth.

If the appliance is not to be used for a long period of time then it is recommended to remove all the food stuff, clean the inside of the appliance and leave the door open to allow the air to circulate thus avoiding unpleasant odors.

Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.

The interior of the refrigerator should be cleaned regularly to avoid odor.

GB-20

Check the door gasket regularly to make sure there are no debris.

Please turn off the power before cleaning, remove all food, shelves, drawers, etc.

Clean the door gasket with mild soap and water.

Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water.

hen rinse with water and wipe clean, and open the door and dry it naturally before the power is turned on.

For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminant accumulation in these areas.

Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator.

Clean the bottle frame, shelves and drawers with a mild detergent and dry with a soft cloth.

Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.

GB-21

ENGLISHENGLISH

Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior.

Boiling water and benzene may deform or damage plastic parts.

Do not rinse with water so as not to affect the electrical insulation properties.

It is advisable to clean the appliance regularly and to remove any food deposits or splashes; in particular, clean the door seals, recesses and adjacent parts.

Don't overlook parts of the appliance such as the humidity controller, light casing, racks, egg and butter compartments, ice cube tray, and all of the drainage areas, etc.

If the appliance is not kept clean and in good condition, its surface could deteriorate and inexorably affect the length of its service life, and could lead to a dangerous situation.

he appliance must not be steam cleaned.

Use only a non-abrasive sponge, rinse with clean water then dry thoroughly before putting the parts back in place.

Never use abrasive cleaning products or hard metal scrapers to clean the appliance, as they could scratch

the surfaces and break down the coating.

After cleaning, leave the inside of the appliance to dry with the door open before plugging it into the mains again.

When re-stocking the appliance, be especially careful not to hit, scratch, crack or break the internal surfaces.

TROUBLESHOOTING

Before calling for service please check the following.

THE APPLIANCE IS NOT WORKING.

Check the plug is inserted correctly into the mains socket.

Check there is power to the mains socket by plugging another appliance in, if the other appliance do not work either, check the fuse in the plug.

THE APPLIANCE IS NOISY WHEN OPERATING.

Check the appliance is level and it is not in contact with another appliance or kitchen furniture.

THE APPLIANCE DOES NOT COOL SUFFICIENTLY.

If the door has been opened too often or it has been left open for a while it will take time for the appliance to reach its set temperature.

Check the airflow over the rear of the appliance has not been reduced due to insufficient clearance.

Check if a large quantity of fresh food has been introduced.

ACCESSORIES

• Energy label
  • FR/ENG manual
• Brush for drain hole

TECHNICAL INFORMATION

PRODUCT INFORMATION SHEETCOMMISSION DELEGATED REGULATION (EU) 2019/2016
Supplier's name or trademark: FAR
Supplier's address: BOULEVARD DU MANDINET 80,77432 LOGNES MARNE LA VALLEE (LOGNES), FR
Model identifier: MP2024W
Type of refrigerating appliance:
Low-noise appliance:		No	Design type:	Freestanding
Wine storage appliance:		No	Other refrigerating appliance:	Yes
General product parameters:
Parameter Value Parameter				Value
Overal dimensions(millimetre)	Height	1420	Total volume (dm3or 1)	230
	Width	550
	Depth	550
EEI		100	Energy efficiency class E
Airborne acoustical noise emissions (dB(A) re 1 pW)		40	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		102	Climate class: N/ST	Temperate Subtropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature(°C), for which the refrigerating appliance is suitable	38
Winter setting		No

ENGLISHENGLISH

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or 1)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 31'Annexe IV, Tableau 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry No - - - -
Wine storage No		- - - -
Cellar No		- - - -
Fresh food Yes		230 ≥0, ≤+4 - M
Chill	No	- - - -
0-star or icemaking	No	- - - -
1-star	No	- - - -
2-star	No	- - - -
3-star	No	- - - -
4-star	No	- - - -
2-star section	No	- - - -
Variable temperature compartment		- - - -
For 4-star compartments
Fast freeze facility			No

Light source parameters:
Type of light source	LED
Energy efficiency class	NA
Minimum duration of the guarantee offered by the manufacturer: 12 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU)2019/2019 is found: www.conforama.fr

Flash the QR code on your appliance to access its main information.

Reference:	MP2024W
Rated voltage:	220-240V~
Ampere:	0.3A
Rated frequency:	50Hz
Climate class:	N/ST
Refrigerant:	R600a, 27g
Protection against electrical shock:	1
Insulation foam:	CYCLOPENTANE

Climate class:

• Temperate(N): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';
• Subtropical(ST): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C'.

Period of availability of repair spare parts: 10 years.

If you have a problem with your product, before going to your Conforama store, please get in touch with our aftersales services for electrical household appliances: https://sav-client.conforama.fr

09 69 32 05 05

DISPOSAL

The refrigerating gas contained in the circuit of this appliance is isobutane (R600a); it causes a low level of pollution but is in flammable. Please contact your local disposal department for advice on the correct method of disposal.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

CE

This instruction book is also available on our website: www.conforama.fr

CONFORAMA France
