USER MANUAL DP2624IL FAR

natural_image Plain white rectangular surface with a single horizontal line across the center (no text or symbols)

DP2624IL

MANUEL D'INSTRUCTIONS

text_image Warning sign depicting a flame symbol in a triangular shape, indicating hazard or hazardous status.
text_image E F D F B C G A

Fig. 2

natural_image Simple line drawing of a table with an arrow and a small object on top (no text or symbols)
natural_image Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)
natural_image Line drawing of a hand holding a small object near a window (no text or symbols)
natural_image Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)
natural_image Simple line drawing of a desk with a computer monitor and a cartoon character on top (no text or symbols)
natural_image Technical line drawing of a metal bracket and a magnified inset showing a mechanical component (no text or symbols)

DEGIVRAGE DU CONGELATEUR

Thank you for choosing FAR quality. This product has been developed by our team of professional and according to European regulations in force. In order to get the most out of your new appliance, we recommend that you read this instruction manual carefully and keep it for future reference.

TABLE OF CONTENTS

Important safety instructions GB-3

Product overview GB-9

Installation instructions GB-10

Operating instructions...... GB-11

Cleaning and maintenance GB-24

Troubleshooting GB-30

Technical specifications GB-31

Customer service GB-34

Disposal of your old appliance GB-35

Explanation of symbols

Icon Type Meaning
FAR DP2624IL - TABLE OF CONTENTS - 1WARNINGWarns against risks which could, if left unheeded, cause danger to life and limb, injuries or material damage.
FAR DP2624IL - TABLE OF CONTENTS - 2RISK OF ELECTRIC SHOCKWarns of risks which could, if left unheeded, cause damage to life and limb through electric shock.
FAR DP2624IL - TABLE OF CONTENTS - 3RISK OF FIREWarns that fires could start if the warning is left unheeded.
FAR DP2624IL - TABLE OF CONTENTS - 4CAUTIONRisk of injuries or material damage.
FAR DP2624IL - TABLE OF CONTENTS - 5IMPORTANT / REMARKInformation regarding the correct use of the appliance.

Important safety instructions

To mitigate the risks associated with explosion, fire, fatalities, electric shock, personal injury, or scalding when using this product, it is imperative to adhere to fundamental safety measures, as outlined below.

  1. IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
  2. This appliance is intended to be used in household and similar applications such as:

  3. staff kitchen areas in shops, offices and other working environments.

  4. farm houses and by clients in hotels, motels and other residential type environments.
  5. bed and breakfast type environments.
  6. catering and similar non-retail applications.

  7. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure clear of obstruction.

  8. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
  9. WARNING: Do not damage the refrigerant circuit.
  10. If the refrigerant circuit is damaged:

  11. Avoid naked flames and sources of ignition.

  12. Thoroughly ventilate the room in which the appliance is situated.

  13. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

  14. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

  15. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

  16. WARNING: When positioning the appliance. ensure the supply cord is not trapped or damaged.

  17. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

  18. WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the appliance.

  19. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

  20. WARNING: Fill the ice-maker with potable water only.
  21. For information on the installation, handling, maintenance and disposal of the device, and the method of replacing the lamp, please refer to the following paragraphs of this manual.
  22. Gas warning: risk of fire /flammable materials

FAR DP2624IL - Important safety instructions - 1

text_image Warning sign depicting a flame symbol in a triangular shape, indicating hazard or hazard status.

Please keep the product far away fire source during using, service and disposal. There are flammable materials at the back of the appliance. Please according to local regulations regarding disposal of the appliance for its flammable blowing gas, Before you scrap the appliance, please take off the doors to prevent children trapped.

  1. To avoid contamination of food, please respect the following instructions:

  2. Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

  3. Clean regularly surfaces that can come in contact with food and accessible drainage systems.

  4. Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

  5. Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
  6. One-,two- and three-star compartments are not suitable for the freezing of fresh food.
  7. If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

  8. If you are discarding an old freezer or refrigerator with a lock catch fitted to the door, ensure that it is left in a disabled condition to prevent the entrapment of young children when playing.

  9. Unplug the appliance from the mains socket when not in operation and before cleaning. Remove food before cleaning the appliance.

  10. Do not insert oversized food as this could cause incorrect operation.

  11. Extreme caution must be used when moving an appliance.

  12. Do not give children ice-cream and water ices direct from the freezer as the low temperature may cause ‘freezer burns’ on the lips.

  13. The appliance must be installed on the ground, on a flat, horizontal surface, making

sure that the ventilation openings are completely clear.

  1. Never try to replace or repair any part or component of the appliance yourself; seek the assistance of professional, qualified personnel, if need be.
  2. This refrigerating appliance is not intended to be used as a built-in appliance.
  3. In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat. For this reason, sufficient clear space should be available around the refrigerator.
  4. To save energy, please avoid keeping the door open for a longtime when using the appliance.
  5. Replacing certain parts of your household electrical appliance may lead to a danger. Please ensure that you have the necessary skills and own all tools required to carry out the self-repair operations safely. Otherwise, please contact a qualified professional.
  6. Regarding the information pertaining to the installation, handling, servicing and disposal of the appliance, thanks to refer to the below paragraph of the manual.

  7. The refrigerating gas contained in the circuit of this appliance is isobutane (R600a); it causes a low level of pollution but is inflammable. Please contact your local disposal department for advice on the correct method of disposal.

  8. Please according to local regulations regarding disposal of the appliance for its flammable blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped.

Product overview

Make sure all parts are included in the device packaging. If you have a problem with your device or parts, contact a local service center or the store where you purchased the product.

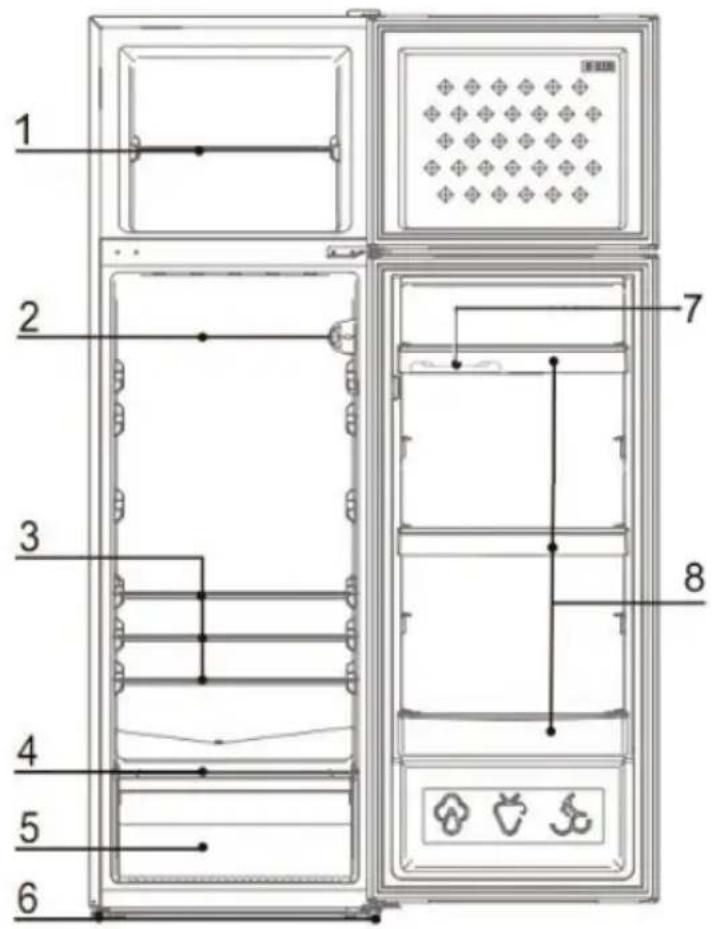

- Front view

FAR DP2624IL - - Front view - 1

text_image 1 2 3 4 5 6 7 8
  1. Freezer shlef
    2 Thermostat
  2. Glass shelf
  3. Salad Crisper cover

5.Salad crisper
6. Adjusting foot
7.Egg tray
8.Bottle rack

FAR DP2624IL - - Front view - 2

IMPORTANT/REMARK

The appliance design is subject to change without prior notice.

Installation instructions

- Ventilation condition

The position you select for the refrigerator installation should be well-ventilated and has less hot air. Do not locate the refrigerator near a heat source such as cooker, boiler, and avoid it from direct sunlight, thus guaranteeing the refrigeration effect while saving energy consumption. Do not locate the refrigerator in the damp place, so as to prevent the refrigerator from rusting and leaking electricity. The result of the refrigerant charge amount of the refrigerator being divided by the total space of the room in which the refrigerator is installed shall be less than 8g / m ^3 .

FAR DP2624IL - - Ventilation condition - 1

IMPORTANT/REMARK

The amount of refrigerant charged for the refrigerator can be found on the nameplate.

- Heat dissipation space

When working, the refrigerator gives off heat to surroundings. Therefore, at least 30mm of free space should be spared at the top side, more than 100mm on both sides, and above 50mm at the back side of the refrigerator.

- Dimensions in mm

W D H A B C(°) EFG
540 551 1428 910 1054 130±550100 555

FAR DP2624IL - - Dimensions in mm - 1

text_image W H

Fig. 1

FAR DP2624IL - - Dimensions in mm - 2

text_image E F D F B C G A

Fig. 2

Operating instructions

  • This appliance is designed to operate in ambient temperature between 16^ C and 38^ C . If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the temperature in the freezer section will rise above -18^ C and food spoilage may occur.
  • Remove all packaging materials from the appliance. Wash the inside of the cabinet with lukewarm water and bicarbonate of soda (5ml to 0.5 liter of water). Dry the appliance thoroughly.
  • When you use the freezer for the first time or after defrosting, set the thermostat control to the maximum position for at least 2 hours before introducing food to be stored, and then readjust to the normal position.
  • If there is a power failure, do not open the door. Frozen food should not be affected if the failure lasts for less than 12 hours. If the failure is longer, then the food should be checked and either eaten immediately or cooked and then re-frozen.

Setting the thermostat knob

- The refrigerator is controlled with a thermostat knob located inside the fridge, towards the upper right-hand corner. Turn the knob from the STOP(0) position towards the higher numbers fro colder temperatures. The knob can be adjusted from setting 1 to 7.

- Higher settings on the knob(higher numbers) mean lower temperatures(colder) in all compartments of the appliance.

- Changes of the ambient temperature affect temperatures in the interior of the appliance so choose a correct setting of the temperature control knob, depending on your ambient conditions.

- In the STOP(0) position the appliance does not operate(the cooling system is switched off)!but power supply is not interrupted.

- Set the thermostat knob to a middle position to achieve -18°C in the freezer compartment. Please Note: If the appliance is switched off you must wait at least 5 minutes before restarting the appliance or re-inserting the plug into the wall outlet.

- This is to allow the protection device in the compressor to reset.

- If the compressor fails to start correctly remove the plug and wait for 5 minutes before you try again then the compressor should restart normally.

- The storage temperature may be affected by:

  • The room temperature
  • How often the door is opened
  • How much food is stored
  • Postion of the appliance

- When you use the freezer for the first time or after defrosting, set the thermostat control to the maximum position for at least 2 hours before introducing food to be stored, and then readjust to the normal position.

Temperature Indicate

FAR DP2624IL - Temperature Indicate - 1

FAR DP2624IL - Temperature Indicate - 2

In order to help you get the correct adjustment of your device, it is equipped with a temperature gauge placed in the coldest area.

For the proper storage of food in your refrigerator and in particular in the coldest area, make sure that

«OK» appears in the temperature indicator.

FAR DP2624IL - Temperature Indicate - 3

The symbol on the left side indicates the location of the coldest area of your refrigerator. It defines the height of this area.

If «OK» is not displayed, the average temperature in this area will be very high. You ought to adjust the thermostat to a colder setting.

For every modification of your thermostat, you are supposed to wait for the stabilization of the temperature inside the unit before proceeding, if necessary, to a new setting. Do change the position of the thermostat gradually and wait at least 12 hours before re-checking.

NOTE: after charging the device for fresh food or after repeated or prolonged door openings, it is normal that the inscription «OK» does not appear in the temperature indicator.

Wait at least 12 hours before readjusting the thermostat.

Shopping for frozen food

The appliance is rated as a 4 star freezer and can freeze fresh food and store pre-frozen food. When you are buying frozen food, look at the

Storage Guidelines on the packaging. You will be able to store each item of frozen food for the period shown against the 4 star rating.

Check the Fridge/Freezer temperature

Check the temperature of the frozen food cabinet in the shop where you buy your frozen foods. It should show a temperature lower than -18°C.

Choose packs carefully

Make sure the frozen food package is in perfect condition.

Purchase frozen food last

Always buy frozen products last on your shopping trip or visit to the supermarket.

Keep frozen foods together

Try to keep frozen food together whilst shopping, and on the journey home as this will help to keep the food cooler.

Store food straight away

Don't buy frozen food unless you can freeze it straight away. Special insulated bags can be bought from most supermarkets and hardware shops. These keep frozen food cold for longer.

Thawing frozen food

For some foods, thawing before cooking is unnecessary. Vegetables and pasta can be added directly to boiling water or steam cooked. Frozen sauces and soups can be put into a saucepan and heated gently until thawed.

Freezing fresh food

Ensure that your freezing operations are carried out under the most hygienic conditions as freezing alone does not improve the food. Never put hot or even warm foodstuffs into the freezer.

Prior to freezing the food, food should always be covered tightly with foil, plastic film, placed in plastic bags or stored in airtight containers. This will prevent food from dehydrating and to prevent any strong odors of some foods transferring to milder ones.

To freeze raw meat, wrap in plastic bags or in airtight containers and place on the lowest shelf to avoid cross contamination.

Do not allow raw meat to come into contact with cooked foods. For safety, only store raw meat for two or three days. Fruit and vegetables should be thoroughly cleaned and placed in the crisper. Milk and other liquids should be sealed with lids and placed in the bottle shelf in the door. NOTE: The ambient temperature of the freshly stored food and how often the door is opened affect the temperature in the refrigerator. If required, change the thermostat temperature settings.

Storing frozen food

All frozen food you purchase should be placed in the freezer as soon as possible to avoid them from defrosting and spoiling.

All storage recommendations printed on the packaging of frozen food by the manufacturer should always be followed.

MAKING ICE CUBES

  1. Fill the ice tray with 34 full of clean water.
  2. Place the tray in the top freezing drawer.
  3. Close the door.

To remove the ice cubes from the tray, put the tray under running water for a while and then twist the tray slightly to loosen the ice cubes.

Food storage suggestion

Freezer compartment (Recommend temperature: -18 °C or more lower)Foods for long-term storage(Within 6 months).
Raw meat, poultry, fish (Use within 4 months).
Ice cream, frozen fruit, frozen baked goods. (Storage time 2 months)
Dried vegetables, chips (Use within 2 months)
Fresh compartment (Recommend temperature: +4°C)·Foods with natural preservatives, such as jams, juices, drinks, condiments. (Use within 1-2 days) ·Do not store perishable foods.
·Fruits, herbs and vegetables should be placed separately in the crisper bin. (Use within 1-2 days) ·Do not store bananas, onions, potatoes, garlic in the refrigerator.
Raw meat, poultry, fish (For short-term storage).
Dairy products, eggs (Recommended use within 7 days).
Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers. (Keep for only 1-2 days).

Energy-saving tips

Install the fridge or freezer in a cool place out of direct sunlight and away from cookers, heaters, dishwashers or any hot air emitting items.

Do not set the fridge and freezer temperatures lower than necessary. Set the internal temperature within the correct range e.g. adjust the thermostat at middle position for 4^ C in the fridge compartment and -18^ C in the freezer respectively.

Let pre-cooked foods cool down before placing them in the fridge or freezer. This will prevent the internal temperature of the fridge from rising.

Keep your fridge full, but not over crowded, this helps reduce «cold» air loss. Meanwhile, avoid overloading the fridge or freezer. Try to leave about 20% free space for air circulation.

To prevent cold air escaping, limit the frequency of opening door. When retuning from shopping, sort foods to be kept in your fridge before opening the door. Only open the door to put food in or take it out.

Make sure the door seal is clean and in good condition. It should hold a piece of paper tightly in place when shut.

Defrost regularly or when ice is more than 5mm thick. Thick ice covering the inner sides significantly increases energy use.

The combination of the drawers, baskets and shelves shown in the device description is optimal for efficient energy savings. Changing the combination proposition could alter the efficiency.

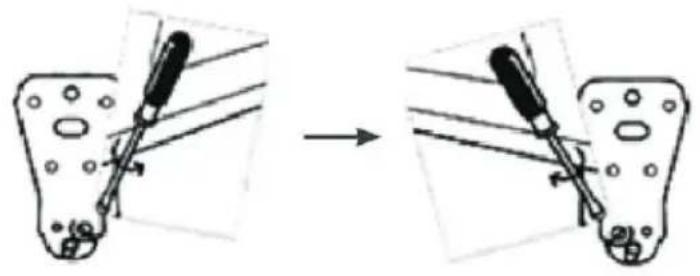

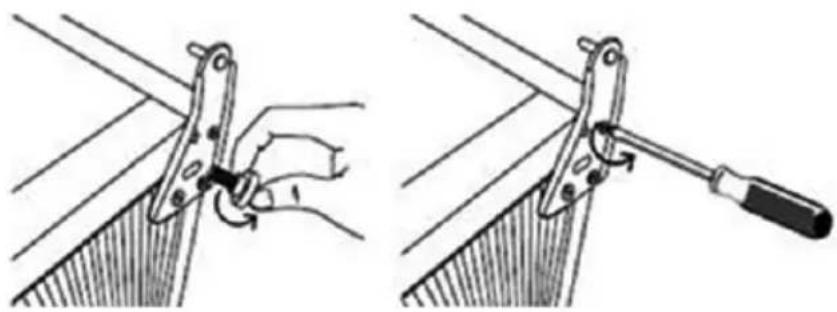

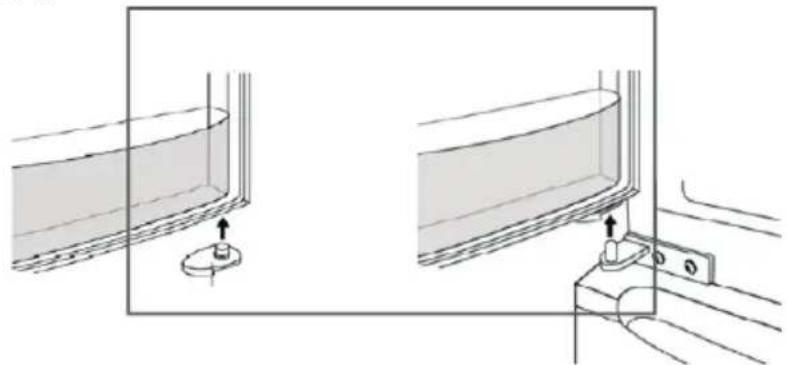

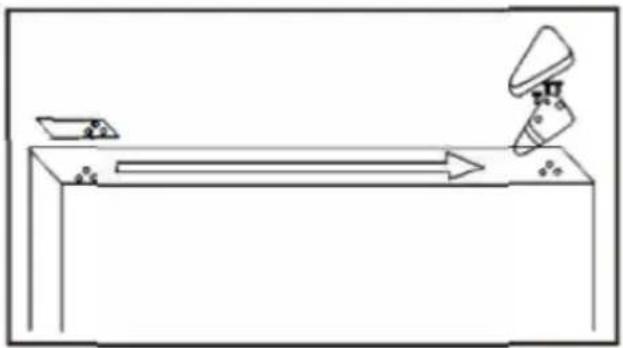

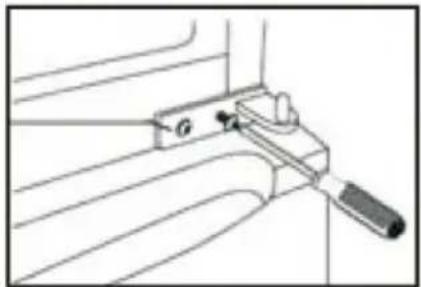

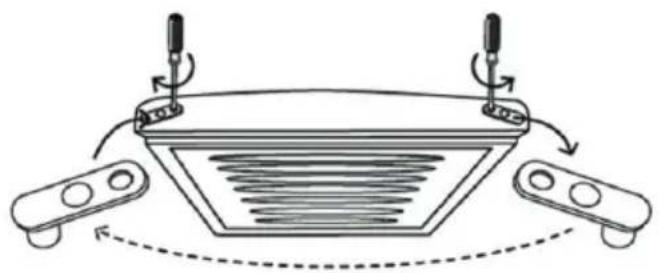

REVERSE DOOR

This refrigerator can be opened either from the left or right side. The default way of opening the door is from the right side. If you want to open the door from the left side, please follow the instructions below.

Tools Required: Phillips style screwdriver / Flat blated screwdriver / Hexagonal spanner

FAR DP2624IL - REVERSE DOOR - 1

IMPORTANT/REMARK

  • If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.
  • Ensure the unit is unplugged and empty.
  • Adjust the two levelling feet to their highest position.
  • To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
  • All parts remoed must be saved to do the reinstallation of the door.
  • The refrigerator inclination angle should be less than 45^ .
  • Do not lay the unit fat as this may damage the coolant system.

FAR DP2624IL - IMPORTANT/REMARK - 1

IMPORTANT/REMARK

  • You should rest the Appliance on something solid e.g. a chair just below the top panel.
    • We recommend that 2 people handle the unit during assembly.

1). Remove the right hinge and hinge cover, and take left hinge cover then fix to the right side.

FAR DP2624IL - IMPORTANT/REMARK - 1

natural_image Simple line drawing of a table with an arrow and scattered items, no text or symbols present

2). Remove the right middle hinge; Deposit the door of the refrigerator compartment.

FAR DP2624IL - IMPORTANT/REMARK - 2

natural_image Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

3). Then unscrew the front foot to remove the bottom hinge.

FAR DP2624IL - IMPORTANT/REMARK - 3

natural_image Two technical diagrams showing a hand using a tool to lift or rotate a component, with no visible text or symbols.

4). Remove the screw from the bottom hinge and refit it to the mirror position.

FAR DP2624IL - IMPORTANT/REMARK - 4

natural_image Diagram showing two mechanical components with tool tips, one being inserted and the other being inserted (no text or symbols present)

ASSEMBLY OF THE DOORS

1). Fix the lower hinge on the left refrigerator then the front foot.

FAR DP2624IL - ASSEMBLY OF THE DOORS - 1

natural_image Line drawing of a hand holding a tool, no text or symbols present

2). Remove door stopper from the fridge door and put it to the opposite side. Align the hole of the door to the gun of the hinge while taking care of the alignment of the door compared to the refrigerator.

FAR DP2624IL - ASSEMBLY OF THE DOORS - 2

natural_image Diagram of a mechanical component with rotating arms and internal flow arrows (no text or symbols)

3).Postion the middle hinge on the left of the refrigerator and insert the gun of hinge in the hole of the door door then fix it firml.

FAR DP2624IL - ASSEMBLY OF THE DOORS - 3

natural_image Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

4). Remove the door stop from the right bottom of the Freezer door, install it to the left bottom of the Freezer door, then install the freezer door accordingly.

FAR DP2624IL - ASSEMBLY OF THE DOORS - 4

natural_image Technical diagram showing two mechanical components with directional arrows, no visible text or symbols

5). Insert the gun of the upper hinge in the upper hole of the door then fix firmly.

FAR DP2624IL - ASSEMBLY OF THE DOORS - 5

natural_image Simple line drawing of a table with a small object on top and an arrow indicating upward motion (no text or symbols)

Cleaning and maintenance

Keep the device clean to avoid degrading its performance and preserve its lifespan.

Fridge defrosting

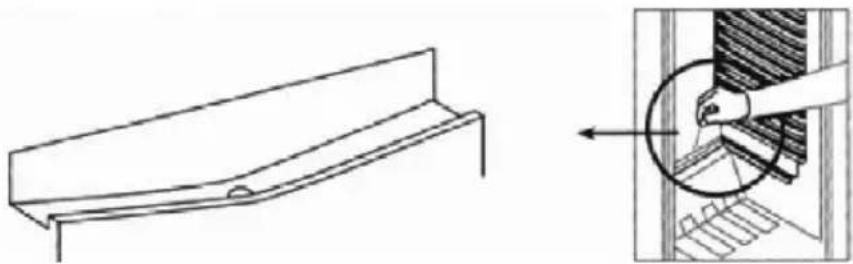

The fridge defrosting process is carried out automatically every time the compressor stops. The defrost water is automatically routed to the drain port and into a tray placed on the toe of the compressor to the rear of the appliance from which it evaporates.

Make sure the drain port on the fridge at the rear of the appliance is kept clear.

FAR DP2624IL - Fridge defrosting - 1

natural_image Technical line drawing of a structural component with an inset showing a magnified detail of a corner detail (no text or symbols)

Freezer defrosting

Frost will accumulate inside the freezer depending upon the length of time during which the door is left open or the amount of moisture introduced.

It is essential to ensure that no frost or ice is allowed to form at places where it will affect the close fitting of the door seal.

This might allow air to penetrate the cabinet, thus encouraging continuous running of the compressor.

Thin frost formation is quite soft and can be removed with a brush or plastic scraper. Do not use metal or sharp scrapers, mechanical devices or other means to accelerate the defrosting process. Remove all dislodged frost from the cabinet floor. For the removal of thin frost it is not necessary to switch off the appliance.

For the removal of heavy ice deposits disconnect the appliance from the mains supply and empty the contents into cardboard boxes and wrap in thick blankets or layers of paper to keep them cold. Defrosting will be most effective if carried out when the freezer is empty, and it should be carried out as quickly as possible.

An increase in temperature of frozen food packages during defrosting will shorten the storage life. Provided that the contents are well wrapped and placed in a cool area, they should keep for several hours.

Examine the contents when replacing them in the freezer and if some of the packages have thawed out. After defrosting is finished clean the inside with a solution of warm water with a little bicarbonate of soda and then dry thoroughly.

Wash all removable parts in the same way and reassemble.

Reconnect the appliance to the mains supply and leave for 2 to 3 hours on setting number 7 before introducing the food back into the freezer and setting the thermostat to your normal setting.

Noise from your appliance

You may notice some rather unusual noises. The noises are caused by circulation of refrigerant in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your fridge.

Prolonged off periods

  1. Disconnect from the mains supply.
  2. Clean and dry the inside (see ‘Cleaning and maintenance’).
  3. Leave the door open to prevent any unpleasant smells from building up while the appliance is not in use.

FAR DP2624IL - Prolonged off periods - 1

IMPORTANT/REMARK

Do clean and defrost your appliance regularly. Do check contents of the compartments every so often.

FAR DP2624IL - IMPORTANT/REMARK - 1

IMPORTANT/REMARK

Do store commercially prepared food in accordance with the instructions given on the packets.

Do choose high quality fresh food and be sure it is thoroughly clean before freezing it.

Do wrap all food in food quality polythene bags or air tight containers and make sure any air is excluded.

Do Not store poisonous or any dangerous substances in your freezer. It is designed for the freezing of edible foodstuffs only.

Do Not consume food which has been frozen for an excessive length of time.

Do Not leave the door open for long periods, as this will make the appliance more costly to run and cause excessive ice formation.

Do Not use sharp objects such as knives to remove the ice from the appliance. Only use a plastic scraper.

Do Not put hot food into the appliance. Let it cool down to room temperature.

Do Not put liquid-filled bottles or sealed cans containing carbonated liquids into the freezer as they may burst.

FAR DP2624IL - IMPORTANT/REMARK - 1

IMPORTANT/REMARK

Do Not give children ice-cream and water ices direct from the freezer as the low temperature may cause ‘freezer burns’ on the lips.

Do Not try to keep frozen food which has thawed; it should be eaten within 24 hours or cooked and re-frozen.

Changing the light bulb

FAR DP2624IL - Changing the light bulb - 1

LED lighting source

Replaceable by professional

FAR DP2624IL - Changing the light bulb - 2

WARNING

Warning: the LED light must not be replaced by the user. If the LED light is damaged, contact an authorized service representative for repairing. The product contains a light source of energy efficiency class G.

CLEANING

  1. Unplug the appliance.
  2. Remove all substances.

Cleaning inside the Fridge/Freezer

You should clean the Fridge/Freezer internally with a weak solution of bicarbonate of soda.

Then rinse with warm water using a damp sponge or cloth and wipe dry. Wash the baskets in warm soapy water and ensure they are completely dry before replacing in the Fridge/Freezer.

&OHDQLQJ□RXWVLGH□WKH□) ULGJH□) UHH] HU

Use standard non-abrasive detergent diluted in warm water to clean the Fridge/Freezer exterior. The grille of the condenser at the back of the Fridge/Freezer and the adjacent components can be vacuumed using a soft brush attachment.

FAR DP2624IL - &OHDQLQJ□RXWVLGH□WKH□) ULGJH□) UHH] HU - 1

IMPORTANT/REMARK

Do not use harsh cleaners, scouring pads or solvents to clean any part of the Fridge/Freezer.

Troubleshooting

If you have a problem with your appliance, first review the following table and try the suggestions provided.

ProblemCause Solution
•Completely non-refrigeration•Is power plug off?•Are breakers and fuses broken?•No electricity or line trip?•Where is the refrigerator installed? Is it placed in balconies, garages, storage rooms and other places where the ambient temperature is below 10°C?•Re-plug•Opening the door and checking whether the lamp is lit.•Power outage or line tripping?•Install refrigerator in a location that is protected and the ambient. temperature is above 10°C. If your refrigerator is installed in too low temperature, the internal cooling system may not work correctly.
•Abnormal noise•Is refrigerator stable?•Does refrigerator reach the wall?•Adjusting refrigerator's adjustable feet.•Off the wall.
•Poor refrigerating efficiency•Do you put hot food or too much food?•Do you open the door frequently?•Do you clip food bag to the seal of door?•Direct sunlight or near a furnace or stove?•Is it well-ventilated?•Temperature setting in too high?•Putting food into refrigerator when hot food becomes cool.•Checking and closing the door.•Removing the refrigerator from the heat source.•Emptying the distance to maintain good ventilation.•Setting to the appropriate temperature
•Peculiar smell in refrigerator•Any spoiled food?•Do you need to clean refrigerator?•Do you pack food of strong flavors?•Throwing away spoiled food.•Cleaning refrigerator.•Packing food of strong flavors.

If the problem persists, please contact the service center.

Technical specifications

Scan the QR code on the energy label with your instruction manual to access the key information.

Model Website QR Code
DP2624ILhttps://eprel.ec.europa.eu/qr/1762713FAR DP2624IL - Technical specifications - 1

Climate class:

- Temperate(N): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';

- Subtropical(ST): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';

Customer service

We decline liability for any damage or accident derived from any use of this appliance which is not in conformity with the instructions contained in this manual.

Duration of availability of spare parts: 10 years.

In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years.

If you have a problem with your product, before going to your Conforama store, please get in touch with our aftersales services for electrical household appliances:

https://sav-client.conforama.fr /

FAR DP2624IL - Customer service - 1

09 69 32 05 05

From Monday to Saturday, 08:30 to 19:00 price of a local call

This instruction manual is also available on our website: www.conforama.fr

Disposal of your old appliance

FAR DP2624IL - Disposal of your old appliance - 1

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

CONFORAMA FRANCE

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : FAR

Model : DP2624IL

Category : Fridge
