USER MANUAL CV-02 Dörr
10.3 ROHS KONFORMITÄT
THANK YOU for choosing this DÖRR quality product.
Please read the instruction manual and safety hints carefully before first use.
Keep this instruction manual together with the device for future use. If other people use this device, make this instruction manual available. This instruction manual is part of the device and must be supplied with the device in case of sale.
DÖRR is not liable for damages caused by improper use or the failure to observe the instruction manual and safety hints.
01 | SAFETY HINTS
- Make sure to use the device only with appropriate, high-quality batteries. Please remove batteries when device is not in use for a long period of time.
- Protect the device from rain, moisture, direct sunlight and extreme temperatures.
- Do not operate or touch the device with wet hands.
- Protect the device against impacts. Do not use the device if it has been dropped. In this case a qualified electrician should inspect the device before you use it again.
- Do not attempt to repair the device by yourself. Risk of electric shock! When service or repair is required, contact qualified service personnel.
- People with physical or cognitive disabilities should use the device with supervision.
- People with cardiac pacemakers, defibrillators or any other electrical implants should maintain a minimum distance of 30 cm, as the device generates magnetic fields.
- Do not use the device nearby devices that generate strong electromagnetic fields.
- This device is not a toy. To prevent accidents and suffocation keep the device, the accessories and the packing materials away from children and pets.
- Protect the device against dirt. Never use aggressive cleansing agents or benzine to clean the device. We recommend a soft, slightly damp microfiber cloth to clean the outer parts of the device. Before cleaning make sure to switch off the device and to remove the batteries!
- Store the device in a dust-free, dry and cool place.
- If the device is defective or without any further use, dispose of the device according to the Waste Electrical and Electronic Equipment Directive WEEE. For further information, please contact your local authorities.
02 | SAFETY HINTS FOR BATTERIES
Only use high-quality batteries of popular brands. When inserting the batteries, please respect the correct polarity (+/-). Do not insert batteries of different types and always replace all batteries at the same time. Do not combine used batteries with fresh batteries. Please remove batteries when device is not in use for a longer period. Do not throw the batteries into fire, do not short-circuit and do not disassemble them! Never charge non-rechargeable batteries – risk of explosion! Remove empty batteries immediately from the device to avoid the leaking of battery acid. Remove leaking batteries from the device immediately. Clean the contacts before inserting fresh batteries. Risk of battery acid burn! In case of contact with battery acid, rinse the affected area immediately with water and contact a doctor. Batteries can be dangerous to life if swallowed. Keep batteries away from small children and pets. Do not dispose of batteries in household waste (see also capture „Disposal of Batteries/Accumulators”).
03 | PRODUCT DESCRIPTION
- Universal microphone for directional sound recordings with low ambient noise
- Excellent sound quality with a large frequency range
- Universal flash hot shoe for easy attachment to DSLR cameras, system cameras, camcorders with hot shoe mount
- Compatible with smartphones, tablets, laptops, PCs with 3.5 mm microphone socket
- 3,5 mm TRRS mini jack plug
- Tripod mount 1/4 Inch
- Supplied with foam and fur windshield

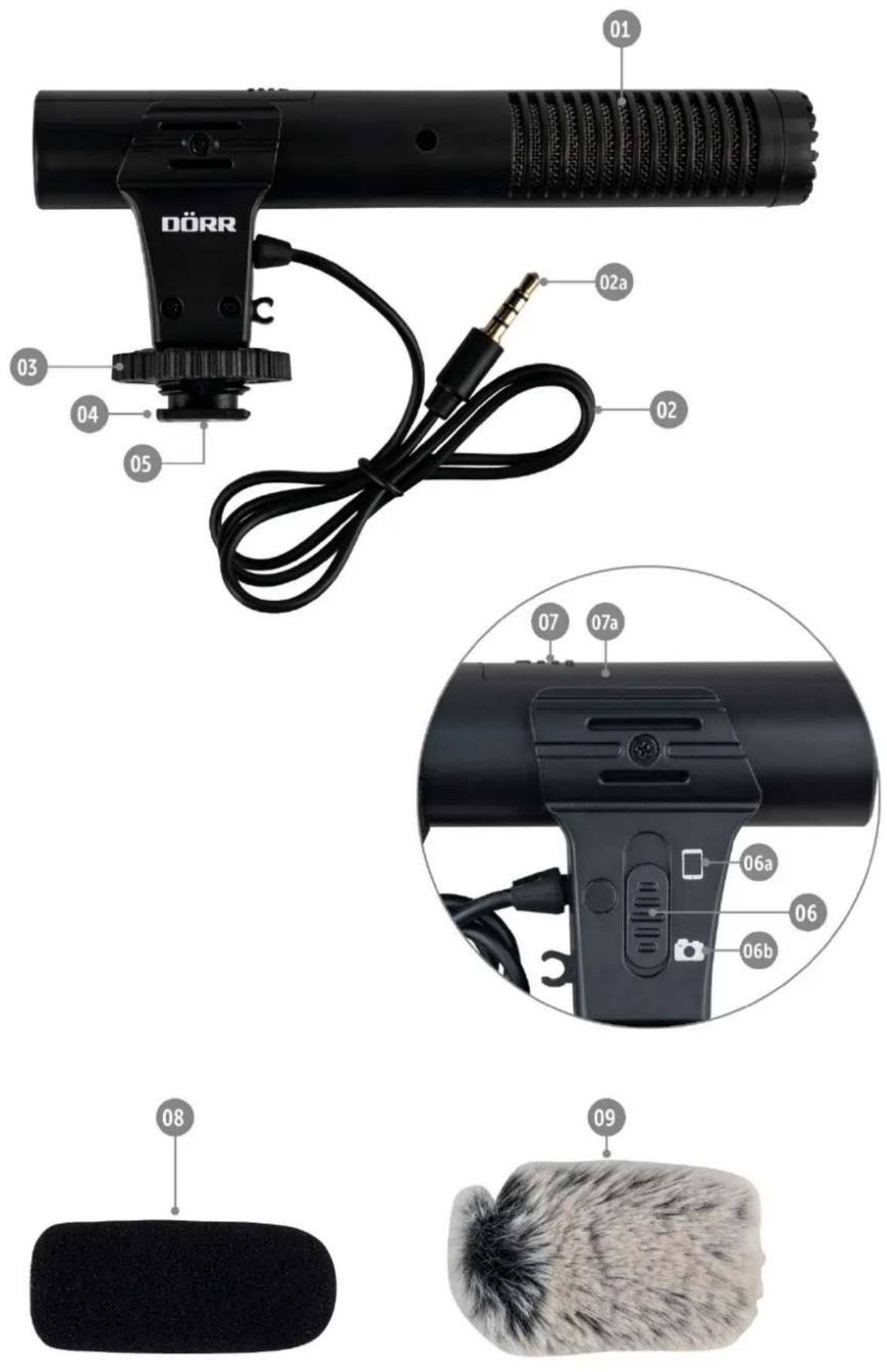

04 | NOMENCLATURE
01 Microphone
02 Connection cable
02a) 3,5 mm TRRS mini jack plug
03 Locking screw
04 Universal flash hot shoe
05 14 " Tripod thread
06 Switch
06a) with smartphone ☐
06b) with camera
07 Battery compartment
07a) Battery compartment cover
08 Foam windshield
09 Fur windshield
05 | FIRST STEPS
05.1 Inserting the battery
Open the battery compartment (07) by sliding the battery compartment cover (07a) in the direction of the arrow. Insert 1 pc AAA Micro battery LR03 1,5V (optional) according to the polarity markings (+/-) into the battery compartment (07). Close the battery compartment.
05.2 Mounting on a camera/camcorder
For mounting on your camera or camcorder, slide the universal flash hot shoe (04) in the hot shoe mount of your camera or your camcorder. Turn down the locking screw (03) to fix the microphone.
05.3 Mounting on a tripod
For mounting on a tripod, screw the CV-02 microphone onto your tripod using the 14 " tripod thread (05) underneath the universal flash hot shoe (04).
05.4 Mounting on a smartphone
For mounting on a smartphone you need an optional smartphone holder with hot shoe, e.g. from DÖRR:
Alu Smartphone Holder SH-6580 PRO 1/4" Hot Shoe
Item-No. 380433
06 | OPERATION
Connect your camera/smartphone to the microphone by plugging the 3,5 mm TRRS mini jack plug (02a) into the microphone socket of your camera or the headphone socket of your smartphone.
- For use with a camera/camcorder, slide the switch (06) to the camera position (06b)
- For use with a smartphone, slide the switch (06) to the smartphone position (06a)
Start the video recording/voice recording on your camera or smartphone.
NOTE: When used with smartphone
To hear the sound while playing the video or audio recording, please unplug the cable from your smartphone/tablet.
To minimize wind noise, slide the supplied foam windshield (08) over the microphone.
In very strong winds, use the supplied fur windshield (09).
07 | CLEANING AND STORAGE
Never use aggressive cleansing agents or benzine to clean the device. We recommend a soft, slightly damp microfiber cloth to clean the outer parts of the device. Remove batteries before cleaning! Store the device in a dust-free, dry and cool place. This device is not a toy - keep it out of reach of children. Keep away from pets.
08 | TECHNICAL SPECIFICATIONS

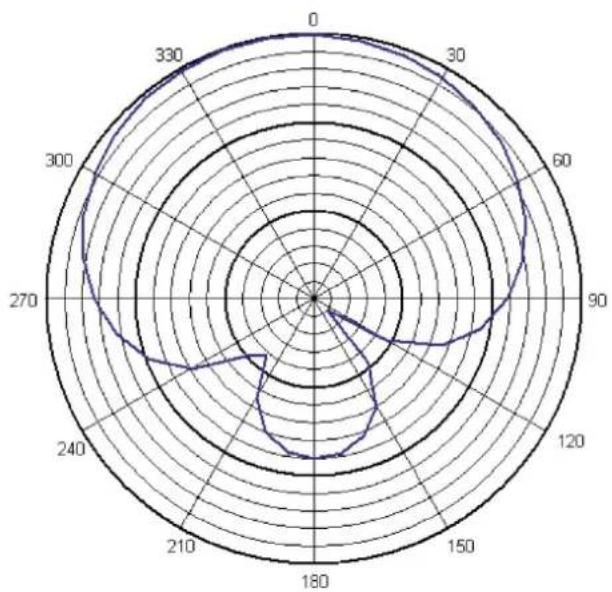

08.1 Polar Pattern
radar
| Angle | Value | |-------|-------| | 0 | 330 | | 30 | 30 | | 60 | 60 | | 90 | 90 | | 120 | 120 | | 150 | 150 | | 180 | 180 | | 210 | 210 | | 240 | 240 | | 270 | 270 | | 300 | 300 | | 330 | 330 |08.2 Frequency response
line

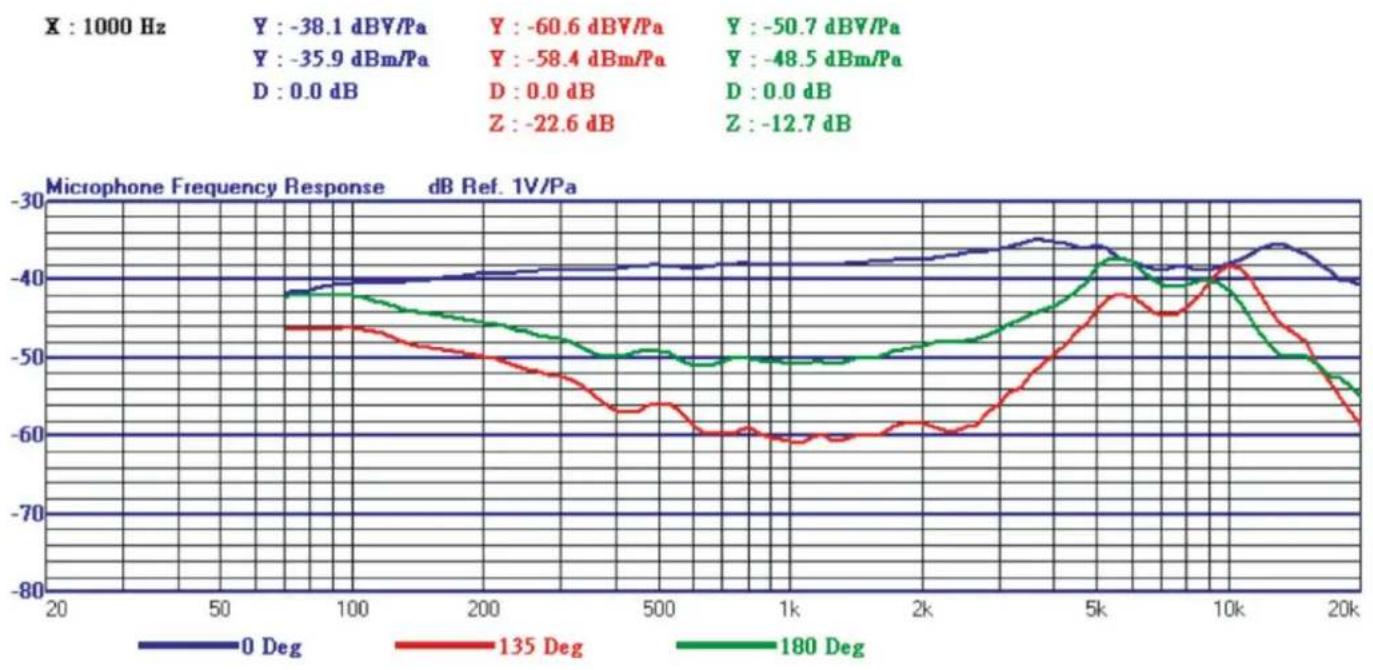

| Frequency | 0 Deg (dB) | 135 Deg (dB) | 180 Deg (dB) | | --------- | ---------- | ------------ | ------------ | | 20 | -40 | -45 | -40 | | 50 | -40 | -45 | -40 | | 100 | -40 | -45 | -40 | | 200 | -40 | -50 | -45 | | 500 | -40 | -60 | -50 | | 1k | -40 | -60 | -50 | | 2k | -40 | -60 | -50 | | 5k | -35 | -40 | -35 | | 10k | -35 | -40 | -40 | | 20k | -40 | -60 | -50 |08.3 Specifications
| Type | Electret condenser microphone unidirectional (Mono) |
| Polar pattern | supercardioid |
| Frequency response | 20 Hz - 18 kHz |
| Sensitivity | -42 dB ± 3 dB |
| Equivalent noise | 25 dB-A |
| Maximum Sound Pressure Level (Max SPL) | 115 dB |
| Signal-To-Noise ratio | >76 dB |
| Output impedance | 2000 Ω |
| Connection | 3,5 mm TRRS mini jack plug |
| Camera connection | Universal hot shoe with 1/4" thread |
| Power supply | 1x AAA batterie LR03 1,5 V (optional) |
| Dimensions approx. | 12,8 x 5,5 x ∅ 1,9 cm |
| Weight approx. | 35 g |
DÖRR GmbH reserves the right to make technical changes without notice.
09 | SCOPE OF DELIVERY
1x Microphone with connection cable
1x Foam windshield
1x Fur windshield
1x Safety hints
10 | DISPOSAL, CE MARKING
10.1 DISPOSAL OF BATTERIES/ACCUMULATORS
Batteries are marked with the symbol of a crossed-out bin. This symbol indicates that empty batteries or accumulators which can no longer be charged should not be disposed of with household waste. Waste batteries may contain harmful substances that can cause damage to health and to the environment. Please use the return and collection systems available in your country for the disposal of the waste batteries.
10.2 WEEE INFORMATION
The Waste Electrical and Electronic Equipment Directive (WEEE Directive) is the European community directive on waste electrical and electronic equipment, which became European law in February 2003. The main purpose of this directive is to prevent electronic waste. Recycling and other forms of waste recovery should be encouraged to reduce waste. The symbol (trash can) on the product and on the packing means that used electrical and electronic products should not be disposed of with general household waste. It is your responsibility to dispose of all your electronic or electrical waste at designated collection points. Disposing of this product correctly will help to save valuable resources and it is a significant contribution to protect our environment as well as human health. For more information about the correct disposal of electrical and electronic equipment, recycling and collection points please contact your local authorities, waste management companies, your retailer or the manufacturer of this device.
10.3 ROHS CONFORMITY
This product is compliant with the European RoHS directive for the restriction of use of certain hazardous substances in electrical and electronic equipment and its amendments.
10.4 CE MARKING
The CE marking complies with the European standards and indicates that the product meets the requirements of the applicable EU directives.
