USER MANUAL WV-U22750-F3L i-PRO

Included Installation Instructions

Network Camera

For professional use only

Indoor use

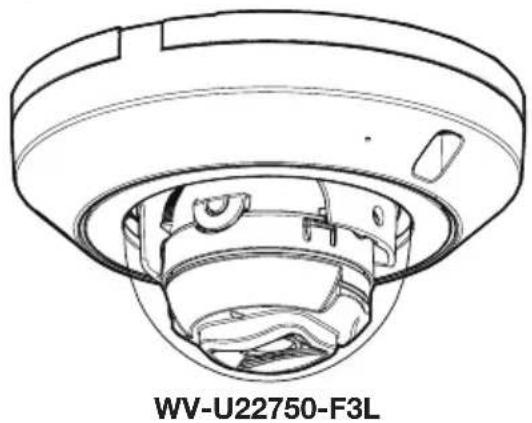

Model No. WV-U22750-F3L WV-U22550-F3L WV-U22350-F3L WV-U22501-F3L WV-U22301-F3L

Technical line drawing of a mechanical component with internal cavities and mounting holes (no text or symbols)

WV-U22750-F3L

About the user manuals

Product documentation is composed of the following documents.

• Installation Guide (this document): Provides information about "Precautions", "Precautions for installation" and the installation method.
• Web Guide (Refer to the link on the following product information website): Includes installation videos, basic functions, and basic operation methods for this device.
• User manual (Refer to the link on the following product information website): This section describes the software operating instructions common to each model. https://i-pro.com/products_and_solutions/en/surveillance/documentation-database

QR code image containing encoded data, no visible human-readable text

"" used in these documents should be used to search for information on our technical information website

(https://i-pro.com/products_and_solutions/en/surveillance/learning-and-support/knowledge-base/technical-information) and will guide you to the right information.

- Before attempting to connect or operate this product, please read these instructions carefully and save Important Safety Instructions leaflet for future use.

- microSDXC/ microSDHC/ microSD memory card is described as microSD memory card.

- The external appearance and other parts shown in this manual may differ from the actual product within the scope that will not interfere with normal use due to improvement of the product.

i-PRO Co., Ltd.

Tokyo, Japan

https://www.i-pro.com/

Authorised Representative in EU: i-PRO EMEA B.V.

Laarderhoogtweg 25, 1101 EB Amsterdam, Netherlands

i-PRO EMEA B.V. UK Branch 1010 Cambourne Business Park, Cambridgeshire CB23 6DP

About notations and model number explanation

U22750 : WV-U22750-F3L (8MP AI Fixed focus model)
U22550 : WV-U22550-F3L (5MP AI Fixed focus model)
U22350 : WV-U22350-F3L (2MP AI Fixed focus model)
U22501 : WV-U22501-F3L (5MP Non-AI Fixed focus model)
U22301 : WV-U22301-F3L (2MP Non-AI Fixed focus model)

Trademarks and registered trademarks

• SD, microSD and microSDXC Logos are trademarks of SD-3C, LLC.
• All other trademarks identified herein are the property of their respective owners.

Disposal of Old Equipment and Batteries

Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local authority.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol)

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

For U.S.A.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Supplier's Declaration of conformity

Trade name : i-PRO

Model No.: WV-U22750-F3L

WV-U22550-F3L, WV-U22501-F3L

WV-U22350-F3L, WV-U22301-F3L

Responsible Party :

i-PRO Americas Inc.

8550 Fallbrook Drive, Suite 200 Houston, Texas 77064

Support Contact: 1-800-513-5417

For U.S.A.

The model number and serial number of this product may be found on the surface of the unit.

You should note the model number and serial number of this unit in the space provided and retain this book as a permanent record of your purchase to aid identification in the event of theft.

Model No. ____

Serial No. ____

For U.S.A.

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For Canada

CAN ICES-3(A)/NMB-3(A)

- Operation of this product in a residential environment could cause radio interference.

Caution: Notice:

• The DC power supply connected to the camera must be in the same building.
• The network camera is only intended for a connection to an ethernet or PoE network without routing to the outside plant.
• This product has no power switch. Be sure to install disconnect devices such as a circuit breaker to shut down the main power of power supplying equipment to this product.

• Before attempting to connect or operate this product, please read these instructions carefully.

• This product is not suitable for use in locations where children are likely to be present.

• Do not install this product in locations where ordinary persons can easily reach.
• This product is a professional equipment.
• For information about screws and other parts required for installation, refer to the corresponding section of this document.

: Direct current symbol

: For indoor use only

Precautions

In order to prevent harm to people and damage to property, it explains what must be observed without fail. The safety statements common to all i-PRO network camera models are posted on the website linked from the two dimensional barcode on the right. Please be sure to confirm it.

https://i-pro.com/products_and_solutions/en/surveillance/learning-and-support/knowledge-base/safety-instructions

QR code image containing encoded data, no visible human-readable text

■ Do not install this product in a restricted or prohibited environment.

Failure to observe this may result in injury, accident, or malfunction due to falling.

Please check the safety precautions common to all models on the website above and the installation precautions in the Installation Guide.

■ Refer installation work to the dealer.

Installation work requires technique and experience. Failure to observe this may cause fire, electric shock, injury, or damage to the product. Be sure to consult the dealer.

■ Install the product accurately and securely on an installation area in accordance with the installation instructions.

Failure to observe this may cause injury or accidents.

■ Take measures of protection against this product falling.

Failure to observe this may cause a drop resulting in injury.

Securely fix the product to the installation surface using screws or anchors. If the fall prevention wire is included, be sure to install it.

■ Stop the operation immediately when something is wrong with this product.

When smoke goes up from the product, the smell of smoke comes from the product, or the exterior of the product has deteriorated, continued use will cause a fire or fall of the product resulting in injury, or damage to property.

In this case, turn the power off immediately and contact qualified service personnel for service.

■ Conduct periodic inspections.

Rust on the metal parts or screws may cause a fall of the product resulting in injury or accidents.

Consult the dealer for the inspections.

Be sure to turn off the power before inspection or maintenance.

Precautions for installation

i-PRO Co., Ltd. assumes no responsibility for injuries or property damage resulting from failures arising out of improper installation or operation inconsistent with this documentation.

In order to prevent injury, the product must be securely mounted to an installation surface according to Installation Guide.
■ Installation area for this product

Select an appropriate place for the installation area (such as a strong installation surface) in your particular environment.

• Make sure that the installation area is strong enough to hold this product, such as a concrete ceiling.
  • Install the camera in the foundation area of the architecture or where sufficient strength is assured.
• Do not mount the product on a plaster board or a wooden section because they are too weak. If the product is unavoidably mounted on such a section, the section shall be sufficiently reinforced.

■ This camera is designed to be used indoors

This product is not operable outdoors. Do not expose this camera to direct sunlight for hours and do not install the product near a heater or an air conditioner. Otherwise, it may cause deformation, discoloration and malfunction.

■ Do not place this product in the following places

• Locations where a chemical agent is used such as a swimming pool
• Locations subject to moisture or oil smoke such as a kitchen
• Locations that have a specific environment that is subject to an inflammable atmosphere or solvents
• Locations where a radiation, an X-ray, a strong radio wave or a strong magnetic field is generated
• Locations near coasts directly subjected to sea breezes, or locations subject to corrosive gases such as from hot springs, volcanic regions, etc.
• Locations where the temperature is not within the specified range
• Locations subject to vibrations, such as on vehicles, marine vessels, or above product lines (This product is not designed for on-vehicle use.)
• Locations near rubber products containing sulfur (packing, rubber feet, etc.)
• Locations where it may get directly wet from rain or water splash (including under the eaves, etc.)
• Locations subject to moisture or dust
• Locations subject to sudden changes in temperature such as near air discharge vents of air conditioners or air circulation inlet doors

■ Screw tightening

Do not use an impact driver. Use of an impact driver may damage the screws or cause tightening excessively.

■ About reflection of light from outside or IR light

A ghost may appear on the screen depending on the incident angle of external light.

In the case of using the IR light, installation of a camera near a wall may cause reflection of infrared rays resulting in a part of the screen or the entire screen turning whitish.

- Refer to our technical information website for image examples and measures to take.

■ Take notice of humidity

Install this product when the humidity is low. If installation is performed when it is raining or in very humid conditions, the inside may be affected by humidity, causing mist-over inside the dome cover.

■ Protection from lightning

When cables are used outdoors, there is a chance that they may be affected by lightning. In such a case, install a lightning arrestor close to the camera, and make the length of the network cable between the camera and lightning arrestor as short as possible to prevent the camera from being affected by lightning. Refer to our technical information website

■ When noise disturbance may happen

Noise may appear in video or audio near a strong electric field from a TV or radio antenna, motors and transformers, or a strong electric field/magnetic field from a power line (lamp line) of AC100 V or more. Conduct the power distribution work to keep 1 m {3.28 feet} away from them or conduct the electric conduit work using metal pipes. (Be sure to make ground connection of the metal pipes.)

■ Equipment classification and power source indication label

Refer to the indication label on the bottom side of this unit for the equipment classification, power source, and other information.

■ About static electricity

Before installing or removing this product, be sure to touch metal objects to discharge static electricity from your body.

Specifications
Power source *1: PoE (IEEE802.3af	compliant)
Power consumption *1: PoE 48 V DC: 200 mA / Approx. 9.6 W (Class 0 device)
Operating environmentAmbient operating temperature:Ambient operating humidity:	-10 °C to +50 °C {14 °F to 122 °F}10 % to 90 % (no condensation)
Storage environmentStorage temperature:Storage humidity:	-30 °C to +60 °C {-22 °F to +140 °F}10 % to 95 % (no condensation)
Built-in microphone:U22501 U22301	Nondirectional electret condenser microphone
Waterproof and dustproof: IP42 Conformity *2
Shock resistance: IK10 (IEC 62262)
Dimensions: ø109 mm × 62 mm (H) {ø4-9/32 inches × 2-7/16 inches (H)}Dome radius 30.5 mm {1-3/16 inches}
Mass: Approx. 270 g {0.60 lbs}
Finish:	Main body : Aluminum die cast, i-PRO whitePC resin, i-PRO whiteDome cover: PC resin, Clear

*1 Refer to our technical information website for further information about Power source and Power consumption information.

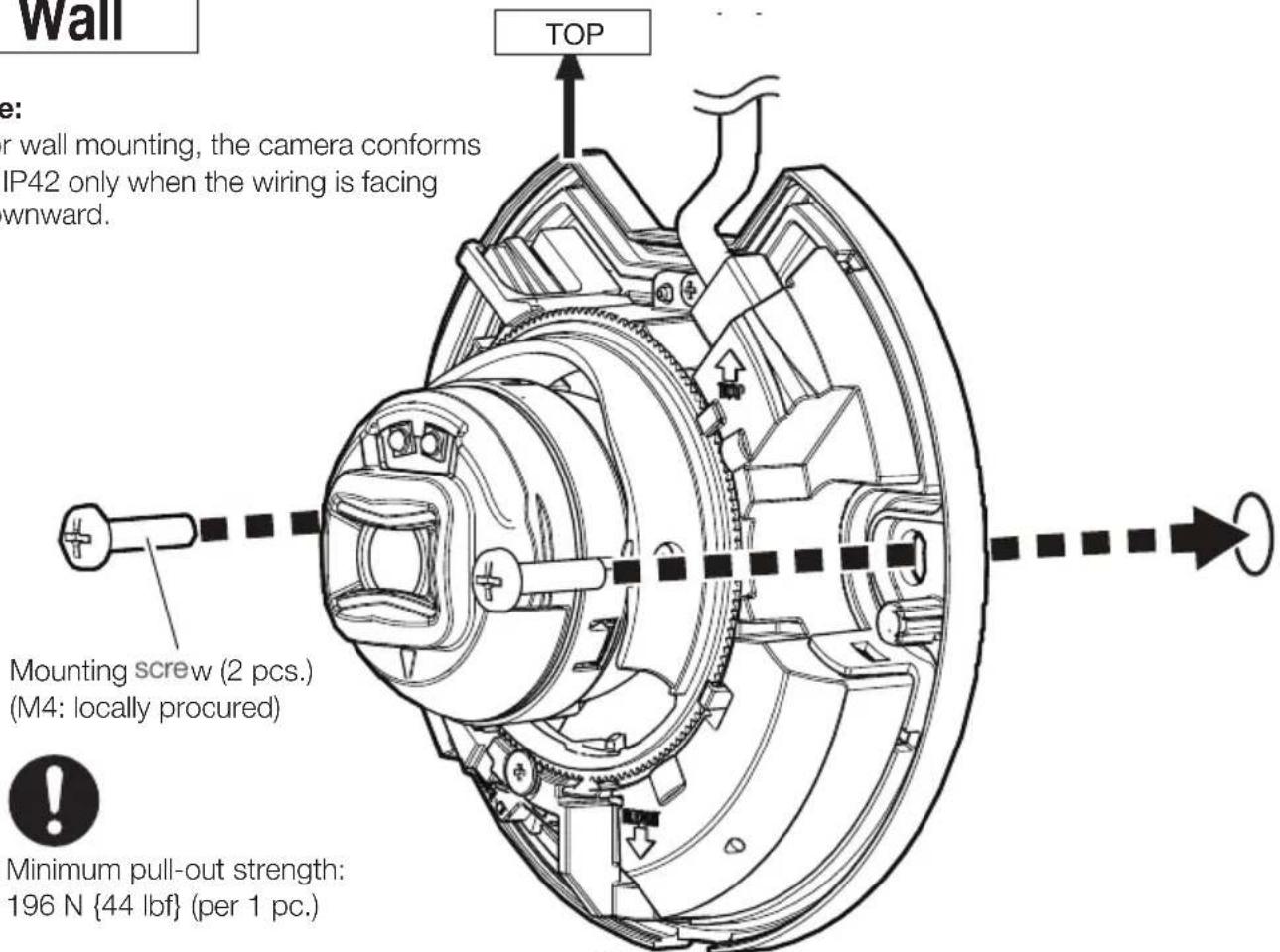

*2 For wall mounting, the camera conforms to IP42 only when the wiring is facing downward.

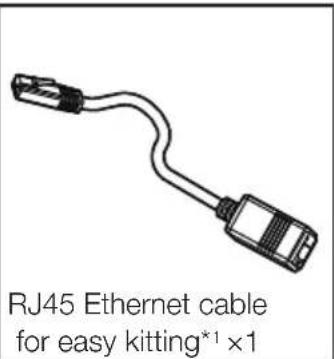

Standard accessories

Important Safety Instructions .... 1 pc.

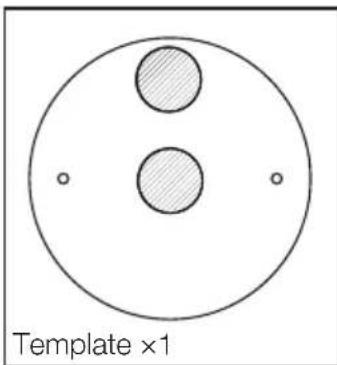

Simple diagram of a circular component with two shaded circles and three small dots, labeled 'Template ×1' below (no text or symbols within the diagram itself)

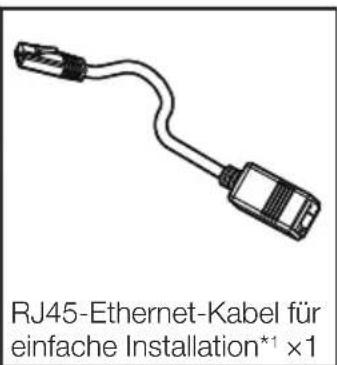

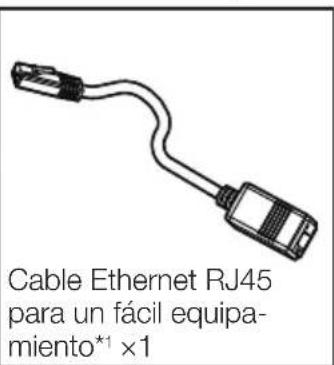

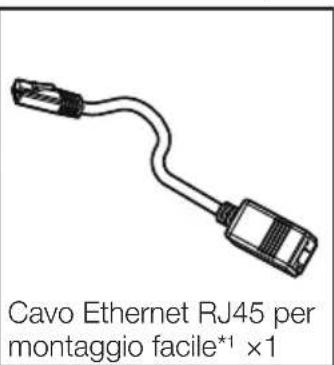

RJ45 Ethernet cable for easy kitting*1 x1

*1 The RJ45 Ethernet cable for easy kitting is attached to the camera.

Other items that are needed (not included)

- Mounting screws

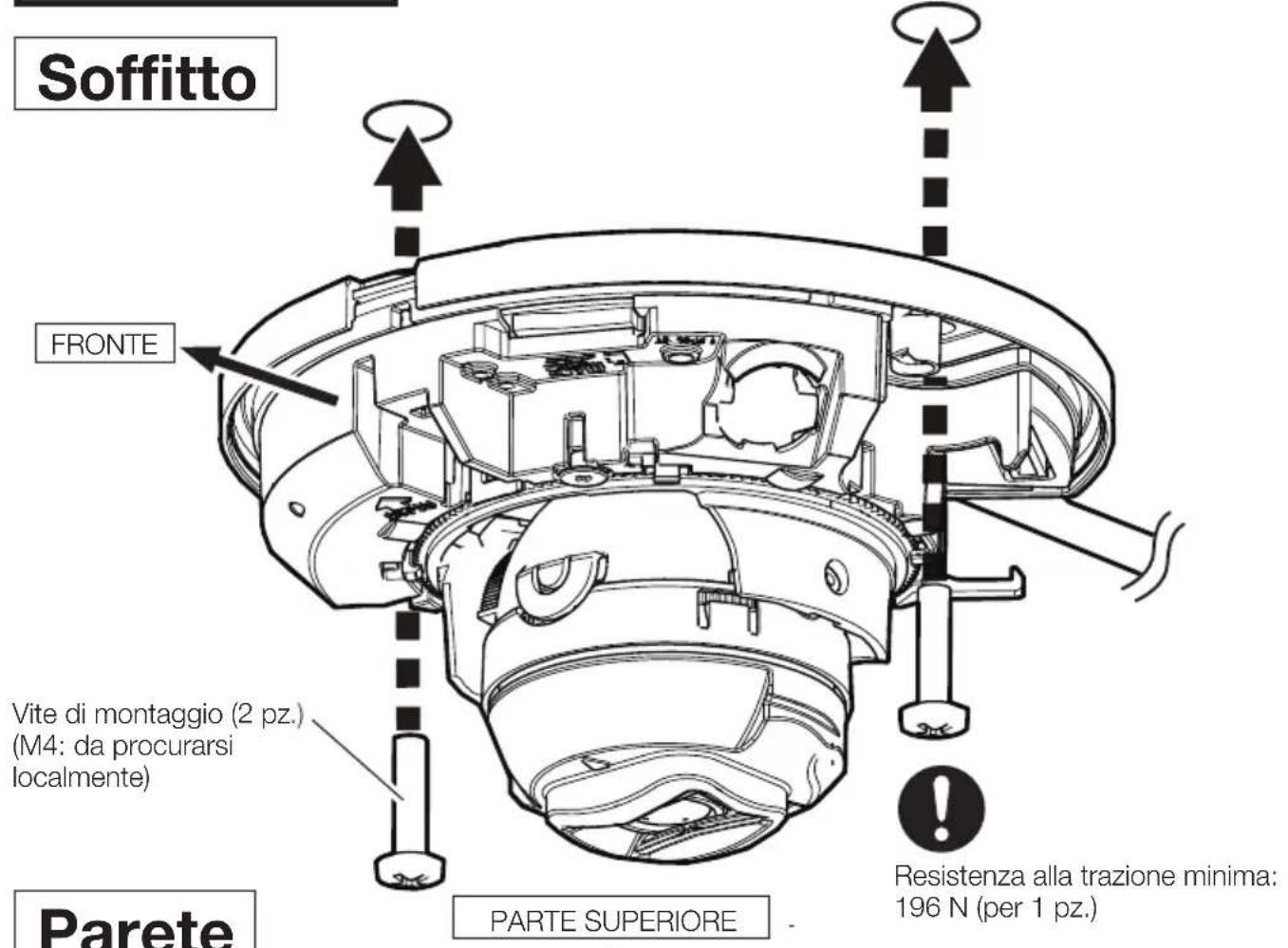

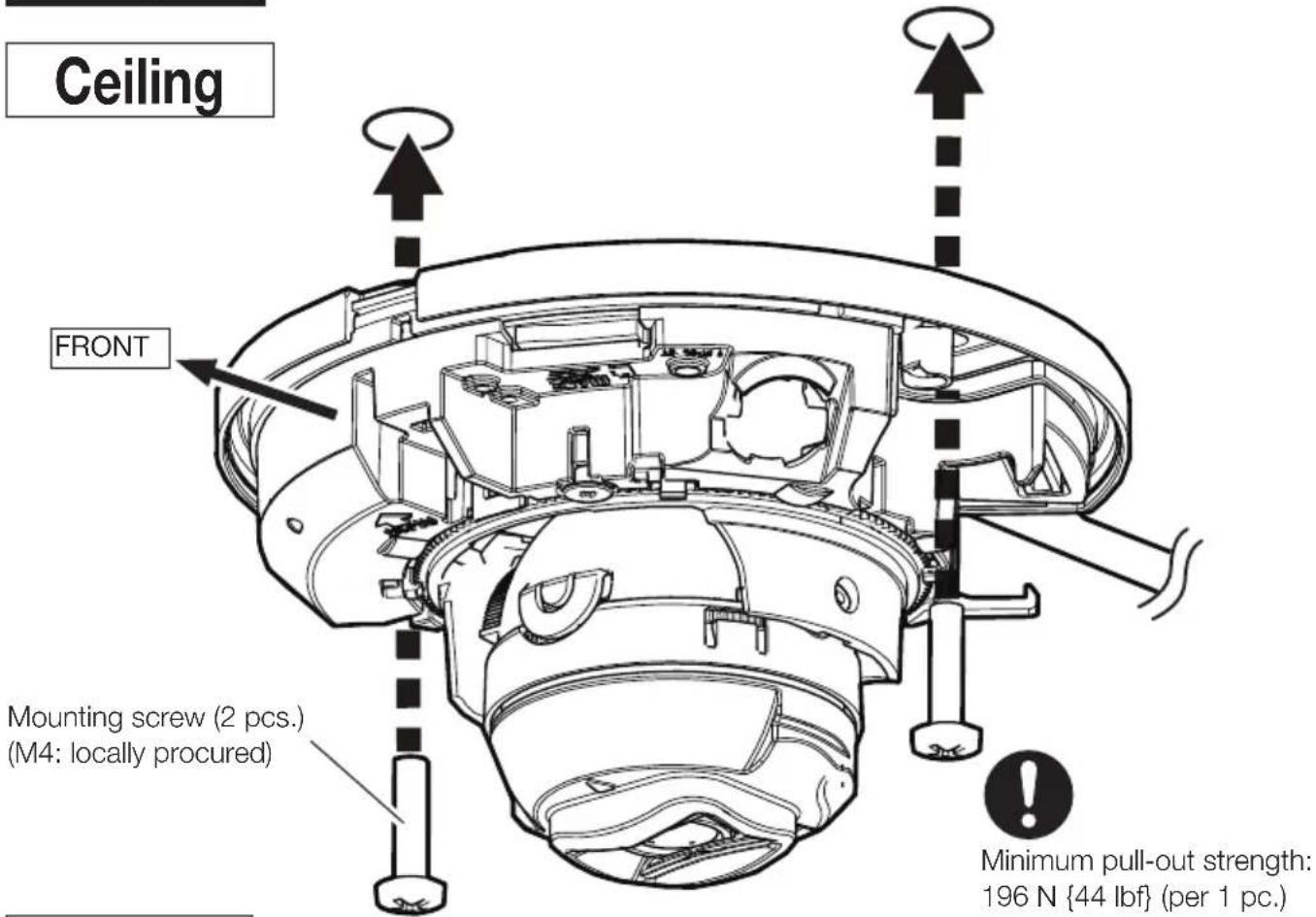

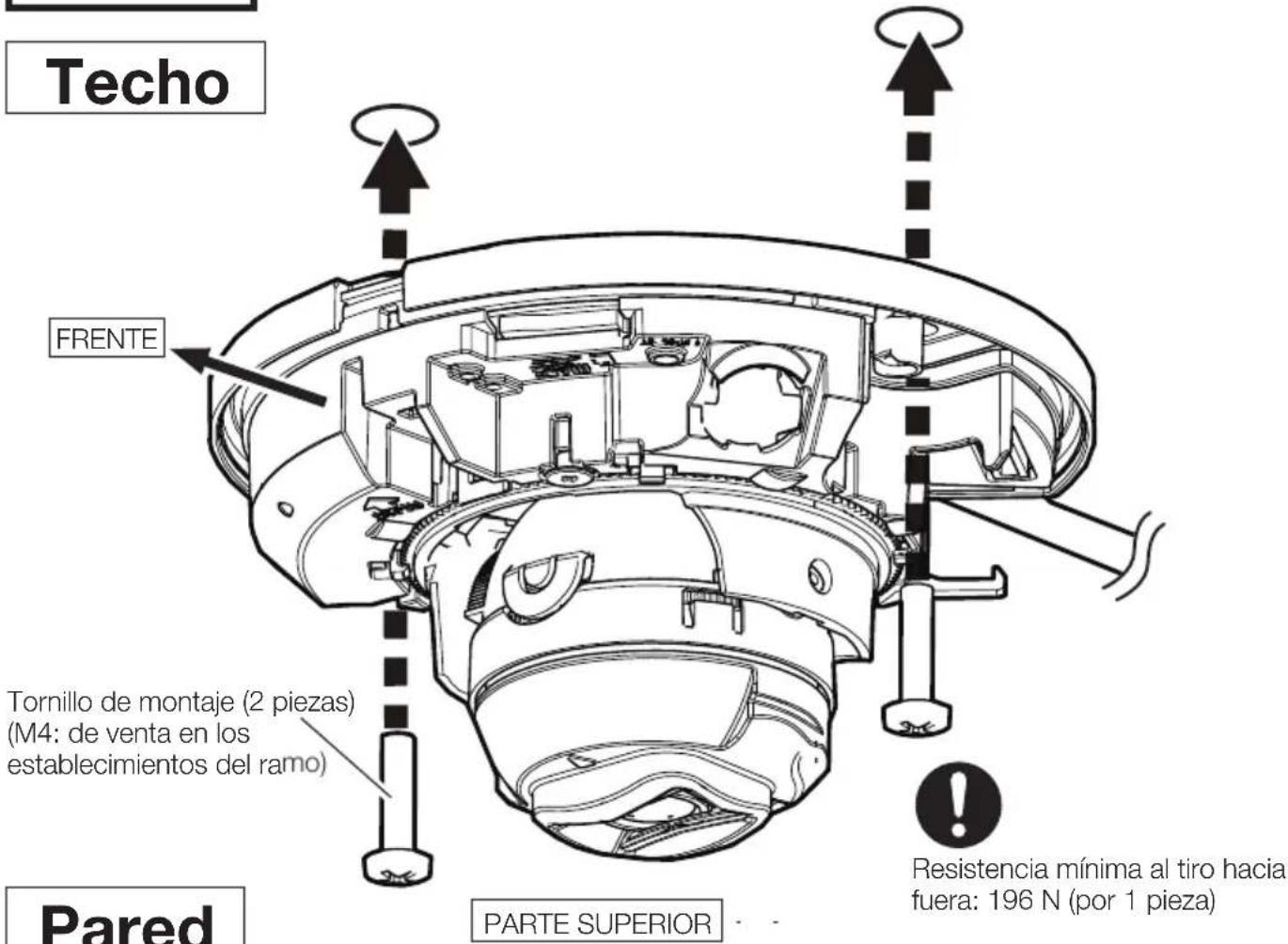

Installation method	Recommended screw*1	Minimum pull-out strength*2
Directly mount the camera onto the installation surface.	M4 × 16 mm*3 {5/8 inches} × 2 pcs.	196 N {44 lbf}

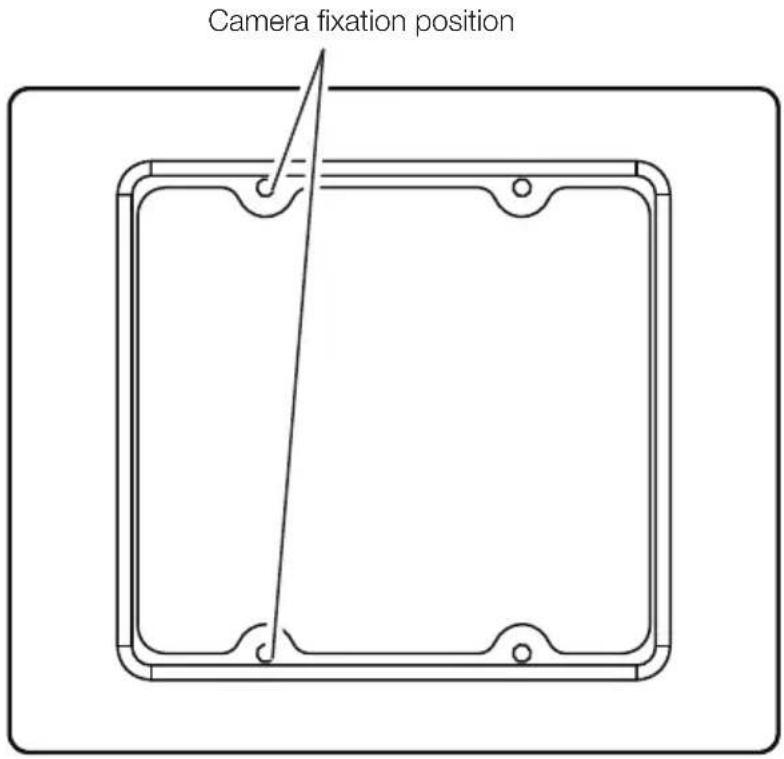

Mount the camera to a gangbox/ junction box.
Mount the camera using the exclusively designed mount bracket.	Refer to the operating instructions of each bracket.

*1 Select screws according to the material of the location that the camera will be mounted to. In this case, wood screws and nails should not be used.
*2 This value indicates the minimum pull-out strength required value per screw. For information about the minimum pull-out strength, refer to our technical information website .
*3 The screw length is an example when installing the camera on a robust installation surface with a thickness of 20 mm {25/32 inches} or more.

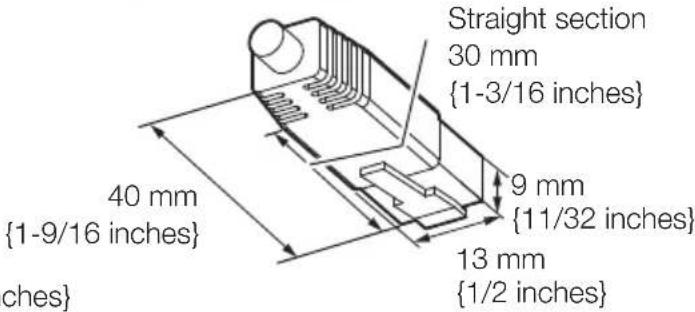

Ethernet cable with RJ45 plug (category 5e or better, straight, all 4 pairs (8 pins), less than 100m {328 feet})

A necessary, audio input cable, audio output cable U22750 U22550U2350350

Straight section 17 mm {21/32 inches}

30 mm {1-3/16 i} ection inches} D

Diameter

9 mm {11/32 inches}

Straight section 30 mm {1-3/16 inches} 40 mm {1-9/16 inches} ches} 9 mm {11/32 inches} 13 mm {1/2 inches}

Optional accessories

The latest information → Technical information website “Accessory Selector”

Troubleshooting

Before requesting service, refer to "Troubleshooting" of Web Guide. Then, confirm the trouble.

Installation Procedure

Technical Support Video

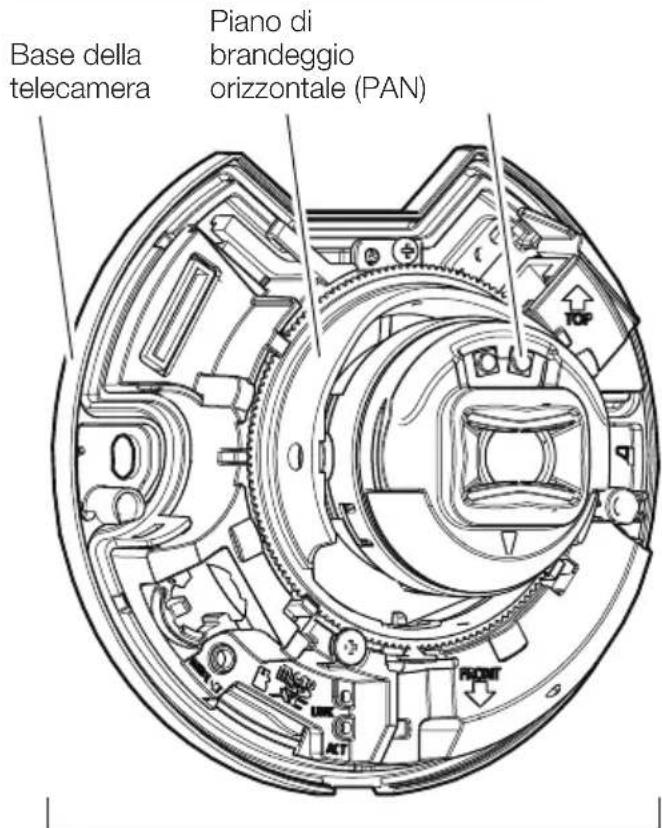

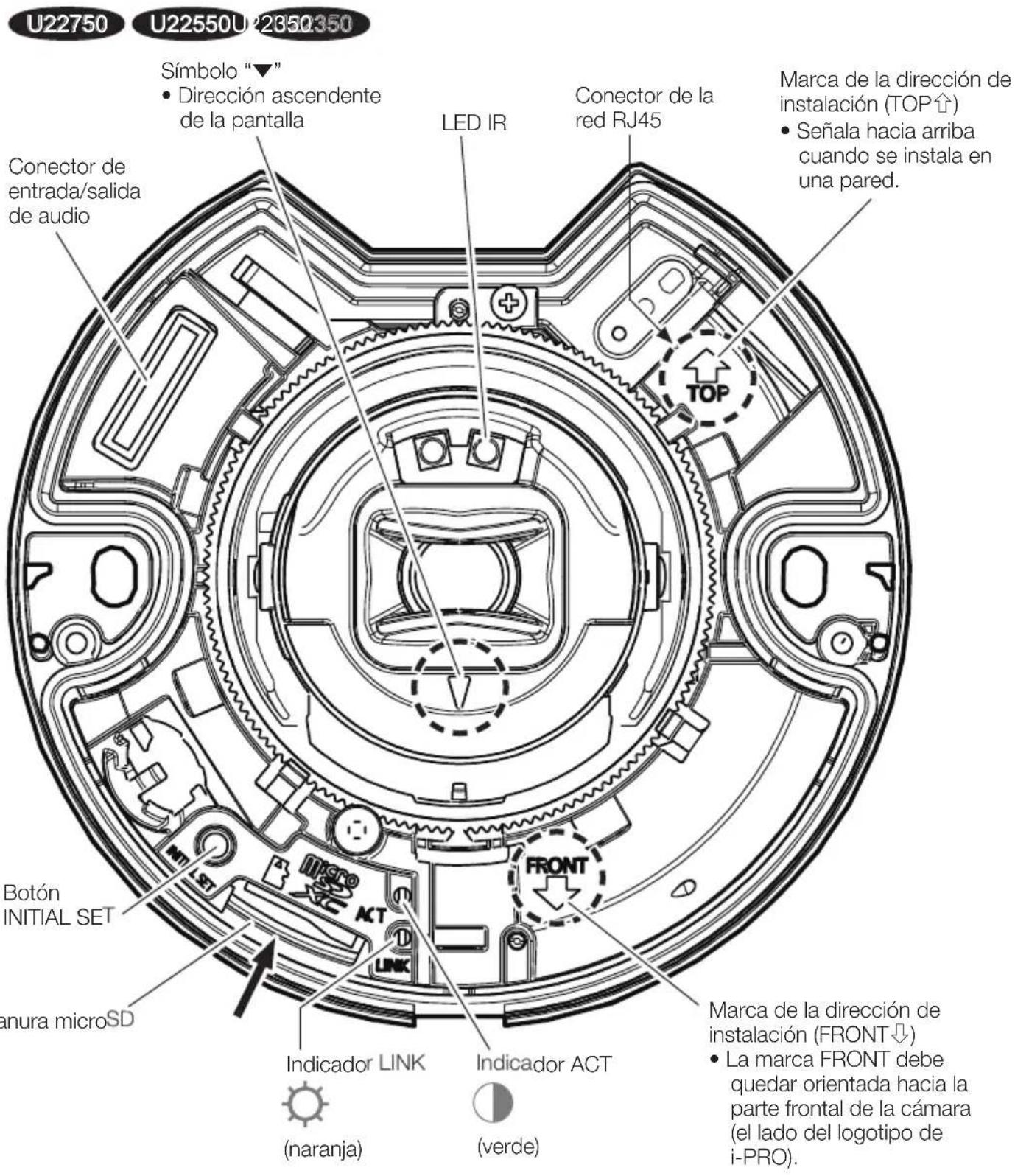

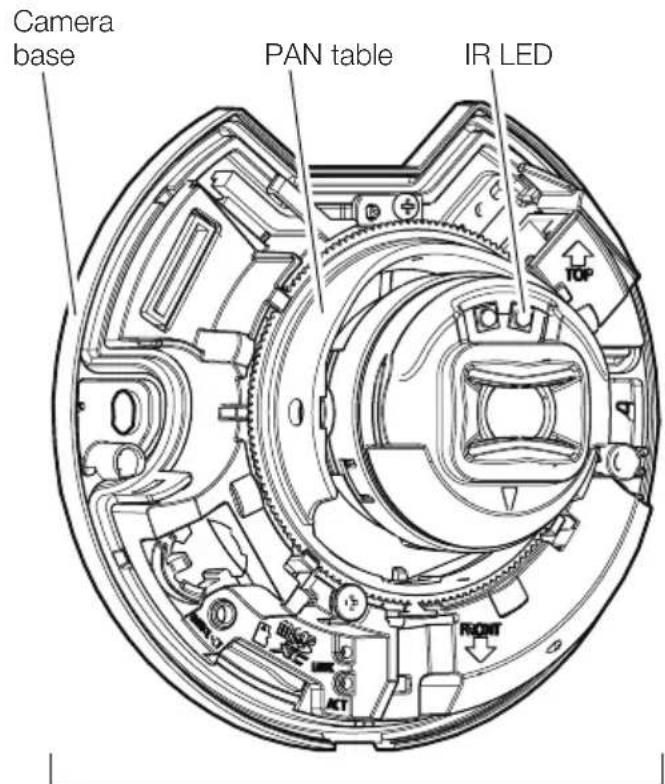

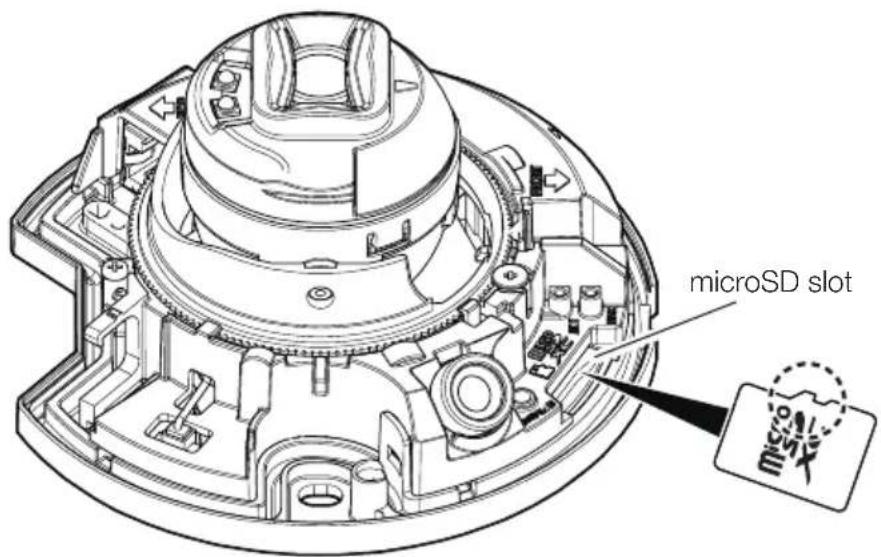

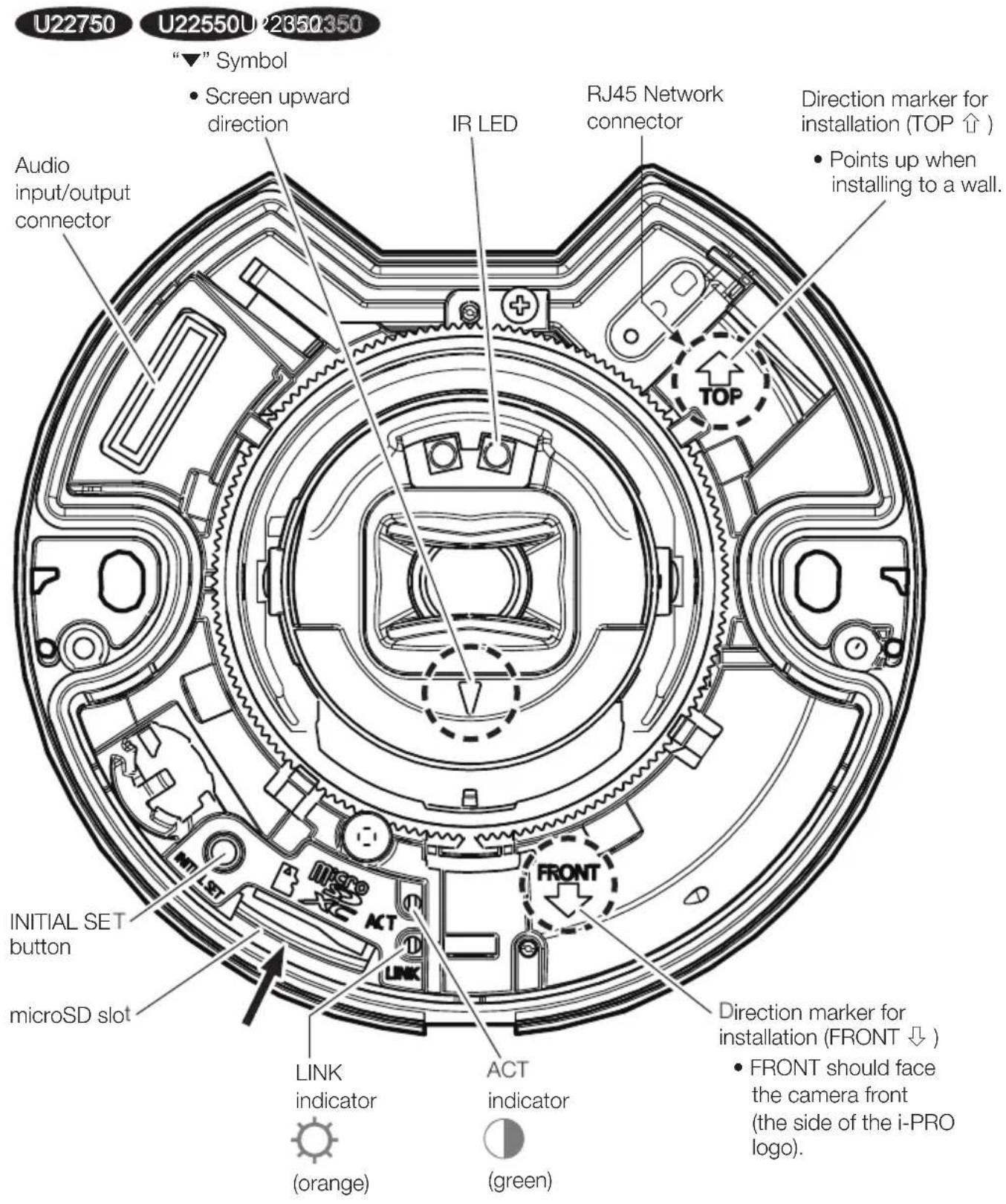

Parts and functions

U22750

U22550

U22350

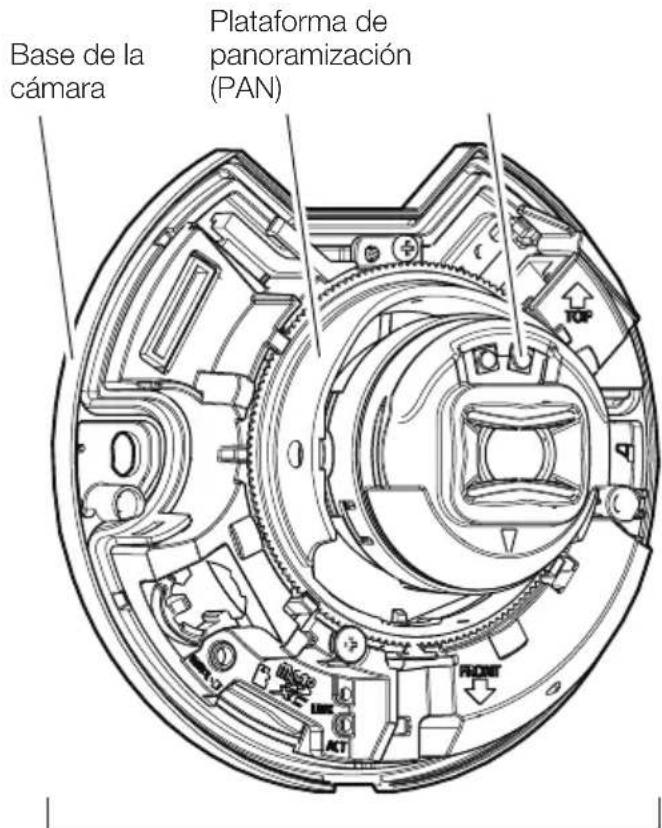

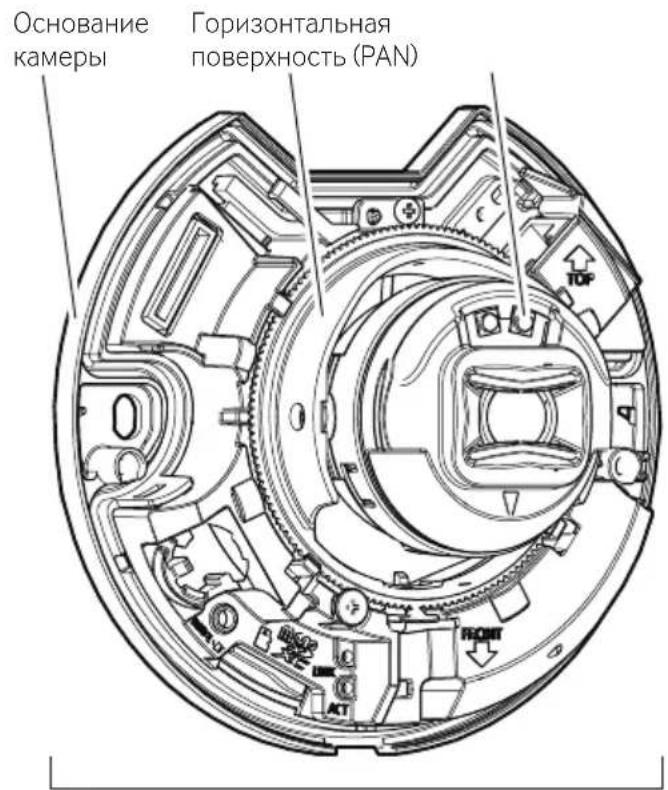

Camera base PAN table IR LED TOP FRONT ACT

Camera

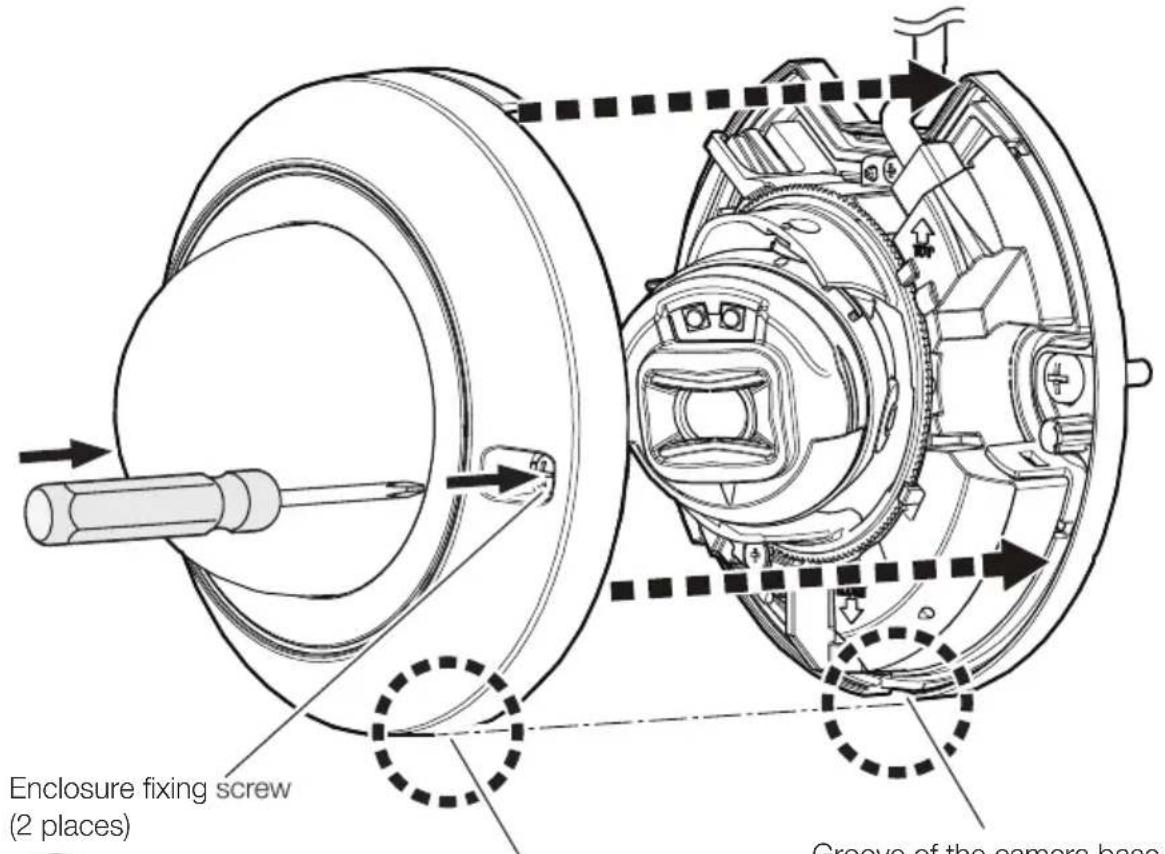

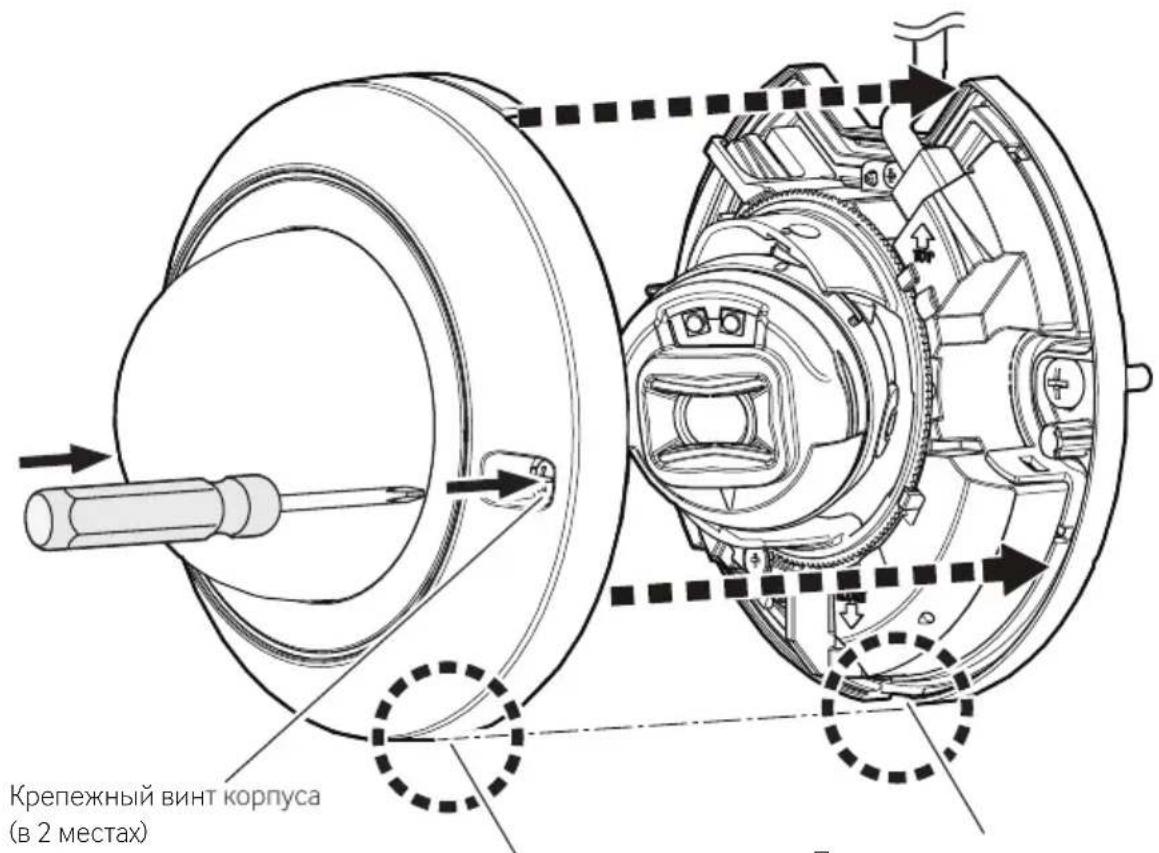

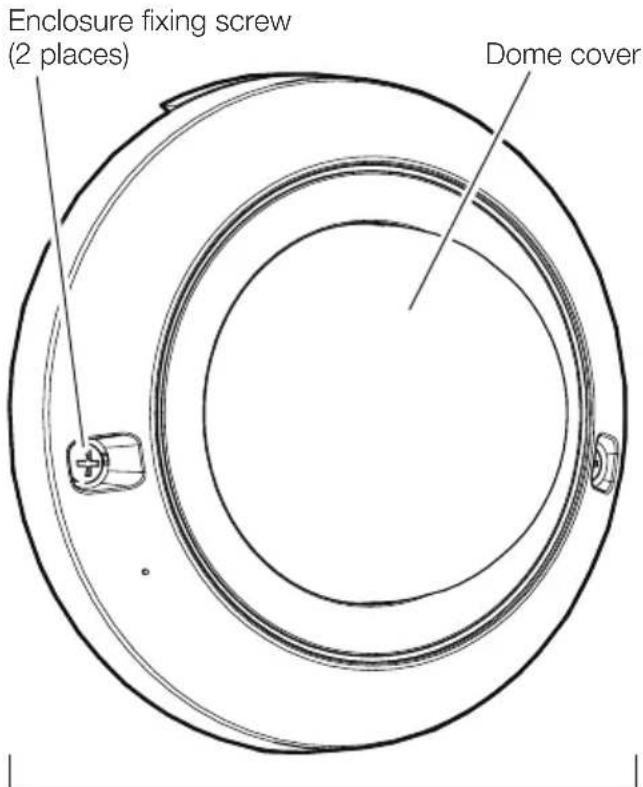

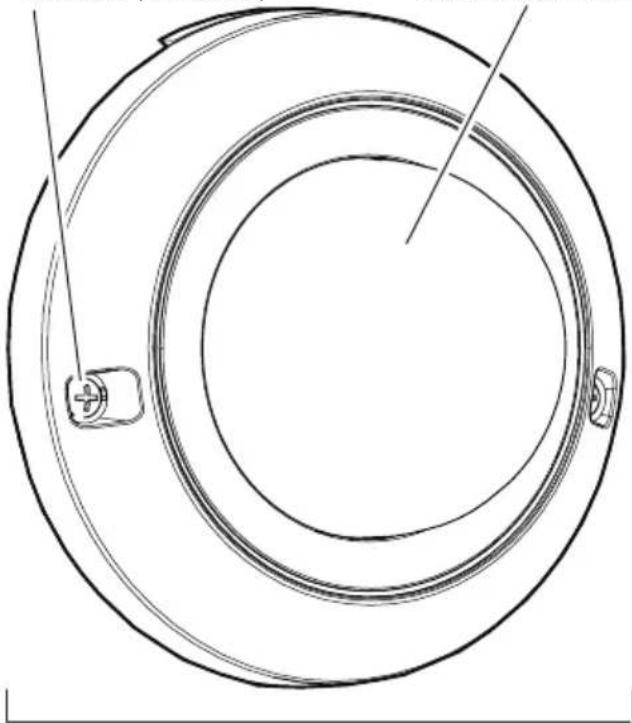

Enclosure fixing screw

(2 places) Dome cover

Enclosure

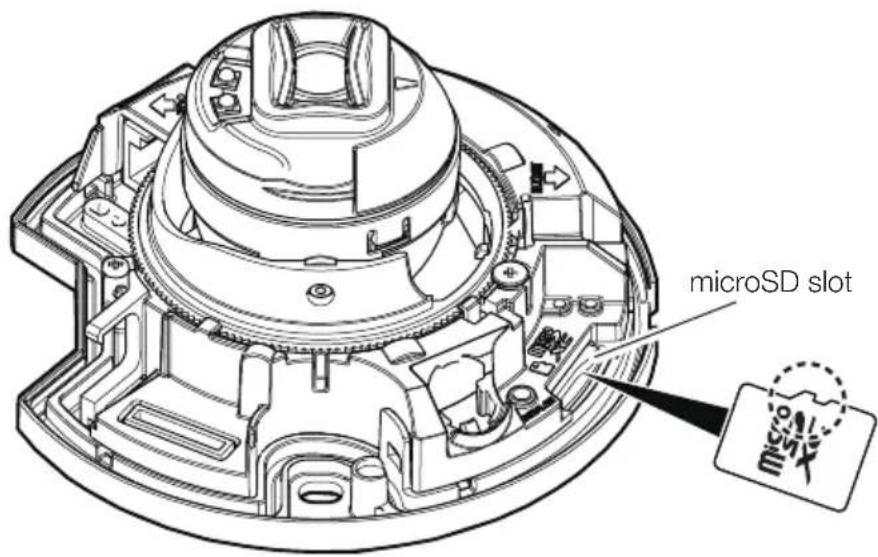

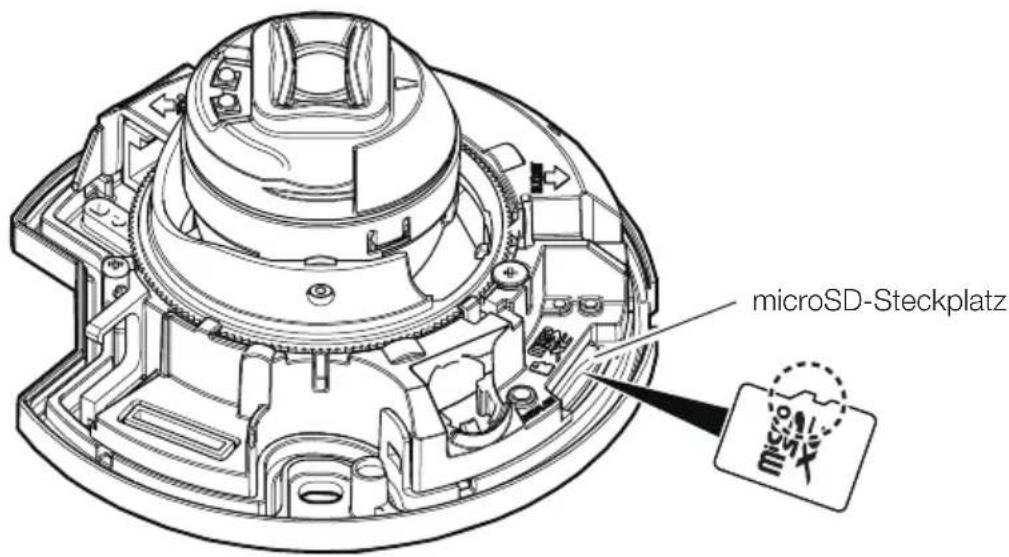

microSD slot

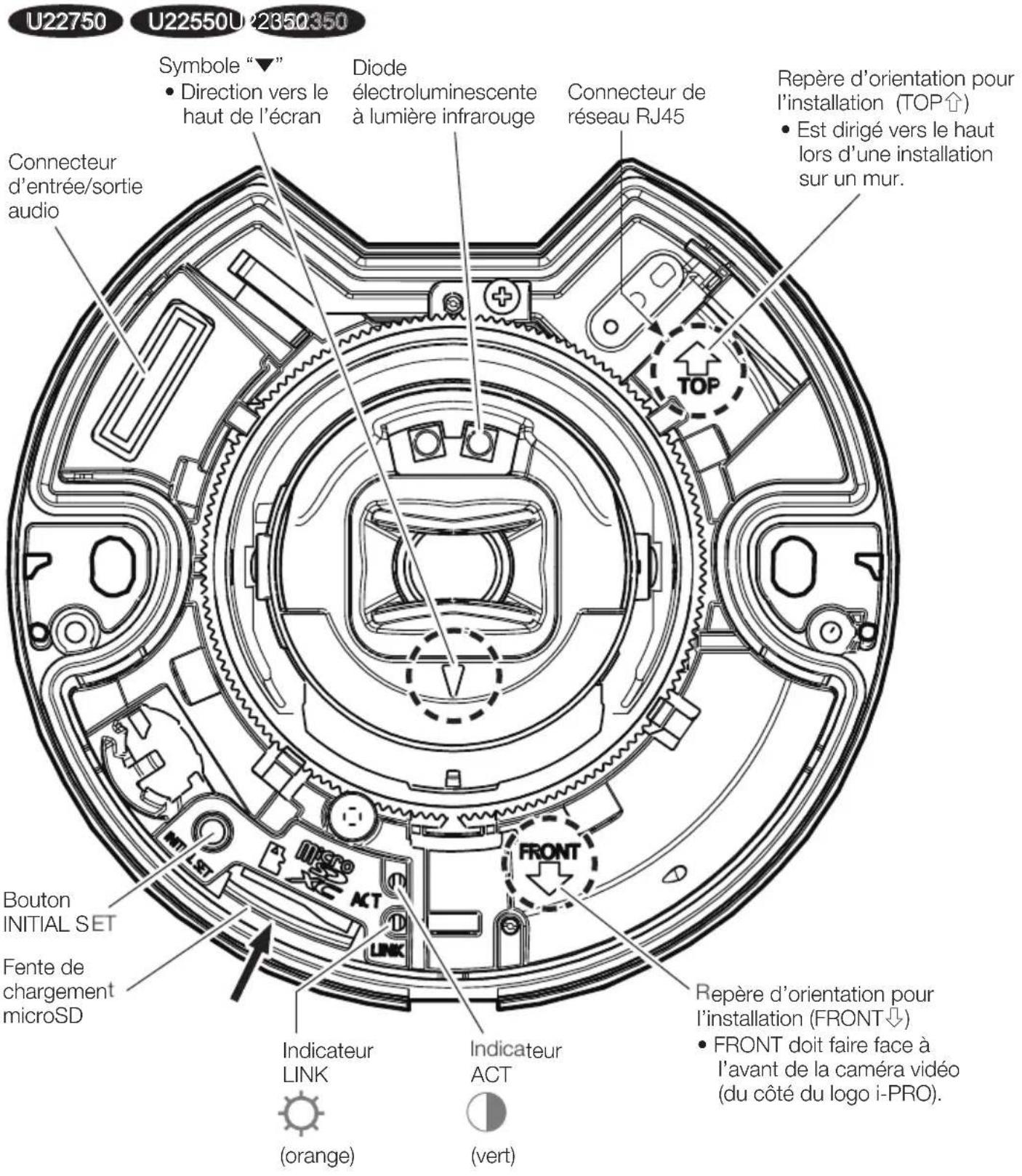

U22750 U22550U22350350 "▼" Symbol • Screen upward direction Audio input/output connector IR LED RJ45 Network connector Direction marker for installation (TOP ↑) • Points up when installing to a wall. TOP FRONT INITIAL SET button microSD slot LINK indicator (orange) ACT indicator (green) Direction marker for installation (FRONT ↓) • FRONT should face the camera front (the side of the i-PRO logo).

: Lights

: Blinks

: Lights off

- All LEDs turn off

⇒ User manual [Indicator]

Installation Procedure

Technical Support Video

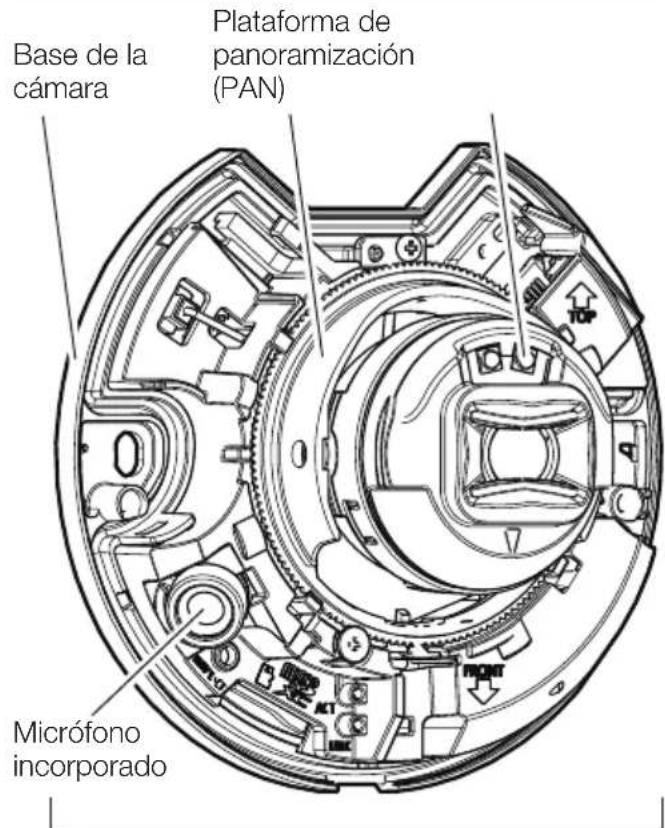

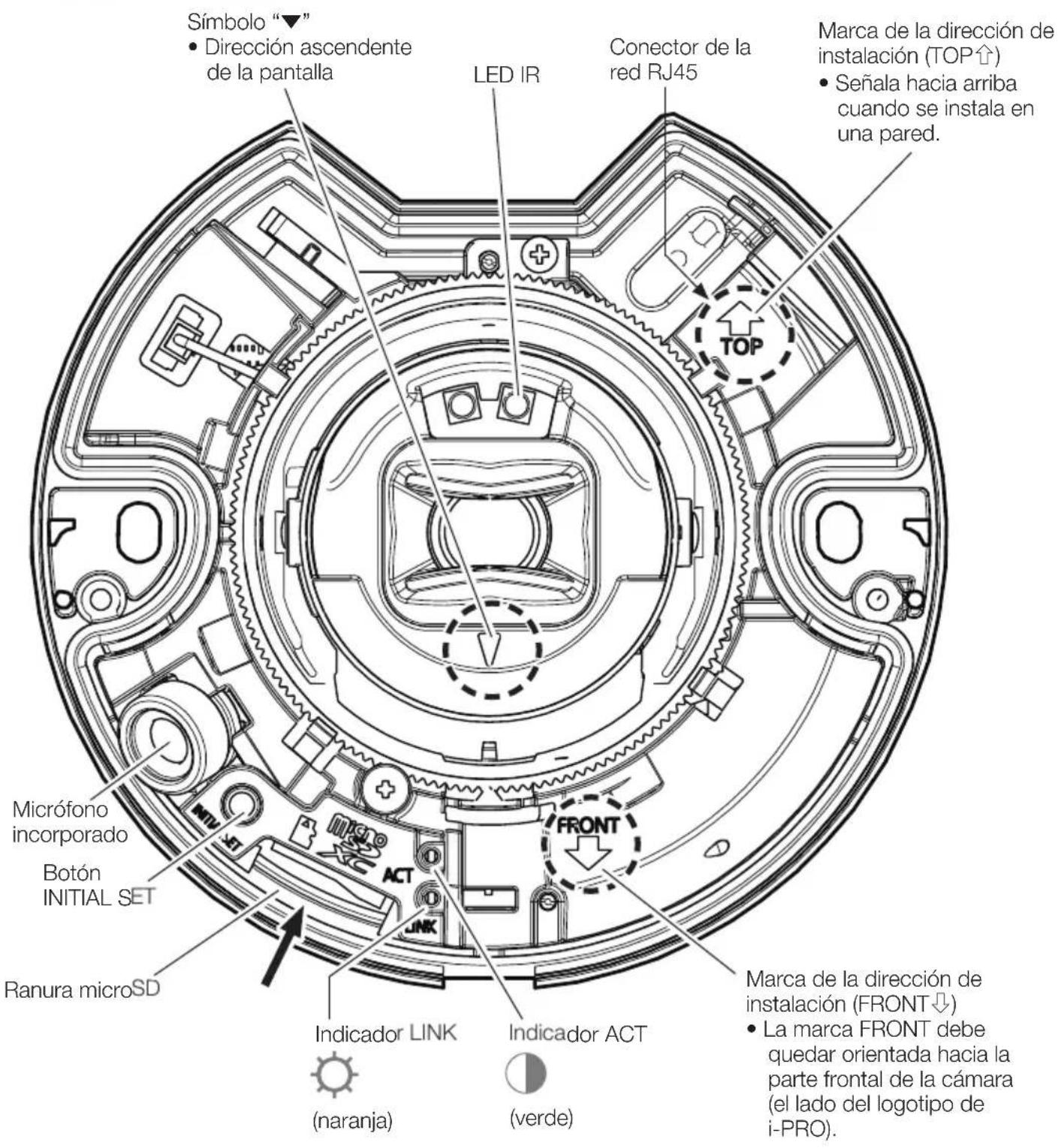

Parts and functions

U22501

U22301

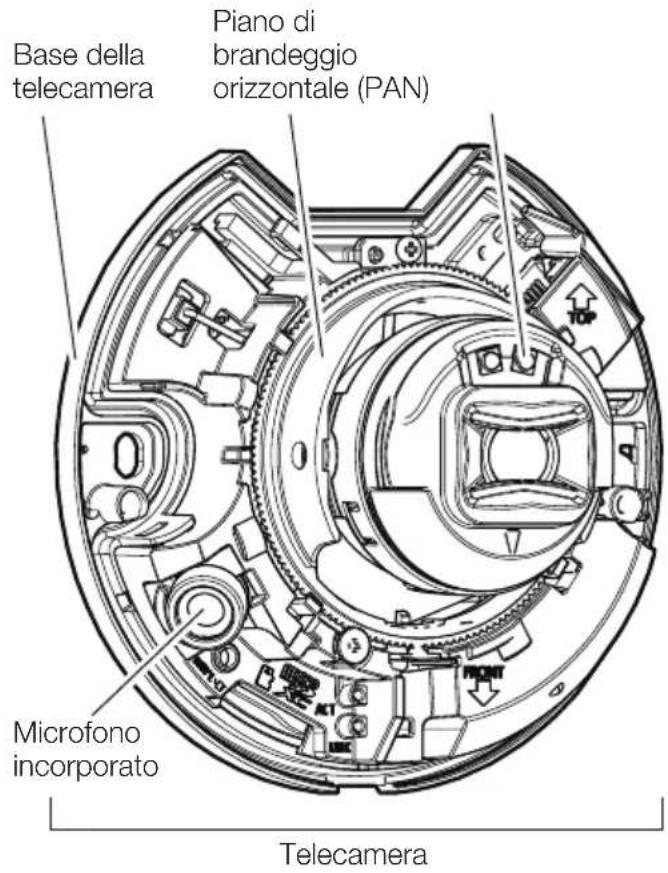

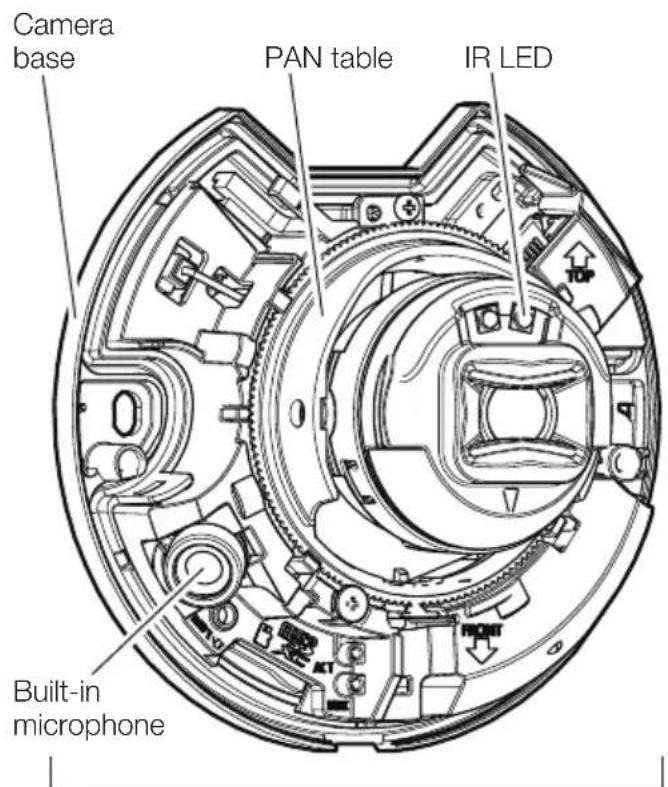

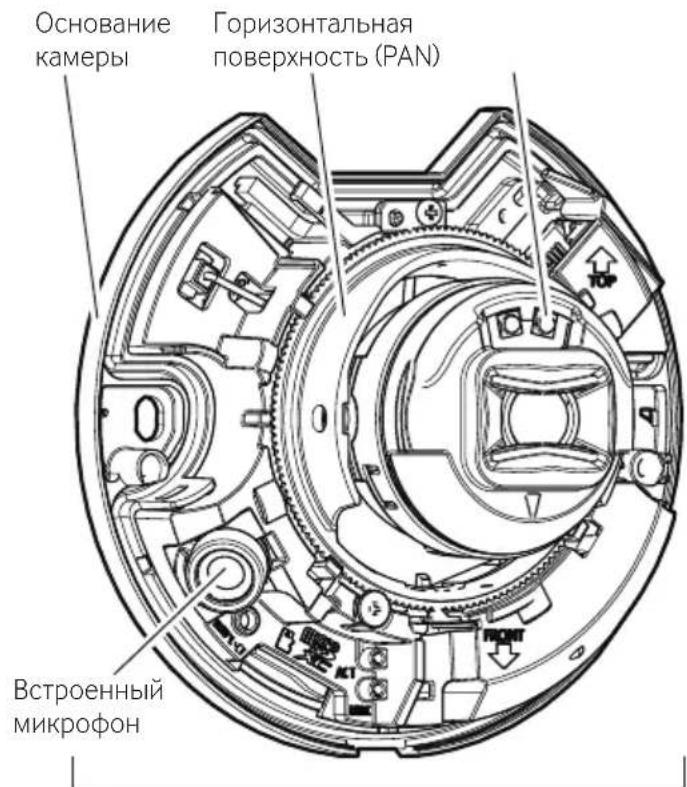

Camera base PAN table IR LED Built-in microphone

Camera

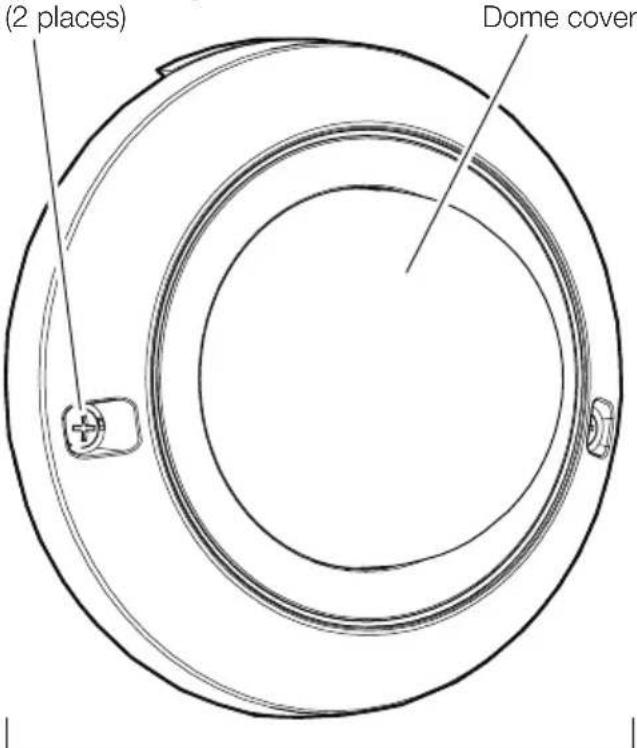

Enclosure fixing screw (2 places) Dome cover

Enclosure

microSD slot

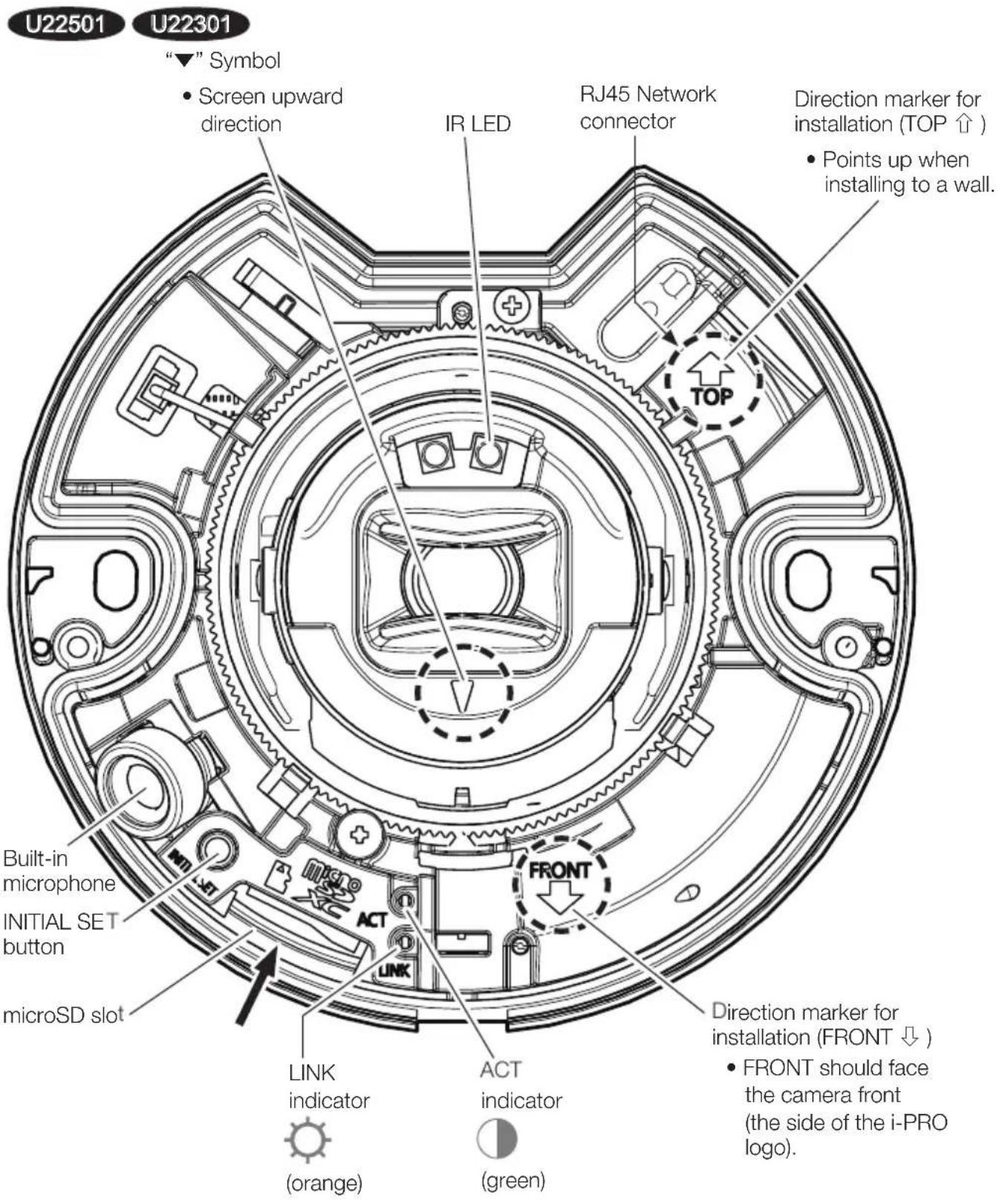

U22501 U22301 "▼" Symbol • Screen upward direction IR LED RJ45 Network connector Direction marker for installation (TOP ↑ ) • Points up when installing to a wall. TOP Built-in microphone INITIAL SET button microSD slot LINK indicator (orange) ACT indicator (green) FRONT Direction marker for installation (FRONT ↓ ) • FRONT should face the camera front (the side of the i-PRO logo).

: Lights

: Blinks

: Lights off

- All LEDs turn off ⇒ User manual [Indicator]

Note:

- The following installation instructions use , , and as examples.

Step 1 Preparations

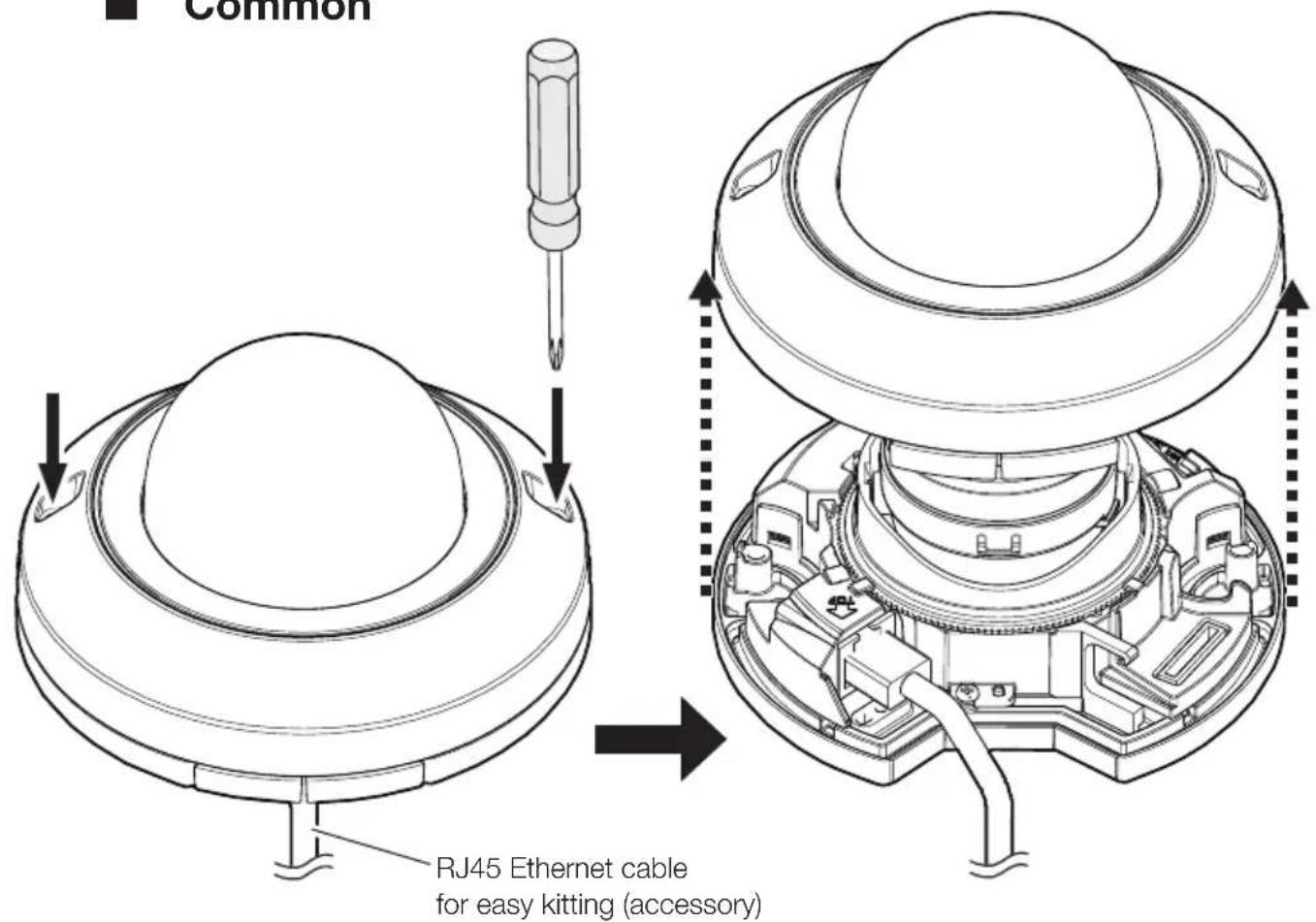

Common

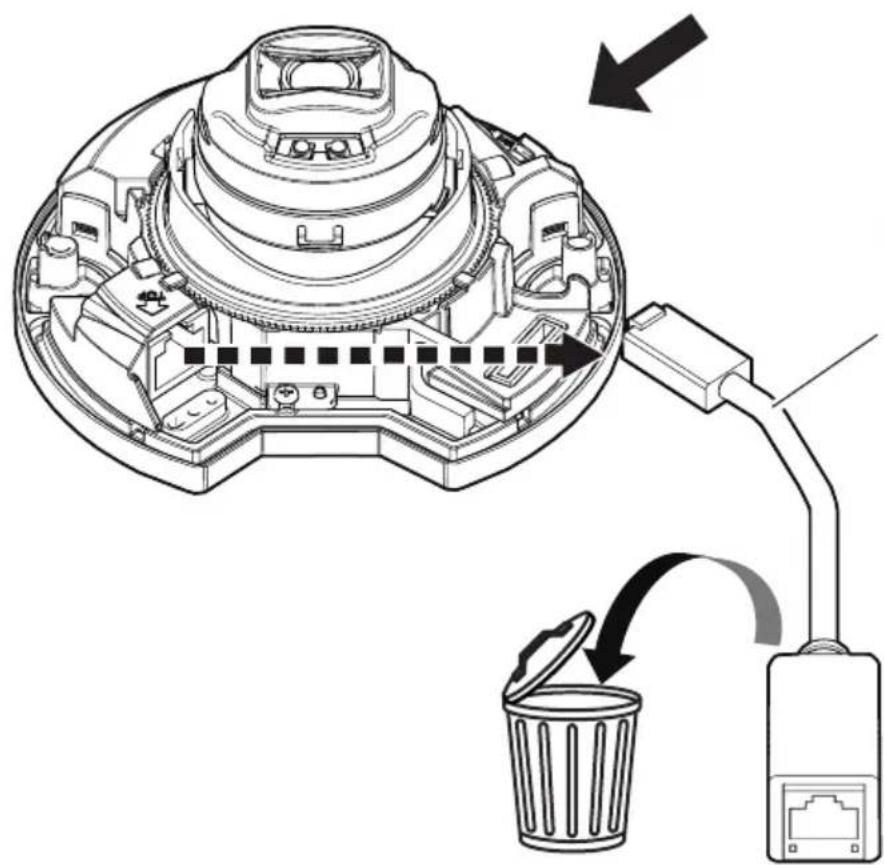

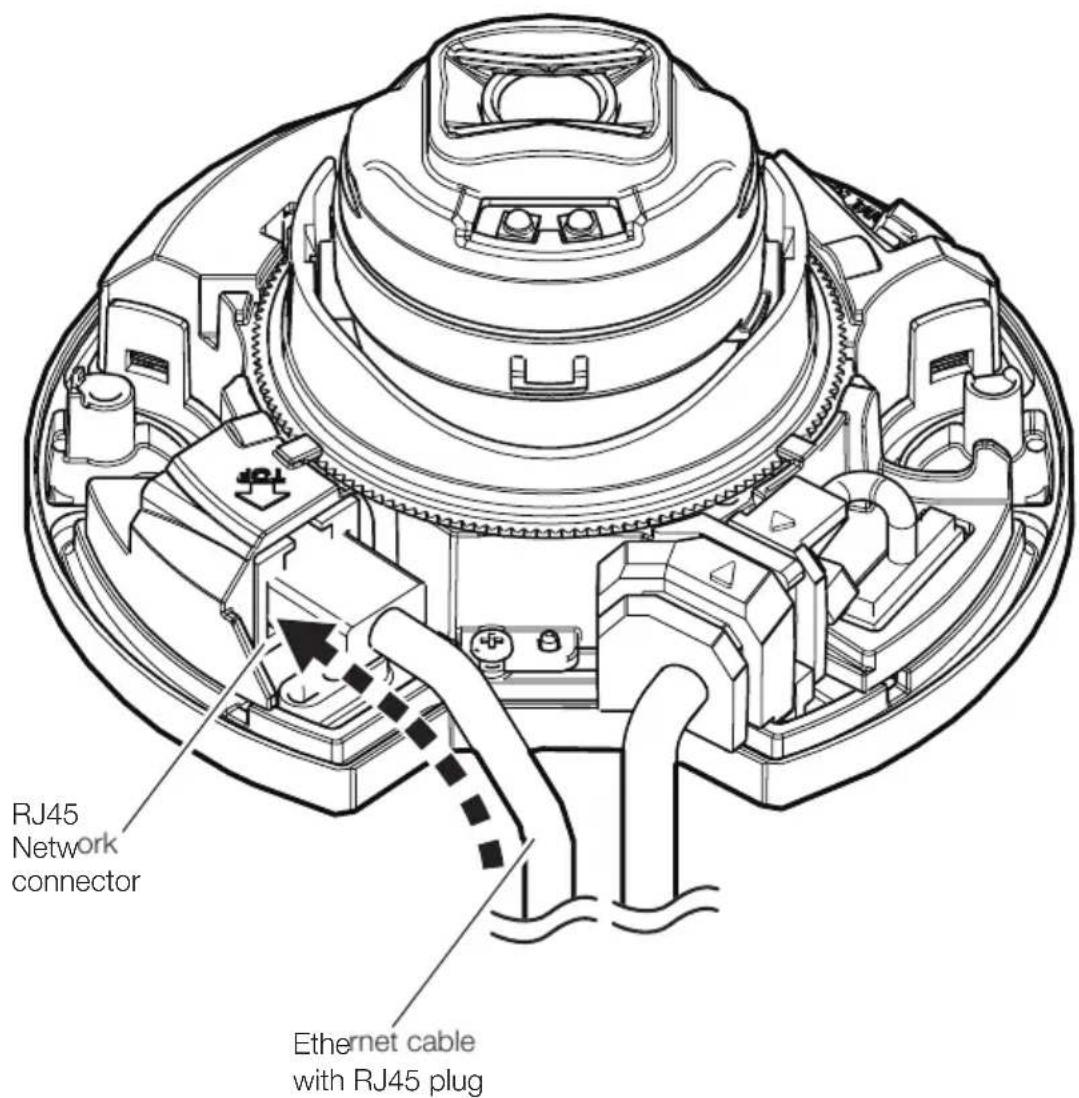

Common RJ45 Ethernet cable for easy kitting (accessory)

Diagram illustrating a device's internal structure and power distribution, showing a trash bin connected to an Ethernet port via cable.

- Do not use for actual installation.
RJ45 Ethernet cable for easy kitting (accessory)

Step 1 Preparations (Continued)

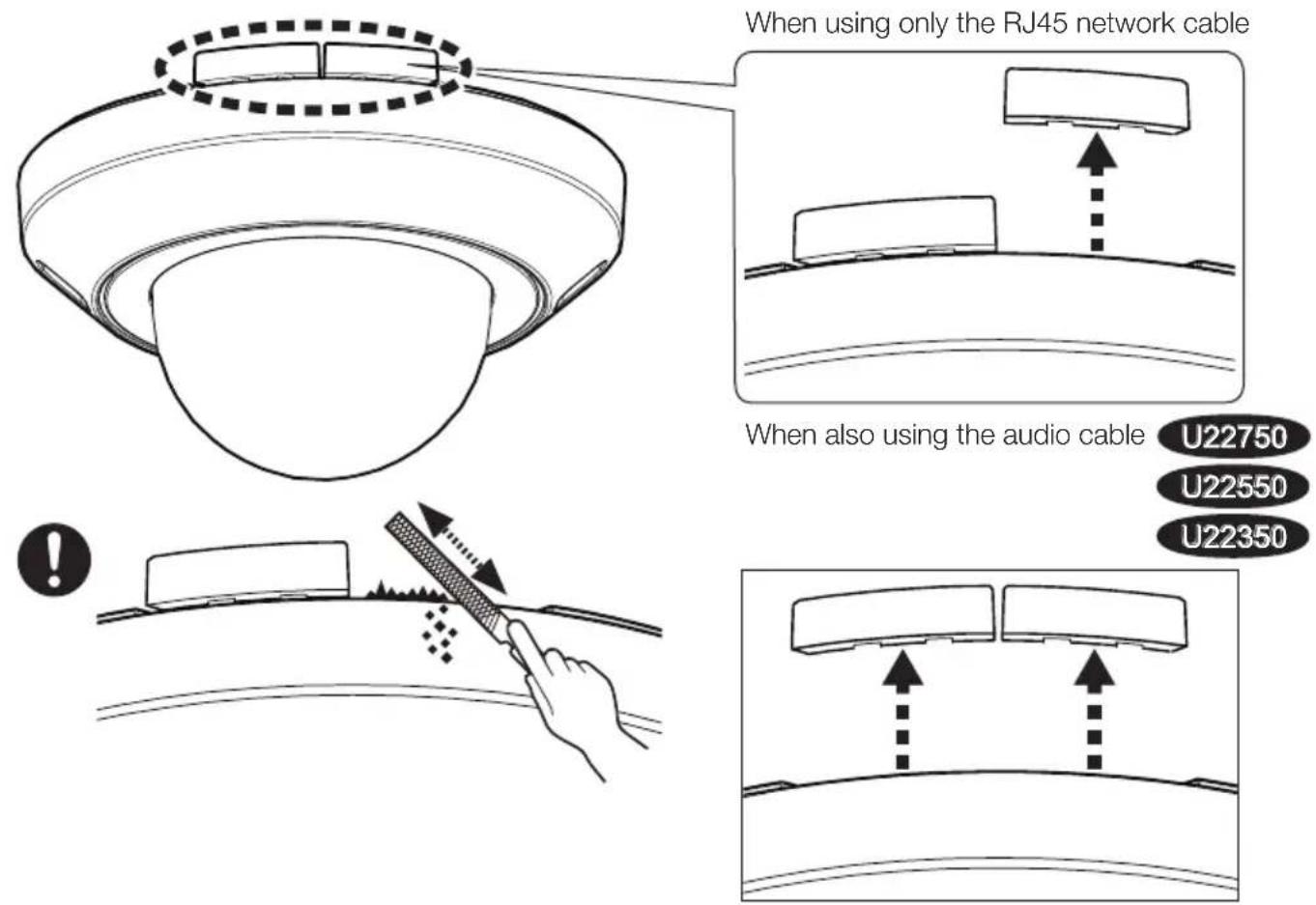

■ When using the side cable access hole

When using only the RJ45 network cable When also using the audio cable U22750 U22550 U22350

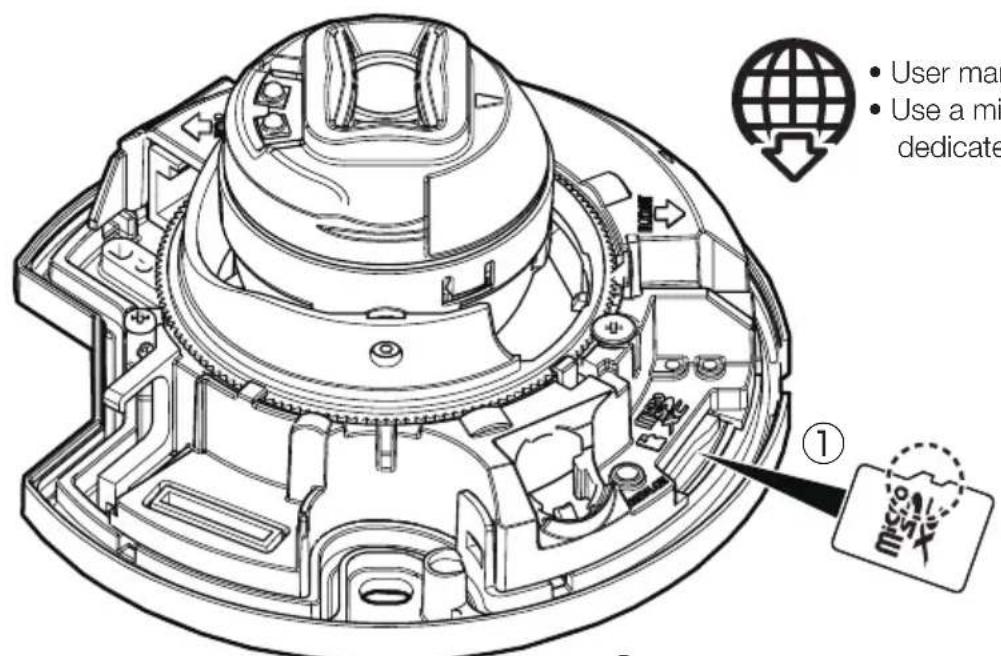

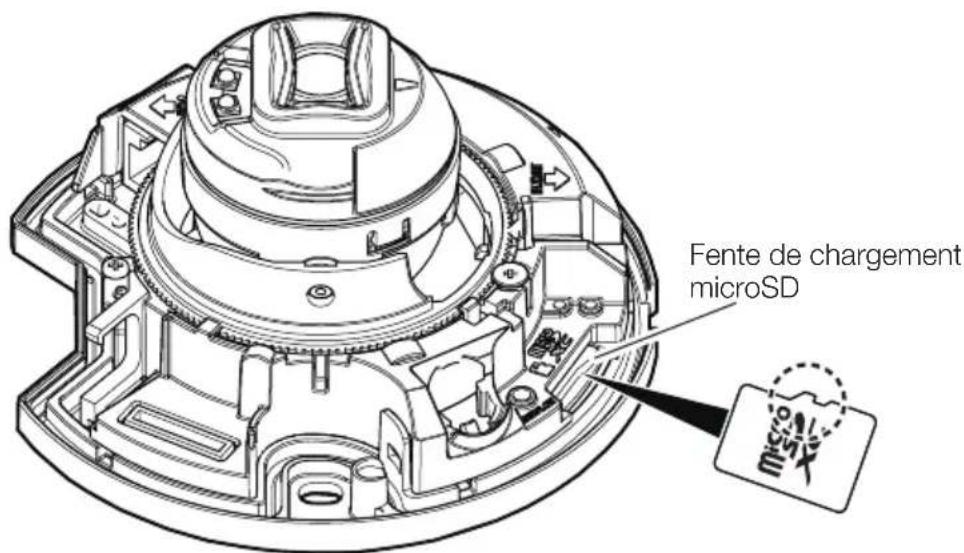

■ When using the microSD memory card

• User material • Use a mini dedicate ①

② A click sound is heard.

Step 1 Preparations (Continued)

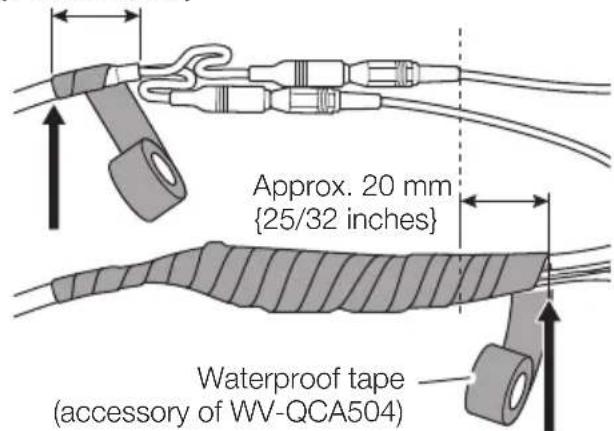

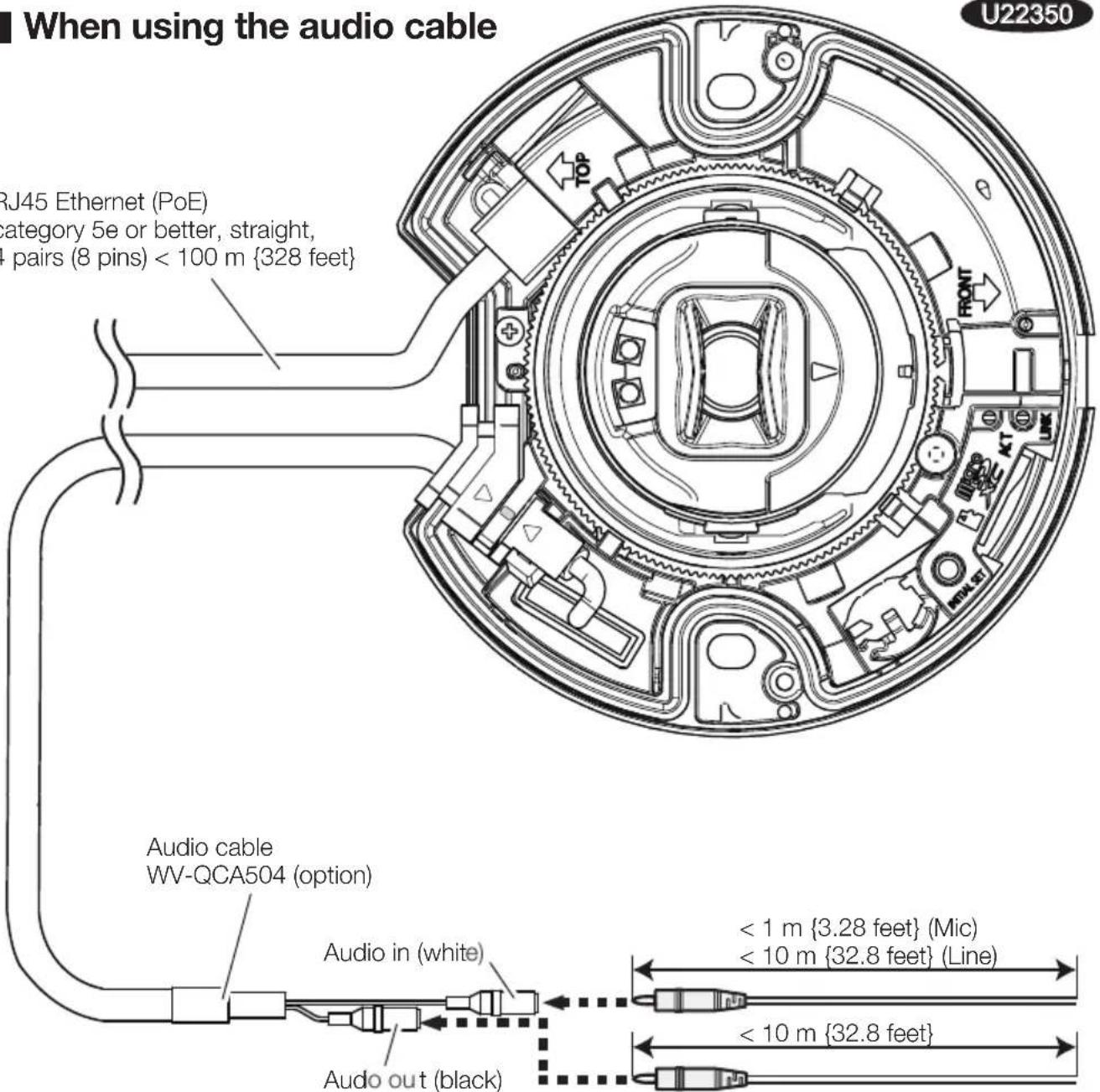

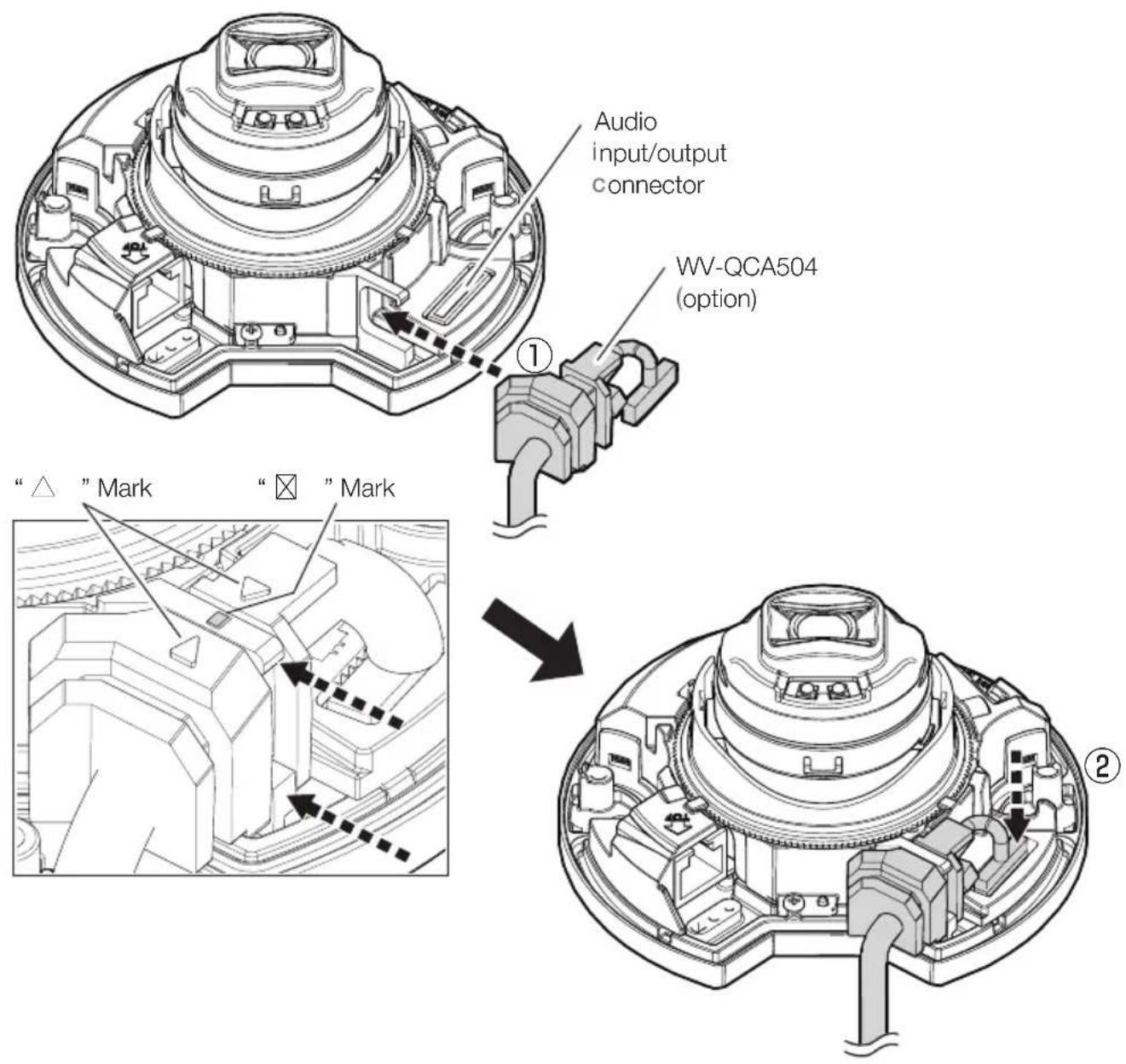

■ When using the audio cable (WV-QCA504)

U22750

U22550

U22350

Audio input/output connector WV-QCA504 (option) " △ " Mark " ☒ " Mark ① ②

Step 2

83.5 mm {3-9/32 inches} Ø25.4 mm {Ø1 inch} Cable access hole 2xM4 39 mm {1-17/32 inches} Ø109 mm {Ø4-9/32 inches} FRONT ole is shown in the the template, but it is not or use with this product.

Note:

• A wiring hole is shown in the center of the template, but it is not required for use with this product.
• When running the cable using the side cable access hole, it is unnecessary to make a cable access hole on the installation surface.

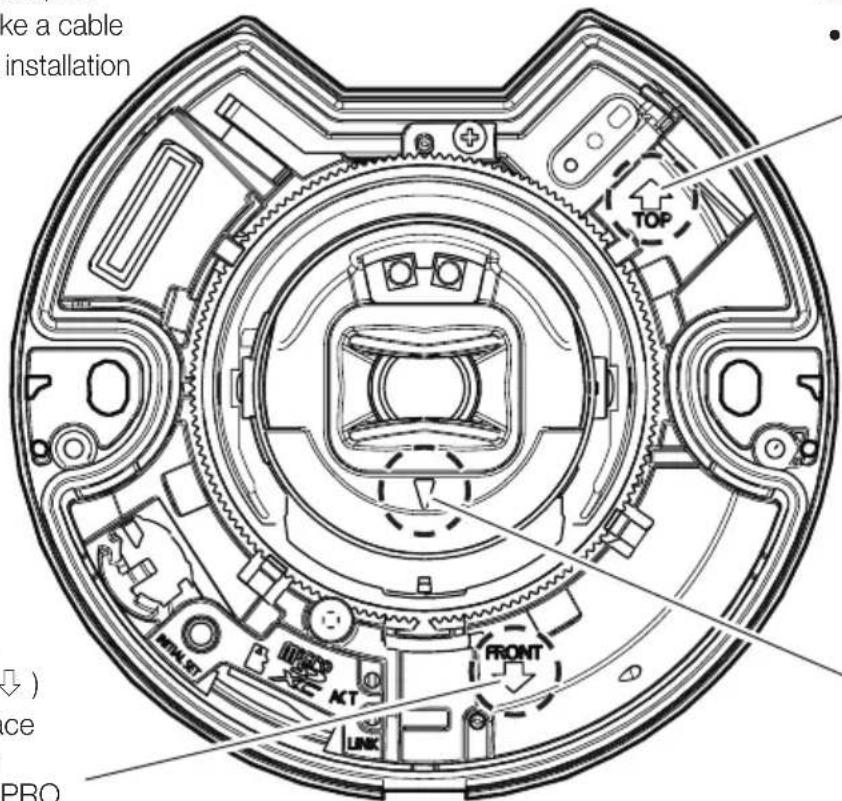

Direction marker for installation (TOP ↑)

- Points up when installing to a wall.

ke a cable installation TOP FRONT PRO ↓ ) ce PRO

Direction marker for installation (FRONT ↓)

• FRONT should face the camera front (the side of the i-PRO logo).

FRONT

“▼” Symbol

- Screen upward direction

Step 3

Common

RJ45 Network connector Ethernet cable with RJ45 plug

Step 3 (Continued)

U22750

U22550

U22350

When using the audio cable

RJ45 Ethernet (PoE)

category 5e or better, straight,

4 pairs (8 pins) < 100 m {328 feet}

When using the audio cable RJ45 Ethernet (PoE) category 5e or better, straight, 4 pairs (8 pins) < 100 m {328 feet} Audio cable WV-QCA504 (option) Audio in (white) Audio out (black) U22350 < 1 m {3.28 feet} (Mic) < 10 m {32.8 feet} (Line) < 10 m {32.8 feet}

Approx. 30 mm
{1-3/16 inches}

Approx. 20 mm {25/32 inches} Waterproof tape (accessory of WV-QCA504)

• Stretch the waterproof tape by about twice the length to use.
• To shorten the tape winding portion, wind the tape while keeping the audio cable slack.

Diagram showing two rectangular blocks with hatched patterns, one above and one below, connected by a double-headed arrow (no text or symbols)

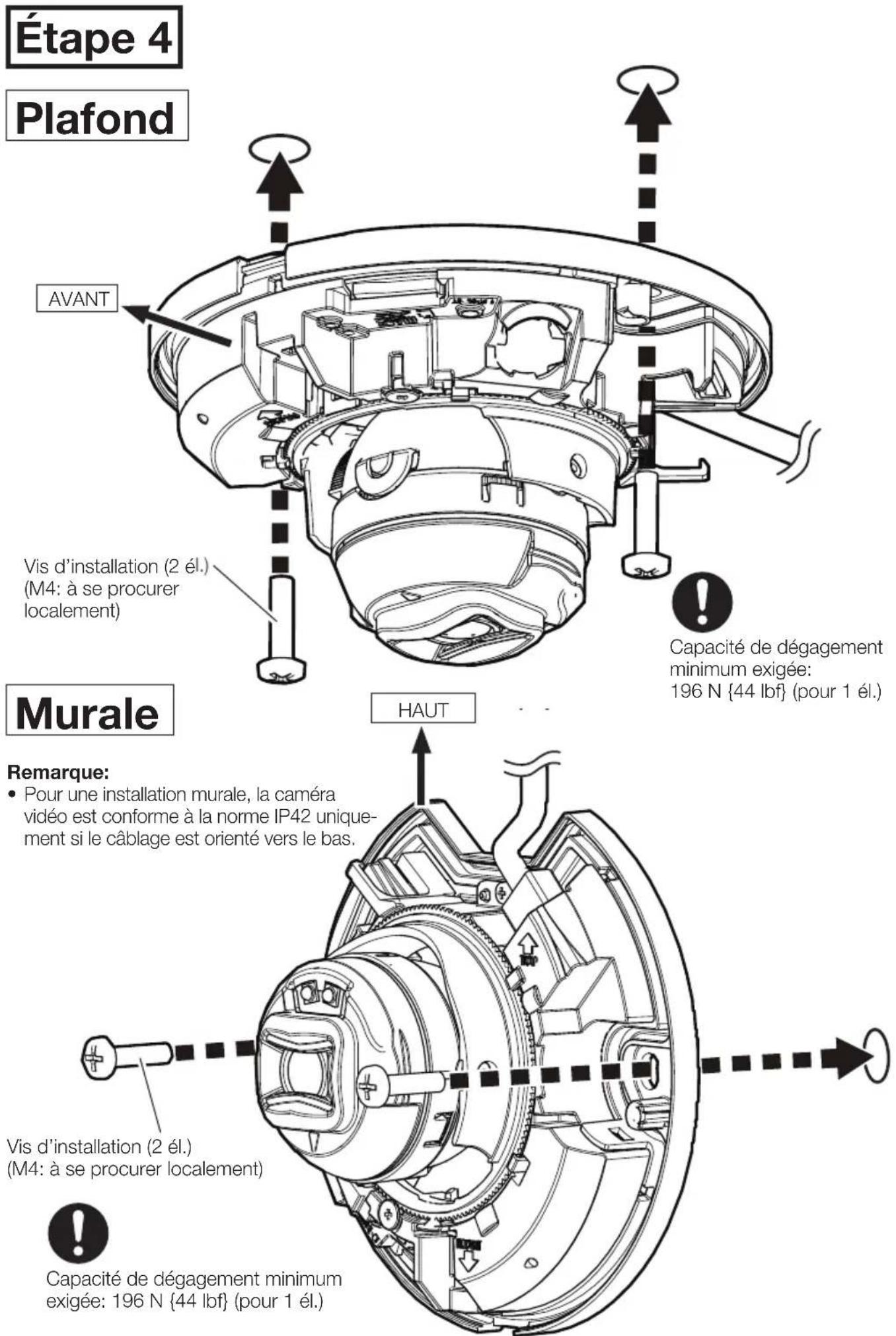

Step 4

Ceiling

Ceiling FRONT Mounting screw (2 pcs.) (M4: locally procured) Minimum pull-out strength: 196 N {44 lbf} (per 1 pc.)

Wall

Note:

- For wall mounting, the camera conforms to IP42 only when the wiring is facing downward.

Wall e: or wall mounting, the camera conforms IP42 only when the wiring is facing wnward. TOP Mounting screw (2 pcs.) (M4: locally procured) Minimum pull-out strength: 196 N {44 lbf} (per 1 pc.)

Step 4 (Continued)

■ Mount the camera to a gangbox/ junction box.

Camera fixation position

Step 5 → Turn the power on (PoE).

* If there is a protection film on the lens, remove it.

Line drawing of a laptop computer with blank screen (no text or symbols)

- Technical information website "IP Setting Software" or "i-PRO Configuration Tool (iCT)"

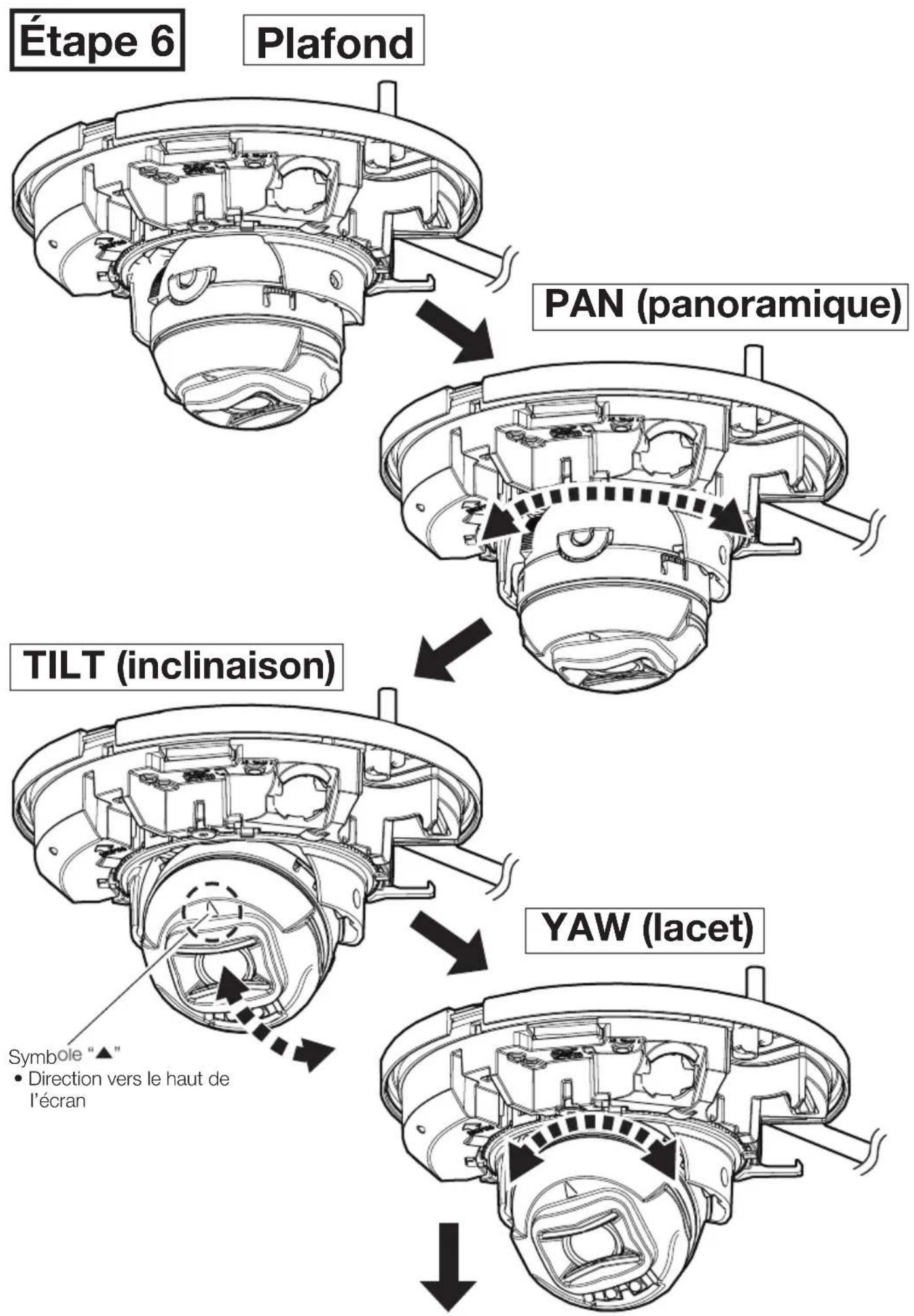

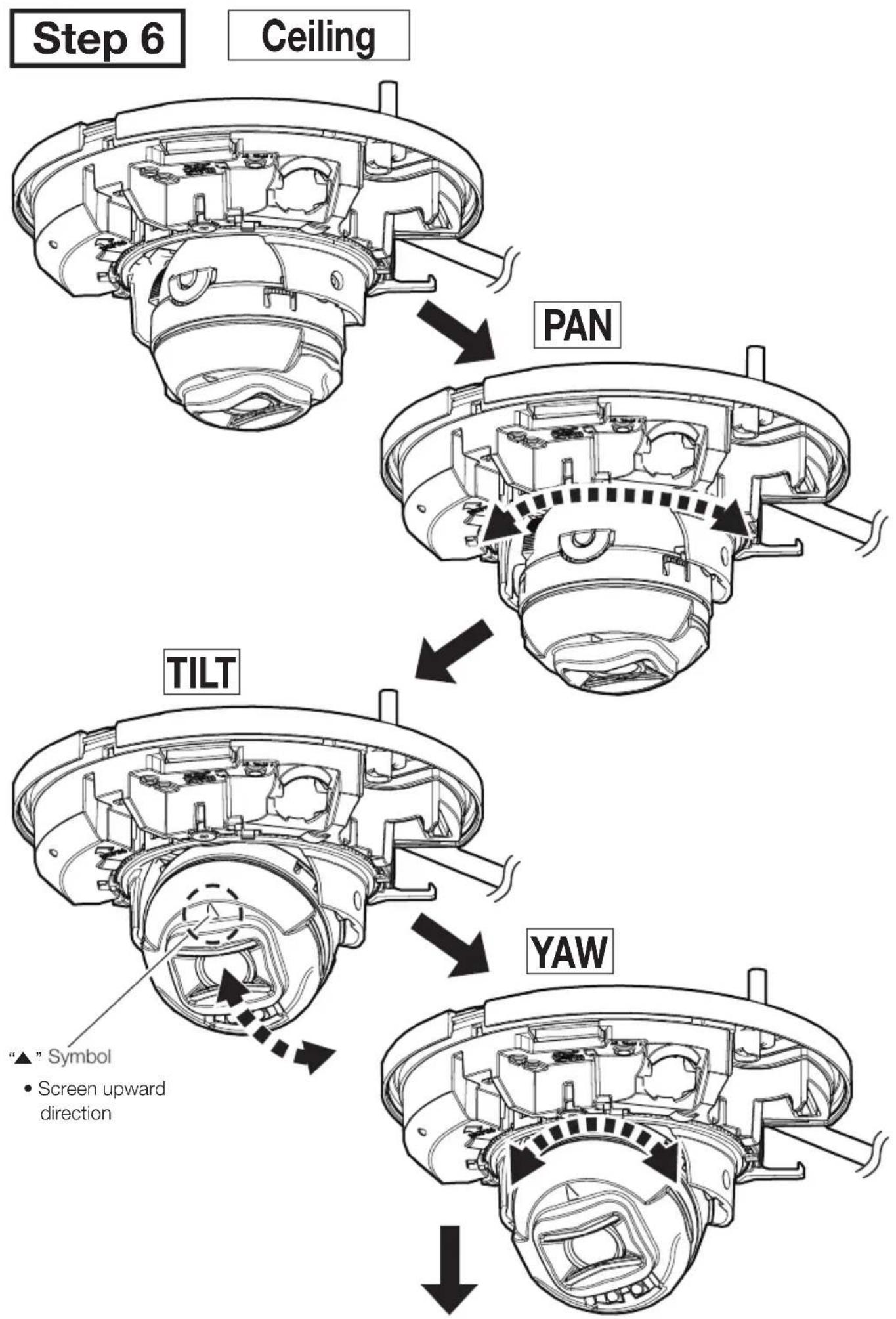

Step 6 Ceiling PAN TILT YAW "▲" Symbol • Screen upward direction

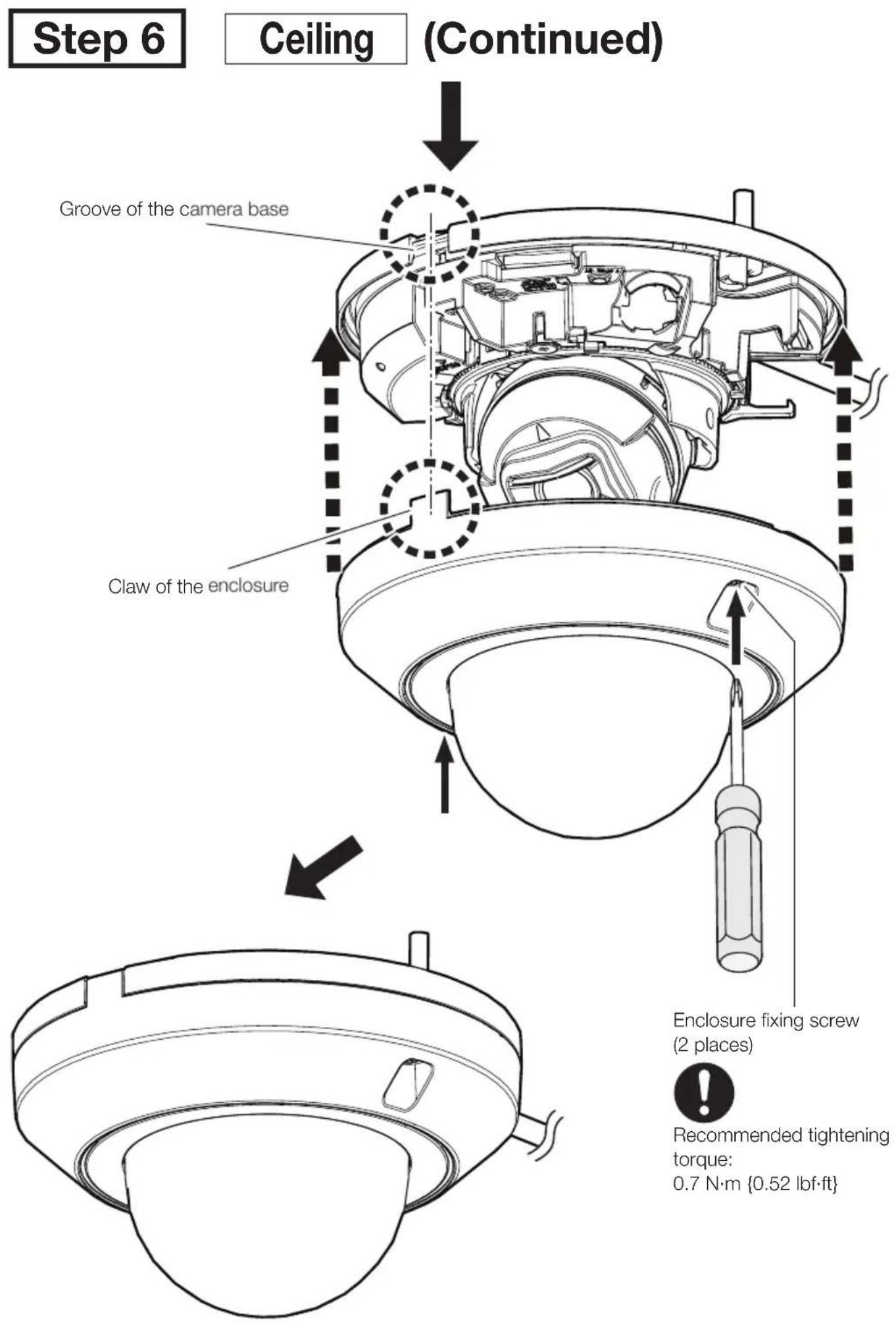

Step 6 Ceiling (Continued) Groove of the camera base Claw of the enclosure Enclosure fixing screw (2 places) Recommended tightening torque: 0.7 N·m {0.52 lbf·ft}

- User manual "Image rotation → 180°"

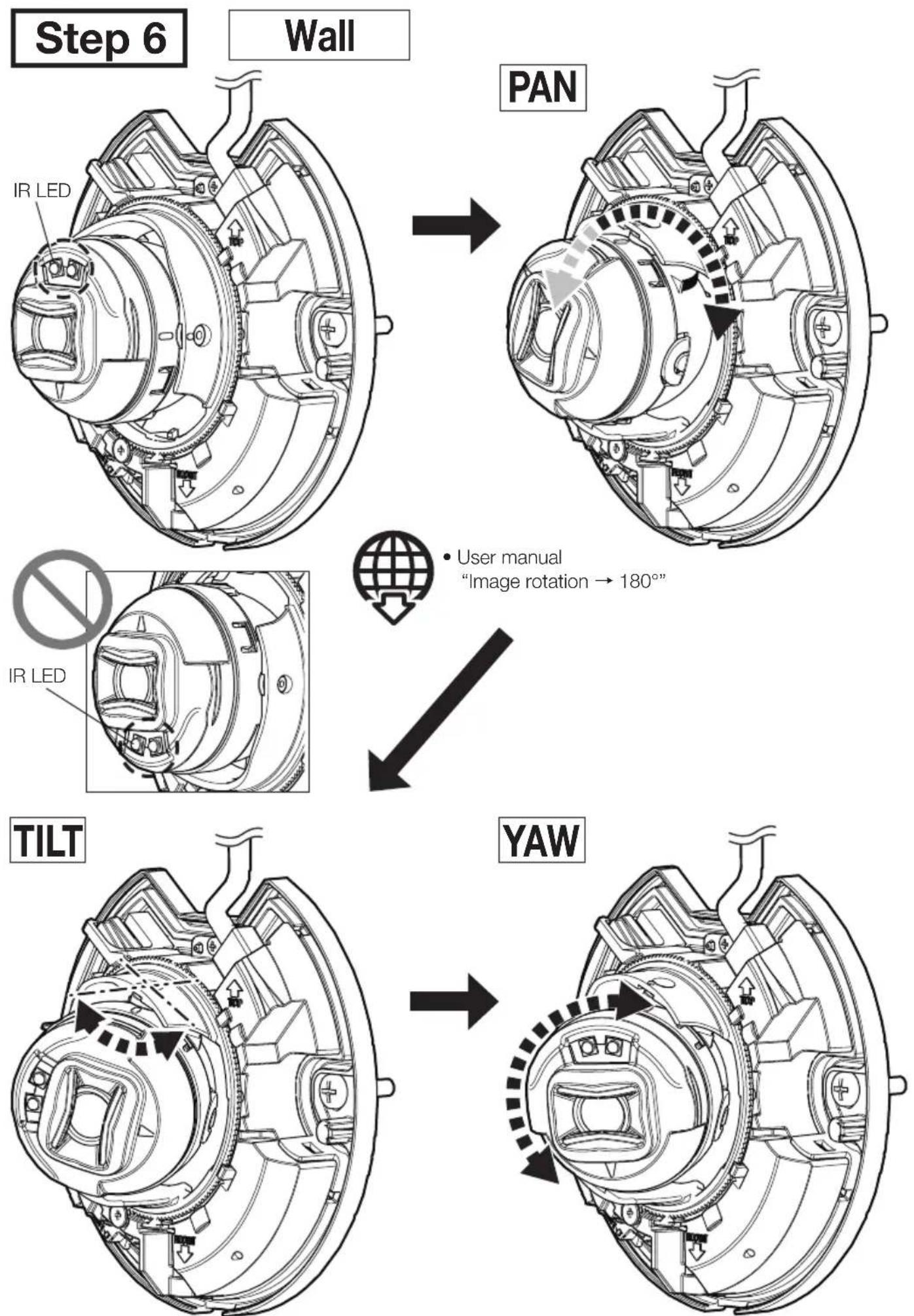

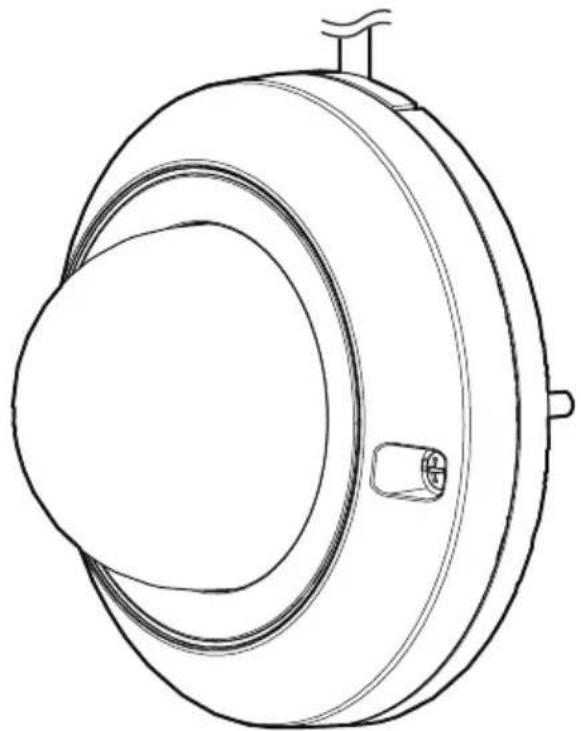

Step 6

Wall

(Continued)

Enclosure fixing screw (2 places) Groove of the camera base

Claw of the enclosure
Groove of the camera base

Recommended tightening torque:

0.7 N·m {0.52 lbf·ft}

Technical line drawing of a circular mechanical component with a central hub and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

WV-U22750-F3L

QR code image containing encoded data, no visible human-readable text

https://www.i-pro.com/

Authorised Representative in EU: i-PRO EMEA B.V.

Amsterdam, Netherlands

i-PRO EMEA B.V. UK Branch 1010 Cambourne Business Park, Cambridgeshire CB23 6DP

WV-U22550-F3L, WV-U22501-F3L

WV-U22350-F3L, WV-U22301-F3L

Partie responsable:

i-PRO Americas Inc.

8550 Fallbrook Drive, Suite 200 Houston, Texas 77064

Contact support: 1-800-513-5417

Pour U.S.A.

Attention: Remarque:

QR code image containing encoded data, no visible human-readable text

Simple diagram of a circular object with two shaded circles and two small circles, labeled 'Gabarit ×1' below (no text or symbols on the diagram itself)

Technical Support Video

Pièces et fonctions

U22750

U22550

U22350

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

Caméra vidéo

Technical line drawing of concentric circular components with a central pin and base (no text or symbols)

Coffret extérieur

Fente de chargement microSD

Technical Support Video

Pièces et fonctions

U22501

U22301

Diagram showing two rectangular blocks with hatched patterns and a downward arrow, no text or symbols present.

Pure technical line drawing of a rectangular frame with a diagonal line and corner holes, no text or symbols present.

Line drawing of a laptop computer with blank screen (no text or symbols)

- Site Web d'informations techniques "IP Setting Software" ou "i-PRO Configuration Tool (iCT)"

Technical line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Installationshandbuch

Technical line drawing of a mechanical component with no visible text or symbols

Bedienerhandbücher

QR code image containing encoded data, no visible human-readable text

https://www.i-pro.com/

Authorised Representative in EU: i-PRO EMEA B.V. Laarderhoogtweg 25, 1101 EB Amsterdam, Netherlands

i-PRO EMEA B.V. UK Branch 1010 Cambourne Business Park, Cambridgeshire CB23 6DP

QR code image containing encoded data, no visible human-readable text

Important Safety Instructions .... 1 St.

Schablone ×1

Technical Support Video

Technical diagram of a mechanical assembly with labeled parts including TOP, FRONT, and ACT

Technical line drawing of a circular mechanical component with two mounting holes and a central shaft (no text or symbols)

Gehäuse

Technical Support Video

Diagram showing two parallel plates with hatched patterns and a downward arrow indicating a process or movement (no text or symbols)

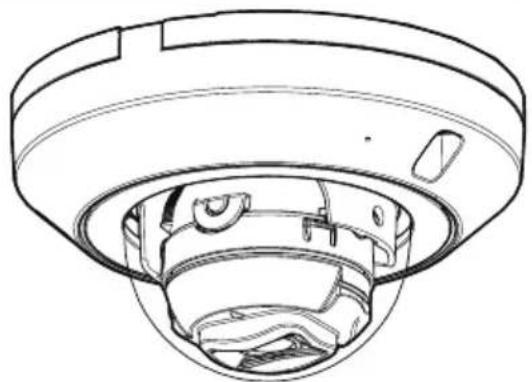

Schritt 4

Line drawing of a laptop computer with blank screen (no text or symbols)

Technical line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

N. modello WV-U22750-F3L WV-U22550-F3L WV-U22350-F3L WV-U22501-F3L WV-U22301-F3L

Technical line drawing of a mechanical component with internal cavities and mounting holes (no text or symbols)

WV-U22750-F3L

QR code image containing encoded data, no visible human-readable text

https://www.i-pro.com/

Authorised Representative in EU: i-PRO EMEA B.V. Laarderhoogtweg 25, 1101 EB Amsterdam, Netherlands

i-PRO EMEA B.V. UK Branch 1010 Cambourne Business Park, Cambridgeshire CB23 6DP

https://i-pro.com/products_and_solutions/en/surveillance/learning-and-support/knowledge-base/safety-instructions

QR code image containing encoded data, no visible human-readable text

Simple diagram of a circle with two shaded circles and two small circles, labeled 'Sagoma ×1' below (no text or symbols within the diagram itself)

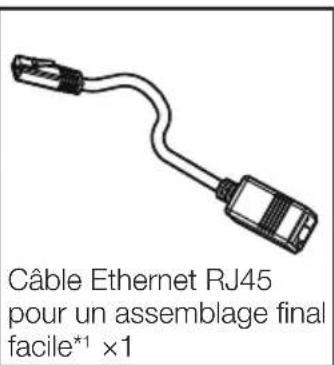

Cavo Ethernet RJ45 per montaggio facile*1 ×1

Technical Support Video

Parti e funzioni

U22750

U22550

U22350

Technical Support Video

Parti e funzioni

U22501

U22301

Diagram showing two parallel plates with hatched patterns and directional arrows indicating movement or force (no text or symbols)

Passaggio 4

Pure technical line drawing of a rectangular frame with a diagonal line and corner holes, no text or symbols present.

Passaggio 5

Line drawing of a laptop computer with blank screen (no text or symbols)

- User manual "Image rotation → 180°"

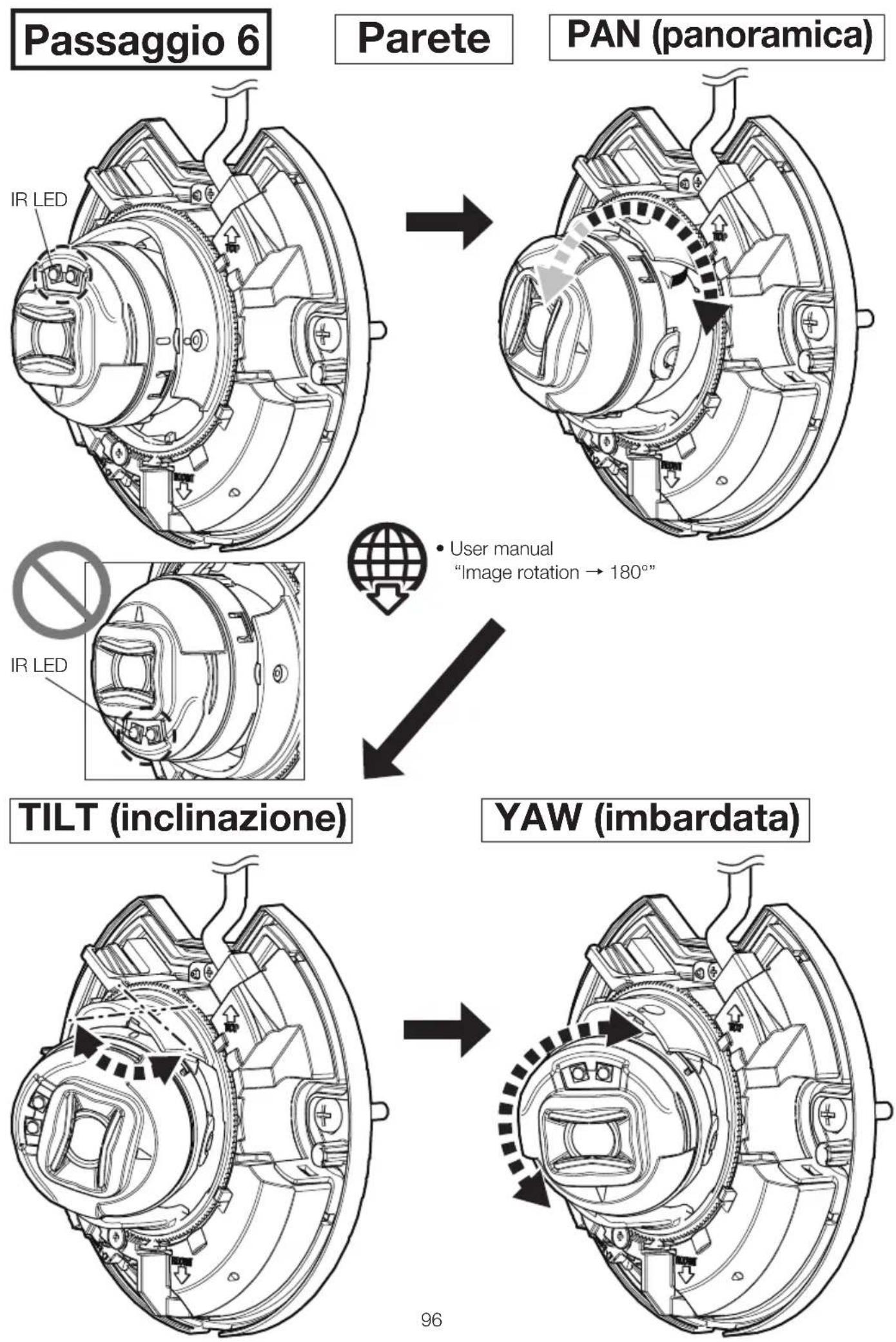

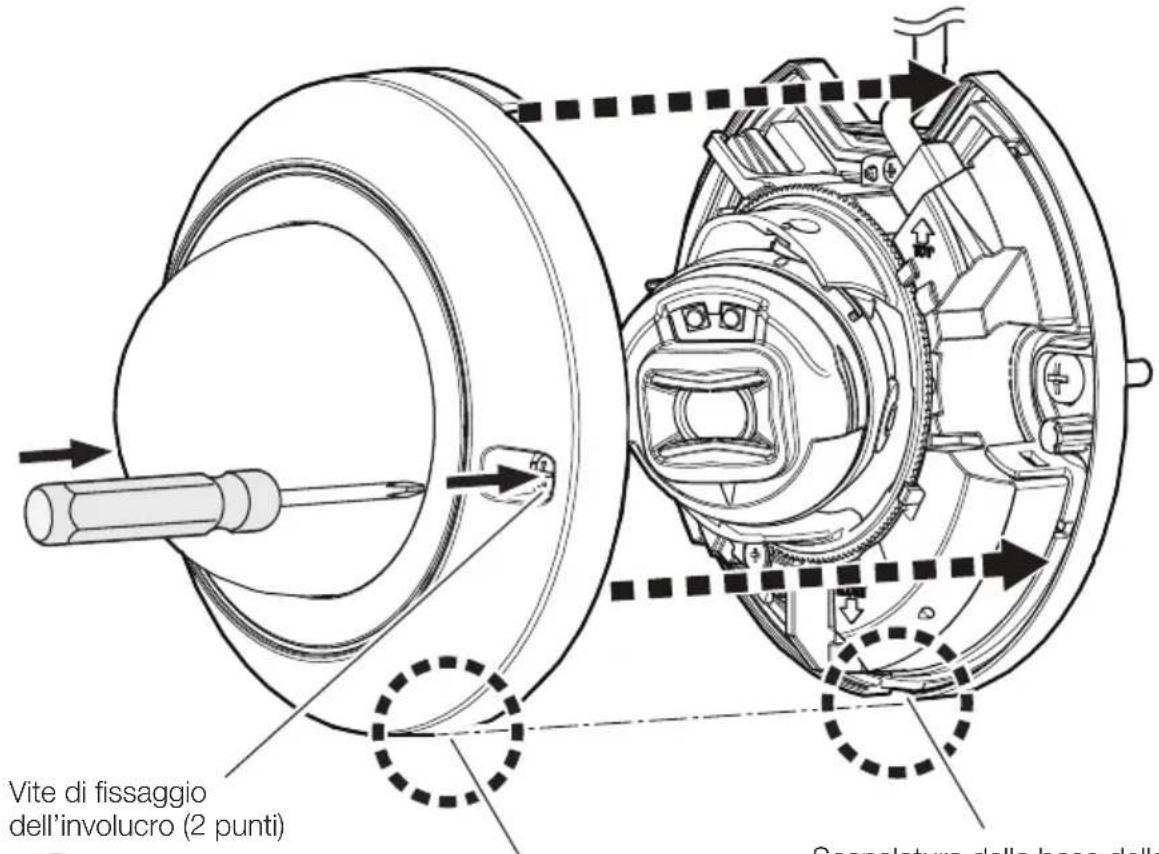

Passaggio 6

Parete

(continuazione)

Technical line drawing of a circular mechanical component with a central hub and mounting bracket (no text or symbols)

Guía de instalación

N° modelo WV-U22750-F3L WV-U22550-F3L WV-U22350-F3L WV-U22501-F3L WV-U22301-F3L

Technical line drawing of a mechanical component with no visible text or symbols

QR code image containing encoded data, no visible human-readable text

https://www.i-pro.com/

Authorised Representative in EU: i-PRO EMEA B.V. Laarderhoogtweg 25, 1101 EB Amsterdam, Netherlands

i-PRO EMEA B.V. UK Branch 1010 Cambourne Business Park, Cambridgeshire CB23 6DP

https://i-pro.com/products_and_solutions/en/surveillance/learning-and-support/knowledge-base/safety-instructions

QR code image containing encoded data, no visible human-readable text

Simple diagram of a circle with two shaded circles and two small circles, labeled 'Plantilla ×1' below (no text or symbols within the diagram itself)

Technical Support Video

Partes y funciones

Technical line drawing of a circular mechanical component with two protruding pins and a central shaft (no text or symbols)

Alojamiento

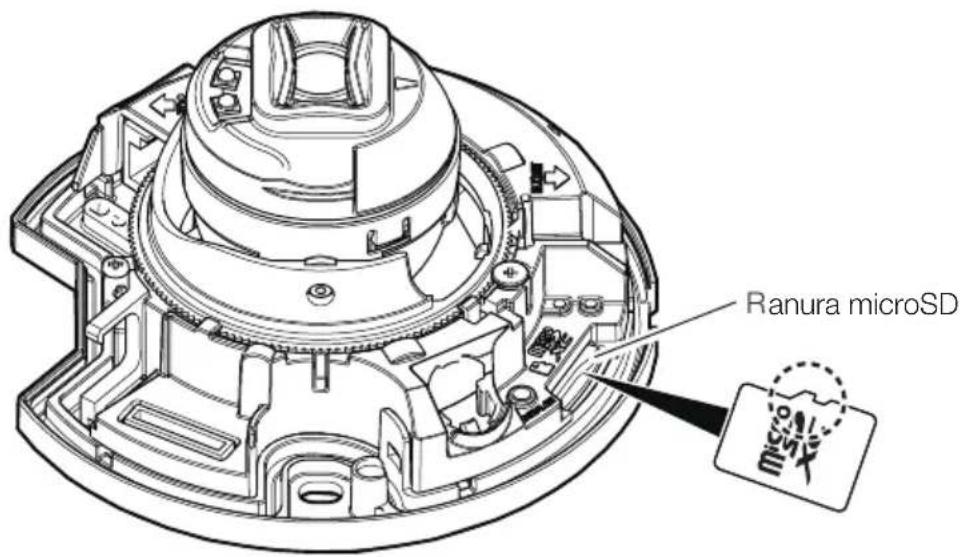

Ranura microSD

Technical Support Video

Partes y funciones

Technical line drawing of a circular mechanical component with two connectors and a central shaft (no text or symbols)

Alojamiento

Ranura microSD

Diagram illustrating a device's internal structure and power distribution, showing a trash bin connected to an Ethernet port via cable.

Diagram showing two rectangular blocks with hatched patterns and directional arrows indicating movement or flow.

Paso 4

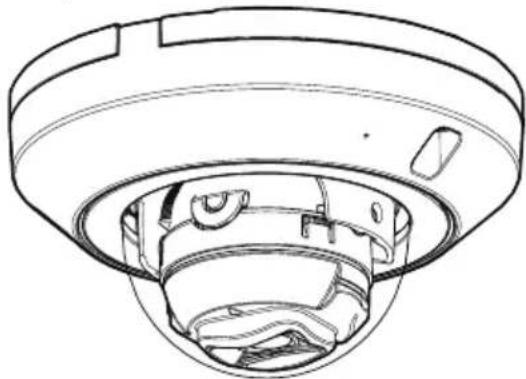

Techo

Line drawing of a laptop computer with blank screen (no text or symbols)

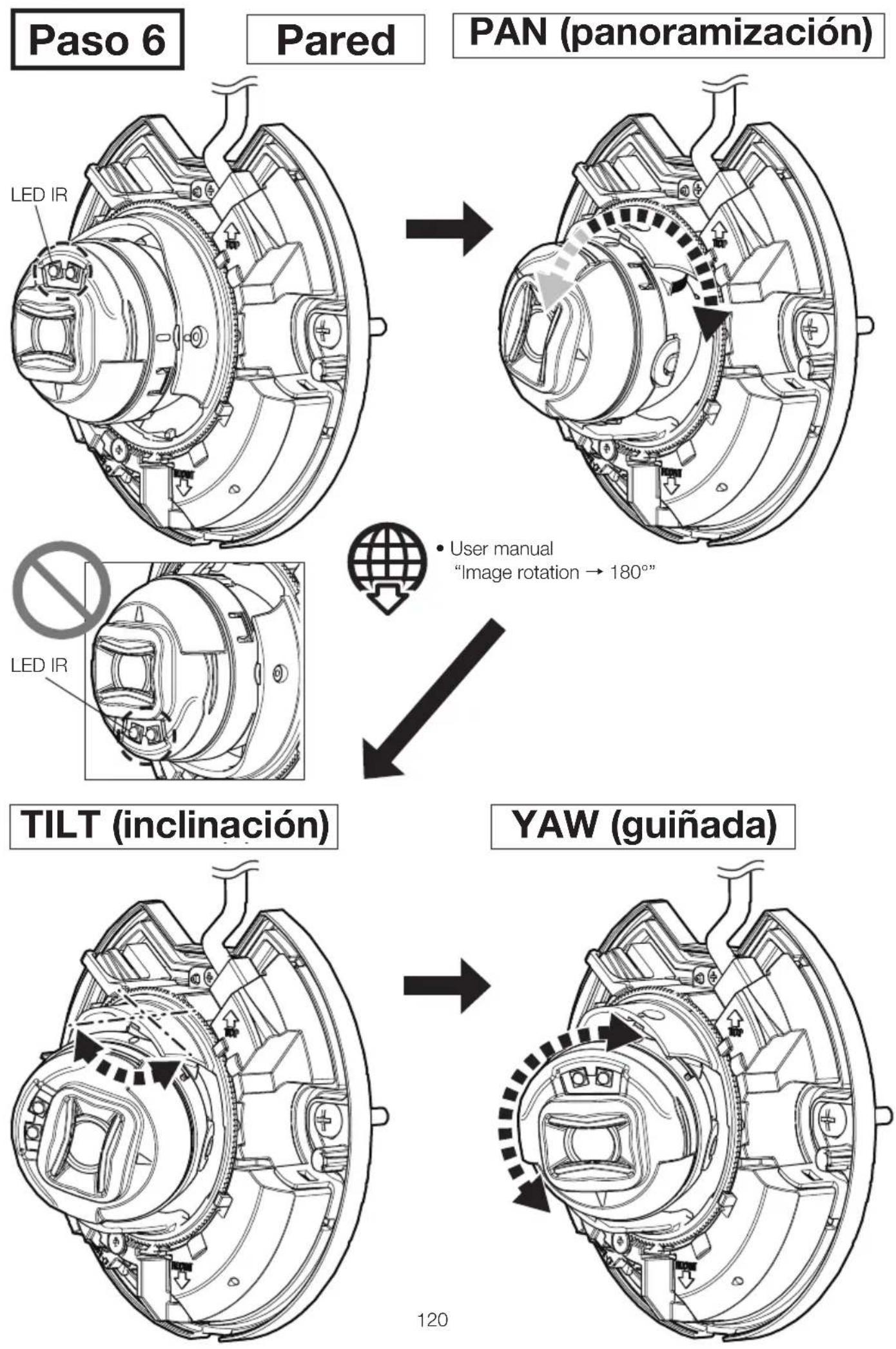

- User manual "Image rotation → 180°"

Technical line drawing of a mechanical component with concentric rings and a small protrusion (no text or symbols)

Модель № WV-U22750-F3L WV-U22550-F3L WV-U22350-F3L WV-U22501-F3L WV-U22301-F3L

Technical line drawing of a mechanical component with no visible text or symbols

WV-U22750-F3L

QR code image containing encoded data, no visible human-readable text

https://www.i-pro.com/

Authorised Representative in EU: i-PRO EMEA B.V. Laarderhoogtweg 25, 1101 EB Amsterdam, Netherlands

i-PRO EMEA B.V. UK Branch 1010 Cambourne Business Park, Cambridgeshire CB23 6DP

CE

UK CA

QR code image containing encoded data, no visible human-readable text

Technical Support Video

Части и функции

U22750

U22550

U22350

Technical Support Video

Части и функции

U22501 U22301

Diagram illustrating a device's internal structure and disposal process, showing a waste bin being inserted into a router.

Diagram showing a rectangular object with hatched pattern being inserted into a horizontal strip, indicating a structural change or displacement.

War 4

Потолок

СПЕРЕДИ

Pure technical line drawing of a rectangular frame with a diagonal line and corner holes, no text or symbols present.

War 5

Line drawing of a laptop computer with blank screen (no text or symbols)

- User manual "Image rotation → 180°"

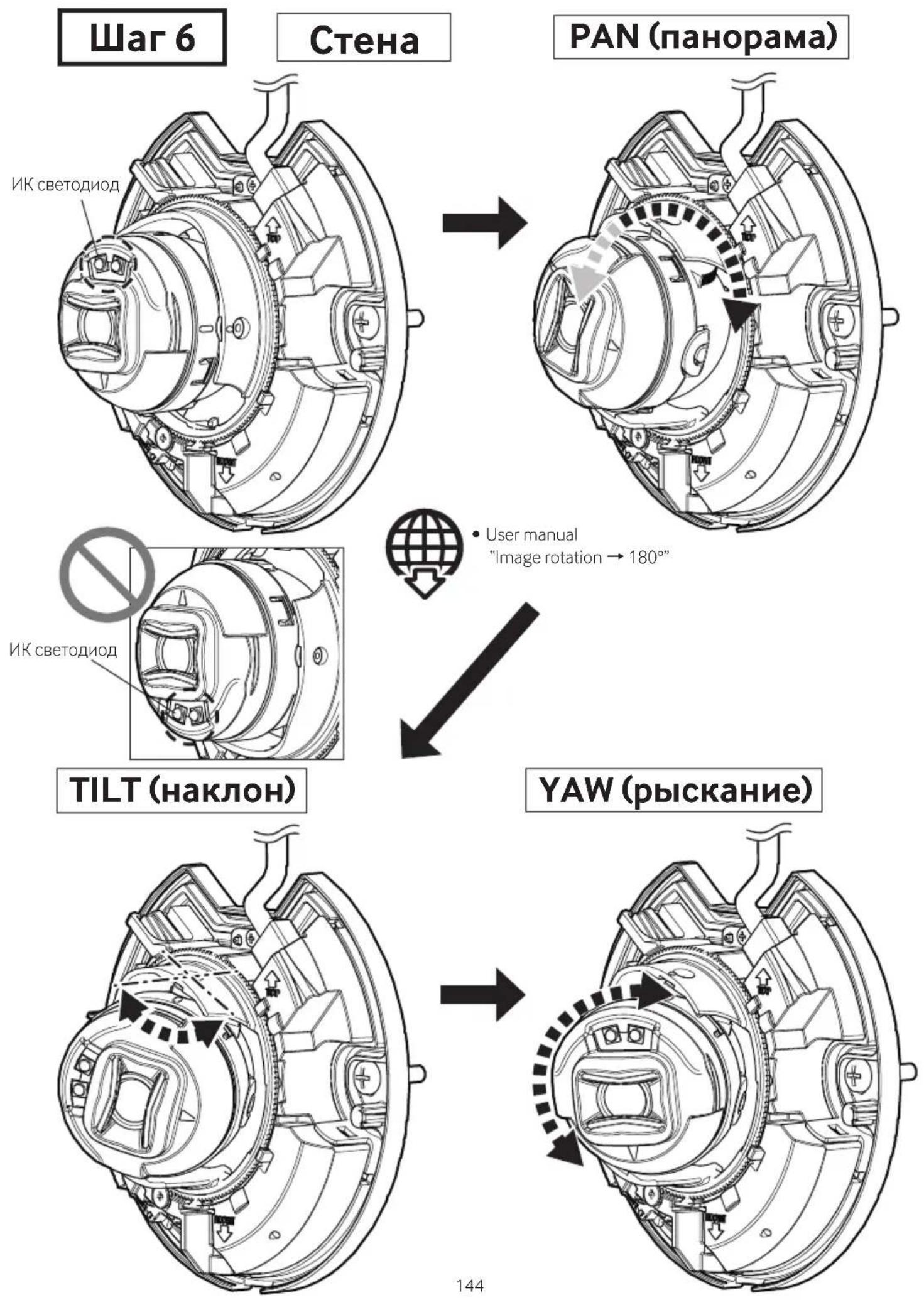

War 6

Стена

(продолжение)

Technical line drawing of a circular mechanical component with a central hub and mounting bracket (no text or symbols)
