USER MANUAL Prima FV3755 TEFAL

Black and white illustration of a steam iron with visible buttons and body (no text or symbols)

IMPORTADO POR:

Groupe.S.E.B. México, S.A. DE C.V.

Goldsmith 38 Desp. 401, Col. Polanco

Illustration of a high-speed train with safety instructions and images showing how to clean, wear, or clean air.

Diagram illustrating the process of heating a hair iron, showing cooling, heat transfer, and heating mechanism with labeled icons.

Illustration of a box being placed next to an iron iron, with a cord tied nearby (no text or symbols)

123

Diagram of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Illustration of a hand using a power iron to clean iron, with an inset showing a close-up of iron being inserted (no text or symbols present)

OK 456

NO

Diagram of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Diagram of a wall socket with a cable inserted, enclosed in a circle (no text or symbols)

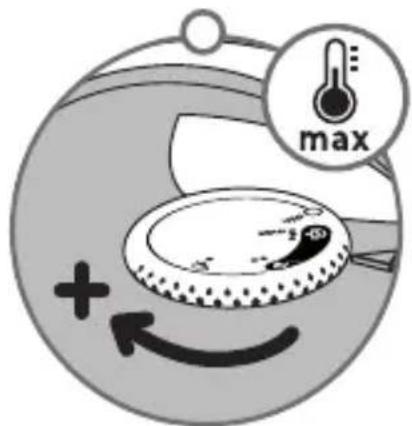

max +

Illustration of a car with sun, thermometer, and upward arrow (no text or symbols)

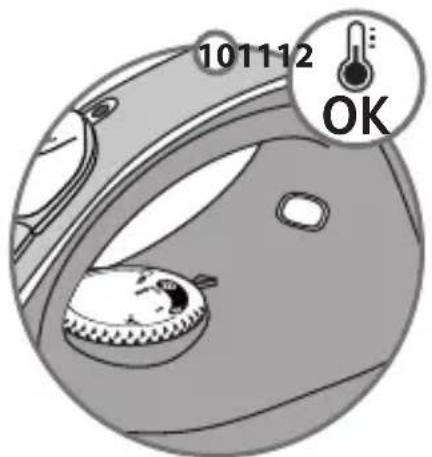

101112 OK

OK

Illustration of a drum with smoke and cloud icons, no text or symbols present

Illustration of an iron iron being placed into a box, with a cable being inserted (no text or symbols)

1314

x4

NO 1

2

Diagram of a mechanical component with an arrow indicating rotation, enclosed in a circle (no text or symbols)

456

OK

NO

Diagram of a mechanical component with a circular arrow indicating rotation (no text or symbols)

Diagram of a wall socket with a plug inserted, enclosed in a circle (no text or symbols)

Illustration of a hand using a steam iron to clean or install a piece of iron (no text or symbols present)


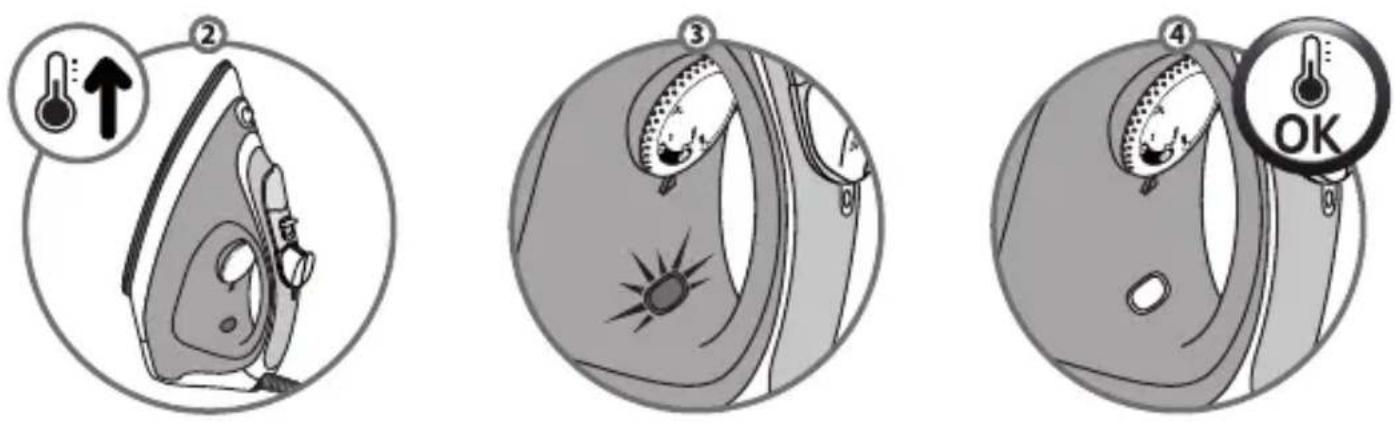

Illustration showing four steps of a hair iron pressing process: heating, sun exposure, cooling, and OK (likely indicating no cooling or warning).

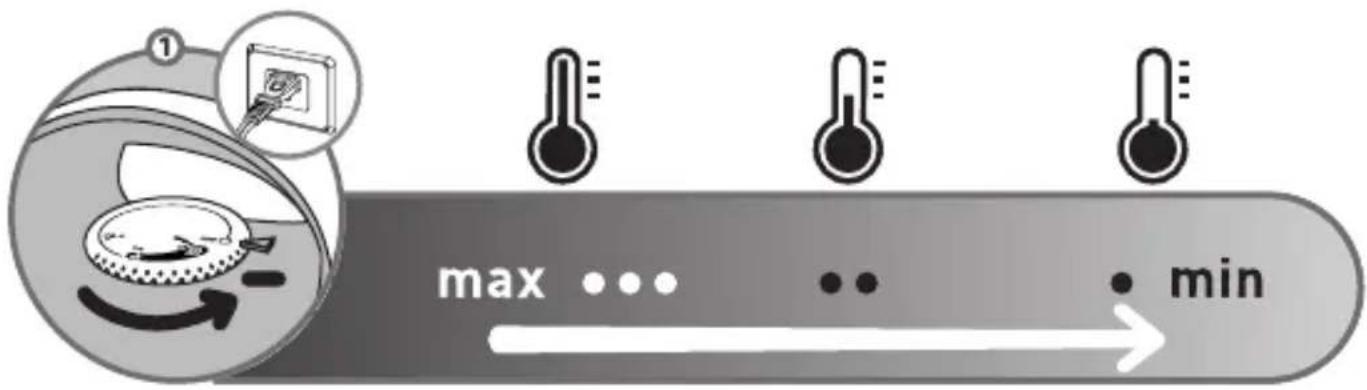

max ... ... min

Illustration showing four steps of a hair iron cutting process: down, close-up, full size adjustment, and OK.

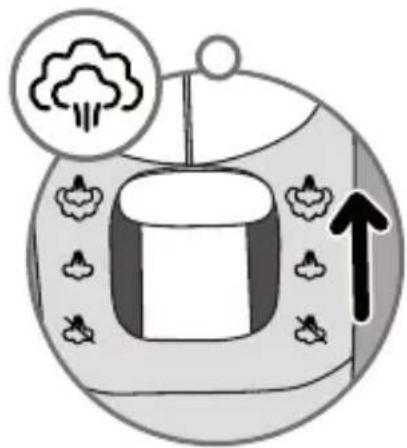

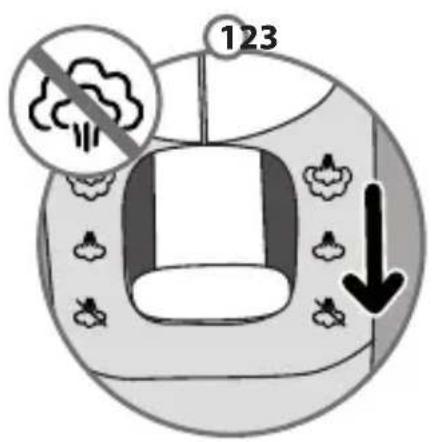

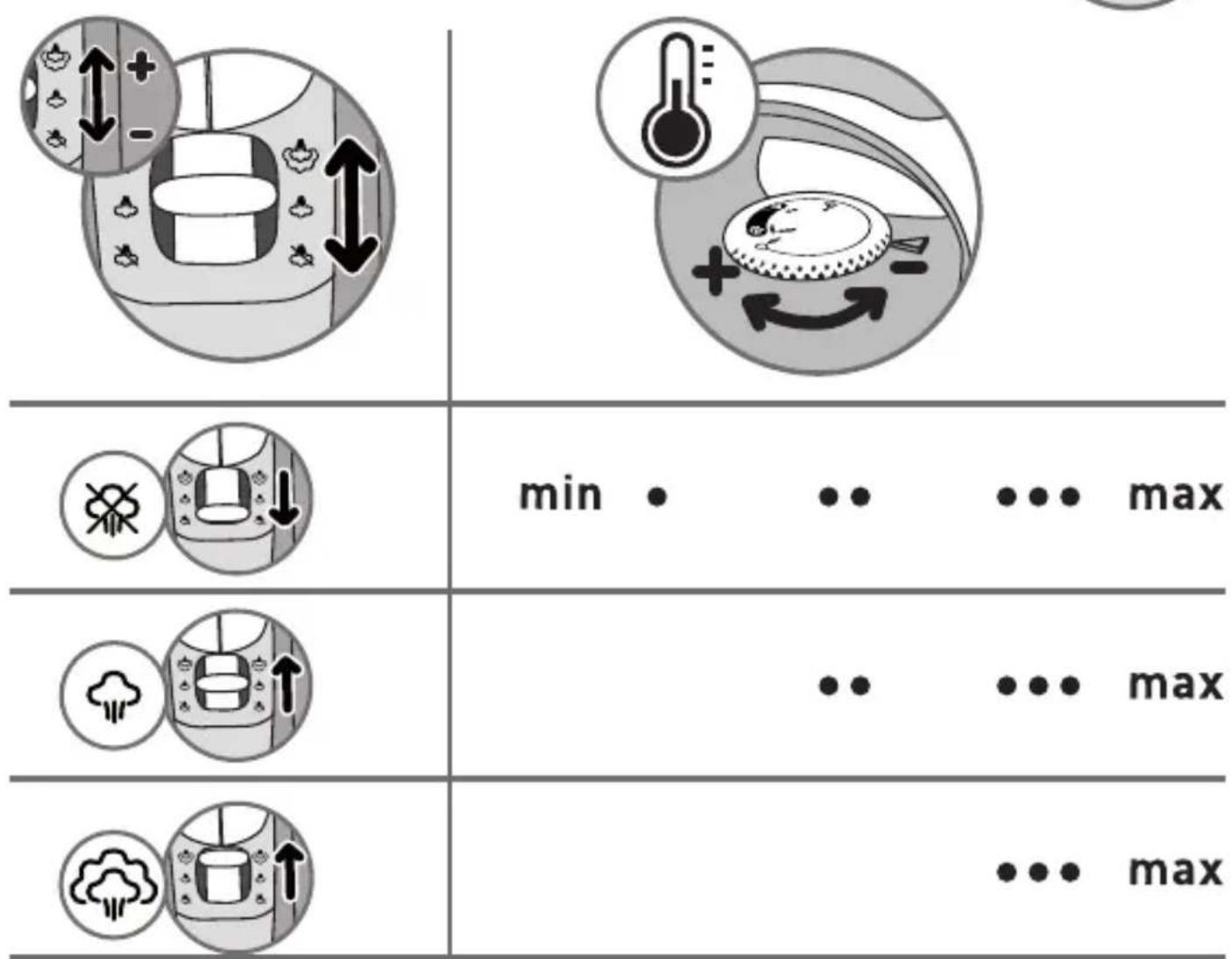

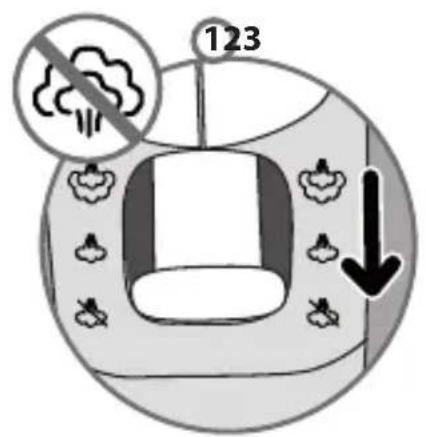

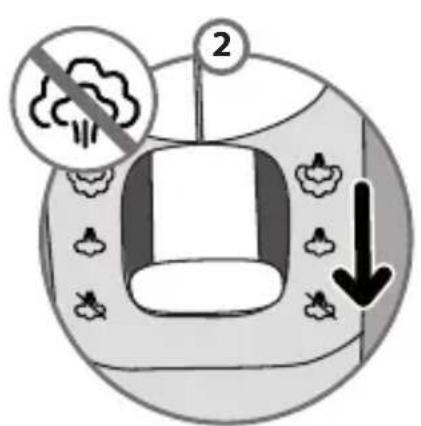

3.2. EN Steam setting / ES Ajuste del vapor FR Réglage de la vapeur

Circular diagram with a central rectangular shape and surrounding symbols, no readable text or labels

min • ... ••• max •• ••• max •• ••• max ••• max

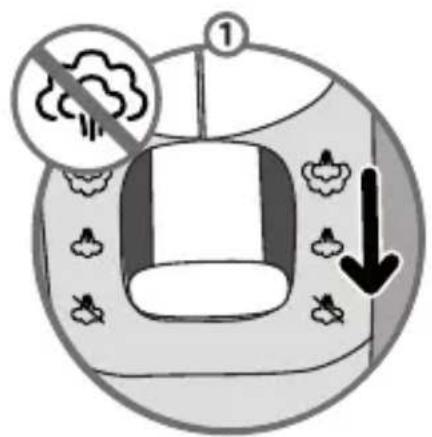

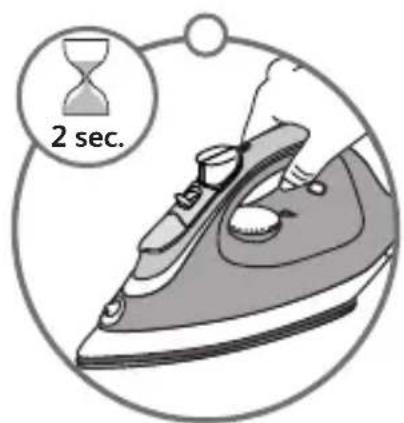

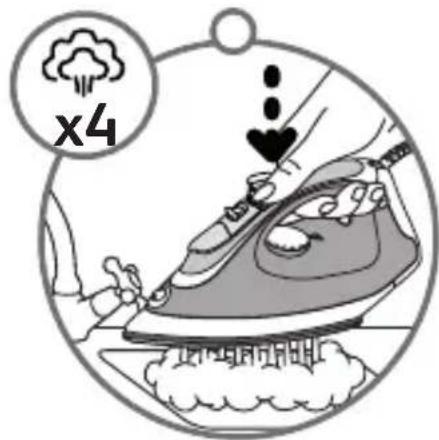

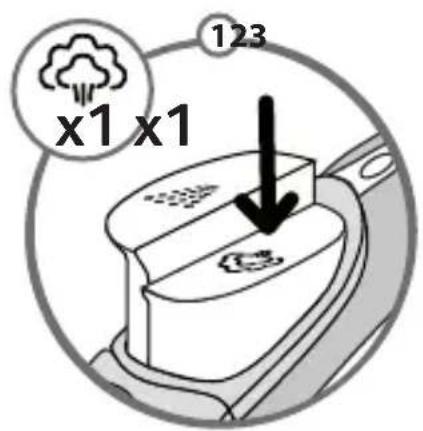

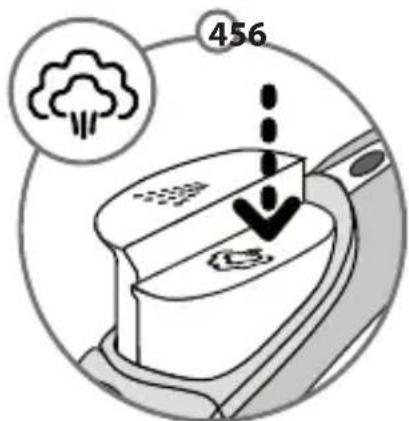

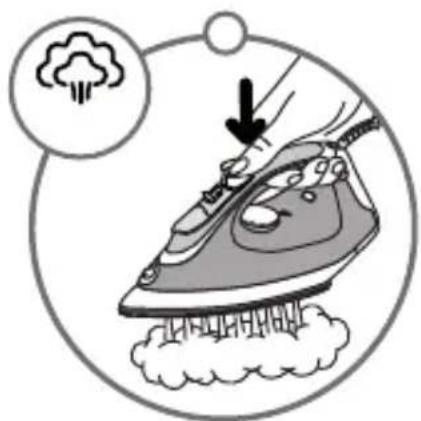

4. EN Extra steam / ES Vapor extra / FR Superpressing

Illustration of a hand using a steam iron to lift a cloud (no text or symbols)

123 x1 x1

2 sec.

Illustration of a hand steaming an iron with a cloud and smoke icon (no text or symbols)

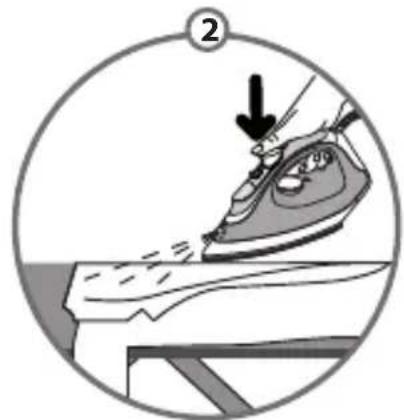

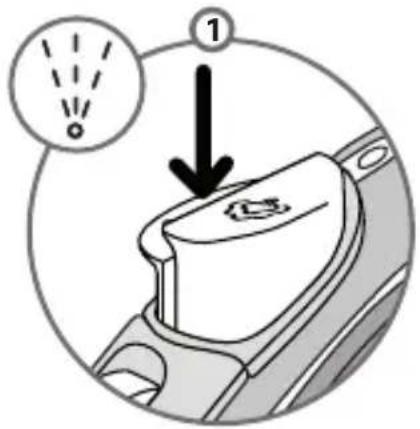

5. EN Spray / ES Spray / FR Spray

Illustration of a hand ironing an iron with steam, showing motion and wear (no text or symbols)

Diagram showing a car seatbelt switch with warning symbol and label '1' pointing to the switch.

Illustration of a steam iron being placed on a workbench, with a downward arrow indicating motion (no text or symbols)

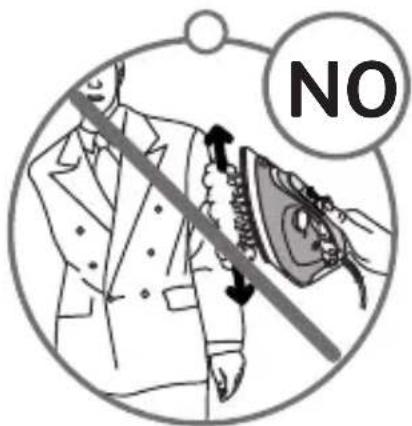

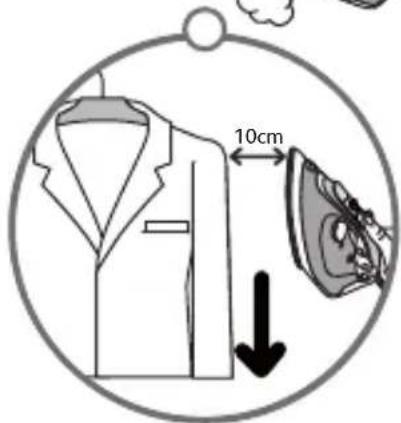

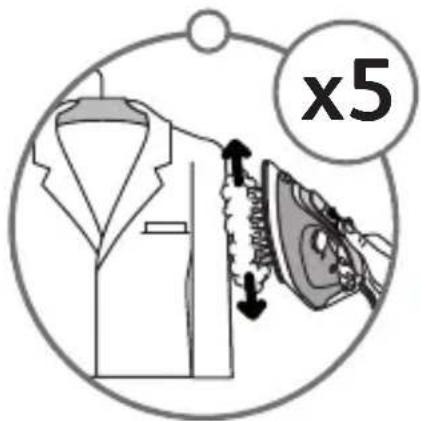

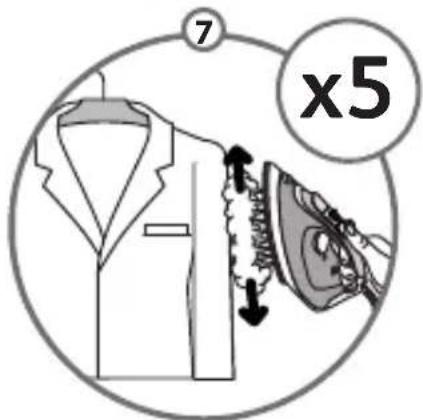

1. EN Vertical steam / ES Vapor vertical / FR Vapeur verticale


Illustration of a steam iron with steam rising, no text or symbols present

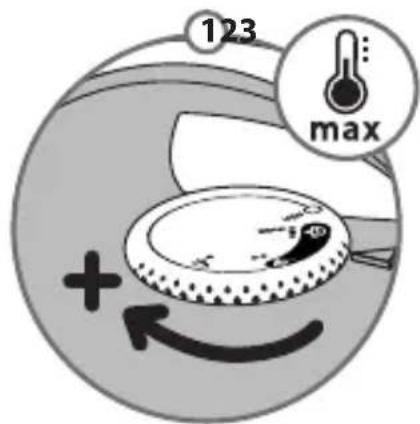

123 max

NO

10cm

456

x5

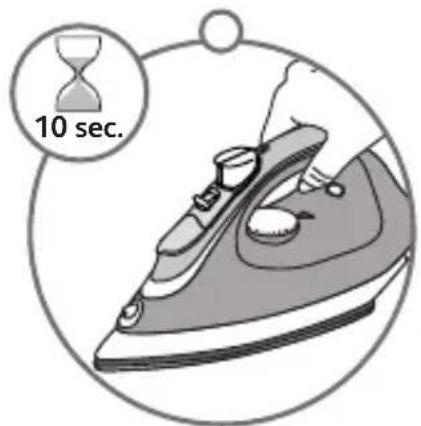

10 sec.

7 x5

123

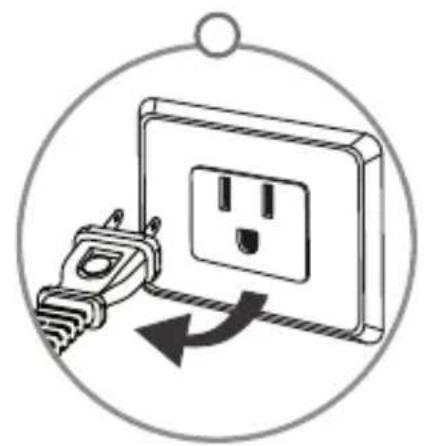

Illustration of a wall socket connected to a power plug, showing a smiley face and clockwise rotation arrow (no text or symbols)

NO

Diagram of a mechanical component with an arrow indicating rotation, no text or symbols present

Diagram of a car wheel assembly with a downward arrow indicating motion (no text or symbols)

30/45 min.

Illustration of an iron on a circular base with arrows indicating motion (no text or symbols)

Illustration of a steam iron inside a circular frame (no text or symbols)

Simple line drawing of a pipette dispensing liquid into a beaker (no text or symbols)

Diagram illustrating a car exhaust system with smoke, exhaust, and exhaust options, including a directional arrow and noise icon.

Illustration of an electrical outlet with a plug and switch, showing a smiley face (no text or symbols)

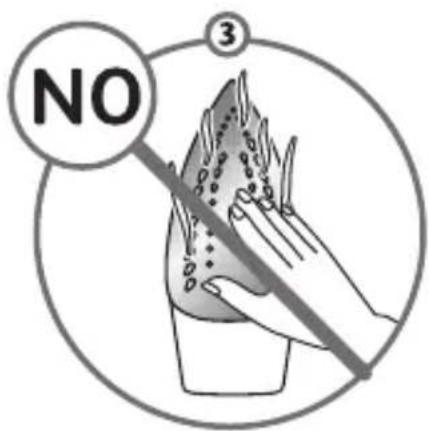

NO ③

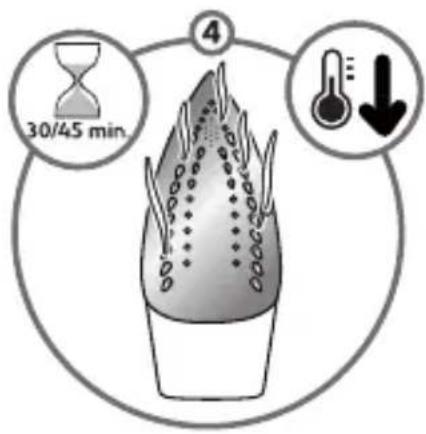

30/45 min 4

Mechanical component diagram showing a lever mechanism with an arrow indicating rotational motion (no text or symbols)

Close-up of a sewing machine needle with a circular arrow indicating force direction (no text or symbols)

Diagram of a mechanical component with a circular arrow indicating rotation, no text or symbols present

Mechanical diagram showing a hand using a tool to adjust or install a component, with an upward arrow and circled number 8 (no text or symbols present)

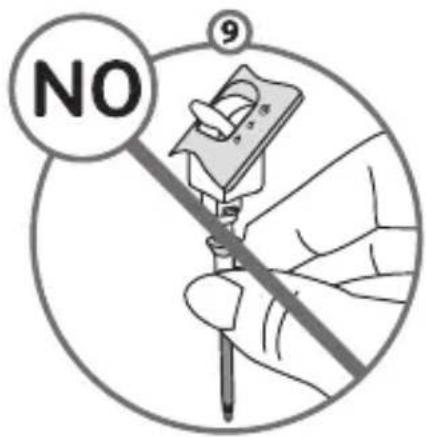

NO 9

10 OK

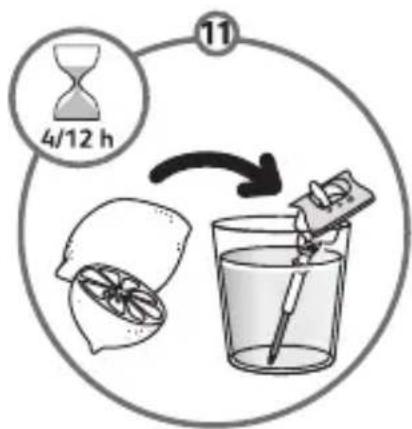


Illustration of a hand using a tool to clean or wash liquid from a sink, enclosed in a circle (no text or symbols)

Illustration of a pipette being inserted into a glass with liquid (no text or symbols)

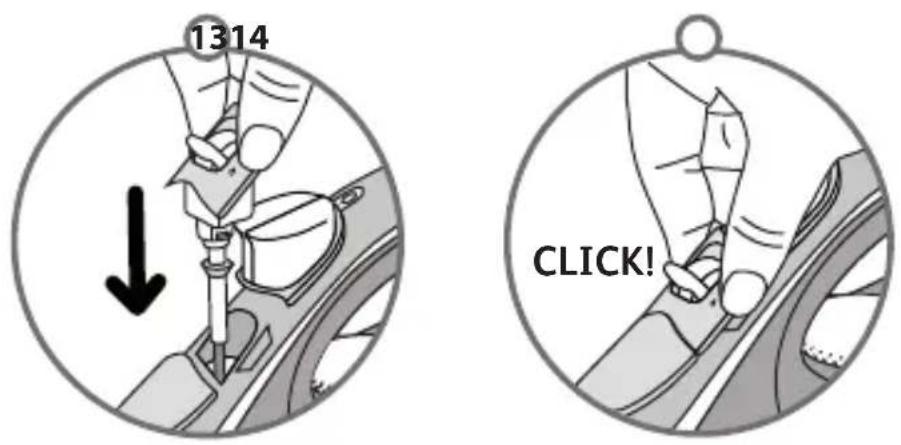

1314 CLICK!

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using the iron.

When using your iron, basic safety precautions should always be followed, including the following:

1. Use iron only for its intended use.
2. To protect against a risk of electric shock, do not immerse the iron in water or other liquids:
3. Always turn the iron OFF before plugging or unplugging the iron from the electrical outlet. Never pull on the cord to disconnect the iron from the electrical outlet; instead, grasp the plug and pull on the plug to disconnect the iron.

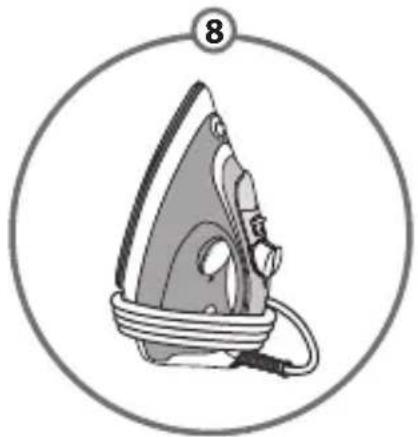

4. Do not allow cord to touch hot surfaces. Let iron cool completely before putting away. Loop cord loosely around iron when storing.

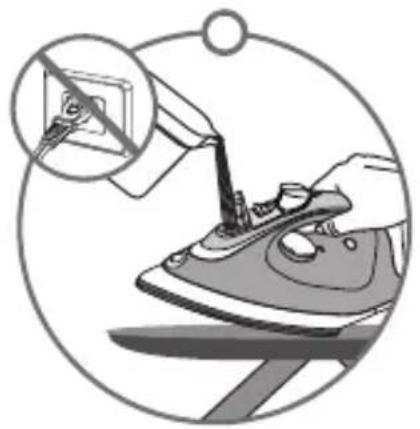

5. Always disconnect iron from electrical outlet when filling with water or emptying and when not in use.
6. Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron. Contact our Consumer Service Department for examination, repair or adjustment. Incorrect reassembly can cause a risk of electric shock when the iron is used.
7. Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended while connected or on an ironing board.
8. Burns can occur from touching hot metal parts, hot water or steam. Use caution when you turn a steam iron upside down - there may be hot water in the reservoir.
9. This appliance is only for domestic and personal use.

SPECIAL INSTRUCTIONS

1. To avoid a circuit overload, do not operate another high-wattage appliance on the same circuit.
2. If an extension cord is absolutely necessary, a 15 amp. cord should be used. Cords rated for less amper may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS FOR YOUR SAFETY

PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP THEM FOR FUTURE REFERENCE.

This appliance complies with the technical rules and standards for safety currently in force (Electromagnetic Compatibility, Low Voltage, Environnement).

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.
• During the first few uses, a harmless odour and a small amount of smoke may be given off. This has no effect on the use of the iron and will disappear quickly.
• Warning! The voltage of your electrical installation must correspond to that of

the iron (120V). Connecting to the wrong voltage may cause irreversible damage to the iron and will invalidate the guarantee.

• If it is absolutely essential to use an extension cable, choose a 15 amp one.
• If the electrical cord becomes damaged, it must be immediately replaced by an Approved Service Centre to avoid any danger.
• The appliance should not be used if it has fallen, if it has obvious damage, if it leaks or functions incorrectly. Never dismantle your appliance: have it inspected by an Approved Service Centre, so as to avoid any danger.
• Never immerse your iron in water!
• Do not unplug your appliance by pulling on the cord. Always unplug your appliance: before filling or rinsing the water tank, before cleaning it, after each use.
• Never leave the appliance unattended when it is connected to a power source or if it has not cooled down for approximately 1 hour.

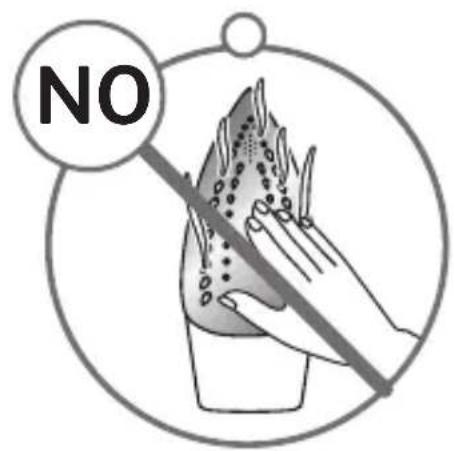

• Your appliance gives off steam, which may cause burns. Take extra care especially when you are ironing close to the edge or on a corner of your ironing board. Never direct the steam towards people or animals.
• Your iron should be used and placed on a flat, stable, heat-resistant surface. When you put your iron onto its iron rest, make sure that the surface on which you put it is stable.
• This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

What water to use?

Your appliance has been designed to function with untreated tap water. However, it is necessary to operate the Self-Clean function regularly in order to eliminate hard water deposits from the steam chamber. If your water is very hard (check with your local water authority), it is possible to mix untreated tap water with store-bought distilled or demineralised water in the following proportions: - 50% untreated tap water, - 50% distilled or de-mineralised water.

Types of water not to use?

Heat concentrates the elements contained in water during evaporation. The types of water listed below contain organic waste or mineral elements that can cause spitting, brown staining, or premature wear of the appliance: water from clothes dryers, scented or softened water, water from refrigerators, batteries or air conditioners, pure distilled or demineralised water or rain water should not be used in your Tefal iron. Also do not use boiled, filtered or bottled water.

Auto-Stop safety feature (depending on model)

• The electronic system cuts off the electric power and the Auto-Stop warning light flashes if the iron is left vertically on its heel for more than 8 minutes, or in a horizontal position for more than 30 seconds.
• To restart the iron, just move it gently until the warning light stops flashing.

The auto-stop light will be lit during normal use!

Environment

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

If there is a problem?

PROBLEM POSSIBLE CAUSE		SOLUTION
Water drips from the holes in the soleplate.	The chosen temperature is too low and does not allow for the formation of steam.	Position the thermostat in the steam range (from •• to MAX).
	You are using steam while the iron is not hot enough.	Wait until the thermostat light goes out.
	You are using the Shot of Steam button too often.	Wait a few seconds between each use of the button.
	There is too much steam.	Reduce the steam.
	You have stored the iron horizontally, without emptying it and without setting it to ♦.	See the section "Storing your iron".
The iron drips when you start ironing.	You have removed the anti-scale rod to fill your iron.	Do not extract the anticalc valve when filling the iron.
Brown streaks come through the holes in the soleplate and stain the linen.	You are using chemical descaling agents.	Do not add any descaling agents to the water in the water tank.
	You are not using the right type of water.	Perform a self-cleaning operation and consult the chapter "What water should I use?".
	Fabric fibres have accumulated in the holes of the soleplate and are burning.	Perform the self-cleaning operation and clean the soleplate with a damp sponge. Vacuum the holes of the soleplate from time to time.
	Your linen has not been rinsed sufficiently or you have ironed a new garment before washing it.	Make sure that your laundry is rinsed sufficiently so as to remove any deposits of soap or chemical products on new clothes.
The soleplate is dirty or brown and can stain the linen.	Your are ironing with an inappropriate program (temperature too high).	Clean the soleplate as indicated above. Select the appropriate program.
	You are using starch.	Clean the soleplate as indicated above. Always spray starch onto the reverse side of the fabric to be ironed.
There is little or no steam.	The water tank is empty.	Fill it.
	The anti-calc valve is dirty.	Clean the anti-calc valve.
	Your iron has a build-up of scale.	Clean the anti-calc valve and carry out a self-clean.
	Your iron has been used dry for too long.	Carry out a self-clean.
The soleplate is scratched or damaged.	You have placed your iron flat on a metallic rest-plate or ironed over a zip.	Always set your iron on its heel. Do not iron over zips.
Steam or water come from the iron as you finish filling the tank.	The steam control is not set to the position.	Check that the steam control is set to the position.
	The water tank is overfilled.	Never exceed the Max level.
The spray does not spray.	The water tank is not filled enough.	Fill up th water tank.

If you have any problem or queries, please contact our Customer Relations team first for expert help and advice.
