USER MANUAL Maestro FV1858 TEFAL

Diagram illustrating the installation steps of a hair dryer using Turbo, showing components like ironing, washing machine, and fan dial.


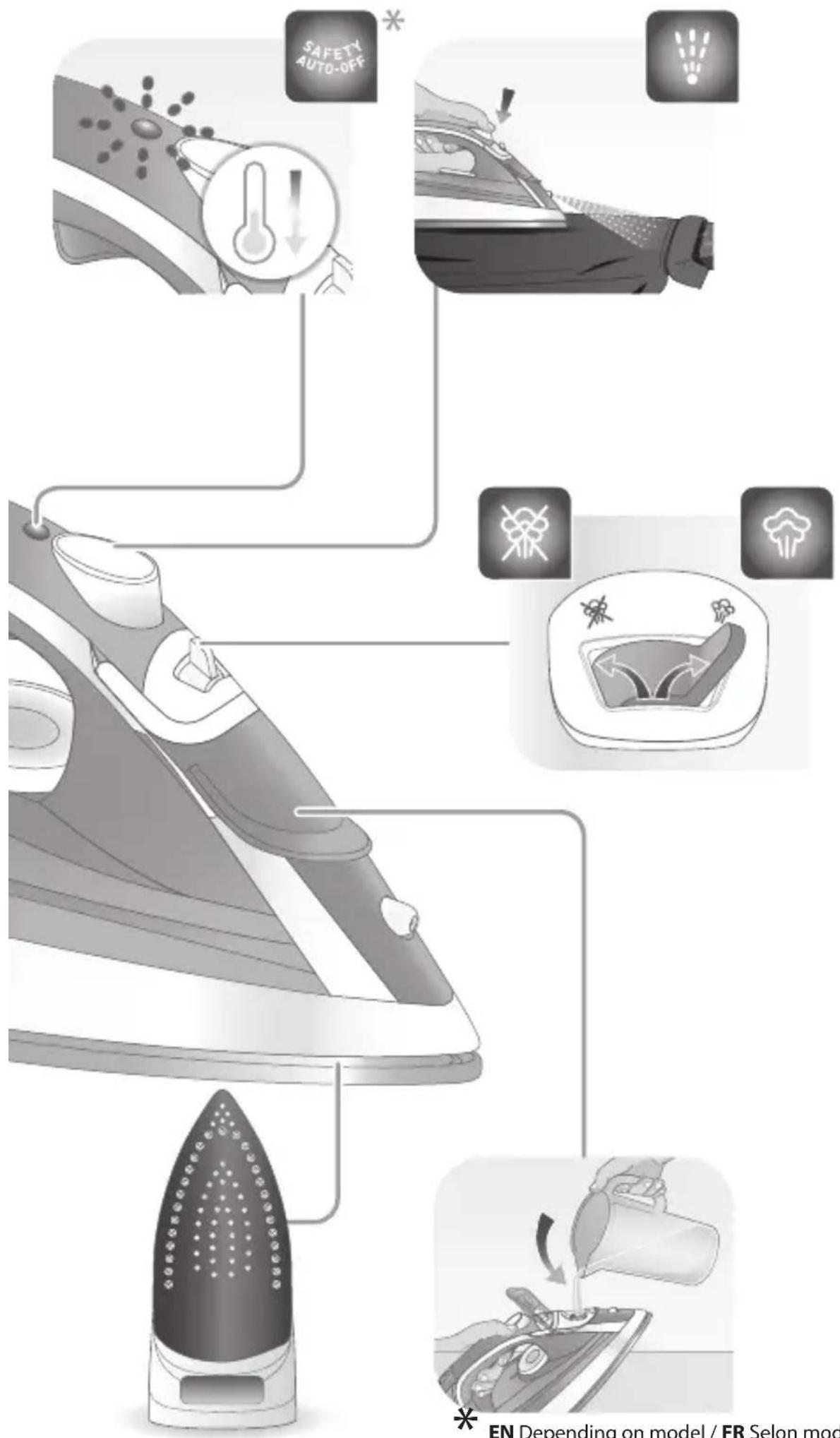

EN Depending on model / FR Selon modèle / ES Según el modelo

SUMMARY

IMPORTANT SAFETY INSTRUCTIONS

Important safety instructions.... p. 5

Before first use.... p. 7

PREPARATION

Which water should I use? p. 8

Filling the water tank....p. 8

USE

Adjusting the temperature and steam....p. 9

Dry ironing.... p. 10

Obtaining more steam....p. 10

Vertical steam ironing.... p. 11

Dampening clothing (Spray) p. 12

While ironing p. 12

Auto-Off Function (depending on model) p. 12

STORING AND MAINTAINING THE IRON

Storing your iron.... p. 13

Cleaning the anti-scale rod (once per month).... p. 14

Cleaning the iron (once a month).... p. 15

Cleaning the soleplate.... p. 16

IS THERE A PROBLEM WITH YOUR IRON?

Problems, possible causes, solutions.... p. 17-18

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using the iron.

When using your iron, basic safety precautions should always be followed, including the following:

1. Use iron only for its intended use.
2. To protect against a risk of electric shock, do not immerse the iron in water or other liquids.
3. Always turn the iron OFF before plugging or unplugging the iron from the electrical outlet. Never pull on the cord to disconnect the iron from the electrical outlet; instead, grasp the plug and pull on the plug to disconnect the iron.
4. Do not allow cord to touch hot surfaces. Let iron cool completely before putting away. Loop cord loosely around iron when storing.
5. Always disconnect iron from electrical outlet when filling with water or emptying and when not in use.
6. Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron. Contact our Consumer Service Department for examination, repair or adjustment. Incorrect reassembly can cause a risk of electric shock when the iron is used.
7. Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended while connected or on an ironing board.
8. Burns can occur from touching hot metal parts, hot water or steam. Use caution when you turn a steam iron upside down - there may be hot water in the reservoir.
9. This appliance is only for domestic and personal use.

SPECIAL INSTRUCTIONS

1. To avoid a circuit overload, do not operate another high-wattage appliance on the same circuit.
2. If an extension cord is absolutely necessary, a 15 amp. cord should be used. Cords rated for less amper may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS For your safety

PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP THEM FOR FUTURE REFERENCE.

This appliance complies with the technical rules and standards for safety currently in force (Electromagnetic Compatibility, Low Voltage, Environnement).

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capa-bilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.

- During the first few uses, a harmless odour and a small amount of smoke may be given off. This has no effect on the use of the iron and will disappear quickly.

- Warning! The voltage of your electrical installation must correspond to that of the iron (120V or 127 V). Connecting to the wrong voltage may cause irreversible damage to the iron and will terminate the guarantee.

- If it is absolutely essential to use an extension cable, choose a 15 amp cord.

- If the electrical cord becomes damaged, it must be immediately replaced by an Approved Service Centre to avoid any danger.

- The appliance should not be used if it has fallen, if it has obvious damage, if it leaks or functions incorrectly. Never dismantle your appliance: have it inspected by an Approved Service Centre, to avoid any danger.

- Never immerse your iron in water!

- Do not unplug your appliance by pulling on the cord. Always unplug your appliance: before filling or rinsing the water tank, before cleaning it, after each use.

- Never leave the appliance unattended when it is connected to a power source or if it has not cooled down for approximately 1 hour.

- Your appliance gives off steam, which may cause burns. Take extra care especially when you are ironing close to the edge or on a corner of your ironing board. Never direct the steam towards people or animals.

- Your iron should be used and placed on a flat, stable, heat-resistant surface. When you put your iron onto its iron rest, make sure that the surface on which you put it is stable.

- This product has been designed for domestic and indoor use only. The manufacturer will accept no responsibility and the gua-rantee will be terminated, if this product is used for commercial purposes, inappropriate use or failure to comply with the instructions.

What water to use?

Your appliance has been designed to function with untreated tap water. However, it is necessary to operate the Self-Clean function regularly in order to eliminate hard water deposits from the steam chamber. If your water is very hard (check with your local water authority), it is possible to mix untreated tap water with store-bought distilled or demineralised water in the following proportions: - 50% untreated tap water, - 50% distilled or de-mineralised water.

Types of water not to use?

Heat concentrates the elements contained in water during evaporation. The types of water listed below contain organic waste or mineral elements that can cause spitting, brown staining, or premature wear of the appliance: water from clothes dryers, scented or softened water, water from refrigerators, batteries or air conditioners, pure distilled or de-mi-neralised water or rain water should not be used in your Tefal iron. Also do not use boiled, filtered or bottled water.

Environment

Environment protection first !

Leave it at a local civic waste collection point.

i Your appliance contains valuable materials which can be recovered or recycled.

BEFORE FIRST USE

Remove any possible labels from the sole-plate before heating the iron.

Before using the steam function in your iron for the first time, we recommend that you allow the iron to operate a few moments in a horizontal position without coming into contact with your laundry. Keeping the iron in this position, push the turbo steam button several times.

During the first few uses, the appliance may produce smoke, a harmless odour and a light emission of particles. These are simply the engineering residues from the manufacturing process burning off. These are harmless and will quickly disappear.

Simple line drawing of a device with a scroll and directional arrow, no text or symbols present.

Max. Max.

PREPARATION

Which water should I use?

• Your appliance was designed to operate using untreated tap water. However, it is necessary to periodically clean the steam chamber to remove any mineral deposits.
• Do not use water with additive, pure demineralised or pure distilled water, water from clothes dryers, scented or softened water, rain water, filtered, bottled or boiled water, water from refrigerators, batteries, air conditioners or rain water as these may damage the iron. These types of water contain organic waste, mineral elements that become concentrated when heated and cause spitting, brown staining, leaking or premature wear on your iron

If your water is very hard, mix 50% untreated tap water with 50% distilled water (available in hardware stores).

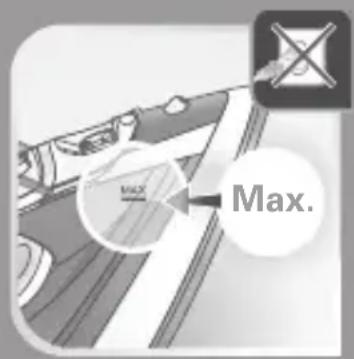

Filling the water tank

• Unplug the iron before filling it.
• Set the steam control to
• Lift the iron and, holding it at a slight incline, point the soleplate up.
• Open the water tank cover.

- Fill the water tank to the mark "Max".

- Close the water tank cover.

Illustration of a hand inserting a plug into an electrical outlet (no text or symbols)

Simple illustration of a bowl with arrows indicating flow or direction, no text or symbols present.

Circular mechanical component with curved arrows indicating rotation or motion (no text or symbols)

Close-up grayscale illustration of a curved surface with a small dark spot, possibly a lens or aperture, and an hourglass icon in the corner (no text or symbols)

Close-up of a curved mechanical component with a small hole and a label 'OK' (no other text or symbols)

USE

- Plug in the appliance.

Adjusting the temperature and steam

- Set the steam control to

- Adjust the temperature control, referring to the table below.

FABRIC	TEMPERATURECONTROL POSITION	STEAM
LINEN	Max
COTTON •••
WOOL ••
SILK/SYNTHETIC(Polyester,Acetate, Acrylic,Polyamide)	•

• The temperature indicator light turns on.

- It will turn off automatically once the soleplate achieves the desired temperature.

Adjust the temperature to match the type of fabric that you wish to iron. Your iron automatically sets the steam flow rate based on the temperature.

Simple line drawing of a device with a scroll and directional arrow, no text or symbols present.

Dry ironing

• Set the steam control to
• You may continue to iron when the indicator light turns off.

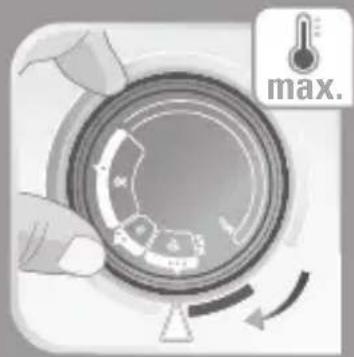

Obtaining more steam

max.

- Set the thermostat control to "Max" or "●●●".

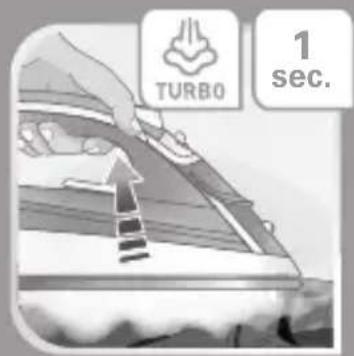

TURBO 1 sec.

• Press the turbo steam button periodically (turbo steam).
• To avoid water dripping on the laundry, maintain an interval of a few seconds in between each press.

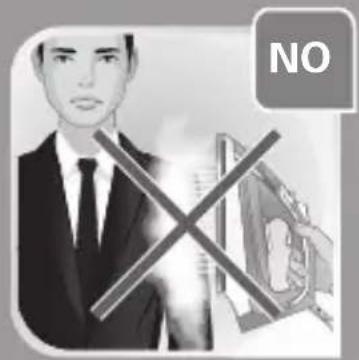

Vertical steam ironing

NO

- Hang the item on a hanger and keep the fabric taut with one hand. The steam is very hot; never steam iron clothing while it is being worn—always use a hanger.

max.

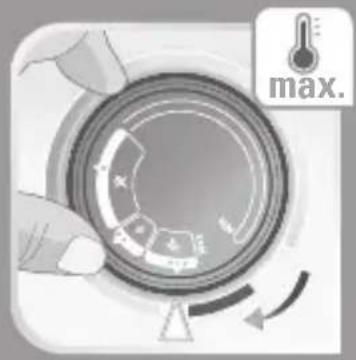

- Set the thermostat control to "Max"

TURBO 1 sec.

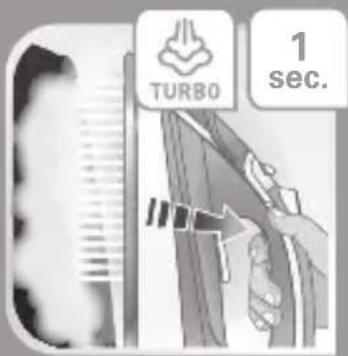

- Press the turbo steam button (turbo steam) in pulses, moving the iron from top to bottom. - To avoid water dripping on the laundry, maintain an interval of a few seconds in between each press.

Abstract grayscale image showing a blurred human figure and a stylized logo with upward arrows (no readable text or symbols)

- Hold the iron at a distance of a few centimetres from the clothing to avoid burning delicate fabrics.

NO OK

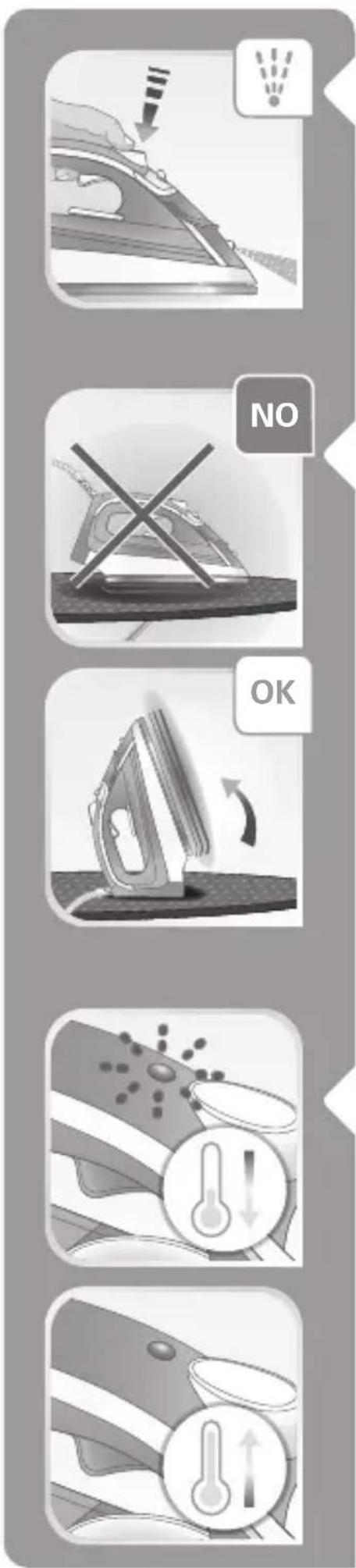

Dampening clothing (Spray)

• When dry or steam ironing, press repeatedly on the spray button to moisten clothing and remove stubborn creases.
• Ensure that there is water in the tank before using the spray button.

While ironing

- Do not lay the iron down on the soleplate; use the heel rest for this purpose.

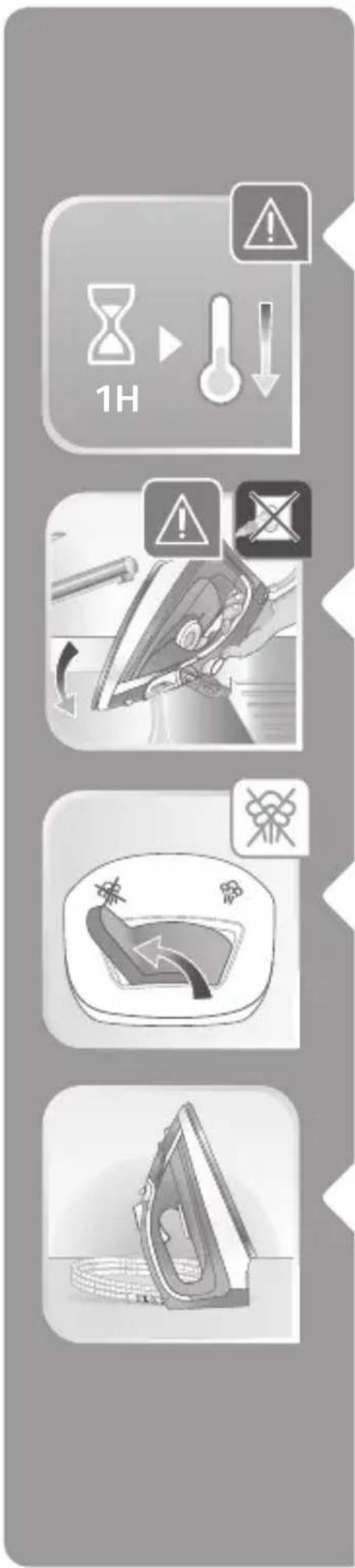

Auto-Off Function (depending on model)

• If the iron remains unused for more than 8 minutes on the heel rest or more than 30 seconds laid flat or on its side, the electronic system will cut the power, the iron will stop heating and the temperature indicator light will begin to flash.
• The temperature indicator lights up. It automatically shuts off once the soleplate has reached the desired temperature.

1H !

STORING AND MAINTAINING THE IRON

Storing your iron

- Unplug the iron and wait for the soleplate to completely cool down (approx. 1 hour).

• Empty the water tank.

- Set the steam control to

• Store the iron on its heel rest.

4h Click

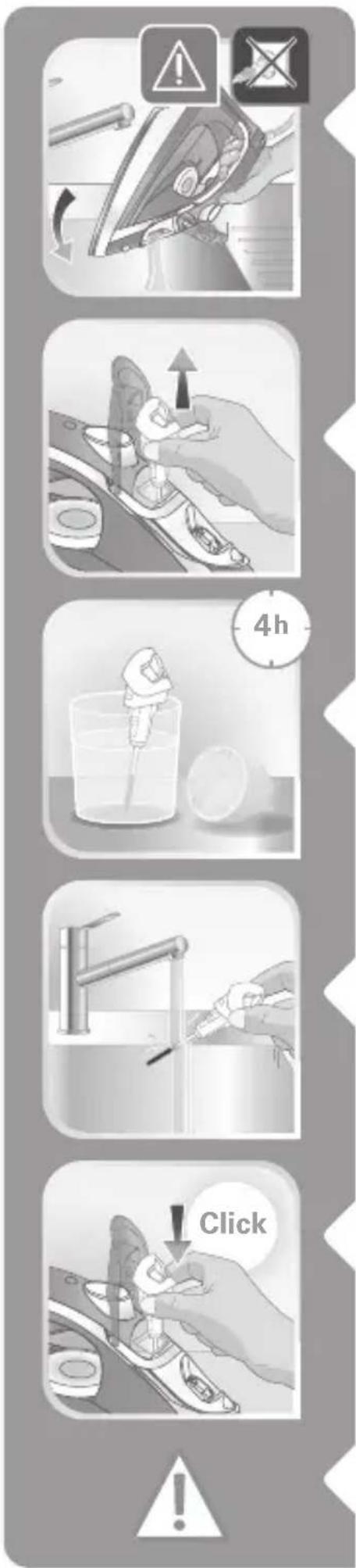

Cleaning the Anti-Scale Rod (once per month)

- Unplug your iron and empty the water tank.

- To remove the anti-scale rod, open the water reservoir cover and pull on the collector near the steam control.

- Soak the rod in a glass of water with some lemon juice for 4 hours.

- Rinse the rod under the tap.

- Re-insert the rod by pushing it in until you hear a click.

Beware!

Never touch the end of the rod.

The iron does not operate without the anti-scale rod.

Max. Click 2 min.

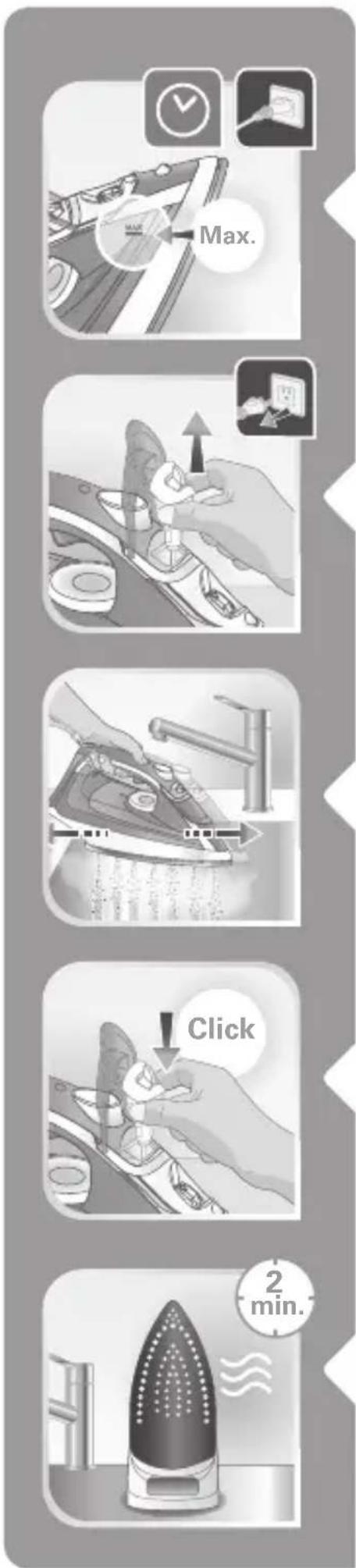

Cleaning the Iron (Once a Month)

- Allow your iron to heat up with a full water tank while on its heel rest and with the thermostat control set to Max.

- Once the indicator light turns off, unplug the iron and place it over a sink.

- After opening the reservoir cover, remove the anti-scale rod.

- Shake the iron gently in a horizontal position over the sink until some of the water (containing the impurities) leaks from the soleplate. You may push the turbo steam button to help flush out the minerals.

- To complete the process, re-insert the anti-scale rod by pushing on it until you hear a click.

- Plug in your iron for 2 minutes on the heel rest to dry the soleplate.

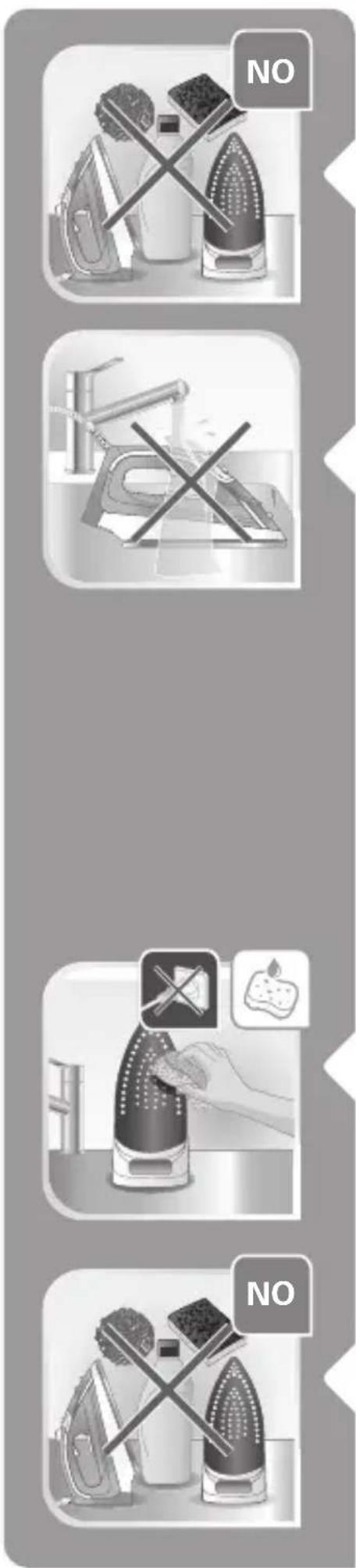

NO NO

- Unplug your iron and, once cooled, wipe it with a soft sponge.

- Never use chemical or abrasive products.

- Never clean your iron under water tap.

Cleaning the soleplate

- Once the soleplate has cooled down, clean it with a damp non-metallic sponge.

- Never use chemical or abrasive products.

PROBLEMS POSSIBLE CAUSES SOLUTIONS
Water is leaking from the holes in the soleplate.	You are using the steam when the iron is not hot enough.	Wait for the indicator light to turn off.
	You are using the turbo steam button (turbo steam) too often.	Wait a few seconds between each use.
	You have stored the iron horizontally without emptying the water tank or setting the steam control to ☒.	See the chapter on “Storing your iron”.
The iron leaks at the start of ironing.	You have removed the anti-scale rod to fill your iron.	Do not remove the anti-scale rod to fill the reservoir.
	The steam control is not set on ☒when you fill the water reservoir.	Ensure that the steam control is set on ☒when you fill the water reservoir.
Drips from the soleplate are staining clothing	You are using chemical descaling agents.	Do not introduce a descaling agent into the water tank.
	You are not using the right type of water.	Clean the steam chamber and see the chapter on “Which water should I use?”
	Clothing fibres are building up in the holes of the soleplate and burning.	Clean the steam chamber and the soleplate with a damp sponge. Periodically vacuum the holes the holes in the soleplate. Please refer to the “Cleaning the Iron” paragraph.
The soleplate is dirty or brown and may stain clothing.	You are using starch.. Clean the soleplate as indicated above. Spray the starch on the reverse side of the clothing to be ironed.
	Your laundry has not been rinsed sufficiently or you are ironing a new item of clothing before washing it.	Ensure that your laundry is sufficiently rinsed to eliminate potential soap deposits or chemical products on new items of clothing.
	You are not using the right type of water.	Refer to “Which water should I use?”
Your iron produces little to no steam.	The water tank is empty. Fill	it up.
	The anti-scale rod is dirty. Clean the anti-scale rod. Please refer to the “Cleaning the Anti-Scale Rod” paragraph.
	Your iron is clogged up with limescale.	Clean the anti-scale rod and the iron. Please refer to the “Cleaning the Anti-Scale Rod” and “Cleaning the Iron” paragraphs.
	Your iron has been used for too long in the dry ironing function.	Cleaning the iron. Refer to “Descaling the steam chamber” section.
The soleplate is scratched or damaged.	You have placed your iron on a metallic iron rest or ironed over metal zips or fastners.	Always place your iron on its heel rest when not in use.Do not iron over metal zips or fastners.
The iron steams once the water tank has been filled.	The steam control is not set to ☒.	Ensure that the steam control is set to ☒
	The water tank is too full. Do not exceed the max level for filling.
The spray function does not spray any water.	The water tank is not full enough.	Add water to the water tank until max level.

If you have any problems or queries please call our Customer Relations team first for expert help and advice. See Helpline number in the separate guarantee and country list leaflet.
