USER MANUAL OFR 9A Sonnenkönig

White and gray portable electric heater with cooling wheels (no visible text or symbols)

White and gray portable air conditioner unit with cooling fans and wheels (no visible text or symbols)

Abstract diagram showing a curved arrow over layered vertical bars, no text or symbols present

Hand holding a pen with an upward arrow, next to a small object on a flat surface (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating direction (no text or symbols present)

Simple line drawing of a kitchen appliance with a refrigerator and a mouse (no text or symbols)

Pure mechanical diagram showing a hook and gear assembly without any text or symbols

5.2 Stufenschalter

Minimaler Wert: Position (1)

White and gray portable solar oil heater with cooling wheels (no visible text or symbols)

White and gray portable air conditioner unit with cooling fans and wheels (no visible text or symbols)

Article-nr. OFR 5 A 20800062

Article-nr. OFR 7 A 20800162

Article-nr. OFR 9 A 20800562

Article-nr. OFR 11 A 20800262

Article-nr. OFR 7 D 20800362

Article-nr. OFR 9 D 20800462

INDEX

Diagram showing a curved arrow indicating rotation or movement, with no visible text or symbols

Hand holding a tool with an upward arrow, next to a small object (no text or symbols visible)

Illustration of a hand holding scissors over a device with an arrow indicating direction (no text or symbols)

Simple line drawing of a mechanical device with no text or symbols

Illustration of a medical or laboratory setup with a stethoscope and circular components (no text or symbols)

7 Indications techniques

	OFR 5A OFR 7A OFR 9A OFR 11A
puissance de chauffage	500 / 500 / 1000 Watts	600 / 900 / 1500 Watts	800 / 1200 / 2000 Watts	1000 / 1500 / 2500 Watts
Tension / fréquence	220-240 Volt 50 Hz	220-240 Volt 50 Hz	220-240 Volt 50 Hz	220-240 Volt 50 Hz
Thermostat Oui Oui Oui Oui
Minuterie de 24 heures	No No No No
Ventilateur d'air chaud commutables	No No No No

Modifications techniques

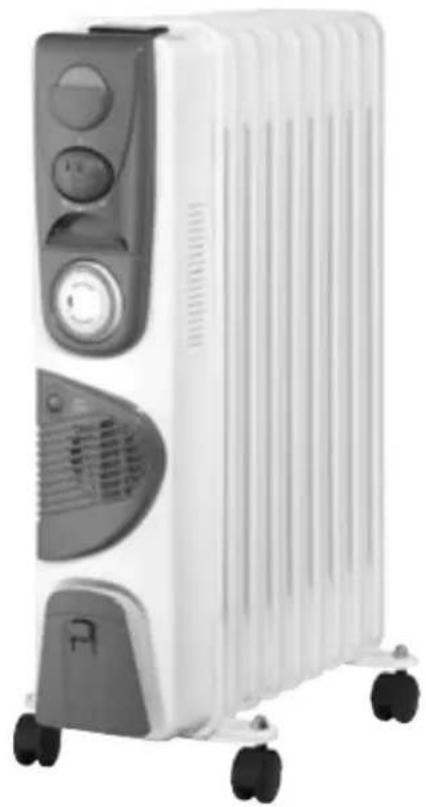

White and gray electric heater with multiple cooling fans and wheels (no visible text or symbols)

White and gray portable air conditioner unit with cooling fans and wheels (no visible text or symbols)

Nr. articolo OFR 5 A 20800062

Nr. articolo OFR 7 A 20800162

Nr. articolo OFR 9 A 20800562

Nr. articolo OFR 11 A 20800262

Nr. articolo OFR 7 D 20800362

Nr. articolo OFR 9 D 20800462

IT

INDEX

Abstract diagram showing curved arrows over layered vertical bars, no text or symbols present

Hand holding a tool with an upward arrow, next to a small object (no text or symbols visible)

Illustration of a hand holding a tool with an arrow pointing to a mechanical component (no text or symbols present)

Simple line drawing of a kitchen appliance with a refrigerator and a bird (no text or symbols)

Illustration of a mechanical device with a hanging hook and circular components (no text or symbols)

White and gray portable solar oil heater with wheels and control panel (no visible text or symbols)

White and gray portable oil lamp with vertical cooling fins and control panel (no visible text or symbols)

1 Safety....31
2 Placement....31
3 Electrical connection....31
4 Description of parts....31
5 Maintenance and cleaning....32
6 Technical specifications....32
7 Warranty / Disposal / Technical change....34

1 Safety

GB

Please read the safety instructions carefully before first commissioning and observe the safety instructions to prevent damage due to misuse, improper operation, and improper environmental conditions. Keep them for later reference.

Check the device for damage after removing the packaging. Do not use the unit in case of suspected damage; instead, consult a specialist. The recyclable packaging material must not be stored in a place accessible to young children, but must be disposed of properly.

This appliance is only for the purpose for which it was explicitly developed. Any other use is regarded as improper and therefore dangerous. The supplier is not liable for damage to persons and / or property due to improper or incorrect use.

This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised and have been given instruction concerning the use of the appliance in a safe way and understand the dangers involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be conducted by children without supervision. Please make sure to place the device on a suitable and waterproof surfaces, so that spilled liquids can not cause harm.

Repairs to electrical appliances must only be carried out by trained personnel. Improperly performed repairs and alterations to the equipment can have dangerous consequences for the user and any tampering will result in the warranty being rejected..

The device must not be used under the following conditions:

• In rooms with explosive atmospheres.
• In rooms with aggressive atmospheres.
• In rooms with high solvent concentration.
• In rooms with extremely high dust load.
• In the case of questionable operating conditions, it is advisable to contact the technical department of Sonnenkönig or a specialist dealer. The use of an electric heating system under impermissible conditions will invalidate the guarantee claims!

2 Placement

This device does not impose any special installation requirements, but it is advisable to take a few simple precautions to ensure optimum operation with maximum safety. Please observe the general safety precautions. The appliance must be placed at a distance of at least 50 cm from walls or pieces of furniture.

GB

3 Electrical connection

The following points should be checked before the electrical connection of the heater:

• Does the mains voltage match the voltage of the unit?
• Are the socket and the supply network adequately protected?
• If a cable reel is used, is it fully unwound?
• Is the appliance plug suitable for the building socket?
• Is the used socket equipped with a faultless grounding?

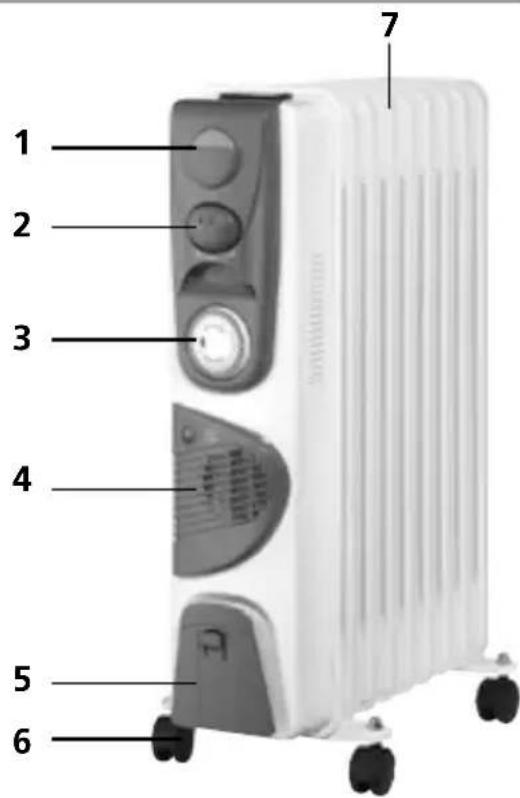

4 Description of parts

1 Thermostat
2 ON / OFF
3 Timer 24 hours (only Serie D)
4 Fan (only Serie D)
5 Cable holder
6 Castors
7 Ribs

1 2 3 4 5 6 7

5 Maintenance and cleaning

GB

Warning! For general maintenance and care, observe the general safety conditions. To ensure trouble-free operation of the heater, the unit must be cleaned regularly. Include the following procedure:

1. Turn off the heating.
2. Then pull the power cord out of the socket.
3. Remove dust from a cloth or a vacuum cleaner.
4. Clean the outside with a damp cloth. To clean the plastic parts do not use gasoline, solvents or abrasive agents that can damage the plastic surface.
5. Insert the power cord into the socket.
6. Turn on the device.

6 Technical specifications

	OFR 5A OFR 7A OFR 9A OFR 11A
Power	500 / 500 / 1000 Watt	600 / 900 / 1500 Watt	800 / 1200 / 2000 Watt	1000 / 1500 / 2500 Watt
Voltage / Frequency	220-240 Volt 50 Hz	220-240 Volt 50 Hz	220-240 Volt 50 Hz	220-240 Volt 50 Hz
Thermostat Si	Si Si Si
Timer 24 hours	No No No No
Ventilation No	No No No

	OFR 7D OFR 9D
Power 600 / 9	00 / 1500 Watt 800 / 1200	/ 2000 Watt
Voltage / Frequency	220-240 Volt 50 Hz 220	-240 Volt 50 Hz
Thermostat Yes Yes
Timer 24 hours	Yes Yes
Ventilation Yes Yes

GB

7 Warranty / Disposal / Technical change

Warranty

The Products are controlled just before delivery. If despite a lack of your product, try trustfully your seller. Please bring your receipt, as this is to be submitted for each warranty. The guarantee period is 24 months from date of purchase.

Disposal

The device must be disposed of properly. The device can be distributed free of charge for disposal at each dealer.

Technical changes

We reserve the right to modify the price, the design and the technical features

Please save the packaging materials of the unit.

CE Declaration of Conformity

This device complies with the following standards

EN 60335-2-30:2009+A11:2012

EN 60335-1:2012+A11:2014

EN 62233:2008

EN 55014-1:2006+A1:2009+A2:2011

EN 55014-2:1997+A1:2001+A2:2008

EN 61000-3-3:2013

EN 61000-3-2:2014
