Product type	Bubble massage mat for bathtub
Brand	Sonnenkönig
Model	SUMATRA
Mat dimensions	120 x 36 cm
Main unit dimensions	25 x 16.2 x 16.7 cm
Total weight	9.4 kg
Power supply	220-240 V, 50 Hz, 450 W
Protection	IP44
Remote control	Yes, with CR2032 battery included
Main functions	Air bubble massage, intensity adjustment (3 levels + program mode), automatic shut-off after 20 minutes, aromatic clip for essential oils
Care and cleaning	Clean the main unit and remote control with a damp cloth; clean and disinfect the mat regularly; dry completely before storage
Safety	Unplug before cleaning; do not immerse the main unit; safety distance ≥ 60 cm from the bathtub; do not use for more than 30 minutes; do not use with foam or bath salts
Spare parts and repairability	Repairs by qualified personnel only; 24-month warranty
General information	Manufacturer: Armin Schmid, Olensbachstrasse 9-15, CH-9631 Ulisbach, Switzerland

Frequently Asked Questions - SUMATRA Sonnenkönig

How to use the aromatic clip?

Pour one or two drops of essential oil onto the cotton pad, close the clip, insert it into the end of the hose (main unit side) and lock it by turning counterclockwise.

Can I use essential oils?

Yes, the aromatic clip is designed for essential oils. Be careful not to use too much to avoid damaging the clip.

How to clean the mat?

Unplug the device. Remove the mat by peeling off the suction cups with your fingernail. Clean it with a mild household cleaner, rinse and let it dry flat.

What to do if the remote control stops working?

Check the CR2032 battery. Replace it if necessary by opening the compartment with a coin. Make sure to point the remote control at the infrared receiver on the handle.

How long can I use the device?

The device automatically shuts off after 20 minutes. It is recommended not to exceed 30 minutes of continuous use. Wait at least 10 minutes before using it again.

Can I use bath salts?

No, do not use bath foam, bath salts or other additives. Only water.

How to install the mat in the bathtub?

Place the mat in the bathtub with the air connection at the foot end. Moisten the bottom for better suction cup adhesion. Connect the hose to the mat and to the main unit.

What to do in case of overheating?

Stop the device, unplug it and let it cool down completely before using it again. Prolonged use may cause overheating.

Is the remote control waterproof?

No, do not immerse it in water. It is equipped with a suction cup to attach it to the wall or the edge of the bathtub, but it should not get wet.

How to store the device?

Let the main unit cool down, empty and dry the mat completely. Roll or fold the mat. Store everything in the original packaging in a dry place.

USER MANUAL SUMATRA Sonnenkönig

Medical device with blue circular pads and white tubing, no visible text or symbols

INDEX

Technical diagram of a remote control device with numbered components and labeled parts

1 HAUPTEINHEIT

Technical diagram showing three-step assembly of a device with labeled parts: battery, connector, and lock mechanism.

Diagram of a remote control panel with buttons and a dial (no text or symbols)

CE ☑ IP44

Medical device with blue circular pads and white tubing, no visible text or symbols

INDEX

Technical diagram of a vacuum cleaner assembly with numbered components and labeled parts

1 UNITÉ PRINCIPALE

Simple line drawing of a bathtub with water, a drain, and a pump connected to a container (no text or symbols)

Technical diagram showing three-step assembly of a battery connector with labeled parts: battery housing, connector, and lock mechanism.

Line drawing of a portable electronic device with labeled ports and cable (no text or symbols)

Fig. 4

Power On Lower Power Off 14 Program SINHENSONE 20min STOP

Pure diagram of a remote control panel with no text or symbols

Modifications techniques

Medical device with blue circular pads and white tubing, no visible text or symbols

INDEX

Technical diagram of a vacuum cleaner assembly with numbered components and labeled parts

1 UNITÀ PRINCIPALE

Technical diagram showing three-step assembly of a device with labeled parts: battery, connector, and lock mechanism.

Line drawing of a portable electronic device with a circular body and attached components (no text or symbols)

Fig. 4

Power On Low H1 Programs Power Off 30min STOP

Diagram of a remote control panel with buttons and a dial (no text or symbols)

BATHROOM ACCESSORIES

User manual

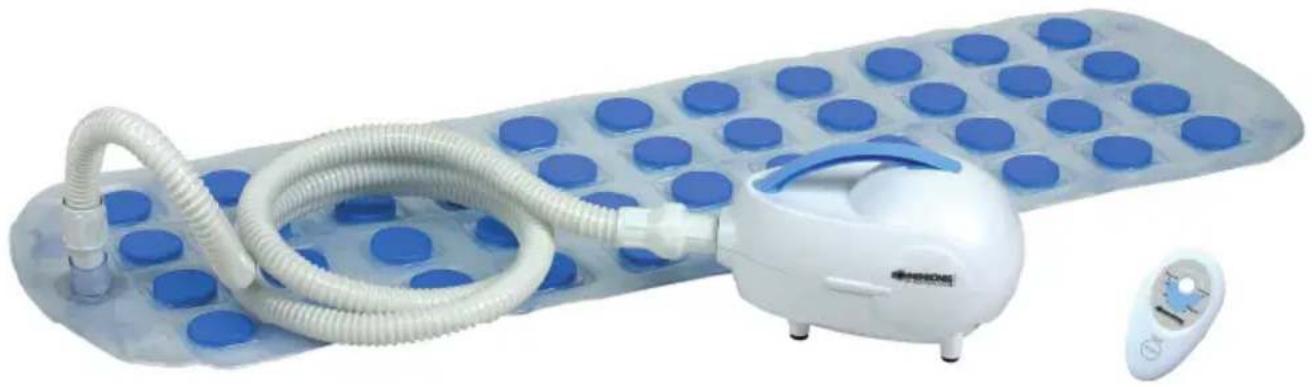

Medical device with blue circular pads, white tubing, and a medical device (no visible text or symbols)

1 Safety instructions.... 46
2 Scope of delivery.... 49
3 Preparation 50
4 Using the Aroma Clips....51
5 Operation....51
6 Cleaning and maintenance 53
7 Technical data 53
8 Warranty / Disposal / Technical Changes 54

1 Safety instructions

Please read the operating instructions carefully before first use and observe the safety instructions to avoid damage caused by incorrect or improper operation and impermissible ambient conditions. Keep them in a safe place for future reference.

• After removing the packaging, check the device for damage. If damage is suspected, do not operate the device and contact a specialist immediately
• The recyclable packaging material must not be stored or disposed of in a way that is accessible to small children, but must be disposed of properly
• This device may only be used for the purpose for which it was expressly developed. Any other use is considered improper and therefore dangerous
• The supplier shall not be liable for any personal injury and/or damage to property resulting from improper or incorrect use
• This device may be used by children 8 years of age or older and by persons with reduced physical, sensory or mental abilities or lack of experience and knowledge, provided they are supervised or have received instructions for the safe use of the device and understand the hazards involved
  • Children are not allowed to play with the device
  • Children must not perform cleaning and user maintenance without supervision
• Repairs to electrical equipment may only be carried out by qualified personnel and improperly performed repairs and modifications to the equipment may have dangerous consequences for the user and the warranty claims will be rejected
  • Always unplug the device immediately after use / before cleaning
• Do not attempt to pick up the main unit that has fallen into the water. Immediately remove the plug from the socket
• Do not place or store the main unit where it may fall or be pulled into a bathtub or sink. Do not pour into water or other liquids or drop. Store in a dry place
  • Always use a power outlet that is accessible when connecting the main unit
• The main unit must be positioned so that it is out of the reach of persons in the bathtub
• Parts of this product containing electrical components must be securely mounted so that they cannot fall into the bathtub

DO NOT USE THIS PRODUCT OVER WATER-FILLED CONTAINERS SUCH AS BATHTUBS! DO NOT IMMERSE THE MAINTENANCE DEVICE IN WATER OR LIQUID.

• Never leave the unit unattended when connected. Always disconnect the power plug when not in use
• Only use this device for its intended purpose as described in this manual. Do not use attachments that are not recommended by the manufacturer. Any misuse will void the warranty
• Check the product carefully for damage before each use. If such damage is present, return the device to the supplier or service center. Do not attempt to use a defective device
• Never operate the head unit if its cable or plug is damaged, if it does not function properly, if it has been dropped or damaged, or if it has fallen into the water. Return the device to a service center for inspection and repair
• Do not carry, turn, or unplug the device by unplugging the power cord
• A further operation of more than 30 minutes is not recommended. Prolonged use may cause the goods to overheat. In the event of overheating, stop operation and allow the unit to cool down before operation
• Keep the power cord and head unit away from heat, hot surfaces, moisture and liquids. Fire, electric shock or injury may occur
• Never place and/or operate the device near an electrical heater or heat source
• Never touch the power cord when your hands are wet or when standing in water
• Do not drop or insert any objects into the openings of the unit or the air hose
• Do not stand on the main unit
• Never operate the device with blocked openings. Keep the opening free of lint, hair and other particles
• Use the product only indoors! Do not use outdoors or in places where aerosol (spray) products are used or where oxygen is administered
• Do not use if you have sensitive skin or poor circulation
• Never use the product if you are tired or sleepy. Do not fall asleep while using the product
• Unplug the power cord before filling your bathtub. Fill your bathtub with water only if not otherwise specified by the manufacturer. Take care not to overfill your bathtub

GB

WARNING

• This product is intended for private use and not for commercial or medical purposes
• Close monitoring is required when this device is used by, on or near children, disabled or disabled persons
• Never use this device as a substitute for medical assistance. Persistent severity and symptoms may indicate a more serious disease
• This device should not be used in the following cases: tuberculosis, benign and malignant tumours, bleeding, inflammation of the skin, phlebitis and thrombosis, open and fresh wounds, bruises, broken skin or varicose veins or indeterminate calf pain
• If you have any medical concerns, please consult a doctor before using the product
• In case of inexplicable pain always consult a doctor before using the product
• Discontinue use if you experience pain or swelling after use
• Avoid use on parts of the body that are anaesthetised
• Do not use on areas where surgery has recently been performed
• Children should be supervised to ensure that they do not play with the device
• Cleaning and maintenance must not be carried out by children without supervision
• Do not use on or near simple or other highly sensitive areas
• This product should not be used by pregnant women and people suffering from high blood pressure or heart pain
• As additional protection, the installation of a residual current circuit breaker (RCD) with a rated breaking current of not more than 30 mA in the bathroom circuit is recommended. Please contact a qualified electrical engineer
• Attempting to remove the mat directly may damage it

2 Scope of delivery

GB

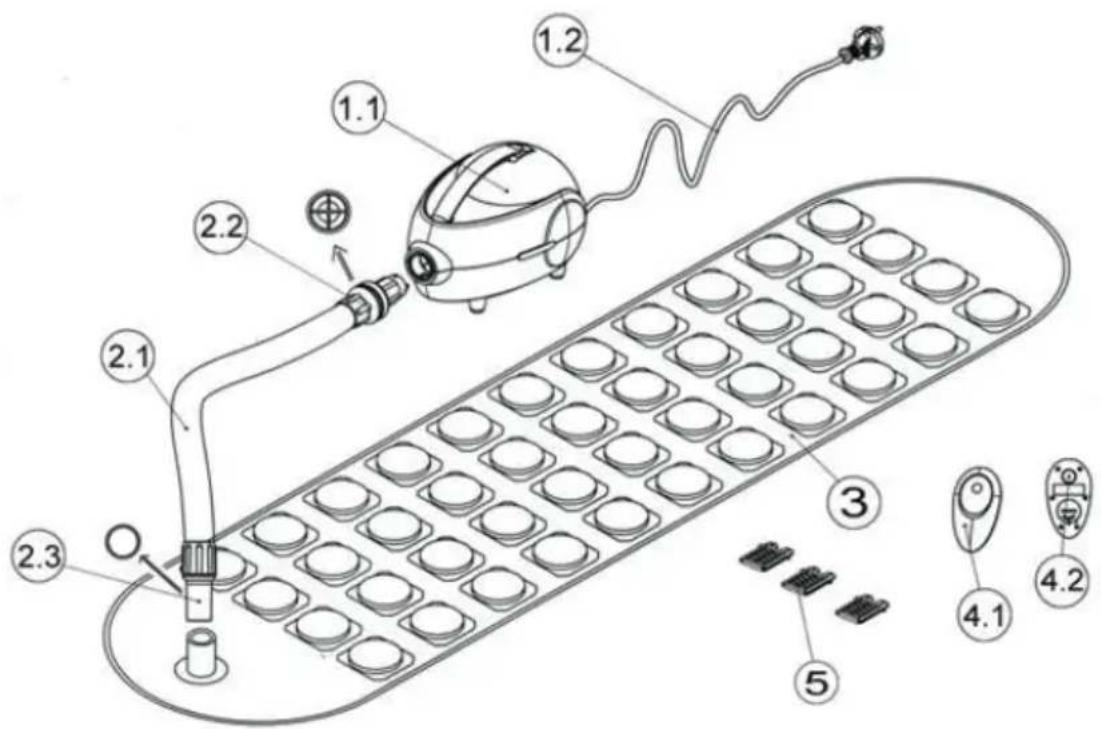

Technical diagram of a vacuum cleaner assembly with numbered components and labeled parts

1 MAIN UNIT

1.1 Main unit
1.2 Power cable (approx. 2.5 m)

2 AIR HOSE (approx. 2.5 m)

2.1 Hose
2.2 Hose end with valve and 1 x Aroma-Clip for connection to the main unit
2.3 Hose end without valve for connection to the mat

3 MAT

4 REMOTE CONTROL

4.1 Front - with function button for ON, OFF and adjustment bubble intensity
4.2 Rear - with suction cup and 1 x CR2032 battery Included in delivery Includes battery case

5 AROMA-CLIP WITH COTTON PAD

6 OPERATING INSTRUCTIONS (not shown)

GB

3 Preparation

• Remove the head unit (#1.1) and all accessories from the packaging. Please check whether the product is complete and undamaged
• Ensure a pleasant room temperature in the bathroom
• Before using the product for the first time, we recommend that you thoroughly clean your bathtub so that the mat adheres better to the bathtub floor
• Make sure the head unit is not connected. Place the main unit on the floor or on a level, stable surface. Make sure that the air inlet on the underside is not covered

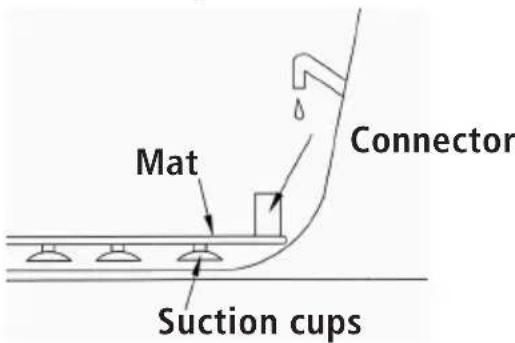

• Place the mat (#3) in the bathtub with the air connection on the mat at the foot end. Press down on each suction cup. Tip: The suction cups adhere better if you moisten the bottom of the bathtub with a little water
• The suction cups under the mat work perfectly on smooth and shiny tub surfaces. If your bathtub has a rough or textured surface, please ensure that it does not slip when entering the bathtub and that there is a possible danger
• Connect the end of the hose (#2.3) to the connector on the mat. Connect the end of the hose (#2.2) to the main unit and make sure that it is locked counterclockwise
• Start filling the bathtub with water. Ensure a pleasant water temperature.
• Do not use bath foam or bath salt
• Plug the power cord into the wall outlet

Mat Suction cups Connector

ATTENTION

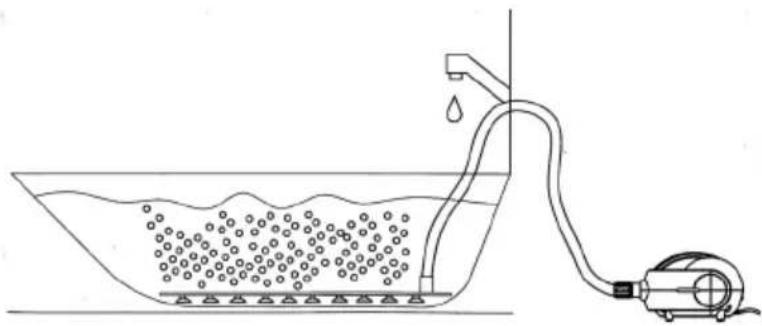

For safety reasons, the main unit must be placed at least 60 cm from your bathtub. Do not place the main unit so that it can fall easily or be pulled into the bathtub or onto the wet floor. Always place the unit on dry ground.

Simple line drawing of a water tank with bubbles and a connected pump, no text or symbols present

4 Using the Aroma Clips

You can use the product with or without aroma clip. If you want to enjoy your favourite fragrances while bathing:

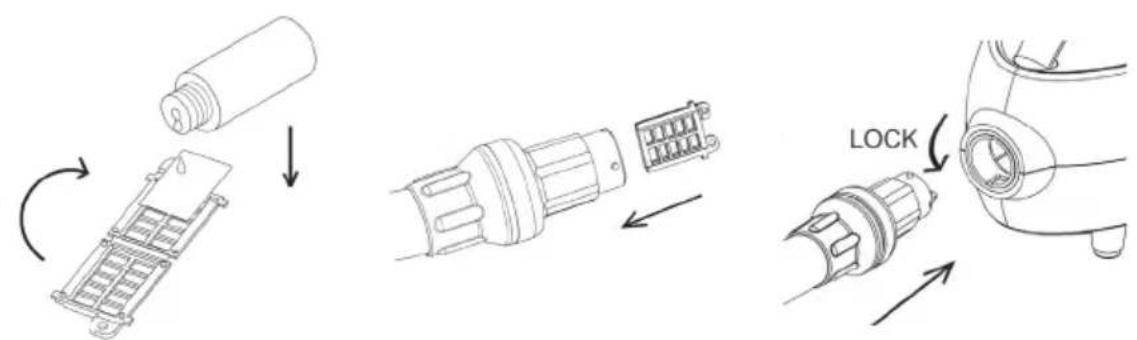

• Apply one or two drops of essential oil to the cotton pad and close the aroma clip (Fig. 1)
• Insert the aroma clip into the end of the hose (#2.2) (Fig. 2)
• Connect the end of the hose (#2.2) to the main unit (#1.1) and ensure that it is locked by turning the end of the hose counterclockwise (Fig. 3)

Technical diagram showing three-step assembly of a device with labeled parts: battery, connector, and lock mechanism.

• The cotton pad is reusable.
- Too much essential oil can damage the aroma clip.

5 Operation (see Fig. 4)

SUMATRA can be switched on and off and the bubble intensity can be set either via the control switch on the main unit (#1.1) or via the remote control (#4). The selected setting can also be seen on the LED display on the handle.

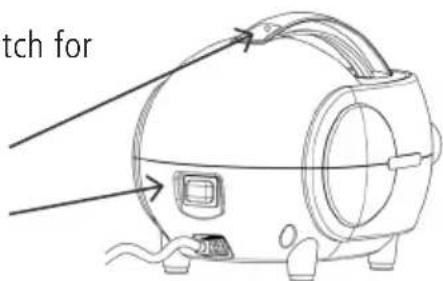

OPERATING ELEMENT

On the back of the main unit (#1) is a 4-step switch for controlling the unit.

LED-Display 4-step switch

tch for

Fig. 4

• Press the control switch once. The main unit is turned on and operates with a low setting. The LED flashes green
• Press the power switch again. The main unit operates with a higher setting. The LED flashes red
• Press the control switch again to enter programming mode. The LED flashes orange
• To turn off the unit, press the power switch a fourth time

The unit switches off automatically after 20 minutes. It is recommended not to use the device for more than 30 minutes at a time. Please wait at least 10 minutes until the main unit has cooled down before switching it back on.

REMOTE CONTROL

After carefully climbing into the bath, you can turn on the unit and adjust the bubble intensity with the remote control (#4). Please note that the remote control does not have LED lighting. The remote control also has a suction cup on the back. Simply moisten the suction cup and press it firmly against the bathtub wall or against the side of the bathtub. Do not immerse the remote control in water.

- Always point the remote control at the infrared reception area on the handle to operate the unit. - By pressing the button on the remote control repeatedly, the unit operates in the same sequence as described in the Control section:

- On / Low level

- High level

- Program Mode

- Switched off

- On / Low level - High level - Program Mode - Switched off

The remote control uses a 3V CR2032 battery (already included). The battery compartment is located on the back of the remote control. To replace the battery, open the lid with a coin. Make sure the battery is inserted correctly and close the cover with a coin.

Power On Lower High Power Off Phlegms SINHERSONS STOP 20min

Pure diagram of a remote control panel with no text or symbols

Disposal of batteries

Batteries should not be disposed of with household waste. As a consumer, you are required by law to take all used batteries to public collection points in your area or to places where batteries of this type are sold.

6 Cleaning and maintenance

• Always disconnect the power plug and allow the unit to cool down before cleaning it

- Do not use abrasive cleaners or strong brushes

- The main unit and the remote control do not require any special maintenance. They only need to be cleaned regularly with a soft, damp cloth

- The best way to remove the mat from the bath is to slide your fingernail under the suction cups to release the vacuum. Trying to pull the mat directly can damage it

- The mat should be cleaned and disinfected regularly to keep it free of bacteria. If used daily, especially several times, disinfect once a week with a mild household cleaner according to the manufacturer's instructions. If it is used less frequently, please disinfect it after each use

- It is recommended to remove the remaining water by removing the mat and puts it flat on a dry towel and then presses it lightly so that the mat dries thoroughly

STORAGE

If the device is not used for a long time, we strongly recommend:

• Always allow the unit to cool down before storage
- Empty the mat and you can roll it up for storage or fold it when it is completely dry
- It is strongly recommended to store the main unit and all accessories in their original packaging and to keep the packaging in a dry and clean place

7 Technical Data

Power 450 Watt
Voltage / Frequency / Mains current 220	-240 Volt / 50 Hz
Remote control Yes
Dimension 120 x 36 cm
Dimension Main unit 25 x 16.2 x 16.7 cm
Weight 9.4 kg
Safety protection class	IP 44

8 Warranty / Disposal / Technical Changes

Guarantee

The devices are carefully checked before delivery. However, should a defect occur in your device, please contact your seller immediately. Please bring the proof of purchase with you, as this must be presented for each warranty service. The guarantee is 24 months from the date of purchase.

Disposal

The device must be disposed of properly. The device can be returned to any specialist dealer free of charge for disposal.

Technical modifications

Subject to technical and design changes. We are not liable for technical or editorial changes or omissions in this document.

Please keep the packaging material for the device.

CE conformity declaration

The device complies with the following standards:

EN 55014-1:2006 + A1:2009 + A2:2011

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 61000-4-2:2009

EN 61000-4-3:2006 + A1:2008 + A2:2010

EN 61000-4-4:2012

EN 61000-4-5:2014

EN 61000-4-6:2014

EN 61000-4-11:2004

2014/30/EU

2014/35/EU

CE ☑ IP44

GB

DISPOSAL INSTRUCTIONS FOR THE ELECTRICAL PART OF THE PRODUCT

In accordance with Article 26 of the Decree-Law of 14 March 2014 implementing Directive 2012/19/EC and the Law of 4 March 2014 implementing Directive 2011/65/EC on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management.

The crossed-out dustbin symbol on the machine or packaging indicates that the waste generated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send the purchase of new, equivalent devices back to the dealer in a one-to-one process. L'adeguata separate collection for subsequent commissioning of the equipment to be recycled, treatment and environmentally sound disposal, helps to avoid possible adverse effects on the environment and health and promote the reuse and/or recycling of the materials to which they belong. composed the equipment. Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.

DISPOSAL OF BATTERIES AND ACCUMULATORS

In accordance with Legislative Decree 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and related waste, the symbol of the crossed-out waste bin on the battery indicates that it is prohibited to dispose of used batteries in household waste.

Batteries and batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipality or in appropriate containers. The service is free. In this way, legal requirements will be respected and the environment will be protected. The symbols identifying hazardous materials that may be present in batteries and accumulators are as follows: Hg= Mercury, Cd= Cadmium, Pb= Lead.

Company

Armin Schmid
