15.6 inch FHD

Mobile dual display

Manual

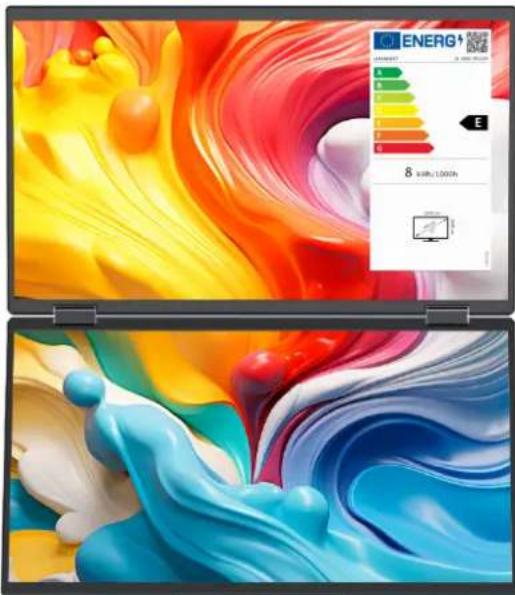

Two-panel image showing a vibrant abstract colorful swirl design with a color-coded ESI rating and a small icon of a monitor (no readable text or symbols)

Important:

Please make sure to read this instruction manual before use.

Please use it correctly for your safety.

Once you have read it, make sure to keep it.

Please read all included instruction manuals carefully before use.

• Place the monitor on a flat, stable surface. To avoid the risk of fire or electric shock, avoid high temperatures, low temperatures, high humidity and accumulation of dust.
  Do not use the monitor where it may become wet or exposed to water.
• Do not open and never cover the monitor case because it contains high voltage parts inside which could cause serious injury or fire if you come into contact with them.
• If the power supply is damaged, please contact our customer service or your dealer. Never attempt to inspect or repair the product yourself.
• Before use, please ensure that all cables are properly connected and the power cord is not damaged. If you discover any damage or blurred areas, please contact your dealer immediately.
• The slots and openings on the top or back of the monitor are required ventilation holes for this product. Do not cover these holes. Do not place this product near or above a heat source such as a radiator without adequate ventilation.
• Do not insert foreign objects or spill liquids into any openings in the monitor case. This could cause damage or malfunction.
• Always operate the monitor using the type of power source indicated on the product label.
  If you are unsure of the type of power supply you have, please contact your local power company.
• Do not apply excessive current to sockets or extension cords. Use caution as excessive current can cause electric shock and is very dangerous.
• To protect your monitor from damage caused by power surges, turn off power to the device during long periods of inactivity or during lightning storms.
• To ensure satisfactory operation of the monitor, the computer must be equipped with a properly configured outlet marked in the AC100-240V range.

• If you experience technical problems or concerns with your monitor, please contact our customer service or authorized reseller.

• To work safely, make sure to establish the ground connection before connecting the power plug to the power source. Also, when disconnecting the ground connection, make sure to unplug the power plug first.

• This product is not intended for continuous use for 24 hours. Please unplug the power plug when you do not use the product for a long time.
• The included AC adapter and cord are intended for this product only. Do not use it for other equipment.
• Do not use cleaners or detergents containing alcohol or acetone to clean your monitor. Make sure to use a cleaner specifically designed for LCD monitors. Do not spray liquid cleaner directly on the screen. Please note that if the cleaning fluid drips and gets inside the monitor, it is very dangerous as it may cause electric shock or fire. LCD panels are easily damaged, so do not rub it with hard objects.
• Before lifting or moving the monitor, turn off the power switch and unplug all cables and power cords. When installing the monitor, lift it using the appropriate method. When lifting or carrying the monitor, make sure to grip it by the edges. Never lift the monitor by its stand or cord.

Precaution

• Using the monitor in a dark room, or using it continuously for long periods of time, may cause eye fatigue.
  • Take a break of 5 to 10 minutes every hour and use the monitor in a reasonably bright room.

Before cleaning the monitor, turn off the power and unplug all cables and cords.

How to maintain the monitor:

• LCD panel area: Do not use tissue paper, etc., instead use a clean, soft cloth specially designed for LCD panels. Please wipe the monitor gently. For difficult-to-remove stains, use a neutral cleaner specifically designed for LCD panels.
• Monitor frame: Wipe with a soft cloth dampened with a mild cleaner.

The symptoms listed below are normal conditions for the monitor

• When first used, the screen may flicker due to the nature of the backlight. If this symptom appears, please turn off the monitor and then turn it on again.
• Depending on your desktop setup, displayed colors, and brightness, brightness may appear uneven.
• Several pixels may or may not always be lit.
• If you display the same image for a long time, an afterimage from the previous image may persist even after switching to a different image.
  In this case, the screen will recover slowly. Otherwise, turn off the power for a few hours and the problem will be fixed.

Instead of trying to repair the monitor yourself, contact customer service or the dealer.

Thank you for purchasing the JAPANNEXT 15.6 inch FHD dual Monitor.

The installed panel supports FHD (1920 x 1080) resolution. We recommend using FHD resolution for maximum performance. If the resolution is lower than FHD, the original performance cannot be achieved.

Connection with a computer

1. Make sure the monitor and computer are turned off before connecting the cable.

2. Connect the adapter supplied with the monitor or an external power supply of 5V/3A or higher and a compatible signal cable (HDMI or Type-C). Also connect the cable (HDMI, Type-C) to the computer.
   *For Type-C, please use a cable that supports USB3.1 protocol.

3. Turn on the monitor and computer.

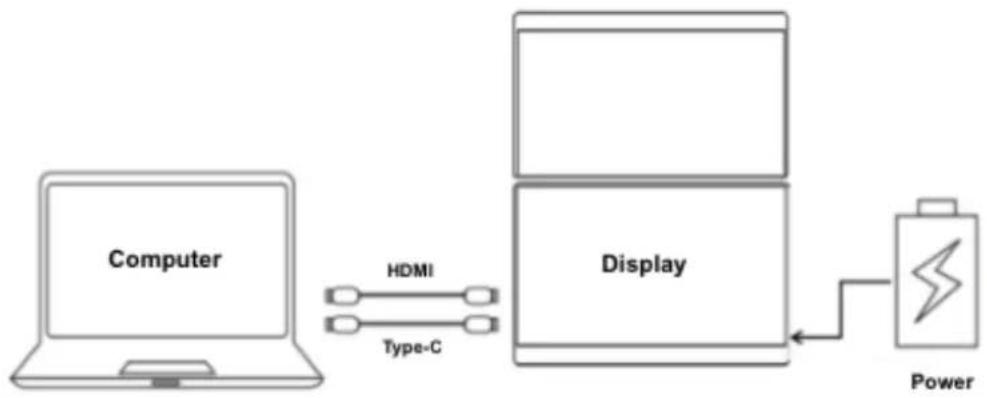

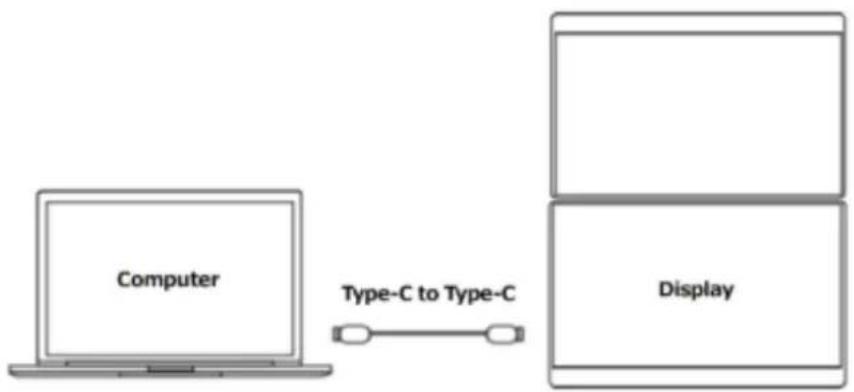

4. Type C connection

This product supports Type-C cable connection. Screens can be enlarged or duplicated.

*When adjusting the brightness to 80 or more, we recommend connecting to an external power supply of 5V/3A or more. (Please use an external power supply that can provide suitable power for your model.) *If the brightness is unstable even below 80, please connect it to an external power supply of 5V/3A or more.

• Connection with a computer via HDMI


This product is equipped with an HDMI port. Connect the HDMI port of this unit and the HDMI port of your computer. Also connect an AC adapter or Type-C cable for power.

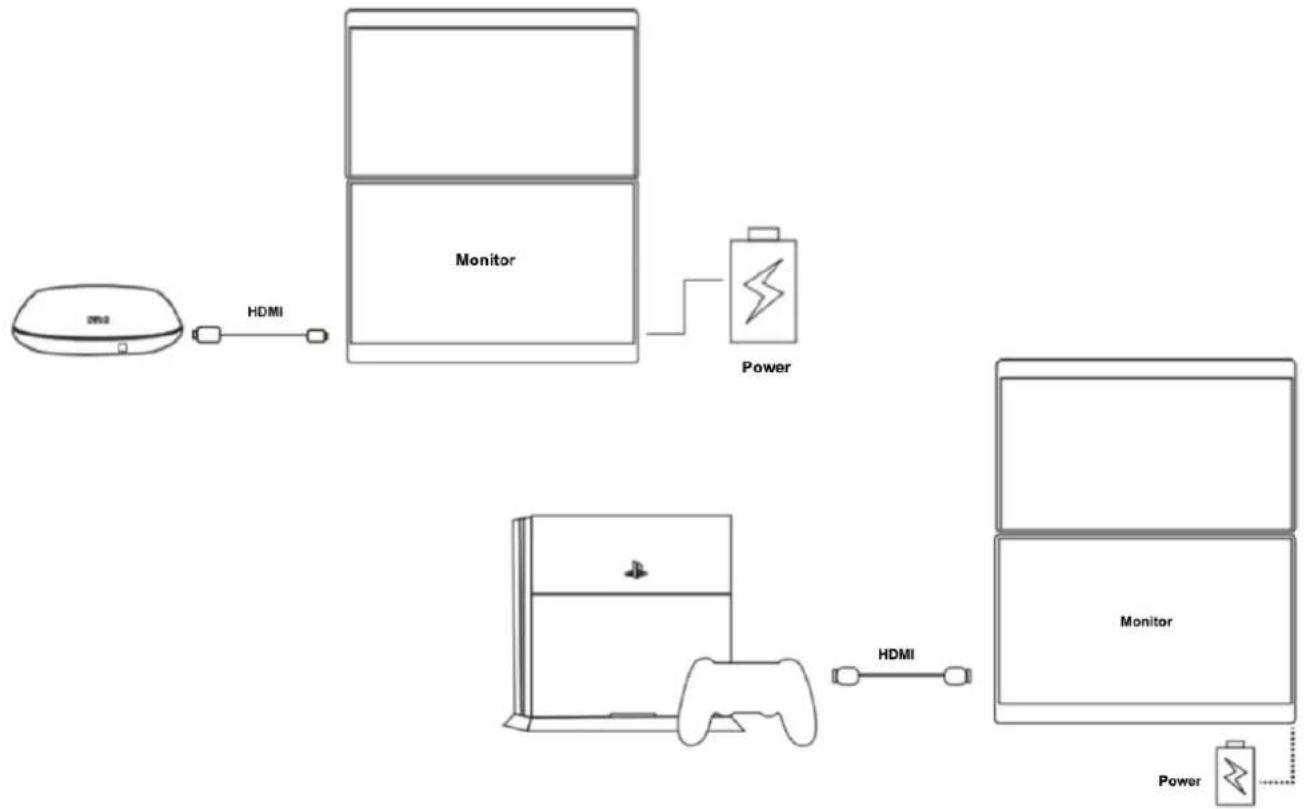

- Connection with other devices

Note: When connecting the HDMI cable, be sure to connect the power cable before connecting the HDMI cable to ensure that the signal is transmitted reliably.

Attention: In order to work safely, make sure to connect the ground before connecting the power plug to the power source. Also, when disconnecting the ground connection, be sure to unplug the power plug from the outlet.

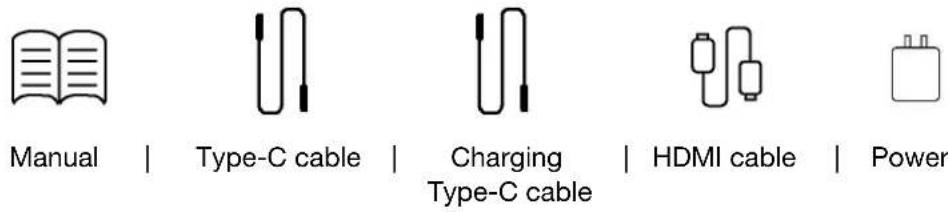

Manual | Type-C cable | Charging Type-C cable | HDMI cable | Power

*One of the Type C cables is a dedicated for external power cable.

*The included power adapter is intended for use with this product only. Do not use it for other equipment.

Interface / Connectivity

Diagram showing a device with three labeled components: one connected to a rectangular panel, and two connected to a horizontal line.

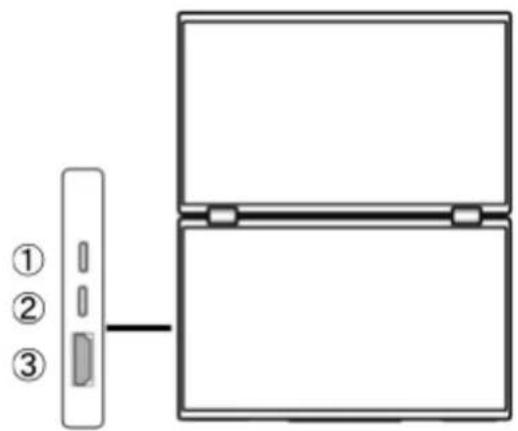

1. Type-C: Power supply. Powered via Type-C cable or the adapter included.

2. Type C : For Type-C only. Power when connected to Type-C (simultaneous power) or with the included adapter.

3. Port HDMI: Port compatible HDMI. Used when connecting HDMI swap devices.

Simple line drawing of two rectangular frames with no text or symbols

Pure electrical circuit lines without any symbols

Audio output

Switching screen button

Operation button

Power LED

Power button

Audio	Please use it by connecting headphones or speakers.
Switch screen button	Set switching between extended screen and duplicate screen.When using the OSD menu, a short press will return to the previous level.
Operation button	Move the cursor by scrolling the menu up or down.Press the power button to confirm.Short press the switch button to return to the previous level.Press the top to open the brightness adjustment menu.Press down to open the volume adjustment menu.
Power button	Long press to turn on/off.Short press to display the OSD menu.

Menu	Feature	Setting value	Comment
Adjusting image quality	brightness	0-100	Brightness Settings
	contrast	0-100	Contrast Settings
	mode	standard	Picture mode settings *1
		game
		movie
		text
		FPS
		RTS
Color Settings	color temperature	cold	Color temperature adjustment
		warm
		USER
		red 0-100	Used when configuring USER
		green 0-100
	Low Blue Light	0/25/50/75/100	Blue light reduction settings
Audio settings	mute	On/Off	Mute on/off
	volume	0-100	Adjust the volume
Other settings	language	French/English	Language settings
	reset		Factory Reset Settings
	extended screen	On/Off	Extended screen on/off *2
Input source	Type-C/HDMI		Selecting the input source

*Please note that product design specifications and appearance are subject to change without notice due to product improvement.

*If the information listed differs from the actual item, priority will be given to the actual item.

*1. If you set it to anything other than standard, you may not be able to change some OSD functions such as brightness.
*2. When connected to Windows with Type-C and turned off, it will be displayed as two screens instead of double.

Dysfunction

Symptoms	Checkpoint
Power LED does not light up	·Is the monitor's power button turned on? ·Make sure the power cord is securely connected to the monitor and the outlet.
No image appears after displaying the logo	·If you are using a smartphone, try updating the operating system. ·For computers, try updating the driver.
No image appears even though the power indicator is on.	·Is the blank screen saver running? Move your mouse and keyboard. ·Make sure the brightness and contrast are not set to minimum. ·Make sure the signal cable is properly connected to the monitor and the computer. ·Check the signal cable pins for bent or damaged cable. ·Is your computer turned on? If you have another monitor, try connecting it to see if the computer works properly. ·Does the computer signal timing match the monitor specifications?
The image is distorted or ripples appear in the image.	·Make sure the signal cable is properly connected to the monitor and the computer. ·Keep electrical equipment that may cause electrical interference away from the monitor. ·Does the computer signal timing match the monitor specifications?
Image position is off-center Image size does not match	·Is your computer resolution correct? ·Does the computer signal timing match the monitor specifications?
The screen is too bright/too dark	·Adjust brightness and contrast settings from the on-screen menu (OSD).
The image is blurry or unclear	·Set the display resolution on your PC to the same as the recommended native screen resolution of the monitor. ·Does the computer signal timing match the monitor specifications? ·Check the signal cable pins for bent or damaged cable.
The color of the image is incorrect	·Check the signal cable pins for bent or damaged cable. ·Adjust the red/blue/green color settings in the on-screen menu (OSD) (color temperature). ·Please reset the settings from the On-Screen Menu (OSD). ·Does the computer signal timing match the monitor specifications?
Unable to display FHD (1920 x 1080)	·This product supports resolutions up to 1920 x 1080 (FHD), including HDMI and Type-C. However, some graphics cards may not support 1920 x 1080 resolution. Check with your local distributor or manufacturer for information on your computer's hardware limitations.
Unable to display dual screen (1920x2160)	·Some devices, such as game consoles, do not support 1920 x 2160. For supported resolutions, please refer to each device. ·Please check with the manufacturer.
FHD (1920x1080) is displayed, but only up to 30 Hz.	When using HDMI, is it correct that the HDMI to HDMI cable is 2.0?When using Type-C, please check whether it supports USB3.1 protocol.Does your graphics card support FHD@60hz on your ports? (Even though it supports FHD, it can only support up to 24Hz or 30Hz).
No sound	Are the computer and audio equipment turned on?Check the audio cable connection.Is the volume set too low?Is the sound set to Mute?
There is a strange noise	Are the cables correctly connected?
The screen goes black (or flashes).Displayed but unstable	Even Type-C compatible computers may shut down (or flicker) depending on the power capacity of the model. It can become unstable. For prevent symptoms, we recommend connecting to an external power supply of 5V/3A or more.
Brightness setting is not saved	Please use an external power supply that can provide suitable power for your model.The brightness setting can be retained even after power off, only when power is supplied to the main unit.
Screen does not appear when connected to external power source when connected to Type-C	For some models such as Mac, the screen may not be displayed if a Type-C connection and an external power source are connected at the same time. In this case, please remove the external power supply or reinsert the Type-C connection.

(Note) Regarding Type-C connection:
*For Mac and some models, the input source may not change when replacing the Type-C port. In this case, restart the monitor and disconnect/connect the cable.
*Switching input source from HDMI to Type-C may not work on Mac and some other models. In this case, unplug the HDMI cable and change the input source.

Precautions when connecting only Type-C

• The monitor will not be displayed if the device is not sufficiently powered. In this case, please connect it to an external power source.
• If symptoms such as screen failure (no display) or flickering occur when using only Type-C connection, please connect immediately to the included adapter or an external power source of 5V/3A or more, reduce the brightness value, then connect Type-C again.

There may also be a power outage when DCR is activated. In this case, disable DCR and try again.

- Even with a Type-C connection only, the maximum screen brightness varies depending on the power capacity of the connected device. If you only use the Type-C connection without connecting an external power source, we recommend that you first check the maximum brightness that the screen can display. To check in advance the maximum brightness the screen can display with only a Type-C connection, set the brightness to 0 when connected to the supplied adapter or an external 5V/3A power supply or more. Then connect only Type-C (*1), increase the brightness value until the screen is no longer displayed, and check the numerical range of brightness that the screen can display.

(*1 Please be sure to try it in an environment where you can change the connection to the included adapter or an external power supply of 5V/3A or more.)

• On Mac and some models, the input source may not change when replacing the Type-C port. In this case, restart the monitor power and disconnect/connect the cable.
• Depending on Mac and some other models, switching the input source from HDMI to Type-C may not work. In this case, please unplug the HDMI cable and change the input source.
• You cannot connect a computer to two Type-C ports at the same time.

Customer Support

JAPANNEXT

TEL: [phone]

Hours 9:00 a.m. to 5:00 p.m. (Closed Saturdays, Sundays and public holidays)

Contact form

You can easily access the application form by scanning the QR code.

JAPANNEXT Co., Ltd. CS Department

Chiba-Ken Isumi-Shi Namegawa 506-5
