Product Type	LCD LED Monitor
Brand	Japannext
Model	JN-IPS27G300Q-HSP
Screen Size	27 inches (68.6 cm)
Native Resolution	WQHD (2560 x 1440)
Refresh Rate	300 Hz
Panel Technology	IPS
Connectivity	2x HDMI 2.0, 2x DP 1.4, audio output
Viewing Angle	178° horizontal and vertical (typical)
Main Features	Adaptive Sync, MPRT, image modes (standard, movie, text, night, eye care, RTS, FPS, game, HDR), crosshair, full OSD adjustment
Power Supply	External power adapter, AC 100-240V
VESA Mounting	Yes (spacer provided, standard 100x100 mm)
Weight (with stand)	Approximately 4.5 kg
Dimensions (with stand)	Approximately 615 x 465 x 195 mm
Cleaning and Maintenance	Use a soft cloth and special LCD panel cleaner; do not spray directly
Safety	Do not open the casing, unplug before cleaning, use on a stable surface
Included Accessories	DP cable, power cable, power adapter, VESA spacer, manual
Repairability	Contact customer service or an authorized reseller; do not attempt repair yourself

Frequently Asked Questions - JN-IPS27G300Q-HSP Japannext

How to assemble the monitor?

Place the screen face down on a soft cloth. Insert the stand hook into the rear mount, then secure the base with the provided screw. Ensure the assembly is sturdy before uprighting the monitor. To adjust tilt, hold the top and bottom bezels and apply gradual pressure.

How to connect the monitor to my computer?

Turn off the monitor and computer. Connect the power cable and an HDMI or DP cable (one at a time) to the monitor, then to the computer. Turn on both devices. Ensure the input source is correct in the OSD menu.

How to adjust brightness or contrast?

Press the M button to open the OSD menu. Navigate with the ▲/▼ keys to Brightness/Contrast. Use ▲/▼ to adjust Brightness (0-100) and Contrast (0-100). Press M to confirm and E to exit.

What to do if the screen does not turn on?

Check that the power button is pressed and the power cord is properly connected to the monitor and outlet. Ensure the outlet works. If the indicator is on but no image, check the signal cable connections and that the computer is on.

What to do if the image is blurry or unclear?

Set your computer's display resolution to the monitor's native resolution (2560 x 1440). Check that the signal cable pins are not bent and the cable is in good condition. You can also adjust Sharpness in the OSD menu (0-5).

How to activate HDR mode?

Press the M button to open the OSD menu. Go to Menu > Image Mode > HDR. Set to Auto or OFF depending on your content. Ensure your source and content are HDR compatible.

How to use the crosshair?

The crosshair appears by pressing the ▼ key (Hotkey1 by default). To customize, go to OSD Menu > Game Crosshair and choose from 4 styles or disable it. It disappears by pressing E.

What to do in case of dead pixels or image retention?

A few pixels always on or off are normal and not a defect. If image retention persists after prolonged static display, turn off the monitor for a few hours to recover. Avoid displaying static images for too long.

How to reset to factory settings?

Press M to open the OSD menu, go to Reset and select On (or YES). This will restore all default settings.

Where to find Japannext customer support?

Contact support at 09 70 70 80 90 (Mon-Fri 9am-5pm, except holidays) or via the online form at https://japannext.fr/pages/contact. You can also scan the QR code in the manual.

USER MANUAL JN-IPS27G300Q-HSP Japannext

Cleaning and maintaining the monitor 18

How to maintain the monitor 18

The symptoms listed below 18

Welcome 19

Quick Start Guide 20

Assembling the Monitor Base 20

Connection with a computer 20

Accessories 21

Interface / Connectivity 21

Description of the display button 22

On-Screen Menu (OSD) 23

Dysfunction 25

Customer Support 26

Technical illustration of a device's internal structure before and after assembly, showing a component being removed (no text or symbols present)

Technical diagram showing a mechanical assembly with labeled components and a control panel below.

QR code image containing encoded data, no visible human-readable text

JAPANNEXT Co., Ltd. Département CS

506-5 Yukikawa, ville d'Isumi, Chiba 298-0134

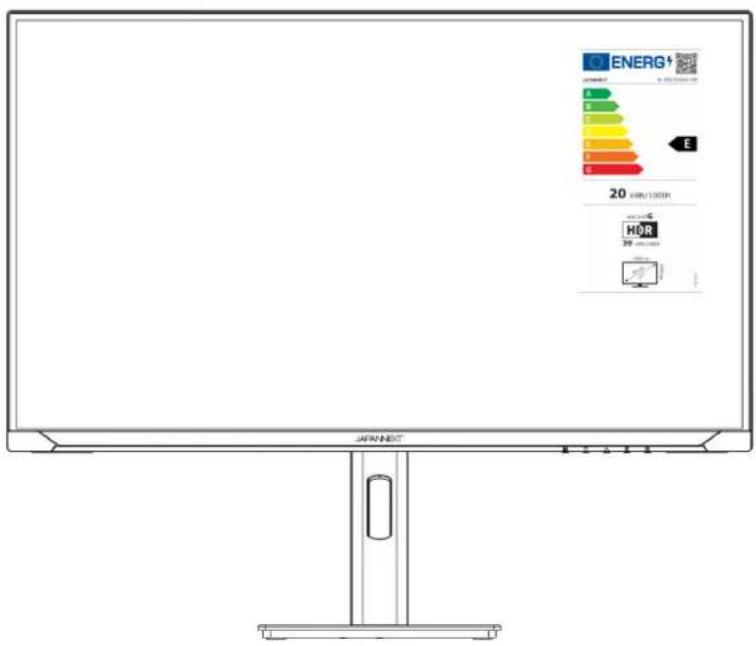

WQHD 300 Hz monitor - 27 inches

LED LCD Monitor

Manual

JAPNEXT ENERG+® 20 VEN/100%R HOR 39 VEN/100%R

Important:

Please make sure to read this instruction manual before use. Please use it correctly for your safety. Once you have read it, make sure to keep it.

Please read all included instruction manuals carefully before use.

• Place the monitor on a flat, stable surface. To avoid the risk of fire or electric shock, avoid high temperatures, low temperatures, high humidity and accumulation of dust.
  Do not use the monitor where it may become wet or exposed to water.
• Do not open and never cover the monitor case because it contains high voltage parts inside which could cause serious injury or fire if you come into contact with them.
• If the power supply is damaged, please contact our customer service or your dealer. Never attempt to inspect or repair the product yourself.
• Before use, please ensure that all cables are properly connected and the power cord is not damaged. If you discover any damage or blurred areas, please contact your dealer immediately.
• The slots and openings on the top or back of the monitor are required ventilation holes for this product. Do not cover these holes. Do not place this product near or above a heat source such as a radiator without adequate ventilation.
• Do not insert foreign objects or spill liquids into any openings in the monitor case. This could cause damage or malfunction.
• Always operate the monitor using the type of power source indicated on the product label.
  If you are unsure of the type of power supply you have, please contact your local power company.
• Do not apply excessive current to sockets or extension cords. Use caution as excessive current can cause electric shock and is very dangerous.
• To protect your monitor from damage caused by power surges, turn off power to the device during long periods of inactivity or during lightning storms.
• To ensure satisfactory operation of the monitor, the computer must be equipped with a properly configured outlet marked in the AC100-240V range.

• If you experience technical problems or concerns with your monitor, please contact our customer service or authorized reseller.

• To work safely, make sure to establish the ground connection before connecting the power plug to the power source. Also, when disconnecting the ground connection, make sure to unplug the power plug first.

• This product is not intended for continuous use for 24 hours. Please unplug the power plug when you do not use the product for a long time.
• The included AC adapter and cord are intended for this product only. Do not use it for other equipment.
• Do not use cleaners or detergents containing alcohol or acetone to clean your monitor. Make sure to use a cleaner specifically designed for LCD monitors. Do not spray liquid cleaner directly on the screen. Please note that if the cleaning fluid drips and gets inside the monitor, it is very dangerous as it may cause electric shock or fire. LCD panels are easily damaged, so do not rub it with hard objects.
• Before lifting or moving the monitor, turn off the power switch and unplug all cables and power cords. When installing the monitor, lift it using the appropriate method. When lifting or carrying the monitor, make sure to grip it by the edges. Never lift the monitor by its stand or cord.

Precaution

• Using the monitor in a dark room, or using it continuously for long periods of time, may cause eye fatigue.
  • Take a break of 5 to 10 minutes every hour and use the monitor in a reasonably bright room.

Before cleaning the monitor, turn off the power and unplug all cables and cords.

How to maintain the monitor:

• LCD panel area: Do not use tissue paper, etc., instead use a clean, soft cloth specially designed for LCD panels. Please wipe the monitor gently. For difficult-to-remove stains, use a neutral cleaner specifically designed for LCD panels.
• Monitor frame: Wipe with a soft cloth dampened with a mild cleaner.

The symptoms listed below are normal conditions for the monitor

• When first used, the screen may flicker due to the nature of the backlight. If this symptom appears, please turn off the monitor and then turn it on again.
• Depending on your desktop setup, displayed colors, and brightness, brightness may appear uneven.
• Several pixels may or may not always be lit.
• If you display the same image for a long time, an afterimage from the previous image may persist even after switching to a different image.

In this case, the screen will recover slowly. Otherwise, turn off the power for a few hours and the problem will be fixed.

Instead of trying to repair the monitor yourself, contact customer service or the dealer.

Thank you for purchasing the 27 inch LCD monitor JAPANNEXT.

The installed panel supports WQHD (2560 x 1440) resolution. We recommend using WQHD resolution for maximum performance. If the resolution is lower than WQHD, the original performance cannot be achieved.

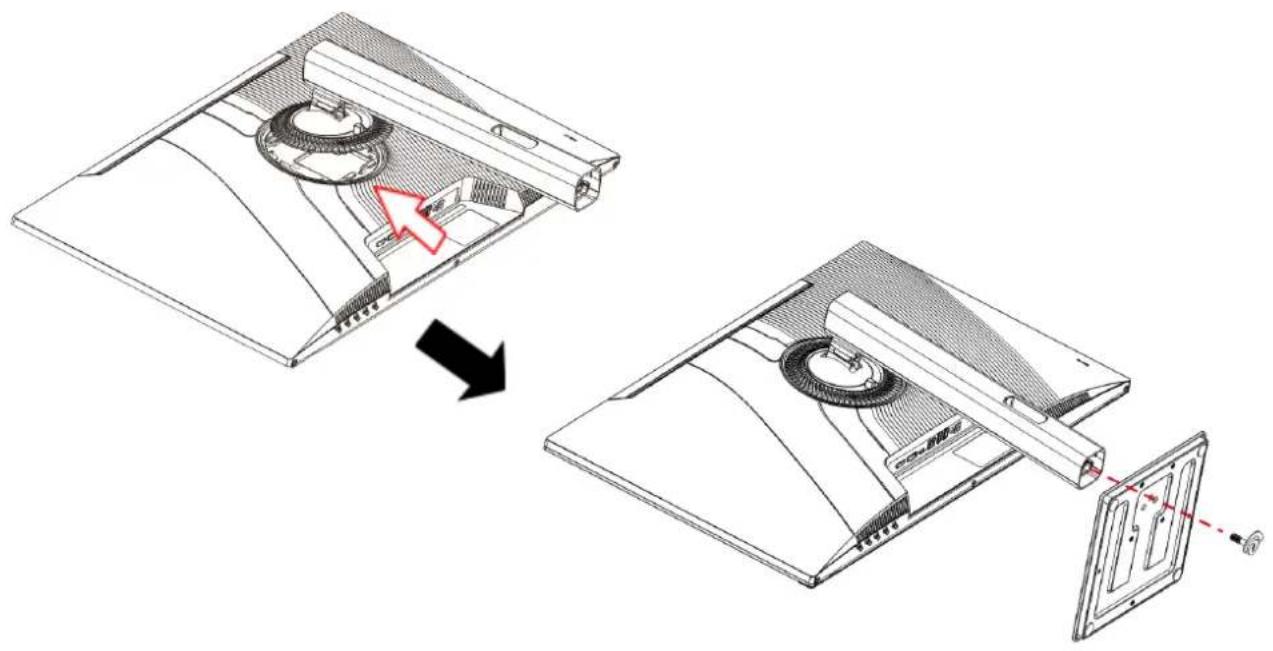

Assembling the Monitor Base

1. Spread a soft cloth on a flat, stable surface and place the device screen side down on it.
2. Insert the hook on top of the stand into the stand attachment part on the back of the monitor.
3. Secure the foot and the base using the screw supplied with the base.

Technical illustration of a device's internal structure before and after assembly, showing a component being removed (no text or symbols present)

1. Make sure the monitor and stand are securely attached, then slowly raise the monitor.

*Supports tilt adjustment. When using the monitor with the screen tilted toward you, be careful not to tip it over.

Connection with a computer

1. Make sure the monitor and computer are turned off before connecting the cable.
2. Connect the power cable and compatible cables (HDMI, DP) to the monitor.
   Also connect the cable (HDMI, DP) to the computer.
3. Turn on the monitor and computer.

Notice : Since problems may occur, do not connect HDMI and DP cables at the same time.

Please connect only one to a computer.

Accessories

Manual

Power cable

AC adapter

DP Cable

VESA Spacer

*The included power cable is intended for this product only. Do not use it for other equipment.

* Used to absorb irregularities on the back of the monitor and secure the space when installing the monitor arm plate. Attach the 4 spacers to the back of the monitor, then install the monitor arm plate.

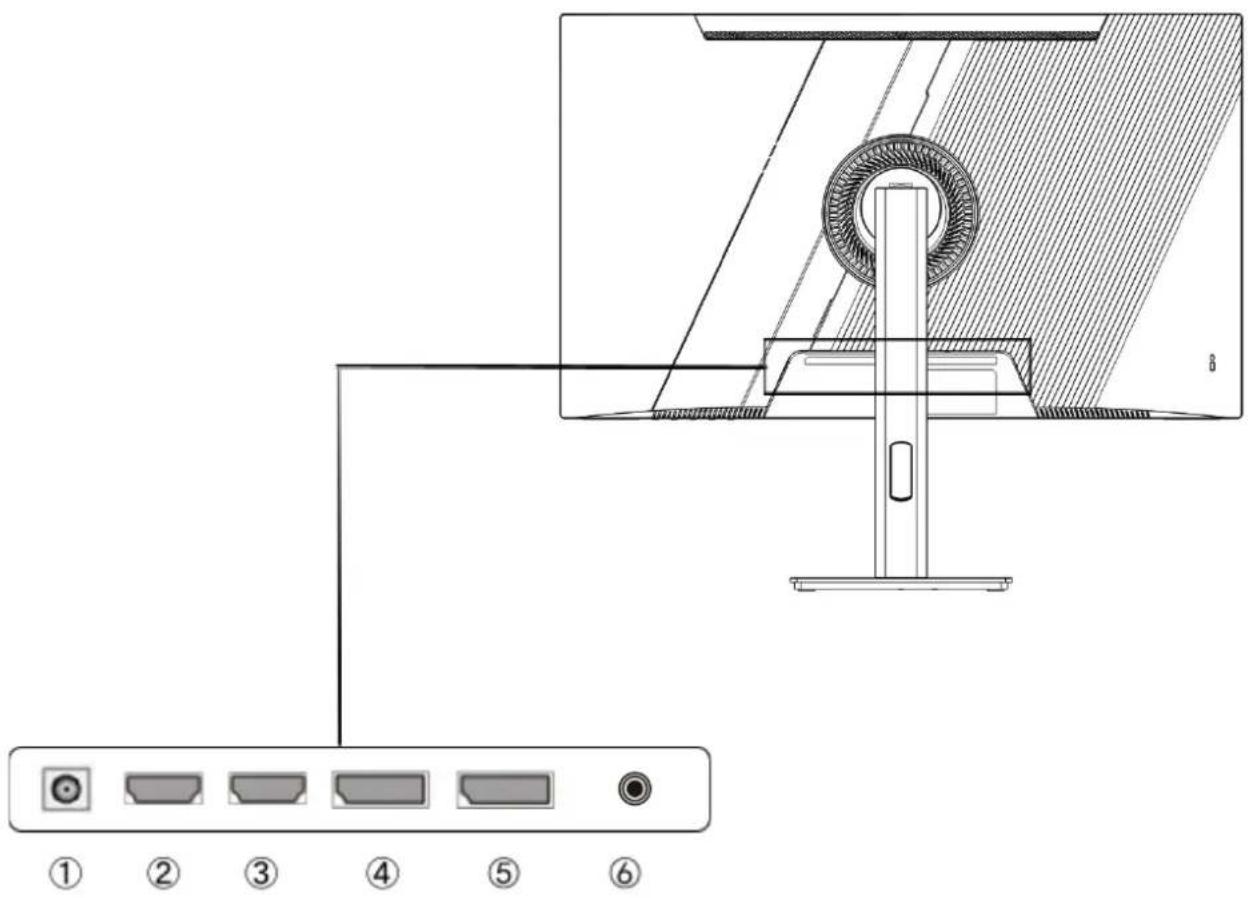

Technical diagram showing a mechanical assembly with six labeled components and a control panel below.

1: Power supply: Used when connecting the power cable.
2: Port HDMI: HDMI-compatible port. (up to 144 Hz)
3: Port HDMI: HDMI-compatible port. (up to 144 Hz)
4: Port DP: Port compatible DP.
5: Port DP: Port compatible DP.
6: Audio output port: Possibility to connect headphones or speakers.

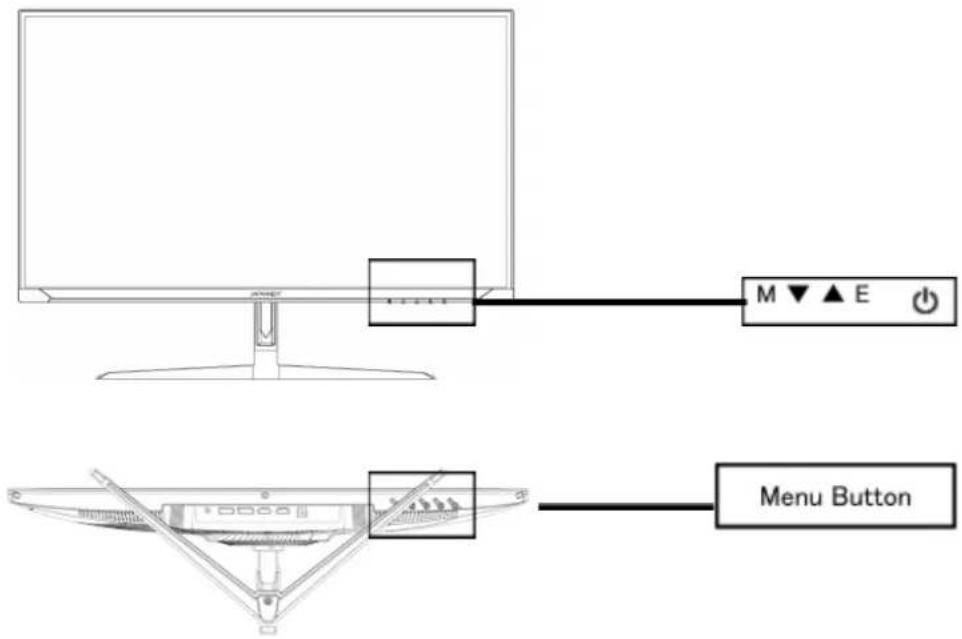

Description of the display button

M ▼ ▲ E Menu Button

- When the On-Screen Menu (OSD) is not open

M	Show OSD menu
▼	Show game crosshair *1 / Hotkey1
▲	Show volume settings / Hotkey2
E	Input source display / Hotkey3
⏻	Turn on/off

- When the on-screen menu (OSD) is displayed

M	Select and confirm menu item
▼	Go down a menu or decrease the value of a selected item
▲	Move up a menu or increase the value of a selected item
E	Go back or close the menu
⏻	Turn on/off

*1 The display disappears with the E key.
*HotKey functions can be set in OSD Settings > HotKey Settings in the OSD menu.

On-Screen Menu (OSD)

Menu	Features	Setting value	Comment	Menu
Brightness/contrast	Brightness	0-100		Adjust brightness
	Contrast	0-100		Adjust contrast
	Dynamic brightness	0-100		Adjust dynamic brightness
	Black level	0-20		Adjust the black level
	Image mode	standard		Select picture mode *1
		movie
		text
		Night mode
		Eye care mode
		RTS
		FPS
		game
	HDR	Automatic/OFF		HDR mode setting *1
	RCD	ON/OFF		DCR Settings *1
Adjusting image quality	Aspect ratio	Widescreen/4:3/1:1/Auto		Selecting the aspect ratio
	Response time	OFF/High/Medium/Low		Set response time
	MPRT	ON/OFF		MPRT Settings *1
	AdaptiveSync	ON/OFF		AdaptiveSync settings *1
	Sharpness	0-5		Adjust sharpness
	Refresh rate	ON/OFF/Position (upper right/upper left/lower right/lower left)		Adjusting the refresh rate display
	Gamma	Off/1.8/2.0/2.2/2.4/2.6		Adjust gamma value
	Crosshair game	OFF/Reticle 1/Reticle 2/Reticle 3/Reticle 4		Reticle Settings (Aiming)
Color temperature	warm color	ON/OFF		Color temperature selection
	normal color	ON/OFF
	cold color	ON/OFF
	User1	ON/OFF	rouge 0-100green 0-100Green 0-100	Set user color temperature
	User2
	User3
	Color range	OFF/SRGB Model/DCI-P3 Mode/Fashion Adobe		Color gamut settings
	Low blue light	0/25/50/75/100		Adjust blue light reduction
	Tint	RGBCMY each 0-100		Adjust tint
	Saturation	RGBCMY each 0-100		Adjust saturation
OSD Settings	Language	French/English		Select language
	OSD time setting	5-60		Adjust OSD display time
	Position horizontale OSD	0-100		Adjust the horizontal position of the OSD
	Position verticale OSD	0-100		Adjust the vertical position of the OSD
	OSD transparency	0-5		Adjust OSD transparency
	Hotkey1 setting	Brightness/Contrast/Volume/Mute/Dynamic Brightness/Game Reticle/Refresh rate /Picture mode/Input		◆Set keyboard shortcut
	Hotkey2 setting	Brightness/Contrast/Volume/Mute/Dynamic Brightness/Game Reticle/Refresh rate /Picture mode/Input		◆Set keyboard shortcut
	Hotkey3 setting	Brightness/Contrast/Volume/Mute/Dynamic Brightness/Game Reticle/Refresh rate /Picture mode/Input		Set keyboard shortcut for E button

On-Screen Menu (OSD) continued

Menu	Features	Setting value	Comment
Reset	reset	on/off	Factory Reset Settings
Others	to input	Automatic/DP1(1.4)/DP2(1.4)/HDMI1(2.0)/HDMI2(2.0)	Select input source
	volume	0-100	Adjust the volume
	mute	ON/OFF	Mute Settings
	energy saving	ON/OFF	Power saving settings *1
	RGB light	ON/OFF	Rear LED Settings

* When a function is enabled in the OSD (in the case of picture mode, when set to anything other than standard), certain parts of the OSD such as brightness. You may not be able to change functions. (It depends on the model.)

Additionally, other configuration items may be reset.

*MPRT and AdaptiveSync cannot be used at the same time. MPRT is available at a refresh rate of 100Hz or higher. When the MPRT function is activated, the screen brightness becomes slightly darker.

Response time is set to Low.

*Please note that product design, specifications and appearance are subject to change without notice due to product improvement.

*If the information listed differs from the actual item, priority will be given to the actual item.

Symptoms	Checkpoint
Power LED does not light up	• Is the device turned on by pressing the power button?• Make sure the power cord is securely connected to the monitor and the outlet.
No image appears even though the power indicator is on	• Is the blank screensaver running? Please move your mouse or keyboard• Make sure the brightness and contrast are not set to minimum.• Please make sure the signal cable is properly connected to your monitor and computer.• Check if the signal cable pins are bent or the cable is damaged.• Is your computer turned on? If you have another monitor, try connecting it to see if the computer works properly.• Does the computer signal timing match the monitor specifications?
The image is distorted or ripples appear in the image.	• Please make sure the signal cable is well connected to your monitor and computer.• Keep electrical devices that may cause electrical interference away from the monitor.• Does the computer signal timing match the monitor specifications?
The image position is off-center. Image size is incorrect	• Is your computer resolution correct?• Does the computer signal timing match the monitor specifications?
The screen is too bright/too dark	• Screen (OSD): Adjust brightness and contrast settings from the menu.
The image is blurry or unclear	• Set the display resolution on your PC to the same as the recommended native screen resolution of the monitor.• Does the computer signal timing match the monitor specifications?• Check if the signal cable pins are bent or the cable is damaged.
The color of the image is incorrect	• Check if the signal cable pins are bent or the cable is damaged.• Screen (OSD): Please adjust the red/blue/green color settings in the menu (color temperature).• Screen (OSD): Please reset the settings from the menu.• Does the computer signal timing match the monitor specifications?
Unable to display WQHD	• This product supports resolutions up to 2560 x 1440 (WQHD), including HDMI and DP.However, some graphics cards do not support 2560x1440.For more information about your computer's hardware limitations, please contact your local distributor or manufacturer.
Abnormal image noise	• Are the cables correctly connected?

Customer Support

JAPANNEXT

TEL: [phone]

Hours 9:00 a.m. to 5:00 p.m. (Closed Saturdays, Sundays and public holidays)

Contact form

You can easily access the application form by scanning the QR code.

JAPANNEXT Co., Ltd. CS Department

506-5 Yukikawa, ville d'Isumi, Chiba 298-0134
