USER MANUAL TSA8053 Teesa

Diagram of a kitchen appliance with numbered parts and a circular layout showing a temperature reading.

Diagram of a cooking air fryer with labeled parts including a cup, fan, and air fryer unit

⑪ ⑫ ⑩ ⑨ ⑧ °C min ⑫ ⑬ ⑭ ⑫ ⑭

Thank you for purchasing TEESA appliance. Please read this operation instruction carefully before use, and keep it for future use. Distributor does not take responsibility for damages caused by inappropriate handling and use of the product.

SAFETY INSTRUCTIONS

In order to reduce the injuries or damages, follow basic safety precautions applied using any electrical device, including the following:

1. Read the entire instruction manual before you start installation and assembly and keep it for future reference.
2. Before connecting the device to power supply socket, make sure the voltage indicated on the device corresponds to the voltage in the power supply socket.
3. This appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility. The device must be connected directly to the power outlet.
4. Appliance for household use only.
5. Clean and store this device in accordance to instructions listed in Cleaning and storage section.
6. ALWAYS turn off the device and disconnect it from the mains supply:
   • if it's not operating correctly
7. if there's an uncommon voice when using
   • before disassembling the device
8. before cleaning

9. when not in use

10. When you disconnect the power cord of the device, grasp and pull the plug, not the cord/cable.

11. This appliance may be used by children who are above 8 years old and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they are supervised and guided by a person who is responsible for their safety in a cautious manner for all the safety precautions being understood and followed. Children should be supervised to ensure that they do not play with the appliance. Children should not perform cleaning and servicing of the device unsupervised.

12. Keep the device out of the reach of children.

13. Fixed power cable may only be replaced in an authorized service point.

14. Keep the device and its cord/cable away from heat, water, moisture, sharp edges and any other factor which may damage the appliance or its cord.

15. Make sure the power cord does not touch any hot or sharp elements.

16. Do not use the product for purposes different from displayed in this operating manual.

17. Do not place the appliance in water or any liquid; nor handle/use it with wet or moist hands.

18. Do not leave the appliance unattended when it's working.

19. DO NOT use this device if the cord or the plug is damaged, or the appliance is broken.

20. Do not attempt to repair this device yourself. Only authorized and qualified personnel may repair this device. Never disassemble this device.

21. Use only authorized accessories.

IMPORTANT

1. Do not fill the pot with oil. This can cause fire hazard.
2. Do not touch parts that heat up. Risk of burning hands. To move hot pot, use the handle.
3. Do not cover air inlets and outlets.
4. Place the device on stable and even surfaces, at least 30 cm from walls, furniture and other devices.
5. Do not place any objects on the top of the device. This can affect airflow inside the device.
6. It is recommended to use the pot with the tray inside as this provides better air circulation inside the pot and allows the fat to drip down on the bottom of the pot.
7. During baking cakes, do not exceed half of the pot capacity. Rising up ingredients can touch the heater.
8. Do not fill the pot with ingredients above MAX line.

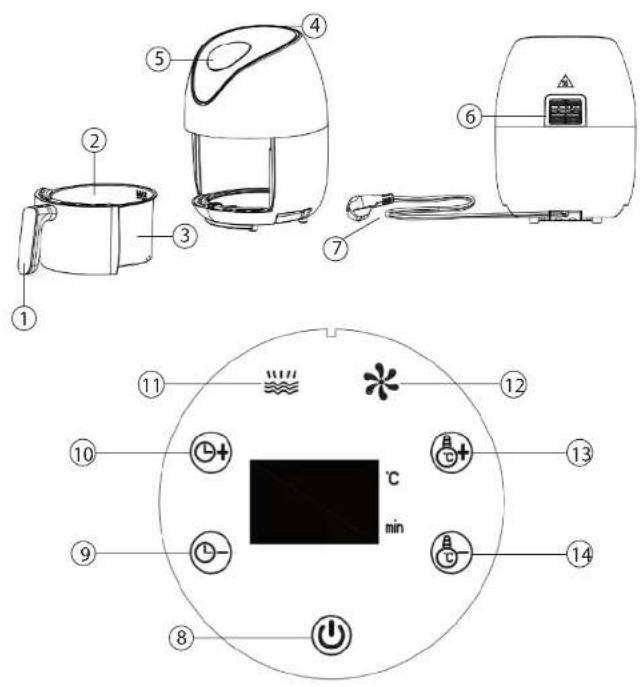

PRODUCT DESCRIPTION

Diagram of a kitchen appliance with numbered parts and a circular layout showing a temperature reading.

1. Handle
2. Tray (inside the pot)
3. Pot
4. Air inlet

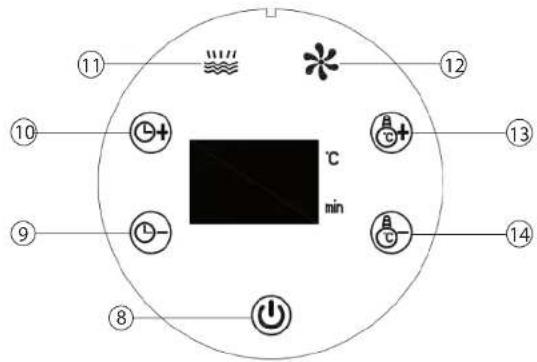

5. Control panel
6. Air outlet

7. Power cord

8. ON/OFF button

9. Cooking time decrease button

10. Cooking time increase button

11. Heat-up indicator

12. Air circulation indicator

13. Temperature increase button

14. Temperature decrease button

OPERATION

1. Connect the device to powet outlet.
2. Take out the pot by pulling the handle and place Ingredients Inside. Slide the pot to the device, until it clicks.
3. Press the ON/OFF button.
4. Choose cooking time and temperature.
5. After selecting cooking settings, press the ON/OFF button to start cooking.
6. When the appliance is heating up the heat-up indicator flashes. When the appliance reaches set temperature, the indicator goes off.
7. End of cooking will be signalized with a sound signal. The appliance will stop working.
8. Take out the pot and place it on a heat-resistant surface.

Tip: for better results, during cooking take out the pot and shake the ingredients. After taking out the pot, the device will pause cooking and resume after inserting the pot.

Caution: to take out hot food from the pot, use wooden spatula.

CLEANING AND MAINTENANCE

EN

1. Clean this device after each use.
2. Before cleaning, disconnect the device and wait for it to cool down.
3. Clean the pot and the tray in warm water with mild cleaning agent. The pot and the tray can be washed in a dishwasher.
4. To clean the case of the device, use slightly damp cloth, without any chemical agents. Do not submerge the device in water or wash in a dishwasher.
5. If the device is not going to be used for a long period of time, store it in dry and cool place.

TROUBLESHOOTING

Problem Possible	reason Possible solution
Device does not work	Power cord is not connected to the power outlet	Make sure that the power cord is properly connected to the power outlet
	Cooking time and temperature not set	Set cooking time and temperature and press the ON/OFF button
	The ON/OFF button was not pressed after setting the cooking time and temperature	Press the ON/OFF button
After cooking the meat is still raw	Too many ingredients in the pot	Bigger amount of food has to be cooked separately
	Too low cooking temperature	Set up higher cooking temperature and cook again
	Too short cooking time	Set up longer cooking time and cook again
Food was not cooked evenly	Some food require shaking during cooking	During cooking, take out the pot and shake the Ingredients
Food is not crispy Required cooking with oil		Pour little amount of oil on to the food
Can not insert the pot into the device	Pot is overloaded	Ingredients in the pot cannot exceed the MAX line
Smoke is coming out of the the pot	Cooking food with high fat amount	This is normal
	There is fat from previous cooking inside the device	Clean the pot and the tray

RECOMMENDED COOKING SETTINGS

Temperature (°C)	Type Time (In minutes)
200	Thin frozen fries 20-25
	Chicken drumsticks	Cook for 8-10 minutes, then low temperature to 160 for 25-35 min
	Meatballs 10-15
	Bacon 15-20
	Frozen shrimp 10-20
	Onion rings 10-20
	Spring rolls 10-20
	Dumplings 10-20
	Fresh sweet potato fries	10-20
	Flank steak 15-25
	Pork chops 25-35
195	Thick frozen fries	20-25
	Chicken wings	25-35
190	Filet mingon	Cook for 10 minutes, then flip and cook for additional 5 minutes
	Frozen chicken nuggets	10
	Brussel sprouts	20
	Mixed vegetables	15-20
180	Hamburger	6-10
	Frozen sweet potato fries	10-12
	Chicken breast	15-20
175	Frozen fish sticks	10
	Mozzarella sticks	10
	Whole chicken	30 minutes both sides
150	Salmon filet	10-15

SPECIFICATION

Main features

• Cooking, frying and baking function
• Fast heat up by air circulation
• Evenly distributed heat
• Pot with non-stick coating
- Touch panel
- LCD screen
- Heat-resistant handle
- Anti-slip feet
- Dishwasher safe pot
• Overheating protection

Technical data

• Pot capacity: 1,8 l
• Timer: up to 60 minutes
• Temperature adjustment: 80°C - 200°C
Power: 1000 W
• Power supply: 220-240V\~; 50/60 Hz
• Cable length: 0,75 m

English

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Made in China for Lechpol Electronics Leszek Sp.k., ul. Garwolińska 1, 08-400 Miętne.
