TSA8046 - Deep fryer Teesa - Free user manual and instructions

Product Type	Hot Air Fryer
Brand	Teesa
Model	TSA8046
Dimensions (L × W × H)	290 × 340 × 340 mm
Net Weight	4.7 kg
Power Supply	230 V ~ 50 Hz
Power	1400 W
Bowl Capacity	3.2 L
Color	Black
Power Cord Length	1 m
Main Functions	Cooking, frying, roasting by hot air circulation
Cooking Programs	7 presets: fries, chops, seafood, cakes, chicken, meat, fish
Screen Type	LCD
Control Panel	Touch with temperature and time adjustment keys
Bowl Material	Stainless steel with non-stick coating
Handle	Heat-resistant
Non-slip Feet	Yes
Cleaning of bowl and basket	Dishwasher safe
Cleaning of housing	Soft damp cloth, do not immerse
Safety	Overheat protection, automatic shut-off when bowl is removed
Adjustable temperature	Yes, from 80°C to 200°C
Adjustable timer	Yes, up to 60 minutes

Frequently Asked Questions - TSA8046 Teesa

What is the maximum bowl capacity?

The bowl capacity is 3.2 L. Do not exceed the MAX indicator inside the basket.

Can I use oil in the air fryer?

Yes, you can add a small amount of oil to make food crispier. Never fill the bowl with oil as this poses a fire hazard.

How do I clean the bowl and basket?

Wash the bowl and basket with warm water and mild detergent or in the dishwasher. The housing should be wiped with a damp cloth, without immersing it in water.

What should I do if smoke comes out of the bowl?

This is normal if you are cooking fatty foods. Make sure the bowl and basket are clean before use. If smoke persists, reduce the temperature or cooking time.

Can I cook food without the basket?

No, the basket must always be placed in the bowl during cooking. Using the bowl alone may damage the appliance.

What are the preset programs?

The appliance offers 7 programs: fries (180°C, 15 min), chops (180°C, 15 min), seafood (160°C, 20 min), cakes (160°C, 30 min), chicken (200°C, 20 min), meat (180°C, 25 min), and fish (180°C, 20 min).

How do I adjust the temperature and time manually?

Use the increase and decrease buttons for temperature and time. After adjustment, press ON/OFF to start cooking.

Can the air fryer be used by children?

This appliance can be used by children aged 8 years and above under supervision. Children must not clean the appliance without supervision.

What to do if food is not cooked evenly?

During cooking, remove the bowl, shake it or stir the ingredients. The appliance automatically resumes cooking after reinsertion.

Where can I find replacement parts?

For replacement of the non-detachable power cord, contact the manufacturer, an authorized service center, or a qualified person. Use only original accessories.

USER MANUAL TSA8046 Teesa

Labeled diagram of a kitchen appliance showing five numbered parts of the lid and interior casing.

Diagram of an air fryer with numbered parts labeled ⑥ and ⑦

Technical diagram of a device with numbered parts labeled 18 and 19, showing internal components and connectors.

OBSLUHA

Labeled diagram of a cooking appliance showing five parts with numbered annotations

Technical diagram of an air fryer with numbered parts labeled ⑥ and ⑦

8 8.8 ℃ 17 16 15 14 13 12 11 10 9 8

Technical diagram of a portable air conditioner unit with labeled parts 18 and 19

BEDIENUNG

Thank you for purchasing TEESA appliance. Please read this operation instruction carefully before use, and keep it for future use. Distributor does not take responsibility for damages caused by inappropriate handling and use of the product.

SAFETY INSTRUCTIONS

In order to reduce the injuries or damages, follow basic safety precautions applied using any electrical device, including the following:

1. Read the entire instruction manual before you start installation and assembly and keep it for future reference.
2. Before connecting the device to power supply socket, make sure the voltage indicated on the device corresponds to the voltage in the power supply socket.
3. This appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility. The device must be connected directly to the power outlet.
4. Appliance for household use only.
5. Clean and store this device in accordance to instructions listed in Cleaning and storage section.
6. ALWAYS turn off the device and disconnect it from the mains supply:
   • if it's not operating correctly
7. if there's an uncommon voice when using
   • before disassembling the device
   • before cleaning

8. when not in use

9. When you disconnect the power cord of the device, grasp and pull the plug, not the cord/cable.

10. This appliance may be used by children who are above 8 years old and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they are supervised and guided by a person who is responsible for their safety in a cautious manner for all the safety precautions being understood and followed. Children should be supervised to ensure that they do not play with the appliance. Children should not perform cleaning and servicing of the device unsupervised.

11. Keep the device out of the reach of children.

12. Fixed power cable may only be replaced in an authorized service point.

13. Keep the device and its cord/cable away from heat, water, moisture, sharp edges and any other factor which may damage the appliance or its cord.

14. Make sure the power cord does not touch any hot or sharp elements.

15. Do not use the product for purposes different from displayed in this operating manual.

16. Do not place the appliance in water or any liquid; nor handle/use it with wet or moist hands.

17. Do not leave the appliance unattended when it's working.

18. DO NOT use this device if the cord or the plug is damaged, or the appliance is broken.

19. Do not attempt to repair this device yourself. Only authorized and qualified personnel may repair this device. Never disassemble this device.

20. Use only authorized accessories.

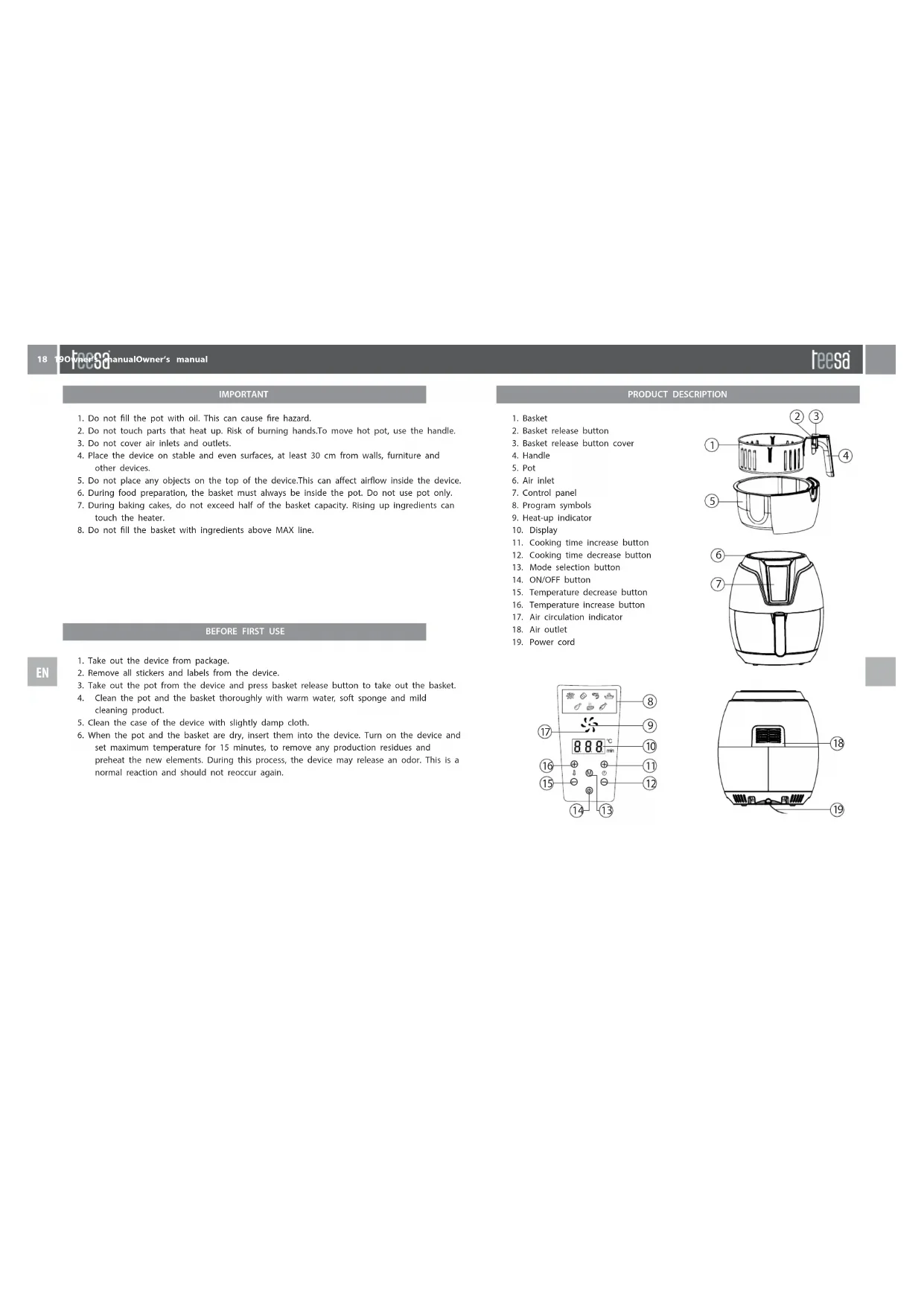

IMPORTANT

1. Do not fill the pot with oil. This can cause fire hazard.
2. Do not touch parts that heat up. Risk of burning hands. To move hot pot, use the handle.
3. Do not cover air inlets and outlets.
4. Place the device on stable and even surfaces, at least 30 cm from walls, furniture and other devices.
5. Do not place any objects on the top of the device. This can affect airflow inside the device.
6. During food preparation, the basket must always be inside the pot. Do not use pot only.
7. During baking cakes, do not exceed half of the basket capacity. Rising up ingredients can touch the heater.
8. Do not fill the basket with ingredients above MAX line.

BEFORE FIRST USE

1. Take out the device from package.
2. Remove all stickers and labels from the device.
3. Take out the pot from the device and press basket release button to take out the basket.
4. Clean the pot and the basket thoroughly with warm water, soft sponge and mild cleaning product.
5. Clean the case of the device with slightly damp cloth.
6. When the pot and the basket are dry, insert them into the device. Turn on the device and set maximum temperature for 15 minutes, to remove any production residues and preheat the new elements. During this process, the device may release an odor. This is a normal reaction and should not reoccur again.

PRODUCT DESCRIPTION

1. Basket
2. Basket release button
3. Basket release button cover
4. Handle
5. Pot
6. Air inlet
7. Control panel
8. Program symbols
9. Heat-up indicator
10. Display
11. Cooking time increase button
12. Cooking time decrease button
13. Mode selection button
14. ON/OFF button
15. Temperature decrease button
16. Temperature increase button
17. Air circulation indicator
18. Air outlet
19. Power cord

Labeled diagram of a cooking appliance showing five numbered parts of the lid and interior casing.

Diagram of an air fryer with labeled parts ⑥ and ⑦

8 17 88.8 ℃ 10 9 16 15 14 13 12 11 10

Technical diagram of a device with numbered parts labeled 18 and 19, showing internal components and connectors.

OPERATION

1. Connect the device to powet outlet.
2. Take out the pot by pulling the handle and place Ingredients in the basket. Slide the pot to the device, until it clicks.
3. Press the ON/OFF button.
4. Choose cooking settings

- To input own settings, use temperature increase and decrease buttons to set cooking temperature. Then use the temperature increase and decrease buttons to set cooking temperature.

- To select pre-set cooking program, press the Mode selection button, until selected icon is highlighted. Temperature and cooking time can be adjusted with corresponding buttons. Available pre-set cooking programs:

°Fries: 180°C, 15 min

•Ribs: 180°C, 15 min

- Shrimp: 160°C, 20 min

°Cakes: 160°C, 30 min

°Chicken drumsticks: 200°C, 20 min

- Meat: 180°C, 25 min

Fish: 180°C, 20 min

1. After selecting cooking settings, press the ON/OFF button to start cooking.
2. End of cooking will be signalized with sound signal. The sound signal will be repeated until the pot is taken out.
3. Take out the pot and place it on heat-resistant surface.
4. Move the basket release button cover and press the basket release button to take out the basket from the pot.

Tip: for better results, during cooking take out the pot and shake the ingredients. After taking out the pot, the device will pause cooking and resume after inserting the pot.

Caution: to take out hot food from the basket, use wooden spatula.

CLEANING AND MAINTENANCE

1. Clean this device after each use.
2. Before cleaning, disconnect the device and wait for it to cool down.
3. Clean the basket and the pot in warm water with mild cleaning agent. The basket and the pot can be washed in dishwasher.
4. To clean the case of the device, use slightly damp cloth, without any chemical agents. Do not submerge the device in water or wash in dishwasher.
5. If the device is not going to be used for a long period of time, store it in dry and cool place.

TROUBLESHOOTING

Problem Possible	reason Possible solution
Device does not work	Power cord is not connected to the power outlet	Make sure that the power cord is properly connected to the power outlet.
	Cooking program not selected	Select cooking program and press the ON/OFF button
	The ON/OFF button was not pressed after selecting cooking program.	Press the ON/OFF button
After cooking the meat is still raw	Too many ingredients in the basket	Bigger amount of food has to be cooked separately.
	Too low cooking temperature	Set up higher cooking temperature and cook again.
	Too short cooking time	Set up longer cooking time and cook again
Food was not cooked evenly	Some food require shaking during cooking	During cooking, take out the pot and shake the Ingredients
Food is not crispy Required cooking with oil		Pour little amount of oil on to the food
Can not insert the pot into the device	Pot is overloaded	Ingredients in the pot cannot exceed the MAX line
	The basket was placed incorrectly in the pot	Slide the basket into the pot
Smoke is coming out of the the pot	Cooking food with high fat amount	This is normal
	Inside the device there is a fat from previous cooking	Clean the pot and the basket

RECOMMENDED COOKING SETTINGS

Temperature (°C)	Type Time (in minutes)
200	Thin frozen fries 10-15
	Chicken drumsticks	Cook for 8-10 minutes, then lower temperature to 160 for 10 minutes
	Meatballs 6-10
	Bacon 10
	Frozen shrimp 8-10
	Onion rings 12-15
	Spring rolls 10-15
	Dumplings 7-10
	Fresh sweet potato fries	10
	Flank steak 8-10
	Pork chops	20-25
195	Thick frozen fries	12-20
	Chicken wings	15-20
190	Filet mingon	Cook for 10 minutes, then flip and cook for additional 5 minutes
	Frozen chicken nuggets	10
	Brussel sprouts	20
	Mixed vegetables	15-20
180	Hamburger	6-10
	Frozen sweet potato fries	10-12
	Chicken breast	15-20
175	Frozen fish sticks	10
	Mozzarella sticks	10
	Whole chicken	30 minutes both sides
150	Salmon filet	10-15

SPECIFICATION

Main features

• Cooking, frying and baking function
• Fast heat up by air circulation
• Evenly distributed heat
• 7 pre-set cooking programs: fries, ribs, shrimp, cakes, drumsticks, meat, fish
• Temperature adjustment
• Cooking time adjustment
• Pot made from stainless steel, coated with non-sticking material
- Touch panel
LCD screen
• Non heating handle
• Non slippery bottom
- Dishwasher safe pot
• Overheating protection

Technical data

• Pot capacity: 3,2 l
Power: 1400 W
• Power supply: 230 V; 50 Hz
• Color: black
• Cable length: 1 m
• Weight: 4,7 kg
• Dimensions: 290x340x340 mm

English

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Made in China for Lechpol Electronics Leszek Sp.k., ul. Garwolińska 1, 08-400 Miętne.

Labeled diagram of a cooking appliance showing five numbered parts of the lid and interior casing.

Technical diagram of an air fryer with numbered parts labeled ⑥ and ⑦

8 8.88 °C min 17 9 10 16 11 15 12 14 13

Technical diagram of a device with numbered parts labeled 18 and 19, showing internal components and connectors.

UTILISATION

Labeled diagram of an air fryer with numbered parts for identification

Diagram of an air fryer with labeled parts ⑥ and ⑦

8.88°C mm 17 16 15 14 13 12 11 10 9 8

Diagram of a portable air fryer with labeled parts 18 and 19, showing internal components and ventilation slots.

ΛΕΙΤΟΥΡΓΙΑ

Labeled diagram of a food appliance showing five numbered parts of the cup and lid assembly.

Diagram of an air fryer with labeled parts ⑥ and ⑦

Technical diagram of a device with numbered parts labeled 18 and 19, showing internal components and connectors.

KEZELÉS

BESCHRIJVING VAN HET PRODUCT

Labeled diagram of a cooking appliance showing five numbered parts of the lid and interior casing.

Technical diagram of an air fryer with numbered parts labeled ⑥ and ⑦

8 9 10 11 12 13 14 15 16 17 888°C min

Technical diagram of a device with numbered parts labeled 18 and 19, showing internal components and connectors.

BEDIENING

Labeled diagram of an air fryer with numbered parts for identification

Technical diagram of an air fryer with numbered parts labeled ⑥ and ⑦

8 88°C min 17 9 10 16 11 15 12 14 13

Technical diagram of a device with numbered parts labeled 18 and 19, showing internal components and connectors.

teesa

Instrukcja obsługi

Instrukcja obsługi

reesa

Labeled diagram of an air fryer with numbered parts for identification

Technical diagram of an air fryer with numbered parts labeled ⑥ and ⑦

8 17 888°C 10 9 16 15 11 12 14 13

Technical diagram of a device with numbered parts labeled 18 and 19, showing internal components and connectors.

OPERARE

Labeled diagram of a microwave oven with numbered parts for identification

Technical diagram of an air fryer with numbered parts labeled ⑥ and ⑦

8 8.88°C 17 10 9 16 15 14 13 12 11 10

Technical diagram of a water heater with labeled parts 18 and 19

POUŽITIE

1. Pripojte spotrebič k elektrickej zásuvke.
2. Potlahnite za rukovat, aby ste vysunuli misu a vložte potraviny do koša. Misu opätovne zasuňte, až sa zaisti.
3. Stlačte tlačidlo ON/OFF.
4. Zvolte nastavenie varenia
