FRMS274TAV - Fridge FRIGIDAIRE - Free user manual and instructions

Product Type	Refrigerator-freezer with water and ice dispenser
Brand	Frigidaire
Model	FRMS274TAV
Power supply	115 V, 60 Hz, 15 A, AC
Refrigerant type	Flammable (R600a or similar unspecified)
Ice production capacity (refrigerator)	3.2 to 3.7 lb / 24 h (standard 5 lb bucket, 4 lb limited depth)
Water filter	Life span 6 months or 120 gallons
Main functions	Water and ice dispenser, ice maker, Custom-Flex drawer (4 modes), CrispSeal bins, adjustable shelves, cold drinks timer, Freeze Boost, Chill Boost, Sabbath mode
Controls	Touch screen with lock, sleep/wake mode, open door and power failure alarms
Installation	Indoor residential, on leveled floor, clearance: top 3/8", sides 3/8", back 1"
Maintenance and cleaning	Exterior cleaning with soapy water; stainless steel: non-abrasive cleaner; ice bucket: mild detergent
Safety	Grounding required, do not use extension cord, do not pierce refrigerant circuit, risk of fire/explosion
Warranty	1 year limited (parts and labor)
Spare parts available	Water filter, air filter, light bulbs, handles, etc.
Repairability	Repairs by qualified personnel; use authorized parts

Frequently Asked Questions - FRMS274TAV FRIGIDAIRE

Why is the ice maker not producing ice?

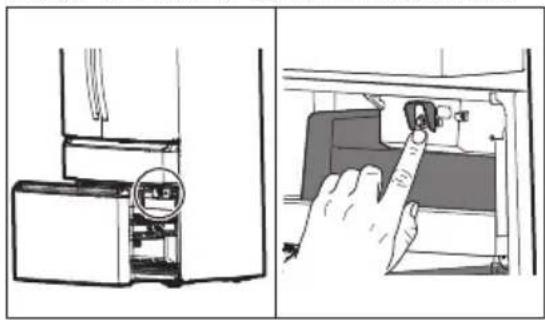

Check that the ice maker is turned on (press and hold the icon for 3 seconds). Make sure the refrigerator is connected to the water supply and the water valve is open. Verify that the water filter is correctly installed and not clogged. Replace the filter if necessary.

Why is the ice maker not producing enough ice?

Normal production is 3.2 to 3.7 lb per 24 hours. A clogged water filter, low water pressure, or excessive door use can reduce production. Check the filter and water pressure. Adjust the freezer temperature colder if necessary.

Why are the ice cubes freezing together?

Ice cubes not used frequently or a prolonged power outage can cause them to melt and refreeze. Remove and empty the ice bucket, clean it, and replace it. Use the ice at least twice a week.

Why is the dispenser not dispensing ice?

Check that there is ice in the bucket. If the doors are not completely closed, dispensing is blocked. If the dispenser paddle has been pressed too long, the motor may overheat; wait 3 minutes. Stuck ice cubes can also block the dispenser.

Why is the dispenser not dispensing water?

Check that the water filter is correctly installed and not clogged. Make sure the household water valve is open. If water does not flow, the system may be empty; dispense for 3-4 minutes to purge air.

Why does the water have a strange taste or odor?

If water has not been dispensed for a long time, draw and discard 10-12 glasses of water to freshen the supply. Check that the connection is to a cold water line.

Why is the door not closing properly?

Make sure the refrigerator is level and the floor is flat. Check that no food or packaging is blocking the door. Adjust the mullion (hinged part of the door) so it is correctly positioned.

Why are the drawers difficult to move?

Food may be touching the shelf above the drawer. Clean the drawer, rollers, and rails. Make sure the drawer is correctly installed on its rails.

Why is moisture accumulating inside the refrigerator?

In hot, humid weather, slight condensation is normal. Check that the door closes properly. Adjust the mullion. For vegetable bins, adjust the humidity control or clean the humidity membrane.

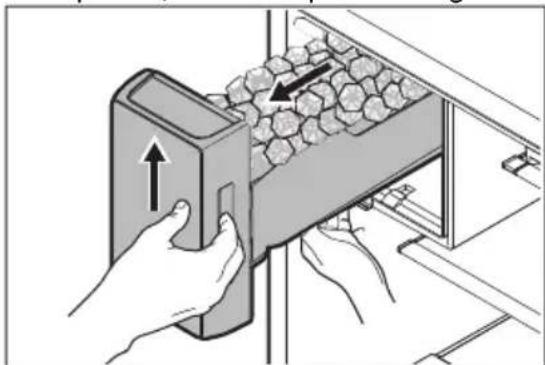

How to clean the ice bucket?

Turn off the ice maker. Remove the bucket by lifting and pulling it out. Empty it and clean with a mild detergent. Rinse with clean water and dry completely before replacing. Never use sharp objects to break ice.

USER MANUAL FRMS274TAV FRIGIDAIRE

Simple line drawing of a refrigerator with two doors and a handle (no text or symbols)

EN User Manual | Fridge Freezer 2

Welcome to our family

Thank you for bringing Frigidaire into your home! We see your purchase as the beginning of a long relationship together.

This manual is your resource for the use and care of your product. Please read it before using your appliance. Keep it handy for quick reference. If something doesn't seem right, the troubleshooting section will help you with common issues.

FAQ, helpful tips and videos, cleaning products, and kitchen and home accessories are available at http://www.frigidaire.com.

We are here for you! Visit our website, chat with an agent, or call us if you need help. We may be able to help you avoid a service visit. If you do need service, we can get that started for you.

Let's make it official! Be sure to register your product.

CONTENTS

1. SAFETY IMPORTANT INFORMATION......2
2. FEATURES....5
3. INSTALLATION....7
4. DOOR REMOVAL....9
5. DOOR HANDLE INSTALLATION.... 13
6. WATER SUPPLY CONNECTION....13
7. CONTROLS AND SETTINGS: EXTERNAL WATER DISPENSER MODEL - TYPE 1 ....15
8. CONTROLS AND SETTINGS: EXTERNAL WATER DISPENSER MODEL - TYPE 2, TYPE 3 ....19
9. CONTROLS AND SETTINGS: INTERNAL WATER DISPENSER..... 22
10. AUTOMATIC ICE AND WATER DISPENSER....24
11. INTERNAL WATER DISPENSER....26
12. ICE MAKER....27
13. STORAGE FEATURES....28
14. STORING FOOD AND SAVING ENERGY.... 32
15. NORMAL OPERATING SOUNDS.... 33
16. FILTER REPLACEMENT....34
17. CARE AND CLEANING.... 37
18. TROUBLESHOOTING.... 39
19. LIMITED WARRANTY....45

1. SAFETY IMPORTANT INFORMATION

1.1 Keep a record for quick reference

Model number

Serial number

Purchase date

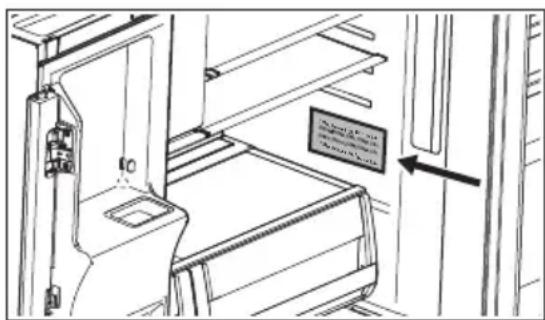

1.2 Serial number location

Technical diagram showing a door mechanism with a label indicating 'File Name' and an arrow pointing to the door panel.

WARNING!

You must follow these guidelines to ensure that your refrigerator's safety mechanisms are operating correctly.

1.3 Safety definitions

This is the safety alert symbol. It is used to alert of potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING!

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION!

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

IMPORTANT

IMPORTANT indicates installation, operation or maintenance information which is important but not hazard-related.

DANGER

DANGER Risk of fire or explosion. Flammable refrigerant used. Do not use mechanical devices to defrost refrigerator. Do not puncture refrigerant tubing. DANGER Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service personnel. Use only manufacturer-authorized service parts. Any repair equipment used must be designed for flammable refrigerants. Follow all manufacturer repair instructions. Do not puncture refrigerant tubing.

CAUTION!

CAUTION Risk of fire or explosion. Dispose of refrigerator properly in accordance with the applicable federal or local regulations. Flammable refrigerant used. CAUTION Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling instructions carefully. Flammable refrigerant used.

WARNING!

CALIFORNIA RESIDENTS ONLY WARNING! Cancer and Reproductive Harm http://www.P65Warnings.ca.gov

1.4 Child safety

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Destroy or recycle the carton, plastic bags, and any exterior wrapping material immediately after the refrigerator is unpacked. Children should never use these items to play. Cartons covered with rugs, bedspreads, plastic sheets or stretch wrap may become airtight chambers, and can quickly cause suffocation.

1.5 Important safety instructions

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Do not operate the refrigerator in the presence of explosive fumes

Avoid contact with any moving parts of automatic ice maker.

Remove all staples from the carton. Staples can cause severe cuts, and also destroy finishes if they come in contact with other appliances or furniture.

WARNING!

Do not use electrical appliances inside the food storage compartments of the appliance unless they are of the type recommended by the manufacturer.

1.6 Proper disposal of your refrigerator or freezer

Risk of child entrapment

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators or freezers are still dangerous – even if they will sit for "just a few days". If you are getting rid of your old refrigerator or freezer, follow the instructions below to help prevent accidents.

We strongly encourage responsible appliance recycling/disposal methods. Check with your utility company or visit http://www.energystar.gov/recycle for more information on recycling your old refrigerator.

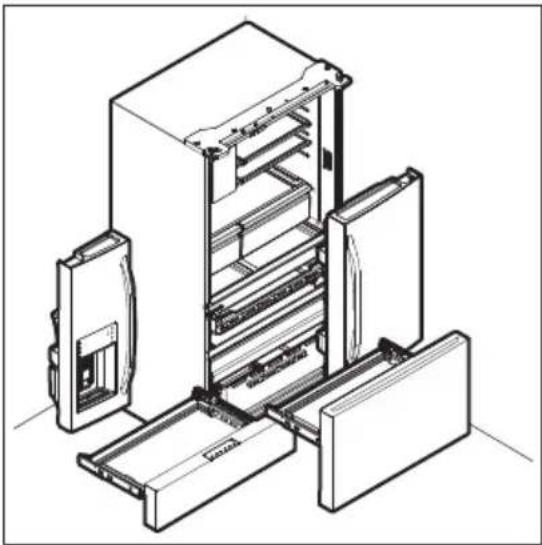

Before you throw away your old refrigerator/freezer:

• Remove doors.
• Leave shelves in place so children may not easily climb inside.
• Have it removed by a qualified service technician.

Technical line drawing of a refrigerated refrigerator with internal compartments and doorways (no text or symbols)

IMPORTANT

CFC/HCFC Disposal

Your old refrigerator may have a cooling system that used CFCs or HCFCs (chlorofluorocarbons or hydrochlorofluorocarbons). CFCs and HCFCs are believed to harm stratospheric ozone if released to the atmosphere. Other refrigerants may also cause harm to the environment if released to the atmosphere. If you are throwing away your old refrigerator, make sure the refrigerant is removed for proper disposal by a qualified technician. If you intentionally release refrigerant, you may be subject to fines and imprisonment under provisions of environmental legislation.

1.7 Electrical information

- The appliance must be plugged into its own dedicated 115 Volt, 60 Hz., 15 Amp, AC only electrical outlet. The power cord of the appliance is equipped with a three-prong grounding plug for your protection against electrical shock hazards. It must be plugged directly into a properly grounded three-prong receptacle. The receptacle must be installed in accordance with local codes and ordinances. Consult a qualified electrician. Do not use an extension cord or adapter plug.

WARNING!

Avoid fire hazard or electric shock.

• If the power cord is damaged, it should be replaced by an authorized service technician to prevent any risk.
• Never unplug the appliance by pulling on the power cord. Always grip the plug firmly, and pull straight out from the receptacle to prevent damaging the power cord.
• Unplug the appliance before cleaning and before replacing the light bulb to avoid electrical shock.
• Performance may be affected if the voltage varies by 10% or more. Operating the appliance with insufficient power can damage the compressor. Such damage is not covered under your warranty.
• Do not plug the unit into an electrical outlet controlled by a wall switch or pull

cord to prevent the appliance from being turned off accidentally.

- Do not pinch, knot, or bend the power cord in any manner.

WARNING!

Do not, under any circumstances, cut, remove, or bypass the grounding prong (A). Always use the power cord with a three-prong grounded plug and grounding type wall receptacle.

Diagram showing a plug with two slots and a labeled section A (no text or symbols beyond label)

2. FEATURES

IMPORTANT

Features may vary by model.

Accessories are available for your appliance and may be purchased at

Frigidaire.com or by calling toll-free 1-800-374-4432.

2.1 External Water Dispenser Model - Type 1

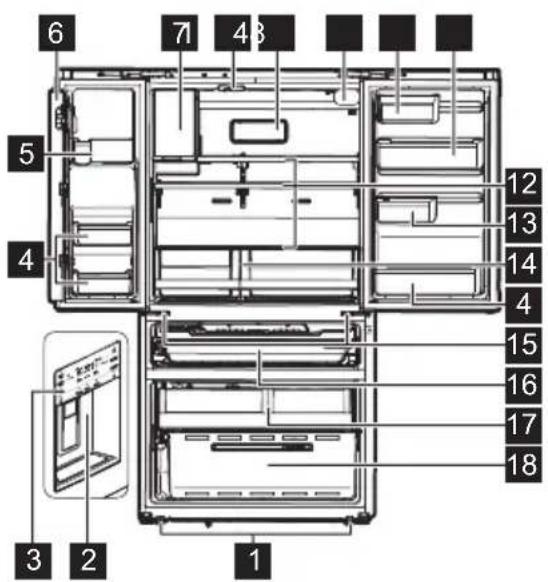

6 7 48 5 4 12 13 14 4 15 16 17 18 3 2 1

1 Adjustable feet
2 Ice/Water Dispenser
3 External Appliance Control Panel

4 Door Bin
5 Ice Chute
6 Flipper Mullion
7 Ice Maker
8 Flipper Guide
9 Air Filter
10 Water Filter
11 Dairy Compartment
12 Shelves
13 Adjustable Door Bin
14 CrispSeal™ Fresh Crispers
15 Adjustable Hinges
16 Custom-Flex™ Temp Drawer
17 Upper Freezer Basket
18 Lower Freezer Basket

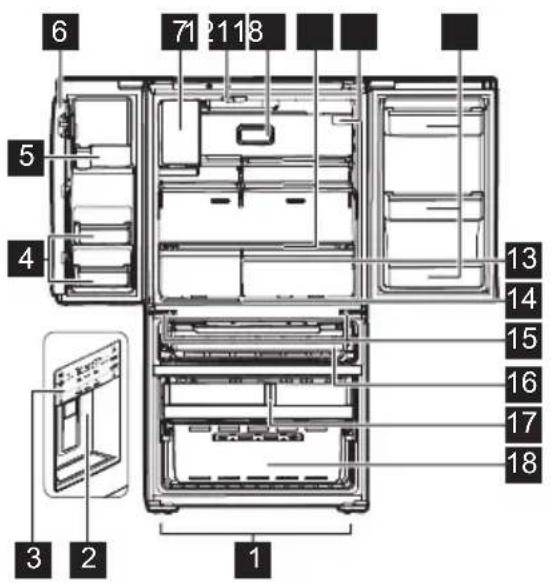

2.2 External Water Dispenser Model - Type 2

6 71 21 18 5 4 13 14 15 16 17 18 3 2 1

1 Adjustable feet
2 Ice/Water Dispenser
3 External Appliance Control Panel

4 Door Bins
5 Ice Chute
6 Flipper Mullion
7 Ice Maker
8 Flipper Guide
9 Air Filter
10 Shelves
11 Water Filter
12 Gallon Door Bin
13 CrispSeal™ Fresh Crispers
14 Snack Zone
15 Adjustable Hinges
16 Custom-Flex™ Temp Drawer
17 Upper Freezer Basket
18 Lower Freezer Basket

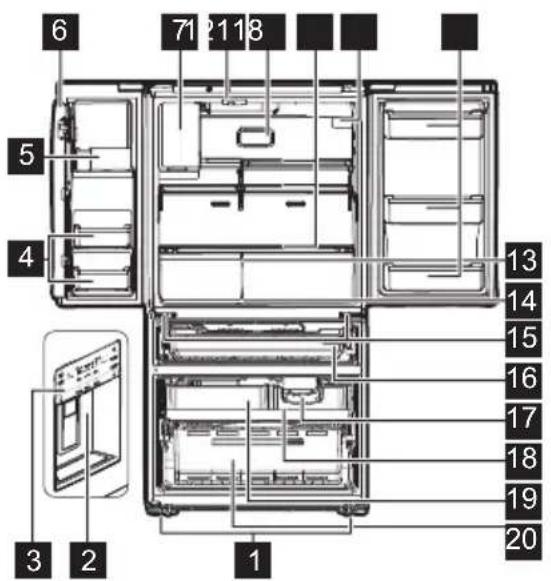

2.3 External Water Dispenser Model - Type 3

6 71 21 18 5 4 13 14 15 16 17 18 19 20 3 2

1 Adjustable feet
2 Ice/Water Dispenser
3 External Appliance Control Panel
4 Door Bins

5 Ice Chute
6 Flipper Mullion
7 Ice Maker
8 Flipper Guide
9 Air Filter
10 Shelves
11 Water Filter
12 Gallon Door Bin
13 CrispSeal™ Fresh Crispers
14 Snack Zone
15 Adjustable Hinges
16 Custom-Flex™ Temp Drawer
17 Ice Maker
18 Ice Bin
19 Upper Freezer Basket
20 Lower Freezer Basket

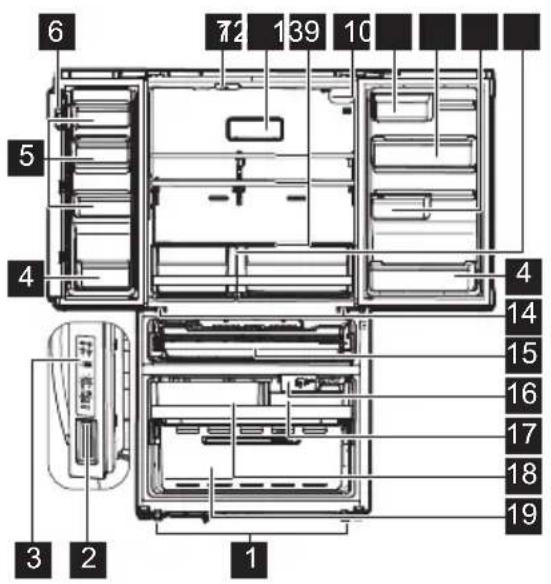

2.4 Internal Water Dispenser Model

6 72 139 10 5 4 4 14 15 16 17 18 19 3 2 1

1 Leveling feet
2 Internal Water Dispenser
3 Appliance Control Panel
4 Gallon Door Bin

5 Door bin
6 Flipper Mullion
7 Flipper Guide
8 Air Filter
9 Shelves
10 Water Filter
11 Dairy Compartment
12 Adjustable Door Bin
13 CrispSeal™ Fresh Crispers
14 Adjustable Hinges
15 Custom-Flex™ Temp Drawer
16 Ice Maker
17 Ice Bin
18 Upper Freezer Basket
19 Lower Freezer Basket

3. INSTALLATION

This User Manual provides general installation and operating instructions for your model. We recommend using a service or kitchen contracting professional to install your appliance. Use the appliance only as instructed in this User Manual. Before starting the appliance, follow these important first steps.

3.1 √Installation Checklist

Doors

□ Handles are secure and tight

Leveling

□ Cabinet is setting solid on all corners

Electrical Power

□ House power is turned on
□ Appliance is plugged in

Ice Maker

☐ House water supply is connected to the appliance

⚠ WARNING!

Potable water supply only.

☐ No water leaks present in any connections - recheck in 24 hours
☐ Ice maker is turned on

Final Checks

□ Shipping material is removed

□ Registration card is sent in

3.2 Tools necessary

These tools are necessary at different stages of the installation process:

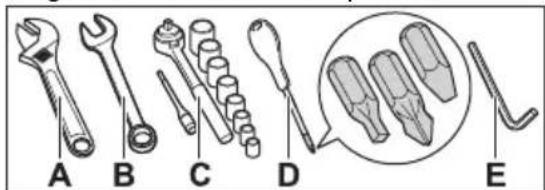

A B C D E

A. Adjustable Wrench
B. 3/8" Fixed Wrench
C. 5/16"Socket Wrench
D. Screwdriver: Phillips™ Head or Quadrex Head
E. 6 mm Allen Wrench

3.3 Location

• If possible, place the appliance out of direct sunlight and away from the range, dishwasher, or other heat sources.
• The appliance must be installed on a floor that is level and strong enough to support a fully loaded appliance.

- Consider water supply availability for models equipped with an automatic ice maker.

WARNING!

This appliance is intended for use in residential household and similar interior applications such as:

• Kitchen / kitchenette
• Pantry room
• Basement
• Enclosed garage
  • Other interior residential type environments

WARNING!

Allow the following clearances for ease of installation, proper air circulation, plumbing, and electrical connections:

• Top 3/8" (9.5 mm)
• Sides 3/8" (9.5 mm)
• Back 1" (25.4 mm)

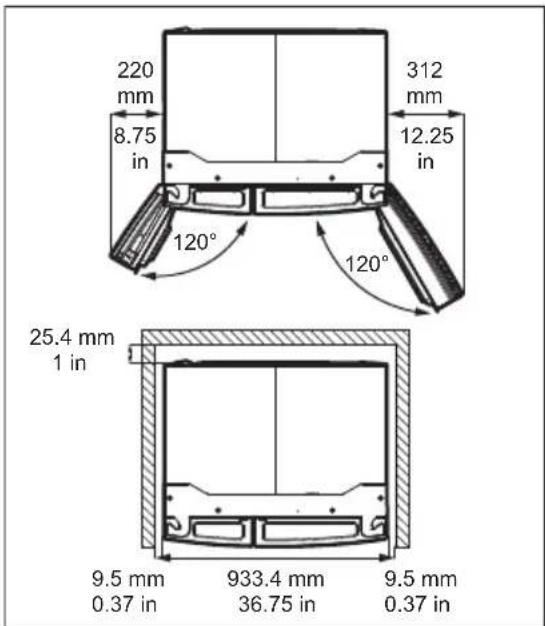

3.4 Door opening

Position the appliance to allow easy access to a counter when removing food. Make sure the refrigerator drawers and freezer baskets can be fully open.

220 mm 8.75 in 312 mm 12.25 in 120° 120° 25.4 mm 1 in 9.5 mm 0.37 in 933.4 mm 36.75 in 9.5 mm 0.37 in

3.5 Cabinet leveling and door alignment

Guidelines for final positioning of appliance:

- All 4 corners of the cabinet must rest firmly on the floor.

• Slightly elevate the front to ensure that doors close and seal properly.
• Align the doors with each other and level them.

You can meet most of these conditions by raising or lowering the adjustable front feet.

3.6 Leveling

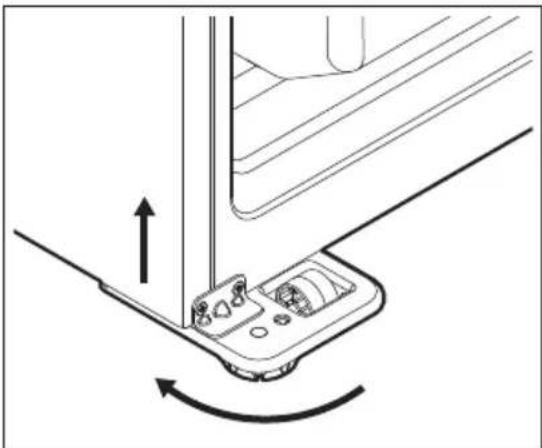

Level the cabinet by raising or lowering the front adjustable feet.

1. Slightly open the freezer drawer.
2. Lower the adjustable feet until they touch the floor. Use pliers to adjust.

• To raise the unit, turn the feet clockwise.

• To lower the unit, turn the feet counterclockwise.

Diagram of a device with an arrow indicating clockwise motion, showing a handle and base (no text or symbols)

1. Ensure both doors are free of binding. The seals must touch the cabinet on all 4 sides.

2. Ensure the cabinet is stable.

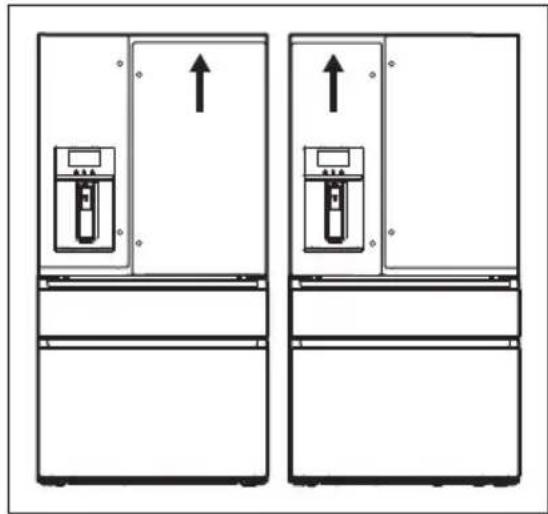

3.7 Door leveling

Two identical rectangular electronic cabinets with internal components and upward arrows indicating motion (no text or symbols)

To adjust the door height:

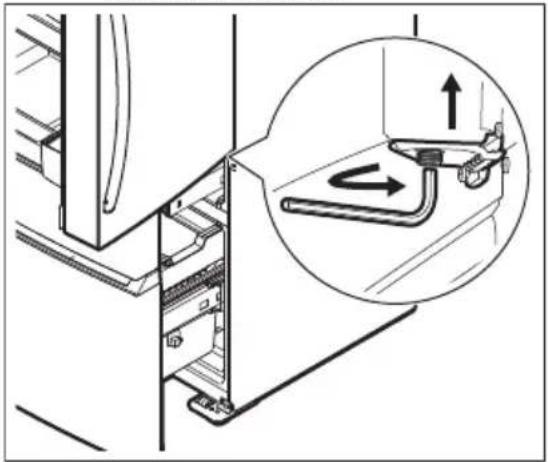

1. Open the Custom-Flex™ Temp drawer to access the lower hinges.
2. Insert a 6 mm Allen wrench into the lower hinge shaft.

• To lower the door, turn the adjustment screw clockwise.
• To raise the door, turn the adjustment screw counterclockwise.

Technical diagram showing a mechanical assembly with an inset magnified view of a valve mechanism (no text or symbols present)

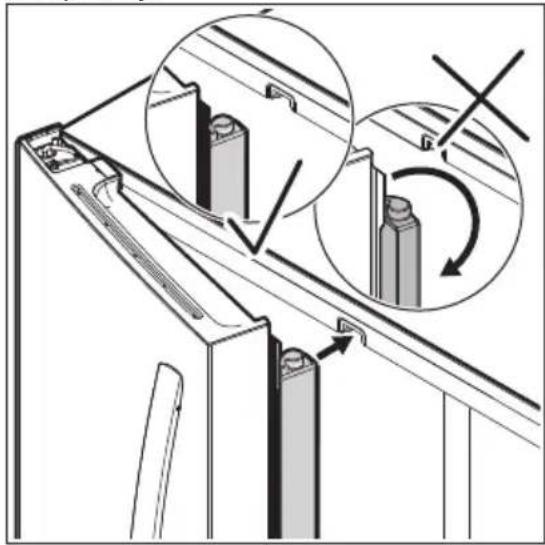

3.8 Flipper mullion

Adjust the flipper mullion for proper connection with the mullion guide. Ensure

the flipper mullion is folded and perpendicular to the fresh food door. If the mullion guide is not in the correct position, it could prevent the door from closing completely.

Technical diagram showing mechanical assembly with cross-sectional views and rotation arrows (no text or symbols)

4. DOOR REMOVAL

4.1 Getting through narrow spaces

If your appliance does not fit through an entrance area, you can remove the doors. Check first by measuring the entrance.

4.2 Removing/Installing refrigerator doors

To prepare for removing the doors:

1. Unplug the electrical power cord from the wall outlet.
2. Remove any food from the door shelves and close the doors.

WARNING!

Make sure the electrical power cord is unplugged from the wall outlet.

To remove refrigerator doors:

1. Open doors to 90°.

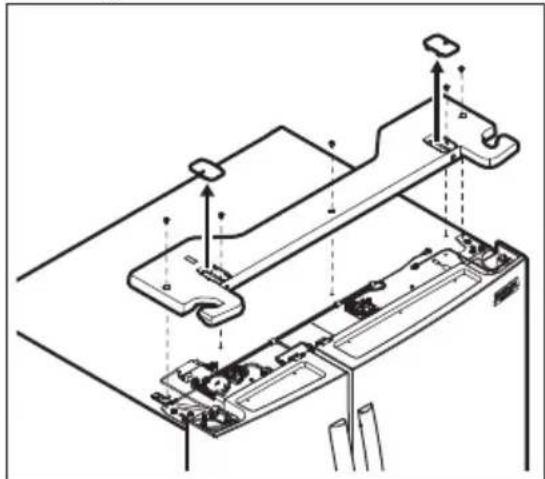

2. Remove all 5 Phillips™ screws from top hinge cover and lift up. You can

easily access 3 Phillips™ screws. You can access the other 2 screws by removing the 2 panels from the top hinge cover.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Trace lightly around the door top hinges with a pencil. This makes reinstallation easier.
2. Disconnect any electrical harnesses running from the doors to the hinge cover.

Technical diagram showing electrical connections with labeled components and directional arrows indicating movement or flow.

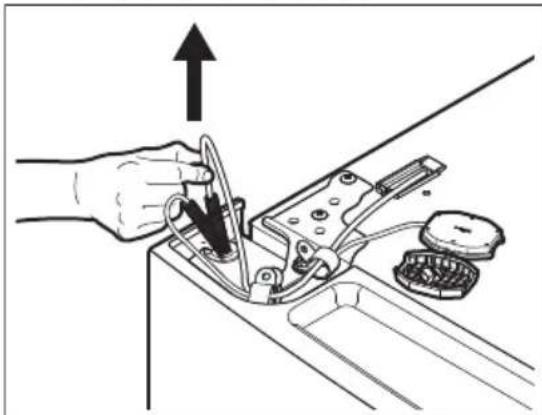

1. Pull up on the water line gently to remove it from the door.


Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

NOTE

Be careful while pulling the water tube from the door to be sure the tube does not kink.

NOTE

You will pull approximately 4ft of water tube from the refrigerator door.

CAUTION!

Make sure the doors are set aside in a secure position where they cannot fall and cause personal injury, or damage to the doors or handles.

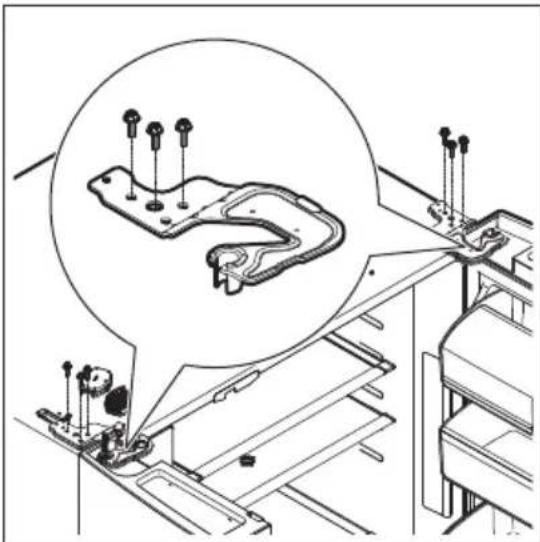

1. Remove the three 8mm bolts from both top hinges. Lift the doors up off lower hinges and carefully set them aside.

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

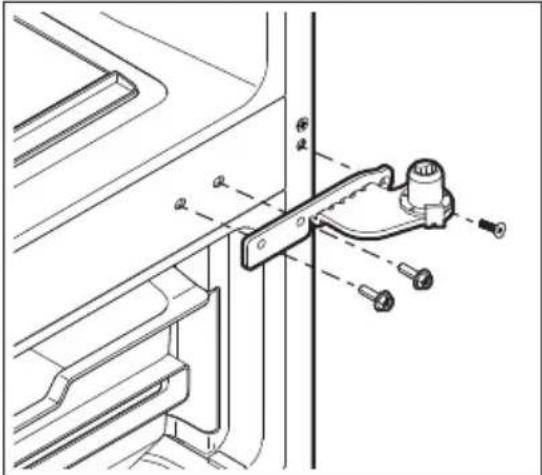

1. You may need to remove the lower hinges for clearance purposes. To gain access to the lower hinges, extend the Custom-Flex™ Temp Drawer. Unscrew the 3 lower hinge screws and slide the hinge inward.


Technical line drawing of a mechanical assembly with mounting brackets and a lever mechanism (no text or symbols)

1. To reinstall the doors, reverse the procedure.

IMPORTANT

Make sure the water line tubing goes through the hole at the top of the dispenser pocket. A metal wrap on the tubing prevents damage from the hinge rubbing against it. Fix the back around the tube in the proper location upon reinstallation to protect the tube from the hinge.

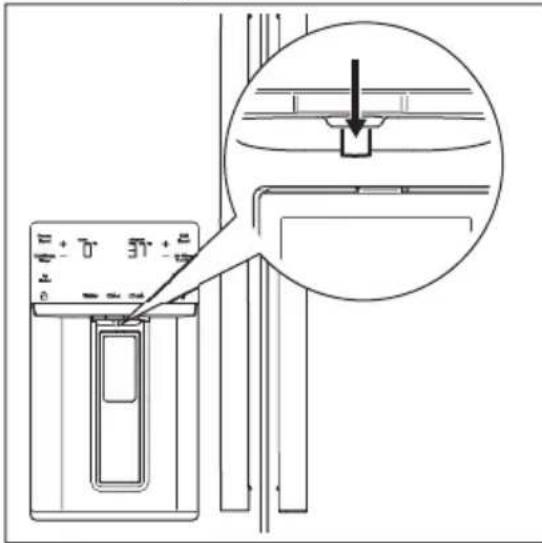

External dispenser model

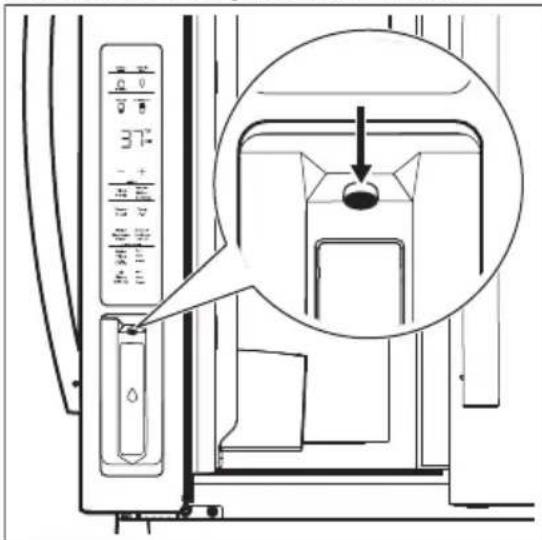

Technical diagram showing a door panel with labeled buttons and an inset magnified view highlighting a component.

Internal dispenser model

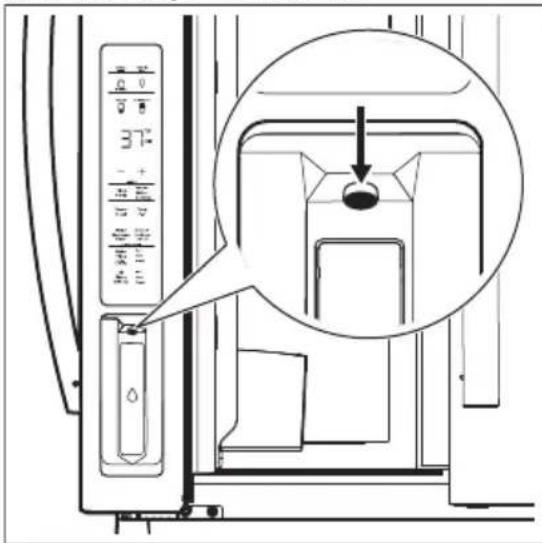

Diagram showing a device control panel with a magnified view of the internal component, highlighting a specific part.

NOTE

When reinserting the water tube and replacing the top hinge cover, ensure the tube does not kink.

Once both doors are in place, ensure they are aligned with each other and level. Refer to Installation. Replace the top hinge cover.

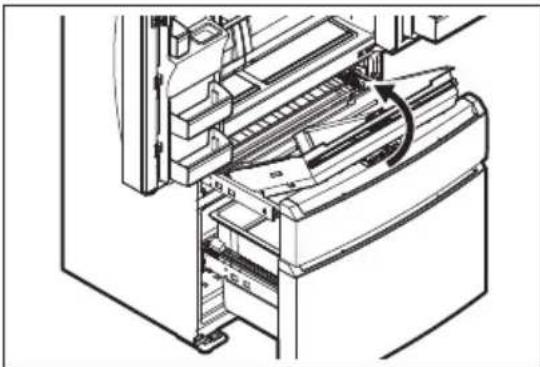

4.3 Custom-Flex™ Temp Drawer

To remove the Custom-Flex™ Temp Drawer:

1. Fully open the drawer.
2. Remove the basket from the drawer.

Technical line drawing of a mechanical device with internal components and mounting brackets (no text or symbols)

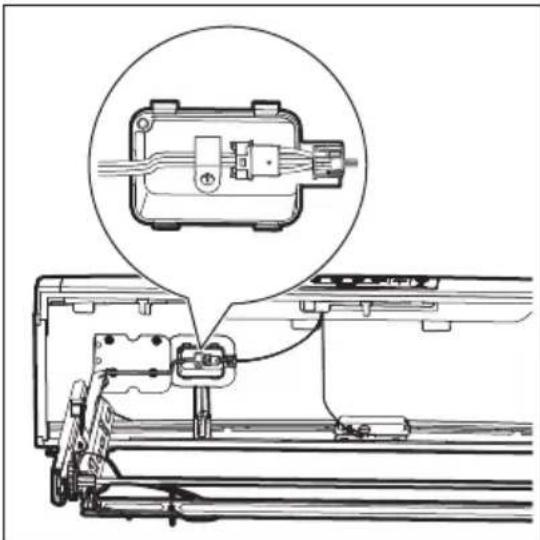

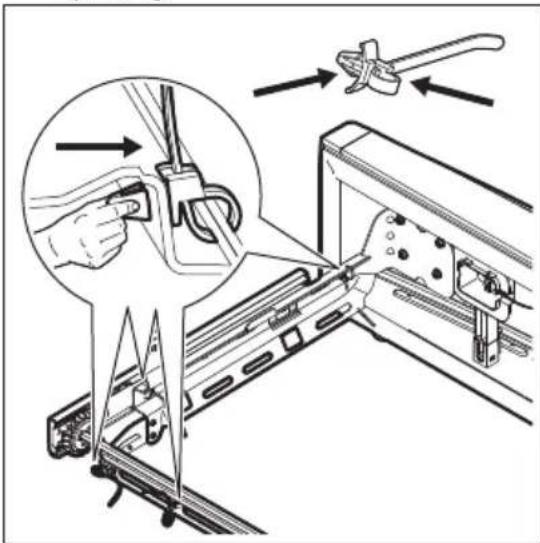

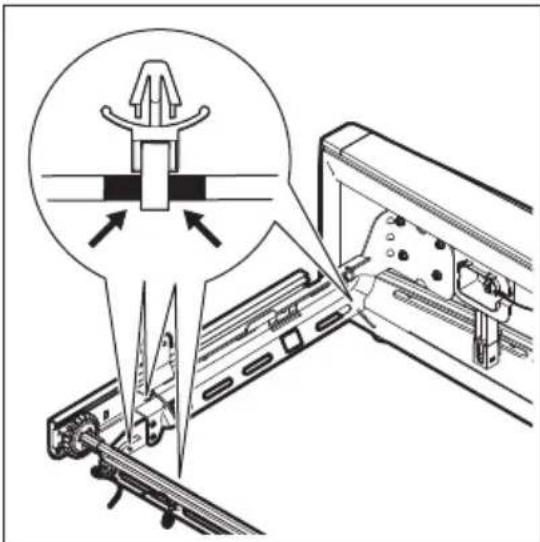

1. For some models only: Unsnap the 4 cable ties by pressing clip sides together and pushing them through the opening.


Technical diagram showing mechanical assembly steps with labeled components and directional arrows

1. For some models only: Remove the screw and the retaining clip and disconnect the harness.


Technical line drawing of a mechanical assembly with an inset close-up of a component (no text or symbols)

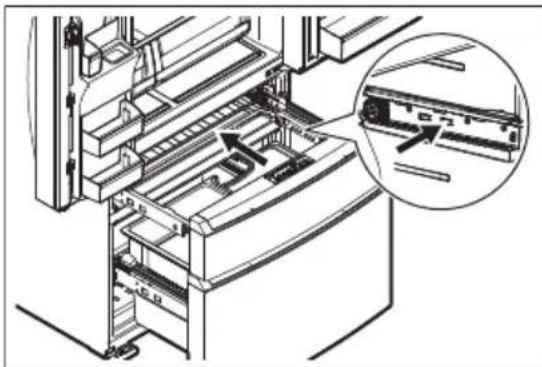

1. To fully remove the drawer from the cabinet, press the tabs on both sides, and slide the rails past the clips on both sides.

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

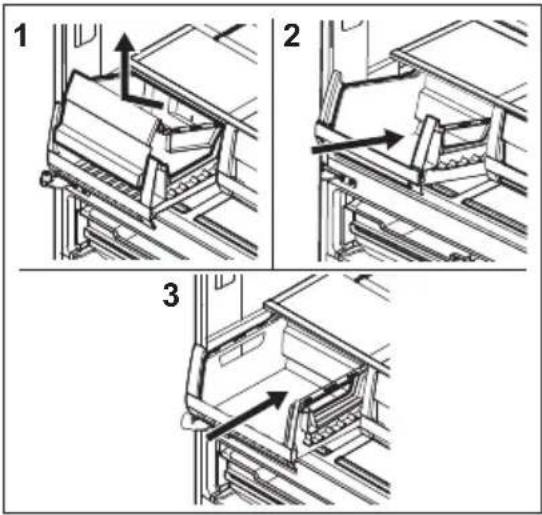

To reinstall the Custom-Flex™ Temp Drawer:

1. Place the drawer with the brackets and sliders inside the compartment, and click the sliders into place on each side.

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

1. Reconnect the cabinet harness.
2. Replace the retaining clip and secure it with the screw.

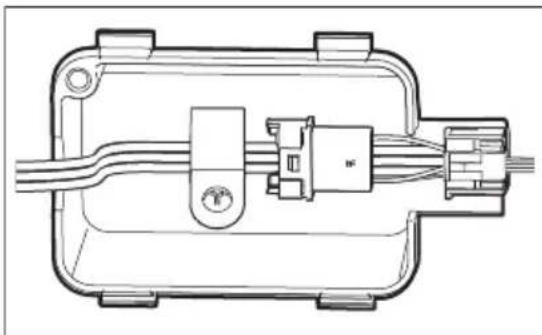

Technical line drawing of an electrical connector with wires and connectors (no text or symbols)

1. Reattach the electrical harness by positioning the cable clips over the black markings on the harness. Push the 4 cable clips through the openings in the rail to secure the harness in place.

Technical diagram showing a mechanical assembly with a magnified inset of a component (no text or symbols present)

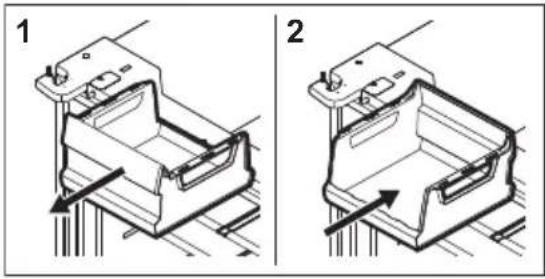

1. Slide the basket into place.
2. Close the drawer.

CAUTION!

The drawer is heavy. Use caution when lifting.

4.4 Removing The Freezer Drawer

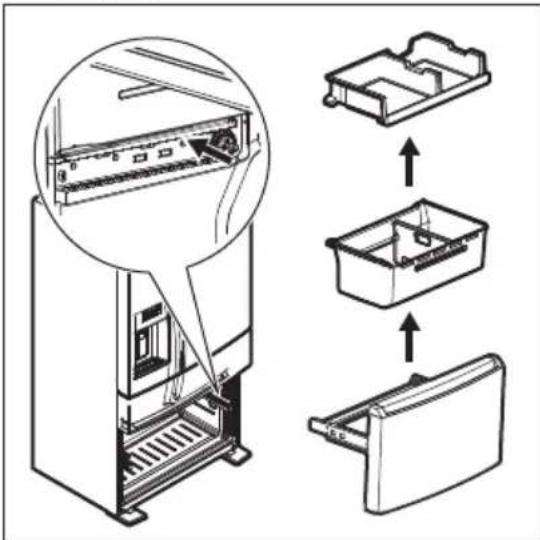

To remove the freezer drawer:

1. Open the drawer and fully extend it.

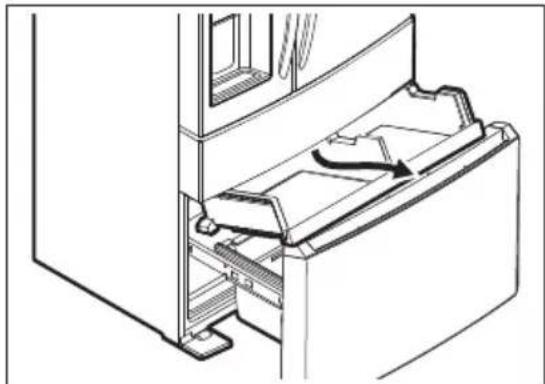

2. Remove the upper freezer drawer.
3. Remove the lower freezer basket.
4. Inside the cabinet, press the tab on both sides to release the sliders.
5. Remove the drawer with brackets and sliders.

Technical diagram showing assembly steps of a refrigerator with labeled components and an inset view of the interior panel.

To reinstall the freezer drawer:

1. Place the drawer with brackets and sliders inside the cabinet and click into place.

2. Replace the lower freezer basket first, and then the upper freezer basket. Ensure the upper freezer basket rollers are seated correctly into the tracks before closing the freezer drawer.

For additional instructions, refer to Storage Features

5. DOOR HANDLE INSTALLATION

CAUTION!

Wear gloves and safety goggles. Use extreme caution when installing these handles.

The rounded end of the handles may be sharp (some models).

5.1 Door handle installation

To install the door handle:

1. Remove the handles and any other protective packaging from the carton.

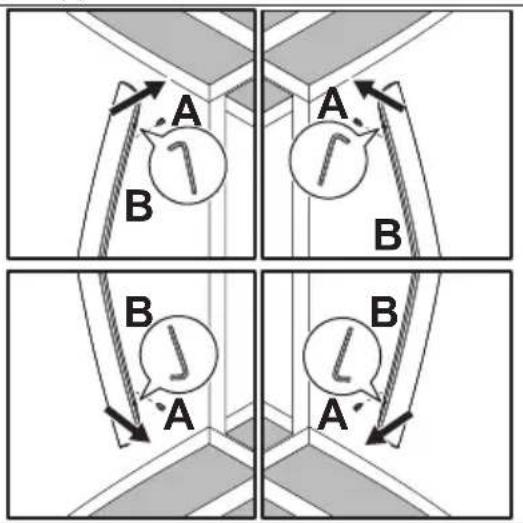

2. Position the handle end caps over upper and lower preinstalled shoulder bolts (A) that are fastened into door, ensuring the holes for the set screws are facing towards the opposite door.
3. While holding handle firmly against door, fasten upper and lower Allen set screws (B) with supplied Allen wrench.
4. Repeat the steps above to install the opposite handle. Ensure the holes for the set screws are facing towards the opposite door.

NOTE

When tightening the Allen set screws, apply force to the longer arm of the Allen wrench supplied in the handle packaging.

NOTE

Tighten and sub-flush all set screws (place the Allen set screw just below the surface of the end cap) of the handle end cap. Draw the end caps tight to the freezer and refrigerator doors with no gaps. To avoid scratching the metal door, keep the door open while torquing down the set screws.

The door handle may loosen over time. If this happens, tighten the set screws on the handles.

6. WATER SUPPLY CONNECTION

6.1 Before Installing The Water Supply Line

WARNING!

To avoid electric shock, which can cause death or severe personal injury, disconnect the appliance from the electrical power before connecting a water supply line to the appliance.

CAUTION!

To avoid property damage:

• Use copper or stainless steel braided tubing for the water supply line. Do not use water supply tubing made of 1/4" plastic. Plastic tubing greatly increases the potential for water leaks, and the manufacturer will not be responsible for any damage if you use plastic tubing for the supply line.
• Do not install water supply tubing in areas where temperatures fall below freezing.
  • Chemicals from a malfunctioning softener can damage the ice maker. If the ice maker is connected to soft water, ensure that the softener is maintained and working properly.

IMPORTANT

Ensure your water supply line connections comply with all local plumbing codes.

6.2 You will need

• Basic tools: adjustable wrench, flat-blade screwdriver, and Phillips™ screwdriver.
• Access to a household cold water line with water pressure between 30 and 100 psi.

• A water supply line made of 1/4" (6.4 mm) OD, copper or stainless steel tubing. To determine the length of tubing needed, measure the distance from the ice maker inlet valve at the back of the appliance to your cold water pipe. Then add approximately 6 ft (1.8 m) to ensure you can move the appliance for cleaning.

• A shutoff valve to connect the water supply line to your household water system. Do not use a self-piercing type shutoff valve.

• Do not reuse compression fitting or use thread seal tape.
• A compression nut and ferrule (sleeve) for connecting a copper water supply line to the ice maker inlet valve.

NOTE

Check with your local building authority for recommendations on water lines and associated materials prior to installing your new refrigerator. Depending on your local/state building codes, Frigidaire recommends:

- for homes with existing valves its Smart Choice® water line kit 5304437642 with a 6 ft stainless steel water line.

Please refer to Frigidaire.com for more information.

6.3 Installing the Water Supply Line

IMPORTANT

Your appliance water supply system includes several tubing lines, a water filter, and a water valve. To ensure that your water dispenser works properly, this system must be completely filled with water when your appliance is first connected to the household water supply line.

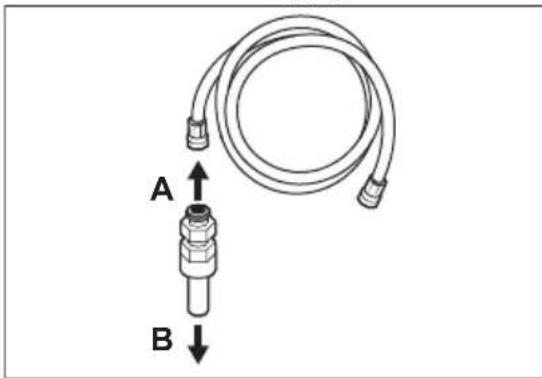

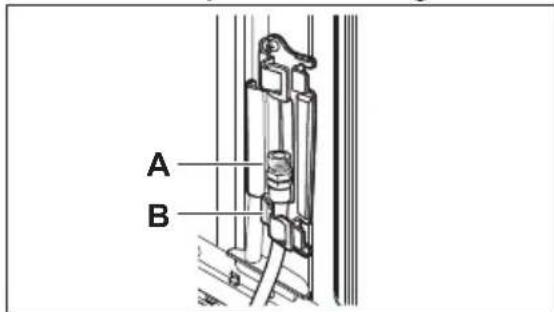

Connection to household water supply with 1/4" compression fitting

A B

A. Water inlet fitting
B. Plastic tubing to water valve

6 ft (1.8 meters) Stainless Steel water line from household water supply line

Line drawing of a coiled cable or hose with two connectors (no text or symbols)

Water inlet brass fitting

A B C

A. Plastic cap
B. Remove plastic cap from water inlet fitting
C. 1/4" plastic tube to water valve

To connect water tube to household water supply:

1. Disconnect refrigerator from electric power source.
2. Place end of water supply line into sink or bucket. Turn on water supply and flush supply line until water is clear. Turn off water supply at shutoff valve.

Diagram of a coiled hose with two connectors labeled A and B, showing directional arrows (no text or symbols beyond labels)

A. To household water supply
B. To unit water valve

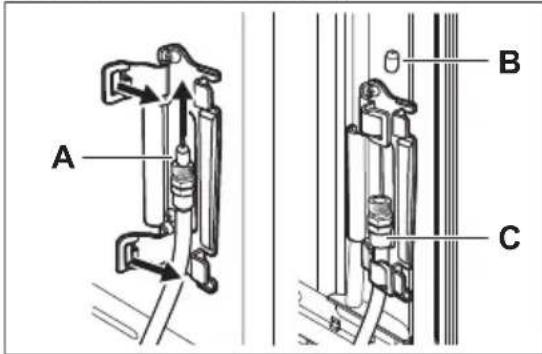

1. Open the locking clips and grab the water line coming from the refrigerator.

Remove the plastic cap from the water inlet fitting and discard the cap.

Technical line drawing of a mechanical connector with a curved arrow indicating rotation (no text or symbols)

1. If using (recommended) stainless steel braided tubing - the nut and the ferrule are already assembled on the tubing. Slide the compression nut onto the water inlet fitting and finger tighten.

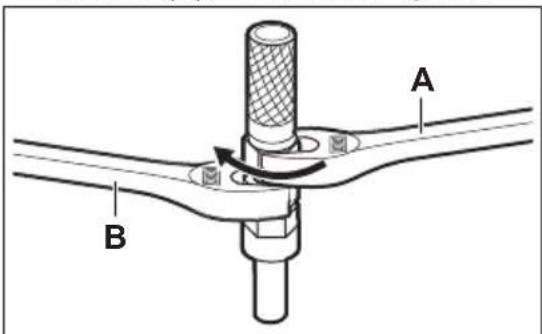

2. Using two 1/2" wrenches, one to hold the household water line nut (A) and the other to hold the water inlet fitting nut (B), tighten a half turn with the wrench (A). Do not over tighten.

A B

1. Replace the connected tubes into the clips and lock the clips back in place to keep the tubing in the right position.
2. Turn on water supply at shutoff valve and tighten any connections that leak.
3. Reconnect refrigerator to electrical power source.
4. Turn the ice maker on.

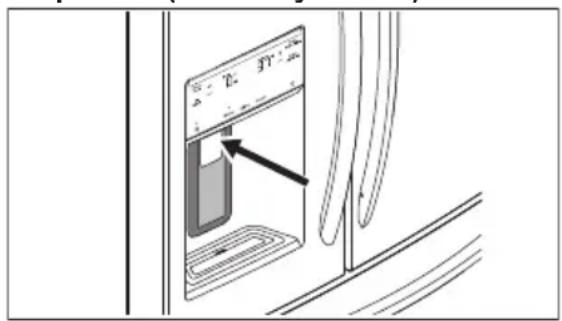

5. Purge air from the Ice and Water Dispenser System by operating the water dispenser for 3 - 4 minutes. This requires dispensing several glasses of water.

7. CONTROLS AND SETTINGS: EXTERNAL WATER DISPENSER MODEL - TYPE 1

Switching On/Off

To switch on the appliance, connect the power cord to the outlet.

To switch off the appliance, disconnect the power cord from the outlet.

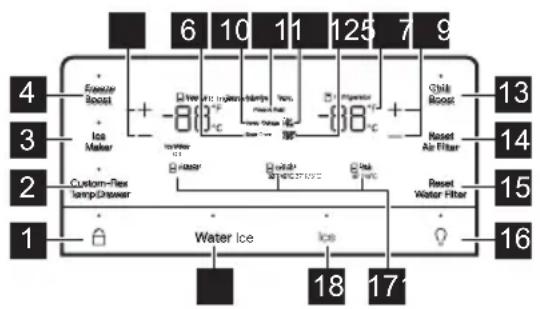

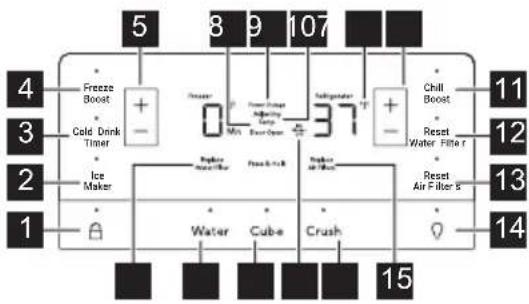

Control display

1	Lock button	The Lock prevents the display from unintended use. Press and hold Lock button for 3 seconds to enable/disable.While Lock is enabled, you cannot change settings on the display. Dispensing ice and water is disabled. When you interact with the display, the indicator flashes, and an audible warning tone sounds.
2	Ice Maker	Press and hold Ice Maker button for 3 seconds to turn ice maker on/off.When the indicator is lit, the ice maker is on. When the indicator is not lit, the ice does not make ice. While off, ice dispensing continues if there is ice in the bucket. When ice maker is off and ice is dispensing, indicator blinks.
3	Cold Drink Timer	Press Cold Drink Timer to quickly chill a drink inside the freezer compartment. A time value appears on the freezer temperature display (in minutes). Set the timer using the +/ - buttons. The range is from 20 to 45 minutes in 5 minute intervals. A tone sounds when you input the time.Drinks may freeze if the temperature is too low or timer setting is too long.⚠ WARNING!When using the cold drink timer, remove drinks from the freezer compartment when the alarm sounds. Carbonated drinks may explode if left in the freezer for too long.
4	Freeze Boost	Prior to grocery shopping, activate Freeze Boost to lower the temperature and freeze food faster. Freeze Boost stays active for up to 24 hours before automatic deactivation. You can turn it off manually by pressing Freeze Boost button. This restores the freezer to the previous temperature setting.
5	Freezer temperature adjustment buttons	Press either the + or - to adjust the temperature.The temperatures range from -6°F (-21°C) to +6°F (-15°C).
6	Door Open	If the door is left open for 5 minutes or more, the Door Open indicator illuminates and the audible alert is on. Press the Door Open button or close the door to turn off the alert. If the door is left open for 5 minutes, the interior light turns off.
7	Power Outage	After a power outage, the indicator lights up, and a tone sounds. Press any button to silence the tone.
8	Adjusting Temp	It illuminates during temperature adjustments and remains lit until the refrigerator and freezer reach the set temperatures. Press either + or - to adjust the temperature. The set temperature is reached within 24 hours.
9	°F/°C	To toggle between Fahrenheit (°F) and Celsius (°C), simultaneously press and hold + and - for 5 seconds on refrigerator side of the display.
10	Refrigerator temperature adjustment buttons	Press either the + or - to adjust the temperature.The temperatures range from +34°F (+1°C) to +44°F (+7°C).
11	Chill Boost	Prior to grocery shopping, activate Chill Boost to lower the temperature and cool food faster. Chill Boost stays active for up to 6 hours before automatic deactivation. You can turn it off manually by pressing Chill Boost. This restores the freezer to the previous temperature setting.
12	Reset Water Filter	Press and hold button for 3 seconds to reset after filter change.
13	Reset Air Filter	Filter condition status is always displayed when the door is open. Press and hold Reset Air Filter button for 3 seconds to reset after changing the filter.
14	Light Press to switch the dispenser light on and off.
15	Replace Air Filters	It illuminates every 6 months or when filter needs replacing. Replace the filter. Press and hold Reset Air Filters button for 3 seconds to deactivate the warning. Refer to Filter Replacement.
16	Crush	Press the Crush key to select crushed ice. The indicator is lit above the active feature.
17	Ice Maker Off This indicator is lit when the Ice Maker is off.
18	Cube	Press the Cube key to select cubed ice. The indicator is lit above the active feature.
19	Water	Press the Water key to select water. The indicator is lit above the active feature.
20	Replace Water Filter	It illuminates every 6 months or after dispensing 120 gallons of water. Replace the filter. Press and hold Reset Water Filter button for 3 seconds to deactivate the warning. Refer to Filter Replacement.

Display modes

- Sleep mode

As a default, the display goes to sleep after a short time. If you press any icon, the display awakens. After a short time, it goes back to sleep. When in sleep mode, wake up the appliance control display to confirm the ice maker is on/off. You can turn sleep mode off to have the display on full time (awake mode). When sleep mode is off, the display is always illuminated. To turn sleep mode on/off, simultaneously press and hold Crush and Light for 5 seconds. A tone confirms.

- Awake Mode

To change from sleep mode to awake mode, simultaneously press and hold Crush and Light for 5 seconds. The display shows the current temperature/ice maker status. A tone confirms.

7.1 Setting cooling temperatures (options may vary)

NOTE

The recommended settings for a product installed in a kitchen is 37^ F for the fresh food compartment and 0^ F for the freezer.

IMPORTANT

If your product has food freezing in the fresh food compartment, increase the temperature setting 1 or 2°.

IMPORTANT

If you place food within 1" in front of the air ports, there may be the chance of freezing food.

Technical line drawing of an open refrigerator with a circular badge on the door (no text or symbols)

7.2 Clear Alerts

Door Open

If you leave freezer or refrigerator doors open for 5 minutes or more, the alarm sounds and the door open indicator illuminates on the display. Close the door or press any key on the display to silence the alarm. The appliance control display returns to normal operations after you close the door.

High Temp Alarm

The alarm sounds in the event of a high temperature condition. The appliance control panel displays HI for whichever compartment the alarm is detected in and the alarm sounds every 10 seconds until acknowledged. Touch any key or open a door to silence the alarm.

Power Outage

In the event of a power outage, a tone sounds and the power outage alert illuminates once power has been restored. Press any key on the appliance control display to silence the alarm.

Flapper (Dispenser models only)

If a jammed ice cube holds the flapper (or ice chute door) open when you select Cube or Crush, the alarm sounds and the current selection blinks on the dispenser control. The alarm resets when you remove the ice cube.

7.3 Sabbath Mode

NOTE

While in Sabbath Mode, neither the lights, dispenser, nor the control panel will work until Sabbath Mode is deactivated. Refrigerator stays in Sabbath Mode after power failure recovery. It must be deactivated with the buttons on the control panel.

NOTE

Although you have entered the Sabbath Mode, the ice maker will complete the cycle it had already initiated. The ice cube compartment will remain cold and new ice cubes can be made with standard trays.

The Sabbath Mode is a feature that disables portions of the refrigerator and its controls in accordance with observance of the weekly Sabbath and religious holidays within the Orthodox Jewish community.

Sabbath Mode is turned on and off by simultaneously pressing and holding both the FZ- and FF+ for 10 seconds. The display shows Sb while in Sabbath mode.

In the Sabbath Mode, the High Temp alarm is active for health reasons. For example, if the door is left ajar the High Temp alarm is activated. The refrigerator will function normally once the door is closed, without any violation of the Sabbath/Holidays. The High Temp alarm is permitted when cabinet temperature is outside the safe zone for 20 minutes. The alarm silences itself after 10 minutes while the High Temp icon stays lit until the Sabbath mode is exited.

For further assistance, guidelines for proper usage and a complete list of models with the Sabbath feature, visit the web at star-k.org.

8. CONTROLS AND SETTINGS: EXTERNAL WATER DISPENSER MODEL - TYPE 2, TYPE 3

Switching On/Off

To switch on the appliance, connect the power cord to the outlet.

To switch off the appliance, disconnect the power cord from the outlet.

Control display

1	Lock button	The Lock prevents the display from unintended use. Press and hold the Lock button for 3 seconds to enable/disable.While Lock is enabled, you cannot change settings on the display. Dispensing ice and water is disabled. When you interact with the display, the indicator flashes, and an audible warning tone sounds.

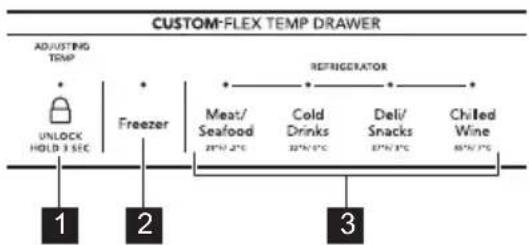

2	Custom-FlexTM Temp Drawer button	Use the button to change settings of the Custom-FlexTM Temp Drawer. Refer to Storage Features.
3	Ice Maker	Press and hold for 3 seconds to turn ice maker on/off. When indicator is lit, ice maker is on. When indicator is not lit, ice maker is in the Off state and stops making ice. While off, ice dispensing can continue as long as there is ice in the bucket. When ice maker is off and ice is dispensing, indicator blinks.
4	Freeze Boost	Prior to grocery shopping, activate Freeze Boost to lower the temperature and freeze food faster. Freeze Boost stays active for up to 24 hours before automatic deactivation. You can turn it off manually by pressing Freeze Boost. This restores the freezer to the previous temperature setting.
5	Freezer temperature adjustment buttons	Press either the + or - to adjust to desired temperature setting.The temperatures range from -6°F (-21°C) to +6°F (-15°C).
6	Door Open	If the door is left open for 5 minutes or more, the Door Open indicator illuminates and the audible alert is on. Press the Door Open button or close the door to turn off the alert. If the door is left open for 5 minutes, the interior light turns off.
7	Power Outage	After a power outage, the indicator lights up, and a tone sounds. Press any button to silence the tone.
8	Adjusting Temp	It illuminates during temperature adjustments and remains lit until the refrigerator and freezer reach the set temperatures. Press either + or - to adjust the temperature. The set temperature is reached within 24 hours.
9	Replace Air Filters	It illuminates every 6 months or when filter needs replacing. Replace the filter. Press and hold Reset Air Filters button for 3 seconds to deactivate the warning on the display. Refer to Filter Replacement.
10	Replace Water Filter	It illuminates every 6 months or after dispensing 120 gallons of water. Replace the filter. Press and hold Reset Water Filter button for 3 seconds to deactivate the warning. Refer to Filter Replacement.
11	°F/°C	To switch between Fahrenheit (°F) and Celsius (°C), simultaneously press and hold + and - for 5 seconds on refrigerator side of the display.
12	Refrigerator temperature adjustment buttons	Press either the + or - to adjust the temperature.The temperatures range from +34°F (+1°C) to +44°F (+7°C).
13	Chill Boost	Prior to grocery shopping, activate Chill Boost to lower the temperature and cool food faster. Chill Boost stays active for up to 6 hours automatic deactivation. You turn it off manually by pressing Chill Boost. This restores the freezer to the previous temperature setting.
14	Reset Water Filter	Press and hold the button for 3 seconds to reset after changing the filter.
15	Reset Air Filter	Filter condition status is always displayed when the door is open. Press and hold Reset Air Filter button for 3 seconds to reset after changing the filter.
16	Light Press to switch the dispenser light on and off.
17	Custom-FlexTM Temp Drawer indicators	These indicators show the current setting of the Custom-FlexTM Temp Drawer.Refer to Storage Features.
18	Ice Press the Ice button to select ice. The indicator is lit above the active feature.
19	Water	Press the Water button to select water. The indicator is lit above the active fea-ture.

Display modes

- Sleep mode

As a default, the display goes to sleep after a short time. If you press any icon, the display awakens. After a short time, it goes back to sleep. When in sleep mode, wake up the appliance control display to confirm the ice maker is on/off. You can turn sleep mode off to have the display on full time (awake mode). When sleep mode is off, the display is always illuminated. To turn sleep mode on/off, simultaneously press and hold Ice and Light for 5 seconds. A tone confirms.

- Awake Mode

To change from sleep mode to awake mode, simultaneously press and hold Ice and Light for 5 seconds. The display shows the current temperature/ice maker status. A tone confirms.

8.1 Setting cooling temperatures (options may vary)

NOTE

The recommended settings for a product installed in a kitchen is 37^ F for the fresh food compartment and 0^ F for the freezer.

IMPORTANT

If your product has food freezing in the fresh food compartment, increase the temperature setting 1 or 2°.

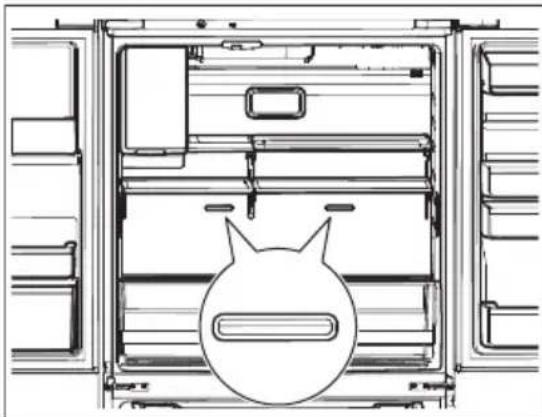

IMPORTANT

If you place food within 1" in front of the air ports, there may be the chance of freezing food.

Technical line drawing of an open refrigerator with a circular badge on the side panel (no text or symbols)

8.2 Clear Alerts

Door Open

If you leave freezer or refrigerator doors open for 5 minutes or more, the alarm sounds and the door open indicator illuminates on the display. Close the door or press any key on the display to silence the alarm. The appliance control display returns to normal operations after you close the door.

High Temp Alarm

The alarm sounds in the event of a high temperature condition. The appliance control panel displays HI for whichever compartment the alarm is detected in and the alarm sounds every 10 seconds until acknowledged. Touch any key or open a door to silence the alarm.

Power Outage

In the event of a power outage, a tone sounds and the power outage alert illuminates once power has been restored. Press any key on the appliance control display to silence the alarm.

Flapper (Dispenser models only)

If a jammed ice cube holds the flapper (or ice chute door) open when you select Cube or Crush, the alarm sounds and the current selection blinks on the dispenser control. The alarm resets when you remove the ice cube.

8.3 Sabbath Mode

NOTE

While in Sabbath Mode, neither the lights, dispenser, nor the control panel will work until Sabbath Mode is deactivated. Refrigerator stays in Sabbath Mode after power failure recovery. It must be deactivated with the buttons on the control panel.

NOTE

Although you have entered the Sabbath Mode, the ice maker will complete the cycle it had already initiated. The ice cube compartment will remain cold and new ice cubes can be made with standard trays.

The Sabbath Mode is a feature that disables portions of the refrigerator and its controls in accordance with observance of the weekly Sabbath and religious holidays within the Orthodox Jewish community.

Sabbath Mode is turned on and off by simultaneously pressing and holding both the FZ- and FF+ for 10 seconds. The display shows Sb while in Sabbath mode.

In the Sabbath Mode, the High Temp alarm is active for health reasons. For example, if the door is left ajar the High Temp alarm is activated. The refrigerator will function normally once the door is closed, without any violation of the Sabbath/Holidays. The High Temp alarm is permitted when cabinet temperature is outside the safe zone for 20 minutes. The alarm silences itself after 10 minutes while the High Temp icon stays lit until the Sabbath mode is exited.

For further assistance, guidelines for proper usage and a complete list of models with the Sabbath feature, visit the web at star-k.org.

9. CONTROLS AND SETTINGS: INTERNAL WATER DISPENSER

Switching On/Off

To switch on the appliance, connect the power cord to the outlet.

To switch off the appliance, disconnect the power cord from the outlet.

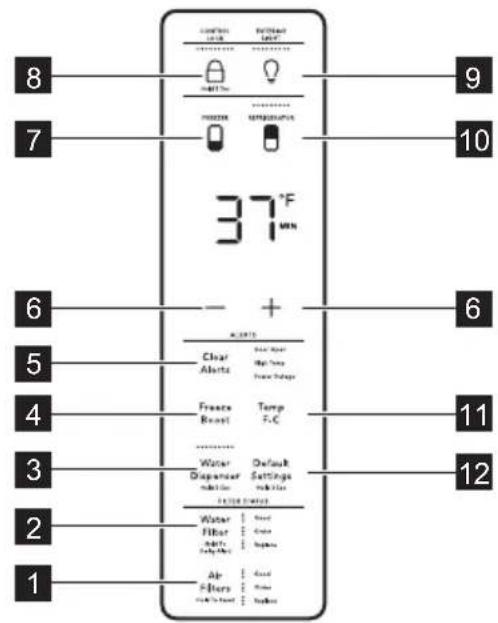

Control display

8 7 37°F 9 10 6 5 4 3 2 1 Clear Alerts Freeze Roast Water Dispenser Water Filter Air Filters + - Frost Tens Temp F.C Default Settings Tens Tens Tens Tens Tens Tens

1	Air Filters	Press and hold to reset after replacing the filters. The status shown at the right of the button resets to Good.
2	Water Filter	Press and hold to reset after replacing the filters. The status shown at the right of the button resets to Good.
3	Water Dispenser	When the water dispenser is on the LEDs above Water Dispenser illuminate.
4	Freeze Boost	Prior to grocery shopping, activate Freeze Boost to lower the temperature and freeze food faster. Freeze Boost stays active for up to 24 hours before automatic deactivation. You can turn it off manually by pressing Freeze Boost. This restores the freezer to the previous temperature setting.
5	Clear Alerts	Resets any active and illuminated alarms:Door Open, High Temp, Power Outage.
6	Temperature adjustment buttons	Press + or - to adjust the temperature.
7	Refrigerator compartment button	Select Refrigerator compartment to change the temperature.Select + / - buttons to set the temperature.Refrigerator control range: +34°F (+1°C) to +44°F (+7°C).
8	Lock button	The Lock prevents the display from unintended use. Press and hold the Lock button for 3 seconds to enable/disable.While Lock is enabled, you cannot change settings on the display. Dispensing ice and water is disabled. When you interact with the display, the indicator flashes, and an audible warning tone sounds.
9	Light button	Your appliance has exterior lights under the refrigerator doors and the Custom-FlexTM Temp drawer. Press and hold the light button for 5 seconds to enable the lights. The lights will remain on until you disable them by pressing and holding the button for 2 seconds.
10	Freezer compartment button	Select Freezer compartment to change the temperature.Select + / - buttons to set the temperature.Freezer control range: -6°F (-21°C) to +6°F (-15°C).
11	Temp F-C Touch to switch from Fahrenheit to Celsius.
12	Default Setting	Press and hold for 3 seconds to reset to Factory settings.

Display modes

Your display is equipped with a sleep and lock mode to prevent accidental changes to the appliance settings during opening and closing of the doors. When both doors are closed, the display is in the sleep mode. When either door is first opened, the display is in lock mode where all the current settings are visible but dimmed.

Pressing any button on the display awakes the display and a tone plays. All settings then are fully lit. Touch the display again to change any setting.

If there is no button pressed for 10 seconds while any door is open, the display comes back to lock mode by default.

9.1 Setting cooling temperatures

NOTE

The recommended settings for a product installed in a kitchen is 37^ F for the fresh food compartment and 0^ F for the freezer.

Press + or - to adjust the temperature to the desired setting. The temperature setting begins to blink with the first touch. The display times out after 10 seconds and then returns to the basic display.

9.2 Clear Alerts

Door Open

If you leave freezer or refrigerator doors open for 5 minutes or more, the alarm sounds and the Door Open indicator illuminates on the control display. Press Clear Alert to reset the alarm.

High Temp Alarm

High Temp illuminates next to Clear Alerts. The alarm plays every 60 seconds. Press Clear Alerts to acknowledge the alarm. The highest temp value displays when you first acknowledge the alarm.

Power Outage

In the event of a power outage, Power Outage illuminates. Press Clear Alerts to acknowledge the alarm. Other modes may be turned off until you acknowledge the alarm. While Power Outage displays on the control display, the unit continues normal operation. High Temp may also illuminate until you have reached a safe operating range temperature.

9.3 Sabbath Mode

NOTE

While in Sabbath Mode, neither the lights, dispenser, nor the control panel will work until Sabbath Mode is deactivated. Refrigerator stays in Sabbath Mode after power failure recovery. It must be deactivated with the buttons on the control panel.

NOTE

Although you have entered the Sabbath Mode, the ice maker will complete the cycle it had already initiated. The ice cube compartment will remain cold and new ice cubes can be made with standard trays.

The Sabbath Mode is a feature that disables portions of the refrigerator and its controls in accordance with observance of the weekly Sabbath and religious holidays within the Orthodox Jewish community.

Turn Sabbath mode ON and OFF by simultaneously pressing and holding both — and Temp F-C for five seconds. The display shows Sb while in Sabbath mode.

In the Sabbath Mode, the High Temp is active for health reasons. For example, if you leave the door ajar High Temp activates. The refrigerator functions normally once you close the door, without any violation of the Sabbath/Holidays. The High Temp is permitted when the cabinet temperature is outside the safe zone for 20 minutes. The alarm silences itself after 10 minutes while the High Temp stays lit until you exit the Sabbath mode.

For further assistance, guidelines for proper usage and a complete list of models with the Sabbath feature, visit the web at star-k.org.

10. AUTOMATIC ICE AND WATER DISPENSER

NOTE

Refrigerator Ice Maker (External Dispenser Models Only)

10.1 Priming the water supply system

Before making ice for the first time, prime the water supply system. Air in new plumbing lines can result in two or three empty ice maker cycles. If the system is not flushed, the first ice cubes may have discolored water or have an odd flavor.

Purge air from the system:

1. Press and hold a drinking glass against the water dispenser paddle until water comes out (it may take up to 4 minutes to purge air from the system).
2. Run approximately 1 full gallon of water through the dispenser before use, and discard.

Dispenser (varies by model)

Diagram showing a device with labeled components and an arrow pointing to a component, likely indicating assembly or status.

CAUTION!

For proper dispenser operation, the recommended water supply pressure should fall between 30 psi and 100 psi. Excessive pressure may cause the system to malfunction.

NOTE

The water dispenser has a built-in device that shuts off the water flow after 2 minutes of continuous use. To reset this shutoff device, release the dispenser paddle.

NOTE

Dispensed water is not chilled. For colder water, add ice to cup or container before dispensing water.

10.2 Ice maker Operation and Care

After you properly install the refrigerator and it has cooled for several hours, the ice maker can produce ice within 24 hours.

10.3 Storage bin capacity

The refrigerator ice maker should produce:

• In a standard depth model: 3.2 to 3.7 lbs of ice per 24 hours.
- In a counter depth model: 3.2 to 3.7 lbs of ice per 24 hours.

The refrigerator ice bin holds around:

• In a standard depth model: 5 lbs of ice.

• In a counter depth model: 4 lbs of ice.

10.4 Turning the ice maker on/off

Ice production is controlled by the ice maker On/Off feature on the appliance control display. Press the On/Off feature to turn the ice maker on and off.

IMPORTANT

Turning off the ice maker disables ice making. You will still be able to dispense existing ice, and dispense water.

NOTE

The ice maker also has a built-in plastic signal arm that automatically stops ice production when the ice bin is full. This signal arm should not be used to manually stop the ice maker.

IMPORTANT

Your ice maker is turned on at the factory so it can work as soon as you install your refrigerator. If you cannot connect a water supply, set the ice maker On/Off feature to Off; otherwise, the ice maker fill valve may make a loud chattering noise when it attempts to operate without water.

IMPORTANT

On occasion, you may notice unusually small ice cubes in the bucket or in dispensed ice. This could occur in normal operation of the ice maker. If you start seeing these more frequently, it may be an indication of low water pressure or the water filter needs to be replaced. As the water filter nears the end of its useful life and becomes clogged with particles, less water is delivered to the ice maker during each cycle. If it has been 6 months or longer since you last changed your water filter, replace the water filter with a new one. Poor quality household water may require the filter to be changed more frequently.

10.5 Ice maker/Dispenser Tips

- Ice cubes stored too long may develop an odd flavor. Empty the ice container

as explained in Cleaning the ice maker section.

• If your refrigerator is not connected to a water supply or the water supply is turned off, turn off the ice maker.

• If you need a large quantity of ice at one time, it is best to get cubes directly from the ice container.
  • The following sounds are normal when the ice maker is operating:

• Motor running

• Ice dropping into ice container
  – Water valve opening or closing
• Running water

i

When dispensing ice, hold the cup in position for a moment after releasing the paddle. This ensures all ice falls into the cup.

CAUTION!

Chemicals from a malfunctioning water softener can damage the ice maker. If the water supply to your refrigerator is softened, be sure the softener is maintained to work properly.

10.6 Cleaning the Ice Maker Bin

Clean the ice maker and ice bin at regular intervals, especially prior to vacation or moving.

1. Turn off the ice maker.
2. Remove the ice bin. Lift the ice bin upward, and then pull it straight out.

Illustration of hands using a tool to remove granular material from a container (no text or symbols)

1. Empty the ice bin.

CAUTION!

Never use an ice pick or similar sharp instrument to break up the ice. This could damage the ice bin. To loosen stuck ice, use warm water.

1. Clean the ice bin with mild detergent. Do not use harsh or abrasive cleaners. Rinse with clean water.
2. Let the ice bin dry completely before you put it back in the freezer.
3. Replace the ice bin.
4. Turn the ice maker on.

If there is a power failure for one hour or longer, the ice cubes in the ice bin may melt and re-freeze together. Remove and empty the ice bin if this happens.

10.7 When to remove and empty the ice bin

Remove and empty the ice bin if:

• An extended power failure (one hour or longer) causes ice cubes in the ice bin to melt and re-freeze together after power is restored, jamming the dispenser mechanism.
• You do not use the ice dispenser frequently. Ice cubes will freeze together in the bin, jamming the dispenser mechanism.

Refer to Cleaning the Ice Maker Bin.

11. INTERNAL WATER DISPENSER

Your appliance is equipped with an internal water dispenser mounted inside the cabinet, on the left hand fresh food door.

11.1 Priming the Water Supply System

CAUTION!

For proper dispenser operation, the recommended water supply pressure should fall between 30 psi and 100 psi. Excessive pressure may cause the system to malfunction.

Before dispensing water for the first time, be sure to prime the water supply system. If you do not flush the system, the first glasses of water may have discolored water or have an odd flavor.

1. Before dispensing, ensure Water Dispenser is enabled on the display (LEDs are lit).
2. Hold a glass against the paddle for 4 minutes to purge air from the system.

Line drawing showing a hand holding a wall-mounted device with a control panel, labeled with Chinese characters and numbers.

1. Continue dispensing at least 1 gallon (3.6 L) of water and discard it.

i

If your glass does not activate the paddle, use your finger to dispense water.

11.2 Using the dispenser

Your appliance arrives with the water dispenser already activated and ready to use.

To disable/enable the water dispenser, press and hold Water Dispenser for 3 seconds. The LEDs above Water Dispenser are not lit the water dispensing function is disabled.

......Water DispenserHold 3 Sec

Water DispenserHold 3 Sec

To dispense the water:

1. Ensure the dispenser is on.
2. Place a cup against the paddle and press to dispense water.

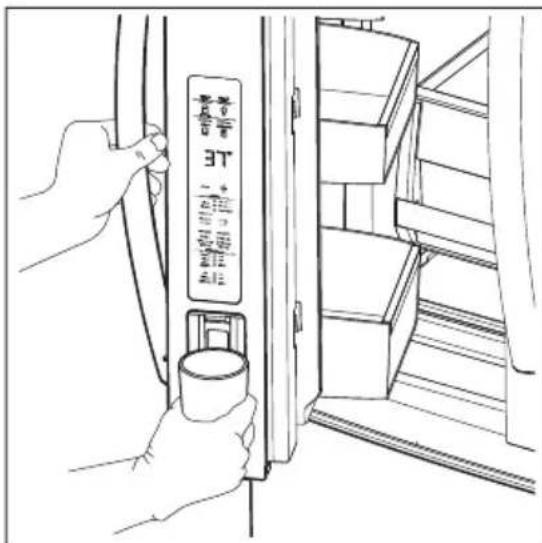

CAUTION!

Hold the door with one hand while dispensing water to keep the door from moving and possible dispensing water on floor.

NOTE

If you prefer to keep the internal water dispenser disabled, use the appliance display to disable it. The LEDs are not illuminated above Water Dispenser.

NOTE

The water dispenser has a built-in device that shuts off the water flow after 3 minutes of continuous use. To reset this shutoff device, simply release the dispenser paddle.

12. ICE MAKER

NOTE

Freezer Ice Maker available in:
- Internal Water Dispenser Models
• External Water Dispenser Models Type 3

12.1 Ice maker operation and care

After you properly install the appliance, the ice maker can produce ice within 24 hours. When using the ice maker for the first time, and in order for it to work properly, you need to clear air from the water tubing and the filter. If you do not flush the system, the first ice cubes may be discolored or have an odd flavor. Once the ice maker begins making ice, allow the bin to fill completely, and then discard the first full bin of ice.

12.2 Storage Bin Capacity

This ice maker should produce between 2 and 2.5 lbs of ice per 24 hours depending on use.

The ice bin should hold:

• For a standard depth appliance: around 7.5 lbs of ice.
• For a counter depth appliance: around 4.5 lbs of ice.

NOTE

The ice maker only produces the specified rate if you set the temperature to 0^ F.

NOTE

The freezer ice maker fills the ice bin more in one spot. Move the ice to the edges of the bin to allow it to fill completely.

12.3 Turning the Ice Maker On/Off

Press the power button to turn the ice maker on. Button does not illuminate.

Diagram showing a device with a button and a hand interacting with a control panel (no text or symbols present)

12.4 Ice maker tips

The following sounds are normal when the ice maker is operating:

• Motor running
• Ice dropping into ice bin
  • Water valve opening or closing
• Running water

Ice cubes stored too long may develop an odd flavor. Empty the ice bin as explained below.

CAUTION!

If the water supply to your refrigerator is softened, properly maintain be sure the softener. Chemicals from a water softener can damage the ice maker.

13. STORAGE FEATURES

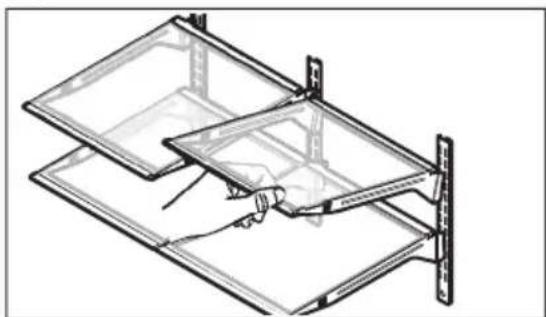

13.1 Shelves

CAUTION!

To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change. Allow the glass shelves to stabilize to room temperature before cleaning. Do not wash in dishwasher.

You can easily adjust shelf positions in the refrigerator compartments to suit your needs. The shelves have mounting brackets that attach to slotted supports at the rear of each compartment.

1. Remove all the food from the shelf.
2. Lift the front edge up and pull the shelf out.

Diagram of a hand holding a tray over a multi-panel display panel, with no visible text or symbols.

1. Replace by inserting the mounting bracket hooks into the desired support slots.

2. Lower the shelf and lock into position.

13.2 Slide-Under Shelf

For some models only.

To adjust the slide-under shelf, push the front half of the shelf backward toward the rear of the cabinet until the rear half shelf

drops down. Then, gently continue pushing the front half shelf back so it slides under the rear half shelf.

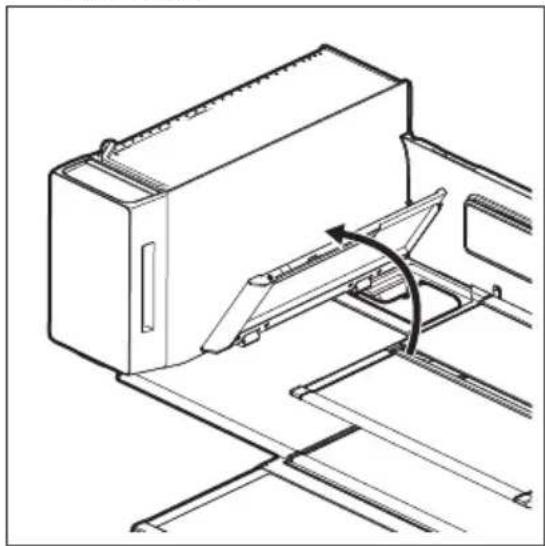

13.3 Flip Shelf

To adjust the flip shelf:

1. Remove food from the shelf.
2. Lift the right edge of the shelf upwards.
3. Push the shelf to the left towards the ice maker.

Line drawing of a printer or printer with an arrow indicating the process (no text or symbols present)

13.4 Drawers

This appliance includes a variety of storage drawers.

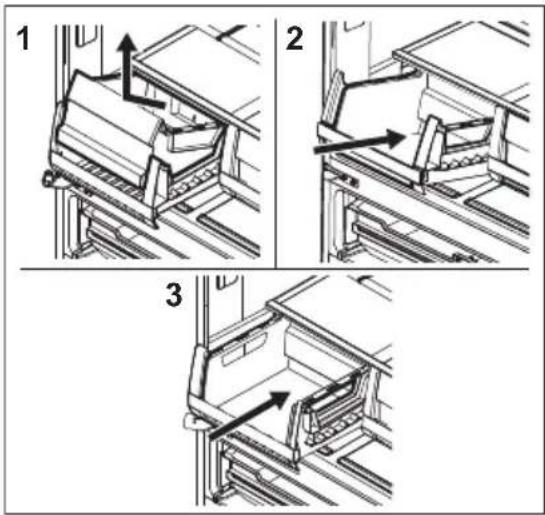

13.5 CrispSeal® Fresh Crisper

For some models only.

Use the crisper to keep produce fresh for longer.

Flip the crisper to use it as an open compartment for items such as beverages, yogurts, or snacks.

Technical line drawing of a mechanical component with two views (1 and 2), showing internal structure and directional arrows (no text or symbols)

Technical diagram showing three steps of a mechanical assembly or mounting process with directional arrows indicating movement.

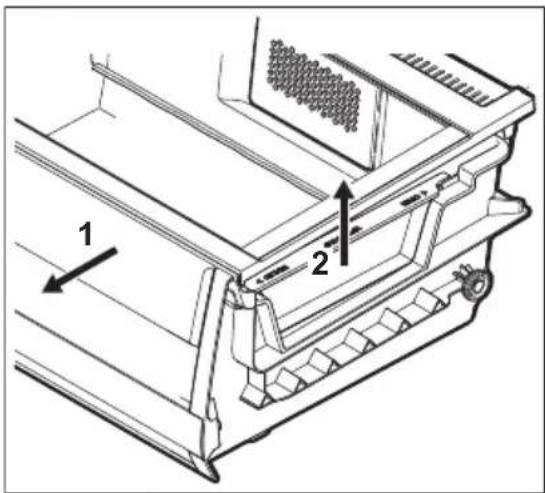

To remove the crisper:

1. Pull the drawer out until it stops.
2. Lift the front slightly.
3. Remove the drawer.

Technical diagram of a mechanical device with labeled parts and directional arrows indicating movement or assembly.

i

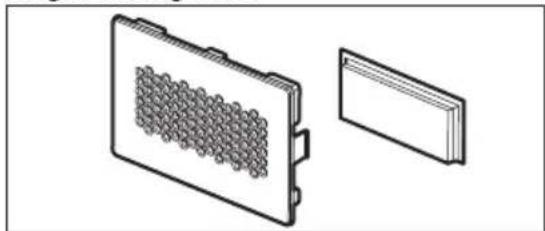

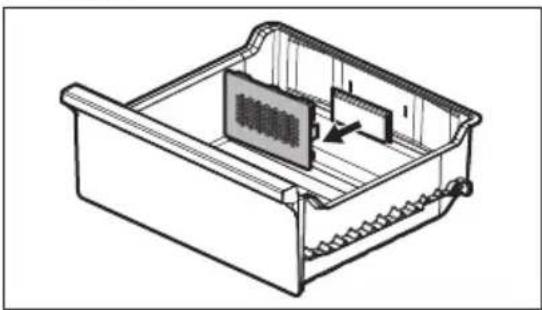

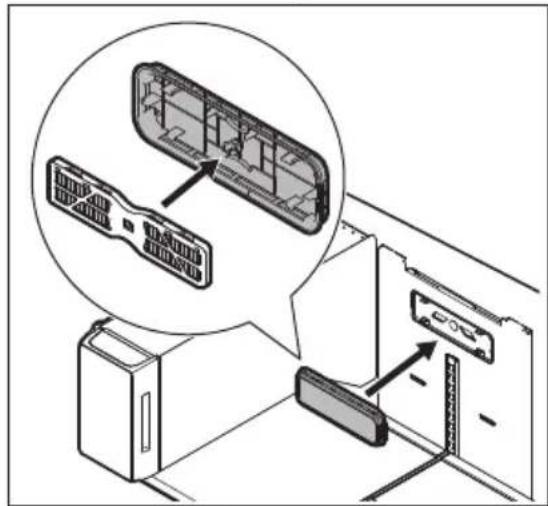

Remove the crisper insert and the PureAir Produce Keeper Plus™ filter before washing the crisper.

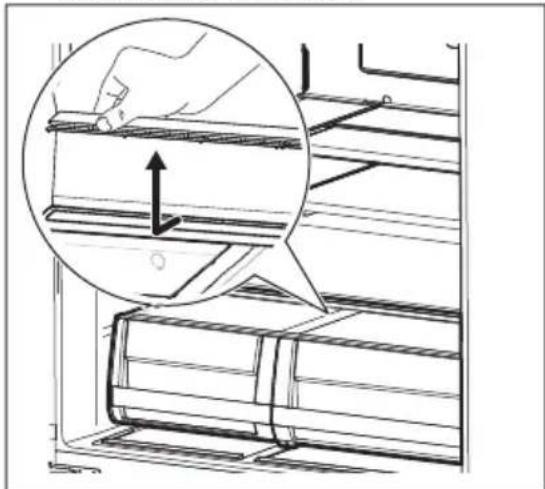

13.6 Auto-humidity Control Removal

To remove the auto humidity control membrane for cleaning:

1. Reach to the back of the humidity control cover.

2. Place your fingers between the humidity control and the back wall. Pull up on the cover.

3. Pull the cover toward the front of the cabinet and remove it.

Diagram showing a hand pressing down on a shelf with an inset magnified view of the mechanism (no text or symbols present)

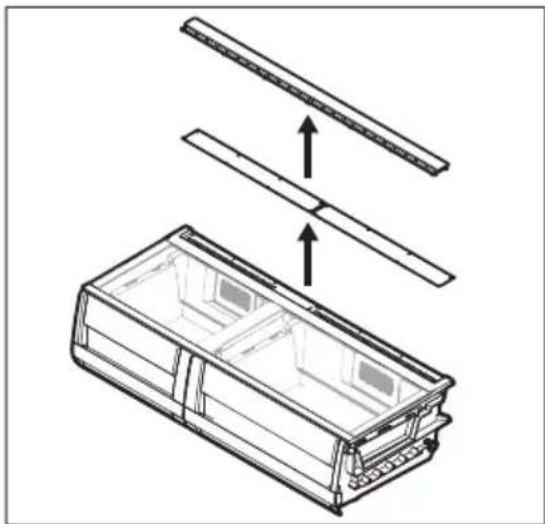

1. Remove the humidity membrane from the housing by lifting it up and sliding it over.

Technical line drawing of a mechanical housing with two parallel plates and an open panel (no text or symbols)

1. Clean the humidity membrane with hot, soapy water.
2. Replace the membrane in the housing by reversing the steps above.

i

We do not recommend replacing the auto-humidity membrane unless it becomes damaged or ruined. If the membrane becomes soiled, you can wash it with soap and water. Ensure the membrane is dry before replacing it in the housing.

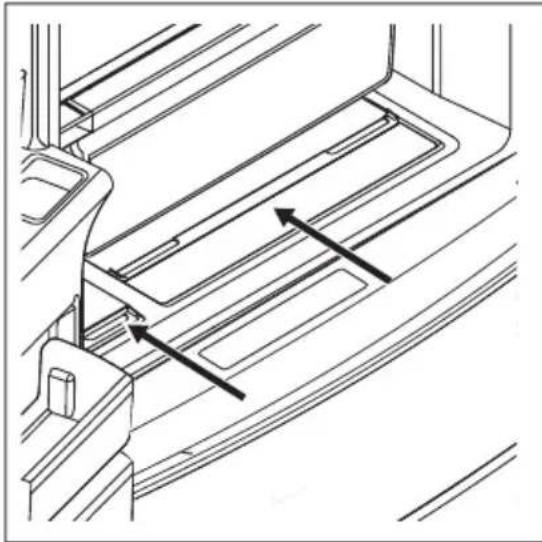

13.7 SnackZone - Recessed Snack Drawer

These drawers are ideal for storing deli meats and cheeses.

Slide back the cover to access the drawers.

Technical line drawing of a vehicle interior showing airflow or flow direction arrows (no text or symbols)

13.8 Custom-Flex™ Temp Drawer

(some models)

This drawer includes a built-in control panel.

NOTE

Do not use the Custom-Flex™ Temp Drawer to store fresh produce. These items may freeze and cause damage to fruits and leafy vegetables.

1. Unlock

The drawer locks automatically to prevent unwanted use. To unlock, press and hold the Unlock button for 3 seconds. The drawer locks again after 10 seconds without interaction.

2. Freezer

When in the Freezer setting, change the drawer temperature using the control panel on the front door. Changing the temperature on the display adjusts both the drawer and freezer compartment temperatures.

3. Refrigerator

- Meat/Seafood

Use this setting for short-term storage of meat and seafood. Press Meat/Seafood to set the drawer

temperature to 28^ F ( -2^ C). A tone sounds to confirm the choice.

- Cold Drinks Use this setting for cooling drinks. Press Cold Drinks to set the drawer to 32°F (0°C). A tone sounds to confirm the choice.

- Deli/Snacks Use this setting for storing deli foods or snacks. Press Deli/Snacks to set the drawer to 37°F (3°C). A tone sounds to confirm the choice.

- Chilled Wine Use this setting for wine storage. Press Chilled Wine to set the drawer to 45°F (7°C). A tone sounds to confirm the choice.

i

Do not store glass bottles in the Custom-Flex™ Temp Drawer when the temperature setting is in Freezer or Cold Drinks modes. The glass may break and shatter, causing physical harm and injury.

13.9 Custom-Flex™ Temp Drawer

(some models)

The drawer controls are located on the main control panel.

NOTE

Do not use the Custom-Flex™ Temp Drawer to store fresh produce. These items may freeze and cause damage to fruits and leafy vegetables.

1. Custom-Flex™ Temp Drawer button

2. Freezer

Press the Custom-Flex™ Temp Drawer button until the Freezer indicator lights up. When in the Freezer setting, change the drawer temperature using the control panel. Changing the temperature on the display adjusts both the drawer and freezer compartment temperatures.

3. Drinks

Use this setting for cooling drinks. Press the Custom-Flex™ Temp Drawer button until the Drinks indicator

lights up. The drawer temperature is set to 32^ F ( 0^ C). A tone sounds to confirm the choice.

1. Deli

Use this setting for storing deli foods or snacks. Press the Custom-Flex™ Temp Drawer button until the Deli indicator lights up. The drawer temperature is set to 37°F (3°C). A tone sounds to confirm the choice.

i

Do not store glass bottles in the Custom-Flex™ Temp Drawer when the temperature setting is in Freezer or Drinks modes. The glass may break and shatter, causing physical harm and injury.

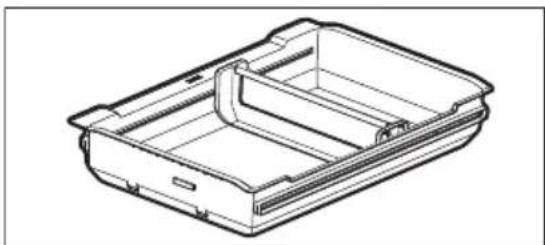

13.10 Custom-Flex™ Temp Drawer Divider

For some models only.

To position drawer dividers, slide them left or right. Dividers do not lock but use the weight of stored items to stay in place. Dividers may shift when opening or closing the drawer if fewer items are stored.

Technical line drawing of a rectangular plastic housing or tray (no text or symbols)

13.11 Doors

Storage bins (varies by model)

The doors to your refrigerator compartment use a system of modular storage bins. All of these bins are removable for easy cleaning. Some of them have fixed positions, while others can be adjusted to your needs.

Door bins are ideal for storing jars, bottles, cans, and large drink containers. They also enable quick selection of frequently used items.

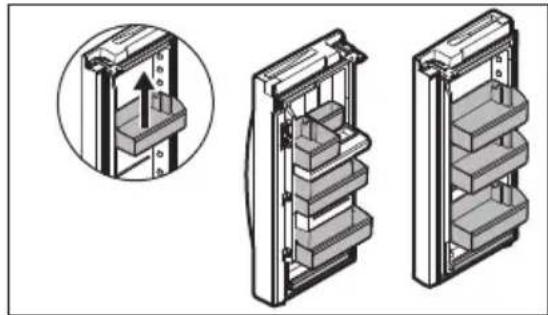

13.12 Changing position of adjustable door bin

To change the position of an adjustable door bin:

1. Remove all food from door bin.

2. Grip the bin firmly with both hands and lift it upward.

3. Remove the bin.
4. Place the bin just above desired position.
5. Lower the bin onto supports until it is locked in place.
6. Place the bin liner into the bin.

Technical illustration of three views of a multi-tiered refrigerator unit with an inset showing the front panel assembly (no text or symbols present)

13.13 Removing/Installing Upper Freezer Drawer

To remove the upper freezer drawer:

1. Open the freezer compartment fully.
2. Lift the upper freezer drawer up and out.

Technical line drawing of a mechanical assembly or housing component with an arrow indicating direction (no text or symbols present)

Reverse these steps to reinstall the drawer.

IMPORTANT

There are wheels on the bottom of the drawer. Make sure all wheels are aligned with their tracks for proper function. If the drawer is not aligned, it will cause problems with the door operation.

NOTE

If the basket does not rest on the stabilizer bar retainer clips, the drawer does not close correctly.

13.14 Freezer accessories

Your freezer has baskets and dividers you can adjust to your needs.

13.15 Lower basket divider

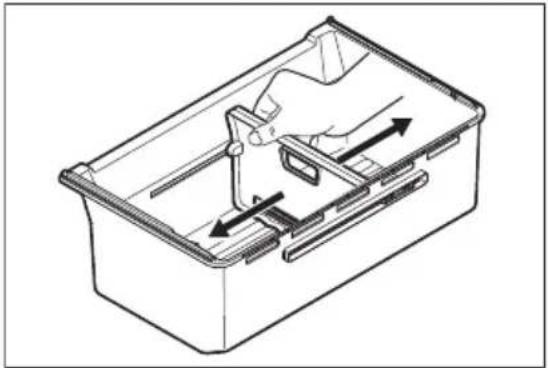

To reposition the lower basket divider, grab the lower divider and slightly pull it up to slide the divider to the next position.

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

You cannot remove the divider.

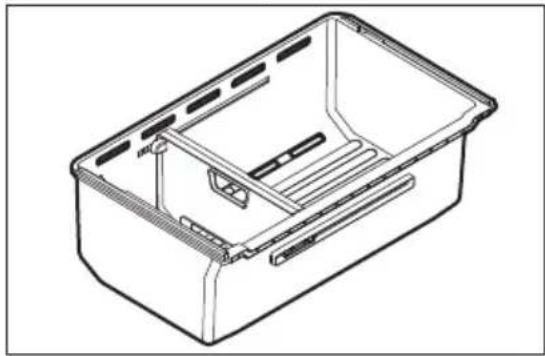

13.16 Removing/Installing Freezer Basket

To remove the freezer basket:

1. Open the freezer compartment completely.

2. Lift the basket up and remove it.

Line drawing of a rectangular plastic container with internal compartments and slots (no text or symbols)

Reverse the steps to reinstall the freezer basket.

14. STORING FOOD AND SAVING ENERGY

14.1 Ideas for storing food

Fresh food storage

• Keep the fresh food compartment between 34^ and 40^ , with an optimum temperature of 37^ .
• Avoid overcrowding the refrigerator shelves, which reduces air circulation and causes uneven cooling.
• Avoid placing food in front of air ports.

Fruits and vegetables

- Store fruits and vegetables in crisper drawers, where trapped moisture helps preserve food quality for longer time periods.

- Wash items and remove excess water.

- Wrap any items that have strong odors or high moisture content.

Meat

- Wrap raw meat and poultry separately and securely to prevent leaks and contamination of other foods or surfaces.

- Use the deli drawer to store meat/poultry for short-term storage. Any meat to be kept longer than two days should be frozen.

Frozen foods storage

- Keep the freezer compartment at 0°F or lower.

- A freezer operates most efficiently when it is at least 2/3 full.

Packaging foods for freezing

• To minimize food dehydration and quality deterioration, use aluminum foil, freezer wrap, freezer bags, or airtight containers. Force as much air out of the packages as possible and seal them tightly. Trapped air can cause food to dry out, change color, and develop an off-flavor (freezer burn).

- Wrap fresh meats and poultry with suitable freezer wrap prior to freezing.

- Do not refreeze meat that has completely thawed.

Loading the freezer

- Prior to grocery shopping, activate Freeze Boost so that on your return you can ensure your newly purchased food designated for the freezer will be preserved as quickly as possible.

- Activating Freeze Boost also will help your freezer more efficiently maintain the selected temperature after placing new purchases with pre-existing frozen foods.

- Avoid adding too much warm food to the freezer at one time. This overloads the freezer, slows the rate of freezing, and can raise the temperature of frozen foods.

- Leave a space between packages, so cold air can circulate freely, allowing food to freeze as quickly as possible.

14.2 Ideas for energy saving

Installation

• Locate the refrigerator in the coolest part of the room, out of direct sunlight, and away from heating ducts or registers.
• Do not place the refrigerator next to heat-producing appliances such as a range, oven, or dishwasher. If this is not possible, a section of cabinetry or an added layer of insulation between the two appliances will help the refrigerator operate more efficiently.
• Level the refrigerator so that the doors close tightly.

Temperature setting

- Refer to Controls and Settings for procedures on temperature settings.

Food storage

• Avoid overcrowding the refrigerator or blocking cold air vents. Doing so causes the refrigerator to run longer and use more energy.
• Cover foods and wipe containers dry before placing them in the refrigerator. This cuts down on moisture build-up inside the unit.
• Organize the refrigerator to reduce door openings. Remove as many items as needed at one time and close the door as soon as possible.
• Do not place a hot container directly on a cold shelf. Remember, such an extreme temperature change may damage the glass.

15.1 Understanding the sounds you may hear

Your new, high-efficiency appliance may introduce unfamiliar sounds. These sounds normally indicate your appliance is operating correctly. Some surfaces on floors, walls, and kitchen cabinets may make these sounds more noticeable.

NOTE

Energy efficient foam in your appliance is not a sound insulator.

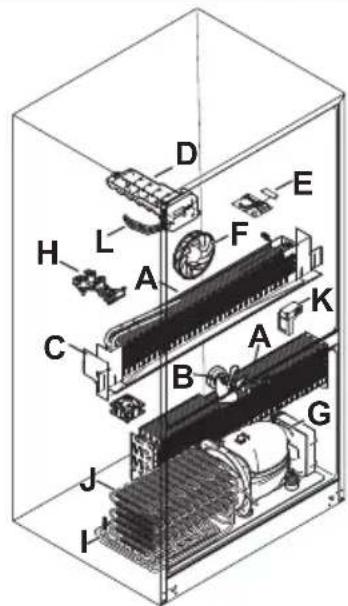

Following is a list of major components in your appliance and the sounds they can cause:

A. Evaporator. Refrigerant through the evaporator may create a boiling or gurgling sound.
B. Evaporator fan. You may hear air being forced through the refrigerator by the evaporator fan.
C. Defrost heater. During defrost cycles, water dripping onto the defrost heater may cause a hissing or sizzling sound. After defrosting, a popping sound may occur.

D. Automatic Ice maker. When ice has been produced, you will hear ice cubes falling into the ice bin.
E. Electronic control & automatic defrost control. These parts can produce snapping or clicking sound when turning the cooling system on and off.
F. Condenser fan. You may hear air being forced through the condenser.
G. Compressor. Modern, high-efficiency compressors run much faster than previous models. The compressor may have a noticeable hum or pulsating sound during operation.
H. Water valve. Makes a buzzing sound each time it opens to fill the ice maker.
I. Drain pan (not removable). You may hear water dripping into the drain pan during the defrost cycle.
J. Condenser. May create minimal sounds from forced air.
K. Motorized damper. May produce intermittent humming during operation.
L. Ice chute. When dispensing ice, you will hear a snapping or clicking sound when the solenoid opens and closes the ice chute.
M. Ice dispenser. When dispensing ice you can hear a snapping, clicking or popping sound.

Exploded view diagram of an electronic device with labeled components from I to H

NOTE

During automatic defrost cycle, a red glow in the back wall vents of your freezer compartment is normal.

16. FILTER REPLACEMENT

16.1 PurePour Connect™ Water Filter

Keep safe, great-tasting water flowing with a PurePour Connect™ water filter. Using a PurePour Connect™ water filter:

- Makes safe water second nature

PurePour Connect™ water filters are certified to reduce contaminates* and keep great-tasting water flowing for you and your family.

• Produces purity you can trust

Know for certain your PurePour Connect™ water filter is a protector. Counterfeits and knockoffs put your refrigerator and health at risk. Frigidaire Genuine Filters are the smarter, safer choice.

• Every drop gives back

Partnered on sustainability efforts the use of a PurePour Connect™ water filter helps cut back on the cost and use of plastic used to produce and package bottled water

*For the complete list, please see Performance Data Sheet on Frigidaire.com.

16.2 Ordering replacement filters

NOTE

When you order your replacement filter, please reorder the same filter type currently in your refrigerator.

To order your replacement filters, please call toll-free at 1-800-374-4432, or visit Frigidaire.com. Frigidaire recommends that you order extra filters when you first install your appliance, and that you replace your filters at least once every 6 months.

Here are the product numbers to request when ordering:

• PurePour Connect™ Water Filter PWF-1™ FPPWFUO1 for models: GRMS2773, GRMN2872, FRMS2733
• PurePour Connect™ Water Filter PWF-2™ FPPWFUO2 for models: GRMC2273, GRMG2272

Find the Performance Data Sheet located in the Guides and Manuals section for your specific water filter on Frigidaire.com:

- PWF-1™ FPPWFUO1

Performance Data Sheet

- PWF-2™ FPPWFUO2

Performance Data Sheet

16.3 More about your advanced water filter

The PurePour Connect™ PWF-1™ FPPWFUO1, PurePour Connect™ PWF-2™ FPPWFUO2 ice and water filter system is tested and certified by IAPMO R&T against Standards 42, 53, 401 and NSF/ANSI/CAN 372CSA B483.1 in PurePour Connect™ PWF-1/PWF-2 for the reduction of claims specified on the Performance Data Sheet. Visit Frigidaire.com for more information.

Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Use systems certified for cyst reduction on disinfected waters that may contain filterable cysts.

Test & certification results

• Rated Capacity - 125 gal / 453 L for PurePour Connect™ and ice and water filter
  • Rated service flow - .50 gal/min
• Operating Temperature: Minimum: 33°F, Maximum: 100°F
  • Maximum rated pressure - 100 lbs/in²
• Recommended minimum operating pressure: 30 lbs/in ^2

PurePour Connect™ Authentication

Only for models: GRMC2273, GRMG2272

The refrigerator contains a water filter authentication system to protect you from the harm that can occur when using counterfeit filters. We recommend you use only the PurePour Connect™ water filter with this appliance. Using any other filter can cause an error (Er FA) to appear on the appliance control display.

Errors can occur:

• If you remove and reinsert an authentic expired filter into the appliance.
• If you install an authentic, but incorrect filter.
• If you install a non-authentic filter.
• If you do not install the filter properly.

In the cases above, the appliance control display may show an error code related to the filter authentication, and Replace Water Filter appears on the display. You can still use dispensing functions while the error displays.

Press and hold the Water Filter button for 3 seconds to dismiss the error. You can dismiss the error twice. On the third appearance, the error code permanently displays on the appliance control until you install a new authentic filter.

16.4 Replacing your PurePour Connect™ water filter

The water filter is located at the top right side of the refrigerator compartment.

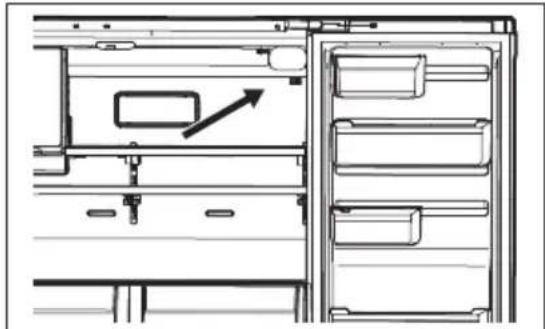

Technical line drawing of a refrigerator interior showing door, shelves, and door frame (no text or symbols)

In general, you should change the water filter every 6 months to ensure the highest possible water quality. Water Filter Status on the user interface prompts you to replace the filter after a standard amount of water (125 gal / 453 L for PurePour Connect™) has flowed through the system.

If you have not used your appliance for a period of time (during moving for example), change the filter before reinstalling the appliance.

It is not necessary to turn the water supply off to change the filter. Small amounts of water may be released during the filter replacement.

1. Turn off the ice maker.
2. Pull the water filter cover forward. Cover drops down to allow access to the filter.
3. Remove the filter by pushing on the end/face of the filter.
4. Slide the old water filter cartridge straight out of the housing and discard it.
5. Unpack the new filter cartridge. Using the alignment guide, slide it gently into

the filter housing until it stops against the snap-in connector at the back of the housing.

1. Push firmly until the cartridge snaps into place. There is a clicking sound as the cartridge engages with the snap-in connector.
2. Press a drinking glass against the water dispenser while checking for any leaks at the filter housing. Any spurts and sputters that occur as the system purges air out of the dispenser system are normal.
3. Push the cover up toward the liner. Then push the filter cover toward the rear of the cabinet. The filter cover snaps back into place.
4. After filling one glass of water, continue flushing the system for about 4 minutes.
5. Once the filter is installed, the authentication process may take up to 30 seconds to complete. After authentication is complete, the filter status on the display automatically updates based on the condition of the filter
6. Turn on the ice maker.

16.5 PureAir™ Air Filter

For some models.

The air filter is located in the top center of the fresh food compartment.

To order replacement filters, please visit our online store at Frigidaire.com or call toll-free at 1-800-374-4432. Here are the product numbers to request when ordering:

• PureAir™ RAF-2 Air Filter FRGPAAF2 for models: GRMS2773, GRMN2872, GRMC2273, GRMG2272
• PureAir™ RAF-1 Air Filter FRGPAAF1 for models: FRMS2733

NOTE

We recommend you always use genuine Frigidaire replacement filters only.

16.6 Replacing your PureAir™

To ensure optimal filtering of refrigerator odors, you should change the air filter every 6 months. Replace Air Filter on the appliance control display indicates replacing the filter after 6 months.

To remove and replace the air filter:

1. Remove the air filter cover by squeezing the top and bottom of the cover together and removing from liner.
2. Remove the old filter and discard it.
3. Unpack the new filter and snap it into the filter cover. The open face (carbon media) of the filter should be installed facing outward in the cover.
4. Replace the air filter cover by squeezing the sides and snapping it back into place.
5. To reset, press and hold Reset Air Filter on the appliance control display for 3 seconds until you hear a sound.

Diagram showing a computer setup with labeled components and a magnified view of the internal structure.

16.7 PureAir Produce Keeper Plus™

Keep fruits and vegetables fresher longer with PureAir Produce Keeper Plus™. Our produce keeper absorbs ethylene gas, the natural gas that causes produce to ripen quicker. Reduce food waste, save money and enjoy fresh-tasting produce with a longer storage life.

Technical line drawing of a device housing with a grid-patterned panel and a separate rectangular component (no text or symbols)

Ordering Base Starter Kit

To keep food fresh for longer, you can purchase PureAir Produce Keeper Plus™

Base Starter Kit, one for each crisper drawer.

Here are the product numbers to request when ordering:

Part #FRPAPK2SKT

Ordering Replacement Filters

To order your replacement filters, please visit our online store at Frigidaire.com, by calling toll-free at 1-800-374-4432, or by visiting the dealer where you purchased your refrigerator. Frigidaire recommends that you replace your filters at least once every 6 months.

Here are the product numbers to request when ordering:

PureAir Produce Keeper Plus™ PK-2 Part #FRPAPK2RF

16.8 Installing the PureAir Produce Keeper Plus™

1. Remove the plastic wrapper. Insert unopened packet into the holder in the crisper drawer.

2. For optimal results, replace the refill every 12 months along with your air filter.

Line drawing of a mechanical drawer with a slide and side panel (no text or symbols)

CAUTION!

• Do not open cloth pouch. Keep out of the reach of children.
• Do not eat. If ingested, seek medical treatment immediately.
• Wash hands after handling.
• Do not submerge in water.

17. CARE AND CLEANING

17.1 Protecting your investment

Keeping your appliance clean maintains its appearance and prevents odor build-up. Wipe up any spills immediately and clean the freezer and fresh food compartments at least twice a year. When cleaning, take the following precautions:

• Never use chloride or cleaners with bleach to clean stainless steel.
• Do not wash any removable parts in a dishwasher.
  • Always unplug the electrical power cord from the wall outlet before cleaning.
• Do not remove the serial plate. Removal of your serial plate voids your warranty.
• Remove adhesive labels by hand. Do not use razor blades or other sharp instruments which can scratch the appliance surface.

Do not use abrasive cleaners such as window sprays, scouring cleansers, brushes, flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum

products on plastic parts, interior doors, gaskets or cabinet liners. Do not use paper towels, metallic scouring pads, or other abrasive cleaning materials or strong alkaline solutions.

Refer to the guide below for more details on caring and cleaning specific areas of your appliance.

CAUTION!

Pull the appliance straight out to move it. Shifting it from side to side may damage flooring.

Be careful not to move the appliance beyond the plumbing connections.

IMPORTANT

If you store or move your appliance in freezing temperatures, be sure to completely drain the water supply system. Failure to do so could result in water leaks when the appliance is put back into service. Contact a service representative to perform this operation.

17.2 Vacation and moving tips

Occasion Tips
Short vacations	Leave the appliance operating during vacations of three weeks or less.Use all perishable items from the appliance compartment.Turn automatic ice maker off and empty ice bucket, even if you will only be gone a few days.
Long vacations	Remove all food and ice if you will be gone one month or more.Turn water supply valve to closed position.Clean interior thoroughly.Leave both doors open to prevent odors and mold build-up. Block doors open if necessary.
Moving	Unplug the applianceRemove all food and ice.Recommend use of a handcart, load from the side.Adjust rollers all the way up to protect them during sliding or moving.Pad cabinet to avoid scratching surface.

17.3 Care & Cleaning Tips

Part What to use Tips and precautions
Interior and door liners	Soap and waterBaking soda and water	Use 2 tablespoons of baking soda in 1 quart of warm water. Be sure to wring excess water out of sponge or cloth before cleaning around controls, light bulb or any electrical part.
Door gaskets Soap and water Wipe gaskets with a clean soft cloth.
Glass shelves	Soap and waterGlass cleanerMild liquid sprays	Allow glass to warm to room temperature before immersing in warm water.
Exterior and handles	Soap and waterNon abrasive glass cleaner	Do not use commercial household cleaners containing ammonia, bleach or alcohol to clean handles. Use a soft cloth to clean smooth handles.Do not use a dry cloth to clean smooth doors.
Exterior and handles (Stainless steel models only)	Soap and waterStainless steel cleaners	Never use chloride or cleaners with bleach to clean stainless steel.Clean stainless steel front and handles with non-abrasive soapy water and a dishcloth. Rinse with clean water and a soft cloth. Use a non-abrasive stainless steel cleaner. These cleaners can be purchased at most home improvement or major department stores. Always follow manufacturer's instructions. Do not use household cleaners containing ammonia or bleach.Always clean, wipe and dry with the grain to prevent scratching. Wash the rest of the cabinet with warm water and mild liquid detergent. Rinse well, and wipe dry with a clean soft cloth.

18. TROUBLESHOOTING

Let us help you troubleshoot your concern! This section will help you with common issues. If you need us, visit our website, chat with an agent, or call us. We may be able to help you avoid a service visit. If you do need service, we can get that started for you!

Visit Frigidaire.com or call toll-free 1-800-374-4432.

Automatic Ice Maker

Concern Potential Cause Common solution

Ice maker is not making any ice. Ice maker is turned off. Press and hold the ice maker button on the appliance control display for 3 seconds. The LED indicator illuminates to indicate the ice maker is on.
Refrigerator is not connected to water line or water valve is not open.	Connect the unit to the household water supply and ensure the water valve is open.
The water supply line is kinked. Ensure that the supply line does not kink when the refrigerator is pushed into place against the wall.
The water filter is not seated properly.	Remove and re-install the water filter. Be sure to seat it fully into the locked position.
The water filter may be clogged with foreign material.	If water dispenses slowly or not at all, or if the filter is 6 months old or older, it should be replaced.

Concern Potential Cause Common solution
Ice maker is not making enough ice.	Ice maker is producing less ice than you expect.	· In a standard depth model, the refrigerator ice maker should produce 3.2 to 3.7 lbs of ice per 24 hours and will hold around 5 lbs of ice.· In a counter depth model, the refrigerator ice maker should produce 3.2 to 3.7 lbs of ice per 24 hours and will hold around 4 lbs of ice.
	The water filter may be clogged with foreign material.	If water dispenses slower than normal, or if the filter is six months old or older, it should be replaced.
	Saddle valve on cold water pipe is clogged or restricted by foreign material.	Ensure that the supply line does not kink when the refrigerator is pushed into place against the wall.
	Heavy traffic, opening or closing of the doors excessively.	Turn off household water line valve. Remove valve. Clean valve. Replace valve if necessary.
	Freezer control is set too warm (freezer ice maker).	Set freezer control to colder setting to improve performance of the ice maker (freezer ice maker). Allow 24 hours for temperature to stabilize.
	Water pressure is extremely low. Cut-off and cut-on pressures are too low (well systems only).	Have someone turn up the cut-off and cut-on pressure on the water pump system (well systems only).
	Reverse osmosis system is in regenerative phase.	It is normal for a reverse osmosis system to be below 20 psi during the regenerative phase.
Freezer ice maker will not stop making ice (some models).	Ice maker bail arm is being held down by a package in the freezer that has fallen against ice maker.	Move any item or frozen ice cubes that may block the bail arm from being in the off or upward position.
	Ice cubes are located in once spot inside the freezer ice bin.	Periodically move ice cubes around the ice bin so that ice maker will continue to make ice.

Concern Potential Cause Common solution
Ice cubes are freezing together. Ice cubes are not being used frequently enough or interruption of power for prolonged time.	Remove ice container and discard ice. The ice maker will produce fresh supply. Ice should be used at least twice weekly to keep the cubes separated.
Ice cubes are hollow (shells of ice with water inside). The hollow cubes break open in the bin and leak their water onto existing ice, which causes it to freeze together.	This generally occurs when the ice maker does not get enough water. This is usually the result of a clogged water filter or restricted water supply.Replace the water filter and if the condition still occurs check for a clogged saddle valve, water valve not turned on all the way or kinked water supply line.

Ice and water dispenser

Concern Potential cause Common solution
Dispenser does not dispense ice.	There is no ice in the bin to be dispensed.	See the section above: Ice maker is not making any ice.
	The refrigerator doors are not completely closed.	Completely close the refrigerator doors.
	Dispenser paddle has been pressed too long and the dispenser motor has overheated.	The motor overload protector will reset in about 3 minutes, and then ice can be dispensed.
	Not dispensing ice regularly may melt and re-freeze ice causing ice clumping. Dispensing clumps could damage the ice bucket.	Empty the ice bucket monthly or regularly dispense ice. For longer periods of time (vacation or vacant homes) turn off the ice maker. See tips in Automatic Ice and Water Dispenser.
Ice dispenser is jammed. Ice has melted and frozen around auger due to infrequent use, temperature fluctuations, and/or power outages.		Remove ice container, thaw, and empty the contents. Clean container, wipe dry, and replace in proper position. When new ice is made, dispenser should operate. See tips on cleaning in Automatic Ice and Water Dispenser.
		Ice cubes are jammed between ice maker and back of ice container.

Concern Potential cause Common solution
Dispenser does not dispense water.	Water filter not seated properly. Remove and reinstall the water filter. For PurePour ConnectTM, be sure to push the filter in all the way until it clicks into place and is secured inside of the water filter housing.
	Water filter is clogged. Replace filter cartridge. Be sure to push filter all the way in until it clicks into place and is secured inside of the water filter housing.
	Household water line valve is not open.	Open household water line valve.
Water not cold enough. The water dispensing system is not designed to chill water. As warmer tap water goes through the filter and enters the water supply system, the chilled water is pushed through to the dispenser. Once the chilled water is used up, it will take several hours to bring the freshly replaced water to a cooler temperature.	Add ice to cup or container before dispensing water. Only the first 26 oz are chilled.
Water has an odd taste and/or odor.	Water has not been dispensed for an extended period of time.	Draw and discard 10-12 glasses of water to freshen the supply.
	The appliance not properly connected to cold water line.	Connect the appliance to cold water line that supplies water to the kitchen faucet.

Opening/Closing of Doors/Drawers

Concern Potential cause Common solution
Door(s) does not close. Door was closed too hard, causing other door to open slightly.		Close both doors gently.
		Refrigerator is not level. It rocks on the floor when moved slightly.
		Refrigerator is touching a wall or cabinet.
		Food/packaging is obstructing the door from closing.
		Flipper mullion on left fresh food door is not in the correct position.

Concern Potential cause Common solution
Drawers are difficult to move. Food is touching shelf on top of drawer.	Remove top layer of items in drawer.
	Track that drawers slide on is dirty.	·Ensure drawer is properly installed on track.·Clean drawer, rollers, and track. Refer to Care and Cleaning.

Running of appliance

Concern Potential cause Common solution
Compressor does not run. The appliance is unplugged. Plug in the appliance.
	Refrigerator is in defrost cycle. This is normal for a fully automatic defrost refrigerator. The defrost cycle occurs periodically, lasting about 30 minutes.
	Plug at electrical outlet is disconnected.	Ensure plug is tightly pushed into outlet.
	House fuse blown or tripped circuit breaker.	Check/replace fuse with a 15 amp time-delay fuse. Reset circuit breaker.
	Power outage. Check house lights.	Call local electric company.
Refrigerator seems to run too much or too long.	The variable speed compressor is designed to run 100% of the time except during the defrost cycle. At times it will run faster, such as after a defrost cycle.	It is normal for the compressor to run continuously except during defrost mode.
One compartment feels cooler than the other after installation.	This appliance is equipped with a refrigeration system that changes between compartments periodically.	This is normal behavior right after installation. Allow 24 hours for the appliance to stabilize and reach the desired temperatures.

Digital temperature display

Concern Potential cause Common solution
Digital temperature displays an error.	Electronic control system has detected a performance problem.	Call your Frigidaire service representative, who can interpret any messages or number codes flashing on the digital displays.

Concern Potential cause Common solution

Moisture collects on inside of refrigerator walls.	Weather is hot and humid. The rate of frost buildup and inter-nal sweating increases.
	Flipper mullion Adjust flipper mullion. Refer to Flipper Mullion in Installation.
	Door is slightly open. See the Opening/Closing of Doors/Drawers section above.
Water collects on bottom side of drawer cover.	Vegetables contain and give off moisture.	It is not unusual to have mois-ture on the bottom side of the cover.Move humidity control (some models) to lower setting.Both crispers contain an auto-matic humidity control, which should adjust automatically to the varying levels of moisture inside the drawer without cre-ating additional condensation or drying out the air inside the crisper drawer, works with various types of produce. If you notice excess moisture, check to verify humidity mem-brane is not damaged and re-place as necessary.
Water collects in bottom of draw-er.	Washed vegetables and fruit drain while in the drawer.	Water collecting in bottom of drawer is normal. Dry items be-fore putting them in the drawer or store produce in tightly sealed bags to help reduce condensation inside of the drawer.

Water/Moisture/Frost Outside Refrigerator

Concern Potential cause Common solution
Moisture collects on outside of refrigerator or between doors.	Weather is humid. This is normal in	humid weather.When humidity is lower, the moisture should disappear.
	Door is slightly open, causing cold air from inside refrigerator to meet warm air from outside.	See the Opening/Closing of Doors/Drawers section above.

Concern Potential cause Common solution

Food is freezing. Temperature setting is too low. Move the setting to a higher degree.

Temperature sensor is covered by food (right side of fresh food area).

Allow space for air flow to the sensor.

Food is covering the air ports. Allow space between the air ports and the food.

19. LIMITED WARRANTY

Your appliance is covered by a one year limited warranty. For one year from your date of delivery, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.

Exclusions

This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased "as-is" are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs, handles, or other cosmetic parts.

11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during transportation or installation, including but not limited to floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS

PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

If You Need Service

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below.

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated are subject to change without notice.

USA

1-800-374-4432

Frigidaire

10200 David Taylor Drive

Charlotte, NC 28262

Canada

1-800-265-8352

Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario, Canada L5V 3E4

Line drawing of a refrigerator interior with a door, shelf, and door panel (no text or symbols)

AVERTISSEMENT!

Technical line drawing of a mechanical device with internal compartments and mounting brackets (no text or symbols)

IMPORTANT

220 mm 8.75 in 312 mm 12.25 in 120° 120° 25.4 mm 1 in 9.5 mm 0.37 in 933.4 mm 36.75 in 9.5 mm 0.37 in

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Two identical electrical cabinets with internal components and upward arrows indicating direction (no text or symbols)

Technical diagram showing a mechanical assembly with an inset close-up of a valve mechanism (no text or symbols present)

Technical diagram showing mechanical assembly with cross-sectional views and directional arrows (no text or symbols)

4. RETRAIT DE LA PORTE

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing electrical connections with labeled components and directional arrows, including a magnified inset of a device component.

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

REMARQUE

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and a lever mechanism (no text or symbols)

Technical diagram showing a door panel with labeled buttons and an inset magnified view highlighting a component.

Diagram showing a device with labeled control panel and magnified view of a mechanical component, including Chinese annotations.

REMARQUE

Technical line drawing of a mechanical device with internal components and mounting brackets (no text or symbols)

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Technical line drawing of a mechanical assembly with an inset close-up of a component (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset magnified detail showing internal components (no text or symbols)

Technical line drawing of an electrical connector with wires and connectors (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a component (no text or symbols present)

Diagram illustrating the assembly of a refrigerator with labeled components and an inset view showing internal structure.

REMARQUE

Line drawing of a coiled cable with two connectors (no text or symbols)

Technical line drawing of a mechanical connector with a curved arrow indicating rotation (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts A and B, including a rotating component and directional arrows.

Top-down line drawing of a refrigerator interior with a cat silhouette on the door (no text or symbols)

7.2 Clear Alerts (annuler les alertes)

Porte ouverte

Line drawing of a refrigerator interior with a circular badge highlighting the front panel (no text or symbols)

8.2 Clear Alerts (annuler les alertes)

Porte ouverte

Diagram showing a device with labeled components and an arrow pointing to a component, likely indicating a measurement or status.

ATTENTION!

Illustration of hands using a tool to remove granular material from a container (no text or symbols)

Line drawing showing a hand holding a doorbell with a control panel labeled 'LE' and Chinese characters, next to a staircase interior.

Two-panel illustration showing a refrigerator interior and a hand inserting a device into a machine (no text or symbols)

Diagram of a hand holding a tablet or tablet device against a wall-mounted frame (no text or symbols)

Line drawing of a printer with an arrow indicating the process (no text or symbols present)

13.4 Tiroirs

Technical line drawing of a mechanical component with two views (1 and 2), showing internal structure and directional arrows (no text or symbols)

Technical diagram showing three sequential steps of a mechanical assembly or lifting process, labeled 1, 2, and 3.

Technical diagram of a mechanical device with labeled components and directional arrow indicating movement or force

Diagram showing a hand using a tool to install or install a component, with an inset magnified view highlighting the step and direction of the component (no text or symbols present)

Technical line drawing of a mechanical assembly with two parallel plates and a transparent housing (no text or symbols)

Technical line drawing of a mechanical component with two directional arrows indicating flow or movement (no text or symbols present)

Technical line drawing of a rectangular plastic housing or tray (no text or symbols)

13.11 Portes

Technical illustration of three views of a refrigerator with internal compartments and mounting brackets (no text or symbols)

Technical line drawing of a refrigerator interior showing door, shelf, and drawer (no text or symbols)

Technical line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Line drawing of a rectangular plastic container with internal compartments and mounting holes (no text or symbols)

Exploded view diagram of an electronic device with labeled components from I to H

REMARQUE

Technical line drawing of a refrigerator interior showing door, shelves, and door frame (no text or symbols)

Diagram showing a server rack with labeled components and an inset magnified view of the rack structure.

16.7 PureAir Produce Keeper Plus™

Technical line drawing of a device housing with a grid-patterned panel and a separate rectangular component (no text or symbols)

Technical line drawing of a mechanical device with internal components and a central screen (no text or symbols)

ATTENTION!

Line drawing of a refrigerator interior with a door, shelf, and door panel (no text or symbols)

ADVERTENCIA!

Technical line drawing of a refrigerated refrigerator unit with internal compartments and doorways (no text or labels)

IMPORTANTE

Diagram showing a plug with two slots and a labeled section A (no text or symbols beyond label)

2. CARACTERÍSTICAS

IMPORTANTE

220 mm 8.75 in 312 mm 12.25 in 120° 120° 25.4 mm 1 in 9.5 mm 0.37 in 933.4 mm 36.75 in 9.5 mm 0.37 in

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Two identical electrical cabinets with upward arrows indicating direction, no text or symbols present

Technical diagram showing a mechanical assembly with an inset close-up of a valve mechanism (no text or symbols present)

3.8 Aleta parteluz

Technical diagram showing mechanical assembly with cross-sectional views and rotation arrows (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing electrical connections with labeled components and directional arrows, including a magnified inset of a device.

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

NOTA

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Technical diagram showing mechanical assembly with labeled parts and alignment indicators

Technical diagram showing a door panel with labeled buttons and an inset magnified view highlighting a component.

Modelo con dispensador interno

Diagram showing a device with labeled control panel and magnified view of a mechanical component, including Chinese annotations.

NOTA

Technical line drawing of a mechanical device with internal components and mounting brackets (no text or symbols)

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Technical line drawing of a mechanical assembly with an inset close-up of a component (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset magnified detail showing internal components (no text or symbols)

Technical line drawing of an electrical connector with wires and a terminal block (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a component (no text or symbols present)

Diagram illustrating the assembly of a refrigerator with labeled components and an inset view showing internal structure.

Line drawing of a coiled cable with two connectors (no text or symbols)

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Top-down line drawing of a refrigerator interior with a cat-shaped logo on the front panel (no text or symbols)

7.2 Clear Alerts (Borrar alertas)

Door Open (Puerta abierta)

Technical line drawing of a refrigerator interior with a circular badge on the front panel (no text or symbols)

8.2 Clear Alerts (Borrar alertas)

Door Open (Puerta abierta)

Diagram showing a device with labeled ports and an arrow pointing to a component, likely indicating a location or flow.

PRECAUCIÓN!

Illustration of hands using a tool to remove granular material from a container (no text or symbols)

Line drawing showing a hand holding a device labeled 'LE' with Chinese characters, next to a door frame structure.

Two-panel illustration showing a refrigerator interior and a hand inserting a device into a machine (no text or symbols)

Diagram of a hand holding a tray with a wall-mounted frame, no text or symbols present

Line drawing of a printer or printer with an arrow indicating the process (no text or symbols present)

13.4 Cajones

Technical illustration of a mechanical component with two views (1 and 2), showing internal structure and directional arrows (no text or symbols)

Technical diagram showing three sequential steps of a mechanical assembly or lifting process, labeled 1, 2, and 3.

Technical diagram of a mechanical device with labeled components and directional arrow

i

Diagram showing a hand pressing down on a shelf with an inset magnified view of the mechanism (no text or symbols present)

Technical line drawing of a mechanical assembly with two parallel plates and a transparent housing (no text or symbols)

Technical line drawing of a mechanical component with directional arrows indicating movement or force (no text or symbols)

13.8 Cajón de temperatura Custom-Flex™

(algunos modelos)

Technical line drawing of a rectangular plastic housing or tray (no text or symbols)

13.11 Puertas

Technical illustration of three views of a multi-tiered refrigerator unit with an inset showing the front panel opening (no text or symbols present)

Technical line drawing of a mechanical assembly or housing component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical assembly with arrows indicating direction (no text or symbols)

Line drawing of a rectangular plastic container with internal compartments and mounting holes (no text or symbols)

Exploded view diagram of an electronic device with labeled components from I to H

NOTA

Technical line drawing of a refrigerator interior showing door, shelves, and door frame (no text or symbols)

Diagram showing a computer setup with labeled components and a magnified view of the internal structure.

16.7 PureAir Produce Keeper Plus™

Technical line drawing of a multi-layered plastic component with a separate rectangular housing (no text or symbols)

Technical line drawing of a mechanical device with internal components and a central screen (no text or symbols)

PRECAUCIÓN!

Theorem 1.2. (A) Let () be a finite field and let (0) be the set of all elements in () such that (0) is a finite field, so if (0) is a finite field, then let (0) be the set of all elements in () . Then

frigidaire.com
