USER MANUAL GWX 13-125 Professional BOSCH

3D rendering of a gray industrial power tool with a spoke and handle (no text or symbols visible)

Robert Bosch Power Tools GmbH

70538 Stuttgart

GERMANY

www.bosch-pt.com

1 609 92A 4FB (2019.01) 0 / 353

1 609 92A 4FB

GWX

13-125|13-125S|17-125|17-125S|17-125T|17-150| 19-125 S

BOSCH

Winkelschleifer GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

Mechanical diagram showing two cross-sectional views of a gear assembly with rotational arrows (no text or labels)

Diagram illustrating a mechanical assembly with labeled parts and directional arrows, likely illustrating a process or assembly step.

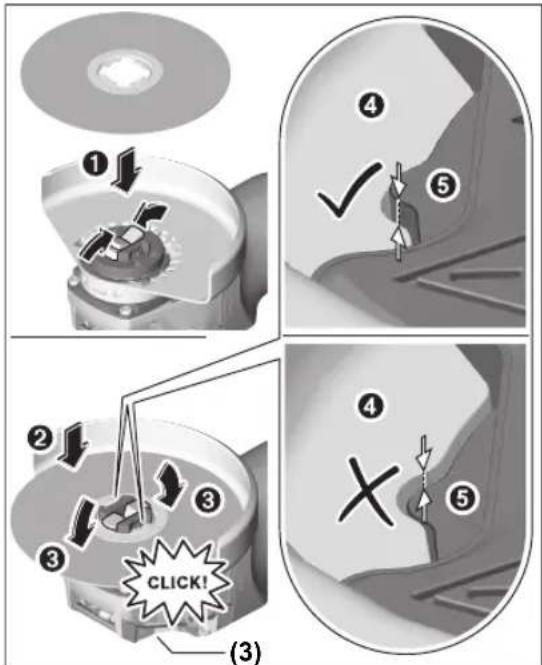

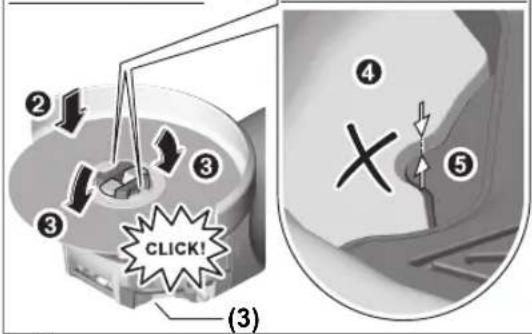

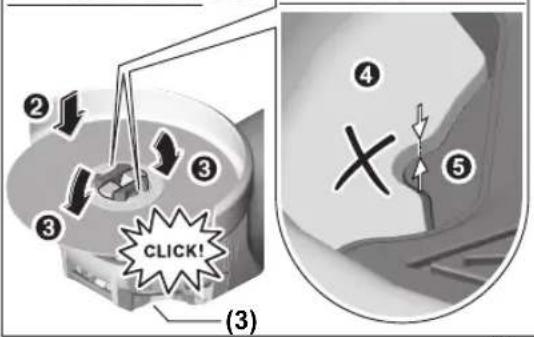

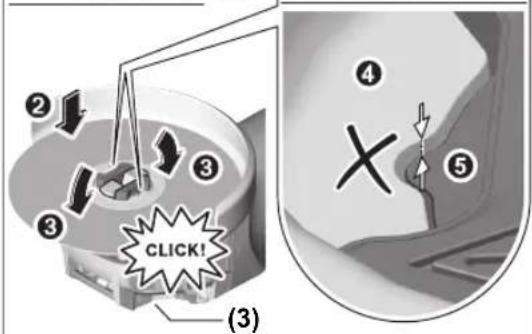

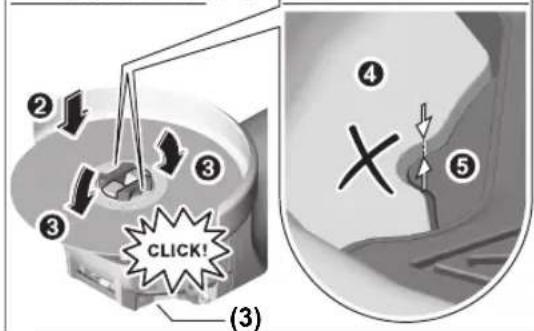

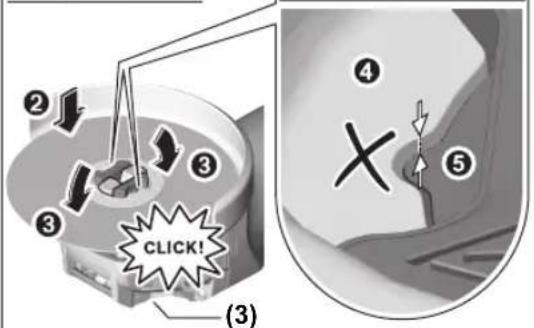

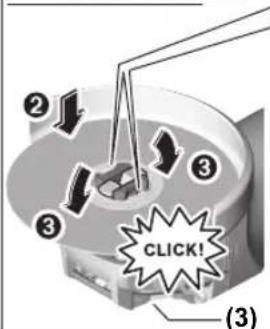

② ③ ③ CLICK! ④ ⑤ (3)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow

Technical diagram of a mechanical component with numbered parts and directional arrow indicating rotation or movement

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm performing a circular motion maneuver on a platform (no text or symbols)

Mechanical diagram showing a tool interacting with a fan or blade, with no visible text or symbols.

General Power Tool Safety Warnings

WARNING

Read all safety warnings and all instructions. Failure to follow the

warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

▶ Keep work area clean and well lit. Cluttered or dark areas invite accidents.
▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock..
▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
▶ If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do

the job better and safer at the rate for which it was designed.

▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Service

▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety information for the angle grinder

Safety Warnings common for Grinding, Sanding, Wire Brushing or Abrasive Cutting Off operations

This power tool is intended to function as a grinder, sander, wire brush or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
▶ Operations such as polishing are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.
▶ Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.
The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.

18 | English

The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by flanges, the arbour hole of the accessory must fit the locating diameter of the flange. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.
▶ Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no load speed for one minute. Damaged accessories will normally break apart during this test time.
▶ Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.
▶ Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.
▶ Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
▶ Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.
▶ Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.
▶ Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
▶ Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive

accumulation of powdered metal may cause electrical hazards.

▶ Do not operate the power tool near flammable materials. Sparks could ignite these materials.
▶ Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

Kickback and Related Warnings

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding.

For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.

Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

▶ Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.

▶ Never place your hand near the rotating accessory. Accessory may kickback over your hand.

Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.

▶ Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.

▶ Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.

Safety Warnings specific for Grinding and Abrasive Cutting-Off operations

▶ Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
The grinding surface of centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected.
The guard must be securely attached to the power tool and positioned for maximum safety, so the least

amount of wheel is exposed towards the operator.

The guard helps to protect operator from broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing.

▶ Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.
▶ Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges.
▶ Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst.

Additional Safety Warnings specific for Abrasive Cutting Off operations

Do not "jam" the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.
▶ Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you.
When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding.
▶ Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
▶ Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.
▶ Use extra caution when making a "pocket cut" into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.

Safety Warnings specific for Sanding operations

▶ Do not use excessively oversized sanding disc paper. Follow manufacturers recommendations, when selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc, or kickback.

Safety Warnings specific for Wire Brushing operations

▶ Be aware that wire bristles are thrown by the brush even during ordinary operation. Do not overstress the wires by applying excessive load to the brush The wire bristles can easily penetrate light clothing and/or skin.
If the use of a guard is recommended for wire brushing, do not allow any interference of the wire wheel or brush with the guard. Wire wheel or brush may expand in diameter due to work load and centrifugal forces.

Additional safety information

Wear safety goggles.

▶ Use suitable detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage or may cause an electric shock.
▶ Do not touch grinding and cutting discs until they have cooled down. The discs can become very hot while working.
▶ Release the On/Off switch and set it to the off position when the power supply is interrupted, e. g., in case of a power failure or when the mains plug is pulled. This prevents uncontrolled restarting.

Products sold in GB only:

Your product is fitted with an BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362).
If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug.
The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.
▶ Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.

Product Description and Specifications

Read all the safety and general instructions.

Failure to observe the safety and general instructions may result in electric shock, fire and/or serious injury.

Please observe the illustrations at the beginning of this operating manual.

Intended use

The power tool is intended for roughing metal, stone and ceramic materials and for drilling tiles.

With approved abrasive tools, the power tool can be used for sanding with sanding discs.

20 | English

A special protective guard for cutting must be used when cutting bonded abrasives.

Sufficient dust extraction must be provided when cutting stone.

Together with the hand guard (accessory), the power tool can be used for brushing and sanding with elastic sanding pads.

The power tool is suitable only for working without water.

Product features

The numbering of the product features refers to the diagram of the power tool on the graphics page.

(1) Unlocking lever for protective guard
(2) Direction of rotation arrow on housing
(3) Lever
(4) On/off switch
(5) Speed preselection thumbwheel (GWX ... S/T)
(6) Auxiliary handle (insulated gripping surface)

(7) Protective guard for grinding
(8) X-LOCK grinding disc/flap disc ^A)
(9) Protective guard for cutting ^4
(10) X-LOCK cutting disc A)
(11) X-LOCK backing pad for fibre discs ^A)
(12) X-LOCK fibre disc ^A)
(13) X-LOCK clip for fibre discs A)
(14) Hand guard ^A)
(15) X-LOCK cup brush/disc brush ^A)
(16) X-LOCK holder
(17) Handle (insulated gripping surface)
(18) Extraction guard for cutting with a guide block ^A)
(19) Diamond cutting disc A)
(20) X-LOCK diamond core cutter ^A)
A) Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.

Technical data

Angle grinder GWX 13-125 GWX 13-125 S GWX 17-125

Article number	3 601 GB5 0.. 3 601 GB6 0.. 3 601 GC3 0..
Rated power input W 1300 1300 1700
Power output W 700 700 1010
Rated speed min	-1	11,500	11,500	11,500
Speed adjustment range min	-1	-2800-11500
Max. grinding disc diameter mm 125 125 125
Speed preselection - ● -
Restart protection		●●●
Constant electronic control		●●●
Starting current limitation		●●●
Kickback stop		●●●
Weight according to EPTA-Procedure 01:2014
- with additional low-vibration auxiliary handle	kg	2.4	2.4	2.5
- with standard auxiliary handle	kg	2.3	2.3	2.4
Protection class		☐/II	☐/II	☐/II

The specifications apply to a rated voltage [U] of 230 V. These specifications may vary at different voltages and in country-specific models.

Angle grinder		GWX 17-125 S	GWX 17-125 T	GWX 17-150	GWX 19-125 S
Article number		3 601 GC5 0..	3 601 GC4 0..	3 601 GC6 0..	3 601 GC8 0..
Rated power input	W	1700	1700	1700	1900
Power output	W	1010	1010	1010	1220
Rated speed min	-1	11,500	9300	9300	11,500
Speed adjustment range min	-1	2800–11,500	2800–9300	-	2800–11,500
Max. grinding disc diameter	mm	125	125	150	125
Speed preselection		●	●	-	●
Restart protection		●	●	●	●
Constant electronic control		●	●	●	●

English | 21

Angle grinder GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

Starting current limitation ● ● ● ●
Kickback stop ● ● ● ●
Weight according to EPTA-Procedure 01:2014
– with additional low-vibration auxiliary handle	kg 2.5 2.5 2.5 2.5
– with standard auxiliary handle	kg 2.4 2.4 2.4 2.4
Protection class	☐ / II / II / II / II	☐	☐	☐	☐

The specifications apply to a rated voltage [U] of 230 V. These specifications may vary at different voltages and in country-specific models.

Noise/Vibration Information

		GWX 13-125 GWX 13-125 S GWX 17-125
		3 601 GB5 0.. 3 601 GB6 0.. 3 601 GC3 0..
Noise emission values determined according to EN 60745-2-3.
Typically, the A-weighted noise level of the power tool is:
Sound pressure level	dB(A)	91	91	92
Sound power level	dB(A)	102	102	103
Uncertainty K	dB	3	3	3
Wear hearing protection
Total vibration values a_h (triax vector sum) and uncertainty K determined according to EN 60745-2-3:
Grinding surfaces (roughing):
a_h	m/s^2	6.0	6.0	6.0
K	m/s^2	1.5	1.5	1.5
Grinding with abrasive disc:
a_h	m/s^2	2.0	2.0	4.0
K	m/s^2	1.5	1.5	1.5

	GWX 17-125 S	GWX 17-125 T	GWX 17-150	GWX 19-125 S
	3 601 GC5 0...	3 601 GC4 0..	3 601 GC6 0..	3 601 GC8 0..

Noise emission values determined according to EN 60745-2-3.

Typically, the A-weighted noise level of the power tool is:

Sound pressure level	dB(A)	92	91	92	91
Sound power level	dB(A)	103	102	103	102
Uncertainty K	dB	3	3	3	3
Wear hearing protection

Total vibration values a_h (triax vector sum) and uncertainty K determined according to EN 60745-2-3:

Grinding surfaces (roughing):

a_h	m/s2	6.0	5.5	7.0	6.0
K	m/s2	1.5	1.5	1.5	1.5
Grinding with abrasive disc:
a_h	m/s2	4.0	2.5	2.5	4.0
K	m/s2	1.5	1.5	1.5	1.5

22 | English

The vibration level given in these instructions has been measured in accordance with a standardised measuring procedure and may be used to compare power tools. It can also be used for a preliminary estimation of exposure to vibration.

The stated vibration level applies to the main applications of the power tool. However, if the power tool is used for different applications, with different application tools or poorly maintained, the vibration level may differ. This can significantly increase the exposure to vibration over the total working period.

To estimate the exposure to vibration accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This can significantly reduce the exposure to vibration over the total working period.

Implement additional safety measures to protect the operator from the effects of vibration, such as servicing the power tool and application tools, keeping the hands warm, and organising workflows correctly.

Fitting

Fitting protective equipment

▶ Pull the plug out of the socket before carrying out any work on the power tool.

Note: If the grinding disc breaks during operation or the holding fixtures on the protective guard/power tool become damaged, the power tool must be sent to the after-sales service immediately; see the "After-sales service and advice on using products" section for addresses.

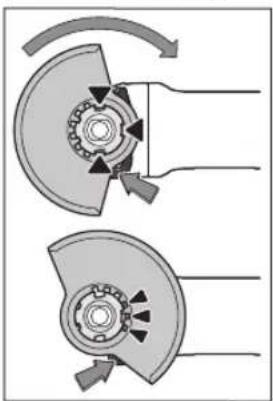

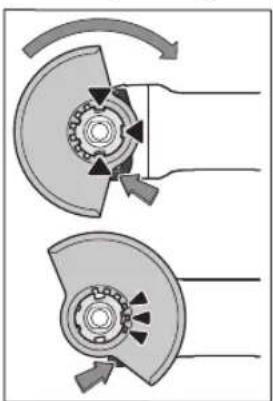

Protective guard for grinding

Mechanical diagram showing two cross-sectional views of a gear and rotor assembly (no text or labels)

Place the protective guard (7) onto the holder on the power tool until the coding cams of the protective guard are aligned with the holder. When doing so, press and hold the unlocking lever (1).

Press the protective guard (7) onto the spindle collar until the shoulder of the protective guard is sitting on the flange of the power tool and rotate the protective guard until it audibly

clicks into place.

Adjust the position of the protective guard (7) to meet the requirements of the operation. To do this, push the unlocking lever (1) upward and rotate the protective guard (7) into the required position.

▶ Always position the protective guard (7) such that all three red cams on the unlocking lever (1) engage in the corresponding openings on the protective guard (7).

▶ Adjust the protective guard (7) such that sparking in the direction of the operator is prevented.
The protective guard (7) must only be adjustable while the unlocking lever (1) is actuated. Otherwise, the power tool must not be used any more under any circumstances and must be sent to the after-sales service.

Note: The coding cams on the protective guard (7) ensure that only a protective guard that is suitable for the power tool can be fitted.

Protective guard for cutting

▶ Always use the protective guard for cutting (9) when cutting bonded abrasives.
▶ Provide sufficient dust extraction when cutting stone.

The protective guard for cutting (9) is fitted in the same way as the protective guard for grinding (7).

Extraction guard for cutting with a guide block

The extraction guard for cutting with a guide block (18) is fitted in the same way as the protective guard for grinding (7).

Side handle

▶ Do not operate your power tool without the side handle (6).

Screw the side handle (6) on the left or right of the machine head depending on how your are working.

Low-vibration auxiliary handle

The low-vibration auxiliary handle reduces vibration, enabling the tool to be used safely and more comfort-

ably.

▶ Do not make any alterations of any kind to the auxiliary handle.

Do not continue to use a damaged auxiliary handle.

Hand guard

▶ Always fit the hand guard (14) when working with the cup brush/disc brush (15) or diamond core cutter (20). Attach the hand guard (14) to the auxiliary handle (6).

Fitting and removing abrasive tools

▶ Pull the plug out of the socket before carrying out any work on the power tool.
▶ Do not touch grinding and cutting discs until they have cooled down. The discs can become very hot while working.
▶ Only use original X-LOCK application tools that carry the X-LOCK logo. A maintained clamping gauge of max. 1.6 mm can only be guaranteed with original X-LOCK application tools. A higher clamping gauge can lead to insecure clamping, potentially causing the clamp tool to come loose.
▶ X-LOCK application tools do not need additional clamping flanges or support flanges.

▶ Make sure that the application tool and the holder are not deformed and are free from dirt and particles.

Pay attention to the dimensions of the abrasive tools.

Make sure that both X-LOCK catches are open (see figure below) before fitting the X-LOCK application tool.

If necessary, clean the area between the two X-LOCK catches.

Fitting the abrasive tool

Place the grinding/cutting/flap disc in a central position on the X-LOCK holder, parallel to the bearing surface and with the right side facing up.
② Push the disc into the holder.
③ The disc audibly clicks into place. Do not actuate the lever (3) when doing so.

▶ After fitting, check that the edge of the abrasive tool (④) is fitted correctly, i.e. is no higher than the reference surface (⑤). If the edge is higher than the reference surface, either the holder must be cleaned or the abrasive tool must not be used.

Before removing the grinding/cutting/flap disc: Make sure that the power tool has come to a complete stop.

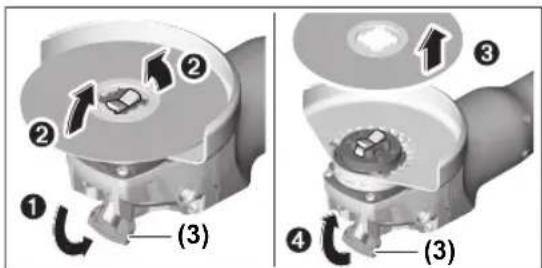

Removing the abrasive tool

① Open the lever (3).
② The grinding/cutting/flap disc will be released.
③ The grinding/cutting/flap disc can be removed.

Diagram of a mechanical component with numbered parts and directional arrows, labeled (1) and (2), and figure number (3)

Technical diagram of a mechanical component with numbered parts and labeled section (3)

Cup brushes/disc brushes and fibre discs

▶ Always fit the hand guard (14) when working with the cup brush/disc brush or fibre disc.

See the graphics page for fitting instructions.

To remove an application tool, open the lever (3) and remove the application tool.

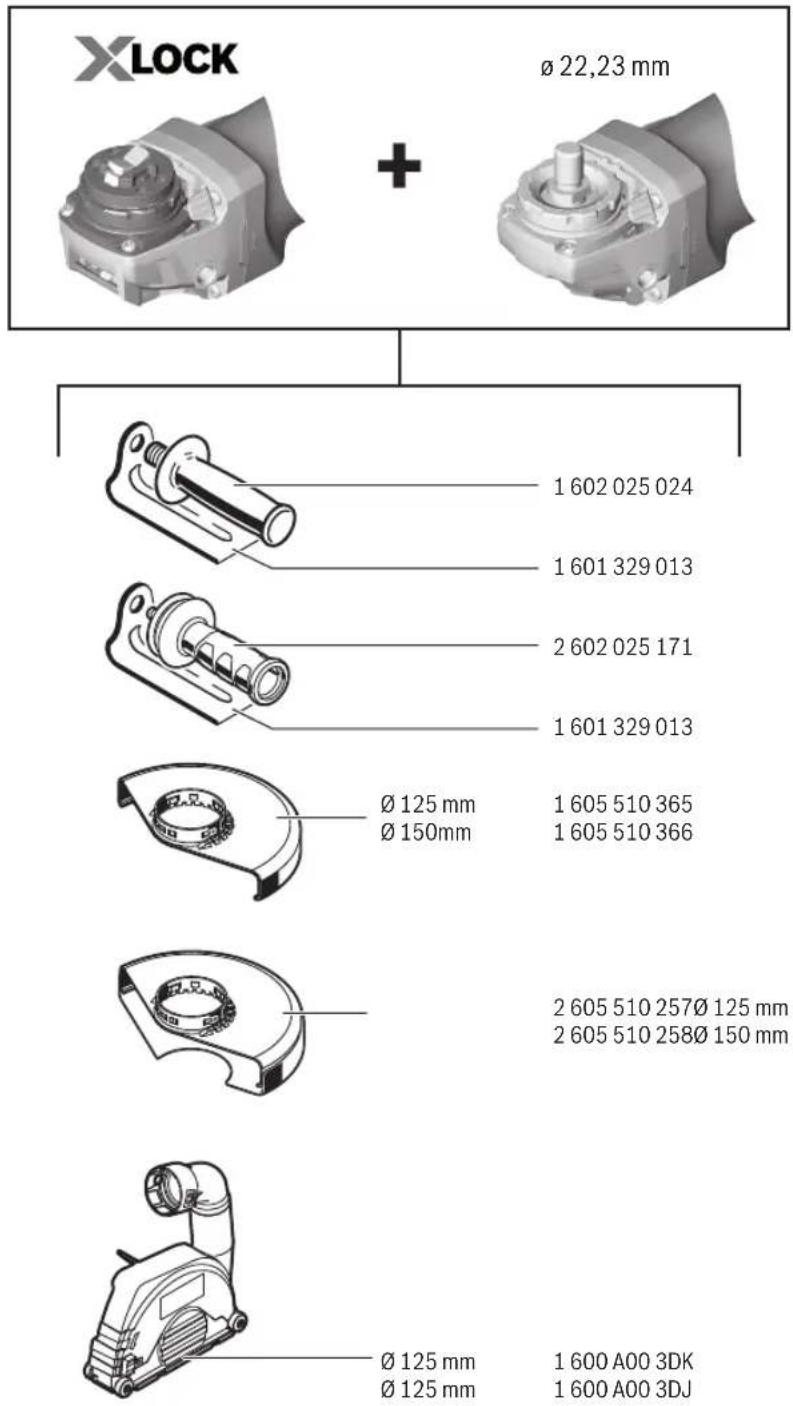

Approved abrasive tools

You can use all the abrasive tools mentioned in these operating instructions.

The permissible speed [rpm] or the circumferential speed [m/s] of the abrasive tools used must at least match the values given in the table.

It is therefore important to observe the permissible rotational/circumferential speed on the label of the abrasive tool.

max. [mm] [mm]
	D b d [min]			^-1 [m/s]
	125	7	22.2	11,500	80
	150	7	22.2	9300	80
	125	-	-	11,500	80
	150	-	-	9300	80
	75 30 - 11,500 45
	82 -- 11,500 80

Rotating the machine head

▶ Pull the plug out of the socket before carrying out any work on the power tool.

24 | English

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

The machine head can be rotated in 90° increments. In this way, the on/off switch can be brought into a more favourable handling position for particular applications, e.g. for left-handed tool users. Completely unscrew the four screws. Rotate the ma-

chine head carefully, without removing it from the housing, into the new position. Screw in and retighten the four screws.

Dust/chip extraction

The dust from materials such as lead paint, some types of wood, minerals and metal can be harmful to human health. Touching or breathing in this dust can trigger allergic reactions and/or cause respiratory illnesses in the user or in people in the near vicinity.

Certain dusts, such as oak or beech dust, are classified as carcinogenic, especially in conjunction with wood treatment additives (chromate, wood preservative). Materials containing asbestos may only be machined by specialists.

- Use a dust extraction system that is suitable for the material wherever possible.

- Provide good ventilation at the workplace.

- It is advisable to wear a P2 filter class breathing mask.

The regulations on the material being machined that apply in the country of use must be observed.

- Avoid dust accumulation at the workplace. Dust can easily ignite.

Operation

Start-up

Pay attention to the mains voltage. The voltage of the power source must match the voltage specified on the rating plate of the power tool. Power tools marked with 230 V can also be operated with 220 V.

When operating the power tool using a mobile generator that does not have sufficient reserve capacity or an adequate voltage control system with inrush current boost converter, loss of performance or atypical behaviour may occur upon switch-on.

Please check the suitability of the power generator you are using, particularly with regard to the mains voltage and frequency.

▶ Products that are only sold in AUS and NZ: Use a residual current device (RCD) with a nominal residual current of 30 mA or less.

Switching on/off

To start the power tool, push the on/off switch (4) forward. To lock the on/off switch (4) in position, push the on/off switch (4) forward and down until it clicks into place.

To switch off the power tool, release the on/off switch (4); or, if the switch is locked, briefly push the on/off switch (4) backward and down and then release it.

▶ Always check abrasive tools before using them. The abrasive tool must be fitted properly and be able to move freely. Carry out a test run for at least one minute with no load. Do not use abrasive tools that are damaged, run untrue or vibrate during use. Damaged abrasive tools can burst apart and cause injuries.

Kickback stop

If there is a sudden kickback in the power tool, e.g. jamming in a separating cut, the power supply to the motor will be interrupted electronically.

To restart the tool, set the on/off switch (4) to the off position and then switch the power tool on again.

Restart protection

The restart protection feature prevents the power tool from uncontrolled starting after the power supply to it has been interrupted.

To restart the tool, set the on/off switch (4) to the off position and then switch the power tool on again.

Starting current limitation

The electronic starting current limitation feature restricts the power of the power tool when it is switched on and enables operation using a 16 A fuse.

Note: If the power tool runs at full speed immediately after being switched on, this means that the starting current limitation and restarting protection mechanisms have failed. The power tool must be sent to the after-sales service immediately; see the "After-Sales Service and Application Service" section for addresses.

Constant Electronic control

The Constant Electronic keeps the speed at no load and under load virtually consistent, guaranteeing uniform performance.

Speed preselection (GWX ... S/T)

You can preselect the required speed using the thumbwheel for speed preselection (5), even during operation. The required speed depends on the material and the working conditions; it can be ascertained through practical tests.

Thumbwheel position	No-load speed [min ^-1 ]	No-load speed [min ^-1 ]
	GWX 13-125 S/17-125 S/19-125 S	GWX 17-125 T
1 2800 2800
2 4500 4100
3 6300 5400
4 8200 6700
5 9800 8000
6 11,500 9300

The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.

Working advice

▶ Pull the plug out of the socket before carrying out any work on the power tool.
▶ Exercise caution when cutting slots in structural walls; see the "Information on structures" section.
▶ Clamp the workpiece if it is not secure under its own weight.
▶ Do not load the power tool so heavily that it comes to a stop.
▶ If the power tool has been subjected to a heavy load, continue to run it at no-load for several minutes to cool down the accessory.
▶ Do not use the power tool with a cut-off stand.
▶ Do not touch grinding and cutting discs until they have cooled down. The discs can become very hot while working.

Rough grinding

▶ Never use cutting discs for rough grinding.

The best rough grinding results are achieved with a set angle of 30^ to 40^ . Move the power tool back and forth with moderate pressure. This will ensure that the workpiece does not become too hot or discolour and that grooves are not formed.

Flap Disc

With the flap disc (accessory), curved surfaces and profiles can be worked. Flap discs have a considerably higher service life, lower noise levels and lower sanding temperatures than conventional sanding sheets.

Cutting Metal

▶ Always use the protective guard for cutting (9) when cutting bonded abrasives.

When carrying out abrasive cutting, use a moderate feed that is suited to the material being machined. Do not exert pressure on the cutting disc and do not tilt or swing the power tool.

Do not attempt to reduce the speed of a cutting disc coming to a stop by applying pressure from the side.

Illustration of a robotic arm with a curved tool and directional arrows indicating motion (no text or symbols)

The power tool must always work in an up-grinding motion. Otherwise, there is a risk that it will be pushed uncontrolled out of the cut. For best results when cutting profiles and rectangular tubing, start at the smallest cross section.

Cutting stone

▶ Provide sufficient dust extraction when cutting stone.
▶ Wear a dust mask.

▶ The power tool may be used only for dry cutting/grinding.

For best results when cutting stone, use a diamond cutting disc.

When using the extraction guard for cutting with a guide block (18), the vacuum cleaner must be approved for vacuuming stone dust. Suitable vacuum cleaners are available from Bosch.

Mechanical diagram showing a pipe clamp and rotating valve mechanism (no text or symbols)

Switch on the power tool and position it with the front part of the guide block on the workpiece. Move the power tool with a moderate feed motion that is suited to the material being machined.

When cutting especially hard materials such as con-

crete with a high pebble content, the diamond cutting disc can overheat and become damaged as a result. This is clearly indicated by circular sparking, rotating with the diamond cutting disc.

If this happens, stop cutting and allow the diamond cutting disc to cool down by running the power tool for a short time at maximum speed with no load.

Working noticeably slower and with circular sparking indicate that the diamond cutting disc that has become dull. You can resharpen the disc by briefly cutting into abrasive material (e.g. lime-sand brick).

Information on structural design

Slots in load-bearing walls are subject to DIN 1053 part 1 or country-specific regulations. These regulations must be observed under all circumstances. Seek advice from the responsible structural engineer, architect or construction supervisor before starting work.

Maintenance and Servicing

Maintenance and cleaning

▶ Pull the plug out of the socket before carrying out any work on the power tool.
▶ To ensure safe and efficient operation, always keep the power tool and the ventilation slots clean.
In extreme conditions, always use a dust extractor if possible. Blow out ventilation slots frequently and install a residual current device (RCD) upstream. When machining metals, conductive dust can settle inside the power tool, which can affect its protective insulation.

Store and handle the accessories carefully.

In order to avoid safety hazards, if the power supply cord needs to be replaced, this must be done by Bosch or by an after-sales service centre that is authorised to repair Bosch power tools.

26 | Français

After-sales service and advice on using products

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com

The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch-pt.com.au

www.bosch-pt.co.nz

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax:[phone]

E-mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-mail: [e-mail]

Disposal

The power tool, accessories and packaging should be recycled in an environmentally friendly manner.

Do not dispose of power tools along with household waste.

Only for EU countries:

According to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and its implementation into national law, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

Français

GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

3 601 GC5 0... 3 601 GC4 0.. 3 601 GC6 0.. 3 601 GC8 0..

Mechanical diagram showing two cross-sectional views of a gear or cam mechanism with directional arrows indicating rotation (no text or labels)

Technical diagram showing mechanical assembly steps with numbered components and directional indicators

② ③ ④ ⑤ CLICK! (3)

Technical diagram showing mechanical assembly with numbered components and directional arrows, labeled (3)

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm with motion arrows indicating movement (no text or symbols)

Mechanical diagram showing a tool interacting with a pipe and valve (no text or symbols)

Robert Bosch (France) S.A.S.

Amoladora angular GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

3 601 GC5 0... 3 601 GC4 0.. 3 601 GC6 0.. 3 601 GC8 0..

Mechanical diagram showing two views of a gear assembly with rotating components (no text or labels)

Diagram illustrating mechanical assembly steps with numbered components and directional arrows

② ③ ④ ⑤ CLICK! (3)

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm with joints and motion arrows indicating movement (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Calle Robert Bosch No. 405

Rebarbadora GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

3 601 GC5 0... 3 601 GC4 0.. 3 601 GC6 0.. 3 601 GC8 0..

GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

Km/s

2

1,5 1,5 1,5 1,5

Mechanical diagram showing two cross-sectional views of a gear assembly with rotational arrows (no text or labels)

Technical diagram showing mechanical assembly steps with numbered labels and directional arrows

② ③ ④ ⑤ CLICK! (3)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow

Technical diagram of a mechanical component with numbered parts and directional arrow indicating rotation or assembly.

D b d [r.p.m.] [m/s]

82--1150080

Close-up of a mechanical component with rotating arrows indicating rotation (no text or symbols visible)

Illustration of a robotic arm performing a circular motion maneuver on a platform (no text or symbols)

Mechanical diagram showing a pipe connection with rotating components and directional arrows (no text or symbols)

Mechanical diagram showing two cross-sectional views of a gear and rotor assembly (no text or labels)

Diagram illustrating a mechanical assembly process with labeled steps 1, 4, and 5 showing components like a disc and valve.

② ③ ③ ③ CLICK! ④ ⑤ (3)

Diagram of a mechanical component with numbered parts and directional arrows, labeled (1) and (2), and figure number (3)

Technical diagram of a mechanical component with numbered parts and directional arrow indicating motion or assembly.

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm with joints and motion arrows indicating movement (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Haakse slijpmachine GWX 13-125 GWX 13-125 S GWX 17-125

Productnummer

3 601 GB5 0.. 3 601 GB6 0.. 3 601 GC3 0..

Haakse slijpmachine GWX 13-125 GWX 13-125 S GWX 17-125

GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

3 601 GC5 0... 3 601 GC4 0.. 3 601 GC6 0.. 3 601 GC8 0..

Mechanical diagram showing two views of a gear and rotor assembly (no text or labels)

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Technical diagram of a mechanical component with numbered parts labeled 1, 3, and 4

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm interacting with a ball on a platform, showing motion arrows (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Mechanical diagram showing two views of a gear assembly with rotating components (no text or labels)

Diagram illustrating a mechanical or industrial process with numbered steps and directional arrows, including a 'CLICK!' button and checkmark indicators.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Technical diagram of a mechanical component with numbered parts and directional arrow indicating assembly or motion

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm interacting with a circular component, showing motion direction (no text or symbols)

Mechanical diagram showing a tool interacting with a pipe and rotating component (no text or symbols)

Bosch Service Center

Telegrafvej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

Bortskaffelse

Vinkelslip GWX 13-125 GWX 13-125 S GWX 17-125

Skyddsklass

/ / /

Vinkelslip GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

Mechanical diagram showing two cross-sectional views of a gear or cam mechanism with directional arrows indicating rotation (no text or labels)

Diagram illustrating four steps of a mechanical or electrical process with labeled arrows and a 'CLICK!' button, likely for industrial automation or safety intervention.

Technical diagram of a mechanical component with numbered parts and rotation arrow, labeled (3)

Technical diagram of a mechanical component with numbered parts and directional arrow indicating rotation or movement

Mechanical component with rotating arrows indicating motion (no text or symbols)

Illustration of a robotic arm interacting with a circular component, showing motion direction (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

Avfallshantering

Vinkelsliper GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

Tilbakeslagsutkobling ● ● ● ●
Vekt i samsvar med EPTA-Procedure 01:2014
– med vibrasjonsdempende ekstrahåndtak	kg 2,5 2,5 2,5 2,5
– med standard ekstrahåndtak	kg 2,4 2,4 2,4 2,4
Kapslingsgrad	☐ / II / II / II / II	☐	☐	☐

Overflatesliping (grovsliping):

Vernedeksel for slipping

Mechanical diagram showing two cross-sectional views of a gear or cam mechanism with directional arrows indicating motion (no text or symbols)

Diagram illustrating four steps of a mechanical or electrical process with labeled arrows and a 'CLICK!' button, likely for industrial automation or safety intervention.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Technical diagram of a mechanical device with numbered parts and labeled section (3)

Kopp-/skivebørster og fiberskiver

▶ Monter alltid håndbeskyttelsen (14) när du skal arbeide med kopp-/skivebørsten eller fiberskiven.

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm with joints and motion arrows (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Kulmahiomakone GWX 13-125 GWX 13-125 S GWX 17-125

Kulmahiomakone GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

GWX 13-125 GWX 13-125 S GWX 17-125

Hionta hiomapyöröllä:
a_h	m/s^2	2,0	2,0	4,0
K	m/s^2	1,5	1,5	1,5

GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

3 601 GC5 0... 3 601 GC4 0.. 3 601 GC6 0.. 3 601 GC8 0..

Mechanical diagram showing two cross-sectional views of a gear or cam mechanism with directional arrows indicating rotation (no text or labels)

Diagram illustrating mechanical assembly steps with numbered instructions and labeled components

② ③ ④ X ⑤ ③ CLICK! (3)

Diagram of a mechanical component with numbered parts and directional arrows, labeled (3)

Technical diagram of a mechanical component with numbered parts and labeled section (3)

Mechanical component with rotating arrows indicating rotation and assembly (no text or symbols)

Illustration of a robotic arm with joints and motion arrows indicating movement (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Mechanical diagram showing two cross-sectional views of a gear assembly with rotational arrows (no text or labels)

Diagram illustrating four steps of a mechanical or industrial process with labeled arrows and a 'CLICK!' button, likely for manufacturing or safety instructions.

Diagram of a mechanical component with numbered parts and directional arrows, labeled (1) and (3)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Mechanical component with rotating arrows indicating motion (no text or symbols)

Illustration of a human leg and foot with a circular motion arrow indicating movement (no text or symbols)

Mechanical diagram showing a tool interacting with a mechanical component, no text or symbols present

Taşlama makinesi GWX 13-125 GWX 13-125 S GWX 17-125

Taşlama makinesi GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

Mechanical diagram showing two cross-sectional views of a gear assembly with rotational arrows (no text or labels)

Technical diagram illustrating four different mechanical or electrical process steps with labeled arrows and a 'CLICK!' button, likely for industrial automation or safety instructions.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm with joints and motion arrows indicating movement (no text or symbols)

Mechanical diagram showing a tool interacting with a curved mechanical component, no text or symbols present

Mechanical diagram showing two views of a gear and rotor assembly (no text or labels)

Diagram illustrating four steps of a mechanical or electrical process with labeled arrows and a 'CLICK!' button, likely for industrial automation or safety intervention.

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow

Technical diagram of a mechanical device with numbered components and labeled parts

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

System Constant Electronic

Illustration of a robotic arm performing a circular motion maneuver on a platform (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Robert Bosch Sp. z o.o.

Úhlová bruska GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

Mechanical diagram showing two cross-sectional views of a gear or cam mechanism with directional arrows indicating motion (no text or symbols)

Technical diagram showing a mechanical component with numbered parts and a checkmark indicating selection or confirmation.

② ③ ③ CLICK! ④ ⑤ (3)

Diagram of a mechanical component with numbered parts and directional arrows, labeled (1), (2), and (3)

Technical diagram of a mechanical assembly with numbered components and labeled parts

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of robotic hands performing a motion capture on a platform with a curved arrow indicating rotation (no text or symbols)

Mechanical diagram showing a pipe clamp and rotating component (no text or symbols)

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

Uhlová brúska GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

Trieda ochrany

/ / / /

Mechanical assembly diagram showing two cross-sectional views of a gear and rotor components with directional arrows (no text or labels)

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Technical diagram of a mechanical component with numbered parts labeled 1, 3, and 4

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm with a rotating wheel and mechanical components (no text or symbols)

Mechanical diagram showing a pipe clamp and rotating valve mechanism (no text or symbols)

GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

Mechanical diagram showing two views of a gear assembly with rotating components (no text or labels)

Diagram illustrating four steps of a mechanical or electrical process with labeled arrows and a 'CLICK!' button, likely for industrial automation or safety intervention.

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating parts of motion or assembly.

Mechanical component with rotating arrows indicating motion (no text or symbols)

Illustration of a robotic arm gripping a circular object on a platform, with no visible text or symbols.

Mechanical diagram showing a tool interacting with a curved pipe and fan (no text or symbols)

GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

K M/c

2

1,5 1,5 1,5 1,5

Mechanical diagram showing two views of a gear and rotor assembly (no text or labels)

Diagram illustrating four steps of a mechanical or electrical process with labeled arrows and a 'CLICK!' button, likely for industrial automation or safety instructions.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Mechanical component with rotating arrows indicating motion (no text or symbols)

Illustration of a robotic arm performing a motion capture or maneuvering operation on a mechanical base (no text or symbols visible)

Mechanical diagram showing a pipe fitting with rotating components and directional arrows (no text or symbols)

GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

3 601 GC5 0... 3 601 GC4 0.. 3 601 GC6 0.. 3 601 GC8 0..

Mechanical diagram showing two cross-sectional views of a gear and rotor assembly (no text or labels)

Diagram illustrating four steps of a mechanical or electrical process with labeled arrows and a 'CLICK!' button, likely for industrial automation or safety intervention.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm performing a circular motion on a platform (no text or symbols)

Mechanical diagram showing a tool interacting with a curved pipe and rotating motion (no text or symbols)

GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

Mechanical diagram showing two cross-sectional views of a gear assembly with rotational arrows (no text or labels)

Close-up of a mechanical component with a circular top and internal gear mechanism (no visible text or symbols)

Diagram showing a checkmark and numbered regions (④, ⑤) with arrows pointing to a specific area, likely indicating a process or measurement.

② ③ ③ CLICK! (3)

④ × ⑤

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow

Technical diagram of a mechanical component with numbered parts and directional arrow indicating rotation or assembly.

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm with a rotating base and mechanical components (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Polizor unghiular GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

Clasa de protectie

回/II / II / II / II

回

回

回

Mechanical diagram showing two cross-sectional views of a mechanical component with gear and housing (no text or labels)

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow

Technical diagram of a mechanical device with numbered components and labeled parts

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Sistem electronic constant

Illustration of a robotic arm with a rotating base and foot, showing mechanical components (no text or symbols)

Mechanical diagram showing a tool interacting with a curved pipe and rotating component (no text or symbols)

Service scule electrice

Strada Horia Măcelariu Nr. 30–34, sector 1

013937 Bucureşti

GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

3 601 GC5 0... 3 601 GC4 0.. 3 601 GC6 0.. 3 601 GC8 0..

GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

Mechanical diagram showing two cross-sectional views of a gear assembly with directional arrows indicating motion (no text or labels)

Diagram illustrating a mechanical or electrical process with numbered steps and directional arrows, including a 'CLICK!' button and checkmark indicators.

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow

Technical diagram of a mechanical component with numbered parts and directional arrow indicating rotation or adjustment.

Close-up of a mechanical component with rotating arrows indicating rotation (no text or symbols visible)

Illustration of a robotic arm with joints and motion arrows indicating movement (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Service scule electrice

Strada Horia Măcelariu Nr. 30–34, sector 1

013937 Bucureşti, România

www.bosch-pt.com/bg/bg/

Бракуване

GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

Mechanical diagram showing two cross-sectional views of a gear or cam mechanism with directional arrows indicating motion (no text or symbols)

Mechanical component diagram showing a disc and motor assembly with labeled parts (no text or symbols present)

Diagram showing a checkmark and numbered regions (④, ⑤) with arrows indicating movement or process.

② ③ ③ CLICK! (3)

④ X ⑤

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow

Technical diagram of a mechanical component with numbered parts and directional arrows indicating assembly or motion.

Лончести/плочести четки и влакнести дискови

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm interacting with a circular component, showing motion direction (no text or symbols)

Mechanical diagram showing a tool interacting with a mechanical component, no text or symbols present

GWX 13-125 GWX 13-125 S GWX 17-125

Pod A klasifikovan nivo buke električnog alata po pravilu iznosi
Nivo zvučnog pritiska	dB(A)	91	91	92
Nivo zvučne snage	dB(A)	102	102	103
Nesigurnost K	dB	3	3	3
Nosite zaštitu za sluh!

Ukupne vrednosti vibracije a_h (vektorski zbir tri pravca) i nesigurnost K utvrđeni prema EN 60745-2-3:

Površinsko brušenje (gruba obrada):

a_h	m/s^2	6,0	6,0	6,0
K	m/s^2	1,5	1,5	1,5
Brušenje sa brusnim listom:
a_h	m/s^2	2,0	2,0	4,0
K	m/s^2	1,5	1,5	1,5

GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

3 601 GC5 0... 3 601 GC4 0.. 3 601 GC6 0.. 3 601 GC8 0..

Vrednosti emisije buke utvrđene u skladu sa EN 60745-2-3.

Pod A klasifikovan nivo buke električnog alata po pravilu iznosi

Nivo zvučnog pritiska	dB(A)	92	91	92	91
Nivo zvučne snage	dB(A)	103	102	103	102
Nesigurnost K	dB	3	3	3	3
Nosite zaštitu za sluh!

Ukupne vrednosti vibracije a_h (vektorski zbir tri pravca) i nesigurnost K utvrđeni prema EN 60745-2-3:

Površinsko brušenje (gruba obrada):

Mechanical diagram showing two views of a gear assembly with rotational arrows (no text or labels)

Postavite zaštitnu haubu (7) na prihvatnik na električnom alatu, sve dok se grebeni za kodiranje zaštitne haube ne poklope sa prihvatnim delom. Pri tom pritisnite i držite tako ručicu za deblokiranje (1). Pritiskajte zaštitnu haubu (7) na vrat vretena sve dok traka zaštitne haube ne nalegne na prirubnicu električnog alata i okrećite zaštitnu haubu dok čujno ne ulegne u ležište.

Prilagodite poziciju zaštitne haube (7) zahtevima radnog koraka. Pritisnite ručicu za deblokiranje (1) nagore i okrenite zaštitnu haubu (7) u željeni položaj.

▶ Podesite zaštitnu haubu (7) tako da sva 3 grebena poluge za deblokadu(1) upadnu u odgovarajuće otvore zaštitne haube(7).
▶ Podesite zaštitnu haubu (7) tako, da se sprečava letenje varnica u pravcu radnika.
▶ Zaštitna hauba (7) sme se okretati samo uz aktiviranje poluge za deblokadu(1) ! U suprotnom, električni alat ne sme nikako da se dalje koristi i mora se predati servisu.

Napomena: Kodni ispust na zaštitnoj haubi (7) osiguravaju da se može montirati samo zaštitna hauba koja odgovara električnom alatu.

Zaštitna hauba za presecanje

Prilikom presecanja sa povezanim sredstvom za brušenje uvek upotrebljavajte zaštitnu haubu za presecanje (9).
Prilikom presecanja u kamenu morate se pobrinuti za dovoljno usisavanja prašine.

Diagram illustrating four steps of a mechanical or electrical process with labeled arrows and a 'CLICK!' button, likely for industrial automation or safety intervention.

Nakon montaže proverite da li je ivica brusnog alata (4) viša od referentne površine (5) i da li je pravilno montiran. Ako je ivica viša, prihvat mora da se očisti ili brusni alat ne sme da se koristi.

Pre demontaže brusnog diska/ diska za sečenje/ lepezaste brusne ploče: Uverite se da je električni alat isključen.

Demontiranje brusnog alata

① Otvorite polugu (3).
② Brusni disk/ disk za sečenje/lepezasta brusna ploča se otpušta.
③ Brusni disk/ disk za sečenje/lepezasta brusna ploča može da se izvadi.

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or flow

Lončaste/pločaste četke i vlaknasti brusni diskovi

Montirajte za radove sa lončastom ili pločastom četkom ili vlaknastim brusnim diskom uvek zaštitu za ruke (14).

Redosled montaže je vidljiv na grafičkoj strani.

Za demontažu otvorite polugu (3) i izvadite umetni alat.

Dozvoljeni brusni alati

Možete da upotrebljavate sav brusni alat koji je pomenut u ovom uputstvu za rad.

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Možete okretati glavu prenosnika u koracima od 90°. Na taj način možete prekidač za uključivanje-isključivanje za posebne slučajeve u radu dovesti u povoljniju poziciju za držanje ruke, na primer za levoruke.

Odvrnite potpuno 4

zavrtnja. Zakrenite glavu prenosnika pažljivo i bez skidanja sa kućišta u nov položaj. Ponovo čvrsto pritegnite 4 zavrtnja.

Usisavanje prašine/piljevine

Prašine od materijala kao što je premaz koji sadrži olovo, neke vrste drveta, minerali i metal mogu biti štetni po zdravlje. Dodir ili udisanje prašine mogu izazvati alergijske reakcije i/ili oboljenja disajnih puteva radnika ili osoba koje se nalaze u blizini.

Neke prašine kao od hrasta i bukve važe kao izazivači raka, posebno u vezi sa dodatnim materijama za obradu drveta (hromati, zaštitna sredstva za drvo). Sa materijalom koji sadrži azbest smeju raditi samo stručnjaci.

- Koristite što je više moguće usisavanje prašine pogodno za materijal.

• Pobrinite se za dobro provetravanje radnog mesta.
• Preporučuje se, da se nosi zaštitna maska za disanje sa klasom filtera P2.

Illustration of a robotic arm performing a circular motion maneuver on a platform (no text or symbols)

Električni alat morate stalno da vodite u suprotnom smeru. Inače postoji opasnost da se

nekontrolisano potisne iz reza. Prilikom razdvajanja profila i četvorougaone cevi najbolje je da postavite najmanji poprečni presek.

Rezanje kamera

Prilikom presecanja u kamenu morate se pobrinuti za dovoljno usisavanja prašine.
▶ Nosite zaštitnu masku za prašinu.
▶ Električni alat smete da upotrebljavate samo za suvi rez/suvo brušenje.

Za presecanje kamena najbolje je da upotrebljavate dijamantsku ploču za presecanje.

Prilikom primene usisne haube za presecanje sa vodećim šinama (18) mora da bude dozvoljen usisivač za usisavanje kamene prašine. Bosch nudi adekvatne usisivače.

Mechanical diagram showing a tool interacting with a rotating mechanical component (no text or symbols)

Uključite električni alat i prednjim delom vodećih šina ga stavite na radni komad. Električni alat pomičite ravnomerno, prilagođeno materijalu koji se obrađuje.

Prilikom rezanja tvrdih materijala, npr. betona sa visokim sadržajem oblutka,

dijamantski disk za sečenje može da se pregreje i na taj način da se ošteti. Na to jasno ukazuje cirkularni venac varnica oko dijamantskog diska za sečenje.

U ovom slučaju prekinite rezanje i pustite dijamantski disk za sečenje da se u praznom hodu vrti kratko vreme na najviše obrtaja da bi se ohladio.

Napredak u radu koji primetno zaostaje i cirkularni venac varnica su znakovi da je dijamantski disk za sečenje postao tup. Isti možete da naoštrite kratkim rezovima u abrazivnom materijalu (npr. peščani kamen).

Napomene za statiku

GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

3 601 GC5 0... 3 601 GC4 0.. 3 601 GC6 0.. 3 601 GC8 0..

Podatki o emisijah hrupa, pridobljeni v skladu s standardom EN 60745-2-3.

Mechanical diagram showing two cross-sectional views of a mechanical component with gear and housing (no text or symbols)

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm interacting with a ball on a platform, showing motion direction (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Kutna brusilica GWX 13-125 GWX 13-125 S GWX 17-125

Kataloški broj	3 601 GB5 0.. 3 601 GB6 0.. 3 601 GC3 0..
Nazivna primljena snaga W 1300 1300 1700
Predana snaga W 700 700 1010
Nazivni broj okretaja min	-1	11500 11500 11500

Kutna brusilica GWX 13-125 GWX 13-125 S GWX 17-125

Područje namještanja broja okretaja min	-1	-2800-11500 -
Maks. promjer brusne ploče mm 125	125 125
Predbiranje broja okretaja - ● -
Zaštita od ponovnog pokretanja ● ● ●
Konstantna elektronika ● ● ●
Ograničenje struje zaleta ● ● ●
Isključivanje kod povratnog udarca ● ● ●
Težina prema EPTA-Procedure 01:2014
- s dodatnom ručkom samortizacijom vibracija	kg 2,4 2,4 2,5
- sa standardnom dodatnom ručkom	kg 2,3 2,3 2,4
Klasa zaštite		☐ / II	☐ / II

Podaci vrijede za nazivni napon [U] od 230 V. U slučaju odstupanja napona i u izvedbama specifičnim za dotičnu zemlju, ovi podaci mogu varirati.

Kutna brusilica		GWX 17-125 S	GWX 17-125 T	GWX 17-150	GWX 19-125 S
Kataloški broj		3 601 GC5 0..	3 601 GC4 0..	3 601 GC6 0..	3 601 GC8 0..
Nazivna primljena snaga	W	1700	1700	1700	1900
Predana snaga	W	1010	1010	1010	1220
Nazivni broj okretaja	min^-1	11500	9300	9300	11500
Područje namještanja brojaokretaja	min^-1	2800-11500	2800-9300	-	2800-11500
Maks. promjer brusne ploče	mm	125	125	150	125
Predbiranje broja okretaja		●	●	-	●
Zaštita od ponovnogpokretanja		●	●	●	●
Konstantna elektronika		●	●	●	●
Ograničenje struje zaleta		●	●	●	●
Isključivanje kod povratnogudarca		●	●	●	●
Težina prema EPTA-Procedure 01:2014
- s dodatnom ručkom samortizacijom vibracija	kg	2,5	2,5	2,5	2,5
- sa standardnom dodatnomručkom	kg	2,4	2,4	2,4	2,4
Klasa zaštite		☐ / II	☐ / II	☐ / II	☐ / II

Podaci vrijede za nazivni napon [U] od 230 V. U slučaju odstupanja napona i u izvedbama specifičnim za dotičnu zemlju, ovi podaci mogu varirati.

Informacije o buci i vibracijama

		GWX 13-125	GWX 13-125 S	GWX 17-125
		3 601 GB5 0..	3 601 GB6 0..	3 601 GC3 0..
Emisijske vrijednosti buke utvrđene sukladno EN 60745-2-3.
Razina buke električnog alata prema ocjeni A iznosi obično
Razina zvučnog tlaka	dB(A)	91	91	92
Razina zvučne snage	dB(A)	102	102	103
Nesigurnost K	dB	3	3	3
Nosite zaštitne slušalice!

276 | Hrvatski

GWX 13-125 GWX 13-125 S GWX 17-125
Ukupne vrijednosti vibracija a_h (vektorski zbroj tri pravca) i nesigurnost K utvrđene u skladu s normom EN 60745-2-3:

Površinsko brušenje (gruba obrada):
a_h	m/s^2	6,0	6,0	6,0
K	m/s^2	1,5	1,5	1,5
Brušenje brusnim listom:
a_h	m/s^2	2,0	2,0	4,0
K	m/s^2	1,5	1,5	1,5

GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S
3 601 GC5 0... 3 601 GC4 0.. 3 601 GC6 0.. 3 601 GC8 0..

Mechanical diagram showing two cross-sectional views of a gear or cam mechanism with directional arrows (no text or labels)

Stavite štitnik (7) na prihvat na električnom alatu tako da se kodirni izdanci na štitniku podudaraju s prihvatom. Pritisnite i pritom držite polugu za deblokiranje (1). Pritišćite štitnik (7) na grlo vretena sve dok naslon štitnika ne sjedne na prirubnicu električnog alata i okrećite štitnik sve dok se čujno ne uglavi. Prilagodite položaj štitnika (7) zahtjevima faze rada. U

tu svrhu pritisnite polugu za deblokiranje (1) prema gore i okrenite štitnik (7) u željeni položaj.

▶ Namjestite štitnik (7) uvijek tako da se sva 3 crvena utora na poluzi za deblokiranje (1) uglave u odgovarajuće otvore na štitniku (7).

Diagram illustrating mechanical assembly steps with numbered instructions and directional arrows

② ③ ③ CLICK! ④ ⑤ (3)

Nakon montaže provjerite da rub brusnog alata (6) nije viši od referentne površine (5) i da je ispravno montiran. Ako je rub viši, treba očistiti prihvat ili se brusni alat ne smije koristiti.

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow

1 3 4 (3)

Lončaste/pločaste četke i brusne ploče od fibera

- Za radove s lončastom četkom/pločastom četkom ili brusnom pločom od fibera uvijek montirajte štitnik za ruku (14).

Close-up of a mechanical component with rotating arrows indicating rotation (no text or symbols visible)

Illustration of a robotic arm with motion arrows indicating movement (no text or symbols)

Električni alat mora se uvijek voditi protuhodno. U suprotnom postoji opasnost da se nekontrolirano istisne iz reza. Kod rezanja profila i četverokutnih cijevi najbolje je da stavite na najmanji presjek.

Rezanje kamena

Kod rezanja kamena treba osigurati dovoljno usisavanje prašine.
▶ Nosite zaštitnu masku protiv prašine.
▶ Električni alat smije se koristiti samo za suho rezanje/suho brušenje.

Za rezanje kamena najbolje je koristiti dijamantnu reznu ploču.

Pri uporabi usisnog poklopca za rezanje s kliznom vodilicom (18) mora se koristiti odobreni usisavač za usisavanje

280 | Eesti

kamene prašine. Bosch ima u ponudi prikladne usisavače prašine.

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Nurklihvija GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

Mechanical diagram showing two cross-sectional views of a gear assembly with rotational arrows (no text or labels)

Technical diagram illustrating four different mechanical or electrical process steps with labeled arrows and a 'CLICK!' button, likely for industrial automation or safety instructions.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Technical diagram of a mechanical device with numbered components and labeled parts

Mechanical component with rotating arrows indicating rotation and assembly (no text or symbols)

Illustration of a robotic arm with a curved tool and directional arrow (no text or symbols)

Mechanical diagram showing a tool interacting with a curved pipe and rotating component (no text or symbols)

GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

3 601 GC5 0... 3 601 GC4 0.. 3 601 GC6 0.. 3 601 GC8 0..

Mechanical diagram showing two cross-sectional views of a gear assembly with rotating components (no text or labels)

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Technical diagram of a mechanical device with numbered components and labeled parts

Kausveida vai diskveida sukas un škiedrmateriäla diski

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm with motion arrows indicating movement (no text or symbols)

Mechanical diagram showing a pipe connection with rotating components and directional arrows (no text or symbols)

Mechanical diagram showing two cross-sectional views of a gear or cam mechanism with directional arrows indicating motion (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations and directional arrows

② ③ ④ ⑤ CLICK! (3)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

Mechanical component with rotating arrows indicating motion (no text or symbols)

Illustration of a robotic arm performing a circular motion maneuver on a platform (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

GWX 17-125 S GWX 17-125 T GWX 17-150 GWX 19-125 S

a_h	m/s^2	6.0	5.5	7.0	6.0
K	m/s^2	1.5	1.5	1.5	1.5
샌딩 페이퍼로 연마:
a_h	m/s^2	4.0	2.5	2.5	4.0
K	m/s^2	1.5	1.5	1.5	1.5

Mechanical diagram showing two views of a gear and rotor assembly with directional arrows (no text or labels)

Diagram illustrating four steps of a mechanical or electrical component inspection, labeled with numbered instructions and a 'CLICK!' button.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating parts 1, 3, and 4.

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm with joints and motion arrows indicating movement (no text or symbols)

Mechanical diagram showing a valve mechanism with rotating components (no text or symbols)

GWX 13-125GWX 13-125 SGWX 17-125

GWX 19-125 S GWX 17-150 GWX 17-125 T GWX 17-125 S

..GC8 0 601 3

..GC6 0 601 3

..GC4 0 601 3

...GC5 0 601 3

Technical diagram showing mechanical assembly with labeled components and directional arrows

Mechanical component with rotating arrows indicating rotation and assembly (no text or symbols)

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Mechanical diagram showing a tool interacting with a curved pipe and rotating component (no text or symbols)

Robert Bosch Morocco SARL

53.شارع الملازم محمد محرود

20300 الدار البضاء

Diagram illustrating four steps of a mechanical or industrial process with labeled arrows and a 'CLICK!' button, likely for manufacturing or safety instructions.

Mechanical component with rotating arrows indicating motion (no text or symbols)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow

Technical diagram of a mechanical component with numbered parts and directional arrow indicating rotation or assembly.

Illustration of a robotic arm with motion arrows indicating movement (no text or symbols)

برش سنگ

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

3D rendered mechanical component labeled 'XLOCK' (no other text or symbols visible)

3D rendered mechanical component with a circular housing and a small inset showing a gear-like part (no text or symbols)

	Soft ≥ P60
		ø 125 mm 2	608 601 714
		ø 150 mm 2	608 601 717
	Medium P36 to P80
		ø 125 mm 2	608 601 715
		ø 150 mm 2	608 601 718
	Hard ≤ P50 2 608 601
		7d 625 mm
		ø 150 mm 2	608 601 719

XLOCK + Ø 22,23 mm 1 602 025 024 1 601 329 013 2 602 025 171 1 601 329 013 Ø 125 mm Ø 150mm 1 605 510 365 1 605 510 366 2 605 510 257Ø 125 mm 2 605 510 258Ø 150 mm Ø 125 mm Ø 125 mm 1 600 A00 3DK 1 600 A00 3DJ

350

CE

|

de	EU-Konformitätserklärung		Wir erklären in alleiniger Verantwortung, dass die genannten Produkte allen einschlägigen Bestimmungen der nachfolgend aufgeführten Richtlinien und Verordnungen entsprechen und mit folgenden Normen übereinstimmen.Technische Unterlagen bei: *
	Winkelschleifer	Sachnummer
en	EU Declaration of Conformity		We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards.Technical file at: *
	Angle grinder	Article number
fr	Déclaration de conformité UE		Nous déclarons sous notre propre responsabilité que les produits décrits sont en conformité avec les directives, règlements normatifs et normes énumérés ci-dessous.Dossier technique auprès de : *
	Meuleuse angulaire	N° d'article
es	Declaración de conformidad UE		Declaramos bajo nuestra exclusiva responsabilidad, que los productos nombrados cumplen con todas las disposiciones correspondientes de las Directivas y los Reglamentos mencionados a continuación y están en conformidad con las siguientes normas.Documentos técnicos de: *
	Amoladora angular	N° de artículo
pt	Declaração de Conformidade UE		Declaramos sob nossa exclusiva responsabilidade que os produtos mencionados cumprem todas as disposições e os regulamentos indicados e estão em conformidade com as seguintes normas.Documentação técnica pertencente à: *
	Rebarbadora	N.° do produto
it	Dichiarazione di conformità UE		Dichiariamo sotto la nostra piena responsabilità che i prodotti indicati sono conformi a tutte le disposizioni pertinenti delle Direttive e dei Regolamenti elencati di seguito, nonché alle seguenti Normative.Documentazione Tecnica presso: *
	Smerigliatrice an-golare	Codice prodotto
nl	EU-conformiteitsverklaring		Wij verklaren op eigen verantwoordelijkheid dat de genoemde producten voldoen aan alle desbetreffende bepalingen van de hierna genoemde richtlijnen en verordeningen en overeenstemmen met de volgende normen.Technisch dossier bij: *
	Haakse slijpmachine	Productnummer
da	EU-overensstemmelseserklæring		Vi erklærer som eneansvarlige, at det beskrevne produkt er i overensstemmelse med alle gældende bestemmelser i følgende direktiver og forordninger og opfylder følgende standarder.Tekniske bilag ved: *
	Vinkelsliber	Typenummer
sv	EU-konformitetsförklaring		Vi förklarar under eget ansvar att de nämnda produkterna uppfyller kraven i alla gällande bestämmelser i de nedan angivna direktiven och förordningar nas och att de stämmer överens med följande normer.Teknisk dokumentation: *
	Vinkelslip	Produktnummer
no	EU-samsvarserklæring		Vi erklærer under eneansvar at de nevnte produktene er i overensstemmelse med alle relevante bestemmelser i direktivene og forordningene nedenfor og med følgende standarder.Teknisk dokumentasjon hos: *
	Vinkelsliper	Produktnummer
fi	EU-vaatimustenmukaisuusvakuutus		Vakuutamme täten, että mainitut tuotteet vastaavat kaikkia seuraavien direktiivien ja asetusten asiaankuuluvia vaatimuksia ja ovat seuraavien standardien vaatimusten mukaisia.Tekniset asiakirjat saatavana: *
	Kulmahiomakone	Tuotenumero
el	Δήλωση πιστότητας EE		Δηλώνουμε με αποκλειστική μας ευθύνη, ότι τα αναφερόμενα προϊόντα αντιστοιχούν σε όλες τις σχετικές διατάξεις των πιο κάτω αναφερόμενων οδηγιών και κανονισμών και ταυτίζονται με τα ακόλουθα πρότυπα.Tεχνικά έγγραφα στη: *
	Γωνιακός λειαντήρας	Αριθμός ευρετηρίου
tr	AB Uygunluk beyani		Tek sorumlu olarak, tanımlanan ürünün aşağıdaki yönetmelik ve direktiflerin geçerli bütün hükümlerine ve aşağıdaki standartlara uygun olduğunu beyan ederiz.Teknik belgelerin bulunduğu yer: *
	Taşlama makinesi	Ürün kodu

||

CE

pl	Deklaracja zgodności UE		Oświadczamy z pełną odpowiedzialnością, że niniejsze produkty odpowiadają wszystkim wymaganiom poniżej wyszczególnionych dyrektyw i rozporządzeń, oraz że są zgodne z następującymi normami.Dokumentacja techniczna:*
	Szlifierka kątowa	Numer katalogowy
cs	EU prohlášení oshodě		Prohlašujeme na výhradní zodpovědnost, že uvedený výrobek splňuje všechna příslušná ustanovení níže uvedených směrnic anařízení aje vsouladu snásledujícími normami:Technické podklady u:*
	Úhlová bruska	Objednaci číslo
sk	EÚ vyhlásenie ozhode		Vyhlasujeme na výhradní zodpovednosť, že uvedený výrobok splňa všetky príslušné ustanovenia nižšie uvedených smerníc anariadení aje vsúlade snasledujúcimi normami:Technické podklady má spoločnosť:*
	Uhlová brúska	Vecné číslo
hu	EU konformitási nyilatkozat		Egyedüli felelőséggel kijelentjük, hogy a megnevezett termékek megfelelnek az alábbiakban felsorolásra kerülő irányelvek és rendeletek valamennyi idevágó előírásainak és megfelelnek a következő szabványoknak.Műszaki dokumentumok megőrzési pontja:*
	Sarokcsiszoló	Cikkszám
ru	Заявление о соответствии EC		Мы заявляем под нашу единоличную ответственность, что названные продукты соответствуют всем действующим предписаниям нижеуказанных директив и распоряжений, а также нижеуказанных норм.Техническая документация хранится y:*
	Угловая шлифовальная машина	Товарный No
uk	Заява про відповідність ЄС		Мизаявляємо під нашу одноособову відповідальність, що названі вироби відповідають усім чинним положенням нищеозначених директив і розпоряджень, а також нижчеозначеним нормам.Технічна документація зберігається y:*
	Кутова шліфмашина	Товарний номер
kk	EO сәйкестік мағлумдамасы		Өз жауапкершілікпен біз аталған өнімдер теменде жзылған директикалар мен жарлықтардың тиісті қағилаларына сәйкестігін және темендері нормаларға сай екенін білдіреміз.Техникалық құжаттар:*
	Бұрыштық ажарлау машинасы	Өнім нөмірі
ro	Declarație de conformitate UE		Declarăm pe proprie răspundere că produsele mentionate corespund tuturor dispozițiilor relevante ale directivelor și reglementărilor enumerate în cele ce urmează și sunt în conformitate cu următoarele standarde.Documentаție tehnică la:*
	Polizor unghiular	Număr de identificare
bg	ЕС декларация за съответствие		С пълна отговорност ние декларираме, че посочените продукти отговарят на всички валидни изисквания на директивите и разпоредбите по-долу и съответства на следните стандарти.Техническа документация при:*
	Ъглошлайф	Каталожен номер
mk	EU-Изјава за сообразност		Со целосна одговорност изјавуваме, дека опишаните производи се во согласност со сите релевантни одредби на следните регулативи и прописи и се во согласност со следните норми.Техничка документација кај:*
	Аголна брусилка	Број на дел/артик
sr	EU-izjava o usaglašenosti		Na sopstvenu odgovornost izjavljujemo, da navedeni proizvodi odgovaraju svim dotičnim odredbama naknadno navedenih smernica u uredaba i da su u skladu sa sledećim standardima.Tehnička dokumentacija kod:*
	Ugaona brusilica	Broj predmeta
sl	Izjava o skladnosti EU		Izjavljamo pod izključno odgovornostjo, da je omenjen izdelek v skladu z vse-mi relevantnimi določili direktiv in uredb ter ustreza naslednjim standardom. Tehnična dokumentacija pri:*
	Kotni brusilnik	Številka artikla
hr	EU izjava o sukladnosti		Pod punom odgovornošću izjavljujemo da navedeni proizvodi odgovaraju svim relevantnim odredbama direktiva i propisima navedenima u nastavku i da su sukladni sa sljedećim normama.Tehnička dokumentacija se može dobiti kod:*
	Kutna brusilica	Kataloški br.
et	EL-vastavusdeklaratsioon		Kinnitame ainuvastutajatena, et nimetatud tooted vastavad järgnevalt loetletud direktiivide ja määruste kõikidele asjaomastele nõuetele ja on kooskõlas
	Nurklihvija	Tootenumber

CE

III

			järgmiste normidega.Tehnilised dokumendid saadaval: *
Iv	Deklarácija par atbilstībuES standartiem		Mēs ar pilnu atbildību paziņojam, ka šeit aplūkotie izstrādājumi atbilst visiem tālāk minētajās direktīvās un rīkojumos ietvertajām saistošajām nostādnēm,kā arī sekojošiem standartiem.Tehniskā dokumentācija no: *
	Lenka slipmašina	Izstrādājuma numurs
It	ES atitikties deklaracija		Atsakingai pareiškiame, kad išvardyti gaminiai atitinka visus privalomus žemiau nurodytu direktyvy ir reglamentu reikalavimus ir šiuos standartus.Techninė dokumentacija saugoma: *
	Kampiniošlifavimo mašina	Gaminio numeris
	GWX 13-125	3 601 GB5 0..	2006/42/EC	EN 60745-1:2009+A11:2010
	GWX 13-125 S	3 601 GB6 0..	2014/30/EU	EN 60745-2-3:2011+A2:2013+A11:2014+A12:2014+A13:2015
	GWX 17-125	3 601 GC3 0..	2011/65/EU	EN 55014-1:2006+A1:2009+A2:2011
	GWX 17-125 S	3 601 GC5 0..		EN 55014-2:2015
	GWX 17-125 T	3 601 GC4 0..		EN 61000-3-2:2014
	GWX 17-150	3 601 GC6 0..		EN 61000-3-3:2013
	GWX 19-125 S	3 601 GC8 0..		EN 50581:2012
			[cxg6]BOSCH	* Robert Bosch Power Tools GmbH(PT/ECS)70538 StuttgartGERMANY
			Henk BeckerExecutive Vice PresidentEngineering and Manufacturing	Helmut HeinzelmannHead of Product Certificationi.V. K-wd
			Robert Bosch Power Tools GmbH, 70538 Stuttgart, GERMANYStuttgart, 15.01.2019

BOSCH
