Content

EN

1 About this Document....7

2 Safety 7

2.1 Warnings and Notices....7

2.2 Symbols on the Product 8

2.3 Intended Use 8

2.4 Foreseeable misuse 8

2.5 Operator Training 8

2.6 Standards 8

2.7 General Power Tool Safety Warnings....9

2.8 Specific Safety Instructions for Power Tools....10

3 Items Supplied....10

4 Transport / Storage 10

5 Product Description....10

6 Before Initial Operation....11

7 Maintenance....12

8 Technical Data 13

8.1 Right Angle....13

8.2 Pistol....13

8.3 Ambient conditions....14

8.4 Emissions....14

9 Troubleshooting....14

10 Disposal....16

DE

2.6 Normen/Standards 18

2.6 Normes / standards....40

4 Transport / stockage....43

This document is intended for qualified employees responsible for installation and maintenance (installer, maintenance technician, service, operator).

It contains information

• for safe and appropriate handling of the product.
- on function.
• to technical data and maintenance.
• for troubleshooting.

The original language of this document is German.

Information about ordering spare parts is not included. See separate Parts Manual.

Programming instructions are not included. See separate programming instructions for this.

Other Documents

Number	Document
CE-1025C	EU Declaration of conformity – CellTek
P1730PM	Programming Manual – Tightening Sequences
P2280PM	Programming Manual – S168813 mPro400GC(D) & mPro200GC(-AP)
P2309HW	Hardware Description – mPro400GCD-M
P2361JH	Installation Instruction – mPro400GCD-(...)
P2372JH	Installation Instruction – S168688 Cord-less RF Settings
P2403HW	Hardware Description – mPro200GC(-AP)
P2544PM	Programming Manual – S169263 CTBA & CTBP
P2545KA	Quick Installation Guide – CTBA & CTBP Data Transmission
SP12-1118	Parts Manual – CTBAW CellTek
SP12-1119	Parts Manual – CTBPW CellTek
	Respective Original Instructions Milwaukee Charger/Battery Pack

Symbols in the Text

italic Menu options (e.g., Diagnostics) input fields, check boxes, radio buttons or dropdown menus.

Indicates selection of a menu option from a menu, e.g., File > Print.
<...> Specifies switches, pushbuttons or the keys of an external keyboard, e.g., .
Courier Indicates Filenames and paths, e.g., setup.exe.
- Indicates lists, level 1. - Indicates lists, level 2.
a) Indicates options. b)
Indicates results.
1. (...) Indicates action steps.
2. (...)
▶ Indicates single action steps.

2 Safety

▶ Read all safety warnings and instructions. Failure to follow the directions and safety instructions could result in an electric shocks, burns and/or serious injuries.
▶ Keep this document in a safe place for future reference!
These safety instructions must be accessible at all times to all persons who use the product.

2.1 Warnings and Notices

Warning notes are identified by a signal word and a pictogram:

- The signal word describes the severity and probability of the impending danger.

- The pictogram describes the type of danger.

	Danger
	A symbol combined with the word Danger indicates a hazard with a high level of risk which, if not avoided, will result in death or serious injury.
	Warning
	A symbol combined with the word Warning indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.
	Caution
	A symbol combined with the word Caution indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

Note

A symbol combined with the word Note indicates a potentially harmful situation which, if not avoided, could result in damage to property or the environment.

General instructions include application tips and useful information, but no warnings against hazards.

Structure Of Warnings

Caution

Type and source of danger.

Possible consequences of non-observance.

▶ Measures to avoid danger.

2.2 Symbols on the Product

Electric voltage

Read the operating instructions carefully

CE compliant

The product corresponds to the prescribed technical requirements in Europe.

UKCA compliant.

The product corresponds to the prescribed technical requirements in Great Britain.

Observe and comply with all local disposal guidelines for all components of this equipment and it's packaging.

Protection class III for electrical equipment / protection by low voltage.

2.3 Intended Use

The user is liable for any damage caused by improper use. Use the product only under the following conditions:

▶ Only use in industrial tightening processes.
▶ Only use in conjunction with the components listed in the EU Declaration of Conformity.
▶ Use under the specified ambient conditions.
▶ Operate within the power range specified in the technical data.
▶ Use with the correctly set tool parameters.
▶ Use in environments with EMC Limit Class A (electromagnetic immunity for industrial environments).
▶ With the recommended battery and charger.

2.4 Foreseeable misuse

▶ DO NOT use the product as a hammer.
▶ DO NOT use a controller other than the one listed in the EC Declaration of Conformity.
▶ DO NOT use the product in areas where there is a risk of explosion.
▶ DO NOT use the product in damp spaces or outdoors.
▶ DO NOT disassemble or modify the product.

2.5 Operator Training

The tightening system may only be put into operation, set up and maintained by personnel who have been trained and qualified by the Apex Tool Group.

The product has been preset by the Apex Tool Group. Changes to the factory settings may only be carried out by a specialist ^1 .

The owner/operator must ensure that new operating and maintenance personnel are instructed in the operation and servicing of the tightening system to the same extent and with the same care.

Personnel undergoing schooling/training/instruction may only work with the tightening system under the supervision of an experienced person.

Personal Protective Equipment

▶ When working with rotating parts, it is not permitted to wear gloves.
➢ Recommendation: Freely rotating u-GUARD protected tightening tools from APEX.
▶ Wear a hair net, if necessary.

2.6 Standards

It is mandatory that national, state, and local codes and standards be followed.

FCC- and ISED Compliance

This product complies with Part 15 of the FCC Rules. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this product. Operation is subject to the following two conditions:

• This product may not cause harmful interference.
- This product must accept any interference received, including interference that may cause undesired operation.

FCC Responsible party

Name: William Cain

Position: Director, R&D

Address: 670 Industrial Drive

Lexington, SC 29072

United States

This product has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

Cleco

reasonable protection against harmful interference when the product is operated in a commercial environment. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this product in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

2.7 General Power Tool Safety Warnings

WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to mains-operated (corded) power tool or battery-operated (cordless) power tool.

1 Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2 Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3 Personal Safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
i) Hold the power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

4 Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may

affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5 Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6 Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

2.8 Specific Safety Instructions for Power Tools

The term "power tool" in the warnings refers to mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Our insulation is not insulation in the sense of VDE standards: Hold the device at the insulated handle surfaces when you perform work where the screw can strike hidden power lines or your own power cable. Contact between the screw and a live power line could energize metal parts of the tool and cause an electric shock.
b) Hold the tool firmly. Be prepared for torque reaction.
c) Reaction bars are recommended in applications with limited space and when using:

• Inline tools used above 4 Nm.
• Pistol tools used above 10 Nm.
• Angle tools used above 60 Nm.

d) NEVER rest your hand on the reaction bar when working.
e) Check that the suspension bail is properly secured to the balancer.

Use and handling of the fixtured spindle

▶ Only use wrench sockets that are suitable for use on machinery.
▶ Make sure that the wrench sockets are securely inserted.
▶ Do not attach wrench sockets to the screw head at an angle.
▶ Inspect wrench sockets for visible damage and cracks. Replace damaged wrench sockets immediately.
▶ Do not open the battery.

3 Items Supplied

• Correct tool (without battery)
• Instruction manual
  • EU Declaration of conformity
• Warranty

4 Transport / Storage

▶ Transport or store the product in its original packaging. The packaging is recyclable.
▶ If the packaging is damaged, check the part for visible damage. Inform the carrier and, if necessary, your Sales & Service Center.
▶ Disconnect the power supply during storage. Refer to see chapter 8.3 Ambient conditions, page 14.

5 Product Description

Control Elements

Battery powered hand held nutrunner used for the tightening / loosening of threaded fasteners:

• Work Light for secondary OK/NOK visual feedback.
- "Stay Alive" function prevents reboot during battery change. Stay alive time = 20 sec.
- On-tool Digital Transducer and Servo provide critical information and eliminate errors.
- Connects easily over WLAN and Bluetooth 4.0.

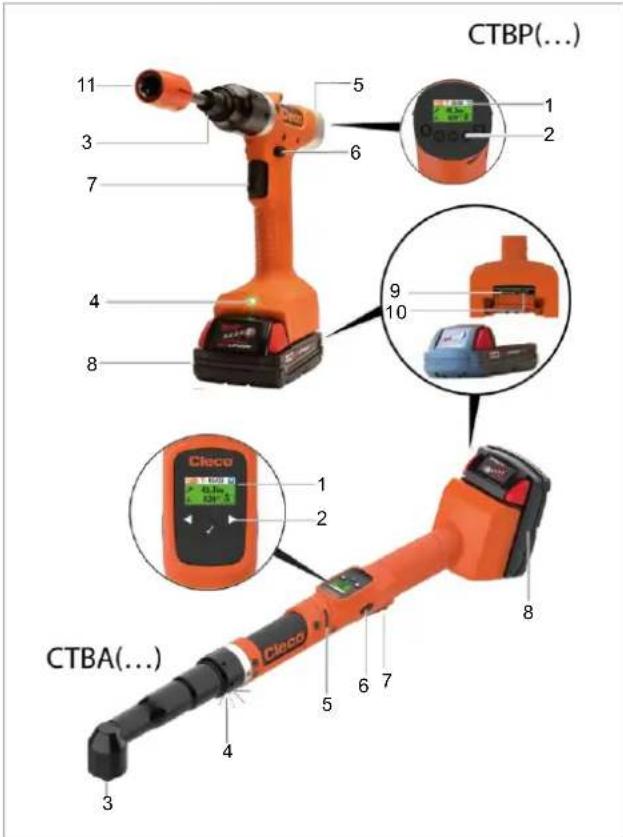

CTBP(...) 11 5 3 6 7 4 8 9 10 Cleco CTBA(...) 1 2 1 2 5 6 7 8

Fig. 1-1: Product description CTBP(...)/CTBA(...)

1	Display
2	Function Keys
3	Output Drive
4	Work Light
5	LED showing OK or NOK
6	Reverse Switch
7	Start Trigger
8	Battery
9	SD Card
10	Micro USB-B Port
11	Socket + u-Guard (optional accessory)

Display

Default settings:

White	Green	Red
Tool running	OK rundown	NOK rundown

Work Light

Default settings:

Blue	Green	Red
Tool running	OK rundown	NOK rundown

LED Display

Status light	Operating status	Result after fastening cycle
	Active	OK
	Active	NOK
	Back-off2	-
	Energy saver mode	-
If linking is selected on the controller:
	Active/Setting: Linking	Linking OK
	Active/Setting: Linking	Linking NOK

6 Before Initial Operation

Charging Battery Pack

Battery pack is supplied partly charged and must be charged completely being used for the first time.

▶ See Original Instructions of Milwaukee charger.
▶ Do not use any other battery packs / chargers than the following:

Battery pack 18 V

Order No.	Capacity
T50-1000497	2.0 Ah
T50-1000498	5.0 Ah

Charger 18 V

Order No.	Country
T50-1000499	North America	1-Bay
T50-1000506	Europe
T50-1000507	Brazil
T50-1000543	Argentina
T50-1000544	United Kingdom
T50-1000545	China
T50-1000546	Japan
T50-1000500	North America	6-Bay
T50-1000508	Europe
T50-1000547	United Kingdom

Working with controller (mPro-Modus)

▶ Configure the tool, refer to the Programming Manual tool.
▶ Configure WLAN on the controller, refer to the Quick Installation Guide and the Programming Manual mPro(...)GCD.

Stand-alone (FastApp-Modus)

Configure the tool, refer to the Programming Manual – Cordless EC Tool.

7 Maintenance

Implement a comprehensive safety maintenance program to provide regular inspection for all phases of tool operation and power supply.

Note

Loss of warranty

Repairs are only permitted by Apex Tool Group authorized personnel. If the tool is opened, the warranty is voided.

▶ If repair is required send the complete tool to Sales & Service Center!

Maintenance after every ... cycles1	Measures
Daily	▶ Check all connections.▶ Visual inspection for general damage.▶ Perform a general function test and watch out for excessive vibration or unusual noise.
500,000or at least once a year	▶ Send the tool to a certified Sales & Service Center for assessment.

Dynamic Service Counter

The service counter has a dynamic component that takes into account the different tool loading. Depending on the cutoff torque, the rundown is assigned to one of six ranges with different factors. The exact ranges and factors depend on the tool concerned. The following factors are valid as guideline values:

• Factor 0.5 for rundowns in the lower operating range of the tool.
• Factor 1 for rundowns in the tool operating range of approx. 80% .
• Factor 2 – 3 for rundowns in the tool operating range of 100%.

To determine the service interval, the number of rundowns in the individual range is multiplied by the factor and all ranges are added.

Example:

100 rundowns at minimum torque (factor 0.5) and 100 rundowns at 80% rated torque (factor 1.0) give a maintenance counter reading of 150 rundowns.

When the maintenance counter is activated, the maximum number of rundowns and a warning threshold are specified. Both values (see controller) can be lowered if a shorter service interval or an earlier warning for pending maintenance is required.

All counter readings of the dynamic maintenance counter are reset to 0 when maintenance is performed by Apex Tool Group.

8 Technical Data

8.1 Right Angle

Order no.	Torque Range		Nominal Power	Speed	Weight	Length	Height	Side to Center	Output
	Nm(ft-lb)Min.	Nm(ft-lb)Max.	W	r/min	kg(lb)	mm(in)	mm(in)	mm(in)
CTBAW153	3.6(2.7)	15.0(11.1)	225	1025	1.40(3.10)	515(20.28)	38.7(1.52)	14.3(0.56)	■ 3/8"
CTBAW213	5.2(3.8)	21.0(15.5)	225	735	1.40(3.10)	515(20.28)	38.7(1.52)	14.3(0.56)	■ 3/8"
CTBAW273	6.8(5.0)	27.0(19.9)	225	560	1.40(3.10)	515(20.28)	38.7(1.52)	14.3(0.56)	■ 3/8"
CTBAW383	10.0(7.4)	38.0(28.0)	225	395	1.55(3.40)	525(20.60)	44.5(1.75)	16.5(0.65)	■ 3/8"
CTBAW503	13.0(9.6)	50.0(36.9)	225	285	1.60(3.50)	534(21.02)	43.8(1.75)	17.0(0.67)	■ 3/8"
CTBAW653	17.0(12.5)	65.0(47.9)	225	220	1.70(3.70)	543(21.38)	46.8(1.84)	19.0(0.75)	■ 3/8"

Values without battery

8.2 Pistol

Order no.	Torque Range		Nominal Power	Speed	Weight	Length	Height	Side to Center	Output
	Nm(ft-lb)Min.	Nm(ft-lb)Max.	W	r/min	kg(lb)	mm(in)
							mm(in)	mm(in)
CTBPW05Q	1.1(0.8)	4.9(3.6)	225	3525	0.90(2.0)	191(7.52)	210(8.27)	19.3(0.76)
CTBPW10Q	2.4(1.8)	10.0(7.4)	225	1600	0.95(2.1)	207(8.15)	210(8.27)	19.3(0.76)
CTBPW15Q	3.4(2.5)	14.4(10.6)	225	1125	0.95(2.1)	207(8.15)	210(8.27)	19.3(0.76)

Values without battery

8.3 Ambient conditions

Features	Data
Operation site	Indoors
Working temperature	0 °C – 40 °C
Storage temperature	-25 °C – 65 °C
Type of cooling	Convection (self-cooling)
Relative humidity	10 % – 90 % no condensation
Working height	Up to 3.000 m (9,843 ft) above sea level
Degree of protection EN 60529	IP40

8.4 Emissions

Order No.	Sound Level Free Speed ISO 15744 [dB(A)]	Sound Level Uncertainty	Vibration Level No Load ISO 28927-2 [m/s2]	Vibration Level Uncertainty
CTBAW153	<70	±3	<2.5	1.5
CTBAW213	<70	±3	<2.5	1.5
CTBAW273	<70	±3	<2.5	1.5
CTBAW383	<70	±3	<2.5	1.5
CTBAW503	<70	±3	<2.5	1.5
CTBAW653	<70	±3	<2.5	1.5
CTBPW05Q	<70	±3	<2.5	1.5
CTBPW10Q	<70	±3	<2.5	1.5
CTBPW15Q	<70	±3	<2.5	1.5

9 Troubleshooting

Problem	Possible cause	Measure
Tool does not start.	No speed programmed.	▶ Check Linking group. In the mPro mode, select Navigator> Standard or Navigator> Basic.
		▶ Check FastApps. In the FastApps mode: C > C 1
	Controller is waiting for tool enablement.	▶ Enable the input Tool Enable or, if not required, deactivate Tool Enable.
	Fast-Apps mode disabled.	▶ Enable FastApps mode: C > C 1
	Self-identification data are not recognized after tool change.	Accept Tool Settings again: 1. Navigator > Tool Setup. 2. Select the line with the tool. 3. Select Tool Settings > Accept.
Tool not recognized.	Software is incorrect.	▶ Check controller and measuring card software.
	FastApps mode is activated.	▶ Disable FastApps mode to connect to the controller.
	Tool is defective.	▶ Change tool.
Tool doesn't start with counterclockwise rotation activated.	With counterclockwise rotation, parameter for speed is set to 0 1/min.	Parameterize Speed left rotation▶ Select on the controller Navigator > Standard > Tool Groups > Settings For Speed Left Rotation.
Tool starts in tightening direction, but not in counterclockwise rotation.	No speed programmed for counterclockwise rotation.	Parameterize Speed left rotation▶ Select on the controller Navigator > Standard > Tool Groups > Settings For Speed Left Rotation.
	Faulty reverse switch	▶ Replace Start/Reverse switch assembly.
Tool shuts off prematurely.	Operator releases start trigger before the controller stops the tool.	▶ Make sure that the operator keeps the start trigger pressed throughout the entire sequence.
	The fastening time exceeds the standard time of 10 seconds.	▶ Increase the fastening time.
	Tool exceeds the angle setpoint.	▶ Check the fastening sequence to ensure that the torque shutoff value and/or angle setpoint are correct. Adjust as necessary. ▶ Check whether the fastening joint has changed significantly.
Tool does not change speed.	Speed is the same in all stages.	▶ Make sure that the speed in the stages is correct.
Warning in the Run Screen: Tool offline!	Tool has not been accepted in the Tool Settings.	1. Select Navigator > Tool Setup.2. Select the line with the tool in the tool list and press.3. Press.
Different torque display in the controller and external transducer.	Adjust the torque calibration factor.	1. Select Navigator > Tool Setup.2. Select the line with the tool in the tool list and press.3. Enter the torque calibration factor at Torque Calibration using the following formula:New calibration value = (external value / tool value) x calibration value used.
	Customer's special attachment was added to tool. The tool memory must be updated.	Reprogram tool memory.
Work light disabled.	Disabled by parameter setting.	▶ Parameterize the tool light on the controller screen: Navigator> Advanced > Tool Group > Extended Tool Settings.
		▶ To activate the work light: 📋 🌐
Control menu on tool is not enabled or only partially enabled.	Disabled by parameter setting.	▶ Activate the control menu: 🌐 🏠
No-load speed not reached.	Battery voltage is too low.	▶ Use a fully charged battery.
Expected number of run-downs is not achieved with one charge of the battery.	Battery is not fully charged.	▶ Use fully charged battery.
	The warning threshold for undervoltage is not set to the minimum value.	▶ Reduce the Undervoltage (V) on the control screen: Navigator > Tool Setup > Tool Settings > Others > Low Level [V].
		▶ To set the warning threshold: 📋 🌐
	High torque is needed during a fastening sequence, e.g., for coated fasteners.	If a high torque is needed for a longer period of time, e.g., for several turns, the number of run-downs that can be achieved with one battery charge will be significantly reduced.
	Battery has too many charging cycles.	After 800 charging cycles, the capacity is reduced to approx. 60%.
Software does not boot.	Error in the main software.	▶ Press the following keys: [IMAGE]
		▶ Use recovery SD card. Contact Sales & Service Center, see back page.

WLAN data communication problems between controller and tool

Problem	Possible cause	Measure
No WLAN data communication between the controller and tool.	The IP address of the tool is not correctly entered in the controller.	1. Check on the control screen: Navigator > Tool Setup, whether the IP address of the tool has been entered in the box Type.2. Otherwise, mark the line andIP address of tool – see Tool in submenuWLAN communication.
	Tool is already assigned to another controller.	▶ Check the WLAN settings and make sure that the WLAN settings for the controllers are different.
		Applies only to WLAN infrastructure customers:▶ Check whether another controller already has a connection to this tool. In other words, another controller is using the same IP address.
IP address cannot be pinged.	IP address already exists in the network. In this case, the tool will not establish a connection.	▶ Check the physical connection (RSSI values): [IMAGE] ▶ Check the assigned IP address.
Occasional interruptions in WLAN data communication.	Distance between the access point and the tool is too great.	1. Check signal strength at tool in the sub-menu Signal Strength: [IMAGE]2. If necessary, reduce the distance between the access point and the tool.
	Excessive data traffic on WLAN network.	Reduce data traffic on WLAN network.1. On the Basic control screen, increase the Trigger: Navigator > Basic Application Builder > Trigger Torque.2. Disable the torque graph data transmission on Navigator > Advanced > Controller > General > Trace Recording. For this, select the entry Record in the column Off.

10 Disposal

Components and auxiliary materials of the product pose risks to the health and the environment. The tool contains components that can be recycled as well as components that must be specially disposed of.

▶ Follow the locally applicable regulations.
Separate the components of the packing and segregate the different materials before disposing of them.

Observe generally valid disposal guidelines such as, in Germany, the Electrical and Electronic Equipment Act (ElektroG) and the Battery Act (BattG).

▶ Dispose of waste battery packs.
▶ Return the battery to your company collection facility or to Sales & Service Center.
▶ Do not dispose of the batterie packs in the household waste or throw them into fire or water.

2.6 Normen/Standards

2.6 Normes / standards

4 Transport / stockage

Please note that all locations may not service all products.

Contact the nearest Cleco® Sales & Service Center for the appropriate facility to handle your service requirements.

Sales Center

Service Center

NORTH AMERICA | SOUTH AMERICA

DETROIT, MICHIGAN

Apex Tool Group

2630 Superior Court

Auburn Hills, MI 48236

519 Nurigong Street, Albury

NSW 2640

Australia

Phone: [phone]

CHINA

Apex Power Tool Trading

(Shanghai) Co., Ltd.

2nd Floor, Area C

177 Bi Bo Road

Pu Dong New Area, Shanghai

China 201203 P.R.C.

Phone: [phone]

Fax: [phone]

INDIA

Apex Power Tool Trading

Private Limited

Gala No. 1, Plot No. 5

S. No. 234, 235 & 245

Indialand Global

Industrial Park

Taluka-Mulsi, Phase I

Hinjawadi, Pune 411057

Maharashtra, India

Phone: [phone]

JAPAN

Apex Tool Group Japan

Korin-Kaikan 5F,

3-6-23 Shibakoen, Minato-Ku,

Tokyo 105-0011, JAPAN

Phone: [phone]

Fax: [phone]

KOREA

Apex Tool Group Korea

1503, Hibrand Living Bldg.,

215 Yangjae-dong

Seocho-gu, Seoul 137-924,

Korea

Phone: [phone]

Fax: [phone]

Cleco

Tame the Line
