USER MANUAL MW3-AG25PFI(MG) TOSHIBA

Please review this instruction manual before operating.

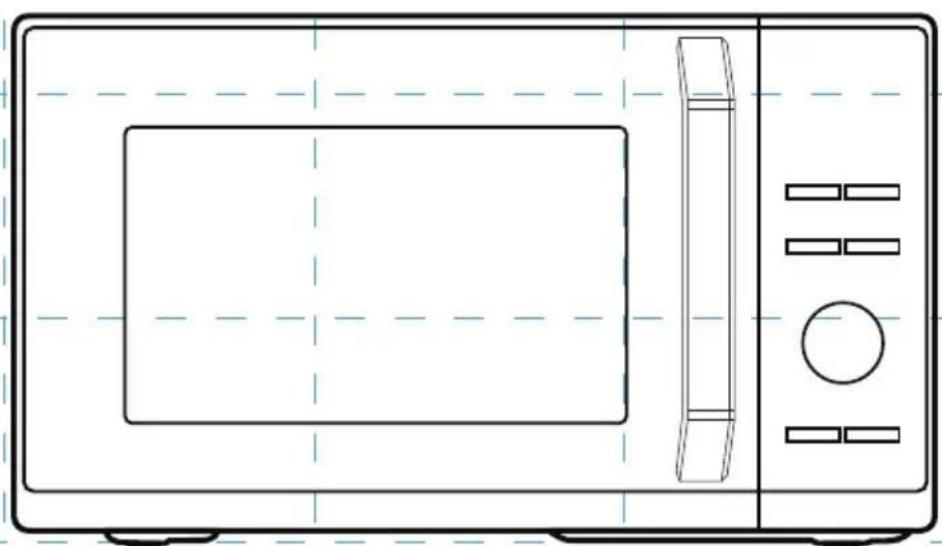

Line drawing of a microwave oven with control panel and door (no text or symbols)

CONTENTS

PRODUCT SAFETY

Precautions to avoid possible exposure to excessive microwave energy ...... EN-01

Specifications ...... EN-02

Important safety instructions ...... EN-03

To reduce the risk of injury to persons grounding installation ...... EN-08

Cleaning ...... EN-10

Utensils ...... EN-11

Materials you can use in microwave oven .... EN-12

Materials can not be used in microwave oven .... EN-14

PRODUCT SETTING

Setting up your oven ...... EN-15

INSTRUCTION FOR USE

Before using for the first time ...... EN-18

Operation ...... EN-19

Control panel and features ...... EN-19

1. Setting the clock ...... EN-20

2. Setting the kitchen timer ...... EN-21

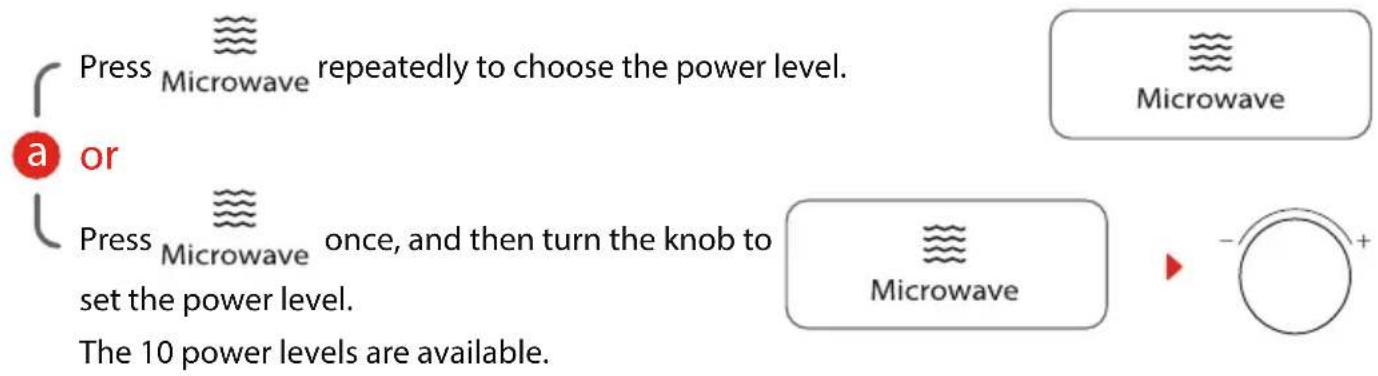

3. Microwave cooking ...... EN-21

4. Grilling cooking ...... EN-22

5. Combination cooking ...... EN-23

6. Defrost by time ...... EN-24

7. Defrost by weight ...... EN-24

8. Speedy cooking ...... EN-25

9. Multi-stage cooking ...... EN-25

10. Auto menu ...... EN-26

11. Lock function for children ...... EN-28
12. Inquiring function ...... EN-28

CLEANING AND MAINTENANCE

Cleaning EN-29

Trouble shooting EN-31

BEFORE OPERATING THIS PRODUCT, READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS. BE SURE TO SAVE THIS BOOKLIST FOR FUTURE REFERENCE.

PRODUCT SAFETY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a). Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.

(b). Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

Simple line drawing of a microwave oven with a prohibition symbol on the lid (no text or labels)

(c). WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

SPECIFICATIONS

MODEL	MW3-AG25PFI(MG)
RATED VOLTAGE/FREQUENCY	230-240 V~ 50 Hz
MICROWAVE POWER INPUT	1400 W
MICROWAVE POWER OUTPUT	900 W
RATED INPUT (GRILL)	1000-1100 W

All pictures in this manual are for illustrative purposes only; these may be slightly different from the purchased equipment, please refer to the actual product.

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Keep the appliance and its cord out of reach of children less than 8 years.

Line drawing of a child reaching toward a microwave on a cabinet (no text or symbols)

If the supply cord is damaged, it must be replaced by the

IMPORTANT SAFETY INSTRUCTIONS

manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

Only use utensils that are suitable for use in microwave ovens.

If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature

IMPORTANT SAFETY INSTRUCTIONS

checked before consumption, in order to avoid burns.

The oven should be cleaned regularly and any food deposits removed. Please keep the waveguide area clean. Use soft damp cloth to clean it up when there is food splash residue on the waveguide area or the cavity. Failure to clean food residue may cause innocuous sparking or some smoke in the microwave cavity, discoloration of the cavity may also occur.

Line drawing of a hand cleaning a microwave oven (no text or symbols)

Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly

result in a hazardous situation.

Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)

The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)

This appliance is intended to be used in household and similar applications such as:

1. staff kitchen areas in shops, offices and other working environments;
2. by clients in hotels, motels and other residential type environments;
3. farm houses;
4. bed and breakfast type environments.

IMPORTANT SAFETY INSTRUCTIONS

The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

The rear surface of appliances shall be placed against a wall.

The temperature of accessible surfaces may be high when the appliance is operating.

WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

The appliance is intended to be used freestanding.

Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

Line drawing of an open microwave oven containing a jar and lid (no text or symbols)

The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

Metallic containers for food and beverages are not allowed during microwave cooking.

The appliance shall not be cleaned with a steam cleaner.

IMPORTANT SAFETY INSTRUCTIONS

The appliances are not intended to be operated by means of an external timer or separate remote-control system.

The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING - Improper use of the grounding can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

If it is necessary to use an extension cord, use only a 3-wire extension cord.

Electric Shock Hazard:

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION

Electric Shock Hazard:

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord or extension cord is used:

(1). The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
(2). The extension cord must be a grounding-type 3-wire cord.
(3). The longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

Personal Injury Hazard:

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven" or "Materials can not be used in microwave oven"

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.

2. Cook on maximum power for 1 min.

3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.

4. Do not exceed 1 min cooking time.

Line drawing of a microwave oven with a cup inside (no text or symbols)

KEEP THE CAVITY AND WAVE GUIDE AREA CLEAN

Line drawing of a hand cleaning a microwave oven with a cloth (no text or symbols)

MATERIALS YOU CAN USE IN

MICROWAVE OVEN

UTENSILS	REMARKS
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.

MATERIALS YOU CAN USE IN

MICROWAVE OVEN

UTENSILS	REMARKS
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

MATERIALS CAN NOT BE USED IN

MICROWAVE OVEN

UTENSILS	REMARKS
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal trimmed utensils	Metal shields the food from microwave energy.Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

PRODUCT SETTING

SETTING UP YOUR OVEN

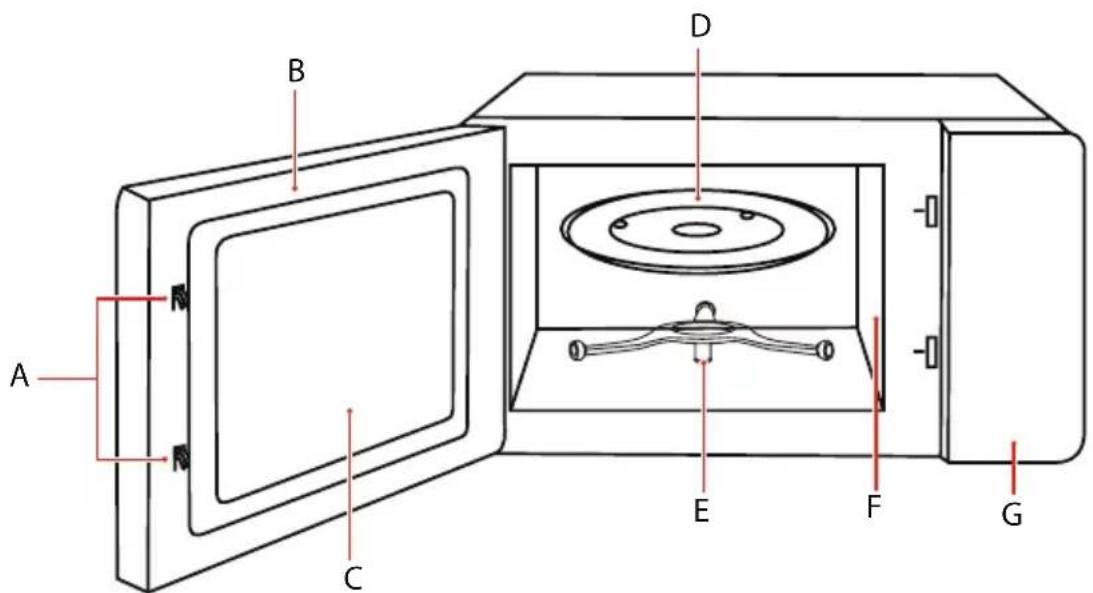

NAMES OF MICROWAVE OVEN PARTS AND ACCESSORIES

Remove the oven and all materials from the carton and oven cavity.

Mechanical component diagram showing a three-lobed handle with a central circular feature and a separate spiral component (no text or symbols)

Turntable Ring Assembly Glass Tray

Simple line drawing of a circular tray with four small objects on each side (no text or symbols)

Instruction Manual

Simple line drawing of a circular table with vertical bars and two legs (no text or symbols)

Grill Rack (Can not be used in microwave function and must be placed on the glass tray)

A B C D E F G

A) Safety interlock system
B) Door assembly
C) Observation window
D) Glass tray

E) Turntable ring assembly
F) Waveguide cover
G) Control panel

In case of any differences between the appliance and the pictures in this manual, the product shall prevail.

SETTING UP YOUR OVEN

TURNTABLE INSTALLATION

Clean the cooking compartment and place the turntable.

For new installations, make sure all packaging and shipping tape has been removed from the turntable shaft.

Before using the appliance to prepare food for the first time, you will need to put the turntable in place correctly. You must clean the cooking compartment and accessories. You can also refer them to the cleaning section.

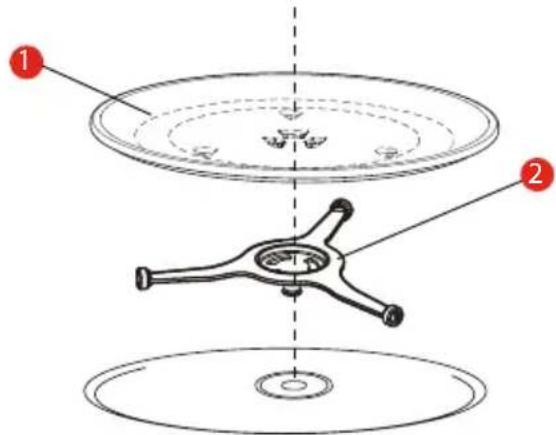

How to put the turntable in place:

1. Place the turntable ring assembly ② into the recess in the cooking compartment.
2. Place the glass tray ① on the turntable ring assemblies ②.

Technical diagram showing a mechanical assembly with labeled parts 1 and 2, including a central rotating component.

1) Glass Tray
2) Turntable Ring Assembly

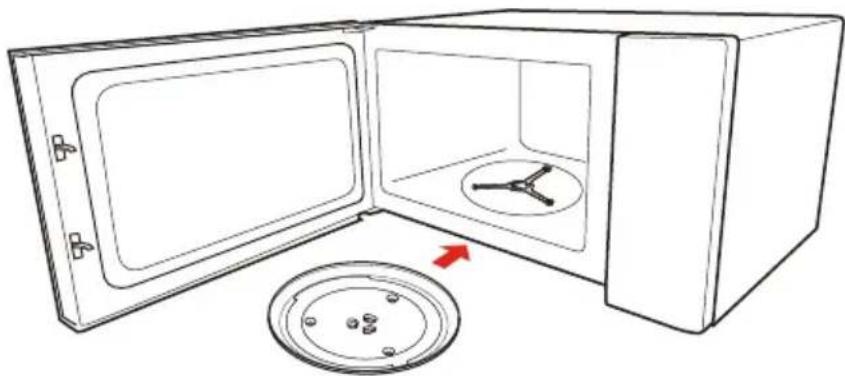

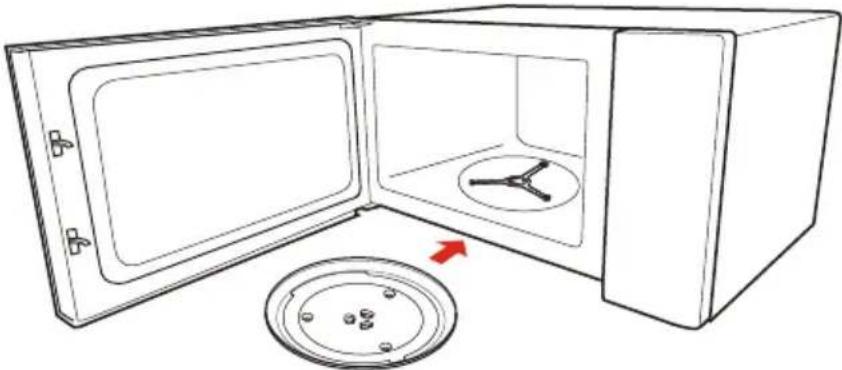

Line drawing of a microwave oven with a lid and fan, showing open door and interior (no text or symbols)

• Never use the appliance without the turntable. Make sure that it is properly engaged. The turntable can turn clockwise or anti-clockwise.
• Never place the glass tray upside down. The glass tray should never be restricted.
• Both glass tray and turntable ring assembly must always be used during cooking.
• All food and containers of food are always placed on the glass tray for cooking.
• Never restrict the movement of the turntable.
• If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

COUNTERTOP INSTALLATION

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the waveguide cover that is attached to the oven cavity to protect the magnetron.

INSTALLATION

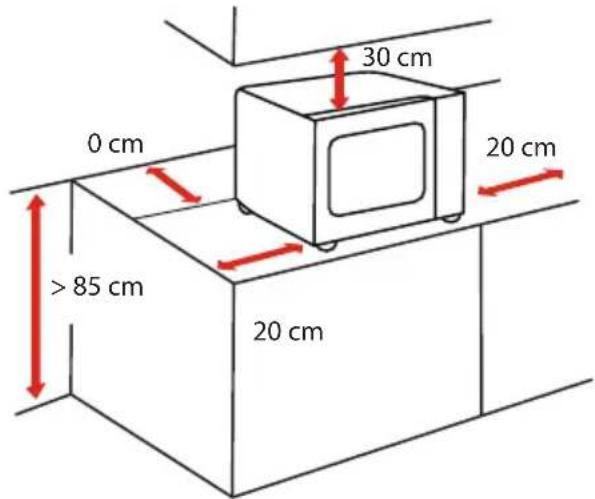

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

a. The minimum installation height is 85cm. b. The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30cm above the oven. A minimum clearance of 20cm is required between the oven and any adjacent walls.

c. Do not remove the legs from the bottom of the oven.

d. Blocking the intake and/or outlet openings can damage the oven.

e. Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

30 cm 0 cm 20 cm >85 cm 20 cm

SIDE

DISTANCE CM

Top 30cm

Left 20cm

Right 20cm

Behind 0cm

Front Open

1. Plug microwave oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

- Do not install oven over a range cooktop or other heat-producing appliance.

If installed near or over a heat source, the oven could be damaged and the warranty would be void.

Line drawing of a kitchen setup with a microwave, oven, and cabinet (no text or symbols)

The accessible surface may be hot during operation

BEFORE USING FOR THE FIRST TIME

It is normal that the oven may produce unpleasant odors when it is used for the first time.

This section tells you what you need to do before using your microwave to prepare food for the first time. Read the section entitled "PRODUCT SAFETY" beforehand.

Before you can use your new appliance, you will need to put the turntable in place correctly. You must also clean the cooking compartment and accessories.

• Never use the appliance without the turntable.
• Make sure that it is properly engaged. The turntable can turn clockwise or anti-clockwise.

OPERATION

CONTROL PANEL AND FEATURES

ORIGIN INVERTER

Empty white rectangle with a thin black border (no text or symbols)

Microwave

Function

Chef
Defrost

Timer/Clock

Time - Weight - Menu

Simple circular diagram with a plus sign at the end and a curved arrow labeled - on the left (no text or symbols beyond the plus sign)

STOP/CANCEL

START/+30SEC.

1. SETTING THE CLOCK

a Press Timer/Clock twice, "00:00" will display.

Timer/Clock

b Turn the knob to set the hour figures.

Press Timer/Clock or START/+30SEC. to confirm the hour figures.

Timer/Clock or -30S START/+30SEC.

d Turn the knob to set the minute figures.

e Press Timer/Clock or START/+30SEC. to confirm. The clock is set.

Timer/Clock or +30S START/+30SEC.

• The clock is a 24-hour display. If the clock is not set, it will not work when powered.
  • To reset the clock, please repeat step a to step e.

2. SETTING THE KITCHEN TIMER

a Press Timer/Clock once, "00:00" will display.
b Turn the knob to set the desired time. The maximum time value is "95:00".
C Press _+30S START/+30SEC. to confirm. The timer starts counting down.

Timer/Clock

+30S START/+30SEC.

10 power levels are available.

LEVEL POWER DISPLAY
1	100%	P100
2	90%	P90
3	80%	P80
4	70%	P70
5	60%	P60
6	50%	P50
7	40%	P40
8	30%	P30
9	20%	P20
10	10%	P10

b Press +305 START/+30SEC. to confirm the power level.

Turn the knob to set the cooking time, the maximum time value is "95:00".

d Press +30S START/+30SEC. to start cooking.

+30S START/+30SEC.

+30S START/+30SEC.

4. GRILLING COOKING

a Press Ⓕ Function once, "G-1" will display.

b Press +30S START/+30SEC. to confirm the mode.

F Function

+30S START/+30SEC.

Turn the knob to set the cooking time, the maximum time value is "95:00".

Press

+30S START/+30SEC.

to start cooking.

START/+30SEC.

NOTE

- The buzzer will sound to remind you to turn the food over during cooking. If no operation, the oven will continue working.

5. COMBINATION COOKING

Press Function repeatedly to choose the cooking mode you want. "C-1, C-2" are available. or Press Function once, and then turn the knob to choose the cooking mode.

F Function

F Function - ○ +

b Press +305 START/+30SEC. to confirm the mode.

+30S START/+30SEC.

Turn the knob to set the cooking time, the maximum time value is "95:00".

d Press +305 START/+30SEC. to start cooking.

+30S START/+30SEC.

COMBINATION COOKING CHART

FUNCTION DISPLAY MICROWAVE POWER GRILL POWER

Combi. 1

C-1 55% 45%

Combi. 2

C-2

36% 64%

6. DEFROST BY TIME

a Press Chef Defrost once, and then "dEF1" will display.

Chef Defrost

b Turn the knob to set the desired defrost time, the maximum time value is "95:00".

C Press +30S START/+30SEC. to start defrosting.

• The buzzer will sound to remain you of turning over the food during defrosting. If no operation, the oven will continue working.
• The defrost power is P30 and it cannot be changed.

7. DEFROST BY WEIGHT

a Press Chef Defrost repeatedly to choose the type of the food, and then "dEF2", "dEF3", or "dEF4" will display.

Chef Defrost

b Turn the knob to set the weight of the food, it should be within "100g-2000g".

Press START/+30SEC. to start defrosting.

+30S START/+30SEC.

	FOOD	WEIGHTLED DISPLA
dEF2	Meat	100g-2000g
dEF3	Chicken	100g-2000g
dEF4	Fish	100g-2000g

- The buzzer will sound to remain you of turning over the food during defrosting. If no operation, the oven will continue working.

8. SPEEDY COOKING

a Turn the knob left to set a cooking time with 100 % power.
b Continue to turn the knob to adjust the cooking time, the maximum time value is "95:00".
C Press +30S START/+30SEC. to start cooking.
a Press START/+30SEC. to cook food with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds and the maximum time value is "95:00".

+30S START/+30SEC.

+30S START/+30SEC.

9. MULTI-STAGE COOKING

Example: Defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes.

a Press Chef Defrost once, "dEF1" will display.
b Turn the knob to set the desired defrost time to 5 minutes.
Press Microwave repeatedly until "P80" displays.
d Press START/+30SEC. to confirm the power level.

Chef Defrost

Microwave

+30S START/+30SEC.

Turn the knob to set the cooking time to 7 minutes.

f Press _+30S START/+30SEC. to start cooking.

• Two cooking stages can be set in multi-stage cooking.
• If you set the defrost function, it will work automatically in the first stage.
• The kitchen timer, auto menu, and speedy cooking cannot be set as one of the multi-stage.

10. AUTO MENU

a In standby mode, turn the knob right once, and then "A-1" will display.

b Turn the knob repeatedly to choose the menu you need. The 7 auto menus are available.

C Press START/+30SEC. to confirm.

d Turn the knob to set the weight of the food.

e Press +305 START/+30SEC. to start cooking.

AUTO MENU CHART

MENU	WEIGHT/AMOUNT DISPLAY		POWER LEVEL
A-1	50g	50g	P100
Popcorn	100g	100g
A-2	1 (230g)	1	P100
Potato	2 (460g)	2
	3 (690g)	3
A-3	200g	200g	P100
Pizza	400g	400g
A-4	200g	200g	P100
Frozen Vegetable	300g	300g
	400g	400g
A-5	1 cup (120ml)	1	P100
Beverage	2 cups (240ml)	2
	3 cups (360ml)	3
A-6	250g	250g	P100
My Plate	350g	350g
(Dinner Plate)	500g	500g
A-7	250g	250g	P80
Meat (Pork)	350g	350g
	450g	450g

11. LOCK FUNCTION FOR CHILDREN

You can use this function to prevent children from accidentally turning the oven on.

a To activate the lock:

In standby mode, press and hold STOP/CANCEL for three seconds. A beep sounds and the locked icon will display.

STOP/CANCEL

b To deactivate the lock:

In the locked state, press and hold STOP/CANCEL for three seconds. A beep sounds.

STOP/CANCEL

12. INQUIRING FUNCTION

When oven is cooking, press Timer/Clock, the current time will display for three seconds in the display.

Timer/Clock

b In the microwave cooking state, press Microwave to inquire about the power level. It will display for three seconds.

Microwave

C In the grilling, and combination cooking state, press to inquire about the cooking mode. It will display for three seconds.

Function

CLEANING AND MAINTENANCE

CLEANING

With good care and cleaning, your appliance will retain its appearance and remain fully functioning for a long time to come. We will explain here how you should correctly care for and clean your appliance.

- Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, sharp or abrasive cleaning aids or detergents.

- The surface of the appliance may become damaged if it is not cleaned properly. Microwave energy may escape.

Clean the appliance on a regular basis, and remove any food remnants immediately.

- Do not immerse the appliance in water or clean under a jet of water.

Cleaning agent

To ensure that the different surfaces are not damaged by using the wrong cleaning agent, observe the information in the table. Wash new sponge cloths thoroughly before use.

Do not use:

Harsh or abrasive cleaning agents

Metal or glass scrapers to clean the door panels

Metal or glass scrapers to clean the door seal

Hard scouring pads or sponges

Cleaning agents with a high alcohol content

APPLIANCE FRONT

Hot soapy water:

Clean using a dish cloth and then dry with a soft cloth. Do not use metal or glass scrapers for cleaning.

Line drawing of a hand cleaning a microwave oven (no text or symbols)

APPLIANCE FRONT WITH STAINLESS STEEL

Hot soapy water:

Clean using a dish cloth and then dry with a soft cloth.

Remove splashes and patches of limescale, grease, starch and albumin immediately. Corrosion can form under these patches or splashes. Do not use glass cleaners or metal or glass scrapers for cleaning.

Line drawing of a hand cleaning a small kitchen oven with a circular vent (no text or symbols)

COOKING COMPARTMENT MADE OF STAINLESS STEEL

Hot soapy water or vinegar solution:

Clean using a dish cloth and then dry with a soft cloth. Do not use oven spray or any other aggressive oven cleaners or abrasive materials. Scouring pads, rough sponges and pan cleaners are also unsuitable. These items scratch the surface. Allow the interior surfaces to dry completely.

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

RECESS IN THE COOKING COMPARTMENT

Damp cloth:

Water must not be allowed to run into the appliance through the turntable drive. Dry the turntable drive with a cloth.

Line drawing of a hand pressing a circular object on a rectangular base (no text or symbols)

TURNTABLE AND ROLLER RING

Hot soapy water:

When placing the turntable back into its recess, it must engage properly.

Illustration of two hands cleaning a circular object with a handle (no text or symbols)

DOOR PANELS

Glass cleaner:

Clean with a dish cloth. Do not use glass scrapers.

TROUBLE SHOOTING

Check your problem by using the chart below and try the solutions for each problem. If the microwave oven still does not work properly, contact the nearest authorized service center.

TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY
Oven will not start	a. Electrical cord for oven is not plugged in.b. Door is open.c. Wrong operation is set.	a. Plug into the outlet.b. Close the door and try again.c. Check instructions
Arcing or sparking	a. Materials to be avoided in microwave oven were used.b. The oven is operated when empty.c. Spilled food remains in the cavity.	a. Use microwave-safe cookware only.b. Do not operate with oven empty.c. Clean cavity with soft damp cloth.
Unevenly cooked foods	a. Materials to be avoided in microwave oven were used.b. Food is not defrosted completely.c. Cooking time, power level is not suitable.d. Food is not turned or stirred.	a. Use microwave-safe cookware only.b. Completely defrost food.c. Use correct cooking time, power level.d. Turn or stir food.
Overcooked foods	Cooking time, power level is not suitable.	Use correct cooking time, power level.
Undercooked foods	a. Materials to be avoided in microwave oven were used.b. Food is not defrosted completely.c. Oven ventilation ports are restricted.d. Cooking time, power level is not suitable.	a. Use microwave-safe cookware only.b. Completely defrost food.c. Check to see that oven ventilation ports are not restricted.d. Use correct cooking time, power level
Improper defrosting	a. Materials to be avoided in microwave oven were used.b. Cooking time, power level is not suitable.c. Food is not turned or stirred.	a. Use microwave-safe cookware only.b. Use correct cooking time, power level.c. Turn or stir food.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

#DetailsMatter

BEDIENUNGSANLEITUNG

MIKROWELLENOFEN

MW3-AG25PFI(MG)

Line drawing of a microwave oven with front panel and control panel (no text or symbols)

INHALT

PRODUKTSICHERHEIT

Simple line drawing of a microwave oven with a prohibition symbol on the lid (no text or labels)

Line drawing of a child reaching toward a microwave on a cabinet (no text or symbols)

Line drawing of a hand cleaning a microwave oven (no text or symbols)

Line drawing of an open microwave oven with a jar and lid (no text or symbols)

Line drawing of a microwave oven with a cup inside, showing open lid and side door (no text or symbols)

Mechanical component diagram showing a three-pronged lever with a central hub and a separate inset showing a coiled spring (no text or symbols)

Simple line drawing of a circular tray with four small objects at the center (no text or symbols)

Bedienungsanleitung

Simple line drawing of a circular table with vertical bars and two legs (no text or symbols)

A B C D E F G

Diagram of a kitchen sink with labeled parts, showing a central water level and surrounding fixtures.

1) Glasdrehscheibe

2) Drehtellerring

Line drawing of a microwave oven with lid and door, showing interior space and a red arrow indicating direction (no text or symbols)

Line drawing of a kitchen setup with a microwave, stove, and oven (no text or symbols)

Empty white rectangle with a thin black border (no text or symbols)

Microwave

Function

Defrost

Timer/Clock

Time - Weight - Menu

Simple diagram with a circle and curved arrows, no text or symbols present

STOP/CANCEL

START/+30SEC.

Timer/Clock

+30S START/+30SEC.

+30S START/+30SEC.

4. GRILLEN

F Function

+30S START/+30SEC.

Drücken Sie

START/+30SEC.

F Function

F Function - ○ +

+30S START/+30SEC.

+30S START/+30SEC.

KOMBINIERTE GARTABELLE

+30S START/+30SEC.

	LEBENSMITTEL	GEWICHTLED-ANZE
dEF2	Fleisch	100 g - 2000 g
dEF3	Hähnchen	100 g - 2000 g
dEF4	Fisch	100 g - 2000 g

+30S START/+30SEC.

+30S START/+30SEC.

9. MEHRSTUFIGES GAREN

Microwave

+30S START/+30SEC.

Line drawing of a hand cleaning a microwave oven (no text or symbols)

GERÄTEFRONT MIT EDELSTAHL

Heißes Spülwasser:

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

GARRAUM AUS EDELSTAHL

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

Line drawing of a hand pressing a circular object on a rectangular base (no text or symbols)

DREHTELLER UND ROLLENRING

Heißes Spülwasser:

Illustration of two hands cleaning a circular object with a handle (no text or symbols)

Line drawing of a microwave oven with control panel and door (no text or symbols)

INDICE

SICUREZZA DEL PRODOTTO

Simple line drawing of a microwave oven with a prohibition symbol on the lid (no text or labels)

Line drawing of a child reaching toward a microwave on a cabinet (no text or symbols)

Line drawing of a hand cleaning a microwave oven (no text or symbols)

Line drawing of a microwave oven with a jar and lid on the interior (no text or symbols)

Line drawing of a microwave oven with a cup inside (no text or symbols)

TENERE PULITA LA CAVITÀ E L'AREA DELLA GUIDA D'ONDA

Line drawing of a hand cleaning a microwave oven with a cloth (no text or symbols)

MATERIALI UTILIZZABILI NEL FRONO A MICROONDE

Mechanical component diagram showing a three-pronged lever with a central hub and a separate spiral component (no text or symbols)

Simple line drawing of concentric circular layers with small circular objects at the center (no text or symbols)

Simple line drawing of a circular table with vertical bars and two legs (no text or symbols)

A B C D E F G

Technical diagram showing a mechanical assembly with labeled parts 1 and 2, including a central component and circular base.

1) Vassoio in vetro

Line drawing of a microwave oven with a lid and fan, showing open door and interior (no text or symbols)

Line drawing of a kitchen setup with a microwave, oven, and cabinet (no text or symbols)

Empty white rectangle with a thin gray border (no text or symbols)

Microwave

Function

Chef
Defrost

Timer/Clock

Time - Weight - Menu

- + +

STOP/CANCEL

START/+30SEC.

Timer/Clock

Timer/Clock

+30S START/+30SEC.

+30S START/+30SEC.

+30S START/+30SEC.

4. COTTURA ALLA GRIGLIA

F Function

+30S START/+30SEC.

Premere

START/+30SEC.

+30S START/+30SEC.

+30S START/+30SEC.

	CIBO	PESODISPLAY LED
dEF2	Carne	100 g-2000 g
dEF3	Pollo	100 g-2000 g
dEF4	Pesce	100 g-2000 g

+30S START/+30SEC.

+30S START/+30SEC.

9. COTTURA IN PIÙ FASI

Microwave

+30S START/+30SEC.

Line drawing of a hand cleaning a microwave oven (no text or symbols)

PARTE ANTERIORE DELL'APPARECCHIO IN ACCIAIO INOX

Line drawing of a hand cleaning a small kitchen oven with a circular vent (no text or symbols)

VANO COTTURA IN ACCIAIO INOX

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

CAVITÀ DEL VANO COTTURA

Panno umido:

Line drawing of a hand pressing a circular object on a rectangular base (no text or symbols)

PIATTO E ANELLO ROTANTE

Two hand-drawn illustrations showing a circular object being cleaned with a tool, no text or symbols present.

PANNELLO DELLO SPORTELLO

MANUEL D'INSTRUCTIONS

FOUR À MICRO-ONDES

MW3-AG25PFI(MG)

Line drawing of a microwave oven with front panel and control buttons (no text or symbols)

SOMMAIRE

SÉCURITÉ DU PRODUIT

Simple line drawing of a microwave oven with a prohibition symbol on the lid (no text or labels)

Line drawing of a child reaching toward a microwave on a cabinet (no text or symbols)

Line drawing of a hand cleaning a microwave oven (no text or symbols)

Line drawing of a microwave oven with a jar and lid inside (no text or symbols)

Line drawing of a microwave oven with a cup inside (no text or symbols)

REMARQUE

MAINTENEZ LA CAVITÉ ET LA SURFACE DU GUIDE D'ONDES PROPRES

MATÉRIAUX QUE VOUS POUVEZ UTILISER DANS UN FOUR À MICRO-ONDES

INSTALLATION DU FOUR

Mechanical component diagram showing a three-pronged lever with a central hub and a separate spiral component (no text or symbols)

Simple line drawing of a circular tray with four small objects at the center (no text or symbols)

Simple line drawing of a circular table with six legs and one seat, no text or symbols present.

A B C D E F G

INSTALLATION DU FOUR

INSTALLATION DU PLATEAU TOURNANT

Diagram of a mechanical device with labeled parts, showing a central hub and surrounding circular components.

1) Plateau en verre

Line drawing of a microwave oven with a circular base and a fan inside, showing no text or symbols.

Line drawing of a kitchen setup with a microwave, a refrigerator, and a stove (no text or symbols)

Empty white rectangle with a thin black border (no text or symbols)

Microwave

Function

Chef
Defrost

Timer/Clock

Time - Weight - Menu

Simple diagram with a circle and curved arrows, no text or symbols present

STOP/CANCEL

START/+30SEC.

1. RÉGLAGE DE L'HORLOGE

Timer/Clock

Timer/Clock OU -30S START/+30SEC.

Timer/Clock ou +30S START/+30SEC.

Timer/Clock

+30S START/+30SEC.

Microwave - + +

+30S START/+30SEC.

•30S START/+30SEC.

4. CUISSON AU GRIL

F Function

+30S START/+30SEC.

F Function

F Function - ○ +

+30S START/+30SEC.

+30S START/+30SEC.

GRAPHIQUE DE CUISSON COMBINÉE

FONCTION AFFICHAGE PUISSANCE DU MICRO-ONDES PUISSANCE DU GRIL

Combi. 1	C-1 55% 45%
Combi. 2	C-2	36% 64%

6. DÉCONGÉLATION PAR LE TEMPS

Microwave

+30S START/+30SEC.

Line drawing of a hand cleaning a microwave oven (no text or symbols)

FAÇADE DE L'APPAREIL EN ACIER INOXIDABLE

Line drawing of a hand cleaning a small kitchen oven with a circular vent (no text or symbols)

COMPARTIMENT DE CUISSON EN INOX

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

CREUX DANS L'ESPACE DE CUISSON

Chiffon humide :

Line drawing of a hand using a circular tool to press or clean a surface on a rectangular device (no text or symbols)

PLATEAU TOURNANT ET ANNEAU ROTATIF

Illustration of two hands cleaning a circular object with a handle (no text or symbols)

PANNEAUX DE PORTE

Line drawing of a microwave oven with front panel and control buttons (no text or symbols)

CONTENIDO

Line drawing of a child reaching toward a microwave on a cabinet (no text or symbols)

Line drawing of a hand cleaning a microwave oven (no text or symbols)

Line drawing of an open microwave oven with a jar and lid (no text or symbols)

Line drawing of a microwave oven with a cup inside (no text or symbols)

Line drawing of a hand cleaning a microwave oven with a circular cutter (no text or symbols)

MATERIALES QUE PUEDE USAR EN UN HORNO MICROONDAS

Mechanical component diagram showing a three-lobed shaft with internal cavity and a small inset with a spiral arrow (no text or symbols)

Simple line drawing of a circular tray with four small circular objects at the center (no text or symbols)

Simple line drawing of a circular object with vertical bars and two protruding legs (no text or symbols)

A B C D E F G

Diagram showing a mechanical assembly with labeled parts, including a central rotating component and a base platform.

Line drawing of a microwave oven with a lid and a red arrow indicating direction (no text or symbols)

Line drawing of a kitchen setup with a microwave, stove, and oven (no text or symbols)

Empty white rectangle with a thin gray border (no text or symbols)

Microwave

Function

Chef Defrost

Timer/Clock

Time-Weight-Menu

Simple diagram with a circle and curved arrows, no text or symbols present

STOP/CANCEL

START/+30SEC.

Timer/Clock

Timer/Clock -30S START/+30SEC.

Timer/Clock +30S START/+30SEC.

Timer/Clock

+30S START/+30SEC.

F Function

+30S START/+30SEC.

Pulse

START/+30SEC.

F Function

F Function - ○ +

b Pulse ·30S START/+30SEC. para confirmar el modo.

+30S START/+30SEC.

+30S START/+30SEC.

Microwave

+30S START/+30SEC.

Line drawing of a hand cleaning a microwave oven (no text or symbols)

PARTE DELANTERA DEL ELECTRODOMÉSTICO CON ACERO INOXIDABLE

Agua caliente jabonosa:

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

Line drawing of a hand pressing down on a circular object on a rectangular base (no text or symbols)

PLATO GIRATORIO Y ANILLO DEL RODILLO

Agua caliente jabonosa:

Illustration of two hands cleaning a circular object with a handle (no text or symbols)

PANEL DE LA PUERTA

Line drawing of a microwave oven with front panel and control buttons (no text or symbols)

TOSHIBA

INDHOLD

PRODUKTSIKKERHED

Forholdsregler for at undgå mulig eksponering for kraftig mikrobølgeenergi ......DA-01

Specifikationer DA-02

INDSTILLING AF PRODUKT

Fejlfinding ....DA-31

F∅R DU BRUGER APPARATET, SKAL DU LÆSE, FORSTÅ OG F∅LGE VEJLEDNINGEN. S∅RG FOR AT GEMME VEJLEDNINGEN TIL SENERE BRUG.

PRODUKTSIKKERHED

FORHOLDSREGLER FOR AT UNDGÅ MULIG EKSPONERING FOR KRAFTIG MIKROB∅LGEENERGI

Simple line drawing of a microwave oven with a prohibition symbol on the lid (no text or labels)

Line drawing of a child reaching toward a microwave on a cabinet (no text or symbols)

Line drawing of a hand cleaning a microwave oven (no text or symbols)

Line drawing of a microwave oven with a jar and lid on the lid (no text or symbols)

Line drawing of a microwave oven with a cup inside, showing open lid and side panel (no text or symbols)

HOLD OVNRUMMET OG OMRÅDET OMKRING B∅LGEAFDÆKNINGEN RENT

Line drawing of a hand cleaning a microwave oven with a cloth (no text or symbols)

MATERIALER SOM KAN BRUGES I

MIKROB∅LGEOVN

INDSTILLING AF PRODUKT

OPSÄTNING AF DIN OVN

DELE OG TILBEH∅R TIL MIKROB∅LGEOVN

Mechanical component diagram showing a three-lobed shaft with internal cavity and a magnified inset of a cylindrical component (no text or symbols)

Simple line drawing of a circular tray with four small objects at the center (no text or symbols)

Brugervejledning

Simple line drawing of a circular table with vertical bars and two legs (no text or symbols)

A B C D E F G

Technical diagram showing a mechanical assembly with labeled parts 1 and 2, including a central component and circular base.

Line drawing of a microwave oven with a lid and fan, showing open door and interior (no text or symbols)

Line drawing of a kitchen setup with a microwave, oven, and stove (no text or symbols)

Empty white rectangle with black border (no text or symbols)

Microwave

Function

Chef Defrost

Timer/Clock

Time - Weight - Menu

Simple circular diagram with a plus sign at the end and a curved arrow labeled '−' on the left (no text or symbols beyond the plus sign)

STOP/CANCEL

START/+30SEC.

1. INDSTILLING AF URET

a Tryk to gange på Timer/Clock . "00:00" vises.

Timer/Clock

b Drej knappen for at indstille timetallet.

Tryk på Timer/Clock eller START/+30SEC. for at bekræfte timetallet.

Timer/Clock eller -30S START/+30SEC.

d Drej knappen for at indstille minuttallet.

Timer/Clock eller +30S START/+30SEC.

Timer/Clock

+30S START/+30SEC.

3. TILBEREDNING MED MIKROB∅LGER

Der findes 10 effektniveauer.

NIVEAU EFFEKT DISPLAY
1	100 %	P100
2	90 %	P90
3	80 %	P80
4	70 %	P70
5	60 %	P60
6	50 %	P50
7	40 %	P40
8	30 %	P30
9	20 %	P20
10	10 %	P10

b Tryk på +30S for at bekræfte effektniveauet. START/+30SEC.
Drej knappen for at indstille tilberedningstiden. Den maksimale tid er "95:00".
d Tryk på _+30S for at starte tilberedningen. START/+30SEC.

+30S START/+30SEC.

+30S START/+30SEC.

4. TILBEREDNING MED GRILL

a Tryk på Ⓕ Function. "G-1" vises.
b Tryk på +30SSTART/+30SEC. for at bekræfte programmet.
C Drej knappen for at indstille tilberedningstiden. Den maksimale tid er "95:00".

F Function

+30S START/+30SEC.

Tryk på

START/+30SEC.

for at starte tilberedningen.

START/+30SEC.

F Function

F Function - ○ +

+30S START/+30SEC.

Drej knappen for at indstille tilberedningstiden. Den maksimale tid er "95:00".

d Tryk på +30SSTART/+30SEC. for at starte tilberedningen.

+30S START/+30SEC.

DIAGRAM OVER KOMBINATIONSTILBEREDNING

PROGRAM DISPLAY MIKROB∅LGEEFFEKT GRILLEFFEKT

Kombination 1

C-1 55% 45%

Kombination 2

C-2

36% 64%

6. OPT∅NING EFTER TID

Tryk på

Chef

Defrost

Drej knappen for at indstille optøningstiden.

Microwave

+30S START/+30SEC.

e Drej knappen for at indstille tilberedningstiden til syv minutter.

Tryk på _+30S START/+30SEC. for at starte tilberedningen.

Prohibition sign with a spray bottle and prohibition symbol

Skrappe eller slibende rensemidler

Line drawing of a hand cleaning a microwave oven (no text or symbols)

FORSIDE PÅ APPARAT MED RUSTFRIT STÅL

Varmt sæbevand:

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

OVNRUM AF RUSTFRIT STÅL

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

FORDYBNING I OVNRUMMET

Fugtig klud:

Line drawing of a hand using a circular tool to clean or restore a surface (no text or symbols)

DREJETALLERKEN OG RULLERING

Varmt sæbevand:

Two hand-drawn illustrations showing a circular object being cleaned with a tool, no text or symbols present.

D∅RPANELER

Glasrensemiddel:

Line drawing of a microwave oven with front panel and control panel (no text or symbols)

INHOUD

PRODUCTVEILIGHEID

Simple line drawing of a microwave oven with a prohibition symbol on the lid (no text or labels)

Line drawing of a child reaching toward a microwave on a cabinet (no text or symbols)

Line drawing of a hand cleaning a microwave oven (no text or symbols)

Line drawing of an open microwave oven with a jar and lid (no text or symbols)

Line drawing of a microwave oven with a cup inside (no text or symbols)

OPMERKING

HOUD DE HOLTE EN HETGEBIED VAN DEGOLFGELEIDER SCHOON

MATERIALLEN DIE U IN DE

MAGNETRONOVEN KUNT GEBRUIKEN

Mechanical component diagram showing a three-lobed handle with a central circular feature and a separate spiral component (no text or symbols)

Simple line drawing of concentric circular layers with small circular objects at the center (no text or symbols)

Gebruikshandleiding

Simple line drawing of a circular table with vertical bars and two legs (no text or symbols)

A B C D E F G

Technical diagram showing a mechanical assembly with labeled parts 1 and 2, including a central rotating component.

Line drawing of a microwave oven with a lid and vent, showing open door and interior (no text or symbols)

OPMERKING

Line drawing of a kitchen setup with a microwave, oven, and cabinet (no text or symbols)

Empty white rectangle with black border (no text or symbols)

Microwave

Function

Chef Defrost

Timer/Clock

Time - Weight - Menu

Simple diagram with a circle and curved arrows, no text or symbols present

STOP/CANCEL

START/+30SEC.

1. DE KLOK INSTELLEN

Timer/Clock

Timer/Clock of -30S START/+30SEC.

Timer/Clock of +30S START/+30SEC.

Timer/Clock

+30S START/+30SEC.

+30S START/+30SEC.

+30S START/+30SEC.

4. KOKEN MET DE GRILL

F Function

+30S START/+30SEC.

+30S START/+30SEC.

+30S START/+30SEC.

COMBINATIEKOOKSCHEMA

FUNCTIE DISPLAY MAGNETRONVERMOGEN GRILLVERMOGEN

Combinatie 1 C-1 55% 45%

Combinatie 2 C-2 36% 64%

9. KOKEN MET MEERDERE FASEN

Microwave

+30S START/+30SEC.

Line drawing of a hand cleaning a microwave oven (no text or symbols)

VOORKANT APPARAAT MET ROESTVRIJ STAAL

Heet zeepwater:

Line drawing of a hand cleaning a small kitchen oven with a circular vent (no text or symbols)

KOOKCOMPARTIMENT VAN ROESTVRIJ STAAL

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

UITSPARING AAM DE BINNENKANT

Vochtige doek:

Line drawing of a hand pressing a circular object on a rectangular base (no text or symbols)

DRAAIPLATEAU EN ROLRING

Heet zeepwater:

Illustration of two hands cleaning a circular object with a handle (no text or symbols)

DEURPANEEL

Glasreiniger:

Line drawing of a microwave oven with control panel and door (no text or symbols)

TOSHIBA

TARTALOM

TERMÉKBIZTONSÁG

MEGJEGYZÉS

A TERMÉK HASZNÁLATA ELŐTT OLVASSA EL, ÉRTSE MEG ÉS KÖVESSE EZEKET AZ UTASÍTÁSOKAT.

MINDENKÉPPEN MENTSE EL EZT A KÖNYVLISTÁT KÉSŐBBI FELHASZNÁLÁSRA.

TERMÉKBIZTONSÁG

ÓVINTÉZKEDÉSEK ANNAK ELKERÜLÉSE ÉRDEKÉBEN, HOGY TÚL SOK MIKROHULLÁMÚ ENERGIA ÉRJEN MINKET

Simple line drawing of a microwave oven with a prohibition symbol on the lid (no text or labels)

Line drawing of a child reaching toward a microwave on a cabinet (no text or symbols)

Line drawing of a hand cleaning a microwave oven (no text or symbols)

Line drawing of a microwave oven with a jar and lid inside (no text or symbols)

Line drawing of a microwave oven with a cup inside (no text or symbols)

MEGJEGYZÉS

TARTSA TISZTÁN AZ ÜREGET ÉS A HULLÁMVEZETŐ TERÜLETET

MIKROHULLÁMÚ SÜTÖBEN

HASZNÁLHATÓ ANYAGOK

Diagram of a mechanical component with a central hub and a magnified inset showing a circular feature (no text or symbols)

Simple line drawing of a circular tray with four small objects on each side (no text or symbols)

Használati útmutató

Simple line drawing of a circular table with vertical bars and two legs (no text or symbols)

A B C D E F G

Diagram of a mechanical component with labeled parts, showing a central rotating knob and surrounding circular base.

1) Üvegtálca

Line drawing of a microwave oven with a lid and an open door, showing no text or symbols.

Line drawing of a kitchen setup with a microwave, oven, and cabinet (no text or symbols)

Empty white rectangle with a thin gray border (no text or symbols)

Microwave

Function

Defrost

Timer/Clock

Time - Weight - Menu

Simple diagram with a circle and curved lines, no text or symbols present

STOP/CANCEL

START/+30SEC.

Timer/Clock

+30S START/+30SEC.

+30S START/+30SEC.

4. GRILLEZÉS

F Function

+30S START/+30SEC.

Nyomja meg a

F Function

+30S START/+30SEC.

+30S START/+30SEC.

KOMBINÁLT FÖZÉSI TÁBLÁZAT

FUNKCIÓK KIJELZŐ MIKROHULLÁMÚ TELJESÍTMÉNY GRILL TELJESÍTMÉNY

Kombi. 1

C-1 55% 45%

Kombi. 2

C-2

36% 64%

+30S START/+30SEC.

+30S START/+30SEC.

9. TÖBBFOKOZATÚ FÓZÉS

Microwave

+30S START/+30SEC.

Line drawing of a hand cleaning a microwave oven (no text or symbols)

KÉSZÜLÉK ELEJE ROZSDAMENTES ACÉLLAL

Line drawing of a hand cleaning a small kitchen oven with a circular vent (no text or symbols)

ROZSDAMENTES ACÉLBÓL KÉSZÜLT SÜTÖTÉR

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

A FÖZÖTÉRBEN LÉVŐ MÉLYEDÉS

Nedves ruha:

Line drawing of a hand pressing down on a circular object inside a rectangular container (no text or symbols)

Illustration of two hands cleaning a circular object with a handle (no text or symbols)

AJTÓPANELEK

Üvegtisztító:

MANUAL DE INSTRUCTIUNI

CUPTOR CU MICROUNDE

MW3-AG25PFI(MG)

Line drawing of a microwave oven with control panel and door (no text or symbols)

TOSHIBA

CUPRINS

SIGURANTA PRODUSELOR

Simple line drawing of a microwave oven with a red prohibition symbol on the lid (no text or labels)

Line drawing of a child reaching toward a microwave on a cabinet (no text or symbols)

Line drawing of a hand cleaning a microwave oven (no text or symbols)

Line drawing of an open oven containing a jar and a small object inside (no text or symbols)

Line drawing of a microwave oven with a cup inside (no text or symbols)

PĂSTRAȚI CURATĂ ZONA CAVITĂȚII ȘI A GHIDULUI DE UNDĂ

Line drawing of a hand cleaning a microwave oven with a cloth (no text or symbols)

MATERIALE PE CARE LE PUTETI UTILIZA ÎN CUPTORUL CU MICROUNDE

Mechanical component diagram showing a three-pronged lever with a central hub and a separate spiral component (no text or symbols)

Simple line drawing of a circular tray with four small objects at the center (no text or symbols)

Manual de Instructiuni

Simple line drawing of an oval table with chairs and legs (no text or symbols)

A B C D E F G

Technical diagram showing a mechanical assembly with labeled parts 1 and 2, including a central rotating component.

1) Tavă de sticlă

Line drawing of a microwave oven with a lid and fan, showing open door and interior (no text or symbols)

Line drawing of a kitchen setup with a microwave, oven, and stove (no text or symbols)

Empty white rectangle with a thin black border (no text or symbols)

Microwave

Function

Chef Defrost

Timer/Clock

Time - Weight - Menu

- + +

STOP/CANCEL

START/+30SEC.

1. SETAREA CEASULUI

Timer/Clock

Timer/Clock sau +30S START/+30SEC.

Timer/Clock

+30S START/+30SEC.

+30S START/+30SEC.

+30S START/+30SEC.

4. GĂTITUL LA GRĂTAR

F Function

+30S START/+30SEC.

Apăsați

START/+30SEC.

+30S START/+30SEC.

+30S START/+30SEC.

9. GĂTIT ÎN MAI MULTE ETAPE

Microwave

+30S START/+30SEC.

Timer/Clock

Microwave

F Function

Line drawing of a hand cleaning a microwave oven (no text or symbols)

APARAT FRONTAL CU OTEL INOXIDABIL

Apă caldă cu săpun:

Line drawing of a hand cleaning a small kitchen oven with a circular vent (no text or symbols)

COMPARTIMENT DE GĂTIT DIN OȚEL INOXIDABIL

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

ADÂNCITURA DIN COMPARTIMENTUL DE GĂTIT

Cârpă umedă:

Line drawing of a hand using a circular tool to press or clean a surface on a rectangular device (no text or symbols)

PLATOU ROTATIV ŞI INEL CU ROLE

Apă caldă cu săpun:

Two hand-drawn illustrations showing a circular object being cleaned with a tool, no text or symbols present.

PANOU UŞÄ

Curățător sticlă:
