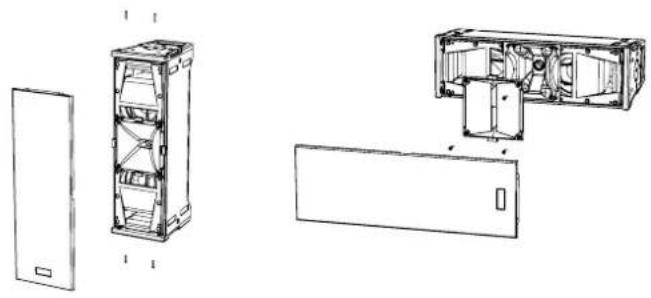

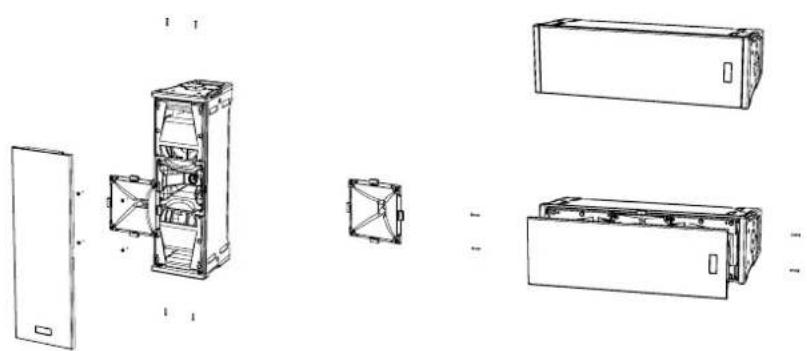

ATTENZIONE!

Technical line drawing of a rectangular electronic device with mounting brackets and a vertical panel (no text or symbols)

Technical line drawing of a mechanical device with mounting bracket and vertical support (no text or symbols)

VB-2X6

Technical line drawing of a mechanical housing or enclosure with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical housing or enclosure component with mounting brackets and mounting holes (no text or symbols)

HB-2X6

VIO-X206 Cod. 420120356 REV. 1.3

Technical line drawings of a multi-case electronic device with internal components and mounting holes (no text or symbols)

HK-6090
HORN KIT

Technical line drawings of a multi-chamber electronic device showing internal components and exterior casing (no text or labels)

HK-15100WG
HORN KIT

Technical line drawings of three electronic devices: a rectangular box, a multi-chamber unit with internal fan-like structure, and a rectangular panel (no text or symbols)

Technical diagram of a desktop computer case with labeled components and directional arrows indicating assembly or movement.

VIO-X206

RC-1

Cod. 420120356 REV. 1.3.

7. RISOLUZIONE DEI PROBLEMI

Simple line drawing of a laptop connected to a USB symbol (no text or labels)

MECHANICAL AND ACOUSTICAL FEATURES.... 28

SIZE AND WEIGHT 28

ACOUSTICAL FEATURES 28

MECHANICS 29

FEATURES OF THE AMPLIFIER AND CONTROL SECTIONS.... 31

INPUT, OUTPUT AND CONTROL SECTION 32

POWER SUPPLY UNIT SECTION 33

2. REFERENCE SOFTWARE.... 34

3. DSP PRESET PARAMETERS AND REMOTE CONTROL.... 34

4. CONNECTIONS.... 35

CONNECTION AND POWER DAISY CHAIN 35

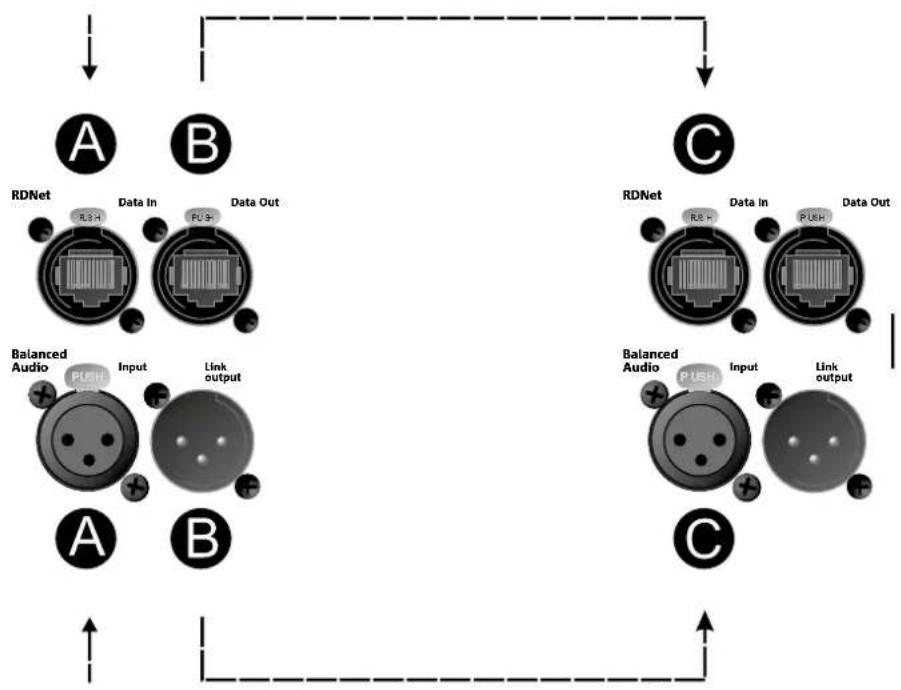

AUDIO AND RDNET SIGNAL CONNECTION AND DAISY CHAIN 36

5. LINE ARRAY INSTALLATION AND CONFIGURATION.... 38

PACKAGE CONTENTS 38

INSTALLATION EXAMPLES.... 38

6. POINT-SOURCE INSTALLATION AND CONFIGURATION 41

7. TROUBLESHOOTING 43

8. FIRMWARE UPDATES.... 44

9. SPECIFICATIONS 45

GENERAL INFORMATION 45

ACOUSTICAL SPECIFICATIONS.... 45

AMPLIFIER.... 45

PROCESSOR 46

USER INTERFACE 46

INPUTS AND OUTPUTS.... 46

POWER SUPPLY SPECIFICATIONS (ABSORPTION) 46

MECHANICAL SPECIFICATIONS 47

VIO-X206

Code 420120356 REV. 1.3

1. GENERAL INFORMATION

WELCOME!

Thanks for purchasing a product designed and developed in Italy by dBTechnologies! This powerful and easy to assemble active line array module is the result of years of experience in the field of sound reinforcement. It makes use of optimized sound, electronic and material research solutions.

PRODUCT OVERVIEW

The X206 ushers in a new concept in sound reinforcement for indoor and outdoor live applications: a powerful full-range point-source speaker that can be turned into a line array element with one simple operation, and vice versa. The main features common to both models (X206 and X206-100) are:

• acoustic design with horn or waveguide (depending on model)
- integrated mounting system and a professional set of accessories depending on the type of use
- a powerful amplifier (900 W RMS) and an SPL value of 131 dB
• control entrusted to a powerful 32-bit DSP
• power, audio and mains daisy chains for optimized wiring
• on-board RDnet control and predictive and remote management software (EASE FOCUS 3, AURORA NET)

USER REFERENCE

To make the most of your VIO loudspeaker, we recommend that you:

• read the quick start user manual included in the package and this user manual thoroughly and keep this manual during the whole life of the product.
• Register your product at http://www.dbtechnologies.com under "SUPPORT".
• keep proof of purchase and WARRANTY (User manual "section 2").

MECHANICAL AND ACOUSTICAL FEATURES

SIZE AND WEIGHT

The series has been designed with particular attention to the optimization of weight and size. The wooden cabinet, with a polyurea finishing, weighs 31.3 kg. The dimensions are: 210 mm (L), 650 mm (H), 270 mm (W).

650 210

Technical line drawing of a rectangular frame with side supports and a dimension label (270) at the bottom, no readable text or symbols present.

ACOUSTICAL FEATURES

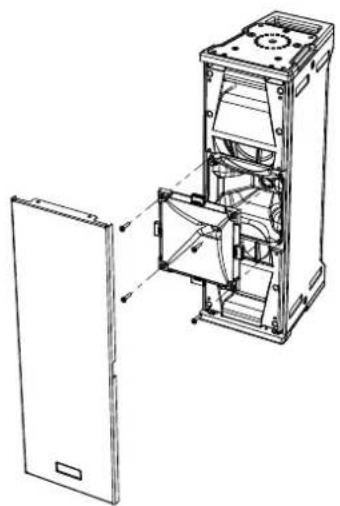

The acoustic optimization is based on a careful choice of materials, shape and geometry of the wooden cabinet. Inside the module there are several measures to ensure accuracy in a very wide range of frequencies. In particular, the acoustic design features a front panel that optimises emission coherence and can accommodate a horn or waveguide, depending on the model.

Technical line drawing of an internal device housing with visible components and mounting holes (no text or symbols)

Technical line drawing of an internal device housing with a panel and door, showing internal components and mounting points (no text or labels)

VIO-X206

Code 420120356 REV. 1.3

MECHANICS

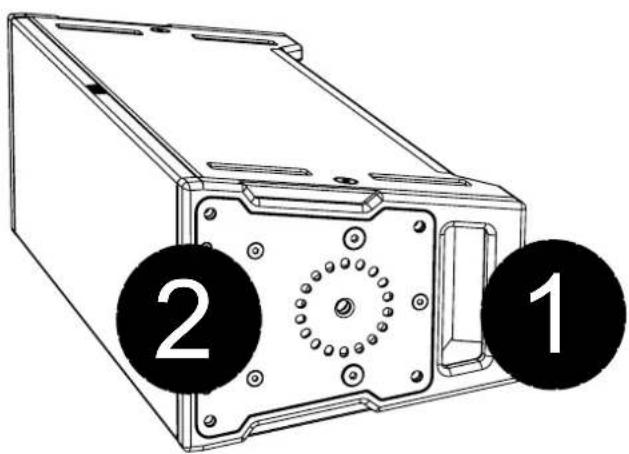

2 1

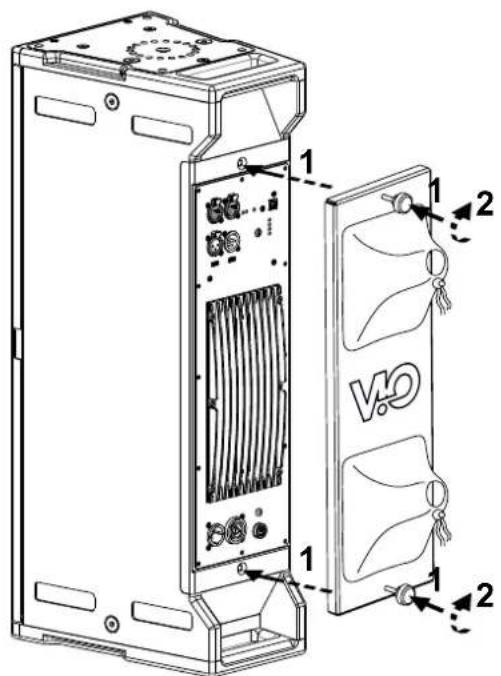

The module ergonomics and the quick assembly in line arrays are guaranteed by:

1) Rear handle
2) Integrated mechanical mounting points

An optional RC-1 rain cover is provided for outdoor use.

Technical diagram of a computer tower case with labeled components and directional arrows indicating assembly or movement.

RC-1

VIO-X206 Code 420120356 REV. 1.3

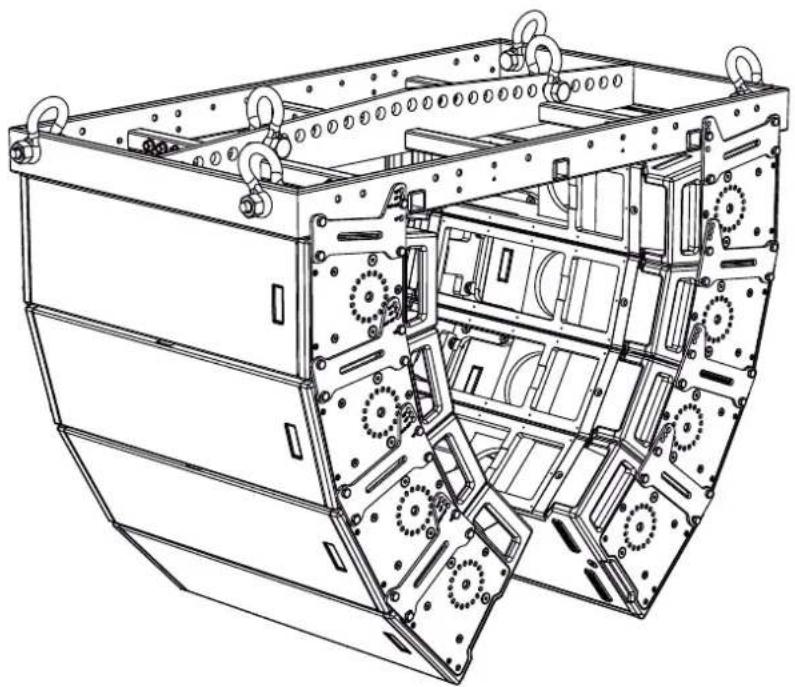

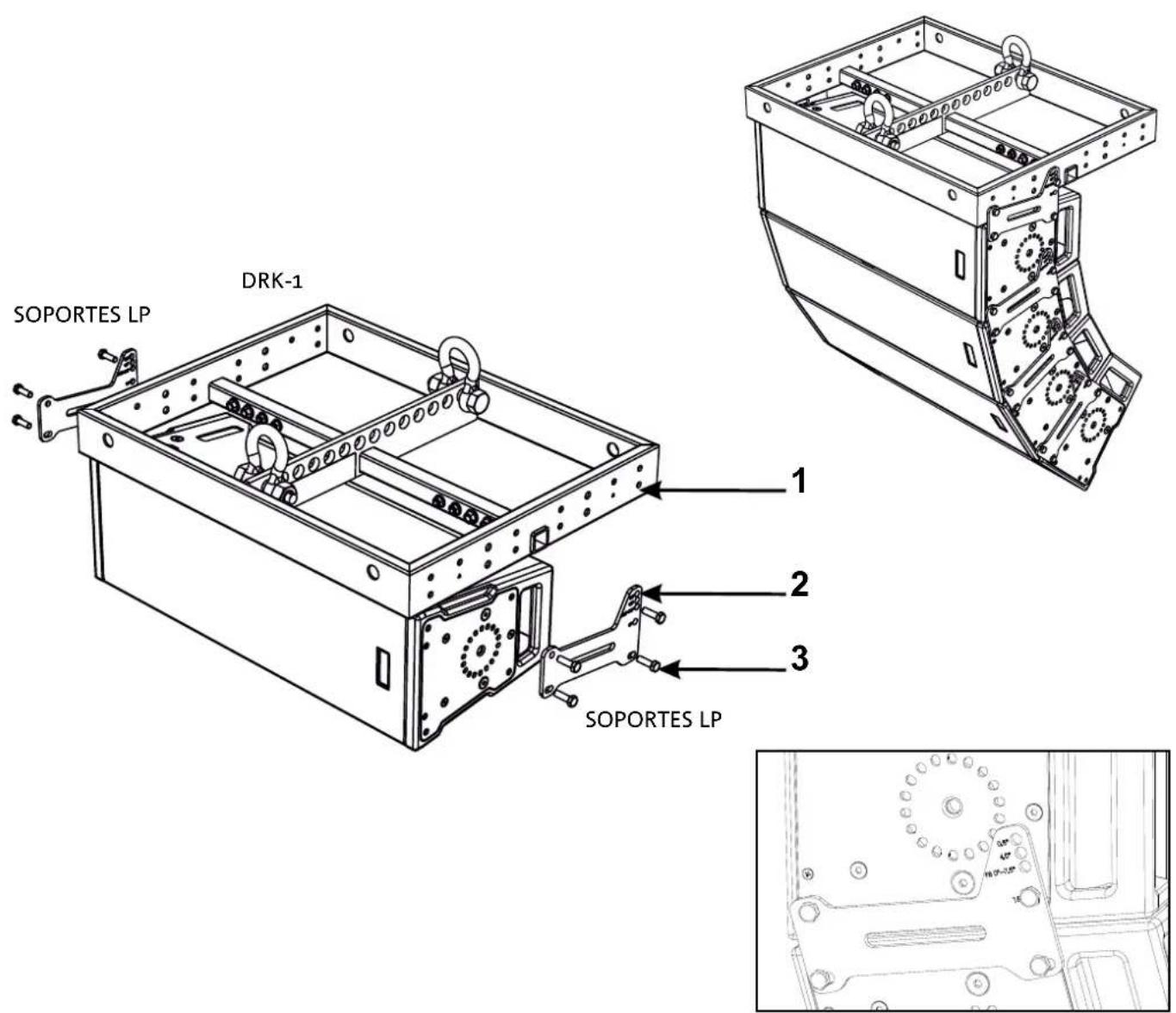

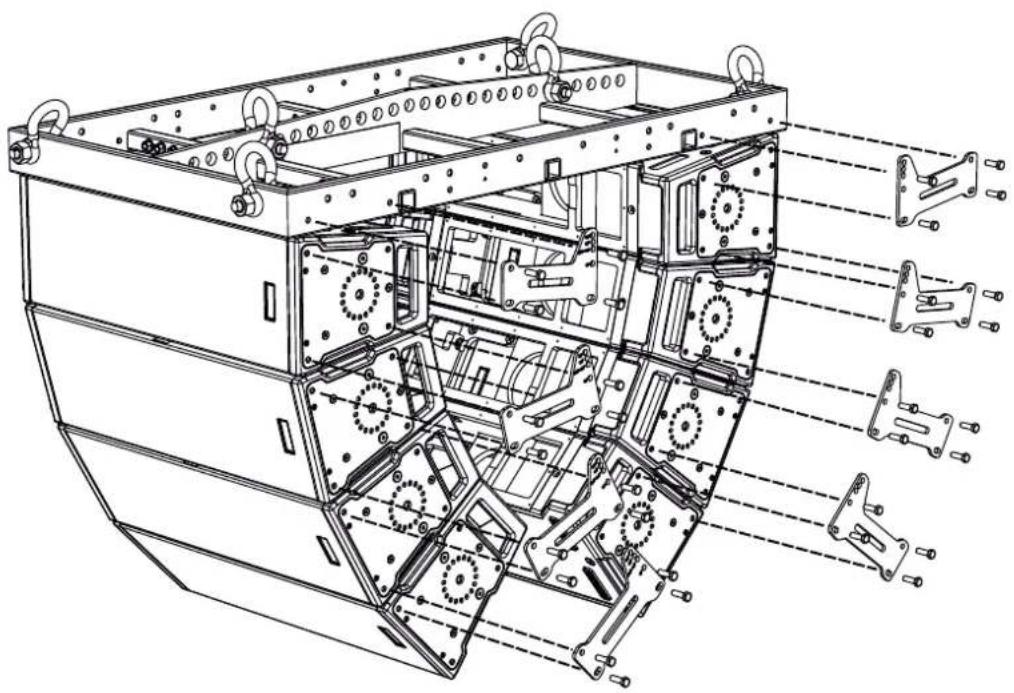

LP BRACKETS DRK-1 1 2 3 LP BRACKETS

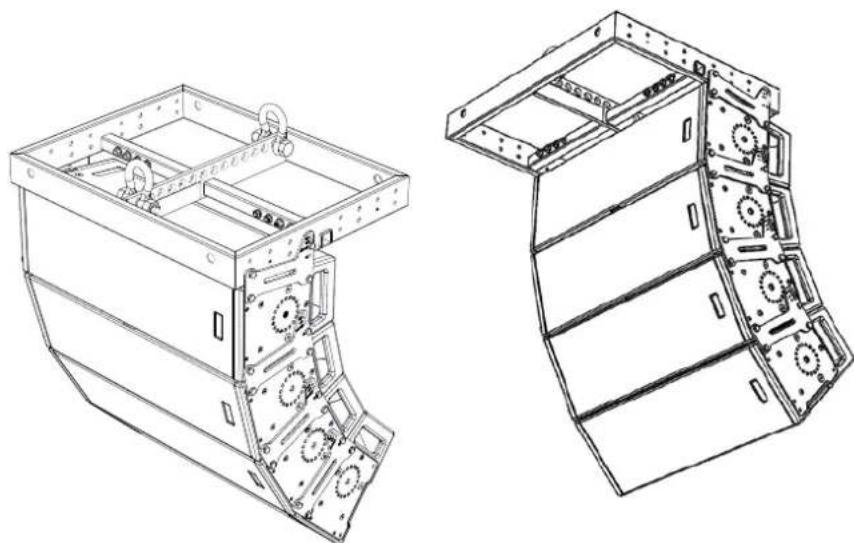

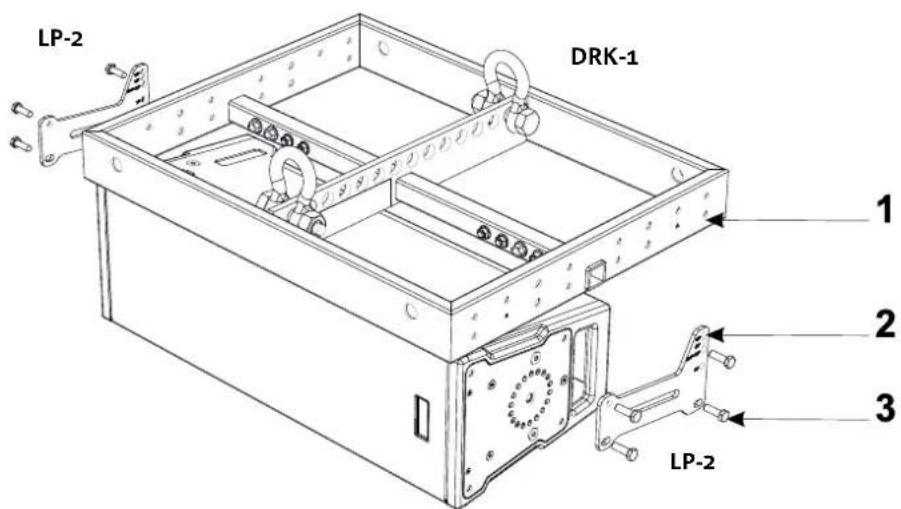

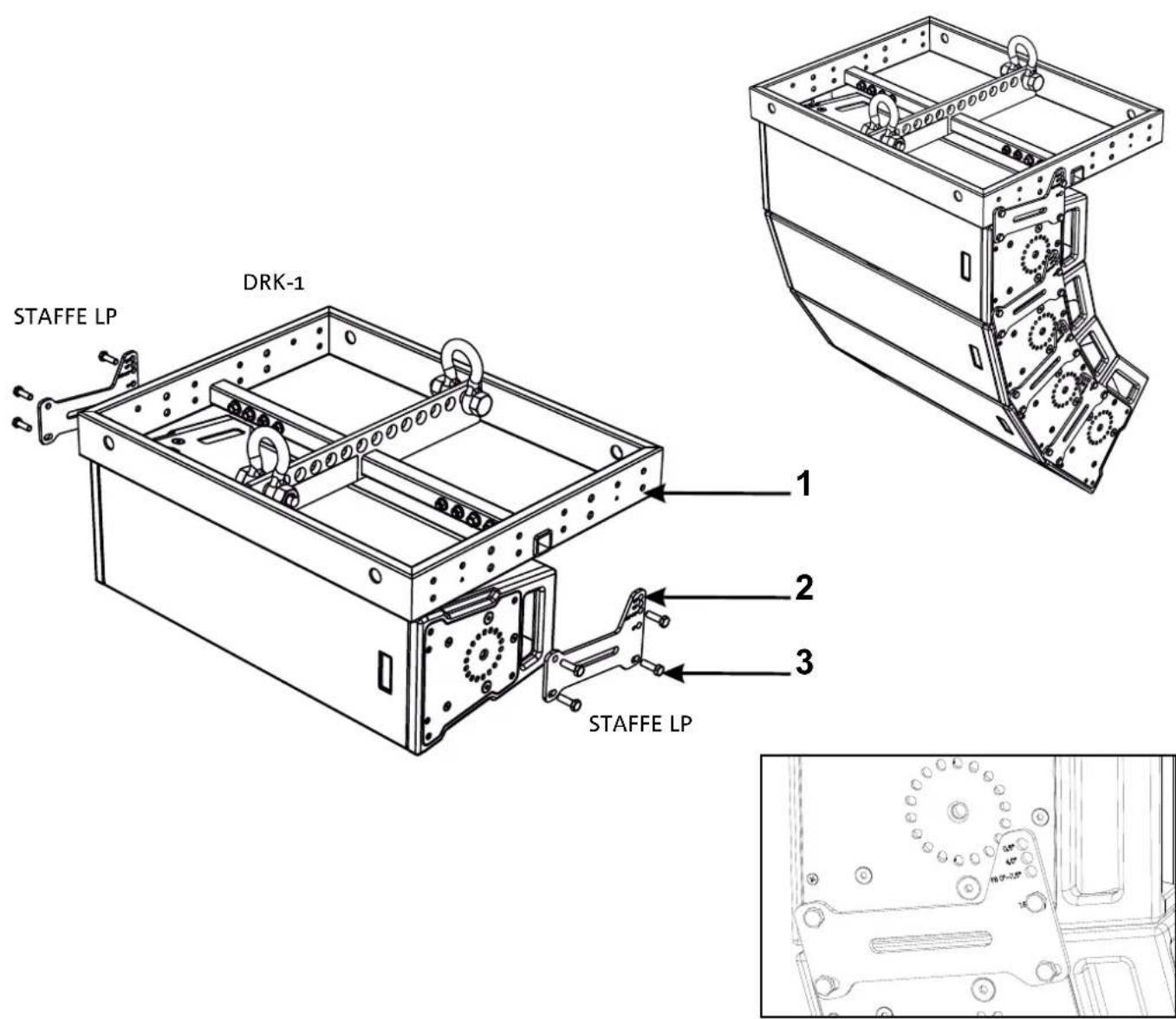

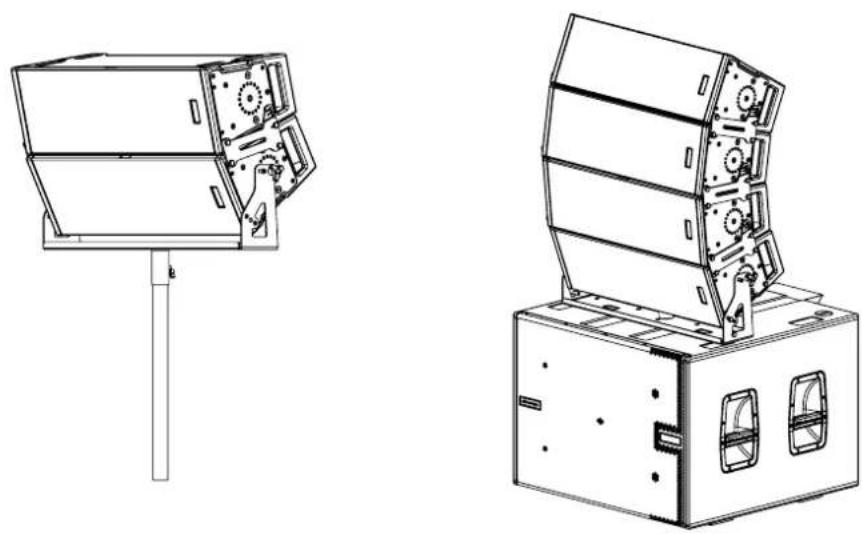

As an example, the DRK-1 fly-bar in combination with the LP brackets allow for quick mounting of the X206-100 in line array. Place the bolt in the pre-drilled holes, as shown in the picture, to choose between the pre-set angles. For further clarification, please refer to the instructions for the individual accessories, and any updates at www.dbtechnologies.com.

WARNING!

- Only use accessories and configurations described in this manual and operate according to the instructions in the manuals provided with the accessories, even if they are not like those shown here.

VIO-X206

Code 420120356 REV. 1.3

FEATURES OF THE AMPLIFIER AND CONTROL SECTIONS

The class D digital amplifier is the heart of the VIO-X206 modules.

It allows delivering up to 900 W RMS, silently and efficiently. System is controlled by a powerful DSP allowing an immediate and quick configuration of the line-array in any context of use. Thanks to the possibility of a networking with RDNet, the parameters on the panel can be remotely controlled through the "AURORA NET" software (refer to DSP PRESET PARAMETERS AND REMOTE CONTROL paragraph) 3

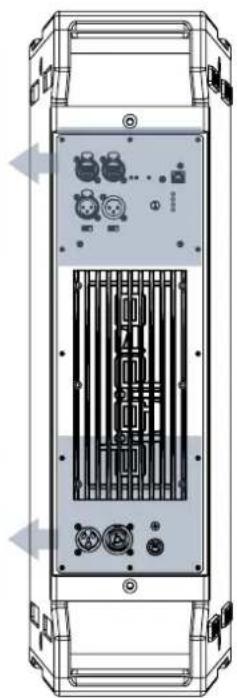

The DIGIPRO G3 panel is made up of:

• Input, Output and Control Section
  • Power Supply Unit Section

WARNING!

• Never attempt to disassemble the amplifier in any way.

• In the event of a malfunction, remove power supply immediately by disconnecting the unit from the power mains and contact an authorised repair centre.

• Preferably use cables with original, high quality Neutrik® connectors. Periodically check their integrity.

• The loudspeaker is provided with a fuse installed at the factory for operation in the 220-240 V voltage range. If you need to operate in the 100-120 V range:

• Disconnect all connections, including the power supply connection.

• Wait 5 minutes.
• Replace the fuse with the fuse rated for the 100-120 V range, which is included in the package.

WARNING!

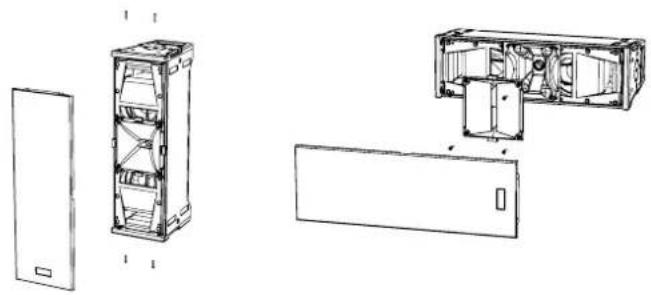

- Never remove the front grille protecting the product. To prevent the danger of electric shock, in case of accidental damage or replacement of the protection grille (to be carried out at the service), disconnect power supply immediately. Never connect mains power supply when the grille is removed.

VIO-X206 Code 420120356 REV. 1.3

CD-ROM Device DialoCat Control Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio A10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Control panel interface with labeled buttons and display screen showing Chinese text and symbols

Technical line drawing of a device rear panel with internal circuitry and connector ports (no text or symbols)

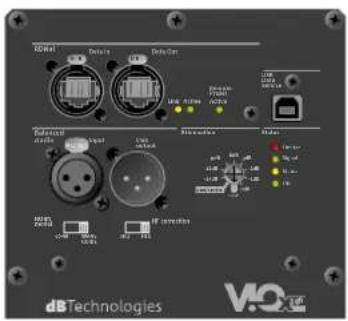

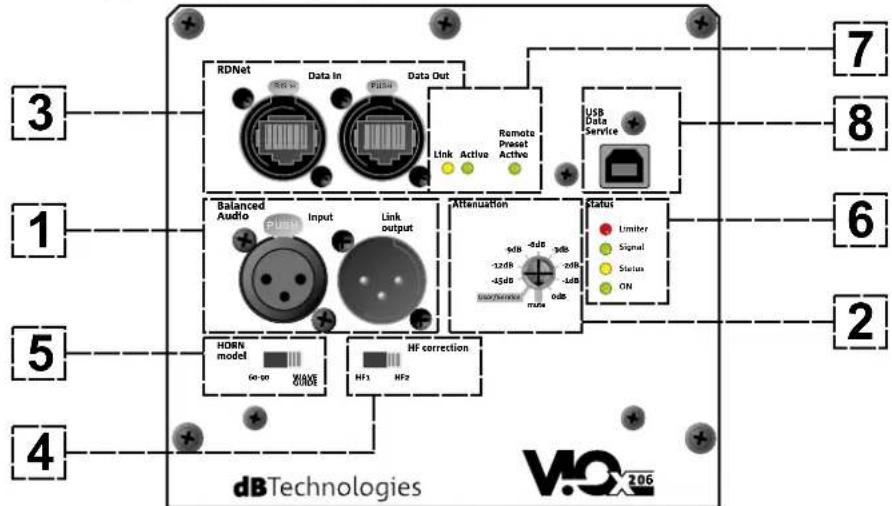

INPUT, OUTPUT AND CONTROL SECTION

3 RDNet Data In Data Out Link Active Remote Preset Active USB Data Service 7 8 1 Balanced Audio Input Link output Attenuation Status Limiter Signal Status ON 6 5 HDRN model 00-00 WAVE GUIDE HF correction HF1 HF2 4 dbTechnologies V:O 206

1. INPUT AND OUTPUT LINK ("Balanced audio")

Input and output compatible with balanced XLR cables.

In particular, "Input" is used to connect with the audio signal coming from the mixer or from another loudspeaker, "Output Link" is used to link the signal to the other modules of the line-array, in daisy-chain configuration.

1. ATTENUATION

10-position rotary control to select the attenuation according to preset values (0, -1, -2, -3, -6, -9, -12, -15 dB) with MUTE position to mute the system and User/Service to set the mode for any firmware update with local connection. Please note that there is a specific procedure for updating a network system connected to Aurora Net.

1. INPUT AND NETWORK CONNECTION LINK RDNet

Section compatible with network cables with etherCON/RJ45 connectors.

In particular, "Data in" must be connected to devices such as RDNet Control 2 or Control 8; "Data Out" is used to link the network to additional modules of the line array in daisy-chain configuration.

1. HF correction [Hz]

It allows the optimisation of the acoustic correction (particularly on high frequencies) required depending on the distance, both in point-source and line array operation. HF1 is intended as the position to be selected for short-distance operation, and HF2 for longer distances.

1. HORN model

Selector to correctly configure the acoustic behaviour of the VIO X206 depending on whether it is the point-source model (with acoustic horn) or a line array element (X206-100 with waveguide).

1. STATUS LEDs

LEDs relating to module operation. A table in next page summarizes the meaning of the different LEDs.

1. SERVICE DATA USB PORT

It is a USB B port to be used only for product firmware update. For further information refer to "FIRMWARE UPDATE".

1. CONTROL LEDs

LEDs relating to module network operation (RDNet).

In particular, “Link” ON indicates that the RDNet network is active and has recognised the device, “Active” in flashing mode indicates that there is data traffic, “Remote Preset Active” that all local controls on the amplifier panel are by-passed by the RDNet remote control.

VIO-X206

Code 420120356 REV. 1.3

LED TYPE	STARTING PHASE OF THE SPEAKER	RUNNING STANDARD	WARNING GENERIC	BLOCK FOR SPEAKER FAULT
LIMITER OFF	OFF, IT	STARTS ONLY IN CASE OF TRIGGERING	FLASHING TEMPORARY	CONTINUOUS CYCLIC FLASHING
SIGNAL	OFF FLASHING	IN THE PRESENCE OF A SIGNAL	INPUT AUDIO STANDARD SIGNALLING	OFF
MUTE/ PROT	ON FOR A FEW SECONDS	OFF FLASHING	TEMPORARY	STEADY ON
READY OFF	STEADY ON STEADY ON OFF

Table of the status LED signals

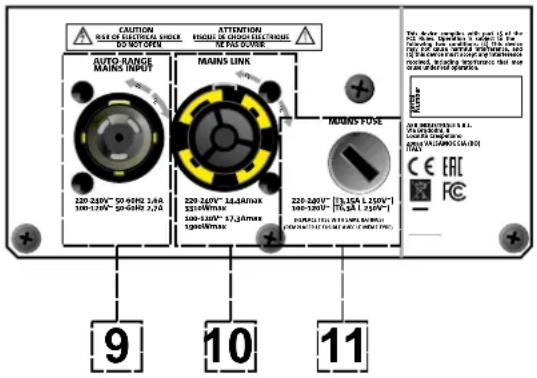

POWER SUPPLY UNIT SECTION

CAUTION RISK OF ELECTRICAL SHOCK DO NOT OPEN ATTENTION HEIGHT OR LENGTH ELECTRIC NE PAS COVER AUTO-RANGE MAINS INPUT MAINS LINK 220-260V" 50-49Hz 1.6A 100-120V" 50-49Hz 2.7A 220-260V" 16.4A/Max 528-10A/Max 100-120V" 6.7A/Max 120-16A/Max MAINS PULSE 220-260V" [3.35A L 1.50V] 100-120V" [7.6A L 2.9V] FORUM FLOW: 0.15mA MAX / 1.5mA FORUM FLOW: 0.15mA MAX / 1.5mA 9 10 11 The device contains an input (I) for the FIRE, MOUNT, and CANOLED CNTs. For example, I can be used to find a pinout or connection to the FIRE, MOUNT, and CANOLED CNTs. For example, I can be used to find a pinout or connection to the FIRE, MOUNT, and CANOLED CNTs. CE ERC FC

9. "MAINS INPUT" POWER CONNECTOR

Compatible with powerCON TRUE1® connector, the power supply features an auto-range function. Once the appropriate range has been defined and the fuse has been changed, if necessary, the system automatically recognizes the voltage within the range [100-120V\~] or [220-240V\~].

10. "MAINS LINK" POWER DAISY CHAIN

Compatible with powerCON TRUE1 ^® connector for power daisy chain to other modules.

To find the maximum number of modules that can be connected in a re-linked system, see the

TECHNICAL SPECIFICATIONS section.

11. MAINS FUSE

Housing for the mains fuse.

VIO-X206 Code 420120356 REV. 1.3

2. REFERENCE SOFTWARE

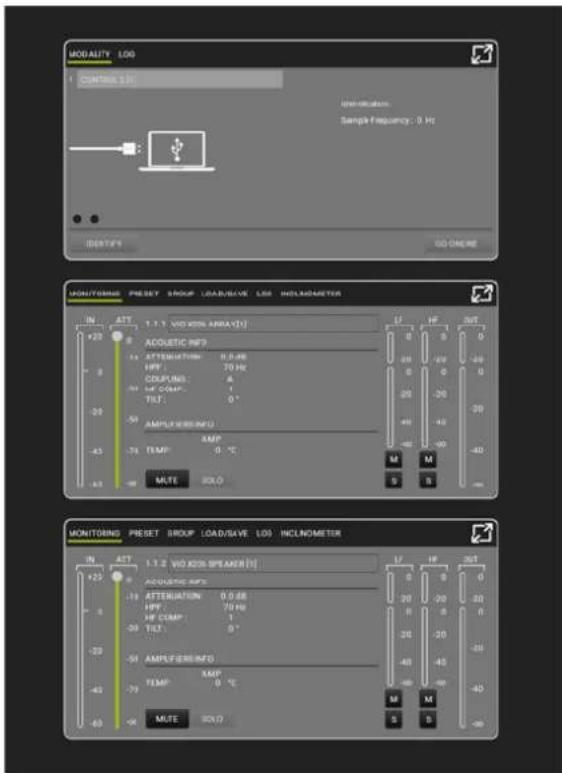

The predictive and control software programs that can be used are the following:

• EASE FOCUS (for acoustic prediction, with possible plug-in for a first check on mechanical safety)
  • AURORA NET (for complete remote control)

MODALITY: LOG CONTROLS: 3.0 Hz Unisolators. Sample Frequency: 0 Hz IDENTIFY: GO ONLINE MONITORS: PRESET GROUP LOAD/SAVE LOG HCLNOMETER IN ATT 1.1.1 VIO KOSI AMRA(D) +20 0 AQUOTIC INF? +14 ATTENUATION 8.0 Hz HPF 70 Hz COLOPLS 6 HP COMP 1 TIF 0 ° -50 AMPLIFERS INFO -45 AMP -75 TEMP 0 °C M T M -47 MALTE SOLD S B MONITORS: PRESET GROUP LOAD/SAVE LOG HCLNOMETER IN ATT 1.1.2 VIO KOSI SPEAKER(I) +25 0 AQUOTIC INF? -11 ATTENUATION 9.5 Hz HPF 70 Hz HP COMP 1 -20 TIF 0 ° -25 AMPLIFERS INFO -43 AMP -79 TIF 0 °C M T M -40 MALTE SOLD S B

Refer to the software manuals for further information.

3. DSP PRESET PARAMETERS AND REMOTE CONTROL

Using a line array entails a series of advantages in various contexts, in particular:

• homogeneous SPL along the front vector of the speakers, an effect that is particularly appreciated at medium to long distances
• directing acoustic behavior, which allows to precisely focus the sound on the audience, avoiding unnecessary losses in areas where acoustic coverage is not required

Possible optimization of the line array takes into account the behavior of the system according to the frequency:

- increasing the distance from the line array increases the air attenuation. This especially affects high frequencies

- increasing the angulation between elements of the line array decreases mid-frequency phase coupling

- as the number of modules of the line array increases, low frequencies will add together in an acoustically coherent fashion.

VIO-X206

Code 420120356 REV. 1.3

The acoustic configuration in a line array of the VIO X206 modules can be optimized, thanks to the control functions managed by DSP, using AURORA Net software.

In the PRESET menu, the user can choose the number of speakers used in the line array from the COUPLING parameter, with three options available:

• A - from 2 to 6 speakers
• B - from 7 to 8 speakers
• C - from 9 to 10 speakers

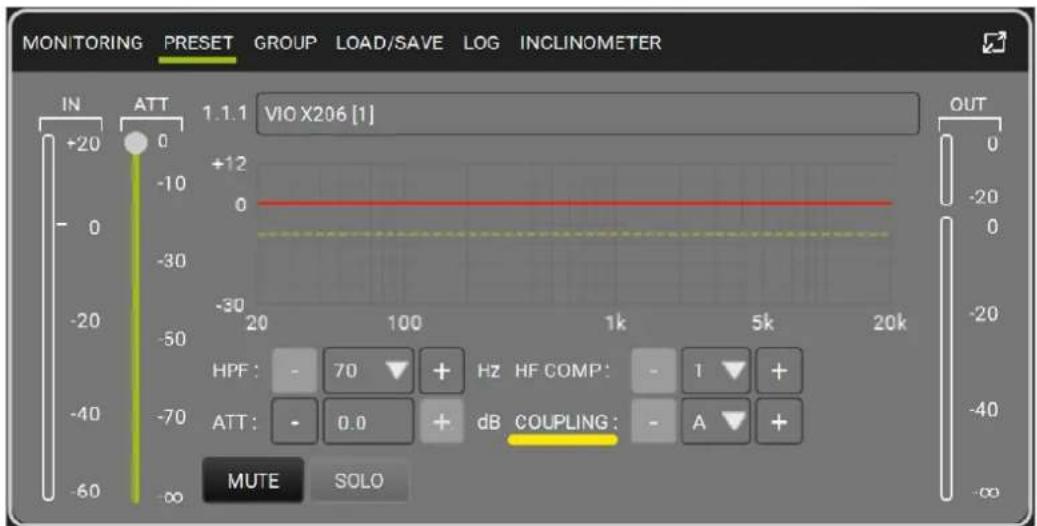

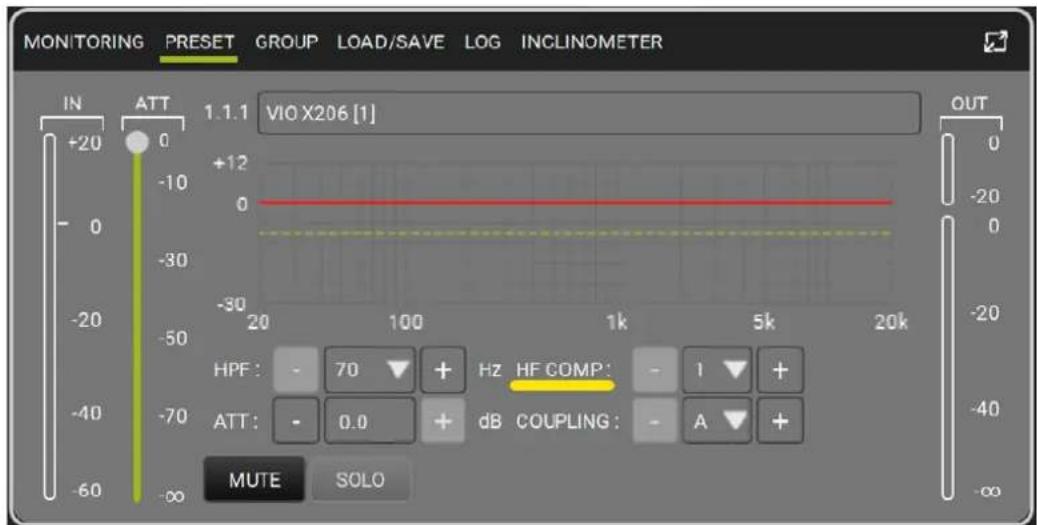

MONITORING PRESET GROUP LOAD/SAVE LOG INCLINOMETER IN ATT 1.1.1 VIO X206 [1] [phone] OUT 0 -20 0 -20 HPF: - 70 + Hz HF COMP: - 1 + ATT: - 0.0 + dB COUPLING: - A + MUTE SOLO

Also in this menu the user will find the HF COMP (HIGH FREQUENCY COMPENSATION) parameter that acts on the mid-high frequencies and must be set up depending on the installation and line array angle.

Four options available:

1. FLAT (no emphasis on any particular frequency range)
2. front fill with the audience at a distance of 0 to 5 m (16 feet)
3. with the audience at a distance of 6-20 m (17-66 feet)
4. with the audience at a distance of 21-30 m (67-98 feet)

MONITORING PRESET GROUP LOAD/SAVE LOG INCLINOMETER IN ATT 1.1.1 VIO X206 [1] [phone] -12 0 -30 20 100 1k 5k 20k OUT HPF: - 70 + Hz HF COMP: - 1 + ATT: - 0.0 + dB COUPLING: - A + MUTE SOLO

Refer to the software manuals for further information.

VIO-X206 Code 420120356 REV. 1.3

4. CONNECTIONS

CONNECTION AND POWER DAISY CHAIN


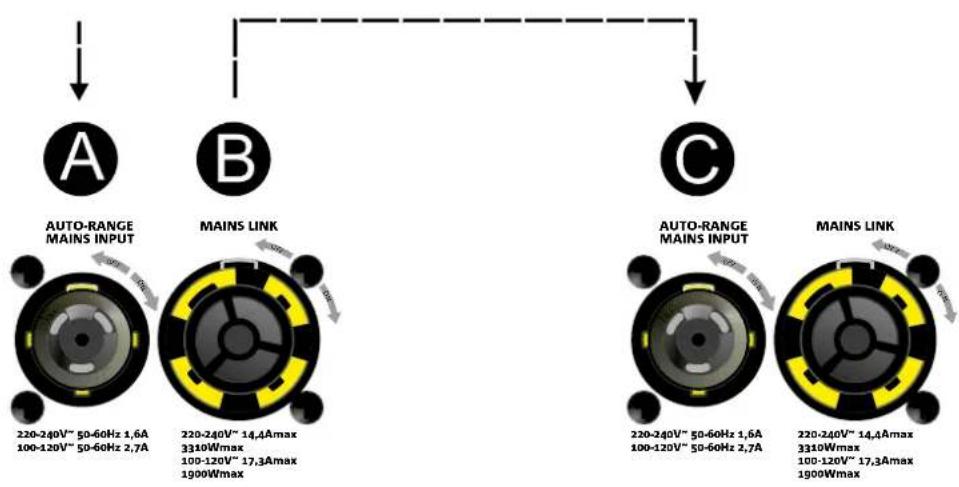

The figure above shows a general connection where a module 1

is over module 2. For this purpose, use cables with powerCON TRUE1® connectors (not provided).

• Connect the power supply of module 1 AUTO-RANGE MAINS INPUT (A).
• Link the power supply from module 1 to module 2 connecting the output MAINS LINK (B) of module 1 to the input AUTO-RANGE MAINS INPUT (C) of module 2.
• Repeat this procedure until connecting the maximum permitted number of the line-array module (refer to section SPECIFICATIONS).

WARNING!

- The cables must be properly sized and the system's design, installation and testing should be performed by qualified personnel only. AEB industriale declines any responsibility in case of cables that are non-compliant, uncertified and incompatible with the proper layout of the system and the regulations in force for the country of use.

VIO-X206

Code 420120356 REV. 1.3

AUDIO AND RDNET SIGNAL CONNECTION AND DAISY CHAIN

The figure above shows a general connection where a module 1

is over module 2 as well as the audio and network connections. To this end, use the not supplied cables with XLR (audio) and etherCON/RJ45 (network) connectors. For further information on the available types of cables, refer also to the image in next page.

• For the audio connection, connect the cable originating from MIXER/LINE to the BALANCED AUDIO INPUT (A) of module 1 of the line array. Re-link the signal between the first and the second module. For this purpose, connect the output BALANCED AUDIO OUTPUT/LINK (B) of module 1 to the BALANCED AUDIO INPUT (C) of module 2.
• Repeat the operation between the second and the third module and so on, until all modules of the line array are connected.
• For network connection, connect DATA IN connector (A) of module 1 to remote controller (RDNet CONTROL 2 or RDNet CONTROL 8). Re-link the signal by connecting DATA OUT (B) of module 1 to DATA IN (C) of module 2.
• Repeat the operation between the second and the third module and so on, until all modules of the line array are connected.

WARNING!

- Replace any damaged cable to prevent malfunctioning and sound poor quality.

VIO-X206 Code 420120356 REV. 1.3

5. LINE ARRAY INSTALLATION AND CONFIGURATION

PACKAGE CONTENTS

Check that the package content of the X-206 module is complete. The package contains:

• X206 module
• fuse for operation in the 110-120V\~ range (see FEATURES OF THE AMPLIFIER AND CONTROL SECTIONS section for further details)
• quick start user manual and warranty documents

INSTALLATION EXAMPLES

This section lists installation examples suggesting various applications of both the waveguide and point-source models. Refer also to the instructions for the relevant accessories, as well as the requirements provided on any product labels.

WARNING!

The product and accessories must be handled by experienced personnel only! Make sure that the installation is positioned in a stable and safe manner in order to avoid hazardous conditions for people, animals and/or objects. The user is required to follow regulations and mandatory laws on safety of the country in which the product is used. For safe use, regularly check the operation of all parts and integrity before use.

Design, calculations, installation, testing and maintenance of suspended systems or professional audio stacks must be performed by authorized personnel only. AEB Industriale is not responsible for improper installations, non-compliant with safety requirements.

VIO-X206

Code 420120356 REV. 1.3

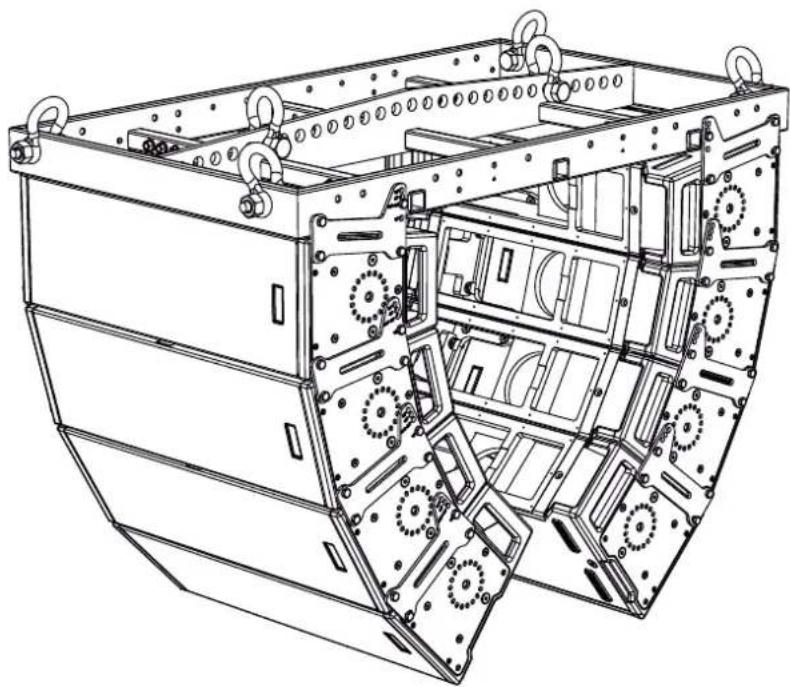

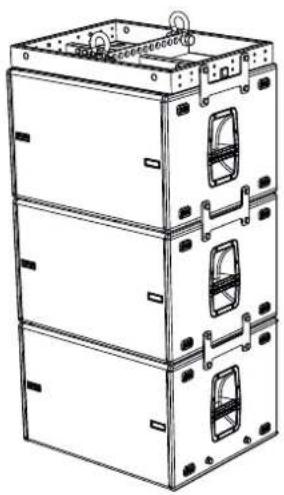

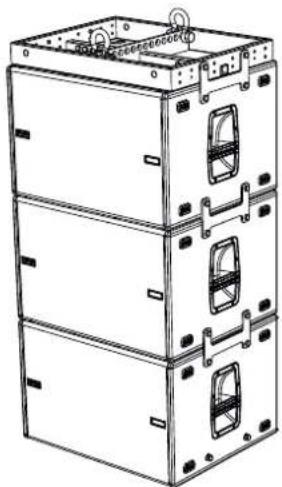

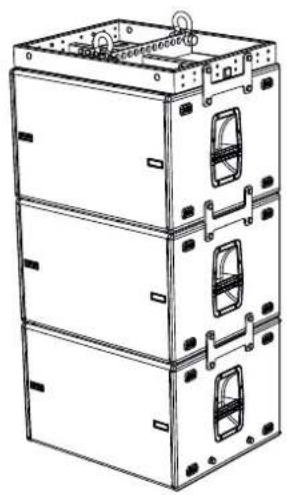

The ViO-X206-100 is installed in a line array configuration using a DRK-1 fly-bar and LP side brackets. Both positive and negative installation angles are possible. Stacked use is also possible.

Please note that this accessory also allows hanging the S115 subwoofers.

The maximum limits for all configurations according to the main safety standards can be found on the labels and in the accessory instructions.

LP-2 DRK-1 1 2 3 LP-2

Technical line drawings of a mechanical housing assembly, showing front and side views with no text or symbols

NEGATIVE ANGLES POSITIVE ANGLES

Technical line drawing of a three-tiered server rack unit (no text or symbols)

VIO-X206 Code 420120356 REV. 1.3

ViO-X206-100 can also be installed in line array with DRK-2 and LP side brackets. It completes the installation possibilities, even in larger and more difficult spaces, and includes simultaneous installation with S115 subwoofers.

A couple of examples are shown in the picture for information only.

The maximum limits for all configurations according to the main safety standards can be found on the labels and in the accessory instructions.

Technical line drawing of a mechanical assembly with internal gears and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with gears and mounting brackets (no text or symbols)

WARNING!

• Never use the handles, the brackets or other elements of the loudspeaker to directly suspend the modules or the system!
• In case of outdoor use, it is recommended to anchor the system to prevent any oscillations due to wind or weather conditions

VIO-X206

Code 420120356 REV. 1.3

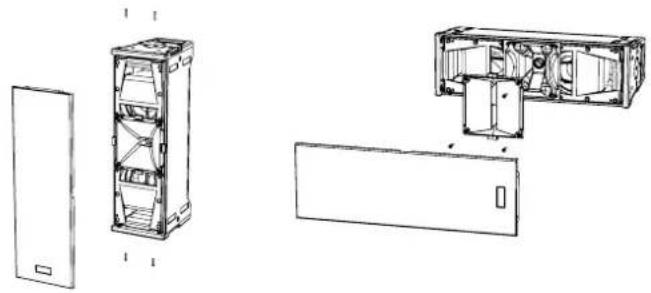

6. POINT-SOURCE INSTALLATION AND CONFIGURATION

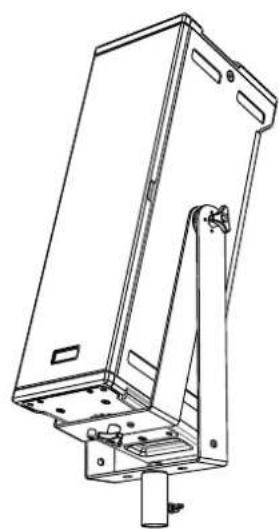

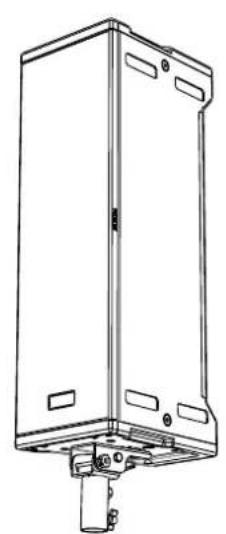

The ViO-X206 (point-source) can be installed in various configurations and uses, thanks to a complete set of accessories. It offers a wide versatility of use, together with the possibility of transforming a point-source model into a line array and vice versa, using a special kit, shown on the next page.

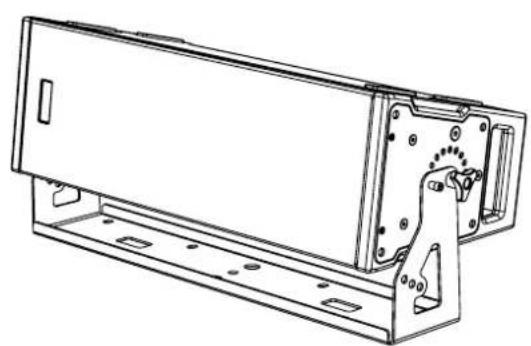

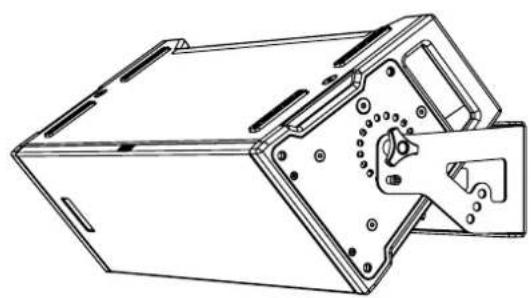

For further information and all relevant safety requirements, please refer to the relevant instructions and labels.

Technical line drawing of a rectangular electronic device with mounting brackets and a vertical panel (no text or symbols)

Technical line drawing of a mechanical device with mounting bracket and vertical support (no text or symbols)

VB-2X6

Technical line drawing of a mechanical housing or enclosure with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical housing or enclosure component with mounting brackets and mounting holes (no text or symbols)

HB-2X6

VIO-X206 Code 420120356 REV. 1.3

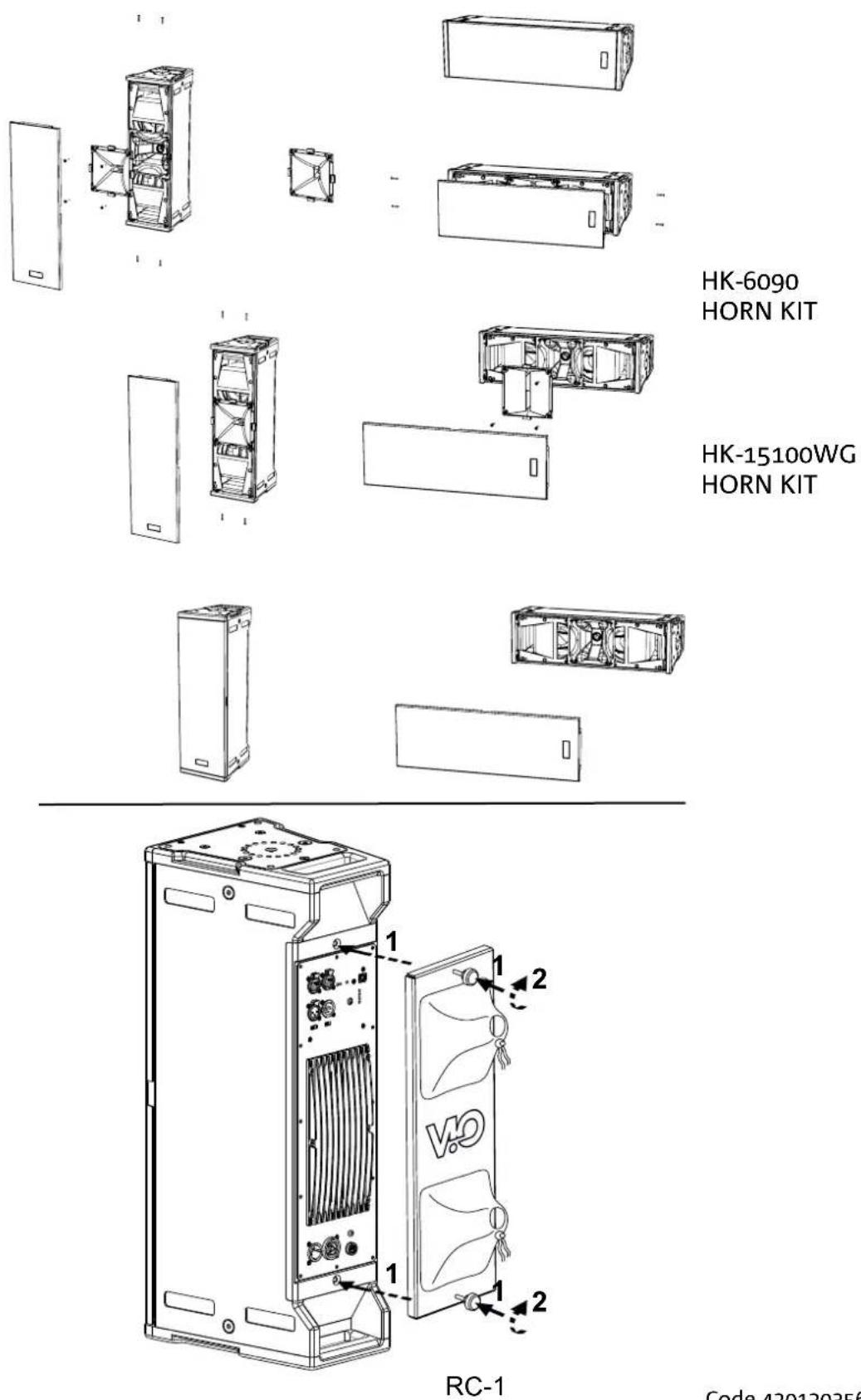

HK-6090
HORN KIT
HK-15100WG
HORN KIT

VIO-X206

RC-1

Code 420120356 REV. 1.3

7. TROUBLESHOOTING

The module does not turn on:

1. Check that power supply is present upstream of the installation.
2. Check that the power supply or the re-link connection of the power supply is properly inserted.

The module turns on but produces no sound:

1. Check that the audio signal input connections or the audio signal re-links are properly carried out.
2. Check that the audio source (mixer) is properly connected and active.
3. In case of RDNet network connection and control with AURORA NET, check that the MUTE function is disabled.

Module sound is not fully satisfactory.

1. Re-check the project and the installation and configuration specifications using dBTECHNOLOGIES COMPOSER.
2. Verify that the DSP PRESET parameters are actually replicated on the control panel of the module (especially if the remote control of the modules is not used).
3. Check that, in case of RDNet network connection and control with AURORA NET, all the parameters are properly set.

8. FIRMWARE UPDATES

IT IS very important to keep product firmware updated to the latest version to ensure full performance. Please check site http://www.dbtechnologies.com for updates under section "DOWNLOADS" periodically.

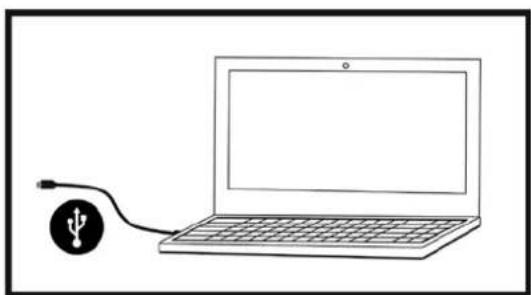

Simple line drawing of a laptop connected to a USB symbol (no text or labels)

1. Download and install on your PC the USB BURNER MANAGER under the "SOFTWARE & CONTROLLER" section.
2. Download the .zip file of the latest firmware in the "DOWNLOADS" section of your product.
3. Connect the product to the PC using a USB cable (not provided) with a suitable connector type (see this detail in the FEATURES OF THE AMPLIFICATION AND CONTROL SECTION chapter).
4. In the top right corner of the USB BURNER MANAGER screen, select "File Opening".
5. Select the file containing the previously downloaded firmware.
6. Follow the operations shown on the screen.
7. Click "UPDATE".

VIO-X206

Code 420120356 REV. 1.3

9. SPECIFICATIONS

GENERAL INFORMATION

Type:

Two-way point-source model (X206) or line array element (X206-100)

ACOUSTICAL SPECIFICATIONS

Frequency response [- 6 dB]: 66 Hz - 19.5 kHz (X206) / 66 Hz - 18 kHz (X206-100)
Frequency response [- 10 dB]: 70 Hz - 18 kHz (X206) / 70 Hz - 17.5 kHz (X206-100)
Max SPL@1m: 131 dB
HF 1”
HF Voice Coil: 44 mm
LF: 2 x 6.5”
LF Voice Coil: 1.75”
Crossover frequencies: 1 kHz 24 dB/oct
Interchangeability:	Guaranteed between Horn and Waveguide version through the relevant optional kit
Directivity (HxV): 60° x 90° (X206)	- 15° x 100° (X206-100)

AMPLIFIER

Type: Digipro® G3
Amplification class: Class D
Amplification power (Peak)	1800 W
Amplification power (RMS):	900 W
Cooling technique:	Convection

VIO-X206 Code 420120356 REV. 1.3

PROCESSOR

AD/DA conversion: 24 bit 96 kHz
Advanced functions: FIR filters
Limiter: Peak, RMS, Thermal

USER INTERFACE

Controls:	1 rotary control with 10 positions, 2 switches (model/HF correction)
Indicator LEDs: Limiter, Signal, Status, ON
Status LEDs (RDNet network) Link, Active, Remote Preset Active
Handles integrated

INPUTS AND OUTPUTS

Power supply inputs and re-links: PowerCON® In/Link

Audio inputs: 1x XLR IN balanced (insulation: Floating ADC)

Audio outputs: 1x XLR link OUT balanced

RDNet inputs/outputs: Data In / Data Out (etherCON® connectors)

USB (firmware update): 1x USB type B

POWER SUPPLY SPECIFICATIONS (ABSORPTION)

Absorption at 1/8th of power in average use conditions (*):	0.8 A (220-240V~) - 1.26 A (100-120V~)
Absorption at 1/3rd of power in maximum use conditions (**):	1.6 A (220-240V~) - 2.7 A (100-120V~)
Absorption with speaker on in no-signal condition (idle):	19 W
Inrush current:	21.04 A
Max number of modules per power supply line (**) [mains input + mains link]:	1 + 9 (220-240V~) / 1 + 6 (100-120V~)

* NOTE FOR INSTALLER: Values refer to 1/8th of power, under average operating conditions (music programme with occasional or no clipping). For any type of configuration we recommend to consider them as minimum sizing values.
** NOTE FOR INSTALLER: Values refer to 1/3rd of power, under heavy operating conditions (music programme with frequent clipping and limiter activation). In case of professional installations and tours we recommend sizing according to these values.

VIO-X206

Code 420120356 REV. 1.3

MECHANICAL SPECIFICATIONS

Material: wooden cabinet - black polyurea finish
Grille: full metal - CNC machining
Handles integrated (1x side)
Front prearrangements for assembly:	Cabinet side integrated points
Flown and stacked assembly: With DRK-1, DRK-2 fly-bar accessory for X206-100 model
Width: 210 mm (8.3 inches)
Height: 650 mm (25.6 inches)
Depth: 270 mm (10.6 inches)
Weight: 17.3 kg (38.14 lbs)

Product features, specifications and appearance are subject to changes without prior notice. dBTechnologies reserves the right to make changes or improvements in design or manufacture without any obligation to incorporate such changes or improvements in previously manufactured products.

AEB

A.E.B. Industriale Srl

Via Brodolini, 8

Technical line drawing of a rectangular frame with mounting holes and dimension label (270) — no text or symbols present.

Technical line drawing of an internal device housing with visible internal components and mounting holes (no text or symbols)

Technical line drawing of an internal device housing with a panel and door, showing internal components and mounting points (no text or labels)

VIO-X206

Technical diagram of a computer tower case with labeled components and directional arrows indicating assembly or movement.

RC-1

CD/DVD Device Dialysis Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal

Control panel interface with labeled buttons and display screen showing Chinese text and symbols

Technical line drawing of a vertical electronic device casing with internal circuitry and control buttons (no text or symbols)

Technical line drawings of a mechanical housing assembly, showing front and side views with no text or symbols

NEGATIVE WINKEL POSITIVE WINKEL

Line drawing of a three-tiered server rack unit with ventilation slots and mounting tabs (no text or labels)

Technical line drawing of a mechanical assembly with internal gears and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with gears and mounting brackets (no text or symbols)

ACHTUNG!

Technical line drawing of a rectangular electronic device with mounting brackets and a vertical panel (no text or symbols)

Technical line drawing of a mechanical device with mounting bracket and vertical support (no text or symbols)

VB-2X6

Technical line drawing of a mechanical housing or enclosure with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical housing or enclosure component with mounting brackets and mounting holes (no text or symbols)

HB-2X6

Technical line drawings of internal components and housing (no text or symbols)

HK-6090
HORN KIT

Technical line drawings of an electronic device showing internal components and exterior view (no text or symbols)

HK-15100WG
HORN KIT

Technical line drawings of three different electronic devices: a rectangular box, a multi-chamber unit with fan-like internal components, and a rectangular panel (no text or symbols)

Technical diagram of a desktop computer case with labeled components and directional arrows indicating assembly or movement.

Simple line drawing of a laptop connected to a USB cable (no text or symbols)

DONNÉES ACOUSTIQUES 89

AMPLIFICATEUR 89

PROCESSEUR 90

INTERFACE UTILISATEUR 90

ENTRÉES ET SORTIES.... 90

SPÉCIFICATIONS D'ALIMENTATION (ABSORPTION) 90

SPÉCIFICATIONS MÉCANIQUES 91

VIO-X206

Code 420120356 RÉV. 1.3

1. INFORMATIONS GÉNÉRALES

BIENVENUS!

Technical line drawing of a rectangular frame with rounded corners and internal cutouts, dimensioned as 270 (no text or symbols)

CARACTÉRISTIQUES ACOUSTIQUES

Technical line drawing of an internal device housing with visible internal components and mounting holes (no text or symbols)

Technical line drawing of an internal device housing with a door panel and ventilation duct (no text or symbols)

VIO-X206

Code 420120356 RÉV. 1.3

MÉCANIQUE

2 1

Technical diagram of a computer tower case with labeled components and directional arrows indicating assembly or movement.

RC-1

VIO-X206 Code 420120356 RÉV. 1.3

ÉTRIERS LP DRK-1 1 2 3 ÉTRIERS LP

CDM341 Device DialoCat Signal Power Control Output Signal Power Control Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Output Signal Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Input: Digital Signal 0.0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

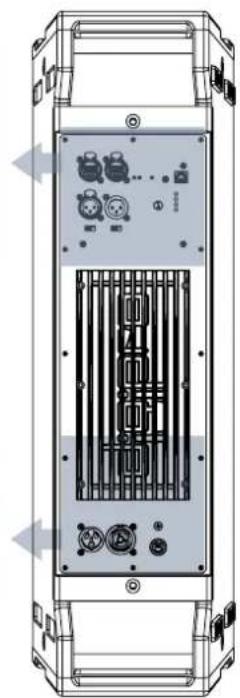

Technical line drawing of a device rear panel with internal circuitry and connector components (no text or symbols)

Scanned image of an electronic device control panel with labeled buttons and display screen

ATTENTION!

4. HF correction [Hz]

Technical line drawings of a mechanical housing assembly, showing front and side views with no text or symbols

ANGLES NÉGATIFS ANGLES POSITIFS

Line drawing of a three-tiered industrial machine or server unit with mounting holes and ventilation slots (no text or symbols)

VIO-X206 Code 420120356 RÉV. 1.3

Technical line drawing of a mechanical assembly with internal gears and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with gears and mounting brackets (no text or symbols)

ATTENTION!

Technical line drawing of a rectangular electronic device with mounting brackets and a vertical panel (no text or symbols)

Technical line drawing of a mechanical device with mounting bracket and vertical support (no text or symbols)

VB-2X6

Technical line drawing of a mechanical housing or enclosure with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical housing or enclosure component with mounting brackets and mounting holes (no text or symbols)

HB-2X6

VIO-X206 Code 420120356 RÉV. 1.3

Technical line drawings of a multi-case electrical enclosure or enclosure assembly (no text or symbols)

HK-6090
HORN KIT

Technical line drawings of an internal cabinet and door assembly (no text or symbols)

HK-15100WG
HORN KIT

Technical line drawings of three electronic devices: a rectangular box, a multi-chamber fan assembly, and a rectangular panel (no text or symbols)

Technical diagram of a desktop computer case with labeled components and directional arrows indicating assembly or movement.

VIO-X206

RC-1

Code 420120356 RÉV. 1.3

7. DÉPANNAGE

Simple line drawing of a laptop connected to a USB symbol (no text or labels)

SPÉCIFICATIONS D'ALIMENTATION (ABSORPTION)

Stylized logo or emblem with Chinese characters, possibly a brand or company name

A.E.B. Industriale Srl

Via Brodolini, 8

Technical line drawing of a rectangular frame with side supports and a dimension label (270) at the bottom right corner.

CARACTERÍSTICAS ACÚSTICAS

Technical line drawing of an internal device housing with a door open, showing internal components and structural details (no text or symbols)

Technical line drawing of an internal device housing with a door panel and ventilation duct (no text or symbols)

VIO-X206

Cód. 420120356 REV. 1.3

MECÁNICA

2 1

Technical diagram of a computer tower case with labeled components and directional arrows indicating assembly or movement.

RC-1

VIO-X206 Cód. 420120356 REV. 1.3

SOPORTES LP DRK-1 1 2 3 SOPORTES LP

CD/DVD Device Dialo/Out Signal Power Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current CCT Technologies

Control panel interface with labeled buttons and display screen showing Chinese text and symbols

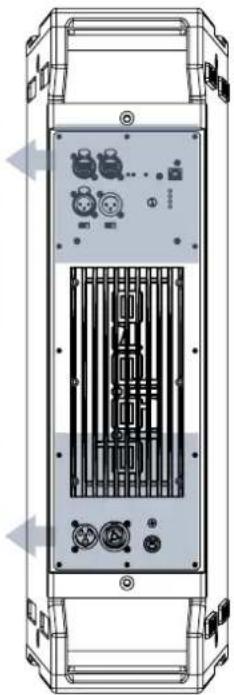

Technical line drawing of a device rear panel with internal circuitry and control buttons (no text or symbols)

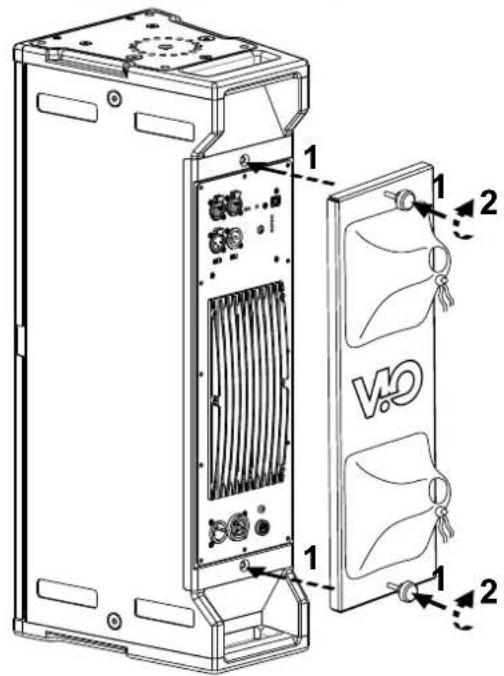

¡ATENCIÓN!

4. HF correction [Hz]

CAUTION ERK OF CHINA BLOCK SHORT DRIN ATTENTION RIGHT OF CHINA NE REFERENCE AUTO-RANGE MAINS INPUT MAINS LINK 220-250V~ 10-6kHz 1.6A 100-120V~ 10-8kHz 2.7A 220-250V~ 30.64Amax 15μW/Max 100-120V~ 17.54Amax 15μW/Max MAINS FUSE 220-250V~ (T3.15A 1.25V~) 100-120V~ (T4.3d 1.25V~) 200-250V~ (T4.3d 1.25V~) 9 10 11 The power output is set up to the DC source, which is not used in the power range. The main components are: Power supply, voltage, and current. C E C E C R C R C BEI TURUSTRATE MOL. BEI TURUSTRATE MOL. BEI TURUSTRATE MOL. CE ERC F C

VIO-X206 Cód. 420120356 REV. 1.3

2. SOFTWARE DE REFERENCIA

Technical line drawings of two mechanical or electronic device components with mounting brackets and internal mechanisms (no text or symbols)

VIO-X206

Cód. 420120356 REV. 1.3

Technical line drawings of a mechanical housing assembly, showing front and side views with no text or symbols

Line drawing of a three-tiered industrial cabinet or rack unit with mounting holes and ventilation grilles (no text or symbols)

VIO-X206 Cód. 420120356 REV. 1.3

Technical line drawing of a mechanical assembly with internal gears and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with gears and mounting brackets (no text or symbols)

¡ATENCIÓN!

Technical line drawing of a rectangular electronic device with mounting brackets and a vertical panel (no text or symbols)

Technical line drawing of a mechanical device with mounting bracket and vertical support (no text or symbols)

VB-2X6

Technical line drawing of a mechanical housing or enclosure with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical housing or enclosure component with mounting brackets and mounting holes (no text or symbols)

HB-2X6

VIO-X206 Cód. 420120356 REV. 1.3

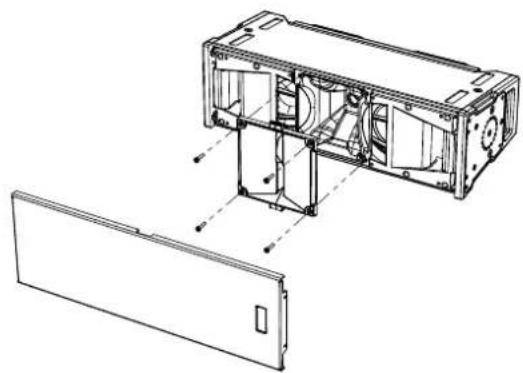

Technical line drawings of internal components of a device, showing exploded and assembled views (no text or symbols)

HK-6090
HORN KIT

Technical line drawings of a multi-chamber electronic device showing internal components and housing (no text or labels)

HK-15100WG
HORN KIT

Technical line drawings of three electronic components: a vertical box, a multi-chamber fan with internal circuit breakers, and a rectangular panel (no text or symbols)

Technical diagram of a desktop computer tower with labeled components and directional arrows indicating assembly or movement.

VIO-X206

RC-1

Cód. 420120356 REV. 1.3

Simple line drawing of a laptop connected to a USB symbol (no text or labels)
