Brand	Kärcher
Model	BP 7.000 Garden
Product type	Water pump
Mains voltage	230-240 V
Frequency	50 Hz
Nominal power	1100 W
Max flow rate	7000 l/h
Max suction height	8 m
Max pressure	5 bar (0.5 MPa)
Max delivery head	50 m
Max fluid temperature	35 °C
Max particle size	1 mm
Pump type	Jet pump
Sound pressure level	68 dB(A)
Guaranteed sound power level	83 dB(A)
Weight (without accessories)	10.0 kg
Intended use	Garden watering, domestic water supply (private)
Permitted fluids	Clear water, rainwater, well water, pool water with additives (≤ 35 °C)
Maintenance	Rinse with clear water after using water with additives
Warranty	According to country conditions (material or manufacturing defect)
Included accessories (standard)	Connection adapter, plugs, non-return valve, suction hose (depending on version)
Safety	Stop and unplug before maintenance; do not run dry
Storage	Protect from frost, drain pump via purge valve

Frequently Asked Questions - BP 7.000 Garden Kärcher

How to install the BP 7.000 Garden pump?

Before commissioning, remove the plug, screw the connection adapter onto the suction inlet and connect a vacuum-resistant suction hose. Fill the pump with water until it overflows via the filling port. Plug in the power plug and start with the ON/OFF switch.

What to do if the pump does not start or stops suddenly?

Check the power supply: fuses and connections. Ensure the plug is properly connected. If the problem persists, contact authorized customer service.

Why does my pump run but not move water?

This may be due to air in the pump. Check the startup (water filling). Clean the suction area if particles are blocking. Ensure the suction hose and adapter are properly screwed in with seals.

How to bleed the pump?

Fill the pump completely with water before starting. To reduce suction time, lift the delivery hose about 1 meter until water flows steadily.

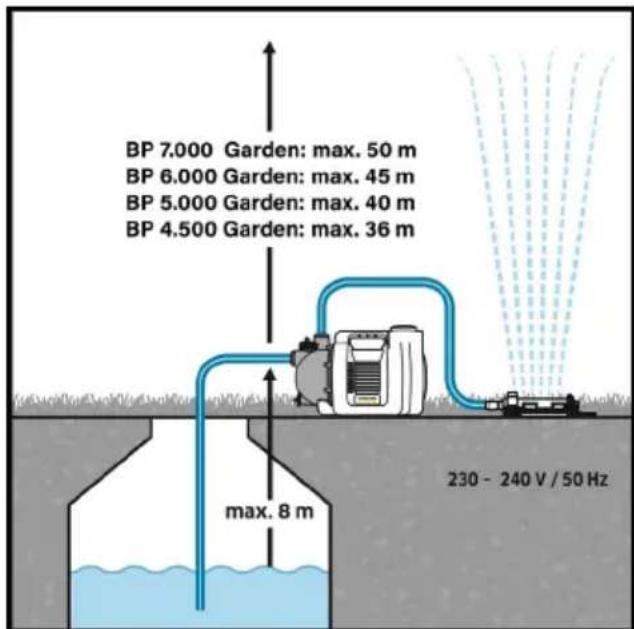

What is the maximum suction height?

The maximum suction height is 8 meters. Beyond that, the pump may not work properly.

Can I use the pump for drinking water?

No, it is forbidden to drink the water conveyed by the pump. The pump is designed for watering and non-potable water. Do not use it with water intended for consumption.

How to maintain the pump after use?

After pumping water containing additives, rinse the pump with clear water. Unplug the device before any maintenance. The pump requires no other maintenance.

What to do if the flow rate decreases?

Clean the suction area and the pre-filter. Check that the delivery head does not exceed 50 m. Ensure that the valves on the delivery side are fully open and the hose is not kinked.

How to store the pump in winter?

Empty the pump by opening the water port on the pressure side, remove the hoses, then empty the pump via the purge valve. Store the device in a frost-protected place.

Where to find spare parts for the pump?

Use only original Kärcher accessories and spare parts. Visit www.kaercher.com or contact your dealer for more information.

USER MANUAL BP 7.000 Garden Kärcher

Contents

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/06/01

Contents

General notes....9

Intended use....9

Hazard levels....9

Environmental protection....9

Accessories and spare parts 9

Scope of delivery....9

Warranty 9

Description of the device 9

Startup.... 10

Operation.... 10

Care and maintenance 10

Transport 10

Storage.... 10

Special accessories.... 11

Troubleshooting guide.... 11

Specifications 11

Characteristic curves.... 12

Declaration of Conformity 12

General notes

Read these original operating instructions and the enclosed safety instructions before using the device for the first time. Proceed accordingly.

Keep both books for future reference or for future owners.

Intended use

Please observe the requirements of EN 1717 when connecting this product to the drinking water network and contact your sanitation specialists if you have any questions.

This device has been developed for private use and is not intended for the load imposed by commercial use.

The device is primarily intended for use in the garden and provides constant pressure for garden watering. When connecting sprinklers, a maximum of the following areas can be irrigated:

• BP 4.500 Garden: 400 m² • BP 5.000 Garden: 550 m² • BP 6.000 Garden: 900 m² • BP 7.000 Garden: 1000 m²

△CAUTION

Risk of injury!

Risk of injury from toxic substances.

Do not drink water that has been pumped by the pump!

Permissible feed fluids

Permissible feed fluids:

• Processed water
• Well water
• Spring water
• Rain water
• Swimming pool water with intended dosage of additives

The temperature of the delivered liquid must not exceed 35°C.

Improper use

Note

The manufacturer accepts no liability for possible damage caused by improper use or incorrect operation.

Hazard levels

DANGER

- Indication of an imminent threat of danger that will lead to severe injuries or even death.

WARNING

- Indication of a potentially dangerous situation that may lead to severe injuries or even death.

CAUTION

- Indication of a potentially dangerous situation that may lead to minor injuries.

ATTENTION

- Indication of a potentially dangerous situation that may lead to damage to property.

Environmental protection

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic devices contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can

pose a potential danger to human health and the environment. However, these components are required for the correct operation of the device. Devices marked by this symbol are not allowed to be disposed of together with the household rubbish.

Notes on the content materials (REACH)

Current information on content materials can be found at: www.kaercher.de/REACH

Accessories and spare parts

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

Scope of delivery

The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

Warranty

The warranty conditions issued by our sales company responsible apply in all countries. We shall remedy possible malfunctions on your device within the warranty period free of cost, provided that a material or manufacturing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

(See overleaf for the address)

Description of the device

The maximum amount of equipment is described in these operating instructions. Depending on the model used, there are differences in the scope of delivery (see packaging).

For the illustrations, refer to the graphics page

Illustration A

① Cap, 2-way connection adapter ② 2-way connection adapter for pumps G 1 (not included with BP 4.500 Garden) ③ Connection adapter for pumps G 1 (included twice with BP 4.500 Garden)

④ Sealing plug

⑤ Connection G 1 (33.3 mm) suction line (inlet)

⑥ Filling nozzle with cap

⑦ Connection G 1 (33.3 mm) pressure line (outlet)

⑧ ON/OFF switch

⑨ Water drain valve

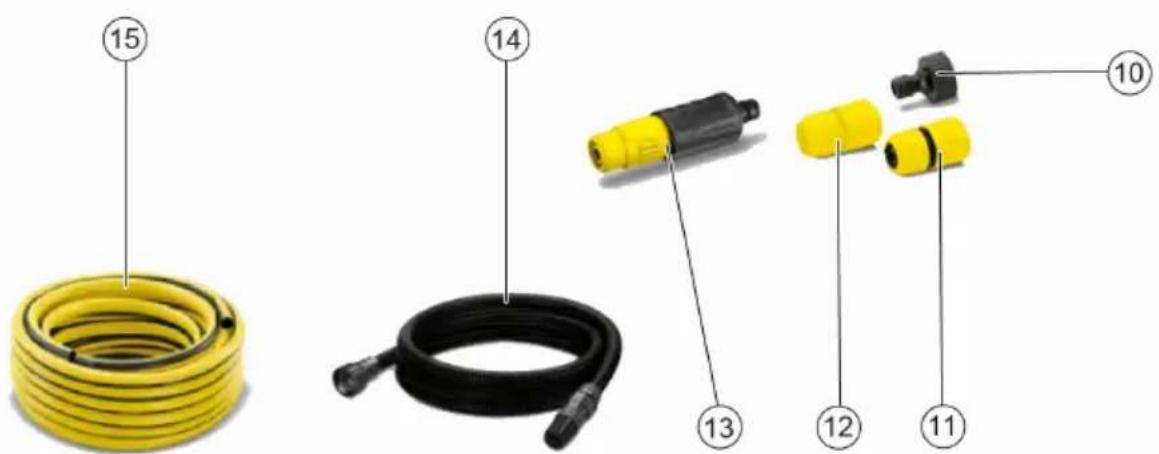

⑩** Tap connection G 1

⑪** Coupling with Aqua Stop

⑫** Coupling

⑬** Syringe

⑭* Suction hose set incl. 3.5 m ready-to-connect, vacuum-proof spiral hose with suction filter and backflow stop

⑮** Garden hose 1/2" 20 m

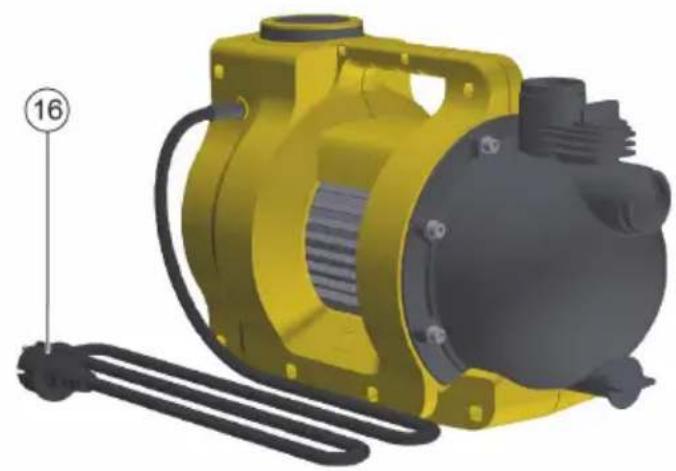

16 Power supply cable with plug

* Only accessories included with Set and Set Plus.

** Only accessories included with Set Plus.

Startup

We recommend using only original Kärcher suction hoses, filter components and hose connections. Using components from other manufacturers can lead to malfunctions when sucking the feed fluid, especially when using bayonet connection systems.

Before initial startup

Preparation

• Remove the sealing plug.
• Screw the connection adapter into the suction connection of the pump (inlet). Manually tighten.

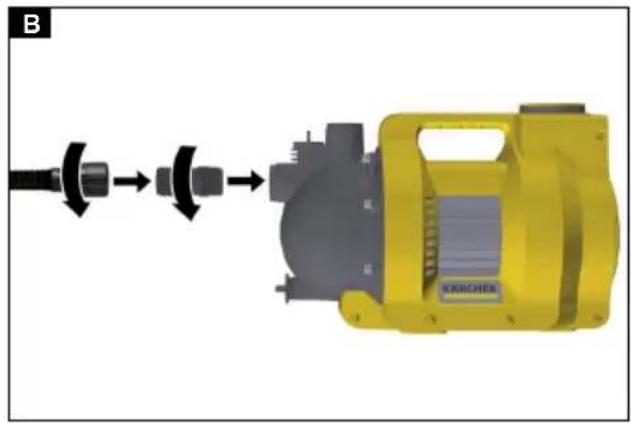

• Connect a vacuum-tight suction hose Illustration B

Note

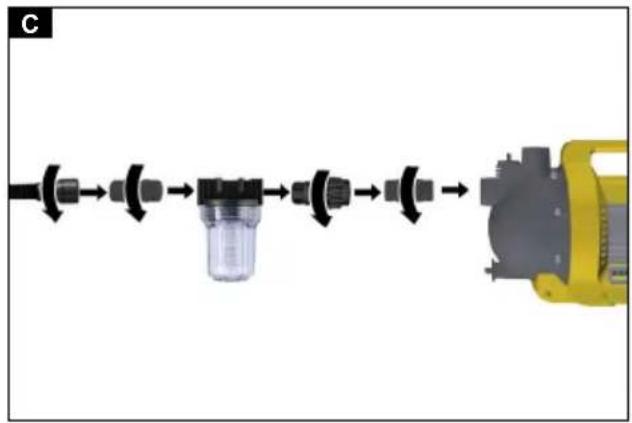

If the water is dirty, we recommend fitting a pre-filter (see Special accessories) between the check valve and the suction hose.

Illustration C

Note

To shorten the re-suction time, use a suction hose with backflow stop. This prevents the suction hose from emptying after use (see Special accessories).

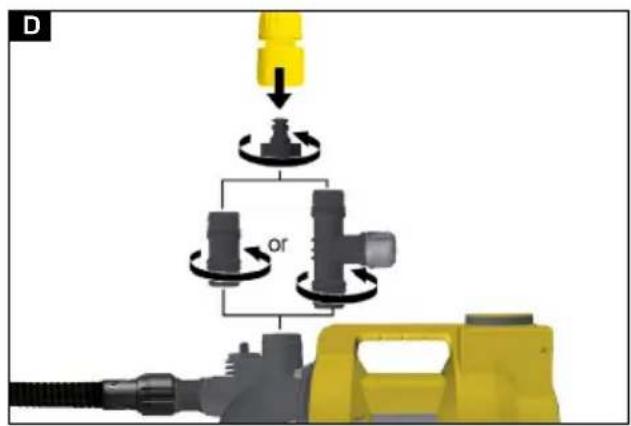

• Screw the connection adapter into the pressure connection of the pump (outlet). Manually tighten. Illustration D

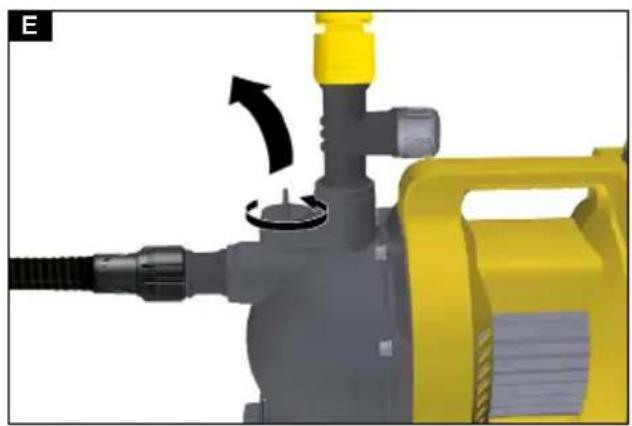

• Open the filling nozzle cap. Illustration E

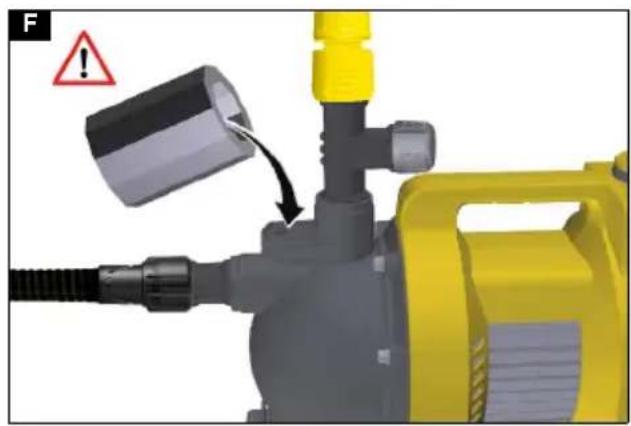

• Fill the pump with water until it overflows. Illustration F

Operation

1. Plug the mains plug into a mains socket.
2. Switch the device on with the ON/OFF switch.

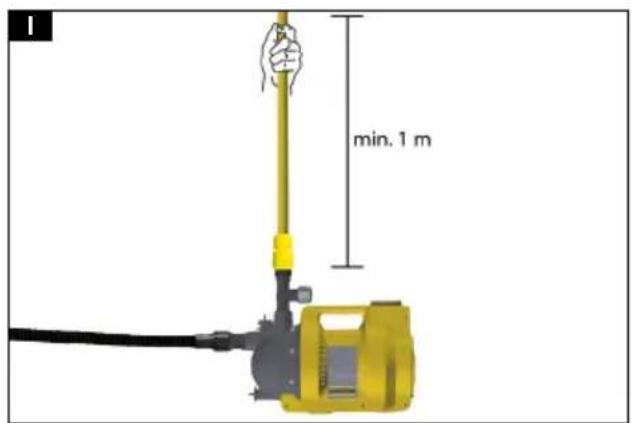

3. To shorten the suction time, raise the pressure hose approx. 1 m.
4. Wait until the pump simultaneously sucks and delivers.

Illustration I

△CAUTION

Danger due to dry running

Dry running damages the pump.

Do not let the pump run dry!

1. Do not leave the pump unattended during operation.

ATTENTION

Risk of injury. The system is pressurised!

Risk of injury.

(for pressure see chapter "Technical data")

Ending operation

1. Switch off the device at the ON/OFF switch.
2. Pull the mains plug out of the socket.

Care and maintenance

⚠️ DANGER

Danger of electric shock.

Always switch the device off and disconnect the mains plug before working on the device.

The device is maintenance-free.

Rinse

Note

Rinse the pump with clear water after each use when pumping water with additives.

Transport

⚠CAUTION

Risk of injury

Risk of injury from falling device.

When transporting the device, observe the weight of the device (see chapter Specifications) and secure it accordingly when transporting it in vehicles.

Manual transport

1. Roll up the cable. 2. Lift and carry the device by the carrying handle.

Transport in vehicles

1. Secure the device against slipping and tipping over.

△CAUTION

Risk of injury

Risk of injury from falling device.

When transporting the device, observe the weight of the device (see technical data) and secure it accordingly when transporting it in vehicles.

Storage

△CAUTION

Failure to observe the weight

Risk of injury and damage

Be aware of the weight of the device during storage.

1. Store the device in a frost-protected place.

Storing the device

1. Depressurise the device by opening the water removal connected to the pressure side (e.g. opening the garden sprayer).
2. Empty the hoses.
3. Remove suction line and pressure line.

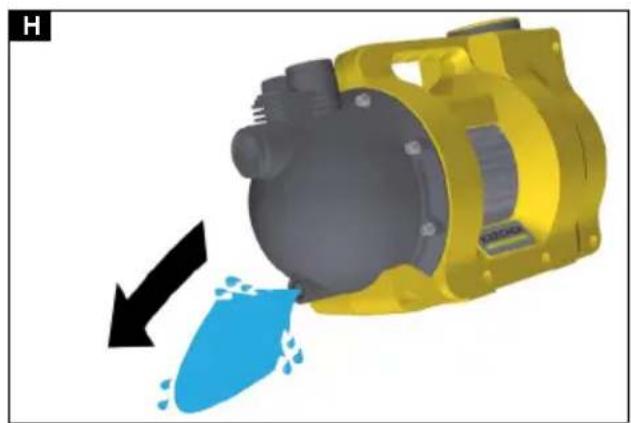

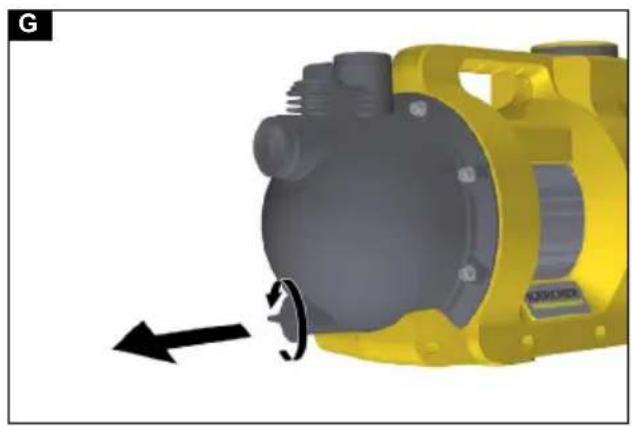

4. Drain the pump via the water drain valve. Illustration H
5. Store the device in a frost-protected place.

Special accessories

You will find the possible special accessories on the last page of these operating instructions.

Troubleshooting guide

Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service.

Fault Cause Rectification
Pump is running, but not delivering	Air is in the pump. 1. Check for correct start	startup (see chapterPreparation and Operation).
	Dirt particles block the suction area. 1. Pull the mains plug out of the socket.2. Clean the suction area.
	The suction hose or the connection adapter is not correctly screwed in.	1. Check that the seals are fitted correctly.2. Manually tighten the suction hose and connection adapter.
	The pre-filter is clogged. 1. Clean the pre-filter.
The pump does not start up, or stops suddenly during operation	The power supply is disconnected. 1. Check the fuses and the electrical connections.
The pump capacity drops or is too low	The suction area is clogged. 1. Pull the mains plug out of the socket.2. Clean the suction area.
	The delivery rate of the pump depends on the delivery head and the connected periphery.	1. Observe the max. delivery head (see chapter Specifications), select a different hose diameter or a different hose length if necessary.
	The cross-section on the pressure side is narrowed, e.g. due to the valve/ball tap not being fully open.	1. Open the valve/ball tap completely.
	The hose is kinked on the pressure side.	1. Eliminate the kink points in the hose.
	The pre-filter is clogged. 1. Clean the pre-filter.

Specifications

		BP 4.500 Garden	BP 5.000 Garden	BP 6.000 Garden	BP 7.000 Garden
		BP 4.500 Garden Set Plus	BP 5.000 Garden Set Plus	BP 6.000 Garden Set Plus
Mains voltage V 230-240 230-240 230-240 230-240
Power frequency	Hz	50	50	50	50
Nominal power	W	550	650	1000	1100
Maximum flow rate	l/h	4500	5000	6000	7000
Suction height (max.)	m	8	8	8	8
Solids content in water	kg/m3	>2,5	>2,5	>2,5	>2,5
Pressure (max.)	MPa (bar)	0,36 (3,6)	0,40 (4,0)	0,45 (4,5)	0,5 (5,0)
Delivery height (max.)	m	35	40	45	50
Delivery temperature (max.)	°C	35,0	35,0	35,0	35,0
Particle size (max.) of permissible feed fluids mm		1	1	1	1
Pump type		Jet	Jet	Jet	Jet
Sound pressure level LpA	dB(A)	56	58	69	68
Guaranteed sound power level LWA	dB(A)	71	73	84	83
Dimensions and weights
Weight (without accessories)	kg	6,4	7,0	9,7	10,0

Note

Reason for exception according to regulation (EU)

2019/1781 Annex I Section 2 (12): (j)

Subject to technical modifications!

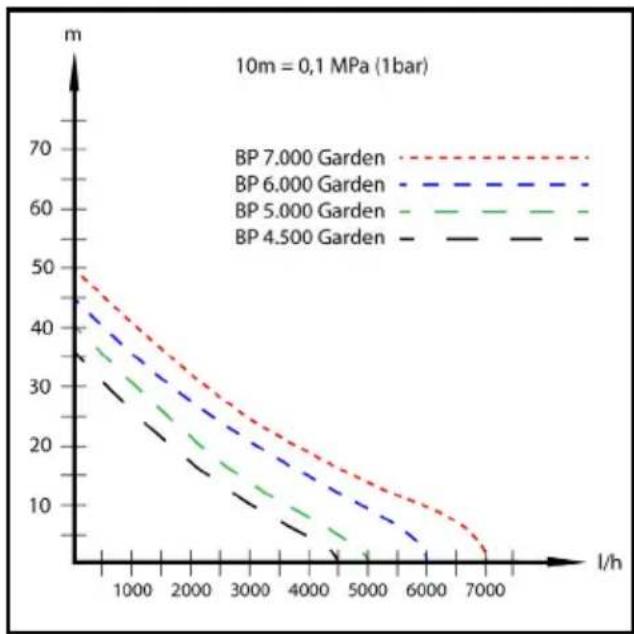

Characteristic curves

Declaration of Conformity

EU Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements in the EU Directives, both in its basic design and construction as well as in the version placed in circulation by us. This declaration is invalidated by any changes made to the machine that are not approved by us.

Product: Pump

Type: 1.645-xxx

Currently applicable EU Directives

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

2011/65/EU

2009/125/EC

Commission Regulation(s)

(EU) 2019/1781

Harmonised standards used

EN 60335-1

EN 60335-2-41

EN 62233: 2008

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN IEC 63000: 2018

Conformity evaluation procedure used

2000/14/EC: Annex V

Sound power level dB(A)

BP 4.500 Garden

Measured: 68

Guaranteed: 71

BP 5.000 Garden

Measured: 70

Guaranteed: 73

BP 6.000 Garden

Measured: 81

Guaranteed: 84

BP 7.000 Garden

Measured: 81

Guaranteed: 83

The signatories act on behalf of and with the authority of the company management.

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: [phone]

Fax: [phone]

Winnenden, 2021/06/01

Declaration of Conformity (UK)

We hereby declare that the product described below complies with the relevant provisions of the following UK Regulations, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the product is modified without our prior approval.

Product: Pump

Type: 1.645-xxx

Currently applicable UK Regulations

S.I. 2008/1597 (as amended)

S.I. 2016/1091 (as amended)

S.I. 2001/1701 (as amended)

S.I. 2012/3032 (as amended)

S.I. 2010/2617 (as amended)

Commission Regulation(s)

(EU) 2019/1781

Designated standards used

EN 60335-1

EN 60335-2-41

EN 62233: 2008

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN IEC 63000: 2018

Applied conformity assessment procedure

S.I. 2001/1701 (as amended): Schedule 8

Sound power level dB(A)

BP 4.500 Garden

Measured: 68

Guaranteed: 71

BP 5.000 Garden

Measured: 70

Guaranteed: 73

BP 6.000 Garden

Measured: 81

Guaranteed: 84

BP 7.000 Garden

Measured: 81

Guaranteed: 83

The signatories act on behalf of and with the authority of the company management.

Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: [phone]

Fax: [phone]

Winnenden, 2021/06/01

Contents

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

2011/65/EU

2009/125/EC

Applied ordinance(s)

(EU) 2019/1781

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01/06/2021

Contents

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/06/01

⑧ ON/OFF switch

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

2011/65/EU

2009/125/EC

Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01/06/2021

Index

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

2011/65/EU

2009/125/EC

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

2011/65/EU

2009/125/EC

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/06/01

Contents

General notes 37

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

2011/65/EU

2009/125/EC

2000/14/EC: Annex V

Sound power level dB(A)

BP 4.500 Garden

Measured: 68

Guaranteed: 71

BP 5.000 Garden

Measured: 70

Guaranteed: 73

BP 6.000 Garden

Measured: 81

Guaranteed: 84

BP 7.000 Garden

Measured: 81

Guaranteed: 83

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2021/06/01

Contents

General information 41

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

D-71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01.06.2021

Contents

General instructions 45

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/06/01

Contents

General warnings 54

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

2011/65/EU

2009/125/EC

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Contents

General instructions 57

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Contents

General instructions 66

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

2011/65/EU

2009/125/EC

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Table of Contents

General instructions....70

Intended use....71

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

2011/65/EU

2009/125/ES

Applicable regulation(s)

(EU) 2019/1781

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

Winnenden, 1 June 2021

Table of contents

General instructions 74

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

2011/65/EU

2009/125/EC

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Relevant EU Directive

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

2011/65/EU

2009/125/EC

Regulation(s) used

(EU) 2019/1781

Harmonized standards applied

EN 60335-1

EN 60335-2-41

EN 62233: 2008

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN IEC 63000: 2018

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/06/01

Table of Contents

General notes.... 83

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/ES

2011/65/EÚ

2009/125/ES

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01.06.2021

Contents

General notes 87

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

2011/65/EU

2009/125/EZ

Applied regulations

(EU) 2019/1781

Applied harmonized standards

EN 60335-1

EN 60335-2-41

EN 62233: 2008

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN IEC 63000: 2018

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Documentation representative:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01.06.2021.

Contents

General notes.... 91

Intended use 91

Hazard levels.... 91

2006/42/EZ (+2009/127/EZ)

2014/30/EU

2000/14/EZ

2011/65/EU

2009/125/EC

Applied regulation(s)

(EU) 2019/1781

Applied harmonized standards

EN 60335-1

EN 60335-2-41

EN 62233: 2008

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN IEC 63000: 2018

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Person authorized to compile the documentation:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2021/06/01

Table of contents

General notes 94

Intended use 95

Hazard levels.... 95

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/06/01

Table of contents

2006/42/EÜ (+2009/127/EÜ)

2014/30/EL

2000/14/EÜ

2011/65/EL

2009/125/EÜ

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2021/06/01

Contents

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Garden Garden Garden Garden

BP 4.500 BP 5.000 BP 6.000

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Authorized representative for this document:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Phone: [phone]

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Options suction side

Options pressure side

THANK YOU!

MERCI! DANKE! iGRACIAS!

Register your product and benefit from many advantages.

www.kaercher.com/welcome

Rate your product and tell us your opinion.

www.kaercher.com/dealersearch

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28-40

71364 Winnenden (Germany)
