Product type	Digital multimedia receiver with touchscreen
Brand	JVC
Model	KW-Z1001W
Screen size	10.1 inches (diagonal), 223.7 mm x 125.8 mm
Power supply	Car battery 12 V DC
Smartphone compatibility	Apple CarPlay (wired and wireless), Android Auto (wired and wireless)
Wireless connectivity	Bluetooth 5.2, dual-band Wi-Fi 2.4/5 GHz
Radio tuner	HD Radio, FM/AM, SiriusXM with 360L (SXV300 tuner optional)
Inputs/Outputs	USB Type-C (3A), HDMI Type D, camera inputs (front/rear/side), RCA pre-outs (4V), external AV input
Playable audio formats	MP3, WMA, AAC, WAV, FLAC, Ogg Vorbis, up to 192 kHz/24 bit
Playable video formats	MPEG-1/2, H.264, MPEG-4, WMV, MKV, up to 1920x1080 at 30 fps
Built-in amplification	50 W x 4 max, 29 W x 4 typical (4 ohms, 1 kHz, 10% THD)
Equalizer	13-band graphic, parametric, 2/3-way network, listening position
Cleaning and maintenance	Wipe with a soft dry cloth; do not use solvents
Safety	Do not stare at the screen while driving; avoid short circuits
Optional accessories	Steering wheel remote adapter, iDatalink Maestro, SiriusXM SXV300 tuner, HDMI cable KS-U70
Repairability	Consult an authorized JVC dealer; no user-serviceable parts
General information	Manual available in PDF; updates at jvc.net/cs/car

Frequently Asked Questions - KW-Z1001W JVC

How do I connect my iPhone to Apple CarPlay wirelessly?

Turn on Bluetooth and Wi-Fi on the iPhone. Register the iPhone in the device's Bluetooth device list, then select it as the Apple CarPlay source. The GPS antenna must be connected.

Why is the radio sound poor?

Check that the antenna is properly connected and extended. You can also set the reception mode to Auto or Analog in the HD Radio settings.

How do I reset the device to factory settings?

In the SETUP menu, go to System then select Initialize. Confirm to erase all settings.

Can I use an external amplifier?

Yes, you can disable the built-in amplifier in the system settings (Built-in Amp OFF) to use the RCA pre-outs (4V) with an external amplifier.

How do I adjust the subwoofer?

In the audio menu, enable the subwoofer in Speaker/Network. You can then adjust the level, phase, and low-pass filter.

What should I do if the screen becomes unresponsive to touch?

Try restarting the device by holding down the power button. If the problem persists, check the connections or contact a JVC dealer.

How do I update the firmware?

Download the latest firmware version from jvc.net/cs/car. Copy the file to a USB stick and insert it into the device; follow the on-screen instructions.

Why does the message 'No media file' appear?

The connected USB device contains no compatible audio/video files or the file format is not supported. Check the formats listed in the manual (MP3, WMA, etc.).

How do I connect a rear view camera?

Connect the camera's video cable to the REAR VIEW CAMERA input (yellow) and the control wire to the reverse light. In the menu, configure the camera settings.

Is it possible to use voice control?

Yes, press the voice recognition button to activate Siri (Apple CarPlay) or Google Assistant (Android Auto) when the smartphone is connected.

USER MANUAL KW-Z1001W JVC

The product with the Hi-Res Audio logo conforms to the Hi-Res Audio standard defined by the Japan Audio Society. The logo is used under license from the Japan Audio Society.

CERTIFIED

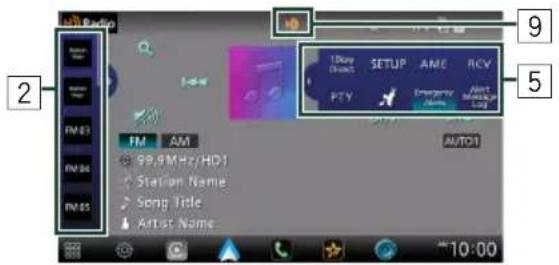

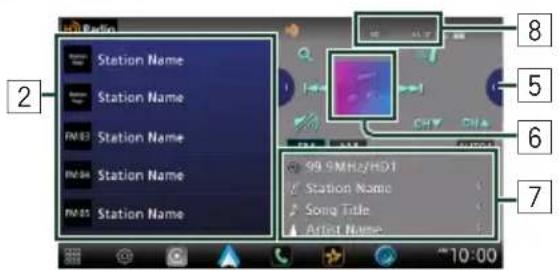

Radio

The HD Radio receiver enables

HD2/HD3

Bookmark

Digital Sound

Program Info

Artist Experience

Emergency Alerts

SOFTWARE LICENSE AGREEMENT

Important Notice on Software

■ Software License on This Product

The software embedded in this product comprises a number of independent software components, each of which is copyrighted by JVCKENWOOD Corporation or by a third party. This product uses software components that are based on an End-User License Agreement (hereinafter called "EULA") stipulated by JVCKENWOOD Corporation and by third parties. The EULA dictates the availability of the source codes of free-software components as a prerequisite to distributing them in executable form under the terms of the GNU General Public License or the Lesser General Public License (hereinafter called "GPL/LGPL"). To get information about the software components that are subject to the terms of the GPL/LGPL, please visit the following website:

Website URL: https://www3.jvckenwood.com/english/download/gpl/

Queries concerning the contents of the source code or the like will not be accepted.

Please note that software components based on a EULA that is not subject to the terms of the GPL/LGPL or those that have been developed or created by JVCKENWOOD Corporation will be excluded from the scope of source code disclosure.

Because licenses to use software components distributed under the GPL/LGPL are offered to the customers for free of charge, no warranty is granted to the customers, whether explicitly or implicitly, to the extent of the applicable laws. Unless otherwise stipulated by the applicable laws or agreed upon in writing, the copyright holders or those who are entitled to modify and redistribute the software components are not held responsible for any and all damages resulting from their use or from inability to use them. For more information about the terms of use of the software components, required items of compliance and so on, please refer to the GPL/LGPL.

Customers wishing themselves to use a software component that is subject to the GPL/LGPL embedded in this product are encouraged to read the terms of the corresponding license before use. Because each individual license is prescribed by a third party other than JVCKENWOOD Corporation, the original (English) of the license is presented.

EULA

■ Software License Agreement

JVCKENWOOD Corporation (hereinafter called "Licensor") holds either the copyright to the embedded software or the right to sublicense it. This agreement establishes the conditions under which the customer uses this "Licensed Software."

The customer shall agree to the terms of this license agreement before proceeding to use Licensed Software.

This agreement is deemed to have taken effect when the customer (hereinafter called "User") has used a product implementation of Licensed Software.

The Licensed Software may contain software Licensor has been licensed to use by third parties directly or indirectly. Some third parties may have terms of use prescribed for their customers, apart from this Software License Agreement. This agreement does not apply to such software. Be sure to consult “Important Notice on Software” as presented separately.

Article 1 (General)

Licensor grants to User a non-exclusive, non-assignable right of use Licensed Software within the country where the User purchases the Product (hereinafter the "Country") (except for the exception provided for in Paragraph 1, Article 3).

Article 2 (Right of Use)

1. The rise of use granted under this agreement is the right to use Licensed Software in this product.
2. User may not duplicate, copy, modify, add to, translate or otherwise alter, or loan licensed Software and the associated literature in whole or in part.
3. Use of Licensed Software is limited to a private extent, and Licensed Software may not be distributed, licensed or sublicensed for any purposes whatsoever, including commercial use.
4. User shall use Licensed Software as per the instruction manual or instructions given in the help file and may not use or duplicate data in violations of the regulations of the Copyright Law or other governing laws by using Licensed Software in whole or in part.

Article 3 (Terms of License)

1. In assigning this product, User may not retain the original copy of the embedded Licensed Software (including associated literature, updates and upgrades) and any duplicates and associated literature with regard to the license to use Licensed Software. User may transfer Licensed Software only to the condition of binding the assignee to abide by the terms of this Software License Agreement.
2. User may not reverse-engineer, disassemble, decompile or otherwise analyze the source code of Licensed Software.

Article 4 (Rights to Licensed Software)

All rights to Licensed Software and the associated literature, including copyrights, shall reside with Licensor or the original right holder who has granted the Right of Use and right to sublicense to Licensor (hereinafter referred to as "Original Right Holder"), and User does not have any rights other than Right of Use granted hereunder with regard to Licensed Software and the associated literature.

Article 5 (Exemption Granted to Licensor)

1. Licensor and Original Right Holder do not assume any responsibility for damages caused to User or third parties resulting from the exercise by User of the license granted hereunder, unless otherwise provided by any law to the contrary.
2. Licensor does not warrant Licensed Software to be merchantable, compatible and fit for specific purposes.

Article 6 (Responsibility for Third Parties)

If disputes over the infringement of third parties' intellectual property rights, such as copyrights and patent rights, arise out of the use of Licensed Software by User, User shall resolve these disputes at User's own expenses while keep Licensor and Original Right Holder harmless.

Article 7 (Secrecy Obligation)

User shall keep confidential Licensed Software provided hereunder, information contained in the associated literature or the like and those provisions of this agreement not yet in public knowledge and may not disclose or leak these to third parties without prior written consent from Licensor.

Article 8 (Cancellation of the Agreement)

Licensor reserves the right to cancel this agreement forthwith and claim compensation from User for the damages caused by such cancellation when User:

(1) Breaches any of the provisions of this agreement, or (2) Has received a petition for seizure, provisional seizure, provisional disposition or any other kind of compulsory execution.

Article 9 (Destruction of Licensed Software)

If this agreement is terminated under the provision of the foregoing paragraph, User shall destroy Licensed Software, along with all associated literature and its duplicates, within two (2) weeks from the date of termination.

Article 10 (Copyright Protection)

1. Copyrights and all other intellectual property rights relating to Licensed Software shall reside with Licensor and Original Right Holder and in no circumstances with User.
2. User shall abide by the laws relating to copyrights and intellectual property rights in using Licensed Software.

Article 11 (Export Control)

1. Licensed Software and the associated literature or the like may not be exported to places outside the Country (including transmission outside the Country over the Internet or the like).
2. User agrees that Licensed Software is subject to export controls imposed by the Country and the United States of America.
3. User agrees to comply with all the international and domestic laws that apply to this software (U.S. Export Administration Regulations and regulations established by the U.S., the Country and their governmental agencies regarding usage by end users and export destinations).

Article 12 (Miscellaneous)

1. Even if this agreement is invalidated in part by law, all other provisions shall remain in effect.
2. Licensor and User shall consult each other in good faith to resolve any matters not provided for in this agreement or questions arising from the interpretation of this agreement.
3. Licensor and User agree that this agreement is governed by the law of Japan and that all disputes involving claims and obligations that may arise out of this agreement will be settled by arbitration at the Tokyo District Court as the court of first instance.

Table of Contents

Audio Configuration....101

1 2 3 4 5

1

2

KW-Z800AW

NOTE

[Language]

[System Configuration]

NOTE

[Built-In Amplifier]

[Installation Orientation]

[Time Format]

1

1

Apple CarPlay is connected

NOTE

2 Talk to Siri.

KW-Z800AW

KW-Z800AW

NOTE

1 Navigation bar*1

1 Navigation bar*1

2 Start speaking.

KW-Z800AW

KW-Z800AW

2 KW-Z1001W/KW-Z1000AW

NOTE

NOTE

Open the drawer

HD2/HD3

Direct search

NOTE

[☑ All]

Activating subscription

This completes the approval.

NOTE

NOTE

NOTE

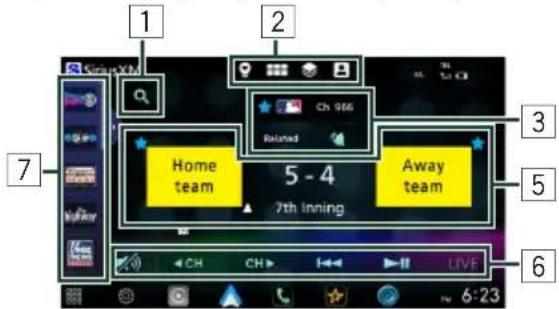

● Sports Play-by-Play (sports channels)

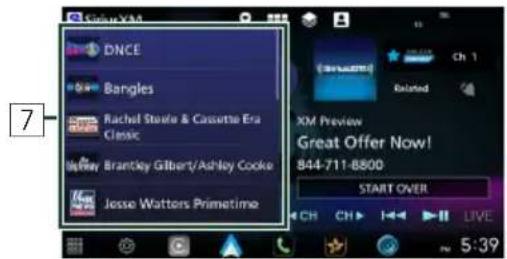

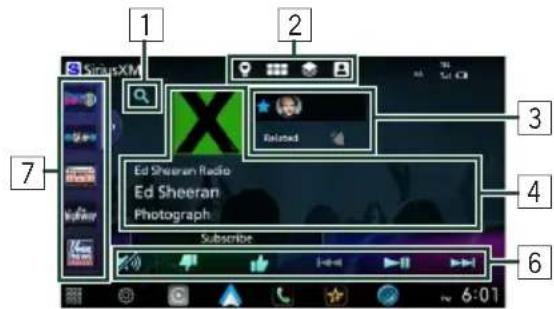

Open the drawer

1 Search

- Pandora station

- Xtra channel

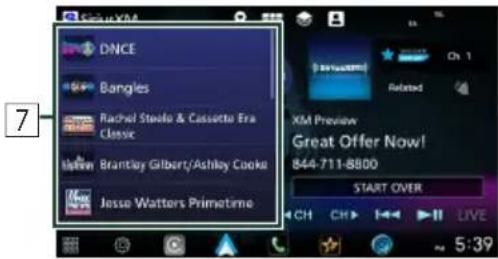

Open the drawer

1 Search

● Sports Play-by-Play

Linear Tuner

Direct Search

NOTE

Recommendation Spotlight

NOTE

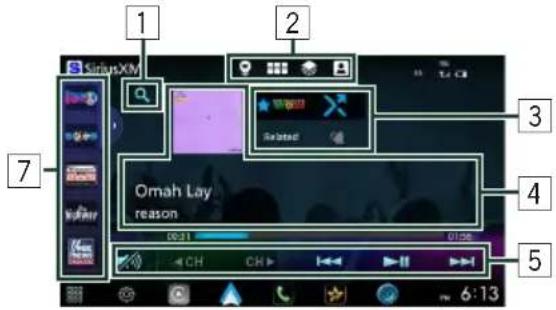

CHANNEL/PODCASTS Tab

Channel List

NOTE

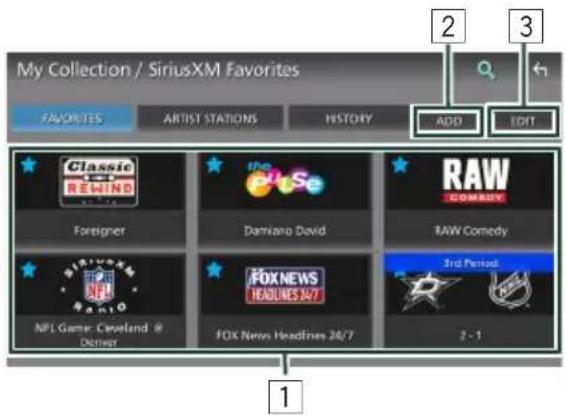

SXM FAVORITES

2

RELATED CONTENT

NOTE

NOTE

1 Subscription

NOTE

NOTE

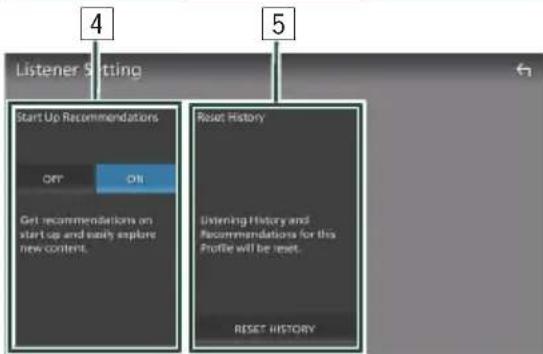

Change the listener

CHANGE THE AVATAR

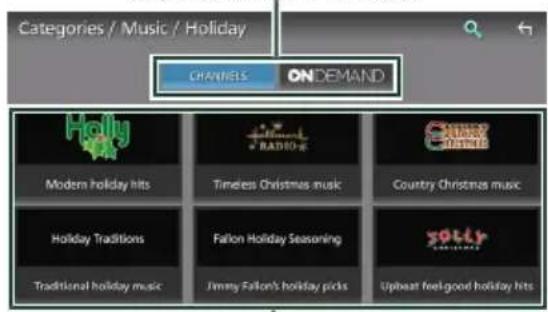

ARTISTS & MUSIC THEMES

TEAMS

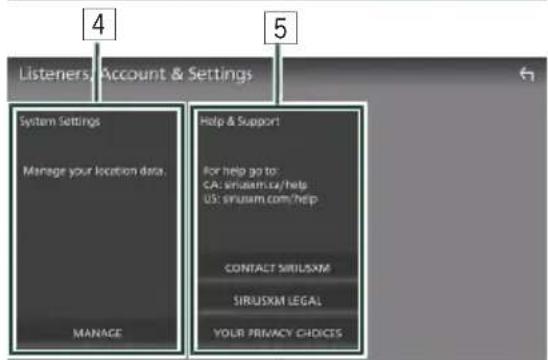

1 Contact SiriusXM

2 SiriusXM Legal Information

5 Touch [Device List].

6 Touch +☐.

NOTE

[TEL (HFP) 1], [TEL (HFP) 2]

NOTE

[Microphone Level]

[Noise Reduction Level]

[Delete all]

[Add number from phonebook]

[Bluetooth HF/Audio]

[Camera Assignment Settings]

[Rear Camera Interruption]

[Parking Guidelines]

[Front Camera Interruption] *

4 Touch [Enter].

1 Display of step

[Bluetooth]

[360L IP Connection *1*]

[Wireless Mirroring SSID]

[Android Auto Auto Launch]

[Incoming Call Volume (Ring)]

[In Call Volume (Talking)]

[Speech Quality Adjust]

• [Time Alignment]:

[iPhone Bluetooth Connection]

[Reset Android Auto Wireless Connection]

[Built-In Amplifier]

[Dimmer]

[Wallpaper Customize]

[Screen transition effect]

[Variable]

[Source Setup - Remote Control]

[Parking Assist Position ² ]

[DEMO]

[System Information]

[Favorite Customize]

3 Touch [Close].

NOTE

4 Touch [Close].

NOTE

[Speaker]

[Speaker]

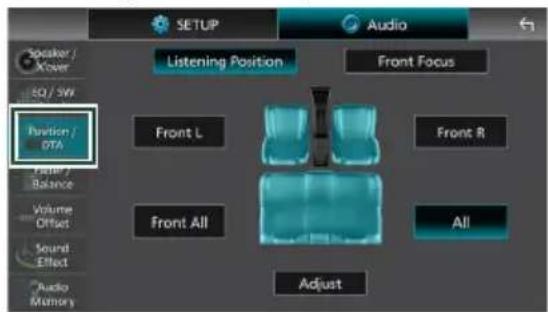

4 Touch [Position/DTA].

4 Touch [Level].

NOTE

[Sound Image LR (Front)]

[Sound Image LR (Rear)]

[Initialize]

[Bass Boost]

- Peak filter

[SETUP Memory]

[Audio SETUP Memory]

[Audio SETUP Recall]

Bluetooth/Wi-Fi antenna unit KW-Z1000AW/KW-Z800AW

Bluetooth/Wi-Fi antenna unit

NOTE

Installed vertically

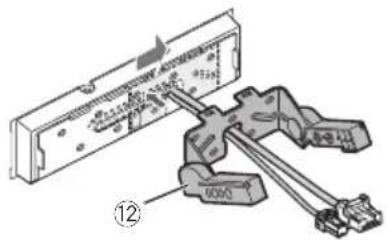

Left position

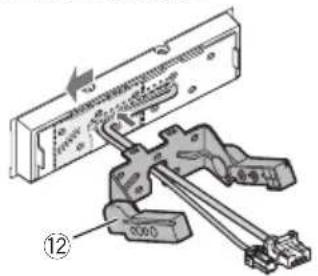

Right position

Connection/Installation

NOTE

: 8.0 inches wide (diagonal)

: 176.64 mm (W) × 99.36 mm (H)

6-15/16 x 3-15/16 (inches)

Display system

: LCD panel

Reading system

USB interface section

Connector type

: Type C

USB standard

Dimensions (W × H × D)

- Chassis

KW-Z1001W

: 178 × 50 × 158 mm

7 × 2 × 6-1/4 inches

KW-Z1000AW/KW-Z800AW

: 178 × 50 × 105 mm

7 × 2 × 4-1/8 inches

• Monitor

KW-Z1001W/KW-Z1000AW

: 262 × 181 × 52 mm

10-5/16 × 7-1/8 × 2-1/16 inches

KW-Z800AW

: 190 × 120 × 28 mm

7-1/2 × 4-3/4 × 1-1/8 inches

Weight

KW-Z1001W

: 2.5 kg (5.6 lbs)

KW-Z1000AW

: 2.1 kg (4.5 lbs)

KW-Z800AW

: 1.4 kg (3.1 lbs)

- Chassis

KW-Z1001W

: 1.3 kg (2.9 lbs)

KW-Z1000AW/KW-Z800AW

: 0.8 kg (1.8 lbs)

• Monitor

KW-Z1001W/KW-Z1000AW

: 1.1 kg (2.4 lbs)

KW-Z800AW

: 0.6 kg (1.3 lbs)

NOTE

• Windows Media is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.
• This software is based in part on the work of the independent JPEG Group.
• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.
• Apple, Apple CarPlay, Apple Music, iPhone, Lightning, and Siri are trademarks of Apple Inc., registered in the U.S. and other countries and regions.
• Use of the Apple CarPlay logo means that a vehicle user interface meets Apple performance standards. Apple is not responsible for the operation of this vehicle or its compliance with safety and regulatory standards. Please note that the use of this product with iPhone, iPod, or iPad may affect wireless performance.
• App Store is a service mark of Apple Inc., registered in the U.S. and other countries.
• IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
• SiriusXM and all related marks and logos are trademarks of Sirius XM Radio, Inc. All rights reserved.
• HD Radio™ Technology manufactured under license from iBiquity Digital Corporation, a subsidiary of Xperi Inc., U.S. and Foreign Patents. For patents see https://xperi.com/hd-radio-patents/. Xperi, HD Radio, HD, and 'ARC' logos and their respective logos are trademarks or registered trademarks of Xperi Inc. and its subsidiaries in the United States and other countries.
• Google, Android, Android Auto, Google Play and other marks are trademarks of Google LLC. Wireless use of Android Auto requires a compatible Android 11.0+ phone and compatible active data plan. Check g.co/androidauto/requirements for compatibility.
• Wi-Fi® is a registered trademark of Wi-Fi Alliance®.
• The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance®.
• USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum.
• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
• This product includes FontAvenue® fonts licenced by NEC Corporation. FontAvenue is a registered trademark of NEC Corporation.
• This product includes "Ubiquitous QuickBoot™" technology developed by Ubiquitous AI Corporation. Ubiquitous QuickBoot™ is a trademark of Ubiquitous AI Corporation.

FontAvenue

Copyright© 2025 Ubiquitous AI Corporation All rights reserved.

- THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD ("AVC VIDEO") AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM

- THIS PRODUCT IS LICENSED UNDER THE VC-1 PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE VC-1 STANDARD ("VC-1 VIDEO") AND/OR (ii) DECODE VC-1 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE VC-1 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM

- libFLAC

Copyright (C) 2000-2009 Josh Coalson Copyright (C) 2011-2013 Xiph.Org Foundation

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

- Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

- libvorbis

Copyright (c) 2002-2008 Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

- Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

- libogg

Copyright (c) 2002, Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

– Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. - Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. - Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
