| Product type | Audio receiver with CD player and Bluetooth |
| Brand | JVC |
| Model | KD-SX38MBT |
| Dimensions (W x H x D) | 178 x 50 x 160 mm (standard DIN) |
| Weight | 1.5 kg |
| Power supply | 12 V DC (vehicle) |
| Power consumption | 10 A max (with lighting) |
| Main functions | CD/CD-R/RW player, RDS tuner, Bluetooth (hands-free and audio streaming), USB, front AUX input |
| Output power | 4 x 50 W (max) |
| Supported audio formats | CD, MP3, WMA, WAV (via USB) |
| Display | LCD screen |
| Lighting | Red backlight (or variable depending on setting) |
| Controls | Rotary knobs and touch keys, remote control included |
| Antenna input | Standard ISO connector |
| Audio outputs | 4 speakers, 1 subwoofer output (preamp) |
| Bluetooth | Version 2.1 + EDR, profile HFP/A2DP/AVRCP |
| Included accessories | Detachable faceplate, remote control, USB cable, mounting kit |
| Maintenance and cleaning | Clean with a soft, dry cloth. Avoid solvents. |
| Safety | 15 A protection fuse, anti-theft detachable faceplate, professional installation recommended |
| Spare parts and repairability | Buttons, faceplate, remote control, power cable, antenna |
| General information | Compatibility with 12 V vehicles, CE standard, operating temperature -20°C to +60°C |
Frequently Asked Questions - KD-SX38MBT JVC
How do I pair my phone with the JVC KD-SX38MBT?
Activate Bluetooth on your phone, then press the BT or Phone key on the car radio. Select 'KD-SX38MBT' from the device list. The pairing code is usually 0000. Confirm on both devices.
What audio formats are readable via USB?
The receiver reads MP3, WMA and WAV files stored on a FAT32 formatted USB stick. Ensure the files are not DRM protected.
How do I adjust the equalizer?
Press the EQ (Equalizer) key to cycle through presets (Rock, Pop, Jazz, etc.). For manual adjustment, press and hold the key and adjust frequency bands with the dial.
What to do if the detachable faceplate doesn't light up?
Check that the faceplate is properly engaged. Clean the contacts with a dry cloth. If the problem persists, the car radio's fuse may have blown; replace it with an identical 15 A fuse.
How do I memorize a radio station?
Tune to the desired station, then press the MEMO key (or press and hold a preset button 1-6) until you hear a beep. The station is then saved.
Can I connect an external amplifier?
Yes, the car radio has a pre-amplified output for a subwoofer with a level of 2.5 V. You can also use the speaker outputs for an amp, but it is recommended to use adapters.
How do I activate the hands-free function?
After pairing your phone, make a call from your phone; the sound is automatically redirected to the car radio. You can also use the Phone key to answer/hang up.
My car radio won't turn on, what should I check?
First check the fuse at the back of the unit (15 A). Verify the power connections (red wire for ignition, yellow for memory). Ensure the faceplate is properly locked.

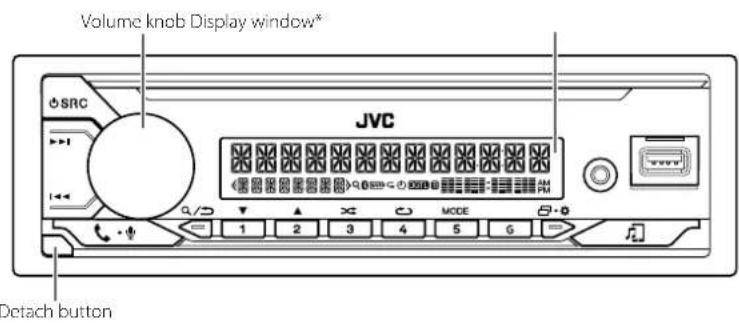

How do I remove the detachable faceplate?
Press the RELEASE button on the side of the faceplate. Gently pull the faceplate towards you. Store it in its protective case to avoid scratches.
Where can I find the full user manual?
The manual is available for free download in PDF format on the notice-facile.com website. It contains 104 pages detailing all functions and installation.
