USER MANUAL EAM 143 Liquid & Dust Essentiel B

Exterior view of a modern black and blue handheld vacuum cleaner (no visible text or symbols)

Notice d'utilisation / User guide / Bedienungsanleitung / Gebruiksaanwijzing

Exploded view diagram of a hair dryer with numbered parts for identification

All information, designs, drawings and pictures in this document are the property of SOURCING & CREATION. SOURCING & CREATION reserves all rights relating to its trademarks, creations and information. Any copy or reproduction, by any means whatsoever, will be deemed and considered counterfeit.

Technical illustration of two mechanical components with arrows indicating motion or assembly (no text or symbols)

Technical line drawing of a mechanical component with two views (no text or symbols)

Figure 8

instructions for use

CAREFULLY READ THESE INSTRUCTIONS BEFORE USING YOUR APPLIANCE AND KEEP THEM FOR FUTURE REFERENCE.

• Check that the power supply voltage indicated on the rating plate of the power adapter corresponds to the voltage of your electricity system.
• This appliance is intended for household use only. Any other use (professional, commercial, etc.) is excluded. Only use the appliance as described in this manual. Do not use the vacuum cleaner on a person or animal.
• Do not use this appliance:
• if the adapter or the power cable is damaged,
• in case of malfunction,
• if it has fallen into water,
• if the appliance has been damaged in any way.
• Take it to an after-sales service centre for inspection and repair. Repairs cannot be carried out by the user.
• The adapter provided should only be used with the appliance.

• Plug the mains adapter into an easily accessible mains socket.

• Make sure that the power cord cannot be crushed or trapped, especially around the plugs, electric sockets, and the point at which it connects to the appliance.

• The adapter supplied with the appliance is only intended for indoor use.
• Although this vacuum cleaner is designed to hoover up liquids, only the end of the container should come into contact with the liquid.
• Do not use the vacuum cleaner to vacuum toxic or fl ammable substances, or combustible liquids, such as gasoline.
• Never immerse the mains adapter or the motor unit in water or any other liquid.
• Do not place this appliance near to a heat source, such as a radiator, a hot air blast or an oven, or any other appliance that produces heat.
• Never unplug the appliance by pulling on the power cord, instead pull the adapter plug itself.
• This appliance can be used by children at least 8 years of age and by persons with reduced physical, sensory or mental capacity or lack of experience or knowledge, as long as they are properly supervised or instructions for the safe use of the appliance have been given to them and the risks involved have been understood. Children

must not play with the appliance. Children must be supervised if they are cleaning or maintaining the appliance.

• Keep the appliance and its power cord out of the reach of children under the age of eight.
• Unplug the mains adapter from the electrical outlet during lightning storms.
• Use only the accessories supplied with the appliance. Failure to do so may be dangerous for the user and may damage the appliance.
• Do not use the vacuum cleaner without fi rst installing the container section and fi Iters. Do not use the vacuum cleaner with a damaged fi Iter.
• Clean the container and fi Iters after vacuuming wet and/or perishable food.
• Do not vacuum any hot or smoking object, such as cigarettes, matches or hot ashes.
• Avoid vacuuming sharp, solid objects, as this could damage the vacuum cleaner and filters.
• Do not use the vacuum cleaner in the presence of explosive or fl ammable fumes.
• The vacuum cleaner should be installed away from sinks and hot surfaces.

• Never handle the plug on the power cord with wet hands.

• Unplug the charger from the electrical outlet before cleaning or servicing.

• Do not insert anything through the holes of the appliance. Do not use the appliance when a ventilation hole is obstructed; clean dust, fi bres, hair, or anything else that may reduce airflow on a regular basis.

Recycling the vacuum cleaner

This symbol on the product or on its packaging indicates that this product must not be treated with household waste. It must be returned to an appropriate collection point for recycling electrical and electronic equipment. Drop off this product at a collection point or refuse centre, or take it to your dealer.

Proper disposal of the battery

This appliance is equipped with a battery. Do not try to replace the battery yourself, it must be replaced by your retailer, its after-sales service or a similarly qualified person in order to avoid any danger.

Do not dispose of the appliance with household waste. To protect the environment, dispose of the appliance in accordance with applicable regulations or return it to your store.

Put the appliance in a collection bin provided for this purpose or take it back to your store.

• Never disassemble, crush, or pierce the battery.
• Do not throw it in a fire.
• Do not expose it to high temperatures or direct sunlight.
• Do not incinerate it.

You have just acquired an Essentiel b branded products and we thank you for your purchase. We pay particular attention to the RELIABILITY, EASE OF USE and DESIGN of our products

We hope that this handheld vacuum cleaner will give you complete satisfaction.

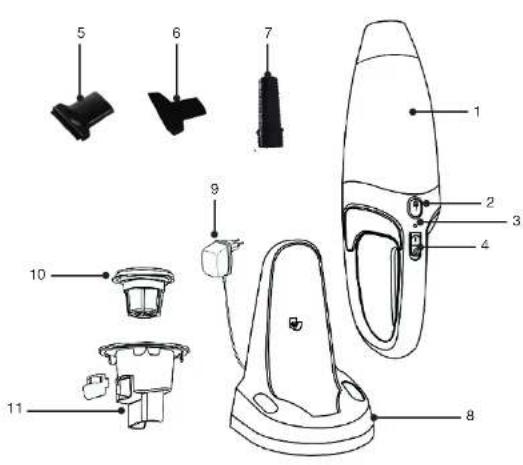

your product

Box contents

• 1 handheld vacuum cleaner
• 1 wall-mounted charging stand
- 1 fl at nozzle
- 1 crevice tool

• 1 squeegee nozzle for liquids
- 1 mains adapter
- 1 user manual

Technical features

• Handheld vacuum cleaner EAM 143 Liquid & Dust
- Item code: 8008669
- This vacuum cleaner can only be used with the WJG-Y091800500W mains adapter supplied and at the voltage value indicated.
• Li-ion battery: 2000 mAh
- Mains adapter:

• Model: WJG-Y091800500W
• Input: 100-240 V - 50-60 Hz 16W

• Output: 18 V = 0.5A 9.0W

• Cordless charging
  • Charging time: 4 hours 30
  • Power cord length: 170 cm

• Charging indicator
• Battery life: 15 mins
  • Capacity of the container: 500 ml for dust - 150 ml for liquids
  • F5 fi ne particulate fi Iter

Product Information for power consumption and maximum time to reach applicable low power mode
Power consumption in off mode	0.149 W
Power consumption in standby	NA
The maximum time needed to automatically reach the applicable low power mode or condition	NA
Power consumption in network standby if all wired network ports are connected and all wireless network ports are activated	NA

before fi rst use

Wall-mounting

The charging base can be placed on a fl at surface (Fig. 1) or mounted vertically against a wall (Fig. 2).

Figure 1 Figure 2

Two mechanical components with arrows indicating motion or rotation, no text or symbols present

To mount the charging base on a wall:

1. Find a location within 160 cm of an electrical outlet. If the base is at a lesser distance, wrap any excess cord around the back of the base then pass the power cord through the slot provided.

Note: Do not use an electrical outlet controlled by a switch.

1. Place the base against the wall in the desired location and make a mark in the centre of each hole using a pencil, ensuring they are correctly aligned. The distance between each hole is 12 cm.
2. Drill a hole in the centre of the first pencil mark. Place a wall plug in the hole and insert a screw allowing its head to protrude slightly.
3. Drill the second hole, install the second wall plug and tighten the second screw.
4. Tighten the two screws so that the base is securely attached to the wall.

Charging the vacuum cleaner

Before first use, the battery must be charged for 10 hours.

Notes:

• The appliance may heat up slightly during charging and use. This is normal.
- Your appliance is equipped with a battery that is not sensitive to the "memory effect": you can therefore recharge this battery without having to discharge it first.

Figure 3

Figure 4

1. Check that the on/off switch is in the "0" position.
2. Slide the appliance onto the charging base, with the handle facing downwards (Fig. 3).
3. Then plug the mains adapter into a power outlet.

The red indicator light will come on when the appliance is charging on its base (Fig. 4). If the indicator light is off, this means that the appliance has not been correctly placed on its base.

1. When the charge is complete, the indicator light will turn green.

use

1. Remove the appliance from its base.
2. If necessary, select an attachment and insert it into the end of the container.

Attachment Use

-	No attachment:To vacuum mixed, dry or wet waste.
	Squeegee nozzle for liquids;Used to vacuum up liquids.
	Flat nozzle;Used to vacuum up fi ne particles (fl our, sugar, cocoa, etc.).
###	Crevice tool;Used for hard-to-reach areas (comers, slots/gaps, skirting boards, etc.).

Dry suction

1. Remove the appliance from its base.
2. If necessary, use the fl at nozzle or the crevice tool (see previous section) and attach it to the end of the water and dust container.
3. To start the vacuum cleaner, move the "on/off" switch into the "I" position (Fig. 5).
4. After use, turn the "on/off" switch into the "0" position then put it back on its base to charge the battery for the next use (Fig. 5).

Figure 5

Suction of liquids

1. Remove the appliance from its base.
2. Use the squeegee nozzle for liquids and attach it to the end of the water and dust container.
3. To start the vacuum cleaner, move the "on/off" switch into the "I" position (Fig. 5).
4. Hold the container downwards at an angle of 30^ to the ground. Never hold the container upright when vacuuming liquids. Do not shake the appliance when liquids are already in the tank to avoid any risk of leakage. Do not allow liquids to enter the motor unit.
5. After use, turn the "on/off" switch into the "0" position then put it back on its base to charge the battery for the next use (Fig. 5 of the previous section).

Important!

• If you happen to hoover up some wet and/or perishable waste, make sure to empty, clean and dry the dust container after use to avoid any risk of mould.
• Be careful not to fi ll the vacuum container beyond the MAX mark (shown on the container) for dust or MAX ≈ for liquids.

cleaning and maintenance

Important!

• Always unplug the appliance before cleaning and check that the on/off switch is in the "0" position.
• Never immerse the appliance, the charging base or the mains adapter in water or any other liquid.
• Do not use aggressive cleaning agents or abrasive sponges.

Cleaning the unit

For optimal performance, the appliance should be emptied and cleaned regularly. If the water/dust container and filter are dirty, the suction performance will decrease.

Figure 6 F

Figure 6 Figure 7

1. Press the button to open the container and separate it from the motor unit (Fig. 6).
2. Pull the F5 fi ne particulate fi Iter/pre-fi Iter unit out of the container (Fig. 7).
3. Empty the waste from the water/dust container into a dustbin and, if necessary, clean the inside of the container with a soft and slightly damp cloth, then allow it to fully dry.

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

Figure 8

1. Turn the fi ne particulate fi Iter to remove it from the pre-fi Iter (Fig. 8).
2. Dust the various elements using a soft, dry brush, then rinse them with lukewarm water and allow them to fully dry in the open air for 24 hours.

Figure 9

CLIC

Figure 10

Figure 11

1. Reassemble the elements in the container (Fig. 9).
2. Clean the outer surfaces of the appliance with a soft, slightly damp cloth and dry them completely.
3. Replace the container on the motor unit until it clicks into place (Fig. 10) and put the appliance back on its charging base (Fig. 11).

For optimal performance, the F5 fi ne particulate fi liter should be replaced regularly, about once a year, or when it becomes blackened or damaged. To replace the fi liter, contact your retailer's after-sales service.

Storage

• The appliance must always be stored on its base.
- The attachments can be stored in the compartments provided for this purpose on either side of the charging base (Fig. 12).
- If the appliance is out of use for a long period, unplug the mains adapter from the wall outlet.

Figure 12

Bedienungshinweise

Diagram showing two mechanical components with arrows indicating motion or rotation, no text or symbols present

Abbildung 2

Zur Wandmontage des Ladesockels:

Technical line drawing of mechanical components with directional arrows indicating assembly (no text or symbols)

Abbildung 8

Two mechanical components with arrows indicating motion or rotation, no text or symbols present

Afbeelding 2

Information published	Value and precision	Unit
Manufacturer's name or trade mark, commercial registration number and address	Yuyao Simen Town Wanji Electrics Factory Yuyao Simen Town No. 1 Ruhu Road Wanji Electrics Factory, Yuyao City, Zhengjiang province, China	-
Model identifier	WJG-Y091800500W	-
Input voltage	100-240 V-
Input AC frequency	50/60	Hz
Output voltage	18	V ---
Output current	0.5	A
Output power	9	W
Average active efficiency	82.14	%
Efficiency at low load (10 %)	NA	%
No-load power consumption	0.06	W

DE

All information, designs, drawings and pictures in this document are the property of SOURCING & CREATION. SOURCING & CREATION reserves all rights to its brands, designs and information. Any copy and reproduction through any means shall be deemed and considered as counterfeiting.

Protection of the environment

This symbol attached to the product means that it is an appliance whose disposal is subject to the directive on waste from electrical and electronic equipment (WEEE). This appliance may not in any way be treated as household waste

and must be subject to a specific type of removal for this type of waste. Recycling and recovery systems are available in your area (waste removal) and by distributors. By taking your appliance at its end of life to a recycling facility, you will contribute to environmental conservation and prevent any harm to your health.

Umweltschutz

\* Tested in our laboratories

Warranty valid from the date of purchase (receipt as proof of purchase). This warranty does not cover defects or damage caused by improper set up, incorrect use, or normal wear and tear of this product.

\* In unseren Labors getestet

Customer Relations Department / Kundenservice / Klantenafdeling

Avenue de la Motte CS 80137

59811 Lesquin cedex

[e-mail]

Art. EAM 143 Liquid & Dust

Ref. 8008669

FABRIQUÉ EN R.P.C. / Made in China /
