USER MANUAL IW20X-700 HYUNDAI

CORDLESS HIGH-TORQUE IMPACT WRENCH

AKKU-SCHLAGSCHRAUBER MIT HOHEM DREHMOMENT CLÉ À CHOCS SANS FIL À COUPLE ÉLEVÉ

AVVITATORE A PERCUSSIONE A COPPIA ELEVATA SENZA FILI LLAVE DE IMPACTO INALÁMBRICA DE ALTO TORQUE ACCU-SLAGMOERSLEUTEL MET HOOG KOPPEL CHEIE DE IMPACT FĂRĂ FIR CU CUPLU RIDICAT AKKUS, NAGY NYOMATÉKÚ ÜTVECSAVAROZÓ ΑΣΥΡΜΑΤΟ ΚΡΟΥΣΤΙΚΟ ΚΛΕΙΔΙ ΥΨΗΛΗΣ ΡΟΠΗΣ CÒ LÊ TÁC ĐÔNG MÔ-MEN XOẤN CAO KHÔNG DÂY

IW20X-700

User Manual/Benutzerhandbuch/Manuel de l'utilisateur/Manuale dell'utente Manual del Usuario/Gebruikershandleiding/Manualul utilizatorului/Felhasználói kézikönyv/ Οδηγίες χρήσης/Hướng dẫn sử dụng

GENYINE PRODUCT OF HYUNDAI CORPORATION

Technical line drawing of a Hyundai 20V max electric drill press (no text or symbols on the diagram itself)

HYUNDAI 10 9 1 2 3 8 7 6 4 5 HYUNDAI 20 V 4.0m

A1 ① HYUNDAV 2074 ②

A2 HYUNCAI 20V 4.05t

Technical line drawing of a Hyundai electric drill bit with an arrow indicating the tool's direction (no text or symbols present)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device (no text or symbols visible)

Technical line drawing of a Hyundai motor with mounting flanges and control buttons (no text or symbols)

Technical line drawing of a Hyundai electric drill bit (no text or symbols)

E HYUN24 20V 4.0A OFF (A) 1 3 2 11

F1F HYUNDAI 2.0V 4.0Ah

Line drawing of a person wearing a belt and holding a camera (no text or symbols)

ORIGINAL INSTRUCTIONS PRODUCT SAFETY GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing

CORDLESS HIGH-TORQUE IMPACT WRENCH

EN

accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. BATTERY TOOL USE AND CARE

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to

fire or excessive temperature. Exposure to fire or temperature above 130^ C may cause explosion.

g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6. SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

IMPACT WRENCH SAFETY WARNINGS

1. Hold the power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

SYMBOLS

To reduce the risk of injury, user must read instruction manual

Warning

Wear ear protection

Wear eye protection

Wear dust mask

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.

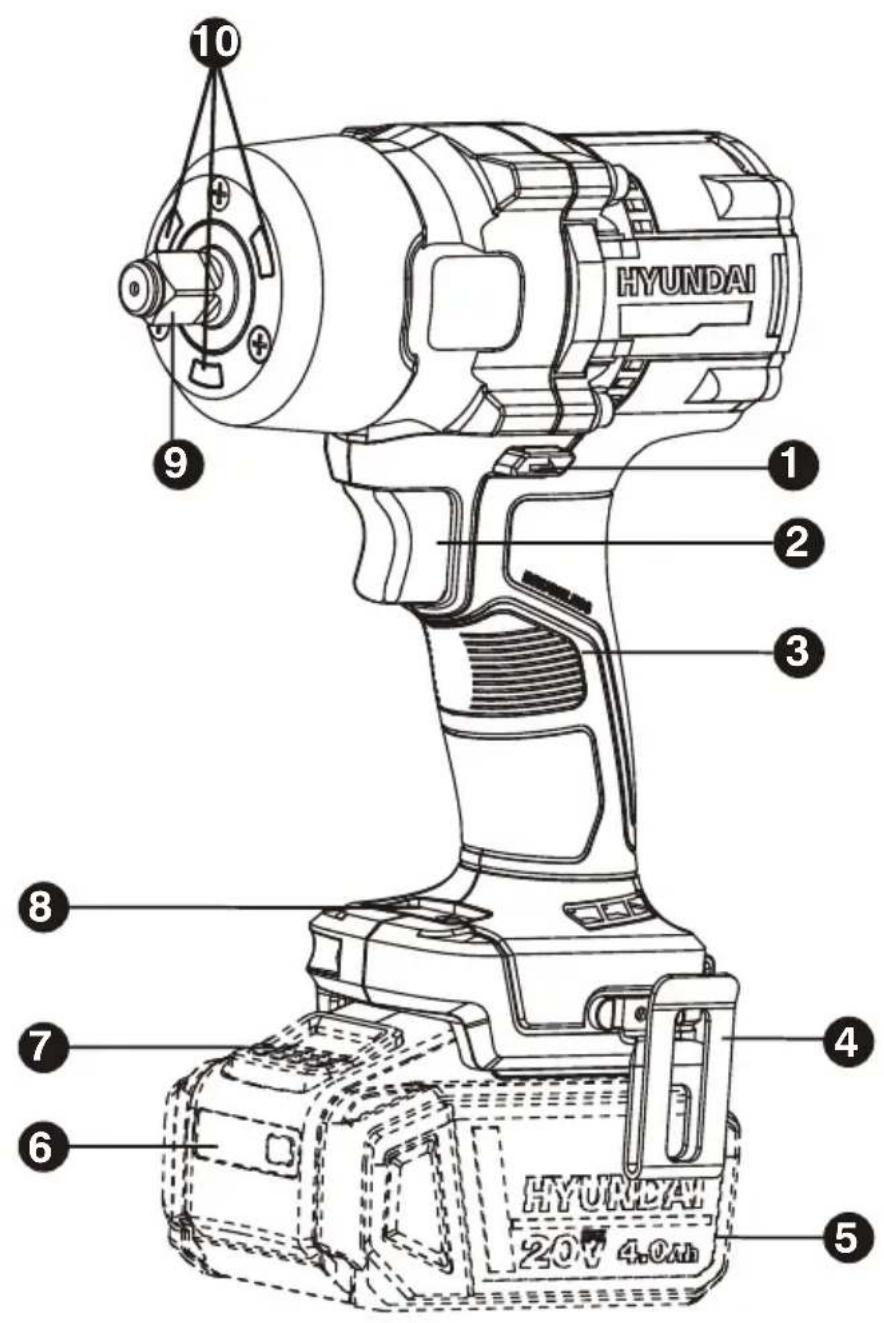

COMPONENT LIST

1. FORWARD/ REVERSE ROTATION CONTROL

2. ON/OFF SWITCH

3. SOFT GRIP HANDLE

4. BELT CLIP

5. BATTERY PACK*

6. BATTERY CAPACITY INDICATOR*

7. BATTERY PACK RELEASE BUTTON*

8. 3-SPEED SWITCH AND AUTO MODE SWITCH BUTTON

9. TOOL HOLDER

10. LED LIGHT

* Not all the accessories illustrated or described are included in standard delivery.

TECHNICAL DATA
Type IW20X-700 (20X-700-designation of machinery, representative of impact wrench)

Voltage 18V (20V Max.)	---
No load speed 1400/2000/2400 /min with auto mode
Impact rate 1500/2300/2800 ipm with auto mode
Max torque	Max breakaway torque: 880NmMax fastening torque: 700Nm
Chuck size 1/2"
Machine weight (without battery) 0.74kg

SUITABLE BATTERY PACKS

Item number BI20-2		BI20-4
Battery capacity 2.0Ah 4.0Ah
	Not included	Recommended (Not included)

SUITABLE CHARGERS

Item number C20-2		C20-4
Charger input 100-240V~50/60Hz, 55W		100-240V~50/60Hz, 95W
Charger output 20V 2.0A	—	20V — 4.0A
Charging time (approx.)	1hr (2.0 Ah)2hrs (4.0 Ah)	30mins (2.0 Ah)60mins (4.0 Ah)
Charger protection class	☐ /II	☐ /II
	Not included	Not included

CORDLESS HIGH-TORQUE IMPACT WRENCH

EN

NOISE INFORMATION

A weighted sound pressure	L_pA : 81.7dB (A)
A weighted sound power L	_wA : 89.7dB (A)
K_pA & K_wA	3.0dB (A)
Wear ear protection.

VIBRATION INFORMATION

Vibration total values (triax vector sum) determined according to EN 62841:
Vibration emission value:	a_h = 2.5 m/s^2
	Uncertainty K = 1.5m/s2

The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another. The declared vibration total value and the declared noise emission value may also be used in a preliminary assessment of exposure.

WARNING: The vibration and noise emissions during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used especially what kind rkpiece is processed dependant on the following examples and other variations on how the s used:

How the tool is used and the materials being cut or drilled.

The tool being in good condition and well maintained.

The use of the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration and noise accessories are used.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is need off and when it is running idle but not actually doing the job. This may significantly reduce exposure level over the total working period.

Helping to minimise your vibration and noise exposure risk.

Always use sharp chisels, drills and blades.

Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).

If the tool is to be used regularly then invest in anti vibration and noise accessories.

Plan your work schedule to spread any high vibration tool use across a number of days.

ACCESSORIES

Belt clip 1

We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

INTENDED USE

This tool is intended for the fastening and loosening of bolts, nuts and various threaded fasteners. This tool is not intended for use as a drill.

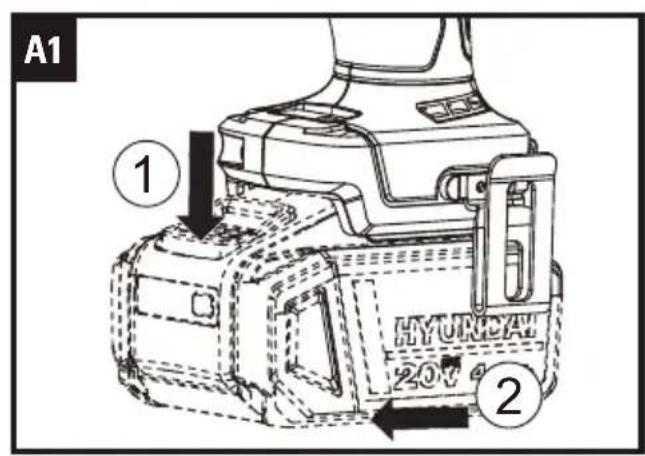

Depress the battery pack release button firmly first and then slide the battery pack out from your tool.

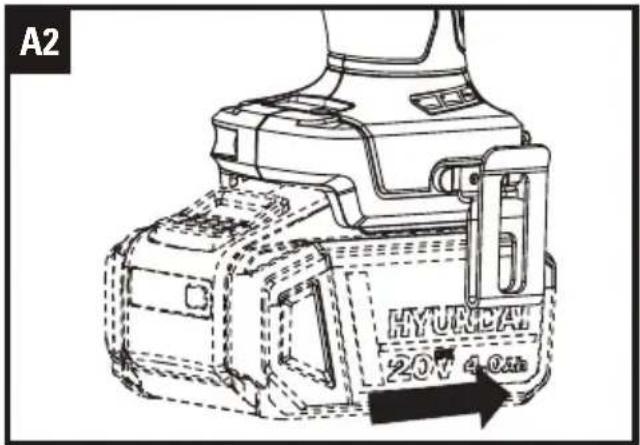

Slide the fully charged battery pack onto the tool with sufficient force until it clicks into position.

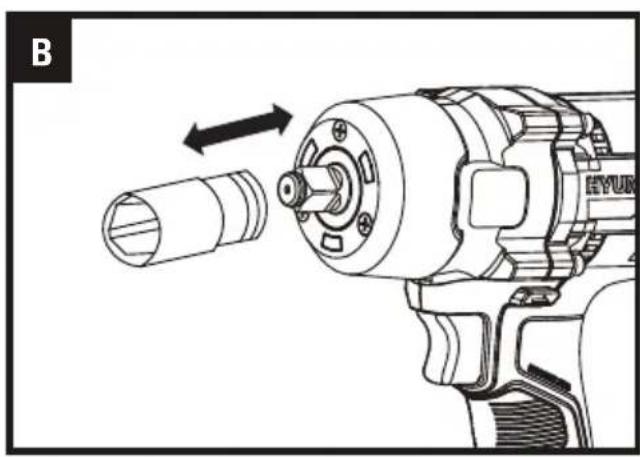

2. INSTALLING OR REMOVING SOCKET ON THE TOOL HOLDER (NOT SUPPLIED) (SEE FIG. B)

To install the socket, insert the socket onto the tool holder. To remove the socket, pull the socket out of the tool holder.

WARNING: Inspect tool holders and socket carefully before using the tool. Missing or damaged items should be

replaced. Make sure the switch is locked off or remove the battery pack before changing accessories.

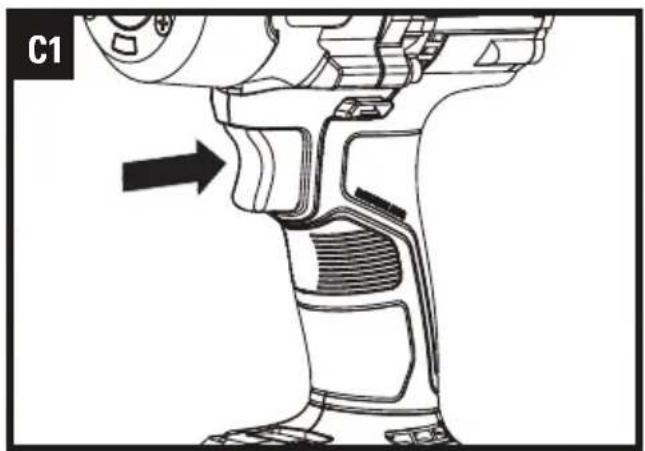

3. SWITCH LOCK (SEE FIG. C1)

The on/off switch can be locked in the OFF position. This helps to reduce the possibility of accidental starting when not in use. To lock the on/off switch, place the rotation control in the center position.

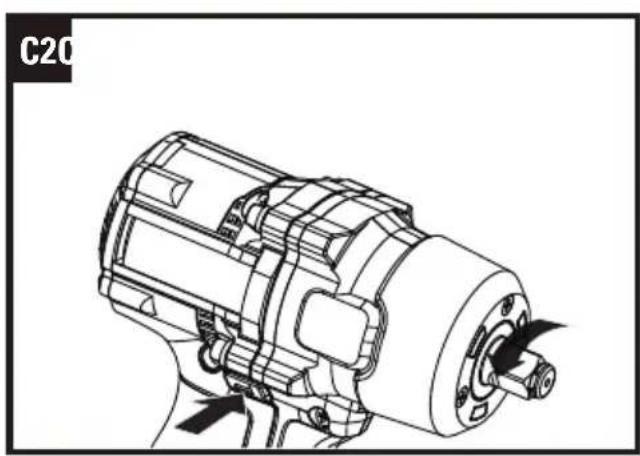

4. FORWARD/ REVERSE ROTATION CONTROL (SEE FIG. C2-C3)

For forward rotation, (with chuck pointed away from you) move the rotation control to the left.

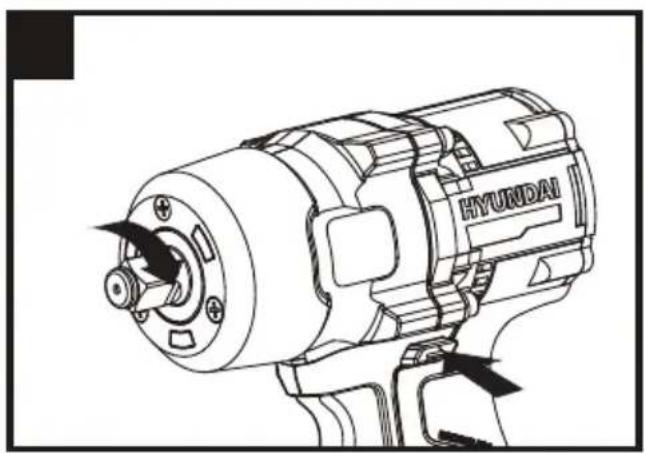

For reverse rotation, (with chuck pointed away from you) move the rotation control to the right.

WARNING: Never change the direction of rotation when the chuck is rotating, wait until it is stopped.

OPERATION

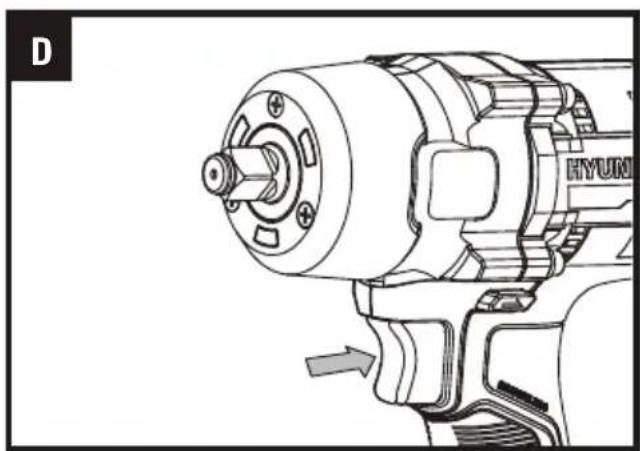

1. OPERATING THE ON/OFF SWITCH (SEE FIG. D)

Depress to start and release to stop your tool. The on/off switch is fitted with a brake function which stops your chuck immediately when you quickly release the switch. It is also a variable speed switch that delivers higher speed and torque with increased trigger pressure. Speed is controlled by the amount of switch trigger depression.

Note: only pushing the rotation control to left/right side, the on/off switch can be depressed.

WARNING: Do not operate for long periods at low speed because excess heat will be produced internally.

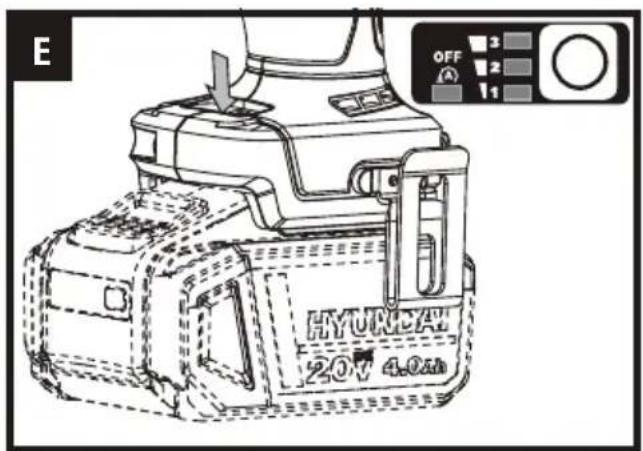

2. 3-SPEED SWITCH AND AUTO MODE SWITCH BUTTON (SEE FIG. E)

The wrench has 3 speeds and auto mode for your selection. Once turn on the machine, the green LED on the bottom will display means the machine is set to the lst speed. Press the button to go through the speed settings and select the correct application.

CORDLESS HIGH-TORQUE IMPACT WRENCH

Application mode (Displayed on panel)	No load speed (RPM min-1)	Impact rate (IPM min-1)	Fastening torque (Nm)	Purpose
	0-1400	0-1500 /		Tightening with less force to avoid screw thread breakage.
	0-2000	0-2300 /		Tightening with less force and speed than Max mode (easier to control than Max mode).
	0-2400	0-2800 Up to 700Nm		Tightening with the maximum force and speed.
	0-2400	0-2800	/	Auto shut-off: In forward, the tool runs at a reduced RPM and then shuts off once the torque is achieved. Bolt removal: In reverse, the tool runs at full RPM and IPM until the nut breaks free from the joint. Then, the tool turned off and run at low speed when restart.

3. USING THE LED LIGHT (SEE FIG. D)

To turn on the light simply press the on/off switch. When you release the on/off switch, the light will be off a few seconds later.

LED lighting increases visibility in dark or enclosed areas.

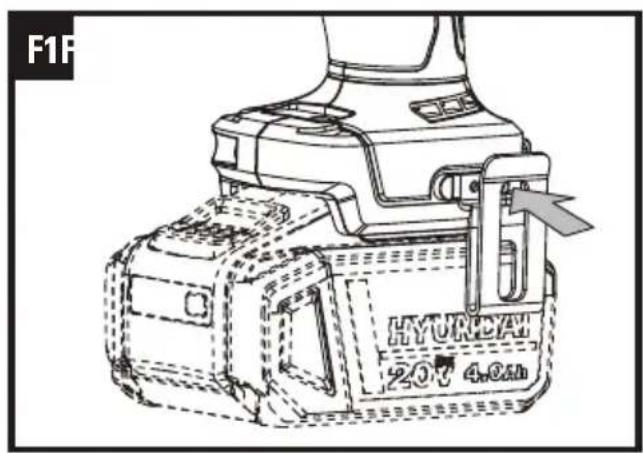

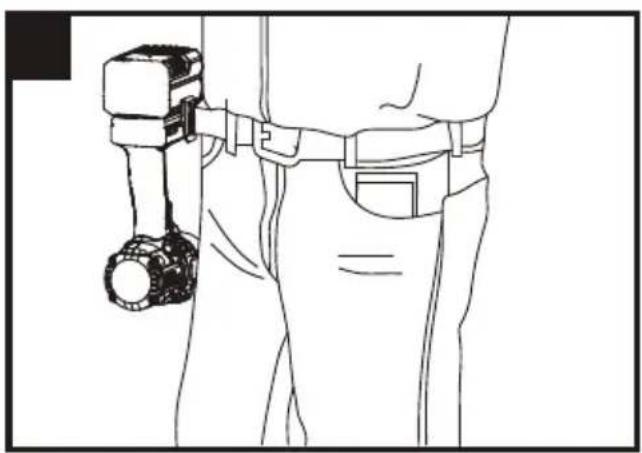

4. HOW TO USE THE BELT CLIP (SEE FIG. F1, F2)

Screw the belt clip on the tool with the screw. The belt clip can be hooked on your belt or pocket, etc.

5. OVERLOAD PROTECTION

When overloaded, the motor comes to a stop. Relieve the load on the machine immediately and allow cooling for approx. 30 seconds at the highest no-load speed.

6. TEMPERATURE DEPENDENT OVERLOAD PROTECTION

When using as intended for the power tool cannot be subject to overload. When the load is too high or the allowable battery temperature

of 75 °C is exceeded, the electronic control switches off the power tool until the temperature is in the optimum temperature range again.

7. PROTECTION AGAINST DEEP DISCHARGING

The Li-ion battery is protected against deep discharging by the “Discharging Protection System”. When the battery is empty, the machine is switched off by means of a protective circuit: The inserted tool no longer rotates.

MAINTENANCE

Remove the battery before carrying out any adjustment, servicing or maintenance.

Your tool requires no additional lubrication or maintenance.

There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust.

Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.

For battery tools

The ambient temperature range for the use and storage of tool and battery is 0 °C-45 °C. The recommended ambient temperature range for the charging system during charging is 0 °C-40 °C.

TROUBLESHOOTING

1. What is the function of the forward/reverse rotating?

Forward/reverse rotating function allows you to change the direction of the motor.

The forward mode is intended for fastening. The reverse mode is intended for loosening.

1. Why does the impact wrench not turn on when you press the switch?

The forward/reverse rotation control is positioned in the lock function. Unlock the forward/reverse rotation control by putting it into the required rotation position. Push the on/off switch and the driver will start to rotate.

ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste.

Please recycle where facilities exist.

Check with your local authorities or

retailer for recycling advice.

CORDLESS HIGH-TORQUE IMPACT WRENCH

EC Declaration of Conformity

CE

We: HYUNDAI Corporation Holdings Europe

Am Kronberger Hang 2A, 65824, Schwalbach am Taunus Germany

Declare that the product detailed below :

Cordless high-torque impact wrench

MODEL : IW20X-700

FUNCTION : Tightening and loosening screws, nuts

Satisfies the requirements of the Council Directives :

2006/42/EC, 2014/30/EU

2011/65/EU & (EU)2015/863

Standards Conform to:

EN 62841-1, EN 62841-2-2,

EN IEC 55014-1, EN IEC 55014-2,

EN IEC 63000

The person authorized to compile the technical file,

Name : Hyundaie Kim

Address : HYUNDAI Corporation Holdings Europe

65824 Schwalbach am Taunus, Germany

General Manager

Simple line drawing of a curved line with an arrowhead and triangle, no text or symbols present

Date : 2024.XX.XX

Jaiwon Hur

Project Manager

Handwritten signature or scribble on a plain background

Sungwoo Hong

* Not all the accessories illustrated or described are included in standard delivery.

TECHNISCHE DATEN

NOTE: Before using the tool, read the instruction book carefully.

VERWENDUNGSZWECK

Simple line drawing of a curved line with an arrowhead and triangle, no text or symbols present

Datum : 2024.XX.XX

Jaiwon Hur

Projektleiter

Handwritten signature or scribble on a line, possibly a signature or annotation

Sungwoo Hong

INFORMATIONS RELATIVES AU BRUIT

INFORMATIONS RELATIVES AUX VIBRATIONS

Simple line drawing of a curved line with an arrowhead and triangle, no text or symbols present

Date : 2024.XX.XX

Jaiwon Hur

Chef de projet

Handwritten signature or scribble on a plain background

Sungwoo Hong

ISTRUZIONI ORIGINALI SICUREZZA DEL PRODOTTO AVVISI GENERALI PER LA SICUREZZA DEGLI UTENSILI A MOTORE

Noi : HYUNDAI Corporation Holdings Europe

Am Kronberger Hang 2A, 65824, Schwalbach am Taunus Germany

Simple line drawing of a curved line with an arrowhead and triangle, no text or symbols present

Handwritten signature or scribble on a line, possibly a signature or annotation

Date : 2024.XX.XX

Jaiwon Hur

Sungwoo Hong

Simple line drawing of a curved line with an arrowhead and a triangle below it (no text or symbols)

Fecha : 2024.XX.XX

Jaiwon Hur

Handwritten signature or scribble on a line, possibly a signature or annotation

Sungwoo Hong

OORSPRONKELIJKE GEBRUIKSAANWIJZING PRODUCTVEILIGHEID ALGEMENE VEILIGHEIDSWAARS- CHUWINGEN VOOR VERMOGENSMACHINE

VEILIGHEIDSWAARS- CHUWING VOOR SLAGMOERSLEUTELS

5. OVERBELASTING BESCHERMING

Simple line drawing of a curved surface with an arrow indicating upward direction (no text or symbols)

Datum : 2024.XX.XX

Jaiwon Hur

Projectmanager

Handwritten signature or scribble on a line, possibly indicating a signature or annotation

Sungwoo Hong

CHEIE DE IMPACT FĂRĂ FIR CU CUPLU RIDICAT

INSTRUCTIUNI ORIGINALE SECURITATEA PRODUSULUI AVERTISMENTE GENERALE DE SIGURANTĂ PENTRU UNELTE ELECTRICE

Noi : HYUNDAI Corporation Holdings Europe

Am Kronberger Hang 2A, 65824, Schwalbach am Taunus Germany

Simple line drawing of a curved line with an arrowhead and a triangle below it (no text or symbols)

Data : 2024.XX.XX

Jaiwon Hur

Manager de project

Handwritten signature or scribble on a line, possibly a signature or annotation

Sungwoo Hong

EREDETI HASZNÁLATI UTASÍTÁS TERMÉKBIZTONSÁG ELEKTROMOS KÉZISZERSZÁMOK BIZTONSÁGOS HASZNÁLATÁVAL KAPCSOLATOS ÁLTALÁNOS FIGYELMEZTETÉSEK

Simple line drawing of a curved line with an arrowhead and a triangle below it (no text or symbols)

Projektmenedzser

Handwritten signature or scribble on a line, possibly a signature or annotation

Dátum : 2024.XX.XX

Jaiwon Hur

Sungwoo Hong

HU

Simple line drawing of a curved line with an arrowhead and triangle, no text or symbols present

Jaiwon Hur

Διευθυντής έργου

Handwritten signature or scribble on a plain background, possibly a signature or artistic mark

Sungwoo Hong

GENUINE PRODUCT OF HYUNDAI CORPORATION

HYUNDAI Corporation Holdings

25, Yulgok-ro 2-gil, Jongno-gu, Seoul 03143, Korea

Post Code: 03143

[phone]

www.hyundaicorpholdings.com

Copyright HYUNDAI Corporation Holdings All rights reserved.
