Product type	3-way bass-reflex floorstanding speaker
Brand	Elipson
Model	Prestige Facet 34F
RMS power	250 W
Recommended amplification	50 W – 350 W
Drivers	Tweeter 25 mm, Midrange 170 mm, 2 × Woofers 210 mm
Frequency response	28 Hz – 25 kHz (±3 dB)
Sensitivity	93 dB/1W/1m
Impedance	6 Ω
Dimensions (without base)	W 274 × H 1121 × D 383 mm
Dimensions (with base)	W 355 × H 1211 × D 420 mm
Weight (without base)	27.7 kg
Weight (with base)	29.5 kg
Available finishes	Black, white, walnut
Power type	Passive (requires external amplifier)
Main functions	Stereo, Home Cinema 5.1/7.1/7.1.2, bi-wiring, bi-amplification
Included accessories	1 removable base, 4 screws, 4 M8 decoupling spikes, 4 rubber pads, 1 removable front grille
Care and cleaning	Soft cloth, mild soap, glass cleaner for lacquered front panel
Safety	Connections with amplifier off, respect polarity (+/-)
Spare parts and repairability	Decoupling spikes, pads, grille, base; repair by authorized dealer
Warranty	2 years from date of purchase from an authorized dealer

Frequently Asked Questions - Prestige Facet II 34F ELIPSON

How to install the base on the Prestige Facet 34F speaker?

Carefully place the speaker on the floor protected by packaging foam. Place the base on the speaker and fix it using the provided screws.

How to adjust the decoupling spikes?

After fixing the base, screw the decoupling spikes (M8 thread) directly onto the base. No tool is needed. These spikes limit vibrations transmitted to the floor.

What is the best way to position the speakers for optimal stereo listening?

Place the speakers symmetrically with respect to the listening position, forming an equilateral triangle. Keep them away from corners, adjust the distance to the rear wall in 10 cm steps, and gradually point them towards the center of the listening area.

How to connect the speakers to the amplifier?

Make sure the amplifier is off. Connect the + (red) terminal of the speaker to the + terminal of the amp, and the - (black) terminal to the -. Use good quality cables. Incorrect polarity causes a blurred stereo image and loss of bass.

What is bi-wiring and how to do it?

Bi-wiring uses a single amplifier but separate cables for bass and treble. Remove the metal straps connecting the terminals, then connect the cables to the upper terminals (treble) and lower terminals (bass). This can improve performance.

How long is the break-in period and how to speed it up?

The break-in period can last several weeks. To speed it up, run the speakers for 50 to 100 consecutive hours at moderate volume with a radio station.

How to maintain the Prestige Facet 34F speakers?

Use a soft cloth for dusting. For stains, a damp cloth with a little mild soap is sufficient. The lacquered front panel can be cleaned with a standard glass cleaner. Never use solvents, detergents, or corrosive products.

Can I use these speakers in a Home Cinema setup with Dolby Atmos?

Yes, but they are intended for main channels. For Atmos, add dedicated speakers like the Prestige Facet 6ATM. Your amplifier must be Dolby Atmos compatible and have sufficient channels.

What to do if an object or liquid falls inside the speaker?

Do not open the cabinet. Contact your dealer immediately so a technician can safely remove the object. The speaker contains no user-serviceable parts.

What is the warranty on Elipson speakers and how to activate it?

The warranty is 2 years from the date of purchase from an authorized dealer. For a repair, contact your dealer and keep the original invoice. The warranty covers manufacturing defects but not damage due to incorrect installation or abusive use.

USER MANUAL Prestige Facet II 34F ELIPSON

PFSUB8, PFSUB10, PFSUB12, PF11C, PF14C, PF14LCR

-2 enceintes

PF63, PF88, PF6ATM, PF7SR

Certification DOLBY ATMOS

Elipson is a registered trademark of AV Industry.

Dear Customer,

Please read carefully the following information before using your new loudspeakers. It contains tips to get the most of it and instructions for safety use.

We strongly recommend that you keep the packaging and this user manual for further use.

I. CONTENT

1 speaker

PF14F,PF24F,PF34F

PFSUB8, PFSUB10, PFSUB12, PF11C, PF14C, PF14LCR

2 speakers

PF6B, PF8B, PF6ATM, PF7SR

-1usermanual
- 1 removable magnetic grid (all speakers)
-1 removable base + 4 screws
PF8B, PF14E, PF24E, PF34E, PESUB8, PESUB10, PESUB12, PF14C
- 4 rubber pads per speaker:
PF6B, PF88, PFSUB8, PFSUB10, PFSUB12, PF11C, PF14C, PF6ATM, PF7SR, PF14LCR
4 decoupling (Thread M8) spikes per speaker: PF14F, PF24F, PF34F

II. PREPARATION

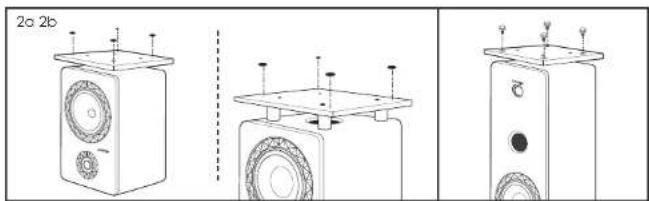

1a. Mounting the removable base on the cabinet (PF8B, PF14F, PF24F, PF34F, PF14C) Carefully turn the cabinet over and place it on the packaging foams, or on a carpet, to avoid any damage on the top part. Take care not to damage the woodworking, the lacquered front or the loudspeakers during this operation. Adjust the base on the cabinet and screw it using the four provided screws.

1b. Mounting the removable base on the subwoofer cabinet (PFSUB8, PFSUB10, PFSUB12)
Start by positioning the aluminium cylinders in the recesses provided for this purpose. Place the base on the cylinders and secure with the provided screws.

2a. Sticking the rubber pads (PF8B, PF14C, PFSUBB, PFSUB10, PFSUB12)

We recommend that you stick the rubber pads, provided with the removable base, on the loudspeakers. If you use the loudspeakers without the removable base, you should place the rubber pads on the provided inserts, to avoid any damage.

As a rule, you can slick the rubber pads under the loudspeakers or under its base in order to protect the loudspeaker itself and its base.

2b. Putting spikes (PF14F, PF24F, PF34F)

After mounting the base of the speaker, screw the spikes on it [no required tools]. Note: The presence of pads or decoupling spikes prevents vibrations to be transmitted to the floor.

3a. Mounting the wall speakers (PF7SR, PF14LCR)

Make sure the brackets have been securely fastened flat against the wall (pay attention to hollow wall anchors) and that the wall is able to bear the weight of the loudspeakers.

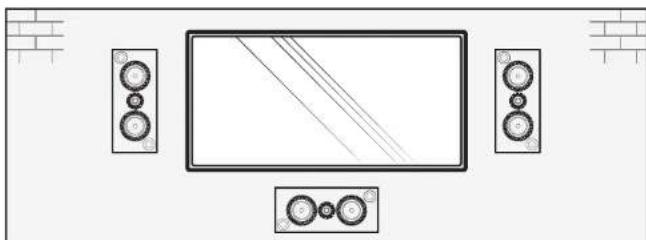

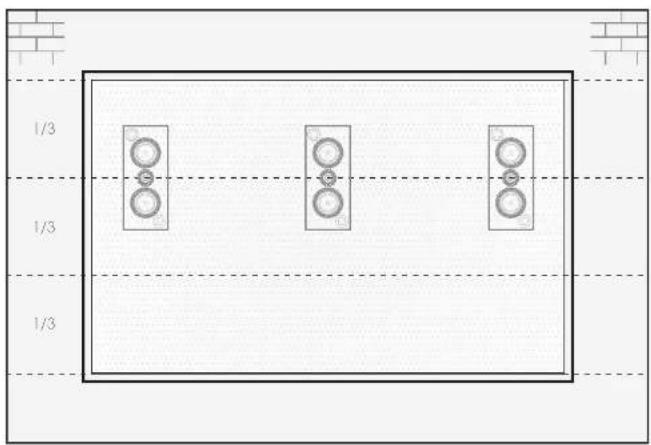

3b. Positioning the PF14LCR speaker with a permanent screen or TV screen

Place the speakers as close as possible to the screen. The mounting brackets allow you to install the speaker horizontally or vertically.

3c. Positioning the PF14LCR speaker behind a projection screen

If you have an acoustically transparent screen, we recommend to install the loudspeakers a third of the way down from the top of the screen. Use the middle of the speaker as a reference point (middle of the tweeter). For this configuration, we recommend removing the grills from the speakers.

III. STEREO SETUP

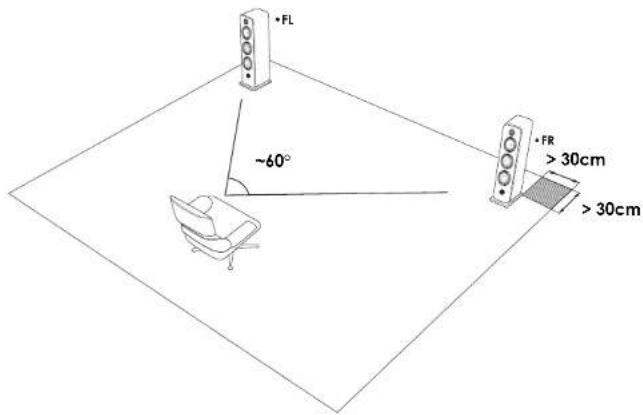

1. Position of the speakers FL/FR

The Prestige Facet loudspeakers have been designed to reproduce all types of music as accurately as possible, provided that a few rules should be followed to optimize performance and achieve a realistic sound image.

Ideally, the speakers should be placed symmetrically in front of the listening position to form an equilateral triangle. The cabinets should be placed at the same height and the same distance from the rear wall and the adjacent side surfaces.

In order to optimize the setup of the speakers in your listening room, we recommend the following tests:

• Above all, you should avoid positioning the loudspeakers in the corners of your room. The result will be an artificial increase in the level of boss, masking the speed and details of this range.
• First, adjust the spacing of the two speakers in order to find the realistic balance between a wide sound image (wide apart speakers) and a sound image respecting the punctuality

of the voices (close speakers).

Secondly, move the speakers away from the rear wall by steps of 10cm to find the balance between the depth of the sound image (far from the back wall) and the level of the extreme low frequencies (close to the back wall).
Finally, adjust the loudspeakers orientation by turning them gradually toward the center of the listening area. If you leave the speakers parallel, you may want to bring them closer together, if you orient them more than 30^ , you may increase their spacing.

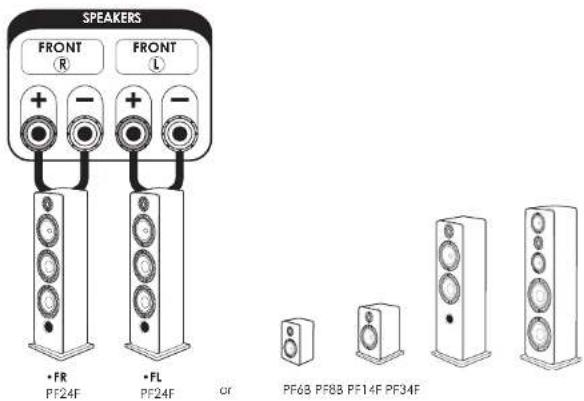

2. Connections

ALL THE CONNECTIONS MUST BE MADE WITH THE EQUIPMENT TURNED OFF.

It is essential to connect the speakers using the correct polarity. Make sure to connect the "+" terminal of the speaker (Red) to the "+" output terminal of the amplifier. Then, make sure to connect the "-" terminal of the speaker (Black) to the "-" output terminal of the amplifier. A wrong connection would cause a crippled stereo image and loss of bass. Use high quality speaker cable. Ellipson speakers are supplied configured for use in a single wired mode or bi-wiring. Bi-amp is also possible (see page 31).

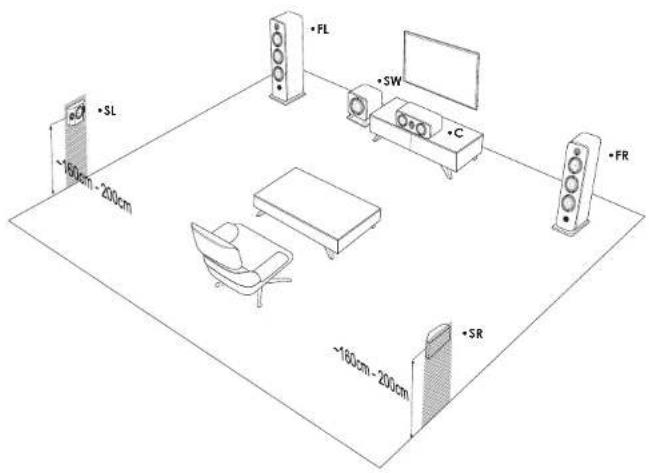

IV. HOME-CINEMA SETUP 5.1

1. Position of the speakers FL/FR

Before continuing the operation, please configure your installation by following the instructions on the previous pages.

1. Position of the center speaker C (PF11C, PF14C)

The center speaker must be positioned near the screen for realistic reproduction of dialogue. Ideally, it is placed under the TV set if the TV stand enables it.

If a standard projection screen is used, the center speaker should be placed at the bottom of the screen for best results. If a microperforated screen is used, it can be positioned behind the screen.

1. Position of the subwoofer SW (PFSUB8, PFSUB10, PFSUB12)

The subwoofer should be placed between the two front speakers, either on the left or right of the center speaker, and away from the wall.

1. Position of Surround speaker SL/SR (PF7SR, PF14LCR)

The dipole surround speakers are placed independently on the side walls. They must be positioned at a height of 60~cm above the point of listening. Please, respect the position of PF7SR speakers, using the indications written at their back.

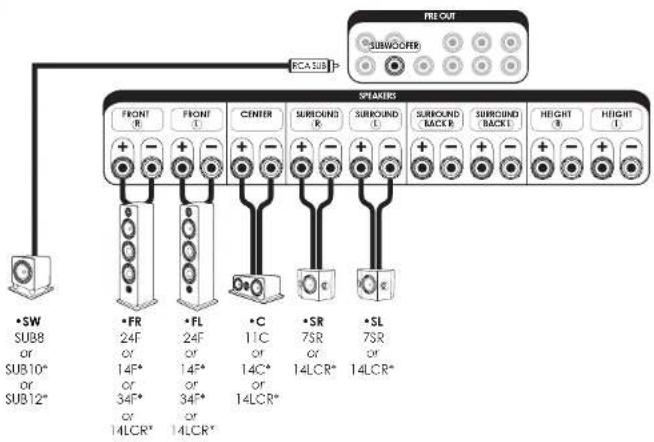

1. Connections on Home-Cinema amplifier and Home-cinema preamplifier

ALL THE CONNECTIONS MUST BE MADE WITH THE EQUIPMENT TURNED OFF.

It is essential to connect the speakers using the correct polarity. Make sure to connect the "+" terminal of the speaker (Red) to the "+" output terminal of the amplifier. Then, make sure to connect the "-" terminal of the speaker (Black) to the "-" output terminal of the amplifier. A wrong connection would cause a crippled stereo image and loss of bass. Use high quality speaker cable, Ellison speakers are supplied configured for use in a single wired mode or bl-wiring. Bl-amp is also possible (see page 31).

EN

Speaker Enter	Description
•FR/FL FRONT RIGHT/LEFT	Speaker Front right (R) /Left (L)
•C CENTER	Central Speaker
•SR/SL SURROUND RIGHT/LEFT	Surround speaker right (R) /Left (L)
•SW SUBWOOFER	Subwoofer

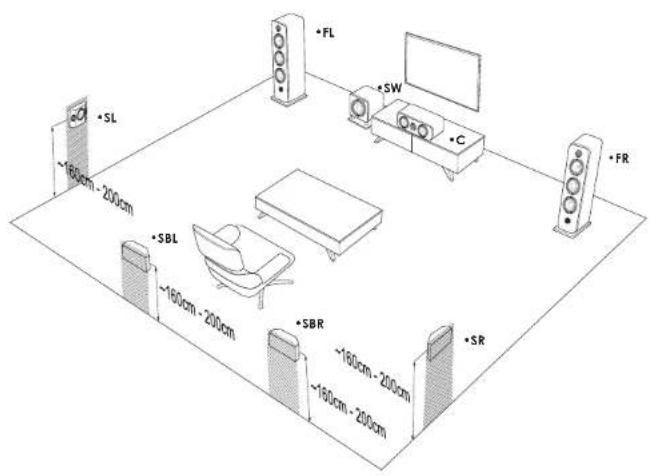

V. INSTALLATION SETUP 7.1

1. Position of setup 5.1
   Before continuing the operation, please configure your Installation by following the instructions on the previous pages
2. Position of the back surround speakers SBL/SBR (PF6B/PF8B or PF7SR/ PF14LCR)
   Surround back speakers should ideally be placed behind the listening position. Please, respect the position of PF75R speakers, using the indications written at their back. If the room layout does not allow a backward placement of the back surround speakers, you can use the PF68 or PF88 booksheve speakers (see diagram - solution 2) in order to finish properly the 7.1 configuration.

*Depending your model

Note : When placing the surround Back speakers, you can place the PF6B or PF8B bookshelve speakers on the back of the listening position. It is however better to place them in height, ideally on stand.

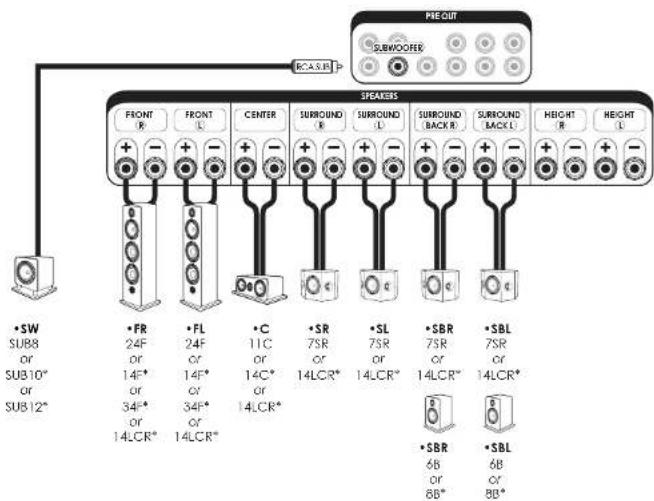

3. Connections on Home-Cinema amplifier and Home-cinema preamplifier

ALL THE CONNECTIONS MUST BE MADE WITH THE EQUIPMENT TURNED OFF.

It is essential to connect the speakers using the correct polarity. Make sure to connect the "+" terminal of the speaker (Red) to the "+" output terminal of the amplifier. Then, make sure to connect the "-" terminal of the speaker (Black) to the "-" output terminal of the amplifier. A wrong connection would cause a crippled stereo image and loss of bass. Use high quality speaker cable. Elpson speakers are supplied configured for use in a single wired mode or bi-wiring. Bi-amp is also possible (see page 31).

Speaker Enter	Description
•FR/FL FRONT RIGHT/LEFT	Speaker Front right (R) /Left (L)
•C CENTER	Central Speaker
•SR/SL SURROUND RIGHT/LEFT	Surround speaker right (R) /Left (L)
•SBR/SBL SURROUND BACK RIGHT/LEFT	Surround back speaker right (R) /Left (L)
•SW SUBWOOFER	Subwoofer

*Depending your model

VI. EXTENSION INSTALLATION HOME - 7.1.2

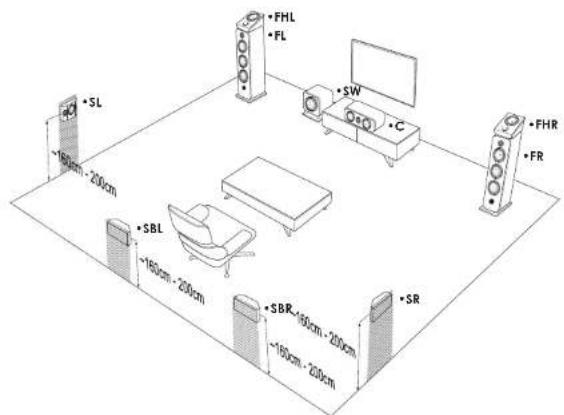

1. Position of the Atmos speakers FHL/FHR (PF6ATM)

The Prestige Facet Atmos speakers are placed on top of the floor or bookshelf speakers.

DOLBY ATMOS® is a new technology meant to reproduce surround sound for cinema and home cinema. This DOLBY ATMOS® process creates vertical sound channels in addition to the Dolby 5.1 or 7.1 format (horizontal plane) and thus offers a totally immersive audio experience. In order to have access to this technology and experience the emotion of DOLBY ATMOS®, you have to equip yourself, in addition to your 5.1 or 7.1 system, with dedicated loudspeakers in order to emil sound vertically. There are speakers that are positioned directly in the ceiling, but these require a considerable amount of time and effort to install. There are also specific speakers that direct the sound to the ceiling from the floor. It is this second solution, certified DOLBY ATMOS™, that Ellison has adopted, simplifying the installation process. These loudspeakers, whose drivers are specifically filtered and fitted, emit a sound field towards the ceiling which must imperatively be reflective. The sound waves are thus reflected off of the ceiling to allow the listener to benefit from this vertical sound dimension. The rendering is ultra realistic, for a completely immersive experience in the heart of your movie. You can buy one or two pairs of ATM speakers, placed at the front (1st pair) and also at the back (2nd pair) of your dedicated home cinema room, directly on your main speakers or surround speakers. You can also opt for the IXATM flooring loudspeaker with a built-in DOLBY ATMOS module. In order to fully enjoy the DOLBY ATMOS® sound, your amplifier must be compatible with this technology, and have enough channels and the associated digital processing technology.

Caution : A Dolby Almos compliant amplifier is essential to the proper use of the speakers. Contact your dealer for more informations.

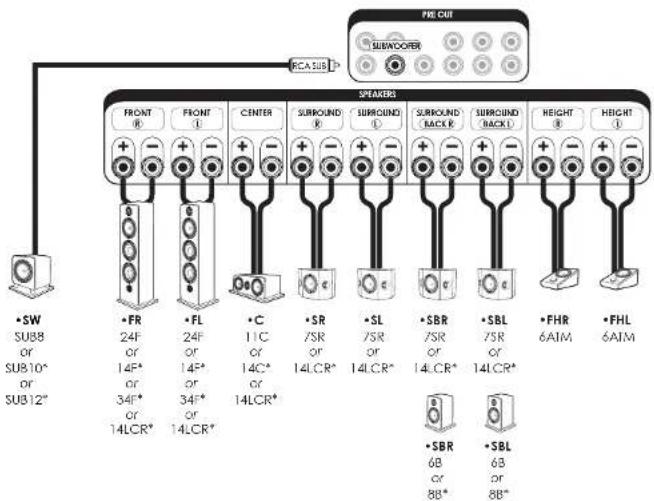

1. Connections on Home-Cinema amplifier and Home-cinema preamplifier

ALL THE CONNECTIONS MUST BE MADE WITH THE EQUIPMENT TURNED OFF.

It is essential to connect the speakers using the correct polarity. Make sure to connect the "+" terminal of the speaker (Red) to the "+" output terminal of the amplifier. Then, make sure to connect the "-" terminal of the speaker (Black) to the "-" output terminal of the amplifier. A wrong connection would cause a crippled stereo image and loss of bass. Use high quality speaker cable. Elipson speakers are supplied configured for use in a single wired mode or bi-wiring. Bi-amp is also possible (see page 31).

Speaker Enter	Description
•FR/FL FRONT RIGHT/LEFT	Speaker Front right (R) /Left (L)
•C CENTER	Central Speaker
•SR/SL SURROUND RIGHT/LEFT	Surround speaker right (R) /Left (L)
•SBR/SBL SURROUND BACK RIGHT/LEFT	Surround back speaker right (R) /Left (L)
•SW SUBWOOFER	Subwoofer
•FHL/FHR HEIGHT RIGHT/LEFT	Almos speaker Front right (R) /Left (L)

*Depending your model

VII. USE

1. Burn-in period

When you take them out of the packaging, the Prestige Facet speakers are not yet able to reproduce with the same efficiency all the sound frequencies they are supposed to play. The Prestige Facet range loudspeakers are complex mechanical assemblies which need a period of adaptation ("burn-in") to operate at their best and become acclimatised to the temperature and humidity conditions of your environment. This burn-in period may last for some weeks, but you can quicken it by operating the speakers between 50 and 100 hours consecutively, on a moderate volume and broadcasting a radio station.

2. BI-wiring and bi-amplification (All models, except PF6ATM and PF7SR)

Bi-wiring can increase the performance of your loudspeakers. Only one amplifier is necessary, but two distinct cables are used to, individually, powered the treble drivers and the bass drivers on the speaker. Good quality cables are required for an efficient biwiring. The Prestige Facel speaker have a 4 terminals binding post, allowing bi-wiring and bi-amplification.

Top terminals for treble, bottom terminals for bass. For a mono-amplification use, connect the terminals with the metallic straps and connect the cables on 2 terminals.

For a bi-amp, two amplifiers are used separately for treble and bass

Note: The PF7SR and PF6ATM models have a single binding terminal.

3. Choice of cables

Choose high quality cables with a cross-section appropriate to their length. You can also replace the provided metallic straps by a strap using the same speaker cable you use to connect your loudspeakers to your amplifier. Your Elipson dealer will be able to advise you

4. Choice of amplifier

Your setup type (stereo or home-cinema) will determine the choice of the appropriate amplifier. Your dealer will be able to advise you on the most suitable amplifier for your system.

5. Cleaning Instructions

To improve the lifetime of your speakers, we recommend regular cleaning. A soft cloth will be enough for dusting. If the speaker is stained, we recommend simply using a damp cloth with some mild soap if necessary. The lacquered front panel can be cleaned with a soft cloth and standard glass cleaning product.

Never use solvents, detergents, alcohol-based or corrosive products, scrapers or scourers to avoid any damage on the speaker surface.

Keep the loudspeakers away from sources of heat.

VIII. SPECIFICATIONS

Prestige Facet 24F

	Prestige Facel 6B	Prestige Facel 8B	Prestige Facel 14F
Type	Booksnail spacer2-wayBass-reflex	Bookshelf/speaker2-wayBass-reflex	Foostanding speaker2-1-wayBass-reflex
Power	700 RMS	850 RMS	1300 RMS
Power amplifier	20 100W 30 120W		40 200W
Loudspeakers	Tweeler: 1"Mid-woofer: 5"	Tweeler: 1"Mid-woofer: 7"	Tweeter: 1"Mid-woofer: 7"Wunder: 7"
Frequency response	57Hz 25kHz (r3dB)	47Hz 25kHz (=3dB)	38Hz 25kHz (r3dB)
Sensitivity	90dB/1W/1m	91dB/1W/1m	92dB/1W/1m
Impedance	6 Ohms	6 Ohms	6 Ohms
Dimensions without stand W: 76 x H298 x D223 mm W207 x H340 x D323 mm W207 x H990 x D302 mm
Dimensions with stand	-	W230 x H361 x D348 mm	W236 x H1011 x D325 mm
Weight without/with stand	5.6 kg / -	8 kg / 9.3 kg	19 kg / 20.5 kg
Colours	Black, white, black/walnut Black, white, black/walnut	Black, white, black/walnut	Black, white, black/walnut

Prestige Facet 14F

Prestige Facet 34F

Prestige Facet 11C

Prestige Facet 14C

Hoorstandng spookor 3/2-way Bos-trelax	Hoorstandng spookor 3 way Bos-trelax	Centre speckel 2-way Seled	Centre speckel 2-way Lominar parts-rotex
250W RMS	300W RMS	120W RMS	500W RMS
50 - 350w	70 - 350W 30 - 150w		40 - 200W
Tweler: "1" Mid-range: "7" Woolers: 2 x 8"	Tweler: "1" Mid-range: 2 x 7" Woolers: 2 x 10"	Tweler: "1" Mid-woofers: 2 x 5"	Tweler: "1" Mid-woofers: 2 x 7"
25Hz 25kHz (+3dB)	25Hz 25kHz (+3dB)	55Hz 25kHz (+3dB)	43Hz 25kHz (-3dB)
93dB/1W/1m	94dB/1W/1m	92dB/1W/1m	93dB/1W/1m
6 Chms	6 Chms	6 Chms	6 Chms
W244 x H1100 x D360 mm	W255 x H1190 x D360 mm	W470 x H176 x D180 mm	W600 x H207 x D250 mm
W274 x H1121 x D363 mm	W355 x H1211 x D420 mm	-	W625 x H228 x D275 mm
27.7 kg / 29.5 kg	42.4 kg / 44.6 kg	8.4 kg / -	11.9 kg / 14.9 kg
Black, white, black/walnut	Black, white, black/walnut	Black, white, black/walnut	Black, white, black/walnut

Prestige Facet 6ATM

Prestige Facet 75R

Prestige Facet 14LCR

Prestige Facet SUB8

Type	Atmos speaker2-waySensory	Surround dipolar speaker2-wayBosch-reflex	Front/centre/surroundspesker2-wayBosch-reflex
Power	70W RMS	80W RMS	150W RMS
Power amplifier	30 120W 30 120W		40 200W
Loudspeakers	Horn lwoofer: 1"Mid-woofer: 5"	Horn lwoofer: 2x1"Mid-woofer: 5"	Tweezer: 1"Mid-woofer: 2x7"
Frequency response	65Hz 25kHz (r3dB)	65Hz 25kHz (-3dB)	55Hz 25kHz (+3dB)
Sensitivity	90dB/1W/m	67dB/1W/m	93dB/1W/m
Impedance	6 Ohms	6 Ohms	6 Ohms
Dimensions without stand	W207 x H181 x D290 mm W650 x H220 x D170 mm W650 x H280 x D170 mm
Dimensions with stand	-	-	-
Weight without/with stand	4.8 kg / -	3 kg / -	13 kg / -
Colours	Black, white, black/wulut Black		Black

Prestige Facet SUB10

Prestige Facet SUB12

Type	Subwoofer Bass-Relax Down-firing	Subwoofer Bass-Relax Down-firing	Subwoofer Bass-Relax Down-firing
Output power	150W RMS Class D	250W RMS Class D	500W RMS Class D
Loudspeaker	Woofer: 8"	Woofer: 10"	Woofer: 12"
Frequency response	35Hz-150Hz (±3dB)	27Hz-150Hz (±3dB)	22Hz-200Hz (±3dB)
Subsonic filter	24dB or 20Hz	24dB or 20Hz	24dB or 20Hz
Variable cut-off freq.	50Hz to 150Hz	40Hz to 150Hz	30Hz to 200Hz
Adjustable phase	-	0° to 180°	0° or 180°
Standby	Auto	Auto	Auto
Inputs	Stereo line level, LFE	Stereo line level, LFE	Stereo line level, LFE

Dimensions without stand	W350 x H374 x D405 mm	W375 x H370 x D429 mm	W410 x H410 x D496 mm
Dimensions with stand		W405 x H433 x D470 mm	W440 x H467 x D520 mm
Weight	16 kg	22 kg	29 kg
Colours	Black, white, black/watnul	Black, white, black/watnul	Black, white, black/watnul

WARNING

Packaging

The packaging (box and packing) was designed for effective protection of your Ellison loudspeakers and electronics during transportation and shipping. Please save them for later use.

Protect the environment

If you wish to dispose of the packaging, please do so in the most environmentally responsible manner possible according to available measures [for example, sorted recycling]. At the end of its life, this device should not be disposed of the same way as household refuse. It should be returned to a center for the recycling of electronic equipment. This symbol on the product indicates that it has been

designed so that it can be recycled according to specific procedures. You will therefore be making a significant contribution to the protection of the environment. This device respects the RoHS European directive. This means that it does not emit polluting substances when it is recycled (such as lead, mercury, cadmium, hexavalent chromium, polybromobiphenylenes, polybromidphenylethers).

Precautions for proper use

This product was designed according to rigorous norms and complies with safety standards. It should only be used under normal conditions as described below. Verify the electrical voltage before connecting it to a power source. This electronic device was designed to work in numerous countries. We advise you to hook it up completely before connecting it to the AC power source. Take care when unplugging the power cord. When

you unplug the power cord from the power source, do so by pulling on the head of the plug rather than on the cable. If you do not expect to use this device for a prolonged period of time, you are advised to unplug it from the power source. Do not open the case. This device contains no parts that can be exchanged by the user. Accessing the inside of this device's case can lead to electric shock. Any modification to the product will nullify the guarantee. If a foreign object or liquid falls into the case, contact your retailer to arrange for a technician to remove it from the device safely.

WARRANTY

Ellipson speakers has been designed and manufactured to the highest quality standards. If something goes wrong with your product, Ellipson or its authorized distributor / dealer will handle the service and repair under these limited warranty terms. This limited warranty is valid for a 2-year period from original purchase date from an authorized Ellipson dealer.

Terms of limited warranty

The warranty is limited to equipment repair. Neither transportation, nor any other costs, nor any risk for removal, transportation and installation of products is covered by this warranty. The warranty is only valid for the original purchaser and is not transferable. The warranty will not apply in cases other than defects in materials and / or workmanship at the date of purchase and will not be applicable in the following cases:

• Damages caused by wrong or incorrect installation or connection.
• Damages caused by incorrect use, other use than the one described in the owner's manual, negligence, unauthorized modification or use of parts or of accessories that are not authorized by Eipson.
• Damages caused by unauthorized, unsuitable or faulty ancillary equipment.

• Damages caused by accidents, lightning, water, fire, heat or any other disturbance that would not be under Ellison control or responsibility.

• For products, which serial number has been altered, deleted, removed or made illegible.

• In case of repair and service executed by an unauthorized service person.

This warranty complements any national/federal/regional law obligations of local distributors/dealers and does not affect your statutory rights as a customer.

To claim repair under warranty

To claim repair or service under warranty you simply have to contact your local Elipson dealer, from whom your equipment has been purchased. To ensure that you will be able to ship your damaged product in correct manner, always retain the original packaging of your Elipson equipment. If you cannot contact your original dealer, or if you are using your Elipson product outside the purchase country, you should contact Elipson national distributor in the residence country, who will advise where the equipment can be serviced.

You can also visit our web site to check our contact information :

www.elpson.com

To validate your warranty, you need to produce, as a proof of purchase, your original purchase invoice specifying the date of purchase and stamped by your dealer.

Elipson 2023

Elipson is a registered trademark of AV Industry.

elipson

www.elipson.com
