Product type	Dehumidifier
Brand	Flama
Model	1308FL
Dimensions (L x D x H)	288 x 198 x 509 mm
Net weight	9.8 kg
Power supply	220-240 V ~ 50 Hz
Dehumidification capacity	10 L/day (at 30 °C / 80 % RH)
Rated power	205 W
Refrigerant	R290 (45 g)
Water tank capacity	2.5 L
Operating temperature	7 °C to 35 °C
Minimum room area	4 m²
Clearance around the appliance	50 cm
Noise level	< 70 dB(A)
Air filter	Washable with water
Continuous drainage	Yes (with hose inner diameter 10 mm)
Refrigerant gas type	Flammable (R290)
Main functions	Humidity control (40-80 %), timer (0-24 h), lock, 2 fan speeds
Maintenance	Clean filter weekly, empty tank regularly
Safety	3 min protection against rapid restart, auto shut-off when tank full, flammable gas

Frequently Asked Questions - 1308FL Flama

How to set the desired humidity level?

Press the SET button to adjust humidity from 40% to 80% in 5% increments. The appliance maintains humidity around the selected value.

What to do when the water tank is full?

The Tank full indicator lights up and an alarm sounds 15 times. Turn off the appliance, remove the tank by the sides, empty it, then replace it firmly.

How to clean the air filter?

Unplug the appliance, remove the filter, vacuum dust or wash with warm water and mild detergent. Dry it completely before reinstalling. Clean it at least once a week.

Can I use continuous drainage?

Yes, use a plastic hose (inner diameter 10 mm) inserted into the continuous drainage port on the middle plate. The hose must be directed to a drain or container.

The appliance contains R290 gas, is it dangerous?

R290 is flammable. The appliance must be installed in a room of at least 4 m², away from any ignition sources (flames, electrical devices). Do not pierce the cooling circuit. Follow safety instructions.

Why doesn't the appliance start?

Check that the cord is plugged in, the tank is properly in place (tank full light off), and the ambient temperature is between 7°C and 35°C. If the problem persists, wait 10 minutes before trying again.

How to use the timer?

Press the TIMER button, then use the adjustment buttons to set the start or stop time (0 to 24 h). To cancel, set to 00.

What to do if the appliance makes noise?

Make sure it is placed on a flat and stable surface. Clean the air filter if it is dirty. Normal noise may come from the compressor.

Can I use the appliance in a bathroom?

The appliance is designed for closed rooms. Avoid water splashes and do not install near a water source. Ensure a room area of at least 4 m².

How to maintain the exterior of the appliance?

Unplug it. Clean with a dry, clean cloth. For stubborn stains, use a neutral detergent then wipe with a damp cloth. Never wash with a water jet.

USER MANUAL 1308FL Flama

White FLAMA water purifier device with wheels and control panel (no visible text or symbols on body)

1308FL

PT DESUMIDIFICADOR DIGITAL 10 LT 1
ES DESHUMIDIFICADOR DIGITAL 10 LT 9
EN 10LT DIGITAL DEHUMIDIFIER 19
FR DÉSHUMIDIFICATEUR DIGITAL 10LT 29

01 02 03 04 05 06 07 08 FL400A

13 11 12 09 14 10 15 16

DESUMIDIFICADOR DIGITAL 10 LT

ADVERTÊNCIAS

These symbols are present in the appliance:

SYMBOL DESCRIPTION
	WARNING(Risk of fire)	This appliance contains R290 propane gas.This appliance uses a flammable refrigerant gas. If the refrigerant gas leaks and comes into contact with a source of heat or ignition, it generates harmful gases and can cause a fire.
	Strictly follow the instructions in this manual regarding operation and maintenance.
	Before using the appliance, carefully read the whole instruction manual.
	Do not install, operate, or store the appliance in a space smaller than 4 m2.

SAFETY INSTRUCTIONS

Please read these instructions carefully before using the appliance for the first time and keep them for future reference. Use that does not comply with the instructions releases FLAMA from all responsibilities.

After transport or cleaning and maintenance, let the unit rest for 12 hours before connecting the unit to the power supply.

Check that the power supply voltage of the installation corresponds to that stated on the rating plate of the appliance.

This appliance must be connected to an earthed socket.

This appliance is intended to be used by specialists or trained shop users. In light industry and on farms, or for commercial use by lay people.

Do not install this appliance near sources of heat, water, windows or doors leading to the outside.

This appliance is designed to dehumidify areas with excess moisture.

As with any appliance, its use by children must be properly supervised.

This appliance can be used by children aged 8 years and over and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, if they are supervised or have received instructions concerning use of the appliance in a safe way and understand the risks involved.

Children must not play with the appliance.

Cleaning and user maintenance must not be carried out by children without supervision.

The appliance must be installed in compliance with national installation regulations.

Do not use the appliance in a potentially explosive environment containing combustible liquids, gases or dust. Do not use paint, cleaning sprays, anti-insect sprays or the like near the appliance.

Do not pull the plug out of the socket by pulling the power cord.

Avoid using "T" sockets or extension cords.

Disconnect the appliance from the power supply after each use.

Unplug the appliance from the electrical socket whenever cleaning or maintenance is carried out.

When switching off the appliance, always wait at least 3 minutes before switching it on again.

Clean the air filter at least once a week.

This appliance must be transported in an upright position. Always empty the water tank before transporting.

It is important to leave a surrounding space of approximately 50 cm for good air circulation, away from combustible objects.

Do not use the appliance if it is not working properly or if it is damaged in any way. Any intervention other than cleaning must be carried out at an Authorized Flama Technical Assistance Service.

Do not attempt to replace the power cord or plug, as this is a dangerous operation. If the power cord is damaged, it must be replaced by Authorized Flama Technical Assistance Service or similarly qualified personnel.

The weighted sound pressure level is less than 70 dB.

This product complies with the Electromagnetic Compatibility and Low Voltage Directives.

This instruction manual is also available in PDF format at www.flama.pt.

SAFETY ADVICE REGARDING THE R290 REFRIGERANT

Carefully read all warnings.

This appliance contains 45 g of R290 refrigerant gas.

R290 is a gas that is in compliance with European environmental directives. Do not puncture any of the refrigeration circuit components.

For the defrosting process and to clean the appliance, do not use any instruments other than those recommended in this manual (“Cleaning and maintenance”).

The appliance must be placed in an environment free from continuously operating sources of ignition (for example: open flames, gas or electric devices in operation).

Do not puncture and do not burn the appliance.

The refrigerant gases may be odorless.

The appliance should be installed, used, and stored in an environment larger than 4 m2.

If the appliance is installed, used, or stored in an unventilated space, prevent the pooling of any possible refrigerant leaks, as this carries a danger of fire or explosion if the refrigerant is ignited by electric heaters, ovens or other sources of ignition.

The appliance should be stored in a way that avoids mechanical damage.

Technicians who perform work on refrigeration circuits should hold appropriate certification, issued by a credentialed authority, attesting to their competence in handling refrigerants in accordance with a specific standard recognized by the trade associations. Repair services should be performed based on the recommendations of the appliance manufacturer.

Maintenance and repair services requiring assistance from multiple qualified technicians should be done under the supervision of the person specialized in handling flammable refrigerants.

GENERAL INFORMATION

For optimal performance of your dehumidifier:

Place the dehumidifier on a solid and level surface in an area with at least 50 cm (20 in) of open space on all sides to allow for adequate air flow.

Do not place near a radiator or any other heat source.

Ensure that all windows are closed for maximum efficiency.

Ensure that the filter is kept clean. This prevents excess electricity consumption and ensures optimal efficiency.

To prevent noise and/or vibration, do not place the appliance on a soft or irregular surface while in operation.

To prevent damage, never insert any kind of rod or other soft or hard object into the structure of the appliance.

The capacity of the dehumidifier depends on the temperature and the humidity of the room.

At lower temperatures, less humidity will be removed.

If there is an interruption to the power supply, the dehumidifier will restart after 3 minutes (depending on the model).

This automatic interval period protects the compressor.

ATTENTION:

The dehumidifier must be placed in a vertical position for at least 12 hours before use.

Do not attempt to replace the power cord or plug, as this is a dangerous operation. Have them replaced immediately by a Flama-authorized technical assistance service or by similarly qualified technicians to prevent danger.

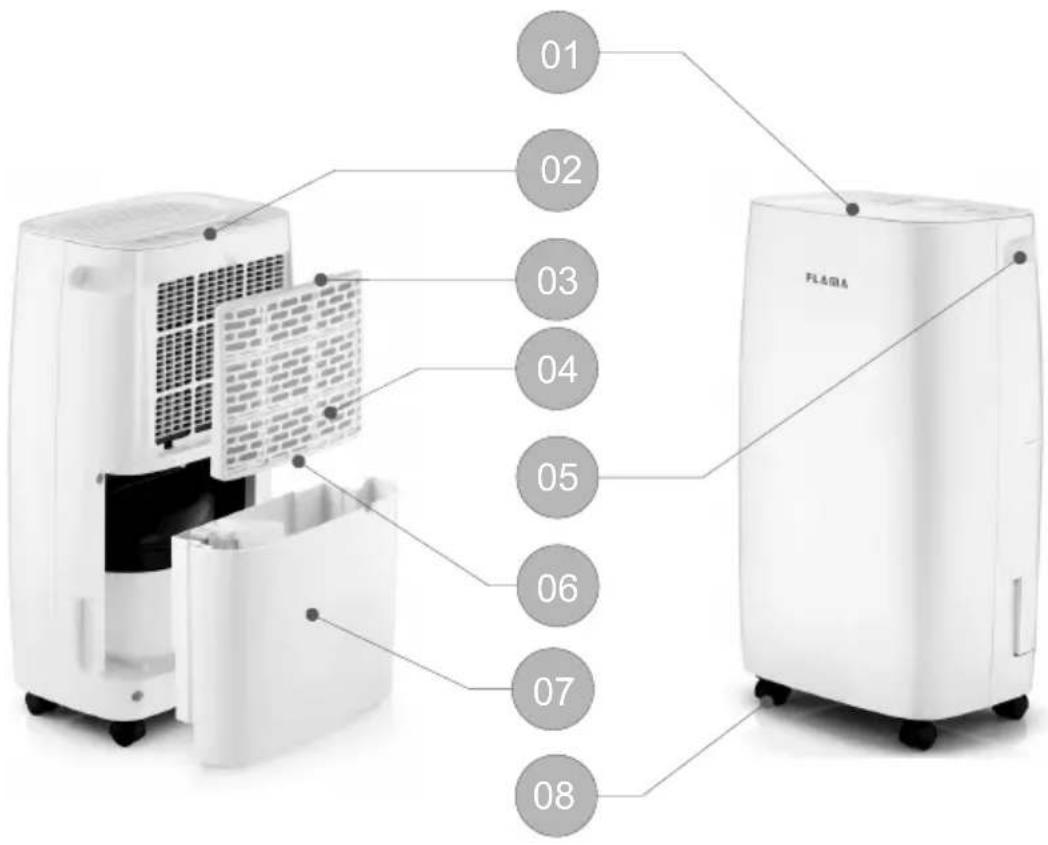

DESCRIPTION

1. Grille
2. Control panel
3. Filter compartment
4. Filter
5. Handle
6. Continuous drainage plug
7. Water tank
8. Wheels

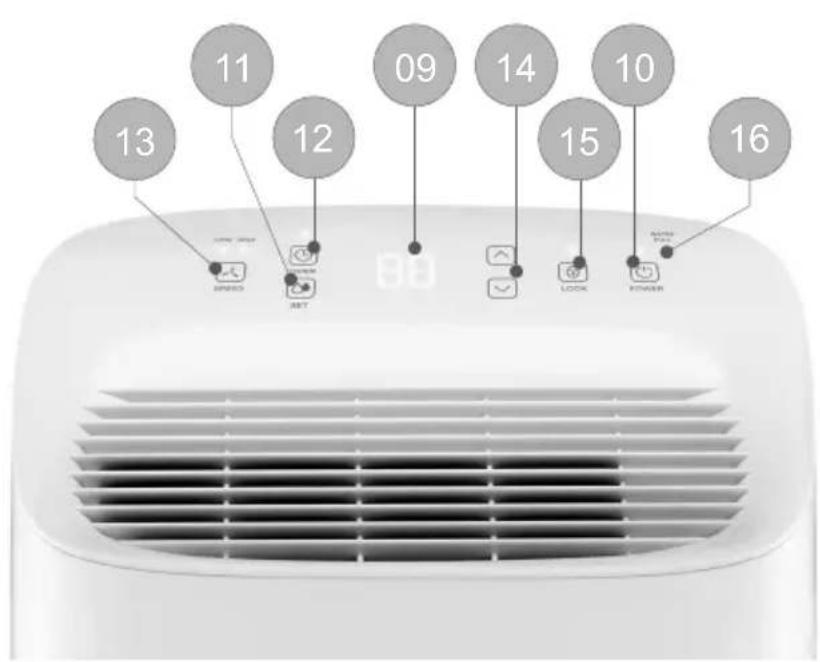

9. Display
10. ON/OFF button
11. Humidity control button SET
12. Timer button TIMER
13. Fan speed button SPEED
14. Adjustment buttons
15. Lock button LOCK
16. Full tank indicator

OPERATION

Control Panel

OFF + - POWER - 88 LARGE POWER

Display (9)

Humidity Level and Timer

The display has 3 indications:

When the device is plugged in, it will indicate the humidity level of the room.

When setting the humidity, it will indicate the selected humidity level.

When setting the timer, it will display the hours for the device to turn on and off.

Notes:

When the ambient humidity is below 35%, it will show “35”.

When the ambient humidity is above 95%, it will show “95”.

The power indicator light will be on when the device is plugged in, regardless of whether it is operating or not.

Usage

ON/OFF button (10)

Press the ON/OFF button once to start operation. Press again to stop operation.

Fan speed button SPEED (13)

Press the SPEED button to set the desired fan speed. It can be adjusted between high speed and low speed.

Humidity control button SET (11)

Press the SET button to set the desired humidity level in the room, adjustable from 40% to 80% in 5% increments.

After a period of operation, when the ambient humidity is lower than the selected humidity by 2%, the compressor will stop, and the fan will stop 3 minutes later. When the ambient humidity is equal to or higher than the selected humidity by 2%, the compressor will restart after a 3-minute protection period.

Timer button TIMER (12)

Press the TIMER button to set the timer.

Press the button to set the hours for the device to turn on and off. Adjust the time from 00 to 24 hours. This is the time set to turn on the device.

To cancel the timer setting, press until 00.

The timer setting will be canceled when the device is manually turned off.

The timer setting remains unchanged if the device stops due to a full tank or during defrosting.

Lock button LOCK (15)

Press and hold this button to activate the lock function. The lock indicator light will be on. All buttons will be locked and cannot be operated.

Press the button again to deactivate the lock function. The indicator light will turn off.

Turning off the dehumidifier will automatically cancel the lock function.

Draining Collected Water

When the water tank is full, the full tank indicator light will turn on, the operation will stop automatically, and an alarm will sound 15 times to alert the user to empty the water tank.

Emptying the Water Tank

Press the sides of the tank gently with both hands and pull out smoothly.

Discard the collected water.

Place the water tank back in place.

NOTE: Do not remove the float from the water tank. The full tank sensor will not detect the water level correctly without the float, and water may leak from the tank.

If the water tank is dirty, wash it with cold or warm water. Do not use detergents, scrubbers, chemically treated cloths, gasoline, benzene, thinners, or other solvents as they can scratch and damage the tank, causing water leakage.

When replacing the water tank, press firmly into place with both hands. If the tank is not positioned correctly, the “FULL TANK” sensor will be activated, and the dehumidifier will not operate.

Continuous Water Drainage

The device has a continuous drainage port. Using a plastic tube (with an inner diameter of 10 mm), insert it into the drainage hole (on the intermediate plate), pull it out from the side of the water tank, install it in place, and arrange the drainage tube.

The water in the tank can be continuously drained through the continuous drainage port on the device.

CLEANING AND MAINTENANCE

IMPORTANT: Before cleaning or maintenance, turn off the dehumidifier and unplug it from the electrical outlet.

Cleaning the Exterior of the Dehumidifier

Clean the exterior with a dry, clean cloth.

If the dehumidifier is very dirty, clean it with a neutral detergent and then remove the detergent with a damp cloth.

Do not wash the device with a hose as it will cause electrical leakage and risk of electric shock.

Cleaning the Air Filter

Dust accumulates in the filter and restricts airflow. Restricted airflow reduces system efficiency and, if blocked, can damage the dehumidifier.

The air filter requires regular cleaning. The air filter is removable for easy cleaning.

Do not operate the dehumidifier without the air filter, or the dehumidifier may become contaminated.

Remove the filter from the filter compartment.

Use a vacuum cleaner to gently absorb dust on the surface.

If the filter is very dirty, wash it with water and mild detergent and dry it well.

Reinstall the filter.

PRECAUTIONS AND WARNINGS

Empty the water from the water tank when it is full or when the full tank indicator appears on the panel. After emptying the removable water tank, place it back in its original position. The device will resume operation.

Whenever the device stops, wait at least 3 minutes before restarting it to prevent damage to the compressor.

If the device does not start or stops intermittently for unknown reasons, check the extension cord and the power outlet. If they are in normal condition, unplug the device and wait 10 minutes before restarting.

If after 10 minutes the device does not restart, contact FLAMA (customer support line) or an Authorized Technical Service.

While the device is operating, the compressor produces heat, which may increase the room temperature. This is normal and does not affect the device's operation.

STORAGE

If you will not be using the device for an extended period, follow these steps:

Unplug the power cord and empty the water tank. Allow the water tank and dehumidifier to dry completely.

Clean the air filter.

Store the device upright in a dust-free location, preferably covered with a plastic cover.

TROUBLESHOOTING

Problem Possible cause Solution
The unit does not work	Has the power cord been unplugged?	Plug the power cord into the power outlet.
	Is the indicative tank lamp flashing? (The tank is full or in a wrong position.)	Empty the water into the drain tank, then reposition the tank.
	Is the room temperature above 35°C or below 5°C?	The protection device is activated and the unit cannot be turned on.
The dehumidification function does not work	Is the air filter clogged?	Clean the air filter according to the instructions under "Cleaning and Maintenance".
	Is the intake duct or discharge duct clogged?	Remove the obstruction from the discharge duct or intake duct.
No air is discharged Is the air filter clogged?		Clean the air filter according to the instructions under "Cleaning and Maintenance".
The operation is noisy	Is the unit tilted or unstable?	Move the unit to a stable, sturdy location.
	Is the air filter clogged?	Clean the air filter according to the instructions in "Cleaning the Dehumidifier".

REQUIRED INFORMATION

Power supply 220V-240V~, 50Hz
Dehumidification capacity (30°C/RH80%) 10L/day
Nominal input power 205W (30°C/80%)
Refrigerant / Load R290 / 0.045 kg
Operating temperature 7°C- 35°C
Tank capacity 2.5 L
Dimensions (L x D x H) mm 288x198x509mm
Net weight 9.8 kg

ANOMALIES AND REPAIR

In case of malfunction, please take the appliance to an authorized Technical Assistance Service. Do not attempt to disassemble or repair the appliance, as this may be dangerous.

PROTECTING THE ENVIRONMENT

Symbol of a trash bin with crossed lines and a solid black rectangle below (no text or labels)

This symbol indicates the separate collection of electrical and electronic equipment.

The main objective of the separate collection of this waste is to reduce the quantity to be disposed of, promote re-

use, recycling and other forms of recovery in order to reduce its negative effects on the environment.

When it is no longer in use, this appliance must not be disposed of together with other unsorted municipal waste.

The user is responsible for delivering it free of charge to the selective collection facilities available for that purpose.

Pieces of equipment that are no longer in use can also be taken back at points of sale, by purchasing new pieces of equipment that are equivalent and have the same functions.

For more detailed information on collection points, please contact your City Council or a point of sale for this equipment.

DÉSHUMIDIFICATEUR DIGITAL 10LT

AVERTISSEMENTS

DYSFONCTIONNEMENTS ET RÉPARATIONS

Symbol of a trash bin with crossed lines indicating no waste, above a solid black rectangle (no text or labels)

This page has been deliberately left blank

1. Keep the proof of purchase (receipt) for this product carefully. When a repair is made under these conditions, the technician will require proof of purchase. This assistance can only be provided once you have proven, with the proof of purchase, that your appliance is within the warranty period.
2. The warranty period for this appliance is defined by the respective EU Directive in force on the date of purchase/delivery.
3. Within the guarantee period, we will repair or replace, free of charge, any parts which, during the normal use of the appliance, have deteriorated as a result of a proven material or manufacturing defect.
4. This warranty does not cover consumable items, light bulbs, easily breakable parts made of glass or plastic, or any other defects that do not impair its proper functioning.
5. We accept no liability for damage caused by incorrect or careless use of the appliance, by its connection to an electrical current other than that indicated on the appliance's rating plate, by faulty electrical installation, or by atmospheric, chemical or electrochemical causes. Other claims or demands for compensation relating to objects which are not an integral part of the appliance will be denied.
6. The provision of assistance under warranty does not extend the warranty period. Only within this period will assistance be provided under warranty. The right to assistance is only granted to the first purchaser of the device and cannot be transferred to a third party.
7. The warranty expires when unauthorized persons have attempted to repair, modify or replace parts of the appliance.
8. All expenses and risks of transportation to our factory or vice versa will always be borne by the buyer.

WARRANTY CONDITIONS

To benefit from the Technical Assistance service during the 36-month warranty period after the date of purchase, you will need to:

Present the Invoice/Proof of Purchase, stating the model and the manufacturing number of the product (whenever possible).

Note: Failure to present the aforementioned documents will be grounds for not providing services under warranty.

CONDITIONS DE GARANTIE

CONDITIONS DE GARANTIE
