USER MANUAL 1341FL Flama

White electronic device labeled 'FLAMA' with a digital display showing '55', no visible text or symbols beyond the label.

1341FL

PT DESUMIDIFICADOR DIGITAL 20L COM WI-FI 1
ES DESHUMIDIFICADOR DIGITAL DE 20L CON WI-FI 9
EN DIGITAL DEHUMIDIFIER 20L WITH WI-FI 17
FR DÉSHUMIDIFICATEUR DIGITAL 20LT AVEC WI-FI 25

02 03 PLAMA 55 04

05 06 07

01 55 SPEED TIME LOCK MODE POWER

DESUMIDIFICADOR DIGITAL 20L COM WI-FI

ADVERTÊNCIAS

These symbols are present in the appliance:

SYMBOL DESCRIPTION
	WARNING(Risk of fire)	This appliance contains R290 propane gas.This appliance uses a flammable refrigerant gas. If the refrigerant gas leaks and comes into contact with a source of heat or ignition, it generates harmful gases and can cause a fire.
	Strictly follow the instructions in this manual regarding operation and maintenance.
	Before using the appliance, carefully read the whole instruction manual.
	Do not install, operate, or store the appliance in a space smaller than 4 m2.

SAFETY INSTRUCTIONS

Please read these instructions carefully before using the appliance for the first time and keep them for future reference. Use that does not comply with the instructions releases FLAMA from all responsibilities.

After transport or cleaning and maintenance, let the unit rest for 12 hours before connecting the unit to the power supply.

Check that the power supply voltage of the installation corresponds to that stated on the rating plate of the appliance.

This appliance must be connected to an earthed socket.

This appliance is intended to be used by specialists or trained shop users. In light industry and on farms, or for commercial use by lay people.

Do not install this appliance near sources of heat, water, windows or doors leading to the outside.

This appliance is designed to dehumidify areas with excess moisture.

As with any appliance, its use by children must be properly supervised.

This appliance can be used by children aged 8 years and over and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, if they are supervised or have received instructions concerning use of the appliance in a safe way and understand the risks involved.

Children must not play with the appliance.

Cleaning and user maintenance must not be carried out by children without supervision.

The appliance must be installed in compliance with national installation regulations.

Do not use the appliance in a potentially explosive environment containing combustible liquids, gases or dust. Do not use paint, cleaning sprays, anti-insect sprays or the like near the appliance.

Do not pull the plug out of the socket by pulling the power cord.

Avoid using "T" sockets or extension cords.

Disconnect the appliance from the power supply after each use.

Unplug the appliance from the electrical socket whenever cleaning or maintenance is carried out.

When switching off the appliance, always wait at least 3 minutes before switching it on again.

Clean the air filter at least once a week.

This appliance must be transported in an upright position. Always empty the water tank before transporting.

It is important to leave a surrounding space of approximately 50 cm for good air circulation, away from combustible objects.

Do not use the appliance if it is not working properly or if it is damaged in any way. Any intervention other than cleaning must be carried out at an Authorized Flama Technical Assistance Service.

Do not attempt to replace the power cord or plug, as this is a dangerous operation. If the power cord is damaged, it must be replaced by Authorized Flama Technical Assistance Service or similarly qualified personnel.

The weighted sound pressure level is less than 70 dB.

This product complies with the Electromagnetic Compatibility and Low Voltage Directives.

This instruction manual is also available in PDF format at www.flama.pt.

SAFETY ADVICE REGARDING THE R290 REFRIGERANT

Carefully read all warnings.

This appliance contains 45 g of R290 refrigerant gas.

R290 is a gas that is in compliance with European environmental directives. Do not puncture any of the refrigeration circuit components.

For the defrosting process and to clean the appliance, do not use any instruments other than those recommended in this manual (“Cleaning and maintenance”).

The appliance must be placed in an environment free from continuously operating sources of ignition (for example: open flames, gas or electric devices in operation).

Do not puncture and do not burn the appliance.

The refrigerant gases may be odorless.

The appliance should be installed, used, and stored in an environment larger than 4 m2.

If the appliance is installed, used, or stored in an unventilated space, prevent the pooling of any possible refrigerant leaks, as this carries a danger of fire or explosion if the refrigerant is ignited by electric heaters, ovens or other sources of ignition.

The appliance should be stored in a way that avoids mechanical damage.

Technicians who perform work on refrigeration circuits should hold appropriate certification, issued by a credentialed authority, attesting to their competence in handling refrigerants in accordance with a specific standard recognized by the trade associations.

Repair services should be performed based on the recommendations of the appliance manufacturer.

Maintenance and repair services requiring assistance from multiple qualified technicians should be done under the supervision of the person specialized in handling flammable refrigerants.

GENERAL INFORMATION

For optimal performance of your dehumidifier:

Place the dehumidifier on a solid and level surface in an area with at least 50 cm (20 in) of open space on all sides to allow for adequate air flow.

Do not place near a radiator or any other heat source.

Ensure that all windows are closed for maximum efficiency.

Ensure that the filter is kept clean. This prevents excess electricity consumption and ensures optimal efficiency.

To prevent noise and/or vibration, do not place the appliance on a soft or irregular surface while in operation.

To prevent damage, never insert any kind of rod or other soft or hard object into the structure of the appliance.

The capacity of the dehumidifier depends on the temperature and the humidity of the room.

At lower temperatures, less humidity will be removed.

If there is an interruption to the power supply, the dehumidifier will restart after 3 minutes (depending on the model).

This automatic interval period protects the compressor.

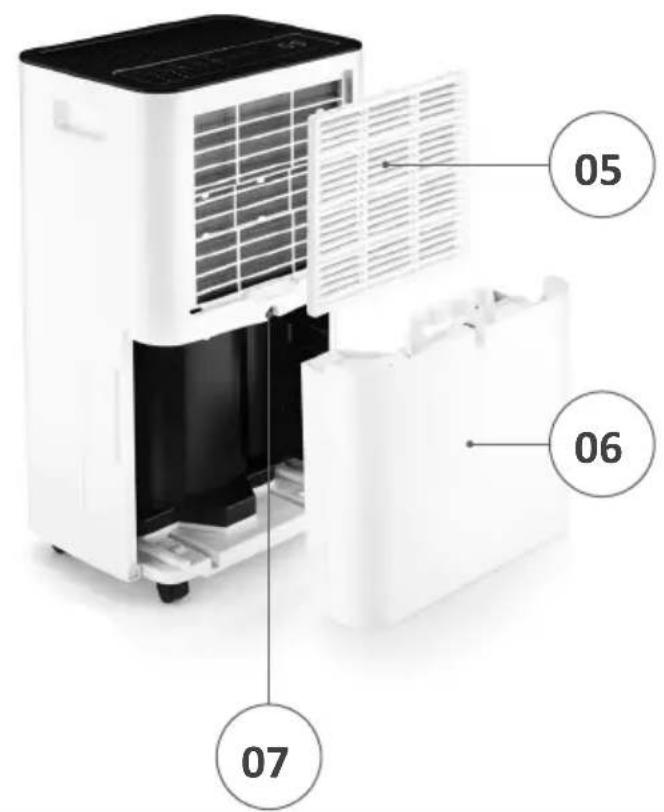

DESCRIPTION

1. Top panel
2. Display front panel
3. Carrying handle
4. Wheels
5. Air filter box
6. Water tank
7. Continuous drainage outlet (rear/bottom)

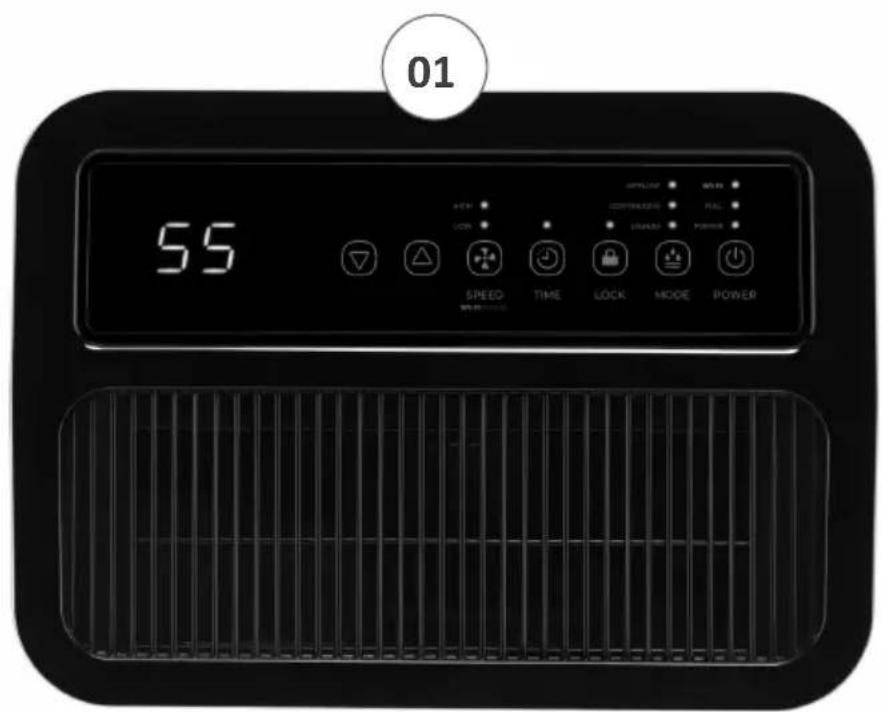

CONTROL PANEL

POWER – Turns the dehumidifier on/off. The display shows either the ambient humidity or the set timer.

MODE – Selects the operating mode of the dehumidifier.

LOCK – Child lock. Press for 3 seconds to activate/deactivate. When locked, all other buttons are disabled.

TIME – Sets the automatic start or stop with an interval between 1–24 hours. Press again to cancel the setting.

SPEED – Switches between fan speeds (low or high) / activates Wi-Fi connection.

OPERATION

Usage

Connect the device to the power socket and press POWER.

Adjust the desired humidity using MODE:

AIRFLOW – Air circulation only, no dehumidification.

CONTINUOUS – Maximum dehumidification.

DEHUM – Low speed, humidity set to 40%. You can adjust the humidity level using the up and down buttons.

Set the fan speed with SPEED.

Activate the button lock (if desired) by holding LOCK for 3 seconds.

Set the timer using TIME, choosing whether to start or stop and the desired duration, using the up and down buttons.

To switch off, press POWER again.

WI-FI CONNECTION

Smartphone Control

Download a control app (e.g., Tuya Smart, Smart Life) based on your phone's operating system and follow the prompts.

Create an account or use an existing one.

Log in.

In the app, select "add device."

Press SPEED for 3 seconds until the Wi-Fi LED starts flashing.

Use a 2.4 GHz network for pairing.

Add the device in the app and follow the instructions.

Once paired, you can remotely control humidity, fan speed, timer, and power on/off.

If pairing fails, restart the device and try again, ensuring a 2.4 GHz network is available.

Continuous Drainage

Allows water to be discharged without manual intervention, ideal for extended use.

Installing the Drain Hose

Unplug the device.

Locate the continuous drainage outlet (rear/bottom).

Use the included drainage hose.

Securely attach the hose to prevent leaks.

Position the end of the hose into a drain or outlet below the device's drainage level.

Ensure the hose has a downward slope and is free of kinks or blockages.

Make sure the end of the hose stays out of any standing water.

Warning: Improper installation may cause water backflow or spills.

CLEANING AND MAINTENANCE

IMPORTANT: Before cleaning or maintenance, turn off the dehumidifier and unplug it from the electrical outlet.

Cleaning the Exterior of the Dehumidifier

Clean the exterior with a dry, clean cloth.

If the dehumidifier is very dirty, clean it with a neutral detergent and then remove the detergent with a damp cloth.

Do not wash the device with a hose as it will cause electrical leakage and risk of electric shock.

Cleaning the Air Filter

Dust accumulates in the filter and restricts airflow. Restricted airflow reduces system efficiency and, if blocked, can damage the dehumidifier.

The air filter requires regular cleaning. The air filter is removable for easy cleaning.

Do not operate the dehumidifier without the air filter, or the dehumidifier may become contaminated.

Remove the filter from the filter compartment.

Use a vacuum cleaner to gently absorb dust on the surface.

If the filter is very dirty, wash it with water and mild detergent and dry it well.

Reinstall the filter.

PRECAUTIONS AND WARNINGS

Empty the water from the water tank when it is full or when the full tank indicator appears on the panel. After emptying the removable water tank, place it back in its original position. The device will resume operation.

Whenever the device stops, wait at least 3 minutes before restarting it to prevent damage to the compressor.

If the device does not start or stops intermittently for unknown reasons, check the extension cord and the power outlet. If they are in normal condition, unplug the device and wait 10 minutes before restarting.

If after 10 minutes the device does not restart, contact FLAMA (customer support line) or an Authorized Technical Service.

While the device is operating, the compressor produces heat, which may increase the room temperature. This is normal and does not affect the device's operation.

STORAGE

If you will not be using the device for an extended period, follow these steps:

Unplug the power cord and empty the water tank. Allow the water tank and dehumidifier to dry completely.

Clean the air filter.

Store the device upright in a dust-free location, preferably covered with a plastic cover.

ANOMALIES AND REPAIR

In case of malfunction, please take the appliance to an authorized Technical Assistance Service. Do not attempt to disassemble or repair the appliance, as this may be dangerous.

PROTECTING THE ENVIRONMENT

Symbol of a trash bin with crossed lines indicating no waste, above a solid black rectangle (no text or labels)

This symbol indicates the separate collection of electrical and electronic equipment.

The main objective of the separate collection of this waste is to reduce the quantity to be disposed of, promote re-

use, recycling and other forms of recovery in order to reduce its negative effects on the environment.

When it is no longer in use, this appliance must not be disposed of together with other unsorted municipal waste.

The user is responsible for delivering it free of charge to the selective collection facilities available for that purpose.

Pieces of equipment that are no longer in use can also be taken back at points of sale, by purchasing new pieces of equipment that are equivalent and have the same functions.

For more detailed information on collection points, please contact your City Council or a point of sale for this equipment.

TROUBLESHOOTING

Problem Possible Cause Solution
Doesn't turn on	Disconnected cord or faulty outlet	Check connection and use another outlet
Full or poorly inserted tank Sensor prevents operation		Emptying and fitting correctly
Temperature outside <7°C–35°C	Thermal protector activated	Move to location within recommended range
Does not dehumidify Filter clogged		Cleaning or replacing filter
Reduced airflow	Obstruction in the inlet/outlet holes	Clear air passages
Noise or vibration Uneven surface or unevenness		Replace on a stable and level surface
Error codes "E1"/"E2"/"EH"	Failure of the corresponding sensors	Contact authorized service

REQUIRED INFORMATION

Power supply 220V-240V ~, 50Hz
Dehumidification capacity (30°C/RH80%) up to 20L/day
Nominal input power 340W (30°C/RH80%)
Maximun input power 400W(35°C/RH80%)
Refrigerant / Load R290 / 0.08 kg
Operating temperature 7°C- 35°C
Tank capacity 6 L
Dimensions (L x D x H) mm 344x246x561mm
Net weight	14.5 kg
	14.5 kg

DÉSHUMIDIFICATEUR DIGITAL 20LT AVEC WI-FI

AVERTISSEMENTS

DYSFONCTIONNEMENTS ET RÉPARATIONS

This page has been deliberately left blank

This page has been deliberately left blank

This page has been deliberately left blank

1. Keep the proof of purchase (receipt) for this product carefully. When a repair is made under these conditions, the technician will require proof of purchase. This assistance can only be provided once you have proven, with the proof of purchase, that your appliance is within the warranty period.
2. The warranty period for this appliance is defined by the respective EU Directive in force on the date of purchase/delivery.
3. Within the guarantee period, we will repair or replace, free of charge, any parts which, during the normal use of the appliance, have deteriorated as a result of a proven material or manufacturing defect.
4. This warranty does not cover consumable items, light bulbs, easily breakable parts made of glass or plastic, or any other defects that do not impair its proper functioning.
5. We accept no liability for damage caused by incorrect or careless use of the appliance, by its connection to an electrical current other than that indicated on the appliance's rating plate, by faulty electrical installation, or by atmospheric, chemical or electrochemical causes. Other claims or demands for compensation relating to objects which are not an integral part of the appliance will be denied.
6. The provision of assistance under warranty does not extend the warranty period. Only within this period will assistance be provided under warranty. The right to assistance is only granted to the first purchaser of the device and cannot be transferred to a third party.
7. The warranty expires when unauthorized persons have attempted to repair, modify or replace parts of the appliance.
8. All expenses and risks of transportation to our factory or vice versa will always be borne by the buyer.

WARRANTY CONDITIONS

To benefit from the Technical Assistance service during the 36-month warranty period after the date of purchase, you will need to:

Present the Invoice/Proof of Purchase, stating the model and the manufacturing number of the product (whenever possible).

Note: Failure to present the aforementioned documents will be grounds for not providing services under warranty.
