Brand	Bosch
Model	Serie 4 BGL38GOLD
Product type	Canister vacuum cleaner
Use	Domestic, indoor
Power supply	Mains, 220-240 V
Bag type	With vacuum bag
Motor filter	Washable motor protection filter
Exhaust filter	Washable exhaust filter
Power control	Yes, integrated into handle
Bag change indicator	Yes
Cord length	Not specified (automatic rewinding)
Operating radius	Approx. 9 m (estimate)
Included accessories	Adaptable floor brush, telescopic tube, handle, hose
Parking position	Yes
Storage position	Yes
Bag capacity	Approx. 4 L (estimate)
Noise level	Not specified
Weight	Approx. 6 kg (estimate)
Repairability	Spare parts available up to 10 years after end of sale
After-sales service	Contact details via QR code on the attached document

Frequently Asked Questions - Serie 4 BGL38GOLD BOSCH

How to replace the vacuum bag?

Unplug the appliance. Open the cover, remove the full bag and insert a new original Bosch bag. Close the cover until it clicks.

How to clean the motor protection filter?

Remove the filter and tap it to remove dust. You can wash it in cold water, then dry it completely before reinstalling. Never use without filter.

What to do if suction power decreases?

Check if the bag is full, if the motor filter or exhaust filter are dirty, or if the tube/hose is blocked. Clean or replace the affected items.

Can I vacuum liquids with this vacuum cleaner?

No, vacuuming liquids is prohibited. This would damage the appliance and pose an electrical risk.

How to use the power control?

The control is on the handle. Slide it to adjust suction power according to the surface (carpet or hard floor).

How to store the vacuum cleaner?

Use the storage position: place the tube and brush in the holder at the back of the appliance. Rewind the cord automatically by pressing the pedal.

What accessories are included in the box?

The vacuum cleaner comes with an adaptable floor brush, a telescopic tube, a handle with power control, and a hose.

How to clean the exhaust filter?

Remove the exhaust filter, clean it under cold water, let it air dry for at least 24 hours before reinstalling.

What to do if the cord does not rewind automatically?

Unplug the appliance. Pull the cord slightly and guide it during rewinding. If the problem persists, contact after-sales service.

Where to find spare parts?

Original spare parts are available from Bosch customer service up to 10 years after end of sale. Scan the QR code on the attached document for contact details.

USER MANUAL Serie 4 BGL38GOLD BOSCH

Register your new appliance now at MyBosch and enjoy benefits free of charge: bosch-home.com/ welcome

Bagged Vacuum Cleaner

BGL38 BGB38 BGD38

https://ium-pim.bsh-digital.com/8001254429

[de]	Weitere Informationen und Erklärungen finden Sie online. Scannen Sie den QR-Code auf der Titelseite.
[en]	You can find additional information and explanations online. Scan the QR code on the title page.
[fr]	Vous pouvez trouver d'autres informations et explications en ligne. Scannez le code QR sur la page de titre.
[it]	Puoi trovare ulteriori info e spiegazioni online. Scansiona il codice QR sul frontespizio.
[nl]	U kunt online aanvullende informatie en uitleg vinden. Scan de QR-code op de titelpagina.
[da]	Der findes yderligere oplysninger og forklaringer online. Skan QR-koden på forsiden.
[no]	Du kan finne mer informasjon og forklaringer på Internett. Skann QR-koden på tittelsiden.
[sv]	Det finns mer information och förklaringar online. Scanna QR-koden på omslaget.
[fi]	Löydät lisätietoja ja selityksiä verkosta. Skannaa QR-koodn sivun otsikosta.
[es]	Se puede encontrar información y explicaciones adicionales online. Escanear el código QR en la página de título.
[pt]	Pode encontrar informações e explicações adicionais online. Leia o código QR que figura na página de título.
[el]	Μπορείτε να βρείτε επιπλέον πληροφορίες και εξηγήσεις οτο διαδίκτυο (online). Σαρώστε τον κωδικό QR στη σελίδα τίτλου.
[tr]	Ek bilgi ve açıklamaları çevrimiçi olarak bulabilirsiniz. Başlık sayfasındaki QR kodunu tarayın.
[pl]	Dodatkowe informacje i objaśnienia są dostępne online. Zeskanuj kod QR na stronie tytułowej.
[bg]	Можете да намерите допълнителна информация и объяснения онлайн. Сканирайте QR кода на заглавната страница.
[ro]	Informații și explicații suplimentare pot fi găsile online. Scanați codul QR de pe pagina de pornire.
[ru]	Дополнительную информацию и объяснения можно найти в сети Интернет. Сканируйте QR-код на титульной странице.
[uk]	Додаткову інформацію і пояснення можна знайти онлайн. Зіскануйте QR-код на титульній сторінці.
[ar]	يمكنك الاطلاع على معلومات وトップاحات إضافية عصر الإ턴تن. امسح رمز الاستجابة السربعة ضوئيً في failصفحة الأولی.
[fa]	اطلاعات وトップاحات تكمیلی را میتوانید به صورت آنلاین مشاهده کنید. کد QR روی صفحه عنوان را اسکن کنید.

Labeled diagram of a vacuum cleaner with numbered parts for identification

CLICK

2

CLICK

3

Two-panel illustration showing a pipe being inserted into a cable, with arrows indicating the process (no text or symbols)

4

Simple diagram showing a blue padlock on a vertical line with two opposing arrows indicating downward motion (no text or symbols)

5

Illustration of a hand holding a blue cable with a black arrow indicating direction (no text or symbols)

6

Line drawing of a hand holding a blue circular object on a car intake manifold (no text or symbols)

7

max min

8

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows indicating motion or feedback.

9

Diagram showing a device being adjusted for a blue component, with no visible text or symbols

10

Medical illustration showing a surgical procedure on a patient's shoulder (no text or labels)

m = 311

Diagram showing a hand holding a tool with labeled parts and directional arrows indicating process steps.

12

Diagram of a cable being twisted with black arrows indicating rotational motion (no text or symbols)

m = 311

Illustration of a hand holding a blue object with black arrows indicating motion or force direction (no text or symbols)

[Non-Text]

Diagram showing a blue cable being inserted into a car intake manifold, with numbered annotations indicating parts of the component.

14

Illustration of a blue ergonomic device with a black arrow indicating rotation or adjustment (no text or symbols)

m = 311

Diagram of a blue mechanical component with a black arrow pointing to a specific part (no text or symbols present)

16

Diagram of a car interior showing a blue plastic tray with black arrows indicating direction or movement (no text or symbols)

m = 311

Diagram showing a blue plastic component inside a container with numbered annotations (1 and 2) indicating directional movement or assembly.

18

Diagram of a spray nozzle spraying through a fan blade structure (no text or symbols)

19

24 h ① ② ②

20

Diagram of a car interior showing a blue plastic container with labeled parts and directional arrows indicating flow or movement.

The image is too blurry to recognize any text content.

Illustration of a blue tool dispensing liquid into a grid-patterned container (no text or symbols)

22

24 h CLICK

23

Diagram showing a hand pressing a component into a machine, with numbered arrows indicating process steps.

24

Illustration of a blue showerhead spraying water onto a white square surface (no text or symbols)

25

Diagram showing a hand pressing a blue plastic component with numbered arrows and a 24-hour timer, likely illustrating a process or manufacturing procedure.

26

4 Sicherheit

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
  ■ Do not connect the appliance if it has been damaged in transit.

Only use this appliance:

■ with genuine parts and accessories. Damage caused by using third-party products is not covered under the warranty.
■ for cleaning surfaces.
■ in private households and in enclosed spaces in a domestic environment at room temperature.
■ up to an altitude of max. 2000 m above sea level.

Do not use the appliance:

■ for vacuum-cleaning persons or animals.
■ for vacuuming up harmful, sharp-edged, hot or burning substances.
■ for vacuuming up damp substances or liquids.
■ for vacuuming up highly flammable or explosive materials and gases.
■ for vacuuming up ash or soot from stoves and central heating systems.
■ for vacuuming up toner dust from printers and photocopiers.
■ for vacuuming up building rubble.

Disconnect the appliance from the power supply when:

■ cleaning the appliance.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by children unless they are being supervised.

- Repairs to the appliance should only be carried out by trained specialist staff.

▶ Only use genuine spare parts when repairing the appliance.

• If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
  ▶ Never operate a damaged appliance.
  ▶ Never operate an appliance with a cracked or fractured surface.
  ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
  ▶ Never pull or carry the appliance by the power cord.
• If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
  ▶ Call customer services.→Page 15
  ▶ Only use the appliance in enclosed spaces.
  ▶ Never expose the appliance to intense heat or humidity.
• Do not use steam- or high-pressure cleaners to clean the appliance.
  ▶ Never let the power cord come into contact with hot appliance parts or heat sources.
  ▶ Never let the power cord come into contact with sharp points or edges.
  ▶ Never kink, crush or modify the power cord.
• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Do not apply flammable substances or substances containing alcohol to the dust bag or filter.
• When cleaning the appliance, do not use flammable substances or substances that contain alcohol.
  ▶ Pull out the power cord completely.
• Keep clothing, hair, fingers and other body parts away from the openings on the appliance and the moving parts.
  ▶ Never point the pipe or the nozzles towards eyes, hair, ears or mouths.
• When vacuuming stairs, ensure that there are no persons underneath the appliance.
• When taking a break from vacuuming, switch off the appliance and pull out the mains plug.
  ▶ Retract the power cord.

• When the cord is being rewound automatically, ensure that the mains plug is not thrown in the direction of persons, body parts, animals or objects.

• Keep packaging material away from children.
  ▶ Do not let children play with packaging material.

Preventing material damage

▶ Never place the appliance on the hose.
▶ Regularly check the running surfaces of the nozzles for wear.
▶ Replace worn nozzles.
▶ Never operate the appliance without a dust bag.
▶ Never operate the appliance without the motor protection filter.
▶ Never operate the appliance without the exhaust filter.

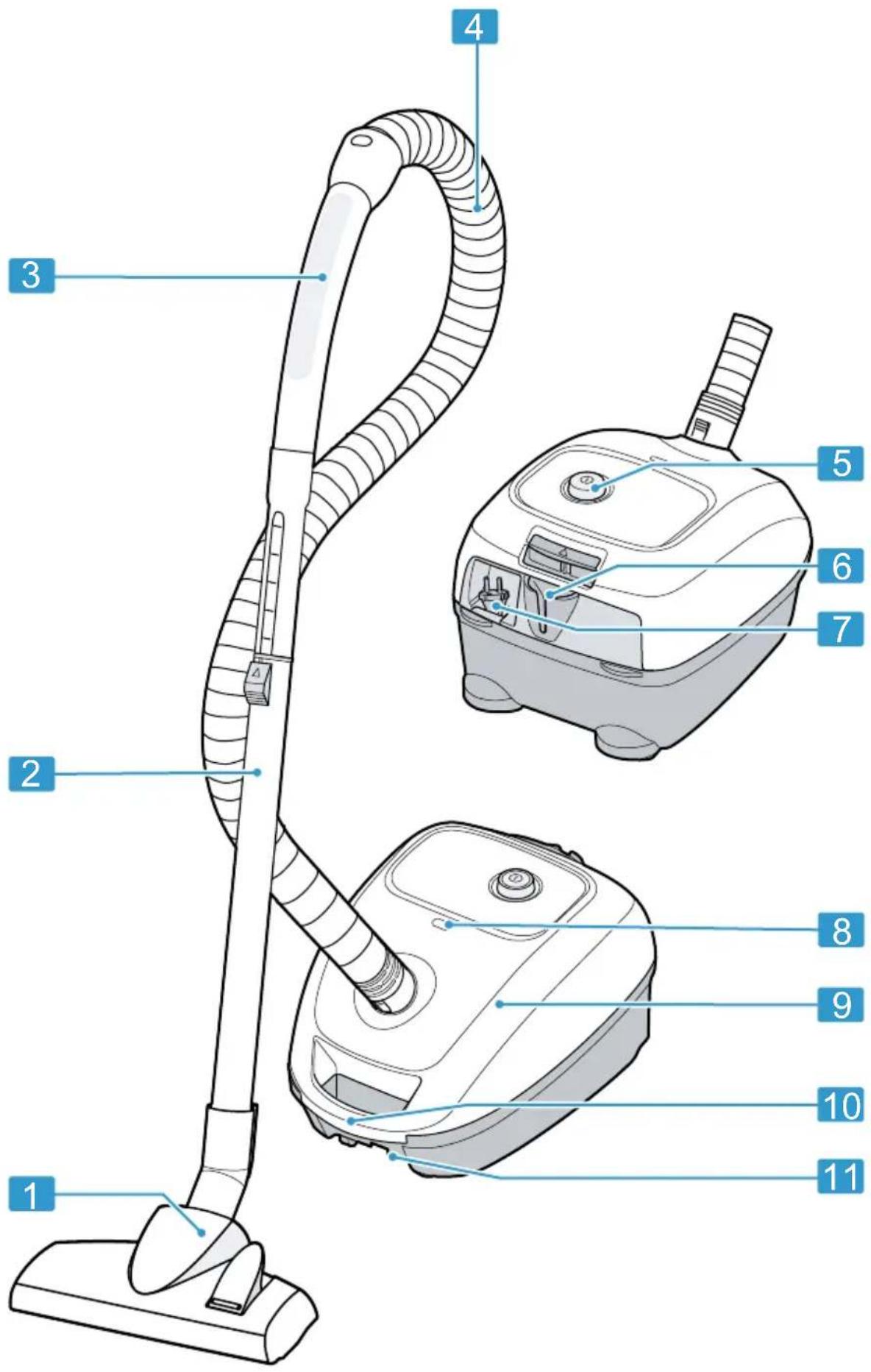

Overview

You can find an overview of the parts of your appliance here.

→Fig. 1

1	Adjustable floor tool ^1
2	Telescopic tube with sliding switch ^1
3	Handle ^1
4	Hose
5	Power control ^1 and on/off switch
6	Parking aid
7	Power cord
8	Bag change indicator
9	Lid
10	Handle
11	Storage aid

Operation

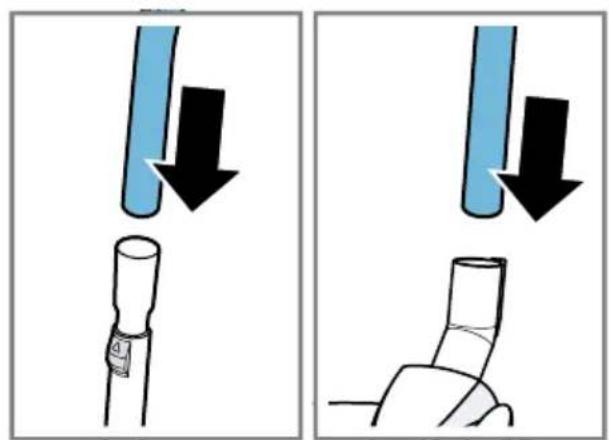

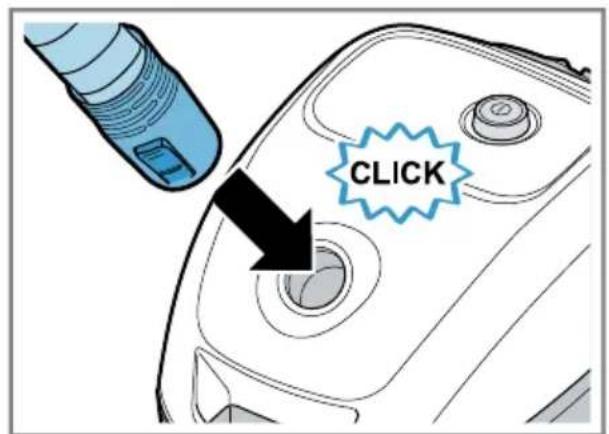

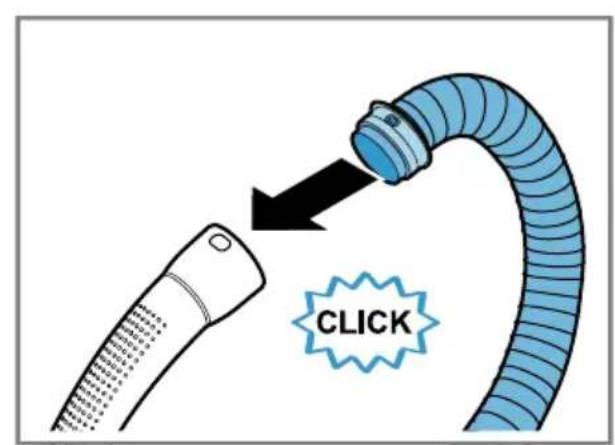

Installing the appliance

→Fig. 2 - 4

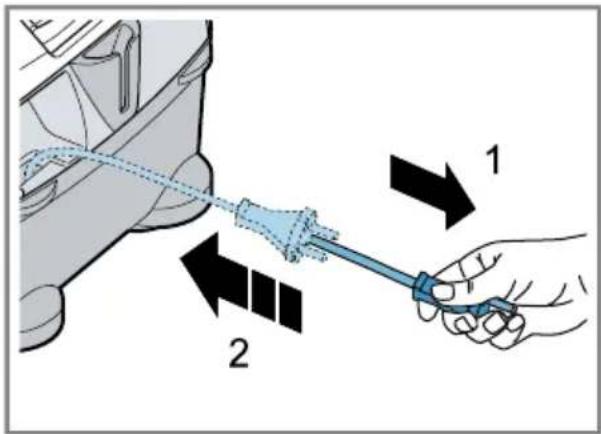

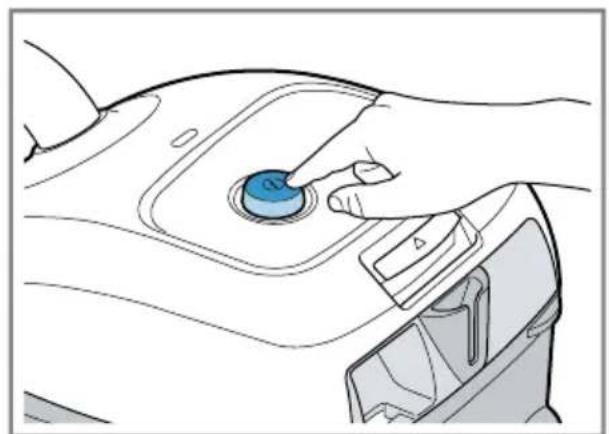

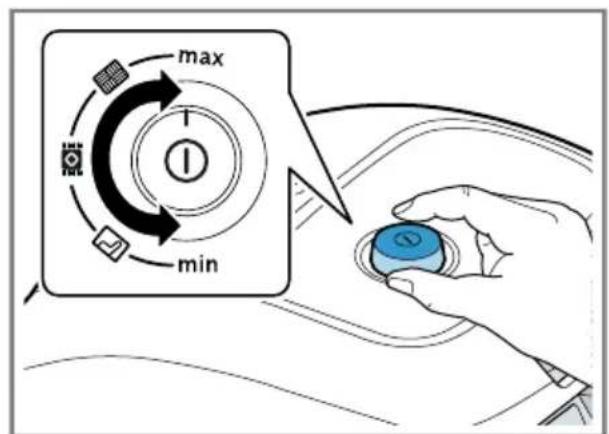

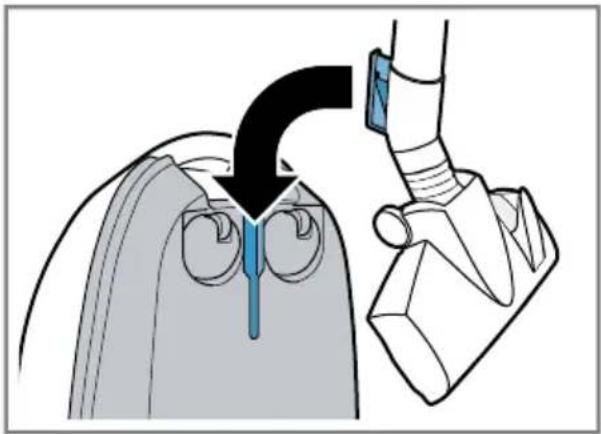

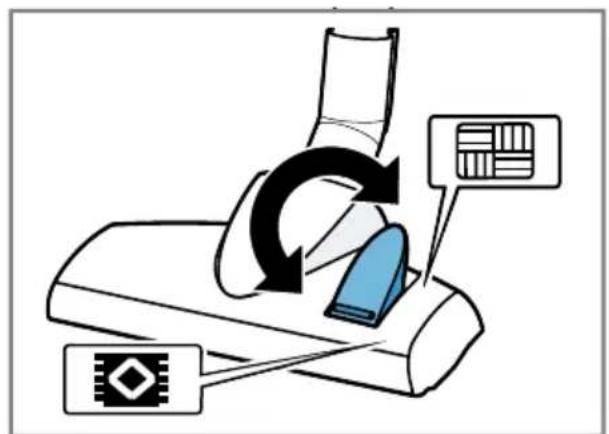

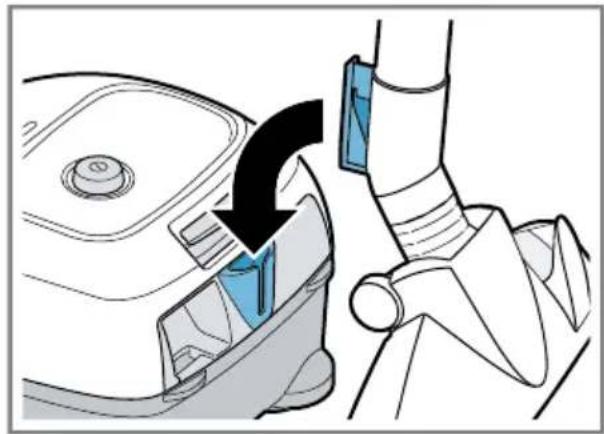

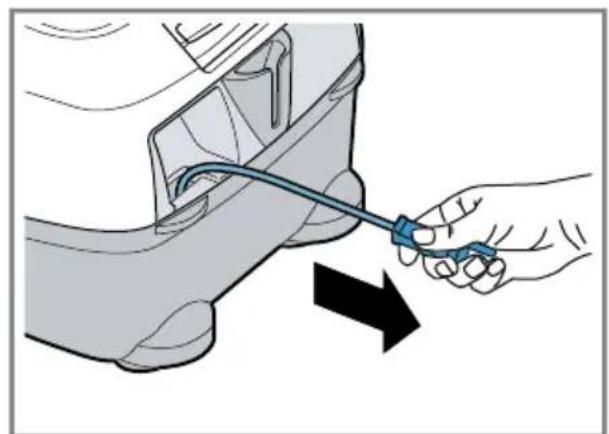

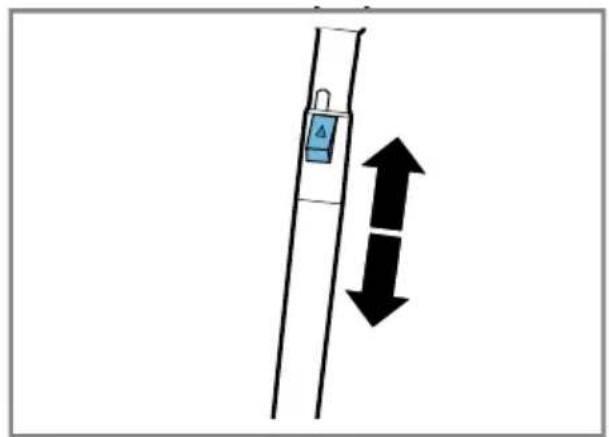

Operating the appliance

→Fig. 5 - 12

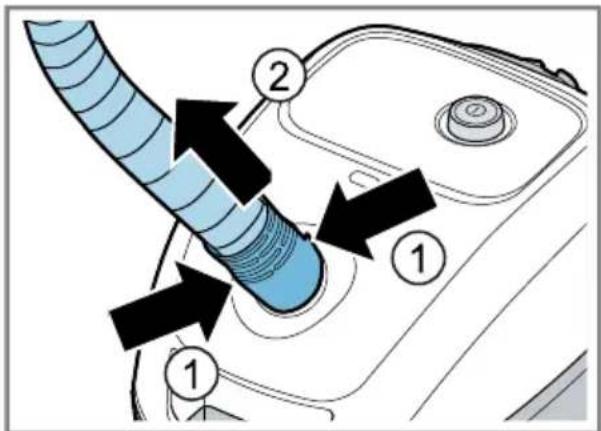

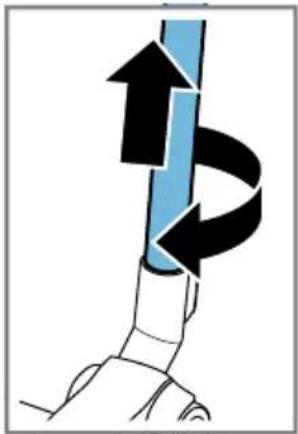

Removing the appliance

→Fig. 13 - 14

Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

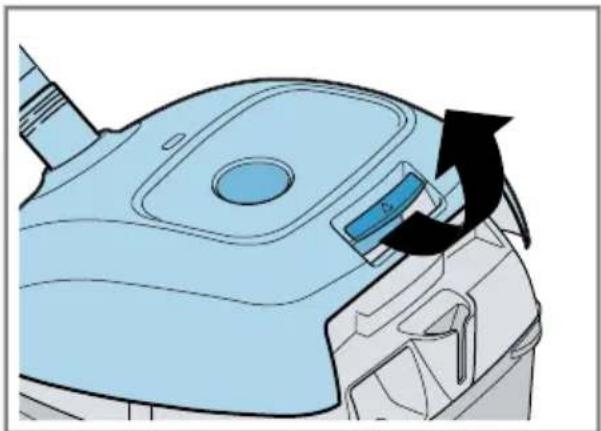

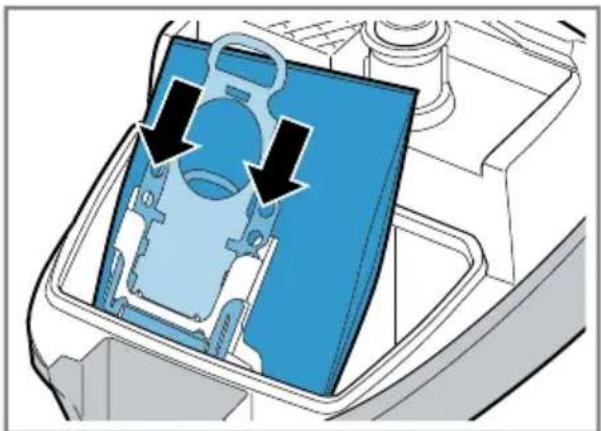

Changing the dust bag

→Fig. 15 - 17

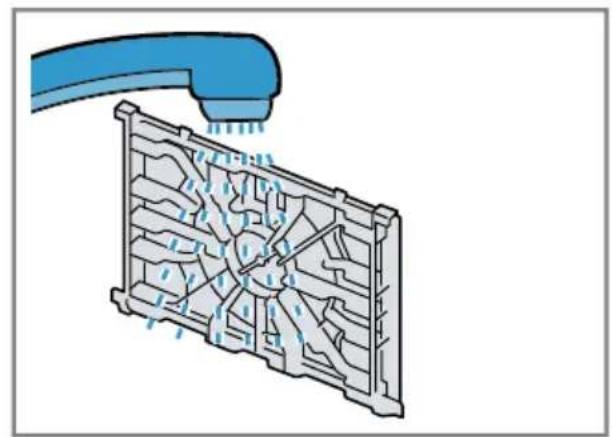

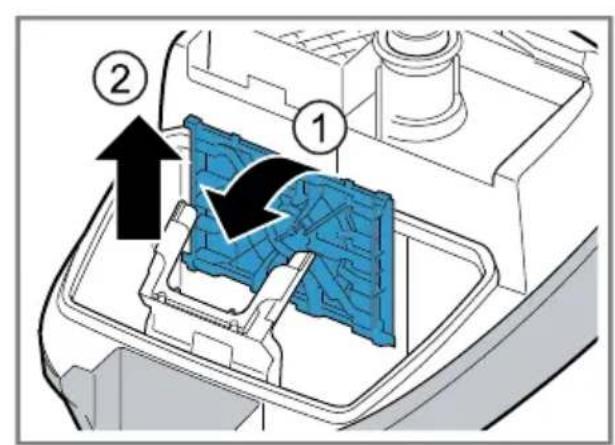

Cleaning the motor protection filter

→Fig. 18 - 20

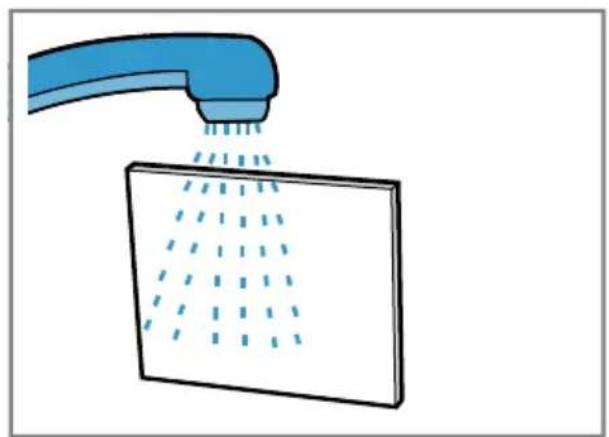

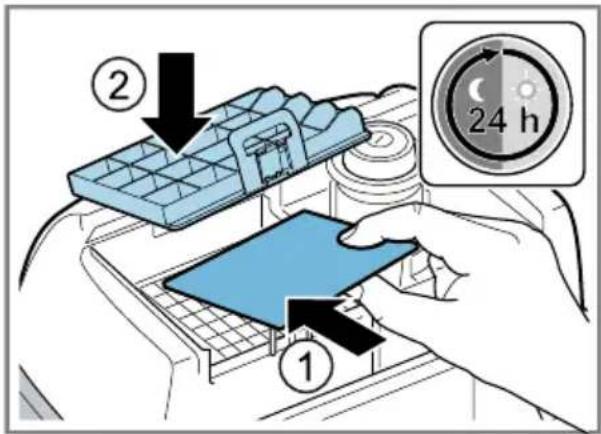

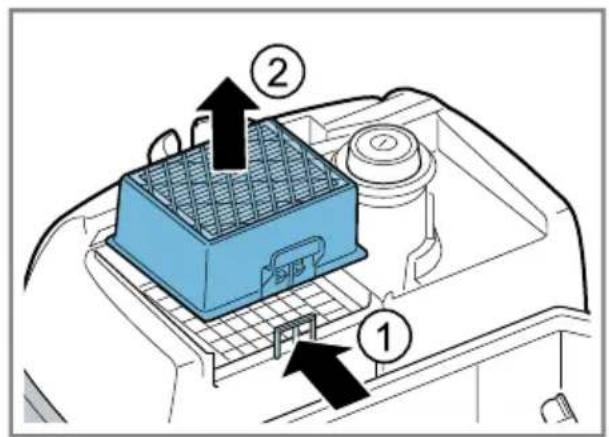

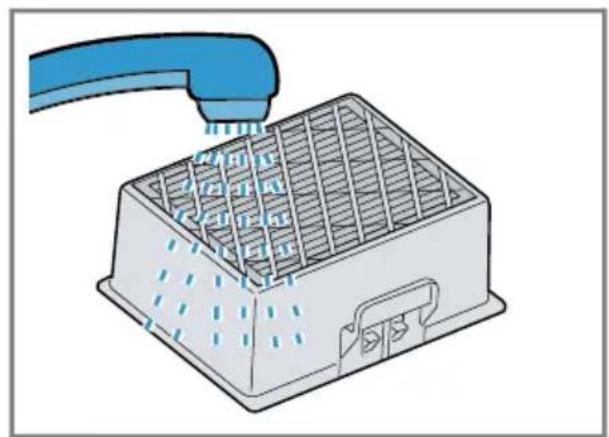

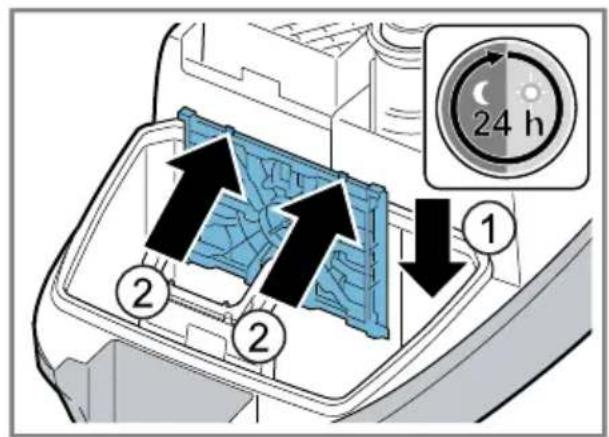

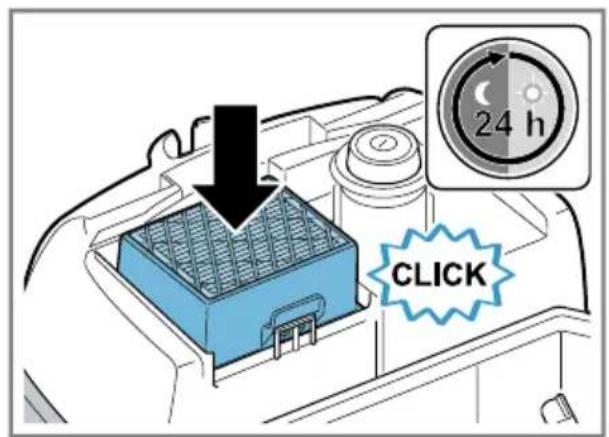

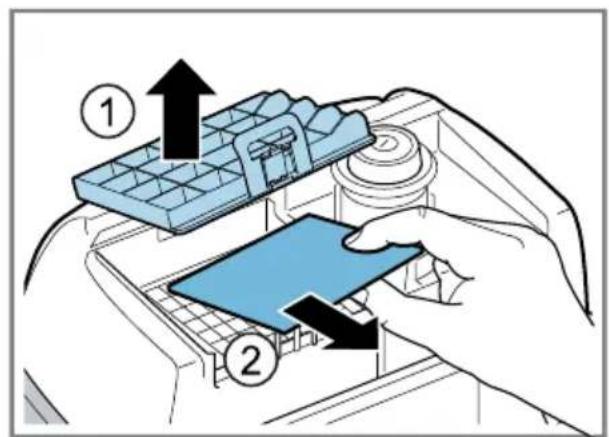

Cleaning the exhaust filter ^1

→Fig. 21 - 26

Troubleshooting

▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Suction is reduced.

Nozzle, telescopic tube or hose are blocked.

1. Dismantle the appliance.
2. Remove the blockage.
   The motor protection filter is dirty
3. Clean the motor protection filter.
   Exhaust filter is dirty.
   ▶ Clean the exhaust filter.
   The dust bag is full.
   ▶ Change the dust bag.

The household fuse trips when the appliance is switched on.

Several appliances are operated simultaneously at an electrical mains supply.

1. Switch on the household fuse.
2. Set the lowest performance level.
3. Switch the appliance on.

Disposing of old appliance

- Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Customer Service

You can obtain function-relevant and storable genuine spare parts from our Customer Service for up to 10 years from the date on which your appliance was placed on the market.

For more information, please contact our Customer Service team.

Detailed information about the warranty period and the warranty conditions in your country is available via the QR code on the enclosed document on service contacts and warranty conditions, from our customer service or on our website.

You can find the contact details for our customer service via the QR code on the enclosed document on service contacts and warranty conditions or on our website.

You can find the information required as per Regulation (EU) 2023/826 online at www.bosch-home.com on the product and service pages for your appliance, in the area of user manuals and additional documents.

Information on the Ecodesign Regulation

This vacuum cleaner is a household vacuum cleaner classed as a general purpose vacuum cleaner.

Use the interchangeable universal nozzle for cleaning carpets.

For cleaning hard floors, use the hard floor nozzle designed for cleaning hard floors and test crevices, if supplied.

The performance data for this appliance is based on the measurement and calculation methods specified in Regulation (EU)

No 666/2013 and the standards

EN 60312-1, EN 60704-2-1, EN 60335-2-2.

4Sécurité

rical and electronic equipment – WEEE).

electrical and electronic equipment - WEEE).

QR code image with no surrounding text or symbols

e-mail: [e-mail]

Many thanks for choosing a Bosch home appliance!

Register your new appliance now on MyBosch and benefit directly from:

• Expert advice and tips to make the most of your appliance
• Options for warranty extension
  • Discounts on spare parts and accessories
  • Digital information for use and all appliance data to hand
• Easy access to Bosch Home Appliance Service

Simple to register, free of charge – including on mobile devices:

www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Need some help? You can find it here.

Expert advice on your Bosch home appliances, help with problems or repairs by professionals from Bosch.

Discover all the different ways Bosch can assist you:

www.bosch-home.com/service

The contact details of all countries are listed in the attached service directory.

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München, GERMANY

www.bosch-home.com

A Bosch Company

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom

8001346482 (060223)

de, en, fr, it, nl, da, no, sv, fi, es, pt, el, tr, pl, bg, ro, ru, uk, ar, fa
