USER MANUAL LIFE X8502506 (MD 850800) MEDION

Front view of a black desktop computer monitor with a stand and a 'median' label (no additional text or symbols visible)

Ultra HD Q-LED Fire TV

MEDION LIFE

X8432506 (MD 843800) / X8502506 (MD 850800) / X8552506 (MD 855800) / X8652506 (MD 865800)

Inhaltsverzeichnis

median 3 2 1

Diagram of a mechanical device with labeled components and a magnified inset showing a cross-sectional view.

②

Mechanical assembly diagram showing a lever mechanism with a shaft and bracket (no text or symbols)

③

Architectural floor plan with room labels and a small inset diagram showing a device mounted on a stand.

4

Architectural floor plan with labeled rooms and a central mechanical component diagram

APPLE AIRPLAY UND HOMEKIT

MD 843800 MD 850800
MD 855800 MD 865800

Covered by patents at patentlist.accessadvance.com

19. Serviceinformationen

Front view of a black desktop computer monitor with a stand and a 'media' label (no additional text or symbols visible)

Ultra HD Q-LED Fire TV

MEDION LIFE

X8432506 (MD 843800) / X8502506 (MD 850800) / X8552506 (MD 855800) / X8652506 (MD 865800)

Sommaire

www.medion.com/conformity.

median 3 2 1

Technical diagram showing a mechanical assembly with labeled component 'x4' and alignment markers

2

Mechanical assembly diagram showing a lever mechanism with a pin labeled 'x4' and no visible text or symbols

③

Architectural floor plan with room layouts and a monitor view indicator

4

Floor plan diagram of a residential apartment with labeled rooms and a circular inset showing a trash bin.

CÂBLE - RECHERCHE MANUELLE

MISE SOUS TENSION AVEC LAN ET WI-FI

APPLE AIRPLAY ET HOMEKIT

Cd = cadmium, Hg = mercure, Pb = plomb.

MD 843800 MD 850800
MD 855800 MD 865800

Covered by patents at patentlist.accessadvance.com

Front view of a black desktop computer monitor with a stand and a 'media' label (no additional text or symbols visible)

Ultra HD Q-LED Fire TV

MEDION LIFE

X8432506 (MD 843800) / X8502506 (MD 850800) / X8552506 (MD 855800) / X8652506 (MD 865800)

Inhoudsopgave

median 3 2 1

Technical diagram showing a mechanical assembly with labeled components and a magnified inset showing a component marked 'x4'

2

Mechanical assembly diagram showing a lever mechanism with a pin labeled 'x4' and a cylindrical component (no text or symbols beyond the label)

③

Architectural floor plan with room layouts and a monitor view indicator

4

Floor plan diagram of a residential apartment with numbered rooms and a circular inset showing a trash bin.

Channel Type Satellite Terrestrial Cable

TERRESTRIAL- AUTO SCAN (RESCAN)

TERRESTRIAL- MANUAL SCAN

CABLE TV PROVIDER Cable - Auto Scan Cable - Manual Scan Cable - Quick Scan

SATELLITE TV PROVIDER Complete Channel Scan Manual Channel Scan

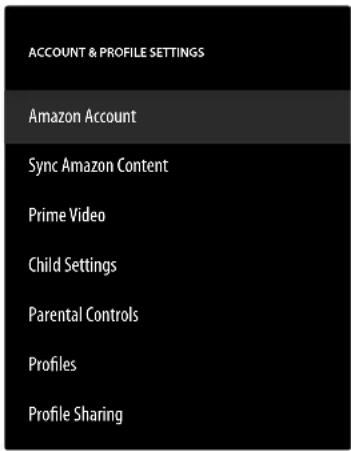

ACCOUNT & PROFILE SETTINGS Amazon Account Sync Amazon Content Prime Video Child Settings Parental Controls Profiles Profile Sharing

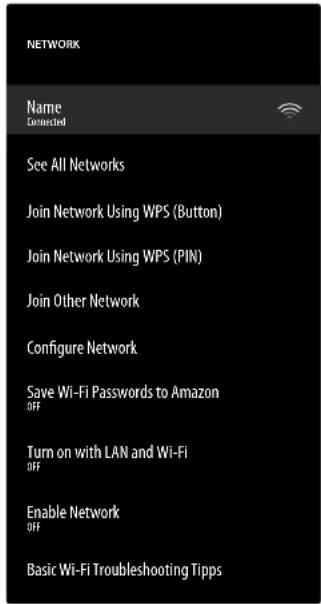

NETWORK Name Connected See All Networks Join Network Using WPS (Button) Join Network Using WPS (PIN) Join Other Network Configure Network Save Wi-Fi Passwords to Amazon OFF Turn on with LAN and Wi-Fi OFF Enable Network OFF Basic Wi-Fi Troubleshooting Tipps

SAVE WI-FI PASSWORDS TO AMAZON

TURN ON WITH LAN AND WI-FI

BASIC WI-FI TROUBLESHOOTING TIPPS

APPLE AIRPLAY & HOMEKIT

APPLICATIONS Amazon Photos Silk Browser Appstore Automatisch ophalen Manage Installed Applications

MANAGE INSTALLED APPLICATIONS

8.7.8. Apparaatbesturing (Equipment Control)

EQUIPMENT CONTROL Add Equipment

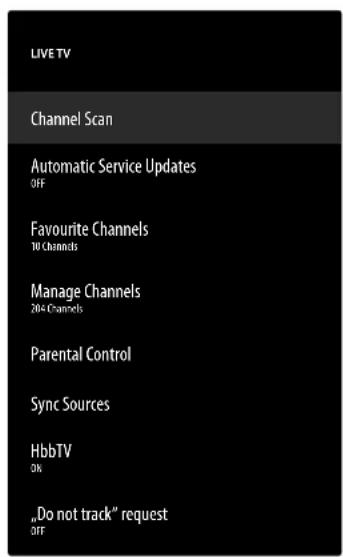

LIVE TV Channel Scan Automatic Service Updates OFF Favourite Channels 10 Channels Manage Channels 204 Channels CI Card Parental Control Sync Sources HbbTV ON „Do not track" request

REMOTES & BLUETOOTH DEVICES Voice Remotes with Alexa Game Controller Hoortoestellen Other Bluetooth Devices

OTHER BLUETOOTH DEVICES

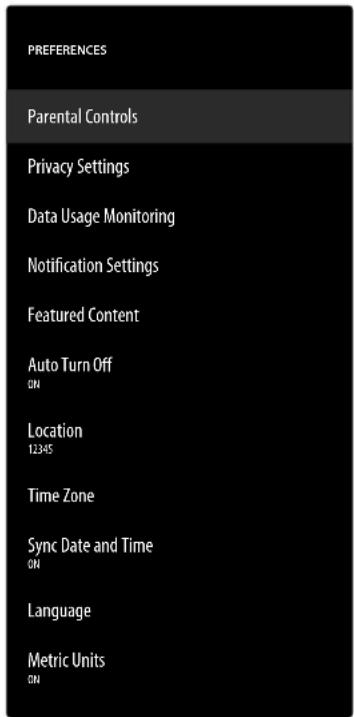

PREFERENCES Parental Controls Privacy Settings Data Usage Monitoring Notification Settings Featured Content Auto Turn Off ON Location 12345 Time Zone Sync Date and Time ON Language Metric Units ON

- OVER-THE-AIR CHANNELS

Cd = cadmium, Hg = kwikzilver, Pb = lood.

MD 843800 MD 850800
MD 855800 MD 865800

18.1. Informatie over handelsmerken

Covered by patents at patentlist.accessadvance.com

19. Service-informatie

Front view of a black desktop computer monitor with a stand and a 'median' label (no additional text or symbols visible)

Ultra HD Q-LED Fire TV

MEDION LIFE

X8432506 (MD 843800) / X8502506 (MD 850800) / X8552506 (MD 855800) / X8652506 (MD 865800)

Índice

Architectural floor plan diagram with labeled rooms and a monitor icon, showing layout and orientation.

Architectural floor plan diagram with room labels and a zoomed-in view of the interior layout

CONECTARSE A UNA RED CON WPS (BOTÓN)

CONECTARSE A UNA RED CON WPS (PIN)

APPLE AIRPLAY Y HOMEKIT

MD 843800 MD 850800
MD 855800 MD 865800

Covered by patents at patentlist.accessadvance.com

MEDION Service Center

ENAME, S.A

Front view of a black desktop computer monitor with a stand and a 'median' label (no additional text or symbols visible)

Ultra HD Q-LED Fire TV

MEDION LIFE

X8432506 (MD 843800) / X8502506 (MD 850800) / X8552506 (MD 855800) / X8652506 (MD 865800)

Contenuto

Mechanical assembly diagram showing a lever mechanism with a pin labeled 'x4' (no text or symbols beyond the label)

③

Floor plan diagram of a computer room with labeled furniture and a monitor icon indicating orientation

4

Architectural floor plan with room labels and a magnified inset showing a water level measurement setup.

ACCEDI ALLA RETE TRAMITE WPS (PULSAN-TE)

ACCEDI ALLA RETE TRAMITE WPS (PIN)

ACCEDI A UN'ALTRA RETE

ACCENSIONE CON LAN E WI-FI

APPLE AIRPLAY & HOMEKIT

- CONSENSO PER I COOKIE

MD 843800 MD 850800
MD 855800 MD 865800

Covered by patents at patentlist.accessadvance.com

Front view of a black desktop computer monitor with a stand and a 'median' label (no additional text or symbols visible)

Ultra HD Q-LED Fire TV

MEDION LIFE

X8432506 (MD 843800) / X8502506 (MD 850800) / X8552506 (MD 855800) / X8652506 (MD 865800)

Table of Contents

1. Disposal....33

1. Information about this user manual ....3

1. Technical specifications....34

1.1. Explanation of symbols ...... 3

1. Product data sheet 36

1.2. Proper use 19.

18.1. Trademark information 36

2. Package contents 20

Service information....37

3. Safety instructions 214

Legal Notice ....37

3.1. Operating safety
3.2. Set-up location 5
3.3. Repairs.... 6
3.4. Environmental temperature 6
3.5. Safety when connecting....6
3.6. Handling batteries 7

Index....38 4

4. EU - Declaration of conformity ....8

4.1. Information on WLAN....8

5. Device overview 9

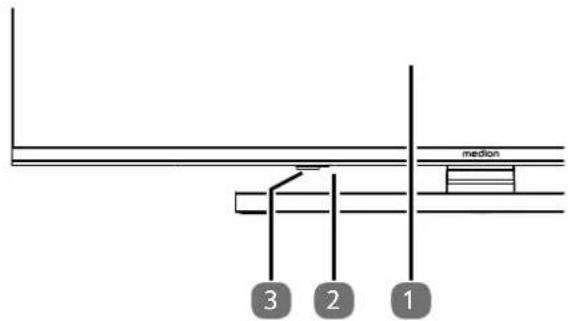

5.1. Front....9

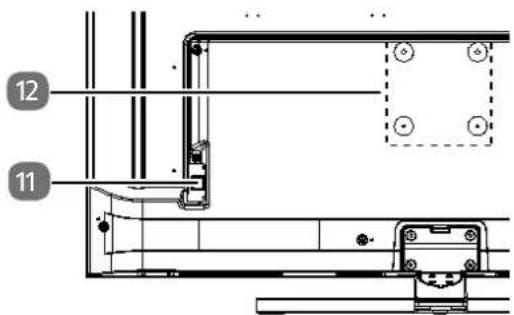

5.2. Rear and right-hand side....9

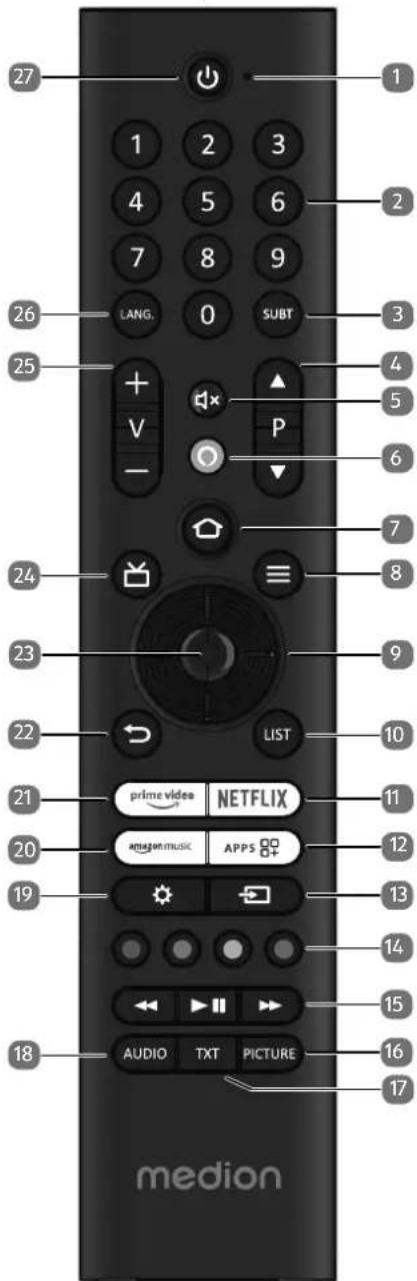

5.3. Remote control 10

6. Getting started .....11

6.1. Unpacking 11

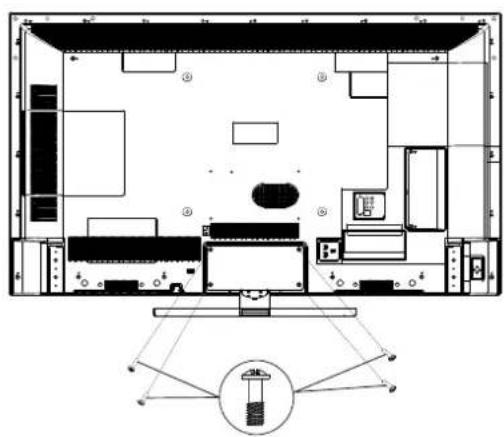

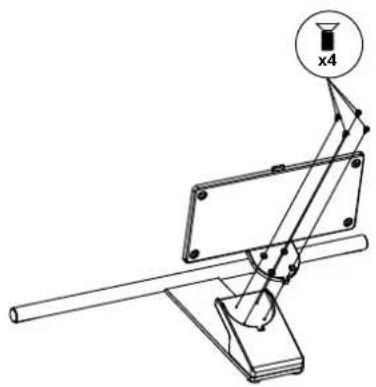

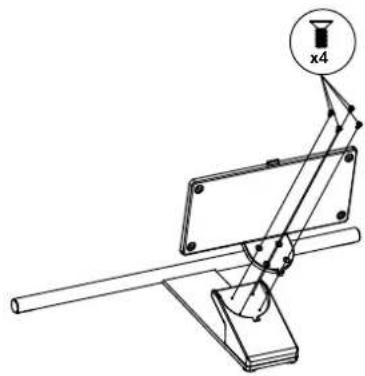

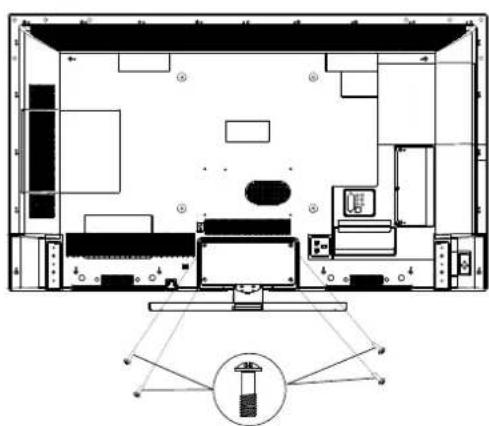

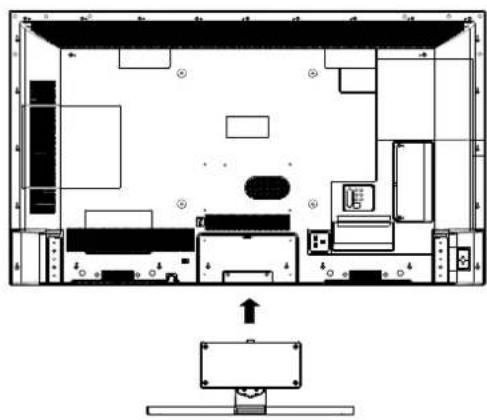

6.2. Mounting....11
6.3. Inserting batteries in the remote control....11
6.4. Connecting the antenna ..... 12
6.5. Connecting the power supply...... 12
6.6. Switching the smart TV on and off ... 12
6.7. Switching on the device for the first time 12
6.8. Setting up TV reception 14

7. Operation 16

7.1. Channel selection 16
7.2. Sound settings 16
7.3. Screen settings 16
7.4. Settings 16
7.5. Menus during TV playback.... 16
7.6. Using the multimedia connections .... 17

8. Home page 18

8.1. Profiles 18
8.2. Inputs.... 18
8.3. My stuff 18
8.4. Find 18
8.5. Home....18
8.6. Live....18
8.7. Settings 18

9. Media player 29

9.1. Main menu for the media player ..... 29

10. HbbTV system 31

11. HDMI 2.1 standard ....31

11.1. eARC 31

12. MEDION Smart TV privacy ....31

13. Troubleshooting ....31

13.1. Do you need more help? 32

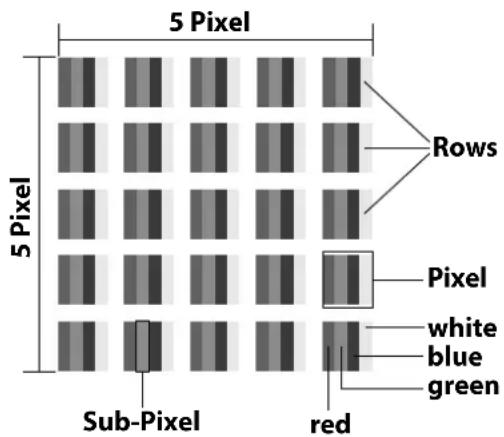

13.2. Pixel errors on Smart TVs.... 33

14. Cleaning....33

15. Storing the device when not in use .....33

1. Information about this user manual

Thank you for choosing our product. We hope you enjoy using this device. Read the safety instructions carefully before using the device for the first time. Note the warnings on the device and in the user manual.

Always keep the user manual close to hand. If you sell the device or give it away, please ensure that you also pass on this user manual. It is an essential component of the product.

1.1. Explanation of symbols

If a block of text is marked with one of the warning symbols listed below, the hazard described in that text must be avoided to prevent the potential consequences described there from occurring

	DANGER!Warning of immediate risk of fatal injury!
	WARNING!Warning: possible mortal danger and/or serious irreversible injuries!
	CAUTION!Warning: possible light or moderate injuries!
	NOTICE!Follow these instructions to prevent damage to property and other objects!
	Additional information on using the appliance!
	Read the user manual and observe its instructions.
	Due to the 5 GHz frequency range of the used wireless LAN solution, use in EU countries is only permitted inside buildings.
	WARNING!Warning: danger of electric shock!
	WARNING!Warning: danger due to excessive volume!
	Protection class IIElectrical appliances in protection class II are electrical appliances that permanently have double and/or reinforced insulation and do not have the option of connecting a protective earth.

1.2. Proper use

This is an information technology device and is also suitable for multimedia applications. This device is used to receive and play back television programmes. The range of different connections supplied makes it possible to expand the input and output sources (receiver, DVD player, DVD recorder, video recorder, PC, etc.). Your device offers a number of options for usage.

The device is intended for private use only and not for industrial/commercial use.

• Please note that we shall not be liable for damage caused by improper use.
• Do not modify the device without our consent and do not use any auxiliary equipment that we have not approved or supplied.
• Use only spare parts and accessories that we have supplied or approved.
• Heed all the information in these operating instructions, especially the safety information. Any other use is deemed improper and can cause personal injury or property damage.
• Do not use the device in extreme environmental conditions.
• This device is intended for use in dry, indoor areas only.
• This device is not designed to be used as a data monitor for office workplaces

Please note that this device is not suitable for mobile use and must only be used when stationary at a designated place. Proper functionality cannot be guaranteed during mobile use, since this could result in reception issues or similar.

2. Package contents

Please check your purchase to ensure that all items are included. If anything is missing, contact us within 14 days of purchase.

The following items are supplied with your product:

• Smart-TV
• Remote control (RC1848) incl. 2 x LR03 (AAA) 1.5 V batteries
• Power cord
• Foot incl. fixing screws
• Documentation

Risk of choking and suffocation!

Packaging film can be swallowed or used improperly, creating a risk of choking and suffocation.

- Keep packaging material such as plastic film or plastic bags away from children.

3. Safety instructions

3.1. Operating safety

- Check the device for damage before using it for the first time. A defective or damaged device must not be placed into operation.

- This device may be used by children over the age of 8 and by persons with reduced physical, sensory or mental abilities or by those without experience and knowledge, if they are supervised or have been instructed in the safe use of the device and have understood the dangers that result from it.

– Children must not be allowed to play with the device. Cleaning and user maintenance must not be carried out by children unless they are supervised.

DANGER!

Risk of suffocation!

Packing material is not a toy! Packaging film can be swallowed or used improperly. Therefore, there is a risk of suffocation!

- Keep packaging material such as plastic film or plastic bags away from children.

WARNING!

Risk of electric shock!

Risk of electric shock, short circuit and fire!

■ Never open the housing of the Smart TV and never insert any objects through the slots and openings into your Smart TV.

WARNING!

Overheating! Risk of fire!

Overheating can damage your Smart TV and lead to a risk of fire!

■ The slots and openings on the TV are for ventilation purposes. Do not cover these openings e.g. with newspapers, table cloths, curtains, etc.

• Do not put any pressure on the display. There is a risk that the glass on the screen may break.
• The universal remote control has a class 1 infrared diode. Never use optical devices to look at the LED.

CAUTION! Risk of injury!

There is a risk of injury if the display is broken!

■ To avoid damaging the display, do not touch it with fingers or sharp objects.

• Pick up the shattered pieces wearing protective gloves.
  ■ Then wash your hands with soap because chemicals may have leaked out.
  ■ Send the broken parts to your Service Centre for professional disposal.

- Disconnect the device from the mains network immediately in the event of an emergency and only use it again when it has been checked by a qualified person or customer services. Emergency situations include e.g. when smoke or unusual noises are coming from the device, water has penetrated into it or the mains cable or housing is damaged.

Contact customer services if:

– The power cable is burnt or damaged
– Liquid has penetrated the device
– The device is not operating correctly
– The device has fallen, or the housing is damaged
- Smoke is rising from the device

3.2. Set-up location

- The wall mounting of the TV device must not exceed a height of 2m . The device need to be mounted on rigid surfaces such as cement or concrete.

– In the first few hours of use, new devices can give off a typical, unavoidable but totally harmless smell which wears off with time. We recommend that you ventilate the room at regular intervals to counteract the smell. We have taken appropriate measures during the development of this device to ensure that levels are significantly below legal limits.
- Keep your Smart TV and all connected appliances away from moisture and avoid dust, heat and direct sunlight.

Non-compliance with these instructions can lead to faults or damage to the Smart TV.

• Do not use the device outdoors as it could be damaged by rain, snow, etc.
• The device must not be exposed to dripping or sprayed water. Do not place vessels filled with liquid (vases or similar) on or in the vicinity of the device. The container may tip over and the liquid may impair the electrical safety of the product.

NOTICE! Risk of damage!

There is a risk of injury with candles and other open flames.

- Keep candles and other open flames away from this device at all times in order to prevent the spread of fire.

• Make sure that there is enough clearance from the sides of the furniture unit. Ensure a minimum clearance of 10 cm around the device for sufficient ventilation.
• Avoid dazzle, reflections and strong bright-dark contrast in order to protect your eyes.
• The optimal viewing distance is 3 times the screen diagonal.

DANGER!

Risk of injury! Mortal danger!

Only set up your TV on a stable surface. Televisions that tip over could cause serious injuries or death. Lots of injuries, especially to children, can be avoided by observing the following safety precautions.

■ Operate all components on a stable, level and vibration-free base, to prevent the Smart TV from falling over.

■ Only use the stand and screws supplied with the TV.

- Only use furniture that guarantees the safe use of the TV.

- Ensure that the TV does not hang over the edges of the furniture.

- Do not place the TV on higher or high furniture such as wall cabinets or shelves without ensuring that both the furniture and the TV are safely and securely held in place.

– In order to guarantee the stability of the TV, do not place any sheets or similar under it.

- Advise children of the dangers of climbing up furniture in order to reach the TV or its operating elements.

If you are storing or moving the TV, also observe the aforementioned safety instructions.

3.3. Repairs

– Repairs to your Smart TV should only be carried out by qualified specialists.
– If a repair must be carried out, please only contact our authorised service partner.
- Make sure that only replacement parts provided by the manufacturer are used.

The use of unsuitable replacement parts may damage the device and lead to a risk of fire.

3.4. Environmental temperature

• The device can be operated at an ambient temperature of +5^ to +35^ with a relative humidity of 20% - 85% (non-condensing).
• When switched off, the Smart TV can be stored at temperatures from -20^ to +60^ .
• Keep the product at least one metre away from sources of high-frequency and magnetic interference (television set, loudspeakers, mobile telephones, etc.) in order to avoid malfunctions.
  – During thunderstorms or if the device is not going to be used for long periods, remove the plug from the socket and the aerial cable from the aerial socket.

NOTICE!

Risk of damage!

Large changes in temperature or fluctuations in humidity can cause moisture to build up due to condensation within the Smart TV, which can cause an electrical short circuit.

■ After transporting the Smart TV, wait until the appliance has reached ambient temperature before switching it on.

3.5. Safety when connecting

3.5.1. Power supply

- Even when deactivated, some components of the device are live. To disconnect the power from your Smart TV or to completely isolate the device from voltage sources, disconnect the device completely from the mains network. Disconnect the mains plug from the mains socket for this purpose.

DANGER!

Risk of electric shock!

There is a risk of death due to an electric shock when the housing is open!

■ Do not open the housing of the device. It does not contain any parts requiring maintenance.

- Only plug the Smart TV into earthed 220–240 V\~ 50 Hz sockets. Contact your electricity provider if you are not sure if the socket is earthed or not.

- The socket must always be easily accessible so that the mains plug can be quickly disconnected from the socket in the event of an emergency.

- To disconnect the power supply to your TV, disconnect the mains plug from the mains socket.

- For extra safety, we recommend using an over-voltage protection device to prevent your Smart TV sustaining damage as a result of power surges or lightning strikes.

- Position the cables so that they cannot be stepped on or tripped over.

- Do not place any objects on the cables as they may be damaged.

- Do not touch the plug with wet hands.

– Always hold the plug by its housing and never pull it out of the socket using the cable.

- Please note that the TV also continues to consume power in standby mode.

If the device shuts down and restarts due to an electrostatic discharge while in USB mode (media player), optional HbbTV mode or optional LAN/WiFi operation (media player/portal), it will not be able to independently restore the last operating mode. Please restart the respective media or applications.

The last user settings you entered may not be restored following an electrostatic discharge that causes the TV to shut down because these settings are only saved 5 minutes after switching channels.

All multimedia devices, which are connected to the corresponding ports of the TV, must comply with the requirements of the Low Voltage Directive.

3.6. Handling batteries

WARNING!

Risk of explosion!

Batteries may contain combustible materials and leak, heat up excessively, ignite or even explode.

■ Avoid improper handling of the batteries to prevent damage to your device and your health.

Please follow the safety advice below closely:

- Keep batteries away from children.

If batteries are swallowed, consult a doctor immediately.

- Never charge batteries (unless they are designed to be recharged).

– Never empty the batteries by means of high power output.

- Never short-circuit the batteries.

- Never expose the batteries to excessive heat, such as sunlight, fire or similar sources of heat!

- Do not dismantle or deform the batteries.

You could injure your hands or fingers, or battery fluid could come into contact with your eyes or skin. If this happens, rinse the affected areas with plenty of clean water and consult a doctor immediately.

- Avoid heavy impacts and vibrations.

– Always observe the correct polarity.

- Make sure that the plus (+) and minus (−) poles are correctly inserted to avoid short circuits.

- Do not mix up new and old batteries or different types of batteries.

This could cause your device to malfunction. In addition, the weaker batteries would discharge too much.

- Remove spent batteries from the device immediately.

• Remove the batteries from the device if you do not intend to use it for a long period of time.
• Replace all of the old batteries in a device with new batteries of the same type.
• Cover the contacts of the batteries with sticky tape if you want to store or dispose of them.
• If necessary, clean the battery and device contacts before insertion.
  – If the batteries have leaked, wear protective gloves and clean the contacts thoroughly.

4. EU - Declaration of conformity

MEDION AG hereby declares that this product conforms with the essential requirements and the remaining relevant regulations:

• RE Directive 2014/53/EU
• Ecodesign Directive 2009/125/EC
• RoHS Directive 2011/65/EU

You can download the complete EU Declaration of Conformity from www.medion.com/conformity.

CE

Use is only permitted inside buildings in all EU countries due to the 5 GHz frequency band of the inbuilt Wireless LAN solution.

ATBE	BGCZDK
EEFRD	DEISIE
ITELES	CY	LV
LILTLU	HU	MT
NL	NO	PL	PT	RO
SI	SK	TRFI	SE
CH	UK(NI)	HR

AT = Austria, BE = Belgium, BG = Bulgaria, CZ = Czech Republic, DK = Denmark, EE = Estonia, FR = France, DE = Germany, IS = Iceland, IE = Ireland, IT = Italy, EL = Greece, ES = Spain, CY = Cyprus, LV = Latvia, LI = Liechtenstein, LT = Lithuania, LU = Luxembourg, HU = Hungary, MT = Malta, NL = Netherlands, NO = Norway, PL = Poland, PT = Portugal, RO = Romania, SI = Slovenia, SK = Slovakia, TR = Turkey, FI = Finland, SE = Sweden, CH = Switzerland, UK(NI) = Northern Ireland, HR = Croatia

4.1. Information on WLAN

WLAN
Frequency range	2,4 GHz/ 5 GHz
Wi-Fi standard	802.11 a/b/g/n
Encryption	WEP/WPA/WPA2
Frequency range/MHz	Channel	Max. transmission power/dBm
2400 – 2483,5	1 - 13	19,9
5150 – 5250	36 – 48	22,4
5250 – 5350	52 – 64	22,5
5470 – 5725	100 – 140	22,5

5. Device overview

5.1. Front

median 3 2 1

1. Screen

2. : Multifunction button for standby function, switching channels, selecting input source or controlling volume. When the device is in standby mode, you can switch on the device by briefly pressing the button. Briefly press the button when the device is in use to open the function menu. Then briefly press the button again to select the desired function. Press and hold the button to open the menu for the selected function. In the case of the standby function, the device then switches to standby mode. You can change the setting in the menu by briefly pressing the button. Then press and hold the button to apply the settings made. Select the Exit option to close the menu.

3. Infrared sensor: Reception field for the infrared remote control signals.

Operating light: lights up when the device is in stand-by mode.

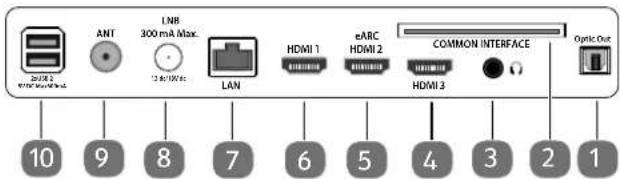

5.2. Rear and right-hand side

2023.1 ANT LNB 300 mA Max. LAN HDMI 1 eARC HDMI 2 COMMON INTERFACE HDMI 3 Optic Out 10 9 8 7 6 5 4 3 2 1

1. SPDIF Optic. OUT: Digital audio output (optical)

2. COMMON INTERFACE (CI+): Card slot for connecting pay TV cards

3. For connecting headphones with 3.5 mm jack

4. HDMI 3: HDMI port for devices with HDMI output

5. eARC HDMI 2: HDMI connection for devices with HDMI output (eARC)

6. HDMI 1: HDMI port for devices with HDMI output

7. LAN: Network connection for connection to the Internet

8. LNB 300 mA Max. (13V/18V DC---): For connecting the antenna (satellite)

9. ANT: For connecting the antenna (analogue, DVB-T or DVB-C)

10. 2xUSB (5V DC === Max500mA): USB connection for media playback/recording (PVR)

12 11

1. Connection for mains plug

Please only use the mains connection cable supplied for this purpose.

1. Fixing holes for a wall mount

MD 843800: Vesa standard, hole spacing 100 x 100 mm

MD 850800 / MD 855800: Vesa standard, hole spacing 200 x 200 mm

MD 865800: Vesa standard, hole spacing 400 x 200 mm

Wall mount not supplied. When mounting the device, make sure that you use M6 (M4: MD843800) screws. The maximum length of the screws corresponds to the thickness of the wall mount plus 7 mm.

The TV must not be mounted at heights exceeding 2 m. The device must be mounted on a solid surface such as cement or concrete.

5.3. Remote control

27 1 2 3 4 5 6 7 8 9 LANG. 0 SUBT 26 25 + V - P 6 7 24 ≡ 8 23 LIST 22 21 prime video NETFLIX 11 20 amazon music APPS 00 12 19 13 14 15 AUDIO TXT PICTURE 16 17 medion

1. Microphone
2. Number buttons:
   TV: Channel selection, teletext: Page selection
3. SUBT : DTV/satellite/media browser: subtitle function (if available)
4. P ▼/▲: Channel selection buttons
   TV: select next (+) / previous (−) channel; teletext: select next (+) / previous (−) page
5. :mute
6. :Microphone button for activating voice control
7. Open the start page by simply pressing the button; press and hold the button to call up the device settings
8. ≡ (MENU): Open and close menu (depending on the selected function or app with different functions)
9. Direction button ▲: move up in menu
   Digital TV: select infobar for the current channel, tele-text: select next page;
   Direction button ▼: move down in menu,
   Digital TV: select infobar for the current channel, teletext: select previous page;
   Direction button ◀ : move left in menu
   Teletext: call up subpages;
   Direction button ▶: move right in menu
   Teletext: call up subpage
   (depending on the selected function or app with different functions)
10. LIST: Call up channel information
11. NETFLIX: Open the Netflix app
12. APP: Call up your apps and channels
13. SOURCE): Select input signal of connected devices
14. Red button: For teletext or menus, HbbTV
    Green button: For teletext or menus
    Yellow button: For teletext or menus
    Blue button: For teletext or menus
15. Media buttons
    ◀: Fast rewind;
    ▶: Fast forward;
    II ▶: Start playback/pause playback
16. PICTURE: Call up the picture mode menu
17. TXT: Depending on the selected channel, call up additional programme content/options (in Live TV mode)
18. AUDIO: Call up the audio settings
19. :All up the settings menu
20. AMAZON MUSIC: Open the Amazon Music app
21. PRIME VIDEO: Open the Prime Video app
22. ←: Move back one step in the menu, close open menus, return to the home or start screen, close tele-text (in Live TV mode)
23. OK: Confirm selection in certain menus
24. : Digital TV: call up the electronic programme guide
25. V-/+: Increase (+) or decrease (−) volume.
26. LANG.: Language selection
27. ⏻: Switch smart TV on/off (switch standby mode on/off)

6. Getting started

Before using for the first time, ensure you read the "Safety instructions" section.

6.1. Unpacking

• Select a suitable place for setting up the device before unpacking.
• Open the box very carefully, to avoid damaging the device. The device might get damaged if you use a knife with a long blade to open the box.
• The box contains a number of small items (including batteries). Keep these out of the reach of children, as they represent a choking hazard.
• Store the packaging material in a safe place. Only use this box to transport the TV.

DANGER!

Risk of choking and suffocation!

Packaging film can be swallowed or used improperly, creating a risk of choking and suffocation.

- Keep packaging material such as plastic film or plastic bags away from children.

6.2. Mounting

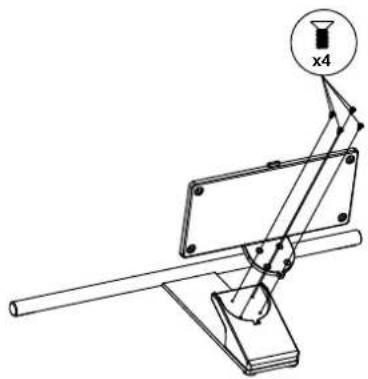

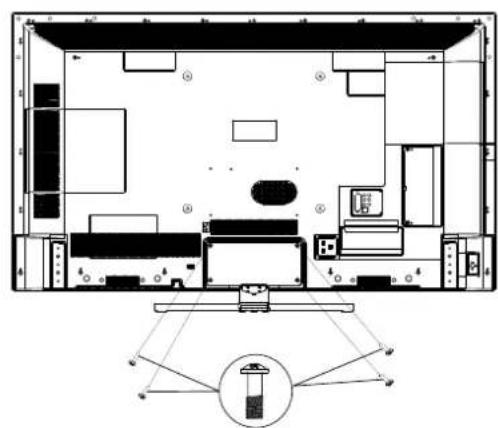

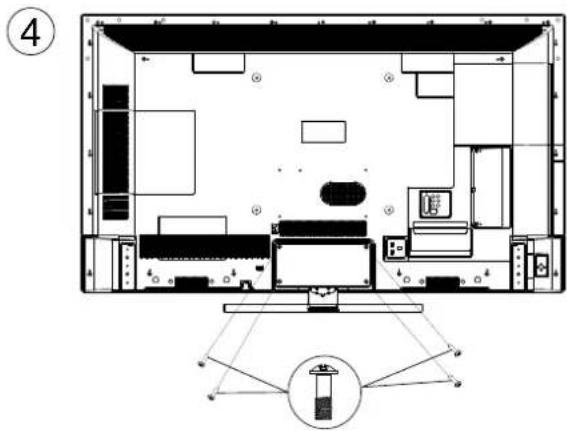

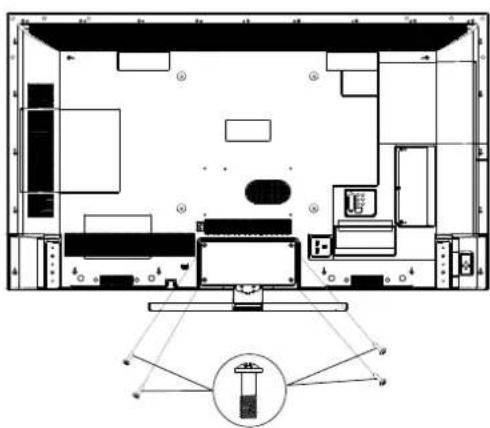

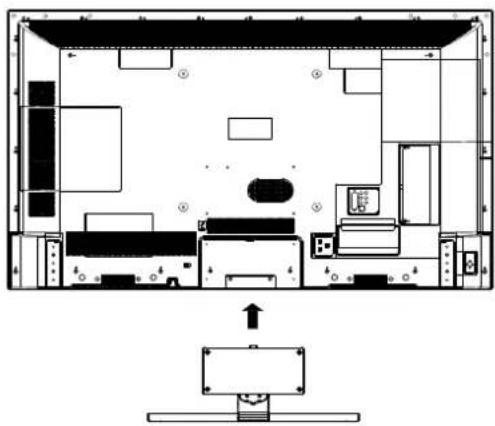

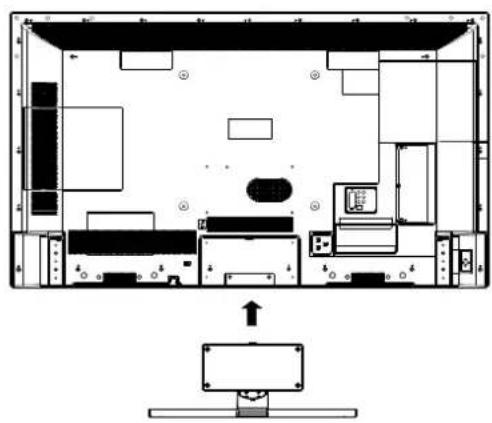

Attach the feet as shown in the illustration. Carry out this step before connecting the Smart TV.

M

1

x4

②

Mechanical assembly diagram showing a lever mechanism with a pin labeled 'x4' (no text or symbols beyond the label)

③

Architectural floor plan of a room with furniture layout and a small inset diagram showing a device (no text or labels)

4

Architectural floor plan of a room with furniture and lighting fixtures (no text or labels)

6.3. Inserting batteries in the remote control

Remove the battery compartment cover on the back of the remote control.
Insert two LR03 (AAA) 1.5 V batteries in the battery compartment of the remote control. Check the battery polarity (see label on the bottom of the battery compartment).
▶ Close the battery compartment.

NOTICE!

Risk of damage!

The remote control can be damaged by leaking batteries if not used for a long period of time!

■ Remove the batteries from the remote control if the device is not going to be used for a long period.

6.4. Connecting the antenna

Your smart TV supports different antenna signals.

You can input the following image signals to the television through the socket labelled ANT.:

• Via analogue cable/an analogue house aerial
• Via a DVB-T2/ DVB-T ^1 antenna or
- Via a DVB-C ^2 connection (digital cable connection)

▶ Insert the antenna cable either from the house aerial/ analogue cable connection, a DVB-T antenna or the DVB-C connection in the antenna socket on the Smart TV.

You also have the option of connecting a digital satellite system to the socket labelled LNB.

- Screw a coaxial antenna cable's F connector onto the connector on the Smart TV.

6.5. Connecting the power supply

• Connect the supplied power cord to the mains connection socket of the device.
  Connect the mains plug on the device to an easily accessible 220 to 240 V \~ 50 Hz mains socket.

6.6. Switching the smart TV on and off

The device will be in standby mode as soon as you have connected the mains plug to the mains socket.

To switch on the device, press - on the remote control: the Standby/On button ^ⓧ , one of the number buttons or one of the P ▼/▲ buttons; - on the device: the multifunction button ^ⓧ .

▶ Use the Standby/On button on the remote control to switch the device back into standby mode. Although the device has been switched off, it will continue to consume electricity.

i

If the device is not receiving an input signal, it will automatically switch to standby mode after five minutes. A countdown timer will appear on the screen until this time. This function is not available for all sources.

6.7. Switching on the device for the first time

IMPORTANT! The device must be connected to an Amazon account so that all functions are available to you.

Your device will be in installation mode when you switch it on for the first time. Use the ▲▼◀▶ buttons to select the desired option and confirm with OK. Press the ⬇ button to go back one step.

Menu option	Setting
CHOOSE YOUR LANGUAGE	Select the desired language. Then confirm with the OK button. Then select the CONTI-NUE option to continue with installation. The STORE USE option is only recommended for in-store demonstrations, not for home use.
CHOOSE YOUR LOCATION	Select the required country. Then confirm with the OK button.
ENABLE NET-WORK CONNECTION?	Activate/deactivate the Wake On LAN function (WoL). This enables you to switch on the TV device via a different device. Both devices must be connected to the same network via WLAN for this purpose. The device being used as a remote control must be connected to the TV set once when it is switched on. The control function only works when the TV is in standby mode. Please note that energy consumption increases when the WoL function is activated.
SET UP WITH FIRE TV APP / SET UP WITH REMOTE	Then choose whether you want to set up the WLAN settings and your Amazon account via a mobile device (using a QR code) or via the remote control on the TV. If you select the second option, confirm your selection by pressing the OK button. The search for available WLAN networks then begins.
Menu option Setting
CONNECT TO YOUR NET- WORK	A LAN Internet connection is automatically established as soon as the device is connected via a LAN cable. If no LAN cable is connected, the available WLAN networks are displayed. Select the desired WLAN con- nection using the ◀ ▶ buttons and confirm your selection with the OK button. Then enter the required password to establish the connection.____As soon as a network connec- tion is established, the device automatically checks for up- dates, which may take a few mi- nutes.____
SIGN IN WITH YOUR AMAZON ACCOUNT	You can connect your device to an existing Amazon account or create a new account using this menu.____IMPORTANT! The device must be connected to an Amazon account so that all functions are available to you.____
SIGN IN ON- LINE / SIGN IN WITH QR CODE	Log in to amazon.co.uk/code with a mobile device or com- puter and enter the activation code of the device that appears on the screen. Alternatively, scan the QR code with a mobile device and log in to an Amazon account. The activation code is entered automatically in this case. Then select CONTINUE to continue or CHANGE AC- COUNT to connect another Amazon account.
SAVE WI-FI PASSWORDS TO AMAZON?	Decide whether the passwords entered on this device should be saved on Amazon. Select YES or NO. This setting can be changed at any time afterwards under ⚙ (SETTINGS) > NETWORK > SAVE WI-FI PASSWORDS TO AMA- ZON.
SELECT YOUR COOKIE PRE- FERENCES	You can make cookie settings here. Select ACCEPT or DE- CLINE. Press the ≡ button to access the Amazon privacy statement.

Menu option Setting
RESTORE FIRE TV	If you are already a Fire TV customer, you can transfer all apps and privacy and parental control settings. To do this, press RESTORE and then select the desired device. Otherwise, select SKIP.
CHOOSE A DEVICE	Select the desired Fire TV device to be restored.You may then receive additional Amazon offers.
SELECT THE APPS YOU WANT AND DOWNLOAD THEM IN THE END	Then download your favourite apps that you want to access under GET STARTED. Follow the instructions that appear on the screen. Select NO THANKS if you do not want this.
YOUR TV IS DESIGNED WITH CHILDREN AND PARENTS IN MIND	In this section you can assign a password under ENABLE PARENTAL CONTROLS.Select NO PARENTAL CONTROLS if you do not want this.
WELCOME TO FIRE TV	A series of explanations of the Fire TV functions will then appear on your home page. Select OK to continue.
SCAN FOR TV CHANNELS	If you want to, you can now set up the TV channels. Select YES do to so. If you do not want to do this until later, select NO. You can find a more detailed explanation of how to set up the TV channels in the chapter “Setting up TV reception” on page 14.
WHO'S WATCHING FIRE TV?	Call up the Amazon Fire TV account you want here or create a new profile. Make settings for your account under PROFILE SETTINGS if you wish to do so.
The initial installation is now complete and the home page of your Amazon Fire TV account is called up.

6.8. Setting up TV reception

If you did not set up any TV channels during the initial installation, you can do this later in the following way:

▶ Navigate to the icon on the home page. The settings menus now appear at the bottom of the home page.
▶ Select the INPUTS option and press OK. The input sources are called up. Alternatively, you can also select the input sources using the button or directly using the button.
Now select the source TERRESTRIAL or SATELLITE and press OK.
▶ Select CHANNEL SCAN and press the OK button. You will then be informed that a corresponding cable connection or antenna (DVB-T2 or satellite antenna) must be connected to the device. Select NEXT.

The CHANNEL SCAN menu can also be found on the home page under SETTINGS (⚙️) > LIVE TV.

Channel Type Terrestrial Satellite

Now select the desired reception type SATELLITE, TERRESTRIAL or CABLE and press OK.

6.8.1. Terrestrial

Make sure that you connect a DVB-T2 antenna to the ANT connection.

TERRESTRIAL- AUTO SCAN (RESCAN)

▶ Select this option and press OK. The DVB-T2 channel search then starts immediately.

TERRESTRIAL- MANUAL SCAN

▶ Select this option and press OK.

TERRESTRIAL Terrestrial- Auto Scan (Rescan) Terrestrial- Manual Scan

▶ You can then configure the settings for the channel search. Select the relevant option and press OK to call it up.

• FREQUENCY: Select the frequency to be searched using the virtual number field or the number buttons.
• UHF BAND: Select the corresponding UHF band using the virtual number field or the number buttons.

▶ Then press the II ▶ button to start the search.
▶ Select CANCEL to cancel the process during the search.
▶ Confirm DONE to complete the process.
▶ Select RE-SCAN to start a new channel search.

6.8.2. Satellite

Make sure that your satellite cable is connected to the LNB connection.

First select the satellite operator:

COMPLETE CHANNEL SCAN MANUAL CHANNEL SCAN

In the case of operator selection COMPLETE CHANNEL SCAN and MANUAL CHANNEL SCAN, you must then select the satellite to be searched.

SATELLITE TV PROVIDER Complete Channel Scan Manual Channel Scan

▶ Select the satellite to be searched.

The following settings are then available. Depending on the operator settings, some of these options may not be available:

LNB TYPE

Select the desired LNB frequency for the selected satellite.

LNB POWER

Set the LNB power here.

DISEQC VERSION

Activate/deactivate the DiSEqC mode. In DISEQC 1.0 and DISEQC 1.1 DiSEqC mode, the following setting can be made:

- PORT

Select the desired DiSEqC port 1 - 16.

SINGLE CABLE

Activate/deactivate the single-cable system. When this function is activated, the following additional options appear:

- SINGLE CABLE VERSION

Select the desired single-cable version 1 or 2.

- USER BAND

Select the desired user band 1 - 8.

- BAND FREQUENCY

Use the virtual keyboard to enter the frequency band.

-LNB

Select the desired LNB A or B.

TONEBURST

Select the OFF, A or B setting for this option.

FREQUENCY

Enter the frequency using the virtual number field or the number buttons.

POLARISATION

Select the desired polarisation level VERTIKAL or HORIZONTAL.

SYMBOL RATE

Enter the symbol rate using the virtual number field or the number buttons.

SCAN MODE

Decide which channels you want to search for: FREE (free channels), SCRAMBLED (encrypted channels) or ALL (free and encrypted channels).

▶ Then press the Ⅱ ▶ button to start the search.
▶ Select CANCEL to cancel the process during the search.
▶ Confirm DONE to complete the process.

6.8.3. Channel management in the channel list

From the home page, you can access the channels via the LIVE menu ( ☐ ).

▶ After the channel search, select the MANAGE CHANNELS option to call up the channel list. Then select a channel category with ◀ ▶.

The following editing options are available here for every category:

• HIDE/SHOW CHANNEL: press the ▶ II button to hide the currently selected channel.
  ▶ Press took button to add the currently selected channel to the favourites list.

The channels found are sorted into the following categories:

ALL

All channels found are listed.

FAVOURITES

All favourite stations that you have defined are listed here.

FREE

All freely available channels are listed here.

ENCRYPTED

All encrypted channels are listed here. The following additional option is available to you:

AUDIO

All radio stations are listed here.

SD

All SD channels are listed here.

HIDDEN

All hidden channels are listed here.

- To add a hidden channel back to the channel list, select it and press the OK button.

The TV can be reconfigured at any time. To do this, use the option RESET TO FACTORY DEFAULTS in the menu ⚙ (SETTINGS) > DEVICE & SOFTWARE.

7. Operation

7.1. Channel selection

To select a channel, press either one of the P ▼/▲ buttons or select the programme directly using the number buttons. For a two- or three-figure number, press the number buttons in the corresponding order. You can also use the ▲▼ buttons to select the channels.
By pressing the 📄 button (or the ◀ button) you can call up the EPG as a channel list. Use the ▲ and ▼ buttons to select the desired channel and press OK to call it up.
By pressing the LIST button (or the ▶ button), you can call up the live TV list. The channel lists of different media sources are listed here, which you can select using the ◀ and ▶ buttons. Use the ▲ and ▼ buttons to select the desired channel and press OK to call up.

7.2. Sound sett ings

▶ Use the V-/+ volume buttons on the remote control to increase or decrease the volume.
Press the button to switch the volume fully off and on again.
▶ Press the AUDIO button to call up the audio settings. (optional)

7.3. Screen sett ings

▶ Press the PICTURE button to call up the picture mode menu.

7.4. Settings

Press the button to call up basic setting options. You can find more detailed explanations of these options in the corresponding sub-chapters of the "Home page" chapter on page 18.

7.5. Menus during TV playback

During TV operation, press the LIST button to call up the programme options of the currently selected channel. Use the direction buttons to select from the following options below:

AUDIO & SUBTITLES

Open the menu for the audio and subtitle settings.

- AUDIO LANGUAGES

Select the desired audio language.

- SUBTITLES

Select the desired subtitle language or deactivate the subtitle function.

BROWSE & FILTER

Open the menu for the filter and browse setting.

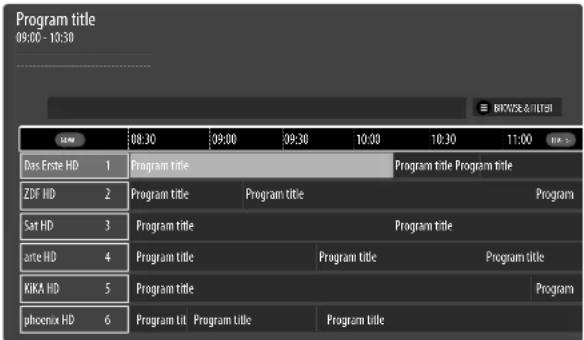

GUIDE

Program title 09:00 - 10:30 BIPW2R & ITUSI 08:30 09:00 09:30 10:00 10:30 11:00 Das Feste HD 1 Program title Program title Program title ZDF HD 2 Program title Program title Program Sat HD 3 Program title Program title arte HD 4 Program title Program title Program title KICA HD 5 Program title Program phoenix HD 6 Program title Program title Program title

You can also call up the programme guide while the TV is in use using the ☐ button. The available channels with the current and upcoming programme content are displayed here. Programme information for the currently selected programme is displayed above the list.

▶ Use the ▲ button to navigate all the way to the top or press the ≡ button to call up filter categories. These appear at the top of the screen.
▶ Use the ◀▶ buttons to select the categories and then press OK to call them up. Only these channels will then be displayed.

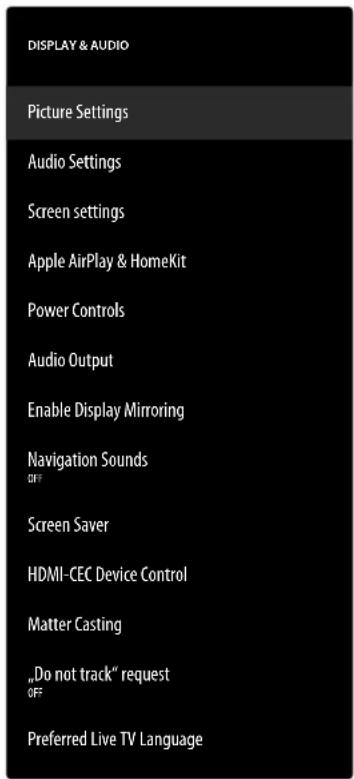

SETTINGS

Open the menu for the display and audio settings. Further information on picture and sound settings can be found in the chapter "Display and audio" on page 20.

SIGNAL

Open the information on signal strength and quality.

FREEVIEWPLAY

Open the FreeviewPlay app.

7.6. Using the multimedia connections

NOTICE!

Risk of damage!

Incorrect operation can cause damage to the devices used.

■ Before wiring and first use, you must also read the user manual of the devices you are connecting. Take care to ensure that all devices are switched off during wiring. 7

NOTICE!

Risk of damage!

If plugs and sockets are connected incorrectly it can cause damage to the contacts.

■ Take care to ensure that the plugs and corresponding sockets fit together precisely in order to avoid any damage to the contacts. Due to the arrangement of the contacts, many plugs will only fit into the socket in one position.

7.6.1. HDMI

HDMI (High Definition Multimedia Interface) is an interface for digital video and audio transmission. It has the best transmission quality. Use a standard HDMI cable:

- Connect the corresponding HDMI ports of the devices used with an HDMI cable.

7.6.2. HDMI ARC (Audio Return Channel)

If you want to use a TV set as a signal receiver AND signal source (to transmit an audio signal to an audio receiver), you must use the HDMI2 port with audio return channel (ARC). The HDMI connection to the TV then works in both directions. It can receive image and sound signals from a video device and the audio signal of the TV set can also be sent to the audio receiver via the audio return channel.

Connect the video device (e.g. Blu-ray player) to the audio receiver via HDMI.
Connect the audio receiver to the TV set via HDMI/ARC.
▶ Take care to ensure that the speaker control of the TV set is routed to the external amplifier.

7.6.3. HDMI CEC (Consumer Electronics Control)

CEC is the abbreviation for Consumer Electronics Control. If you connect different devices via CEC-enabled HDMI connections, you can control certain functions of the entire HDMI network with a single remote control (e.g. standby or record functions):

Connect all devices via CEC-enabled HDMI ports with HDMI cables. The HDMI ports on your TV set are all CEC-enabled.
▶ Take care to ensure that the CEC functions are enabled for all ports and that all devices are connected accordingly.

7.6.4. USB

A USB port can be used to connect and read storage media such as USB sticks or external hard drives. Use a suitable USB cable. If a suitable USB cable is supplied, you should use this (e.g. for hard drives). Always verify the power consumption of the USB storage medium used and use the corresponding USB connections.

Connect the corresponding USB ports of the devices used with a suitable USB cable. Whenever possible, do not use a USB extension cord as this can cause problems, depending on the voltage.

7.6.5. SPDIF

SPDIF (Sony/Phillips Digital Interface) is an interface for transmitting digital stereo or multi-channel audio signals between different devices. Usually, the digital audio signal is output via a coaxial (cinch) or an optical connection.

Connect the corresponding SPDIF ports of the devices used with a corresponding SPDIF cable.

7.6.6. LAN

You can connect the TV set to the Internet via the LAN connection and receive online content (e.g. streaming services) via your device.

Connect the LAN connection of the TV set to your network or router using a network cable (Ethernet cable).
▶ Make all the necessary network settings on the devices.

7.6.7. Headphone output (Headphones Out)

The headphone socket is used for connecting a pair of headphones with a stereo mini jack connection.

• Connect the headphones to the stereo mini jack of the device.
  ▶ You can set the volume of the headphone signal in the sound menu. If necessary, mute the speaker of the TV.

WARNING!

Risk of hearing damage!

To prevent possible damage to your hearing, avoid listening at high volume over long periods of time.

■ Before pressing play, set the volume to the lowest setting.
■ Start playback and increase the volume to a comfortable level.

8. Home page

To enjoy the benefits of your Fire TV, your TV must be connected to the Internet. Connect the TV to a home network via an Internet connection. You can connect your TV via WLAN or LAN. Further information on the Internet connection can be found in the chapter "Switching on the device for the first time" on page 12 or in the menu description NETWORK.

IMPORTANT! The device must be connected to an Amazon account so that all functions are available to you.

The home page of your Fire TV is your TV's hub and is called up as soon as you switch on the device.

▶ To call up the home page when the TV is in use, press the button on the remote control.

You can start applications, switch to TV mode, watch films or switch to connected devices using the home page.

Depending on your TV setup and your country selection in the initial setup, the home page may contain different items.

Use the direction buttons ◀ ▶ ▲ ▼ on the remote control to navigate through the options on the home screen. All installed applications are available here.

▶ To start an app, select it using the directional buttons ◀ ▶ ▲ ▼ and press OK.

The following options are listed in the centre of a line together with your apps.

8.1. Profi les

This option gives you an overview of your Amazon profiles. Existing profiles can be called up here and new profiles can be created. Select the pencil shown below the profiles and press OK to call up the EDIT PROFILE menu. The name and profile symbol can be edited here. Below the view, you will find the PROFILE SETTINGS option. Press OK to call up this menu.

8.2. Inputs

▶ Select the desired input source here. You can also call up this menu using the button.

TERRESTRIAL	TV mode (the DVB-T2 antenna signal is played back)
SATELLITE	TV mode (the satellite signal is played back)
HDMI1	HDMI input 1 (can be used for ARC)
HDMI2	HDMI input 2
HDMI3	HDMI input 3

MEDIA PLAYER Calls up the media player

▶ Use the direction buttons ▶ to select the desired source and confirm your selection with the OK button.

If the CEC function is enabled, the HDMI source could be renamed from the external player if necessary. The remote control of the TV set controls the connected devices.

8.3. My stuff

This option takes you directly to your watchlist and the overview of your purchased and rented content.

8.4. Find

You can either enter a search term using a virtual keyboard or start a search by voice.

To start a search by voice, press the microphone button and say your desired search term.

You are also offered filter functions and categories for your search.

8.5. Home

Use this option to return to the home page.

8.6. Live

With this option, the live TV content which is available for you to choose from appears below.

8.7. Settings

As soon as you select the option, the following setting options appear below:

8.7.1. Inputs

This also takes you to the INPUTS menu for the signal source selection.

8.7.2. Notifi cations

All notifications are displayed here. Open them with OK and follow the further instructions if required. Use the button to return step by step.

8.7.3. Profi les

This also takes you to the PROFILES menu where you can call up and edit existing profiles or create new ones.

8.7.4. Account and profi le sett ings

IMPORTANT! The device must be connected to an Amazon account so that all functions are available to you.

ACCOUNT & PROFILE SETTINGS Amazon Account Sync Amazon Content Prime Video Child Settings Parental Controls Profiles Profile Sharing

The following options are available here:

AMAZON ACCOUNT

You can log out of the current account here and new accounts can be created.

SYNC AMAZON CONTENT

You can synchronise purchased Amazon content using this option.

PRIME VIDEO

Use this option to manage channel purchases and borrowed/purchased titles.

CHILD SETTINGS

You can manage child profile settings here. Assign a password, set time limits for use and manage the content.

PARENTAL CONTROLS

You can use this option to restrict access to videos, purchases and content types. Assign a four-digit PIN for this.

PROFILES

This will take you back to the Amazon profile overview.

PROFILE SHARING

You can call up the Amazon profiles of other adult members of a household here. Settings for this must be made via the page www.amazon.co.uk/manage-your-profiles.

8.7.5. Network

NETWORK Name Connected See All Networks Join Network Using WPS (Button) Join Network Using WPS (PIN) Join Other Network Configure Network Save Wi-Fi Passwords to Amazon OFF Turn on with LAN and Wi-Fi OFF Enable Network OFF Basic Wi-Fi Troubleshooting Tipps

All available WLAN networks are displayed at the top in this menu. Select the desired network and press OK to connect to it. Then enter the corresponding WLAN password using the virtual keyboard. The following options are available here:

SEE ALL NETWORKS

Here you can display a complete list of available networks and start a new search.

JOIN NETWORK USING WPS (BUTTON)

Press the WPS button on your router and select this option to establish a network connection via WPS.

JOIN NETWORK USING WPS (PIN)

Select this option and then enter the WPS PIN displayed in your router to establish a network connection. Setup can take up to two minutes.

JOIN OTHER NETWORK

To add further networks, enter the corresponding SSID, security type and password here.

CONFIGURE NETWORK

Use this option to set up a LAN network connection.

Make sure to connect your router to the network connection of the TV set using a LAN cable.

In LAN mode, the LAN Internet connection is established automatically. Under IP SETTINGS, you can select the DHCP or MANUAL setting. If you have selected MANUELL, you can enter the data for IP ADDRESS, NETMASK, GATEWAY, DNS SERVER 1 and DNS SERVER 2 manually using the direction buttons ◀ ▶ ▲ ▼ and the number buttons. You can also pressOK and then enter the values using a virtual keyboard.

SAVE WI-FI PASSWORDS TO AMAZON

Decide whether you want your WLAN passwords to be saved on Amazon to make it easier for other devices to connect. Select AUS to deactivate this function.

TURN ON WITH LAN AND WI-FI

Activate/deactivate Wake On WLAN (WoW) and Wake On LAN (WoL). This enables you to switch on the TV device via a different device. Both devices must be connected to the same network for this purpose. The device being used as a remote control must be connected to the TV set once when it is switched on. The control function only works when the TV is in standby mode.

ENABLE NETWORK

Activate/deactivate the existing network connection.

BASIC WI-FI TROUBLESHOOTING TIPPS

If you have any problems with the WLAN connection, you can find useful tips for solving the problem here.

8.7.6. Display and audio

DISPLAY & AUDIO Picture Settings Audio Settings Screen settings Apple AirPlay & HomeKit Power Controls Audio Output Enable Display Mirroring Navigation Sounds OFF Screen Saver HDMI-CEC Device Control Matter Casting „Do not track" request OFF Preferred Live TV Language

Use this option to make screen and sound settings.

PICTURE SETTINGS

First select the relevant input which you want to make settings for. The following options are then available to you:

- PICTURE MODE

Select picture mode: STANDARD, VIVID, SPORT, FILM, GAME (HDMI)

- AUTO BACKLIGHT

Select a value for the backlighting: OFF, LOW, MEDIUM, HIGH.

- BRIGHTNESS

Increase or reduce brightness (on a scale of 0 to 100)

-CONTRAST

Increase or reduce contrast (on a scale of 0 to 100)

- COLOUR

Increase or reduce colour saturation (on a scale of 0 to 100)

- SHARPNESS

Increase or reduce sharpness (on a scale of 0 to 100)

- COLOUR TEMPERATURE

Select colour tone: USER, COOL, STANDARD, WARM. You can also individually adjust the red, green and blue tones.

- PICTURE FORMAT

Set the picture format here: AUTOMATIC, SUPERZOOM, 4:3, FILM EXPAND 14:9, FILM EXPAND 16:9, WIDE SCREEN, FULL

- ADVANCED SETTINGS

HUE	You can set the individual gamuts individually here (scale 0 – 100).
GAMMA(not available for HDR playback)	Select the gamma setting: MIDDLE, BRIGHT (STANDARD), DARK (FILM)
MOTION PROCESSING	Activate/deactivate motion processing to achieve a more dynamic and smoother image display.
DE-CON-TOUR	At low resolutions, a clear graduation may be visible between the different brightness zones within large zones. This function smooths these contour effects, so that there is no perceptible distinction between the zones. Choose between OFF, LOW, MIDDLE and HIGH.
GAMUT-MAPPING	Activate/deactivate gamut mapping (ON/OFF).Some signal sources use a different gamut than the playback device, which can lead to a different colour reproduction. By activating the gamut mapping function, these discrepancies are compensated for so that the picture is reproduced true to the original despite different gamuts.
COLOUR TUNER	Use this function to fine tune the colour.
11-POINT WHITE BALANCE COR-RECTION	This function calibrates the TV's colour temperature in detailed greyscale. This improves the greyscale uniformity. This function must be activated so that changes to the GAIN, RED, GREEN and BLUE options can be made.

DYNAMICNOISE REDUCTION	The dynamic noise reduction function reduces picture noise and improves picture quality when the analogue signal is weak. Choose between OFF, LOW, MEDIUM, STRONG and AUTO.
MPEG NOISEREDUCTION	MPEG noise reduction removes image noise in MPEG-compressed video data for enhanced picture quality.Choose between OFF, LOW, MEDIUM and STRONG.
ADAPTIVELUMA CON-TROL	This function adjusts the contrast settings to provide deeper black and brighter white perception. Choose between OFF, LOW, MEDIUM and STRONG.
LOCAL CONTRAST CON-TROL	This function divides the screen into smaller zones. The contrast settings for individual screen zones can then be optimised differently according to the content. This adds more depth to dark and bright zones, without losing the details and compromising other parts of the image. Choose between OFF, LOW, MEDIUM and HIGH.
DI FILMMODE	This function smooths the juddering effect that occurs with 24 fps image reproduction. This function converts the content to 60/120 fps, enabling significantly more fluid image reproduction. Choose between OFF and AUTO.
BLUE STRETCH	Cooler white tones are commonly perceived as bright white. The blue stretch function adjusts the white balance and allows mid and high grayscales to appear in a cooler colour temperature through the addition of blue tones. Select ON to activate the blue stretch function.
PC MODE	In PC mode, some of the picture processing algorithms are reduced to keep the signal type as it is. It can be used especially for RGB input sources.
HDMI RGB RANGE (HDMI)	Select the desired RGB range setting for the HDMI inputs here: AUTO, FULL, LIMIT
HDMI INPUT MODE (HDMI)	Select the desired input mode for the HDMI inputs: STANDARD, ENHANCED, AUTO, RESET

DOLBY VISION NOTIFICATION

If the option is activated, the Dolby Vision logo is displayed briefly, as soon as you view contents with Dolby Vision. If this option is deactivated, the Dolby Vision logo is not displayed.

RESET TO DEFAULT

Reset all screen settings to the factory settings with OK.

AUDIO SETTINGS

The following options are available here:

- SOUND MODE

Select the desired mode here: STANDARD, FILM, MUSIC, CLEAR VOICE.

- AUDIO PROCESSING

Select the desired audio processing AUTO, DOLBY DAP (on/off) or DTS VIRTUAL:X (on/off).

Dolby DAP and DTS Virtual:X cannot be activated at the same time..

- BASS

Increase or decrease the low frequencies

- TREBLE

Increase or decrease the high frequencies

-BALANCE

Set the balance between the left and right speakers (on a scale of -50 to +50). This option is only available when the TV speakers are activated.

- ADVANCED SETTINGS

DIALOGUE CLARITY(only with the Dolby mode setting OFF)	Activate/deactivate the dialogue enhancement. This function emphasises the clarity of the dialogue signal to achieve better speech quality.
VOLUME LEVELER	Select a setting for dynamic volume adjustment:OFF, LOW, MID, HIGH
SPEAKER VIRTUALIZER	Select the desired setting for audio signal processing:OFF, SURROUND VIRTUALIZER, DOLBY ATMOS
EQUALISER(only with the Dolby mode setting OFF)	You can carry out individual sound control (raising/lowering) on five frequency bands:100 HZ, 500 HZ, 1500 HZ, 5000 HZ, 10000 HZ

- RESET

Reset all sound settings to the factory settings with OK.

SCREEN SETTINGS

You can also configure image settings for individual input sources here.

APPLE AIRPLAY & HOMEKIT

Forwarding to the Apple AirPlay and HomeKit settings for setting up Apple devices. The TV set and the corresponding Apple device must be connected to the same WLAN network.

POWER CONTROLS

Make settings for the switch-on behaviour of the device here.

- POWER ON

Specify whether the home page should be called up when the device is switched on (HOME) or whether the last status should be restored (LAST INPUT).

- VOICE COMMANDS WHEN TV SCREEN IS OFF

When the function is activated, you can issue voice commands via a connected Alexa-enabled or Apple HomeKit device, even when the TV screen is switched off. This allows you to switch on the device, access content, start playback and much more.

Please note that this setting may increase energy consumption.

AUDIO OUTPUT

Make settings for the audio signal output here.

- TV SPEAKERS

Activate/deactivate the TV speakers here.

- AUDIO OUTPUT SOCKET

Select the audio signal for the headphone connection. The VARIABLE setting enables volume regulation for the signal. The FIXED setting means that the signal has a predefined volume that cannot be changed. If this setting is selected, an external amplifier can be connected to the device..

- ARC MODE

Select the desired Audio Return Channel mode ARC or EARC here for sound transmission. Select AUTO if the setting is to be made automatically.

- DIGITAL AUDIO FORMAT

Select the desired audio format PCM, DOL-BY DIGITAL or PASS-THROUGH here for sound transmission. Select AUTO if the setting is to be made automatically.

- BLUETOOTH AUDIO SYNC

Synchronise your Bluetooth audio devices with the TV.

ENABLE DISPLAY MIRRORING

This function allows you to show the display of mobile devices such as smartphones, notebooks, etc. on the TV screen.

Please note that this option may increase energy consumption.

NAVIGATION SOUNDS

Activate/deactivate navigation sounds here so that they are audible or muted when operating the device.

SCREEN SAVER

You can use this option to change your screensaver settings.

- CURRENT SCREENSAVER

Select the desired images for the screen saver: AMAZON COLLECTION, DAILY MEMORIES

- SLIDE STYLE

Select the type of image transition DISSOLVE or PAN & ZOOM.

- SLIDE SPEED

Select the screen change speed SLOW, ME-DIUM or FAST.

- START TIME

Select the screensaver start time 5 MINUTES, 10 MINUTES, 15 MINUTES or NEVER.

- DATE AND CLOCK

Activate/deactivate the display of date and time here.

- DISPLAY INFO

Activate/deactivate the function for displaying subtitles here.

- SHUFFLE

Activate/deactivate random selection for the displayed images here.

When the screensaver is activated, press the Button to go directly to the screensaver settings.

HDMI-CEC DEVICE CONTROL

If you want to use the HDMI CEC function to control other CEC-capable devices with your TV set's remote control, you can make the relevant settings here.

-ONE-TOUCH PLAY

This option allows you to control the TV set via other media players. When the external devices are operated, the TV set is automatically switched on and switches to the corresponding input source. To do this, select the setting ALLOW. With the ALWAYS ASK option, you always have the option of rejecting remote control by other devices. The function is deactivated in the DENY setting.

- ARC/EARC

Activate/deactivate the Audio Return Channel function.

- POWER CONTROL

Activate/deactivate the HDMI CEC function.

- REMOTE CONTROL PASS-THROUGH

The TV set remote control is usually used for CEC control. This option must be activated (ON). If you do not want this, deactivate this option (OFF).

MATTER CASTING

Activate/deactivate the Matter Castin function to simplify the transfer of content from a smartphone. You can also activate device verification.

PREFERRED LIVE TV LANGUAGE

Choose the language for Live TV audio and subtitles.

- PRIMARY AUDIO LANGUAGE

Select the preferred audio language.

- SECONDARY AUDIO LANGUAGE

Select the secondary preferred audio language. If available, it will be automatically selected for programmes that do not have an audio track in your preferred language.

- PRIMARY SUBTITLE LANGUAGE

Select the preferred subtitle language.

- SECONDARY SUBTITLE LANGUAGE

Select the secondary preferred subtitle language. If available, it will be automatically selected for programmes that do not have subtitles in your preferred language.

SUBTITLES

Activate/deactivate the the subtitles

SPOKEN SUBTITLES

Activate/deactivate the automatic playback of spoken subtitles.

AUDIO DESCRIPTION

Using this function, you can activate an additional audio track. This audio track contains a description of the images and events. Choose from the following setting: OFF, LOW VOLUME, MEDIUM VOLUME, HIGH VOLUME.

HYBRID TV (HBBTV)

Activate/deactivate the HbbTV function for TV and radio channels.

„DO NOT TRACK“ REQUEST

Activate/deactivate the HbbTV/Internet tracking option.

LOW SIGNAL STRENGTH ALERT

Activate/deactivate the Low Signal Strength Alert-function.

PREFERRED LIVE TV LANGUAGE

Configure language settings for live TV operation here.

Select the language for the following options:

• PRIMARY AUDIO LANGUAGE
• SECONDARY AUDIO LANGUAGE
• PRIMARY SUBTITLE LANGUAGE
• SECONDARY SUBTITLE LANGUAGE

8.7.7. Applications

APPLICATIONS Silk Browser Appstore Automatic Offload ON Manage Installed Applications

Make settings for your apps using this option.

SILK BROWSER (optional)

If you want to use the Silk browser, you can make all the necessary settings here.

APPSTORE

The following settings can be made here.

- AUTOMATIC UPDATES

Activate/deactivate automatic app updating.

- EXTERNAL MARKET LINKS

Decide here whether the links to external markets can be opened with the Appstore (ASK BEFORE OPENING) or not (DON'T OPEN).

- IN-APP PURCHASES

Activate/deactivate the in-app purchases option.

- MANAGE MY SUBSCRIPTIONS

Manage your app subscriptions here.

- NOTIFICATIONS

Activate/deactivate Appstore-related notifications.

AUTOMATIC OFFLOAD

Activate/deactivate this function to automatically uninstall unused apps when the storage space on the device is running low. The app data is saved so that you can easily reinstall the app later.

MANAGE INSTALLED APPLICATIONS

The following options are available for managing your apps.

-SHOW

Select which apps should be displayed on the home page: ALL APPLICATIONS, INTERNAL ONLY, USB ONLY

- SORT

Select a sorting option to arrange your apps: ALPHABETICALLY, APP SIZE, RE-CENCY

8.7.8. Equipment control

EQUIPMENT CONTROL Add Equipment

You can add audio devices to the CEC network here.

ADD EQUIPMENT

Select the type of device.

- SOUNDBAR

Select this option and then the device manufacturer. Then press NEXT to establish the connection.

- RECEIVER

Select this option and then the device manufacturer. Then press NEXT to establish the connection.

If necessary, press the ≡ button to access the advanced settings during the connection process. You can establish the connection using the IR profile number here. Enter the IR profile number using the virtual number field or select one of the predefined IR profiles.

8.7.9. Live TV

LIVE TV Channel Scan Automatic Service Updates OFF Favourite Channels 10 Channels Manage Channels 204 Channels Parental Control Sync Sources HbbTV OK „Do not track" request OFF

The following options are available in this menu:

CHANNEL SCAN

You can start a channel search here as described in chapter "Setting up TV reception" on p. 14.

AUTOMATIC SERVICE UPDATES

Activate this function if you want the device to check for network operator updates in standby mode.

FAVOURITE CHANNELS

You can call up and manage the list of your favourite channels here.

MANAGE CHANNELS

Manage the channel lists of the TV and streaming channels here as described in the chapter "Channel management in the channel list" on p. 15.

PARENTAL CONTROL

Define a 4-digit PIN using the number buttons or the direction buttons/button ≡ to restrict access to apps, purchases and certain types of content.

When assigning a PIN, your device should be connected to an Amazon account. If you forget your password, you can only update your PIN using this account.

SYNC SOURCES

This option allows you to update and manage your media sources.

HBBTV

Activate/deactivate the HbbTV function.

„DO NOT TRACK“ REQUEST

Activate/deactivate the HbbTV/Internet tracking option.

If this function is activated, not all HbbTV content may be available to you.

8.7.10. Remotes and Bluetooth devices

REMOTES & BLUETOOTH DEVICES Voice Remotes with Alexa Game Controller Hearing aids Other Bluetooth Devices

You can search for remote controls and Bluetooth devices and pair them with the TV set in this menu. Existing connections can be disconnected accordingly.

VOICE REMOTES WITH ALEXA

All connected Alexa voice remote controls are listed under this option. Information about the device is displayed on the right-hand side. Press the ≡ button and then OK to unpair the selected remote control.

- ADD NEW REMOTE

Searching for new remote controls nearby starts if you select this option. Then press and hold the ⏻ button for approx. 10 – 30 seconds. The new remote control will then appear in the list. Now select it and press OK to establish the connection.

GAME CONTROLLERS

All connected game controllers are listed under this option. Information about the device is displayed on the right-hand side. Press the ≡ button and then OK to unpair the selected controller.

Searching for new game controllers nearby starts if you select this option. Set the corresponding controller to Bluetooth pairing mode. The new controller is then included in the list. Now select it and press OK to establish the connection.

HEARING AIDS

You can use this option to establish a Bluetooth connection with hearing aids.

OTHER BLUETOOTH DEVICES

All connected Bluetooth devices such as soundbars, headphones etc. are listed under this option. Information about the device is displayed on the right-hand side. Press the ≡ button and then OK to unpair the selected device.

- ADD BLUETOOTH DEVICES

Searching for new Bluetooth devices nearby starts if you select this option. Set the corresponding device to Bluetooth pairing mode. The new device will then be included in the list. Now select it and press OK to establish the connection.

8.7.11. Alexa

Use this option to call up information about the Alexa app.

8.7.12. Preferences

PREFERENCES Parental Controls Privacy Settings Data Usage Monitoring Notification Settings Featured Content Auto Turn Off ON Location 12345 Time Zone Sync Date and Time ON Language Metric Units ON

The following user settings can be configured in this menu:

PARENTAL CONTROLS

Define a 4-digit PIN using the number buttons or the direction buttons/button ≡ to restrict access to apps, purchases and certain types of content.

When assigning a PIN, your device should be connected to an Amazon account. If you forget your password, you can only update your PIN using this account.

PRIVACY SETTINGS

Manage your privacy settings in this menu.

- COOKIE CONSENT

Activate/deactivate the use of cookies to improve the advertising shown.

- DEVICE USAGE DATA

Activate/deactivate the use of collected personal device usage data for marketing purposes and product improvements.

- COLLECT APP AND BROADCAST USAGE DATA

Activate/deactivate permission for Amazon to collect information about your use of radio and TV content and third-party apps.

- AMAZON PHOTOS

Make settings for Amazon Photos.

ACCESS AMAZON PHOTOS

Deactivate this option if you no longer want photos to be displayed via your Amazon Photos account.

- INTEREST-BASED ADS

Activate/deactivate permission for installed apps to display personalised advertising.

- YOUR ADVERTISING ID

Display of your advertising ID, which is used by the apps for advertising purposes. Press the ≡ button to reset it and automatically create a new one.

DATA USAGE MONITORING

You can monitor the data consumption of your device here.

- DATA USAGE MONITORING

Activate/deactivate the monitoring option.

- SET VIDEO QUALITY

Select a setting for the video quality of Prime Video content: GOOD, BETTER, BEST

NOTIFICATION SETTINGS

Manage your notifications here.

- DO NOT INTERRUPT

Activate this function to hide all app notifications globally.

- APP NOTIFICATIONS

Activate/deactivate notifications from selected apps.

FEATURED CONTENT

Make settings for the recommended content on the home page.

- ALLOW VIDEO AUTOPLAY

Activate/deactivate automatic video playback. When deactivated, only still images are displayed.

- ALLOW AUDIO AUTOPLAY

Activate/deactivate automatic audio playback. When deactivated, the video is displayed without sound.

AUTO TURN OFF

Activate this function if you want the device to switch off automatically after four hours of inactivity.

LOCATION

To customise the weather display, you can enter your location here using the postcode.

TIME ZONE

Configure time settings here.

-24-HOUR TIME

Activate/deactivate the 24-hour display.

- TIME ZONE

Select the desired time zone.

SYNC DATE AND TIME

Activate/deactivate automatic synchronisation of date and time via the Internet time server.

When deactivated, the device synchronises with the transmission signal time. This can lead to problems with the network connection and playback. If the function is reactivated, the device must be restarted.

LANGUAGE

Select the desired language for the menus and voice control.

METRIC UNITS

Activate this function if you want the temperature and distance to be displayed in metric units.

8.7.13. Sleep timer

You can set the time interval for the auto shutdown function here. If the device is not operated within this period, it switches to standby mode.

8.7.14. Device and software

DEVICE & SOFTWARE About Legal & Compliance Sleep Restart Reset to Factory Defaults

This menu contains the following options:

ABOUT

You can call up and manage information about the device, storage space and network connections here. You can also view the software version and check for updates if necessary.

LEGAL & COMPLIANCE

Legal information, terms of use and privacy provisions can be found in this menu. In addition, frequently asked questions about Fire TV and Alexa, comprehensive information on privacy in connection with Alexa and Echo devices and tips on searching for Fire TV content are provided here.

SLEEP

Select this option and press OK to put the device into sleep mode. Press the button again to reactivate the device.

RESTART

Select this option and press OK to restart the device. All settings remain unchanged.

RESET TO FACTORY DEFAULTS

Select this option and press OK to reset the device to the factory settings.

All personal data and downloaded content will be removed from the device.

8.7.15. Accessibility

ACCESSIBILITY Hearing aids Subtitle Alexa Subtitles VoiceView Text Banner Screen Magnifier OFF High-Contrast Text (Experimental) OFF Audio Description Spoken Subtitles for Broadcast Channels OFF Feedback & Support Settings for subtitles by LIVE TV channels

Make accessibility settings in this menu.

HEARING AIDS

You can use this option to establish a Bluetooth connection with hearing aids.

SUBTITLE

Activate/deactivate the subtitle function. If available, the subtitles of the current video are displayed when the subtitle function is switched on.

ALEXA SUBTITLES

Activate/deactivate the subtitle function for voice control. When the function is activated, the spoken Alexa answers are also displayed as subtitles.

VOICEVIEW

The VoiceView function provides spoken feedback when operating the device.

- VOICEVIEW

Activate/deactivate the VoiceView function.

- FEEDBACK & SUPPORT

If you have any suggestions for improving accessibility, you can find the relevant e-mail contact address here.

TEXT BANNER

The text banner function shows the text associated with an element in a field. The font size, colour, etc. can be changed here.

- TEXT BANNER

Activate/deactivate the text banner function.

- FEEDBACK & SUPPORT

If you have any suggestions for improving accessibility, you can find the relevant e-mail contact address here.

SCREEN MAGNIFIER

Activate/deactivate the screen magnification function. When magnifying, you can control the image magnifier with button combinations:

Button combination	Function
+	Activate/deactivate magnifier
+	Activate/deactivate zoom
+	Magnify
+	Minimise
+	Pan upwards
+	Pan downwards
+	Pan to the left
+	Pan to the right

HIGH-CONTRAST TEXT (EXPERIMENTAL)

Activate this function if you want the displayed text to be clearer with an additional border.

AUDIO DESCRIPTION

Using this function, you can activate an additional audio track for TV channels and Prime Video. This audio track contains a description of the images and events.

-OVER-THE-AIR CHANNELS

Activate/deactivate audio description for TV channels of the relevant reception type.

- PRIME VIDEO

Activate/deactivate audio description for Prime Video.

SPOKEN SUBTITLES FOR BROADCAST CHANNELS

Activate/deactivate spoken subtitles for broadcast channels.

FEEDBACK & SUPPORT

If you have any suggestions for improving accessibility, you can find the relevant e-mail contact address here.

SETTINGS FOR SUBTITLES BY LIVE TV CHANNELS

Configure subtitle settings for TV live operation here.

8.7.16. Help

When you call up the help option, the device status is determined and you will find a list of help topics to help you solve any problems. You can also post questions in the community and contact us by phone.

9. Media player

If you connect a USB storage device to the TV, you can play back the photos, music or videos stored on it. In the INPUTS menu, select the MEDIA PLAYER source and press OK to browse the connected USB devices or media servers and play or display content.

Before starting, you have to allow the gallery to access your media.

Information about using USB

▶ Certain types of USB devices (MP3 player) may not be compatible with this Smart TV.
▶ Connect the USB device directly.
▶ Do not use a separate cable, because this may cause compatibility problems.
▶ Never remove the USB device while a file is being played.

NOTICE!

Risk of damage!

Connecting and disconnecting USB devices quickly and repeatedly is dangerous and can physically damage the USB device and the Smart TV itself.

■ Do not insert and then remove the USB device repeatedly in quick succession.

All folders and playable data are shown in the media player. Use the direction buttons ◀ ▶ ▲ ▼ to navigate in the media player. Media files can be opened using the OK button.

9.1. Main menu for the media player

The media player's main menu appears as soon as you have accessed the media player as described above.

▶ First select the source from which you want to play the file (e.g. USB stick or hard drive).
The following selection options are available:
- YOUR FILES – for playing all media file formats.
- VIDEOS – for playing video files.
- IMAGES – for playing photo files.
- AUDIO – for playing audio files.

▶ Use ◀ ▶ to select the relevant menu. The folders which the files are located in are displayed in the line below. Select VIEW ALL to display all relevant files or the relevant folder to call up only selected files. All relevant files are listed below.

▶ Then select the desired file. The following button functions are available here:

◀ ▶ ▲ ▼	Navigate through the media files.
OK	Start the files
⇐	One step back in the menu navigation

9.1.1. Videos

Selecting VIDEOS displays the available video files.

▶ If there are several folders on the data carrier, use
◀ ▶ to select the folder first. The relevant files are listed below.
▶ Press the button to call up the following option:

- SORT: Select the desired file sorting:

• BY MOST RECENTLY ADDED: The latest, most recently added files are displayed first.
  – BY NAME: The files are listed in alphabetical order.
• BY SIZE: The files are sorted by size (descending).
  ▶ Select the desired file using the direction buttons and press OK. Playback then starts.

The following media button functions can be used during playback:

▶ II	Start/pause playback of the selected video.
◀◀	Short press: Go back in 5-second incrementsLong press: Rewind
▶▶	Short press: Go forward in 15-second incrementsLong press: Fast-forward

If you press the Button during playback, the following options appear:

START FROM BEGINNING	The first video in the list is called up
PLAY NEXT VIDEO	The next video in the list is called up
REPEAT THIS VIDEO / STOP REPEATING THIS VIDEO	Activate/deactivate the loop function for the currently selected video. If this function is activated, the video starts again from the beginning when it is finished.
REPEAT ALL VIDEOS / STOP REPEATING ALL VIDEOS	Activate/deactivate the loop function for all videos. If this function is activated, the first available video in the list starts after the last video has finished.

9.1.2. Images

If you select IMAGES, the available image files are displayed.

▶ If there are several folders on the data carrier, use
◀ ▶ to select the folder first. The relevant files are listed below.
▶ Press the button to call up the following option:

- MULTI-SELECT IMAGES: Select this option if you want to create a slideshow. Select the desired images and tick them by pressing the OK button. Then press the ▶ II button to start and stop the slideshow.

▶ Press the button to call up the following option:

- SORT: Select the desired file sorting:

– BY MOST RECENTLY ADDED: The latest, most recently added files are displayed first.
– BY NAME: The files are listed in alphabetical order.
- BY SIZE: The files are sorted by size (descending).

▶ Select the desired file using the direction buttons and press OK. The image is then displayed. If you have created a slideshow, press the ▶ II button to start and stop it.

The following media button functions can be used during playback:

II ▶	Start/pause playback of the slideshow.
◀	Show previous photo
▶	Show next photo

If you press the button during playback, the following options appear:

Single-frame playback

SHOW INFO / HIDE INFO	The date, time and name of the currently displayed image are shown or hidden.
Diashow
ALBUM	If you have created different folders with images on your data carrier, you can select them here. All images in the selected folder will then be used for the slideshow. If you select VIEW ALL, all available images on the data carrier will be used.
SLIDE STYLE	Select a style for the image transition: DISSOLVE, PAN & ZOOM
SLIDE SPEED	Select the image change speed: SLOW, MEDIUM, FAST
SHUFFLE	Activate/deactivate random play-back.

9.1.3. Audio

If you select AUDIO, the available audio files are displayed.

▶ If there are several folders on the data carrier, use
◀ ▶ to select the folder first. The relevant files are listed below.
▶ Press the button to call up the following option:

- SORT: Select the desired file sorting:

- BY MOST RECENTLY ADDED: The latest, most recently added files are displayed first.

• BY ARTIST: The files are listed alphabetically by artist.
  – BY ALBUM: The files are listed alphabetically by album.
  ▶ Select the desired file using the direction buttons and press OK. Playback then starts.

The following media button functions can be used during playback:

▶ II	Start/pause playback of the selected audio.
◀◀	Short press: Go back in 5-second incrementsLong press: Rewind
▶▶	Short press: Go forward in 15-second incrementsLong press: Fast-forward

If you press the button during playback, the following options appear:

TURN SHUFFLE ON / TURN SHUFFLE OFF	Activate/deactivate random playback.
REPEAT THIS SONG / STOP REPEATING THIS SONG	Activate/deactivate the loop function for the currently selected audio. If this function is activated, the audio starts again from the beginning when it is finished.
LOOP THIS ALBUM / STOP LOOPING THIS ALBUM	Activate/deactivate the loop function for all audio tracks on an album. If this function is activated, the first audio track on the album starts again after the last audio track has finished.

10.HbbTVsystem

HbbTV (Hybrid Broadcast Broadband TV) enables a combination of broadcasting and Internet content that can usually be accessed and displayed by pressing the red button on the remote control.

HbbTV services include conventional radio/TV stations, catch-up TV, video on demand, EPG, interactive advertising, customisation options, polls, games, social networks and other multimedia applications.

HbbTV applications can only be called up if the broadcasting station transmits these signals and the TV is connected to the internet. The scope and operation vary depending on the programme and channel.

Whether a channel offers HbbTV applications or not, is shown via a brief on-screen display. The exact form and position depends on the individual application. Use the red button to open and close the application pages. Navigation within the applications is carried out by using the colour buttons on the remote control, but this can vary depending on the channel and the programme. Observe the messages within the applications.

11. HDMI 2.1 standard

Your smart TV has HDMI 2.1 ports that offer improved performance in a number of ways. The following features are available as a result.

11.1. eARC

The HDMI 2.1 standard features the eARC (Enhanced Audio Return Channel) option, an advancement on the previous Audio Return Channel (ARC). eARC simplifies connectivity and offers greater user-friendliness for identifying multiple HDMI components and for audio optimisation. It supports the latest audio formats with up to 24 bit/192 kHz resolution, uncompressed 5.1 and 7.1 surround sound and uncompressed 32-channel audio. In addition, it supports DTS-HD Master Audio™, DTS:X®, Dolby® TrueHD and Dolby Atmos®. Experience captivating, multidimensional sound in cinema quality with greater depth and detail in your living room.

12. MEDION Smart TV privacy

Your Internet-enabled MEDION Smart TV has an Internet service function (HbbTV, portal and open browsing). These functions enable you to access services, content, software and products provided by third parties on the Internet. In addition, you have access to open Internet content. Your device checks automatically via this route whether new software versions are available for your device. When doing so, your device sends out the IP address, the software version and the MAC address of the device to ensure software updates run correctly.

This data is required to make use of the software update service. Access to applications in the portal or via HbbTV may, depending on the provider, require a registration, setting up a user account and/or a subscription when using certain services. Registration may require the provision of your personal data and the selection of a unique and secret password. Please check the privacy policy of the provider beforehand.

MEDION shall not be liable if the HbbTV, the portal or a service does not comply with the user's requirements, nor does it guarantee that safe and error-free use of such services can always occur without restrictions, or continuously, at the required time.

MEDION shall not be liable for the information or content provided via HbbTV, the portal or the open Internet, nor for its use and reliability. When you purchase your Smart TV, special warranties are provided. The validity of these warranties, including the related disclaimers, remains in force.

If you have any further questions on the subject of data protection when using your Smart TV, please contact the respective provider of the Internet service functions or contact MEDION directly on www.medion.com under the heading Data Protection.

13. Troubleshooting

Malfunctions can sometimes have quite trivial causes, but they may also be the result of defective components. We have included a brief troubleshooting guide below which may help to solve any problems. If these measures don't solve the problem, we'll be more than pleased to help you further. Just call us!

There is no picture and no sound.

• Check if the mains cable is inserted in the socket properly.
• Check if the signal reception is set to TV.

There is no AV picture.

• Check to ensure that the contrast and brightness settings are correct.
• Check to ensure that all external devices have been connected properly.
• Check to ensure that you have selected the correct AV source.

There is no sound.• Ensure that the volume has not been set to the minimum level.• Ensure the mute setting is not active. Do this by pressing the button with the crossed out speaker symbol on the remote control.

There is no picture and no sound. I can hear noise, though.• The reception might be poor. Check if the antenna is connected properly.

The picture is not clear.• The reception might be poor.• Check if the antenna is connected properly.

The picture is too bright or too dark.• Check the contrast and brightness settings.

The picture is not sharp.• The reception might be poor.• Check if the antenna is connected properly.• Check the sharpness and noise reduction settings in the DISPLAY & AUDIO > PICTURE SET-TINGS menu.

There is a double/triple picture.• Check if the antenna is aligned properly.• Waves might be reflected off buildings or hills.

The picture is pixelated.• There might be interference from cars, trains, power lines, neon lights etc.• There might be interference between the antenna and power cables. Position the cables further apart.

There are stripes on the screen or the colours are faded.• Is there interference from another device?• Transmission antennae on radio stations, ham radios and portable phones can also cause interference.• Operate the device as far away as possible from the device that might be causing the interference.

The multifunction switch on the device does not work• The child lock might be on.

TV switches off.• Check whether automatic TV switch-off is activated under PREFERENCES.

No reception/poor signal via a wireless network connection (WLAN).• Make sure that all required settings have been made.

The remote control is not working.• Check if the batteries are fully functioning and have been inserted the right way round.• Ensure the sensor field is not exposed to strong light.

The menu cannot be opened.• Check whether CEC is enabled. In this case, the menu cannot be opened. This is not a defect. The menu of the device connected via HDMI will open if necessary. This is dependent on the playback device and must be supported accordingly.• Change the input source.

No Bluetooth® connection• Ensure that all settings on the device are correct and that the Bluetooth function has been activated.• Check whether the device to be connected is switched on and is in search mode.• Ensure that all settings on the device to be connected are correct and that the Bluetooth function has been activated. If necessary, refer to the user manual for the device concerned.

You have forgotten your password.• Make sure that your device is connected to an Amazon account at the time of PIN assignment. If you have forgotten your password, you can update it using the corresponding account.

In many cases, it is sensible to reset to the factory settings with subsequent reinstallation.

13.1. Do you need more help?

If the suggestions in the previous sections did not solve your problem, please contact us. To make it easier for us to help you, please have the following information to hand:

• What external devices are connected?
• What messages appear on the screen?
- When operating the device, at which step did the problem occur?
- If you have a PC connected to the device:
– How is your computer configured?
- What software were you using when the problem occurred?
- What steps have you already taken to try and rectify the problem?
- Please provide us with your customer number if you have one.

13.2. Pixel errors on Smart TVs

5 Pixel 5 Pixel Sub-Pixel red Rows Pixel white blue green

Despite the state-of-the-art production methods, in rare cases there may be individual or multiple pixel drop-outs (dead pixels) due to the highly complex technology. For active matrix TFTs with a resolution of 3840 x 2160 pixels, which are each made up of four sub-pixels (red, green, blue, white), there are a total of approx. 33.2 million control elements in use. Occasionally pixels or individual sub-pixels can fail or become incorrectly controlled because of this very high number of transistors and the extremely complex manufacturing process used in this context.

Pixel defect class	Defect type 1 Continuously lit pixel	Defect type 2 Continuously black pixel	Defect type 3 Defective sub-pixel
			lit black
0	0		0	0
I	1		1	2
			1	3
			0	5
II 2 2 5			5-n*	0
			0	2xn*
				10
III 5 15	50		50-n*	0
			0	2xn*
				100
IV	50	150	500	0
			500-n*	2xn*
			0	1000

n^*=1.5

The permitted number of defects for every type named above in each class of pixel defect refers to one million pixels and must be converted accordingly to match the physical resolution of the display.

Your device complies with the European ISO 9241-307 Class II standard (pixel defect class). Pixel defects up to the specified maximum number are not covered by the warranty

14. Cleaning

DANGER!

Risk of electric shock!

There is a risk of death due to an electric shock when the housing is open and you touch parts inside the device!

■ Do not open the device housing. It does not contain any parts that require maintenance by the user. Always unplug the device and disconnect all cables before cleaning.

You can increase the lifespan of your Smart TV by taking the following measures:

• Protective film has been applied to the high-gloss finish to protect the television from scratches. Remove the film after you have set up the TV correctly.
• If the high-gloss finish becomes dirty, wipe off the dust first. Then wipe down gently with a cleaning cloth. If you do not wipe off the dust first, or wipe the high-gloss finish too vigorously you could scratch the high-gloss finish.
• Do not use solvents or corrosive or gaseous cleaning agents.
• Clean the display screen with a soft, lint-free cloth.
• Make sure that there are no water droplets remaining on the Smart TV. Water can cause permanent discolouration.
• To avoid damage to the device, water must not penetrate into the interior of the device under any circumstances.
• ^0 Do not place the screen in strong sunlight or near ultraviolet light.
• Store the packaging material in a safe place. Only use this box to transport the Smart TV.

15. Storing the device when not in use

If you do not intend to use the TV over a longer period of time, store it in a cool, dry place and make sure that it is protected from dust and extreme temperature fluctuations. Remove all connections and take the batteries out of the remote control in advance.

16. Disposal

PACKAGING

The product has been packaged to protect it from damage in transit. The packaging is made of materials that can be recycled in an environmentally friendly manner.

DEVICE

All old appliances marked with the symbol illustrated must not be disposed of in normal household rubbish.

In accordance with Directive 2012/19/EU, the device must be properly disposed of at the end of its service life.

This involves separating the materials in the appliance for the purpose of recycling as well as minimising the environmental impact and negative effects on human health.

Take old devices to a collection point for electrical scrap or a recycling centre. Before doing so, remove the batteries from the device and take them to a separate collection point for used batteries.

Contact your local waste disposal company or your local authority for more information on this subject.

BATTERIES

Batteries that carry the symbol illustrated must not be disposed of in ordinary household waste.

In accordance with Regulation 2023/1542, batteries must be disposed of properly at the end of their service life.

They may contain toxic heavy metals and are subject to hazardous waste treatment.

The chemical symbols of the heavy metals are as follows:

Cd = cadmium, Hg = mercury, Pb = lead.

You are legally obliged to return old batteries and rechargeable batteries after use. Therefore, please return used batteries and rechargeable batteries free of charge to a retailer or a municipal collection point.

Batteries and rechargeable batteries may contain substances that are harmful to human health and the environment. The negative effects can only be avoided if old batteries and rechargeable batteries are collected and recycled separately.

Take particular care when handling batteries and rechargeable batteries containing lithium, as there is an increased risk of fire if they are used incorrectly. Tape the poles to prevent an external short circuit.

Use batteries with a long service life or rechargeable batteries to reduce the generation of waste from old batteries.

Follow the storage instructions and avoid completely discharging and recharging the rechargeable battery to extend its service life. In addition, batteries or electrical and electronic devices with batteries or rechargeable batteries must not be left in public areas in order to avoid littering. Check options for reusing batteries instead of disposing of them, for example by repairing the battery.

1. Technicalspecifi cations

Smart-TV X8432506(MD 843800)	medion
Device name X8432506 (MD 843800)
Rated voltage 220-240 V ~ 50 Hz
Rated voltage/current for satellite connection	13 V/18 V=300 mA max.
Screen size	108 cm (43") LCD; 16:9 display
Power consumption Max. 120 W
Power consumption in standby mode	< 0.50 W
Power consumption in networked standby mode (WAKE ON mode)	≤ 2.00 W
Speaker output	2 x 10 W RMS, DTS HD-compatible
Physical resolution 3840 x 2160
TV system Pal
Channel positions 199 (ATV), 10,000 (DTV)

Smart-TV X8502506(MD 850800)	medion
Device name X8502506 (MD 850800)
Rated voltage 220-240 V ~ 50 Hz
Rated voltage/current for satellite connection	13 V/18 V=, 300 mA max.
Screen size	125.7 cm (50") LCD; 16:9 display
Power consumption Max. 135 W
Power consumption in standby mode	< 0.50 W
Power consumption in networked standby mode (WAKE ON mode)	≤ 2.00 W
Speaker output	2 x 10 W RMS, DTS HD-compatible
Integrated subwoofer	1 x 12 W RMS
Physical resolution 3840 x 2160
TV system Pal
Channel positions 199 (ATV), 10,000 (DTV)

Smart-TV X8552506(MD 855800)	medion
Device name X8552506 (MD 855800)
Rated voltage 220–240 V ~ 50 Hz
Rated voltage/current for satellite connection	13 V/18 V=---, 300 mA max.
Screen size	138.8 cm (55") LCD; 16:9 display
Power consumption Max. 140 W
Power consumption in standby mode	< 0.50 W
Power consumption in networked standby mode (WAKE ON mode)	≤ 2.00 W
Speaker output	2 x 10 W RMS, DTS HD-compatible
Integrated subwoofer	1 x 12 W RMS
Physical resolution 3840 x 2160
TV system Pal
Channel positions 199 (ATV), 10,000 (DTV)

Smart-TV X8652506(MD 865800)	medion
Device name X8652506 (MD 865800)
Rated voltage 220–240 V ~ 50 Hz
Rated voltage/current for satellite connection	13 V/18 V, 300 mA max.
Screen size	163.9 cm (65") LCD; 16:9 display
Power consumption Max. 200 W
Power consumption in standby mode	< 0.50 W
Power consumption in networked standby mode (WAKE ON mode)	≤ 2.00 W
Speaker output	2 x 12 W RMS, DTS HD-compatible
Integrated subwoofer 1 x 12 W RMS
Physical resolution 3840 x 2160
TV system Pal
Channel positions 199 (ATV), 10,000 (DTV)

Channels

VHF (Band I/III)

UHF (BAND U)

HYPERBAND

CABLE TV (S1-S20) / (S21-S41)

HD DVB-T

DVB-T2 HD (H.265)

HD DVB-C

DVB-S2

Connections

Antenna connection (analogue TV, DVB-T/DVB-T2 or DVB-C)

Satellite connection (DVB-S/S2)

2 x USB connection

1 x LAN RJ-45

Video

3 x HDMI® 2.1 with HDCP 2.2 decoding

Audio

Headphone output (3.5 mm jack)

Digital Audio Out (SPDIF, optical)

Drives/storage media
Drives	USB, Common Interface (CI+) Slot
Supported formats via USB2	Photo: JPG, JPEG, JPE, BMP, PNG
	Music: MP3, WMA, WAV
	Film: H.263, H.264, H.265, MKV, mp4, MPEG2-TS (AAC audio only), HEVC, 3GPP, MOV
Capacities	USB max. 1 TB

Remote control
Transmission type	Infrared
LED classification	1
Battery type	2 x 1.5V AAA R03/LR03

Ambient temperatures
Permissible ambient temperature	+5°C to +35°C
Permissible relative humidity	20% to 85%

Dimensions/weight X8432506 (MD 843800)
Dimensions without base (W x H x D)	Approx. 955 x 565 x 74 mm
Dimensions with base (W x H x D)	Approx. 955 x 605 x 223 mm
Weight without base	Approx. 6.8 kg
Weight with base	Approx. 8.2 kg
Wall mounting ^3	Vesa standard, hole spacing 100 x 100 mm

Dimensions/weight X8502506 (MD 850800)
Dimensions without base (W x H x D)	Approx. 1110 x 655 x 74 mm
Dimensions with base (W x H x D)	Approx. 1110 x 687 x 225 mm
Weight without base	Approx. 9.8 kg
Weight with base	Approx. 11.4 kg
Wall mounting3	Vesa standard, hole spacing 200 x 200 mm

Dimensions/weight X8552506 (MD 855800)
Dimensions without base (W x H x D)	Approx. 1227 x 718 x 72 mm
Dimensions with base (W x H x D)	Approx. 1227 x 755 x 225 mm
Weight without base	Approx. 12.8 kg
Weight with base	Approx. 14.3 kg
Wall mounting ^3	Vesa standard, hole spacing 200 x 200 mm

Dimensions/weight X8652506 (MD 865800)
Dimensions without base (W x H x D)	Approx. 1449 x 843 x 74 mm
Dimensions with base (W x H x D)	Approx. 1449 x 900 x 290 mm
Weight without base	Approx. 17.9 kg
Weight with base	Approx. 20.3 kg
Wall mounting3	Vesa standard, hole spacing 400 x 200 mm

CE

MD843800: ID 1111220771

MD850800: ID 1111220767

MD855800: ID 1111220809

MD865800: ID 1111223267

18. Product data sheet

Scan the QR code that matches the model on the energy label or alternatively in the operating instructions to download the product data sheet.

MD 843800 MD 850800
MD 855800 MD 865800

18.1. Trademark information

DTS, the symbol and DTS together with the symbol are registered trademarks of DTS, Inc.

dts® VIRTUAL

Further information regarding the DTS patents is available at http://patents.dts.com

HIGH-DEFINITION MULTIMEDIA INTERFACE

TM The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI

Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Manufactured under licence of Dolby Laboratories. Dolby and the double D symbol are registered trademarks of Dolby Laboratories.

ATMOS

The Bluetooth ^® word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used by MEDION under licence.

The USB ^™ word mark and logos are registered trademarks of the USB Implementers Forum, Inc. and are used by MEDION under licence.

Other trademarks are the property of their respective owners

Advance™

Covered by patents at patentlist.accessadvance.com

19. Service information

Please contact our Customer Service team if your device ever stops working the way you want or expect it to. There are several ways for you to contact us:

• In our Service-Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there.
  You will find our Service-Community at community.medion.com.
  • Alternatively, use our contact form at www.medion.com/contact.
• You can also contact our Service team via our hotline or by post.

Hotline number

① 0333 3213106

Opening times

Mon - Fri: 08.00 - 20.00

Sat – Sun: 10.00 – 16.00

Service address

MEDION Electronics Ltd.

120 Faraday Park,

Faraday Road, Dorcan

Swindon SN3 5JF, Wiltshire

United Kingdom

You can download this and many other sets of operating instructions from our service portal at www.medionservice.com.

We have stopped providing printed copies of our warranty terms and conditions as part of our commitment to sustainability, but you can access the warranty terms and conditions on our service portal.

You can also scan the QR code below and to download the operating instructions onto your mobile device from the service portal.

20. Legal Notice

Copyright 2025

Date: 24.04.2025

All rights reserved.

These operating instructions are protected by copyright. Mechanical, electronic and any other forms of reproduction are prohibited without the written permission of the manufacturer.

Copyright is owned by the company:

MEDION AG

Am Zehnthof 77

45307 Essen

Germany

Please note that you cannot use the address above for returns. Please always contact our Customer Service team first.

21. Index

A

Ambient temperature 35

Anschließen

Antenne....12

B

Batteries....7,11

Blue stretch function 22

Bluetooth....32

C

CI module....9

Connection....6

Power supply 12

D

Data protection ....31

E

eARC....31

Environmental temperature 6

F

Factory setting 22

Fault....31

G

Getting started ....11

H

HbbTV....31

M

Media portal 31

Mounting....11

Multimedia connections

HDMI....17

HDMI ARC 17

HDMI CEC 17

LAN....17

SPDIF 17

USB....17

Music....35

P

Package contents 4

Photo 35

Pixel faults ....33

Power supply 6,34,35

Connecting the power supply 12

Programme selection ....16

Proper use 4

R

Remote control ....10

Repairs....6

s

Safety information

Connection....6

Installation location ....5

Operating safety 4

Power supply 6

Sound settings ....16

T

Technical data 36

Technical specifications 34

Troubleshooting 31

U

USB 9,29

v

Videos 35

medion
