Operating instructions

Mini LED Ultra HD Smart TV Powered by TiVo MEDION LIFE

X8552507 (MD 855900) / X8652507 (MD 865900)

Table of Content

1. Technical specifications.. 37

1. Information about these operating instructions 3

1. Product data sheet 38

1.1. Explanation of symbols 3

18.1. Trademark information 38

1.2. Proper use

1. Service information 39

2. Package contents

1. Legal Notice 39

3. Safety instructions 4

Index 40

3.1. Operating safety 4
3.2. Set-up location 5
3.3. Repairs.. 6
3.4.Environmental temperature 6
3.5. Safety when connecting 6
3.6. Handling batteries 7

4. EU - Declaration of conformity 8

4.1. Information on WLAN.. 8

5. Device overview 9

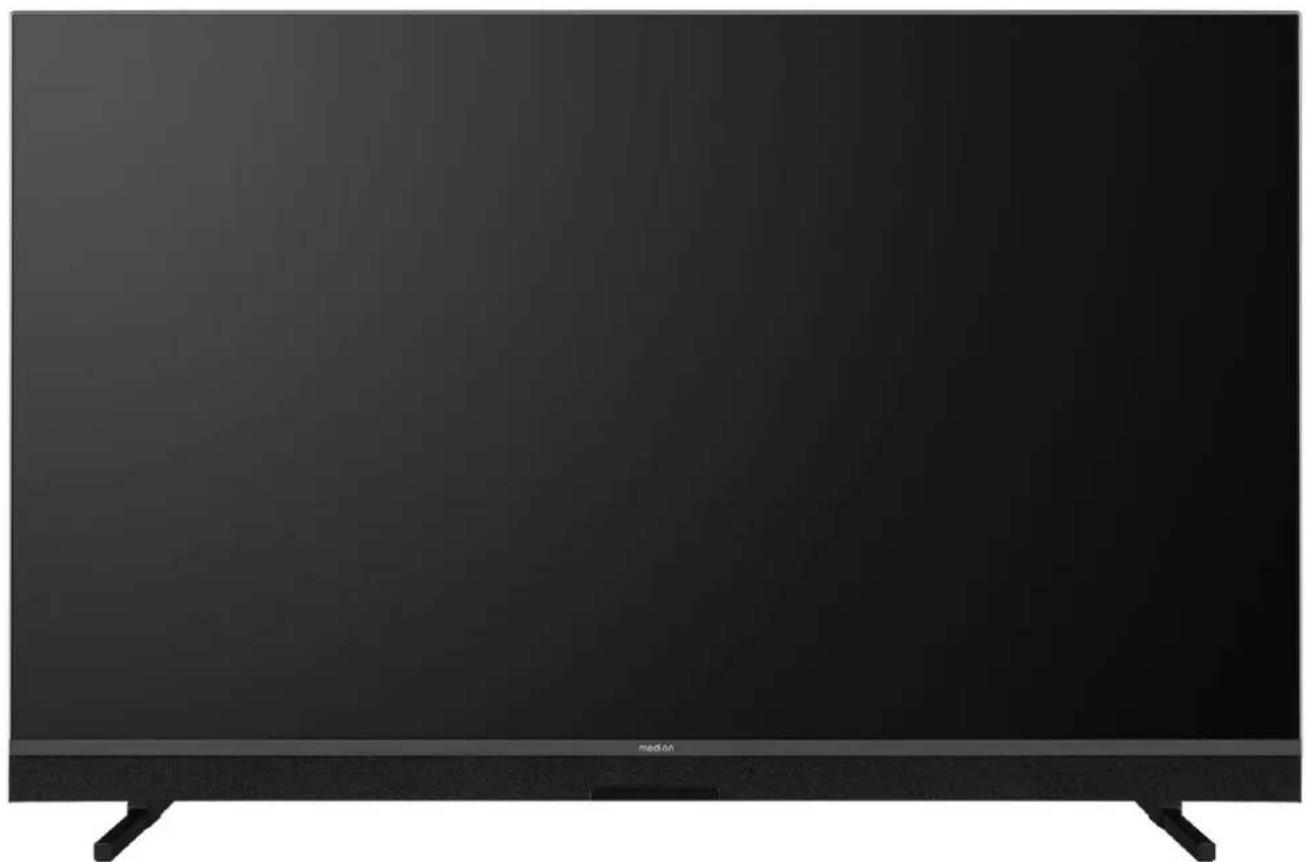

5.1. Front 9

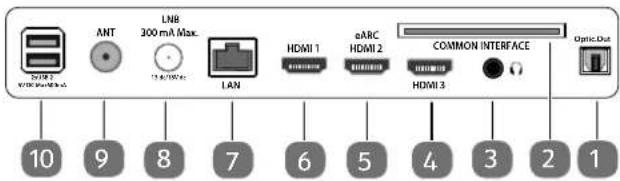

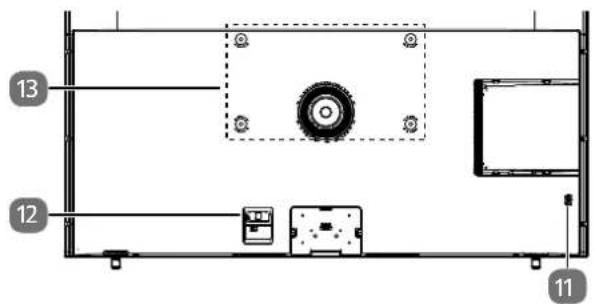

5.2. Rear 9

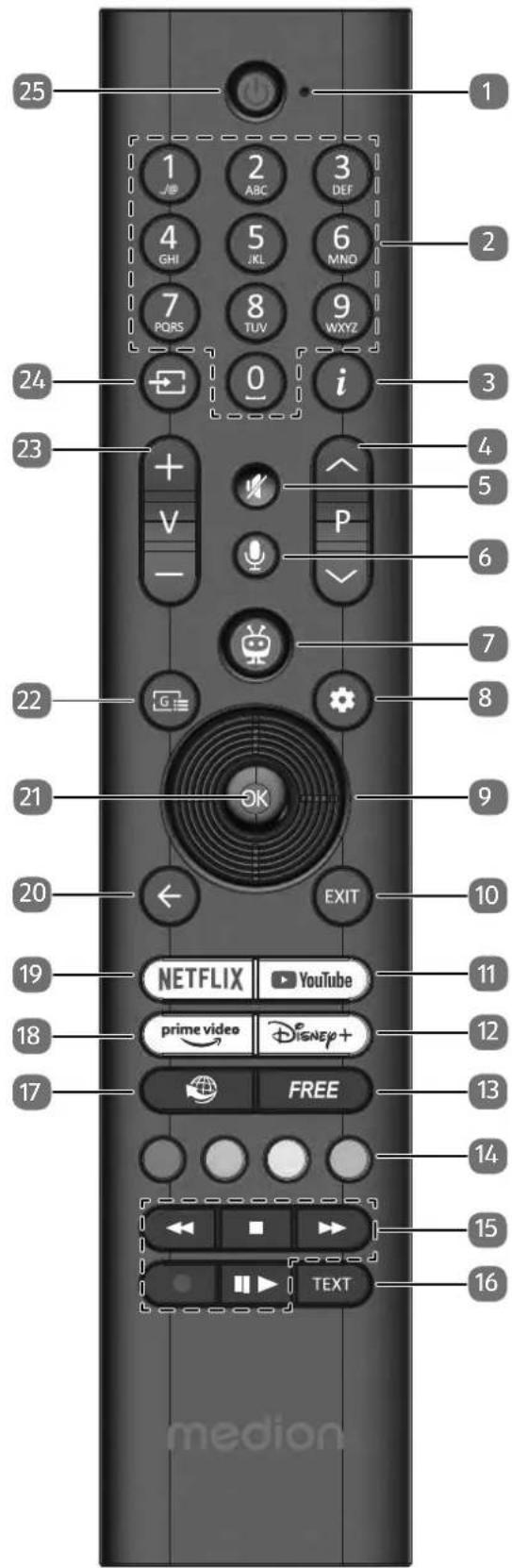

5.3. Remote control 10

6. Getting started 11

6.1. Unpacking 11

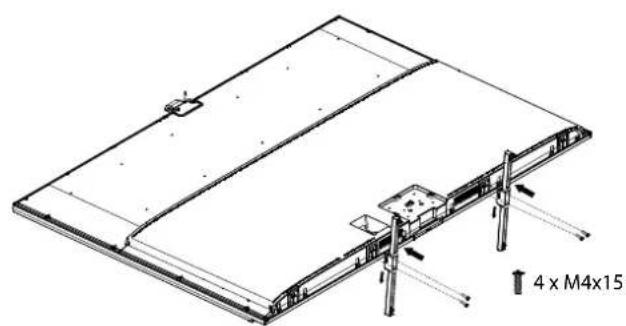

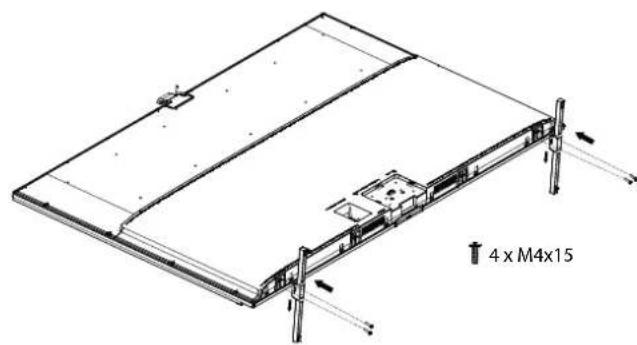

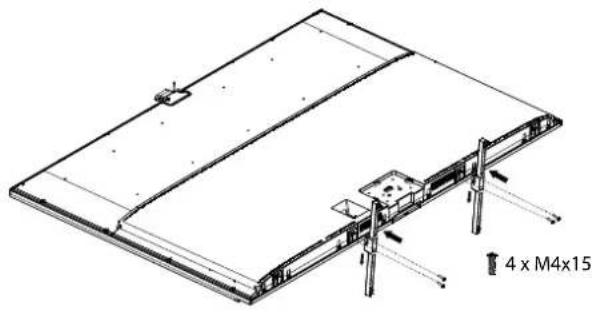

6.2. Mounting.. 11
6.3. Inserting batteries in the remote control
6.4. Connecting the antenna 11
6.5. Connecting the power supply... 11
6.6. Switching the smart TV on and off ... 11

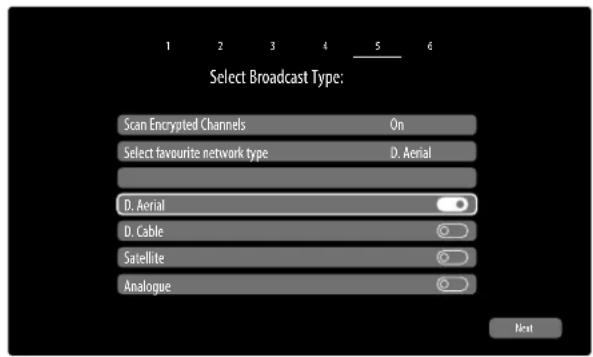

6.7. Channel search when switching on for the first time 12
6.8. Using the multimedia connections... 14

7. Operation 15

7.1. Channel selection 15

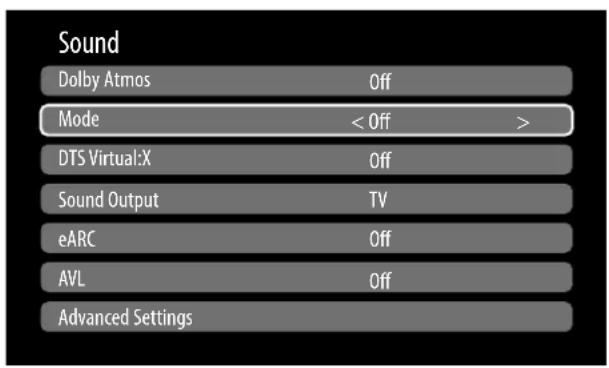

7.2. Sound settings 15
7.3. Screen settings 15
7.4. Displaying information 16
7.5. Programme guide (EPG - Electronic Programme Guide) menu 17
7.6. Selecting the source 18
7.7. Wireless display 19

8. Teletext 19

8.1. Using the teletext 19

9. Home menu 20

9.1. Menu Settings 22
9.2. Media browser menu 31

10. HbbTV system 32

11. HDMI2.1 standard 33

11.1.eARC 33
11.2. ALLM 33

12. Data protection MEDION Smart TV 33

13. Troubleshooting 34

13.1. Do you need more help? 35

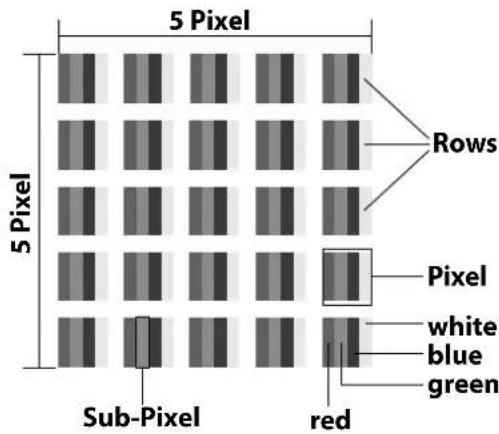

13.2. Smart TV pixel faults 35

14. Cleaning 36

15. Storage when not in use 36

16. Disposal 36

1. Information about these operating instructions

Thank you for choosing our product. We hope you enjoy using this device.

Read the safety instructions carefully before using the device for the first time. Note the warnings on the device and in the operating instructions.

Always keep the operating instructions close to hand. If you sell the device or give it away, please ensure that you also pass on these operating instructions. They are an essential component of the product.

1.1. Explanation of symbols

If a block of text is marked with one of the warning symbols listed below, the hazard described in that text must be avoided to prevent the potential consequences described there from occurring

	DANGER! Warning of immediate risk of fatal injury!
	WARNING! Warning: possible mortal danger and/or serious irreversible injuries!
	CAUTION! Warning: possible light or moderate inju- ries!
	NOTICE! Follow these instructions to prevent dama- ge to property and other objects!
	Additional information on using the appli- ance!
	Read the user manual and observe its ins- tructions.
	Due to the \( 5\mathrm{{GHz}} \) frequency range of the used wireless LAN solution, use in EU countries is only permitted inside buil- dings.
	WARNING! Warning: danger of electric shock!

WARNING! Warning: danger due to excessive volume!

Protection class II Electrical appliances in protection class II are electrical appliances that permanently have double and/or reinforced insulation and do not have the option of connecting a protective earth.

1.2. Proper use

This is an information technology device and is also suitable for multimedia applications. This device is used to receive and play back television programmes. The range of different connections supplied makes it possible to expand the input and output sources (receiver, DVD player, DVD recorder, video recorder, PC, etc.). Your device offers a number of options for usage.

The device is intended for private use only and not for industrial/commercial use.

• Please note that we shall not be liable for damage caused by improper use.
• Do not modify the device without our consent and do not use any auxiliary equipment that we have not approved or supplied.
• Use only spare parts and accessories that we have supplied or approved.
  Heed all the information in these operating instructions, especially the safety information. Any other use is deemed improper and can cause personal injury or property damage.
• Do not use the device in extreme environmental conditions.
• This device is intended for use in dry, indoor areas only.
• This device is not designed to be used as a data monitor for office workplaces

Please note that this device is not suitable for mobile use and must only be used when stationary at a designated place. Proper functionality cannot be guaranteed during mobile use, since this could result in reception issues or similar.

2. Package contents

Please check your purchase to ensure that all items are included. If anything is missing, contact us within 14 days of purchase.

The following items are supplied with your product:

• Mini LED Smart TV
• Remote control (RC1851) incl. 2 x LR03 (AAA) 1.5 V batteries
  Power cord
• Feet incl. fixing screws
• Documentation

DANGER!

Risk of choking and suffocation!

Packaging film can be swallowed or used improperly, creating a risk of choking and suffocation.

• Keep packaging material such as plastic film or plastic bags away from children.

3. Safety instructions

3.1. Operating safety

• Check the device for damage before using it for the first time. A defective or damaged device must not be placed into operation.
• This device may be used by children over the age of 8 and by persons with reduced physical, sensory or mental abilities or by those without experience and knowledge, if they are supervised or have been instructed in the safe use of the device and have understood the dangers that result from it.
• Children must not be allowed to play with the device. Cleaning and user maintenance must not be carried out by children unless they are supervised.

DANGER!

Risk of suffocation!

Packing material is not a toy! Packaging film can be swallowed or used improperly. Therefore, there is a risk of suffocation!

• Keep packaging material such as plastic film or plastic bags away from children.

WARNING!

Risk of electric shock!

Risk of electric shock, short circuit and fire!

• Never open the housing of the Smart TV and never insert any objects through the slots and openings into your Smart TV.

WARNING!

Overheating! Risk of fire!

Overheating can damage your Smart TV and lead to a risk of fire!

The slots and openings on the TV are for ventilation purposes. Do not cover these openings e.g. with newspapers, table cloths, curtains, etc.

• Do not put any pressure on the display. There is a risk that the glass on the screen may break.
• The universal remote control has a class 1 infrared diode. Never use optical devices to look at the LED.

CAUTION!

Risk of injury!

There is a risk of injury if the display is broken!

To avoid damaging the display, do not touch it with fingers or sharp objects.

Pick up the shattered pieces wearing protective gloves.
Then wash your hands with soap because chemicals may have leaked out.
- Send the broken parts to your Service Centre for professional disposal.

• Disconnect the device from the mains network immediately in the event of an emergency and only use it again when it has been checked by a qualified person or customer services. Emergency situations include e.g. when smoke or unusual noises are coming from the device, water has penetrated into it or the mains cable or housing is damaged.

Contact customer services if:

• The power cable is burnt or damaged
• Liquid has penetrated the device
• The device is not operating correctly
• The device has fallen, or the housing is damaged
• Smoke is rising from the device

3.2. Set-up location

• The wall mounting of the TV device must not exceed a height of 2m . The device need to be mounted on rigid surfaces such as cement or concrete.

In the first few hours of use, new devices can give off a typical, unavoidable but totally harmless smell which wears off with time. We recommend that you ventilate the room at regular intervals to counteract the smell. We have taken appropriate measures during the development of this device to ensure that levels are significantly below legal limits.
- Keep your Smart TV and all connected appliances away from moisture and avoid dust, heat and direct sunlight.

Non-compliance with these instructions can lead to faults or damage to the Smart TV.

• Do not use the device outdoors as it could be damaged by rain, snow, etc.
• The device must not be exposed to dripping or sprayed water. Do not place vessels filled with liquid (vases or similar) on or in the vicinity of the device.

The container may tip over and the liquid may impair the electrical safety of the product.

NOTICE!

Risk of damage!

There is a risk of injury with candles and other open flames.

• Keep candles and other open flames away from this device at all times in order to prevent the spread of fire.

• Make sure that there is enough clearance from the sides of the furniture unit. Ensure a minimum clearance of 10 cm around the device for sufficient ventilation.

• Avoid dazzle, reflections and strong bright-dark contrast in order to protect your eyes.
• The optimal viewing distance is 3 times the screen diagonal.

DANGER!

Risk of injury! Mortal danger!

Only set up your TV on a stable surface. Televisions that tip over could cause serious injuries or death. Lots of injuries, especially to children, can be avoided by observing the following safety precautions.

• Operate all components on a stable, level and vibration-free base, to prevent the Smart TV from falling over.

Only use the stand and screws supplied with the TV.

• Only use furniture that guarantees the safe use of the TV.
• Ensure that the TV does not hang over the edges of the furniture.
• Do not place the TV on higher or high furniture such as wall cabinets or shelves without ensuring that both the furniture and the TV are safely and securely held in place.
• In order to guarantee the stability of the TV, do not place any sheets or similar under it.
• Advise children of the dangers of climbing up furniture in order to reach the TV or its operating elements.

If you are storing or moving the TV, also observe the aforementioned safety instructions.

3.3. Repairs

• Repairs to your Smart TV should only be carried out by qualified specialists.
• If a repair must be carried out, please only contact our authorised service partner.
• Make sure that only replacement parts provided by the manufacturer are used. The use of unsuitable replacement parts may damage the device and lead to a risk of fire.

3.4. Environmental temperature

• The device can be operated at an ambient temperature of +5^ to +35^ with a relative humidity of 20% - 85% (non-condensing).
• When switched off, the Smart TV can be stored at temperatures from -20^ to +60^ .
• Keep the product at least one metre away from sources of high-frequency and magnetic interference (television set, loudspeakers, mobile telephones, etc.) in order to avoid malfunctions.
• During thunderstorms or if the device is not going to be used for long periods, remove the plug from the socket and the aerial cable from the aerial socket.

NOTICE!

Risk of damage!

Large changes in temperature or fluctuations in humidity can cause moisture to build up due to condensation within the Smart TV, which can cause an electrical short circuit.

After transporting the Smart TV, wait until the appliance has reached ambient temperature before switching it on.

3.5. Safety when connecting

3.5.1.Power supply

• Even when deactivated, some components of the device are live. To disconnect the power from your Smart TV or to completely isolate the device from voltage sources, disconnect the device completely from the mains network. Disconnect the mains plug from the mains socket for this purpose.

DANGER!

Risk of electric shock!

There is a risk of death due to an electric shock when the housing is open!

Do not open the housing of the device. It does not contain any parts requiring maintenance.
- Only plug the Smart TV into earthed 220 - 240V 50Hz sockets. Contact your electricity provider if you are not sure if the socket is earthed or not.
- The socket must always be easily accessible so that the mains plug can be quickly disconnected from the socket in the event of an emergency.
- To disconnect the power supply to your TV, disconnect the mains plug from the mains socket.
- For extra safety, we recommend using an over-voltage protection device to prevent your Smart TV sustaining damage as a result of power surges or lightning strikes.
- Position the cables so that they cannot be stepped on or tripped over.
- Do not place any objects on the cables as they may be damaged.
- Do not touch the plug with wet hands.
- Always hold the plug by its housing and never pull it out of the socket using the cable.
- Please note that the TV also continues to consume power in standby mode.

If the device shuts down and restarts due to an electrostatic discharge while in USB mode (media player), optional HbbTV mode or optional LAN/WiFi operation (media player/portal), it will not be able to independently restore the last operating mode. Please restart the respective media or applications.

The last user settings you entered may not be restored following an electrostatic discharge that causes the TV to shut down because these settings are only saved 5 minutes after switching channels.

All multimedia devices, which are connected to the corresponding ports of the TV, must comply with the requirements of the Low Voltage Directive.

3.6. Handling batteries

WARNING!

Risk of explosion!

Batteries may contain combustible materials and leak, heat up excessively, ignite or even explode.

• Avoid improper handling of the batteries to prevent damage to your device and your health.

Please follow the safety advice below closely:

• Keep batteries away from children. If batteries are swallowed, consult a doctor immediately.
• Never charge batteries (unless they are designed to be recharged).
• Never empty the batteries by means of high power output.
• Never short-circuit the batteries.
• Never expose the batteries to excessive heat, such as sunlight, fire or similar sources of heat!
• Do not dismantle or deform the batteries.

You could injure your hands or fingers, or battery fluid could come into contact with your eyes or skin. If this happens, rinse the affected areas with plenty of clean water and consult a doctor immediately.

• Avoid heavy impacts and vibrations.
• Always observe the correct polarity.
• Make sure that the plus (+) and minus (-) poles are correctly inserted to avoid short circuits.
• Do not mix up new and old batteries or different types of batteries.

This could cause your device to malfunction. In addition, the weaker batteries would discharge too much.

• Remove spent batteries from the device immediately.

• Remove the batteries from the device if you do not intend to use it for a long period of time.

• Replace all of the old batteries in a device with new batteries of the same type.
• Cover the contacts of the batteries with sticky tape if you want to store or dispose of them.
• If necessary, clean the battery and device contacts before insertion.
• If the batteries have leaked, wear protective gloves and clean the contacts thoroughly.

4. EU - Declaration of conformity

MEDION AG hereby declares that this product conforms with the essential requirements and the remaining relevant regulations:

RE Directive 2014/53/EU
- Ecodesign Directive 2009/125/EC
RoHS Directive 2011/65/EU

You can download the complete EU Declaration of Conformity from www.medion.com/conformity.

CE

Use is only permitted inside buildings in all EU countries due to the 5 GHz frequency band of the inbuilt Wireless LAN solution.

8
ATBE	BGCZDK
EEFRD	DEISIE
ITELES	CY	LV
LILTLU	HU	MT
NL	NO	PL	PT	RO
SI	SK	TRFI	SE
CH	UK(NI)	HR

AT = Austria, BE = Belgium, BG = Bulgaria, CZ = Czech Republic, DK = Denmark, EE = Estonia, FR = France, DE = Germany, IS = Iceland, IE = Ireland, IT = Italy, EL = Greece, ES = Spain, CY = Cyprus, LV = Latvia, LI = Liechtenstein, LT = Lithuania, LU = Luxembourg, HU = Hungary, MT = Malta, NL = Netherlands, NO = Norway, PL = Poland, PT = Portugal, RO = Romania, SI = Slovenia, SK = Slovakia, TR = Turkey, FI = Finland, SE = Sweden, CH = Switzerland, UK(NI) = Northern Ireland, HR = Croatia

4.1. Information on WLAN

WLAN
Frequency range	2,4 GHz/ 5 GHz
Wi-Fi standard	802.11 a/b/g/n
Encryption	WEP/WPA/WPA2
Frequency range/MHz	Channel	Max. transmission power/dBm
2400 – 2483,5	1 - 13	19,9
5150 – 5250	36 – 48	22,4
5250 – 5350	52 – 64	22,5
5470 – 5725	100 – 140	22,5
Bluetooth
Max. transmission power	13 dBm at 2.4 GHz

5. Device overview

5.1. Front

1. Screen
2. Infrared sensor: Reception field for the infrared remote control signals.

Operating light: lights up when the device is in standby mode.

5.2. Rear

The following connections are located under a protective cover on the right-hand side. To open it, grasp it on the right-hand side and carefully pull it upwards. Once you have completed the cabling, you can reattach the cover as required. In this case, make sure to lead the corresponding connection cables out of the recess located below or to the right.

1. SPDIF Optic. OUT: Digital audio output (optical)
2. COMMON INTERFACE (CI + ) : Card slot for connecting pay TV cards
3. :For connecting headphones with 3.5 mm jack
4. HDMI 3: HDMI port for devices with HDMI output
   5.eARC HDMI 2:HDMI connection for devices with HDMI output (eARC)
5. HDMI 1: HDMI port for devices with HDMI output
6. LAN: Network connection for connection to the Internet
7. LNB 300 mA Max. (13V/18V DC ---): For connecting the antenna (satellite)
8. ANT: For connecting the antenna (analogue, DVB-T or DVB-C)
9. 2xUSB (5V DC = Max500mA): USB connection for media playback/recording (PVR)

1. Multifunction button for standby function, switching channels, selecting input source or controlling volume. When the device is in standby mode, you can switch on the device by briefly pressing the button. Briefly press the button when the device is in use to open the function menu. Then briefly press the button again to select the desired function. Press and hold the button to open the menu for the selected function. In the case of the standby function, the device then switches to standby mode. You can change the setting in the menu by briefly pressing the button. Then press and hold the button to apply the settings made. The function menu closes automatically after a few seconds of inactivity.
2. Connection for mains plug

Please only use the mains connection cable supplied for this purpose.

1. Fixing holes for a wall mount

Vesa standard, hole spacing 400 × 200 ~mm

Wall mount not supplied. When mounting the device, make sure that you use M6 screws. The maximum length of the screws corresponds to the thickness of the wall mount plus 1 mm.

The TV must not be mounted at heights exceeding 2m . The device must be mounted on a solid surface such as cement or concrete.

5.3. Remote control

1. Microphone
2. Number buttons: TV: Channel selection, teletext: Page selection
3. i (INFO): Digital TV: show information (e.g. current channel number)
4. / : Channel selection buttons TV: select next (+) / previous (-) channel; teletext: select next (+) / previous (-) page
   5.:ute
5. : Microphone button for activating voice control. (Only when pairing the remote control via Bluetooth)
6. Open the start page by simply pressing the button; press and hold the button to call up the device settings.
7. (MENU): Open and close menu (depending on the selected function or app with different functions)
8. Direction button move up in menu Digital TV: select infobar for the current channel, teletext: select next page; Direction button move down in menu, Digital TV: select infobar for the current channel, teletext: select previous page; Direction button move left in menu Teletext: call up subpages; Direction button move right in menu Teletext: call up subpage (depending on the selected function or app with different functions)
9. EXIT: Exit the menu
10. YOUTUBE: Open the YouTube app
11. DISNEY+: Open the Disney+ app
12. FREE: Open the Free app
13. Red button: For teletext or menus, HbbTV Green button: For teletext or menus Yellow button: For teletext or menus Blue button: For teletext or menus
14. Media buttons
    :Fast rewind;
    :Stop playback;
    :Fastforward;
    : Start recording (PVR);
    II Start playback/pause playback/start timeshift
15. TEXT: Depending on the selected channel, call up additional programme content/options (in Live TV mode)
16. (BOWSER): Open the Browser app
17. PRIMEVIDEO: Open the Prime Video app
18. NETFLIX: Open the Netflix app
19. : Move back one step in the menu, close open menus, return to the home or start screen, close teletext (in Live TV mode)
20. OK: Confirm selection in certain menus
21. Digital TV: call up the electronic programme guide
22. V - / + : Increase (+) or decrease (-) volume.
23. (SOURCE): Select input signal of connected devices
24. : Switch smart TV on/off (switch standby mode on/off)

6. Getting started

Before using for the first time, ensure you read the "Safety instructions" section.

6.1. Unpacking

• Select a suitable place for setting up the device before unpacking.
• Open the box very carefully, to avoid damaging the device. The device might get damaged if you use a knife with a long blade to open the box.
• The box contains a number of small items (including batteries). Keep these out of the reach of children, as they represent a choking hazard.
• Store the packaging material in a safe place. Only use this box to transport the TV.

DANGER!

Risk of choking and suffocation!

Packaging film can be swallowed or used improperly, creating a risk of choking and suffocation.

• Keep packaging material such as plastic film or plastic bags away from children.

6.2. Mounting

Attach the feet as shown in the illustration. Carry out this step before connecting the Smart TV.

Option 1:

Option 2 (MD 865900 only):

6.3. Inserting batt eries in the remote control

Remove the battery compartment cover on the back of the remote control.
Insert two LR03 (AAA) 1.5 V batteries in the battery compartment of the remote control. Check the battery polarity (see label on the bottom of the battery compartment).
Close the battery compartment.

NOTICE!

Risk of damage!

The remote control can be damaged by leaking batteries if not used for a long period of time!

Remove the batteries from the remote control if the device is not going to be used for a long period.

6.4. Connecting the antenna

Your smart TV supports different antenna signals.

You can input the following image signals to the television through the socket labelled ANT.:

• Via analogue cable/an analogue house aerial
• Via a DVB-T2/ DVB-T' antenna or
• Via a DVB-C ^2 connection (digital cable connection)
  Insert the antenna cable either from the house aerial/ analogue cable connection, a DVB-T antenna or the DVB-C connection in the antenna socket on the Smart TV.

You also have the option of connecting a digital satellite system to the socket labelled LNB.

Screw a coaxial antenna cable's F connector onto the connector on the Smart TV.

6.5. Connecting the power supply

Connect the supplied power cord to the mains connection socket of the device.
Connect the mains plug on the device to an easily accessible 220 to 240V 50Hz mains socket.

6.6. Switching the smart TV on and off

The device will be in standby mode as soon as you have connected the mains plug to the mains socket.
To switch on the device, press

• on the remote control: the Standby/On button one of the number buttons or one of the P / buttons;

-on the device: the multifunction button
Use the Standby/On button on the remote control to switch the device back into standby mode. Although the device has been switched off, it will continue to consume electricity.

If the device is not receiving an input signal, it will automatically switch to standby mode after five minutes. A countdown timer will appear on the screen until this time. This function is not available for all sources.

6.7. Channelsearchwhenswitchingon for the first time

When settings for various menu items are changed, a message indicating increased energy consumption may appear.

When you switch the device on for the first time, you will be guided through the first time installation menu. You can call up and carry out the first-time installation again at any time via the menu SETTINGS > INSTALLATION > FACTORY RESET.

Use the buttons to select the language and press OK to confirm.
If you wish, you can now set the menu view (HIGH CONTRAST, KEY STROKE DELAY TIME, MAGNIFICATION and MINIMAP) to your preferred settings
Use to select the desired country. The country setting will influence the order in which the channels are stored. Also, there are a number of options preset for the individual countries.
Afterwards, press OK to continue.
Optional (depending on country selection):You will now be asked to enter a 4-digit password

Make a note of the password and write it down if necessary.

• You will then be asked to agree to the TiVo Smart TV privacy policy, the general terms and conditions of the TiVo Smart TV service and the manufacturer's terms and conditions. This is necessary if you intend to make use of the voice control and network/Internet/HbbTV services. Read the conditions through carefully. Select the individual points with and confirm them with OK, if necessary. If you have any questions, complaints or comments regarding this privacy policy or its enforcement, please contact by email at [e-mail].
  If you do not accept the terms, you will not be able to use these services without subsequently agreeing to them.

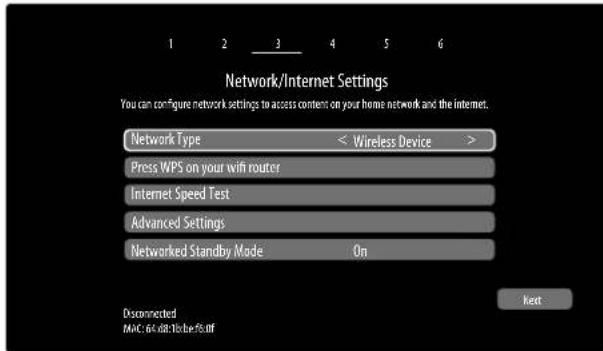

6.7.1. Network/Internet settings

NETWORK TYPE

Here you select the network type: WIRELESS DEVICE or WIRED DEVICE. After making a selection NEXT with the direction buttons and confirming with the OK button, an overview of all available networks appears. Make a selection and confirm with the OK button. If a password is required for a network, a virtual keyboard appears which you can use to enter this with the help of the direction buttons and the OK button. After entering the password, select OK on the keyboard and confirm with the OK button.

PRESS WPS ON YOUR WI-FI ROUTER

(only for WLAN)

This option enables you to quickly establish a WPS connection via a wireless network (Wi-Fi). Hold down the WPS button on your router and confirm this option OK using the OK button. Then the WPS connection will be made.

INTERNET SPEED TEST

Press the OK button in order to test the Internet speed.

ADVANCED SETTINGS

Press the OK button to call up further network configuration options.

- CONFIGURATION

Choose the setting AUTOMATIC IP or MANUAL IP. If you select MANUAL IP, three additional lines appear in which you can manually enter the data for the IP ADRESS, SUBNET MASK and DEFAULT GATEWAY using the direction buttons and the number buttons.

- CONFIGURATION

Select here between AUTOMATIC DNS or MANUAL DNS. If you select MANUAL DNS, two additional lines appear in which you can manually enter the data for the DNS SERVER 1 and DNS SERVER 2 using the direction buttons and the number buttons.

An existing network connection can be terminated by pressing the red button.

NETWORKED STANDBY MODE

Activate/deactivate the Wake-On LAN/Wake-On Wireless LAN function (WoL/WoWLAN). This enables you to switch on the smart TV via a different device. Both devices must be connected to the same network via LAN or Wi-Fi for this purpose. Select the ON setting to activate this function. The device being used as a remote control needs to be connected to the TV once when it is switched on. The control function only works when the TV is in standby mode.

Exit the network settings by pressioK.

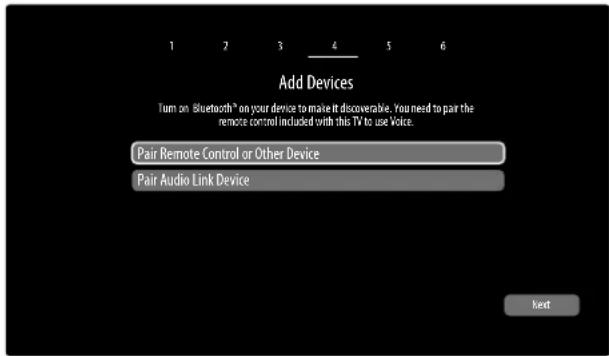

6.7.2. Devices

You can pair devices with the TV set via Bluetooth here.

PAIR REMOTE CONTROL OR OTHER DE

VICE: To pair the supplied remote control or another input device, select this option. Then start the search while holding down the SOURCE) button. The connection will then be established

To use voice control, the remote control must be paired with the TV set.

PAIR AUDIO LINK DEVICE: Select this function to pair audio devices. Start the search and select the device you want from the list of available devices. Press OK and select CONNECT. Existing connections can also be disconnected here and audio devices can be removed from the list.

6.7.3. Reception method

6.7.4. Aerial

Before the station search starts, select the following options:

SCAN ENCLOSED CHANNELS: Use to select whether encrypted channels should also be searched for.
SELECT FAVOURITE NETWORK TYPE: Use to select the preferred reception method. If you use several types of reception, you can select the types below with and activate with OK.
Select NEXT with and confirm with OK.

6.7.5. Cable digital

If you have previously activated the reception type DIGITAL CABLE, you can now make settings for the network search. If it should be necessary, you can adjust the NETWORK, FREQUENCY, the NETWORK ID and the SEARCH STEP correspondingly.

6.7.6. Satellite

If you have previously activated the reception type SA-TELLITE, you can now make settings for the antenna type.

To set the antenna type, select one of the following antenna types:

• DIRECT: Select this antenna type if you have a single receiver and a satellite antenna. Press the OK button and then choose the desired satellite (you can also call up the transponder list using the blue button). Afterwards, press the OK button again to start the search. After that, decide whether or not the channel list should be loaded.
• UNICABLE: Select this antenna type if you have multiple receivers and a single-cable system. Press the OK button and make all the necessary settings regarding SATELLITE POSITION 1/2, USER BAND and BAND FREQUENCY (here you can also call up the transponder list using the blue button). Afterwards, press the OK button again to start the search. After that, decide whether or not the channel list should be loaded.
• DISEQC SWITCH: Select this antenna type if you have multiple satellite antennas and a DiSEqC switch. Press the OK button and activate the desired DISEQC switch 1 - 4 (here you can also call up the corresponding transponder list using the blue button). Afterwards, press the OK button again to start the search. After that, decide whether or not the channel list should be loaded.

During the search, the scan progress is displayed. In addition, the number of found TV and radio stations is displayed.

Afterwards, press OK to continue.
- Amazon Alexa (optional): The device can be controlled via Amazon Alexa. Read the description in the settings menu.

At the end of automatic program storage, a TV programme is shown.

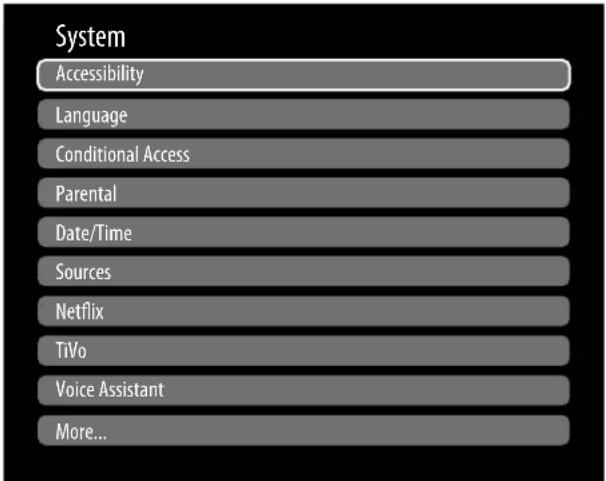

The initial installation described here corresponds to the FACTORY RESET option in the INSTALLATION menu.

6.8. Using the multimedia connections

NOTICE!

Risk of damage!

Incorrect operation can cause damage to the equipment used.

Before wiring and first use, you must also read the operating instructions of the devices you are connecting. Take care to ensure that all devices are switched off during wiring.

NOTICE!

Risk of damage!

If plugs and sockets are connected incorrectly it can cause damage to the contacts.

Take care to ensure that the plugs and corresponding sockets fit together precisely in order to avoid any damage to the contacts. Due to the arrangement of the contacts, many plugs will only fit into the socket in one position.

6.8.1. HDMI

HDMI (High Definition Multimedia Interface) is an interface for digital video and audio transmission. It has the highest quality of transmission and can also play Ultra HD resolution, from version 2.0. Use a standard HDMI cable:

Connect the corresponding HDMI ports of the devices used with an HDMI cable.

6.8.2. HDMI eARC (Enhanced Audio Return Channel)

The HDMI 2.1 standard features the eARC (Enhanced Audio Return Channel) option, an advancement on the previous Audio Return Channel (ARC). eARC simplifies connectivity and offers greater user-friendliness for identifying multiple HDMI components and for audio optimisation. If you want to use a TV set as a signal receiver AND signal source (to transmit an audio signal to an audio receiver), you must use the HDMI2 port with audio return channel (eARC). The HDMI connection to the TV then works in both directions. It can receive image and sound signals from a video device and the audio signal of the TV set can also be sent to the audio receive via the audio return channel.

Connect the video device (e.g. Blu-ray player) to the audio receiver via HDMI.
Connect the audio receiver to the TV set via HDMI/ eARC.
Take care to ensure that the speaker control of the TV set is routed to the external amplifier.

6.8.3. HDMI CEC (Consumer Electronics Control)

CEC is the abbreviation for Consumer Electronics Control. If you connect different devices via CEC-enabled HDMI connections, you can control certain functions of the entire HDMI network with a single remote control (e.g. standby or record functions):

• Connect all devices via CEC-enabled HDMI ports with HDMI cables. The HDMI ports on your TV set are all CEC-enabled.
  Take care to ensure that the CEC functions are enabled for all ports and that all devices are connected accordingly.

6.8.4. USB

A USB port can be used to connect and read storage media such as USB sticks or external hard drives. Use a suitable USB cable. If a suitable USB cable is supplied, you should use this (e.g. for hard drives). Always verify the power consumption of the USB storage medium used and use the corresponding USB connections.

• Connect the corresponding USB ports of the devices used with a suitable USB cable. Whenever possible, do not use a USB extension cord as this can cause problems, depending on the voltage.

6.8.5. SPDIF

SPDIF (Sony./Phillips digital interface) is an interface for transferring digital stereo or multi-channel audio signals between various devices. Usually, the digital audio signal is output via a coaxial (cinch) or an optical connection. Your TV features an optical SPDIF port. Use a standard, optical SPDIF cable.

Connect the corresponding SPDIF ports of the devices used with a corresponding SPDIF cable.

6.8.6. LAN

You can connect the TV set to the Internet via the LAN connection and receive online content (e.g. streaming services) via your device.

Connect the LAN connection of the TV set to your network or router using a network cable (Ethernet cable).
Make all the necessary network settings on the devices.

6.8.7. Headphone output (Headphones Out)

The headphone socket is used for connecting a pair of headphones with a stereo mini jack connection.

Connect the headphones to the stereo mini jack of the device.
You can set the volume of the headphone signal in the sound menu. If necessary, mute the speaker of the TV.

WARNING!

Risk of hearing damage!

To prevent possible damage to your hearing, avoid listening at high volume over long periods of time.

Before pressing play, set the volume to the lowest setting.
Start playback and increase the volume to a comfortable level.

7. Operation

7.1. Channel selection

To call up the TV programmes from the start page, press the (SOURCE) button and select the TV source.

To select a channel, press either one of the P / buttons on the remote control, use the multifunction switch on the device or select the channel directly using the number buttons.

For a two- or three-figure number, press the number buttons in the corresponding order.

By pressing tOK button on the remote control, you can call up the channel list, select the channel using the and buttons and call it up by pressing OK.

7.2. Volume settings

You can increase or decrease the volume by pressing the volume buttons V - I + on the remote control or in speaker mode of the multifunction switch on the device.
Press the mute button to switch the volume fully off and on again.

7.3. Picture format settings

Depending on the programme, the pictures are transmitted in the formats 4:3 or 16:9. You can change the picture format in the menu PICTURE > PICTURE ZOOM. Press the (MENU) button to call up the menu:

AUTO: The format displayed is automatically adjusted to match the input signal.

FULL: (Only in HDMI mode and with HD TV channels received via cable and satellite): Pixel-perfect reproduction of the image (1:1).

16:9: For undistorted picture display in 16:9 format

SUBTITLE: This function is used to zoom a wide-screen image (picture format 16:9) with subtitles to full screen size.

14:9: This option sets the 14:9 picture format.

14:9 ZOOM: This function is used to zoom a wide-screen image (picture format 14:9) to the upper and lower edges of the screen.

4:3: Is used to view a standard image (picture ratio of 4:3) as this is its original format.

CINEMA: This function is used to zoom a widescreen image (picture format 16:9) to full screen size.

Please note that not all picture formats are available depending on the chosen picture source.

7.4. Displaying information

Press the (INFO) button to display information about the current channel. You can also call these up using the buttons.
You receive the same information when you switch over to a different channel.
If you press the ±bi (INFO) button and the button once, information on the next programme will be displayed.

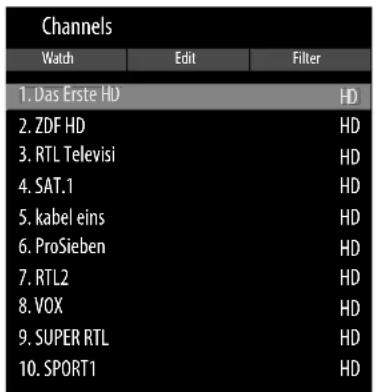

7.4.1. Channels menu

The channel list is where you manage your channels. Press the OK button. The list of channels then opens (CHANNELS).

As soon as you call up the channel list, you enter the WATCH directory. Use the buttons to switch to the additional options EDIT and FILTER.

As soon as you call up the channel list, you enter the WATCH directory. Use the buttons to switch to the additional options EDIT and FILTER.

WATCH

You can use the buttons to select channels from the list and press OK to open. You can use the P+ button or the P- button to scroll pages up or down 10 at a time.

EDIT

To select channels for editing, select a station using the buttons and press OK. A menu then opens. Here, use the buttons to select TAG/UNTAG CHANNEL. A check mark then appears after the station. To add further stations to the list, use the buttons to select them and press OK.

The channels with a check mark can be edited with the following options. If you have not selected any channels, the currently selected channel is edited. If you press the BACK button, the following options appear:

- ADD TO HOME

Press the OK button to select the selected channel from the HOME menu. The channels are then listed there and can be selected directly.

-MOVE

This function enables you to move the currently selected channel (or all marked channels) to a different position in the channel list. Press the OK button and then enter the new channel position using the number buttons. Press the OK button again and confirm the subsequent prompt with YES. The channel will be assigned to the desired channel position and all other channels are shifted accordingly.

-DELETE

This function enables you to delete the currently selected channel (or all marked channels). Press the OK button and confirm the subsequent prompt with YES. The channel with then be permanently deleted. Select NO if you want to cancel this step.

-EDIT NAME

This function enables you to rename the currently selected channel. Press the OK button and select the desired characters with the buttons. If you then press the OK button, the new name is applied directly.

-LOCK/UNLOCK

This function enables you to lock or unlock the currently selected channel (or all marked channels). You can use the lock function to password protect access to certain channels. Press the OK button and then enter the required password (factory default: 0000). A lock icon appears after the channel name. Do the same to unlock the channel.

To lock a channel, you must know the password (factory default: 0000, it can be changed in the SETTINGS > SYSTEM > PARENTAL menu).

- ADD/REMOVE FAVOURITES

You can create up to four favourites lists that you can call up later. If you press the OK button, you can add the currently selected channel (or all marked channels) to one or more favourites lists. To do this, select ON for the desired list and press the OK (or EXIT) button. To remove a channel from a favourites list, select the OFF entry accordingly. If a channel is assigned to the favourites list, a corresponding symbol appears after the channel name. For more information, read the section "Opening the favourites list".

- TAG/UNTAG CHANNEL

This function enables you to mark the currently selected channel. A check mark then appears after the channel name. If the current channel has previously been selected, this option removes the check mark.

TAG/UNTAG ALL

You can use this button to mark all channels. A check mark then appears after the channel name. You can remove the check mark from all channels in the same way.

FILTER

This is where you will find the filter functions for adapting the presentation of the channel list:

- CHANNEL TYPE

Only the channels for the selected reception type will be displayed.

-TV/RADIO

Select here whether only TV, only radio, only text or all channels are to be displayed in the list.

-FREE/PAY

Select here whether you want to display only free channels, only encrypted channels or all channels in the list.

-A-Z

Here you can individually select each letter of the alphabet, at which point only the channels begin- nning with the appropriate letter will be displayed in the channel list.

-SORT

Select the type of sorting (ALPHABETIC or NUMERIC).

-UHD/HD/SD

Select whether only UHD, HD, SD or all channels are displayed.

- FAVOURITES

Select whether one of the four possible favourites lists is to be displayed.

- PROFILE OPTIONS

Here you can make pay TV settings (is not, however, currently supported by the pay TV providers).

- SATELLITE LIST

(only for the satellite reception type)

If you wish to call up channels from individual satellites in the channel list, this is where you can select the desired satellites. After pressing the OK button, the channels of the selected satellite appear in the channel list.

Even after closing the channel list and re-opening it with the OK button, the previously filtered results continue to appear. To return to the full channel list, you must reset the corresponding filter. If, however, you call up the channel list when the device is in use using the OK button and use the FILTER option, this option acts more like a search function. This means that the complete channel list is displayed the next time you press the OK button after closing the channel list. The previously filtered results are not retained.

RESET

Press the OK button to start resetting the filter settings

7.4.2. Opening the favourites list

In the CHANNELS menu you can add individual channels to up to four different favourites lists.

Press tOK button. The list of channels then opens (CHANNELS).

Above the list, then use the buttons to select EDIT and use the 一 buttons to select a station to be added to the favourites list and press OK. A menu then opens. Here, use the 一 buttons to select TAG/ UNTAG CHANNEL. A check mark then appears after the station. To add further stations to the list, use the 一 buttons to select them and press OK. To then navigate to the EDIT menu, press the BACK button.
Use the buttons to select ADD/REMOVE FAVOURITES and press OK.

After that, four possible favourites lists are displayed (LIST 1-4). You can now assign the marked channel to the desired favourites lists (LIST 1 - 4). To do this, select the ON entry in the corresponding list and then press OK.

Press OK or EXIT to exit the list of channels.
To call up a favourites list, open the list of channels as described above and then use the buttons to select the FILTER option. Next, select the desired favourites list (LIST 1 - 4) under FAVOURITES. When the CHANNELLIST is opened using the OK button, only the stations in the corresponding favourites list are displayed and you can switch between them.

7.5. Programme guide (EPG - Electronic Programme Guide) menu

You can use the EPG button to open the programme guide directly.

You will see the current programme and the next programme for the available nations in the table.

Use to select a channel and scroll through the channel offering with .

The programme information displayed is created by the broadcaster. If no programme information is displayed, this does not mean that your Smart TV is faulty.

The following list shows the options for the GUIDE: NOW/NEXT

Select the NOW/NEXT view. This shows only the current and the next programme for all channels. FILTER enables you to restrict the display according to certain criteria and TIMELINE SCHEDULE takes you back to the original display.

FILTER

If you are looking for a specific programme, you can use a filter to restrict the selection.

PREVIOUS DAY

The programme guide for the previous day is displayed. This is only possible up to the current day. Programmes in the past are not displayed here.

NEXT DAY

The programme guide for the next day is displayed.

EXTRAS

The following options can be found here:

-HIGHLIGHTGENRE

This enables you to select the programme genre. This function must be supported by the relevant station. The programme guide then displays programmes from the selected genre.

GUIDE SEARCH

Search for channels. This is where you can set the channels to be searched, the day and the genre. In addition, a full text search is available to you here.

- NOW

Skip back to the current timeline.

-ZOOM

Minimize time window in four steps.

The next table shows the additional button functions within the programme guide:

But- ton	Function
OK	If the selected programme is running, the following options are available by pressing the OK button: SELECT CHANNEL: Select this option and press the OK button to switch to the selected channel. MORE INFO: Select this option and press the OK button to display information about the current programme. RECORD: Select this option and press the OK button to start recording the selected channel. After ending the recording by pressing the button, the recording is stored in the list of recordings. For more information, read the section "Recordings menu". If the selected programme is in the future, a recording timer is stored in the timer list. The recording then starts automatically at the beginning of the selected programme. For more information, read the section "Timer menu" SET TIMER ON EVENT: If the selected programme is in the future, this option is still available. Select this option and press the OK button to display a shift timer in the timer list. At the start of the selected programme, the device then automatically switches to the corresponding programme. For more information, read the section "Timer menu".
INFO	Displays a detailed description of the selected programme (if available). Press INFO again to hide the description. If the description is longer, use the P▼/▲ buttons to scroll within the text.

But- ton	Function
BACK	If a programme is running and you wish to se- lect NOW/NEXT, FILTER, PREVIOUS DAY, NEXT DAY or EXTRAS, you must press the BACK button first.

7.6. Selecting the source

Please note that the source (the connected device) is only detected if it is activated in the SYSTEM > SOURCES menu.

Use the (SOURCE) button to select the inputs for the connected devices. When the SOURCES LIST menu is open, press the corresponding digit to select the desired source directly.

1. TV TV mode (antennas, satellites and cable signals are played back)

2.HDMI1 HDMI input 1

3.HDMI2 HDMI input 2 (HDMI 2 can be used for eARC)

4.HDMI3 HDMI input 3

5.WIRELESS Playback content from another external player

USB1 USB storage medium (optional) (the name can differ, if necessary)

Alternatively, use the direction buttons to go to the desired source.
Confirm your selection with the OK button.

If the CEC function is enabled, the HDMI source could be renamed from the external player if necessary. The remote control of the TV set controls the connected devices. If the 0 button on the remote control is pressed for several seconds, this controls the television again.

The source can also be selected using the multifunction switch on the device. For this, press the button to open the function menu. Then press again to select the source selection option. Press and hold the button to access the source menu. Press again to select the source and long press to confirm the selection.

7.7. Wireless display

Via wireless display you have the option of playing content from an external player (e.g. tablet PC, smartphone etc.) via the television. The external device must have at least Android version 4.2 installed. The WIRELESS DISPLAY function is only available for Android devices.

Select WIRELESS DISPLAY as the source. The "Wireless display - ready to connect" start screen appears.

You must activate screen mirroring on the playback device. The playback device now detects the available TV sets with which a connection can be established.

After the television is selected, a connection is established. Notification "Connection with wireless display is made" appears. Then the TV will mirror the screen content of the playback device.

Wireless display can only be used if the mobile device supports this function.

The detection and connection processes differ depending on the programs you use. Please refer to the operating instructions of your playback device. Android-based mobile devices should have the software version 4.2 or higher.

Due to the great variety of different devices and software versions, faultless functionality cannot be guaranteed.

8. Teletext

Teletext is a free service broadcast by most channels and provides the latest news, weather, TV listings, share prices, subtitles and other information. Your TV set offers many useful functions for using teletext including multipage text, subpage saving and quick navigation.

This service must be available in your region/from your TV provider.

The operation and display of teletext may vary depending on the TV channel selected.

8.1. Using the teletext

Your remote control has special buttons for operating the teletext.

• Select a TV channel that broadcasts teletext.
  Press tTEXT button once to display the start/index page for the teletext.
  PressTEXT again makes the text transparent in front of the TV image.
• Pressing the TEXT button a third time switches the device back into TV mode.

8.1.1. Selecting a teletext page

• Enter the number of the desired teletext page as a three-digit number using the number buttons.
  The selected page number is displayed in the top left corner of the screen. The teletext counter searches as long as it takes to find the selected page number.

8.1.3. Scrolling through pages

The channel selection buttons or and direction buttons can be used to scroll forwards or backwards through the teletext pages.

8.1.4. Colour butt ons

If coloured fields or text entries are displayed at the lower edge of the screen then you can select these contents directly by pressing the appropriately coloured button: RED, GREEN, YELLOW, and BLUE.

8.1.5. Subpages

Some teletext pages have subpages. The lower edge of the screen may contain something like 1/3, for example. The subpages are displayed one after another at an interval of about half a minute. You can also call up these subpages by pressing the button.

8.1.6. INDEX

Use the BACK button to select the start page containing a list of the teletext contents.

9. Home menu

To enjoy the benefits of your TiVo TV, your TV must be connected to the Internet. Connect the TV to a home network via an Internet connection. You can connect your TV via WLAN or LAN. Further information on the Internet connection can be found in the Channelsearchwhenswitching on for the first time chapter or in the menu description NETWORK.

To call up the Home menu during operation, press the button (Home button) on the remote control.

In the Home menu, all pre-installed apps and the apps you have installed are displayed and can be started from here.

Depending on your TV setup and your country selection in the initial setup, the Home menu may contain different items.

To start an app, select it using the direction buttons

and press OK.

The following options are displayed on the left-hand side of the screen:

• SEARCH: Use the magnifying glass to enter a search term using the virtual keyboard.
• HOME: Calling up homepage
• TIVO+ FREE: Calling up TiVo and free content
• TV-SHOWS: Calling up TV series content
  -MOVIES: Calling up film content
  -WATCHLIST: Calling up watch list

• ALL APPS: Calling up all apps

• SETTINGS: Use this option to call up the SETTINGS menu.

You can also find the following options under HOME:

GUIDE: Calling up the programme guide (EPG - Electronic Programme Guide)
- ALL APPS: Calling up all apps
- SOURCES: Calling up the signal source list
- CHANNEL LIST: Calling up the channel list
- RECORDINGS: Calling up the recording list
- TIMER: Calling up the timer list

• SETTINGS: Use this option to call up the SETTINGS menu.

9.1.1. Timer menu

Shift Timer

If a shift timer has been programmed, the relevant programme is displayed in the TIMERS menu. The timer then switches to the set programme, however it is not possible to output the signal (e.g. to be recorded by an external recorder).

Recording Timer

A recording timer can be programmed via the EPG or the ADD TIMER option.

The displayed shift and recording timer can now be selected and subsequently edited using EDIT SELECTED TIMER or deleted using DELETE SELECTED TIMER.

The following options are available if you want to edit or add a timer:

CHANNEL TYPE

Set the reception type (DVB-T/DVB-T2, DVB-C, DVB-S or analogue). Only reception types set up during the installation are displayed here.

TIMER TYPE

The RECORD option is preset here and cannot be changed. You can programme the start and end of a programme that you wish to record using the following options. Plug in a hard drive or USB stick to the USB port to do this. The relevant programme will then be recorded to the hard drive or USB stick.

If the USB stick is not working correctly and an error message is displayed (e.g. not enough space available, although the stick is empty), it can also be formatted by the Smart TV under menu option RECORDINGS > SETTINGS > FORMAT DISK.

CHANNEL

Select the channel.

RECORD TYPE

This is preset and cannot be changed.

DATE

Enter the date.

Use the number buttons to change the digits in the square brackets.

START

Enter the start time.

END

Enter the end time.

DURATION

The duration is determined automatically.

REPEAT

Select the interval at which the timer is to be repeated (ONCE, DAILY, WEEKLY or WEEKDAYS).

CHANGE/DELETE

If DISALLOWED is selected, a lock symbol appears. In this case, you can only open the entry with the PIN.

PLAYBACK

Setting options: USE PARENTAL SETTINGS, ALLOWED, DISALLOWED

It is not possible to add a shift timer manually.

9.1.2.Recordingsmenu

All created recordings are listed in the RECORDINGS menu. This menu contains the following options:

PLAY OPTIONS

-PLAY FROM START

Playback of the selected recordings starts from the beginning.

-RESUME

If you have paused the selected recording before it is played back, it continues from this point.

-PLAY FROM OFFSET

This option enables you to specify the exact point at which playback of the selected recording is to start.

EDIT

Information regarding the currently selected recording is available here. Under RECORDING, you can change the name of the selected recording using a virtual keyboard. In addition, you can specify under DELETE, whether the recording may be deleted or not (ALLOWED or DISALLOWED). Under PLAYBACK, activate the child lock so that the recording concerned can only be started once the PIN has been input (DISALLOWED). The factory default PIN is 0000. This option can be used to make changes retrospectively via RESET and you can save your amendments with SAVE.

DELETE

This option can be used to delete existing recordings. To do this, answer the prompt with YES.

SORT

This option can be used to sort the list of recordings according to various criteria.

SETTINGS

-START EARLY

This is where you can specify that the recording is to start before the set start time.

-END LATE

This is where you can specify that the recording is to end after the set end time.

MAX TIMESHIFT

This is where you can set the max. timeshift. The timeshift function enables you to pause playback during the recording with II or fast forward or rewind using and . The recording runs unimpaired in the background. The maximum timeshift can be set here.

-AUTO DISCARD

The automatic deletion of recordings can be set using this option. The following options are available here:

DISCARD

None / Oldest /Longest / Shortest

- UNPLAY

Included/Excluded.An exception is only possible if oldest,longest or shortest is selected under DISCARD.

HARD DISK INFORMATION

To display information regarding the USB hard drive, check this option and press the OK button. Hard drive information includes, for example, the volume of remaining available storage space.

FORMAT DISK

Select the FORMAT DISK menu. You must now enter the device PIN here. The factory default PIN is 0000. The notice THIS WILL REMOVE ALL RECORDINGS appears. Select YES if you want to start the formatting or NO to cancel the process. Confirm with OK.

Recording via media buttons

You can operate the recording and playback using the media buttons.

●	Press this button to start recording the current programme.
►	From the recording list, you can start playback of the selected recording using this button.
II	Pause and restart playback with this button.
■	Stop the recording and playback with this but- ton.
«	During playback, activate fast rewind at various speeds with this button: x2, x4, x8, x16, x32 Press the ➔ button to return to normal play- back.
►	During playback, activate fast forward at various speeds with this button: x2, x4, x8, x16, x32 Press the ➔ button to return to normal play- back.

Timeshift Recording

You can start a timeshift recording in TV mode to view the current channel after a delay. To do so, proceed as follows:

II	Press this button during the current pro- gramme. The programme stops there and the timeshift recording runs in the background. Press this button again to start the timeshift playback. The channel now runs again with the delay.
►	If you have previously started the timeshift re- cording using the II button, you can also start the timeshift playback with this button.
■	Stop the timeshift playback with this button. The channel is then played back normally and not with a time delay.

9.1. Menu Settings

9.1.1. Navigating in the menu

In the Home menu, use the direction buttons to select the SETTINGS option or press the (MENU) button.
Use the direction buttons to select the main menus.
Use the direction buttons to select the submenus of the main menus.
Press to K button to call up the selected option in the submenu.
You can use the direction buttons to select the options from a menu.
Press the button to return to the main menu one menu step at a time.
You can use the direction buttons to enter a value or make another selection.
Close the menu with the EXIT button.

Please note that depending on the preset, the menu closes automatically if no button is pressed for a certain amount of time.

Due to technical changes, the menus described here may differ from the menus actually displayed on your screen. Not all menus are available, depending on the source you selected.

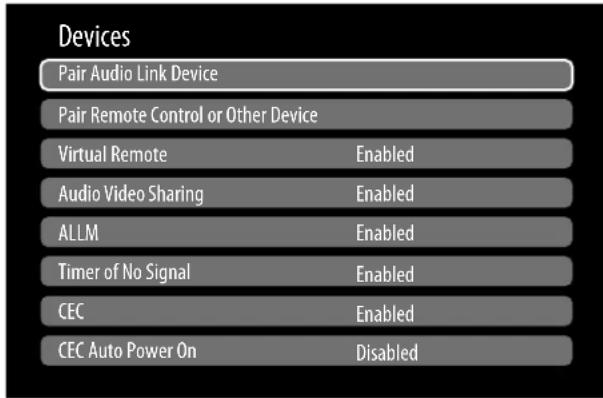

9.1.2. Devices menu

PAIR AUDIO LINK DEVICE

Here you can enable or disable the Bluetooth function of the device. With Audio Link enabled, it is possible to pair the TV set wirelessly with Bluetooth speakers (e.g. a soundbar). Select PAIR AUDIO LINK DEVICE and press the OK button. Select the ENABLED setting if you want to connect the device to an external speaker via Bluetooth. Then press the OK button to search for available Bluetooth connections. All found connections are then displayed. Use to select the desired device and press OK to pair the speaker or speaker system with the TV set.

Due to the great variety of different Bluetooth devices, faultless functionality cannot be guaranteed. Please also read the operating instructions of the device that you wish to connect to the TV. The device to be connected must be in search mode.

To disconnect the connection again, select the DISABLE setting.

PAIR REMOTE CONTROL OR OTHER DEVICE

To pair the supplied remote control or another input device, select this option. Then start the search while holding down the (SOURCE) button. The connection will then be established

To use voice control, the remote control must be paired with the TV set.

Due to the great variety of different devices, faultless functionality cannot be guaranteed. To disconnect the connection again, select the DISABLE setting.

VIRTUAL REMOTE

Activate/deactivate the virtual remote control. This function must be activated if you wish to operate the TV remotely via a smartphone. (optional)

AUDIOVIDEO SHARING

Switch audio-video sharing on/off. This function allows data exchange with other multimedia devices such as PCs, smartphones, cameras, etc. See section "Using the video audio sharing network service".

If you disable the AUDIOVIDEO SHARING function, it will no longer be possible to display audio, video or photo files on the Smart TV. The DMR function (Digital Media Processor) is then switched off.

ALLM

The television can activate or deactivate the settings for low latency with the ALLM function (Auto Low Latency Mode). When this option has been activated, the image mode automatically switches to SPIEL if the signal in ALLM mode is received from the current HDMI source.

TIMER OF NO SIGNAL

If your television does not receive an input signal (e.g. from an antenna or HDMI source) for 3 minutes, the television switches into standby mode. You can activate or deactivate this option.

CEC (Consumer Electronics Control)

To connect the device to a CEC network, make the required settings here.

Enable this function to allow all devices that are connected via HDMI to communicate with each other. In this way, you can, for example, control the basic functions of all devices in an HDMI network using only one remote control. Activate this function if you want to configure additional settings under SOUND > SOUND OUTPUT.

First select the CEC function and select HDMI as the source. If you have already connected a CEC-enabled device, the name of the device is listed instead of HDMI. The basic functions of the device can then be automatically controlled using the remote control of the Smart TV.

If the CEC function is activated and HDMI has been selected as the source (CEC-enabled device connected), the OSD menu of the Smart TV may no longer be called up using the (MENU) button. In this case, press and hold 0. The remote control then controls the TV again. Pressing and holding again then enables the control of the device connected by HDMI.

CECAUTO POWER ON

This function allows you to turn on the TV with the connected HDMI-CEC-compatible device and automatically switch to the input source. Select ENABLED if you want to use this function.

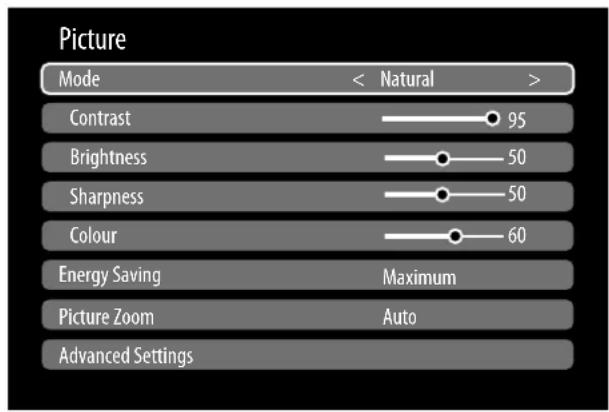

9.1.3.Picturemenu

MODE

Select screen mode: NATURAL, CINEMA, SPORTS, DYNAMIC

As soon as the PICTURE menu is selected using the

• buttons, this menu appears above and can be selected directly.

CONTRAST

Increase or reduce contrast (on a scale of 0 to 100)

BRIGHTNESS

Increase or reduce brightness (on a scale of 0 to 100)

SHARPNESS

Increase or reduce sharpness (on a scale of 0 to 100)

COLOUR

Increase or reduce colour saturation (on a scale of 0 to 100)

ENERGY SAVING

This is where you can activate the energy-saving mode. Select OFF, MINIMUM, MEDIUM, MAXIMUM, SCREEN OFF, AUTO or CUSTOM to set the brightness of the TV set or switch off the screen.

In DYNAMIC screen mode, the MAXIMUM setting cannot be selected.

As soon as the PICTURE menu is selected using the

buttons, this menu appears above and can be selected directly.

PICTURE ZOOM

This is where you can set the picture format.

As soon as the PICTURE menu is selected using the

buttons, this menu appears above and can be selected directly

ADVANCED SETTINGS

DYNAMIC CONTRAST

Set dynamic contrast: OFF, LOW, MEDIUM, HIGH.

- COLOUR TEMP

Select colour tone: NORMAL, WARM, COOL, CUSTOM.

- BLUESTRETCH

Cooler white tones are commonly perceived as bright white. The blue stretch function adjusts the white balance and allows mid and high grayscales to appear in a cooler colour temperature through the addition of blue tones. Select ON to activate the blue stretch function.

-MICRODIMMING

Micro dimming technology divides the screen into smaller zones. The contrast settings for individual screen zones can then be optimised differently according to the content. This adds more depth to dark and bright zones, without losing the details and compromising other parts of the image. Select between OFF, LOW, MEDIUM and HIGH.

- NOISE REDUCTION

This function reduces picture noise and improves picture quality when the analogue signal is weak. Select between OFF, LOW, MEDIUM and HIGH.

- DE-CONTOUR

At low resolutions, a clear graduation may be visible between the different brightness zones within large zones. The de-contour function smooths these contour effects, so that there is no perceptible distinction between the zones. Select between OFF, LOW, MEDIUM and HIGH.

-MEMC

The MEMC function smooths the juddering effect that occurs with 24 fps image reproduction. This function converts the content to 60/120 fps, enabling significantly more fluid image reproduction. Select between OFF, LOW, MEDIUM and HIGH.

-FILM MODE

To play back films taken on a video camera without judder, switch the film mode to AUTO.

-SKIN TONE

Set skin tone

- COLOUR SHIFT

Set colour shift

COLOUR TUNER

Activate/deactivate the colour tuner. Under COLOUR TUNER, you can set the individual colour ranges to custom values (scale 0-100).

GAMUT MAPPING

Enable/disable color space adjustment (ON/OFF).

Some signal sources use a different color space (gamut) than the display device, which can lead to a different color display. Activating the gamut mapping function compensates for these discrepancies so that the image is reproduced true to the original despite the different color spaces.

GAMMA

Select the gamma setting: DARK, MEDIUM, BRIGHT

-HDMI FULL RANGE

HDMI FULL RANGE (optional): This function in the screen settings menu is available as soon as the picture signal is received via an HDMI input. You can use this feature to boost the black of the images. You can set this function to ON to activate this mode.

- RESET

Press OK to reset all screen settings to the factory defaults.

9.1.4. Sound menu

DOLBY ATMOS

Select the Dolby Atmos setting ON, AUTO or OFF for audio playback.

MODE

If the Dolby Atmos function is activated, you can select the desired mode here: OFF, SMART, MOVIE, MUSIC, OFF

DTS VIRTUAL:X

Enable / disable the DTS Virtual: X Surround effect. Choose the settings OFF, MUSIC, SPORTS, CINEMA.

When you turn this effect on, the DOLBY ATMOS function will be automatic deactivated.

SOUND OUTPUT

The default setting for the speakers is TV so that only the internal speakers are used to output the sound. Select the S/PDIF setting if you want to use the digital output of the device to connect an external device. When HEAD-PHONES ONLY is set, the speakers are muted as soon as headphones are connected. The V + I -buttons on the remote control can still be used to set the headache volume. The LINEOUT setting means that the signal has a predefined volume that cannot be changed. If this setting is selected, an external amplifier can be connected to the device. You also have the option of selecting the HDMI ARC setting and integrating an external amplifier into a CEC network via the HDMI2 connection. This setting can only be selected if you have previously activated the CEC function under SETTINGS>DEVICE SETTINGS> CEC. If this is not the case, a message appears when selecting HDMI ARC, whereupon CEC is activated by confirming with OK. If you have done so, it is possible to select the HDMI ARC setting and integrate an external amplifier into a CEC network via the HDMI2 port. The internal speakers are muted in this case. The volume buttons on the remote control now control the device connected to the HDMI2 port (no OSD display of the volume bar).

The ARC function works exclusively via the HDMI2 port.

Due to the great variety of different devices, faultless functionality cannot be guaranteed.

eARC

Activate/deactivate the eARC function. This option only appears if you have selected HDMI ARC under SOUND OUTPUT

AVL

This function sets the sound so that a constant output volume is maintained between programmes. Set to OFF to return to the original volume settings. Set to OFF to hear a constant volume.

If the DOLBY AUDIO menu item is set to anything other than OFF, amend the settings options. AUTO, NIGHT, NORMAL and OFF are available. In AUTO

mode, the television automatically switches between NORMAL and NIGHT mode depending on the current time information. If no time information is available, this option always performs as NORMAL. When the television switches to NIGHT mode for the first time after this option has been set to AUTO, an information bar is shown on the screen.

Please note that in contrast to NORMAL mode, NIGHT mode provides dynamic compression management suitable for silent surroundings

ADVANCED SETTINGS

The EQUALIZER and BASS GAIN options are only active when OFF has been selected under MODE.

-EQUALIZER

In the equaliser submenu, the preset can be set to MUSIC, MOVIE, SPEECH, FLAT, CLASSIC and USER. The settings in the equaliser menu can only be changed if the equaliser mode is set to USER.

As soon as the SOUND menu is selected using the buttons, this menu appears above and can be selected directly.

BASS GAIN

Here you can increase or reduce (on a scale of 6 to -6) the bass component (subwoofer signal).

-DTS DRC

Activate/deactivate the DTS Dynamic Range Compression function. This reduces the dynamic range of the audio signal, which automatically raises the volume of very weak signals and enables improved intelligibility.

- SOUND MODE

Standard setting STEREO. If the current programme supports DUAL mode (e.g. dual-language broadcasts), you can also choose here between DUAL-I and DUAL-II (original language and dubbed language).

-DIGITAL OUT

Set the headphone volume here. This can only be changed if SOUND OUTPUT is set to HEADPHONE ONLY.

-HEADPHONE

Select the audio signal for the headphone connection. The HEADPHONE setting enables volume regulation for the signal. The LINEOUT setting means that the signal has a predefined volume that cannot be changed. If this setting is selected, an external amplifier can be connected to the device.

WARNING!

Risk of hearing damage!

To prevent possible damage to your hearing, avoid listening at high volume over long periods of time.

Before pressing play, set the volume to the lowest setting.
Start playback and increase the volume to a comfortable level.

-BALANCE

Set the balance between the left and right speakers (on a scale of -50 to +50). The default setting is 0 and can only be changed if the option DOL-BY ATMOS is disabled (OFF).

-RESET

Press OK to reset all sound settings to the factory defaults.

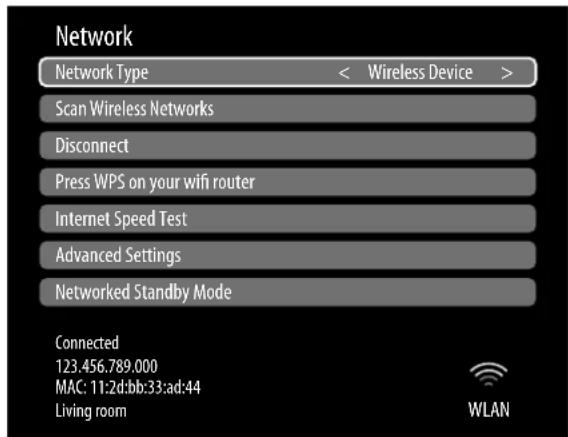

9.1.5. Network menu

NETWORK TYPE

Use to select the network type WIRELESS DEVICE, WIRED DEVICE or DISABLED.

SCAN WIRELESS NETWORKS

(optional WLAN)

Pressing the OK button displays an overview of all available networks. Make a selection using the buttons and press the OK button to confirm. If a password is required for a network, a virtual keyboard appears which you can use to enter this with the help of the direction buttons and the OK button. After entering the password, select OK on the keyboard and press the OK button to confirm.

DISCONNECT

Disable network connection

PRESS WPS ON YOUR WIFI ROUTER

(only for WLAN)

This option enables you to quickly establish a WPS connection via a wireless network (WLAN). Press and hold the WPS button on your router and confirm with the OK button. Then the WPS connection is established.

INTERNET SPEED TEST

Press the OK button to test the speed of the internet connection.

ADVANCED SETTINGS

Press the OK button to call up further network configuration options.

-IP CONFIGURATION

Select the AUTOMATIC or MANUAL setting here. If MANUAL is selected, three additional lines appear, where the IP ADDRESS, SUBNET MASK and DEFAULT GATEWAY data can be entered manually with the aid of the direction buttons and the number buttons.

-DNS CONFIGURATION

Choose between AUTOMATIC or MANUAL here. If MANUAL is selected, two additional lines appear, where the DNS SERVER 1 and DNS SERVER 2 data can be entered manually with the aid of the direction buttons and the number buttons.

NETWORKED STANDBY MODE

Activate/deactivate the Wake-On LAN/Wake-On Wireless LAN function (WoL/WoWLAN). This enables you to switch on the Smart TV via a different device. Both devices must be connected to the same network via LAN or WLAN for this purpose. Select the ON setting to activate the function. The device being used as a remote control must be connected to the TV set once when it is switched on. The control function only works when the TV is in standby mode.

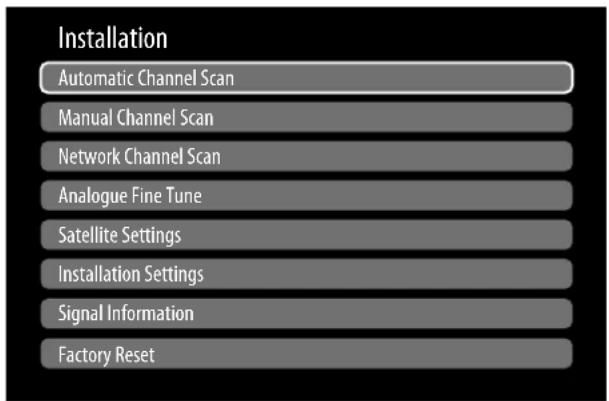

9.1.6.Installationmenu

AUTOMATIC CHANNEL SCAN

The automatic station search function helps you to search for and save new channels on your TV.

A number of search options are available.

Once you have selected the search option, press OK.

Press YES to confirm the query and press OK to start the station search.

Press (MENU) to cancel the search prematurely. In this case, any found channels will not be saved.

MANUAL CHANNEL SCAN

This function is used for the direct entry of station or satellite transponder data.

-SEARCH TYPE

Set the desired reception type here.

SATELLITE

-FREQUENCY

The number buttons can be used to specify the frequency to be searched.

POLARISATION

Select the polarisation level here.

-SYMBOL RATE

Set the baud rate.

-NETWORK CHANNEL SCAN

Activate/deactivate the network scan.

- SATELLITE

Select the satellite on which the search will be started.

ANALOGUE

-BAND

Select the desired frequency band S or C.

-TV SYSTEM

Set the desired TV system here (BG, I, DK). The sound system set for Germany is BG.

- CHANNEL

Select the channel number for which you want to carry out a search.

FREQUENCY

Displays the frequency of the current station. The number buttons can be used to specify the frequency to be searched.

D. AERIAL

CHANNEL

Select the channel number for which you want to carry out a search.

-FREQUENCY

Displays the frequency of the current station. The number buttons can be used to specify the frequency to be searched.

-NETWORK CHANNEL SCAN

Activate/deactivate the network scan

D. CABLE

-FREQUENCY

The number buttons can be used to specify the frequency to be searched.

- MODULATION

Set the modulation

-SYMBOL RATE

Set the baud rate

-NETWORK CHANNEL SCAN

Activate/deactivate the network scan

NETWORK CHANNEL SCAN

Select between digital cable or DVB-T station groups. This searches for related channels of the currently selected station. The information sent in this respect depends on the selected channel and leads to different results.

The existing channel list is replaced when the network search is started.

ANALOGUE FINE TUNE

Here you can fine-tune analogue channels.

SATELLITE SETTINGS

- SATELLITELIST

Display satellite list

Use the buttons to select a satellite from the list. Press the OK button to call up the ADD, EDIT and DELETE options.

- ANTENNAINSTALLATION

In this section, you can change the antenna settings and search satellites for new channels. Select a satellite and press the OK button. Then the TRANSPONDER LIST, SCAN FOR SERVICES, SAVE AND EXIT and CONFIGURE LNB options appear for further editing. Under CONFIGURE LNB you can make and save settings under LOWER LNB OSCILLATORS and UPPER LNB OSCILLATORS (SAVE). The RESET option can be used to reset all values to the default settings.

- SATELLITE CHANNEL TABLE

This menu item allows you to export or import the existing satellite station list. Connect a removable storage medium (USB stick) to save the satellite station list onto it or update the list from the storage medium.

INSTALLATION SETTINGS

Here you can make additional installation settings.

- STANDBY SEARCH

If the function is set to ON, the TV will search for available stations while it is in standby mode. When the device finds new or not yet available stations, a menu is displayed that you can use to accept or reject the changes

DYNAMIC CHANNEL UPDATE

If you select the ENABLED setting, the channel list is updated automatically.

SIGNAL INFORMATION

Displays further data about the received signal.

FACTORY RESET

This function correlates with the initial installation steps that occur after switching on for the first time.

Carrying out the initial installation again will reset all settings back to the Factory defaults, including the PIN.

ACCESSIBILITY

Here you can adjust the settings for visually or hearing impaired users, in order to be able to receive additional supporting signals.

-HIGH CONTRAST

Select a different contrast setting here. OFF, WHITE TEXT, YELLOW TEXT.

HARD OF HEARING

If the station broadcasts special audio signals for hearing impaired users, you can change the setting to ON to receive these signals. The relevant information must be provided by the respective station.

-AUDIO DESCRIPTION

If the station broadcasts special audio signals for visually impaired users, you can change the setting to ON to receive these signals. In the submenu, select the AVAILABLE LanguAGES, the PREFERRED LANGUAGE and the RELATIVE VOLUME. The RELATIVE VOLUME describes the volume balance between normal audio signals and the special audio signals for visually impaired users.

-DIALOGUE ENHANCEMENT

You can select settings to enhance dialogue here: OFF, LOW, MEDIUM, HIGH. This function emphasises the clarity of the dialogue signal to achieve better speech quality.

- SPOKEN SUBTITLES

Activate this function for the subtitles to spoken out loud.

-MAGNIFICATION

Activate/deactivate the magnification function.

-MINI MAP

Activate/deactivate the mini map option. Changes can only be made when the magnification function is active.

-HIGHLIGHT PROGRAMMES WITH

You have the option to highlight any programmes that offer accessibility aids. Activate/deactivate the following options accordingly.

[S] SUBTITLES

Activate/deactivate all programmes with subtitles.

[SL] SIGN LANGUAGE

Activate/deactivate all programmes with sign language.

[AD] AUDIO DESCRIPTION

Activate/deactivate all programmes with audio descriptions.

LANGUAGE

All language settings are made and displayed in the LANGUAGE menu.

-MENU

Here you can select the language for the OSD menu, in other words, for the on-screen displays.

The language changes immediately. Do not set a language you do not understand.

-PREFERRED

These settings will be used if available. Otherwise the current settings will be used.

PRIMARY AUDIO LANGUAGE

If a programme, e.g. a film, is broadcast in several languages, you can select the spoken language here (e.g. original language).

SECONDARY AUDIO LANGUAGE

Select your second preferred audio language here.

PRIMARY SUBTITLE LANGUAGE

If the programme includes subtitles for hearing impaired users, you can set the preferred language here.

SECONDARY SUBTITLE LANGUAGE

Select your second preferred subtitle language here.

TELETEXT

Select your preferred teletext language here.

GUIDE

If there are several languages available for the programme (guide), you can use this option to select your preferred language.

-CURRENT

AUDIO

Here you can set the audio language of the current programme, if more than one audio language is supported.

SUBTITLE

Here you can set the subtitles for the current programme, if available.

CONDITIONALACCESS

If you want to watch subscription channels, you must first register with the channel provider. Once you have registered, you will receive a Conditional Access Module (CI module) and a special card from your provider. You will find information about the settings in the documentation supplied with the module.

Install the CI components on your television in the following way:

Switch the television off and pull out the mains plug.
- First insert the CI module in the slot on the side of the Smart TV. Then insert the card.

Please note: only insert or remove the CI module after you have disconnected the device from the power supply.

NOTICE!

Risk of damage!

The CI module or the television could be damaged if you attempt to insert the CI module by force.

The CI module must be inserted correctly it cannot be inserted if it is the wrong way round.
Connect the television to the power supply, switch it on, and wait for a moment until the card is recognised.

Additional setup steps may be required for some CI modules, which you can complete in the CONDITIONAL ACCESS menu.

If no module is inserted, the message NO COMMON INTERFACE MODULE DETECTED appears on the screen.

The appearance and operation of the menu may vary depending on the module used.

PARENTAL

If you confirm this by pressing OK, a dialogue box opens. The password (or lock key) is requested. Upon delivery, the factory default password is set to 0000. If the password is entered correctly, the dialogue box for security settings opens.

If you assigned a password during the initial installation, you must enter it.

-MENU LOCK

The MENU LOCK setting activates or deactivates menu access. You can block access to the installation menu or disable the entire menu system.

-MATURITY LOCK

If this option is set, it will obtain age information from the broadcaster. Is the corresponding age level in the device deactivated, access to the program is blocked.

- CHILD LOCK

If the child lock is activated, the TV can only be operated via the remote control. In this case, the multifunction button /MODE is deactivated. To switch the TV back on, you will need the remote control. When a button is pressed, the message CHILD LOCK IS ON appears on the screen while the menu remains hidden.

-GUIDANCE

If the child lock is activated, the TV can only be controlled using the remote control. In this case, the MODE multifunction switch is deactivated. When a button is pressed, the message GUIDANCE ON appears on the screen while the menu remains hidden.

-SETPIN

Sets a new four-digit PIN. Use the number buttons to add a new PIN. You must enter the new PIN again to confirm.

Make a note of the new PIN. Otherwise the device must be reset to the factory defaults and all settings and channel listings will be lost.

- DEFAULT CICAM PIN (optional)

Here, you can enter the PIN of the Cl card to record the channels of the pay TV card you are using (if the provider supports this).

DATE/TIME

You can change the time settings here.

-DATE/TIME

Display the set date and time. The entries cannot be changed.

-TIME SETTINGSMODE

If you change the entry from AUTO to MANUAL you can adjust the selected time zone forwards or backwards in hour or half-hour steps. If AUTO is set, the current local GMT time is adopted.

-GMT

Only active if the previous point has been set to MANUAL.

Select the value using . The current time is changed accordingly.

The timer settings only work properly if the correct time is set

SOURCES

In this menu, you can activate and deactivate sources. However, individual sources cannot be selected here. Select a source using the buttons and press OK. A menu then opens featuring the options ENABLED, DISABLED and EDIT NAME. For HDMI, the options REGULAR, ENHANCED and EDIT NAME appear. Deactivated sources do not appear in the shortlist, which is opened using the SOURCE) button or in the SOURCES menu.

HDMI connections can be activated (indicated by REGULAR) and deactivated. With ENHANCED, the selected connection is operated with HDMI 2.0 and the displayed colour range is increased if supported by the connected device. This fourfold increase in the dynamic range makes the darkest areas of the picture even darker and the brightest areas even brighter. It creates a more realistic impression and makes details visible that were previously unrecognisable with a smaller brightness range.

Select the ENHANCED setting for HDMI inputs if contents are to be played back with HDR.

If EDIT NAME is selected, a virtual keyboard is displayed. This can be used with the help of the direction buttons to amend the name of the relevant source. If the CEC function is activated, the HDMI inputs are, if necessary, renamed through the connected device.

NETFLIX

Calling up the Netflix app enables numerous films and series to be streamed directly over the Internet. This is a premium service and you must register when using the service for the first time.

NETFLIX is a subscription service that enables its members to stream films and series ('NETFLIX contents') using Internet-enabled televisions, computers and other devices ('NETFLIX supported devices'). The NETFLIX service is provided to you by Netflix International B.V., a limited liability company in the Netherlands.

-ESN NUMBER

Press the OK button to display the Netflix ESN number.

- DEACTIVATE

Press the OK button to deactivate Netflix. The device will then be logged out and access will be released again.

Press the NETFLIX button on the remote control to open Netflix.

TIVO

Calling up the hardware serial number and the device recording ID.

VOICE ASSISTANT (optional)

You can use Alexa-enabled devices to control your television. The following options can be set in the VOICE ASSISTANT menu.

• WORKS WITH ALEXA (optional)

This option enables your television to be controlled using an Alexa device. Press START and assign a name to give your device instructions and log in. A device search is not required for setting up this option.

• GOOGLE ASSISTANT (optional)

This option allows you to control the basic functions of the TV set with your smartphone (also by voice command). To do this, you need the latest Google Home app on your smartphone. The TV set and smartphone must be on the same network for the initial setup. Follow the instructions on the screen to pair the two devices.

MORE...

-MENU TIMEOUT

Here you can set the time after which the OSD menu closes automatically.

-HOME SCREENSAVER

Define when the screen saver should be switched on.

- STANDBY MODE LED

Enable/disable the standby LED.

- DEVICE IDENTIFICATION

Activate/deactivate the device identification. When switched off, the device identification is deleted.

- SOFTWAREUPGRADE

You can search for the latest software for the television here and update it.

AUTOMATIC SCANNING

Activate/deactivate the automatic search function

EDIT UPGRADE FOR SATELLITE

You can change the satellite upgrade settings here.

SCAN FOR UPGRADE

Start the Internet search for updated software. The update takes approx. 30 minutes. Do not interrupt this process. The search progress is played.

- APPLICATION VERSION

Version display. This item is for information purposes only and cannot be changed.

-AUTO POWER DOWN

You can set the time interval for the auto shutdown function here. If the TV is not operated within this period, it switches itself off.

As soon as the SYSTEM menu is selected using the buttons, this menu appears above and can be selected directly.

- STANDBY ON MODE

Determine whether the start screen or the last selected source is displayed when the device is switched on.

SLEEP TIMER

Specify a time after which the device is automatically switched off if no operation has taken place by then. Select OFF to deactivate the function.

-BUSINESS MODE (optional)

Activate/deactivate the business mode

-BISS KEY

Manual activation of channels. Setting only available for satellite channels.

- POWER UP MODE

Select the power on mode STANDBY or LAST STATE. As soon as the device is connected to the mains, the device then switches to standby mode or calls up the last selected setting.

-OSS

Displays the licence information for open source software.

-CHANGE FRIENDLY NAME

Here you can change the name of the device that is required for voice control.

APPLCATION PRIORITY

This option enables the user to specify the MMI application priorities. Specify whether the tracking works via the CICAM application or normal transmission (APP MMI or BROADCAST).

-DOLBY NOTIFICATION

If the option is activated (ON), the Dolby Vision logo is displayed briefly, as soon as you view contents with Dolby Vision. If this option is disabled (OFF), the Dolby Vision logo is not displayed.

-MANUALS

Calling up the electronic operating instructions

9.1.8. Legal menu

PRIVACY POLICIES

Calling up the TiVo privacy statement and the manufacturer's privacy policy.

TERMS & CONDITIONS

Calling up the general Smart TV service terms and conditions and the manufacturer's terms and conditions.

CONSENT SETTINGS

Here you can access the summary of the TiVo privacy statement and the manufacturer's privacy policy and give your consent.

ADVERTISING ID

Here you can activate or deactivate the option for personalised advertising and reset your advertising ID.

COMPANY INFORMATION

Calling up the information on the TiVo Smart TV service.

TRANSPARENCY DISCLOSURE

Calling up the TiVo transparency disclosure.

COOKIES

You can make the following settings here:

SHOW ALL COOKIES

You can retrieve a list of all cookies here. To delete a cookie, select it using the direction buttons and press OK.

- DELETE ALL COOKIES

All cookies listed can be deleted here.

Please note: If you delete all cookies, the initial installation of the media portal must be carried out again.

-DO NOT TRACK

Activate/deactivate the HbbTV/Internet Tracking option. With the setting DISABLED you allow the evaluation of your HbbTV/Internet behavior in order to best suit the service to your preferences. If that's not what you want, choose the ENABLED setting.

9.2.Mediabrowsermenu

If you connect a USB data medium to the Smart TV, you can play music files, images and videos. Use the FILTER function to specify which media files are to be displayed (ALL, PICTURE, AUDIO or VIDEO). Under SORT BY..., you can select how the list is sorted (NAME (alphabetical ascending), NAME, REVERSED (alphabetical descending), DATE/TIME, NEWEST FIRST or DATE/TIME, OLDEST FIRST).

Information about using USB

Certain types of USB devices (MP3 player) may not be compatible with this Smart TV.
Connect the USB device directly.
Do not use a separate cable, because this may cause compatibility problems.
- Never remove the USB device while a file is being played.

0 NOTICE!

Risk of damage!

Connecting and disconnecting USB devices quickly and repeatedly is dangerous and can physically damage the USB device and the Smart TV itself.

• Do not insert and then remove the USB

device repeatedly in quick succession.

As soon as you connect a USB medium in normal operation, the USB medium is displayed under the SOURCES menu and you can access it. As soon as the USB storage medium is removed, the note USB DEVICE (0) DISCONNECTED appears and the device automatically switches back to normal TV mode again.

If several USB drives are connected, a drive query appears after the media type is selected. Select the desired USB storage medium here.

With connected USB storage, if you exit the media browser using the EXIT button, you can call it up again at any time through the source selection (using SOURCE) or in the SOURCES menu). The name of the USB storage is now displayed here. Select this as the source. If the USB storage medium is removed, this option disappears again. All files and playable data are shown in the media browser. Navigate in the media browser using the direction buttons. Open media files using the OK button. The following options are available:

9.2.1. VIDEOS

II (PLAY/PAUSE): Start/pause playback

:Fastforward/rewind
< >: Previous video/next video

9.2.2. MUSIC

II (PLAY/PAUSE): Start/pause playback
< >: Previous/next track

9.2.3. PHOTOS

II (PLAY/PAUSE): Start/pause playback < > : Previous/next photo
_:Zoom
:Rotate photo to the right (in 90^ steps)
:Rotate photo to the left (in 90^ steps)

Alternatively, you can use the corresponding media buttons to operate the media browser.

9.2.4. Loop function

For media playback, you can activate an additional loop function, which either continuously repeats the current media file (marked with a full stop) or repeats all files (no marking).

9.2.5. Random playback

An additional random playback function plays all video, photo and music files on your USB storage in random order.

9.2.6. Settings

PICTURE/SOUND SETTINGS:

You can make changes to the screen settings (only for photo and video files) and audio settings for playing back media. You can also make equivalent settings in TV mode.

MEDIA BROWSER SETTINGS:

The following options are intended for the media browser settings (only for video and photo files):

SLIDESHOW IN-TERVAL	Select the display time for images in the slide show (5 to 30 seconds).
SHOW SUBTITLE	Activate/deactivate subtitle function.
SUBTITLE LAN-GUAGE	Select the subtitle language.
SUBTITLE POSITI-ON	Select the subtitle position.
SUBTITLE FONT SIZE	Select the font size for the subtitles.

OPTIONS:

When playing back videos, you can still make further adjustments:

SUBTITLE/AUDIO	Activate additional audio voiceover here.
SUBTITLE TIME CORRECTION	Specify a time delay for the subtitle functionality here.
JUMP TO SECOND	Specify a position in the current video that you want to skip to.

Press thnFO button during playback to display the video progress bar.
Press tBACK button to return to the media browser.
To exit the media browser, press the EXIT button.

9.2.7. Using an audio video sharing network service

The audio video sharing network service allows a data exchange between devices if they support the audio video sharing function. An existing network connection (e.g. with an NAS server) is required for this. Audio Video Sharing is then shown as the source in the signal source list.

• Open the SETTINGS menu and select DEVICES > AUDIOVIDEO SHARING and confirm with OK. A list of available DLNA media is then displayed.
• Select the desired media server or network and confirm the selection with OK. All available folders and media files are then displayed.

Further control of this option corresponds to the media browser

10.HbbTVsystem

HbbTV (Hybrid Broadcast Broadband TV) enables a combination of broadcasting and Internet content that can usually be accessed and displayed by pressing the red button on the remote control.

HbbTV services include conventional radio/TV stations, catch-up TV, video on demand, EPG, interactive advertising, customisation options, polls, games, social networks and other multimedia applications.

HbbTV applications can only be called up if the broadcasting station transmits these signals and the TV is connected to the internet. The scope and operation vary depending on the channel and station.

Whether a station offers HbbTV applications or not, is shown via a brief on-screen display. The exact form and position depends on the individual application. Use the red button to open and close the application pages. Navigation within the applications is carried out by using the colour buttons on the remote control, but this can vary depending on the channel and the programme. Observe the messages within the applications.

11. HDMI 2.1 standard

Your smart TV has HDMI 2.1 ports that offer improved performance in a number of ways. The following features are available as a result.

11.1.eARC

The HDMI 2.1 standard features the eARC (Enhanced Audio Return Channel) option, an advancement on the previous Audio Return Channel (ARC). eARC simplifies connectivity and offers greater user-friendliness for identifying multiple HDMI components and for audio optimisation. It supports the latest audio formats with up to 24 bit/192 kHz resolution, uncompressed 5.1 and 7.1 surround sound and uncompressed 32-channel audio. In addition, it supports DTS-HD Master Audio™, DTS:X®, Dolby® TrueHD and Dolby Atmos®. Experience captivating, multidimensional sound in cinema quality with greater depth and detail in your living room.

11.2.ALLM

Auto Low Latency Mode (ALLM) enables automatic setting of the optimal latency time to ensure lag-free and smooth display. This is generally termed play mode and must usually be set manually in the menu settings as part of a laborious process.

Use only HDMI 2.1-compatible cable connections, otherwise the functionality of the above-mentioned options cannot be guaranteed. Usually, HDMI cables labelled HDMI ULTRA HIGH SPEED are sufficient.

12. Data protection MEDION Smart TV

Your Internet-capable TV has an Internet service function (HbbTV, portal and open browsing). These functions enable you to access services, content, software and products provided by third parties on the Internet. In addition, you have access to open Internet content. Your device checks automatically via this route whether new software versions are available for your device. When doing so, your device sends out the IP address, the software version and the MAC address of the device to ensure software updates run correctly.

This data is required to make use of the software update service. Access to applications in the portal or via HbbTV may, depending on the provider, require a registration, setting up a user account and/or a subscription when using certain services. Registration may require the provision of your personal data and the selection of a unique and secret password. Please check the privacy policy of the provider beforehand.

MEDION shall not be liable if the HbbTV, the portal or a service does not comply with the user's requirements, nor does it guarantee that safe and error-free use of such services can always occur without restrictions, or continuously, at the required time.

MEDION shall not be liable for the information or content provided via HbbTV, the portal or the open Internet, nor for its use and reliability. When you purchase your Smart TV, special warranties are provided. The validity of these warranties, including the related disclaimers, remains in force.

If you have any further questions on the subject of data protection when using your Smart TV, please contact the respective provider of the Internet service functions or contact MEDION directly on www.medion.com under the heading Data Protection.

13. Troubleshooting

Malfunctions can sometimes have quite trivial causes, but they may also be the result of defective components. We have included a brief troubleshooting guide below which may help to solve any problems. If these tips don't solve the problem then we'll be more than pleased to help you out. Just give us a call!

There is no picture and no sound.

• Check if the power cable is inserted properly into the socket.
• Check if signal reception is set to TV.

There is no AV picture.

• Check to ensure that the contrast and brightness settings are correct.
• Check to ensure that all external devices have been connected properly.
• Check to ensure that you have selected the correct AV source.
• Any input source that you want to select with (SOURCE) must be marked in the SOURCES > SOURCE SETTINGS menu.

There is no sound.

• Ensure that the volume has not been set to the minimum level.
• Ensure the mute setting is not active. Do this by pressing the button in the top left of the remote control with the crossed out loudspeaker symbol.

There is no picture and no sound. I can hear noise, though.

• The reception might be poor. Check if the antenna is connected properly.

The picture is not clear.

The reception might be poor.
- Check if the antenna is connected properly.

The picture is too bright or too dark.

• Check the settings for contrast and brightness.

The picture is not sharp.

The reception might be poor.
- Check if the antenna is connected properly.
- Check the settings for sharpness and noise reduction in the PICTURE menu.

There is a double/triple picture.

• Check if the antenna is aligned properly.
• Waves might be reflected off buildings or mountains.

The picture is pixellated.

• There might be interference from cars, trains, power lines, neon lights, etc.
• There might be interference between the antenna and power cables. Position the cables further apart.

There are stripes on the screen or the colours are faded.

• Is there interference from another device?
• Transmission antennae on radio stations, ham radios and portable phones can also cause interference.
• Operate the device as far away as possible from the device that might be causing the interference.

The multifunction button on the device is not working.

• The child lock might be on.

TV switches off

• Check whether the automatic TV switch off function is activated under SETTINGS > DEVICES

No reception/poor reception via a wireless network connection (WLAN).

• Ensure that all necessary settings have been made.

WIRELESS DISPLAY cannot be established.

• Check that all necessary settings have been made. Read the section "Wireless Display".

The remote control is not working.

• Check whether the batteries in the remote control are functional and have been inserted the right way round.
• Ensure the sensor field is not exposed to strong light.

Menu cannot be opened.

• Check whether CEC is enabled. In this case, the menu cannot be opened. This is not a defect. In some cases, the menu of the device connected via HDMI opens. This is dependent on the source device and must be supported accordingly.
• Change the input source.

No Bluetooth® connection

• Make sure that all settings have been correctly specified on the device and that the Bluetooth® function is enabled.
• Check whether the device to be connected is switched on and is in discoverable mode.
• Make sure that all settings have been correctly specified on the device to be connected and that the Bluetooth® function is enabled. Consult the operating instructions of the corresponding device, if necessary.

You have forgotten your password.

• If you forget the password, please use the master password 4725.

In many cases, it is sensible to reset to the factory settings with subsequent reinstallation.

If cookies are disabled, the home page of the media portal is displayed each time it is called up.

13.1. Do you need more help?

If the suggestions in the previous sections did not solve your problem, please contact us. To make it easier for us to help you, please have the following information to hand:

• What external devices are connected?
  What messages appear on the screen?
• When operating the device, at which step did the problem occur?

• If you have a PC connected to the device:

• How is your computer configured?

• What software were you using when the problem occurred?

• What steps have you already taken to try and rectify the problem?

• Please provide us with your customer number if you have one.

13.2. Smart TV pixel faults

Despite the state-of-the-art production methods, in rare cases there may be individual or multiple pixel drop-outs (dead pixels) due to the highly complex technology. For active matrix TFTs with a resolution of 3840 × 2160 pixels, which are each made up of four sub-pixels (red, green, blue, white), there are a total of approx. 33.2 million control elements in use. Occasionally pixels or individual sub-pixels can fail or become incorrectly controlled because of this very high number of transistors and the extremely complex manufacturing process used in this context.

Pixel fault class	Defect type 1 Conti-nuously lit pixel	Defect type 2 Conti-nuously black pixel	Defect type 3 Defective sub-pixel
			lit black
0	0	0	0	0
I	1	1	2	1
			1	3
			0	5
II 22	5		5-n*	0
			0	2xn*
				10
III	5	15	50	0
			50-n*	2xn*
			0	100
IV	50	150	500	0
			500-n*	2xn*
			0	1000

n^* = 1.5

The permitted number of defects for every type named above in each class of pixel defect refers to one million pixels and must be converted accordingly to match the physical resolution of the display.

Your device complies with the European ISO 9241-307 Class II standard (pixel fault class). Pixel defects up to the specified maximum number are not covered by the warranty.

14. Cleaning

DANGER!

Risk of electric shock!

There is a risk of death due to an electric shock when the housing is open and you touch parts inside the device!

• Do not open the housing of the device. It does not contain any parts requiring maintenance. Always unplug the device and disconnect all cables before cleaning!

You can increase the lifespan of your Smart TV by taking the following measures:

• In order to protect the television from scratches, protective film has been applied to the high-gloss finish. Remove the film after you have set up the TV correctly.
• If the high-gloss finish becomes dirty, wipe off the dust first. Then wipe down gently with a cleaning cloth. If you do not wipe off the dust first, or wipe the high-gloss finish too vigorously you could scratch the high-gloss finish.
• Do not use solvents, corrosive or gaseous cleaning agents.
• Clean the screen with a soft, lint-free cloth.
• Ensure that no water droplets remain on the Smart TV. Water can cause permanent discolouration.
• In order to avoid damage to the device, water must not penetrate into the interior of the device under any circumstances.
• Do not place the screen in strong sunlight or near ultraviolet light.
• Store the packaging material in a safe place and only use this packaging to transport the Smart TV.

15. Storage when not in use

If the TV is going to be out of use for an extended period of time, store it in a cool, dry place and make sure that it is protected against dust and extreme fluctuations in temperature. Remove all connections and take the batteries out of the remote control in advance..

16. Disposal

PACKAGING

The product has been packaged to protect it from damage in transit. The packaging is made of materials that can be recycled in an environmentally friendly manner..

DEVICE

All old appliances marked with the symbol illustrated must not be disposed of in normal household rubbish.

In accordance with Directive 2012/19/EU, the device must be properly disposed of at the end of its service life.

This involves separating the materials in the appliance for the purpose of recycling as well as minimising the environmental impact and negative effects on human health.

Take old devices to a collection point for electrical scrap or a recycling centre. Before doing so, remove the batteries from the device and take them to a separate collection point for used batteries.

Contact your local waste disposal company or your local authority for more information on this subject.

BATTERIES

Do not dispose of used batteries with household rubbish. Batteries must be disposed of correctly. Retailers that sell batteries and local collection points provide containers in which you can dispose of them. Contact your local waste disposal company or your local authority for more information.

In connection with the sale of batteries or the supply of equipment containing batteries, we are obliged to draw your attention to the following:

As the end user, you are legally required to return used batteries.

The crossed-out wheelie bin symbol means that the battery must not be disposed of with household rubbish.

17. Technicalspecifications

Smart-TV X8552507 (MD 855900)	medion
Device name X8552507 (MD 855900)
Rated voltage 220–240 V ~ 50 Hz
Rated voltage/current for satellite connection	13 V/18 V=---, 300 mA max.
Screen size	138.8 cm (55") LCD; 16:9 display
Power consumption max. 150 Watt
Power consumption in standby mode	< 0.50 W
Power consumption in networked standby mode (WAKE ON mode)	< 2.00 W
Speaker output	2 x 15 Watt RMS, DTS HD-compatible
Integrated subwoofer 1 x 12 W RMS
Physical resolution 3840 x 2160
TV system Pal
Channel positions 199 (ATV), 10,000 (DTV)

Smart-TV X8652507 (MD 865900)	medion
Device name X8652507 (MD 865900)
Rated voltage 220–240 V ~ 50 Hz
Rated voltage/current for satellite connection	13 V/18 V---, 300 mA max.
Screen size	163,9 cm (65") LCD; 16:9 display
Power consumption max. 200 Watt
Power consumption in standby mode	< 0.50 W
Power consumption in networked standby mode (WAKE ON mode)	< 2.00 W
Speaker output	2 x 15 Watt RMS, DTS HD-compatible
Integrated subwoofer 1 x 12 W RMS
Physical resolution 3840 x 2160
TV system Pal
Channel positions 199 (ATV), 10,000 (DTV)

Channels

VHF (Band I/III)

UHF (BAND U)

HYPERBAND

CABLE TV (S1-S20) / (S21-S41)

HD DVB-T

DVB-T2 HD (H.265)

HD DVB-C

DVB-S2

Connections

Antenna connection (analogue TV, DVB-T/DVB-T2 or DVB-C)

Satellite connection (DVB-S/S2)

2 x USB connection

1 x LAN RJ-45

Video

3 x HDMI® 2.1 with HDCP 2.2 decoding

Audio

Headphone output (3.5 mm jack)

Digital Audio Out (SPDIF, optical)

Drives/storage media
Drives	USB, Common Interface (CI+) Slot
Supported formats via USB2	Photo: JPG, JPEG, JPE, BMP, PNG
	Music: MP3, WMA, WAV
	Film: MPEG 1/2/4, MKV, MOV, MP4, DAT, VOB, H263, FLV, HEVC
Capacities	USB max. 1 TB

Remote control
Transmission type	Infrared
LED classification	1
Battery type	2 x 1.5V AAA R03/LR03

Ambient temperatures
Permissible ambient temperature	+5°C to +35°C
Permissible relative humidity	20% – 85%

Dimensions/weight X8552507 (MD 855900)
Dimensions without foot (W x H x D)	Approx. 1232 x 757 x 83 mm
Dimensions with foot (W x H x D)	Approx. 1232 x 783 x 330 mm
Weight without foot	Approx. 17.2 kg
Weight with foot	Approx. 17.6 kg
Mounting on the wall³	Vesa standard, hole spacing 400 x 200 mm

Dimensions/weight X8652507 (MD 865900)
Dimensions without foot (W x H x D)	Approx. 1455 x 885 x 80 mm
Dimensions with foot (W x H x D)	Approx. 1455 x 905 x 305 mm
Weight without foot	Approx. 27.6 kg
Weight with foot	Approx. 28.0 kg
Mounting on the wall³	Vesa standard, hole spacing 400 x 200 mm

18. Product data sheet

Scan the QR code that matches the model on the energy label or alternatively in the operating instructions to download the product data sheet.

MD 855900 MD 865900

18.1. Trademark information

DTS, the symbol and DTS together with the symbol are registered trademarks of DTS, Inc.

Further information regarding the DTS patents is available at http://patents.dts.com

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI, HDMI

High-Definition Multimedia Interface, and the HDMI

Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Manufactured under licence of Dolby Laboratories. Dolby and the double D symbol are registered trademarks of Dolby Laboratories.

ATMOS

The Bluetooth® word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used by MEDION under licence.

The USB™ word mark and logos are registered trademarks of USB Implementers Forum, Inc. and are used by MEDION under licence.

Other trademarks are the property of their respective owners.

Advance

Covered by patents at patentlist.accessadvance.com

19. Service information

Please contact our Customer Service team if your device ever stops working the way you want or expect it to. There are several ways for you to contact us:

• In our Service-Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there. You will find our Service-Community at community.medion.com.
• Alternatively, use our contact form at www.medion.com/contact.
• You can also contact our Service team via our hotline or by post.

Opening times Hotline number UK
Mon – Fri: 08.00 – 20.00Sat – Sun: 10.00 – 16.00	1 0333 3213106
	Hotline number Ireland
	1 800 992508
Service address
MEDION Electronics Ltd. 120 Faraday Park, Faraday Road, DorcanSwindon SN3 5JF, Wiltshire United Kingdom

You can download this and many other sets of operating instructions from our service portal at www.medionservice.com.

We have stopped providing printed copies of our warranty terms and conditions as part of our commitment to sustainability, but you can access the warranty terms and conditions on our service portal.

You can also scan the QR code on the side of the screen, to download the operating instructions onto your mobile device from the service portal.

20. Legal Notice

Copyright © 2025

Date: 15.05.2025

All rights reserved.

These operating instructions are protected by copyright. Mechanical, electronic and any other forms of reproduction are prohibited without the written permission of the manufacturer.

Copyright is owned by the company:

MEDION AG

Am Zehnhof 77

45307 Essen

Germany

Please note that you cannot use the address above for returns. Please always contact our Customer Service team first.

21. Index

A

ALLM 33

Audio video sharing 32

Audio-video sharing 23, 32

B

Batteries. 7, 11

Blue stretch 24

Bluetooth 22

C

Channel list 15

Channel selection 15

Child lock. 16, 29

CI module. 9, 28

Cleaning. 36

Connection 6

Power supply 11

D

Data protection 33

De-contour 24

Disposal. 36

E

eARC 33

Environmental temperature 6

EPG 17

F

Factory setting. 24, 27

Favourites list. 16, 17

G

Getting started 11

H

HbbTV. 32

Headphones 25

1

Installation 26

M

Media browser 31

Media portal 32

Micro dimming 24

Mounting. 11

Multimedia connections HDMI. 14

HDMIARC 14

HDMI CEC 15

LAN. 15

SPDIF 15

USB. 15

Music. 25, 37

N

Network search 27

0

Operation 15

OSD menu Channels 16

Installation 26

Media browser 31

Network 26

Picture 23

Programme guide 17

Settings. 28

Sound 24

P

Package contents 4

Photo 37

Pixel faults 35

Power supply 6, 37

Connecting the power supply 11

Proper use 3

R

Recording. 21

Remedy 34

Remote control 10

Repairs. 6

S

Safety information

Connection.. 6

Installation location 5

Operating safety 4

Power supply 6

Satellite list 27

Screen settings. 15, 23

Selecting the source 18

Setting the time 29

Software update 30

Sound settings 15

Speaker 25

T

Technical data 38

Technical specifications 37

Teletext. 19

U

USB 9,31

V

Videos 37

medion
