Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various section of this manual:

Important information or useful hints about usage.

Warning for hazardous situations with regard to life and property.

Warning to actions that must never perform.

Warning for electric shock.

This symbol shows that information is available such as the operating manual or installation manual.

Do not cover it.

This symbol shows that the operation manual should be read carefully.

This symbol shows that a service personnel should be handling this equipment with reference to the installation manual.

Warning sign depicting a flame symbol in a triangular shape

(For R32/R290 gas type)

This symbol shows that this appliance used a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire.

CONTENTS

1 Safety precautions 6

2 Unit specifications and features 15

2.1 Indoor unit display 15
2.2 Operating temperature 16
2.3 Inverter split type 16
2.4 Fixed-speed type 16
2.5 Other features....17
2.6 Manual operation (without remote) 20

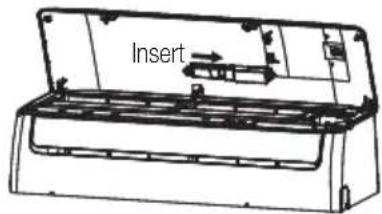

2.7 Install the HomeDirect kit (wireless module). 20

3 Care and maintenance 21

3.1 Cleaning your indoor unit 21

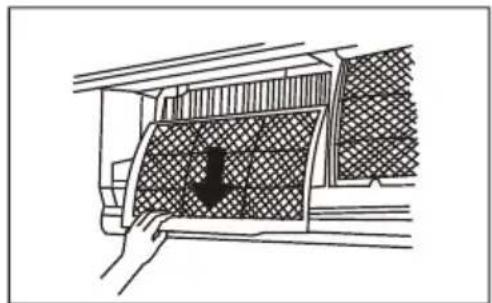

3.2 Cleaning your air filter 21
3.3 Maintenance — long periods of non-use 23
3.4 Maintenance – pre-season inspection....23

4 Troubleshooting 24

4.1 Common issues 24

5 Accessories 28

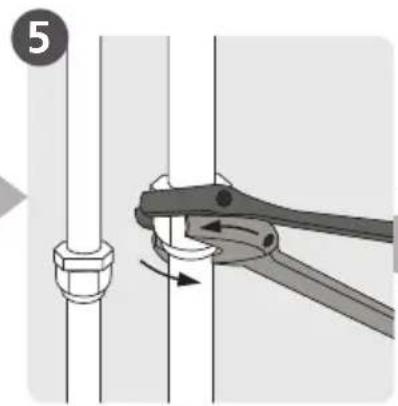

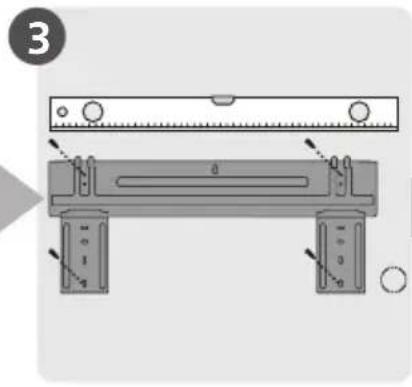

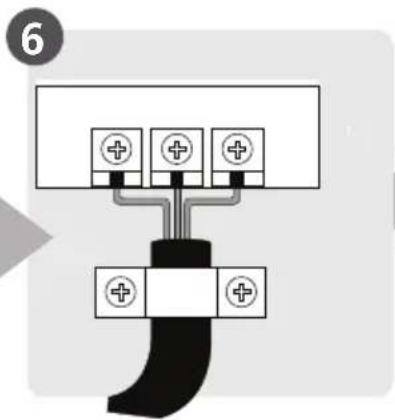

6 Installation summary - indoor unit 30

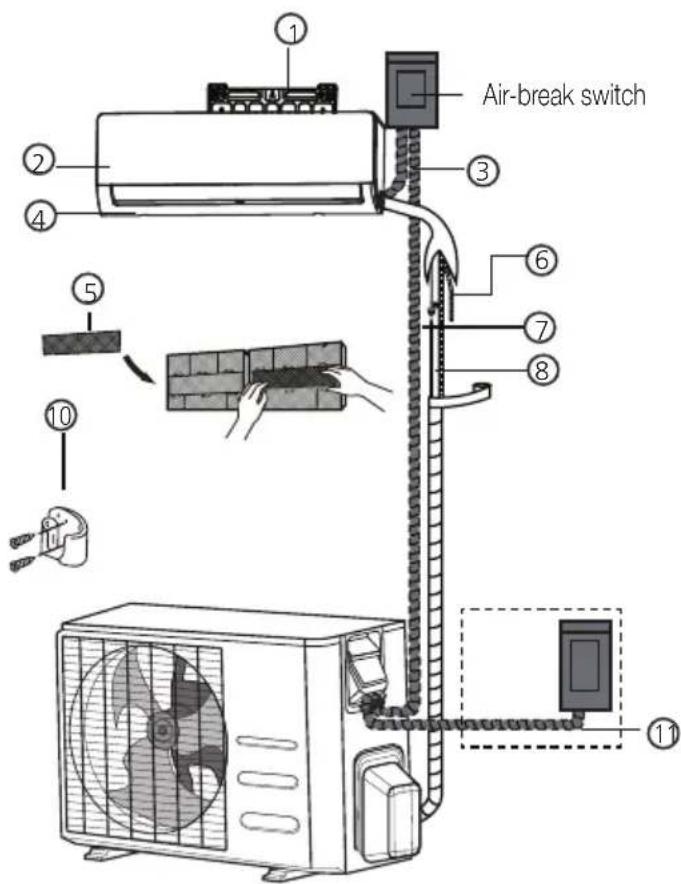

7 Unit parts 31

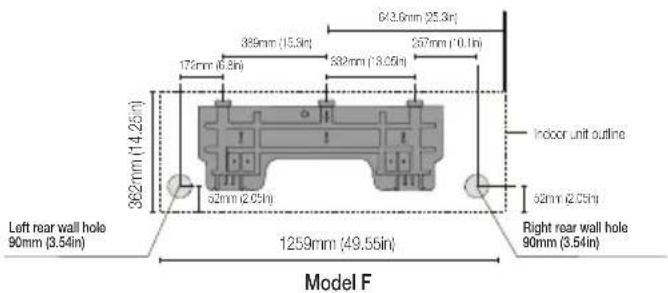

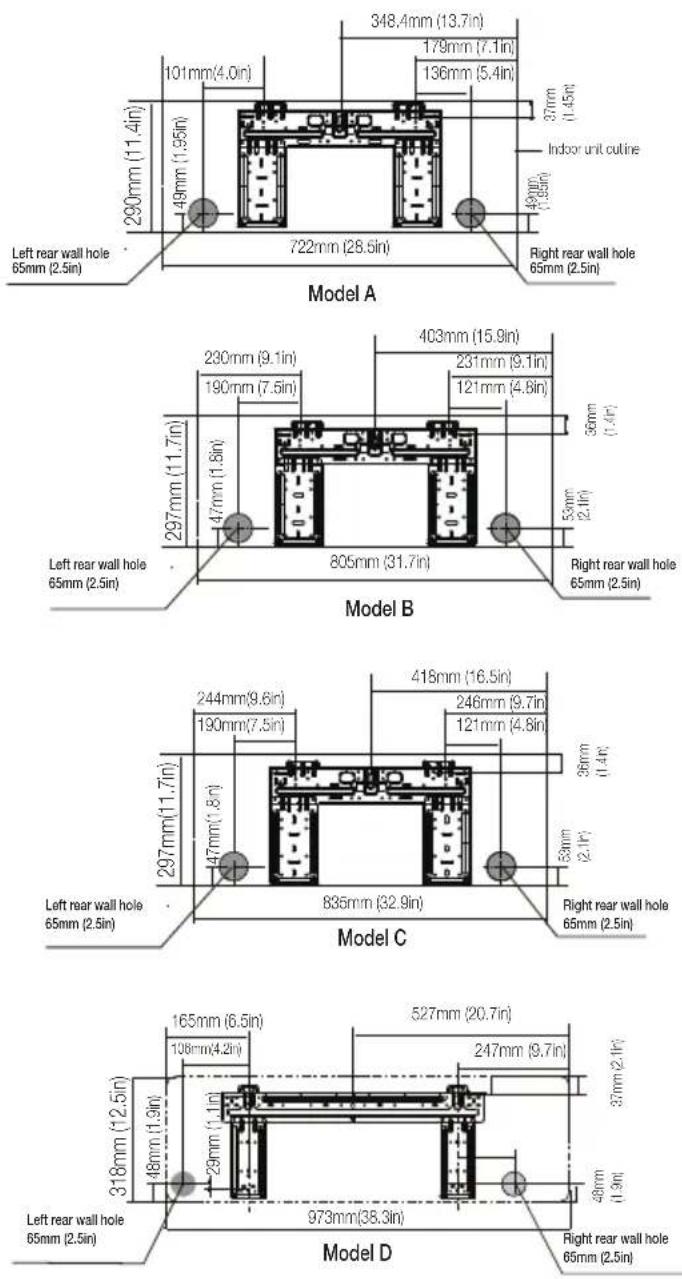

8 Indoor unit installation 32

8.1 Installation instructions - Indoor unit 32

9 Outdoor unit installation 41

9.1 Installation instructions — outdoor unit 41

CONTENTS

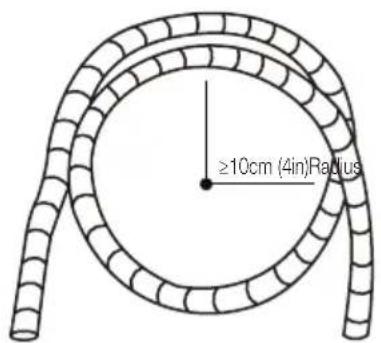

10 Refrigerant piping connection 46

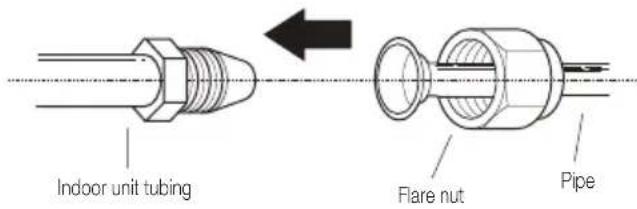

10.1 Connection instructions - refrigerant piping 47

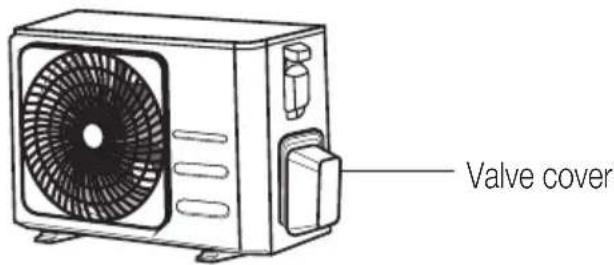

10.2 Instructions for connecting piping to outdoor unit 49

11 Air evacuation 50

11.1 Preparations and precautions....50

11.2 Evacuation instructions....50

11.3 Note on adding refrigerant 51

12 Electrical and gas leak checks 52

12.1 Before test run 52

12.2 Electrical safety checks....52

12.3 Gas leak checks....53

13 Test Run 54

13.1 Test run instructions 54

14 European disposal guideline 55

15 Installation instructions 56

15.1 F-Gas instruction 56

16 Specifications 57

1 Safety precautions

Warning

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision (European Union countries).

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Warnings for product use

If an abnormal situation arises (like a burning smell), immediately turn off the unit and disconnect the power. Call your dealer for instructions to avoid electric shock, fire or injury.

Do not insert fingers, rods or other objects into the air inlet or outlet. This may cause injury, since the fan may be rotating at high speeds.

Do not use flammable sprays such as hair spray, lacquer or paint near the unit. This may cause fire or combustion.

Do not operate the air conditioner in places near or around combustible gases. Emitted gas may collect around the unit and cause explosion.

1 Safety precautions

Do not operate your air conditioner in a wet room such as a bathroom or laundry room. Too much exposure to water can cause electrical components to short circuit.

Do not expose your body directly to cool air for a prolonged period of time.

Do not allow children to play with the air conditioner. Children must be supervised around the unit at all times.

If the air conditioner is used together with burners or other heating devices, thoroughly ventilate the room to avoid oxygen deficiency.

In certain functional environments, such as kitchens, server rooms, etc., the use of specially designed air-conditioning units is highly recommended.

Cleaning and maintenance warnings

Turn off the device and disconnect the power before cleaning. Failure to do so can cause electrical shock.

Do not clean the air conditioner with excessive amounts of water.

Do not clean the air conditioner with combustible cleaning agents. Combustible cleaning agents can cause fire or deformation.

Caution

Turn off the air conditioner and disconnect the power if you are not going to use it for a long time.

Turn off and unplug the unit during storms.

Make sure that water condensation can drain unhindered from the unit.

Do not operate the air conditioner with wet hands. This may cause electric shock.

1 Safety precautions

Do not use device for any other purpose than its intended use.

Do not climb onto or place objects on top of the outdoor unit.

Do not allow the air conditioner to operate for long periods of time with doors or windows open, or if the humidity is very high.

Electrical warnings

Only use the specified power cord. If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Keep power plug clean. Remove any dust or grime that accumulates on or around the plug. Dirty plugs can cause fire or electric shock.

Do not pull power cord to unplug unit. Hold the plug firmly and pull it from the outlet. Pulling

directly on the cord can damage it, which can lead to fire or electric shock.

Do not modify the length of the power supply cord or use an extension cord to power the unit.

Do not share the electrical outlet with other appliances. Improper or insufficient power supply can cause fire or electrical shock.

The product must be properly grounded at the time of installation, or electrical shock may occur.

For all electrical work, follow all local and national wiring standards, regulations, and the Installation Manual. Connect cables tightly, and clamp them securely to prevent external forces from damaging the terminal. Improper electrical connections can overheat and cause fire, and may also cause shock. All electrical connections must be made according to the

1 Safety precautions

Electrical connection diagram located on the panels of the indoor and outdoor units.

All wiring must be properly arranged to ensure that the control board cover can close properly. If the control board cover is not closed properly, it can lead to corrosion and cause the connection points on the terminal to heat up, catch fire, or cause electrical shock.

If connecting power to fixed wiring, an all-pole disconnection device which has at least 3mm clearances in all poles, and have a leakage current that may exceed 10mA, the residual current device (RCD) having a rated residual operating current not exceeding 30mA, and disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

Take note of fuse specifications

The air conditioner's circuit board (PCB) is designed with a fuse to provide overcurrent protection.

The specifications of the fuse are printed on the circuit board, such as:

T3.15AL/250VAC,

T5AL/250VAC, T3.15A/250VAC,

T5A/250VAC, T20A/250VAC,

T30A/250VAC,etc.

Note: For the units using R32 or R290 refrigerant, only the blast-proof ceramic fuse can be used.

1 Safety precautions

HygieneMax(UV-C lamp) (Applicable to the unit contains HygieneMax feature only)

This appliance contains a HygieneMax(UV-C lamp). Please read the following instructions before opening the appliance.

1. Do not operate HygieneMax(UV-C lamp) outside of the appliance.
2. Appliances that are obviously damaged must not be operated.
3. Unintended use of the appliance or damage to the housing may result in the escape of dangerous UV-C radiation. UV-C radiation may, even in small doses, cause harm to the eyes and skin.

4. The appliance must be disconnected from the supply mains before cleaning your unit or any other maintenance.

5. UV-C barriers bearing the ultraviolet radiation hazard symbol should not be removed.

Warning: This appliance contains an UV emitter. Do not stare at the light source.

Warnings for product installation

1. Installation must be performed by an authorized dealer or specialist. Defective installation can cause water leakage, electrical shock, or fire.
2. Installation must be performed according to the installation instructions. Improper installation can cause water leakage, electrical shock, or fire.

1 Safety precautions

1. Contact an authorized service technician for repair or maintenance of this unit. This appliance shall be installed in accordance with national wiring regulations.
2. Only use the included accessories, parts, and specified parts for installation. Using non-standard parts can cause water leakage, electrical shock, fire, and can cause the unit to fail.
3. Install the unit in a firm location that can support the unit's weight. If the chosen location cannot support the unit's weight, or the installation is not done properly, the unit may drop and cause serious injury and damage.

4. Install drainage piping according to the instructions in this manual. Improper drainage may cause water damage to your home and property.

5. For units that have an auxiliary electric heater, do not install the unit within 1 meter (3 feet) of any combustible materials.

6. Do not install the unit in a location that may be exposed to combustible gas leaks. If combustible gas accumulates around the unit, it may cause fire.
7. Do not turn on the power until all work has been completed.
8. When moving or relocating the air conditioner, consult experienced service technicians for disconnection and reinstallation of the unit.
9. How to install the appliance to its support, please read the information for details in "indoor unit installation" and "outdoor unit installation" sections.

1 Safety precautions

Note about fluorinated gasses (Not applicable to the unit using R290 Refrigerant)

1. This air-conditioning unit contains fluorinated greenhouse gasses. For specific information on the type of gas and the amount, please refer to the relevant label on the unit itself or the “User Manual - Product Fiche” in the packaging of the outdoor unit. (European Union products only).
2. Installation, service, maintenance and repair of this unit must be performed by a certified technician.
3. Product uninstallation and recycling must be performed by a certified technician.
4. For equipment that contains fluorinated greenhouse gases in quantities of 5 tonnes of CO2 equivalent or more, but of less than 50 tonnes of CO2 equivalent, If the system has a

leak-detection system installed, it must be checked for leaks at least every 24 months.

1. When the unit is checked for leaks, proper record-keeping of all checks is strongly recommended.

Warning for Using R32/R290 Refrigerant

When flammable refrigerant are employed, appliance shall be stored in a well -ventilated area where the room size corresponds to the room area as specific for operation.

For R32 frigerant models:

Appliance shall be installed, operated and stored in a room with a floor area larger than 4m^2 .

For R290 refrigerant models, appliance shall be installed, operated and stored in a room with a floor area larger than:

$$ < = 9 0 0 0 \mathrm{Btu} / \mathrm{h} \text { units: } 1 3 \mathrm{m} ^ {2} $$

1 Safety precautions

9000Btu/h and <=12000Btu/h units: 17m^2

12000Btu/h and

<=18000Btu/h units: 26m²

18000Btu/h and

<=24000Btu/h units: 35m²

Reusable mechanical connectors and flared joints are not allowed indoors.

(EN Standard Requirements).

Mechanical connectors used indoors shall have a rate of not more than 3g/year at 25% of the maximum allowable pressure. When mechanical connectors are reused indoors, sealing parts shall be renewed. When flared joints are reused indoors, the flare part shall be re-fabricated.

(UL Standard Requirements)

When mechanical connectors are reused indoors, sealing parts shall be renewed. When flared joints are reused indoors, the flare part shall be re-fabricated.

(IEC Standard Requirements)

Mechanical connectors used indoors shall comply with ISO 14903.

European disposal guidelines

This marking shown on the product or its literature, indicates that waste electrical and electrical equipment should not be mixed with general household waste.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Correct disposal of this product (Waste electrical & Electronic equipment)

This appliance contains refrigerant and other potentially hazardous materials. When disposing of this appliance, the law requires special collection and treatment. Do not dispose of this product as household waste or unsorted municipal waste. When disposing of this appliance, you have the following options:

1 Safety precautions

• Dispose of the appliance at designated municipal electronic waste collection facility.
  When buying a new appliance, the retailer will take back the old appliance free of charge.
  The manufacturer will take back the old appliance free of charge. (for some countries)
  Sell the appliance to certified scrap metal dealers. (for some countries)

Special notice:

Disposing of this appliance in the forest or other natural surroundings endangers your health and is bad for the environment. Hazardous substances may leak into the ground water and enter the food chain.

2 Unit specifications and features

2.1 Indoor unit display

Note: Different models have different front panels and display windows. Not all the display codes describing below are available for the air conditioner you purchased. Please check the indoor display window of the unit you purchased.

Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may be slightly different. The actual shape shall prevail.

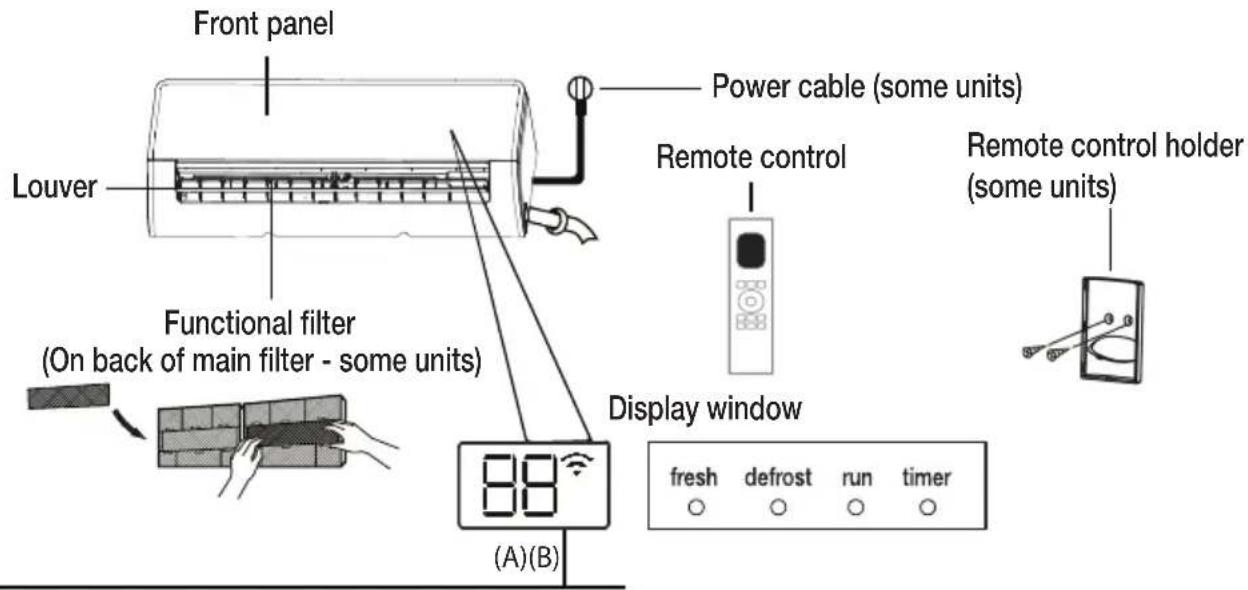

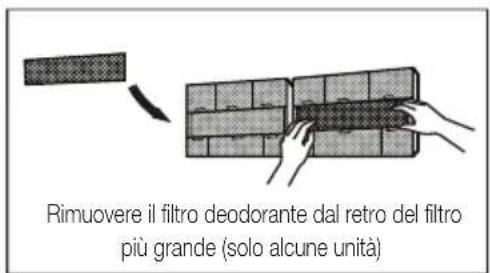

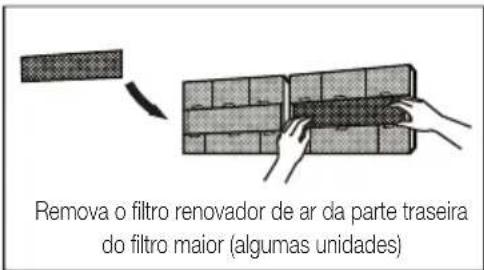

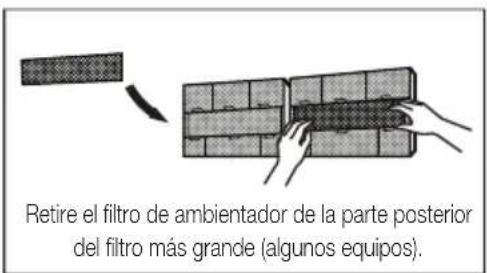

Front panel Louver Functional filter (On back of main filter - some units) Power cable (some units) Remote control Remote control holder (some units) Display window (A)(B) fresh defrost run timer

"fresh" when Fresh or HygieneMax (if any) feature is activated (some units)

"defrost" when defrost feature is activated.

"run" when the unit is on.

"timer" when TIMER is set.

“ ^○ ” when Wireless Control feature is activated (some units)

“88” Displays temperature, operation feature and error codes:

-07" for 3 seconds when:

- TIMER ON is set (if the unit is OFF, "ON" remains on when TIMER ON is set)

- FRESH, HygieneMax, SWING, TURBO, ECO, or SILENCE feature is turned on "OF" for 3 seconds when:

- TIMER OFF is set

- FRESH, HygieneMax, SWING, TURBO, ECO, or SILENCE feature is turned off

- "df" when defrosting

- FP" when 8°C heating feature is turned on (some units)

- “when GoClean feature is turned on (For Inverter split type) when unit is SelfClean+ (For Fixed-speed type)

Display Code Meanings

2 Unit specifications and features

2.2 Operating temperature

When your air conditioner is used outside of the following temperature ranges, certain safety

protection features may activate and cause the unit to disable.

2.3 Inverter split type

COOL mode HEAT mode DRY mode
Room Temperature	16°C - 32°C(60°F - 90°F)	0°C - 30°C(32°F - 86°F)	10°C - 32°C(50°F - 90°F)
Outdoor Temperature	0°C - 50°C (32°F - 122°F) -15°C	-24°C(5°F - 75°F)for some model-20°C - 24°C(-4°F - 75°F)	0°C - 50°C(32°F - 122°F)
	-15°C - 50°C (5°F - 122°F)(For models with low temp. cooling systems.)
	0°C - 52°C (32°F - 126°F)(For special tropical models)		0°C - 52°C(32°F - 126°F)(For special tropical models)

For outdoor units with auxiliary electric heater

When outside temperature is below 0^ C ( 32^ F), we strongly recommend keeping the unit plugged in at all time to ensure smooth ongoing performance.

2.4 Fixed-speed type

	COOL mode HEAT mode DRY mode
Room Temperature	16°C-32°C (60°F-90°F)	0°C-30°C(32°F-86°F)	10°C-32°C (50°F-90°F)
Outdoor Temperature	18°C-43°C (64°F-109°F)	-7°C-24°C(19°F-75°F)	11°C-43°C (52°F-109°F)
	-7°C-43°C (19°F- 109°F)(For models with low-temp cooling systems)		18°C-43°C (64°F-109°F)
	18°C-52°C (64°F -126°F)(For special tropical models)		18°C-52°C (64°F- 126°F)(For special tropical models)

2 Unit specifications and features

Note: Room relative humidity less than 80%. If the air conditioner operates in excess of this figure, the surface of the air conditioner may attract condensation. Please sets the vertical air flow louver to its maximum angle (vertically to the floor), and set HIGH fan mode.

To further optimize the performance of your unit, do the following:

• Keep doors and windows closed.
• Limit energy usage by using TIMER ON and TIMER OFF functions.
• Do not block air inlets or outlets.
• Regularly inspect and clean air filters.

A guide on using the infrared remote is not included in this literature package. Not all the functions are available for the air conditioner, please check the indoor display and remote control of the unit you purchased.

2.5 Other features

•Auto-restart (some units)

If the unit loses power, it will automatically restart with the prior settings once power has been restored.

•Wireless control (some units)

Wireless control allows you to control your air conditioner using your mobile phone and a wireless connection.

For the USB device access, replacement, maintenance operations must be carried out by professional staff.

- Louver angle memory (some units)

When turning on your unit, the louver will automatically resume its former angle.

- GoClean function (some units)

-The GoClean Technology washes away dust when it adheres to the heat exchanger by automatically freezing and then rapidly thawing the frost. A “pi-pi” sound will be heard. The operation is used to produce more condensed water to improve the cleaning effect, and the cold air will blow out. After cleaning, the internal wind wheel then keeps operating with hot air to blow-dry the evaporator, thus keeping the inside clean.

-When this function is turned on, the indoor unit display window appears "CL", after finish whole process, the unit will turn off automatically and cancel GoClean function.

-For some units, the system will start high-temperature cleaning process, and the temperature of air outlet is very high. Please keep away from it. And this would lead to the rising of the room temperature.

- Breeze away (some units)

This feature avoids direct air flow blowing on the body and make you feel indulging in silky coolness.

•Refrigerant leakage detection (some units)

The indoor unit will automatically display "ELOC" or flash LEDs (model dependent) when it detects refrigerant leakage. Please call service for this defective.

2 Unit specifications and features

• Sleep operation
• The SLEEP function is used to decrease energy use while you sleep (and don't need the same temperature settings to stay comfortable). This function can only be activated via remote control. And the Sleep function is not available in FAN or DRY mode.
• Press the SLEEP button when you are ready to go to sleep. When in COOL mode, the unit will increase the temperature by 1^ (2°F) after 1 hour, and will increase an additional 1^ (2°F) after another hour. When in HEAT mode, the unit will decrease the temperature by 1^ (2°F) after 1 hour, and will decrease an additional 1^ (2°F) after another hour.

The sleep feature will stop after 8 hours and the system will keep running with final situation.

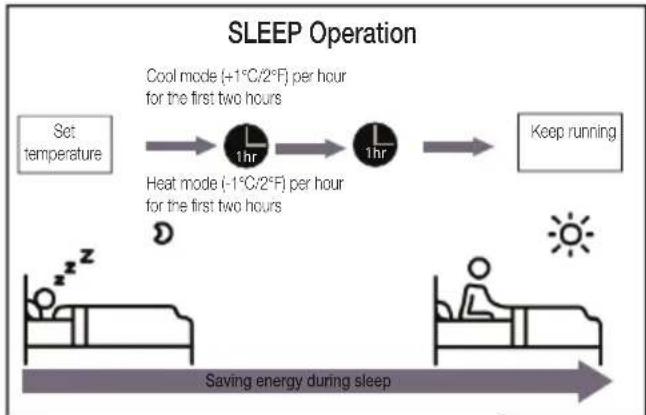


Note: For multi-split air conditioners, the following functions are not available: SelfClean+, GoClean function, Silence feature, Breeze away function, Refrigerant leakage detection function and Eco feature.

- Setting Angle of Air Flow

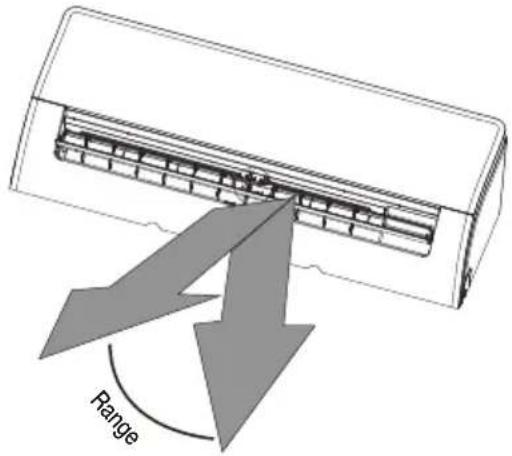

2.5.1 Setting vertical angle of air flow (See Fig.A)

While the unit is on, use the SWING button on remote control to set the direction (vertical angle) of airflow. Please refer to the Remote Control Manual for details.

Range

Note: Do not move louver by hand. This will cause the louver to become out of sync. If this occurs, turn off the unit and unplug it for a few seconds, then restart the unit. This will reset the louver.

Fig. A

2 Unit specifications and features

Note on louver angles:

When using COOL or DRY mode, do not set louver at too vertical an angle for long periods of time. This can cause water to condense on the louver blade, which will drop on your floor or furnishings.

When using COOL or HEAT mode, setting the louver at too vertical an angle can reduce the performance of the unit due to restricted air flow.

2.5.2 Setting horizontal angle of air flow

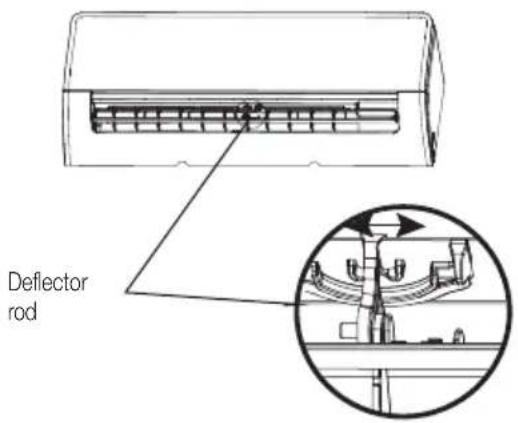

The horizontal angle of the airflow must be set manually. Grip the deflector rod (See Fig.B) and manually adjust it to your preferred direction. For some units, the horizontal angle of the airflow can be set by remote control. please refer to the Remote Control Manual.

Warning:

Do not put your fingers in or near the blower and suction side of the unit. The high-speed fan inside the unit may cause injury.

Deflector rod

Fig. B

2 Unit specifications and features

2.6 Manual operation (without remote)

Warning:

The manual button is intended for testing purposes and emergency operation only. Please do not use this function unless the remote control is lost and it is absolutely necessary. To restore regular operation, use the remote control to activate the unit. Unit must be turned off before manual operation.

To operate your unit manually:

1. Open the front panel of the indoor unit.

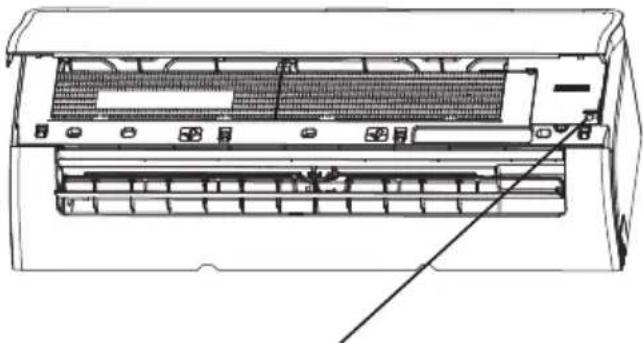

2. Locate the Manual control button on the right-hand side of the unit.
3. Press the Manual control button one time to activate FORCED AUTO mode.
4. Press the Manual control button again to activate FORCED COOLING mode.
5. Press the Manual control button a third time to turn the unit off.
6. Close the front panel.

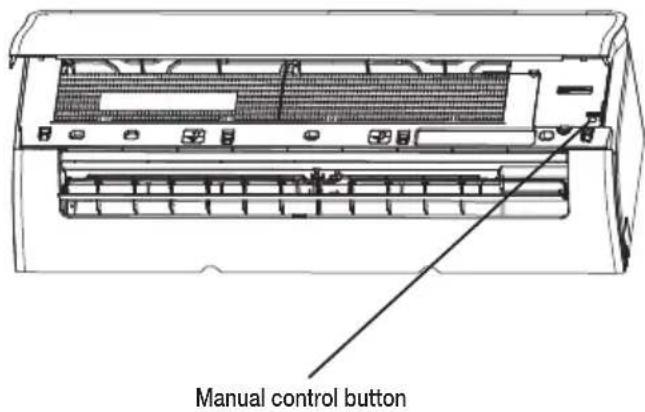

Manual control button

2.7 Install the HomeDirect kit (wireless module)

1. Remove the protective cap of the HomeDirect kit (wireless module)

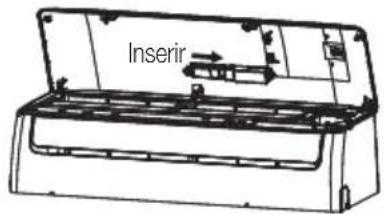

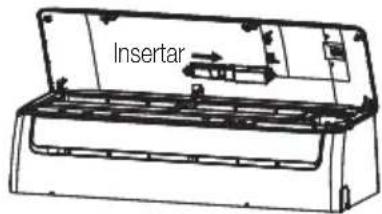

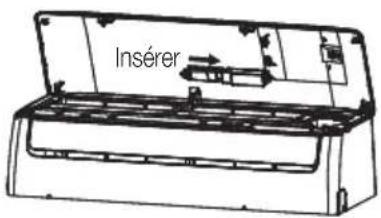

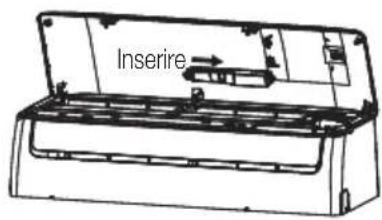

2. Open the front panel and insert the HomeDirect kit (wireless module) into the reserved interface.

Diagram of a device being inserted into a housing, showing internal components and an arrow indicating direction (no text or symbols)

Insert

Warning:

This interface is only compatible with HomeDirect kit (wireless module) provided by the manufacturer.

3 Care and maintenance

3.1 Cleaning your indoor unit

Before cleaning or maintenance:

Always turn off your air conditioner system and disconnect its power supply before cleaning or maintenance.

Warning:

Only use a soft, dry cloth to wipe the unit clean. If the unit is especially dirty, you can use a cloth soaked in warm water to wipe it clean.

Do not use chemicals or chemically treated cloths to clean the unit.

Do not use benzene, paint thinner, polishing powder or other solvents to clean the unit. They can cause the plastic surface to crack or deform.

Do not use water hotter than 40^ C ( 104^ F) to clean the front panel. This can cause the panel to deform or become discolored.

3.2 Cleaning your air filter

A clogged air conditioner can reduce the cooling efficiency of your unit, and can also be bad for your health. Make sure to clean the filter once every two weeks.

1. Lift the front panel of the indoor unit.
2. First press the tab on the end of filter to loosen the buckle, lift it up, then pull it towards yourself.
3. Now pull the filter out
4. If your filter has a small air freshening filter, unclip it from the larger filter. Clean this air freshening filter with a hand-held vacuum.
5. Clean the large air filter with warm, soapy water. Be sure to use a mild detergent.
6. Rinse the filter with fresh water, then shake off excess water.
7. Dry it in a cool, dry place, and refrain from exposing it to direct sunlight.
8. When dry, re-clip the air freshening filter to the larger filter, then slide it back into the indoor unit.
9. Close the front panel of the indoor unit.

3 Care and maintenance

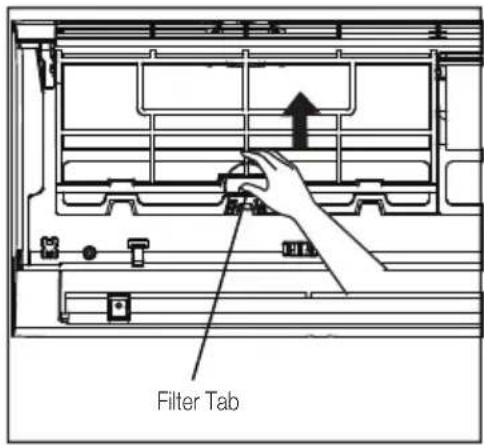

Filter Tab

Diagram showing a hand pressing down a car's side panel with a downward arrow (no text or symbols)

Remove air freshening filter from back of larger filter (some units)

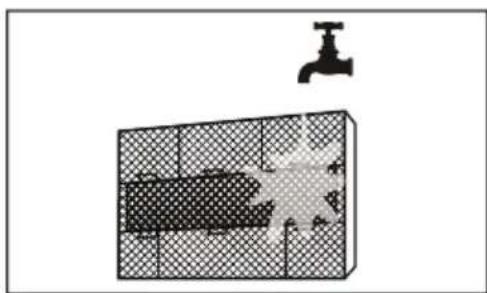

Diagram showing a water tank with a faucet above it, no text or symbols present

Warning:

Do not touch air freshening device for at least 10 minutes after turning off the unit. (some units)

Warning:

Before changing the filter or cleaning, turn off the unit and disconnect its power supply.

When removing filter, do not touch metal parts in the unit. The sharp metal edges can cut you.

Do not use water to clean the inside of the indoor unit. This can destroy insulation and cause electrical shock.

Do not expose filter to direct sunlight when drying. This can shrink the filter.

3 Care and maintenance

3.3 Maintenance — long periods of non-use

If you plan not to use your air conditioner for an extended period of time, do the following:

Diagram of a 3D grid structure with shaded cells and an arrow indicating a dimension (no text or symbols)

Clean all filters

Simple line drawing of a house with wavy lines inside, no text or symbols present

Turn on FAN function until unit dries out completely

Prohibition sign with a circular symbol containing a crossed-out lightning bolt and diagonal line, indicating no protection or resistance.

Turn off the unit and disconnect the power

Line drawing of a smartphone with internal components and a handle (no text or symbols)

Remove batteries from remote control

3.4 Maintenance – pre-season inspection

After long periods of non-use, or before periods of frequent use, do the following:

Prohibition sign indicating no hazard, showing lightning bolt symbol inside a circle with crossed bands

Check for damaged wires

Diagram of a 3D grid structure with shaded cells and an arrow indicating a dimension (no text or symbols)

Clean all filters

Prohibition sign with crossed-out circle and water droplet symbol, indicating no pollution or discharge

Check for leaks

Pure technical line drawing of a mechanical or electronic component without any text, numbers, or symbols

Replace batteries

Prohibition sign with diagonal line crossing over layered horizontal bars (no text or symbols)

Symbolic illustration of a computer monitor with a crossed-out diagonal line and a potted plant inside, enclosed in a circle (no text or symbols)

Make sure nothing is blocking all air inlets and outlets

4 Troubleshooting

Safety precautions:

If ANY of the following conditions occurs, turn off your unit immediately!

The power cord is damaged or abnormally warm

You smell a burning odor

The unit emits loud or abnormal sounds

A power fuse blows or the circuit breaker frequently trips

Water or other objects fall into or out of the unit

Do not attempt to fix these yourself! Contact an authorized service provider immediately!

4.1 Common issues

The following problems are not a malfunction and in most situations will not require repairs.

Issue Possible causes
Unit does not turn on when pressing ON/OFF button	The Unit has a 3-minute protection feature that prevents the unit from overloading. The unit cannot be restarted within three minutes of being turned off.
The unit changes from COOL/HEAT mode to FAN mode	The unit may change its setting to prevent frost from forming on the unit. Once the temperature increases, the unit will start operating in the previously selected mode again.
	The set temperature has been reached, at which point the unit turns off the compressor. The unit will continue operating when the temperature fluctuates again.
The indoor unit emits white mist	In humid regions, a large temperature difference between the room's air and the conditioned air can cause white mist.
Both the indoor and outdoor units emit white mist	When the unit restarts in HEAT mode after defrosting, white mist may be emitted due to moisture generated from the defrosting process.
The indoor unit makes noises	A rushing air sound may occur when the louver resets its position.
	A squeaking sound may occur after running the unit in HEAT mode due to expansion and contraction of the unit's plastic parts.

4 Troubleshooting

Issue Possible causes
Both the indoor unit and outdoor unit make noises	Low hissing sound during operation: This is normal and is caused by refrigerant gas flowing through both indoor and outdoor units.
	Low hissing sound when the system starts, has just stopped running, or is defrosting: This noise is normal and is caused by the refrigerant gas stopping or changing direction.
	Squeaking sound: Normal expansion and contraction of plastic and metal parts caused by temperature changes during operation can cause squeaking noises.
The outdoor unit makes noises	The unit will make different sounds based on its current operating mode.
Dust is emitted from either the indoor or outdoor unit	The unit may accumulate dust during extended periods of non-use, which will be emitted when the unit is turned on. This can be mitigated by covering the unit during long periods of inactivity.
The unit emits a bad odor	The unit may absorb odors from the environment (such as furniture, cooking, cigarettes, etc.) which will be emitted during operations.
	The unit's filters have become moldy and should be cleaned.
The fan of the outdoor unit does not operate	During operation, the fan speed is controlled to optimize product operation.
Operation is erratic, unpredictable, or unit is unresponsive	Interference from cell phone towers and remote boosters may cause the unit to malfunction.In this case, try the following:Disconnect the power, then reconnect.Press ON/OFF button on remote control to restart operation.

Note: If problem persists, contact a local dealer or your nearest customer service center. Provide them with a detailed description of the unit malfunction as well as your model number.

4 Troubleshooting

When troubles occur, please check the following points before contacting a repair company.

Problem Possible causes Solution
Poor cooling performance	Temperature setting may be higher than ambient room temperature	Lower the temperature setting
	The heat exchanger on the indoor or outdoor unit is dirty	Clean the affected heat exchanger
	The air filter is dirty	Remove the filter and clean it according to instructions
	The air inlet or outlet of either unit is blocked	Turn the unit off, remove the obstruction and turn it back on
	Doors and windows are open	Make sure that all doors and windows are closed while operating the unit
	Excessive heat is generated by sunlight	Close windows and curtains during periods of high heat or bright sunshine
	Too many sources of heat in the room (people, computers, electronics, etc.)	Reduce amount of heat sources
	Low refrigerant due to leak or long-term use	Check for leaks, re-seal if necessary and top off refrigerant
	SILENCE function is activated (optional function)	SILENCE function can lower product performance by reducing operating frequency. Turn off SILENCE function.
The unit is not working	Power failure Wait for the power to be restored
	The power is turned off Turn on the power
	The fuse is burned out Replace the fuse
	Remote control batteries are dead Replace batteries
	The Unit's 3-minute protection has been activated	Wait three minutes after restarting the unit
	Timer is activated Turn timer off

4 Troubleshooting

Problem Possible causes Solution
The unit starts and stops frequently	There's too much or too little refrigerant in the system	Check for leaks and recharge the system with refrigerant.
	Incompressible gas or moisture has entered the system	Evacuate and recharge the system with refrigerant
	The compressor is broken Replace the compressor
	The voltage is too high or too low	Install a manostat to regulate the voltage
Poor heating performance	The outdoor temperature is extremely low	Use auxiliary heating device
	Cold air is entering through doors and windows	Make sure that all doors and windows are closed during use
	Low refrigerant due to leak or long-term use	Check for leaks, re-seal if necessary and top off refrigerant
Indicator lamps continue flashing	The unit may stop operation or continue to run safely. If the indicator lamps continue to flash or error codes appear, wait for about 10 minutes. The problem may resolve itself.If not, disconnect the power, then connect it again. Turn the unit on. If the problem persists, disconnect the power and contact your nearest customer service center.
Error code appears and begins with the letters as the following in the window display of indoor unit:•E(x), P(x), F(x)•EH(xx), EL(xx), EC(xx)•PH(xx), PL(xx), PC(xx)

Note: If your problem persists after performing the checks and diagnostics above, turn off your unit immediately and contact an authorized service center.

5 Accessories

The air conditioning system comes with the following accessories. Use all of the installation parts and accessories to install the air conditioner. Improper installation may result in water leakage, electrical shock and fire, or cause the equipment to fail. The items are not included with the air conditioner must be purchased separately.

Name of accessories	Qty (pc) Shape Name of accessories Qty (pc) Shape
Manual 2~3			Remote controller 1		(WHYT)
Drain joint (for cooling & heating models)	1 Battery 2
Seal (for cooling & heating models)	1		Remote controller holder(optional)	1
Mounting plate 1			Fixing screw for remote controller holder(optional)	2
Anchor	5~8 (depending on models)		Small Filter(Need to be installed on the back of main air filter by the authorized technician while installing the machine)	1~2 (depending on models)
Mounting plate fixing screw	5~8 (depending on models)
Wireless USB kit	1 (For Wifi models only)

5 Accessories

Name Shape			Quantity (PC)
Connecting pipe assembly	Liquid side	∅6.35 (1/4 in)	Parts you must purchase separately. Consult the dealer about the proper pipe size of the unit you purchased.
		∅9.52 (3/8in)
	Gas side	∅9.52 (3/8in)
		∅12.7 (1/2in)
		∅16 (5/8in)
		∅19 (3/4in)
Magnetic ring and belt(if supplied, please refer to the wiring diagram to install it on the connective cable.)			Varies by model
		Pass the belt through the hole of the Magnetic ring to fix it on the cable

6 Installation summary - indoor unit

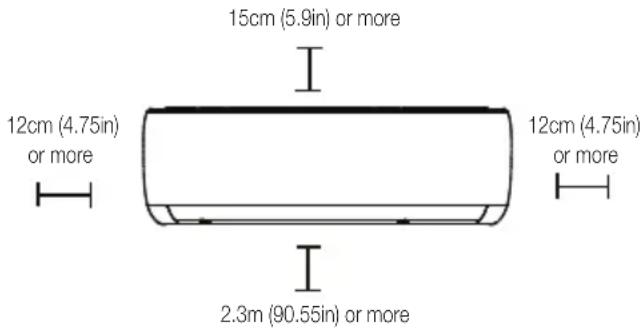

15cm (5.95in) 12cm (4.75in) 12cm (4.75in) 2.3m (90.55in)

Select installation location

Pure mechanical diagram showing a lever mechanism with no text or symbols

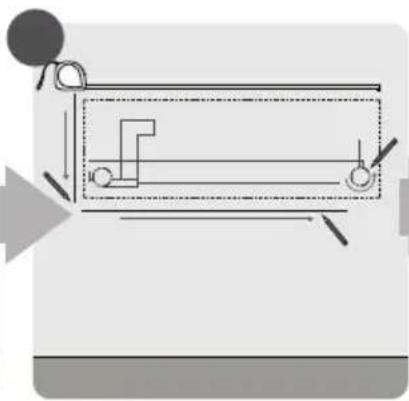

Determine wall hole position

3

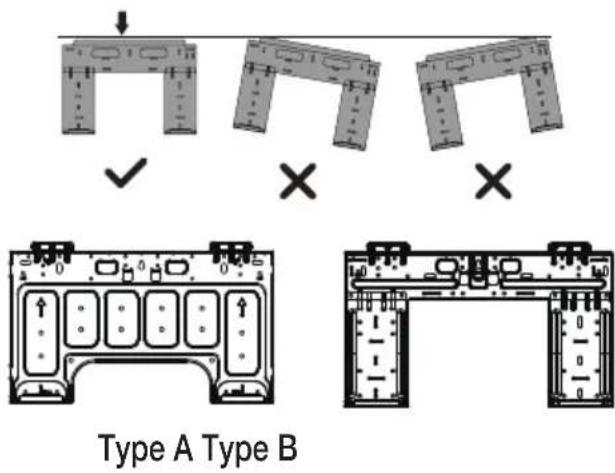

Attach mounting plate

Illustration of a hand using a tool to adjust a component, with no visible text or symbols.

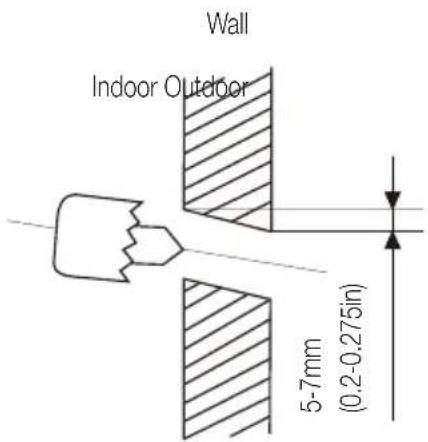

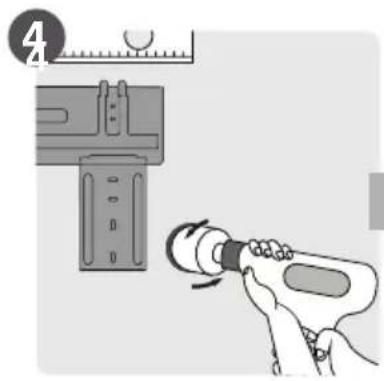

Drill wall hole

Diagram showing a pipe fitting being adjusted with a forceps, no text or symbols present

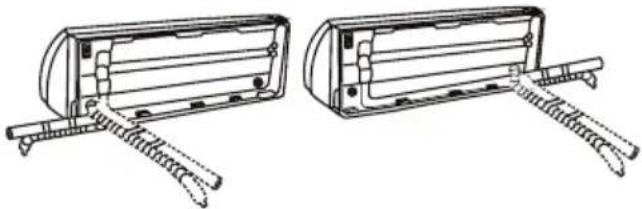

Connect piping

6

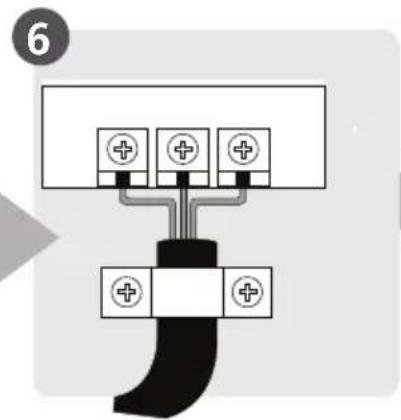

Connect wiring (not applicable for some locations in North America)

Illustration of hands holding a black object with a ruler, no text or symbols present

Prepare drain hose

8 Locations in North America

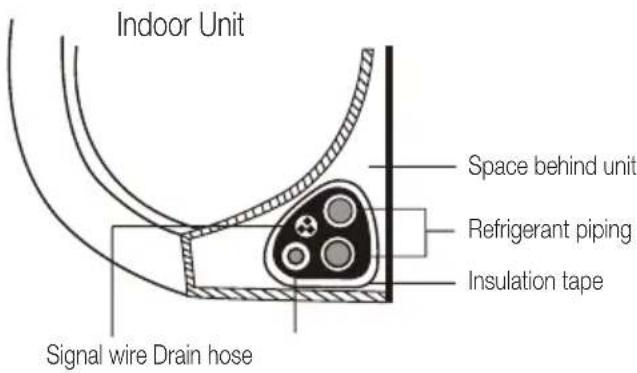

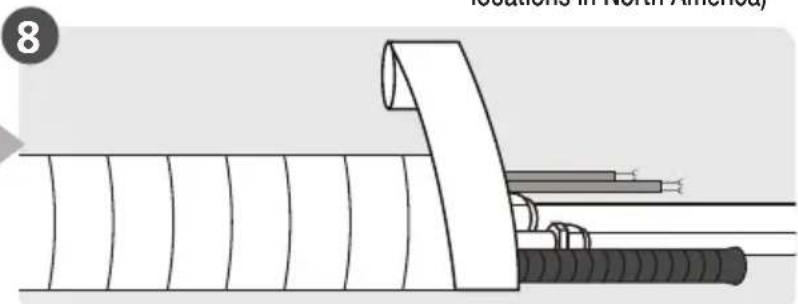

Wrap piping and cable (not applicable for some locations in North America)

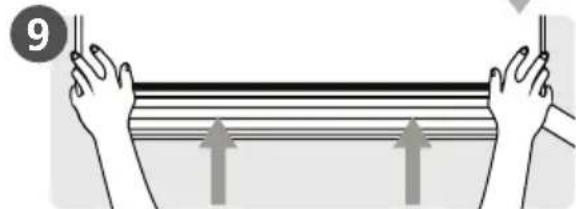

Illustration of two hands holding a horizontal bar with upward arrows, no text or symbols present

Mount indoor unit

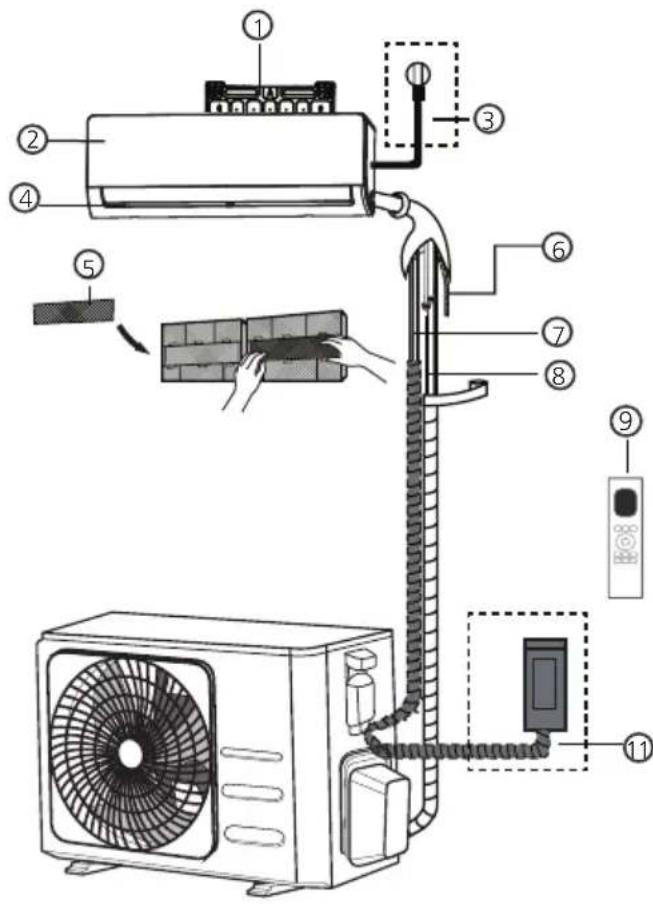

7 Unit parts

Note: The installation must be performed in accordance with the requirement of local and national standards. The installation may be slightly different in different areas.

Diagram of an air conditioner system with numbered components and labeled parts for installation or maintenance.

(1)

1. Wall mounting plate
2. Front panel
3. Power cable (some units)
4. Louver
5. Functional filter (On back of main filter - some units)

Air-break switch ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑩ ⑪

(2)

1. Drainage pipe
2. Signal cable
3. Refrigerant piping
4. Remote controller
5. Remote controller holder (some units)
6. Outdoor unit power cable (some units)

Note on illustrations:

Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may be slightly different. The actual shape shall prevail.

8.1 Installation instructions - Indoor unit

8.1.1 Prior to installation

Before installing the indoor unit, refer to the label on the product box to make sure that the model number of the indoor unit matches the model number of the outdoor unit.

Step 1: Select installation location

Before installing the indoor unit, you must choose an appropriate location. The following are standards that will help you choose an appropriate location for the unit.

Proper installation locations meet the following standards:

•Good air circulation
- Convenient drainage
- Noise from the unit will not disturb other people
- Firm and solid—the location will not vibrate
•Strong enough to support the weight of the unit
- A location at least one meter from all other electrical devices (e.g., TV, radio, computer)

Do not install unit in the following locations:

• Near any source of heat, steam, or combustible gas
• Near flammable items such as curtains or clothing
• Near any obstacle that might block air circulation
• Near the doorway
  • In a location subject to direct sunlight

Note about wall hole:

If there is no fixed refrigerant piping:

While choosing a location, be aware that you should leave ample room for a wall hole (see Drill wall hole for connective piping step) for the signal cable and refrigerant piping that connect the indoor and outdoor units. The default position for all piping is the right side of the indoor unit (while facing the unit). However, the unit can accommodate piping to both the left and right.

Refer to the following diagram to ensure proper distance from walls and ceiling:

15cm (5.9in) or more 12cm (4.75in) or more 12cm (4.75in) or more 2.3m (90.55in) or more

Step 2: Attach mounting plate to wall

The mounting plate is the device on which you will mount the indoor unit.

- Remove the screw that attaches the mounting plate to the back of the indoor unit.

Technical line drawing of a mechanical component or housing (no text or symbols visible)

8 Indoor unit installation

- Secure the mounting plate to the wall with the screws provided. Make sure that mounting plate is flat against the wall.

Note for concrete or brick walls:

If the wall is made of brick, concrete, or similar material, drill 5mm-diameter (0.2in-diameter) holes in the wall and insert the sleeve anchors provided. Then secure the mounting plate to the wall by tightening the screws directly into the clip anchors.

Step 3: Drill wall hole for connective piping

1. Determine the location of the wall hole based on the position of the mounting plate. Refer to Mounting plate dimensions.
2. Using a 65mm (2.5in) or 90mm (3.54in) (depending on models) core drill, drill a hole in the wall. Make sure that the hole is drilled at a slight downward angle, so that the outdoor end of the hole is lower than the indoor end by about 5mm to 7mm (0.2-0.275in). This will ensure proper water drainage.
3. Place the protective wall cuff in the hole. This protects the edges of the hole and will help seal it when you finish the installation process.

Warning:

When drilling the wall hole, make sure to avoid wires, plumbing, and other sensitive components.

Wall Indoor Outdoor 5-7mm (0.2-0.275in)

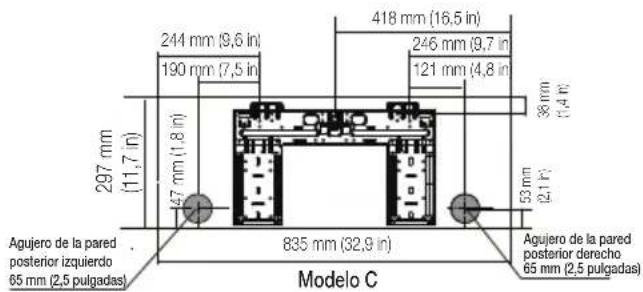

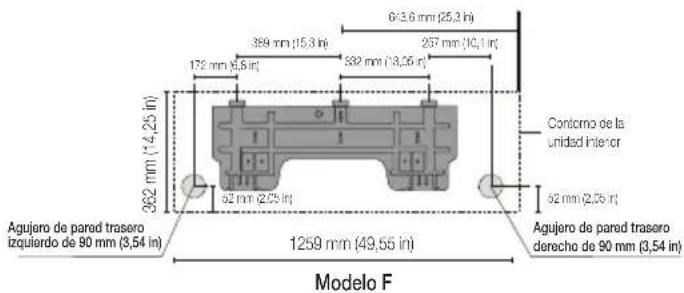

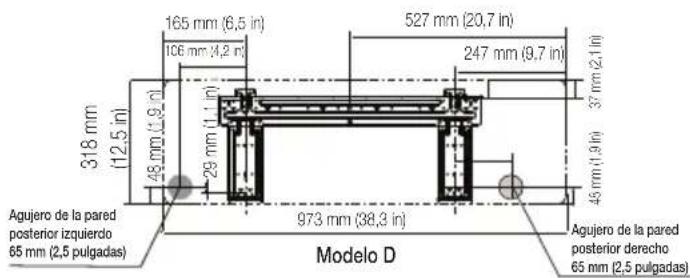

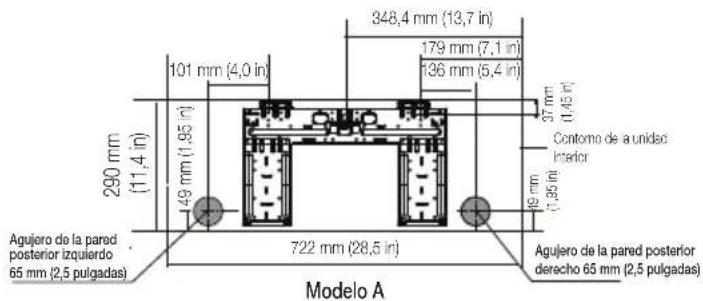

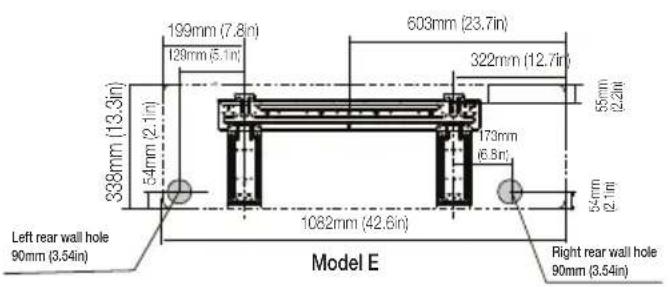

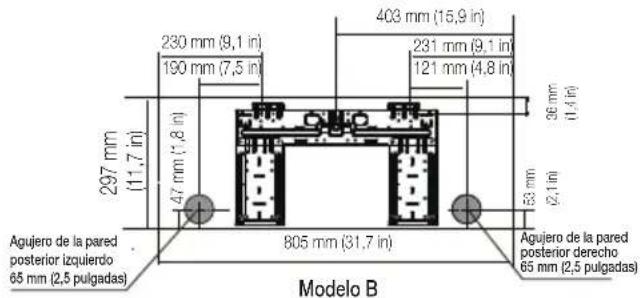

8.1.2 Mounting plate dimensions

Different models have different mounting plates. For the different customization requirements, the shape of the mounting plate may be slightly different. But the installation dimensions are the same for the same size of indoor unit.

See type A and type B for example:

Correct orientation of mounting plate

Type A Type B

8 Indoor unit installation

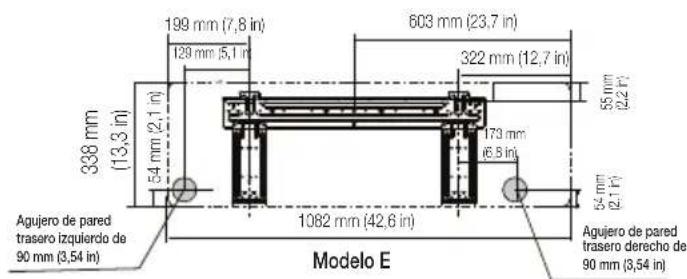

199mm (7.8in) 603mm (23.7in) 322mm (12.7in) 55mm (2.2in) 173mm (6.5in) 54mm (2.1in) 338mm (13.3in) 54mm (2.1in) 1082mm (42.6in) Left rear wall hole 90mm (3.54in) Model E Right rear wall hole 90mm (3.54in)

6/2.6mm (25.3in) 389mm (15.3in) 302mm (13.05in) 362mm (14.25in) 174mm (6.8in) 52mm (2.05in) 1259mm (49.55in) 67mm (10.1in) Indoor unit outline 52mm (2.05in) Left rear wall hole 90mm (3.54in) Right rear wall hole 90mm (3.54in) Model F

Note: When the gas side connective pipe is ∅16mm (5/8in) or more, the wall hole should be 90mm (3.54in).

Step 4: Prepare refrigerant piping

The refrigerant piping is inside an insulating sleeve attached to the back of the unit. You must prepare the piping before passing it through the hole in the wall.

1. Based on the position of the wall hole relative to the mounting plate, choose the side from which the piping will exit the unit.
2. If the wall hole is behind the unit, keep the knock-out panel in place. If the wall hole is to the side of the indoor unit, remove the plastic knock-out panel from that side of the unit. This will create a slot through which your piping can exit the unit. Use needle nose pliers if the plastic panel is too difficult to remove by hand.

8 Indoor unit installation

Knock-out Panel

1. If existing connective piping is already embedded in the wall, proceed directly to the Connect drain hose step. If there is no embedded piping, connect the indoor unit's refrigerant piping to the connective piping that will join the indoor and outdoor units. Refer to the Refrigerant Piping Connection section of this manual for detailed instructions.

Note on piping angle:

Refrigerant piping can exit the indoor unit from four different angles: Left-hand side, Right-hand side, Left rear, Right rear.

Technical line drawing of two electrical enclosure components with coiled leads (no text or symbols)

Warning:

Be extremely careful not to dent or damage the piping while bending them away from the unit. Any dents in the piping will affect the unit's performance.

Step 5: Connect drain hose

By default, the drain hose is attached to the left-hand side of unit (when you're facing the back of the unit). However, it can also be attached to the right-hand side. To ensure proper drainage, attach the drain hose on the same side that your refrigerant piping exits the unit. Attach drain hose extension (purchased separately) to the end of drain hose.

- Wrap the connection point firmly with Teflon tape to ensure a good seal and to prevent leaks.

- For the portion of the drain hose that will remain indoors, wrap it with foam pipe insulation to prevent condensation.

- Remove the air filter and pour a small amount of water into the drain pan to make sure that water flows from the unit smoothly.

A note on drain hose placement:

Make sure to arrange the drain hose according to the following figures.

8 Indoor unit installation

Pure mechanical diagram showing a bracket and checkmark symbol without any text or labels

Correct

Make sure there are no kinks or dent in drain hose to ensure proper drainage.

Simple line drawing of a mechanical joint or bracket with a vertical bar and a cross symbol (no text or labels)

Not correct

Kinks in the drain hose will create water traps.

Simple line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Not correct

Kinks in the drain hose will create water traps.

Simple line drawing of a door and wall junction with a cross symbol (no text or labels)

Not correct

Do not place the end of the drain hose in water or in containers that collect water. This will prevent proper drainage.

Plug the unused drain hole

Line drawing of a hand holding a cylindrical object with a knife inserted (no text or symbols)

To prevent unwanted leaks you must plug the unused drain hole with the rubber plug provided.

Before performing any electrical work, read these regulations

1. All wiring must comply with local and national electrical codes, regulations and must be installed by a licensed electrician.
2. All electrical connections must be made according to the Electrical Connection Diagram located on the panels of the indoor and outdoor units.
3. If there is a serious safety issue with the power supply, stop work immediately. Explain your reasoning to the client, and refuse to install the

unit until the safety issue is properly resolved.

1. Power voltage should be within 90-110% of rated voltage. Insufficient power supply can cause malfunction, electrical shock, or fire.
2. If connecting power to fixed wiring, a surge protector and main power switch should be installed.
3. If connecting power to fixed wiring, a switch or circuit breaker that disconnects all poles and has a contact separation of at least 1/8in (3mm) must be incorporated in the fixed wiring. The qualified technician must use an approved circuit breaker or switch.
4. Only connect the unit to an individual branch circuit outlet. Do not connect another appliance to that outlet.
5. Make sure to properly ground the air conditioner.
6. Every wire must be firmly connected. Loose wiring can cause the terminal to overheat, resulting in product malfunction and possible fire.
7. Do not let wires touch or rest against refrigerant tubing, the compressor, or any moving parts within the unit.
8. If the unit has an auxiliary electric heater, it must be installed at least 1 meter (40in) away from any combustible materials.
9. To avoid getting an electric shock, never touch the electrical components soon after the power supply has been turned off. After turning off the power, always wait 10 minutes or more before you touch the electrical components.

8 Indoor unit installation

Warning:

Before performing any electrical or wiring work, turn off the main power to the system.

Step 6: Connect signal and power cables

The signal cable enables communication between the indoor and outdoor units. You must first choose the right cable size before preparing it for connection.

Cable types

- Indoor power cable (if applicable): HO5W-F or H05V2V2-F

•Outdoor power cable: H07RN-F or H05RN-F
•Signal cable: HO7RN-F

Note: In North America, choose the cable type according to the local electrical codes and regulations.

Minimum cross-sectional area of power and signal cables (for reference) (not applicable for North America)

Rated current of appliance (A)	Nominal cross-sectional area (mm2)
>3 and ≤ 6 0.75
>6 and ≤ 10 1
>10 and ≤ 16 1.5
>16 and ≤ 25 2.5
>25 and ≤ 32 4
>32 and ≤ 40 6

Choose the right cable size

The size of the power supply cable, signal cable, fuse, and switch needed is determined by the maximum current of the unit. The maximum current is indicated on the nameplate located on the side panel of the unit.

Note: In North America, please choose the right cable size according to the minimum circuit ampacity indicated on the nameplate of the unit.

Warning:

All wiring must be performed strictly in accordance with the wiring diagram located on the back of the indoor unit's front panel.

1. Open front panel of the indoor unit.

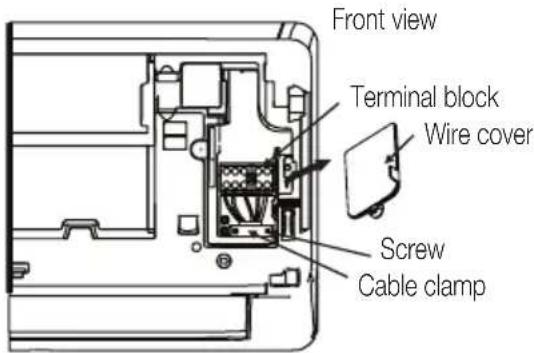

2. Using a screwdriver, open the wire box cover on the right side of the unit. This will reveal the terminal block.

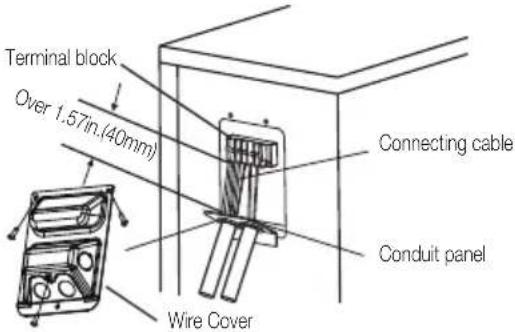

Front view Terminal block Wire cover Screw Cable clamp

8 Indoor unit installation

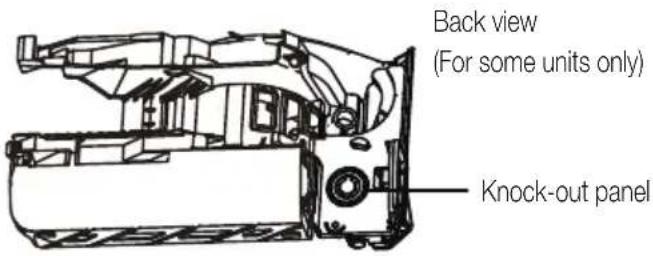

Back view (For some units only) Knock-out panel

Note:

• For the units with conduit tube to connect the cable, remove the big plastic knock-out panel to create a slot through which the conduit tube can be installed.
• For the units with five-core cable, remove the middle small plastic knock-out panel to create a slot through which the cable can exit.

• Use needle nose pliers if the plastic panel is too difficult to remove by hand.

• Unscrew the cable clamp below the terminal block and place it to the side.

• Facing the back of the unit, remove the plastic panel on the bottom left-hand side.
• Feed the signal wire through this slot, from the back of the unit to the front.
• Facing the front of the unit, connect the wire according to the indoor unit's wiring diagram, connect the u-lug and firmly screw each wire to its corresponding terminal.

Warning:

Do not mix up live and null wires

This is dangerous, and can cause the air conditioning unit to malfunction.

1. After checking to make sure every connection is secure, use the cable clamp to fasten the signal cable to the unit. Screw the cable clamp down tightly.
2. Replace the wire cover on the front of the unit, and the plastic panel on the back.

Note about wiring:

The wiring connection process may differ slightly between units and regions.

Step 7: Wrappiping and cables

Before passing the piping, drain hose, and the signal cable through the wall hole, you must bundle them together to save space, protect them, and insulate them(Not applicable in North America).

1. Bundle the drain hose, refrigerant pipes, and signal cable as shown below:

Indoor Unit Space behind unit Refrigerant piping Insulation tape Signal wire Drain hose

8 Indoor unit installation

Drain hose must be on bottom

Make sure that the drain hose is at the bottom of the bundle. Putting the drain hose at the top of the bundle can cause the drain pan to overflow, which can lead to fire or water damage.

Do not intertwine signal cable with other wires

While bundling these items together, do not intertwine or cross the signal cable with any other wiring.

1. Using adhesive vinyl tape, attach the drain hose to the underside of the refrigerant pipes.
2. Using insulation tape, wrap the signal wire, refrigerant pipes, and drain hose tightly together. Double-check that all items are bundled.

Do not wrap ends of piping

When wrapping the bundle, keep the ends of the piping unwrapped. You need to access them to test for leaks at the end of the installation process (refer to Electrical checks and leak checks section of this manual).

Step 8: Mount indoor unit

If you installed new connective piping to the outdoor unit, do the following:

1. If you have already passed the refrigerant piping through the hole in the wall, proceed to Step 4.
2. Otherwise, double-check that the ends of the refrigerant pipes are sealed to prevent dirt or foreign materials from entering the pipes.
3. Slowly pass the wrapped bundle of refrigerant pipes, drain hose, and signal wire through the hole in the wall.

4. Hook the top of the indoor unit on the upper hook of the mounting plate.

5. Check that unit is hooked firmly on mounting by applying slight pressure to the left and right-hand sides of the unit. The unit should not jiggle or shift.

6. Using even pressure, push down on the bottom half of the unit. Keep pushing down until the unit snaps onto the hooks along the bottom of the mounting plate.
7. Again, check that the unit is firmly mounted by applying slight pressure to the left and the right-hand sides of the unit.

8 Indoor unit installation

If refrigerant piping is already embedded in the wall, do the following:

1. Hook the top of the indoor unit on the upper hook of the mounting plate.
2. Use a bracket or wedge to prop up the unit, giving you enough room to connect the refrigerant piping, signal cable, and drain hose.

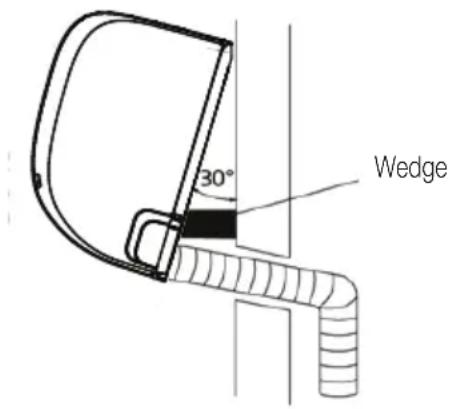

30° Wedge

1. Connect drain hose and refrigerant piping (refer to Refrigerant piping connection section of this manual for instructions).
2. Keep pipe connection point exposed to perform the leak test (refer to Electrical checks and leak checks section of this manual).
3. After the leak test, wrap the connection point with insulation tape.
4. Remove the bracket or wedge that is propping up the unit.
5. Using even pressure, push down on the bottom half of the unit. Keep pushing down until the unit snaps onto the hooks along the bottom of the mounting plate.

Unit is adjustable

Keep in mind that the hooks on the mounting plate are smaller than the holes on the back of the unit. If you find that you don't have ample room to connect embedded pipes to the indoor unit, the unit can be adjusted left or right by about 30-50mm (1.18-1.96in), depending on the model.

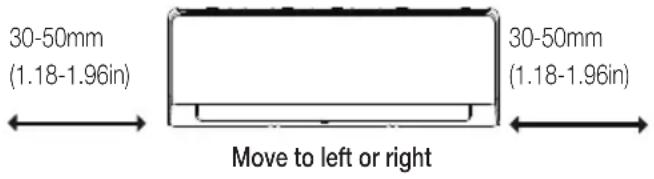

30-50mm (1.18-1.96in) 30-50mm (1.18-1.96in) Move to left or right

9 Outdoor unit installation

Install the unit by following local codes and regulations, there may be differ slightly between different regions.

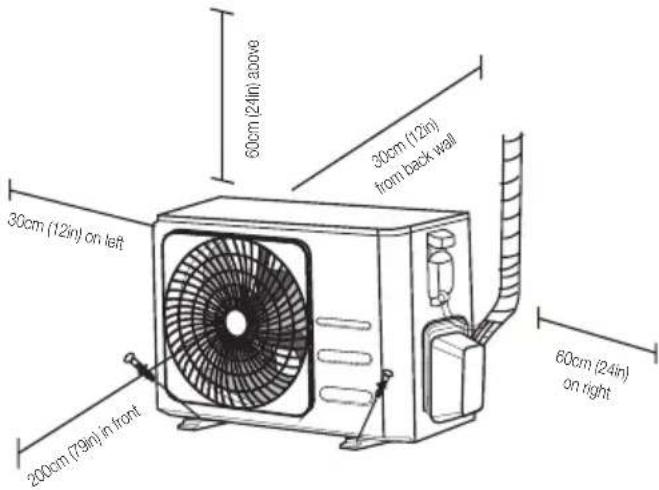

60cm (24in) above 30cm (12in) from back wall 30cm (12in) on left 200cm (79in) in front 60cm (24in) on right

9.1 Installation instructions — outdoor unit

Step 1: Select installation location

Before installing the outdoor unit, you must choose an appropriate location. The following are standards that will help you choose an appropriate location for the unit.

Proper installation locations meet the following standards:

• Meets all spatial requirements shown in Installation Space Requirements above.
  •Good air circulation and ventilation
• Firm and solid—the location can support the unit and will not vibrate
• Noise from the unit will not disturb others
• Protected from prolonged periods of direct sunlight or rain
• Where snowfall is anticipated, raise the unit above the base pad to prevent ice buildup and coil damage. Mount the unit high enough to be above the average accumulated area snowfall. The minimum height must be 18 inches

Do not install unit in the following locations:

• Near an obstacle that will block air inlets and outlets
• Near a public street, crowded areas, or where noise from the unit will disturb others
• Near animals or plants that will be harmed by hot air discharge
  •Near any source of combustible gas
  •In a location that is exposed to large amounts of dust
  •In a location exposed to a excessive amounts of salty air

Special considerations for extreme weather If the unit is exposed to heavy wind:

Install unit so that air outlet fan is at a 90^ angle to the direction of the wind. If needed, build a barrier in front of the unit to protect it from extremely heavy winds.

See Figures below.

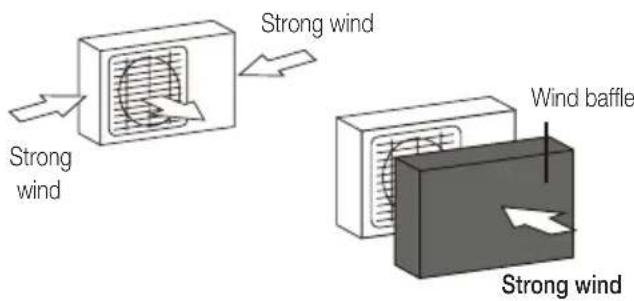

Strong wind Strong wind Wind baffle Strong wind

If the unit is frequently exposed to heavy rain or snow:

Build a shelter above the unit to protect it from the rain or snow. Be careful not to obstruct air flow around the unit.

If the unit is frequently exposed to salty air (seaside):

Use outdoor unit that is specially designed to resist corrosion.

9 Outdoor unit installation

Step 2: Install drain joint (heat pump unit only)

Before bolting the outdoor unit in place, you must install the drain joint at the bottom of the unit. Note that there are two different types of drain joints depending on the type of outdoor unit.

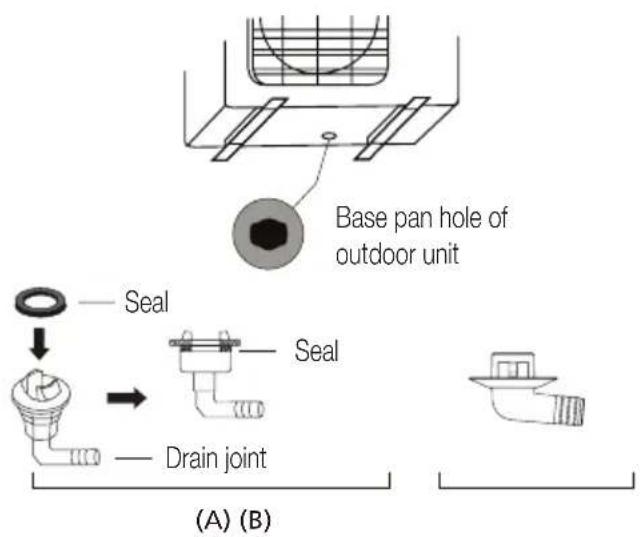

If the drain joint comes with a rubber seal (see Fig. A), do the following:

1. Fit the rubber seal on the end of the drain joint that will connect to the outdoor unit.
2. Insert the drain joint into the hole in the base pan of the unit.
3. Rotate the drain joint 90° until it clicks in place facing the front of the unit.
4. Connect a drain hose extension (not included) to the drain joint to redirect water from the unit during heating mode.

If the drain joint doesn't come with a rubber seal (see Fig. B), do the following:

1. Insert the drain joint into the hole in the base pan of the unit. The drain joint will click in place.
2. Connect a drain hose extension (not included) to the drain joint to redirect water from the unit during heating mode.

Base pan hole of outdoor unit Seal Seal Drain joint (A) (B)

In cold climates:

In cold climates, make sure that the drain hose is as vertical as possible to ensure swift water drainage. If water drains too slowly, it can freeze in the hose and flood the unit.

Step 3: Anchor outdoor unit

The outdoor unit can be anchored to the ground or to a wall-mounted bracket with bolt(M10). Prepare the installation base of the unit according to the dimensions below.

Unit mounting dimensions

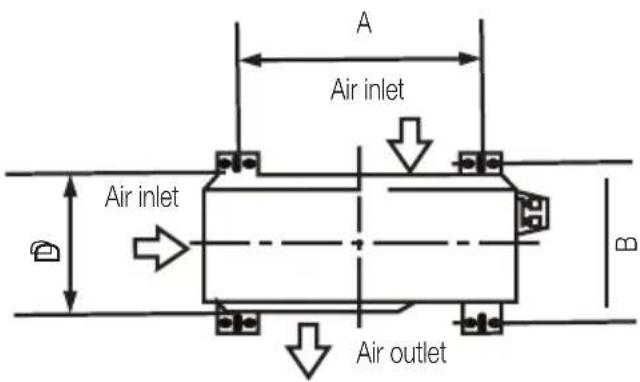

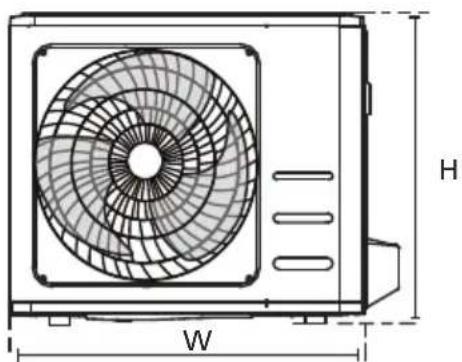

The following is a list of different outdoor unit sizes and the distance between their mounting feet. Prepare the installation base of the unit according to the dimensions below.

A Air inlet Air inlet Air outlet

Technical line drawing of a front-end air conditioner unit with labeled dimensions H and W (no text or symbols beyond labels)

9 Outdoor unit installation

Outdoor unit dimensions (mm)WxHxD	Mounting dimensionsDistance A (mm) Distance B (mm)
681x434x285 (26.8"x17.1 "x11.2") 460 (18.1") 292 (11.5")
700x550x270 (27.5"x21.6"x10.6") 450 (17.7") 260 (10.2")
700x550x275 (27.5"x21.6"x10.8") 450 (17.7") 260 (10.2")
720x495x270 (28.3"x19.5"x10.6") 452 (17.8") 255 (10.0")
728x555x300 (28.7"x21.8"x11.8") 452 (17.8") 302(11.9")
765x555x303 (30.1"x21.8"x11.9") 452 (17.8") 286(11.3")
770x555x300 (30.3"x21.8"x11.8") 487 (19.2") 298 (11.7")
805x554x330 (31.7"x21.8"x12.9") 511 (20.1") 317 (12.5")
800x554x333 (31.5"x21.8"x13.1") 514 (20.2") 340 (13.4")
845x702x363 (33.3"x27.6"x14.3") 540 (21.3") 350 (13.8")
890x673x342 (35.0"x26.5"x13.5") 663 (26.1") 354 (13.9")
946x810x420 (37.2"x31.9"x16.5") 673 (26.5") 403 (15.9")
946x810x410 (37.2"x31.9"x16.1") 673 (26.5") 403 (15.9")

If you will install the unit on the ground or on a concrete mounting platform, do the following:

1. Mark the positions for four expansion bolts based on dimensions chart.
2. Pre-drill holes for expansion bolts.
3. Place a nut on the end of each expansion bolt.
4. Hammer expansion bolts into the pre-drilled holes.
5. Remove the nuts from expansion bolts, and place outdoor unit on bolts.
6. Put washer on each expansion bolt, then replace the nuts.
7. Using a wrench, tighten each nut until snug.

Warning:

When drilling into concrete, eye protection is recommended at all times.

If you will install the unit on a wall-mounted bracket, do the following:

Warning:

Make sure that the wall is made of solid brick, concrete, or of similarly strong material. The wall must be able to support at least four times the weight of the unit.

1. Mark the position of bracket holes based on dimensions chart.
2. Pre-drill the holes for the expansion bolts.
3. Place a washer and nut on the end of each expansion bolt.
4. Thread expansion bolts through holes in mounting brackets, put mounting brackets in

9 Outdoor unit installation

position, and hammer expansion bolts into the wall.

1. Check that the mounting brackets are level.
2. Carefully lift unit and place its mounting feet on brackets.
3. Bolt the unit firmly to the brackets.
4. If allowed, install the unit with rubber gaskets to reduce vibrations and noise.

Step 4: Connect signal and power cables

The outside unit's terminal block is protected by an electrical wiring cover on the side of the unit. A comprehensive wiring diagram is printed on the inside of the wiring cover.

Warning:

Before performing any electrical or wiring work, turn off the main power to the system.

1. Prepare the cable for connection:

Use the right cable

Please choose the right cable refer to "Cable types" in page 37.

Choose the right cable size

The size of the power supply cable, signal cable, fuse, and switch needed is determined by the maximum current of the unit. The maximum current is indicated on the nameplate located on the side panel of the unit.

Note: In North America, please choose the right cable size according to the Minimum Circuit Ampacity indicated on the nameplate of the unit.

a. Using wire strippers, strip the rubber jacket from both ends of cable to reveal about 40mm (1.57in) of the wires inside.
b. Strip the insulation from the ends of the wires.
c. Using a wire crimper, crimp u-lugs on the ends of the wires.

Pay attention to live wire

While crimping wires, make sure you clearly distinguish the Live ("L") Wire from other wires.

Warning:

All wiring work must be performed strictly in accordance with the wiring diagram located inside of wire cover of the outdoor unit.

1. Unscrew the electrical wiring cover and remove it.
2. Unscrew the cable clamp below the terminal block and place it to the side.
3. Connect the wire according to the wiring diagram, and firmly screw the u-lug of each wire to its corresponding terminal.
4. After checking to make sure every connection is secure, loop the wires around to prevent rain water from flowing into the terminal.
5. Using the cable clamp, fasten the cable to the unit. Screw the cable clamp down tightly.

9 Outdoor unit installation

1. Insulate unused wires with PVC electrical tape. Arrange them so that they do not touch any electrical or metal parts.

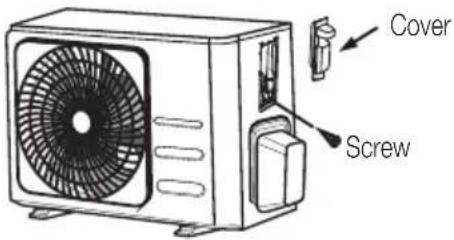

2. Replace the wire cover on the side of the unit, and screw it in place.

Cover Screw

Note: If the cable clamp looks like the following, please select the appropriate through-hole according to the diameter of the wire.

Mechanical component labeled 'Buckle' showing a curved bracket and mounting base (no other text or symbols)

Three size hole: small, large, medium

3D mechanical component diagram showing a bracket with mounting holes and a central hole labeled 'h' (no text or symbols beyond the label)

When the calbe is not fasten enough, use the buckle to prop it up, so it can be clamped tightly.

In North America

1. Remove the wire cover from the unit by loosening the 3 screws.
2. Dismount caps on the conduit panel.
3. Temporarily mount the conduit tubes (not included) on the conduit panel.

4. Properly connect both the power supply and low voltage lines to the corresponding terminals on the terminal block.

5. Ground the unit in accordance with local codes.

6. Be sure to size each wire allowing several inches longer than the required length for wiring.
7. Use lock nuts to secure the conduit tubes.

Terminal block Over 1.57in.(40mm) Connecting cable Conduit panel Wire Cover

Please select the appropriate through-hole according to the diameter of the wire.

10 Refrigerant piping connection

When connecting refrigerant piping, do not let substances or gases other than the specified refrigerant enter the unit. The presence of other gases or substances will lower the unit's capacity, and can cause abnormally high pressure in the refrigeration cycle. This can cause explosion and injury.

Note on pipe length:

The length of refrigerant piping will affect the performance and energy efficiency of the unit. Nominal efficiency is tested on units with a pipe length of 5 meters (16.5ft) (In North America, the standard pipe length is 7.5m (25')). A minimum pipe run of 3 metres is required to minimise vibration & excessive noise. In special tropical area, for the R290 refrigerant models, no refrigerant can be added and the maximum length of refrigerant pipe should not exceed 10 meters (32.8ft).

Refer to the table below for specifications on the maximum length and drop height of piping.

Maximum length and drop height of refrigerant piping per unit model

Model Capacity (BTU/h) Max. length (m) Max. drop height (m)
R410A, R32 Inverter split air conditioner	< 15,000 25 (82ft)	10 (33ft)
	≥15,000 and < 24,000 30	(98.5ft) 20 (66ft)
	≥24,000 and < 36,000 50	(164ft) 25 (82ft)
R22 Fixed-speed split air conditioner	< 18,000 10 (33ft)	5 (16ft)
	≥18,000 and < 21,000 15	(49ft) 8 (26ft)
	≥21,000 and < 35,000 20	(66ft) 10 (33ft)
R410A, R32 Fixed-speed split Air conditioner	< 18,000 20 (66ft)	8 (26ft)
	≥18,000 and < 36,000 25	(82ft) 10 (33ft)

10 Refrigerant piping connection

10.1 Connection instructions – refrigerant piping

Step 1: Cut pipes

When preparing refrigerant pipes, take extra care to cut and flare them properly. This will ensure efficient operation and minimize the need for future maintenance.

1. Measure the distance between the indoor and outdoor units.
2. Using a pipe cutter, cut the pipe a little longer than the measured distance.

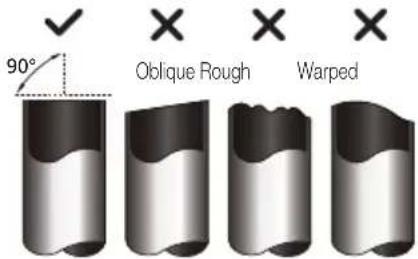

3. Make sure that the pipe is cut at a perfect 90^ angle.

90° Oblique Rough Warped

Do not deform pipe while cutting:

Be extra careful not to damage, dent, or deform the pipe while cutting. This will drastically reduce the heating efficiency of the unit.

Step 2: Remove burrs

Burrs can affect the air-tight seal of refrigerant piping connection. They must be completely removed.

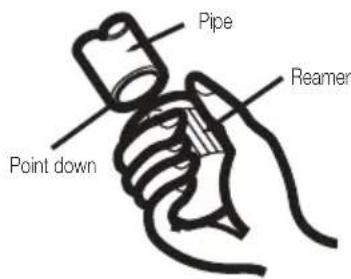

1. Hold the pipe at a downward angle to prevent burrs from falling into the pipe.
2. Using a reamer or deburring tool, remove all burrs from the cut section of the pipe.

Pipe Point down Reamer

Step 3: Flare pipe ends

Proper flaring is essential to achieve an airtight seal.

1. After removing burrs from cut pipe, seal the ends with PVC tape to prevent foreign materials from entering the pipe.
2. Sheath the pipe with insulating material.
3. Place flare nuts on both ends of pipe. Make sure they are facing in the right direction, because you can't put them on or change their direction after flaring.

Flare nut Copper pipe

1. Remove PVC tape from ends of pipe when ready to perform flaring work.

2. Clamp flare form on the end of the pipe. The end of the pipe must extend beyond the edge of the flare form in accordance with the dimensions shown in the table below.

Technical line drawing of a mechanical clamp or fixture with multiple base plates (no text or symbols)

10 Refrigerant piping connection

Piping extension beyond flare form

Outer diameter of pipe (mm)	A (mm) Min. Max.
∅ 6.35 (∅ 0.25") 0.7	(0.0275") 1.3 (0.05")
∅ 9.52 (∅ 0.375") 1.0	(0.04") 1.6 (0.063")
∅12.7 (∅ 0.5") 1.0	(0.04") 1.8 (0.07")
∅ 16 (∅ 0.63") 2.0	(0.078") 2.2 (0.086")
∅ 19 (∅ 0.75") 2.0	(0.078") 2.4 (0.094")

Flare form A Pipe

1. Place flaring tool onto the form.
2. Turn the handle of the flaring tool clockwise until the pipe is fully flared.
3. Remove the flaring tool and flare form, then inspect the end of the pipe for cracks and even flaring.

Step 4: Connect pipes

When connecting refrigerant pipes, be careful not to use excessive torque or to deform the piping in any way. You should first connect the low-pressure pipe, then the high-pressure pipe.

Minimum bend radius

When bending connective refrigerant piping, the minimum bending radius is 10 cm.

≥10cm (4in)Radius

Instructions for connecting piping to indoor unit

1. Align the center of the two pipes that you will connect.

Indoor unit tubing Flare nut Pipe

1. Tighten the flare nut as tightly as possible by hand.
2. Using a spanner, grip the nut on the unit tubing.
3. While firmly gripping the nut on the unit tubing, use a torque wrench to tighten the flare nut according to the torque values in the Torque requirements table below. Loosen the flaring nut slightly, then tighten again.

Line drawing of hands using a tool to lift a mechanical component (no text or symbols)

10 Refrigerant piping connection

Torque requirements

Outer diameter of pipe (mm)	Tightening torque (N•cm)	Flare dimension(B) (mm)	Flare shape
∅ 6.35 (∅ 0.25") 18~	20 (180~200kgf.cm)	8.4~8.7 (0.33~0.34")
∅ 9.52 (∅ 0.375") 32~	39 (320~390kgf.cm)	13.2~13.5 (0.52~0.53")
∅ 12.7 (∅ 0.5") 49~59 (490~590kgf.cm)	16.2~16.5	(0.64~0.65")
∅ 16 (∅ 0.63")	57~71 (570~710kgf.cm)	19.2~19.7 (0.76~0.78")
∅ 19 (∅ 0.75")	67~101 (670~1010kgf.cm)	23.2~23.7 (0.91~0.93")

Do not use excessive torque:

Excessive force can break the nut or damage the refrigerant piping. You must not exceed torque requirements shown in the table above.

1. While firmly gripping the body of the valve, use a torque wrench to tighten the flare nut according to the correct torque values.
2. Loosen the flaring nut slightly, then tighten again.
3. Repeat Steps 3 to 6 for the remaining pipe.

10.2 Instructions for connecting piping to outdoor unit

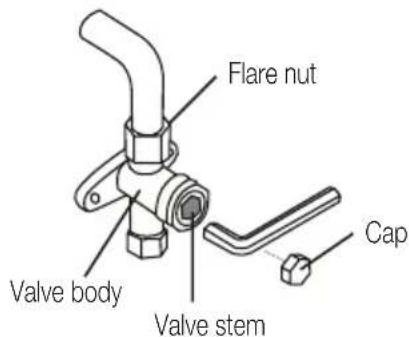

1. Unscrew the cover from the packed valve on the side of the outdoor unit.
2. Remove protective caps from ends of valves.
3. Align flared pipe end with each valve, and tighten the flare nut as tightly as possible by hand.
4. Using a spanner, grip the body of the valve. Do not grip the nut that seals the service valve.

Valve cover

Use spanner to grip main body of valve:

Torque from tightening the flare nut can snap off other parts of valve.

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols present)

11 Air evacuation

11.1 Preparations and precautions

Air and foreign matter in the refrigerant circuit can cause abnormal rises in pressure, which can damage the air conditioner, reduce its efficiency, and cause injury. Use a vacuum pump and manifold gauge to evacuate the refrigerant circuit, removing any non-condensable gas and moisture from the system.

Evacuation should be performed upon initial installation and when unit is relocated.

Before performing evacuation

- Check to make sure the connective pipes between the indoor and outdoor units are connected properly.

- Check to make sure all wiring is connected properly.

11.2 Evacuation instructions

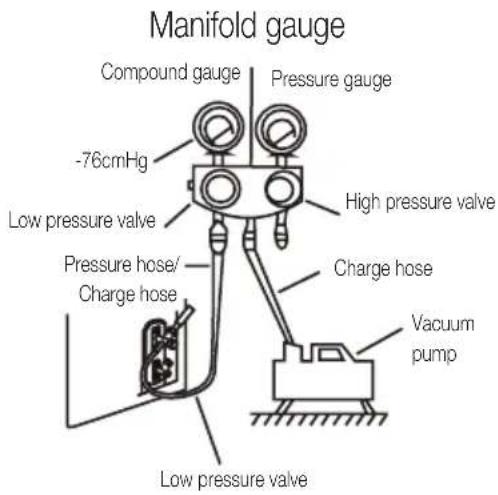

1. Connect the charge hose of the manifold gauge to service port on the outdoor unit's low pressure valve.
2. Connect another charge hose from the manifold gauge to the vacuum pump.
3. Open the Low Pressure side of the manifold gauge. Keep the High Pressure side closed.
4. Turn on the vacuum pump to evacuate the system.
5. Run the vacuum for at least 15 minutes, or until the Compound Meter reads -76cmHG (-10 ^5 Pa).

Manifold gauge Compound gauge -76cmHg Pressure gauge High pressure valve Low pressure valve Pressure hose/ Charge hose Charge hose Vacuum pump Low pressure valve

1. Close the Low Pressure side of the manifold gauge, and turn off the vacuum pump.
2. Wait for 5 minutes, then check that there has been no change in system pressure.
3. If there is a change in system pressure, refer to Gas Leak Check section for information on how to check for leaks. If there is no change in system pressure, unscrew the cap from the packed valve (high pressure valve). Insert hexagonal wrench into the packed valve (high pressure valve) and open the valve by turning the wrench in a 1/4 counterclockwise turn. Listen for gas to exit the system, then close the valve after 5 seconds.
4. Watch the Pressure Gauge for one minute to make sure that there is no change in pressure. The Pressure Gauge should read slightly higher than atmospheric pressure.
5. Remove the charge hose from the service port.

Flare nut Valve body Valve stem Cap

11 Air evacuation

1. Using hexagonal wrench, fully open both the high pressure and low pressure valves.
2. Tighten valve caps on all three valves (service port, high pressure, low pressure) by hand. You may tighten it further using a torque wrench if needed.

Open valve stems gently:

When opening valve stems, turn the hexagonal wrench until it hits against the stopper. Do not try to force the valve to open further.

11.3 Note on adding refrigerant

Some systems require additional charging depending on pipe lengths. The standard pipe length varies according to local regulations. For example, in North America, the standard pipe length is 7.5m (25'). In other areas, the standard pipe length is 5m (16'). The refrigerant should be charged from the service port on the outdoor unit's low pressure valve. The additional refrigerant to be charged can be calculated using the following formula:

Additional refrigerant per pipe length

Connective pipe length (m)	Air purging method	Additional refrigerant
≤ Standard pipe length	Vacuum pump	N/A
> Standard pipe length	Vacuum pump	Liquid side: ∅ 6.35 (ø 0.25")R32:(Pipe length - standard length) x 12g/m(Pipe length - standard length) x 0.13oZ/ftR290:(Pipe length - standard length) x 10g/m(Pipe length - standard length) x 0.10oZ/ftR410A:(Pipe length - standard length) x 15g/m(Pipe length - standard length) x 0.16oZ/ftR22:(Pipe length - standard length) x 20g/m(Pipe length - standard length) x 0.21oZ/ft	Liquid side: ∅ 9.52 (ø 0.375")R32:(Pipe length - standard length) x 24g/m(Pipe length - standard length) x 0.26oZ/ftR290:(Pipe length - standard length) x 18g/m(Pipe length - standard length) x 0.19oZ/ftR410A:(Pipe length - standard length) x 30g/m(Pipe length - standard length) x 0.32oZ/ftR22:(Pipe length - standard length) x 40g/m(Pipe length - standard length) x 0.42oZ/ft

For R290 refrigerant unit, the total amount of refrigerant to be charged is no more than: 387g (<=9000Btu/h), 447g (>9000Btu/h and <=12000Btu/h), 547g (>12000Btu/h and <=18000Btu/h), 632g (>18000Btu/h and <=24000Btu/h).

Warning:

Do not mix refrigerant types.

12 Electrical and gas leak checks

12.1 Before test run

Only perform test run after you have completed the following steps:

• Electrical safety checks — Confirm that the unit's electrical system is safe and operating properly
• Gas leak checks — Check all flare nut connections and confirm that the system is not leaking
• Confirm that gas and liquid (high and low pressure) valves are fully open

12.2 Electrical safety checks

After installation, confirm that all electrical wiring is installed in accordance with local and national regulations, and according to the Installation Manual.

12.2.1 Before test run

Check grounding work

Measure grounding resistance by visual detection and with grounding resistance tester. Grounding resistance must be less than 0.1 .

Note: This may not be required for some locations in North America.

12.2.2 During test run

Check for electrical leakage

During the Test run, use an electroprobe and multimeter to perform a comprehensive electrical leakage test.

If electrical leakage is detected, turn off the unit immediately and call a licensed electrician to find and resolve the cause of the leakage.

Note: This may not be required for some locations in North America.

Warning - risk of electric shock

All wiring must comply with local and national electrical codes, and must be installed by a licensed electrician.

12 Electrical and gas leak checks

12.3 Gas leak checks

There are two different methods to check for gas leaks.

Soap and water method

Using a soft brush, apply soapy water or liquid detergent to all pipe connection points on the indoor unit and outdoor unit. The presence of bubbles indicates a leak.

Leak detector method

If using leak detector, refer to the device's operation manual for proper usage instructions.

After performing gas leak checks

After confirming that the all pipe connection points Do not leak, replace the valve cover on the outside unit.

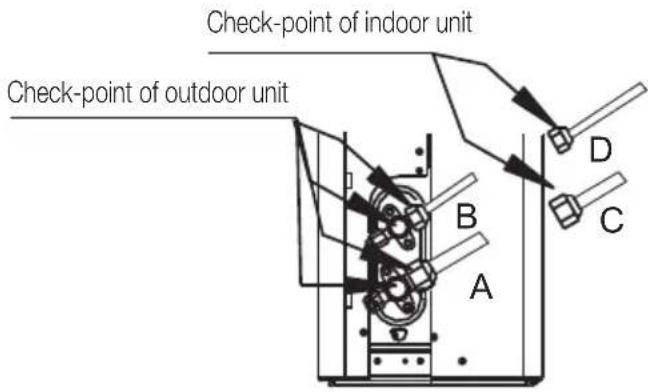

Check-point of indoor unit Check-point of outdoor unit A B C D

A: Low pressure stop valve
B: High pressure stop valve
C& D: Indoor unit flare nuts

13 Test Run

13.1 Test run instructions

You should perform the Test run for at least 30 minutes.

1. Connect power to the unit.
2. Press the ON/OFF button on the remote controller to turn it on.
3. Press the MODE button to scroll through the following functions, one at a time:

•COOL — Select lowest possible temperature
•HEAT — Select highest possible temperature

1. Let each function run for 5 minutes, and perform the following checks:

List of checks to perform	Pass/Fail
No electrical leakage
Unit is properly grounded
All electrical terminals properly covered
Indoor and outdoor units are solidly installed
All pipe connection points do not leak	Outdoor (2):	Indoor (2):
Water drains properly from drain hose
All piping is properly insulated
Unit performs COOL function properly
Unit performs HEAT function properly
Indoor unit louvers rotate properly
Indoor unit responds to remote controller

Double-check pipe connections

During operation, the pressure of the refrigerant circuit will increase. This may reveal leaks that

were not present during your initial leak check. Take time during the Test Run to double-check that all refrigerant pipe connection points do not have leaks. Refer to Gas leak check section for instructions.

1. After the Test run is successfully completed, and you confirm that all checks points in List of Checks to Perform have PASSED, do the following:

a. Using remote control, return unit to normal operating temperature.
b. Using insulation tape, wrap the indoor refrigerant pipe connections that you left uncovered during the indoor unit installation process.

If ambient temperature is below 16^ C ( 60^ F)

You can't use the remote controller to turn on the COOL function when the ambient temperature is below 16°C. In this instance, you can use the Manual control button to test the COOL function.

1. Lift the front panel of the indoor unit, and raise it until it clicks in place.

2. The Manual control button is located on the right-hand side of the unit. Press it 2 times to select the COOL function.

3. Perform Test Run as normal.

Technical line drawing of an air conditioner unit showing internal panel structure (no text or labels)

Manual control button

14 European disposal guideline

This appliance contains refrigerant and other potentially hazardous materials. When disposing of this appliance, the law requires special collection and treatment, Do not dispose of this product as household waste or unsorted municipal waste.

When disposing of this appliance, you have the following options:

• Dispose of the appliance at designated municipal electronic waste collection facility.
  -When buying a new appliance, the retailer will take back the old appliance free of charge.
  -The manufacturer will take back the old appliance free of charge.
  -Sell the appliance to certified scrap metal dealers.

Special notice: Disposing of this appliance in the forest or other natural surroundings endangers your health and is bad for the environment. Hazardous substances may leak into the ground water and enter the food chain.

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

15 Installation instructions

15.1 F-Gas instruction

This product contains fluorinated greenhouse gases.

The fluorinated greenhouse gases are contained in hermetically sealed equipment.

Installs, services, maintains, repairs, checks for leaks or decommissions equipment and product recycling should be carried out by natural persons that hold relevant certificates.

If the system has a leakage detection system installed, leakage checks should be performed at least every 12 months, make sure system operate properly.

If product must be performed leakage checks, it should specify Inspection cycle, establish and save records of leakage checks.

Note: For hermetically sealed equipment, local air conditioner, window air conditioner and dehumidifier, if CO2 equivalent of fluorinated greenhouse gases is less than 10 tonnes, it should not perform leakage checks.

BEHPG

Model name	Indoor unit	BEHPG 095 BEHPG 126	PG 125 BEHPG 185 BEHPG 245
	Outdoor unit	BEHPG 096 BEHPG 126	BEHPG 186 BEHPG 246
Refrigerant R32 R32 R32
Total Refrigerant Amount (g) 470 520		1100 1450
GWP 675 675 675 675
CO2 equivalent (tonnes) 0.320 0.350		0.743	0.979
Anti-Electric		Class I	Class I	Class I	Class I
Climate Class		T1	T1	T1	T1
Heating Type		Heat Pump	Heat Pump	Heat Pump	Heat Pump
Power Supply Connection		Outdoor	Outdoor	Outdoor	Outdoor
Pdesign C (kW)		2.6	3.5	5.3	7.0
Pdesign H (kW)		2.3(Average)/ 2.3(Warmer)	2.8(Average)/ 2.8(Warmer)	4.2(Average)/ 4.5(Warmer)	4.9(Average)/ 5.1(Warmer)
SEER/AEER/Weight EER (W/W)		7.0 (SEER, EU)	6.4 (SEER, EU)	7.0 (SEER, EU)	6.4 (SEER, EU)
SCOP/ACOP/Weight EER (W/W)		4.1(SCOP,Average)5.1(SCOP,Warmer)	4.0(SCOP,Average)5.1(SCOP,Warmer)	4.0(SCOP,Average)5.1(SCOP,Warmer)	4.0(SCOP,Average)5.1(SCOP,Warmer)
Energy Level-Cooling		A++ (EU)	A++ (EU)	A++ (EU)	A++ (EU)
Energy Level-Heating		A+(Average)/ A+++ (Warmer)	A+(Average)/ A+++ (Warmer)	A+(Average)/ A+++ (Warmer)	A+(Average)/ A+++ (Warmer)
Annual Energy Consumption-Cooling (kWh)		130 191 265 883
Annual Energy Consumption-Heating (kWh)		790(Average)/ 654(Warmer)	980(Average)/ 769(Warmer)	1470(Average)/ 1236(Warmer)	1715(Average)/ 1400(Warmer)
The declared capacity for calculation of SCOP at reference design condition (kW)		2.124	2.266	3.3	4.0
The back up heating capacity assumed for calculation of SCOP at reference design condition (kW)		0.176	0.534	0.9	0.9
Power of Electric Heater (W)		/	/	/	/
Cooling Power Input (W)		800	1300	1550 2420
Heating Power Input (W)		880	1090	1630 2130
Voltage/Frequency (V/Hz)		220V-240V,50Hz,1Ph	220V-240V,50Hz,1Ph	220V-240V,50Hz,1Ph	220V-240V,50Hz,1Ph
Cooling Running Current (A)		3.5	5.8 6.7	10.5
Model name	Indoor unit	BEHPG 095	BEHPG 125 BEHPG 185 BEHPG 245
	Outdoor unit	BEHPG 096	BEHPG 126 BEHPG 186 BEHPG 246
Heating Running Current (A)		3.8	4.8	7.1	9.3
Noise Pressure Level - Indoor Unit (dBA)		37/32/25 40.5/37.5/24 41/37/31/20 46/37/34.5/21
Noise Pressure Level - Outdoor Unit (dBA)		55 55 57 60
Air flow volume ( m^3/h ) 460/330/260 570/490/450 800/600/500 1090/770/610
Rated Power Input-EN 60335(W) 2150 2150 2500 3700
Rated Current Input-EN 60335(A) 10.0 10.0			13.0 19.0
Indoor unit Resistance Class		IPX0	IPX0 IPX0 IPX0
Outdoor unit Resistance Class		IPX4	IPX4 IPX4 IPX4
High Pressure Pipe Diameter (mm)		6.35mm (1/4in)	6.35mm (1/4in)	6.35mm (1/4in)	9.52mm (3/8in)
Low Pressure Pipe Diameter (mm)		9.52mm (3/8in)	9.52mm (3/8in)	12.7mm (1/2in)	15.9mm (5/8in)
Power Supply Cord specification ( mm^2 )		3*1.5mm2	3*1.5mm2	3*1.5mm2	3*2.5mm2
Indoor & Outdoor Connection Cord ( mm^2 )		5*1.5mm2	5*1.5mm2	5*1.5mm2	5*2.5mm2
Max. elevation (m)		10 10 20 25
Max. pipe length (m)		25 25 30 50
Additional Gas Quantity (g/m)		12 12 12 24
Indoor Unit (WxHxD) mm		726x291x210	802x295x200	971x321x228	1082x337x234
Outdoor Unit (WxHxD) mm		720x495x270	720x495x270	805x554x330	890x673x342
Indoor Unit Net Weight (kg)		7.7	8.2	12.0	14.5
Outdoor Unit Net Weight (kg) 21.0 21.0 32.0			43.0

Note:

1. Specifications are standard values calculated based on rated operating conditions, They will vary in difference work condition.

2. Our company has quick technical impairments. There will be prior notice for any change of technical data. Please read nameplate on the air-conditioner.

Please refer to detail product information required in Regulation No 206/2012 from leaflet of Product Fiche.

BEEPGH

Model name	Indoor unit BEEPGH 095 BEEPGH 125		BEEPGH 180
	Outdoor unit BEEPGH 096 BEEPGH 126		BEEPGH 181
Refrigerant R32 R32			R32
Total Refrigerant Amount (g) 620 620			1100
GWP 675 675			675
CO2 equivalent (tonnes) 0.419 0.419			0.74
Anti-Electric Class I Class I			Class I
Climate Class T1 T1			T1
Heating Type		Heat Pump	Heat Pump
Power Supply Connection		Outdoor	Outdoor
Pdesign C (kW)		2.6	3.5
Pdesign H (kW)		2.4(Average)/ 2.5(Warmer)	2.6(Average)/ 2.9(Warmer)
SEER/AEER/Weight EER (W/W)		8.8 (SEER, EU)	8.5 (SEER, EU)
SCOP/ACOP/Weight EER (W/W)		4.6(SCOP,Average)/ 6.0(SCOP,Warmer)	4.6(SCOP,Average)/ 6.0(SCOP,Warmer)
Energy Level-Cooling		A+++ (EU)	A+++ (EU)
Energy Level-Heating		A++(Average)/ A+++(Warmer)	A++(Average)/ A+++(Warmer)
Annual Energy Consumption-Cooling (kWh)		103 144
Annual Energy Consumption-Heating (kWh)		730(Average)/ 584(Warmer)	791(Average)/ 677(Warmer)
The declared capacity for calculation of SCOP at reference design condition (kW)		2.2	2.1
The back up heating capacity assumed for calculation of SCOP at reference design condition (kW)		0.2	0.5
Power of Electric Heater (W)		/	/
Cooling Power Input (W)		628	1005
Heating Power Input (W)		651 977	1440
Voltage/Frequency (V/Hz)		220V-240V,50Hz, 1Ph	220V-240V,50Hz, 1Ph
Cooling Running Current (A)		2.73 4.3	6.2
Heating Running Current (A)		2.83 4.2	6.3

16 Specifications

Model name	Indoor unit	BEEPGH 095 BEEPGH 125		BEEPGH 180
	Outdoor unit	BEEPGH 096 BEEPGH 126		BEEPGH 181
Noise Pressure Level - Indoor Unit (dBA)		37/31/22/19	39/33/22/21	43/38.5/31.5
Noise Pressure Level - Outdoor Unit (dBA)		54	54.5	56
Air flow volume (m3/h)		560/360/300	630/520/370	800/600/500
Rated Power Input-EN 60335(W)		2200	2200	2800
Rated Current Input-EN 60335(A)		10.5	10.5	13
Indoor unit Resistance Class		IPX0	IPX0	IPX0
Outdoor unit Resistance Class		IPX4	IPX4	IPX4
High Pressure Pipe Diameter (mm)		6.35mm (1/4in)	6.35mm (1/4in)	6.35mm (1/4in)
Low Pressure Pipe Diameter (mm)		9.52mm (3/8in)	9.52mm (3/8in)	12.7mm (1/2in)
Power Supply Cord specification (mm2)		1.5x3	1.5x3	1.5x3
Indoor & Outdoor Connection Cord (mm2)		1.5x5	1.5x5	1.5x5
Max. elevation (m)		10	10	20
Max. pipe length (m)		25	25	30
Additional Gas Quantity (g/m)		12	12	12
Indoor Unit (WxHxD) mm		802x295x200	802x295x200	971x228x321
Outdoor Unit (WxHxD) mm		765x555x303	765x555x303	900x675x330
Indoor Unit Net Weight (kg)		9.0	9.0	11.5
Outdoor Unit Net Weight (kg)		25.5	25.5	40.0

Note:

1. Specifications are standard values calculated based on rated operating conditions, They will vary in difference work condition.
2. Our company has quick technical impairments. There will be prior notice for any change of technical data. Please read nameplate on the air-conditioner.

Please refer to detail product information required in Regulation No 206/2012 from leaflet of Product Fiche.

Warning sign depicting a flame symbol in a triangular frame

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Technical line drawing of an air conditioner unit showing internal panel structure (no text or labels)

Diagram of a device being inserted into a housing, showing a magnified view with an arrow indicating the process (no text or symbols present)

Insérer

Avertissement :

Diagram of a car interior showing a hand pressing down on a textured panel with a black arrow indicating downward motion (no text or symbols present)

Diagram showing a water tank with a faucet above it, no text or symbols present

Avertissement :

3D grid structure with shaded cells and a small dimension label 'H' (no text or symbols beyond the label)

Simple line drawing of a house with wavy lines inside, no text or symbols present

Prohibition sign with a circular symbol containing a diagonal line and lightning bolt pattern

Technical line drawing of a mechanical device with no visible text or symbols

Prohibition sign indicating no hazard, showing lightning bolt symbol inside a circle with diagonal lines.

Diagram of a 3D rectangular block with shaded faces and an arrow indicating a dimension (no text or symbols)

Prohibition sign with crossed-out circle and water droplet symbol

Diagram of a smartphone internal components with no visible text or symbols

Remplacez les piles.

Simple line drawing of a prohibition symbol with diagonal line crossing over layered horizontal lines (no text or labels)

Symbolic illustration of a computer monitor with a crossed-out diagonal line, no text or symbols present.

Pure mechanical diagram showing a lever mechanism with no text or symbols

Illustration of a hand using a tool to adjust a component, with no visible text or symbols.

Mechanical diagram showing a tool interacting with a bolt and nut (no text or symbols)

Illustration of hands holding a black object with a ruler, no text or symbols present

Illustration of hands holding a horizontal bar with upward arrows indicating motion or pressure (no text or symbols)

Technical line drawing of a rectangular mechanical component with internal channels and mounting holes (no text or symbols)

Diagram illustrating three states of a device with checkmark and cross symbols indicating selection or modification.

Type A Type B

Cache trou

Technical line drawing of two mechanical components with spring-loaded arms (no text or symbols)

Avertissement :

Pure mechanical diagram showing a bracket and checkmark symbol without any text or labels

Correct

Simple line drawing of a mechanical joint or bracket with a vertical hatched section and a cross symbol (no text or labels)

Pas correct

Simple line drawing of a mechanical or electrical component with no text or symbols

Pas correct

Simple line drawing of a door and wall junction with a cross symbol (no text or labels)

Pas correct

Line drawing of a hand holding a cylindrical object with a knife inserted, no text or symbols present

Technical line drawing of a wall-mounted air conditioner unit with fan blades and height dimension (no text or symbols)

3D mechanical component diagram showing a bracket with mounting holes and a central hole labeled 'h' (no text or symbols beyond the label)

Technical line drawing of a mechanical clamp or fixture with two plates and a handle (no text or symbols)

Line drawing of hands using a tool to lift a mechanical component (no text or symbols)

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols present)

Technical line drawing of an air conditioner unit showing internal panel layout and ventilation slots (no text or labels)

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Warning sign depicting a flame symbol in a triangular shape

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Technical line drawing of an air conditioner unit showing internal panel structure (no text or labels)

Diagram of a device being inserted into a housing, showing internal components and an arrow indicating direction (no text or symbols)

Inserire

Avvertenza:

Diagram showing a hand pressing down a car's side panel with a black arrow indicating the down-left direction (no text or symbols present)

Diagram showing a water tank with a faucet above it, no text or symbols present

Avvertenza:

Diagram of a 3x3 grid structure with a small arrow pointing to the top-right corner (no text or symbols)

Simple line drawing of a house with wavy lines inside, no text or symbols present

Prohibition sign with a circular symbol containing a crossed-out triangle and lightning bolt, indicating no protection or resistance.

Technical line drawing of a device with internal components (no text or symbols)

Safety warning sign showing no hazard and lightning symbol with hazard bands

Diagram of a 3x3 grid with a labeled corner 'H' (no text or symbols within the grid)

Safety warning symbol with crossed line and droplet icons indicating water release

Line drawing of a device with internal components and a handle (no text or symbols)

Prohibition sign with diagonal line crossing over a striped horizontal bar (no text or symbols)

Symbolic illustration of a computer with a crossed-out triangle and a potted plant, enclosed in a circle (no text or symbols)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Illustration of a hand using a tool to adjust a component, with no visible text or symbols.

Mechanical diagram showing a tool interacting with a pipe fitting, no text or symbols present

Collegare le tubature

6

Illustration of hands holding a black object with a ruler, no text or symbols present

Diagram of a cable assembly with coiled and twisted wires, no text or symbols present

Illustration of hands holding a horizontal bar with three upward arrows, no text or symbols present

Diagram of an air conditioner system with numbered components and labeled parts for installation or maintenance.

(1)

Technical line drawing of a rectangular electronic component with internal compartments and mounting holes (no text or symbols)

Diagram illustrating three states of a device with checkmark and cross symbols indicating selection or modification.

Tipo A Tipo B

Line drawing of a rectangular electronic device with a lid and ventilation grille (no text or symbols)

Technical line drawing of a mechanical device with spring and housing (no text or symbols)

Line drawing of a mechanical device with a handle and lever mechanism (no text or symbols)

Avvertenza:

Pure mechanical diagram showing a bracket and checkmark symbol without any text or labels

Corretto

Simple line drawing of a mechanical joint or bracket with a cross symbol (no text or labels)

Non corretto

Simple line drawing of a wall-mounted device with a switch and grounding, no text or symbols present

Non corretto

Simple line drawing of a door and wall junction with a cross symbol (no text or labels)

Non corretto

Line drawing of a hand holding a cylindrical object with a knife inserted, no text or symbols present

30° Zeppa

Technical line drawing of a wall-mounted air conditioner unit with fan and ventilation slots (no text or symbols)

Dimensioni unità esterna (mm)L × A × P	Dimensioni di montaggioDistanza A (mm) Distanza B (mm)
681 x 434 x 285 460 292
700 x 550 x 270 450 260
700 x 550 x 275 450 260
720 x 495 x 270 452 255
728 x 555 x 300 452 302
765 x 555 x 303 452 286
770 x 555 x 300 487 298
805 x 554 x 330 511 317
800 x 554 x 333 514 340
845 x 702 x 363 540 350
890 x 673 x 342 663 354
946 x 810 x 420 673 403
946 x 810 x 410 673 403

Coperchio Vite

3D mechanical component diagram showing a bracket with mounting holes and a central hole labeled 'h' (no text or symbols beyond the label)

Illustration of a mechanical clamp or lever assembly with two plates and a handle (no text or symbols)

Raggio ≥10cm

Line drawing of hands using a tool to lift a mechanical component (no text or symbols)

Line drawing of a portable air conditioner unit with fan and control panel (no text or symbols)

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols present)

11 Scarico aria

Technical line drawing of an air conditioner unit with ventilation grilles and fan array (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Warning sign depicting a flame symbol in a triangular shape

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Diagram of a device being inserted into a housing, showing internal components and an arrow indicating direction (no text or symbols)

Insertar

Advertencia:

Diagram showing a hand pressing down a car's side panel with a black arrow indicating downward motion (no text or symbols present)

Diagram showing a water tank with a faucet above it, no text or symbols present

Diagram of a 3D grid structure with a small arrow indicating a dimension (no text or symbols present)

Simple line drawing of a house with wavy lines indicating airflow or ventilation (no text or symbols)

Prohibition sign with a circular symbol containing a crossed-out lightning bolt and diagonal line, indicating no lightning protection.

Line drawing of a smartphone internal circuit board (no text or symbols)

Safety warning sign with crossed-out lightning bolt symbol indicating no hazard or accident

Diagram of a 3x3 grid with a small arrow pointing to the top-right corner (no text or symbols)

Prohibition sign with crossed-out circle and water droplet symbol, indicating no pollution or discharge

Technical line drawing of a device with internal components (no text or symbols)

Prohibition sign with diagonal line crossing over layered horizontal bars (no text or symbols)

Prohibition sign showing a crossed-out refrigerator with a potted plant (no text or symbols)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Illustration of a hand using a tool to adjust a component, with no visible text or symbols.

Diagram showing a pipe fitting with a tool and directional arrow indicating rotation (no text or symbols)

Conectar el tubo

6

Illustration of hands holding a black object with a ruler, no text or symbols present

Diagram of a cable being inserted into a wire, showing sheath and clasp (no text or symbols)

Illustration of two hands holding a horizontal bar with upward arrows, no text or symbols present

Technical line drawing of a rectangular electronic component with internal channels and mounting holes (no text or symbols)

Diagram showing three structural configurations with check and cross symbols indicating selection or validation states

Diagram of a vehicle's internal components with directional arrows and labeled ports

Technical line drawing of a mechanical assembly with two symmetrical components (no text or symbols)

Tipo A Tipo B

348,4 mm (13,7 in) 179 mm (7,1 in) 136 mm (5,4 in) 37 mm (1,45 in) Contorno de a unidad Inferior 290 mm (11,4 in) 101 mm (4,0 in) 49 mm (1,85 in) 722 mm (28,5 in) Agujero de la pared posterior izquierdo 65 mm (2,5 pulgadas) Agujero de la pared posterior derecho 65 mm (2,5 pulgadas) Modelo A

230 mm (9,1 in) 190 mm (7,5 in) 403 mm (15,9 in) 231 mm (9,1 in) 121 mm (4,8 in) 297 mm (11,7 in) 47 mm (1,8 in) 805 mm (31,7 in) Agujero de la pared posterior izquierdo 65 mm (2,5 pulgadas) Agujero de la pared posterior derecho 65 mm (2,5 pulgadas) Modelo B

244 mm (9,6 in) 190 mm (7,5 in) 418 mm (16,5 in) 246 mm (9,7 in) 121 mm (4,8 in) 36 mm (1,4 in) 297 mm (11,7 in) 47 mm (1,8 in) 835 mm (32,9 in) 53 mm (2,1 in) Agujero de la pared posterior izquierdo 65 mm (2,5 pulgadas) Agujero de la pared posterior derecho 65 mm (2,5 pulgadas) Modelo C

165 mm (6,5 in) 106 mm (4,2 in) 527 mm (20,7 in) 247 mm (9,7 in) 37 mm (2,1 in) 318 mm (12,5 in) 48 mm (1,9 in) 29 mm (1,1 in) Agujero de la pared posterior izquierdo 65 mm (2,5 pulgadas) 973 mm (38,3 in) Agujero de la pared posterior derecho 65 mm (2,5 pulgadas) Modelo D

199 mm (7,8 in) 120 mm (5,1 in) 603 mm (23,7 in) 322 mm (12,7 in) 338 mm (13,3 in) 54 mm (2,1 in) 170 mm (6,8 in) 55 mm (2,2 in) 54 mm (2,1 in) 1082 mm (42,6 in) Agujero de pared trasero izquierdo de 90 mm (3,54 in) Agujero de pared trasero derecho de 90 mm (3,54 in) Modelo E

362 mm (14,25 in) 389 mm (15,3 in) 178 mm (6,5 in) 52 mm (2,05 in) 1259 mm (49,55 in) 6/13.6 mm (25,2 in) 382 mm (13,25 in) 257 mm (10,1 in) Conicero de la unidad interior 52 mm (2,25 in) Agujero de pared trasero izquierdo de 90 mm (3,54 in) Agujero de pared trasero derecho de 90 mm (3,54 in) Modelo F

Panel extraibl

Technical line drawing of two mechanical components with spring-loaded arms (no text or symbols)

Advertencia:

Pure mechanical diagram showing a bracket and checkmark symbol without any text or labels

Correcto

Simple line drawing of a mechanical joint or bracket with a vertical bar and a cross symbol (no text or labels)

Incorrecto

Simple line drawing of a pipe connection with a wall and ground, no text or symbols present

Incorrecto

Simple line drawing of a door and wall junction with a cross symbol (no text or labels)

Incorrecto

Line drawing of a hand holding a cylindrical object with a knife inserted, no text or symbols present

Technical line drawing of a front-end air conditioner unit with labeled dimensions H and W (no text or symbols beyond labels)

Mechanical component labeled 'Hebilla' showing a bracket and mounting holes (no other text or symbols)

3D mechanical component diagram showing a bracket with mounting holes and a central hole, labeled 'h' with dimension line (no text or symbols beyond measurement)

Illustration of a mechanical valve or clamp device with multiple ports and a handle (no text or symbols)

≥10 cm (4 in) Radio

Line drawing of hands using a tool to lift a mechanical component (no text or symbols)

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols present)

Technical line drawing of an air conditioner unit with ventilation grilles and fan array (no text or labels)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Warning sign depicting a flame symbol in a triangular shape

(Para tipo de gás R32/R290)

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Diagram of a device being inserted into a housing, showing internal components and an arrow indicating direction (no text or symbols)

Inserir

Advertência:

Diagram showing a hand pressing down a car air vent with a downward arrow (no text or symbols)

Diagram showing a water tap above a grid-patterned rectangular area with no visible text or symbols

Diagram of a 3D grid structure with a small arrow pointing to the top-right corner (no text or symbols)

Simple line drawing of a house with wavy lines inside, no text or symbols present

Prohibition sign with a circular symbol containing a diagonal line and lightning bolt pattern

Technical line drawing of a device with internal components (no text or symbols)

Remova as pilhas do controlo remoto

Safety warning sign indicating no power lines crossed out, with lightning symbol and hazard bands

Verifique se existem fios danificados

Diagram of a 3D grid structure with a labeled dimension 'a' (no text or symbols beyond the label)

Safety warning symbol with crossed line and droplet icons, indicating no pollution or water release

Verifique se existem fugas

Line drawing of a smartphone with internal components (no text or symbols)

Substitua as pilhas

Simple line drawing of a prohibition sign over a landscape with no text or symbols

Symbolic illustration of a crossed-out box with a potted plant inside, enclosed in a circle (no text or symbols)

Verifique se algo está a bloquear as entradas e saídas de ar

Pure mechanical diagram showing a lever mechanism with no text or symbols

Illustration of a hand using a tool to adjust a component, with no visible text or symbols.

Mechanical diagram showing a tool interacting with a pipe fitting, no text or symbols present

Ligar a tubagem

6

Illustration of hands holding a black object with a ruler, no text or symbols present

Diagram of a cable assembly with coiled and straight cables, no text or symbols present

Illustration of two hands holding a horizontal bar with upward arrows, no text or symbols present

Diagram showing air conditioning system components with numbered parts and Chinese labels

Technical line drawing of a rectangular electronic component with internal channels and mounting holes (no text or symbols)

Diagram showing three structural configurations with check and cross symbols indicating selection or validation states

Pure electrical circuit lines without any symbols

Architectural floor plan showing two symmetrical structures with central channels and windows (no text or labels)

Tipo A Tipo B

Line drawing of a rectangular electronic device with a grid top and a small protrusion on the side (no text or symbols)

Painel separador

Technical line drawing of a mechanical device with a spring and lever (no text or symbols)

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

Advertência:

Pure mechanical diagram showing a bracket and checkmark symbol without any text or labels

Correto

Simple line drawing of a mechanical joint or bracket with a cross symbol (no text or labels)

Incorreto

Simple line drawing of a mechanical or electrical component with no text or symbols

Incorreto

Simple line drawing of a door and wall junction with a cross symbol (no text or labels)

Incorreto

Line drawing of a hand using a tool to cut a cylindrical object (no text or symbols)

Passo 7: Envolver as tubagens e os cabos

30° Calço

Technical line drawing of a front-end air conditioner unit with labeled dimensions H and W (no text or symbols beyond labels)

Tampa Parafuso

3D mechanical component diagram showing a bracket with mounting holes and a central hole labeled 'h' (no text or symbols beyond the label)

Passo 2: Remover as rebarbas

Technical line drawing of a mechanical clamp or fixture with two plates and a handle (no text or symbols)

Line drawing of hands using a tool to lift a mechanical component (no text or symbols)

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols present)

11 Purga de ar

Technical line drawing of an air conditioner unit showing internal panel structure (no text or labels)

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Importer in Portugal
