USER MANUAL EMHW 1 Essentiel B

Black hardcover head with earbuds and microphone, no visible text or symbols

Notice d'utilisation / User guide / Instrucciones de uso / Bedienungsanleitung / Gebruiksaanwijzing

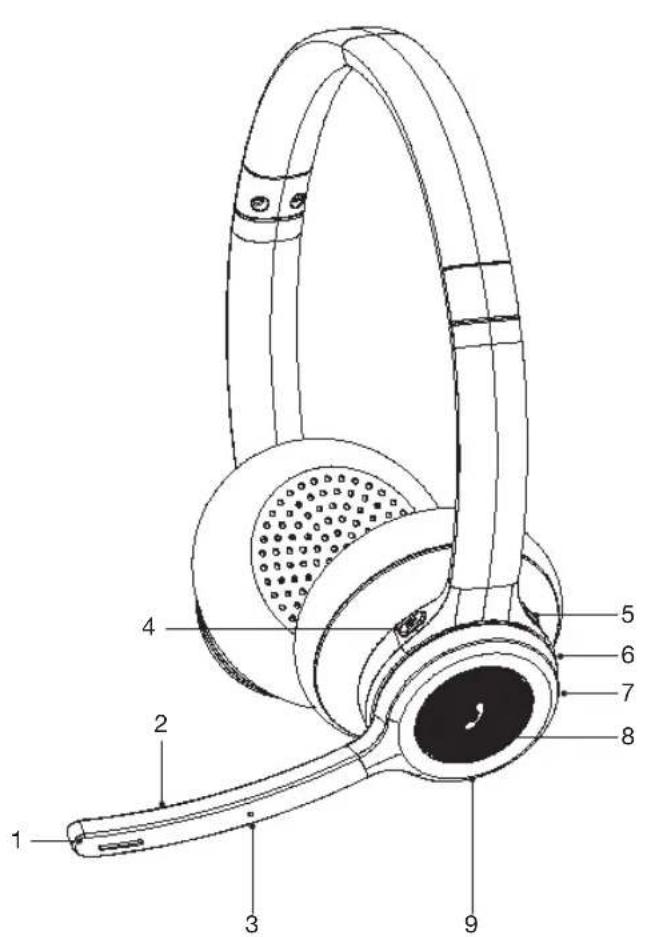

Technical diagram of a headset with numbered parts for identification

	FR EN ES DE NL
1	Microphone intégré	Built-in microphone	Micrófono integrado	Integriertes Mikrofon	Geïnte-greerde microfoon
2	Désactiver le microphone	Mute the microphone	Desactivar ol micrófono	Das Mikrofon stumm schalten	Het microfoons volume uitscha-kelen
3	Réduction de bruit	Noise-cancelling	Cancelación del ruido	Geräuschunter drückung	Rulsonder-drukking
4	Volume + Volume + Volumen + Lautstärke + Volume +
5	Volume - Volume - Volumen - Lautstärke - Volume -
6	Commutateur marche / arrêt (ON/OFF)	ON/OFF switch	Interruptor de encendido/apagado (ON/OFF)	EIN/AUS-Schalter (ON/OFF)	Aan/Uit-schakelaar (ON/OFF)
7	Témoin lumineux	Indicator light	Indicador luminoso	Kontroll-leuchte	Signaal-lampje
8	Bouton multifonction	Multifunction button	Botón multifunción	Taste Multifunktion	Multifuncti-onele knop
9	Port USB-C destiné à la charge	USB-C charging port	Puerto USB-C para la carga	USB-C-An-schluss zum Aufladen	USB-C-op-laadpoort

votre produit

Contenu de la boîte

Diagram showing two headphones connected via a cable to a laptop and a separate computer (no text or symbols present)

Pure technical line drawing of a curved mechanical component without any text, numbers, or symbols

Diagram showing a pair of headphones connected to a smartphone and a smartphone, illustrating wireless communication or data transfer.

• 1 wireless headset
• 1 USB-C charging cable
- 1 user manual

Technical features

• Supra-aural headset
• Adjustable headband
  • Earpad material: PU and foam
• Battery charge duration: 2 hours
• Battery life: 40 hours of listening
• Standby mode: after 10 minutes of inactivity
• Weight: 149 g
• Colour: Black
• Bluetooth* version: 5.2
  • Frequency response: 20 Hz - 20 kHz

description of indicator light

Indicator light colour	Description
Off The headset is switched off
Steady red The headset battery is charging
Steady blue The headset battery is charged
Flashing red The battery is low
Flashing red and blue rapidly	The headset is in discoverable and pairable mode
Flashing blue every 10 seconds	The headset is paired with a Bluetooth device*

safety instruction

READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THE DEVICE AND KEEP THEM IN A SAFE PLACE FOR FUTURE REFERENCE.

• Do not use this device for any purpose other than those described in this document.
• To prevent any risk of fire or electric shock, never expose the headset to high temperatures, excessively high humidity or direct sunlight.
• Never put heavy objects on top of your headset.
• Do not insert other objects into the headset, as this may cause electrical incidents.
• Do not throw or hit your headset.
• Only allow young children to use the headset unattended if proper instructions have been given so that they can use it safely, as improper use can lead to injury.
• This product is not suitable for children under 36 months of age. Strangulation hazard.
• The headset must not be immersed in water, splashed or placed near containers filled with liquid, such as vases. Keep the headset in a dry location after use.
• Never attempt to disassemble or reassemble the headset yourself. Repairs must be carried out by qualified personnel.
• To protect your health and hearing ability, do not listen to music at a high volume for long periods of time. It is advisable to regularly stop using your headset and/or keep the output volume at a reasonable level.
• Do not set the volume to a level preventing you from hearing what is happening around you.
• Only clean the device using a soft, dry cloth and avoid using aerosols.

In order to avoid possible hearing damage, do not listen at high volume level for long periods of time.

This product complies with the order of 8 November 2005 implementing article L.5232-1 of the French public health code.

Recycling the battery

This product contains an internal lithium battery likely to explode or release hazardous chemicals. To reduce the risk of fire or burn, never dismantle, crush, puncture the battery.

Do not throw the battery away with household waste.

In order to protect the environment, the battery must be disposed of according to current regulations.

Disposing of a battery in a fire or hot oven, or mechanically crushing or cutting a battery may cause an explosion.

Storing a battery in a very hot environment may cause an explosion, or cause flammable liquids or gases to leak out.

Batteries subject to extremely low air pressure may cause flammable liquids or gases to explode or leak out.

Electronic equipment

Your Bluetooth* headset uses Bluetooth* technology. It transmits and receives radio electric frequencies (HF) in the 2.4 GHz range.

These emissions can interfere with the operation of various electronic devices. To prevent accidents, do not use your Bluetooth* headset when you are in the following locations:

- places where flammable gas is present, in hospitals or petrol stations, on trains, aeroplanes or in petrol stations near automatic doors or fire alarms,

- areas where blasting is carried out

If you have a pacemaker or other prosthesis, ask your doctor for advice.

The power supplied by the charger must be between the minimum 0.2 watts required by the radio equipment and the maximum 2.5 watts to achieve maximum charging speed.

* This Essentiel b product is compatible with the brands listed (belonging to third parties with no links to Sourcing & Création).

charging the battery

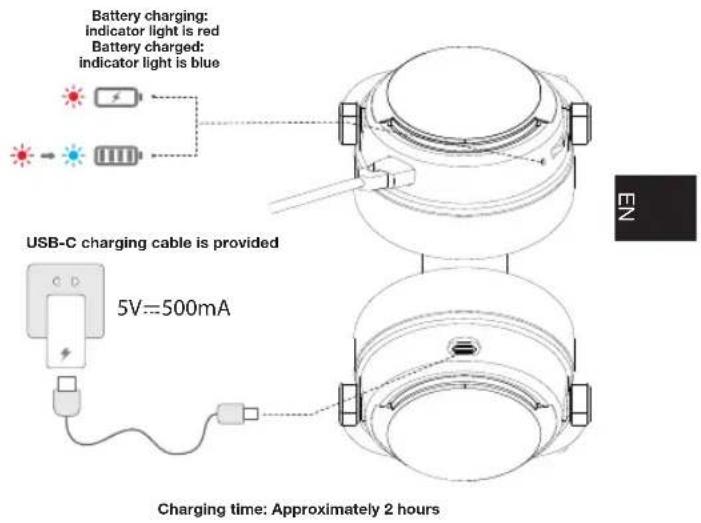

Battery charging: indicator light is red Battery charged: indicator light is blue USB-C charging cable is provided 5V==500mA Charging time: Approximately 2 hours

Fully charge the battery before using the headset for the first time. Charging time is approximately 120 minutes.

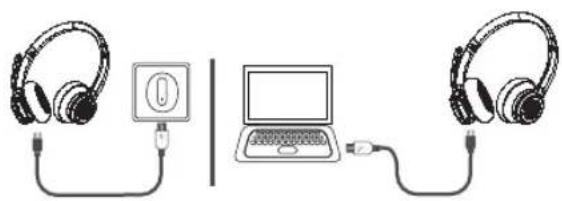

• To charge the battery, use the USB-C cable supplied. Connect the USB-C connector to the charging port on the left ear side, then plug the USB connector into a free USB port on your computer.
• You can also connect the USB-C plug to the charging port on the left ear side before connecting the USB plug to the USB port of a USB mains adapter (not included).

Diagram showing two headphones connected via a laptop to a laptop (no text or symbols present)

• During charging, the headset indicator light turns red. When fully charged, the indicator light turns blue.
• Battery life for listening to music is approximately 40 hours.
• When the battery level is low, the indicator light flashes red at regular intervals.

using the headset

Turning the headset on and off

Line drawing of a curved electronic device with a flat top and base (no text or symbols)

• To turn on the headset, move the ON/OFF switch to the ON position. The indicator light flashes blue and red, your headset is ready to be paired.
• To switch off your headset, turn the ON/OFF switch to the OFF position. The indicator light goes off.

To save battery power, the headset switches off automatically if no device is connected after 10 minutes.

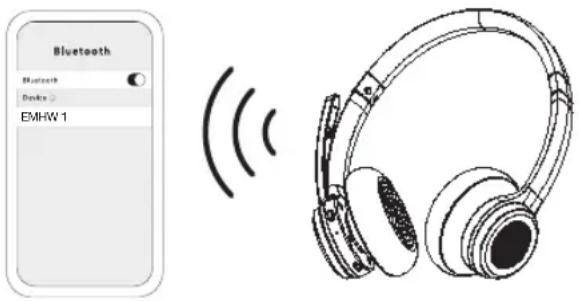

Establishing a Bluetooth\* connection

If you have an audio device with wireless technology (smartphone, tablet, laptop computer, etc.), you can pair it with your headset.

The wireless connection allows you to listen to the music playing on your audio device without using a cable.

1. Make sure that your wireless device is compatible and that the headset is switched off.
2. Move the ON/OFF switch to the ON position. The indicator light flashes blue and red, your headset is ready to be paired.

Bluetooth Bluetooth Devices EMHW 1

1. On your mobile phone, activate the "search for wireless devices" function. Refer to your mobile phone's manual for more information.

2. During pairing, the distance between the audio source and your headset must not exceed 1 metre.

3. When the search is complete, pair your device with the EMHW 1 device.
4. After connection, the indicator light flashes blue every ten seconds.

Pairing takes about 5 minutes. If no device is paired within this time frame, the headset automatically switches to standby mode.

• For optimal transmission quality, make sure the headset and your Bluetooth* devices are less than 10 metres apart and that no electronic devices are obstructing transmission.
• If the connection fails, turn off the headset and try the connection again.
• If your phone has a wireless system older than version 2.1, your headset may require an identification key. If this is the case, type 0000, 8888, 1111 or 1234 and confirm.
• Following successful pairing, the headset and your mobile phone will connect automatically when they are in proximity to one another. The headset can save up to 8 devices. When there are more than 8 devices, the first will be replaced.
• Each time the headset is turned on, it will pair with the last device connected. If you want to pair another device, turn off the wireless function of the last device connected to the headset.

Listening to music

• Start playback on your wireless audio device.
• To move to the next track, press and hold the +button.
• To return to the previous track, press and hold the _button.
• To pause playback, press the multifunction button.
• To return to playback, press the multifunction button again.

Adjusting the volume

To increase the volume, press briefly on the +button.

To reduce the volume, press briefly on the _button.

Make a call

Dial the telephone number on your mobile phone. You can then talk to your caller via the microphone built into the headset.

Incoming call detection

When a call is received or dialled, the phone pauses music playback. The transmission of music from your mobile phone to your headset is interrupted.

When the call ends, the phone resumes playback from the point where it was interrupted, and streams music to your headset again.

Activate voice command

When you are not on a call, press and hold for 2 seconds the multifunction button to activate voice control.

Answering or ending a call

When there is an incoming call, a beep sounds. To take the incoming call, press the multifunction button.

To end a call, press the multifunction button.

Reject a call

To reject an incoming call, press and hold the multifunction button for approximately 2 seconds.

Redial last call

To redial the last number you called, press the multifunction button twice.

Managing several simultaneous calls

When you are on a call and there is a new incoming call:

• Press the multifunction button once to answer the second call and end the current call.
• Press the multifunction button twice quickly to answer the second call and put the current call on hold.
• Press and hold the multifunction button for 2 seconds to switch from one call to another.

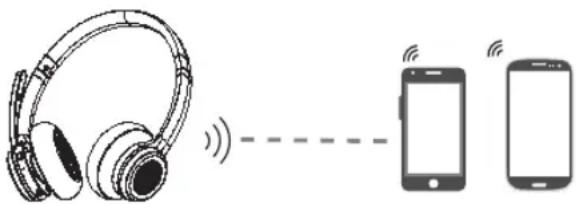

Pairing with two mobile phones

The multi-pairing function lets you pair two phones with your headset and choose to answer one of them. During a call, a ringing notification alerts you to an incoming call on the second paired phone.

To answer a call on the second paired phone, you must interrupt the current call by pressing the multifunction button. The second incoming call will then be automatically connected. If you choose to ignore the second call, it will be redirected to voicemail.

Diagram showing a pair of headphones connected to a smartphone and a smartphone, illustrating wireless communication or data transmission.

To connect two devices:

1. Connect the headset to your first Bluetooth* device.
2. Once the connection has been established, deactivate Bluetooth* on the first device. The headset goes back into pairing mode.
3. Connect the second Bluetooth* device to your headset. You can then activate the Bluetooth* connection again on the first device.

After each successful pairing, the connection information is saved in the internal memory of each device. You do not have to repeat the pairing procedure for subsequent connections, unless you delete this information, for example, by pairing another device to the headset.

Reset the Bluetooth\* connection

Turn on your headset and hold down the _button and the multifunction button for 5 seconds until you hear the voice confirmation. The headset goes into pairing mode.

troubleshooting guide

1. Why is the red indicator light flashing regularly? This means that the battery is no longer sufficiently charged and must be charged.
2. Why does the red indicator light not turn on during charging?

a) Check that the charging device is correctly connected to the left earpiece of the headset.
b) Perhaps you have not used the headset for a long time and the battery is completely flat. If this is the case, put the battery on the charger and wait 30 minutes. The indicator light then switches on.

1. What is the maximum effective range between the headset and a wireless mobile phone?

According to the wireless standard, the maximum possible range is 10 metres for class II devices.

This range however may be less depending on the environment.

1. Why is my mobile phone not looking for and finding the headset?

The search can only start if the mobile phone and the headset are both in pairing mode. Make sure this is the case and check that the distance between the two devices does not exceed the maximum permissible distance (10 metres). These two conditions are critical to pairing and connecting your devices.

1. Why can I not hear the voice of my contact in the headset?

a) Make sure the headset is on.
b) Make sure the volume is not too low and the sound output is not deactivated.
c) Make sure the headset is properly connected to the mobile phone.
d) Make sure the distance between the two devices does not exceed the maximum distance permitted by the wireless standard.

1. Why can I not hear the voice of my contact when I make a call from the headset?

a) Make sure the mobile phone receives a strong enough signal.
b) Make sure the earbuds are within range of the phone for a wireless Bluetooth* connection (1 metre).

1. Why are none of the pause, play, previous track and next track functions accessible in music playback mode?

These functions are only accessible if the audio device supports the AVRCP profile (Audio/Video Remote Control). Make sure the mobile phone or wireless transmitter supports the AVRCP profile.

simplified EU declaration of conformity

The undersigned, Sourcing & Création, hereby declares that the essentiel b EMHW 1 wireless headset radio electric device complies with directive 2014/53/EU.

The full text of the EU declaration of conformity is available on the following website:

https://www.boulanger.com/info/assistance

• Frequency band: 2402 - 2480 Mhz
• Emitted power: < 0.66 mW

su producto

Diagram showing two headphones connected via a cable to a laptop and a USB cable (no text or symbols present)

Line drawing of a curved electronic device with a flat top and base (no text or symbols)

Diagram showing a pair of headphones connected to a smartphone and a smartphone, illustrating wireless communication or data transfer.

Para conectar dos aparatos:

Diagram showing two headphones connected via a cable to a laptop and a USB cable (no text or symbols present)

Line drawing of a curved mechanical component with no visible text or symbols

Diagram showing a pair of headphones connected to a smartphone and a smartphone, illustrating wireless communication or data transfer.

Diagram showing two headphones connected via a cable to a laptop and a USB cable (no text or symbols present)

Pure technical line drawing of a curved mechanical component without any text, numbers, or symbols

Diagram showing a pair of headphones connected to two smartphones via wireless signals, with a separate phone icon labeled 'Z' in the corner.

Protection of the environment

This symbol on the product means that it is a device whose disposal is subject to the directive on waste from electrical and electronic equipment (WEEE). This device may not in any way be treated as household waste and must be subject to a specific type of removal for this type of waste. Recycling and recovery systems are available in your area (waste removal) and provided by distributors. By taking your device to a recycling facility at its end of life, you will contribute to environmental conservation and prevent any harm to your health.

All information, designs, drawings and pictures in this document are the property of SOURCING & CREATION. SOURCING & CREATION reserves all rights to its brands, designs and information. Any copy and reproduction through any means shall be deemed and considered as counterfeiting.

Tested in our laboratories

Warranty valid from the date of purchase (receipt as proof of purchase). This warranty does not cover defects or damage caused by improper set up, incorrect use, or normal wear and tear of this product.
