USER MANUAL HCR39F19EWPT HAIER

Warning sign depicting a flame symbol in a yellow triangle with black border

EN WARNING: Risk of fire/flammable material. The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by ingiting flammable material.

HCR3818ENMM HCR3818ENMG HCR3818EWMM HCR3818ENPT HCR3818EWPT HCR3818ENMD HCR7818DNMM HCR7818DWPT HCR39F19ENPT HCR39F19ENPT(0) HCR39F19EWMM HCR39F19EWPT

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

Legend

Warning – Important Safety information

General information and tips

Environmental information

Symbol of a trash bin crossed with no text or labels

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

WARNING!

Risk of injury or suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance.

Safety information ....4

Product description.... 10

Control panel 11

Use 13

Equipment 17

Care and cleaning 19

Troubleshooting 22

Installation.... 25

Technical data....28

Customer service 30

Accessories

Check the accessories and literature in accordance with this list:

Energy lable

Warranty card

Before switching on the appliance for the first time read the following safety hints!:

WARNING!

Before first use

▶ Make sure there is no transport damage.
Remove all packaging and keep out of children's reach.
▶ Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient.
- Handle the appliance always with at least two persons because it is heavy. Installation

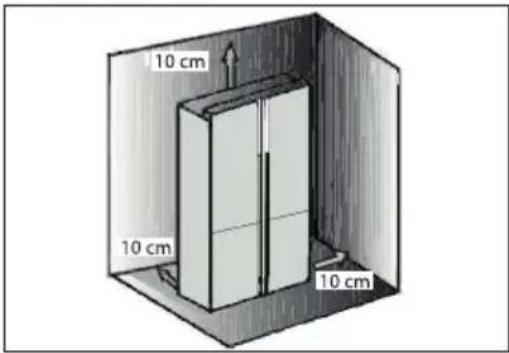

The appliance should be placed in a well-ventilated place. Ensure a space of at least 10 cm above and around the appliance.
▶ Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.
- Do not install the appliance in direct sunlight or in the near of heat sources(e.g. stoves, heaters).

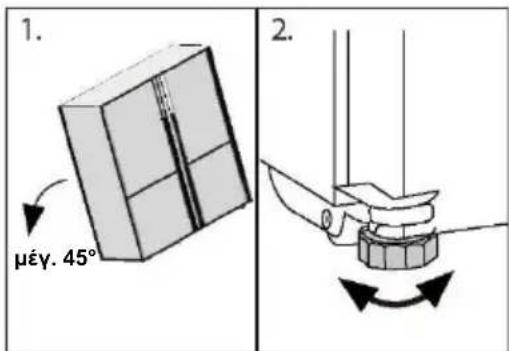

▶ Install and level the appliance in an area suitable for its size and use.
▶ WARNING: Keep ventilation openings in the appliance or in the in-built structure clear of obstruction.
▶ Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.
▶ Do not use multi-plug adapters and extension cables.
▶ WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
▶ WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
▶ Do not step on the power cable.
▶ Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed.

WARNING!

Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.

▶ WARNING: Do not damage the refrigerant circuit. Daily use

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

▶ Children shall not play with the appliance.

▶ Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances, but not allowed to clean and install the refrigerating appliances.

- Keep away children under 3 years of age from the appliance unless they are constantly supervised.

- Cleaning and user maintenance shall not be made by children without supervision.

▶ The appliance must be positioned so that the plug is accessible.

If coal gas of other inflammable gas is leaking into vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug the power cable of the refrigerator/freezer or any other appliance.

▶ Notice that the appliance is set for operation at the specific ambient range between 10 and 43°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.

- Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator/freezer, to avoid personal injury caused by falling or electric shock caused by contact with water.

▶ Do not pull on the door shelves. The door may be pulled slant, the bottle rack may be pulled away, or the appliance may topple.

▶ Open and close the door only with handles. The gap between the door and the cabinet is very narrow. Do not put your hands in these ares to avoid pinching your fingers. Open or close the refrigerator/freezer doors only when there are no children standing within the range of door movement.

WARNING!

▶ To avoid contamination of food, please respect the following instructions:
- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
- Clean regularly surfaces that can come in contact with food and accessible drainage systems.
- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
▶ Never store bottled beer or beverages, liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing.
▶ Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
▶ Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.
▶ Check the condition of food if a warming in the freezer has taken place.
- Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst
- Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away!
- Do not touch the inside surface of the freezer storage compartment when in operation, especially with wet hands, as your hands may freeze onto the surface.
▶ Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.

WARNING!

▶ WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Maintenance / cleaning

▶ Make sure children are supervised if they carry out cleaning and maintenance.

- Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.

▶ Hold the plug, not the cable, when unplugging the appliance.

- Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator/freezer detergent to avoid damage. Eventually use warm water and baking soda solution – about a tablespoon of baking soda to a litre/quart of water. Rinse thoroughly with water and wipe dry. Do not use cleaning powders or other abrasive cleaners. Do not wash removable parts in a dishwasher.

- Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.

▶ WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

▶ Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.

▶ If the illuminating lamps are damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

▶ Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.

WARNING!

▶ Do not spray or flush the appliance during cleaning.
▶ Do not use water spray or steam to clean the appliance.
▶ Do not clean the cold glass shelves or glass door with hot water. Sudden temperature change may cause the glass to break.
If you leave your appliance out of use for an extended period, leave it open to prevent odour and unpleasant smells building up inside.

Refrigerant gas information

WARNING!

The appliance contains the flammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.

In case of eyes get into contact with the refrigerant, rinse immediately it under running water and call immediately the eye specialist. WARNING: The refrigeration system is under high pressure. Do not tamper with it. Since the flammable refrigerants are used, please install, handle and service the appliance strictly according to the instruction and contact the professional agent or our after-sales service to dispose of the appliance.

Safety information

Intended use

This appliance is intended for cooling and freezing food. It has been designed exclusively for use in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments as well as in bed-and-breakfast and catering business. It is not intended for commercial or industrial use. Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

Standards and directives C€

This product meets the requirements of all applicable EC directives with the corresponding harmonized standards, which provide for CE marking.

CAUTION!

1.

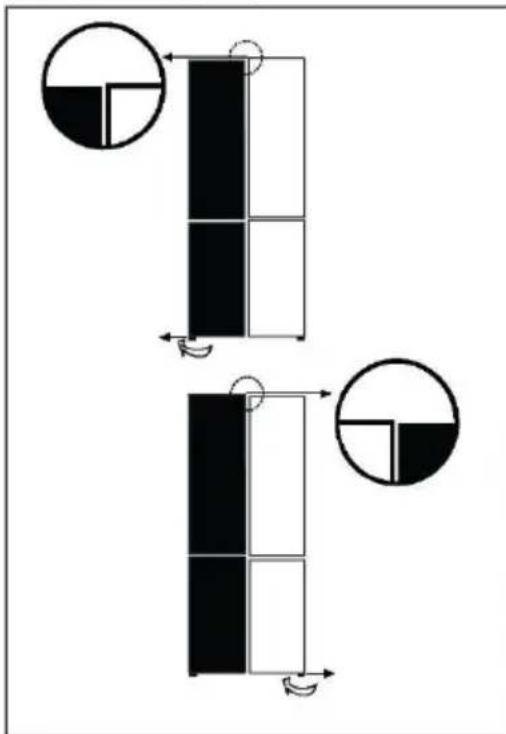

When you close the door, the vertical door strip on the fridge left door should be bent inside (1).

2.

If you try to close the left door and the vertical door strip is unbent (2), you should bend it firstly, otherwise the door strip will hit the fixing shaft or right door. Thus a damage to the door slip or a leak will occur.

There is a heating thread inside the frame. The temperature of the surface will rise a little, which is normal and won't affect the function of appliance.

Notice

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

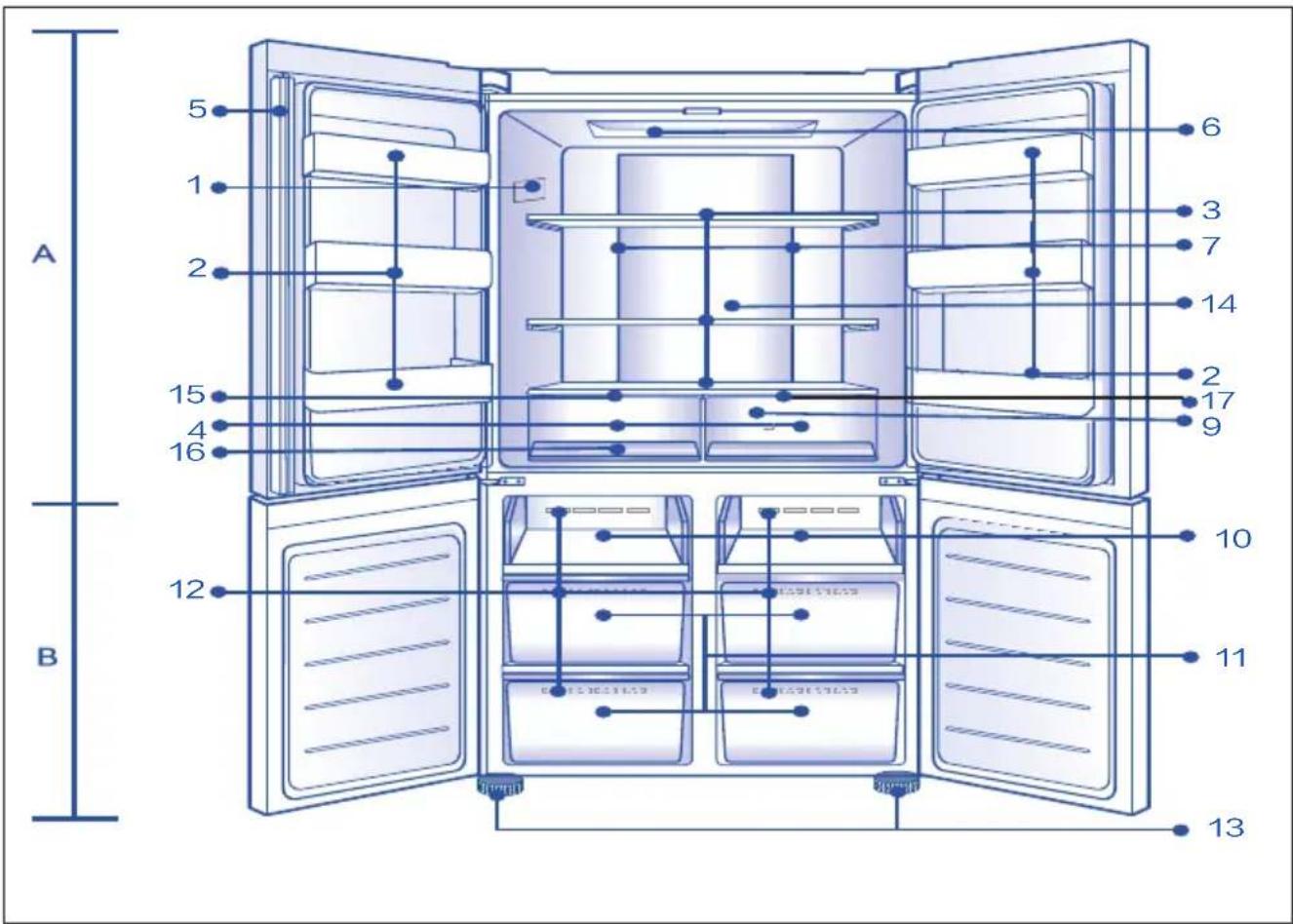

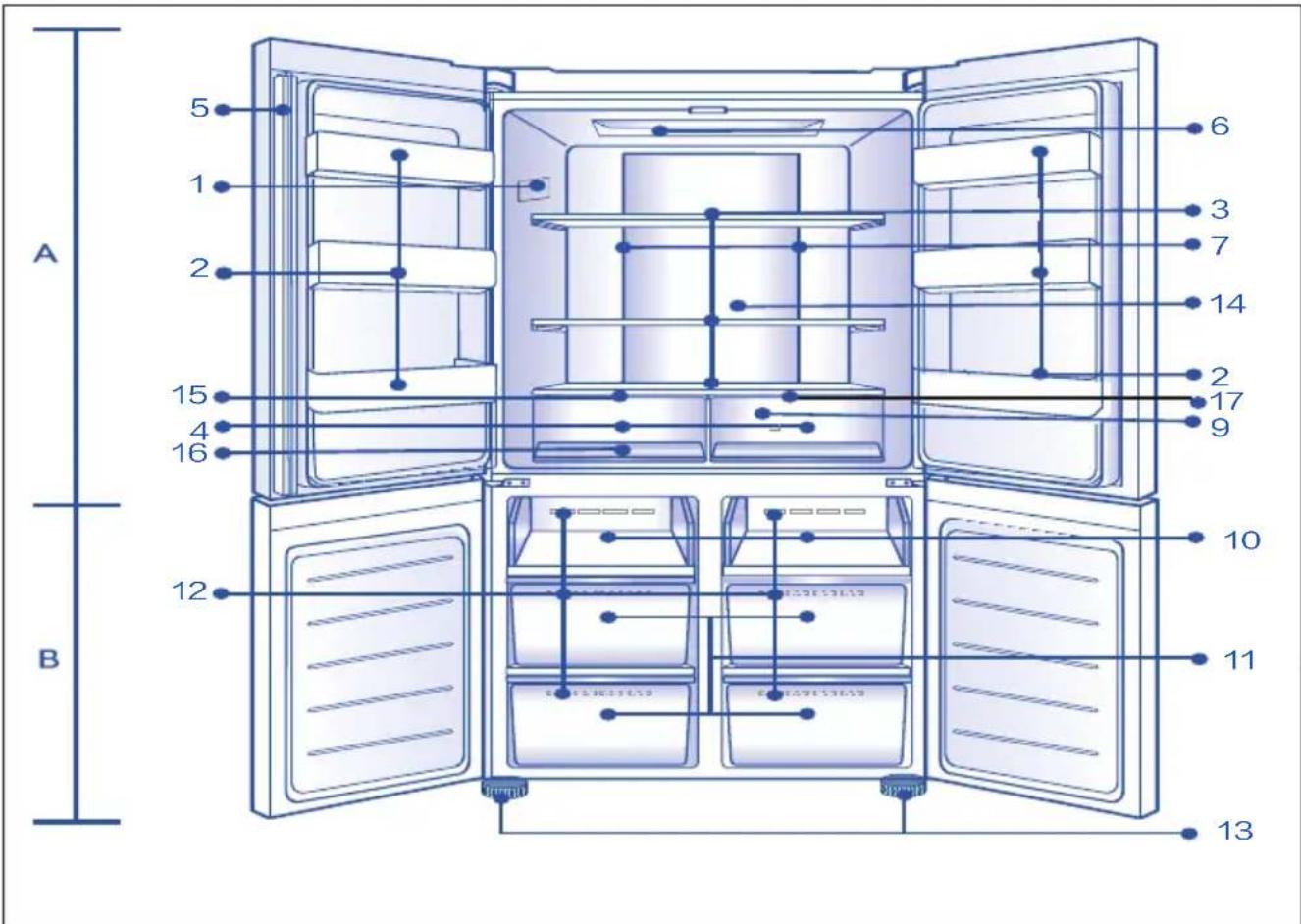

A 5 1 2 15 4 16 B 12 6 3 7 14 2 17 9 10 11 13

A: Fridge compartm'ent

1 Rating plate
2 Bottle holder/Door rack
3 Glass shelves
4 Fridge drawer
5 Door strip
6 Ceiling lemp
7 Air duct and sensor (behind panel)
9 Air duct (behind drawers)
14 Back lamp (Only for HCR7818DNMM and HCR7818DWPT)
15 Panel of Humidity box (Only for HCR7818DNMM and HCR7818DWPT and HCR39F19*)
16 Humidity Zone (Only for HCR7818DNMM and HCR7818DWPT and HCR39F19*)
17 Panel of dry box (Only for HCR39F19*)
10 Freezing tray
11 Freezer storage drawers
12 Air duct
13 Adjustable feet

B: Freezer compartment

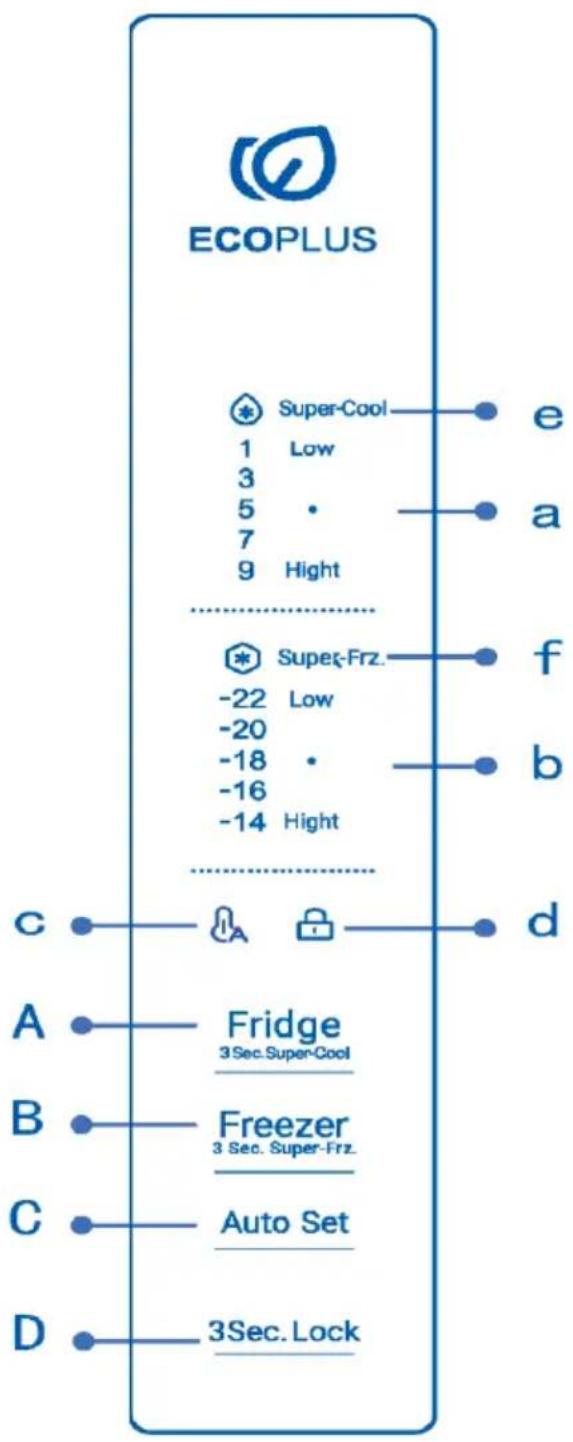

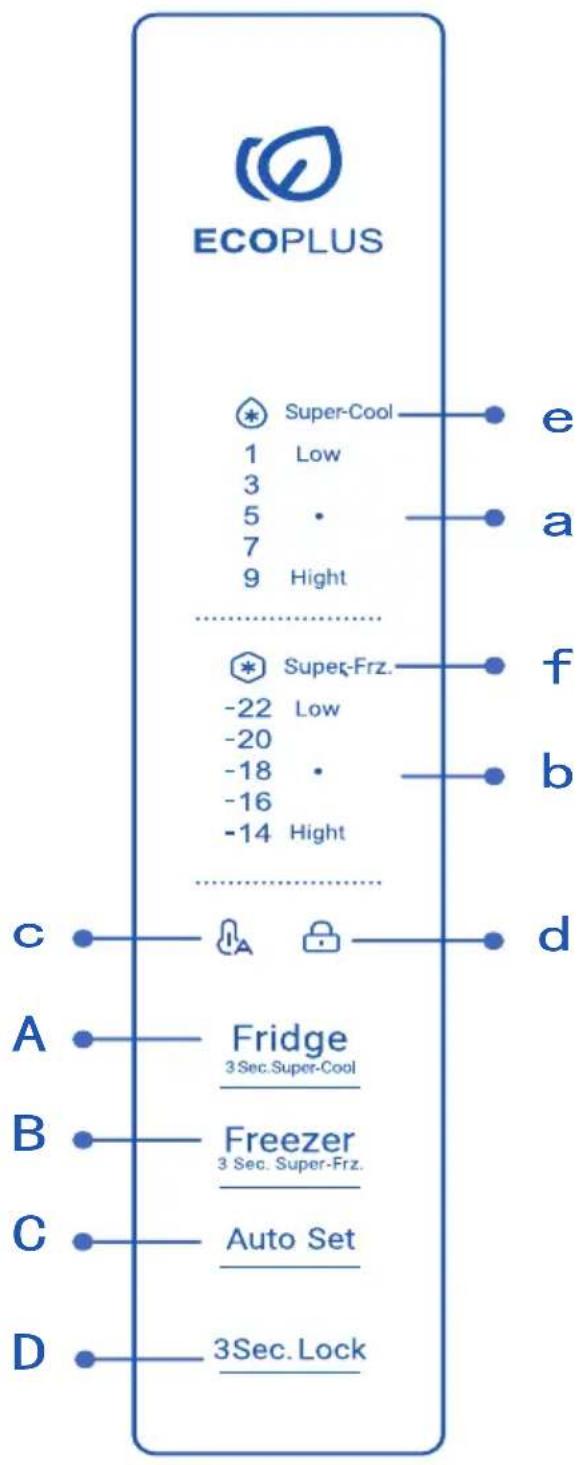

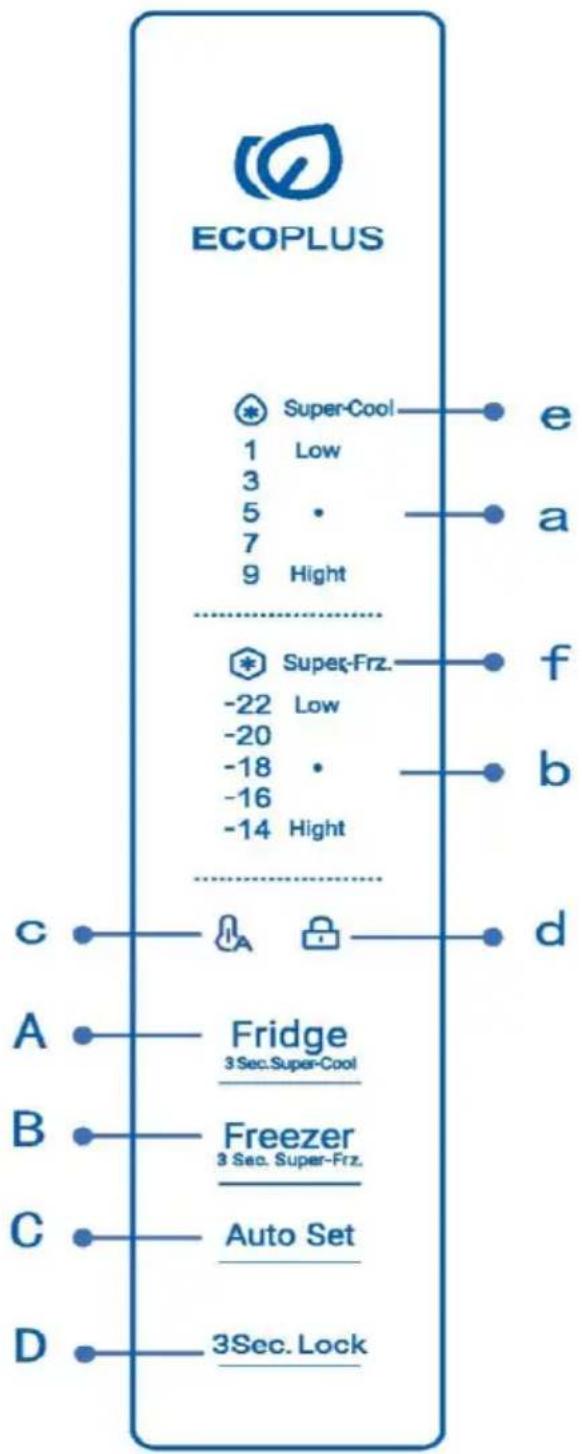

Control panel

ECOPLUS Super-Cool 1 Low 3 5 7 9 Hight ... Super-Frz. -22 Low -20 -18 -16 -14 Hight ... A Fridge 3 Sec. Super-Cool B Freezer 3 Sec. Super-Frz. C Auto Set D 3Sec. Lock

Buttons:

A Fridge selector
B Freezer selector
C Auto Set on/o\~
D Panel lock/unlock

Indicators:

a Temperature fridge compartment
b Temperature freezer compartment
c Auto Set mode
d Panel lock
e Super-Cool function
f Super-Freeze function

Notice

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

Before first use

• Remove all packaging materials, keep them out of children's reach and dispose them in an environmentally friendly manner.
• Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it.

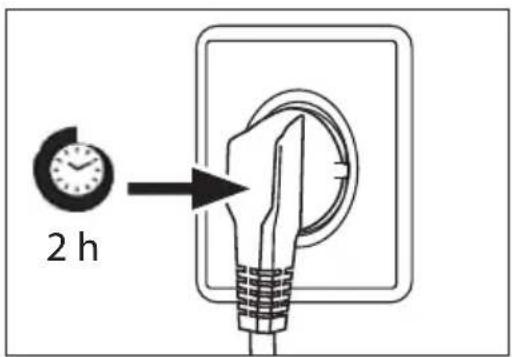

  ▶ After the appliance has been levelled and cleaned, wait for at least 2-5 hours before connecting it to the power supply. See Section INSTALLATION.
  ▶ Precool the compartments at high settings before loading with food. The function Power- Freeze helps to cool down the compartments quickly.
  ▶ The refrigerator temperature and freezer temperature are automatically set to 5^ C and -18^ C respectively. These are the recommended settings. If desired, you can change these temperatures manually. Please see ADJUST THE TEMPERATURE.

Sensor keys

The buttons on the control panel are sensor keys, which already respond when lightly touched with the finger.

Switch on /of the appliance

The appliance is in operation as soon as it is connected to the power supply.

When the refrigerator is first powered on, the indicator “a” and “b” (Temperature display) illuminates. The fridge temperature and freezer temperature are automatically set to 5^ C and -18^ C respectively.

Maybe the panel lock is active.

Notice

When the appliance is switched on after disconnection from the main power supply, it may take up to 12 hours for the correct temperatures to be reached.

Empty the appliance before switching off. To switch off the appliance, pull the power cord out off the power socket.

Standby-mode

The display screen turns off automatically 30 seconds after pressing a key. The display will be automatically locked. It lights up automatically by touching any key or opening the door.

Lock/unlock panel

▶ Automatic lock: When the fridge door and freezer door are closed and there is no key operation within 30 seconds, the display screen will be automatically extinguished and locked.


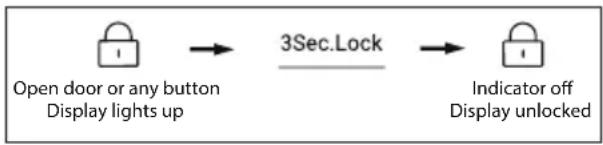

▶ Manual lock: When the display screen is unlocked, press the button "D" (Panel lock selector) and hold for 3 seconds, the buzzer rings once, the indicator "d" (Panel lock) illuminates, and the display is locked.

Adjust the temperature

The indoor temperatures are influenced by the following factors:

▶ Ambient temperature
▶ Frequency of door opening
▶ Amount of stored foods
▶ Installation of the appliance

Adjust the temperature for fridge

1. When the display screen is unlocked, press the button "A". The buzzer rings once, the indicator "a" (Fridge indicator) flashes, and then here comes the temperature setting mode of the fridge.
2. Press the button "A" (Fridge selector) every time, the buzzer rings once, the set temperature of the fridge will be reduced by 2. The fridge temperature will display in the sequence of "5°C →3°C→1°C→9°C→7°C→5°C".

Notice

After setting the temperature, if there is no operation within 5 seconds, the system will be automatically determined and save the set temperature.

Adjust the temperature for freezer

1. When the display screen is unlocked, press the button "B" (Freezer selector). The buzzer rings once, the indicator "b" (Temperature freezer compartment) flashes, and then here comes the temperature setting mode of the freezer.
2. Press the button "B" (Freezer selector) every time, the buzzer rings once, the set temperature of the freezer will be reduced by 2. The freezer temperature will display in the sequence of "-18°C → -20°C → -22°C → -14°C → -16°C → -18°C".

Notice

After setting the temperature, if there is no operation within 5 seconds, the system will be automatically determined and save the set temperature.

Super-Cool function

1. When the display screen is unlocked, press the button "A" and hold for 3 seconds, the buzzer rings once, the indicator "e" (Super-Cool function) illuminates, and then the Super-Cool function will be turned on.
2. When the indicator "e" (Super-Cool function) illuminates, press the button "A" and hold for 3 seconds, the buzzer rings once, the indicator "e" (Super-Cool function) goes off, and then the Super-Cool function will be turned off.
3. After the Super-Cool function is turned on, the refrigerator will automatically turn off the function when it reaches the set condition. If you want to exit manually, you can press the button "A" (Super-Cool selector) and hold for 3 seconds to turn it off.

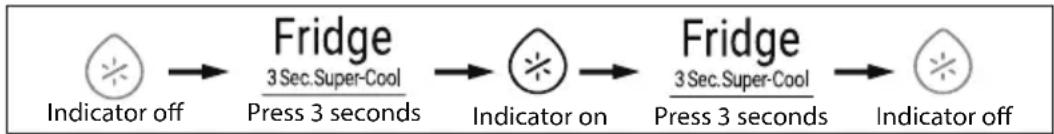


Notice

Under Super-cool state, the fridge temperature cannot be adjusted. If either button "A" is pressed to adjust the temperature of fridge, the indicator "e" (Super Cool function) will flash with a prompt sound to indicate that this operation cannot be carried out. In the state of Super-cool function, the Auto-set function cannot be turned on at the same time due to different control modes. When you choose one function that conflicts with another function, the original function will automatically exit.

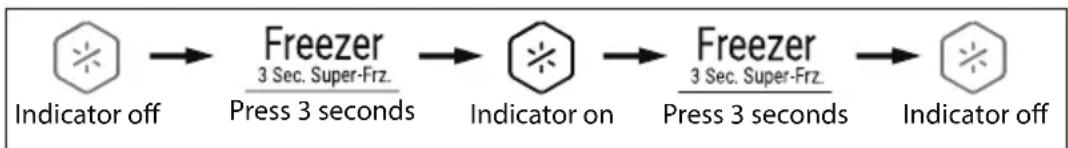

Super-Freeze function (Super-Frz)

1. When the display screen is unlocked, press the button "B" and hold for 3 seconds, the buzzer rings once, the indicator "f" (Super-Freeze function) illuminates, and then the Super-Freeze function will be turned on.
2. When the indicator "f" (Super-Freeze function) illuminates, press the button "B" and hold for 3 seconds, the buzzer rings once, the indicator "f" (Super-Freeze function) goes off, and then the Super-Freeze function will be turned off.
3. After the Super-Freeze function is turned on, the refrigerator will automatically turn off the function when it reaches the set condition. If you want to exit manually, you can press the button "B" and hold for 3 seconds to turn it off.

Notice

Under Super-Freeze state, the freezer temperature cannot be adjusted. If either button "B" (Freezer selector) is pressed to adjust the temperature of freezer, the indicator "f" (Super Freeze function) will flash with a prompt sound to indicate that this operation cannot be carried out.

Super-Freeze function is designed to keep nutrition value of frozen food, it will be freeze food in the shortest time. If large quantities of frozen food are to be frozen at one time, it is recommended that Super-Freeze function should be set 24h in advance, to make the freezer own relatively low temperature and put food in. At this time, the freezing speed of the freezer is improved, food can be frozen quickly, the nutrition of food is effectively kept, and the storage becomes quite convenient.

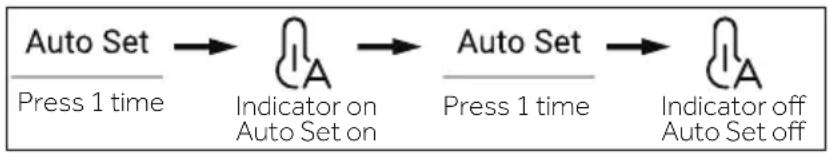

Auto Set mode

1. When the display screen is unlocked, press the button "C" (Auto Set mode selector), the buzzer rings once, the indicator "c" (Auto Set mode) illuminates, and then the Auto Set function will be turned on.
2. When the indicator "c" (Auto Set mode) illuminates, press the button "C" (Auto Set mode selector), the buzzer rings once, the indicator "c" (Auto Set mode) goes off, and then the Auto Set function will be turned off.

Notice

In Auto Set mode, the fridge or freeze temperature cannot be adjusted. If either button "A" or button "B" is pressed to adjust the temperature of fridge or freezer, the indicator "a" (Fridge indicator) or "b" (Freezer indicator) will flash with a prompt sound to indicate that this operation cannot be carried out.

In Auto Set mode, due to different control methods, if the „Super-Cool“ or „Super-Freeze“ function is set, the indicator “c” (Auto Set mode) goes off, and then the Auto Set function will automatically exit.

Door opening alarm

If fridge door is kept open too long or the door is not closed well, the refrigerator will raise beep alarm at set intervals to remind you to close the door in time.

Power off memory

The instantaneous working state of power off is remembered. After power on again, it still works according to the setting before power off.

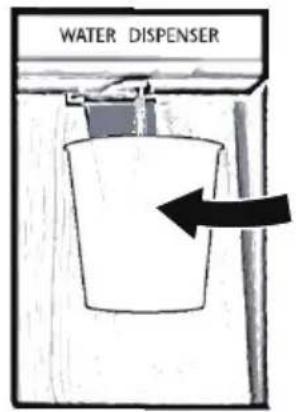

Water dispenser

1. With the water dispenser cool dringking water can be tapped.
2. The water tank should be cleaned before first use (see CARE AND CLEANING).

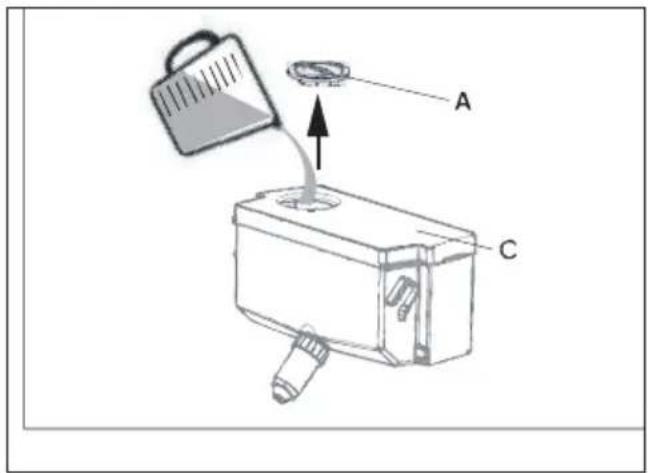

Filling the water tank

WARNING!

▶ Use drinking water only.

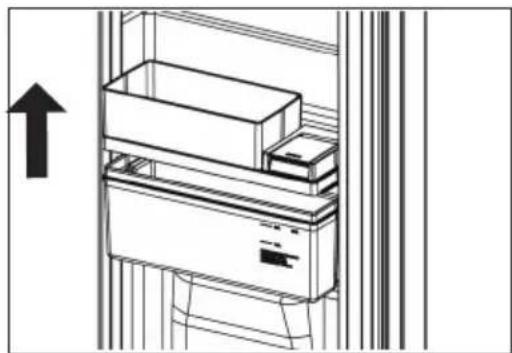

1. Ensure that the water tank is properly inserted(see EQUIPMENT).

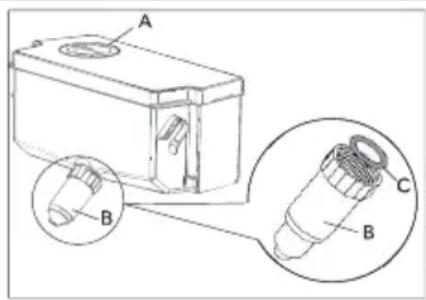

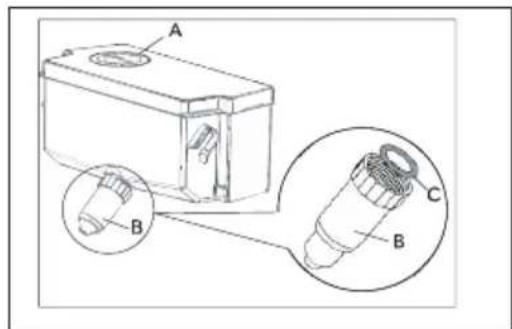

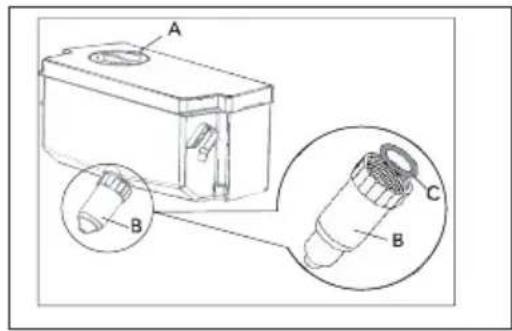

2. Rotate and lift the round lid (A) and fill the water tank up with fresh drinking water.
3. Fill water only up to the mark (2.5L); as it could overflow when the door opens and closes.
4. Close the round lid (A) until it clicks into place.

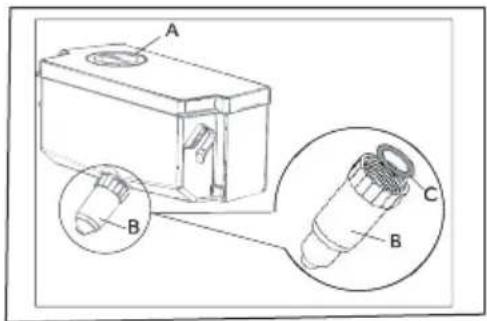

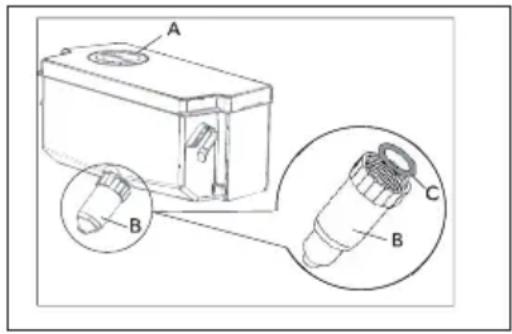

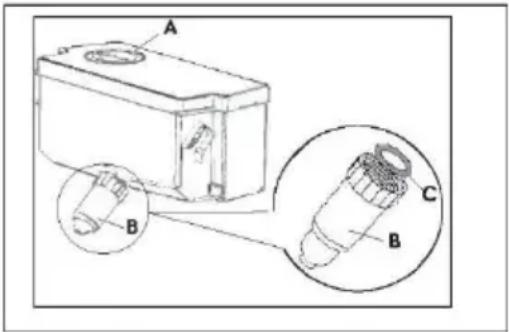

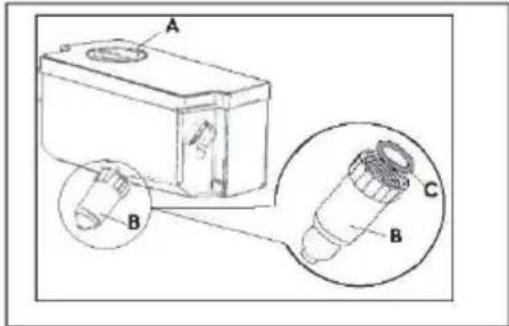

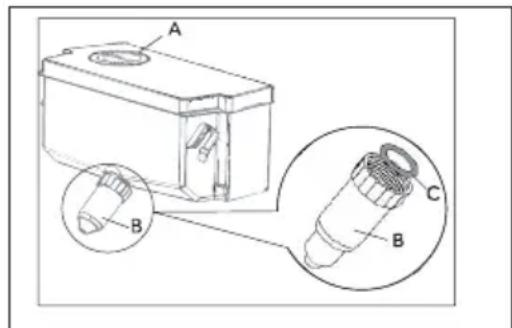

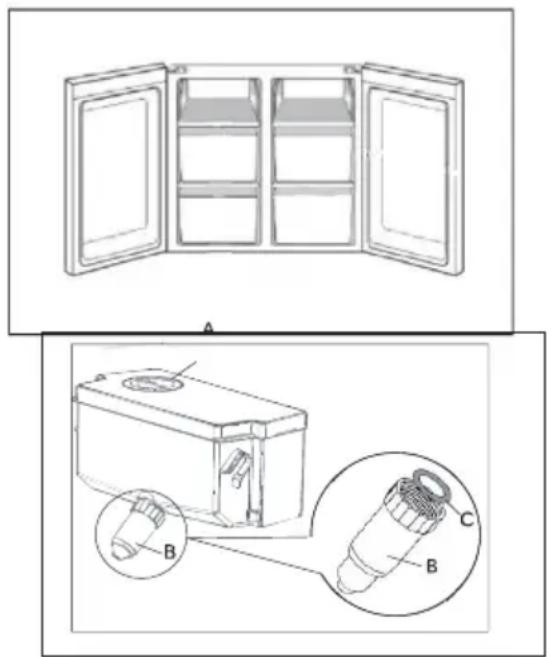

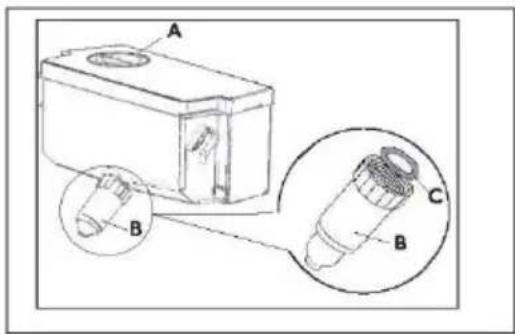

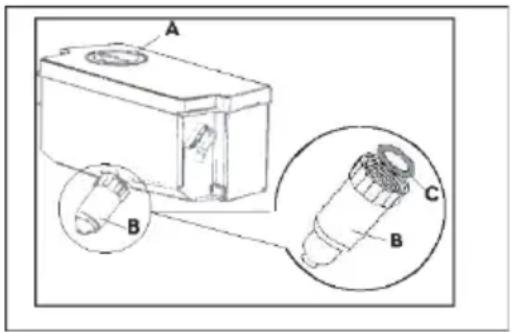

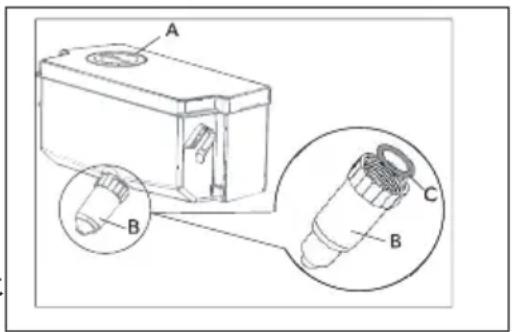

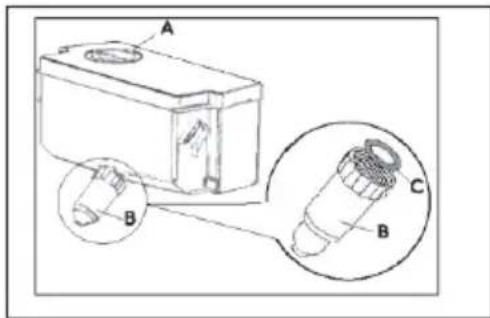

Diagram showing a device with labeled components A and C, including a handle and arrow indicating direction or flow.

Notice

Before refilling dispose residual water and clean the water tank.
- When you don't need water for a long time. please empty the water tank and insert the cleaned tank.
The cover (C) on the water tank is additionally used to save energy. If you do not want to get water from the water dispenser for a long period, please still install the cover because of better insulating and saving energy.

Getting water from the dispenser

1. Place a glass underneath the water outlet.
2. Push it gently against the water dispenser lever. Make sure the glass is in line with the dispenser to prevent the water form splashing out.

WATER DISPENSER

*Only for model HCR3818EWMM,HCR3818EWPT ,HCR7818DWPT ,HCR39F19EWMM and HCR39F19EWPT(UK) .

Diagram showing two labeled arrows pointing to a tray with Chinese characters, likely illustrating a process or movement.

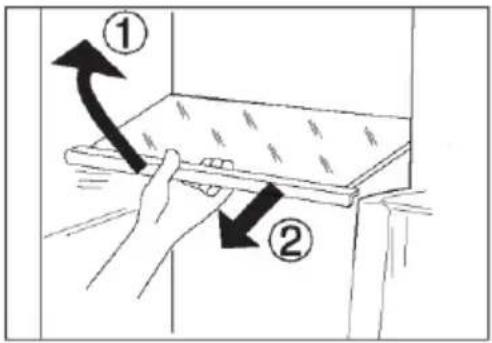

Adjustable shelves

The height of the shelves can be adjusted to fit your storage needs.

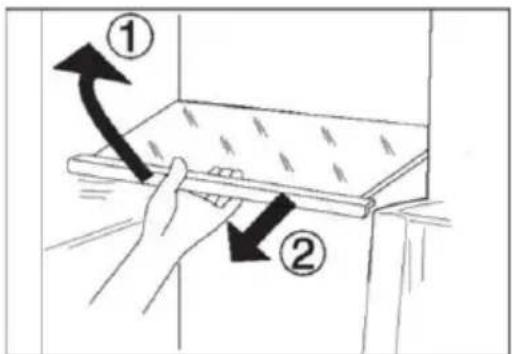

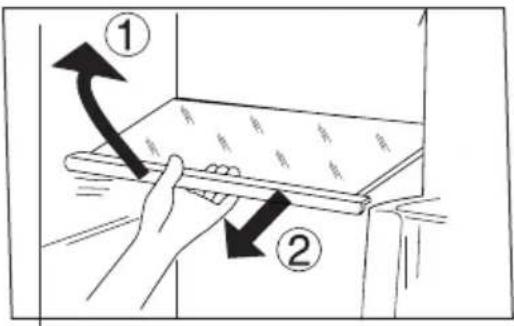

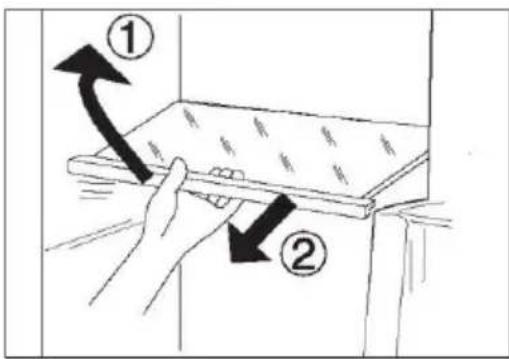

1. To relocate a shelf, remove it first by uplifting its front edge ① and pulling it out ②.
2. To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides

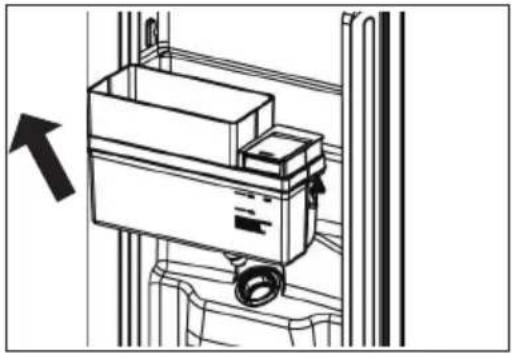

Disassembly of the kettle assembly

Pull the kettle out in a general direction towards the upper left (in the direction indicated by the arrow).

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

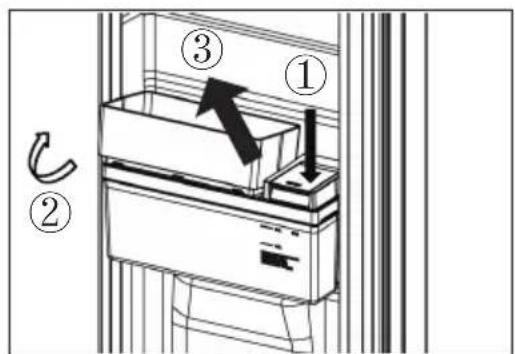

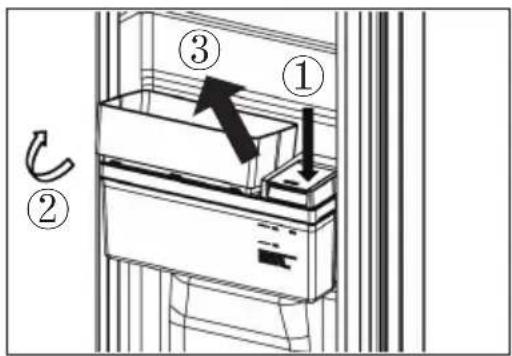

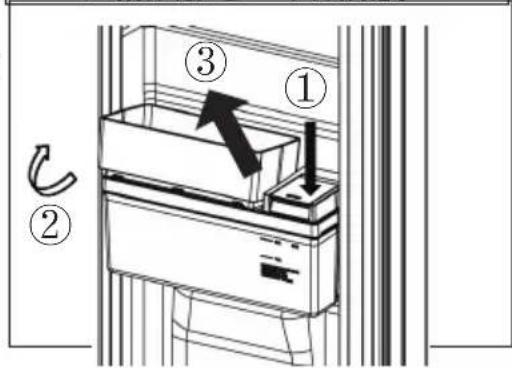

Disassembly of the water kettle's bottle holder

Press down on the lid of the kettle①, lift the bottle base inward ②, pull the outer edge of the bottle base outwards, then pull the whole thing outwards③.

Diagram of a refrigerator with labeled parts and directional arrows indicating assembly or movement

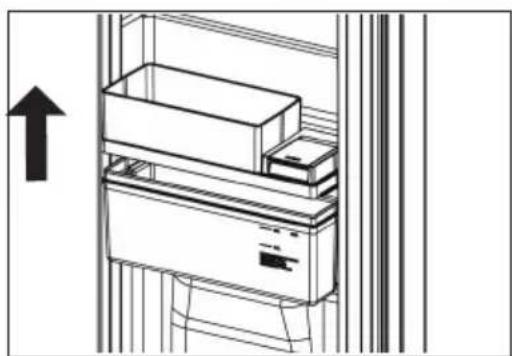

Disassembly of the kettle lid

Lift the spout cover and the bottle base upwards (in the direction indicated by the arrow)

Line drawing of a refrigerator with an upward arrow indicating orientation (no text or symbols)

Only for model HCR39F19EWMM and HCR39F19EWPT(UK).

Notice:

When the appliance is switched on, it may take up to 12 hours for the correct temperatures to be reached.

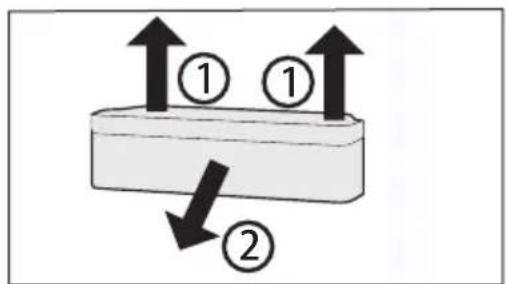

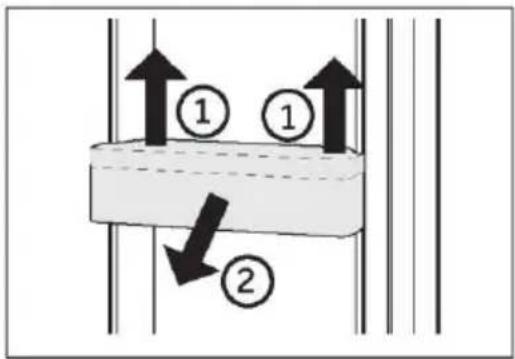

Removable door racks/bottle holder

The door racks can be removed for cleaning:

Place hands on each side of the rack, lift it upwards (1) and pull it out (2).

In order to insert the door rack, the above steps are carried out in reverse order.

① ① ②

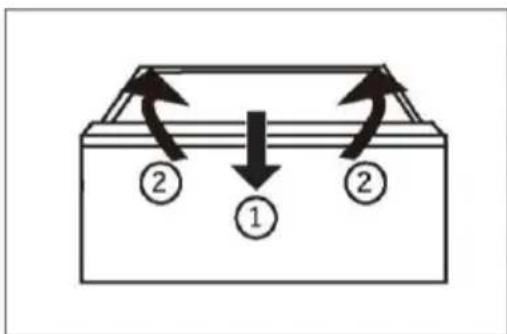

Removable drawer

To remove the drawer out, pull out to the maximum extent (1), lift and remove (2).

In order to insert the drawer, the above steps are carried out in reverse order.

Storing large items

Large items of e.g. frozen food can be stored after:

▶ removing the upper freezing tray, or
▶ after removing both upper freezing trays as well as the middle freezer drawer and storing the food directly on the lower freezing trays.

Water tank

1. Removable water tank

The water tank can be removed and reinstalled for cleaning in the same way as the door racks.

1. Insert water tank

Place the water tank in the position that the water outlet (B) fits into the opening of the door. Make sure that the water tank is locked.

② ① ②

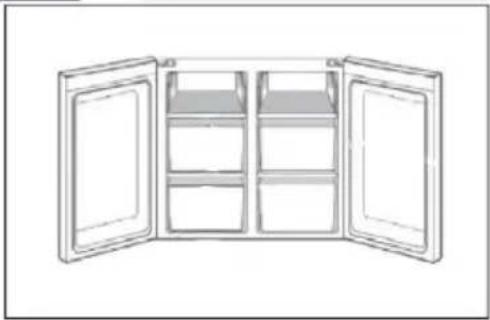

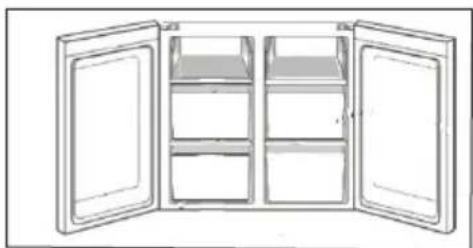

Line drawing of an open refrigerator with multiple doors and shelves (no text or symbols)

Technical diagram showing a device with labeled parts A, B, and C, including a magnified inset view.

*Only for model HCR3818EWMM, HCR3818EWPT, HCR7818DWPT, HCR39F19EWMM and HCR39F19EWPT(UK).

The Light

The LED interior light comes on when the fridge door is opened. The performance of the lights is not affected by any of the appliances other settings.

Energy saving tips

▶ Make sure the appliance is properly ventilated (see INSTALLATION).
Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).
- Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.
▶ Functions like POWER-FREEZE consume more energy.
▶ Allow warm food to cool down before placing it in the appliance.
▶ Open the appliance door as little and as briefly as possible.
▶ Do not overfill the appliance to avoid obstructing the air flow.

▶food avoid air within the packaging.

▶ Keep door seals clean so that the door always closes correctly.

▶ Defreeze frozen food in the fridge storage compartment.

The most energy-saving configuration requires the appliance keep drawers, food box and shelves on factory-fresh condition, and food should be places as far as possible without blocking the air outlet of the duct.

WARNING!

Disconnect the appliance from the power supply before cleaning.

Cleaning

Clean the appliance when only little or no food is stored.

The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odors.

WARNING!

• Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
  ▶ Do not spray or flush the appliance during cleaning.
  ▶ Do not use water spray or steam to clean the appliance.
  ▶ Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.
  ▶ Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface.
  ▶ In case of heating check the condition of frozen goods.

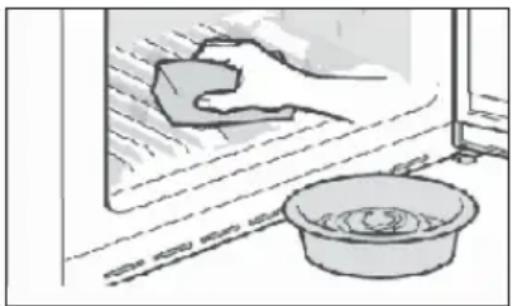

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

▶ Always keep the door gasket clean.
▶ Clean the inside and housing of the appliance with a sponge dampened in warm water and neutral detergent.

1. Please scrub the interior and exterior of the refrigerator, including door sealing, door rack, glass shelves, boxes and so on, with a soft towel or sponge dipped in warm water (you may add neutral detergent into the warm water).

2. If there is liquid spilled, remove all the contaminated parts, directly rinse with the flow water, dry and place it back into the fridge.

3. If there is spilled cream (such as the cream, melting ice cream), please remove all the contaminated parts, put into the warm water with about 40 °C for some time, then rinse with the flow water, dry and place it back into the fridge.
4. In case some small part or component gets stuck inside of the fridge (between shelves or drawers), use small soft brush to release it. If you could not reach the part, please contact Haier service

▶ Rinse and dry with soft cloth.
▶ Do not clean any of the parts of the appliance in a dishwasher.
- Allow at least 5 minutes before restarting the appliance as frequent starting may damage the compressor.

Defrosting

The defrosting of the fridge and the freezer compartment are done automatically; no manual operation is needed.

Cleaning the water tank

1. Tank off the water tank out of the appliance.
2. Remove the cover (A).
3. Unscrew the dispenser spout(B).
4. Clean and the tank dispenser spout with warm water and liquid diswashing detergent. Make sure soap is rinsed off.
5. Mount the dispenser spout (B), and take care that it is firmly screwed to the water tank and the white O-ring(C) is in position.

A B C B

*Only for model HCR3818EWMM,HCR3818EWPT ,HCR7818DWPT ,HCR39F19EWMM and HCR39F19EWPT(UK) .

Notice

If the water tank is not properly inserted, water can drip from the connection.
- Do not use excessive force when removing or installing the water tank, to avoid damaging the tank.

Replacing the LED-lamps

WARNING!

Do not replace the LED lamp yourself, it must only be replaced by either the manufacturer or the authorised service agent.

The lamps adopts LED as its light source, featuring low energy consumption and long service life. If there is any abnormality, please contact the customer service. See CUSTOMER SERVICE.

Replaceable (LED only) light source by a professional.

This product contains a light source of energy efficiency class F.

Compartment Voltage Energy e ciency class Model
Fridge top lamp 12V F		HCR3818****HCR7818DNMMHCR7818DWPTHCR39F19****
Fridge back lamp 12V F HCR7818DNMM		HCR7818DWPT

Non-use for a longer period

If the appliance is not used for an extended period of time:

▶ Take out the food.
▶ Unplug the power cord.
▶ Clean the appliance as described above.
- Keep the doors open to prevent the creation of bad odours inside.

Notice

Turn the appliance off only if strictly necessary.

Moving the appliance

1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the fridge and the freezer with adhesive tape.
3. Do not tilt the refrigerator more than 45^ to avoid damaging the refrigerating system.

WARNING!

▶ Do not lift the appliance by its handles.
▶ Never place the appliance horizontally on the ground.

Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

WARNING!

Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages.
▶ A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Problem Possible Cause Possible Solution

The compressor does not work.	·Mains plug is not connected in the mains socket.·The appliance is in the defrosting cycle	·Connect the mains plug.·This is normal for an automatic defrosting
The appliance runs frequently or runs for a too long period of time.	·The indoor or outdoor temperature is too high.·The appliance has been off power for a period of time.·A door of the appliance is not tightly closed.·The door has been opened too frequently or for too long.·The temperature setting for the freezer compartment is too low.·The door gasket is dirty, worn, cracked or mismatched.·The required air circulation is not guaranteed.	·In this case, it is normal for the appliance to run longer.·Normally, it takes 8 to 12 hours for the appliance to cool down completely.·Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door.·Do not open the door/drawer too frequently.·Set the temperature higher until a satisfactory refrigerator temperature is obtained. It takes 24 hours for the refrigerator temperature to become stable.·Clean the door/drawer gasket or replace them by the customer service.·Ensure adequate ventilation.
The inside of the refrigerator is dirty and/or smells.	·The inside of the refrigerator needs cleaning.·Food of strong odour is stored in the refrigerator.	·Clean the inside of the refrigerator.·Wrap the food thoroughly..
The appliance makes abnormal sounds.	·The appliance is not located on level ground.·The appliance touches some object around it.	·Adjust the feet to level the appliance.·Remove objects around the appliance.

Troubleshooting

Problem Possible Cause	Possible Solution
It is not cold enough inside the appliance.	·The temperature is set too high.·Too warm goods has been stored.·Too much food has been stored at one time.·The goods are too close to each other.·A door/drawer of the appliance is not tightly closed.·The door/drawer has been opened too frequently or for too long.	·Reset the temperature.·Always cool down goods before storing them.·Always store small quantities of food.·Leave a gap between several foods allowing air flowing.·Close the door/drawer.·Do not open the door/drawer too frequently.
It is too cold inside the appliance.	·The temperature is set too low.·The Super-Frz/Super-Coolfunction is activated or is running too long.	·Reset the temperature.·Switch off the Super-Frz/Super-Cool function
Moisture formation on the inside of the refrigerator compartment.	·The climate is too warm and too-damp.·A door/drawer of the appliance is not tightly closed.·The door/drawer has been opened too frequently or for too long.·Food containers or liquids are left open.	·Increase the temperature.·Close the door/drawer.·Do not open the door/drawer too frequently.·Let hot foods cool to room temperature and cover foods and liquids.
Moisture accumulates on the refrigerators outside surface or between the doors/door and drawer.	·The climate is too warm and too damp.·The door is not closed tightly. The cold air in the appliance and the warm air outside it condensates.	·This is normal in damp climate and will change when the humidity decreases.·Ensure that he door/drawer is tightly shut.
Strong ice and frost in the freezer compartment.	·The goods were not adequately packaged.·A door/drawer of the appliance is not tightly closed.·The door/drawer has been opened too frequently or for too long.·The door/drawer gasket is dirty, worn, cracked or mismatched.·Something on the inside prevents the door/drawer to close properly.	·Always pack the goods well.·Close the door/drawer.·Do not open the door/drawer too frequently.·Clean the door/drawer gasket or replace them by new ones.·Reposition the shelves, door racks, or internal containers to allow the door/drawer to close.
The sides of the cabinet and door strip get warm.	·-	·This is normal.
The appliance makes abnormal sounds.	·The appliance is not located on level ground.·The appliance touches some object around it.	·Adjust the feet to level the appliance.·Remove objects around the appliance.
A slight sound is to be heard similar to that of flowing water.	·-·This is normal.
You will hear an alarm beep.	·The fridge storage compartment door is open.	·Close the door.
You will hear a faint hum.	·The anti-condensation system is working	·This prevents condensation and is normal
The interior lighting or cooling system does not work.	·Mains plug is not connected in the mains socket.·The power supply is not intact.·The LED-lamp is out of order.	·Connect the mains plug.·Check the electrical supply to the room. Call the local electricity company!·Please call the service for changing the lamp.

To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.

Power interruption

In the event of a power cut, food should remain safely cold for about 5 hours. Follow these tips during a prolonged power interruption, especially in summer:

▶ Open the door/drawer as few times as possible.
▶ Do not put additional food into the appliance during a power interruption.
▶ If prior notice of a power interruption is given and the interruption duration is longer than 5 hours, make some ice and put it in a container in the top of the refrigerator compartment.
▶ An inspection of the goods is required immediately after the interruption.
As temperature in the refrigerator will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks.

Memory function during power interruption

After restoration of power the appliance continues with the settings that were set before the power failure.

Unpacking

WARNING!

The appliance is heavy. Always handle with at least two persons.
- Keep all packaging materials out of children's reach and dispose them in an environmentally friendly manner.

▶Take the appliance out of the packaging.

▶Remove all packaging materials.

Environmental conditions

The room temperature should always be between 10°C and 43°C, since it can in\~uenc e the temperature inside the appliance and its energy consumption. Do not install the appli-ance near other heat-emitting appliances (ovens, refrigerators) without isolation.

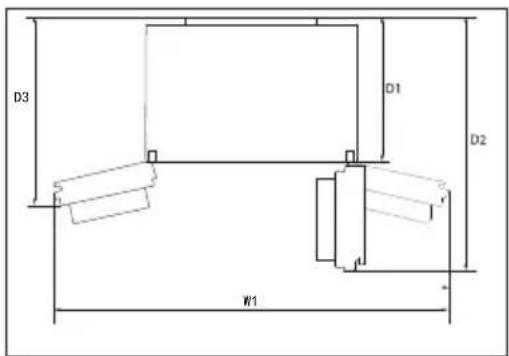

Space requirement

Required space when door is opened:(HCR3818*、HCR7818*)

W1=1325 mm

D1=570 mm

D2=1004 mm

D3=956mm

Required space when door is opened:(HCR39F19*)

W1=1534 mm

D1=660 mm

D2=1142 mm

D3=1035mm

Ventilaton cross-section

To achieve su°cient ventilation of the appliance for safety reasons, the information of the required ventilation cross sections must be observed.

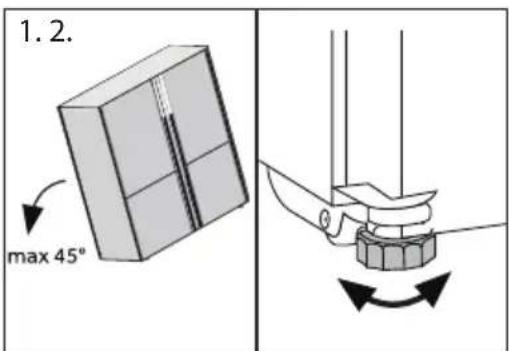

Aigning the appliance

The appliance should be placed on a flat and solid surface.

1. Tilt the refrigerator slightly backwards.
2. Set the feet to the desired level.

Make sure the distance to the wall on the hinge side is at least 10 cm for the door to open properly.

D3 D1 D2 W1

10 cm 10 cm 10 cm

1.2. max 45°

Notice:

For a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance

Pure geometric diagram of a 3D rectangular prism with dashed internal lines and arrows indicating direction (no text or symbols)

1. The stability can be checked by alternately bumping on the diagonals. The slightly swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear facilitates the closing of the doors.

Pure architectural floor plan diagram with black and white panels, showing structural layout and directional arrows (no text or symbols)

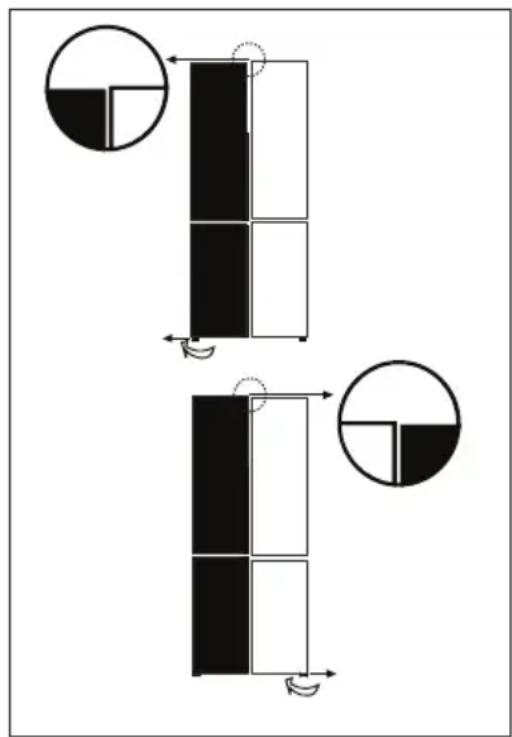

Fine tuning of the doors

If the doors are not in one level, this mismatch can be remedied by following:

Using adjustable foot

Rotate the adjustable foot according to the direction of arrow to turn up or down the foot.

Contact after-sale service if needed.

Notice:

In the future use of refrigerator, doors uneven phenomenon may occur to the weight of stored food. Then please adjust according to the above methods.

2 h

Waiting time

To the maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply you have to wait at least 2 hours so that the oil runs back into the capsule.

Electrical connection

Before each connection check if:

▶ power supply, socket and fusing are appropriate to the rating plate.
▶ the power socket is earthed and no multi-plug or extension.
▶ the power plug and socket are strictly according.

Connect the plug to a properly installed household socket.

WARNING!

To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

Product fiche according to regulation EU No. 2019/2016

Brand	Haier	Haier	Haier	Haier
Model name / identifier	HCR3818EN** HCR3818EW** HCR7818DN** HCR7818DW**
Category of the model	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer
Energy effi-ciency class	E	E D D
Annual energy	290 290 230 230
Total volume(L)	467 463 467 463
Volume refrigerator(L)	311 307 311 307
Volume freezer(L)	156 156 156 156
Star rating
Tempera-ture of other	Non applicable Non applicable Non applicable Non applicable
Frost-free sys-tem	Yes Yes	Yes	Yes
Freezing	10	10	10	10
Climate rat-ing(2)	SN·N·ST·T	SN·N·ST·TSN·N·ST·TSN·N·ST·T
Noise emis-sion class and airborne acoustical noise emissions(db(A) re 1pW)	B(35)	B(35)	B(35)	B(35)
Temperature rise time (h)	10	10	10	10
Type of appli-ance	freestanding	freestanding	freestanding	freestanding
Others	-	-	-	-

Product fiche according to regulation EU No. 2019/2016

Brand	Haier	Haier
Model name / identifier	HCR39F19ENPT**	HCR39F19EWMMHCR39F19EWPT(UK)
Category of the model	Refrige rator-freezer	Refrige rator-freezer
Energy efficiency class	E	E
Annual energy	350 349
Total volume(L) 651	649
Volume refrigerator(L)	420 418
Volume freezer(L)	231 231
Star rating
Temperature of other	Non applicable Non applicable
Frost-free system	Yes Yes
Freezing	12 12
Climate rating(2)	SN·N·ST·T SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db (A) re 1pW)	B(35)	B(35)
Temperature rise time (h)	10 10
Type of appliance	freestanding	freestanding
Others	-	-

Explanations:

- Yes, featured

(1) Based on the results of the standards conformance test over 24 hours. The actual consumption depends on the use and the location of the appliance.
(2) Climate rating SN: This appliance is intended for use in an ambient temperature of between +10°C and +32°C

Climate rating N: This appliance is intended for use in an ambient temperature of between +16°C and +32°C

Climate rating ST: This appliance is intended for use in an ambient temperature of between +16°C and +38°C

Climate rating T: This appliance is intended for use in an ambient temperature of between +16°C and +43°C

Additional technical data

Voltage / Frequency 220-240V ~/ 50Hz
Input current (A)	1.5 (only for HCR3818*、HCR7818*)
Input current (A)	1.8 (only for HCR39F19*)
Main fuse (A)	16
Coolant R600a
Dimensions (H/W/D in mm)	1815 / 833/ 650 (HCR3818*、HCR7818*)1905*908*748 (HCR39F19*)

We recommend our Haier Customer Service and the use of original spare parts.

If you have a problem with your appliance, please first check section TROUBLESHOOTING.

If you cannot find a solution there, please contact

▶ your local dealer or
▶ our European Call Service-Center (see listed phone numbers below) or
▶ the Service & Support area at www.haier.com where you can activate the service
▶ claim and also find FAQs.

To contact our Service, ensure that you have the following data available. The information can be found on the rating plate.

Model ____

Serial No. ____

Also check the Warranty Card supplied with the product in case of warranty.

European Call Service-Center
Country*	Phone number Costs
Haier Italy (IT)	199 100 912
Haier Spain (ES)	902 509 123
Haier Germany (DE)	0180 5 39 39 99	• 14 Ct/Min Landline• max 42 Ct/Min Mobile
Haier Austria (AT)	0820 001 205	• 14,53 Ct/Min Landline• max 20 Ct/Min all others
Haier United Kingdom (UK)	0333 003 8122
Haier France (FR)	0980 406 409

* For other countries please refer to www.haier.com

Haier Europe Trading S.r.l

Branch UK

Westgate House, Westgate, Ealing

London, W5 1YY

*Duration of the guarantee of the refrigerating appliance:

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

*The period of spare parts for the repair of the appliance:

Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.

Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

*For further information about the product, please consult https://eprel.ec.europe.eu/ or scan the QR on the energy label supplied with the appliance.

Chladnička-mraznička

HCR3818ENMM HCR3818ENMG HCR3818EWMM HCR3818ENPT HCR3818EWPT HCR3818ENMD HCR7818DNMM HCR7818DWPT HCR39F19ENPT HCR39F19ENPT(UK) HCR39F19EWMM HCR39F19EWPT(UK)

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or labels)

Diagram of a device with labeled components A and C, showing a handle, connector, and internal structure.

Oznámení

*Pouze pro model HCR3818EWMM, HCR3818EWPT a HCR7818DWPT HCR39F19EWMM and HCR39F19EWPT(UK)

Diagram showing two labeled arrows pointing to a tray with textured surfaces, likely illustrating a physics or engineering concept.

Nastavitelné police

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a layered structure, likely illustrating fluid or material movement.

Diagram showing a door with stairs, temperature sensor, and directional indicators including OK and down arrows.

Diagram showing two labeled arrows pointing to a tray with grid patterns, likely illustrating a physics or engineering concept.

Nastavitelné police

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Diagram of a refrigerator with labeled parts and directional arrows indicating assembly or movement

Line drawing of a refrigerator with an upward arrow indicating orientation (no text or symbols)

Pouze pro model HCR39F19EWMM and HCR39F19EWPT(UK).

Notice:

*Pouze pro model HCR3818EWMM, HCR3818EWPT a HCR7818DWPT HCR39F19EWMM and HCR39F19EWPT(UK).

Technical diagram showing a refrigerator with labeled parts A, B, and C, including a close-up of the internal component.

Světlo

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

*Pouze pro model HCR3818EWMM, HCR3818EWPT a HCR7818DWPT HCR39F19EWMM and HCR39F19EWPT(UK).

A B C B

Oznámení

Simple line drawing of a 3D geometric shape with dashed internal lines and arrows indicating direction (no text or symbols)

Pure mechanical diagram showing two vertical components with circular arrows indicating motion, no text or symbols present

Brand Haier Haier Haier Haier
Model name / identifier	HCR3818EN** HCR3818EW** HCR7818DN** HCR7818DW**
Category of the model	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E E D D
Annual energy	290 290	230	230
Total volume(L)	467	463	467	463
Volume refrigerator(L)	311 307	311	307
Volume freezer(L)	156 156	156	156
Star rating
Temperature of other	Non applicable	Non applicable	Non applicable	Non applicable
Frost-free system	Yes	Yes Yes	Yes
Freezing	10	10	10	10
Climate rating(2)	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35) B(35)		B(35)
Temperature rise time (h)	10	10	10	10
Type of appliance	freestanding	freestanding	freestanding	freestanding
Others	-	-	-	-

Technické údaje

Brand Haier Haier
Model name /identifier	HCR39F19ENPT**	HCR39F19EWMMHCR39F19EWPT(UK)
Category of themodel	Refrige rator-freezer	) Refriger rator-freezer
Energy efficiency class	E	E
Annual energy	350 349
Total volume(L)	651 649
Volume refrigerator(L)	420 418
Volume freezer(L)	231 231
Star rating
Temperature of other	Non applicable Non applicable
Frost-freesystem	Yes Yes
Freezing	12 12
Climate index(2)	SN·N·ST·T SN·N·ST·T
Noise emission classand airborneacoustical noiseemissions(db(A)re 1pW)	B(35) B(35)
Temperature rise time (h)	10 10
Type of appliance	freestanding freestanding
Others	-	-

Vysvětlení:

- Ano, ve výbavě

Westgate House, Westgate, Ealing

London, W5 1YY

HCR3818ENMM HCR3818ENMG HCR3818EWMM HCR3818ENPT HCR3818EWPT HCR3818ENMD HCR7818DNMM HCR7818DWPT HCR39F19ENPT HCR39F19ENPT(UK) HCR39F19EWMM HCR39F19EWPT(UK)

Symbol of a trash bin crossed with no text or labels

Entsorgung

Diagram of a device with labeled components A and C, showing a handle, connector, and internal structure.

Notiz

Diagram showing two labeled arrows (① and ②) pointing to a tray with patterned surfaces, likely illustrating a physics or engineering concept.

Diagram showing two labeled arrows (① and ②) pointing upward and downward within a layered structure, possibly illustrating fluid or material movement.

Diagram showing a staircase with an arrow pointing to a circular indicator labeled 'OK' and a thermometer icon with a snowflake.

Diagram showing two labeled steps (① and ②) of a hand holding a tray with a grid, likely illustrating a procedure or process.

Verstellbare Regale

Line drawing of a mechanical device with a cylindrical component and an arrow indicating direction (no text or symbols)

Diagram of a refrigerator interior with numbered parts and directional arrows indicating movement or assembly.

Demontage des Kesseldeckels

Line drawing of a refrigerator with an upward arrow indicating direction (no text or symbols)

Nur für Modell HCR39F19EWMM and HCR39F19EWPT(UK).

Notice:

Line drawing of an open refrigerator with three doors and shelves (no text or symbols)

Wassertank

Technical diagram of a mechanical component with labeled parts A, B, and C, showing cross-sectional views.

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Required space when door is opened:(HCR39F19*)

W1=1534 mm

D1=660 mm

D2=1142 mm

D3=1035mm

Simple line drawing of a 3D geometric shape with dashed internal lines and arrows indicating direction (no text or symbols)

Pure mechanical diagram showing two vertical components with circular arrows indicating motion, no text or symbols present

Brand Haier Haier Haier Haier
Model name / identifier	HCR3818EN** HCR3818EW** HCR7818DN** HCR7818DW**
Category of the model	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E E D D
Annual energy	290 290 230 230
Total volume(L)	467 463 467 463
Volume refrigerator(L)	311 307 311 307
Volume freezer(L)	156 156 156 156
Star rating
Temperature of other	Non applicable	Non applicable	Non applicable	Non applicable
Frost-free system	Yes	Yes Yes	Yes
Freezing	10	10	10	10
Climate rating(2)	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35) B(35)		B(35)
Temperature rise time (h)	10	10	10	10
Type of appliance	freestanding	freestanding	freestanding	freestanding
Others	-	-	-	-

Technische Daten

DE

Brand	Haier	Haier
Model name / identifier	HCR39F19ENPT**	HCR39F19EWMMHCR39F19EWPT(UK)
Category of the model	Refrige rator-freezer	Refrige rator-freezer
Energy efficiency class	E	E
Annual energy	350 349
Total volume(L) 651 649
Volume refrigerator(L)	420 418
Volume freezer(L)	231 231
Star rating
Temperature of other	Non applicable Non applicable
Frost-free system	Yes Yes
Freezing	12 12
Climate rating(2)	SN·N·ST·T SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db (A) re 1pW)	B(35)	B(35)
Temperature rise time (h)	10 10
Type of appliance	freestanding	freestanding
Others	-	-

Erläuterungen:

• Ja, vorhanden

Westgate House, Westgate, Ealing

London, W5 1YY

Symbol of a trash bin crossed with no text or labels

Απόρριψη

Diagram of a device with labeled components A and C, showing a handle, connector, and internal structure.

Ειδοποίηση

Diagram showing two labeled arrows pointing to a rectangular object with internal patterns, likely illustrating a physical or engineering concept.

Ρυθμιζόμενα ράφια

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a layered structure, likely illustrating fluid or material movement.

Diagram showing a staircase with an arrow pointing to a door, a circular icon labeled 'OK', and a weather symbol with a thermometer and snowflake.

Diagram showing two labeled arrows pointing to a rectangular object with internal patterns, possibly illustrating a physical or engineering concept.

Ρυθμιζόμενα ράφια

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Diagram of a refrigerator interior with numbered parts and directional arrows indicating movement or change.

Line drawing of a refrigerator with an upward arrow indicating orientation (no text or symbols)

Notice:

Line drawing of an open refrigerator with multiple compartments (no text or symbols)

Technical diagram of a battery pack with labeled components A, B, and C, showing internal structure and close-up views.

Illustration of a hand cleaning a kitchen with a sponge and a basin (no text or symbols)

Technical diagram of a mechanical component with labeled parts A, B, and C, showing cross-sectional views.

*Μόνο για μοντέλο HCR3818EWMM, HCR3818EWPT ,HCR7818DWPT,HCR39F19EWMM and HCR39F19EWPT(UK) .

Σημείωση

10cm 10cm 10cm

1. μéy. 45° 2.

Σημείωση:

Simple line drawing of a 3D geometric structure with arrows indicating direction (no text or symbols)

Pure mechanical diagram showing two vertical components with circular arrows indicating motion, no text or symbols present

Ρύθμιση των θυρών

Brand Haier Haier Haier Haier
Model name / identifier	HCR3818EN** HCR3818EW** HCR7818DN** HCR7818DW**
Category of the model	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E E D D
Annual energy	290 290	230	230
Total volume(L)	467	463	467	463
Volume refrigerator(L)	311 307	311	307
Volume freezer(L)	156 156	156	156
Star rating
Temperature of other	Non applicable	Non applicable	Non applicable	Non applicable
Frost-free system	Yes	Yes Yes	Yes
Freezing	10	10	10	10
Climate rating(2)	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35) B(35)		B(35)
Temperature rise time (h)	10	10	10	10
Type of appliance	freestanding	freestanding	freestanding	freestanding
Others	-	-	-	-

Τεχνικά δεδομένα

EL

Brand	Haier	Haier
Model name /identifier	HCR39F19ENPT**	HCR39F19EWMMHCR39F19EWPT(UK)
Category of themodel	Refrige rator-freezer	Refrige rator-freezer
Energy efficiency class	E	E
Annual energy	350 349
Total volume(L) 651 649
Volumerefrige rator(L)	420 418
Volumefreezer(L)	231 231
Star rating
Temperature of other	Non applicable Non applicable
Frost-free system	Yes Yes
Freezing	12 12
Climate rating(2)	SN·N·ST·T SN·N·ST·T
Noise emission classand airborneacoustical noiseemissions(db (A)re 1pW)	B(35)	B(35)
Temperature rise time (h)	10 10
Type of appliance	freestanding	freestanding
Others	-	-

Επεξηγήσεις:

• Ναι, εμφανίζεται

Westgate House, Westgate, Ealing

Λονδίνο, W5 1YY

Symbol of a trash bin crossed with no text or labels

Eliminación

Diagram of a device with labeled components A and C, showing a handle, connector, and internal structure.

Aviso

Diagram showing two labeled arrows (① and ②) pointing to a rectangular object with internal patterns, possibly illustrating a physical or engineering concept.

Estantes ajustables

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a layered structure, likely illustrating fluid or material movement.

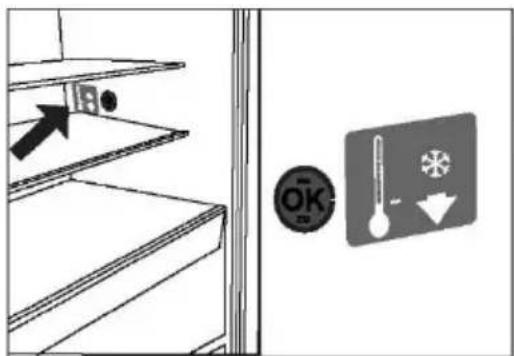

Diagram showing a staircase with an arrow pointing to a circular indicator labeled 'OK' and a thermometer symbol.

Cajón extraible

Diagram showing two labeled arrows pointing to a tray with internal patterns, likely illustrating a physics or engineering concept.

Estantes ajustables

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Diagram of a refrigerator interior with numbered parts and directional arrows indicating movement or change.

Line drawing of a refrigerator with an upward arrow indicating orientation (no text or symbols)

Notice:

Diagram of an open refrigerator with two doors and one side cabinet (no text or symbols)

Technical diagram of a mechanical component with labeled parts A, B, and C, showing internal structure and detail views.

*Solo para modelo HCR3818EWMM, HCR3818EWPT y HCR7818DWPT, HCR39F19EWMM and HCR39F19EWPT(UK).

La luz

Illustration of a hand cleaning a window with a sponge and a basin (no text or symbols)

Technical diagram of a mechanical component with labeled parts A, B, and C, showing cross-sectional views.

*Solo para modelo HCR3818EWMM, HCR3818EWPT y HCR7818DWPT,HCR39F19EWMM and HCR39F19EWPT(UK) ..

Aviso

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Pure mechanical diagram showing two vertical components with circular arrows indicating motion, no text or symbols present

Brand Haier Haier Haier Haier
Model name / identifier	HCR3818EN** HCR3818EW** HCR7818DN** HCR7818DW**
Category of the model	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E E D D
Annual energy	290 290 230 230
Total volume(L)	467 463 467 463
Volume refrigerator(L)	311 307 311 307
Volume freezer(L)	156 156 156 156
Star rating	[WGST]
Temperature of other	Non applicable	Non applicable	Non applicable	Non applicable
Frost-free system	Yes	Yes Yes	Yes
Freezing	10	10	10	10
Climate rating(2)	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35) B(35)		B(35)
Temperature rise time (h)	10	10	10	10
Type of appliance	freestanding	freestanding	freestanding	freestanding
Others	-	-	-	-

Datos técnicos

ES

Brand	Haier	Haier
Model name / *identifier	HCR39F19ENPT**	HCR39F19EWMM HCR39F19EWPT(UK)
Category of the model	Refrige rator-freezer	Refrige rator-freezer
Energy efficiency class	E	E
Annual energy	350 349
Total volume(L) 651	649
Volume refrigerator(L)	420 418
Volume freezer(L)	231 231
Star rating
Temperature of other	Non applicable Non applicable
Frost-free system	Yes Yes
Freezing	12 12
Climate rat-ing(2)	SN·N·ST·T SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db (A) re 1pW)	B(35) B(35)
Temperature rise time (h)	10 10
Type of appli-ance	freestanding	freestanding
Others	-	-

Explicaciones:

• Sí

Westgate House, Westgate, Ealing

Londres, W5 1YY

HCR3818ENMM HCR3818ENMG HCR3818EWMM HCR3818ENPT HCR3818EWPT HCR3818ENMD HCR7818DNMM HCR7818DWPT HCR39F19ENPT HCR39F19ENPT(UK) HCR39F19EWMM HCR39F19EWPT(UK)

C Activation/désactivation

Diagram of a device with labeled components A and C, showing a handle, connector, and internal structure.

Remarquer

Diagram showing two labeled arrows pointing to a tray with internal patterns, likely illustrating a physical or mathematical concept.

Clayettes réglables

Diagram showing two labeled arrows (1 and 2) pointing upward and downward to a rectangular object, with arrows indicating direction of movement.

Diagram showing a door with stairs, a thermometer, and directional arrows indicating movement or change.

Tiroir amovible

Diagram showing two labeled steps (① and ②) of a hand holding a rectangular object with internal patterns, possibly illustrating a procedure or process.

Tablettes réglables

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Diagram of a refrigerator interior with numbered parts and directional arrows indicating assembly or movement.

Line drawing of a refrigerator interior with an upward arrow indicating direction (no text or symbols)

Line drawing of an open refrigerator with two doors and one front cabinet (no text or symbols)

A B C B

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

Simple line drawing of a 3D geometric shape with dashed internal lines and arrows indicating direction (no text or symbols)

Pure mechanical diagram showing two vertical components with circular arrows indicating motion, no text or symbols present

Brand Haier Haier Haier Haier
Model name / identifier	HCR3818EN** HCR3818EW** HCR7818DN** HCR7818DW**
Category of the model	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E E D D
Annual energy	290 290	230	230
Total volume(L)	467	463	467	463
Volume refrigerator(L)	311 307	311	307
Volume freezer(L)	156 156	156	156
Star rating
Temperature of other	Non applicable	Non applicable	Non applicable	Non applicable
Frost-free system	Yes	Yes Yes	Yes
Freezing	10	10	10	10
Climate rating(2)	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35) B(35)		B(35)
Temperature rise time (h)	10	10	10	10
Type of appliance	freestanding	freestanding	freestanding	freestanding
Others	-	-	-	-

Données techniques

FR

Brand	Haier	Haier
Model name / identifier	HCR39F19ENPT**	HCR39F19EWMM HCR39F19EWPT(UK)
Category of the model	Refrige rator-freezer	Refrige rator-freezer
Energy efficiency class	E	E
Annual energy	350 349
Total volume(L) 651 649
Volume refrigerator(L)	420 418
Volume freezer(L)	231 231
Star rating
Temperature of other	Non applicable	Non applicable
Frost-free system	Yes Yes
Freezing	12 12
Climate rating(2)	SN·N·ST·T SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db (A) re 1pW)	B(35) B(35)
Temperature rise time (h)	10 10
Type of appliance	freestanding	freestanding
Others	-	-

Explications :

Westgate House, Westgate, Ealing

Londres, W5 1YY

Symbol of a trash bin crossed with no text or labels

Ártalmatlanítás

Diagram of a device with labeled components A and C, showing a handle, connector, and internal structure.

Értesítés

Diagram showing two labeled arrows pointing to a rectangular object with internal patterns, possibly illustrating a physical or mathematical concept.

Állítható polcok

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a layered structure, likely illustrating fluid or material movement.

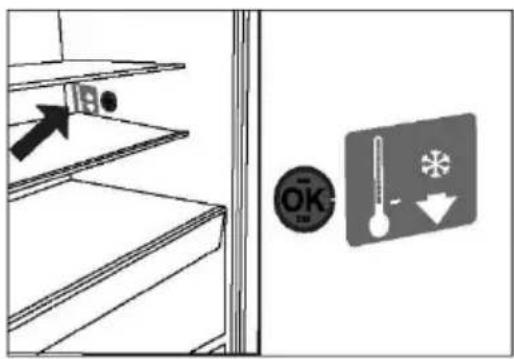

Diagram showing a staircase with an arrow pointing to the stairs and a temperature thermometer icon with warning symbols.

Eltávolítható fiók

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Állítható polcok

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Diagram of a refrigerator with numbered parts and directional arrows indicating assembly or installation steps

Line drawing of a refrigerator with an upward arrow indicating orientation (no text or symbols)

Csak modellhez HCR39F19EWMM and HCR39F19EWPT(UK).

Notice:

Line drawing of an open refrigerator with two doors and one shelf (no text or symbols)

Technical diagram of a mechanical component with labeled parts A, B, and C, showing cross-sectional views.

A világítás

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

Simple line drawing of a 3D geometric shape with dashed internal lines and arrows indicating direction (no text or symbols)

Pure mechanical diagram showing two vertical components with circular arrows indicating motion, no text or symbols present

Brand Haier Haier Haier Haier
Model name / identifier	HCR3818EN** HCR3818EW** HCR7818DN** HCR7818DW**
Category of the model	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E E D D
Annual energy	290 290 230 230
Total volume(L)	467 463 467 463
Volume refrigerator(L)	311 307 311 307
Volume freezer(L)	156 156 156 156
Star rating
Temperature of other	Non applicable	Non applicable	Non applicable	Non applicable
Frost-free system	Yes	Yes Yes	Yes
Freezing	10	10	10	10
Climate rating(2)	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35) B(35)		B(35)
Temperature rise time (h)	10	10	10	10
Type of appliance	freestanding	freestanding	freestanding	freestanding
Others	-	-	-	-

Brand Haier Haier
Model name / identifier	HCR39F19ENPT**	HCR39F19EWMM HCR39F19EWPT(UK)
Category of the model	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E	E
Annual energy	350 350
Total volume(L)	651 651
Volume refrigerator(L)	420 420
Volume freezer(L)	231 231
Star rating
Temperature of other	Non applicable Non applicable
Frost-free system	Yes Yes
Freezing	12 12
Climate rating(2)	SN·N·ST·T SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35)
Temperature rise time (h)	10 10
Type of appliance	freestanding freestanding
Others	-	-

Magyarázatok:

- lgen, támogatott

Westgate House, Westgate, Ealing

London, W5 1YY

Symbol of a trash bin crossed out by two crossed lines, representing no waste or discharge (no text or labels)

Smaltimento

Diagram of a device with labeled components A and C, showing a handle, connector, and internal structure.

Avviso

Diagram showing two labeled arrows pointing to a tray with patterned surfaces, likely illustrating a physics or engineering concept.

Ripiani regolabili

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, possibly illustrating a mechanical or fluid system.

Diagram showing a storage shelf with an arrow pointing to a stack and a warning sign with thermometer and snowflake symbols.

Cassetto rimovibile

Diagram showing two labeled steps (① and ②) of a device with arrows indicating movement or transformation, possibly illustrating a process or state.

Ripiani regolabili

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Diagram of a refrigerator interior with numbered parts and directional arrows indicating assembly or movement.

Line drawing of a refrigerator with an upward arrow indicating motion (no text or symbols)

Solo per modello HCR39F19EWMM and HCR39F19EWPT(UK).

Notice:

Line drawing of an open refrigerator with two doors and three shelves (no text or symbols)

Serbatoio d'acqua

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

Simple line drawing of a 3D geometric shape with dashed internal lines and arrows indicating direction (no text or symbols)

Pure mechanical diagram showing two vertical components with circular arrows indicating motion, no text or symbols present

Brand Haier Haier Haier Haier
Model name / identifier	HCR3818EN** HCR3818EW** HCR7818DN** HCR7818DW**
Category of the model	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E E D D
Annual energy	290 290	230	230
Total volume(L)	467	463	467	463
Volume refrigerator(L)	311 307	311	307
Volume freezer(L)	156 156	156	156
Star rating
Temperature of other	Non applicable	Non applicable	Non applicable	Non applicable
Frost-free system	Yes	Yes Yes	Yes
Freezing	10	10	10	10
Climate rating(2)	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35) B(35)		B(35)
Temperature rise time (h)	10	10	10	10
Type of appliance	freestanding	freestanding	freestanding	freestanding
Others	-	-	-	-

Brand Haier Haier
Model name / identifier	HCR39F19ENPT**	HCR39F19EWMM HCR39F19EWPT(UK)
Category of the model	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E	E
Annual energy	350 350
Total volume(L)	651 651
Volume refrigerator(L)	420 420
Volume freezer(L)	231 231
Star rating
Temperature of other	Non applicable Non applicable
Frost-free system	Yes Yes
Freezing	12 12
Climate rating(2)	SN·N·ST·T SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35)
Temperature rise time (h)	10 10
Type of appliance	freestanding freestanding
Others	-	-

Descrizioni:

• Si

Westgate House, Westgate, Ealing

London, W5 1YY

HCR3818ENMM HCR3818ENMG HCR3818EWMM HCR3818ENPT HCR3818EWPT HCR3818ENMD HCR7818DNMM HCR7818DWPT HCR39F19ENPT HCR39F19ENPT(0) HCR39F19EWMM HCR39F19EWPT

Symbol of a trash bin crossed with no text or labels

Verwijdering

Diagram of a device with labeled components A and C, showing a handle, connector, and internal structure.

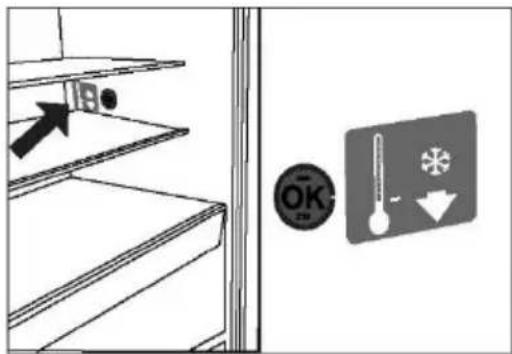

Let op:

Diagram showing two labeled arrows (① and ②) pointing to a rectangular object with internal patterns, possibly illustrating a physical or engineering concept.

Verstelbare planken

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a layered structure, with arrows indicating direction of movement.

Diagram showing a staircase with an arrow pointing to a door, a thermometer icon, and a directional arrow labeled 'OK' and '↓'.

Verwijderbare lade

Diagram showing two labeled arrows (① and ②) pointing to a rectangular object with internal patterns, possibly illustrating a physical or engineering concept.

Verstelbare planken

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Diagram of a refrigerator interior with numbered parts and directional arrows indicating assembly or movement.

Line drawing of a refrigerator with an upward arrow indicating orientation (no text or symbols)

Line drawing of an open refrigerator with three doors and one front cabinet (no text or symbols)

Watertank

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

Simple line drawing of a 3D geometric shape with dashed internal lines and arrows indicating direction (no text or symbols)

Pure mechanical diagram showing two vertical components with circular arrows indicating motion, no text or symbols present

Brand Haier Haier Haier Haier
Model name / identifier	HCR3818EN** HCR3818EW** HCR7818DN** HCR7818DW**
Category of the model	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E E D D
Annual energy	290 290 230 230
Total volume(L)	467 463 467 463
Volume refrigerator(L)	311 307 311 307
Volume freezer(L)	156 156 156 156
Star rating
Temperature of other	Non applicable	Non applicable	Non applicable	Non applicable
Frost-free system	Yes	Yes Yes	Yes
Freezing	10	10	10	10
Climate rating(2)	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35) B(35)		B(35)
Temperature rise time (h)	10	10	10	10
Type of appliance	freestanding	freestanding	freestanding	freestanding
Others	-	-	-	-

Brand Haier Haier
Model name / identifier	HCR39F19ENPT**	HCR39F19EWMM HCR39F19EWPT(UK)
Category of the model	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E	E
Annual energy	350 350
Total volume(L)	651 651
Volume refrigerator(L)	420 420
Volume freezer(L)	231 231
Star rating
Temperature of other	Non applicable Non applicable
Frost-free system	Yes Yes
Freezing	12 12
Climate rating(2)	SN·N·ST·T SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35)
Temperature rise time (h)	10 10
Type of appliance	freestanding freestanding
Others	-	-

Uitleg:

- Ja, aanwezig

Westgate House, Westgate, Ealing

HCR3818ENMM HCR3818ENMG HCR3818EWMM HCR3818ENPT HCR3818EWPT HCR3818ENMD HCR7818DNMM HCR7818DWPT HCR39F19ENPT HCR39F19ENPT(UK) HCR39F19EWMM HCR39F19EWPT(UK)

Symbol of a trash bin crossed with no text or labels, representing waste sorting or restriction (no text present)

Utylizacja

Diagram of a device with labeled components A and C, showing a handle, connector, and internal structure.

Uwaga :

Diagram showing two labeled arrows (① and ②) pointing to a rectangular object with internal patterns, possibly illustrating a physical or mathematical concept.

Regulowane półki

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a layered structure, possibly illustrating fluid or material movement.

Diagram showing a staircase with an arrow and a temperature thermometer icon, alongside a door panel with warning labels.

Wyjmowana szuflada

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Regulowane półki

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Diagram of a refrigerator interior with numbered parts and directional arrows indicating assembly or movement.

Line drawing of a refrigerator with an upward arrow indicating orientation (no text or symbols)

Tylko dla modelu HCR39F19EWMM and HCR39F19EWPT(UK).

Notice:

Line drawing of an open refrigerator with three doors and one shelf (no text or symbols)

Technical diagram of a mechanical component with labeled parts A, B, and C, showing cross-sectional views.

Światło

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Simple line drawing of a 3D geometric shape with dashed internal lines and arrows indicating direction (no text or symbols)

Pure mechanical diagram showing two vertical components with circular arrows indicating motion, no text or symbols present

Regulowanie drzwi

Brand Haier Haier Haier Haier
Model name / identifier	HCR3818EN** HCR3818EW** HCR7818DN** HCR7818DW**
Category of the model	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E E D D
Annual energy	290 290	230	230
Total volume(L)	467	463	467	463
Volume refrigerator(L)	311 307	311	307
Volume freezer(L)	156 156	156	156
Star rating
Temperature of other	Non applicable	Non applicable	Non applicable	Non applicable
Frost-free system	Yes	Yes Yes	Yes
Freezing	10	10	10	10
Climate rating(2)	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35) B(35)		B(35)
Temperature rise time (h)	10	10	10	10
Type of appliance	freestanding	freestanding	freestanding	freestanding
Others	-	-	-	-

Brand Haier Haier
Model name / identifier	HCR39F19ENPT**	HCR39F19EWMM HCR39F19EWPT(UK)
Category of the model	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E	E
Annual energy	350 350
Total volume(L)	651 651
Volume refrigerator(L)	420 420
Volume freezer(L)	231 231
Star rating
Temperature of other	Non applicable Non applicable
Frost-free system	Yes Yes
Freezing	12 12
Climate rating(2)	SN·N·ST·T SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35)
Temperature rise time (h)	10 10
Type of appliance	freestanding freestanding
Others	-	-

Objaśnienie:

• Tak, wyróżnione

Westgate House, Westgate, Ealing

Londyn, W5 1YY

HCR3818ENMM HCR3818ENMG HCR3818EWMM HCR3818ENPT HCR3818EWPT HCR3818ENMD HCR7818DNMM HCR7818DWPT HCR39F19ENPT HCR39F19ENPT(UK) HCR39F19EWMM HCR39F19EWPT(UK)

Symbol of a trash bin crossed with no text or labels, representing waste sorting or restriction (no text present)

Simple 3D diagram showing a vertical structure with a checkmark and label '1.' (no text or symbols on the diagram itself)

Função Super-Freeze (Super-Frz)

Diagram of a device with labeled components A and C, showing a handle, connector, and internal structure.

Aviso:

Diagram showing two labeled arrows pointing to a rectangular object with internal patterns, possibly illustrating a physical or engineering concept.

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a layered structure, with arrows indicating direction of movement.

Diagram showing a shelf with an arrow pointing to a stack and a temperature thermometer icon with warning symbols.

Gaveta amovível

Diagram showing two hands holding a tray with Chinese characters, labeled with arrows and numbered sections ① and ②.

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Diagram of a refrigerator interior with numbered parts and directional arrows indicating movement or change.

Line drawing of a refrigerator with an upward arrow indicating motion (no text or symbols)

Line drawing of an open refrigerator with two doors and one shelf (no text or symbols)

Tanque de água

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Substituir as lâmpadas LED

AVISO!

Simple line drawing of a 3D geometric shape with dashed internal lines and arrows indicating direction (no text or symbols)

Pure mechanical diagram showing two vertical components with circular arrows indicating motion, no text or symbols present

Brand Haier Haier Haier Haier
Model name / identifier	HCR3818EN** HCR3818EW** HCR7818DN** HCR7818DW**
Category of the model	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E E D D
Annual energy	290	290	230	230
Total volume(L)	467	463	467	463
Volume refrigerator(L)	311	307	311	307
Volume freezer(L)	156	156	156	156
Star rating
Temperature of other	Non applicable	Non applicable	Non applicable	Non applicable
Frost-free system	Yes	Yes	Yes	Yes
Freezing	10	10	10	10
Climate rating(2)	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35) B(35)		B(35)
Temperature rise time (h)	10	10	10	10
Type of appliance	freestanding	freestanding	freestanding	freestanding
Others	-	-	-	-

Brand Haier Haier
Model name / identifier	HCR39F19ENPT**	HCR39F19EWMM HCR39F19EWPT(UK)
Category of the model	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E	E
Annual energy	350 350
Total volume(L)	651 651
Volume refrigerator(L)	420 420
Volume freezer(L)	231 231
Star rating
Temperature of other	Non applicable Non applicable
Frost-free system	Yes Yes
Freezing	12 12
Climate rating(2)	SN·N·ST·T SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35)
Temperature rise time (h)	10 10
Type of appliance	freestanding freestanding
Others	-	-

Explicações:

- Sim, existe

Westgate House, Westgate, Ealing

London, W5 1YY

HCR3818ENMM HCR3818ENMG HCR3818EWMM HCR3818ENPT HCR3818EWPT HCR3818ENMD HCR7818DNMM HCR7818DWPT HCR39F19ENPT HCR39F19ENPT(UK) HCR39F19EWMM HCR39F19EWPT(UK)

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

B: Compartiment congelator

Panou de comenzi

ECOPLUS Super-Cool 1 Low 3 5 7 9 Hight ... Super-Frz. -22 Low -20 -18 -16 -14 Hight ... d A Fridge 3 Sec. Super-Cool B Freezer 3 Sec. Super-Frz. C Auto Set D 3Sec. Lock

Butoane:

Diagram of a device with labeled components A and C, showing a handle, connector, and internal structure.

Observatie:

Diagram showing two labeled arrows pointing to a rectangular object with internal patterns, possibly illustrating a physical or engineering concept.

Rafturi ajustabile

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a layered structure, likely illustrating fluid or material movement.

Diagram showing a staircase with an arrow pointing to the stairs and a temperature and warning symbol on a wall.

Sertar demontabil

Diagram showing two labeled arrows pointing to a tray with Chinese characters, indicating directional movement or process steps.

Rafturi reglabile

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Diagram of a refrigerator interior with numbered parts and directional arrows indicating assembly or movement.

Line drawing of a refrigerator with an upward arrow indicating orientation (no text or symbols)

Line drawing of an open refrigerator with two doors and one front cabinet (no text or symbols)

Rezervor de apă

Technical diagram of a battery pack with labeled components A, B, and C, showing internal structure and close-up views.

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Simple line drawing of a 3D geometric shape with dashed internal lines and arrows indicating direction (no text or symbols)

Pure mechanical diagram showing two vertical components with circular arrows indicating motion, no text or symbols present

Brand Haier Haier Haier Haier
Model name / identifier	HCR3818EN** HCR3818EW** HCR7818DN** HCR7818DW**
Category of the model	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E E D D
Annual energy	290 290 230 230
Total volume(L)	467 463 467 463
Volume refrigerator(L)	311 307 311 307
Volume freezer(L)	156 156 156 156
Star rating
Temperature of other	Non applicable	Non applicable	Non applicable	Non applicable
Frost-free system	Yes	Yes Yes	Yes
Freezing	10	10	10	10
Climate rating(2)	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35) B(35)		B(35)
Temperature rise time (h)	10	10	10	10
Type of appliance	freestanding	freestanding	freestanding	freestanding
Others	-	-	-	-

Brand Haier Haier
Model name / identifier	HCR39F19ENPT**	HCR39F19EWMM HCR39F19EWPT(UK)
Category of the model	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E	E
Annual energy	350 350
Total volume(L)	651 651
Volume refrigerator(L)	420 420
Volume freezer(L)	231 231
Star rating
Temperature of other	Non applicable Non applicable
Frost-free system	Yes Yes
Freezing	12 12
Climate rating(2)	SN·N·ST·T SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35)
Temperature rise time (h)	10 10
Type of appliance	freestanding freestanding
Others	-	-

Explicații:

- Da, prezentate

Westgate House, Westgate, Ealing

Londra, W5 1YY

HCR3818ENMM HCR3818ENMG HCR3818EWMM HCR3818ENPT HCR3818EWPT HCR3818ENMD HCR7818DNMM HCR7818DWPT HCR39F19ENPT HCR39F19ENPT(UK) HCR39F19EWMM HCR39F19EWPT(UK)

شکرّا لک على شراء منتح Hai

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

تحذير!

Diagram showing a device with labeled components A and C, including a handle and arrow indicating direction or flow.

1

المعدات.

HCR7818DWPT, HCR3818EWPT . HCR3818EWMM * HCR39F19EWMM, HCR39F19EWPT (UK)

Diagram showing two labeled arrows (① and ②) pointing to a tray with textured surfaces, likely illustrating a physics or engineering concept.

Diagram showing two labeled arrows pointing upward and downward to a rectangular object, with numbered circles ① and ② indicating positions or sections.

Diagram showing a door with stairs, a thermometer, and directional indicators including OK and down arrows.

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Diagram of a refrigerator with labeled parts and directional arrows indicating assembly or movement

Line drawing of a refrigerator with an upward arrow indicating orientation (no text or symbols)

فقط للنموذج HCR39F19EWMM and HCR39F19EWPT(UK).

Notice:

Line drawing of an open refrigerator with multiple doors and shelves (no text or symbols)

A B C B

خزين #: Manufacturer

HCR39F19EWMHC R39F19EWPT (UK)

المprobably

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Technical diagram of a mechanical component with labeled parts A, B, and C, showing cross-sectional views.

نظيف خزان اللياه

$$ \rho \circ 5 7 0 = D 1 $$

$$ \text { ρ } 1 0 0 4 = D 2 $$

$$ \text { ρ } 9 5 6 = D 3 $$

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Pure mechanical diagram showing two vertical blocks with circular arrows indicating motion, no text or symbols present

Brand Haier Haier Haier Haier
Model name / identifier	HCR3818EN**	HCR3818EW**	HCR7818DN**	HCR7818DW**
Category of the model	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E	E	D	D
Annual energy	290	290	230	230
Total volume(L)	467	463	467	463
Volume refrigerator(L)	311	307	311	307
Volume freezer(L)	156	156	156	156
Star rating
Temperature of other	Non applicable	Non applicable	Non applicable	Non applicable
Frost-free system	Yes	Yes	Yes	Yes
Freezing	10	10	10	10
Climate rating(2)	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35) B(35)		B(35)
Temperature rise time (h)	10	10	10	10
Type of appliance	freestanding	freestanding	freestanding	freestanding
Others	-	--	-

Brand Haier Haier
Model name / identifier	HCR39F19ENPT**	HCR39F19EWMM HCR39F19EWPT(UK)
Category of the model	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E	E
Annual energy	350 350
Total volume(L)	651 651
Volume refrigerator(L)	420 420
Volume freezer(L)	231 231
Star rating
Temperature of other	Non applicable Non applicable
Frost-free system	Yes Yes
Freezing	12 12
Climate rating(2)	SN·N·ST·T SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35)
Temperature rise time (h)	10 10
Type of appliance	freestanding freestanding
Others	-	-

ال Coordination

• نعم، مقدمة

1905/908/748 (HCR39F19*)

اجهد الكهري/التردد

تيار الدخل (أمير)

Westgate House, Westgate, Ealing

London, W5 1YY

HCR3818ENMM HCR3818ENMG HCR3818EWMM HCR3818ENPT HCR3818EWPT HCR3818ENMD HCR7818DNMM HCR7818DWPT HCR39F19ENPT HCR39F19ENPT(UK) HCR39F19EWMM HCR39F19EWPT(UK)

Symbol of a trash bin crossed with no text or labels

Bertaraf

Model (HCR3818ENMM/HCR3818EWMM)

A 5 1 2 15 4 16 B 12 6 3 7 14 2 17 9 10 11 13

Kumanda paneli (HCR3818ENMP)

ECOPLUS Super-Cool 1 Low 3 5 • 7 9 Hight --------. * Super-Frz. -22 Low -20 -18 • -16 -14 Hight --------. d A Fridge 3 Sec. Super-Cool B Freezer 3 Sec. Super-Frz. C Auto Set D 3Sec. Lock

Düğmeler:

Super-Freeze işlevi (Super-Frz)

Diagram of a device with labeled components A and C, showing a component being inserted into a housing.

Açıklama

Diagram showing two labeled arrows pointing to a tray with internal components, likely illustrating a physics or engineering concept.

Diagram showing two labeled arrows (1 and 2) pointing upward and downward to a layered structure, likely illustrating fluid or material movement.

Diagram showing a shelf with an arrow pointing to a stack and a temperature thermometer icon with warning symbols.

Diagram showing two labeled steps (① and ②) of a hand holding a tray with arrows indicating direction or movement.

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Diagram of a refrigerator interior with numbered parts and directional arrows indicating assembly or movement.

Line drawing of a refrigerator interior with an upward arrow indicating direction (no text or symbols)

Line drawing of an open refrigerator with two doors and three shelves (no text or symbols)

A B C B

Işık

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Pure mechanical diagram showing two configurations with arrows indicating motion, no text or symbols present

Brand Haier Haier Haier Haier
Model name / identifier	HCR3818EN** HCR3818EW** HCR7818DN** HCR7818DW**
Category of the model	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E E D D
Annual energy	290 290 230 230
Total volume(L)	467 463 467 463
Volume refrigerator(L)	311 307 311 307
Volume freezer(L)	156 156 156 156
Star rating
Temperature of other	Non applicable	Non applicable	Non applicable	Non applicable
Frost-free system	Yes	Yes Yes	Yes
Freezing	10	10	10	10
Climate rating(2)	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35) B(35)		B(35)
Temperature rise time (h)	10	10	10	10
Type of appliance	freestanding	freestanding	freestanding	freestanding
Others	-	-	-	-

Brand Haier Haier
Model name / identifier	HCR39F19ENPT**	HCR39F19EWMM HCR39F19EWPT(UK)
Category of the model	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E	E
Annual energy	350 350
Total volume(L)	651 651
Volume refrigerator(L)	420 420
Volume freezer(L)	231 231
Star rating
Temperature of other	Non applicable Non applicable
Frost-free system	Yes Yes
Freezing	12 12
Climate rating(2)	SN·N·ST·T SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35)
Temperature rise time (h)	10 10
Type of appliance	freestanding freestanding
Others	-	-

Açıklamalar:

- Evet, özellikli

Westgate House, Westgate, Ealing

London, W5 1YY

HCR3818ENMM HCR3818ENMG HCR3818EWMM HCR3818ENPT HCR3818EWPT HCR3818ENMD HCR7818DNMM HCR7818DWPT HCR39F19ENPT HCR39F19ENPT(UK) HCR39F19EWMM HCR39F19EWPT(UK)

Hvala što ste kupili proizvod Haier.

Pažljivo pročitajte ove upute prije upotrebe uređaja. Upute sadrže važne informacije koje će vam pomoći da najbolje iskoristite uređaj i osigurate sigurnu i pravilnu ugradnju, upotrebu i održavanje.

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or labels)

Pomaže u zaštiti okoliša i ljudskog zdravlja. Stavite ambalažu u odgovarajuće spremnike kako biste je reciklirali. Pomognite reciklirati otpad električnih i elektroničkih uređaja. Nemojte odlagati uređaje označene ovim simbolom zajedno s kućanskim otpadom. Vratite proizvod u lokalno postrojenje za recikliranje ili se obratite svom općinskom uredu.

UPOZORENJE!

3Sec.Lock → 🔒

Diagram of a device with labeled components A and C, showing a component being inserted into a housing or enclosure.

Obavijest

▶ Prije ponovnog punjenja odložite preostalu vodu i očistite spremnik za vodu.
Ako vam voda nije potrebna dulje vrijeme, ispraznite spremnik za vodu i umetnite očišćeni spremnik.
Poklopac (C) na spremniku za vodu dodatno se koristi za uštedu energije. Ako dulje vrijeme ne namjeravate uzimati vodu iz spremnika za vodu, svejedno postavite poklopac radi bolje izolacije i uštede energije.

Diagram showing two labeled arrows pointing to a rectangular object with internal patterns, possibly illustrating a physical or engineering concept.

Podesive police

Diagram showing two labeled arrows (1 and 2) pointing upward and downward to a layered structure, with numbered circles indicating positions.

Diagram showing a door with a thermometer and directional arrows, alongside a circular warning symbol labeled 'OK'.

Uklonjiva ladica

Prilikom uklanjanja ladice, izvucite je do samog kraja (1), podignite i izvadite (2).

Prilikom ponovnog postavljanja ladice provedite opisane korake obrnutim redoslijedom.

Diagram showing two labeled steps (① and ②) of a hand holding a tray with Chinese characters, indicating a process or procedure.

Podesive police

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Demontaža držača boca za kuhalo vode

Diagram of a refrigerator interior with numbered parts and directional arrows indicating assembly or movement.

Demontaža poklopca kotlića

Line drawing of a refrigerator with an upward arrow indicating direction (no text or symbols)

Samo za model HCR39F19EWMM and HCR39F19EWPT(UK).

Notice:

Kada je uređaj uključen, može proći do 12 sati da se postignu ispravne temperature.

Uklonjive police na vratima/držač za boce

Police na vratima mogu se ukloniti radi čišćenja: Stavite ruke na obje strane stalka, podignite ga prema gore (1) i izvucite van (2).

Line drawing of an open refrigerator with multiple doors and shelves (no text or symbols)

Technical diagram of a mechanical component with labeled parts A, B, and C, showing cross-sectional views.

Svjetlo

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Simple line drawing of a 3D geometric structure with arrows indicating direction (no text or symbols)

1. Stabilnost se može provjeriti naizmjeničnim udarcima po dijagonalama. Uređaj se smije ljuljati u jednakoj mjeri u oba smjera. U suprotnom se može iskriviti okvir, što može dovesti do propuštanja brtvi na vratima. Mali otklon unatrag olakšava zatvaranje vrata

Pure mechanical diagram showing two vertical blocks with internal components and directional arrows, no text or symbols present.

Fino namještanje vrata

Ako vrata nisu na nivelirana, ta se neusklađenost može otkloniti na sljedeći način:

upotrebom podesivih nožica

Brand Haier Haier Haier Haier
Model name / identifier	HCR3818EN** HCR3818EW** HCR7818DN** HCR7818DW**
Category of the model	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E E D D
Annual energy	290 290 230 230
Total volume(L)	467 463 467 463
Volume refrigerator(L)	311 307 311 307
Volume freezer(L)	156 156 156 156
Star rating
Temperature of other	Non applicable	Non applicable	Non applicable	Non applicable
Frost-free system	Yes	Yes Yes	Yes
Freezing	10	10	10	10
Climate rating(2)	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35) B(35)		B(35)
Temperature rise time (h)	10	10	10	10
Type of appliance	freestanding	freestanding	freestanding	freestanding
Others	-	-	-	-

List s podacima o proizvodu prema uredbi EU br. 2019/2016

Brand Haier Haier
Model name / identifier	HCR39F19ENPT**	HCR39F19EWMM HCR39F19EWPT(UK)
Category of the model	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E	E
Annual energy	350 350
Total volume(L)	651 651
Volume refrigerator(L)	420 420
Volume freezer(L)	231 231
Star rating
Temperature of other	Non applicable Non applicable
Frost-free system	Yes Yes
Freezing	12 12
Climate rating(2)	SN·N·ST·T SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35)
Temperature rise time (h)	10 10
Type of appliance	freestanding freestanding
Others	-	-

Objašnjenja:

• Da, postoji

Westgate House, Westgate, Ealing

London, W5 1YY

HCR3818ENMM HCR3818ENMG HCR3818EWMM HCR3818ENPT HCR3818EWPT HCR3818ENMD HCR7818DNMM HCR7818DWPT HCR39F19ENPT HCR39F19ENPT(UK) HCR39F19EWMM HCR39F19EWPT(UK)

Zahvaljujemo se vam za nakup izdelka Haier.

Pure electrical circuit lines without any symbols

3Sec.Lock →

Diagram of a device with labeled parts A and C, showing a component being inserted into a housing or enclosure.

Obvestilo

*Samo za modele HCR3818EWMM, HCR3818EWPT, HCR7818DWPT, HCR39F19EWMM in HCR39F19EWPT (UK).

Diagram showing two labeled arrows pointing to a rectangular object with internal patterns, likely illustrating a physics or engineering concept.

Nastavljive police

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a layered structure, likely illustrating fluid or material movement.

Diagram showing a shelf with an arrow pointing to a black dot and a temperature thermometer icon with a snowflake symbol.

Odstranljiv predal

Diagram showing two labeled steps (① and ②) of a device with arrows indicating movement or transformation, possibly illustrating a process or state.

Nastavljive police

Višino polic je mogoče prilagoditi vašim potrebam po shranjevanju.

1. Če želite prestaviti polico, jo najprej odstranite tako, da dvignete sprednji rob ① in jo izvlečete ②.
2. Če ga želite znova namestiti, ga namestite na ušesa na obeh straneh in ga potisnite v skrajni zadnji položaj, dokler zadnji del police ni pritrjen v režah ob straneh.

Demontaža sklopa kotlička

Technical line drawing of a mechanical device with a gear and housing, no text or symbols present

Demontaža držala za steklenice kotličkov za vodo

Pritisnite na pokrov grelnika vode ①, dvignite dno steklenice navznoter ②, povlecite zunanji rob dna steklenice navzven, nato povlecite celotno stvar navzven ③.

Diagram of a refrigerator interior with numbered parts and directional arrows indicating assembly or movement.

Line drawing of a refrigerator with an upward arrow indicating orientation (no text or symbols)

Samo za modelHCR39F19EWMM and HCR39F19EWPT(UK).

Notice:

Line drawing of an open refrigerator with two doors and one shelf (no text or symbols)

Rezervoar za vodo

*Samo za modele HCR3818EWMM, HCR3818EWPT, HCR7818DWPT, HCR39F19EWMM in HCR39F19EWPT (UK).

Luč

Illustration of a hand cleaning a kitchen appliance with a cloth and a basin nearby (no text or symbols)

▶ Tesnilo na vratih naj bo vedno čisto.
Očistite notranjost in ohišje aparata z gobo, navlaženo v topli vodi in nevtralnem čistilu.

Simple line drawing of a 3D geometric structure with arrows indicating direction (no text or symbols)

Pure mechanical diagram showing two vertical blocks with internal components and directional arrows, no text or symbols present.

Brand Haier Haier Haier Haier
Model name / identifier	HCR3818EN** HCR3818EW** HCR7818DN** HCR7818DW**
Category of the model	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E E D D
Annual energy	290 290 230 230
Total volume(L)	467 463 467 463
Volume refrigerator(L)	311 307 311 307
Volume freezer(L)	156 156 156 156
Star rating
Temperature of other	Non applicable	Non applicable	Non applicable	Non applicable
Frost-free system	Yes	Yes Yes	Yes
Freezing	10	10	10	10
Climate rating(2)	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35) B(35)		B(35)
Temperature rise time (h)	10	10	10	10
Type of appliance	freestanding	freestanding	freestanding	freestanding
Others	-	-	-	-

Brand Haier Haier
Model name / identifier	HCR39F19ENPT**	HCR39F19EWMM HCR39F19EWPT(UK)
Category of the model	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E	E
Annual energy	350 350
Total volume(L)	651 651
Volume refrigerator(L)	420 420
Volume freezer(L)	231 231
Star rating
Temperature of other	Non applicable Non applicable
Frost-free system	Yes Yes
Freezing	12 12
Climate rating(2)	SN·N·ST·T SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35)
Temperature rise time (h)	10 10
Type of appliance	freestanding freestanding
Others	-	-

Pojasnila:

• Da, vključeno

(1) Na podlagi rezultatov preskusa skladnosti s standardi v 24 urah. Dejanska poraba je odvisna od uporabe in lokacije aparata.
(2) Ocena podnebja SN: Ta aparat je namenjen uporabi pri sobni temperaturi med 10 in 32°C

Ocena okolja N: Ta aparat je namenjen uporabi pri sobni temperaturi med 16 in 32 °C

Ocena podnebja ST: Ta aparat je namenjen uporabi pri sobni temperaturi med +16 in +38 °C

Ocena okolja T: Ta aparat je namenjen uporabi pri sobni temperaturi med +16 in +43 °C

Westgate House, Westgate, Ealing

London, W5 1YY

*Trajanje garancije hladilnega aparata:

Chladnička s mrazničkou

HCR3818ENMM

HCR3818ENMG

HCR3818EWMM

HCR3818ENPT

HCR3818EWPT

HCR3818ENMD

HCR7818DNMM

HCR7818DWPT

HCR39F19ENPT

HCR39F19ENPT(UK)

HCR39F19EWMM

HCR39F19EWPT(UK)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Simple architectural diagram showing a building with a checkmark symbol and label '1.' (no text or symbols on the diagram itself)

Ked' zatvoríte dvere, vertikálna lišta dverí na chladničke

2.

A: Chladiaci priestor

1 Typový štítok
2 Držiak na fl'aše/stojan na dverách
3 Sklenené police
4 Zásuvka chladničky
5 Lišta dverí
6 Horné svetlo
7 Vzduchové potrubie a snímač (za panelom)
8 Indikátor teploty OK (volitel'né)
9 Vzduchové potrubie (za zásuvkami)
14 Zadné svetlo (iba pre HCR7818DNMM a HCR7818DWPT)
15 Panel boxu vlhkosti (iba pre HCR7818DNMM a HCR7818DWPT a HCR39F19*)
16 Zóna vlhkosti (iba pre HCR7818DNMM a HCR7818DWPT a HCR39F19*)
17 Panel suchého boxu (len pre HCR39F19*)
10 Mraziaci podnos
11 Skladovacie zásuvky v mrazničke
12 Vzduchové potrubie
13 Nastavitelné nožičky

B: Mraziaci priestor

Ovládací panel

ECOPLUS Super-Cool 1 Low 3 5 7 9 Hight ... Super-Frz. -22 Low -20 -18 -16 -14 Hight ... d Fridge 3 Sec. Super-Cool Freezer 3 Sec. Super-Frz. Auto Set 3Sec. Lock

Tlačidlá:

A Volič chladničky
B Volič mrazničky
C Auto Set zapnutia/vypnutia
D Zamknutie/odomknutie panela

Indikátory:

a Teplota chladiaceho priestoru
b Teplota mraziaceho priestoru
c Režim Auto Set
d Zamknutie panela
e Funkcia Super Cool
f Funkcia Super Freeze

Poznámka

Diagram showing a device with labeled parts A and C, including a handle and arrow indicating flow or interaction.

Poznámka

*Len pre modely HCR3818EWMM, HCR3818EWPT, HCR7818DWPT, HCR39F19EWMM a HCR39F19EWPT (UK).

Diagram showing two labeled arrows pointing to a rectangular object with internal patterns, likely illustrating a physical or engineering concept.

Nastavitelné police

Diagram showing a door with stairs, a thermometer, and directional indicators including 'OK' and '↓'

Vyberatel'ná zásuvka

Ak chcete zásuvku vybrat, vytiahnite ju do maximálnej polohy (1), nadvihnite ju a vyberte (2).

Diagram showing two labeled arrows pointing to a rectangular object with internal patterns, possibly illustrating a physical or engineering concept.

Nastavitelné police

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Diagram of a refrigerator interior with numbered parts and directional arrows indicating assembly or movement.

Demontáž veka kanvice

Line drawing of a refrigerator with an upward arrow indicating direction (no text or symbols)

Len pre modelkuHCR39F19EWMM and HCR39F19EWPT(UK).

Notice:

*Len pre modely HCR3818EWMM, HCR3818EWPT, HCR7818DWPT, HCR39F19EWMM a HCR39F19EWPT (UK).

Line drawing of an open refrigerator with multiple doors and shelves (no text or symbols)

Technical diagram of a battery pack with labeled components A, B, and C, showing internal structure and connection points.

Osvetlenie

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

Technical diagram of a mechanical device with labeled parts A, B, and C, showing internal components and connection points.

Poznámka

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Pure mechanical diagram showing two vertical components with circular arrows indicating motion, no text or symbols present

Brand Haier Haier Haier Haier
Model name / identifier	HCR3818EN** HCR3818EW** HCR7818DN** HCR7818DW**
Category of the model	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E E D D
Annual energy	290 290	230	230
Total volume(L)	467	463	467	463
Volume refrigerator(L)	311 307	311	307
Volume freezer(L)	156 156	156	156
Star rating
Temperature of other	Non applicable	Non applicable	Non applicable	Non applicable
Frost-free system	Yes	Yes Yes	Yes
Freezing	10	10	10	10
Climate rating(2)	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T	SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35) B(35)		B(35)
Temperature rise time (h)	10	10	10	10
Type of appliance	freestanding	freestanding	freestanding	freestanding
Others	-	-	-	-

Brand Haier Haier
Model name / identifier	HCR39F19ENPT**	HCR39F19EWMM HCR39F19EWPT(UK)
Category of the model	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E	E
Annual energy	350 350
Total volume(L)	651 651
Volume refrigerator(L)	420 420
Volume freezer(L)	231 231
Star rating
Temperature of other	Non applicable Non applicable
Frost-free system	Yes Yes
Freezing	12 12
Climate rating(2)	SN·N·ST·T SN·N·ST·T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35) B(35)
Temperature rise time (h)	10 10
Type of appliance	freestanding freestanding
Others	-	-

Vysvetlenie:

- Áno, odporúčané

Westgate House, Westgate, Ealing

London, W5 1YY

HCR3818ENMM HCR3818ENMG HCR3818EWMM HCR3818ENPT HCR3818EWPT HCR3818ENMD HCR7818DNMM HCR7818DWPT HCR39F19ENPT HCR39F19ENPT(UK) HCR39F19EWMM HCR39F19EWPT(UK)

Aitäh, et ostsite Haieri toote.

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Käsitsi lukustamine: Kui ekraani lukustus on avatud, vajutage nuppu „D“ (paneelilukustuse valija) 3 sekundit. Kostab helisignaal, näidik „d“ (paneelilukk) süttib ja ekraan lukustub.

Diagram showing a device with labeled parts A and C, including a handle and arrow indicating flow or interaction.

Märkus.

Diagram showing two labeled arrows (① and ②) pointing to a rectangular object with textured surface, possibly illustrating a mechanical or electrical process.

Eemaldatavad ukseriiulid/pudelihoidik

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a layered structure, with arrows indicating direction of movement.

Diagram showing a shelf with an arrow and a warning sign with thermometer and star symbol, next to a door panel.

Eemaldatav sahtel

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating directional movement or process flow.

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Diagram of a refrigerator interior with numbered parts and directional arrows indicating assembly or movement.

Line drawing of a refrigerator with an upward arrow indicating orientation (no text or symbols)

Ainult mudelile HCR39F19EWMM and HCR39F19EWPT(UK).

Notice:

Line drawing of an open refrigerator with multiple doors and shelves (no text or symbols)

Veepaak

**Ainult mudelitele HCR3818EWMM, HCR3818EWPT, HCR7818DWPT, HCR39F19EWMM j HCR39F19EWPT (UK).

Valgusti

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Pure mechanical diagram showing two vertical panels with arrows indicating rotation, no text or symbols present

Westgate House, Westgate, Ealing

London, W5 1YY

* Külmutusseadme garantii kestus:

HCR3818ENMM HCR3818ENMG HCR3818EWMM HCR3818ENPT HCR3818EWPT HCR3818ENMD HCR7818DNMM HCR7818DWPT HCR39F19ENPT HCR39F19ENPT(UK) HCR39F19EWMM HCR39F19EWPT(UK)

Symbol of a trash bin crossed with no text or labels

Utilizavimas

Diagram showing a device with labeled parts A and C, including a handle and a droplet on top.

Pastaba

Diagram showing two labeled arrows (① and ②) pointing to a rectangular object with textured surface, possibly illustrating a physical or engineering concept.

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a layered structure, likely illustrating a mechanical or fluid system concept.

Diagram showing a staircase with an arrow pointing to the stairs and a control panel with temperature and warning symbols.

Išimamas stalčius

Diagram showing two labeled steps (① and ②) of a device with arrows indicating direction or movement, possibly illustrating a process or system.

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Diagram of a refrigerator interior with numbered parts and directional arrows indicating assembly or movement.

Line drawing of a refrigerator with an upward arrow indicating motion (no text or symbols)

Tik modeliuiHCR39F19EWMM

and HCR39F19EWPT(UK).

Notice:

Line drawing of an open refrigerator with multiple doors and shelves (no text or symbols)

Vandens talpykla

Illustration of a hand cleaning a window with a cloth and a basin nearby (no text or symbols)

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Pure mechanical diagram showing two vertical blocks with arrows indicating motion, no text or symbols present

Westgate House, Westgate, Ealing

London, W5 1YY

HCR3818ENMM HCR3818ENMG HCR3818EWMM HCR3818ENPT HCR3818EWPT HCR3818ENMD HCR7818DNMM HCR7818DWPT HCR39F19ENPT HCR39F19ENPT(UK) HCR39F19EWMM HCR39F19EWPT(UK)

Symbol of a trash bin crossed with no text or labels

3Sec.Lock →

Diagram showing a device with labeled components A and C, including a handle and a droplet on top.

Piezīme

Diagram showing two labeled arrows (① and ②) pointing to a tray with textured surfaces, likely illustrating a process or movement.

Regulējami plaukti

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a layered structure, possibly illustrating fluid or material movement.

PAPILDIESPĒJA: OK temperatūras indikators

Diagram showing a staircase with an arrow and a warning sign with thermometer and star symbol, alongside a circular icon labeled 'OK'.

Iznemama atviktne

Lai iznemtu atvilktni, maksimāli izvelciet to (1), paceliet un iznemiet (2).

Diagram showing two labeled arrows pointing to a rectangular object with internal patterns, possibly illustrating a physical or engineering concept.

Regulējami plaukti

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Diagram of a refrigerator interior with numbered parts and directional arrows indicating assembly or movement.

Line drawing of a refrigerator with an upward arrow indicating orientation (no text or symbols)

Tikai modelim HCR39F19EWMM and HCR39F19EWPT(UK).

Notice:

Line drawing of an open refrigerator with multiple doors and shelves (no text or symbols)

Technical diagram of a mechanical component with labeled parts A, B, and C, showing cross-sectional views.

**Tikai modeliem HCR3818EWMM, HCR3818EWPT, HCR7818DWPT, HCR39F19EWMM u HCR39F19EWPT (Apvienotā Karaliste).

Apgaismojums

Illustration of a hand cleaning a window with a cloth and a basin nearby (no text or symbols)

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Pure mechanical diagram showing two vertical panels with circular arrows indicating rotation, no text or symbols present

Westgate House, Westgate, Ealing

London, W5 1YY
