USER MANUAL SS-8790 Sogo

Black portable electronic device with dual circular fans and a handle, no visible text or symbols

ALTAVOZ PORTÁTIL RECARGABLE PORTABLE RECHARGEABLE PARTY SPEAKER ENCEINTE PORTABLE RECHARGEABLE ALTO-FALANTE RECARREGÁVEL PORTÁTIL TRAGBARE WIEDERAUFLADBARE PARTY LAUTSPRECHER ALTOPARLANTE PORTATILE RICARICABILE

Caution: please read and preserve these important instructions

ÍNDICE

Diagram of an electronic device control panel with labeled buttons, indicators, and display screens

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

2. SYMBOLS DEFINITIONS

• DANGER: Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. This symbol appears only in the most extreme situations.
• WARNING: Indicates a potentially hazardous situation which could result in death or serious injury.
• CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in minor/ moderate injury or product/property/ damage. It also warns against unsafe practices.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of insulated ‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT

REMOVE COVER (OR BACK), NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual book accompanying the appliance.

3. SAFETY INSTRUCTIONS FOR THE USER

I. Restrictions

• Do not use the appliance for any other purpose than described in this manual.
• Do not place or operate the Bluetooth speaker near water sources.
• Do not use or store the appliance outdoors.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• While using the appliance, make sure that the power cord must not be caught or crushed.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in

order to avoid Hazard.

• Never immerse the speaker or the charging cable-in water or any other liquid. In the event of the speaker falling in water take it to an authorized service agent for repair before reusing.
• Do not place or operate the speaker on or near hot surfaces (e.g., stove plates) or open flames.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or irreparable damage to the product.
• Do not use the speaker for any other purpose than described in this manual.
• Do not leave the speaker charging longer than recommended by the manufacturer, as this may damage the battery or the speaker itself.
• Do not use the speaker while in charge, otherwise it may also damage the speaker.
• This product has no user-serviceable parts. Do not attempt to repair this product yourself. Only qualified service personnel should perform servicing. Take the product to the electronics repair shop of your choice for inspection and repair.
• NEVER let anyone, especially children, push anything into holes, slots or any other openings in the unit's casing as this could result in a fatal electric shock.
• Don't mount this product on a wall or ceiling.
• Do not place the unit near TVs, speakers and other objects that generate strong magnetic fields.

- Do not leave the unit unattended when it is in use.

NOTE: To disconnect the system completely if it not to be used for a long time, remove the AC power plug from the wall outlet.

• Do not drop, disassemble, deform, modify or insert any objects into holes of the speaker as it may result the product damage.
• Do not clean the product with alcohol, ammonia-based cleaners and abrasive cleaners.
• Do not place this product in to contact with any sharp objects as this may cause scratches and operating damage.
• Do not attempt to replace the product battery, it is built-in and is not user changeable.
  • Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children.

II. Precautions while during the usage of product

• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before

plugging in the appliance.

• In case of speaker malfunction, or if it has been damaged in any manner, return it to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.
  • Always place the appliance on to the flat and even surface.
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
• Make sure your hands are dry before plug or unplugging.

Keep the speaker away from direct sunlight, fire, or other high voltage equipment.

WARNING: the device might get warm during charging. Always ensure the speaker is turned off when you plug and unplug the device. If the device is not turned off you might damage the speaker or injure yourself.

• Place the unit where there is good ventilation. Place the system on a flat, hard and stable surface. Do not expose to temperatures above 40°C. Allow at least 30 cm clearance from the rear and the top of the unit and 5 cm from each side.

• Press the 'buttons of the unit gently. Pressing them too hard can damage the unit.
  • Always ensure that the product is unplugged from the electrical outlet before moving or cleaning. Clean it with dry cloth only.

• Unplug the product during lightning, storms or when it will not be used for long periods of time.

• Observe all signs and displays that require an electrical device or RF radio product to be switch off in designated areas.
• Dispose of the product and the product's battery in accordance with local laws and regulations.
• Dispose of used batteries in an environmental-responsible manner.

4. Product Features

• 2*12" bass speaker with tweeter for high pitches sound
• Wireless portable Bluetooth speaker with LED light
  • Actual 50W RMS power (1000W PMPO)
• Enjoy the musical 'beats with RGB colours lightning effects (Various lighting effects and various colour changes)
• TWS music system in capable of working as stereo pair with another speaker (same model)
  • MP3 and FM function
• With auxiliary cable and dual microphone input
  • Memory card slot with 32/64 GB capacity and USB slot
• With 7000mAh high power performing battery capacity to enjoy the music for long period of time
• Protected against water splashes: IP4 Protection
• Karaoke function
• Accessory: Remote control, Wired Mic, Power adaptor of 15V, 2A

5. Technical Specifications

Output power

Sound sensibility

Frequency response

Distortion

Bluetooth version

Bluetooth range

Bluetooth pairing name

USB & TF max. memory supported

Battery capacity

Battery type

Power Adaptor

Working time

Charging time

Slot

Connection

50W RMS power (1000W PMPO)

≤90dB

90Hz-18Khz

≤1%

V5.0

10 metres

SOGO SS-8790

64 GB

Built-in 12V / 7000mAh

Lead acid

15 V, 2A

5 hrs (Max)

6 hrs

SD card, USB (64GB) and dual microphone input

Bluetooth / Auxiliar input

6. Product and accessories Information

The box of this product contains 1 Bluetooth speaker, Instruction manual, Charging adapter, 1 Remote control and 1 Wireless microphone.

1 Bluetooth speaker

1 Charging adaptar

1 Instructions 1 Remote control 1 Wireless

microphone

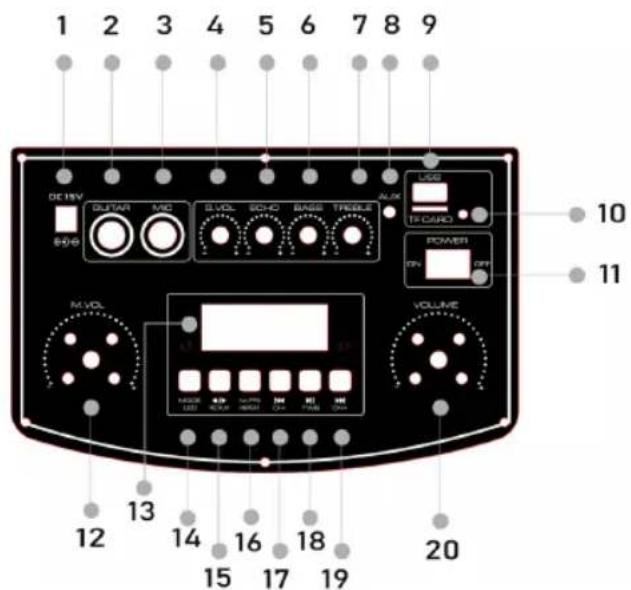

7. Product and Panel Overview

1 2 3 4 5 6 7 8 9 DE INV OUTFAR MIC SOVOL SO-IO BASIS TRIGURE ALOX USB TI CARD POWER ON OFF M VOL VOLUME 12 13 14 15 16 17 18 19 20 10 11

Top panel

This panel is located on the top part of the speaker, with multiple buttons and functions we can manage multiple things.

1. DC INPUT 15 V: To connect the Power adaptor to charge the speaker.
2. Guitar Input: This speaker has Guitar input, with the help of this we can connect the guitar to the speaker and play our own creations.
3. Mic Input: To connect wired microphone.
4. Guitar Volume: With the help of Guitar volume rotating knob we can increase and decrease the

mic volume. Rotating it in clockwise direction increase the volume and anticlockwise decreases it.

1. Echo: Press the ECHO button on unit turn on or off the microphone echo effect.

2. Bass: Press the SUPER BASS button on unit to increase the bass effect.

3. Treble: To change Sound and music quality

4. AUX input: With the help of Auxiliar cable can connect any devise like MP4, Radios or any other devise and enjoy the content.

5. USB Input: Supports 64Gb USB card. Once we insert the USB card into the slot we can listen the music and songs saved In USB drive.

6. TF card: Supports Max. 64GB TF card. To listen the music saved in TF card, just need to insert the TF card in the slot available and enjoy the music.

7. Power on/off: With the help of this button can switch on the switch off the unit.

8. Mic Volume: This rotating knob helps increase and decrease the mic volume. Rotating it in clockwise direction increase the volume and anticlockwise decreases it.

9. LED Display: located on to the top part of the speaker, to show speaker functional mode and other sound setting details.

10. Mode / LED switch: This button has dual functions. If need to change the speaker functional mode need to press for short time (Short press) and we can choose any mode (FM/BLUETOOTH/AUX). In order to use this switch as Led light switch, need to press for longer time (long press), so that we can turn on and turn off the LED lights.

11. REC / Play: This button also has dual functioning; with the short press we can play the music and with long press we can start recording function.

12. MIC / REPEAT: With the help of this button, we can choose in between mic priority and repeat song. With short press we can choose the Mic priority mode and with the long press of this button we can listen our favourite music or song multiple times.

13. Previous Song/Previous Channel: To move on the previous song hold the button and press it once and it will move to previous song and the same way, keep pressing the button until you get the desired song from the play list. The same button we can use in FM mode to switch the FM channel.

14. PLAY-PAUSE / TWS PAIRING: With the help of this button we can play / pause the music at anytime and also the same button we can use for TWS pairing function. With short press we can play/Pause and long press helps us in TWS pairing.

15. Next Song/Next Channel: To change to the next song, hold the button and press and it will move to next song and the same way, keep pressing the button until you get the desired song from the play list. The same button we can use in FM mode to switch the FM channel.

16. Music Volume: This rotating knob helps to increase and decrease the music volume. Rotating it in clockwise direction increase the volume and anticlockwise decreases it.

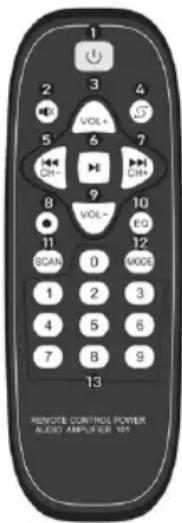

8. Remote control buttons overview

1 2 3 4 VOL+ 5 6 7 CH+ CH+ 8 9 10 VOL- 11 12 SCAN 0 MODE 1 2 3 4 5 6 7 8 9 13 REMOTE CONTROL POWER AUDIO AMPLIFIER 101

1. Standby state: With the help of this button unit can be switch on and put in the stand by mode, to switch it off permanent, need to switch of with the button located on the back part of the speaker.

2. Mute: To Mute or unmute speaker sound.

3. Volume increase: To increase the volume.

4. Repeated a song in audio mode: With the help of this button you can listen your favourite song multiple times and tirelessly.

5. (fast rewind): In Bluetooth audio mode this button helps to move on to the previous song or video, In Fm mode to move on to the next channel searching manually.

6. Play/pause: this button helps to play / pause the music in any mode. In FM mode, with the short press can be moved to next saved channel. If we press same this button once in FM mode, this same button starts searching different FM channels and keep saving automatically.

7. (fast forward): In Bluetooth audio mode this button helps to move on to the Next song or video, In Fm mode to move on to the next channel searching manually.

8. Stop: With the help of this button we can stop the music at anytime.

9. Volume reduce: To reduce the volume.

10. For audio mode, change EQ adjustment with short press: This unit has a in-built equalizer system, press the EQ button on unit to select a setting that best matches the music style: FLAT, CLASSIC

11 SCAN: we can use this button when the speaker is in FM mode, this button helps to search automatically FM channels and once it searched the channel, saves automatically in the system.

1. Mode conversion (Media player/AUX/FM): Audio switch mode (Memory card or

TF card mode): This speaker works in multiple modes, among one is Bluetooth mode and others are like Auxiliar, FM; USB drive and Micro TF card mode.

The Bluetooth mode is default mode and when the speaker doesn't have any memory card it works only in the default mode, but when the speaker has memory card inserted, then it enters into the Memory SD card / USB drive mode.

This button help to change and select the from Bluetooth to Auxiliar or FM mode.

1. 0-9 Directly select the channel which has saved in the system already

9. Bluetooth Speaker functions

Before starting

Make sure to full charge the battery of speaker before first use, as it enhances the battery lifespan. The default mode is Bluetooth mode and later you can change it in any mode with the help of mode button.

IPX4 PROTECTION:

This unit provide with IPX4 protection, it means it is protected from water splashes.

But still, make sure while using it any nearby water source button panels are away from direct water connection, also need to make sure that the charging input must not get wet.

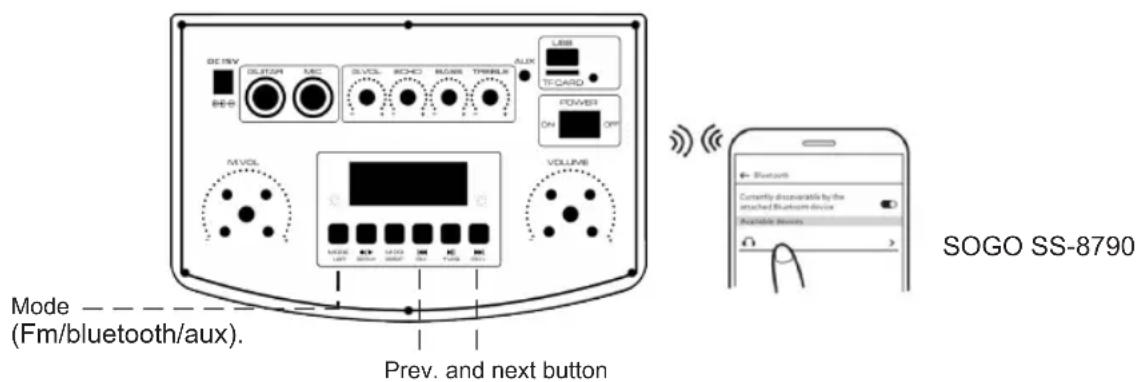

How to connect devise with the Bluetooth speaker?

To connect your electronic device, turn on the speaker with the help of On/Off button located in the back panel and the speakers automatically enters into pairing mode, also turn on the Bluetooth mode of your electronic device and make sure it will be visible to all the nearby devices.

Search for the Bluetooth pairing name SOGO SS-8790 on your device screen and once it appears press it to connect with the speaker and wait until connected.

Once your device is connected to the speaker, the RGB lights start to move fast.

Now you can play any music or song on your device to listen through the Bluetooth speakers.

With the help of Play / Pause button you can play and stop the music anytime.

With Prev. and next button, you can choose the songs from the song list.

NOTE: once your device is connected with the Bluetooth speaker, then there is not any need to reconnect it and whenever you will turn on the Bluetooth of your device it automatically connects with the speaker.

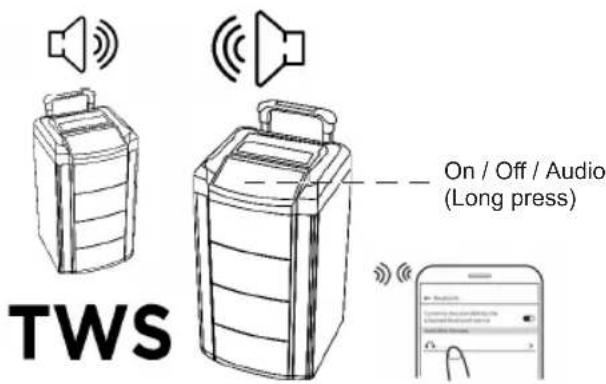

TWS functioning:

TWS On / Off / Audio (Long press)

This speaker model has a special function, known as TWS (True wireless) function, In this function we can connect 2 speakers at the same time with the same device without any wired connection.

This function helps to enhance the sound level and also helps to cover a big area for parties and functions.

To turn on the TWS function, switch on the 2 identical and same model speakers.

Press the play button for long period (long Press) and in no time both of the speakers will be connected to the device.

Now you can enjoy music and songs with enhance quality.

NOTE: to make the use of TWS function make sure the both of the speaker must be of same models and also need to have same Bluetooth pairing name.

Aux-In / Line-In

With the help of Aux-In input you can connect all the musical devices such as Radios, Laptops, Televisions, and all the devices, which doesn't have Bluetooth connection function.

To connect the devices, you need an audio cable and connect the one end to the speaker Aux-in and other side to the device which needed to connect and automatically device will connect with the speaker. Aux-In mode is automatic and one you insert the auxiliar cable speaker automatically enters into the mode.

With the help of device, you can play the music and songs.

NOTE: In this mode all the functions, controlled by the external devise.

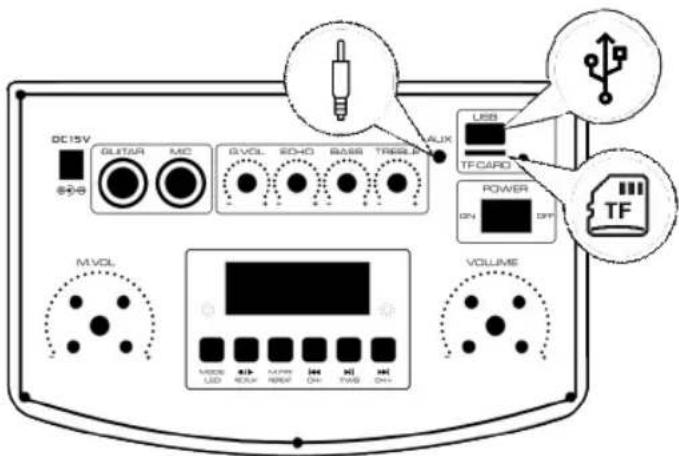

Music with the help of USB drive and Micro TF / SD card:

DC15V GUTAR MC GVOL SCHO BASE TRESS LUX LESS TF CARD POWER ON OFF MVOL VOLUME MODS LED ROI MAX MAX Icc TVS AI AI

This speaker has USB and Micro TF card slots, with the help of these slots you can listen the music saved in your pen drive or memory card.

To play the speaker in USB drive mode / TF card mode, firstly switch on the speaker with the help of power button located on the back panel.

Insert the USB pen drive or micro-SD card into the corresponding slots, for this mode as well no need to choose the mode as just by inserting USB card / micro-SD card unit speakers automatically start to play saved music.

In this mode with the help of Play button music can be played or paused at any time, and with prev. and next button you can switch the songs from the song list saved into the external memory cards.

NOTE: Make sure while you insert the USB drive / Micro SD card the speaker must be in Bluetooth mode.

FM mode:

Press the power button to switch on the speaker and with the help of Mode button you can switch from Bluetooth mode to FM mode.

Press the "Play" button and speaker automatically start to search different FM channels and once receive the signal of the channel keep saving automatically.

Once all the FM channels be saved, you can search your favourite FM channels with the help prev. / next button and listen the music.

NOTE: IN FM mode, in order to get the better FM signal, please insert audio cable in Aux-in input and it works as antenna.

Recording function:

To use the recording function, make sure that the speaker have inserted USB pen drive or TF card. Turn on the speaker and plug in the microphone, once the microphone gets connected, your device is ready to record your voice.

Press the REC button to start the recording procedure and the same button you can use to stop the recording.

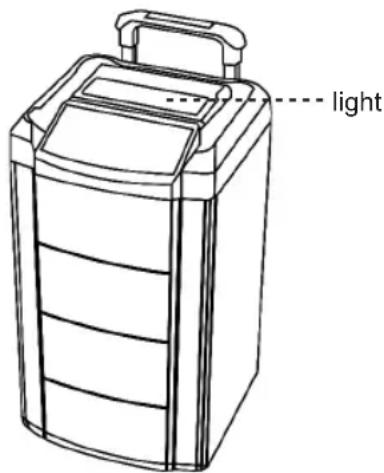

RGB LED Light function

light

The default Light colour is multiple colours moving rings. The rings continue moving with the changing colours. While pressing the first time the single colour rings appears and keep changing colours automatically. Pressing the button again the single colour rings revolve and constantly changes the colour, so this way there are multiple-coloured rings options which keep changing and flashes as per music beat. Also, you can turn off the light by keep pressing until it turns off on its own.

Microphone connection

This speaker has 1 microphone inputs available and with the help of that you can connect microphone provide with the speaker unit.

With the help of rotating Mic volume knob, you can increase or decrease the volume.

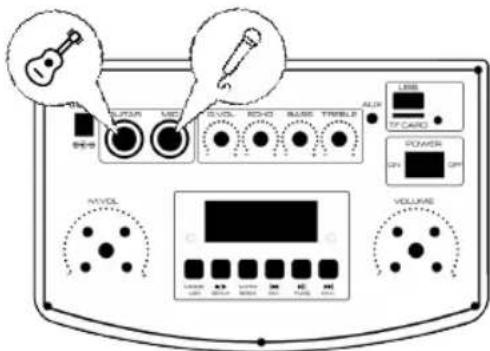

Guitar input

With the help of available guitar input, you can connect the guitar and mix the guitar sound with any music and create your own musical creations.

Diagram of an electronic instrument panel with labeled buttons, indicators, and control panels including guitar, speaker, and power.

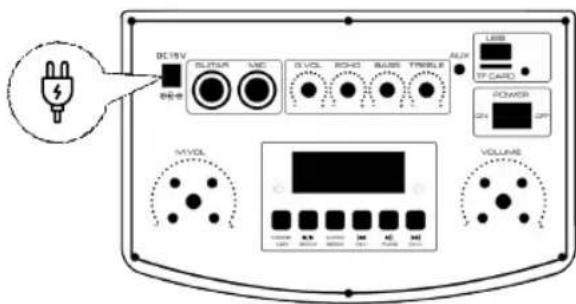

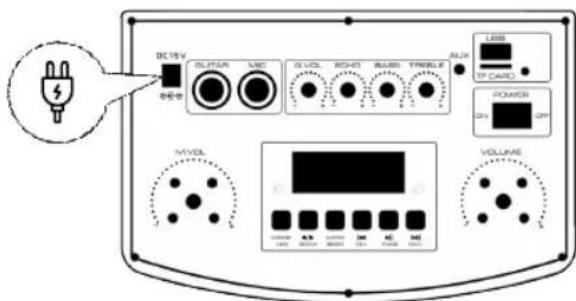

10. Charging instructions

DC15V RS-60 SLITAR SNC OL VOL RCHD BLUSS TRIMILE ALUX USB TP CARD POWER ON OFF MVOL VOLUME

This unit has inbuilt battery and to charge it this unit is provided with power adaptor of 15V, 2A. In order to charge the battery turn off the unit and insert the power adaptor in electrical wall outlet, and connect it with the help of charging slot of the speaker. The indicator light will turn Red and it means unit is charging.

Approx. charging time is 5-6 Hours, once the battery get fully charged, the indicator light turn into green light.

To extend the battery life, make sure do not charge it more than 8 hours at a time.

NOTE: Play time depends on the type of music and volume, with 50% volume and normal music or sound it works approx. 5 hours.

Inbuilt battery is not replaceable, do not remove it or replace it on your own and in case of any issue take it to the authorized service center to get repair.

Also make sure at the time of charging the battery charging adaptor input must be dry.

Do not use the speaker while in charge as it might reduce the life of battery.

11. Cleaning and maintenance

While cleaning the product, just use soft or dry cloth and in case of severe stains use the damp cloth.

Do not use abrasive cleaners, as it can damage the paint, plastic or even the speaker itself.

Keep it away from sun light and do not keep it in hot and humid atmosphere.

Make sure to remove the power adaptor cable and keep it in cool and dry place.

12. Disposal of electronic goods

DISPOSAL OF BATTERY OPERATED UNITS

Do not dispose the battery operated units as normal rubbish, always these should be recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

INDICE

TWS Allumer / Éteindre / Audio (appui long)

Diagram of an electronic device control panel with labeled buttons, indicators, and display screens

10. Instructions de chargement

DC15V RSI SNC G VOL RCHD BLASS TPMULF ALX USB TP CAND POWER ON OFF MVOL VOLUME

Diagram of an electronic device control panel with labeled buttons, indicators, and display screens

Diagram of an electronic device control panel with labeled buttons, indicators, and display screens

10. Ladeanweisungen

DC15V SLITAR SMC OL VOL RCHD BLASS TPNBLK ALX USB TP CARD POWER ON QP MVDL VOLUME

Diagram of an electronic instrument panel with labeled buttons, indicators, and control panels including guitar, speaker, and power.

DÉCLARATION DE CONFORMITÉ

DECLARATION OF CONFORMITY

This device complies with EU RED Directive 2014/53/EU related to Health and Safety from usage of Radio spectrum in household electronic equipment.

Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU.

Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

151 263/EU

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards
Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain
Product manufactured in P.R.C. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
