USER MANUAL PHY_FS_01 Physa

A B C D E F G I J K L M MAX MIN

Diagram of a mechanical device with four wheels and a central component, labeled '2' (no text or symbols on the diagram itself)

3 r

Line drawing of a medical or rehabilitation stand with a vertical pole and four wheels, showing a force arrow (no text or symbols)

Line drawing of a medical or laboratory stand with a vertical pole and labeled number 5 (no text or symbols on the device itself)

Line drawing of a medical or laboratory stand with a vertical pole and wheels, labeled '6' (no text or symbols on the diagram itself)

Line drawing of a medical or office chair with a vertical arm and wheels, labeled '7' (no text or symbols on the device itself)

Line drawing of a medical or rehabilitation device with adjustable arm and wheels (no text or symbols)

BETRIEBS-TIPPS

Diagram illustrating a thermal measurement process with a thermometer and a target dial, showing directional arrow.

Diagram showing a device with lock and 90-degree angle annotation, alongside its schematic diagram.

Diagram showing a water tap with flow direction and a graduated cylinder labeled MAX and MIN.

Diagram illustrating the step-by-step installation of a steam fan with labeled components including STEAM, ozone, and thermometer.

Diagram showing three-step assembly of a handheld device with a tool, no text or symbols present

Illustration of a hand holding a handheld device with a curved arrow indicating rotation (no text or symbols)

Diagram showing a device with a cable being inserted into a speaker, labeled with time and distance indicators.

Pure electrical circuit components without any text or symbols

5% vinegar. 95% water 3-6 hrs

Diagram of a robotic arm interacting with a container, showing motion and flow direction (no text or symbols)

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

TECHNICAL DATA

Parameter description Parameter value
Product name		Facial steamer with LED and magnification lamp
Model		PHY-FS_01
Rated voltage [V~] / frequency [Hz]		230 / 50
Rated power [W]		760
Protection class	Steamer	I
	LED lamp	II
Dimensions [width x depth x height; mm]		520 x 710 x 1510
Weight [kg]		3.95
Water reservoir capacity [L]		0.7
Magnification		3x
Timer [min]		0-30
Height adjustment [cm]		78-95

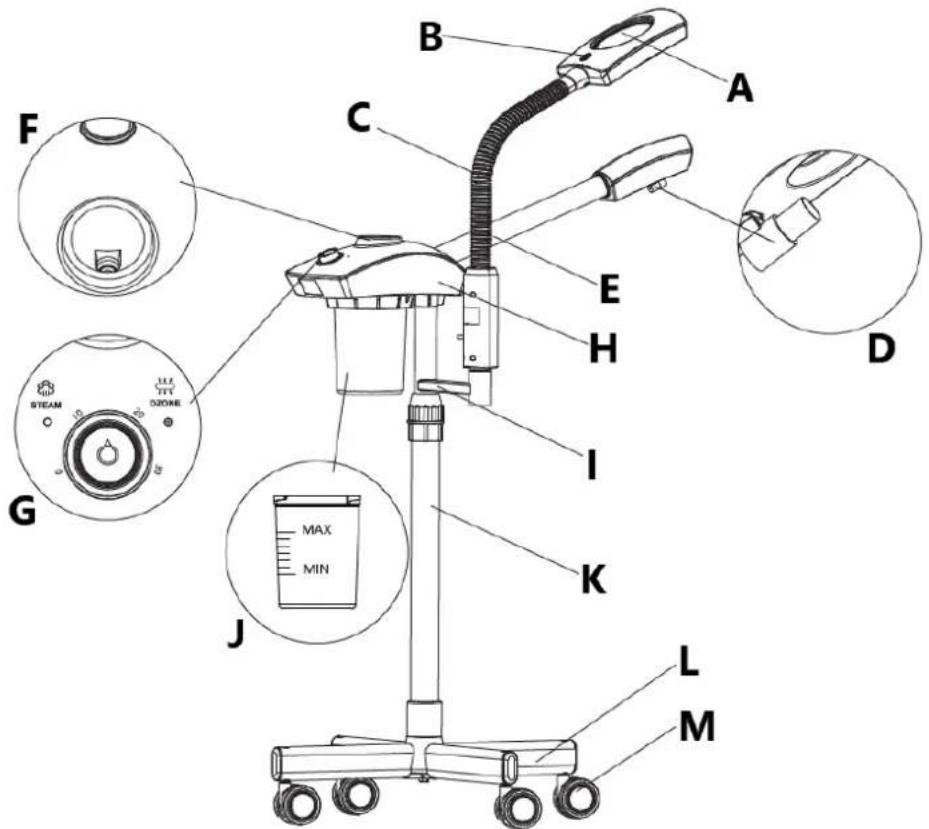

DEVICE DESCRIPTION

A B C D E F G I J K L M MAX MIN

A. Magnifying glass with LED lamp
B. LED Lamp on/off-button
C. Adjustable lamp neck
D. Aroma-emitting tube

E. Spraying pipe
F. Water filling opening
G. Steamer on/off switch with timer knob
H. Steamer
I. 2 in 1 support
J. Water reservoir
K. Telescopic pole
L. Base
M. Castors

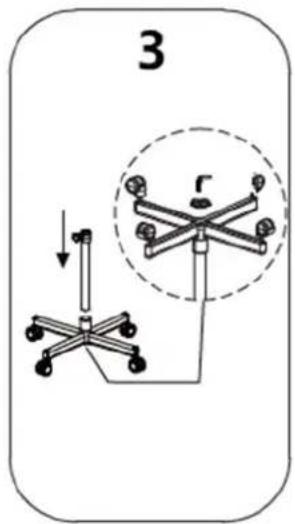

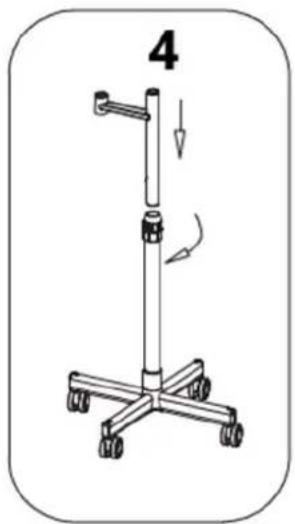

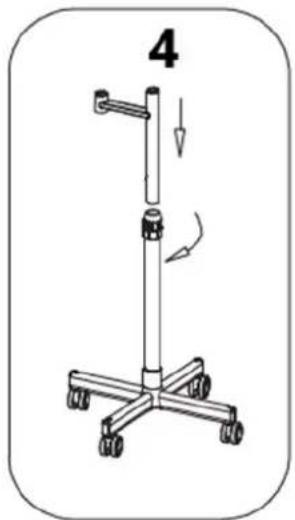

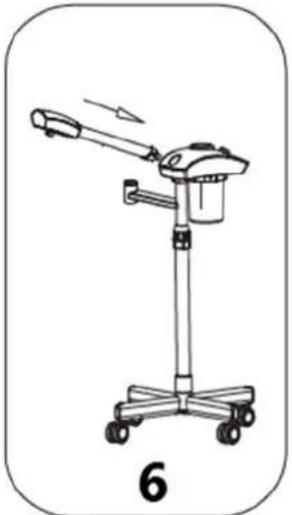

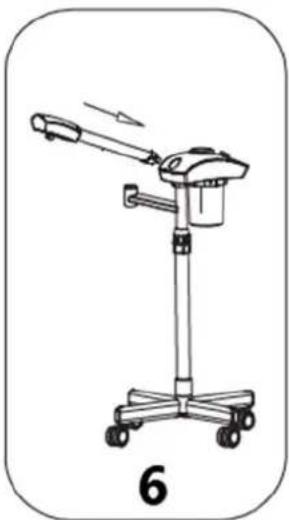

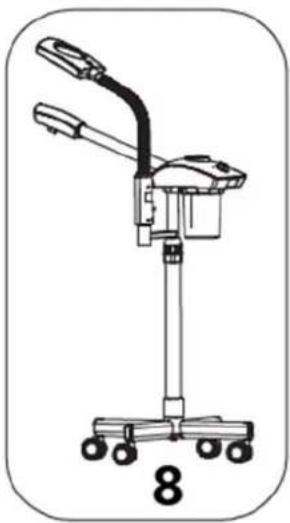

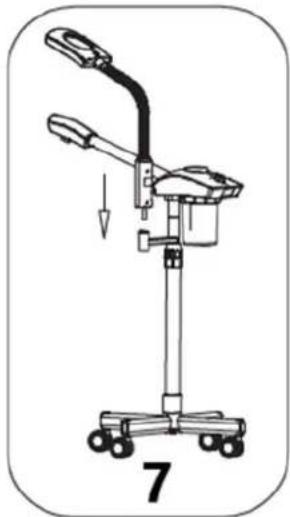

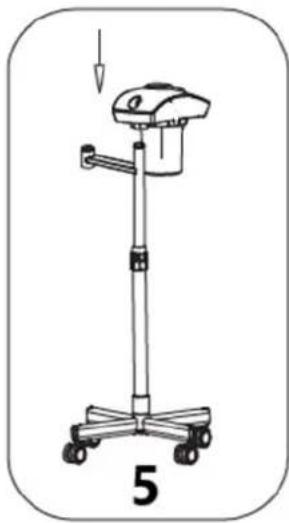

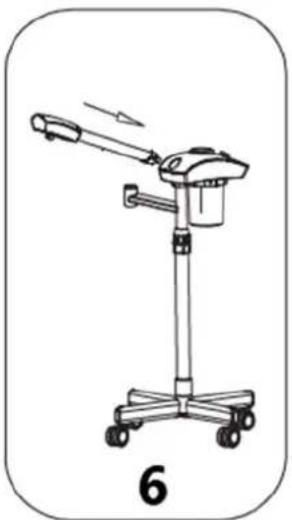

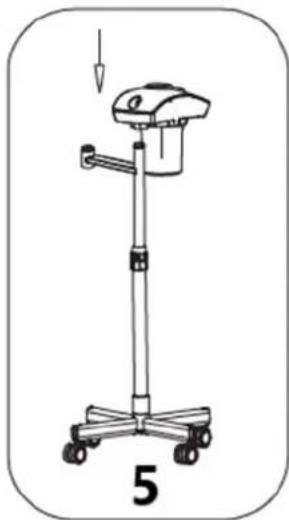

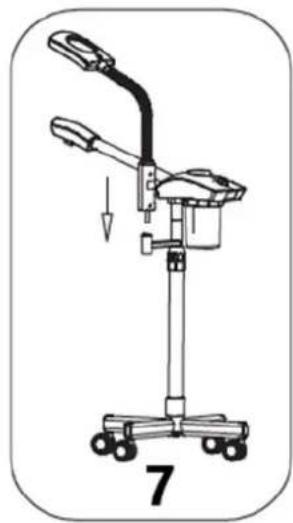

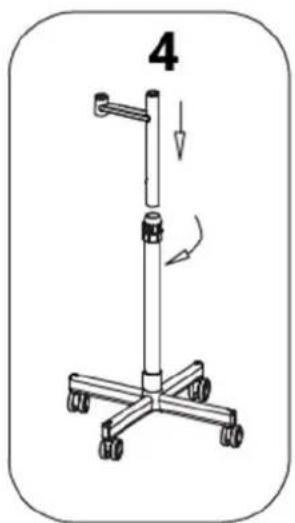

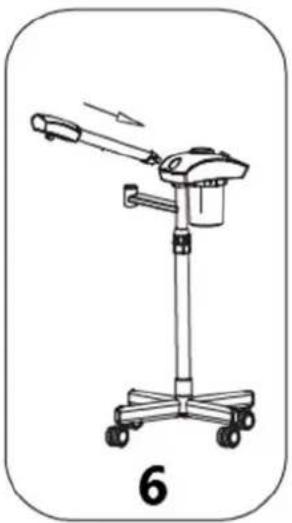

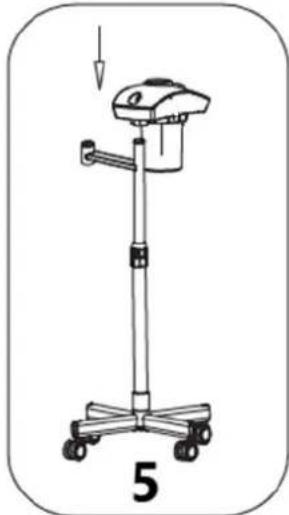

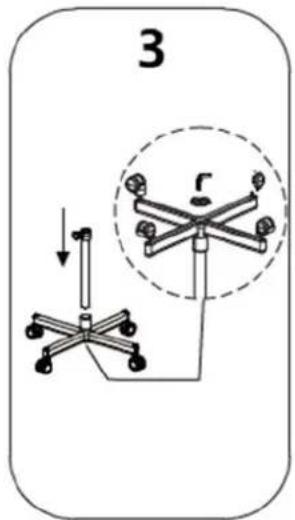

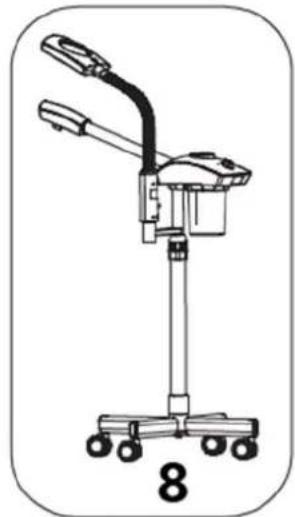

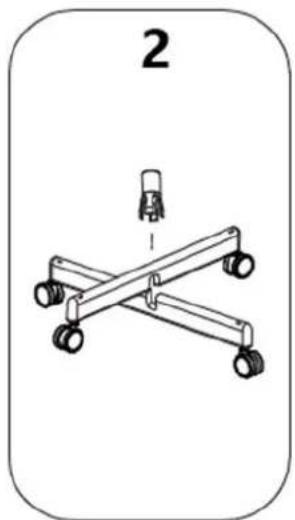

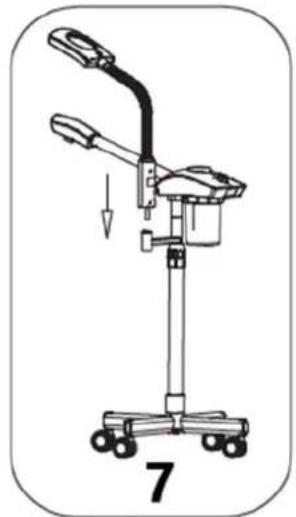

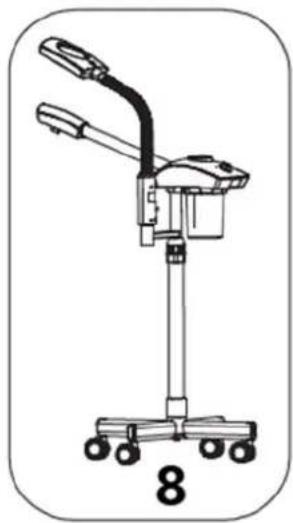

ASSEMBLY

1

Diagram of a four-wheeled cart with wheels and a small object on top, labeled '2' (no text or symbols on the diagram itself)

3 r

Line drawing of a medical or rehabilitation stand with a vertical pole and four wheels, showing a force arrow (no text or symbols)

Line drawing of a medical or laboratory stand with a vertical pole and labeled number 5 (no text or symbols on the device itself)

Line drawing of a medical or laboratory stand with a vertical pole and wheels, labeled '6' (no text or symbols on the diagram itself)

Line drawing of a medical or office chair with a vertical arm and wheels, labeled '7' (no text or symbols on the device itself)

Line drawing of a medical or rehabilitation device with adjustable arm and wheels (no text or symbols)

OPERATION TIPS

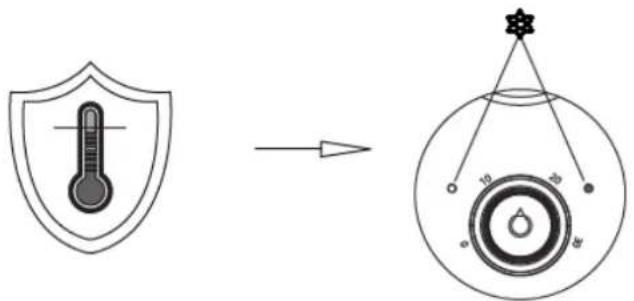

1. Thermo-control system

This device comes with a thermo-control system for safety purposes. When the unit is overheating due to lack of water, it will shut off automatically and the indicator lights for steam and UV will start to blink. To turn on steaming again, please fill the water tank with clean water and wait for the unit to cool down for a while. When the indicator lights for steam and UV stop blinking and turn off, press the on/off button and the unit will start working again:

Diagram illustrating temperature measurement with a shield icon and a circular target with scale markings

1. Suitable water-type

This steamer works with almost all types of clean water, such as purified water, distilled water, mineral water, tap water and etc. However for the best performance and proper maintaining of this unit, please use purified or distilled water.

WARNING: do not add any additives or essential oils into the water. Doing so may damage the unit or cause injure to users!

DEVICE USE

1. Plug both power cords (steamer and LED lamp) to the mains.

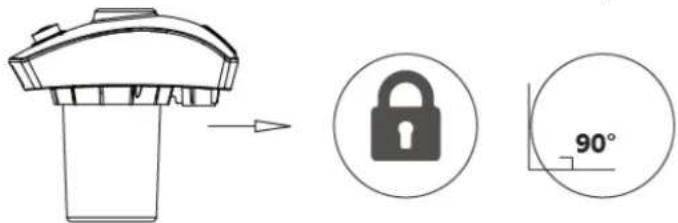

2. Check and make sure the water reservoir is fixed securely and aligned:

Diagram showing a device component with an arrow pointing to a lock icon and a 90-degree angle measurement.

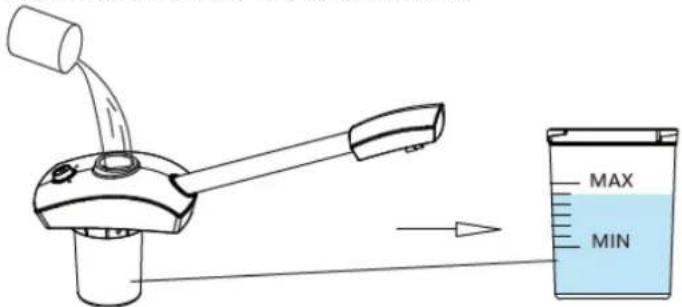

1. Fill the water reservoir through the top opening on the steamer with clean water. Make sure the water level is between the MAX and MIN marks (do not overfill!):

Diagram illustrating a water tap with labeled maximum and minimum water levels, showing flow direction and measurement scale.

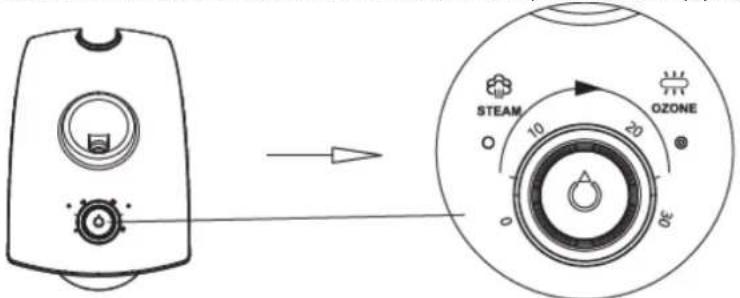

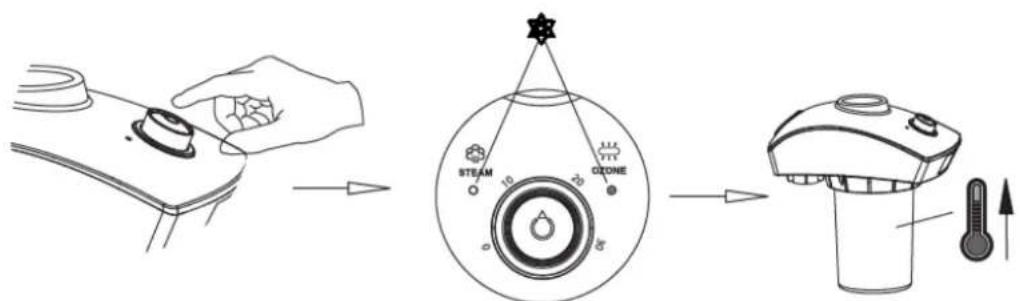

1. Turn the timer knob clockwise to set the desired operation time (up to 30 min.):

STEAM 10 20 30 OZONE

1. Press the on/off-button to turn on the unit. The unit will start to heat the water and the UV light will illuminate at the same time. The steam will start to spray in about 5 minutes when the water boils (time may vary depending on volume and temperature of filled water). The light indicators of function in operation are on:

Diagram illustrating the step-by-step installation of a steam fan with labeled components including STEAM, ozone, and thermometer.

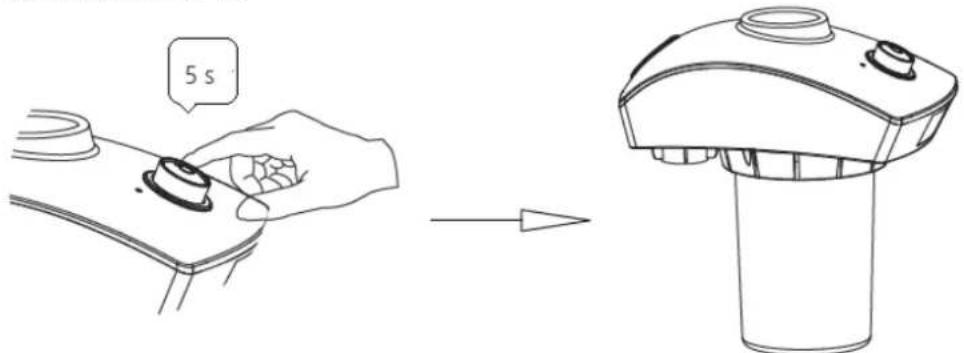

1. The UV light can be controlled individually. Press and hold the on/off-button for 5 seconds and the UV light will turn on or off:

5 s

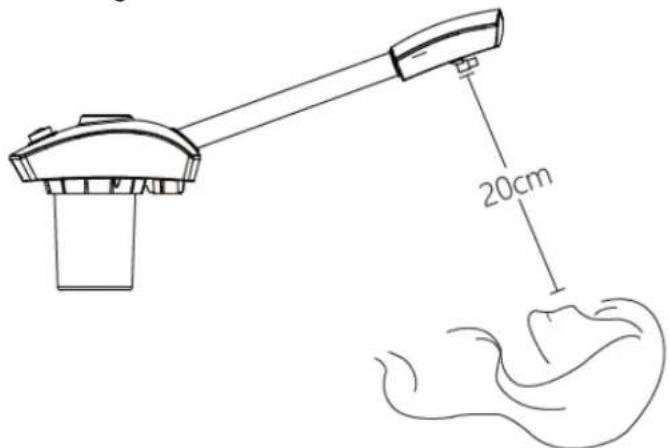

1. When the steam comes out from the spray pipe, get it close to the person's face. The ideal distance between the spray nozzle and the face is about 20 cm.

CAUTION: don't get too close to the skin to avoid burning and be sure to protect treated person's eyes from UV-light!

20cm

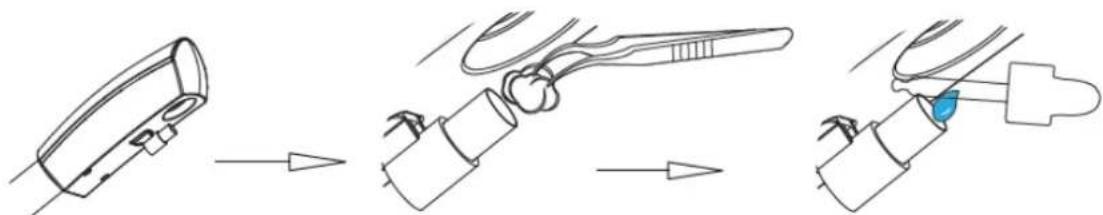

1. Aroma therapy function: put a piece of cotton into the aroma tube, and drop some essential oils on the cotton. The aroma will be brought out when the steam sprays:

Diagram showing three-step assembly of a handheld device with arrows indicating motion (no text or symbols)

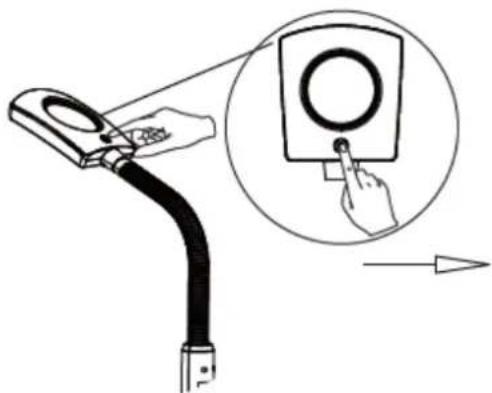

1. [Optional] Press the on/off-button on the top of the lamp housing and the LED light will illuminate:

Diagram of a handheld device with a magnified inset showing a finger pressing a circular button (no text or symbols present)

Simple line drawing of a square button with radiating lines and dots, no text or symbols present.

1. Press the lamp's on/off-button again to adjust brightness in 3 steps (L-light; M-medium, H-high):

Simple line drawing of a curved pipe or tube with a handle and connector (no text or symbols)

L

M

Simple line drawing of a square speaker with radiating lines (no text or symbols)

H

1. If needed, adjust the lamp's neck to the desired angle:

Illustration of a hand holding a magnifying glass over a device with an arrow indicating rotation (no text or symbols)

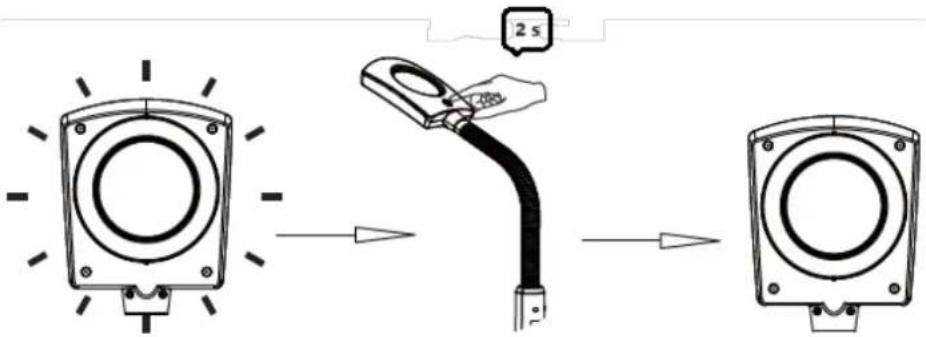

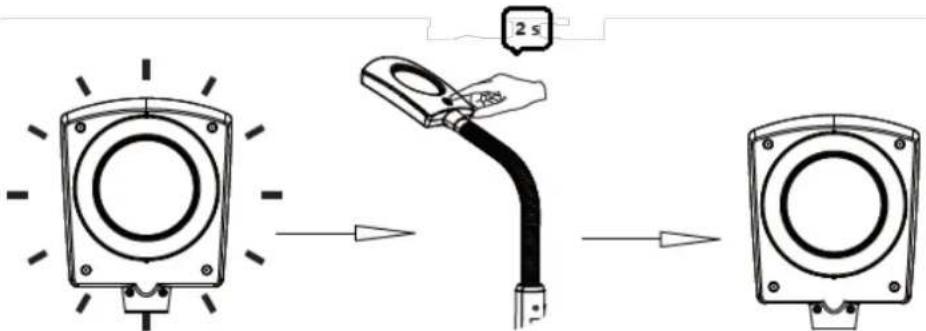

1. To switch off the LED lamp, press and hold the on/off-button for 2 seconds:

Diagram showing a device with a switch connected to a speaker, illustrating the process from an antenna to a display.

CAUTIONS AND MAINTENANCE

a) Do not place the device upside down or tilt it when it is in operation; use it only on a level surface.
b) Do not start the device without water.
c) Do not use additives in the water.
d) Do not touch the water tank when it is hot!
e) Make sure to drain the water if the device will be left unused for a longer time.

f) Clean the magnifying glass with a soft alcohol wipe or soft fabric with mild detergents.

g) Clean the water reservoir every 1-2 months (depending on usage frequency) – unplug the device and let the water completely cool of in it. Unscrew the reservoir form the steamer body and wash it with clean water and mild detergents only. After fully dried reinstall it to the steamer.

h) If the heating pipe is incrusted, clean it with 5% vinegar solution:

• Unplug the unit and make sure the water jar is NOT HOT.

Pure electrical circuit components without any text or symbols

- Immerse the heating pipe into 5% vinegar solution (5% vinegar, 95% clean water) and let it stay for 3-6 hours, the incrusting will come off gradually.

5% vinegar. 95% water 3-6 hrs

- Remove the water jar from main body by turning it anti-clockwise and pour out the vinegar solution.

Diagram showing a robotic arm interacting with a blue container, illustrating fluid flow or mechanical interaction (no text or symbols)

- Rinse the heating pipe in the water reservoir with clean water.

DISPOSING OF USED DEVICES

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.
