Product Type	27-inch LCD LED Monitor
Native Resolution	1920 x 1080 (Full HD)
Refresh Rate	200 Hz
Connectivity	1x DisplayPort, 2x HDMI, 1x Audio Output (3.5mm jack)
Power Supply	AC 100-240 V, 50/60 Hz, 300 mA
Power Consumption	36 W (typical), 21 kWh/1000h
Built-in Technologies	FreeSync, MPRT, HDR (compatible), DCR, Overdrive
Image Modes	Standard, Game, Movie, Text, FPS, RTS
OSD Settings	Brightness, Contrast, Black Level, Sharpness, Aspect Ratio, Color Temperature, Blue Light Reduction, Volume, etc.
VESA Mount	Yes (spacers included)
Maintenance	Clean with a soft cloth and a special LCD screen cleaner
Safety	Do not open the case, unplug before cleaning, do not expose to water
Included Accessories	HDMI cable, power cable, VESA spacers, manual
Customer Support	Tel. [phone] (Mon-Fri 9am-5pm), online form

Frequently Asked Questions - JN-I270FHD200F-HSP Japannext

How to assemble the monitor base?

Place the screen face down on a soft cloth. Insert the support hook into the rear mounting, then attach the stand and base with the provided screw. Ensure the assembly is sturdy before raising the monitor.

What cables are included with the monitor?

The monitor comes with a power cable, an HDMI cable, and VESA spacers. The power cable is exclusive to this product.

How to connect the monitor to a computer?

Turn off the monitor and computer. Connect the power cable and an HDMI or DP cable to the monitor and computer. Then turn on both devices. Do not connect HDMI and DP simultaneously.

What to do if the screen does not turn on?

Check that the power button is pressed and the power cord is properly connected to the monitor and outlet. If the indicator light is on but no image, check the signal cable and brightness/contrast settings.

How to adjust brightness and contrast?

Open the OSD menu with the M button, navigate to 'Image Quality Adjustment', then adjust brightness (0-100) and contrast (0-100) using the ▲/▼ buttons.

How to activate HDR mode?

Ensure that the content and connected device support HDR. In the OSD menu, go to 'Others' and set 'HDR Mode' to AUTO or ON.

What is MPRT and how to activate it?

MPRT (Motion Picture Response Time) reduces motion blur. It can be activated in the OSD menu when the refresh rate is at least 100 Hz. Cannot be used simultaneously with FreeSync.

How to reset to factory settings?

In the OSD menu, go to 'OSD Settings' or 'Others', then select 'Reset' to restore default settings.

How to clean the LCD screen?

Turn off and unplug the monitor. Use a soft, clean cloth specially designed for LCD screens. Do not use cleaners containing alcohol or acetone, and do not spray liquid directly onto the screen.

How to contact Japannext customer support?

You can reach support at 09 70 70 80 90 Monday to Friday from 9am to 5pm (excluding holidays), or via the contact form on the Japannext.fr website.

USER MANUAL JN-I270FHD200F-HSP Japannext

Cleaning and maintaining the monitor 16

How to maintain the monitor 16

The symptoms listed 16

Welcome 17

Quick Start Guide 18

Assembling the Monitor Base 18

Connection with a computer 19

Accessories 19

Interface / Connectivity 20

Description of the display button 2 1

When the On-Screen Menu (OSD) is not open 2 1

When the on-screen menu (OSD) is displayed 2 1

On-Screen Menu (OSD) 2 2

Dysfunction 23

Customer Support 24

Technical illustration of a device's internal structure before and after assembly, showing a disassembly with a red arrow indicating the process (no text or symbols present)

Technical line drawing of a mechanical assembly with a central rotating component and hatched background (no text or symbols)

① ② ③ ④ ⑤

QR code image containing encoded data, no visible human-readable text

JAPANNEXT Co., Ltd. Département CS

Chiba-Ken Isumi-Shi Namegawa 506-5

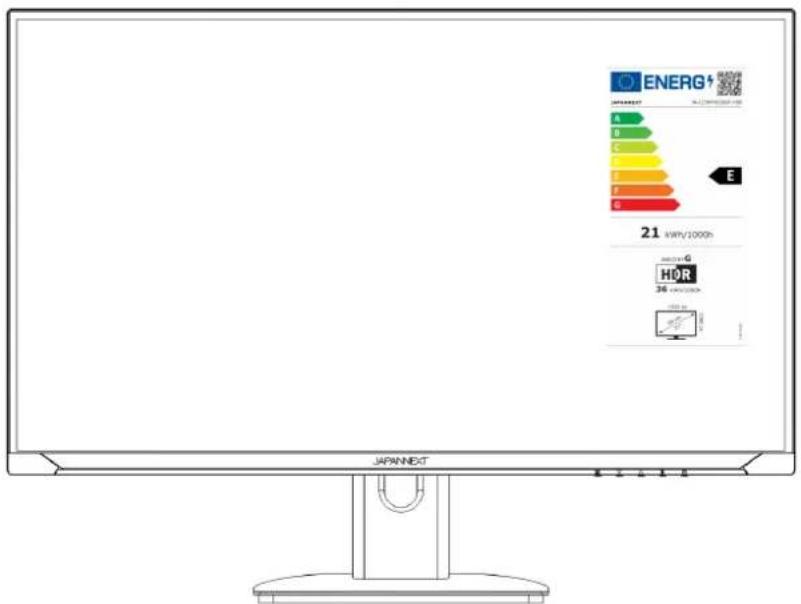

200Hz FHD monitor - 27 inches

LED LCD Monitor

Manual

JAPANNEXT ENERG A B C D E F G 21 W/1000h HOR 36 V/1000h 100% JAPANNEXT

Important:

Please make sure to read this instruction manual before use.

Please use it correctly for your safety.

Once you have read it, make sure to keep it.

Please read all included instruction manuals carefully before use.

• Place the monitor on a flat, stable surface. To avoid the risk of fire or electric shock, avoid high temperatures, low temperatures, high humidity and accumulation of dust.
  Do not use the monitor where it may become wet or exposed to water.
• Do not open and never cover the monitor case because it contains high voltage parts inside which could cause serious injury or fire if you come into contact with them.
• If the power supply is damaged, please contact our customer service or your dealer. Never attempt to inspect or repair the product yourself.
• Before use, please ensure that all cables are properly connected and the power cord is not damaged. If you discover any damage or blurred areas, please contact your dealer immediately.
• The slots and openings on the top or back of the monitor are required ventilation holes for this product. Do not cover these holes. Do not place this product near or above a heat source such as a radiator without adequate ventilation.
• Do not insert foreign objects or spill liquids into any openings in the monitor case. This could cause damage or malfunction.
• Always operate the monitor using the type of power source indicated on the product label.
  If you are unsure of the type of power supply you have, please contact your local power company.
• Do not apply excessive current to sockets or extension cords. Use caution as excessive current can cause electric shock and is very dangerous.
• To protect your monitor from damage caused by power surges, turn off power to the device during long periods of inactivity or during lightning storms.
• To ensure satisfactory operation of the monitor, the computer must be equipped with a properly configured outlet marked in the AC100-240V range.

• If you experience technical problems or concerns with your monitor, please contact our customer service or authorized reseller.

• To work safely, make sure to establish the ground connection before connecting the power plug to the power source. Also, when disconnecting the ground connection, make sure to unplug the power plug first.

• This product is not intended for continuous use for 24 hours. Please unplug the power plug when you do not use the product for a long time.
• The included AC adapter and cord are intended for this product only. Do not use it for other equipment.
• Do not use cleaners or detergents containing alcohol or acetone to clean your monitor. Make sure to use a cleaner specifically designed for LCD monitors. Do not spray liquid cleaner directly on the screen. Please note that if the cleaning fluid drips and gets inside the monitor, it is very dangerous as it may cause electric shock or fire. LCD panels are easily damaged, so do not rub it with hard objects.
• Before lifting or moving the monitor, turn off the power switch and unplug all cables and power cords. When installing the monitor, lift it using the appropriate method. When lifting or carrying the monitor, make sure to grip it by the edges. Never lift the monitor by its stand or cord.

Precaution

• Using the monitor in a dark room, or using it continuously for long periods of time, may cause eye fatigue.
  • Take a break of 5 to 10 minutes every hour and use the monitor in a reasonably bright room.

Before cleaning the monitor, turn off the power and unplug all cables and cords.

How to maintain the monitor:

- LCD panel area: Do not use tissue paper, etc., instead use a clean, soft cloth specially designed for LCD panels. Please wipe the monitor gently. For difficult-to-remove stains, use a neutral cleaner specifically designed for LCD panels.

- Monitor frame: Wipe with a soft cloth dampened with a mild cleaner.

The symptoms listed below are normal conditions for the monitor

- When first used, the screen may flicker due to the nature of the backlight. If this symptom appears, please turn off the monitor and then turn it on again.

- Depending on your desktop setup, displayed colors, and brightness, brightness may appear uneven.

- Several pixels may or may not always be lit.

- If you display the same image for a long time, an afterimage from the previous image may persist even after switching to a different image.

In this case, the screen will recover slowly. Otherwise, turn off the power for a few hours and the problem will be fixed.

Instead of trying to repair the monitor yourself, contact customer service or the dealer.

Thank you for purchasing the 27 inch LCD monitor JAPANNEXT .

The installed panel supports FHD (1920 x 1080) resolution. We recommend using FHD resolution for best performance. If the resolution is lower than FHD, the original performance cannot be achieved.

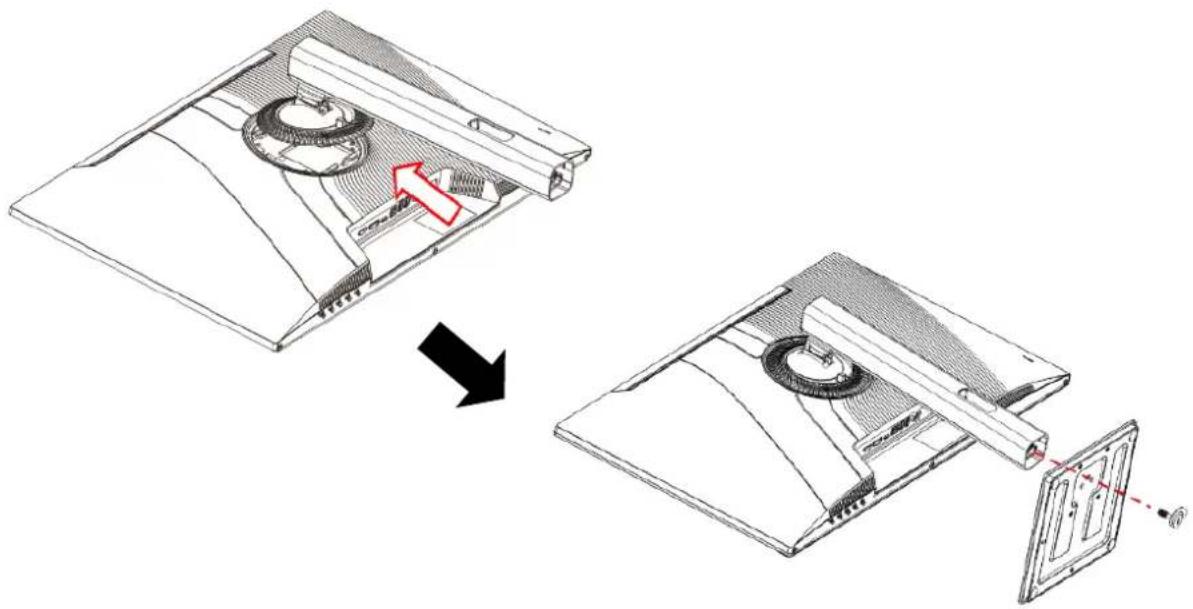

Assembling the Monitor Base

1. Spread a soft cloth on a flat, stable surface and place the device screen side down on it.
2. Insert the hook on top of the stand into the stand attachment part on the back of the monitor.
3. Secure the foot and the base using the screw supplied with the base.

Diagram showing a device's internal structure before and after assembly, with no visible text or symbols.

1. Make sure the monitor and stand are securely attached, then slowly raise the monitor.

Connection with a computer

1. Make sure the monitor and computer are turned off before connecting the cable.
2. Connect the power cable and compatible cables (HDMI, DP) to the monitor.
   Also connect the cable (HDMI, DP) to the computer.
3. Turn on the monitor and computer.

Notice : Since problems may occur, do not connect HDMI and DP cables at the same time. Please connect only one to a computer.

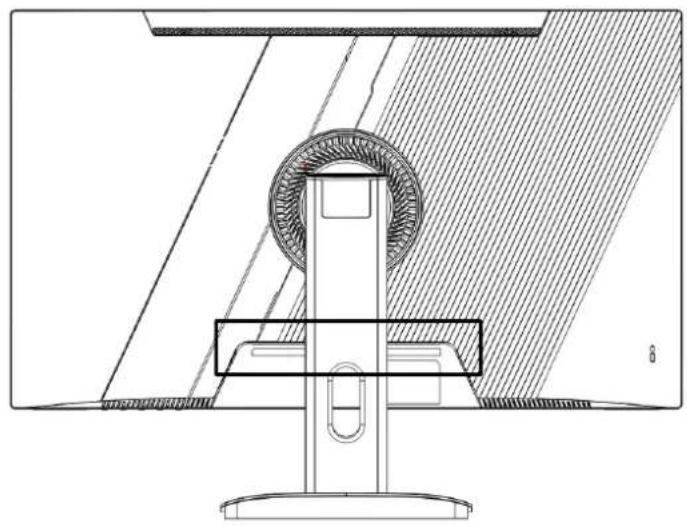

Accessories

Manual

Power cable*

HDMI cable

VESA spacer*1

Technical line drawing of a mechanical assembly with a central rotating component and hatched background (no text or symbols)

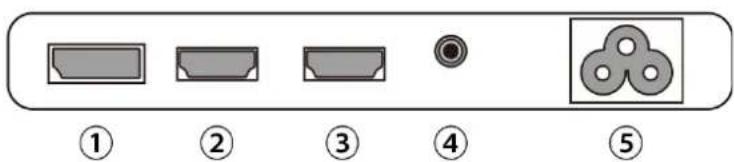

① ② ③ ④ ⑤

1: Port DP : Port compatible DP.
2: Port HDMI : Port compatible HDMI.
3: Port HDMI : Port compatible HDMI.
4: Audio output port: Possibility to connect headphones or speakers.
5: Power supply: Used when connecting the power cable.

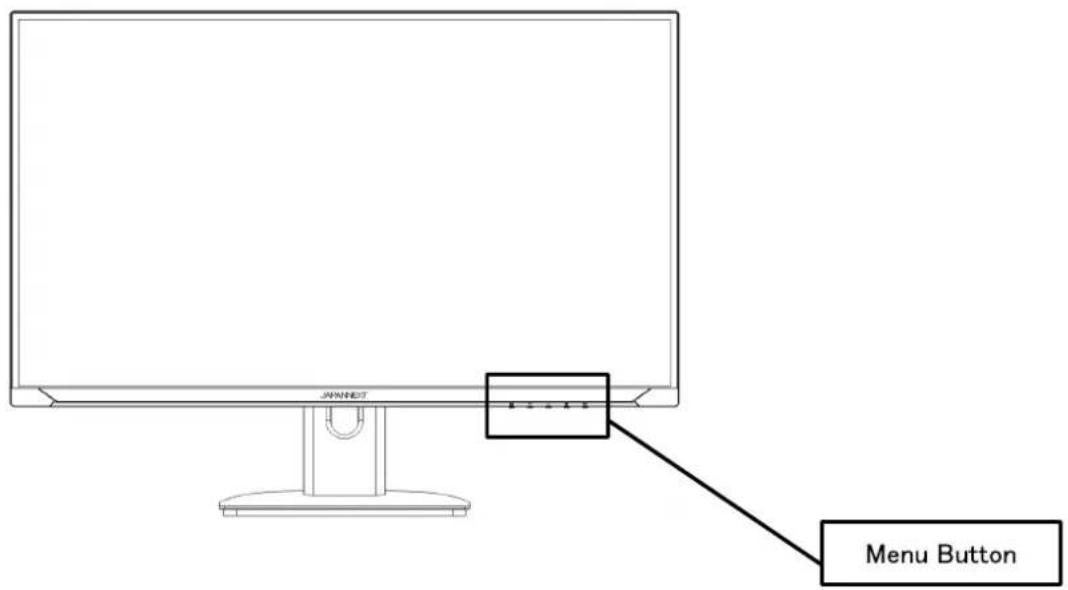

Description of the display button

JANNEST Menu Button

- When the On-Screen Menu (OSD) is not open

M	Show OSD menu
▼	Show volume settings
▲	Cross display (view)Press M or E to clear the display
E	Show input source
⏻	Turn on/off

- When the on-screen menu (OSD) is displayed

M	Select and confirm the menu item
▼	Go down a menu or decrease the value of a selection
▲	Move up a menu or increase the value of a selected item
E	Go back or close the menu
⏻	Turn on/off

On-Screen Menu (OSD)

Menu	Features	Setting value	Comment
Adjusting image quality	Luminosity	0-100	Adjust the brightness
	BLACK LEVEL	0-20	Adjust the black level
	Image mode	Standard/Game/Movie/Texte/FPS/RTS	Select picture mode *1
	RCD	ON/OFF	DCR Settings *1
	Sharpness	0-4	Adjust sharpness
Image Adjustment	Height/width ratio	Large/4:3	Select aspect ratio
	Energy saving	ON/OFF	Power saving settings
Color settings	Color temperature	User Settings/Cool Colors/Warm Colors/sRVB	Select color temperature
	red	0-100	Adjust when using user settings
	green	0-100
OSD Settings	Language	English/French, etc.	Selecte OSD language
	OSD Horizontale Position	0-100	Adjust the horizontal position of the OSD
	OSD Vertical Position	0-100	Adjust the vertical position of the OSD
	OSD time setting	5-60	Adjust OSD display time
	OSD transparency	0-100	Adjust OSD transparency
Reset	Reset		Factory Reset Settings
	Automatic power off	OFF/10/20/30/40/50/60/120/240	Configuring Auto Power Off
	Mode HDR	AUTO/OFF	HDR Settings *1
	MPRT	ON/OFF	MPRT Settings *2
	RGB light	ON/OFF	Rear LED Settings
Other	Input source	AUTO/DP/HDMI1/HDMI2	Select the input source
	Blue light reduction	0-100	Adjust blue light reduction
	Volume	0-100	Adjust the volume
	FreeSync	ON/OFF	FreeSync Settings
	Overdrive	ON/OFF	Overdrive Settings

*1 When a function is enabled on the OSD (in the case of picture mode, when set to anything other than standard), some functions on the OSD cannot be changed.
*2 The MPRT function can be used when the refresh rate is set to 100Hz or higher. Cannot be used at the same time as FreeSync. When the MPRT function is activated, the screen brightness becomes slightly darker.

*To enable HDR, the connected device and content must support HDR.

*Please note that product design, specifications and appearance are subject to change without notice due to product improvement. If the information listed differs from the actual item, priority will be given to the actual item.

Symptoms	Checkpoint
Power LED does not light up	• Is the device turned on by pressing the power button?• Make sure the power cord is securely connected to the monitor and the outlet.
No image appears even though the power indicator is on	• Is the blank screensaver running? Please move your mouse or keyboard• Make sure the brightness and contrast are not set to minimum.• Please make sure the signal cable is properly connected to your monitor and computer.• Check if the signal cable pins are bent or the cable is damaged.• Is your computer turned on? If you have another monitor, try connecting it to see if the works properly.• Does the computer signal timing match the monitor specifications?
The image is distorted or ripp appear in the image.	• Please make sure the signal cable is well connected to your monitor and computer.• Keep electrical devices that may cause electrical interference away from the monitor.• Does the computer signal timing match the monitor specifications?
The image position is off-center.Image size is incorrect	• Is your computer resolution correct?• Does the computer signal timing match the monitor specifications?
The screen is too bright/too dark	• Screen (OSD): Adjust brightness and contrast settings from the menu.
The image is blurry or unclear	• Set the display resolution on your PC to the same as the recommended native screen re of the monitor.• Does the computer signal timing match the monitor specifications?• Check if the signal cable pins are bent or the cable is damaged.
The color of the image is incorrect	• Check if the signal cable pins are bent or the cable is damaged.• Screen (OSD): Please adjust the red/blue/green color settings in the menu (color temperature).• Screen (OSD): Please reset the settings from the menu.• Does the computer signal timing match the monitor specifications?
Unable to display FHD	• This product supports resolutions up to 1920 x 1080 (FHD), including HDMI and DP. Ho some graphics cards may not support 1920 x 1080 resolution. Please check with your local distributor or manufacturer for the hardware limitations of your computer.
Abnormal image noise	• Are the cables correctly connected?

Customer Support

JAPANNEXT

TEL: [phone]

Hours 9:00 a.m. to 5:00 p.m. (Closed Saturdays, Sundays and public holidays)

Contact form

You can easily access the application form by scanning the QR code.

QR code image containing encoded data, no visible human-readable text

JAPANNEXT Co., Ltd. CS Department

Chiba-Ken Isumi-Shi Namegawa 506-5
