USER MANUAL HEF1050MC BOSCH

Electric Free-standing Ranges

HEF1050MU HEF1050MC HEF1050EU

[en-us] Use and Care Manual Electric Free-standing Ranges 2

1.1 Safety definitions.... 3
1.2 General information.... 3
1.3 Proper installation and maintenance 3
1.4 Safe use.... 4
1.5 Child safety 8
1.6 Food safety 8
1.7 Cleaning function 8
1.8 State of California Proposition 65 Warnings ...... 9

2 Preventing material damage 10

2.1 Preventing oven cavity damage 10
2.2 Preventing cooktop damage.... 10

3 Environmental protection and energy-saving ..... 11

3.1 Disposal of packaging.... 11
3.2 Saving energy when using the oven.... 11
3.3 Saving energy when using the cooktop.... 11

4 Familiarizing yourself with your appliance .... 12

4.1 Appliance 12

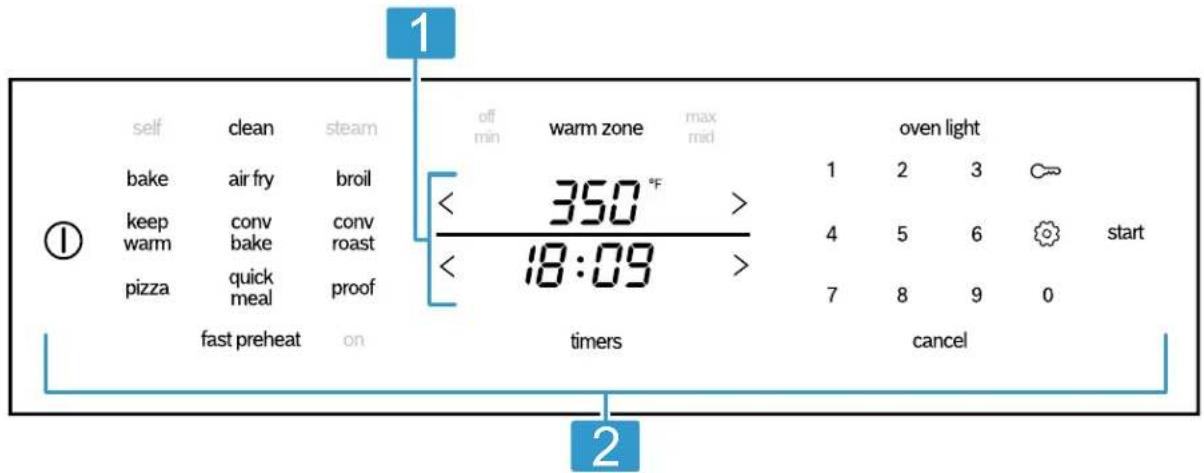

4.2 Oven control panel.... 14
4.3 Cooktop control panel 15

5 Accessories.... 16

5.1 Other accessories 16
5.2 Rack positions.... 16
5.3 Safe use of oven racks.... 16
5.4 Inserting the wire rack.... 16

6 Before using for the first time 17

6.1 Read the safety instructions.... 17
6.2 Unpacking appliance.... 17
6.3 Registering your appliance.... 17
6.4 Cleaning the appliance before using it for the first time.... 17
6.5 Initial use.... 17

7 Oven operation.... 18

7.1 Oven heating modes and functions.... 18
7.2 Setting the heating mode and temperature 19
7.3 Turning the oven off 19
7.4 Fast preheat.... 19
7.5 Turning the panel lock on or off.... 19
7.6 Kitchen timer.... 19
7.7 Oven timer 19
7.8 Delay start.... 20
7.9 Sabbath mode.... 20
7.10 Basic settings.... 20
7.11 General tips for heating modes 21
7.12 Getting the best results 23

8 Cooktop operation 24

8.1 Setting a cooking zone.... 24

8.2 Setting the warming zone.... 24
8.3 Recommended cooking settings.... 24

9 Cleaning and maintenance.... 24

9.1 Cleaning agents 24
9.2 Cooktop cleaning and maintenance 25
9.3 Oven cleaning and maintenance 26
9.4 Removing the storage drawer 30

10 Troubleshooting.... 31

10.1 Oven troubleshooting 31

11 Disposal 33

11.1 Disposal of your old appliance.... 33

12 Customer Service.... 33

12.1 Model number (E-Nr.) and production number (FD) 33

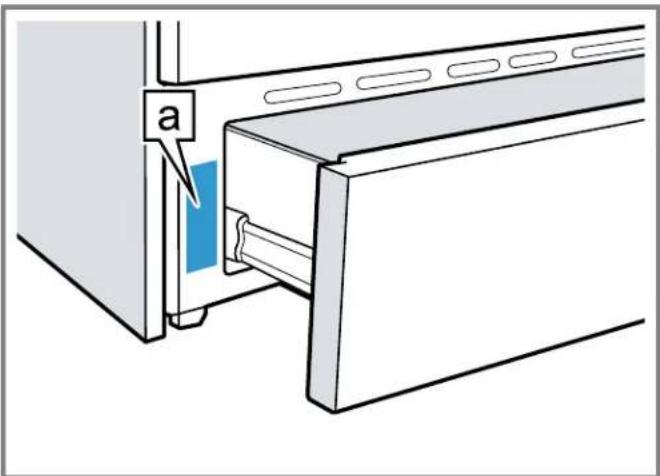

12.2 Rating plate location.... 33
12.3 Product registration 33

13 STATEMENT OF LIMITED PRODUCT WARRANTY 34

13.1 What this warranty covers & Who it applies to..... 34
13.2 How long the warranty lasts 34
13.3 Repair/replace as your exclusive remedy 34
13.4 Out of warranty product.... 35
13.5 Warranty exclusions.... 35
13.6 Obtaining warranty service.... 35
13.7 Product information 35

Read all of the instructions carefully before using the appliance. In order to reduce the risk of fire, electric shocks and personal injuries when using the appliance, follow the basic safety precautions, including the following safety instructions.

WARNING:

Never Operate the Top Surface Cooking Section of this Appliance Unattended.

• Failure to follow this warning statement could result in fire, explosion, or burn hazard that could cause property damage, personal injury, or death.
• If a fire should occur, keep away from the appliance and immediately call your fire department. DO NOT ATTEMPT TO EXTINGUISH AN OIL/GREASE FIRE WITH WATER.

1.1 Safety definitions

Here you can find explanations of the safety signal words used in this manual.

WARNING

This indicates that death or serious injuries may occur as a result of non-observance of this warning.

CAUTION

This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.

NOTICE:

This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information and/or tips.

1.2 General information

Here you can find general information about this manual.

■ Please read this manual carefully.
- Observe the safety instructions and warnings.
- Keep the manual and the product information in a safe place for future reference or for the next owner.
- Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transit.

All product manuals may be downloaded online at www.bosch-home.com/us/owner-support/owner-manuals.

1.3 Proper installation and maintenance

See the Installation Instructions for electrical requirements, grounding instructions and clearance to combustible material requirements.

WARNING

RISK OF TIPPING ON RANGES

All ranges can tip and injury can result. To prevent accidental tipping of the range, attach it to the floor, wall, or cabinet by installing the anti-tip bracket supplied.
▶ A child or adult can tip the range over and be killed or seriously injured. Verify that the anti-tip bracket is securely installed. Ensure the anti-tip bracket is engaged when the range is moved.
▶ DO NOT operate the range without the anti-tip bracket in place. Failure to follow the instructions in this manual can result in death or serious burns to children and adults.
If the range is moved for cleaning, service, or any other reason, ensure that the anti-tip bracket is properly reengaged when the range is pushed back into place. In the event of abnormal usage (such as a person standing, sitting, or leaning on an open door), failure to

IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS

take this precaution can result in tipping of the range. Personal injury might result from spilled hot liquids or from the range itself.

▶ Check for proper installation and use of anti-tip bracket. Carefully tip range forward pulling from the back to ensure that the anti-tip bracket engages the range and prevents tip-over. Range should not move more than 1" (2.5 cm).

WARNING

In the event of a malfunction, it might become necessary to turn off the power supply.

▶ Have the installer show you the circuit breaker or fuse. Mark it for easy reference.

To avoid electrical shock hazard, before servicing the appliance, turn power off at the service panel and lock the panel to prevent the power from being switched on accidentally.

Proper Installation - Improper installation or grounding can cause electric shock.

This appliance must be properly installed and grounded by a qualified technician.
▶ Connect only to properly grounded outlet.
▶ Refer to installation instructions for details.

User Servicing - Do not repair or replace any part of the appliance unless specifically recommended in this manual.

▶ All other servicing should be referred to an authorized service provider.

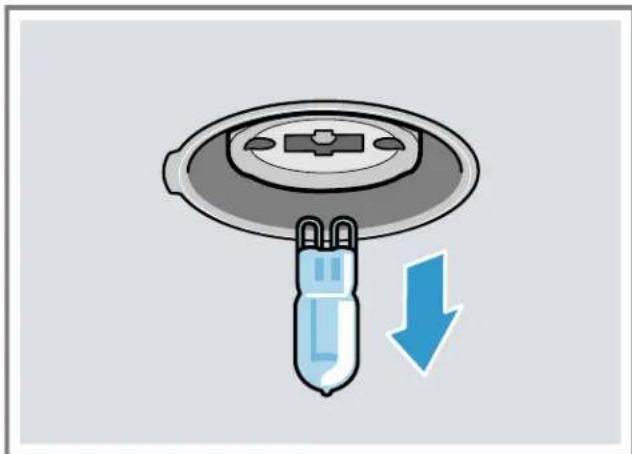

Light socket is live when door is open if main power supply is not turned off.

▶ Turn off main power supply at the service panel before changing the light bulbs.

WARNING

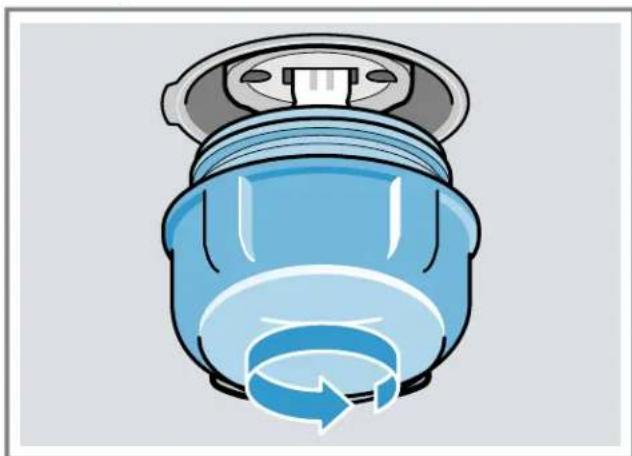

Make sure the appliance and lights are cool and power to the appliance has been turned off before replacing the light bulb(s). Failure to do so could result in electrical shock or burns.

The lenses must be in place when using the appliance.
The lenses serve to protect the light bulb from breaking.
The lenses are made of glass. Handle carefully to avoid breaking. Broken glass can cause an injury.

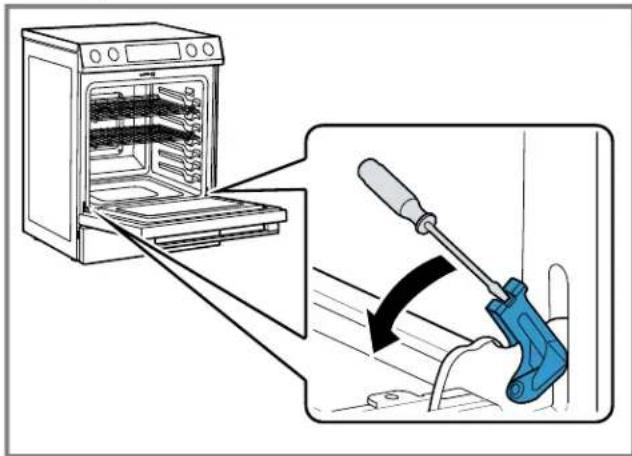

Failure to follow these instructions when removing the oven door may lead to personal injury or product damage.

▶ Make sure oven is cool and power to the oven has been turned off before removing the door. Failure to do so could result in electrical shock or burns.

The oven door is heavy and parts of it are fragile. Use both hands to remove the oven door.
The door front is glass. Handle it carefully to avoid breakage.
▶ Grasp only the side of the oven door. Do not grasp the handle. It may swing in your hand and cause damage or injury. Failure to grasp the oven door firmly and properly could result in personal injury or product damage.
▶ To avoid injury from hinge bracket snapping closed, be sure both levers are securely in place before removing the door.
▶ Do not force the door open or closed. The hinge could be damaged and cause damage or injury.
▶ Do not lay the removed door on sharp or pointed objects as this could break the glass. Lay it on a flat, smooth surface, positioned so that the door cannot fall over.

WARNING

If the supply cord is damaged, it must be replaced by the manufacturer, its authorized service provider or similar qualified persons in order to avoid hazard.

WARNING

Grease and fat can ignite when heated.

- Keep the oven free from grease build up.

CAUTION

In the event of an error the display flashes and beeps continuously.

- Disconnect appliance from the power supply and call an authorized service provider.

WARNING

Malfunctions can cause injuries.

▶ Do not operate this appliance if it is not working properly, or if it has been damaged. Contact an authorized service provider.

1.4 Safe use

WARNING

When properly cared for, your new appliance has been designed to be safe and reliable.

Read all instructions carefully before use. These precautions will reduce the risk of burns, electric shock, fire, and injury to persons.

IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS

- When using kitchen appliances, basic safety precautions must be followed, including those in the following pages.

WARNING

While cooking food items, small amounts of certain by-products, such as particulate matter / soot, can be released. To minimize exposure to these substances:

▶ Always ensure proper ventilation by using an appropriate ventilation fan or hood vented to the outside and/or an open window.
▶ Always operate the unit according to the instructions in this manual.

WARNING

Overheated materials can cause fire or burns and may produce potentially harmful smoke or fumes.

▶ To prevent overheating, turn ventilation hood ON when heating grease, fats or frying using medium to high heat settings.
▶ Avoid heating empty pots and pans.
▶ Do not allow pans to boil dry.
▶ Do not allow aluminum foil, plastic, paper, or cloth to come in contact with a hot surface element, burner, or grate.

WARNING

To avoid risk of fire, do not leave the cooktop unattended while in use. Unattended cooking can lead to fire hazards, property damage, and injury. Always supervise cooking, especially when using high heat with oils and fats. Boilovers may cause smoking and greasy spillovers may ignite.

WARNING

If materials inside an oven or warming drawer should ignite, keep door closed.

▶ Turn off the appliance and disconnect the circuit at the circuit breaker box.

A fire could occur during cooking.

▶ Always have a working smoke detector near the kitchen.
▶ Have an appropriate fire extinguisher available, nearby, highly visible and easily accessible near the appliance.

NEVER cover any slots, holes or passages in the oven bottom or cover an entire rack with materials such as aluminum foil.

▶ Doing so blocks air flow through the oven.
- Aluminum foil linings may also trap heat, causing a fire hazard.

If the cooktop is near a window, forced air vent or fan, be certain that flammable materials such as window coverings do not blow over or near the burners or heating elements. They could catch on fire.

Cooking fires can spread if extinguished incorrectly.

▶ Never use water on cooking fires.

WARNING

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE

▶ Never Leave Surface Units Unattended at High Settings - Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
▶ Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe').
▶ Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
▶ Use proper pan size. Always use cookware appropriate for the size of the surface element.

Flames can be drawn into the ventilation system.

▶ Whenever possible, do not operate the ventilation system during a cooktop fire. However, do not reach through fire to turn it off.

Cookware Handles Should be Turned Inward and Not Extend Over Adjacent Surface Units.

To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the cookware, the handle of a cookware should be positioned so that it is turned inward, and does not extend over adjacent surface units.

Wear Proper Apparel. Loose-fitting or hanging garments, such as ties, scarves, jewelry, or dangling sleeves, should never be worn while using the appliance.

▶ Tie long hair so that it does not hang loose.
▶ Secure all loose garments, etc. before beginning.

Use Proper Pan Size - This appliance is equipped with one or more surface units of different sizes.

▶ Select cookware having flat bottoms large enough to cover the surface unit cooking zone.
The use of undersized cookware will expose a portion of the cooking zone to direct contact and may result in ignition of clothing. Proper relationship of cookware to cooking zone will also improve efficiency.

Boilovers can cause smoke and some foods and oils may catch fire if left on high temperature settings.

▶ When using a timer, always supervise the cooktop.
▶ Do not allow anything to boil over or burn.

IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS

To avoid risk of fire do not store items on the cooking surfaces.

In the event that personal clothing or hair catches fire, drop and roll immediately to extinguish flames.

Do Not Use Water on Grease Fires.

- Smother fire or flame or use dry chemical or foam-type extinguisher.

CAUTION

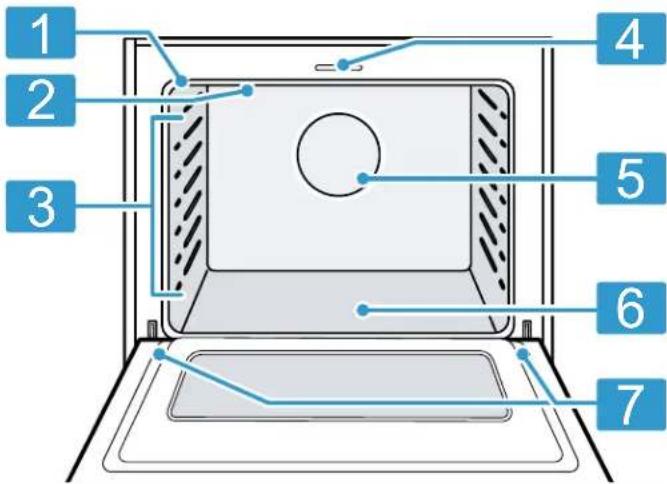

The oven vents are important for air circulation. Covering the oven vents will cause the oven to overheat. Refer to the appliance overview for the location of the oven vents.

→ "Appliance", Page 12

▶ Do not obstruct oven vents.

WARNING

Use Only Dry Potholders - Moist or damp potholders on hot surfaces may result in burns from steam.

▶ Do not let potholders touch hot heating elements.
▶ Do not use a towel or other bulky cloth.

Hot oil is capable of causing extreme burns and injury.

▶ Use high heat settings on the cooktop only when necessary.
▶ To avoid bubbling and splattering, heat oil slowly on no more than a low-medium setting.
▶ Never move a pan of hot oil, especially a deep fat fryer. Wait until it is cool.

Spills of hot food may cause burns.

▶ Hold the handle of the pan when stirring or turning food.

This helps prevent spills and movement of the pan. DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS. Surface units may be hot even though they are dark in color. Areas near surface units may become hot enough to cause burns.

During and after use, do not touch, or let clothing, potholders, or other flammable materials contact surface units or areas near units until they have had sufficient time to cool. Among these areas are the cooktop and areas facing the cooktop.

DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACES OF OVEN - Heating elements may be hot even though they are dark in color. Interior surfaces of an oven become hot enough to cause burns.

During and after use, do not touch, or let clothing, potholders, or other flammable materials contact heating elements or interior surfaces of oven until they have had sufficient time to cool. Other surfaces of the appliance may become hot enough to cause burns. Among these surfaces are oven vent openings, surfaces near these openings and oven doors.

Use Care When Opening Door - Let hot air or steam escape before removing or replacing food.

▶ Standing to the side, open the door (or drawer) slowly and slightly to let hot air and/or steam escape.
- Keep your face clear of the opening and make sure there are no children or pets near the appliance.
▶ After the release of hot air and/or steam, proceed with your cooking.
- Keep doors shut unless necessary for cooking or cleaning purposes.
▶ Do not leave open doors unattended.

Clean Cooktop With Caution.

▶ If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn.
▶ Some cleaners can produce noxious fumes if applied to a hot surface.
▶ Do not clean the appliance while it is still hot.

CAUTION

Use caution when cooking foods with high alcohol content (e.g. rum, brandy, bourbon) in the oven. Alcohol evaporates at high temperatures. There is a risk of burning as the alcohol vapors may catch fire in the oven.

▶ Use only small quantities of alcohol in foods, and open the oven door carefully.

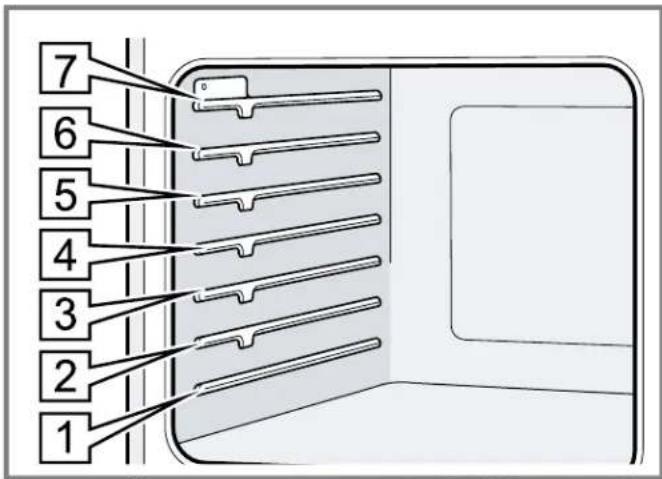

Placement of Oven Racks - Always place oven racks in desired location while oven is cool. If the rack must be moved while the oven is hot, do not let potholders contact the hot heating elements in the oven. Use caution when removing oven racks from the lowest rack position to avoid contact with the hot oven door.

WARNING

Avoid reaching or leaning over the appliance.

▶ Be aware that certain clothing and hair sprays may contain flammable chemicals that could be ignited if brought in to contact with hot surface units or heating elements and may cause severe burns.

WARNING

Storage in or on Appliance - The use of corrosive chemicals in heating or cleaning will damage the appliance and could result in injury.

Flammable materials, corrosive chemicals, vapors or non-food products should not be stored or used in an oven or on or near surface units.
The appliance is specifically designed for use when heating or cooking food.

IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS

This appliance is intended for normal family household use only. It is not approved for outdoor use. See the Statement of Limited Product Warranty. If you have any questions, contact the manufacturer.

WARNING

Using this appliance other than for its intended use can cause fire or injury to persons.

▶ Use this appliance only for its intended use as described in this manual.
▶ NEVER use your appliances as a space heater for warming or heating the room. Doing so may result in excessive heat radiation and can cause a fire.
▶ Never use the appliance for storage.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING.

▶ SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
▶ NEVER PICK UP A FLAMING PAN – You may be burned.
DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.
▶ Use an extinguisher ONLY if:

- You know you have a Class ABC extinguisher, and you already know how to operate it.

- The fire is small and contained in the area where it started.

- The fire department is being called.

- You can fight the fire with your back to an exit.

Do not heat or warm unopened food containers. Build-up of pressure may cause the container to burst and cause injury.

Liquid between the pot base and the cooktop may build up steam pressure. This may cause the pot to jump suddenly causing injury.

▶ Always keep the cooktop and bases of pots dry. When cooking with a double-boiler, the cooktop and cooking vessel may crack due to overheating.
The cooking vessel in the double-boiler must not come in direct contact with the bottom of the pot filled with water.
▶ Use only heat-resistant cookware.

Failure to operate knobs properly may result in personal injury and damage to the appliance. Glazed Cooking Utensils - Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for cooktop or range-top service without breaking due to the sudden change in temperature.

▶ Use only pans that are appropriate for ceramic cooktops.
▶ Cookware not approved for use with ceramic cooktops may break with sudden temperature changes.
Cooking or roasting bags might explode.

- Follow the manufacturer's directions when using cooking or roasting bags.

CAUTION

To avoid possible injury or damage to the appliance, ensure oven rack is installed exactly per installation instructions and not backwards or upside down. Do not place anything on the oven cavity bottom. Do not cover it with aluminum foil. A build-up of heat could damage the appliance or cause injury.

WARNING

Moisture intrusion may cause an electric shock.

▶ Do not use any steam cleaners or high-pressure cleaners to clean the appliance.
If the appliance or the power cord is damaged, this is dangerous.

▶ Do not turn the power on if the appliance or the power cord is damaged. Doing so may cause injury.

▶ Never operate a damaged appliance.

If the surface is cracked, you must switch off the appliance in order to prevent a possible electrical shock. To do this, switch off the appliance via the circuit breaker in the circuit breaker panel rather than at the main switch.

▶ If the appliance or the power cord is damaged, immediately switch off the breaker in the circuit breaker box.

▶ Call Customer Service. -Page 33

▶ Repairs to the appliance should only be performed by an authorized service provider.

WARNING

If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

Do Not Cook on a Broken Cooktop - If the cooktop should break, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock.

▶ Contact an authorized service provider immediately.

IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS

WARNING

Scratched glass in the appliance door may develop into a crack.

▶ Do not use any harsh or abrasive cleaners or sharp metal scrapers to clean the glass on the oven door, as they may scratch the surface.

1.5 Child safety

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

When children become old enough to use the appliance, it is the responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualified persons.

Children should be supervised to ensure that they do not play with the appliance.

WARNING

Do not allow children to use this appliance unless closely supervised by an adult.

Children and pets should not be left alone or unattended in the area where the appliance is in use. They should never be allowed to play in its vicinity, whether or not the appliance is in use.

Do not allow anyone to climb, stand, lean, sit, or hang on any part of an appliance, especially a door, warming drawer, or storage drawer.

This can damage the appliance, and the unit may tip over, potentially causing severe injury.

CAUTION

Do not store items of interest to children in cabinets above a range or on the backguard of a range. Children climbing on the range to reach items could be seriously injured. Do Not Leave Children Alone.

▶ Children should not be left alone or unattended in the area where the appliance is in use.
▶ They should never be allowed to sit or stand on any part of the appliance.
▶ Always check inside the oven before turning it on.

WARNING

To avoid the risk of suffocation:

▶ Do not allow children to play with packaging material.

1.6 Food safety

CAUTION

To maintain food safety, follow these guidelines

▶ DO NOT use the oven keep warm mode or the cooktop warm zone to heat cold food.
It is safe to use the oven keep warm mode to crisp crackers, chips or dry cereal and to warm plates.
▶ Be sure to maintain proper food temperature. The USDA recommends holding hot food at 140^ F or warmer.
▶ DO NOT keep food warm for more than one hour before or after cooking.
▶ Plastic containers, plastic wrap or aluminum foil can melt if in direct contact with the oven cavity, the cooktop surface or a hot cooking container. If it melts it may not be removable.

1.7 Cleaning function

Follow these safety instructions when using the cleaning function.

WARNING

Do not block the oven vent(s) during the self-cleaning cycle. Doing so may cause injury or damage to the appliance.

WARNING

During the elimination of soil during self-cleaning, small amounts of carbon monoxide can be created and the fiberglass insulation could give off very small amounts of formaldehyde during the first several cleaning cycles.

▶ To minimize exposure to these substances, provide good ventilation with an open window, or use a ventilation fan or hood.

The oven heats up to a very high temperature during self cleaning. Opening the door can result in injury.

• When self-cleaning, confirm that the door locks and will not open.
  ▶ If the door does not lock, do not run Self Clean. Contact Customer Service.

WARNING

The outside of the appliance gets very hot when the cleaning function is in progress.

▶ Never touch the appliance door.
▶ Allow the appliance to cool down.
▶ Keep children at a safe distance.

IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS

WARNING

Do not leave food or cooking utensils, etc., in an oven during the pyrolytic self-cleaning mode of operation.

CAUTION

Remove broiler pans, pots, and other utensils and excess spillage before self-cleaning.

CAUTION

Birds have very sensitive respiratory systems.

• Keep pet birds out of the kitchen or other rooms where kitchen fumes could reach them.
  During self clean, fumes are released that may be harmful to birds.

WARNING

Do not clean the door gasket – The door gasket is essential for a good seal. Care should be taken not to rub, damage, or move the gasket.

WARNING

Do not use a protective coating to line the oven and do not use commercial oven cleaner.

Clean only parts listed in this manual.

Please note that some pets or humans can be sensitive to the odors created during the self-cleaning process whether it is a manufacturing residue burn off or food. It is recommended that those potentially affected be removed from the kitchen area during the self-clean process.

1.8 State of California Proposition 65 Warnings

This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:

STATE OF CALIFORNIA PROPOSITION 65 WARNING:

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

2 Preventing material damage

2.1 Preventing oven cavity damage

NOTICE:

The presence of objects on the oven cavity bottom will cause heat to build up. The baking and roasting times will no longer be correct and the enamel will be damaged.

• Do not cover the oven cavity bottom with any sort of foil or greaseproof paper.
• Do not place accessories on the oven cavity bottom. Do not allow aluminum foil in the oven cavity to come into contact with the door glass, it could cause permanent discoloration.

Never pour water into the oven cavity when it is still hot. Never place cookware containing water on the oven cavity bottom.

The prolonged presence of moisture in the appliance cavity leads to corrosion.

• Allow the appliance cavity to dry after use.
• Do not keep moist food in the appliance cavity for a long time with the door closed.

- Do not store food in the appliance cavity.

Leaving the appliance to cool down with the door open will damage the front of neighboring kitchen units over time.

▶ Always allow the appliance cavity to cool down with the door closed after cooking at high temperatures. Only leave the appliance cavity to dry with the door open if a lot of moisture was produced during operation.

Fruit juice dripping from the baking tray leaves stains that cannot be removed.

- When baking very juicy fruit pies, do not pack too much on the baking tray.

If the seal is very dirty, the appliance door will not close properly when the appliance is in operation. This may damage the front of adjacent kitchen units.

- Never operate the appliance if the seal is damaged or missing.

Sitting or placing objects on the appliance door may damage it.

• Do not place or hang objects on the appliance door.
• Do not place cookware or accessories on the appliance door.

With certain models, accessories may scratch the door glass when closing the appliance door.

▶ Always push accessories fully into the appliance cavity.
Carrying the appliance by the door handle could break it. The door handle cannot support the weight of the appliance.

- Do not carry or hold the appliance by the door handle.

2.2 Preventing cooktop damage

NOTICE:

Cookware with rough bottoms scratch the glass ceramic surface.

- Check the bottom of the cookware before setting it down.

Salt, sugar or grains of sand scratch the glass ceramic surface.

- Never use the cooktop as a working surface or for setting things down.

Hot cookware can cause the electronics to overheat.

- Never set down hot pans and pots on the control panel or the cooktop frame.

When hard or sharp objects fall on the cooktop, they can cause damage.

- Do not let hard or pointed objects fall on the cooktop. Aluminum foil and plastic melt on hot cooking zones.

- Do not let aluminum foil or plastic come into contact with hot cooking zones.

▶ Do not use cooktop protective film.

Unsuitable cleaning agents can cause shimmering metallic discolorations on the glass ceramic surface.

▶ Refer to the cleaning recommendations in this manual. → "Cleaning and maintenance", Page 24

Overview of the most common types of damage

Here you can find an overview of the most common types of damage and suggestions how to avoid them.

Stains

Cause How to avoid
Boiled-over food Remove boiled-over food immediately with a glass scraper.
Unsuitable cleaning agents	Use cleaning agents that are suitable for glass ceramic cooktops.

Scratches

Cause How to avoid
Salt, sugar and sand	Do not use the cooktop as a work surface or storage space.
Cookware with rough bases	Check the cookware.

Discolorations

Cause How to avoid
Unsuitable cleaning agents	Use cleaning agents that are suitable for glass ceramic cooktops.
Pot abrasion (e.g. aluminum)	Lift pots and pans when moving them.

Blisters

Cause How to avoid
Sugar, food with a high sugar content	Remove boiled-over food immediately with a glass scraper.

3 Environmental protection and energy-saving

3.1 Disposal of packaging

The packaging materials are environmentally compatible and can be recycled.

- Sort the individual components by type and dispose of them separately.

3.2 Saving energy when using the oven

If you follow these tips, your appliance consumes less energy.

Only preheat the appliance if the recipe or the recommended settings tell you to do so.

√ Not preheating the appliance can reduce the energy used.

Use dark-colored, black-coated or enameled baking pans.

√ These types of baking pans absorb the heat particularly well.

Open the appliance door as little as possible during operation.

√ This will maintain the temperature in the appliance cavity and eliminate the need for the appliance to reheat.

When baking multiple dishes, do so in succession or at the same time.

√ The oven cavity is heated after baking the first dish. This reduces the baking time for the second dish.

If the cooking time is relatively long, you can switch the appliance off 10 minutes before the cooking time ends.

√ There will be enough residual heat to finish cooking the dish.

Remove any accessories that are not being used from the oven cavity.

√ An extra pan without food affects the browning and cooking.

Allow frozen food to defrost before cooking.

√ This will save the energy that would otherwise be required to defrost it.

3.3 Saving energy when using the cooktop

If you follow these tips, your appliance consumes less energy.

Select cookware with a base diameter that matches the cooking zone. Center the cookware on the cooking zone.

Tip: Cookware manufacturers usually state the top diameter of the cookware. The diameter of the cookware base is usually smaller.

√ The energy is targeted at the cookware. If you use cookware that is too small, energy is wasted. If the cookware is too large, much energy is used to heat up the cookware.

Close cookware with a fitting lid.

√ Cooking without a lid consumes more energy.

Only lift the lid when necessary.

√ If you lift the lid, a lot of energy can escape.

Use a glass lid.

√ If you use a glass lid, you can look inside the cookware without lifting the lid.

Use cookware with a solid flat bottom.

√ Curved cookware bases increase energy consumption.

Use a cookware size that matches the amount of food you want to cook.

√ Cookware with little content consumes a lot of energy.

Cook with a small amount of water.

√ More water requires more energy to heat it up.

Select a lower power level as soon as possible. Select a suitable power level to continue cooking.

√ For ongoing cooking a lower power level is sufficient.

Use the residual heat of the cooking zone. For longer cooking times, turn the cooking zone off 5-10 minutes before the end of the cooking time.

√ Unused residual heat increases energy consumption.

4 Familiarizing yourself with your appliance

This Use and Care Manual covers several models. Your model may have some but not all of the features listed.

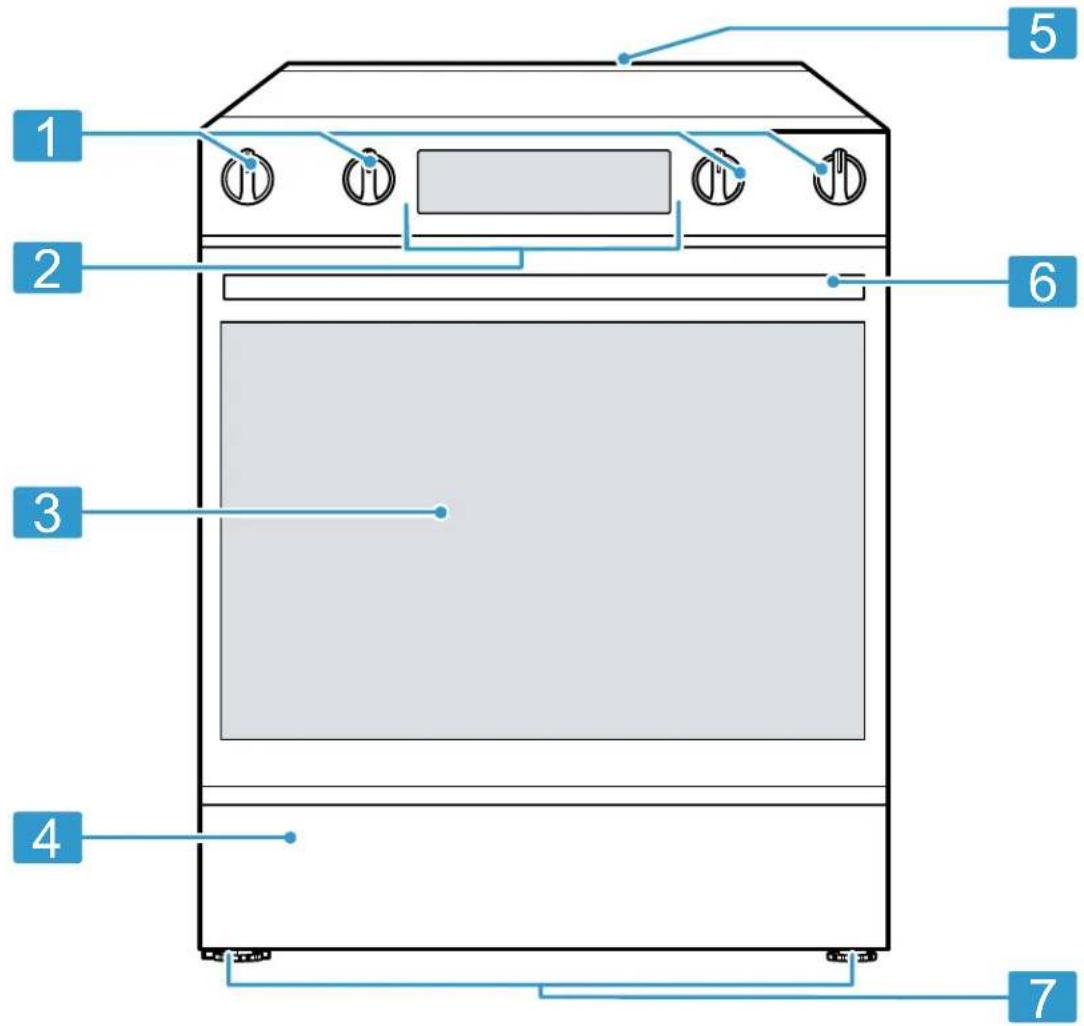

4.1 Appliance

Here you can find an overview of the parts of your appliance.

Notes

■ This Use and Care Manual covers several models. Your model may have some but not all of the features listed.
■ The graphics are representative. Your appliance may have different graphic or design appearances.

1 2 3 4 5 6 7

1	Cooktop control panel
2	Oven control panel
3	Oven door
4	Storage drawer
5	Rear vent trim/oven vent
6	Door handle
7	Range feet

Oven cavity

Here you can find information about the features of the oven cavity.

CAUTION

Do not place anything on the oven cavity bottom. Do not cover it with aluminum foil. A build-up of heat could damage the appliance or cause injury.

Oven cavity components

1 2 3 4 5 6 7

1 Door gasket
2 Broil element
3 Oven rails
4 Door lock with switch
5 Convection fan
6 Oven cavity bottom
7 Door hinges

Convection fan

Convection baking uses a fan to circulate the oven's heat evenly and continuously within the oven.

This improved heat distribution allows for even cooking and excellent results using multiple racks at the same time.

Cooling fan

The cooling fan runs during all cooking modes.

The fan can be heard when it is running, and warm air may be felt as it is released from the appliance vent. The fan may also run after the appliance is off.

Oven vents

Warm air may be released from the oven vents before, during and after cooking. It is normal to see steam escaping from the vents, and condensation may collect in this area. This area may be warm when the oven is in use.

CAUTION

The oven vents are important for air circulation. Covering the oven vents will cause the oven to overheat. Refer to the appliance overview for the location of the oven vents.

→ "Appliance", Page 12

▶ Do not obstruct oven vents.

Oven light

You can turn the oven light on or off manually.

Press oven light to turn the oven light on or off.

Cooking zones

Here you can find an overview of the cooking zones available on your cooktop. Place the cookware on the cooking zone that best matches its size.

1 Single cooking zone: 6" (15 cm)
2 Warming zone: 7" (17.8 cm)
3 Single cooking zone: 9" (23 cm)
4 Single cooking zone: 12" (30 cm)
5 Hot surface indicator

4.2 Oven control panel

1 self clean steam bake air fry broil keep conv conv warm bake roast pizza quick proof fast preheat,on off min warm zone maximid 350 °F > 18:09 > oven light 1 2 3 4 5 6 7 8 9 0 start timers cancel 2

1	Oven display
2	Touch keys

This Use and Care Manual covers several models. Your model may have some but not all of the features listed.

Touch keys

The oven control panel is equipped with touch keys. These keys are touch sensitive areas, press lightly on the keys to select the designated feature.

Touch key Feature
1	Oven main switch
bake Bake mode
air fry Airfry mode
broil Broil mode
keep warm Keep warm mode
conv bake Convection bake mode
conv roast Convection roast mode
pizza Pizza mode
frozen foods Frozen foods mode
quick meal Quick meal mode
proof Proof mode
self Self clean mode
clean Steam clean mode
fast preheat Fast preheat function
warm zone Cooktop warming zone
timers Timer functions
	Cook timerDelay timerSabbath mode
oven light	Oven light
start	Start mode
cancel	Cancel mode
0 - 9	Numeric key pad

Touch key Feature
	Panel lock
	Basic settings
<>	Adjust time or temperature values

Displays and indicators

The control panel is equipped with different indicators and displays that show the active modes.

Display/Indicator	Meaning
350°F	Upper half of displayTemperature display
18.09	Lower half of displayTime display
am/pm	Time of day in am or pm
cooktop active	Cooktop is operating
self	Self clean mode active
steam Steam clean mode active
sabbath	Sabbath mode active
door lock	Door locked
timer	Kitchen timer active
duration	Cook timer set
delay start Delay start active
panel lock	Panel locked
on	Fast preheat mode turned on
"off"/"min"/"med"/"max"	Cooktop warming zone settings

4.3 Cooktop control panel

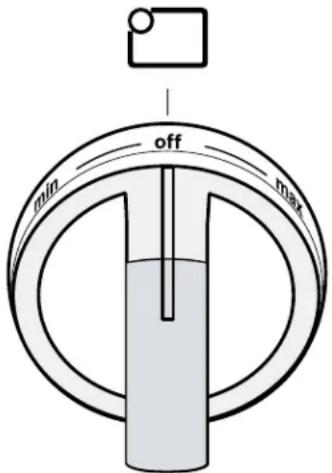

The cooktop has one control knob for each cooking zone.

Push in and turn to the right or left to set the desired power level.

The markings on the control knob indicate the available power levels. The hot surface indicator on the cooktop lights up when the cooking zone is turned on.

Note: The warm zone is operated with the oven control panel.

min off max

Knob position

off Cooking zone turned off

min	Lowest power level

2 - 8 Intermediate levels

max Highest power level

Cooking zone positions

The markings next to each of the control knobs show which cooking zone they control.

Symbol Cooking zone

	Front left cooking zone
	Front right cooking zone
	Back left cooking zone
	Back right cooking zone

5 Accessories

Only use original accessories. These are designed especially for your appliance.

The accessories supplied may differ depending on the appliance model.

Accessories Use

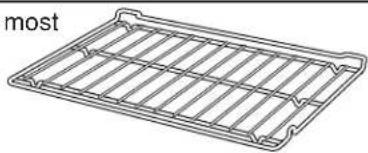

Wire rack ■ These racks can be used for most

Line drawing of a grid-patterned rack or grate structure (no text or symbols)

cooking.

■ You can use multiple racks at the same time.

Note: Do not clean using the clean function.

5.1 Other accessories

You can purchase other accessories from our Customer Service, specialist retailers or online.

You will find a comprehensive range of products for your appliance in our brochures and online:

www.bosch-home.com

Accessories are appliance-specific. When purchasing, always check for compatibility with your appliance model number (E-Nr).

You can find out which accessories are available for your appliance in our online shop or from our Customer Service.

5.2 Rack positions

Your oven has 7 rack positions. The rack positions are counted from bottom to top.

1 2 3 4 5 6 7

Rack Best for

position

7 Broiling toast

6 Broiling 1" (2.5 cm) steaks, broiling hamburgers

^1 These marks are registered trademarks of their respective owners. All other trademarks are trademarks of BSH Home Appliances Corporation or its affiliated companies.

Rack Best for

position

5 Broiling 1½" (4 cm) steaks, broiling most meats and poultry

4 Most single rack baked goods and frozen pizza, roasting vegetables, baking Bundt® cake

3 Roasting chicken, baking yeast breads

2 Roasting turkey, baking angel food cake, baking frozen pies, baking fresh pies

1 Baking cheese cake

^1 These marks are registered trademarks of their respective owners. All other trademarks are trademarks of BSH Home Appliances Corporation or its affiliated companies.

5.3 Safe use of oven racks

For your safety, follow these recommendations on how to use the oven racks correctly.

CAUTION

Placement of Oven Racks - Always place oven racks in desired location while oven is cool. If the rack must be moved while the oven is hot, do not let potholders contact the hot heating elements in the oven. Use caution when removing oven racks from the lowest rack position to avoid contact with the hot oven door.

CAUTION

To avoid possible injury or damage to the appliance, ensure oven rack is installed exactly per installation instructions and not backwards or upside down.

Do not slide any accessories between the rack positions, or they may tip.

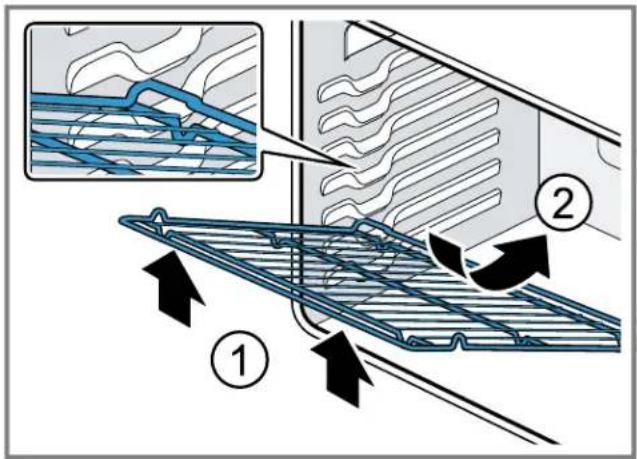

5.4 Inserting the wire rack

Requirement: You have read the recommendation on → "Safe use of oven racks", Page 16.

1. Grasp the rack firmly on both sides.

2. Tilt the rack up to allow the stop into rack guide ^① .

3. Bring the rack to a horizontal position and push it in the rest of the way ②

Diagram illustrating airflow or ventilation process with labeled components and directional arrows

The rack should be straight and flat, not crooked.

6 Before using for the first time

Apply the initial configuration settings. Clean the appliance and the accessories.

6.1 Read the safety instructions

▶ → "IMPORTANT SAFETY INSTRUCTIONS", Page 3

6.2 Unpacking appliance

Unpack your appliance and check all parts for any damage in transit.

1. Remove the packaging.
2. Remove the information products from the interior of the appliance.
3. Check all parts for damage in transit.

If you have any complaints, please contact the dealer from whom you purchased the appliance or our customer service.

→ "Customer Service", Page 33

6.3 Registering your appliance

To benefit from our extensive range of services, you can register your appliance without any obligation.

1. Discover all the benefits at My Bosch.

If you register your appliance, you will benefit from numerous advantages:
– Discounts in our online shop for suitable accessories
- Tips and tricks to make the most of your appliance
– Having the Bosch after-sales service always close to hand
- ... and much more

1. To register your appliance, click on the My Bosch link.
2. Click on "Register free of charge".
3. Enter your registration details.
4. Click on "Submit" and follow the instructions on the website.

6.4 Cleaning the appliance before using it for the first time

Clean the oven cavity and accessories before using the appliance to prepare food for the first time.

1. Remove all packaging materials from the oven cavity.
2. Before heating the appliance, wipe the smooth surfaces in the oven cavity with a soft, damp cloth and dry.
3. Keep the room ventilated while the appliance is heating.
4. Set the heating mode and temperature.

Heating mode bake

Temperature 475°F (245°C)

Duration 30 minutes

1. Switch off the appliance after the specified cooking time.
2. Wait until the oven cavity has cooled down.
3. Clean the smooth surfaces with soapy water and a dish cloth.
4. Clean the accessories using soapy water and a dish cloth or soft brush.

Note: There may be a slight odor during first uses. This is normal and will disappear.

6.5 Initial use

After connecting the appliance to the power, or following a power failure, "door lock" is displayed on the oven display. After a few seconds "door lock" will go out. The appliance is ready to use.

Note: Do not open the oven door while "door lock" lights up.

Setting the clock

After connecting the appliance to the power supply, or after an extended power outage you have to set the time display to the current time of day.

1. Press start.
2. Press

3. Use the numeric keypad to enter the desired time. The numbers fill in from right to left. To enter 10:45, type 1, 0, 4, 5.

4. Press start.

Note: You can change the time settings at any time in the Basic settings. → Page 20

7 Oven operation

Here you will find out everything you need to know about operating your oven.

7.1 Oven heating modes and functions

Here you can find a list of heating modes and other features of your appliance.

Touch key Heating mode/ function		Default value/ Temperature range in °F (°C)	How it works and what it is used for
bake Bake 350 / 175-550		(175 / 80-290)	Cooks with dry, heated air.For a variety of foods, such as cakes, cookies, pastries, quick breads, quiche and casseroles.
broil Broil high intensityBroil low intensity		LO / HIDefault: HI	Use for tender cuts of meat 1" (2.5 mm) or less thick, poultry, browning bread and casseroles.
conv bake Convection Bake 325 / 175-550		(165 / 80-290)	Similar to bake, but air is circulated by a fan at the back of the oven. Best for baked goods such as cakes, cornbread, pies, quick breads, tarts, and yeast breads.
conv roast Convection roast 325 / 175-550		(160 / 80-285)	Uses intense heat and air circulated by a fan.Use for tender cuts of meat and poultry and roasting vegetables. Meats are more juicy and moist than results with roast mode.
keep warm Keep warm 150 / 140-210		(65 / 60-100)	Maintains a low temperature in order to keep food hot.Best for cooked frozen lasagna, frozen pizza, meats, and casseroles→ "How to use keep warm mode", Page 23
pizza Pizza 425 / 300-550		(220 / 150-290)	Heat is circulated throughout the oven by the convection fan. Use for fresh or frozen pizza.
proof Proof 100 / 100		(40 / 40)	Maintains the warm, non-drafty environment needed for proofing yeast leavened products.
frozen foods Frozen foods 325 / 265-480		(165 / 130-250)	Evenly distributes heat throughout the oven cavity. Does not require preheating.For frozen convenience foods such as fish sticks and chicken nuggets.
air fry Air fry	425 / 300-500	(220 / 150-260)	Uses hot air for crispy results without all the oil.For packaged and convenience foods such as hot wings or French fries.
quick meal	Quick meal	325 / 265-480(165 / 130-250)	Evenly distributes heat throughout the oven cavity. Does not require preheating.For frozen convenience foods such as fish sticks and chicken nuggets.
self clean	Pyrolytic self-cleaning		The oven reaches a high temperature to burn off food soil.During Self cleaning the door is locked. "door lock" is displayed.
steam clean	Steam cleaning		Steam assisted cleaning mode.
sabbath	Sabbath mode	350 / 175-425(175 / 80-220)	The Sabbath mode enables those of particular faiths to use their ovens on the Sabbath.

Touch key Heating mode/ function	Default value/ Temperature range in °F (°C)	How it works and what it is used for
timers Oven timer The oven timer is a countdown timer which		upon reaching 00:00 turns the oven off, stopping the current mode. The oven timer is used to set how long a mode will run.→ "Oven timer", Page 19
timers Kitchen timer The kitchen timer is a countdown timer that has		no affect on oven heating. The kitchen timer is used for general kitchen timing needs.
Panel lock Activate the panel lock to prevent involuntary operation.

7.2 Setting the heating mode and temperature

1. Press ① to turn on the oven.
   √ The available touch keys light up.
2. Press the touch key for the desired heating mode.
   √ The heating mode touch key and start light up brighter.
   √ The default temperature flashes in the upper part of the display.
3. If desired, enter a different temperature using < or> keys or the numeric keypad.
4. Press fast preheat, if you want to preheat the oven faster.

Note: You can define in the basic setting menu, if fast preheat is applied automatically or not.

1. Press start.

√ fast preheat "on" is displayed until the set temperature is reached.

7.3 Turning the oven off

1. Press cancel.
   √ The oven turns off and is displayed.
2. Press cancel again.
   √ The display goes to standby mode.

Note: If you do not press cancel a second time, the display goes to standby mode automatically after a couple of minutes.

7.4 Fast preheat

With fast preheat, you can shorten the preheat time. fast preheat is available for the following heating modes.

■ bake
■ conv bake
■ conv roast
pizza

fast preheat is preset to start automatically. You can change this setting in the basic settings menu.

To start fast preheat manually, press fast preheat before starting the heating mode.

7.5 Turning the panel lock on or off

With the panel lock you can prevent involuntary operation by disabling all touch keys on the oven control panel.

1. Press and hold for 3 seconds.
   √ The touch keys are unresponsive. A beep sounds when any touch key is pressed.
2. Press and hold again for 3 seconds to turn off the panel lock.

Note: While panel lock is active the cooktop controls can still be operated normally.

7.6 Kitchen timer

The kitchen timer is a countdown timer that has no affect on oven heating.

The kitchen timer can be used when the appliance is turned off, or while a heating mode is active.

Setting the kitchen timer

1. Press timers repeatedly until "timer" lights up.
2. Enter the desired time with the numeric keypad.
3. Press timers to confirm.
   √ The timer starts to count down.
   √ When the time has elapsed, an alarm sounds.

Canceling the kitchen timer

1. Press timers repeatedly until "timer" starts blinking in the display.
2. Press cancel.

7.7 Oven timer

If you set an oven timer, the oven stops heating automatically once this time has elapsed.

Setting the oven timer

You can set a cook timer before starting the heating mode, or while the heating mode is running.

1. Press timers.

"duration" lights up in the display.

en-us Oven operation

1. Enter the desired cook time duration using the numeric keypad.
2. Press start.

√ The oven timer starts to count down.

√ When the oven timer has elapsed the heating mode is turned off.

Canceling the oven timer

1. Press timers repeatedly until "duration" starts blinking in the display.
2. Press cancel.

7.8 Delay start

With this feature you can program your oven to start a heating mode at a predetermined time.

CAUTION

Food might spoil when left standing for too long.

- To maintain food safety, do not leave food in the oven for more than one hour before or after cooking.

Setting delay start

1. Set the desired heating mode and temperature.
2. Press timers twice.

√ "delay start" lights up on the display.
3. Set the desired start time with the number keys.
4. Press start.
√ After the waiting period the oven starts heating.

Note: If you press start again the heating mode starts immediately.

Canceling delay start

1. Press timers repeatedly until "delay start" is blinking in the display.
2. Press cancel.

7.9 Sabbath mode

The Sabbath mode enables those of particular faiths to use their ovens on the Sabbath.

■ Sabbath mode is only available in bake mode.

7.10 Basic settings

You can configure the basic settings for your appliance to meet your needs.

Overview of the basic settings

Here you can find an overview of the basic settings and factory settings. The basic settings depend on the features of your appliance.

■ You can set a temperature between 175^ F ( 80^ C) and 425^ F ( 220^ C).
■ You can set a duration of up to 74 hours.

Oven behavior during Sabbath mode

While Sabbath mode is active the oven behaves in the following ways.

■ The cook time and temperature cannot be changed.
■ All signal sounds are deactivated.
■ The oven light is turned off and will not turn on when the oven door is opened.
■ After a power failure the appliance will return to Sabbath mode without heating. The timer countdown will start again from 74 hours.
- When an error message is triggered, the heating mode is turned off. An error message is displayed, but there is no signal sound.

Setting Sabbath mode

1. Press
2. Press< or> on the upper half of the display until "sabbath" lights up.
3. Press< or> on the lower half of the display until As displayed.
4. Press start.

"sabbath" starts blinking.
√ The default temperature 350^ F is displayed in the top half of the display, the default duration 48 h is displayed in the bottom half of the display.
5. Adjust the temperature and duration with< or>if desired.

1. Press start.

√ After 30 seconds the oven starts to heat and the time starts to count down.
√ Once the cooking time has elapsed the oven is automatically turned off.

Note: You can cancel the Sabbath mode at any time by pressing cancel.

Display Basic setting Available values

SETtime / "am/pm"	Time of day Enter the time with the numeric key
		pad, the numbers fill in from right to left."am/pm" changes automatically when the time exceeds 12:00.
Vol	Volume ■ : low	-■ = : medium■ = : high1■ "off" : all sounds off
brh	Display brightness ■ : low	-■ = : medium■ = : high1
SET	Temperature unit ■ °	F1■ =
Rut preheating	Auto fast preheatFast preheat is activated automatically.	On On 1Off
SETsabbath	Sabbath mode ■ : On	OnOff
ACC	Automatic convection conversionConverts the regular baking temperatures to convection bake temperatures. For more information, see	OnOnOff 1
OFS°F Temperature offset	Adjusts the baseline temperature of your oven. For more information, see → "Oven temperature offset", Page 21	Press <or >to enter a value between -30°F and +30°F.Default setting = 0°
Fct	Reset to factory settings ■ : Reset to factory settings■ Keep current settings

^1 Factory setting

Changing the basic settings

1. Press ⚙ to enter the basic settings menu.
2. Press < or > on the upper half of the display to cycle through the basic settings.
3. Press < or > on the lower half of the display to cycle through the available values.
4. Press start to confirm the selected setting. Use the numeric keypad to enter numeric values if required:
5. When setting the time of day, the numbers fill in from right to left.
6. When entering a temperature for temperature offset and Sabbath mode the values will be rounded to values of 5.
   √ The new value is automatically accepted as the display reverts from edit mode back to standby mode.

Oven temperature offset

The oven is calibrated to provide accurate results. This feature is useful if you prefer your foods lighter or darker.

- When an offset temperature is selected, the actual oven temperature is raised or lowered by this value.

• Do not use residential oven thermometers to evaluate oven temperatures as they will fluctuate throughout cooking.
• You can set a temperature offset from the factory baseline. Each time you call up the temperature offset option in the basic settings menu, the factory baseline temperature is restored so you can set a new offset value.

Auto convection conversion

Convection bake mode requires a 25^ F reduction in temperature. Auto convection conversion reduces the temperature you enter automatically.

■ Simply enter the package or recipe temperature when setting the mode. The control calculates the correct temperature and it is shown in the display.

7.11 General tips for heating modes

How to use bake mode

Use the bake mode to prepare a variety of food items, from pastries to casseroles.

Refer to recipe or package directions for oven temperature and baking time.

Note

■ Refer to the section on rack level recommendation for best results.
→ "Rack positions", Page 16
■ Fully preheat the oven before baking items like cakes, biscuits and breads.
■ Use the convection bake function for best results when baking cookies on multiple racks.
- Allow at least 2" (5 cm) of space between bakeware for proper air circulation.
■ Dark or dull bakeware absorbs more heat than shiny bakeware, resulting in dark or over browned foods. It may be necessary to reduce oven temperature or cook time to prevent overbrowning of some foods.
■ Shiny pans are recommended for cakes, cookies, and muffins.
- Do not open oven door often. Opening the door will reduce the temperature in the oven and may increase cook time.
■ For cakes stagger pans so that one is not directly above the other.

How to use conv bake mode

Use the conv bake mode to prepare meat, pastry and vegetables on a single rack or on multiple racks simultaneously.

This system combines heaters with a fan, which makes it faster than conventional system.

Note

■ Recommended baking levels:
- For single-level baking of flat food (pastry) 4
- For single-level baking of larger cuts (meat): 2 or 3; for multi-level baking: 2 and 5
- Place food in shallow, uncovered pans, such as cookie sheets without sides.
If baking more than one pan on a rack, allow at least 1" to 1½" (2.5 to 4 cm) of air space around the pan.
- Allow at least 2" (5 cm) of space between bakeware for proper air circulation.
■ For cakes stagger pans so that one is not directly above the other.

How to use pizza mode

Note

Follow these recommendations:

■ There might be a slight decrease in baking time. Check before minimum package time.
■ When baking a frozen pizza: For a crispy crust, place directly on the rack. For a softer crust, use a pizza pan.
■ If par-baking handmade pizza dough, prick the dough with a fork before baking.
- If using a pizza pan, choose a dark, perforated pan for a more crisp crust and a non-perforated pan for a softer crust.
■ Preheat baking stones following manufacturer's recommendations while the oven is preheating.
■ Bake homemade pizzas on rack position 2 in the center of the rack.
- Follow manufacturer's directions for frozen pizza.

How to use conv roast mode

Use the conv roast mode for roasting poultry and whole cuts of meat on a single rack.

This is a combination heating mode. Hot air is circulated evenly around the food, and the heaters uniformly radiate heat and contribute to a crunchy crust and juicy core. This heating mode combines heaters with a fan, which makes it faster than conventional heating modes.

Note

■ Refer to the section on rack level recommendation for best results.
→ "Rack positions", Page 16
■ Preheating the oven is not necessary.
■ Use the same temperature as indicated in the recipe.
- Check doneness early, since roasting time may decrease.
■ Use a broil pan with a rack and grid or a shallow, uncovered pan with a rack for roasting.
■ Use a meat thermometer to determine the internal temperature of the meat.
- If the meat is browned to your liking, but is not yet done, foil can be placed over the meat to prevent overbrowning.
- Let meat stand covered with foil 10-15 minutes after removing it from the oven.
- When cooking large meats (e.g. turkey over 10 lbs) do not use the lowest rack position.

How to use broil mode

The broil mode is intended for baking flat food, such as toasted bread, open sandwiches, burgers, grill sausages, steaks, fish, etc., or for au gratin.

Note

■ Use broil HI to grill large amounts of flat-shaped food like toast, open sandwiches, grill sausages, fish, skewers, etc., cook au grating and brown the crust.
■ Use broil LO to grill chicken and seafood.
■ Always broil with the oven door closed.
■ Preheat the oven for 3 to 4 minutes. Do not preheat for more than 5 minutes.
■ Use the broil pan and grid or a deep pan with a metal rack, for broiling.
- Do not cover the broil grid with foil. It is designed to drain fats and oils away from the cooking surface to prevent smoking and spattering.
■ Turn meats once during the recommended cook time. Fish does not need to be turned.
- Never use heat-proof glass, such as Pyrex®; it cannot tolerate the high temperature.

How to use air fry

This mode results in a crunchy crust without added fat. This is a healthy version of fast-food frying, with fewer calories in the cooked food. Suitable for smaller cuts of meat, fish, vegetables, and frozen products ready for frying, such as French fries or chicken nuggets.

This is a combination mode. The hot air circulates evenly around the food. The heat from the top heater contributes to a crunchy crust.

• Allow the oven to preheat fully before placing the food in the oven.
  ■ Use rack position 4 for best results.
  ■ Use a dark aluminum baking tray with a wire insert to elevate the food.
  ■ Distribute the food evenly across the entire area of the baking dish or sheet and do not cover it.
  ■ Follow package instructions for time and temperature.
  ■ Some foods may produce smoke and vapor.

How to use frozen foods/quick meal

This mode allows baking frozen food on a single rack in a shorter period of time without preheating.

■ Use for pre-baked frozen products, such as frozen meals, bakery products, croissants, French fries, or chicken nuggets.
■ Follow package instructions for time and temperature.

How to use proof mode

Use the proof mode to raise yeast dough.

Note

■ Start with a cool oven when using this mode.
■ Allow frozen dough to thaw first.
- The ideal temperature for proofing will be maintained until the mode is turned off. Dough has proofed when it has doubled in size.
■ Loosely cover the bowl or pan and use any rack that accommodates the size of the container.
- Keep the door closed and use the oven light to check the rising of the dough.

Size Time in min.

Loaf, 1 lb (4.5 kg) 60 - 75

Rolls, 0.1 lb (50 g) 30 - 45

How to use keep warm mode

Use the keep warm mode to keep hot, cooked foods at serving temperature.

CAUTION

Food may spoil when kept warm for too long.

• Do not use the warm mode to heat cold food.
• Be sure to maintain proper food temperature. The USDA recommends holding hot food at 140°F (60 °C) or warmer.
  ▶ DO NOT warm food longer than one hour.

Note

• ALWAYS start with hot food. DO NOT use this mode to heat cold food other than for crisping crackers, chips, and dry cereal.
  ■ Serving dishes, plates, and cups may be kept warm with this mode.
• Foods that must be kept moist should be covered with a lid or aluminum foil.

■ Aluminum foil may be used to cover food. Use only heat-safe dishes.
■ DO NOT open the oven door unnecessarily. Opening the door will reduce the temperature of the oven.
- When keeping cooked food warm, allow time for the oven to preheat before placing the item in the oven.

7.12 Getting the best results

■ Minimize opening the oven door.
■ Use the rack position recommended by the recipe.
■ Use the bakeware recommended in the recipe.
■ Store pans outside the oven. An extra pan without food affects the browning and cooking.
■ The type of pan used affects the browning.
- For tender, golden brown crusts, use light non-stick/anodized or shiny metal pans.
- For brown crisp crusts, use dark non-stick, anodized or dark, dull metal pans or glass bakeware. These may require lowering the bake temperature 25^ .

Preheating the oven

■ Most cooking times in recipes are designed for a preheated oven and require that the oven already be at a certain temperature before cooking starts. Refer to your recipe for preheating recommendations.
■ Preheating time depends on the temperature setting and the number of racks in the oven. Remove unused oven racks to shorten the preheat time.
■ Preheating is not necessary for conv roast.

Bakeware type

■ Metal bakeware with or without a non-stick finish, heat-proof glass, glass-ceramic, pottery, or other utensils are suitable for the oven.
- Suitable cookie sheets have a small lip on one side. Heavy sheets or those with more than one side may affect the baking time.

Pan placement

• Allow at least 1" (2.5 cm) of space between the pans and the oven walls so heat can circulate around each pan.
  ■ Stagger bakeware so that one is not directly above another. Allow 1½" (4 cm) above and below each pan.

High altitude baking

When cooking at high altitudes, recipes and cooking times will vary. For accurate information, go to www.csuextstore.com, or write to the Extension Service, Colorado State University, Fort Collins, Colorado 80521. There may be a cost for the guides. Specify which high altitude food preparation guide you prefer: general information, cakes, cookies, breads, etc.

Condensation

It is normal for a certain amount of moisture to evaporate from the food during any cooking process. The amount depends on the moisture content of the food. The moisture will condense on any surface cooler than the inside of the oven, such as the control panel.

8 Cooktop operation

Here you will find out everything you need to know about operating your cooktop.

8.1 Setting a cooking zone

- Push the control knob in and turn it in to the left or right to the desired power level.

8.2 Setting the warming zone

Use this cooking zone to keep cooked food warm.

CAUTION

Food might spoil when left standing for too long.

▶ To maintain food safety, do not keep food warm for more than one hour after cooking.
- Press warm zone on the oven control panel panel repeatedly until the desired heating level lights up.

Available settings:

• "min"
• "med"
• "max"
• "off"

8.3 Recommended cooking settings

Here you can find recommendations on cooking and an overview of various dishes with suitable heat levels.

■ Select the highest power level for bringing water to a boil or heating up the pan.
■ Stir thick liquids occasionally.
- Food that needs to be seared quickly, or food which loses a lot of liquid during initial frying, is best seared in several small portions.
■ When you cook with a lid on, turn the heat setting down as soon as steam escapes between lid and cookware.
- Keep the lid on the cookware after cooking until you serve the food.
- When you cook with a pressure cooker, observe the manufacturer's instructions.
- Do not cook food for too long or in too much water. Otherwise the nutrients will be lost. You can use the kitchen timer to set the optimum cooking time.
- Do not heat oil or grease until it smokes. You will achieve healthier cooking results.
- When you brown food, fry small portions one after the other.

■ Cookware may become very hot during cooking. We recommend the use of pot holders.
■ You can find recommendations for energy-efficient cooking under

Cooking chart

Cooking process Heat setting
Bringing water to a boil High
Pan frying, sauteing, browning meat, deep fat frying	Medium high
Most frying, eggs, pancakes, slow boil	Medium
Simmering, finish cooking covered foods, steaming	Medium low
Melting chocolate and butter, simmering tomato sauces, soups, stews	Low

9 Cleaning and maintenance

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

9.1 Cleaning agents

Only use suitable cleaning agents to avoid damage to the appliance surfaces.

Brand names

■ The use of brand names is intended only to indicate a type of cleaner. This does not constitute an endorsement.
■ The omission of any brand name cleaner does not imply its adequacy or inadequacy.
■ Many products are regional in distribution and can be found in local markets.
■ It is imperative that all cleaning products be used in strict accordance with the instructions on its package.

Avoid these cleaners

Do not use commercial oven cleaners such as Easy Off®. They may damage the appliance finish or parts. Chlorine or chlorine compounds in some cleansers are corrosive to stainless steel. Check ingredients on label. Never use scouring pads or abrasive cleaners.

WARNING

Be sure the entire appliance (including the light bulb) has cooled and grease has solidified before attempting to clean any part of the appliance.

WARNING

To avoid risk of electrical shock, DO NOT use a steam cleaner or high pressure cleaners to clean the appliance. Penetrating moisture may cause electrical shock.

9.2 Cooktop cleaning and maintenance

Recommended cleaning agents

■ Glass ceramic cooktop cleaner
■ Bosch glass cooktop cleaner
BonAmi®
■ Soft Scrub® (without bleach)
■ White vinegar

Unsuitable cleaning agents

■ Glass cleaners which contain ammonia or chlorine bleach. These cleaners may damage or permanently stain the cooktop.
■ Caustic cleaners such as Easy Off®. These cleaners may stain the cooktop surface.
■ Abrasive cleaners.
■ Metal scouring pads and scrub sponges such as Scotch Brite®¹. These cleaners may scratch the cooktop surface and/or leave metal marks.
- Soap-filled scouring pads such as SOS®. These cleaners may scratch the cooktop surface.
■ Powdery cleaners containing chlorine bleach. These cleaners may permanently stain the cooktop surface.
■ Flammable cleaners such as lighter fluid or WD-40®.

Cleaning the glass ceramic cooktop

WARNING

Clean Cooktop With Caution.

If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn.
- Some cleaners can produce noxious fumes if applied to a hot surface.
- Do not clean the appliance while it is still hot.

CAUTION

Do not use any kind of cleaner on the glass while the surface is hot; use only the glass scraper. The resulting fumes can be hazardous to your health. Heating the cleaner can chemically attack and damage the surface.

Requirement: The cooktop has cooled off.

1. Wipe off splatters with a clean, damp sponge or a paper towel.
2. Rinse and dry.
3. If a smudge remains use white vinegar.
4. Rinse and dry again.
5. Apply a small amount of cooktop cleaner with a clean paper towel or cloth and let it dry.
6. Buff the surface with a clean paper towel or cloth.

Cleaning recommendations

Follow these cleaning instructions for removing common soiling.

WARNING

The blade of the glass scraper is extremely sharp. You can cut yourself.

• Replace the blade immediately, when you see any imperfections.
  ▶ Follow the manufacturer's instructions.

NOTICE:

Diamond rings may scratch the ceramic cooktop surface.

▶ Take off any rings before you clean the ceramic cooktop surface.

Type of soil Recommendation
Dry sugarSugar syrupMilkTomato spillsMelted plastic film or foil	REMOVE IMMEDIATELY. Failure to remove these substances immediately can permanently damage the ceramic cooktop surface.Remove the soil with the glass scraper while the cooktop surface is still hot.Use a new, sharp razor in the glass scraper.Remove the cookware and turn off the cooking zone.Put on an oven mitt.Hold the glass scraper at 30° angle and scrape off the soil.Be careful not to gouge or scratch the glass ceramic surface.Push the soil off the heated area.Let the surface cool.Remove the residue and apply glass ceramic cooktop cleaner.
Burned-on food soilDark streaksDark specks	Lay a damp paper towel or sponge on top of the soil for 30 minutes to soften the soil.Remove the soil with a plastic scrubber and glass ceramic cooktop cleaner or with the glass scraper.Rinse the cooktop surface and dry it.
Greasy spattersRemove grease with a soapy sponge or cloth.Rinse the cooktop surface thoroughly and dry it.Apply glass ceramic cooktop cleaner.

^1 These marks are registered trademarks of their respective owners. All other trademarks are trademarks of BSH Home Appliances Corporation or its affiliated companies.

Type of soil Recommendation
Metal marks: iridescent stain	Pans with aluminum, copper or stainless steel bases may leave marks.Treat metal marks immediately after the cooktop surface has cooled off. Failure to do so makes removal very difficult.Clean the cooktop surface with glass ceramic cooktop cleaner.If this does not remove the marks, clean the cooktop surface with a damp paper towel and a mild abrasive (Bon Ami ^ , Soft Scrub ^ without bleach).Rinse the cooktop surface and apply glass ceramic cooktop cleaner.
Hard water spots Hot cooking liquids may drip or spill on the cooktop surface. The minerals in some water can be transferred onto the surface and cause stains.Remove boilovers and stains before using the cooktop again.Clean the cooktop surface with undiluted white vinegar.
^1 These marks are registered trademarks of their respective owners. All other trademarks are trademarks of BSH Home Appliances Corporation or its affiliated companies.

Type of soil Recommendation
	■ Rinse the cooktop surface and dry it.■ Apply glass ceramic cooktop cleaner.
Surface scratches Small scratches are common and do not affect cooking. They become smoother and less noticeable with daily use of the glass ceramic cooktop cleaner.■ Apply glass ceramic cooktop cleaner before cooking to remove sand-like grains and grit such as salt and seasoning.■ Scratches can be reduced by using pans with bases that are smooth, clean, and dry before use. Use recommended glass ceramic cooktop cleaner daily.

^1 These marks are registered trademarks of their respective owners. All other trademarks are trademarks of BSH Home Appliances Corporation or its affiliated companies.

Maintenance

This appliance requires no maintenance other than daily cleaning.

For best results, apply cooktop cleaning cream daily.

9.3 Oven cleaning and maintenance

Cleaning recommendations

Clean only those parts of your oven that are listed in this cleaning chart.

Part Suitable cleaning method Recommendations
Flat rack■Wash with soapy water.■Rinse thoroughly and dry, or gently rub with cleansing powder or soap-filled pads as directed.	■DO NOT CLEAN USING THE SELF CLEAN FUNCTION.■If the flat racks remain in the oven during the self clean mode, they will loose their shiny finish and may not glide smoothly. If this happens, wipe the rack edges with a small amount of vegetable oil. Then wipe off excess oil.
Door gasket■None■DO NOT CLEAN THE DOOR GASKET.	■The door gasket is essential for a good seal. Care should be taken not to rub, damage, or move the gasket.
Glass■Wash with soap and water or glass cleaner.■Use Fantastik®on a clean sponge or paper towel and wipe clean.	■Avoid using powder cleaning agents, steel wool pads and oven cleaners.

^1 These marks are registered trademarks of their respective owners. All other trademarks are trademarks of BSH Home Appliances Corporation or its affiliated companies.

Part Suitable cleaning method Recommendations

Painted surfaces■ Clean with hot soapy water or apply Fantastik®1 to a clean sponge or paper towel and wipe clean.		■ DO NOT use powder cleaning agents, steel wool pads and oven cleaners.
Stainless steel surfaces	■ Clean with soapy water and soft cloth, then rinse and dry with a soft cloth.■ Condition steel with stainless steel conditioner.■ Remove water spots with a cloth dampened with white vinegar.■ Remove heat discoloration with Bar Keeper's Friend®1.	■ Never allow food stains or salt to remain on stainless steel for any length of time.■ Always wipe or rub in the direction of the grain.■ Chlorine or chlorine compounds in some cleansers are corrosive to stainless steel. Check the ingredients on the label of the cleanser.
Plastic and controls■ When cool, clean with soapy water, rinse and dry.
Printed areas (words and numbers)		■ Do not use abrasive cleaners or petroleum based solvents.

^1 These marks are registered trademarks of their respective owners. All other trademarks are trademarks of BSH Home Appliances Corporation or its affiliated companies.

Self clean function

With pyrolytic self cleaning the oven is heated to a very high temperature. Stubborn soil is burnt off and can be wiped out after self clean is finished.

WARNING

The oven becomes very hot during self clean.

During the self-clean cycle, exterior surfaces may become hotter than usual. Parts of the appliance may become potentially harmful to children, and to persons who lack adult knowledge of appliances and lack adult reactions to potentially harmful conditions. Keep these individuals away during self-clean and while the appliance is in use. Care is needed when using other functions.
The elimination of soil during self-cleaning may facilitate the emission of small amounts of chemicals or other substances that may be harmful upon sufficient exposure. To minimize exposure to these substances, provide good ventilation with an open window, or use a ventilation fan or hood.
For the self-cleaning cycle of your range, remove small animals and birds from the kitchen and surrounding areas. Open a nearby window for additional ventilation. During self-clean, fumes are released that may be harmful.

During the elimination of soil during self-cleaning, small amounts of carbon monoxide can be created and the fiberglass insulation could give off very small amounts of formaldehyde during the first several cleaning cycles.

To minimize exposure to these substances, provide good ventilation with an open window, or use a ventilation fan or hood.

CAUTION

The oven vents are important for air circulation. Covering the oven vents will cause the oven to overheat. Refer to the appliance overview for the location of the oven vents.

→ "Appliance", Page 12

▶ Do not obstruct oven vents.

WARNING

The oven heats up to a very high temperature during self cleaning. Opening the door can result in injury.

- When self-cleaning, confirm that the door locks and will not open.

- If the door does not lock, do not run Self Clean. Contact Customer Service.

CAUTION

Do not leave food or cooking utensils, etc., in the oven during the pyrolytic self-cleaning mode of operation.

Preparing self clean

CAUTION

Remove broiler pans, pots, and other utensils and excess spillage before self-cleaning.

Do not leave food or cooking utensils, etc., in the oven during the pyrolytic self-cleaning mode of operation.

NOTICE:

Do not clean parts or accessories with the self clean function.

1. Remove all accessories, racks and rack guides from the oven.
2. Wipe out excessive spillage from the oven cavity.

Starting self clean

Requirements

■ All heating modes or timers are canceled.
- You have carried out the steps for preparing the oven for self clean.

1. Press clean twice.

"self" lights up.

1. Press< or> to selected the desired cleaning level.

Intensity Duration (excluding cool off)

- LowFor minor impurities	2 hours
= MediumFor noticeableimpurities	3 hours
≡ HighFor stubborn and persisting impurities	5 hours

1. Press start.

√ "door lock" and the cleaning duration are displayed.

1. Check if the door is locked.

Note: Do not use self clean if the oven door does not lock.

1. When the self clean program is finished the door remains locked until the temperature has dropped below 400^ F ( 200^ C). After that the oven will go into stand by mode.

2. Wait until the oven cavity has fully cooled down before completing self clean. → Page 28

Completing self clean

When self clean is finished, the oven cools down. The door latch will open automatically when the oven is below 500^ F ( 260^ C).

CAUTION

To avoid risk of burns, let the oven cool down completely before opening the oven door. The oven cavity is still at baking temperatures when the door latch is released after self clean.

1. Press ① to turn the oven off.

2. Wipe the remaining ash from the oven with a moist cloth.

Note: After self clean is complete, the self clean function will be prevented from running again for a period of 24 hours.

Surface elements disabled during self clean

WARNING

To avoid risk of personal injury, while the Self Clean cycle is operating, do not operate the cooktop and ensure that all surface controls are turned off.

If you try to use the cooktop while the self clean mode is in use, "cooktop active" will light up in the oven display. If the cooktop is not turned off within 1 minute, Error code 14 is displayed and the self clean function stops.

Steam clean function

This function is ideal at removing light soils from the oven cavity.

This function is most effective when used regularly. If the oven cavity has heavy soil use the self clean function instead.

Starting steam clean

1. Pour a maximum of 12 cup of water onto the bottom of the oven cavity.
2. Press clean once.
   "on" lights up.
   √ The steam clean timer counts down from 30 minutes.
3. When the steam clean timer has elapsed, continue with subsequent cleaning.

Subsequently cleaning the oven cavity after the cleaning function

Clean the oven cavity manually as soon as it has cooled off after the cleaning function.

NOTICE:

Moisture in the oven cavity can cause damage to the surfaces.

• Remove remaining water from the oven cavity promptly.
• Do not leave the remaining water in the oven cavity for a long time, for example overnight.

• Do not operate the appliance when the oven cavity is still wet or damp.

• Open the appliance door and remove the remaining water with an absorbent sponge cloth.

• Clean the smooth surfaces in the oven cavity with a dish cloth or a soft brush. Stubborn residues can be removed using a soft scouring pad.

• Remove limescale with a cloth soaked in vinegar and wipe it with clean water. Rub the oven cavity dry with a soft cloth; also dry under the door seal.

• Turn the appliance off.

• Leave the appliance door ajar in the stop position (approx. 30°) for about one hour to allow the enamel surfaces in the oven cavity to dry thoroughly.

Maintenance

Replacing an oven light bulb

When the oven light fails you can replace the light bulbs.

WARNING

Light socket is live when door is open if main power supply is not turned off.

- Turn off main power supply at the service panel before changing the light bulbs.

WARNING

Make sure the appliance and lights are cool and power to the appliance has been turned off before replacing the light bulb(s). Failure to do so could result in electrical shock or burns.

The lenses must be in place when using the appliance.
The lenses serve to protect the light bulb from breaking.
The lenses are made of glass. Handle carefully to avoid breaking. Broken glass can cause an injury.

Replacing the oven light

Note: The graphics are representative. Your appliance may have different graphic appearances.

Requirements

■ Refer to the oven light bulb chart for the oven light specification of your oven.
■ Follow the safety instructions on replacing a light bulb. → Page 28

1. Turn off the power to the oven at the main power supply (fuse or breaker box).

2. Remove the oven racks.

3. Turn the glass cover counterclockwise to remove it.

Illustration of a blue mechanical component with a circular arrow indicating rotation (no text or symbols)

1. Remove the old bulb by grasping and sliding the bulb straight back until the two prongs have cleared the ceramic holder.

Illustration of a device with a blue downward arrow indicating a change or reduction (no text or symbols present)

Light bulb specifications

Bulb description Bulb image

40 Watt, halogen bulb, G9 base, 120 Volts

1. Do not touch the glass of the new replacement bulb directly as oil from your fingers may cause the bulb to fail prematurely. Instead, grasp the replacement bulb with a clean dry cloth. Locate the two prongs in the ceramic holder, gently poking until the two prongs locate in the ceramic socket.

2. Press in to seat the bulb.

3. Screw the glass cover back on.
4. Turn on the circuit breaker.

Removing the oven door

WARNING

Failure to follow these instructions when removing the oven door may lead to personal injury or product damage.

▶ Make sure oven is cool and power to the oven has been turned off before removing the door. Failure to do so could result in electrical shock or burns.
- The oven door is heavy and parts of it are fragile. Use both hands to remove the oven door.
- The door front is glass. Handle it carefully to avoid breakage.
- Grasp only the side of the oven door. Do not grasp the handle. It may swing in your hand and cause damage or injury. Failure to grasp the oven door firmly and properly could result in personal injury or product damage.
To avoid injury from hinge bracket snapping closed, be sure both levers are securely in place before removing the door.
- Do not force the door open or closed. The hinge could be damaged and cause damage or injury.
- Do not lay the removed door on sharp or pointed objects as this could break the glass. Lay it on a flat, smooth surface, positioned so that the door cannot fall over.

Without the weight of the door, the powerful springs will snap the hinges closed with great force. Failure to grasp the oven door firmly and properly could result in personal injury and product damage.

▶ Never grab the door near the door hinge/latch or place your hand or fingers near the latch once the door is removed from the hinge receiver.

Note: To avoid injury or damage, make sure that you read the above WARNING before attempting to remove the oven door.

1. Open the oven door to its fully open position.

2. Use a flathead screwdriver to rotate the 2 retainers until the stop position.

Illustration showing a kitchen oven with an open door and a screwdriver inserted into a sink (no text or symbols)

1. Slowly close the door to a 10^ angle from the fully closed position, then pull the door away from the oven. The door is heavy. Use both hands to firmly grip it by the sides. Do not grip the door by the handle.
2. Place the door in a convenient and stable location.
3. ⚠️ WARNING There is a risk of injury when refitting the oven door.

▶ Always make sure the hinge retainers are correctly placed in the hinge beds.

Refit the door in the reverse order in which it was removed.

- Check that the door and drawer are parallel to each other and that both operate smoothly.

9.4 Removing the storage drawer

You can remove the storage drawer for easier cleaning.

1. Open the storage drawer.
2. Simultaneously push the spacer on either side of the drawer backwards in the direction of the arrow.

Diagram showing a blue 3D printer with an arrow pointing to it, illustrating the process of assembly or installation (no text or symbols present)

1. Remove the storage drawer completely.

10 Troubleshooting

You can eliminate minor issues on your appliance yourself. Please read the information on eliminating issues before contacting Customer Service. This may avoid unnecessary repair visits.

WARNING

Improper repairs are dangerous.

- Repairs to the appliance should only be performed by authorized service providers.

If the power cord of this appliance becomes damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service, or an authorized service provider in order to prevent injury.
- Only original spare parts may be used to repair the appliance.
▶ If the appliance has an issue, call Customer Service.

10.1 Oven troubleshooting

Issue Cause and troubleshooting

e101 - Oven temperature sensor failure	The temperature sensor on the appliance might be malfunctioning.1. Check if the power cord connection is correct.- The colors of the power cord wires should match the colors of the wires on the appliance.2. Turn the appliance off at the circuit breaker and wait five minutes.3. Turn the circuit breaker back on.4. If the problem persists, contact Customer Service.
e005 - Communication failure between user interface and power board	An electronics fault has occurred1. Turn the appliance off at the circuit breaker and wait five minutes.2. Turn the circuit breaker back on.3. If the problem persists, contact Customer Service.
e011 - Touch sensor failure on oven control panel	There is a failure on a touch sensor.1. Clean the control panel and wipe it dry.2. Turn the appliance off at the circuit breaker and wait five minutes.3. Turn the circuit breaker back on.4. If the problem persists, contact Customer Service.
E302 - Control panel has overheated	The control panel has overheated.1. Check the ambient temperature in the room2. Check the position of pots.- Pot position might influence the temperature on the control panel.3. Let the appliance cool down.4. Turn the appliance off at the circuit breaker and wait five minutes.5. Turn the circuit breaker back on.6. If the problem persists, contact Customer Service.
e126 - Self clean door lock failure	The door lock on the appliance is malfunctioning.1. Cancel the self clean function.2. Wait until the door unlocks and start the self clean function again.3. If the problem persists, contact Customer Service.
e310 - Failure of power board relay supply	There is a power supply failure.1. Check the correct voltage in the house installation.2. Turn the appliance off at the circuit breaker and wait five minutes.3. Turn the circuit breaker back on.4. If the problem persists, contact Customer Service.
e302 - Powerboard has overheated	The power board has overheated.
ERR/toP - Cooktop activation during active Self Clean function	The cooktop has been activated during an active self clean cycle.1. Turn off any active cooking zone.2. Start the self clean function again.
Issue Cause and troubleshooting
E100 - Zero cross failure on power board	An electronics fault has occurredTurn the appliance off at the circuit breaker and wait five minutes.Turn the circuit breaker back on.If the problem persists, contact Customer Service.
Issue Cause and troubleshooting
Oven door is locked and will not open, even after cooling	The door lock is engagedTurn the oven off at the circuit breaker and wait five minutes.Turn breaker back on.The oven should reset itself and will be operable.
Oven is not heating There is no power supply to the applianceCheck circuit breaker or fuse box to your house.Make sure there is proper electrical power to the appliance.There is no cooking temperature setSet a heating mode temperature.
Baking results are not as expected The rack position is not idealCheck "Getting the most out of your appliance" for tips and suggestions.→ "Getting the best results", Page 23
Food takes longer to cook than expected	The oven temperature needs to be recalibratedNote:The oven is carefully calibrated to provide accurate results.If food is consistently too brown or too light the temperature can be offset.→ "Oven temperature offset", Page 21
Food is overcooked The oven temperature needs to be recalibratedNote:The oven is carefully calibrated to provide accurate results.If food is consistently too brown or too light the temperature can be offset.→ "Oven temperature offset", Page 21
Oven light is not working properly The oven light bulb is loose or burnt outReplace or reinsert the light bulb.→ "Replacing an oven light bulb", Page 28Tip:Touching the bulb with fingers may cause the bulb to burn out.
Oven light does not turn off The oven door does not close properlyCheck the appliance door for obstructions.Check to see if the hinge is bent.The oven light is turned onPress the oven light button to turn the oven light off.
Cannot remove lens cover on light There is soil build-up around the lens coverLet the oven cavity cool off.Wipe the lens cover area with a clean, dry towel, then try to remove the lens cover.
Oven is not self-cleaning properly The oven is too hot to start self cleanAllow the oven to cool before running self clean.Always wipe out loose soils or heavy spillovers before running self clean.If the oven is heavily soiled, set the maximum self clean time.
Clock and timer are not working properly	There is no power supply to the applianceCheck circuit breaker or fuse box to your house.Make sure there is proper electrical power to the appliance.
With a new oven there is a strong odor when oven is turned on	This is normal with a new oven and will disappear after a few usesOperate the self clean mode to burn-off the smell more quickly.
Control does not react when a key is touched	The control is wet or soiled▸ Clean the control panel and wipe it dry.
	The touch keys are not pressed correctly1. Press the center of the button.2. Use the flat part of your finger.
Warm air or steam escapes from oven vent	It is normal to see or feel steam or warm air escaping from the oven vent⚠️ CAUTIONThe oven vents are important for air circulation. Covering the oven vents will cause the oven to overheat. Refer to the appliance overview for the location of the oven vents. → "Appliance", Page 12▸ Do not obstruct oven vents.
Cooling fan runs even when the oven is turned off	The cooling fan will continue to run, even after the oven has been turned off, until the oven has cooled sufficiently▸ This is normal. There is no action required.

11 Disposal

11.1 Disposal of your old appliance

Environmentally compatible disposal allows valuable raw materials to be recycled.

• Dispose of the appliance in an environmentally responsible manner.
  Information about current disposal methods can be obtained from your specialist dealer or local authority.

12 Customer Service

With any warranty repair, we will make sure your appliance is repaired by an authorized service provider using genuine replacement parts. We use only genuine replacement parts for all repairs. Detailed information on the warranty period and terms of warranty can be found in the Statement of Limited Product Warranty, from your retailer, or on our website. If you contact Customer Service, you will need the model number (E-Nr.) and the production number (FD) of your appliance. USA: 1-800-944-2904 www.bosch-home.com/us/owner-support/get-support www.bosch-home.com/us/shop CA: 1-800-944-2904 www.bosch-home.ca/en/service/get-support www.bosch-home.ca/en/service/cleaners-and-accessories

12.1 Model number (E-Nr.) and production number (FD)

You can find the model number (E-Nr.) and the production number (FD) on the appliance's rating plate. Making a note of your appliance's details and the Customer Service telephone number will enable you to find them again quickly.

12.2 Rating plate location

You can find the rating plate of your appliance on the oven frame. Open the drawer to view it.

Technical diagram of a mechanical assembly with labeled component 'a' (no text or symbols beyond label)

a Rating plate

12.3 Product registration

Register your Bosch product to access information related to your product. You may register your product through one of the following ways:

■ Register your product online at:
- US: www.bosch-home.com
- CA: www.bosch-home.ca/en/service/get-support

• Mail in the completed product registration card to the address printed on the card.
• Scan the QR code with your smartphone and follow the prompts:

QR code image containing encoded data, no visible human-readable text

■ Call Bosch Customer Service at 1-800-944-2904.
Please make sure to register your product; failure to register will not affect your warranty rights.

13 STATEMENT OF LIMITED PRODUCT WARRANTY

13.1 What this warranty covers & Who it applies to

The limited warranty provided by BSH Home Appliances ("Bosch") in this Statement of Limited Product Warranty applies only to the Bosch appliance sold to you ("Product"), provided that the Product was purchased:

• For your normal, household (non-commercial) use, and has in fact at all times only been used for normal household purposes.
  ■ New at retail from a BSH authorized dealer or directly from BSH (not a display, "as is", or previously returned model), and not for resale, or commercial use.
  ■ Within the United States or Canada, and has at all times remained within the country of original purchase.

The warranties stated herein apply to the original purchaser of the product warranted herein and to each succeeding owner of the product purchased for ordinary home use during the term of the warranty.

Please make sure to register your Product; while not necessary to effectuate warranty coverage, it is the best way for Bosch to notify you in the unlikely event of a safety notice or product recall.

13.2 How long the warranty lasts

Bosch warrants that the Product is free from defects in materials and workmanship for a period of three hundred and sixty-five (365) days from the date of the original delivery. The foregoing timeline begins to run upon the date of the original delivery, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This Product is also warranted to be free from cosmetic defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chips, dents, or other damage to the finish) of the Product, for a period of thirty (30) days from the date of delivery or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, "As Is", or "B" stock appliances.

13.3 Repair/replace as your exclusive remedy

During this warranty period, Bosch or one of its authorized service providers will repair your Product without charge to you (subject to certain limitations stated herein) if your Product proves to have been manufactured with a defect in materials or workmanship. If reasonable attempts to repair the Product have been made without success, then Bosch will replace your Product (upgraded models may be available to you, in Bosch's sole discretion, for an additional charge). Nothing in this warranty requires damaged or defective parts to be replaced with parts of a different type or design than the original part. All removed parts and components shall become the property of Bosch at its sole option. All replaced and/or repaired parts shall assume the identity of the original part for purposes of this warranty and this warranty shall not be extended with respect to such parts. Bosch's sole liability and responsibility hereunder is to repair manufacturer-defective Product only, using a Bosch authorized service provider during normal business hours. For safety and property damage concerns, Bosch highly recommends that you do not attempt to repair the Product yourself, or use a non-authorized service provider; Bosch will have no responsibility or liability for damage resulting from repairs or work performed by a non-authorized service provider. Authorized service providers are those persons or companies that have been specially trained on Bosch products, and who possess, in Bosch's opinion, a superior reputation for customer service and technical ability (note that they are independent entities and are not agents, partners, affiliates or representatives of Bosch). Nevertheless, taking your product to be serviced by a repair shop that is not affiliated with or an authorized dealer of Bosch will not void this warranty. Also, using third-party parts will not void this warranty. Notwithstanding the foregoing, Bosch will not incur any liability, or have responsibility, for the Product if it is located in a remote area (more than 100 miles from an authorized service provider) or is reasonably inaccessible, hazardous, threatening, or treacherous locale, surroundings, or environment; in any such event, if you request, Bosch would still pay for labor and parts and ship the parts to the nearest authorized service provider, but you would still be fully liable and responsible for any travel time or other special charges by the service company, assuming they agree to make the service call. Further, to the extent you have installed the Product in a difficult-to-access location or have otherwise installed temporary or permanent fixtures that create barriers to accessing or removing the Product, Bosch will not incur any liability for, or have responsibility, for work or costs associated with

moving the Product or otherwise creating access to the Product in order to repair or replace it. All such costs shall be your sole responsibility.

13.4 Out of warranty product

Bosch is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, prorates, or Product replacement, once this warranty has expired.

13.5 Warranty exclusions

The warranty coverage described herein excludes all defects or damage that are not the direct fault of Bosch, including without limitation, one or more of the following:

■ Use of the Product in anything other than its normal, customary and intended manner (including without limitation, any form of commercial use, use or storage of an indoor product outdoors, use of the Product in conjunction with air or water-going vessels).
- Any party's willful misconduct, negligence, misuse, abuse, accidents, neglect, improper operation, failure to maintain, improper or negligent installation, tampering, failure to follow operating instructions, mishandling, unauthorized service (including selfperformed "fixing" or exploration of the appliance's internal workings).
■ Adjustment, alteration or modification of any kind.
- A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations.
- Ordinary wear and tear, spills of food, liquid, grease accumulations, or other substances that accumulate on, in, or around the Product.
- Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God.
■ Service calls to correct the installation of your Product, to instruct you how to use your Product, to replace house fuses or correct house wiring or plumbing.
■ Removal and replacement of trim or decorative panels that interfere with servicing the Product.
■ Damage or defects caused by labor or parts installed by any non-authorized service provider, unless approved by Bosch before service is performed.

In no event shall Bosch have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures or objects around the Product. Also excluded from this warranty are Products, on which the serial numbers have been altered, defaced, or removed; service visits to teach you how to use the Product, or visits where there is nothing wrong with the Product; correction of installation problems (you are solely responsible for any structure and setting for the Product, including all electrical, plumbing or other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors, shelving, etc.); and resetting of breakers or fuses. TO THE EXTENT ALLOWED BY LAW, THIS WARRANTY SETS OUT YOUR EXCLUSIVE REMEDIES WITH RESPECT TO PRODUCT, WHETHER THE CLAIM ARISES IN CONTRACT OR TORT (INCLUDING STRICT LIABILITY, OR NEGLIGENCE) OR OTHERWISE. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED. ANY WARRANTY IMPLIED BY LAW, WHETHER FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR OTHERWISE, SHALL BE EFFECTIVE ONLY FOR THE PERIOD THAT THIS EXPRESS LIMITED WARRANTY IS EFFECTIVE. IN NO EVENT WILL THE MANUFACTURER BE LIABLE FOR CONSEQUENTIAL, SPECIAL, INCIDENTAL, INDIRECT, "BUSINESS LOSS", AND/OR PUNITIVE DAMAGES, LOSSES, OR EXPENSES, INCLUDING WITHOUT LIMITATION TIME AWAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS, REMODELLING EXPENSES IN EXCESS OF DIRECT DAMAGES WHICH ARE DEFINITIVELY CAUSED EXCLUSIVELY BY BOSCH, OR OTHERWISE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, AND SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

No attempt to alter, modify or amend this warranty shall be effective unless authorized in writing by an officer of BSH.

13.6 Obtaining warranty service

To obtain warranty service for your product, you should contact Bosch Customer Support at 1-800-944-2904 to schedule a repair.

13.7 Product information

For handy reference, copy the information below from the rating plate. Keep your invoice and/or delivery documents for warranty validation.

1 self clean steam bake air fry broil keep conv conv warm bake roast pizza quick proof fast preheat,on off min warm zone maximid 350 °F > 18:09 > oven light 1 2 3 4 5 6 7 8 9 0 start 2 timers cancel

1 Écran du four

2 Touches tactiles

Diagram illustrating airflow or ventilation process with labeled components and directional arrows

Comment utiliser frozen foods/quick meal

Illustration of a blue mechanical component with a circular arrow indicating rotation or cycle (no text or symbols)

Illustration of a medical device with a blue arrow indicating downward motion (no text or symbols)

Illustration of a kitchen appliance with an oven and a screwdriver, showing a hand operating the door (no text or symbols present)

Diagram showing a blue 3D object being inserted into a mechanical device, with arrows indicating direction (no text or symbols present)

www.bosch-home.com/us/owner-support/get-support

www.bosch-home.com/us/shop

CA:

1-800-944-2904

www.bosch-home.ca/en/service/get-support

www.bosch-home.ca/en/service/cleaners-and-accessories

QR code image containing encoded data, no visible human-readable text

Register your appliance to enjoy customized benefits.

Thank you for being a Bosch customer!

Simply create a MyBosch account, then register your appliance.

You'll find a variety of customized information in MyBosch such as:

• Discounts for filters, cleaners, accessories & parts
- Easy access to manuals & appliance specifications
- Easy access to part lists
- Customized offer for the Bosch Appliance Service Plan (sent by mail after appliance registration)

Register here:

www.bosch-home.com/us/owner-support/mybosch

BOSCH HOME APPLIANCES SERVICE

Looking for help?

You'll find it here.

No matter what, no matter when: Bosch is here to support you.

We're here to assist with usage instructions, cleaning tips, accessories & parts, troubleshooting, and repairs.

Find online resources such as FAQs, how-to-videos, manuals, warranties and authorized Bosch servicers at:

www.bosch-home.com/us/owner-support/get-support

Contact us:

Please have your Model Number (E-Nr) ready when contacting us.

1-800-944-2904

www.bosch-home.com/us/owner-support/contact-us

BSH Home Appliances Corporation

1901 Main Street, Suite 600

Irvine, CA 92614

USA

www.bosch-home.com

1-800-944-2904

© 2024 BSH Home Appliances Corporation

8001327830 (050115)

en-us, fr-ca
