It is essential that you read these instructions carefully and comply with the following recommendations.

• For your safety, this appliance complies with the applicable standards and regulations (Low Directive, Electromagnetic Compatibility, Environmental...).
• Before using, always check the condition of the appliance, the power socket and the power
• Do not pull on the power cable or the appliance, even to unplug it from the wall socket.
• Never insert objects into the appliance (e.g. needles...).
• This appliance is not intended for use by persons (including children) with reduced physical or mental capabilities, or lack of experience and knowledge, unless they have been given support or instruction concerning use of the appliance by a person responsible for their safety. Children are supervised to ensure that they do not play with the appliance.
• This product has been designed for domestic use only. Any commercial use, inappropriate failure to comply with the instructions, the manufacturer accepts no responsibility and the guar will not apply.
• Do not use your appliance in a dusty room or a room where there is a risk of fire.
• This appliance is intended for domestic use only. It must therefore not be used in industries.
• If the power cable is damaged, it must be replaced by the manufacturer, its after-sales ser person with similar qualifications to avoid any danger.
• Elimination of the product at the end of its life span : To care for the environment, dispo appliance at your local waste disposal centre.

VERY IMPORTANT

• Keep the appliance 50 cm away from any objects (curtains, walls, aerosols, etc.)

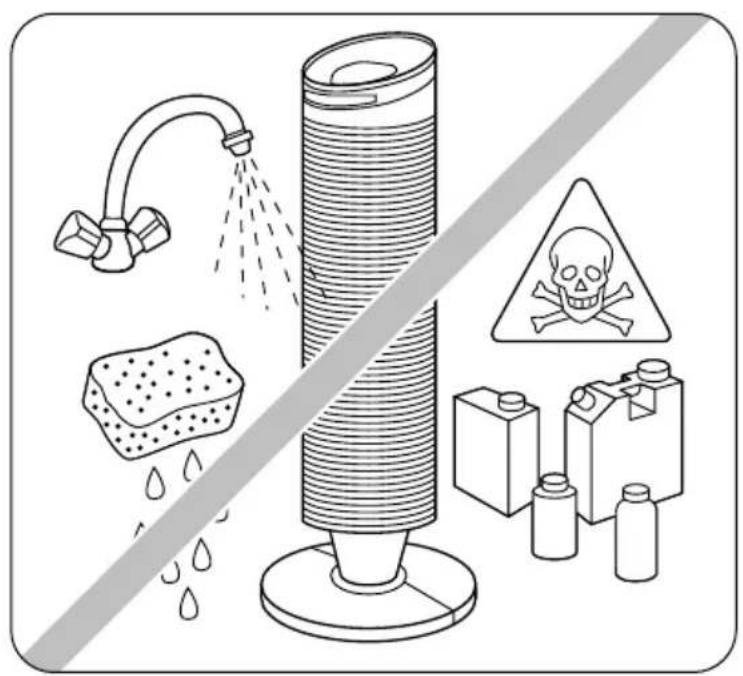

• NEVER ALLOW WATER TO PENETRATE THE APPLIANCE.
• Do not touch the appliance with wet hands.
• Before operating, please ensure that :
• The appliance is assembled according to the manufacturers instructions.
• The appliance is placed on a stable and firm surface
• The appliance is in a normal operating position (in an upright position on its feet).

VOLTAGE

• Before using the appliance for the first time, ensure that your mains voltage corresponds to voltage indicated on the appliance.
• Your appliance can be used with a power plug without an earth connection. It is a appliance (double insulation).

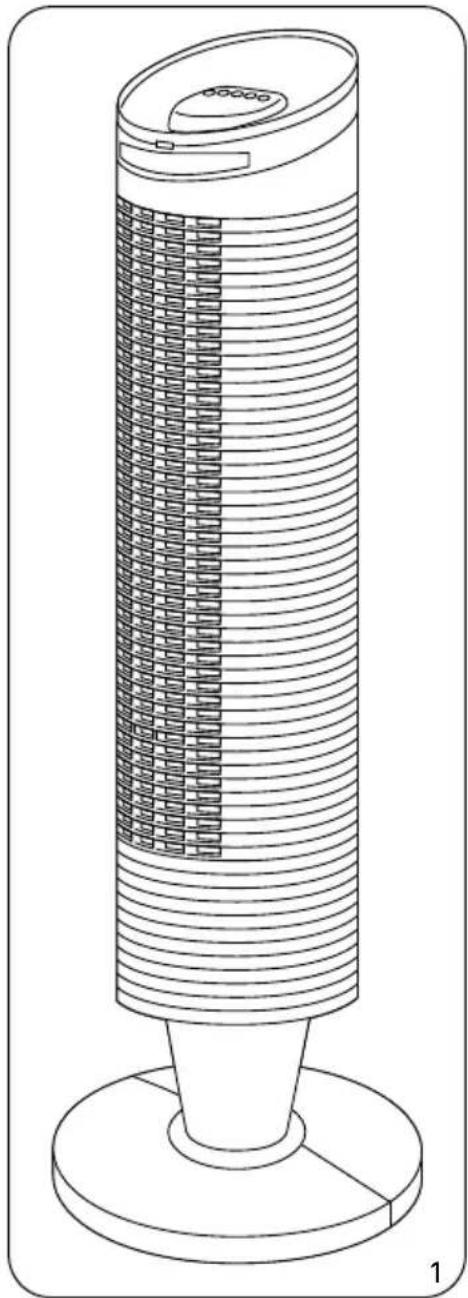

ASSEMBLING

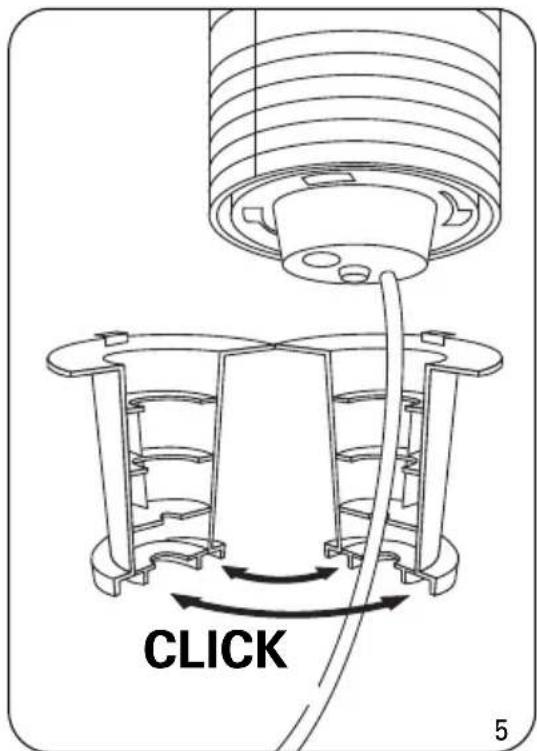

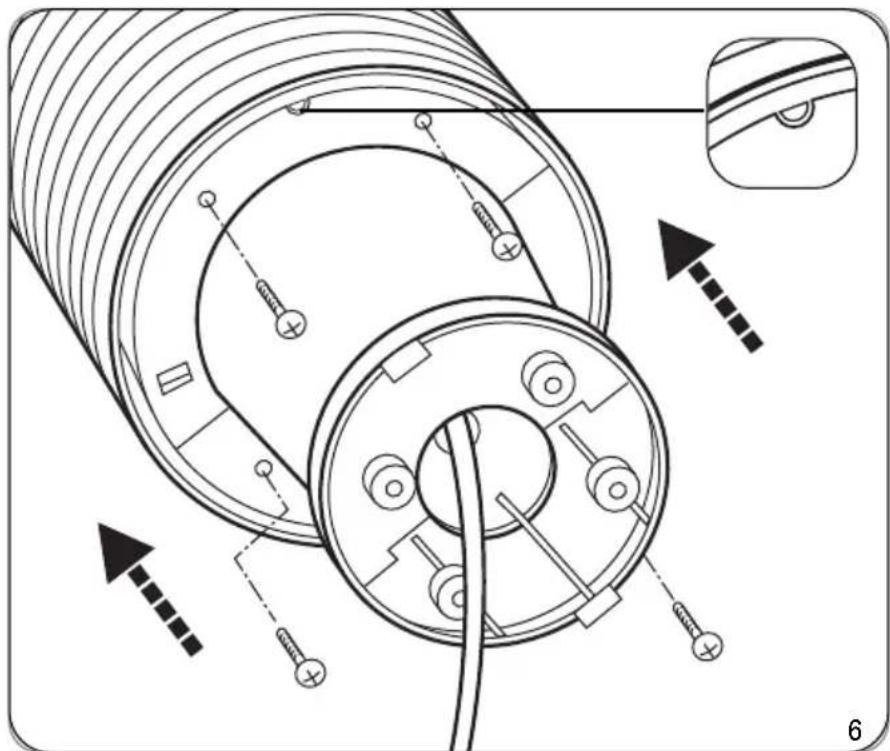

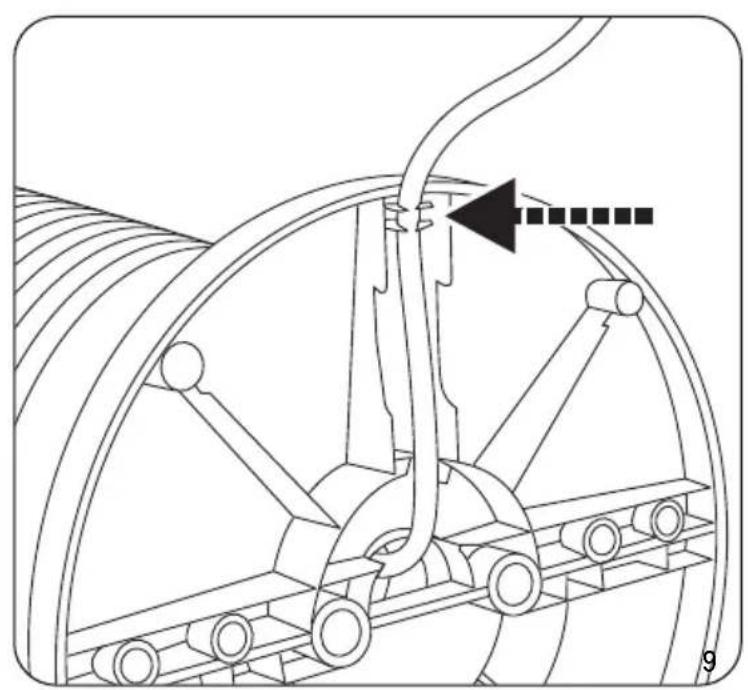

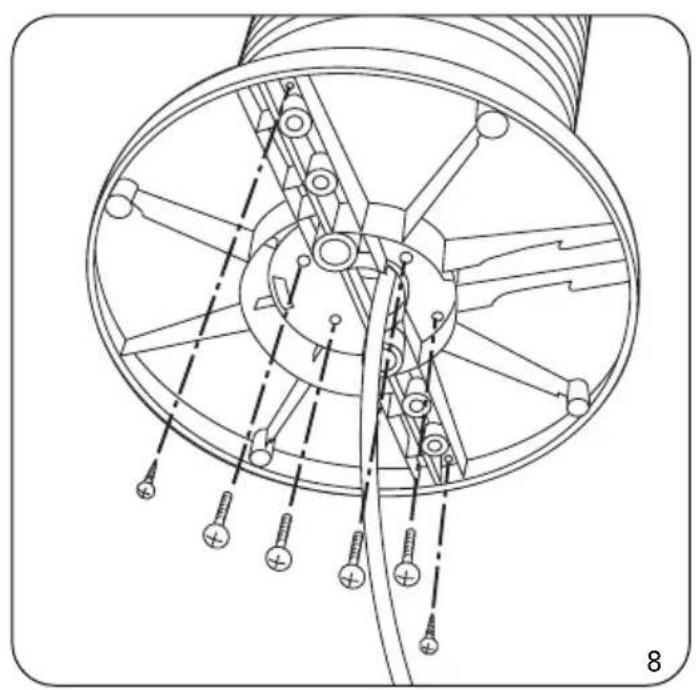

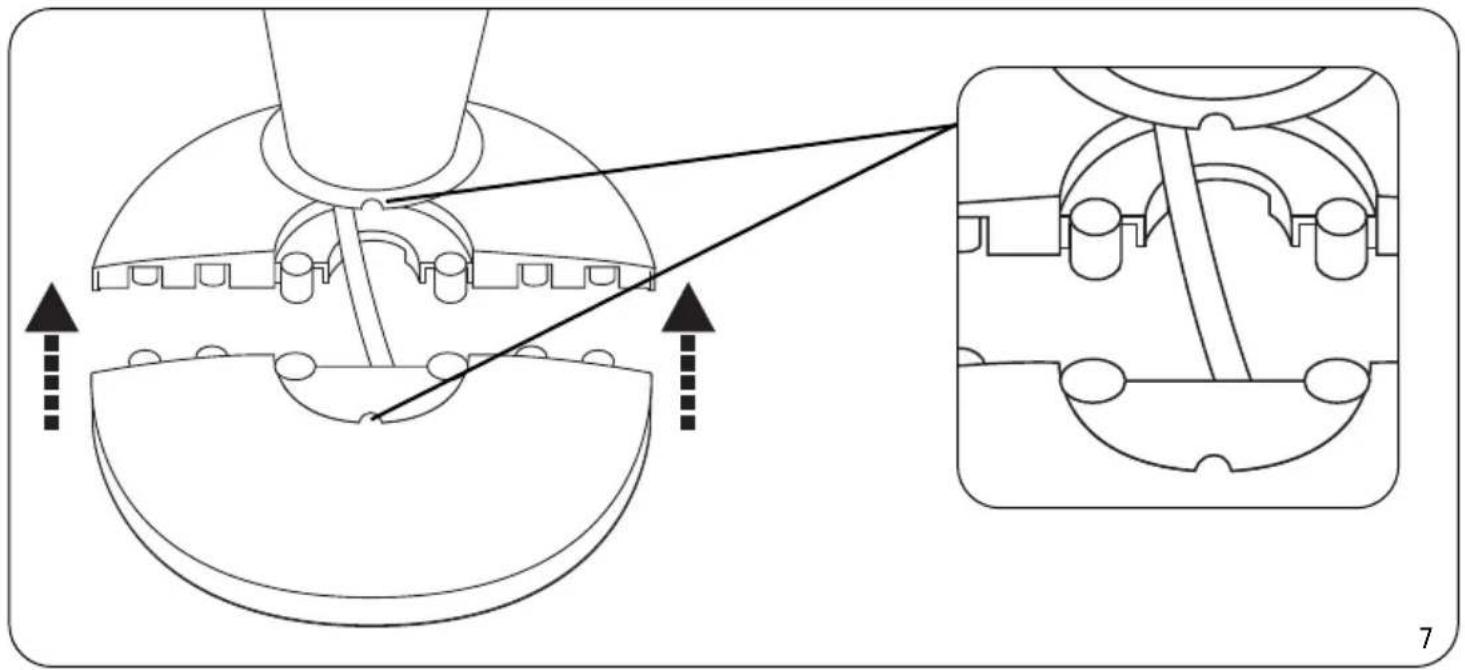

- Your appliance is supplied unassembled. For your safety, it is essential to assemble it Fig. 5, 6, 7, 8, 9.

OPERATION MOD. VU6010

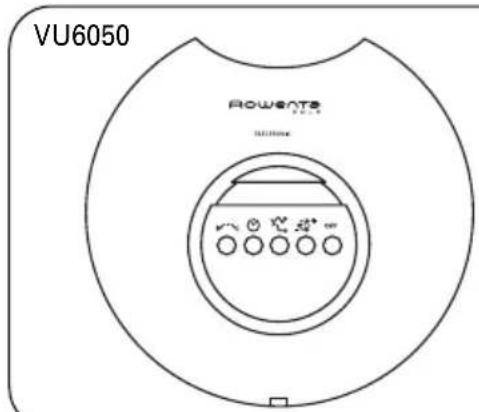

Press the buttons as follows :

• Position OFF : stop the unit
• Position • : low-level ventilation
• Position • • : medium ventilation
• Position • • • : high-level ventilation.
• Oscillation : press the button if you want the fan to swivel.

The "A" "B" and "C" buttons described below are only operational once the appliance has been turned on and can be used simultaneously (see page 2).

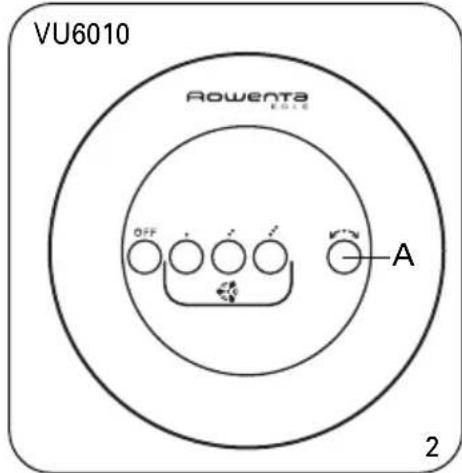

- "A" button, oscillation control:

- Press the "A" button once, the fan oscillates horizontally.

- To stop the oscillation function, press the "A" button again.

- "B" button, set automatic appliance shutdown:

You have 4 choices, 1-, 2-, 4- or 8-hour operating time.

• Press the "B" button once; the 1-hour timer is activated and the 1h indicator comes (
• Press the "B" button a second time; the 2-hour timer is activated and the 2h indicato
• Press the "B" button a third time; the 4-hour timer is activated and the 4h indicator
• Press the "B" button a fourth time; the 8-hour timer is activated and the 8h indicator
• To stop the "TIMER" function, press the "B" button again.

- "C" button, set VARIATION or REDUCTION mode

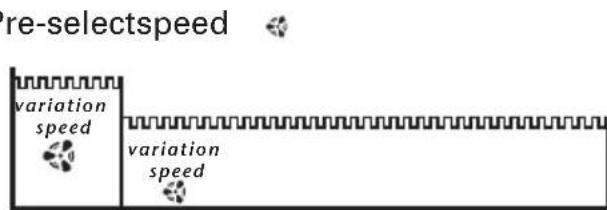

VARIATION:REDUCTION:Randomspeedcycles(90-secondcycles)+Randomspeedcycles(90-secondcycles)+Speedstepsdownevery30minutes
Pre-selectspeed Pre-selectspeed Pre-selectspeed	Pre-selectspeed PPre-selectspeed 0 3 0 min.60min.

Pre-select the start-up speed according to your needs (see table above), then select REDUCTION mode or VARIATION mode (using method described below):

• Press the "C" button once; "VARIATION" mode is activated and the "VARIATION" indicator comes on.
• Press the "C" button again; "REDUCTION" mode is activated and the "REDUCTION" indi comes on.
• Press the "C" button again to stop this function.


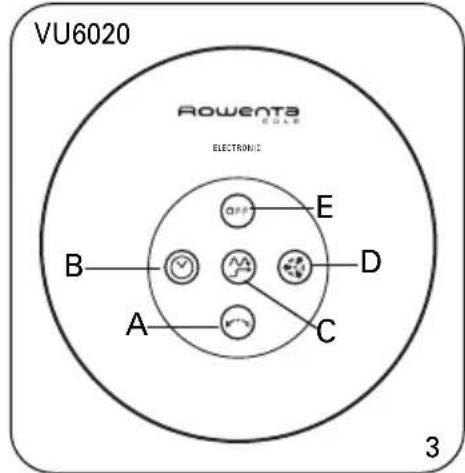

- "D" button:

• Press the "D" button once; the appliance starts up at speed 1 and indicator comes or
• Press the "D" button a second time; the appliance changes to speed*2 and indicator
• Press the "D" button a third time, the appliance changes to speed 3 and indicator con
• If you press the "D" button again, the appliance changes back to speed 1 and indicat

- "E" button, immediate appliance shutdown:

- Press the "E" button to completely shut down the appliance.

REMOTE CONTROL MOD. VU6050

The remote control buttons are the same as those on the appliance control panel.

The information is sent to the appliance by means of an infrared transmission LED loca the front of the remote control. The infrared receiver is located on the fan control pane Do not scratch or cover the transmission LED, or the infrared receiver on the fan.

To use the remote control, point the transmission LED towards the infrared receiver on and press the required button.

Ensure that there are no obstacles between the transmission LED and the receiver.

The maximum range is approximately 6 metres opposite the fan.

Remote control power:

The remote control is powered by two AAA or LR03 type alkaline batteries, which are r Insert the batteries into the battery housing, respecting the battery polarity as indicated in housing.

Whenever a command is issued to the control panel, the fan beeps.

IMPORTANT:

It is recommended that you unplug your appliance whenever it is not in use.

CLEANING

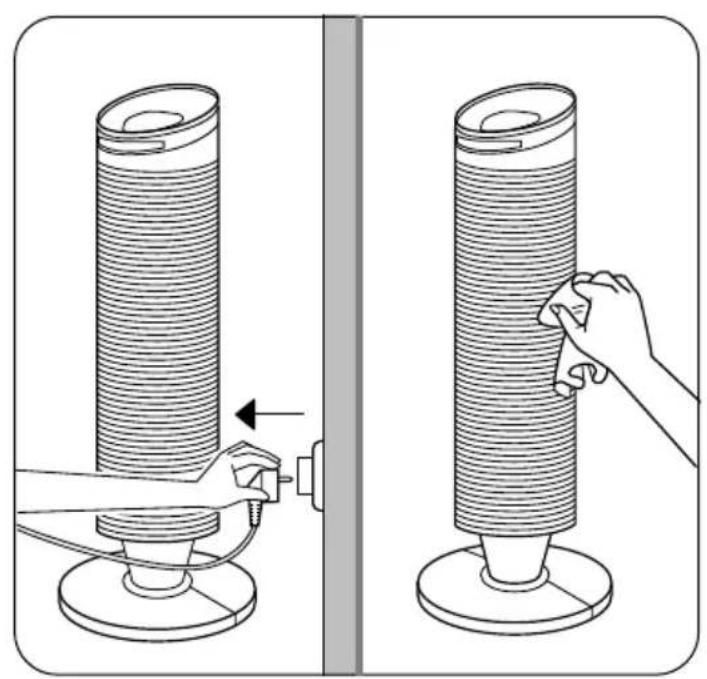

• Your appliance must be unplugged before proceeding with any cleaning work.
• You can clean it with a slightly damp cloth.
• IMPORTANT: Never use abrasive products which might damage the appearance of your ce.

STORAGE

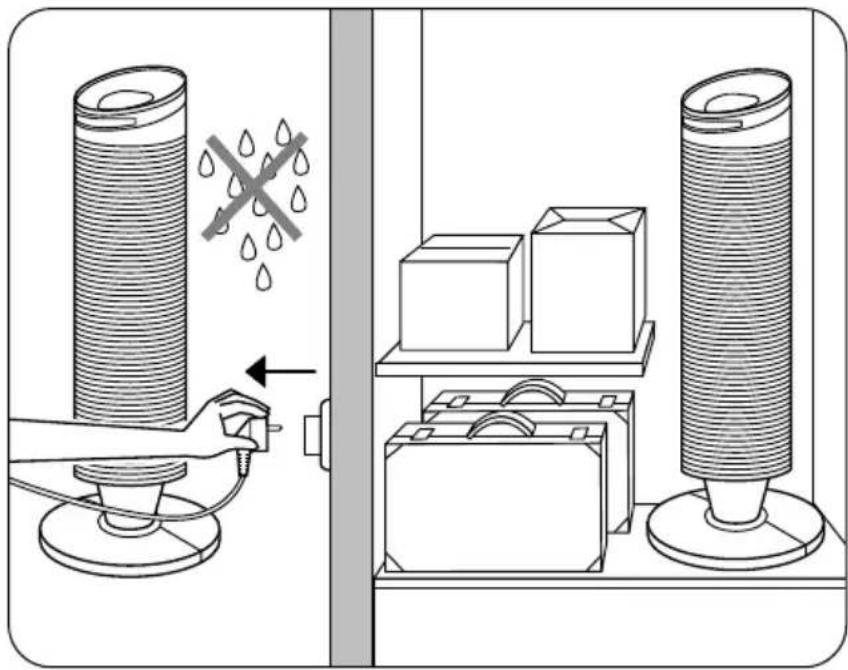

• When you are not using your appliance, store it in a dry place.
• When storing the appliance over a period of time, remove the batteries from the rem (mod. VU6050).

IN THE EVENT OF PROBLEMS

• Never dismantle your appliance yourself, this will negate any guarantee. A poorly repair may be dangerous for the user.
• If the appliance ceases to operate or is damaged in any way, contact one of our aut service centres.

ENVIRONMENT PROTECTION FIRST !

Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.

SERVICE/SPARE PARTS.

Rowenta (UK)Limited has a network of Service Agents throughout the country; to telephone your rest Rowenta Service Centre see enclosed Service Information leaflet; these Service Agents carry-in-guarantee repairs (free of charge) and out-of-guarantee repairs (chargeable) on behalf of Row. Should service be required, or the appliance appear faulty, consult your local Rowenta Service the first instance. If a product develops a fault during the guarantee period, it is the responsible consumer to supply to the Service Agent proof of the date of purchase of the appliance (eg. guarantee card and/or receipt showing the date of purchase).

GUARANTEE (UK ONLY)

Details of the Rowenta guarantee are shown on the Guarantee Card enclosed with the appliance guarantee does not affect your statutory rights.

Should further information be required please see the enclosed Service Information leaflet.

HELPLINE:

If you have any product problems or queries, please contact our Customer Relations Team first for expert help and advice:

0845 602 1454 - UK

[phone] - Ireland

www.rowenta.co.uk
