Product Type	Condenser Microphone
Brand	SE Electronics
Model	sE7 sideFire
Capsule	Electret 1/2"
Polar Pattern	Cardioid
Frequency Response	20 Hz – 20 kHz
Sensitivity	19 mV/Pa (-34.5 dBV)
Max SPL	136/156 dB (with attenuation 0/20 dB)
Equivalent Noise	16 dB(A)
Dynamic Range	120/140 dB (0/20 dB pad)
Low-cut Filter	80 Hz, 6 dB/octave, switchable
Attenuation	-20 dB, switchable
Power Supply	Phantom 48V (IEC 61938)
Output Impedance	< 200 ohms
Recommended Load Impedance	> 1 kOhms
Current Consumption	3.0 mA
Connector	XLR 3-pin male
Dimensions	ø 23 mm x L 130 mm
Weight	163 g
Housing Material	Metal
Included Accessories	Mic clip with adapter, foam windscreen
Safety	Do not open, keep out of reach of children
Maintenance	Clean with a dry cloth

Frequently Asked Questions - sE7 sideFire SE Electronics

How to connect the sE7 sideFire microphone?

Use a balanced XLR cable to connect the microphone to an audio interface or mixing console. Make sure phantom power 48V is turned on.

What type of power supply is required?

The microphone requires 48V phantom power compliant with IEC 61938. It is usually provided by preamps, audio interfaces, or mixing consoles.

How to use the low-cut filter?

The low-cut filter switch is located on the front. Activate it to cut frequencies below 80 Hz (6 dB/octave) and reduce wind noise, plosives, or proximity effect.

How to use the attenuation (-20 dB)?

The attenuation switch is located on the back. Activate it to reduce the input level by 20 dB when recording very loud sources (drums, amplifiers) to avoid distortion.

Is the sE7 sideFire suitable for recording drums?

Yes, thanks to its high SPL handling (136/156 dB) and switchable attenuation, it can capture powerful sources like drums or brass without distortion.

Can I use this microphone with any audio interface?

Yes, provided the interface provides 48V phantom power and has an XLR input. The recommended load impedance is greater than 1 kOhm.

What to do if the microphone produces unwanted noise?

Check that the low-cut filter is activated if necessary. Make sure the phantom power is stable and the cables are of good quality. Avoid sources of vibrations.

How to clean the microphone?

Use a dry, soft cloth. Never use liquids or abrasive products. The foam windscreen can be gently hand washed with lukewarm water and mild soap.

What accessories are included with the sE7 sideFire?

The box contains the microphone, a clip with thread adapter for stand, and a foam windscreen.

Is the microphone under warranty?

Yes, sE Electronics offers a warranty against defects in materials and workmanship from the date of purchase. Register your product on the sE website to extend the warranty to 3 years.

USER MANUAL sE7 sideFire SE Electronics

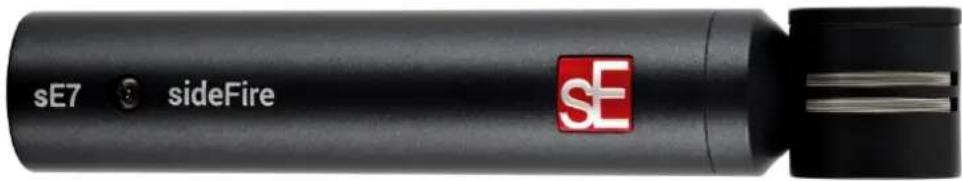

Black cylindrical electronic device labeled 'sE7' with red square logo (no additional text or symbols visible)

sE7 sideFire sE

sE7 / sE7 sideFire

User Manual

Thank you

Thank you for choosing an sE product! In addition to some basic safety precautions, this manual includes details and specifications to help you get the most out of your microphone. Please take a few minutes to read through it.

Capturing excellent audio is our passion. We sincerely hope you'll enjoy using this microphone as much as we've enjoyed designing and building it for you.

Happy Tracking,

The sE Team

Brief description

The sE7 / sE7 sideFire is a high-quality back-electret small diaphragm condenser microphone intended for a wide range of studio and live sound applications, from acoustic guitars to pianos to drums and beyond. With an optimized acoustic design, discrete class-A circuitry and a transformerless output, it delivers clear, natural sound quality at all frequencies, without suffering from fizzy highs or a lack of low-frequency punch.

The discrete electronics and the switchable attenuation pad ensure a high dynamic range, with high sound pressure level (SPL) handling capability and extremely low-noise components. The switchable low-cut filter helps eliminate rumble or footfall noise, and can also compensate for an excess of bass frequencies caused by the proximity effect. This enables the sE7 / sE7 sideFire to close-mic many instruments including electric guitar speaker cabinets, brass instruments and drums.

Reliable operation even in demanding on-stage applications in difficult environments is ensured by the roadworthy all-metal design, robust construction, and high-quality manufacturing standards.

What's in the box

sE7 / sE7 sideFire (Single)

• sE7 / sE7 sideFire microphone
- mic clip (with thread adapter)
- wind screen

sE7 / sE7 sideFire (Matched Pair)

• 2x sE7 / sE7 sideFire microphones
- 2x mic clips (with thread adapter)
- 2x wind screens

Controls

The sE7 / sE7 sideFire features a switch for the attenuation pad and a switch for the low-cut filter.

Attenuation Switch

The Attenuation Switch is located on the upper rear side of the microphone. When switched on, the incoming signal is reduced by 20 dB for the capture of loud instruments and/or close-miking without distortion. Using the switch also helps prevent overloading the input stage of recording interfaces, mixing desks and microphone preamps.

Low-Cut Switch

The Low-Cut Switch is located on the lower rear side of the microphone and inserts a low-cut filter at 80Hz. The switch's top position removes the filter for a flat frequency response. Wind noise, plosives, footfall noise or rumble might affect the recorded signal, so enabling the low-cut filter reduces such unwanted noise and prevents distortion. Additionally, the low-cut filter also minimizes the proximity effect when recording sound sources at a very short distance.

0 -20 dB

Close-up of a red rectangular electronic component with two white leads against a black gradient background (no text or symbols)

Technical specifications

Capsule	1/2" back-electret condenser capsule
Polar patterns	Cardioid
Frequency range	20 – 20,000 Hz
Sensitivity	19 mV/Pa (-34.5 dBV)
Max. SPL (0.5% THD)	136 / 156 dB _SPL (0/20 dB Attenuation pad)
Equivalent noise level	16 dB(A)
Dynamic range	120 / 140 dB (0/20 dB Attenuation pad)
Signal-to-noise ratio	78 dB
Low cut filter	80 Hz, 6 dB/Oct, switchable
Attenuation pad	20 dB, switchable
Powering	48 Volts according to IEC 61938
Electrical impedance	<200 Ohms
Recommended load impedance	>1k Ohms
Current consumption	3.0 mA
Connectivity	3-pin male XLR connector
Dimensions	sE7: ø 23 mm (0.91 in.) x L 120 mm (4.72 in.)sE7 sideFire: ø 23 mm (0.91 in.) x L 130 mm (5.12 in.)
Weight	sE7: 128 g (4.52 oz.)sE7 sideFire: 163g (5.75 oz.)

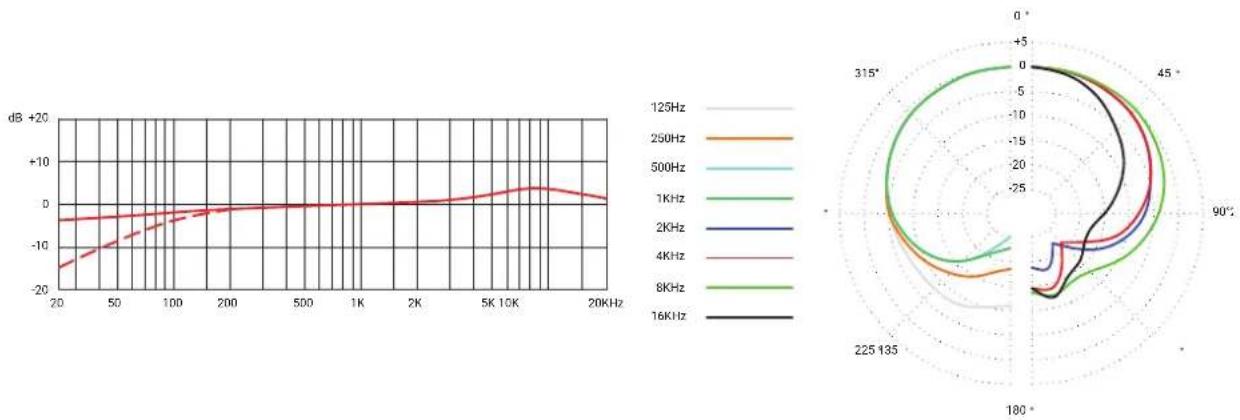

Frequency Response Polar Pattern

Powering

To ensure proper operation, your sE product requires a Phantom power source that provides 48 Volts according to IEC 61938.

Warning sign with exclamation mark inside red triangle

Risk of damage

Do not connect your sE product to any power supply other than a Phantom power source (input with Phantom power or external IEC standard Phantom power supply) with a floating connector, using a balanced cable with studio-grade connectors to IEC 268-12 only. This is the only way to ensure safe and reliable operation.

Please be aware that Phantom power cannot pass through TRS connectors. A balanced microphone cable with XLR connectors at both sides is required to provide Phantom power to your sE product.

Safety and maintenance

Warning sign with red triangle and black exclamation mark symbol

Warning

The product may contain small, detachable parts, which may cause choking, personal injury, or death, especially in children. Please exercise care in the use and handling of small parts and keep them away from children under four years of age.

• This product is safe under normal and reasonably foreseeable operating conditions.
- Do not open or modify the product.
• The product must be returned to the manufacturer or destined vendors for any service or repair.
- Do not disassemble or attempt to service this product.
This is not a children's product and is not intended to be used by children under 14 years old.

Warning sign with red triangle and exclamation mark symbol

Risk of damage

Please make sure that any piece of equipment to which your sE product will be connected fulfills the safety regulations enforced in your country and is fitted with a ground lead.

Compliance

This product complies with relevant legal requirements for Restriction of Hazardous Substances (RoHS) and management of waste electronic and electrical equipment (WEEE).

For RoHS and WEEE information, go to http://www.seelectronics.com/compliance

Maintenance is not required for product compliance.

Batteries, electronic and electrical equipment should not be disposed of with household waste. Wherever possible, they should be separated and brought to an appropriate collection point to be recycled and to avoid potential impact on the environment and/or human health. For more information, contact your local authorities or place of purchase, or visit

http://www.seelectronics.com/recycling

Made in China CE

Warranty

sE Electronics warrants that its hardware product shall be free from defects in materials and workmanship beginning from the date of original retail purchase.

See http://www.seelectronics.com/warranty for specific warranty information about your product and procedures for a warranty claim.

sE Electronics' entire liability and your exclusive remedy for any breach of warranty shall entail, at sE Electronics' option, to repair or replace a functional equivalent of the product, or to refund the price paid, provided that the hardware is returned to the purchased location along with a receipt.

Warranty protections are in addition to rights provided under local consumer laws and may vary among countries. See the full warranty information to know your consumer rights and the additional protections provided by this product warranty.

Our headquarters:

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

Novato, CA 94949, USA

Our R&D and manufacturing center:

EP Electronics 289 B2 West Songxiu Road, Shanghai 201703, China

Full Warranty Information:

https://www.seelectronics.com/warranty

Support

In case you have any questions about your new sE product, please do not hesitate to contact us directly:

http://www.seelectronics.com/contact-us

In the event that your new sE product is operating improperly, it must be returned to us as the manufacturer or to a destined vendor for any service or repair. For the fastest and most direct service, please contact your dealer first. If authorized service is required, it will be arranged by that dealer:

http://www.seelectronics.com/dealers

If you are experiencing difficulties with support or assistance, please do not hesitate to contact us directly:

http://www.seelectronics.com/contact-us

Lastly, please remember to register your new gear with sE to extend your warranty to a full three years:

http://www.seelectronics.com/registration

Contact

Feel free to contact us:

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

Novato, CA 94949, USA

Our international distributors & sales representatives: http://www.seelectronics.com/contact-us
