Product Type	Axial Fan
Brand	XPower
Model	Daisy-2100
Dimensions	47.2 x 48.8 x 23.9 cm (18.6 x 19.2 x 9.4 in)
Weight	7.5 kg (16.5 lbs)
Power Supply	115 V ~ 60 Hz
Power Consumption	1.6 A
Motor Power	1/4 HP (186 W)
Airflow	2100 CFM (cubic feet per minute)
Speed Control	Variable (from MIN to MAX)
Timer	No
Auxiliary Power Outlet	Yes, with resettable circuit breaker
Cord Length	6.1 m (20 feet)
Safety Certification	ETL / C-ETL listed
Warranty	1 year limited
Orientation	360° pivoting with stand
Stacking	Up to 4 units
Usage	Indoor and outdoor (sheltered from rain)
Included parts	Fan, stand, 2 rubber washers, 2 stand handles, manual
Maintenance	Unplug before cleaning, wipe with a damp cloth
Safety	Do not use outdoors in rain, do not immerse, do not cover

Frequently Asked Questions - Daisy-2100 XPower

How to install the fan stand?

Install the two rubber washers on the bolts on each side of the unit. Align the stand so that the open end is at the front, then secure with the stand handles.

How to adjust the fan speed?

Turn the speed switch on the selector plate. The MIN position corresponds to the lowest speed, MAX to the highest. Turn to OFF to stop.

How to use the auxiliary power outlet?

Plug another device into the auxiliary outlet located on the housing. The total amperage must not exceed the indicated amperage. If the circuit trips, press the reset button.

How to clean and maintain the fan?

Always unplug the fan before cleaning. Wipe the surface with a damp cloth. Do not clean with water directly and check that the grilles are not obstructed.

What to do if the fan does not start?

Check the power outlet first. Make sure the cord is properly plugged in. If the auxiliary outlet is used, check that the circuit breaker has not tripped. If the unit has a timer, set it to ON.

Can I use the fan outdoors?

Yes, the fan can be used outdoors, but it must be protected from rain and direct moisture. Use only outlets protected by GFCI.

How to store the fan after use?

Unplug the fan and let it cool down. Store it in a dry place away from sun and extreme temperatures. Wrap the cord around the housing and secure it with the clip.

How many fans can I stack?

You can stack up to four units on their side. Align the air intakes. Caution: stacking is not safe for transport.

What to do if the circuit breaker trips?

If the circuit breaker on the auxiliary outlet trips, unplug all connected devices and press the reset button. If the problem persists, check the total amperage.

What is the warranty of the fan?

This fan has a one-year limited warranty in the United States, covering defects in materials and workmanship. Register your product online at www.xpower.com.

USER MANUAL Daisy-2100 XPower

Line drawing of a multi-free fan with visible blades and mounting base (no text or symbols)

Axial Fan Owner's Manual

Read and save these instructions

WARNING - READ AND SAVE THIS INSTRUCTION BEFORE USING THIS PRODUCT.

The user of electrical products may create hazards that include, but are not limited to injury, fire, electrical shock. Failure to follow these instructions may damage and/or impair its operation and void the warranty.

• Before operating, remove all packaging material and check for any damage that may have occurred during shipping or any missing items.
• Check household power supply to ensure it matches the appliance's specification.
• DO NOT operate any fan with a damaged cord or plug. Discard fan or return it to an authorized service facility for examination and/or repair.
• Use only on GFCI protected receptacles. Please contact a qualified electrician for verification and / or installation of a GFCI receptacle if necessary.
• DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or similar coverings. DO NOT route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
• Suitable for use with solid state speed control.
• DO NOT touch this appliance or the plug with wet hands or while standing in water.
• DO NOT operate the appliance in any pooled water.
• DO NOT use the product in areas where gasoline, paint or other flammable goods and objects are used or stored.
• DO NOT insert or allow objects to enter any ventilation or exhaust opening as this may damage the appliance and void the warranty.
• DO NOT cover the air inlet or outlet on the appliance.
• DO NOT direct the air flow at human faces or bodies.
• DO NOT allow children to play around or with this appliance.
• AUTOMATICALLY OPERATED DEVICE – To reduce the risk of injury, disconnect from power supply before servicing.
• Remove the power cord from the electrical receptacle by grasping and pulling on the power cord plug-end only, DO NOT pull the cord directly.
• DO NOT attempt to repair or adjust any electrical or mechanical functions of this appliance, as this may cause danger and void the warranty.
• If the appliance is damaged or it malfunctions, DO NOT continue to use it. Unplug the product from the electrical outlet. Refer to troubleshooting guide or contact XPOWER.
• Store in a dry area, away from exposure to sunlight, extreme temperature and humidity, or other extreme environments, when not in use.
• DO NOT stack more than four units of this appliance.
• An electronic instruction manual can be obtained through manufacturer's website www.xpower.com.

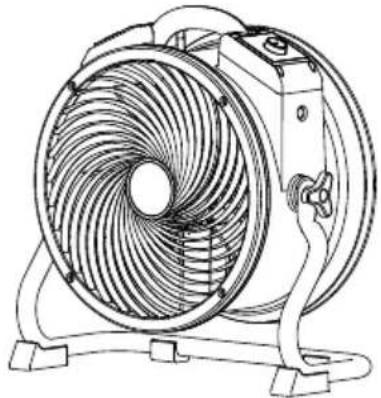

Items Included

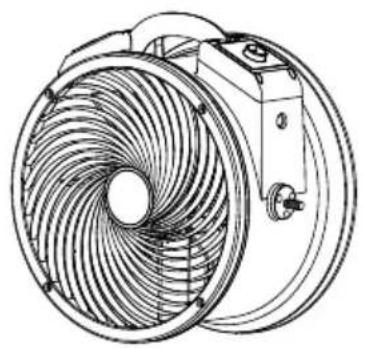

Technical line drawing of a mechanical fan or impeller assembly (no text or symbols)

Line drawing of a multi-free fan with visible blades and mounting base (no text or symbols)

- Owner's Manual x 1 • Axial F

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

- Rack x 1* • Rack Handle x 2* • Rubber Washer x 2*

* For model X-39AR, P-39AR only.

** For model X-47ATR only.

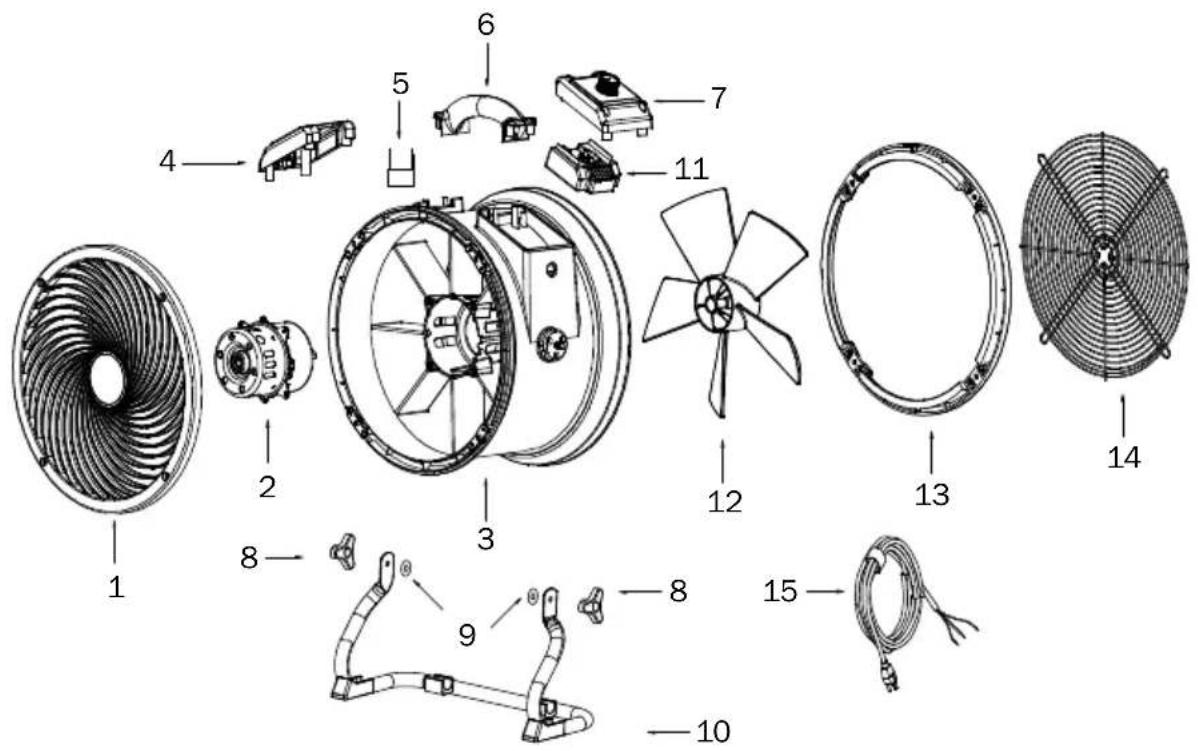

Parts Description

(1) Front Grille Cover
(2) Motor
(3) Housing
(4) Additional Electrical Receptacle
(5) Capacitor

(6) Housing Handle
(7) Switch Plate
(8) Rack Handle
(9) Rubber Washer
(10) Rack
(11) Circuit Board

(12) Fan
(13) Rear End Cover
(14) Rear Grille Cover
(15) Power Cord

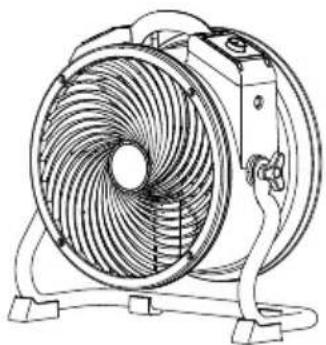

Axial Fan Introduction

• XPOWER Axial Fans are designed to offer efficient air circulation and ventilation with its high and long-distance focused airflow.
• It's perfect for air circulation and ventilation in janitorial/sanitation jobs, water damage restoration and more.

Line drawing of a multi-free fan with visible blades and mounting base (no text or symbols)

Installation and Operation Guide

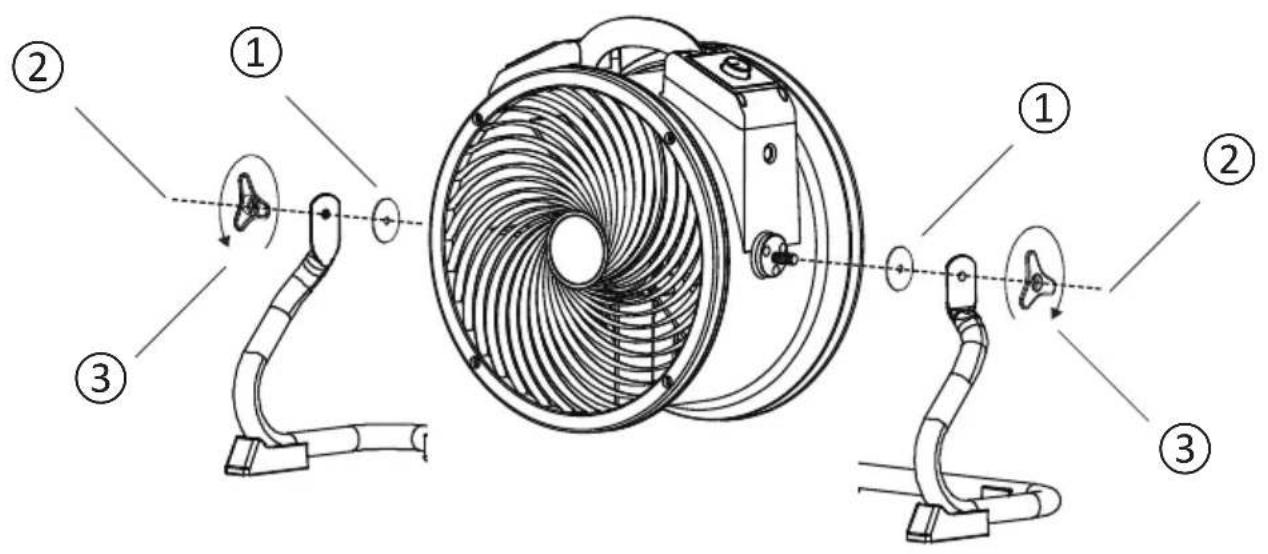

Installing the Rack\*

① Fit both rubber washers onto bolts on both sides of unit.
② Align the rack onto the axial fan.
③ Fasten the connection with the rack handle.

* For model X-39AR and P-39AR only.

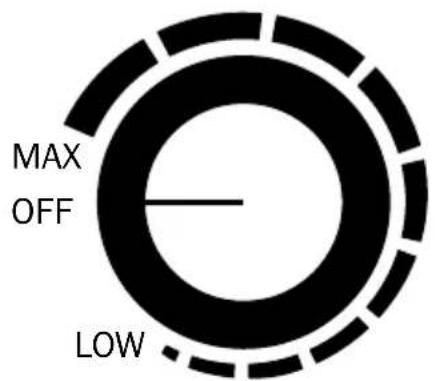

Switch Plate

Variable Speed Switch

• Turn to "OFF" position to switch the Ventilateur Axial OFF. Turn clock-wisely to any position between "MAX" and "LOW" to switch the Ventilateur Axial ON.
• You can adjust to any desired speed variably. "MAX" is the highest speed and "LOW" is the lowest speed.

Installation and Operation Guide (Continued)

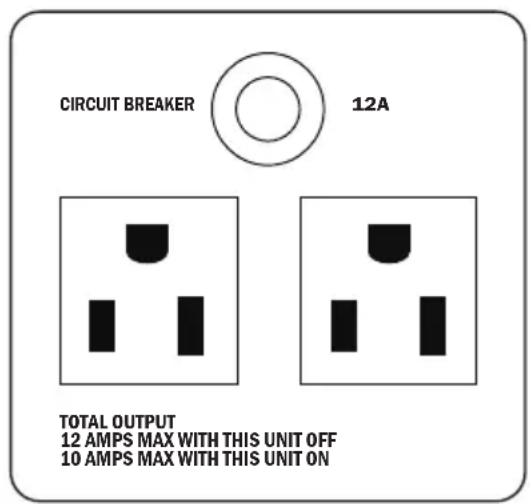

Additional Electrical Receptacle (Daisy Chain)

• Other appliances can be plugged in the additional electrical receptacles and work whether the Axial Fan is on or off. However, the total amperage must be lower than the amperage instructed. Different models may have varying instructions.
• If the Axial Fan or the plugged in appliance stops working, press the RESET BUTTON to reset the circuit.

Timer Switch\*

Timer Switch

• Turn clockwise to set timer for minutes count down to an automatic stop.
• The timer can be set for up to 180 minutes (3 hours).
• When the timer reaches “0” position, the unit stops working. On “ON” position, it will work constantly.

Installation and Operation Guide (Continued)

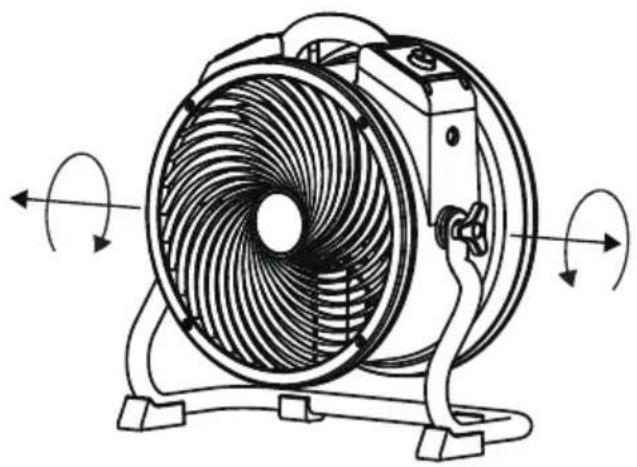

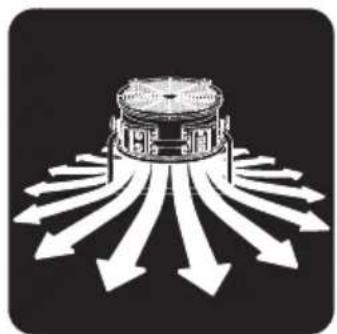

Adjust Operation Position

Line drawing of a multi-free fan with visible blades and mounting base, showing rotational airflow direction (no text or symbols)

Technical line drawing of a mechanical device with bidirectional arrows indicating rotation or assembly (no text or symbols)

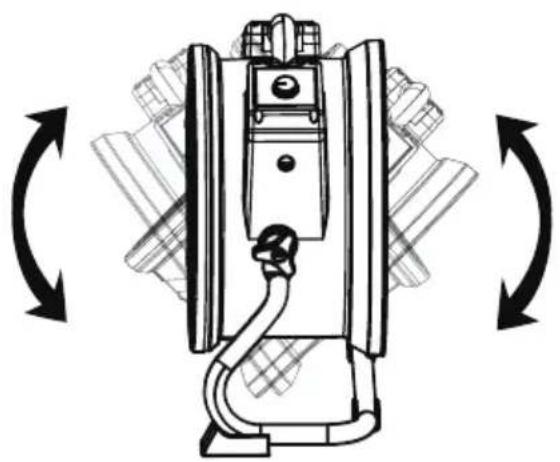

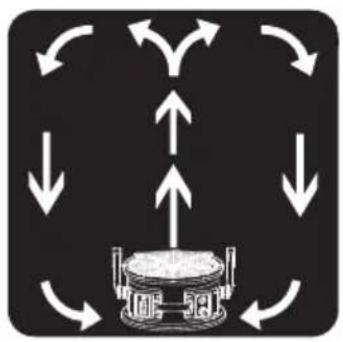

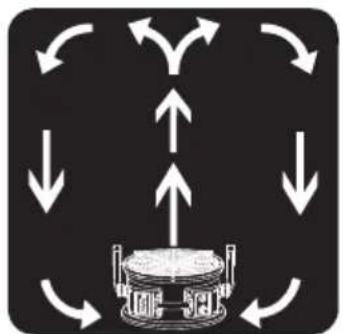

- The Axial Fan features 360° Rotation. Tilt the Axial Fan to desired angle and screw on rack handles to secure the fan's position.

Diagram of a mechanical component with multiple directional arrows pointing outward (no text or symbols)

Technical line drawing of a mechanical fan or fan assembly with spiral blades (no text or symbols)

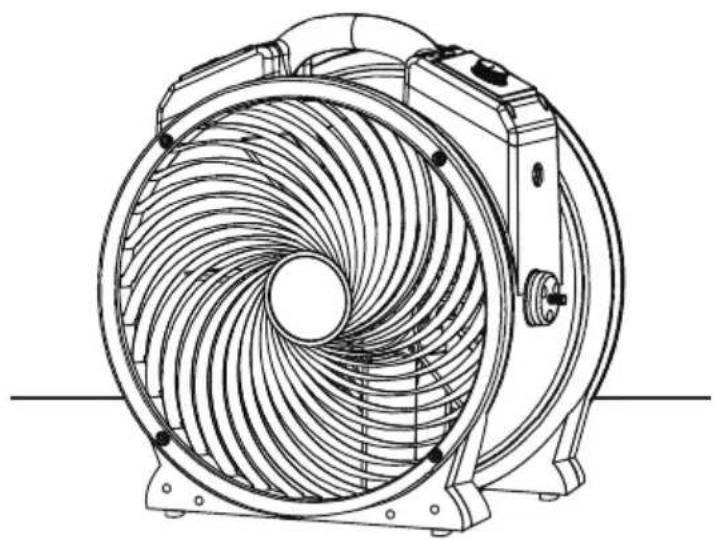

Use without Rack\*

- Uninstall the rack and place the Axial Fan on a level surface.

* For model X-47ATR only.

Installation and Operation Guide (Continued)

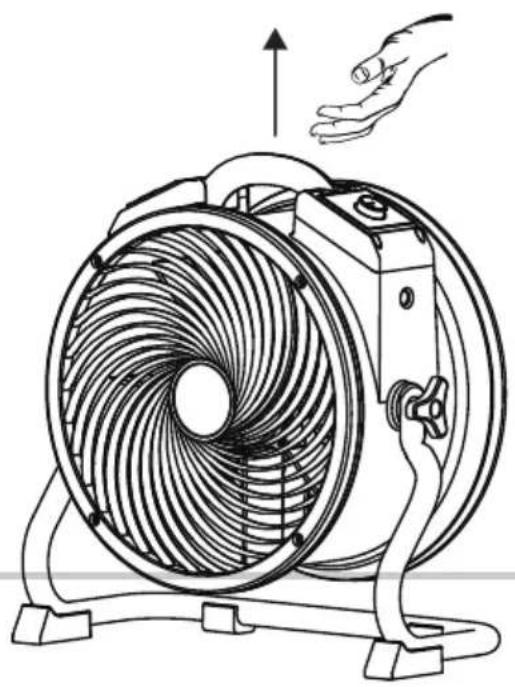

Transportation

Line drawing of a fan with internal blades and a hand holding the top handle (no text or symbols)

Lift with Handle

- Lift the Axial Fan with the handle on the top.

User Maintenance Instructions

Frequent maintenance is recommended on this appliance. Failure to follow the maintenance instructions may cause failure of the appliance and void the warranty.

• When not in use, unplug and store the appliance in a dry and cool indoor place. Make sure it's out of reach of children.
• Before performing any maintenance or cleaning, always disconnect the Axial Fan from its power source.
• Use a damp cloth to wipe the surface of the housing. Do not clean the unit with water directly.
• Check if the grille covers are clean. Remove dirt or any other objects that could block the air inlet and air outlet.

User Maintenance Instructions (Continued)

Line drawing of a multi-free fan with visible blades and mounting base, showing rotational motion arrows (no text or symbols)

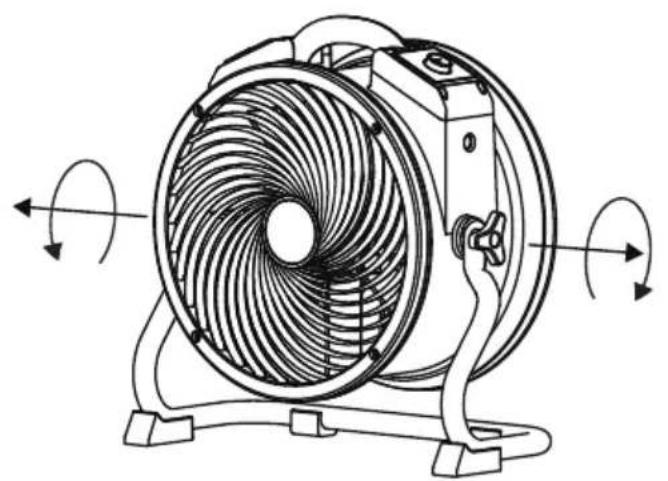

Fasten the Rack Handles

• To prevent possible injury, when you finish using this appliance, please position the Axial Fan UPRIGHT.

- Fasten the rack handle to lock the position of the Axial Fan.

Line drawing of a multi-panel fan with rotational blades and mounting base (no text or symbols)

Two identical diagrams showing a black plug with three pins and two connected wires, one with an arrow indicating motion (no text or symbols present)

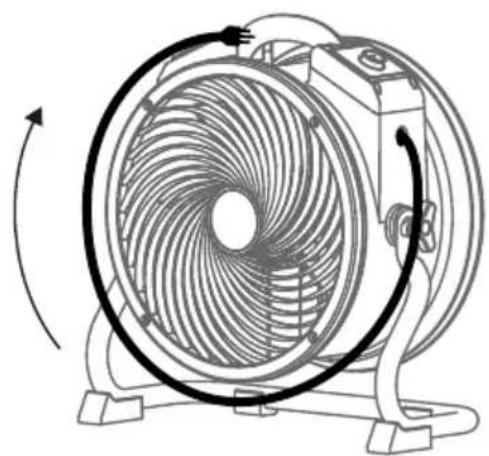

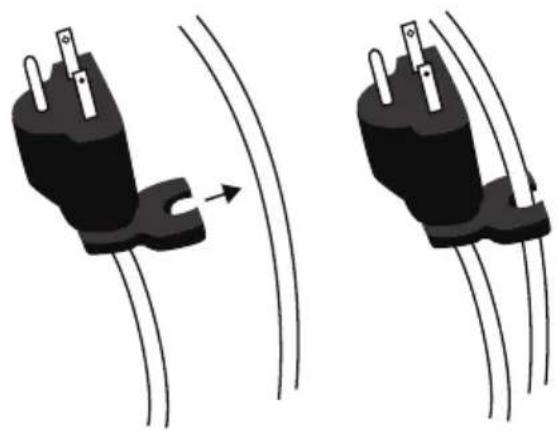

Organize the Power Cord

• Wrap the power cord around the housing.
• Clip the cord to the cord clip on the plug shown above.

User Maintenance Instructions (Continued)

Technical line drawing of four sequential mechanical assembly steps (no text or symbols)

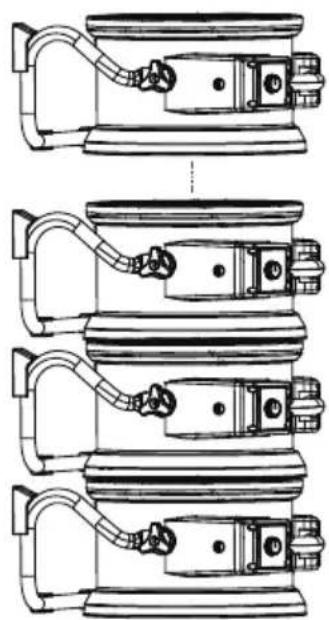

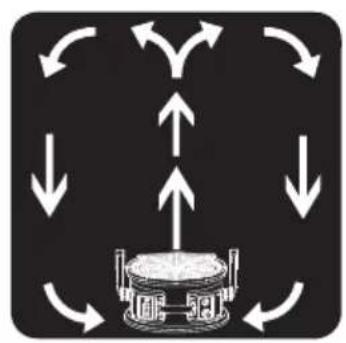

Stack Multiple Units

- Stack the Axial Fans on the sides. Align the air inlets of both Axial Fans.

! WARNING

• Do not stack more than four units of this appliance.
• Stacking function is not secure during transportation.

Troubleshooting Guide

PROBLEM POSSIBLE CAUSE SOLUTION

Axial fan does not start	No electricity. Check for power supply.
	The power cord is not properly plugged in.	Remove and reconnect the power cord.
	The circuit breaker on the additional electrical receptacle (Daisy chain) jumps.	Remove all appliance on the additional electrical receptacle and press “Reset”.
	The timer switch is set to “O” position.*	Set the timer switch to “ON” position.
Unit runs but the speed is abnormal	Air inlet or air outlet is blocked.	Remove blockage.

* The timer function does not apply to all models mentioned in this manual.

If troubleshooting does not resolve your problem, please contact XPOWER or other parties authorized by XPOWER for further instructions.

Technical Specification

MODEL NUMBER X-39AR P-39AR X-47ATR
Voltage/Frequency 115 V~60 Hz
Amperage 1.6 A 1.0 A 2.8 A
Motor Power 1/4 HP 1/3 HP
Rated Airflow 2100 CFM 3600 CFM
Speed Control Variable Speeds 4 Speeds Variable Speeds
Timer	N/A		3 hours (OFF)
Additional Electrical Receptacles (Daisy Chain)	Yes
Cord Length	20 ft. / 6.1 m
Housing	ABS	PP	ABS
Unit Dimension (L) x (W) x (H)	18.6 x 9.4 x 19.2 in. / 47.2 x 23.9 x 48.8 cm		21.9 x 9.8 x 22.5 in. / 55.6 x 24.9 x 57.1 cm
Unit Weight	16.5 lbs. / 7.5 kg	14.5 lbs./ 6.57 kg	22.2 lbs. / 10.1kg
Safety Certification	ETL/C-ETL

If your product(s) is not listed above, please visit www.xpower.com for more information.

XPOWER Limited Warranty (USA)

1 YEAR LIMITED WARRANTY

XPOWER-branded products purchased in the U.S. from authorized distributors include a 1-year limited warranty. Contact XPOWER to confirm warranty information about your product(s).

This limited warranty covers defects in materials and workmanship in your XPOWER-branded products, purchased in the U.S. ONLY. Local warranty policy (if any) in your country will cover products purchased outside the U.S.

IMPORTANT:

(1) Please finish the online warranty registration before usage. Visit www.xpower.com/service-support/warranty-registration.
(2) This Limited Warranty applies with its own timeliness. Contact XPOWER or visit www.xpower.com for more information.

Items mentioned but not limited to below are not covered by warranty:

(1) Power cord, filters or any other components considered as a “consumable parts” by XPOWER.
(2) Normal wear and tear.
(3) Problems that result, directly or indirectly, at XPOWER's sole discretion, from:

(3.1) External causes such as accident, abuse, misuse or problems with electrical power supply.
(3.2) Disassembling, servicing or modification not authorized by XPOWER.
(3.3) Usage that is not accordant with product instructions stated in Owner's Manual.
(3.4) Failure to follow the product instructions or lack of necessary maintenance stated in Owner's Manual.

Before contacting XPOWER, please try one or more of the following:

(1) Consult this Owner's Manual and follow the instructions of troubleshooting guide.
(2) Access www.xpower.com for more advice and information that could be helpful to address your problems.

If you need additional assistance from XPOWER, please:

(1) Email [e-mail].
(2) Call XPOWER U.S. Customer Service Department at 855-855-8868 or other numbers provided on www.xpower.com.
(3) Visit XPOWER U.S. Head Office at 668 S. 6th Ave., City of Industry, CA 91746 or the most current address provided on www.xpower.com.

Please also have your original proof of purchase and the serial number(s) of your product(s) ready when you contact XPOWER.

XPOWER Limited Warranty (USA) (Continued)

If you are instructed to return the unit for service or replacement, please:

(1) Request a RMA (Return-Merchandise-Authorization) number.
(2) Use the original or an equivalent packaging, prepay shipping charges at your own expense to the address provided by XPOWER, with the RMA number on the shipping label or the packaging.
(3) Include all the original parts and components.

XPOWER will inspect, assess and advise the repairs needed and applicable cost, if any. For products under warranty, we will pay to ship the repaired or replaced product(s) to you if you use an address within the Contiguous United States. Otherwise, we will ship the product(s) to you at your own expense.

ADVERTENCIA: LEA Y GUARDE ESTE MANUAL ANTES DE USAR ESTE PRODUCTO.

Technical line drawing of a mechanical fan assembly with internal blades and mounting bracket (no text or symbols)

Line drawing of a multi-free fan with visible blades and mounting base (no text or symbols)

• Ventilador Axial x 1**

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

- Soporte x 1* • Manija de Soporte x 2* • Zapata de Goma x 2*

Line drawing of a multi-free fan with visible blades and mounting base (no text or symbols)

Line drawing of a multi-free fan with visible blades and mounting base, showing rotational motion arrows (no text or symbols)

Technical line drawing of a mechanical device with bidirectional arrows indicating rotation or assembly (no text or symbols)

Diagram of a cylindrical device with multiple arrows pointing outward, no text or symbols present

Technical line drawing of a mechanical fan or fan assembly with spiral blades (no text or symbols)

Usar sin Soporte\*

Installation and Operation Guide (Continued)

Transporte

Line drawing of a fan with internal blades and a hand holding the top handle (no text or symbols)

Levantar con la manija

Line drawing of a multi-free fan with visible blades and mounting base, showing rotational motion arrows (no text or symbols)

Line drawing of a multi-panel electric fan with visible blades and mounting base (no text or symbols)

Two identical diagrams showing a black plug with three pins and two connected wires, one with an arrow indicating motion (no text or symbols)

Technical line drawing of four sequential mechanical assembly steps (no text or symbols)

Apilar multiples unidades

Technical line drawing of a mechanical fan or impeller assembly (no text or symbols)

Line drawing of a multi-free fan with visible blades and mounting base (no text or symbols)

Line drawing of a mechanical clamp or bracket with two curved arms and mounting feet (no text or symbols)

Line drawing of a multi-free air conditioner fan with visible blades and mounting base (no text or symbols)

Line drawing of a multi-free fan with visible blades and mounting base, showing rotational motion arrows (no text or symbols)

Technical line drawing of a mechanical device with bidirectional arrows indicating rotation or assembly (no text or symbols)

Abstract diagram of a circular object with radial arrows pointing outward, no text or symbols present

Technical line drawing of a mechanical fan or fan assembly with spiral blades (no text or symbols)

Line drawing of a hand operating a fan with a rotating blade and handle, showing airflow direction (no text or symbols)

Line drawing of a multi-passed fan with visible blades and rotating arms (no text or symbols)

Line drawing of a fan with visible blades and rotating arm (no text or symbols)

Two black electrical plug connectors with wires, one showing a curved arrow indicating motion (no text or symbols)

Organiser le cordon

Technical line drawing of a mechanical assembly with four sequential stages (no text or symbols)

PROBLÈME CAUSE POSSIBLE SOLUTION

XPOWER Manufacture, INC.

668 S. 6th Ave.,

City of Industry, CA 91746 USA

www.xpower.com | 1-(855)-855-8868 | [e-mail]

Read and save these instructions
