USER MANUAL 2287 Blackstone

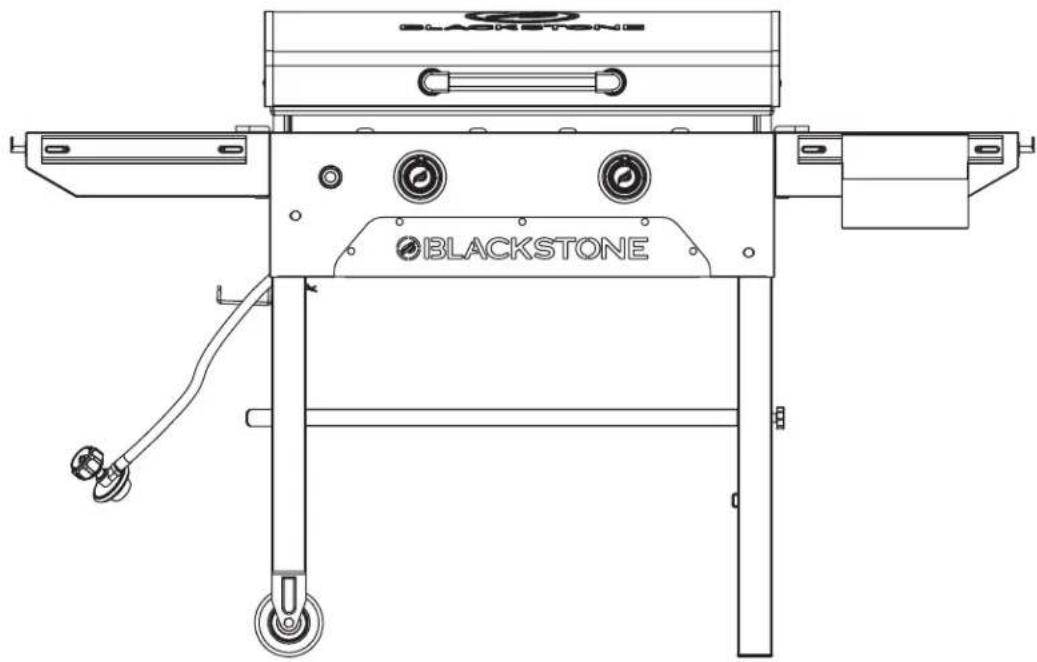

Technical line drawing of a blackstone industrial machine with wheels and control panel (no text or symbols)

OWNER'S MANUAL

28" GRIDDLE

WITH HOOD

TABLE OF CONTENTS

IMPORTANT SAFETY INFORMATION ....02

WARRANTY 03

ASSEMBLY GUIDE 04

USING YOUR BLACKSTONE....10

TROUBLESHOOTING 17

IMPORTANT:

This instruction manual contains important information necessary for the proper assembly and safe use of the appliance.

Read and follow all warnings and instructions before assembling and using the appliance.

Follow all warnings and instructions when using the appliance.

Keep this manual for future reference.

Installer/Assembler: Leave these instructions with the consumer.

For the latest version of this manual, scan this code or visit BlackstoneProducts.com/support

SAFETY ALERT KEY

! DANGER

Indicates a hazardous situation that, if not avoided, will result in death or serious injury.

CAUTION

Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

WARNING

Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

NOTICE

Indicates information considered important, but not hazard-related (e.g. messages related to property damage).

IMPORTANT SAFETY INFORMATION

DANGER

If you smell gas:

• Shut off gas to the appliance.
• Extinguish any open flame.
• Open hood (if applicable).
• If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department.
  Failure to follow these instructions could result in fire or property damage, personal injury or death.

DANGER

• NEVER operate this appliance unattended.
• If a fire should occur, keep away from the appliance and immediately call your fire department. DO NOT attempt to extinguish an oil or a grease fire with water.
  Failure to follow these instructions could result in fire or property damage, personal injury or death.

WARNING

• DO NOT store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.
• An LPG cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

GAS APPLIANCE SAFETY

• The use of alcohol, prescription, or non-prescription drugs may impair the consumer's ability to properly assemble or safely operate the appliance.
• Keep children and pets away from the appliance at all times.
• Have a type BC or ABC fire extinguisher readily available.
• DO NOT use for commercial cooking.
• DO NOT use this appliance as a heater.

DO NOT USE FOR PURPOSES OTHER THAN INTENDED.

WARNING

Improper installation, use, adjustment, alteration, service, modification, or maintenance can cause injury or property damage. Refer to this manual.

INSTALLATION MUST CONFORM WITH LOCAL CODES.

In the absence of local codes, installation must conform with either ANSI Z223.1/NFPA 54, CSA B149.1, or CSA B149.2.

FOR OUTDOOR USE ONLY.

WARRANTY

The North Atlantic Imports LLC 1-Year Warranty covers replacement parts up to one year after the date of purchase.

TO ENABLE THIS WARRANTY, YOU WILL NEED TO PROVIDE:

Your appliance's Serial Number

Model/Modèle/Modelo: XXXX 00000000000 SERIAL NO./N° DE SÉRIE/No. DE SERIE: XXXXXXXXXXXXXX FREE MOBILE-FRIENDLY COOKBOOK when you register Model/Modèle/Modelo: XXXX 00000000000 DE 2019 XXXXXXXXXXXXXX

The Serial Number can be found on your appliance's Manufacturer Label.

(The Manufacturer Label is a large silver sticker found on the body of your appliance.)

Register your appliance at BlackstoneProducts.com/register

WARRANTY OVERVIEW

North Atlantic Imports, the manufacturer, will warranty for one year from purchase all parts, workmanship, and finishes. It will be the manufacturer's option as to whether to repair or replace any of the above items. All warranties are limited to the original purchaser only. This warranty does not cover any liability on the part of North Atlantic Imports, its agents or employees, for any indirect or consequential damages for breach of warranty. The purchaser must follow the manufacturer's usage instructions.

Under no circumstances is the manufacturer responsible for damages from the failure to operate the cooking station properly. It is the responsibility of the purchaser to establish the warranty period by verifying the original purchase date with original sales receipt.

DETAILED EXPLANATION OF THE WARRANTY

North Atlantic Imports LLC warrants to the owner that the product covered by this agreement is free from defects in material and workmanship under normal use and service for which it was intended if, but only if, it has been operated in accordance with North Atlantic Imports LLC instructions exclusively for domestic use, and not for private or public club, institutional or commercial purposes.

North Atlantic Imports LLC's obligation under this warranty is limited to replacing or repairing, free of charge, any part or parts that may prove, to the satisfaction of North Atlantic Imports LLC, to be defective under normal home use and service within the following stated periods of time from the date of purchase; for one year from purchase, all parts, finish, and workmanship. Should any failure to conform to this warranty become apparent during applicable warranty periods stated above, the original purchaser must notify North Atlantic Imports LLC of breach of warranty within the applicable warranty period.

North Atlantic Imports LLC shall upon notice and compliance by the original purchaser with such instructions, correct such nonconformity by repair or replacement of the defective part or parts.

Correction in the manner provided above shall constitute a fulfillment of all obligations of North Atlantic Imports LLC with respect to the quality of the product.

North Atlantic Imports LLC does not warrant this equipment to meet the requirement of any safety code of any state, municipality or other jurisdiction, and the original purchaser assumes all risk and liability whatsoever resulting from the use thereof, whether used in accordance with North Atlantic Imports LLC instructions or otherwise.

This warranty does not cover and is intended to exclude any liability on the part of North Atlantic its agents, servants or employees whether under this warranty or implied by law for any indirect or consequential damages for breach on any warranty. The purchaser must establish all applicable warranty periods pursuant to this warranty by verifying the original purchase date by producing the dated sales receipt. This warranty shall not apply to this product or any other part thereof which has been subject to accident, negligence, alteration, abuse, or misuse or which has been repaired or altered without North Atlantic written consent, outside of North Atlantic Imports LLC factory. The full manufacturer warranty is not valid for griddles purchased from unlicensed, third-party resellers, purchased at a discount due to missing or damaged parts, or purchased as a floor model; at the discretion of North Atlantic Imports.

North Atlantic Imports LLC makes no warranty whatsoever in respect to accessories or parts not supplied with it. This warranty shall apply only within the boundaries of the United States of America and Canada. This warranty gives the original purchaser specific rights, and the original purchaser may also have other rights, which vary from state to state.

ASSEMBLY GUIDE

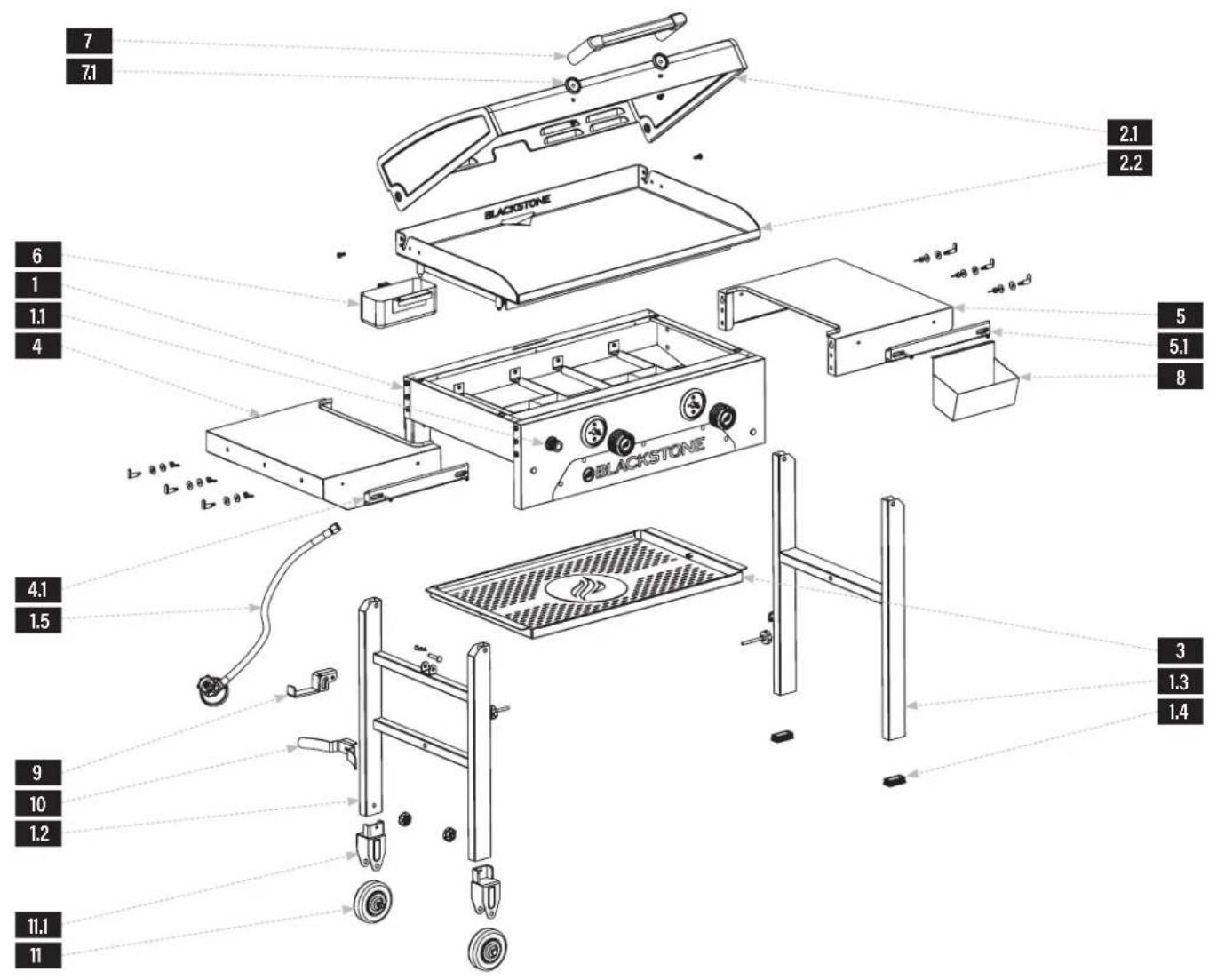

EXPLODED VIEW

7 7.1 6 1 1.1 4 BLACKSTONE 5 5.1 8 BLACKSTONE 4.1 1.5 3 1.3 1.4 9 10 1.2 11.1 11

PARTS LIST

PARTS		QTY	PARTS		QTY	PARTS		QTY	PARTS		QTY
1.1	Ignition button	1	1.4	Leg caps	2	2.2	Griddle top	1	5.1	Accessory rail	1
1.2	Left leg assembly	1	1.5	Regulator	1	7.1	Hood handle bezels	2	11.1	Wheel brackets	2
1.3	Right leg assembly 1		2.1	Hood 1		4.1	Accessory rail 1

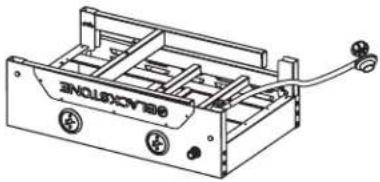

1 Body (1 piece)	2 Griddle top & Hood (1 piece)		3 Stabilizing shelf (1 piece)
4 Left side shelf (1 piece)	5 Right side shelf (1 piece)		6 Grease cup (1 piece)
7 Hood handle (1 piece)	8 Shelf basket(1 piece)	9 LPG hook(1 piece)	10 LPG support(1 piece)	11 Wheels(2 pieces)

12 Hardware pack (1 piece)

a. Control knobs (2 pieces)
b. M6x12 screws (4 pieces
c. Small thumb screws (2 pieces))
d. Large thumb screw (1 piece)
e. Medium thumb screw (1 piece)
f. Cotter pin (1 piece)
g. Shear pin (1 piece)
h.Shelf pegs(6 pieces)
i. Washers (6 pieces)
j. Slotted washers (6 pieces)
k. Wing nuts (6 pieces)

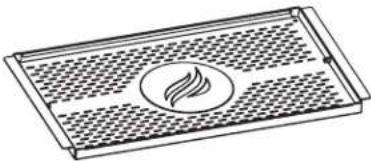

Circular mechanical component with a flame-like symbol on its surface, no text or labels present.

d. e.

ASSEMBLY INSTRUCTIONS

Find a large, clean area to assemble your appliance.

Remove all packing material before assembling.

CAUTION

Sharp edges. Wear gloves while assembling.

CAUTION

Heavy pieces. Two people should assemble this appliance.

Line drawing of a cylindrical mechanical component with a central protruding element (no text or symbols)

NOT INCLUDED:

LPG cylinder

Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)

LPG cylinder must include collar to protect LPG cylinder valve.

NOT INCLUDED:

AA battery

TOOL NEEDED:

3 Phillips head screwdriver

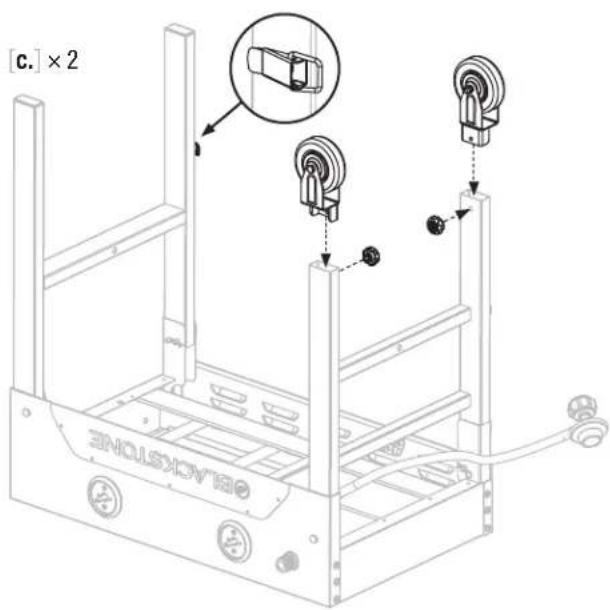

STEP 01 With the help of another person, remove the griddle body from the packaging and lay it upside down on a smooth, flat surface. Unlatch and unfold the legs to their vertical position, then use two (2) small thumb screws [c.] to attach the two (2) wheels onto the ends of the left leg assembly.

[c.] × 2 EVEAKSSTONE

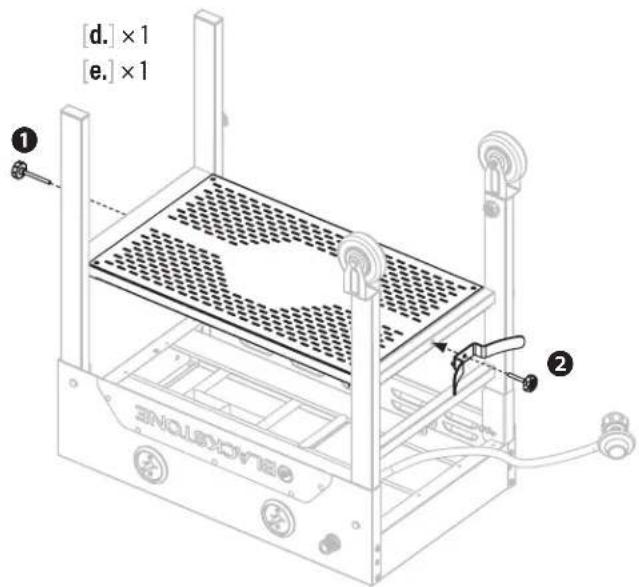

STEP 02 The one (1) large thumb screw [d.] to attach the stabilizing shelf to the right leg assembly.

be one (1) medium thumb screw [e.] to attach the LPG support and the stabilizing shelf to the left leg assembly.

Note: This shelf is integral to the stability of the appliance while in use.

[d.] × 1 [e.] × 1 ① ② SINTELONATEC

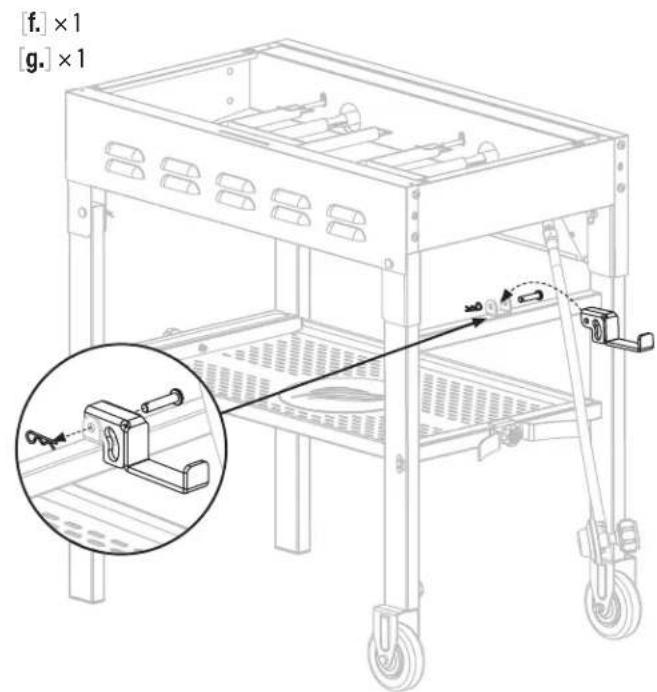

STEP 03 With the help of another person, set the griddle on its wheels.

Use one (1) shear pin [g.] and one (1) cotter pin [f.] to attach the LPG hook to the upper bar of the left leg assembly.

[f.] × 1 [g.] × 1

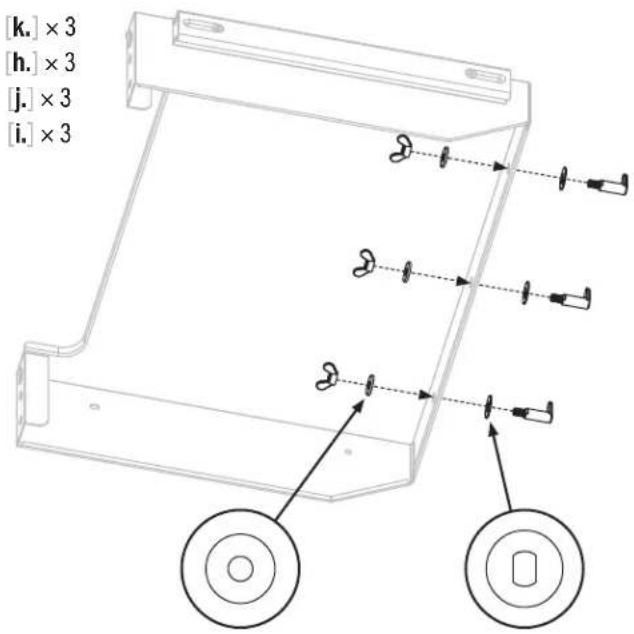

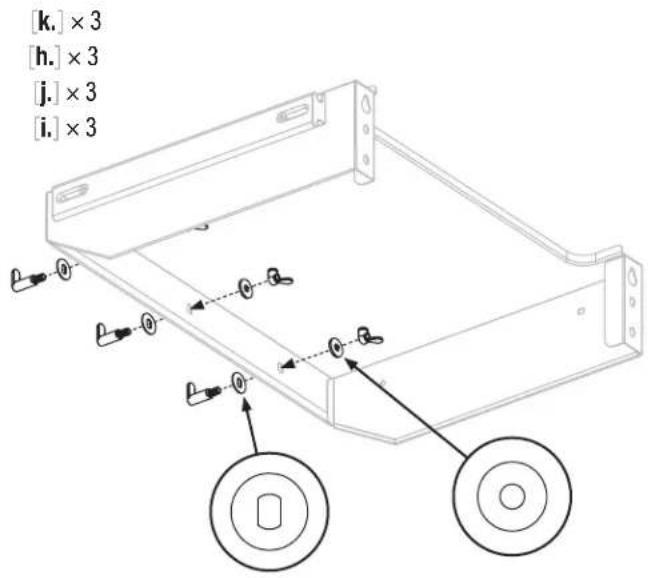

STEP 04 Use three (3) wing nuts [k.], three (3) washers [i.], and three (3) slotted washers [j.] to attach three (3) shelf pegs [h.] to the left side shelf.

[k.] × 3 [h.] × 3 [j.] × 3 [i.] × 3

STEP 05 Use three (3) wing nuts [k.], three (3) washers [i.], and three (3) slotted washers [j.] to attach three (3) shelf pegs [h.] to the right side shelf.

[k.] × 3 [h.] × 3 j.] × 3 [i.] × 3

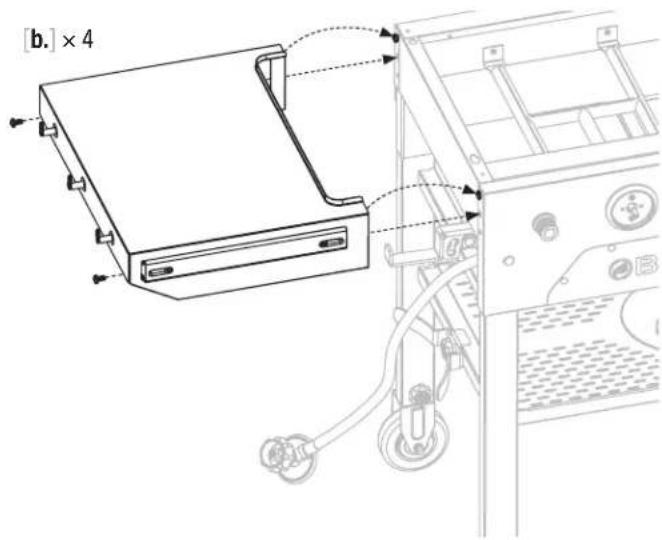

STEP 06 Loosen the two (2) M6x12 screws on the left side of the griddle body.

Hook the left side shelf on these screws and use two (2) M6x12 screws [b.] and the two previously remove screws to secure the side shelf to the left side of the griddle body. Tighten all four screws. Repeat with the right side of the griddle body.

[b.] × 4

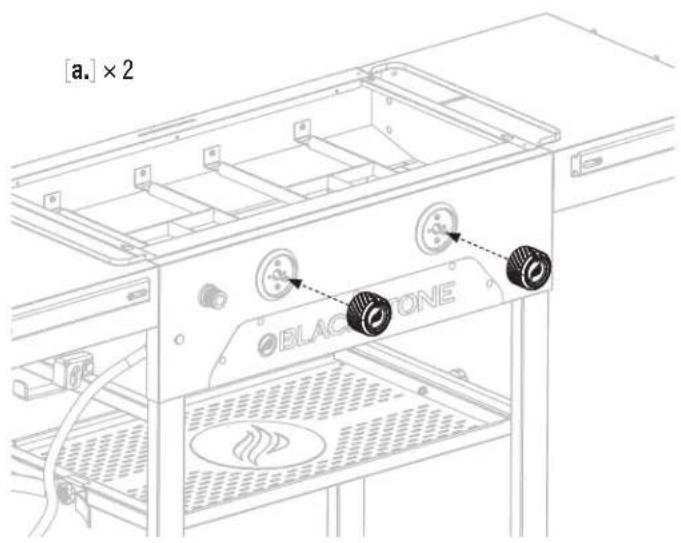

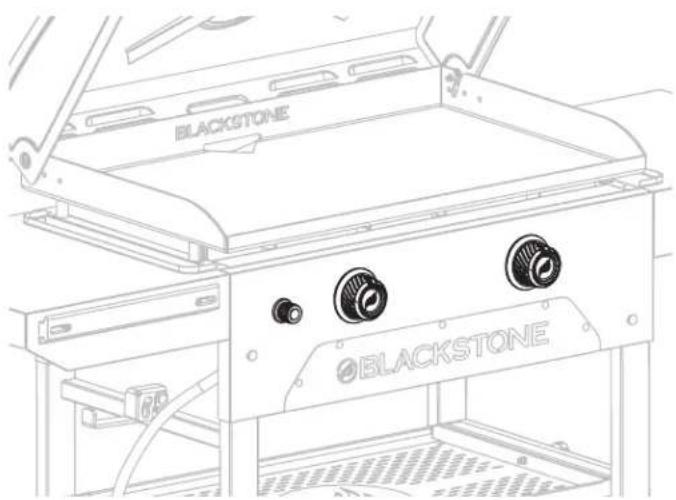

STEP 07 Install the two (2) control knobs [a.] by pushing them into place in the OFF position.

[a.] × 2 BLACK ZONE

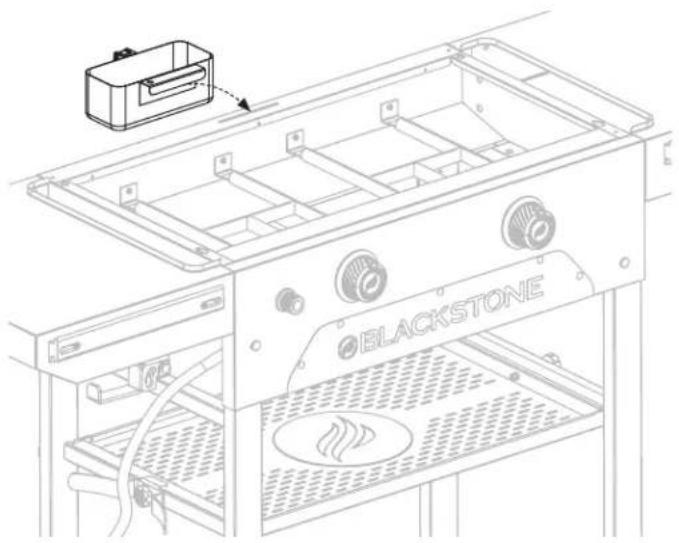

STEP 08 Hang the grease cup in the slot at the back of the griddle body.

BLACKSTONE

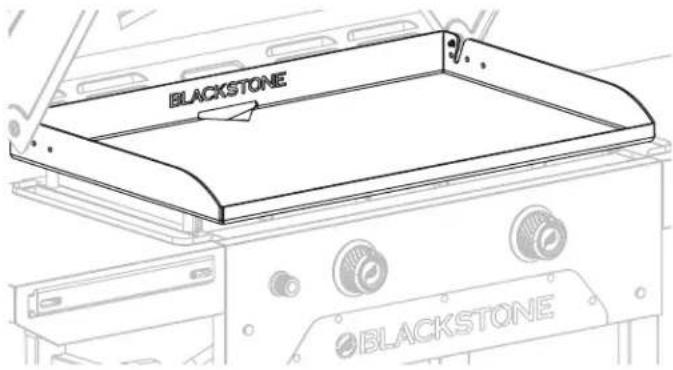

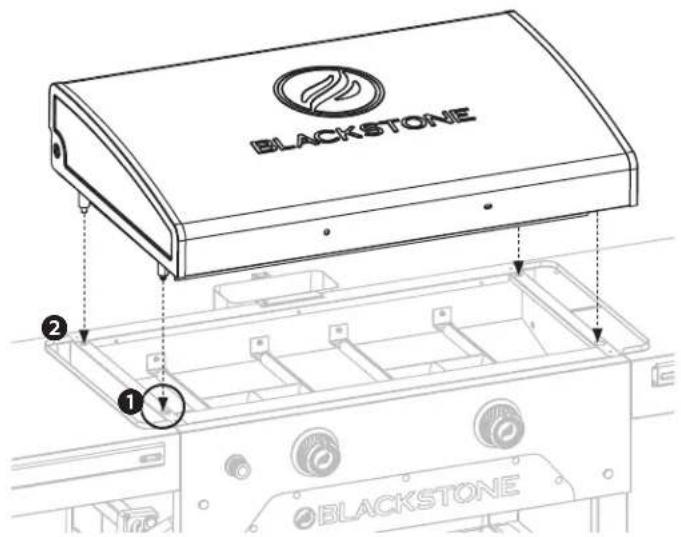

STEP 09 With the help of another person, place the griddle top and hood on the main body by aligning the 4 pins to the holes of the body.

BLACKSTONE 1 2 BLACKSTONE

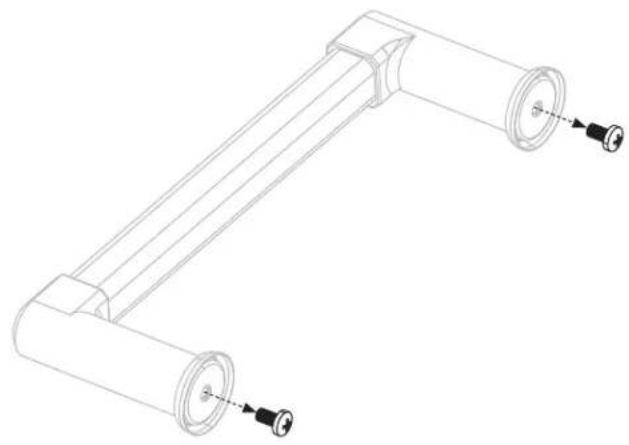

STEP 10 Remove the two (2) pre-installed M6x16 screws from the hood handle.

Technical line drawing of a mechanical lever assembly with two circular components and mounting holes (no text or symbols)

① Place the two front pins into the front locking holes and push the griddle top back.
② Then, set the two rear pins into the rear holes.

Diagram of a cylindrical object with a dashed arrow indicating direction, resting on a horizontal surface with diagonal lines (no text or symbols)

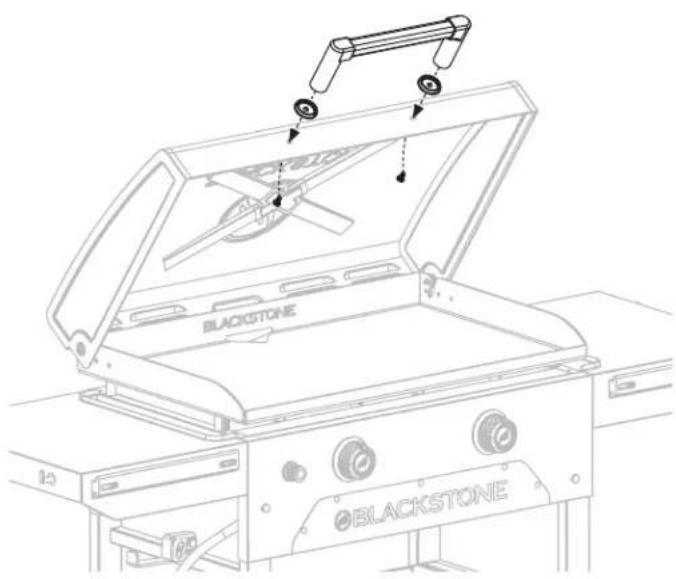

STEP 11 Use the two (2) M6x16 screws to install the hood handle and handle bezels to the griddle hood.

BLACKSTONE BLACKSTONE

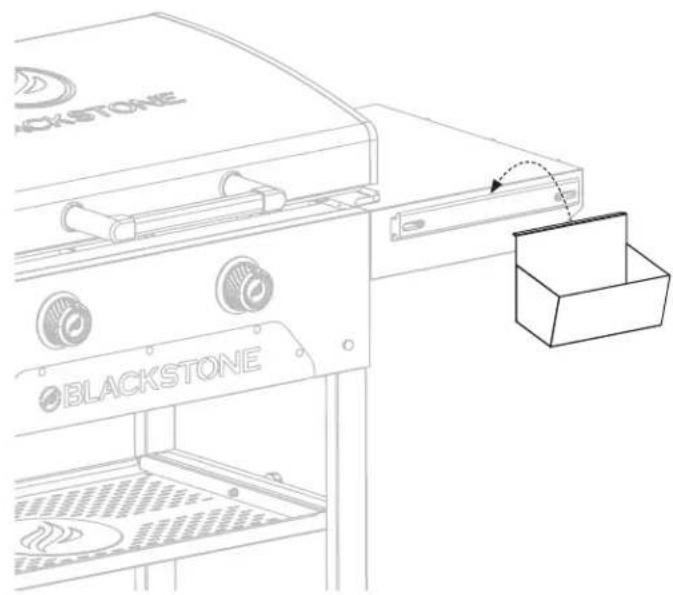

STEP 12 Hang the shelf basket on the accessory rail.

OKSTONE BLACKSTONE

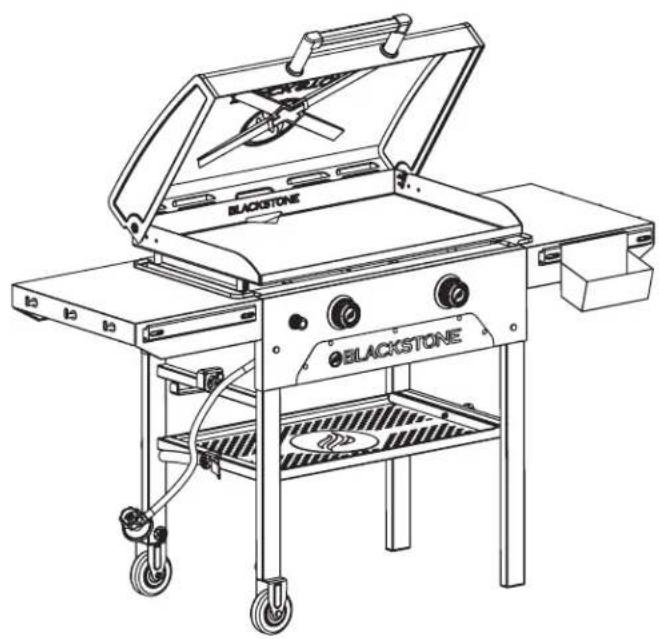

STEP 13 Proceed to USING YOUR BLACKSTONE.

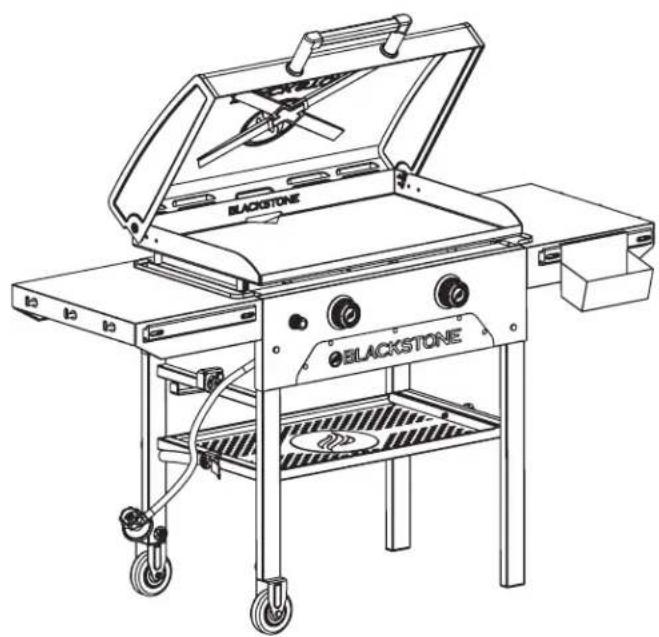

Line drawing of a black stone gas stove with open lid and wheels (no text or symbols)

NOTICE

DO NOT leave the hood closed for more than 10 minutes while cooking.

NOTICE

• Maximum weight on the side shelf is 10 lbs (4.5 kg).• The side shelf may get hot while appliance is in use.

NOTICE

DO NOT place items on stabilizing shelf during use.

USING YOUR BLACKSTONE

BEFORE COOKING CHECK BURNERS

Prior to connection and use, ensure that there is no debris caught in, or damage to, the head of the gas cylinder, regulator, hose, burner and burner ports.

Spiders and insects can nest within and clog the burner/venturi tube at the orifice.

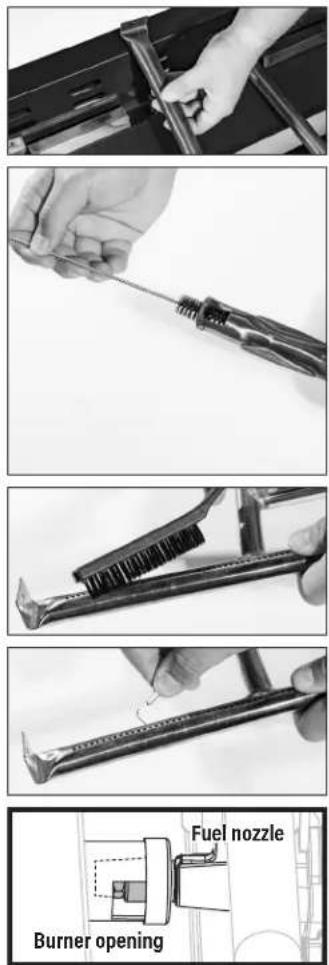

Please reference the Troubleshooting chapter for burner cleaning instructions.

Blocked burner Venturi Air intake

WARNING

A clogged burner can lead to a fire beneath the appliance.

Burner should be removed and cleaned whenever blockages are found.

Fuel nozzle Burner opening

⚠ Ensure that the gas rail fuel nozzle orifice is correctly engaged within the burner opening.

DANGER

Flammable items can combust if placed near the appliance. Keep the appliance area clear and free from combustible materials, aerosol containers, gasoline and other flammable vapors and liquids.

THE MINIMUM AMBIENT OPERATING TEMPERATURE IS 0°F (-18°C).

SETTING UP YOUR OUTDOOR SPACE THIS APPLIANCE MUST ONLY BE USED OUTDOORS.

• DO NOT use this appliance inside buildings, garages, or any other enclosed area.
• DO NOT install this appliance in or on a boat.
• DO NOT install this appliance in or on a recreational vehicle.

MAINTAIN PROPER CLEARANCES FROM COMBUSTIBLE MATERIAL.

• DO NOT use this appliance on or under any apartment or condominium balcony or deck.
• DO NOT obstruct the flow of combustion and ventilation air.
• DO NOT operate this appliance any closer than 36 in (1 m) from the sides and back of the appliance to combustible construction.

- DO NOT use this appliance under overhead combustible construction.

SHELTERED OUTDOOR AREAS:

All openings must be permanently open; sliding doors, garage doors, windows or screened openings are not considered as permanent openings.

An appliance is considered to be outdoors if installed with shelter no more inclusive than:

a. With walls on three sides, but with no overhead cover.

Pure geometric line drawing of a 3D cube and a right-angle bracket (no text or symbols)

b. Within a partial enclosure that includes an overhead cover and no more than two sidewalls. The sidewalls may be parallel, as in a breezeway, or at right angles to each other.

Both ends open

Two geometric line drawings: a triangular prism with internal lines and a square grid with intersecting lines (no text or symbols)

c. Within a partial enclosure that includes an overhead cover and three sidewalls, as long as 30% or more of the horizontal periphery of the enclosure is permanently open.

30%

30%

LPG CYLINDER REQUIREMENTS FOR 20 LB (9 KG CYLINDERS)

• The LPG supply cylinder to be used must be constructed and marked in accordance with the specifications for LP gas cylinders, U.S. Department of Transportation (DOT) or the Standard for Cylinders, Spheres and Tubes for the Transportation of Dangerous Goods, CAN/CSA-B339.
• Only LPG cylinders marked "propane" shall be used.
• The LPG cylinder supply system must be arranged for vapor withdrawal.

- Always keep new LPG cylinders in upright position during use, transit or storage.

- Always keep the ventilation opening(s) of the cylinder enclosure free and clear from debris.

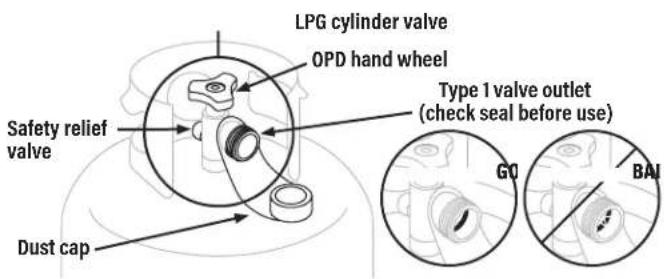

THE LPG CYLINDER VALVE MUST HAVE:

• Type 1 valve outlet (thread on the outside).
• Safety relief valve.
• UL listed Overfill Protection Device (OPD). This OPD safety feature is identified by a unique triangular hand wheel.
• Dust cap.

LPG cylinder valve OPD hand wheel Safety relief valve Type 1 valve outlet (check seal before use) Dust cap GO BAI

The seal on the type 1 valve outlet could, over time, show marked and visible damage or deterioration that might cause a leak even with the connection tightened.

• A visual inspection for the seal must be carried out every time a LPG cylinder is replace or refilled.
• Any LPG cylinder showing signs of damage or deterioration as those illustrated including visible cracks and pitting, must be returned unused to the seller.

STORING LPG CYLINDERS

WARNING

• DO NOT store a spare LPG cylinder under or near this appliance.
• DO NOT fill an LPG cylinder beyond 80% full.

If the information above is not followed exactly, a fire causing death or serious injury may occur.

• The LPG cylinder must be turned OFF when the appliance is not in use.
• LPG cylinders must be stored outdoors and out of the reach of children.
• DO NOT store an LPG cylinder inside a building, garage, or any other enclosed area.

FILLING & EXCHANGE

• Use only those reputable exchange companies that inspect, precision fill, test and certify their cylinders. LPG dealer must purge new cylinder before filling.
  • Volume of propane in cylinder will vary by temperature.

WARNING

A frosty regulator indicates gas overfill. Immediately close LPG cylinder valve and call local LPG dealer for assistance.

• DO NOT release liquid petroleum gas (LPG) into the atmosphere.
• To remove gas from LPG cylinder, contact a certified LPG dealer or local fire department for assistance.
• Exchange cylinder only for an OPD safety feature-equipped cylinder.

Your retailer can help you match a replacement LPG cylinder to your appliance.

LEAK TEST INSTRUCTIONS

• Leak test new and exchanged LPG cylinders BEFORE connecting to griddle.
• DO NOT smoke during leak test.
• DO NOT use an open flame to check for gas leaks.
• Appliance must be leak tested outdoors in a well-ventilated area, away from ignition sources such as gas fired or electrical appliances.
• During leak test, keep appliance away from open flames or sparks.

LEAK TEST: LPG CYLINDER

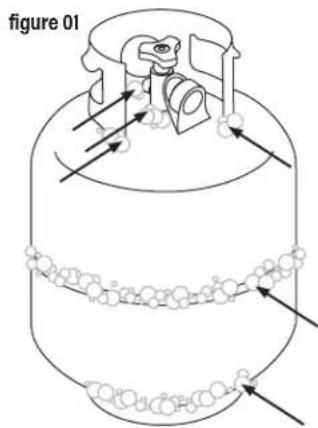

STEP 01 Use a clean paintbrush to brush a ^10 %o mild soap and water solution onto joint areas of the LPG cylinder.
(Indicated by arrows in figure 01.)
- Leaks are indicated by growing bubbles.

WARNING

If growing bubbles appear during leak test, DO NOT use or move the LPG cylinder. Immediately contact an LPG supplier or fire department.

figure 01

FITTINGS & HOSES

• Annual checking and tightening of metal fittings is recommended.
• Keep the fuel supply hose away from any heated surfaces.
• Before each use, check to see if hoses are cut or worn.
• Replace damaged hose before using appliance.

(Use only Blackstone approved valve, hose, or regulator. Failure to comply will void the warranty.)

REGULATOR SAFETY

• Use this appliance, as purchased, only with gas and regulator/ valve assembly supplied. DO NOT use quick connect fittings or other add-ons.
• DO NOT cross thread (force at an improper angle) the connection between your LPG cylinder and regulator.
• If you can not connect the regulator, DO NOT use the regulator. Regulator must be replaced with a Blackstone approved model by a professionally licensed, authorized dealer.

CONNECT THE LPG CYLINDER ONLY USE A 20 LB (9 KG) CYLINDER

STEP 01 Turn the control knobs to OFF.

① Ensure that the LPG cylinder is OFF by turning the OPD hand wheel clockwise to a full stop.
② Remove the safety cap from the Type 1 valve outlet.

Diagram of a mechanical device with labeled parts, showing two connected components and directional arrows.

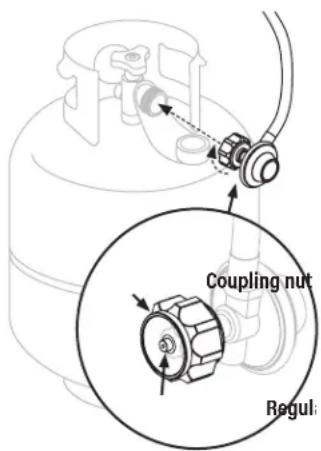

STEP 02 Hold the regulator in a straight line with the Type 1 valve outlet so as not to cross thread the connection.

Center and insert the regulator nipple into the Type 1 valve outlet.

Hand-tighten the coupling nut in a clockwise direction. (DO NOT use tools to connect.) If connection cannot be completed, disconnect regulator and repeat this step.

Coupling nut Regul:

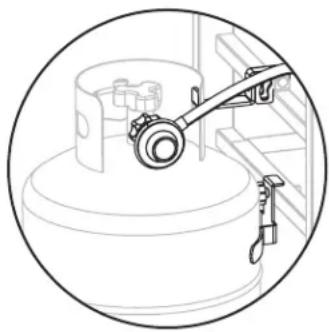

STEP 03 Secure the LPG cylinder to the appliance by hanging it on the LPG hook so that it nestles against the LPG support.

The safety relief valve must face away from the user while the appliance is in use.

Technical line drawing of a mechanical assembly inside a circular frame (no text or symbols)

LEAK TEST: VALVES, HOSE & REGULATOR

STEP 01 Turn the control knobs to OFF.

STEP 02 Connect the regulator to the LPG cylinder.

STEP 03 Completely open the LPG tank by turning the OPD hand wheel counterclockwise.

• If you hear a rushing sound, turn gas off immediately. There is a major leak at the connection.
• Immediately close the LPG cylinder by turning the OPD hand wheel clockwise and re-tighten connections. If leaks cannot be stopped DO NOT TRY TO REPAIR.

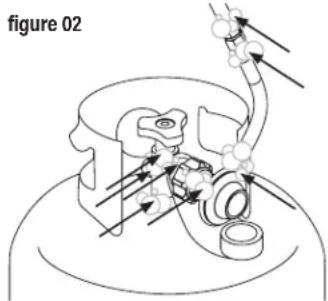

STEP 04 Use a clean paintbrush to brush a 1 190 mild soap and water solution onto joint areas of valves and regulator. (Indicated by arrows in figure 02.)

• Leaks are indicated by growing bubbles.
• Immediately close the LPG cylinder by turning the OPD hand wheel clockwise and re-tighten connections.

figure 02

WARNING

If leaks cannot be stopped, DO NOT try to repair. Regulator must be replaced with a Blackstone approved model by a professionally licensed, authorized dealer.

DISCONNECTING THE LPG CYLINDER

STEP 01 Ensure that the control knobs are turned to OFF.

① Ensure that the LPG cylinder is OFF by turning the OPD hand wheel clockwise to a full stop.
② Turn the coupling nut counter-clockwise by hand to remove the regulator. (DO NOT use tools to disconnect.)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or force

STEP 02 Place dust cap on LPG cylinder valve outlet whenever cylinder is not in use.

Only install the type of dust cap on cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result in leakage of propane.

Pure mechanical component diagram without any text, numbers, or symbols

IGNITION INSTRUCTIONS

1. CHECK VALVES

STEP 01 Turn knob to OFF position.

STEP 02 Push in knob and release. Knob should spring back. If knobs DO NOT spring back, replace valve assembly before using appliance.

STEP 03 Rotate knob to LOW then turn back to OFF. Knob should turn smoothly.

WARNING

If burner does not ignite with open gas supply valve, gas will continue to flow out of burner and could accidentally/ inadvertently ignite with risk of injury. Ensure gas is off at the supply shut off valve before checking appliance valves.

Line drawing of a blackstone gas stove with control knobs and vent gauges (no text or symbols)

3. ALWAYS CHECK BURNER FLAME BEFORE USE.

STEP 01 Light burners and rotate knobs from HIGH to LOW.

STEP 02 Look below the cooking surface to view burners. When knob is at HIGH, flames should be larger than when knob is at LOW.

HEALTHY FLAME PATTERN YELLOW OR IRREGULAR

Diagram showing flame patterns with numbered regions and a checkmark indicating selection

① Flickers of yellow color.
② Dark blue color.
③ Vibrant blue.

Diagram showing a chain of droplets on a horizontal line with a prohibition symbol below (no text or labels)

If there is a sudden drop or low flame issue, please reference the Troubleshooting chapter.

2. BATTERY POWERED IGNITION

▲ DO NOT lean over the appliance while lighting.

STEP 01 Insert one (1) AA battery (not included) under the ignitor button.

Screw the button into place over the positive terminal.

STEP 02

① Turn the control knob to OFF.

Turn gas ON by turning the gas cylinder handwheel counterclockwise 1 to 3 turns.

AA +

1 to 3 turn

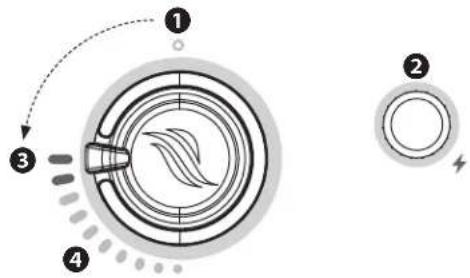

STEP 03

② Push and hold the ignitor button.
③ Push and turn the control knob counter-clockwise to HIGH. (Release the ignitor button when the burner lights.)
④ Adjust the temperature to desired level.

Diagram of a mechanical or electrical component with numbered parts and directional arrows indicating motion or flow.

IF IGNITION DOES NOT OCCUR IN 5 SECONDS:

STEP 01 Turn the burner control knob OFF.

STEP 02 Wait 5 minutes.

STEP 03 Repeat the lighting procedure.

If burner does not ignite, please reference the Troubleshooting chapter.

GRIDDLE SEASONING INSTRUCTIONS

BLACKSTONE BLACKSTONE

WASHING YOUR GRIDDLE TOP BEFORE FIRST USE

NOTICE

Soap will ruin a seasoned griddle. This is the only time you should use soap on the griddle cooking surface.

STEP 01 Wash the griddle cooking surface with hot, soapy water.

STEP 02 Rinse and dry completely.

VIDEO TUTORIAL

How to Season a New Blackstone Griddle youtube.com/watch?v=VspmDVnj2pl&t=3s

STEP 01 Wipe any debris off griddle top.

STEP 02 Set your griddle to high heat until your griddle top changes color. (\~10 min)

STEP 03 Use tongs to hold a paper towel or cotton cloth and spread 2-3 tablespoons of your seasoning oil across the entire griddle top. When seasoning your griddle top, remember to use a thin and even layer of oil—the thinner the layer of oil, the easier it will be to burn it off.

STEP 04 The griddle top is ready for another layer of oil when it stops smoking. Repeat STEP 03 3-4 times, or until the griddle surface is black.

WHAT OIL IS BEST TO USE?

• Blackstone Seasoning and Cast Iron Conditioner.
• Any plant-based cooking oil.
• Rendered animal fat with no additives.

BLACKSTONE GRIDDLE SEASONING & CAST IRON CONDITIONER

SEASONING TROUBLESHOOTING

THERE IS A BROWNISH RESIDUE ON THE GRIDDLE SURFACE:

POSSIBLE CAUSES SOLUTION

• Too much oil was used.
• You turned off the heat too soon.

STEP 01 Turn your griddle on high and let it heat for 10-15 minutes.

STEP 02 Scrape off as much of the thickened and partially cooked oil as you can.

STEP 03 Re-season with a very thin layer of oil.

THE EDGES OF THE GRIDDLE SURFACE ARE NOT BLACK:

After using your griddle for multiple cooks, the seasoning will even out and improve.

PREVENTING RUST

Use your griddle frequently. Every time you cook, you are adding to the seasoning, which makes rust less likely.

NOTICE

If you live in a humid or coastal climate, your griddle may require more frequent seasonings between uses.

If rust appears on the griddle surface, rub it off with steel wool, low grit sandpaper or the Blackstone Pumice Stone and re-season the surface.

VIDEO TUTORIAL

Recovering your Blackstone Griddle Top

youtube.com/watch?v=thPE2IgnSil

COOKING ON YOUR BLACKSTONE

CAUTION

This appliance will be hot during and after use. Use long-handled utensils and oven mitts/ protective gloves when handling potentially hot parts to protect against burns and splatters.

CAUTION

If the appliance is fitted with a paper towel holder, the arm must be in the open position while the appliance is in use.

NOTICE

DO NOT store any items within 3 in (8 cm) of the cooking surface while in use.

IF GREASE OR OTHER HOT MATERIAL DRIPS ONTO VALVE, HOSE OR REGULATOR:

STEP 01 Turn off gas supply immediately.

STEP 02 Determine the cause and correct it.

STEP 03 Clean and inspect valve, hose and regulator.

STEP 04 Perform a leak test. (Please reference the Leak Test Instructions)

VIDEO RECIPES

Find recipes and cooking tips at:

BlackstoneProducts.com/blogs/recipes
youtube.com/c/BlackstoneGriddles
@blackstoneproducts

STRAWBERRIES AND CREAM PANCAKES Breakfast OKLAHOMA FRIED ONION BURGER Lunch TACOS BORRACHOS Dinner

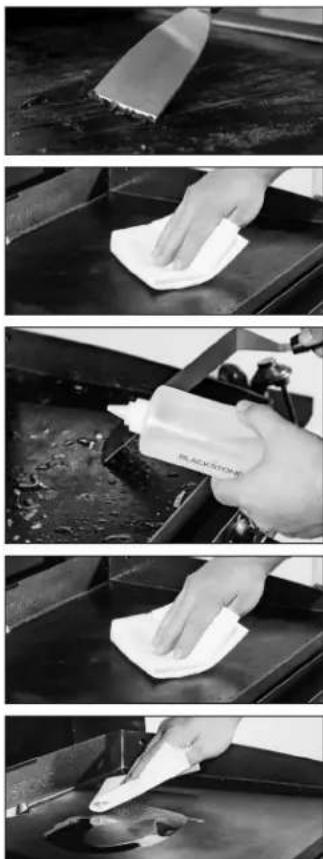

CLEANING YOUR GRIDDLE TOP

Clean griddle top after each use, while still warm.

- DO NOT use soap on the griddle top. This will destroy the griddle's seasoning.

VIDEO TUTORIAL

How to Clean your Blackstone Griddle

youtube.com/watch?v=-ledu9z6NPY

STEP 01 Push loose food debris into the grease cup with spatula or straight metal scraper.

STEP 02 Wipe down griddle top with paper towel.

STEP 03 Apply a few tablespoons of water to the griddle surface, then scrape the water and debris into the grease cup.

(For stuck-on food residue, use a bit of coarse salt.)

STEP 04 Wipe again with a paper towel and dry completely.

STEP 05 Apply thin coat of cooking oil to maintain seasoning and protect the griddle top.

EMPTY YOUR GREASE CUP

The grease cup must be removed and emptied after each use.

CAUTION

Grease cup will be hot during and after use. DO NOT remove the grease cup until the griddle has completely cooled.

CARE AND MAINTENANCE

WARNING

Grease build up can cause a fire. Clean any part of the appliance that gets hot and experiences grease build up after each use.

CAUTION

All cleaning and maintenance should be carried out when the appliance is cool and everything is turned OFF.

• DO NOT use abrasive pad on areas with graphics.
• If a bristle brush is used to clean any of the cooking surfaces, ensure no loose bristles remain on cooking surfaces prior to cooking.

APPLIANCE BODY:

Wash with warm soapy water and immediately wipe dry with a non-abrasive cloth. (DO NOT allow cleaning agents to rest on any porous surface for a prolonged amount of time.)

NOTICE

DO NOT use Citrisol, abrasive cleaners, or a concentrated cleaner on the appliance. This may result in damage to and failure of parts.

APPLIANCE STORAGE

WARNING

DO NOT move the appliance when in use. Allow the appliance to cool to 115^ F ( 45^ C) before moving or storing.

Storage of an appliance indoors is only permissible if the gas supply is disconnected and removed from the appliance.

COVER FIT GUIDE

Always cover your appliance when stored outdoors.

To find a cover that will fit your appliance, visit BlackstoneProducts.com/support.

TROUBLESHOOTING

IGNITION TROUBLESHOOTING

BURNER WILL NOT IGNITE:

If ignition does not occur in 5 seconds:

STEP 01 Turn the burner control knob OFF.

STEP 02 Wait 5 minutes.

STEP 03 Repeat the lighting procedure.

If this does not work, to determine the cause, please try to ignite your appliance with a match.

MATCH LIGHTING INSTRUCTIONS

Before beginning, check for gas leaks. Open hood (if applicable).

STEP 01 Turn control knob to OFF position.

STEP 02 Light a match (or long lighter) no shorter than 11 inches long.

STEP 03 Place the flame next to the burner.

Illustration of a hand holding a tool near a window (no text or symbols visible)

STEP 04 Push in and turn the control knob to start gas flowing. Ensure burner lights and stays lit.

IF YOU CAN IGNITE YOUR APPLIANCE WITH A MATCH:

POSSIBLE CAUSES SOLUTION

Ignitor wire misaligned.	Ensure that the ignitor needle is positioned 3-7mm away from the burner, and aligned with the burner holes.
Damage to the ignition system.	Contact customer support for replacement parts.
Dead / improperly installed battery.	Replace with new battery.

IF YOU CAN NOT IGNITE YOUR APPLIANCE WITH A MATCH:

POSSIBLE CAUSES SOLUTION

Burner tubes are not receiving fuel.

Clean the burner assembly to remove the obstruction.

GAS FLOW TROUBLESHOOTING

BURNER FLAMES ARE YELLOW OR IRREGULAR:

• Appliance will not achieve a high heat or heats unevenly.
• Burner flames start strong, then immediately drop to low even when burner is set to high position.
• Flame height drops when a second burner is lit.
• Flames DO NOT extend the full length of the burner, or only run on one side of the burner.
• Burner flames are inconsistent.

POSSIBLE CAUSES SOLUTION

Obstructions in the burner, gas jets, or fuel rail.	Clean the burner, jets, and gas hose.
Gas cylinder is empty or low.	Refill or replace the gas cylinder.
The regulator's flow limiting device was triggered.	Reset the safety system:STEP 01Turn OFF the appliance, close the LPG cylinder valve, and disconnect the regulator from the LPG cylinder.STEP 02Wait five minutes to allow the pressure to dissipate, then reconnect the regulator to the LPG cylinder and slowly open the OPD hand wheel one half turn.STEP 03Ignite your appliance.
Regulator stuck in safety position.	Contact customer support for replacement parts.

A FLAME IS COMING OUT OF THE AIR GATE:

Simple line drawing of a fire extinguisher inside a vehicle (no text or symbols)

POSSIBLE CAUSES SOLUTION

Something is blocking the venturi in the burner.

Clean the burner assembly to remove the obstruction.

CLEANING THE BURNER ASSEMBLY

To reduce chance of "flash-back" the procedure below should be followed at least once a month when spiders are most active or when your appliance has not been used for a period of time.

VIDEO TUTORIAL

How to Clean Your Burner Tube

youtube.com/watch?v=xKQTCrFCzf8

STEP 01 Ensure that the gas is turned OFF at control knobs and gas supply. Remove the griddle top.

STEP 02 Carefully detach and remove the burner.

STEP 03 Clean the inside of the burner:

a. Run a bottle brush (not a wire brush) or a stiff wire bent into a small hook through each burner tube several times.
b. Use compressed air to blow through the burner tube and out the burner ports (Wear eye protection).

STEP 04 Brush entire outer surface of burner to remove grime.

STEP 05 Clean any blocked ports with stiff wire such as an open paper clip.

STEP 06 Carefully replace burners and reattach, with attention to the location of the ignition needle.

The gas rail fuel nozzle must be reengaged within the burner opening.

CUSTOMER SUPPORT

Visit us online at BlackstoneProducts.com/support for assistance concerning appliance use, replacement parts, or your warranty.

CUSTOMER SUPPORT HOURS:

Monday - Friday

7:00 am - 5:00 pm (Mountain Time)

This page intentionally left blank

BLACKSTONE®

This product may be covered by one or more issued U.S. and/or international patents and may include patent applications pending. For more information, please visit: BlackstoneProducts.com/patents

DISTRIBUTED BY NORTH ATLANTIC IMPORTS, LLC 1073 W 1700 N LOGAN, UT 84321 USA | BLACKSTONE IS A REGISTERED TRADEMARK OF NORTH ATLANTIC IMPORTS, LLC

MODÈLE: 2287

OMNIVORE GRIDDLE PLATE

Technical line drawing of a blackstone industrial machine with wheels and control panel (no text or symbols)

MANUEL DU PROPRIÉTAIRE

PLAQUE CHAUFFANTE DE 28 PO AVEC HOTTE

TABLE DES MATIÈRES

INFORMATIONS DE SÉCURITÉ IMPORTANTES .....02

GARANTIE....03

GUIDE D'ASSEMBLAGE....04

UTILISATION DE VOTRE BLACKSTONE 10

DÉPANNAGE....17

IMPORTANT:

BlackstoneProducts.com/support

CLÉ D'ALERTE DE SÉCURITÉ

! DANGER

Circular emblem with a flame design, no text or symbols present

Technical line drawing of a mechanical assembly with labeled parts (d, e), no readable text or symbols beyond labels

INSTRUCTIONS DE MONTAGE

Line drawing of a cylindrical mechanical component with a central knob and base (no text or symbols)

NON INCLUS:

Bouteille GPL

Taille: 45 x 30 cm (18 x 12 po), 9 kg (20 lb)

[f.] × 1 [g.] × 1

[k.] × 3 [h.] × 3 [j.] × 3 [i.] × 3

[k.] × 3 [h.] × 3 [j.] × 3 [i.] × 3

BLACKSTONE

BLACKSTONE ② ① BLACKSTONE

Technical line drawing of a mechanical lever assembly with two circular components and mounting holes (no text or symbols)

Diagram of a cylindrical object with a dashed arrow indicating direction, resting on a horizontal surface with diagonal lines (no text or symbols)

BLACKSTONE BLACKSTONE

OKSTONE BLACKSTONE

Line drawing of a black stone gas stove with open lid and wheels (no text or symbols)

AVIS

Pure geometric line drawing of a 3D cube and a right-angle bracket (no text or symbols)

Two geometric line drawings: a triangular prism with internal lines and a square grid with intersecting lines (no text or symbols)

figure 01

RACCORDS ET TUYAUX

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or flow

Technical line drawing of a mechanical assembly inside a circular frame (no text or symbols)

TEST DE FUITE: VANNES, TUYAU ET RÉGULATEUR

figure 02

AVERTISSEMENT

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or force

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

INSTRUCTIONS D'ALLUMAGE

1. CLAPETS ANTI-RETOUR

ÉTAPE 01 Tourner le bouton en position OFF.

Line drawing of a blackstone appliance panel with control knobs and base shelves (no text or symbols)

3. VÉRIFIEZ TOUJOURS LA FLAMME DU BRÛLEUR AVANT UTILISATION.

Diagram showing flame detection with numbered regions and a checkmark indicating selection

Illustration of a waveguide with droplets and a prohibition symbol (no text or labels)

Diagram showing a circular device with labeled components and directional arrows, including numbered parts 1, 2, 3, and 4.

SI L'ALLUMAGE NE SE PRODUIT PAS DANS LES 5 SECONDES :

BLACKSTONE BLACKSTONE

LAVER LE DESSUS DE VOTRE PLANCHA AVANT LA PREMIÈRE UTILISATION

AVIS

youtube.com/watch?v=VspmDVnj2pl&t=3s

Close-up of a dark, smoky or smoky surface with no visible text or symbols

Black-and-white photo of a hand holding a cloth over a sheet of paper, with smoke rising in the background (no text or symbols visible)

Close-up of a dark, reflective surface with a small rectangular object on top (no text or symbols visible)

QUELLE HUILE EST PRÉFÉRABLE D'UTILISER?

CAUSES POSSIBLES LA SOLUTION

BlackstoneProducts.com/blogs/recipes
youtube.com/c/BlackstoneGriddles
@blackstoneproducts

PANCAKES AUX FRAISES ET À LA Creme Petit-déjeuner BURGER AUX OIGNONS FRITS DE L'OKLAHOMA Déjeuner TACOS BORRACHOS Dîner

NETTOYER LE DESSUS DE VOTRE PLANCHA

LLE BRÛLEUR NE S'ALLUME PAS:

INSTRUCTIONS D'ALLUMAGE DES ALLUMETTES

Illustration of a hand holding a tool near a window (no text or symbols visible)

CAUSES POSSIBLES LA SOLUTION

CAUSES POSSIBLES LA SOLUTION

CAUSES POSSIBLES LA SOLUTION

Simple line drawing of a fire extinguisher inside a vehicle (no text or symbols)

CAUSES POSSIBLES LA SOLUTION

Close-up of a hand holding a metal rod inserted into a black mechanical component (no visible text or symbols)

Close-up of a hand using a screwdriver to apply material (no text or symbols visible)

Close-up of a hand using a power tool to apply black bars on a metal object (no text or symbols visible)

Close-up of a hand using a tool to apply material to a metal tool (no visible text or symbols)

Technical line drawing of a blackstone industrial machine with wheels and control panel (no text or symbols)

MANUAL DEL PROPIETARIO

PLANCHA DE 28"

CON CAMPANA

TABLA DE CONTENIDO

INFORMACION DE SEGURIDAD IMPORTANTE....02

GARANTÍA 03

GUÍA DE MONTAJE....04

USANDO SU BLACKSTONE....10

BlackstoneProducts.com/support

ANSI Z223.1/NFPA 54, CSA B149.1 o CSA B149.2.

SOLO PARA USO EN EXTERIORES.

GARANTÍA

BlackstoneProducts.com/register

Circular emblem with a flame design, no text or symbols present

Technical line drawing of a mechanical assembly with labeled parts (d, e), no readable text or symbols present.

INSTRUCCIONES DE MONTAJE

Line drawing of a cylindrical mechanical component with a central protruding element (no text or symbols)

NO INCLUIDO:

Cilindro de GLP

[f.] × 1 [g.] × 1

[k.] × 3 [h.] × 3 [j.] × 3 [i.] × 3

[k.] × 3 [h.] × 3 [j.] × 3 [i.] × 3

BLACKSTONE

BLACKSTONE ② ① BLACKSTONE

Technical line drawing of a mechanical lever assembly with two circular components and mounting holes (no text or symbols)

Diagram of a cylindrical object with a dashed arrow indicating direction, resting on a horizontal surface with diagonal lines (no text or symbols)

BLACKSTONE BLACKSTONE

OKSTONE BLACKSTONE

PASO 13 Continúe con USANDO SU BLACKSTONE.

Line drawing of a black stone gas stove with open lid and wheels (no text or symbols)

USANDO SU BLACKSTONE

ANTES DE COCINAR

COMPROBAR QUEMADORES

Pure geometric line drawing of a 3D cube and a right-angle bracket (no text or symbols)

Two geometric line drawings: a triangular prism with internal lines and a square grid with intersecting lines (no text or symbols)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Technical line drawing of a mechanical assembly inside a circular frame (no text or symbols)

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Pure mechanical component diagram without any text, numbers, or symbols

Line drawing of a blackstone gas stove with control knobs and ventilation grilles (no text or symbols)

3. SIEMPRE REVISE LA LLAMA DEL QUEMADOR ANTES DE USARLO.

Diagram showing flame patterns with numbered regions and a checkmark indicating selection

Diagram showing a horizontal line with droplet-like shapes and a prohibition symbol (no text or labels)

Diagram showing a mechanical or electrical component with numbered parts and directional arrows, likely illustrating a cycle or motion.

SI EL ENCENDIDO NO OCURRE EN 5 SEGUNDOS:

BLACKSTONE BLACKSTONE

youtube.com/watch?v=VspmDVnj2pl&t=3s

Grayscale abstract image with indistinct dark smudges and faint lines, no readable text or symbols

Black-and-white photo of a steaming tool on a cloth, with smoke rising in the background (no text or symbols visible)

Close-up of a dark, reflective surface with a small rectangular object on top (no text or symbols visible)

COCINAR EN TU BLACKSTONE

ATENCIÓN

BlackstoneProducts.com/blogs/recipes
youtube.com/c/BlackstoneGriddles
@blackstoneproducts

TORTITAS DE FRESAS Y CREMA Desayuno HAMBURGUESA DE CEBOLLA FRITA DE OKLAHOMA Almuerzo TACOS BORRACHOS Cena

LIMPIEZA DE LA PARTE SUPERIOR DE SU PLANCHA

Illustration of a hand holding a tool near a window (no text or symbols visible)

Simple line drawing of a fire extinguisher inside a vehicle (no text or symbols)

Close-up of a hand holding a metal rod inserted into a dark mechanical component (no visible text or symbols)

Close-up of a hand holding a screwdriver tip, no text or symbols visible

Close-up of a hand using a power tool to brush a metal object (no text or symbols visible)

Close-up of a hand holding a metal tool with a wire, no visible text or symbols

Injector de combustible Apertura del quemador
