USER MANUAL SW11 GIRMI

Technical model: CY-370B

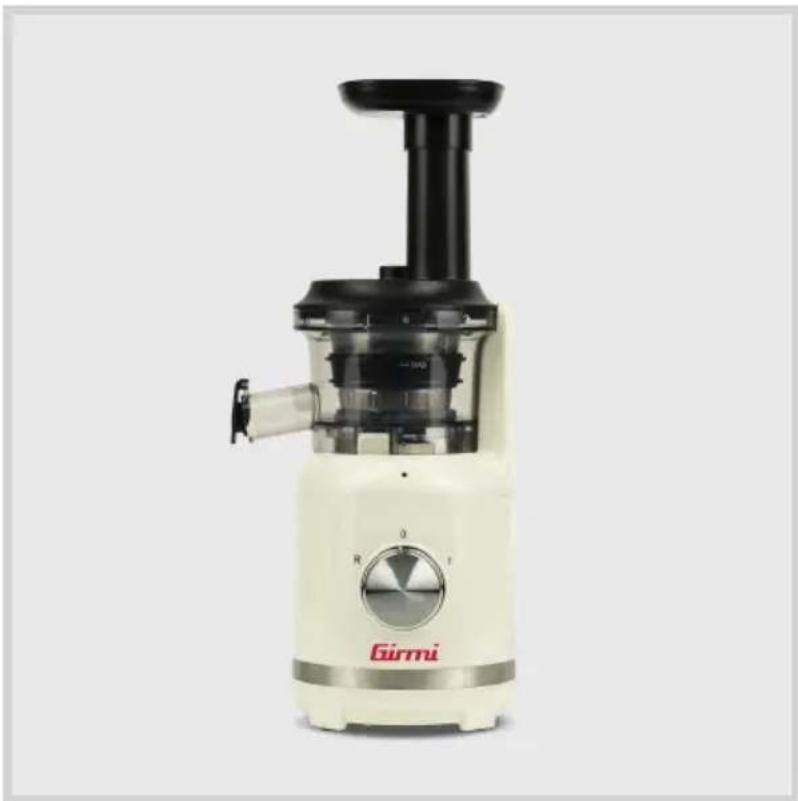

White Girmi brand juice brush maker with black and silver casing, no visible text or symbols on the device body

Estrattore di succo

Slow juicer

ITA: INDICE

Simbologia.... p. 2

Safety instructions.... p. 8

General information.... p. 10

Description of parts.... p. 11

Assembly.... p. 11

First use ...... p. 11

Operating the unit.... p. 11

Tips for a correct use.... p. 12

Cleaning.... p. 12

Technical features.... p. 12

Waste of electric and electronic equipment (WEEE

Directive).... p. 33

PORTUGUES: p. 12

ESPAÑOL p. 17

DEUTSCH....p. 22

FRANCAIS p. 27

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class I Appliance symbol. This means the appliance must have the chassis connected to electrical earth/ground by an earth conductor.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

Labeled diagram of a food cleaning machine with numbered parts for identification

Cross-sectional diagram of a circular mechanical or architectural component with concentric rings and a central circular feature (no text or symbols)

Close-up of a mechanical component with a labeled section 'A' and a small circular feature (no readable text or symbols)

AL PRIMO UTILIZZO

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

• Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.
• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.
• Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.
• Children must not play with the appliance.
• This appliance cannot be used by children, even if they're more than 8 years old.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of appliance in a safe way and understand the hazards involved.
• Keep the appliance and its cord out of reach of children less than 8 years.
  If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.
• Use original spare parts and accessories only.

- Do not subject the product to strong impacts, serious damages may result.

GENERAL INSTRUCTIONS

Before using for the first time, carefully wash all the parts that will come in touch with food such as the container, the glass, lid, the filters and the mixer.

CAUTION: install the appliance correctly before starting operations. Unplug the unit before touching any attachments.

It is advisable to pre-cut foods to make a better centrifuged.

Do not insert large pieces in the chamber, especially hard foods. It is advisable to pre-cut food.

When operating with fruits, remove the pit first.

Enter the food by using the appropriate food-presser only.

While the device is on, do not insert fingers or objects into the food opening.

During use, always pull the spout on the cup with lid foam-filter installed.

If the appliance is not correctly fitted, a safety device prevents operations. In the event that the product does not turn on, check if it was correctly installed.

After each use, empty the waste container.

Never leave the appliance unattended while it is running.

Do not use appliance for more than 10 minutes continuously, make a rest for at least 5 minutes.

Do not insert too hot food (maximum temperature 60 C°). Do not insert hot water. Do not immerse the product and / or its accessories in boiling water.

Unplug the power cord from the electrical outlet immediately after using and / or before you touch any accessory. If any food gets stuck on the filter or on the auger, turn off the product immediately. Try to unlock it by pressing REVERSE button for 5 seconds to activate the reverse rotation and then turn on the extractor again.

Once finished using the unit, it is advisable to wrap the power cord so as to ensure a better cleaning and to avoid the risk of damage. For cleaning, follow the instructions in section "Cleaning".

Do not immerse the motor unit in water or other liquids; clean it with a damp cloth.

This machine is not suitable for juicing cereals or sugar cane.

DESCRIPTION OF PARTS SW11

1. Food presser 2. Top cover 3. Auger

2. Filter 5. Container 6. Main unit

3. Juice and Pulp jug 8. Brush 9. ON and reverse button

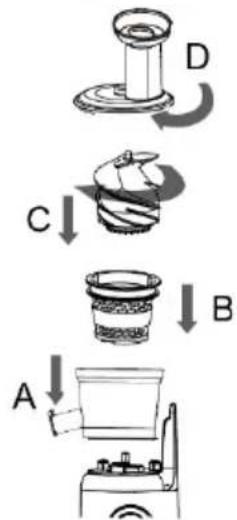

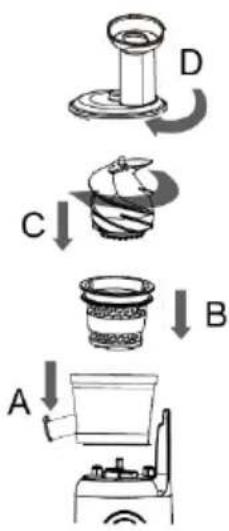

ASSEMBLY

- Place the main unit (6) on a flat and stable surface.

- Step A: place the container (5), fitting it to motor unit (6) as shown in Fig B). Ensure that the parts they fit securely.

- Step B: Place the filter (4) in the container. To lock in position, match the arrow on the filter with the symbol "Lock" on container (Fig. B).

- Step C: Insert the auger (3) inside the filter (4), making sure it is securely anchored to the base.

- Step D: Place the cover (2) on the container and turn it clockwise to lock it in place.

CAUTION: If top cover (2) has not been properly locked, the device doesn't work.

- Place the round tray and the food presser (1) over the lid (2). Put juice collector (7) in correspondence of the outlet nozzle of juice; then place pulp jug (7) under the output pulp spout.

- The slow juicer is assembled and ready for use.

NOTE: the container (5) is equipped with a rubber plug which is mounted in correspondence of the waste outlet. Make sure the plug is inserted BEFORE USE (as shown in Figure A). At the same time, remove the rubber plug during cleaning to remove any residue that may be deposited inside the chamber

Diagram of a circular mechanical or architectural component with concentric rings and radial elements, no visible text or symbols.

Close-up of a mechanical component with a labeled section 'A' and a circular base (no readable text or symbols)

FIRST USE

Install the appliance several times without plugging it or adding any fruits or vegetables. Follow these steps to practice with the unit. Carefully wash all the parts that will come in touch with food such as the two containers, the chamber, the lid, the micro-mesh filter and the auger. Other accessories with electrical parts, such as the main unit, must be cleaned with a damp cloth and dry immediately.

OPERATING THE UNIT

1. Perform the installation according to the instructions in the previous paragraph.
2. Wash, clean and cut fruits or vegetables coarsely, taking care to remove the hard parts such as the pit or large seeds.
3. To switch on the unit, put the power button on 1.
4. Insert fruits into the slot pushing them gently with the presser (1).
5. The slow juicer will pour the juice into the glass discarding the pulp in the container.
6. Enter foods until you get the desired amount of juice.

CAUTION: Do not use for more than 10 minutes continuously. Remember to take a 5 minutes break after every full process.

TIPS FOR A CORRECT USE

• If the machine stops or becomes jammed during use, immediately turn it off as some residue may have blocked the auger. To fix the problem, activate the REVERSE mode by pressing and holding “R” button for 5 seconds. Operate again as usual to check if the appliance woks normally.
• If during use the machine doesn't make any waste, even if you keep putting fruit, probably the waste outlet is stuck. Pour out all the juice from the container and clean waste outlet manually.
• Do not force the food through the opening on the crushing chamber, but place it gently.
• With the juice cap, you can store and mix your juices in the chamber and easily release the exact amount of juice without making any mess or waste.
• If you keep the juice outlet closed, you can mix different juices in the container, to have a better result.
• It is not necessary to disassemble and wash the container during each juicing session. Simply close the juice cap, pour clean water into the running juicer and let it spin for 15-20 seconds. Turn off the appliance and open the juice cap and discharge the water and the residues.

CLEANING

CAUTION: Unplug the appliance from the power outlet before cleaning.

Do not immerse the motor unit in water, but wash it with a damp cloth and non-abrasive detergent. Also avoid any infiltration of water into the motor housing. All removable parts (such as the containers, the auger, top cover, fruit presser, filter) can be treated like normal dishes, washed with non-abrasive sponge and mild detergent. Dry completely before assembling the unit again.

TECHNICAL FEATURES

• Power supply: AC 220-240V\~50-60Hz. Power 300W
• Kb 10 mins, Resting time>5min - Rotating speed 70 RPM
• Power consumption in off mode: 0 W. The product enters off mode via the knob

PORTUGUÊS: ADVERTÊNCIAS

Close-up of a mechanical component with a labeled section 'A' and a circular base (no readable text or symbols)

Close-up of a mechanical component with a labeled section 'A' and a circular base (no readable text or symbols)

PRIMER USO

Close-up of a mechanical component with a labeled section 'A' and a circular base (no readable text or symbols)

Cross-sectional diagram of a circular mechanical or architectural component with internal structural lines and no visible text or symbols.

Close-up of a mechanical component with labeled section A (no readable text or symbols)

PREMIÈRE UTILISATION

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It's our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.girmi.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
