SR03 - Juicer GIRMI - Free user manual and instructions

Brand	Girmi
Model	SR03
Product type	Juice extractor (citrus press)
Power supply	230 V ~ 50/60 Hz
Power	25 W
Jar capacity	700 ml
Number of cones	2 (large and small)
Dual rotation	Yes, for complete extraction
Start	Automatic by pressing on the cone
Pause function	Rotation interruption to recover fruits
Recommended use	For all types of citrus fruits (oranges, lemons, grapefruits)
Continuous use duration	5 minutes maximum, then 5 minutes stop
Maintenance and cleaning	Removable parts washable with soapy water; motor unit wiped with a damp cloth (do not immerse)
Safety	Use by children over 8 years under supervision; do not use if cable damaged
Spare parts and repairability	Repairs exclusively by the manufacturer or an authorized service center
General information	Household use only; do not expose to weather

Frequently Asked Questions - SR03 GIRMI

How to assemble the Girmi SR03 juice extractor?

Place the juice jar (E) onto the motor unit by turning it clockwise until it clicks. Then insert the filter and the appropriate press cone (large or small). Make sure all parts are correctly positioned before use.

What are the power and capacity of the Girmi SR03?

The appliance has a power of 25 W and a capacity of 700 ml for the juice jar. It operates on a power supply of 230 V ~ 50/60 Hz.

How to use the citrus juicer?

Cut the citrus fruits in half. Plug in the appliance and place a half on the cone. Press gently: the motor starts automatically and the cone rotates. After a short stop, the cone rotates in the opposite direction to fully press the fruit. Then remove the filter containing the pulp and use the lid to transport the juice.

Can I use the appliance continuously for a long time?

No. To avoid motor overheating, do not use the appliance for more than 5 minutes at a time. Let it cool down for at least 5 minutes before using again.

How to clean the Girmi SR03?

Always unplug the appliance before cleaning. Wash the removable parts (jar, filter, cones) with warm soapy water and a soft sponge. The motor unit should be cleaned only with a damp cloth, never immerse it in water.

Can children use this extractor?

Yes, from 8 years and under adult supervision. Children under 8 years must stay away from the appliance and the power cord.

What to do if the power cord is damaged?

Do not use the appliance. Have it repaired exclusively by the manufacturer or an authorized technical service to avoid any hazard. Never modify the appliance yourself.

What types of fruits can I press?

The appliance is designed for all citrus fruits: oranges, lemons, grapefruits, etc. Use the large cone for large fruits and the small one for smaller ones.

How to know if the jar is properly attached?

Turn the jar clockwise until you hear a click or feel it lock. It must be firmly held on the motor unit before starting.

Is the appliance under warranty?

Yes, subject to use in accordance with the instructions. Any unauthorized repair voids the warranty. Keep the proof of purchase and the manual for any claims.

USER MANUAL SR03 GIRMI

Girmi brand juiceizer with red lid and white base, no visible text or symbols on device body

Spremiagrumi

Citrus juicer

ITA: INDICE

Simbologia.... p. 2

Safety instructions.... p. 6

General information.... p. 8

SR03 p. 9

Operating the unit.... p. 9

Assembling.... p. 9

Cleaning.... p. 9

Technical features.... p. 9

Waste of electric and electronic equipment (WEEE

Directive).... p. 25

PORTUGUES:....p. 9

ESPAÑOL......p. 13

DEUTSCH p. 17

FRANCAIS p. 20

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class II Appliance symbol. The double insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to electrical earth/ground.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected.

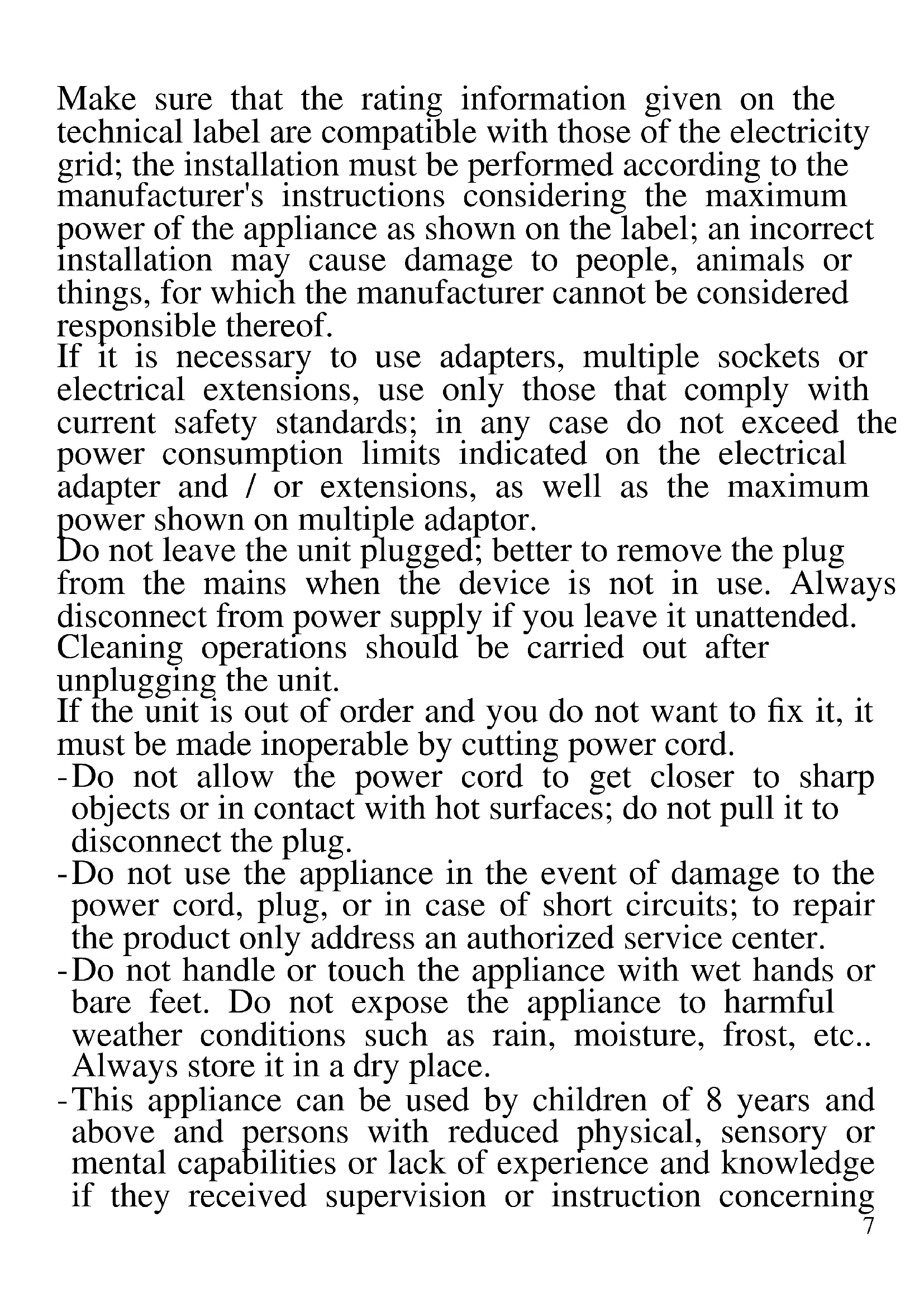

Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended. Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

• Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.
• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.
• Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

- This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning

use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.

- Keep appliance and its cord out of reach of children less than 8 years. Children must not play with the appliance. If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

- This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

- Before every use, unroll the power cord.

- Use original spare parts and accessories only.

- Do not subject the product to strong impacts, serious damages may result. Don’t use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INFORMATION

Before using the unit for the first time, carefully wash the parts that come in touch with food such as the arm, filter, container, juicer spout and cones.

Before operating the juicer, make sure to place it on a flat and stable surface with no heat sources nearby.

Assemble all parts properly before use.

To avoid the overheating of the motor, do not use the appliance for more than 5 minutes continuously, then wait at least 5 minutes before operating.

Never leave the appliance unattended while it is running. Disconnect electric plug from the socket after each use. Do not immerse the motor unit in water or other liquids; clean it with a damp cloth.

DESCRIPTION SR03

A) Lid

B) Juicer cone, large

C) Juicer cone, small

D) Filtering grid

E) Juice jar

F) Working axe

G) Main body

OPERATING THE UNIT

• Insert the juice jar (E) by turning it clockwise until it clicks into the engine block. Place filters and cones juicer correctly. Connect the plug to the power electric outlet.
• Cut the citrus in half and place it on the citrus cone. A pressure on the cone will operate the motor automatically, so the rotation of the cone can be interrupted recovering the citrus.
• At the second restart, the cone rotates in the opposite direction, ensuring a complete squeezing of the fruit.
• At the end of the operation, remove the filters with the pulp, insert the lid (A) on the jar (E) and unlock the glass, to easily bring the juice on the table.

This appliance is suitable to squeeze any type of citrus. It is equipped with two cones: a big one with a wider base for large fruits such as oranges and grapefruit and a smaller one suitable for lemons or small oranges.

ASSEMBLING

The jar (E) should be placed on the motor by turning it clockwise until it snaps.

The filters should be placed above the jug. Regarding the juicer cones, place the smaller cone above the filter and, if necessary, place the largest cone on the cone small.

CLEANING - Unplug the unit from the electrical outlet.

Some parts (such as the container, filters or juicing cones) can be treated like normal dishes. Wash them under tap water. For a more accurate cleaning, use a soft sponge and dishwashing detergents.

Clean the motor unit with a damp cloth. Do not immerse the motor unit in water or other liquids.

TECHNICAL FEATURES

• Power supply: AC 230V\~50-60Hz. Power: 25W
• Gradueted jar capacity: 700cc
• Automatic juicing by pressing the cone

PORTUGUES: ADVERTÊNCIAS

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.girmi.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
