Brand	Girmi
Model	SR54
Product type	Citrus juice extractor
Power supply	230 V ~ 50-60 Hz
Power	60 W
Double pressing cone	Large (oranges, grapefruits) and small (lemons)
Filter grid	Yes, to retain pulp
Drip-free spout	Yes, with open/closed position
Activation	By pressing on the fruit
Base with cable storage	Yes, integrated cavity
Motor unit material	Plastic
Removable washable parts	Tank, grid, cones, lid
Cleaning parts	By hand, dishwasher not recommended
Cleaning the motor unit	Damp cloth, do not immerse
Maximum continuous use	5 minutes, then rest for 5 minutes
Use	Domestic, indoor
Juice tank capacity	Approximately 500 ml (estimate)
Fruit type	Citrus fruits (oranges, lemons, grapefruits, etc.)
Child safety	Keep out of reach of children under 8 years
Cable length	Approximately 0.8 m (estimate)
Weight	Approximately 0.8 kg (estimate)
Dimensions (L x W x H)	20 x 15 x 25 cm (estimate)

Frequently Asked Questions - SR54 GIRMI

What types of fruit can I press with the Girmi SR54?

The extractor is designed for citrus fruits: oranges, grapefruits, lemons, limes. The double cone adapts to the size of the fruit.

How to install the Girmi SR54 for the first time?

Wash thoroughly the parts in contact with food (cones, filter, tank). Place the tank, insert the filter, choose the appropriate cone and lower the arm. Make sure the spout is in the open position and place a container underneath.

Can I use the appliance continuously?

No, do not use it for more than 5 consecutive minutes. After that, let it rest for at least 5 minutes to avoid motor overheating.

How to clean the Girmi SR54?

Unplug the appliance. Wash the removable parts (tank, filter, cones, lid) by hand with water and mild detergent. Do not use the dishwasher. Clean the motor unit with a slightly damp cloth without immersing it.

What if the drip-free spout is leaking?

Make sure the spout is properly in the closed position when not pouring. Clean it regularly to avoid obstructions.

Is the appliance suitable for children?

The appliance can be used by children over 8 years old under supervision. Children should not play with it. Keep it out of reach of children under 8 years.

What to do in case of breakdown or malfunction?

Do not intervene yourself. Take the appliance to an authorized service center and ask for original spare parts.

Can I use an electrical extension cord?

Yes, but only an extension cord that complies with current safety standards and does not exceed the maximum indicated power.

How to store the power cord?

The cable can be wound into the cavity provided for this purpose under the base of the appliance.

Is the appliance guaranteed?

The warranty is valid if the appliance is used according to the instructions. Any repair carried out by an unauthorized person voids the warranty. Keep the manual.

USER MANUAL SR54 GIRMI

Symbols. p. 2
Safety instructions p. 6
General information. p. 9
SR54 p.9
Operating the unit. p. 9
After operations. p. 9
Cleaning. p. 9
Technical features. p. 10
Waste of electric and electronic equipment (WEEE
Directive) p. 26

PORTUGUESE p. 10
ESPAÑOL p. 14
FRANCAIS p. 17
DEUTSCH p. 21

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class II Appliance symbol. The double insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to electrical earth/ground.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

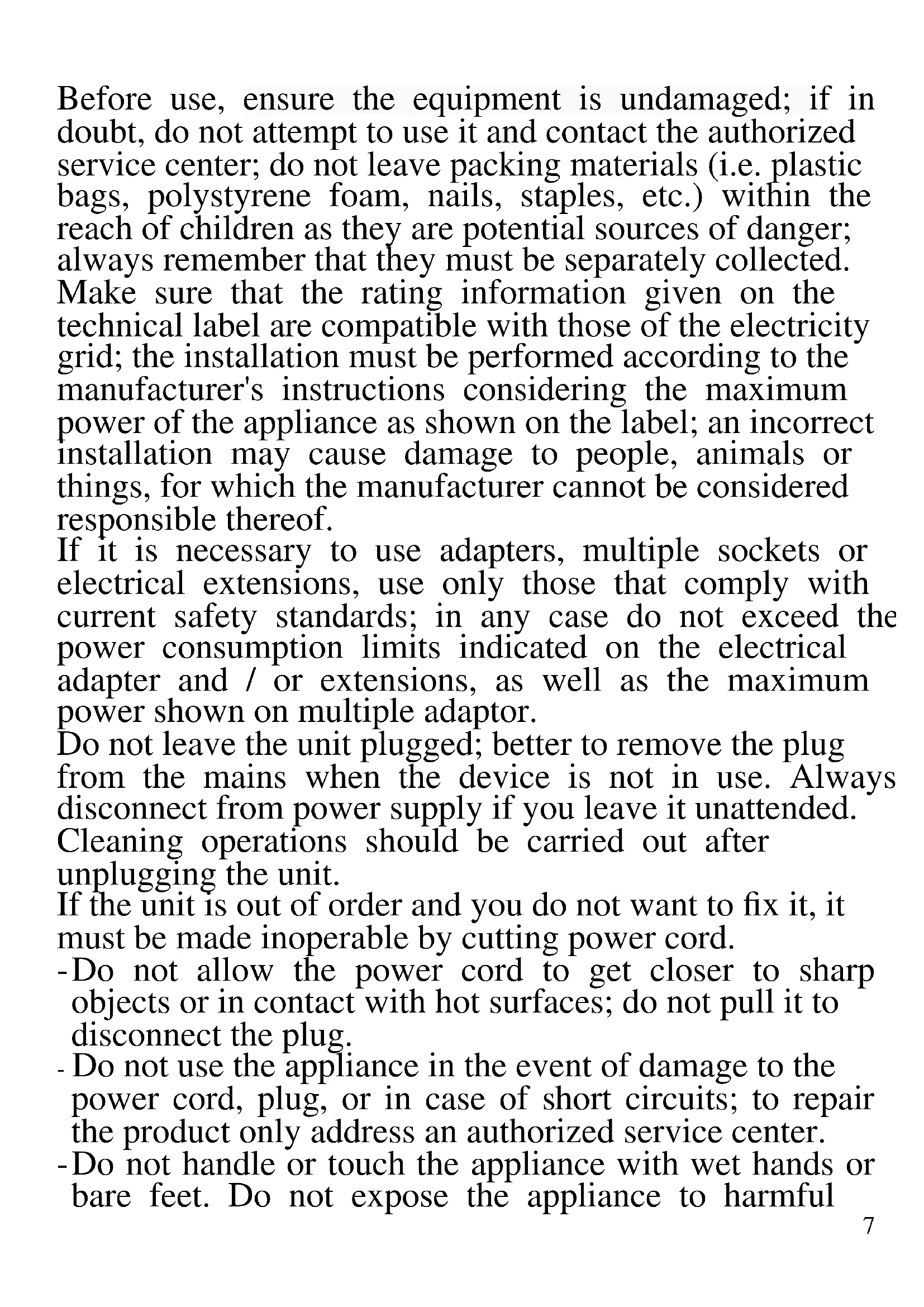

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended. Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

• Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.
• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.
• Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful

weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

• This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.

• Children must not play with the appliance.

• Keep the appliance and its cord out of reach of children less than 8 years.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result.
• Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INSTRUCTIONS

Before using the unit for the first time, carefully wash the parts that come in touch with food such as the arm, filter, container, juicer spout and cones.

Before operating the juicer, make sure to place it on a flat and stable surface with no heat sources nearby. Assemble all parts properly before use.

Always place a container under the spout when operating. To avoid the overheating of the motor, do not use the appliance for more than 5 minutes continuously, then wait at least 5 minutes before operating.

Never leave the appliance unattended while it is running. Do not immerse the motor unit in water or other liquids; clean it with a damp cloth.

SR54 DESCRIPTION

A) Lid B) Double juicing cone, small and big
C) Filter D) Container
E) Spout F) Motor body G) Base with power cord housing

OPERATING THE UNIT

• Unroll the power cord from the base (G)
• Insert the juice container (D) in its housing.
• Place filters and juicing cones correctly.
• Make sure that the spout (E) is in the open position.
• Place a glass or a container under the spout.
• Connect the electric plug to the power outlet.
• Cut a citrus in half and place it on the juicing cone.
• Press over the citrus until the cone rotates

This appliance is suitable to squeeze any type of citrus. It is equipped with two cones (B): a big one with a wider base for large fruits such as oranges and grapefruit and a smaller one suitable for lemons or small oranges.

AFTER JUICING

• Close the spout (E) to prevent juice dripping inside the container (D).
• Remove the glass with the juice.
• Remove the filters (C) and the plastic container (D) for cleaning them.
• Roll the cable on the slot under the base (G).

CLEANING - Unplug the unit from the electrical outlet.

Some parts (such as the container, filters or juicing cones) can be treated like normal dishes. Wash them under tap water. For a more accurate cleaning, use a soft sponge and dishwashing detergents.

Plastic parts are not dishwasher-safe.

Clean the motor unit with a damp cloth. Do not immerse the motor unit in water or other liquids.

TECHNICAL FEATURES

Power supply: AC 230V~50-60Hz. Power: 60W
- Dripping-safe spout
Automatic juicing by pressing the cone
- 2 cones, large and small.
Metal body
- Slot under the base for rolling the power cord

PORTUGUES: ADVERTÉNCIAS

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It's our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

RESIDUOS DE APARELHIOS ELECTRICOS E ELECTRONICOS

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.
