USER MANUAL DW50T6060SS SAMSUNG

What you need to know about the safety instructions 4 Important safety symbols 4 Before using your dishwasher 7

Setting up your dishwasher 8

Unpacking your dishwasher 8 Checking parts 9 Meeting installation requirements 10 Control panel 12 Cycle overview 14

Using your dishwasher 15

Basic guidelines 15 Touch controls 16 Delay start 16 Adjusting the height of the upper rack 17 Removing the upper rack Loading the lower rack Loading the upper rack Using the cutlery rack Using detergent 21 Using rinse aid Setting mode

Cleaning and care 25 Cleaning 25 Cleaning the door 27 Caring for the dishwasher 27 Long-term care 27 Protect against freezing 28 How to maintain your dishwasher 28

2 English

Cycles 29

Cycle chart 29

Troubleshooting 30

Check these points if your dishwasher... 30

Information codes 34

Appendix 35

Helping the environment 35

Specifications 35

Warranty 36

Warranty (U.S.A) 36

Warranty (CANADA) 39

Safety information

Congratulations on your new Samsung dishwasher. This manual contains important information on the installation, use, and care of your appliance. Please take time to read this manual to take full advantage of your dishwasher's many benefits and features.

What you need to know about the safety instructions

Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your dishwasher.

Important safety symbols

What the icons and signs in this user manual mean:

WARNING

Hazards or unsafe practices that may result in severe personal injury or death. To reduce the risk of fire, explosion, electric shock, or personal injury when using your dishwasher, follow these basic safety precautions:

CAUTION

Hazards or unsafe practices that may result in minor personal injury or property damage.

NOTE

These warning signs are here to prevent injury to you and others. Please follow them explicitly. After reading this section, keep it in a safe place for future reference.

SAVE THESE INSTRUCTIONS

English4

California Proposition 65 Warning

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

WARNING

When using your dishwasher, follow basic precautions, including the following:

1. Read all instructions before using the dishwasher.
2. Use the dishwasher only for its intended function.
3. Use only detergents or wetting agents recommended for use in a dishwasher and keep them out of the reach of children.
4. When loading items to be washed:
5. locate sharp items so that they are not likely to damage the door seal, and

6. load sharp knives with the handles up to reduce the risk of cut-type injuries.

7. Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.

8. Do not touch the HEATING ELEMENT during or immediately after use.

9. Do not operate your dishwasher unless all ENCLOSURE panels are properly in place.

10. Do not tamper with the controls.

11. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.

12. To reduce the risk of injury, do not allow children to play in or on the dishwasher.

13. Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hotwater system has not been used for such a period, before using the dishwasher turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

14. Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.

SAVE THESE INSTRUCTIONS

English 5

Safety information

CAUTION

• After unpacking the dishwasher, keep the packaging out of the reach of children.
- The dishwasher is extremely heavy. Do not attempt to move or carry the dishwasher by yourself. Two or more people are needed to move a dishwasher and avoid potential injuries.
- As with any equipment using electricity, water, and moving parts, potential hazards exist.
- Do not install the dishwasher near electrical components. Keep the dishwasher away from open flames.
• Install and level your dishwasher on an uncarpeted floor that can support its weight.
- Your dishwasher must be properly grounded. Never connect it to an ungrounded outlet. See page 7 for more information on grounding your dishwasher.
- Connect the ground wire to the green ground connector in the terminal box.
- After the dishwasher is installed, check that the drain hose is properly connected and that there is no leakage from the hose connectors. If the drain hose is loose, it may cause property damage.
- The water supply line is susceptible to breakage. As time goes by, it becomes less flexible. Check the line periodically. If it is swollen, torn, cut, or there is a water leak, replace it immediately.
- To safely operate this appliance, familiarize yourself with its operations and exercise care when using it.
- Do not put gasoline, solvents, or other flammable materials inside the dishwasher. Do not wash dishes exposed to these materials.
- Keep your dishwasher detergent out of the reach of children. Detergent has an adverse effect on human organs. It contains elements for polishing and is corrosive. Avoid letting the detergent come into contact with your skin and eyes.
- Do not push or place pressure on the door when it is open, as this may damage the dishwasher or cause harm.
- Do not allow children to play in or on the dishwasher. They may harm themselves or damage the dishwasher.
- Disconnect the power cable (or set the circuit breaker to off) before servicing your dishwasher.
- Do not repair, replace, or service any part of your dishwasher yourself. Disassembly, repairs, and modifications are permitted by authorized service technicians only. Work done by an unauthorized person may void your warranty.
- Before disposing of your dishwasher, remove the door of the washing compartment or the door latch so that children or small animals cannot get trapped inside.
- If the dishwasher is left unused for an extended period of time, turn off the water supply.
- This dishwasher is intended for residential use only.

SAVE THESE INSTRUCTIONS

English6

Before using your dishwasher

WARNING

Tip-Over Hazard

• Do not use the dishwasher until it is correctly installed.
• Do not push down on the dishwasher door when it is open.
• Do not place excessive weight on the dishwasher door when it is open.

Electric Shock Hazard

Failure to follow these instructions can result in death, fire, or electric shock:

• Electrically ground the dishwasher.
- Connect the ground wire to the green ground connector in the junction box.
- Do not use an extension cord.

SAVE THESE INSTRUCTIONS

English 7

Setting up your dishwasher

Be sure to have your installer follow these instructions closely so that your new dishwasher works properly and that you're not at risk of injury when washing dishes.

Unpacking your dishwasher

• Once your new dishwasher has been delivered to you, carefully unpack it and check for any damage. If the dishwasher has been damaged, make note of it on the waybill and keep a copy. Do not install the dishwasher, and contact Samsung Customer Service at 1-800-SAMSUNG (726-7864).
• If there is no damage to the product, you can proceed with the installation. If you are going to install it yourself, make sure to read through the installation guide and follow the directions inside.
  • After unpacking your dishwasher, keep the packaging out of the reach of children to ensure their safety.

English8

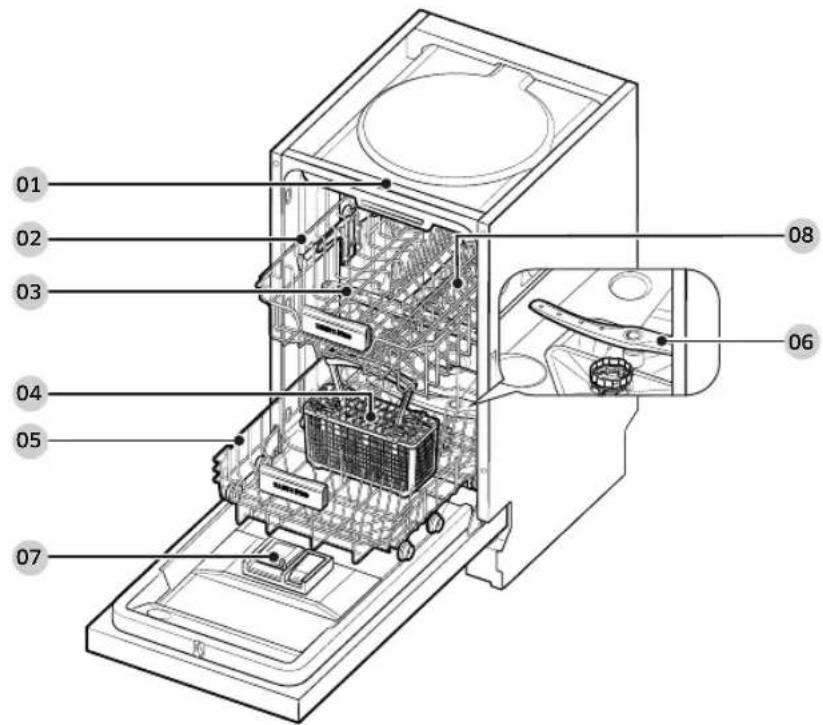

Checking parts

When your dishwasher has been unpacked, make sure you've received all the parts shown below. If your dishwasher was damaged during shipping, or if you do not have all the parts, contact Samsung Customer Service at 1-800-SAMSUNG (726-7864).

01 02 03 04 05 07 08 06

01 Lock 02 Upper Basket

03 Upper Nozzle 04 Cutlery Basket

05 Lower Basket 06 Lower Spray Arm

07 Rinse Aid Dispenser 08 Cup Shelf

NOTE

• Accessory parts: User/Installation manual, Installation Kit.
• Depending on the models, actual parts may look different from the figures.

English 9

Setting up your dishwasher

Meeting installation requirements

Electrical supply and grounding

WARNING

To prevent the risk of fire, electric shock, or personal injury, all wiring and grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No. 70 Latest Revision and local codes and ordinances. It is the personal responsibility of the appliance owner to provide adequate electrical service for this appliance.

CAUTION

• Never use an extension cord.
• When preparing for installation, ensure that you provide:
• An individual branch circuit with a 120 V, 60 Hz, 15 AMP fuse or circuit breaker that serves only your dishwasher.
• Your dishwasher must be grounded. If your dishwasher malfunctions or breaks down, grounding will reduce the risk of electric shock by providing a path of least resistance for the electric current.

WARNING

Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.

English10

Water supply

The hot water supply line pressure must be between 20-120 psi (140-830 kPa). Adjust your water heater to deliver water between 120 °F (49 °C) and 149 °F (65 °C).

NOTE

• Most plumbing supply stores sell water supply lines of various lengths up to 10 feet (305 cm) long.
• You can reduce the risk of leaks and water damage by:
• Making water faucets easily accessible.
• Turning off faucets when the dishwasher is not in use.
• Periodically checking for leaks at water supply line fittings.

WARNING

Before using your dishwasher for the first time, check all connections at the water supply valve and faucets for leaks.

Flooring

For safety, your dishwasher must be installed on a solidly constructed floor.

Never install your dishwasher on a platform or poorly supported structure.

Your dishwasher must be properly installed in accordance with the Installation Guide before you use it. If you did not receive an Installation Guide with your dishwasher, you can obtain one by visiting our website at www.samsung.com.

Setting up your dishwasher

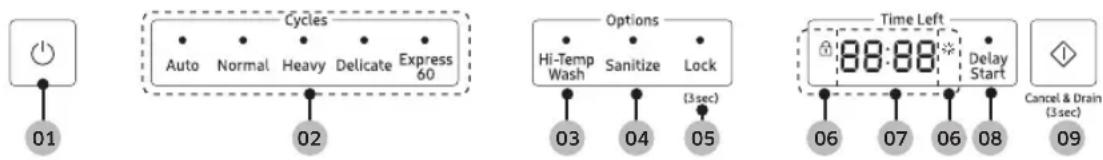

Control panel

Cycles Auto Normal Heavy Delicate Express 60 Options Hi-Temp Sanitize Lock (3sec) Time Left 88:88 Delay Start Cancel & Drain (3sec)

01 POWER	When you press the POWER button, the entire display turns on and off. When the selected cycle is complete, the dishwasher powers off automatically.
02 Cycles	Select the appropriate wash cycle depending on the soil level of your dishes.
03 Hi-Temp Wash	Raises the main wash temperature to improve cleaning for loads containing tough, baked-on food.NOTEHi-Temp Wash is not available for the Delicate and Express 60 cycle.
04 Sanitize	The temperature rises to 156 °F (69 °C) in the final rinse cycle for high temperature sanitization. If you select the Sanitize option, the “Sanitize” lamp blinks when the water temperature reaches the sanitary temperature [over 156 °F (69 °C)], and then remains illuminated until the Sanitize option ends. When you press the POWER button, the “Sanitize” lamp turns off.NOTEThe Normal cycle with the Sanitize option selected is NSF certified.The Sanitize feature operates in accordance with NSF/ANSI Standard 184 for residential dishwashers. Certified residential dishwashers are not intended for licensed food establishments.
05 Control Lock (3sec)	Control Lock lets you lock the buttons on the control panel so children cannot accidentally start the dishwasher. To activate Control Lock, hold the Control Lock button down for three (3) seconds. To de-activate Control Lock, hold the Control Lock button down for three (3) seconds again.
06 Indicator	Rinse refillIf the “Rinse refill” indicator is lit, it means the dishwasher is low on dishwasher rinse aid and requires a refill.Delay startIf the “Delay start” indicator is lit, it means, you selected the “Delay Start” option.

English12-

07 Display Window	Displays the running time, Delay start hours, and information codes. If a problem occurs during operation, a check message will be displayed with a warning sound.
08 Delay Start	Delay a cycle for up to 24 hours in one-hour increments. The hour displayed indicates the time at which the wash will be started.
09 START	To start a cycle, press the START button before closing the door.* Reset: To cancel a currently running cycle and drain the dishwasher, press and hold the START button for three (3) seconds.Once the dishwasher is reset, select a cycle and option, and then press START to restart the dishwasher.

NOTE

• You can select options (Hi-Temp Wash, Sanitize) before starting a cycle. If you change the cycle after selecting an option, the original cycle is reset.
• When you pause a cycle by opening the door during operation, press the START button before closing the door to continue the cycle.
• Push the door firmly closed within 3 seconds of pressing the START button.
• If the door is not closed within 3 seconds, the cycle will not start.

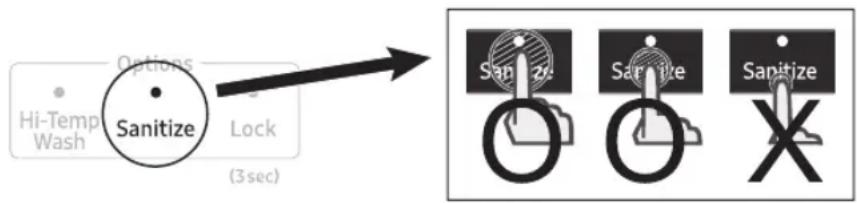

  • To prevent the touchpad from losing response sensitivity, follow these instructions:
• Touch the center of each keypad using one finger. Do not push.
• Clean the touch control's surface regularly with a soft, damp cloth.
• Be careful not to touch more than one button at a time, except as directed.
• Clean the touch control's surface regularly with a soft, damp cloth.
• Be careful not to touch more than one button at a time, except as directed.

IMPORTANT

To get the best performance from your dishwasher, read all the operating instructions before using it for the first time.

Setting up your dishwasher

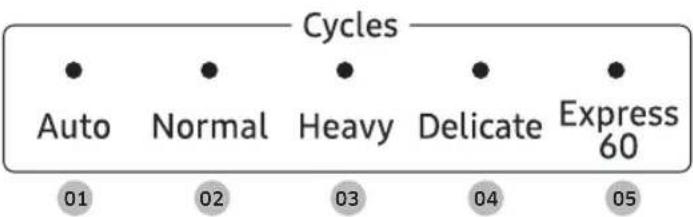

Cycle overview

01 Auto	This cycle detects the level of soil and automatically initiates the optimal cycle, which is appropriate for all levels of soiled items.
02 Normal	For normally soiled loads, such as pots, plates, glasses, and lightly soiled pans. Standard daily cycle.
03 Heavy Select this cycle for heavily soiled items.
04 Delicate	Select this cycle for lightly soiled, fragile items such as glasses. Sanitize option is not available in this cycle.
05 Express 60	Normally soiled daily using items, with short cycle time. Sanitize option is not available in this cycle.

English14

Using your dishwasher

Basic guidelines

1. Open the door and load your dishes (See pages 18 to 19).

2. Place dishes into the upper and lower racks.

3. Remove any food remains from the dishes before placing them in the rack(s).

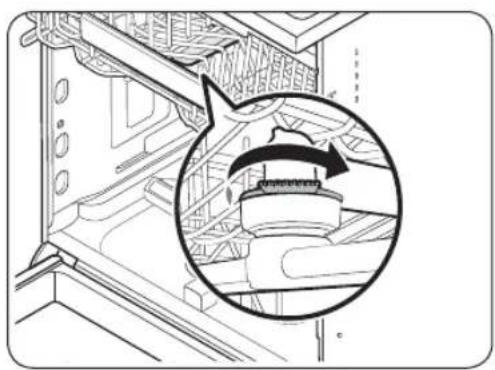

4. After placing the dishes into the racks, rotate the nozzles by hand to check whether any of the dishes will interfere with them.

5. Make sure the dishes will not prevent the detergent dispenser from opening.

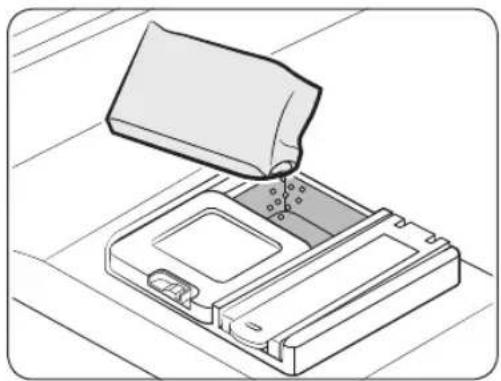

6. Add detergent to the dispenser (see page 21).

7. Make sure to use only automatic dishwasher detergent and rinse aid.

8. Refer to "Using detergent" on page 21 for instructions explaining how to add detergent and rinse aid.

9. Press the POWER button.

10. When you press the POWER button, the entire display turns on and then the indicator of the most recently finished cycle lights up.

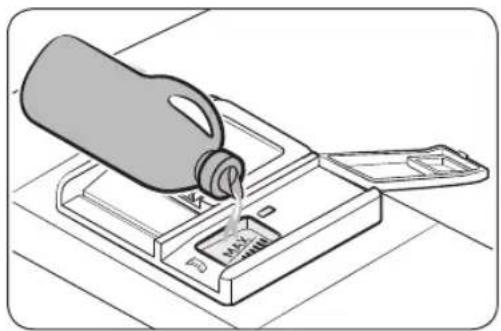

11. If "Rinse refill" () is illuminated, you should refill the rinse aid dispenser to improve washing and drying performance.

12. Select an appropriate cleaning cycle depending on the soil level of the dishes. (See pages 14 and 29.)

13. Press the appropriate Cycles button.

14. When you press a Cycles button, the cycle indicator lights up.

15. Press the START button, and then close the door within 3 seconds.

16. The dishwasher will start draining after a few seconds, and then start the selected cycle.

17. Make sure to close the door firmly. If the door is not closed properly, the selected cycle will not start automatically.

18. When the wash cycle is completed.

19. The light illuminates and the dishwasher sounds a chime.

20. The dishwasher powers off automatically.

CAUTION

• If you want to load more dishes or pause the dishwasher while it is already running, make sure to open the door slowly and carefully as there is a possibility of injury from the hot steam inside the dishwasher.
• If the door is opened while the dishwasher is running, a safety mechanism is activated and stops the cycle.
  • To resume operation, press the START button, and then close the door within 3 seconds.
• Adding dishes several minutes after the dishwasher starts operating may affect its performance.
• If you open the door while the dishwasher is running at high temperature, it will drain the hot water automatically to protect you from scalding.

Using your dishwasher

NOTE

• You should use rinse aids for better drying performance. You can further improve drying performance by also selecting the Sanitize option.
• Open the dishwasher's door, and then wait a few minutes before removing the dishes. The dishes will be cooler and drying will be improved.

Touch controls

Touch controls allow you to operate the dishwasher easily.

• They are convenient to operate, requiring only a soft touch.
- They have a simple and stylish design.
• They are easy to clean.

NOTE

If you have children or you want to clean the control Interface, we recommend activating the Control Lock feature to lock the control buttons. See page 12.

• Children will not be able to accidentally start the dishwasher by touching the controls with this option selected.
• If a cycle is running, the buttons will not respond. (except the POWER button)
• If dishwasher is off, only the POWER button responds.

Delay start

When you select the Delay Start option, your dishwasher will operate the selected cycle when the delay time expires.

WARNING

• When using the dishwasher, try to arrange the dishes properly as described on pages 18 to 20.
• You should remove food remains such as bones, fruit seeds, etc. and any other waste such as toothpicks, paper, etc. from the dishes as these may cause damage to the dishes, create noise, or cause the dishwasher to malfunction.
• Select the appropriate cycle depending on the level of soil and the type of dishes.
• Use only the proper amount of detergent and rinsing agent.

- Do not wash the following items:

• Acrylic or aluminum items: Dishes with printed gold rim decoration may become discolored.
• Dishes treated with adhesive: Treated plastics, wood, ivory, copper, and tin may come loose.
• Plastics with a temperature tolerance less than 194 °F (90 °C): Thin plastics wash and dry poorly, and may be damaged due to elevated wash temperatures.
• Tin: Tin should be washed by hand and dried immediately as it may rust.
• Wooden utensils: Wooden items may crack.

English16

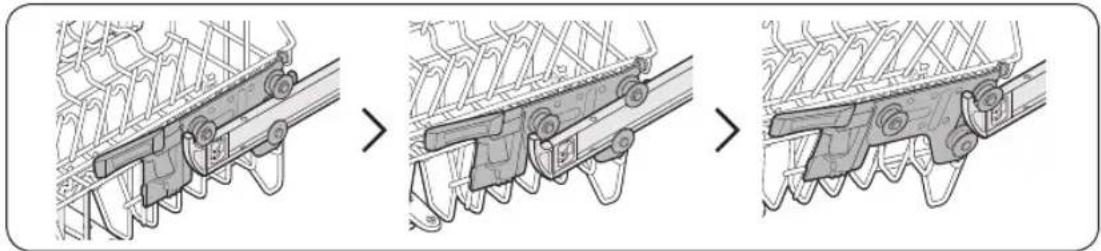

Adjusting the height of the upper rack

You can adjust the height of the upper rack so that the lower rack can accommodate larger sized dishes. Depending on the height of the upper rack, the lower rack can accommodate plates up to 29 cm in diameter, and the upper rack can accommodate plates up to 18 cm in diameter.

CAUTION

• Adjust the height of the upper rack before loading dishes into the rack. Adjusting the rack after loading the dishes may damage the dishes.
• Make sure to hold both handles when adjusting, or the dishwasher door may not close properly.

Diagram of a refrigerator interior showing internal components and a magnified view of the handle (no text or symbols)

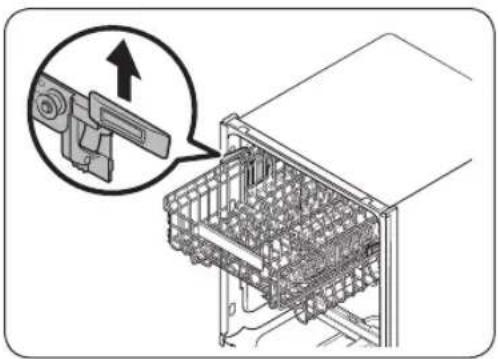

• To raise the upper rack, pull the upper rack upwards. The adjustable handle will latch, and the upper rack will raise.
- To lower the upper rack, hold both the adjustable handles located at the left and right sides of the upper rack, and then evenly press down.

Using your dishwasher

Removing the upper rack

Pull the upper rack to the front until it is fully extended, and then lift it slightly to remove. See the following figures.

CAUTION

While the upper rack is removable, it must be installed for the dishwasher to operate properly. If you attempt to operate the dishwasher without the rack, noise will occur and the dishwasher will perform poorly.

Three-step diagram showing mechanical assembly or assembly process, with no visible text or symbols

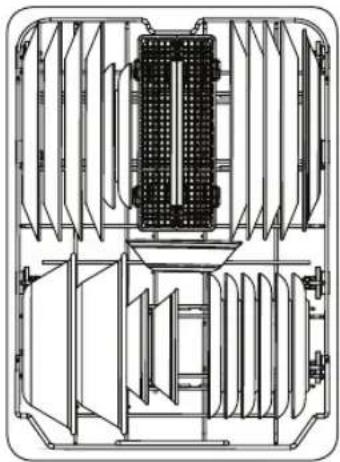

Loading the lower rack

The lower rack has been specially designed for dinner dishes, soup bowls, plates, pots, lids, casserole dishes, and plates.

Load large items such as pans and pots into the dishwasher so their open sides face downwards. We recommend loading cups, stemware, and small plates into the upper rack. See the recommended loading patterns below.

Technical line drawing of a mechanical or electrical enclosure with internal components and no visible text or symbols

8 place setting

English18

Loading the upper rack

The upper rack has been designed for small plates, mugs, glasses, and plastic items marked "dishwasher safe". Load your plates into the dishwasher in two half rows, so that the front of each plate faces the back of the plate in front of it, and the open sides of the plates at the center of the dishwasher face each other. See the figures below.

Make sure the loaded dishes do not interfere with the rotation of the nozzle which is located at the bottom of the upper rack. (Check this by rotating the nozzle by hand.)

When loading dishes, pull the upper rack out sufficiently so you can load it without striking the counter above.

Technical line drawing of a mechanical assembly with multiple circular components and structural supports (no text or symbols)

8 place setting

Using your dishwasher

Using the cutlery rack

You can place each knife, spoon, or fork separately into the spoon stands in the basket's covers to prevent chipping and discoloration.

You can use the cutlery rack with the cover open.

6 4 4 2222 2 2 2 1 3 3 5 4 4 11 11 1 1 1 1 1 3 3 5 4 4 11 11 1 1 1 1 1 3 3 4 4 4 2222 2 2 2 1 3 3 In

8 place setting

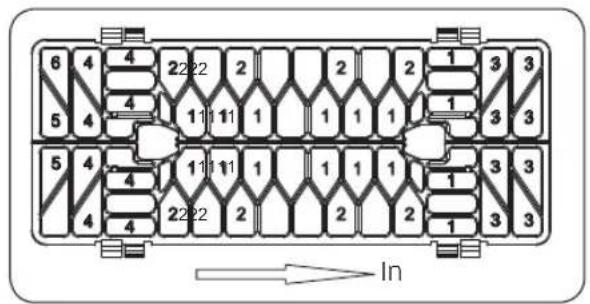

The spoon stands as seen from above with the suggested placement of cutlery items. Match the numbers in the diagram to the numbers in the list of cutlery items below.

NOTE

DO NOT let any item extend through the bottom.

134562

1. Spoons
2. Knives
3. Salad forks
4. Forks
5. Large spoons
6. Large forks

English20

Using detergent

All dishwasher cycles require detergent in the detergent compartment.

Add the correct amount of detergent for the selected cycle to ensure the best performance.

CAUTION

Use dishwasher detergent only. Regular detergent produces too much foam, which may decrease the dishwasher's performance or cause it to malfunction.

WARNING

• Do not swallow dishwasher detergent. Avoid breathing in the fumes. Dishwasher detergent contains irritants and caustic chemicals that can induce respiratory conditions. If you have swallowed dishwasher detergent or inhaled the fumes, seek medical attention immediately.
• Keep dishwasher detergent out of the reach of children.

Filling the detergent dispenser

Hand inserting a device into a plastic case with a black arrow indicating the component (no text or symbols present)

1. Open the detergent dispenser flap by pushing the detergent dispenser release catch.

NOTE

The flap is always open at the end of a dishwashing cycle.

Diagram of a device being inserted into a tray, showing liquid level and internal components (no text or symbols)

1. Add the recommended amount of detergent to the main wash detergent compartment.

Using your dishwasher

3D diagram of a device casing with an arrow indicating direction (no text or symbols)

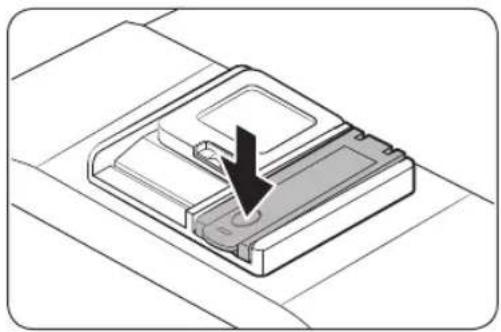

1. Close the flap by sliding it and then pressing it down.

NOTE

• There is no separate button that sets the dispenser for tablet detergents.
• For better cleaning result, especially if you have very dirty items, pour a small amount (about 0.3 oz or 8 g) of detergent on the door before closing it. This will activate during the pre wash phase.

The cover opens automatically to dispense the detergent during the wash.

Cycle	Amount of detergent
	Main wash dispenser	Onto the door for pre-wash
Auto, Normal 3/4 oz (20 g)	1/3 oz (10 g)
Heavy, Express 60 1 oz (30 g)	1/2 oz (15 g)

NOTE

The numbers inside the dispenser refer to grams.

English22-

Using rinse aid

Filling the rinse aid reservoir

When the Rinse refill indicator lights up on the control panel, refill with rinse aid.

Your dishwasher has been designed to use liquid rinse aid only.

Using a powdered rinse aid will clog the reservoir opening and cause the dishwasher to malfunction. Rinse aid improves the drying performance of the dishwasher.

CAUTION

Do not add regular detergent to the rinse aid reservoir.

Hand inserting a USB into a device (no text or symbols visible)

1. Remove the rinse aid reservoir cap by lifting up the handle.

NOTE

Adding rinse aid when you use tablet detergents will improve drying performance.

Illustration of a bottle pouring liquid into a control panel with a tray (no text or symbols)

1. Fill the rinse aid reservoir with rinse aid.

CAUTION

Do not fill the reservoir above the maximum level. Excess rinse aid can overflow during the wash cycle.

Diagram of a mechanical device with a black arrow indicating a specific component (no text or symbols present)

1. Close the cap.

Using your dishwasher

Setting mode

You can change the sound, auto door open function and rinse aid level settings to your preference.

Entering the Setting mode

1. Turn the dishwasher on.

2. Press and hold the Auto cycle button for five seconds within 60 seconds from turning on the dishwasher.

- When you entered the Setting mode, the display will show "0:00".

Sound setting

You can turn the sound on or off.

1. Press the Hi Temp button to select the sound setting menu.

2. The display shows the current setting. (Default setting: "U1")

3. Press the Auto cycle button to change the setting.

4. U0: Sound off

5. U1: Sound on

6. Wait 5 seconds to save the setting.

Auto door open function setting

You can set the dishwasher to automatically open the door after each cycle for better drying results.

1. Press the Sanitize button to select the auto door open function setting menu.

2. The display shows the current setting. (Default setting: "A1")

3. 1. Press the Auto cycle button to change the setting.
4. A0: Function disabled

5. A1: Function enabled

6. Wait 5 seconds to save the setting.

Rinse aid level setting

You can change the amount of rinse aid applied during a cycle.

1. Press the Express 60 button to select the rinse aid level setting menu.

2. The display shows the current setting. (Default setting: "d4")

3. Press the Auto cycle button to change the setting.

4. You can select from d1 - d5 (minimum - maximum).

5. Wait 5 seconds to save the setting.

English24

Cleaning and care

Cleaning

Keep the dishwasher clean to improve performance, reduce unnecessary repairs, and lengthen the lifecycle.

Exterior

Clean spills on the surface of the dishwasher immediately. Use a soft, damp cloth on the control panel to gently wipe away spills and dust.

CAUTION

• Do not use benzene, wax, thinner, chlorine bleach, alcohol, or other chemical substances. These materials may discolour the surface of the dishwasher and cause stains.
• The dishwasher has electric parts inside. Do not spray water directly onto the dishwasher. Protect electrical components from water.
• For a stainless-steel door panel, use a stainless steel cleaner for home appliances and a clean, soft cloth.

Interior

Clean the interior of the dishwasher on a regular basis to remove any dirt or food particles. Wipe inside the dishwasher and inside the door with a wet dishcloth.

CAUTION

• Do not remove the front seal (the long rubber seal enclosing the opening of the dishwasher). The seal keeps the inner side of the dishwasher sealed.
• Use a damp cloth to remove lime scale or grease deposits inside the dishwasher. Alternatively, apply some detergent, and then run an empty cycle using the highest rinse temperature.

Nozzles

To prevent the nozzles from being clogged or if the nozzles are clogged, remove and clean each nozzle. Use caution when removing the nozzles as they may break.

Upper nozzle

Technical diagram of a mechanical assembly with an inset showing a rotating component (no text or symbols present)

1. Open the door, and then pull out the upper rack to reveal the upper nozzle.
2. Loosen and remove the nut, and then remove the nozzle.
3. Unclog and clean the nozzle.
4. Reinsert the nozzle, and then tighten the nut by hand.
5. Rotate the nozzle by hand to make sure the nozzle is engaged correctly.

Cleaning and care

Lower nozzle

Diagram of a mechanical assembly with a gear and lever mechanism (no text or symbols)

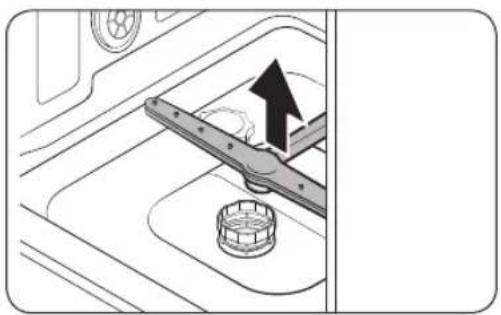

1. Open the door, and then pull out the lower rack. The lower nozzle is visible on the bottom.
2. Unclog and clean the nozzle.
3. Reinsert the nozzle.
4. Rotate the nozzle by hand to make sure the nozzle is engaged correctly.

Filter

We recommend cleaning the filter every month.

Mechanical component diagram showing a rotating hexagonal nut with a curved arrow indicating rotation (no text or symbols)

1. Open the door, and then remove the lower rack first.
2. Turn the filter handle counterclockwise to unlock the Coarse filter.

Mechanical component diagram showing a cylindrical housing mounted on a base plate with an arrow indicating motion (no text or symbols)

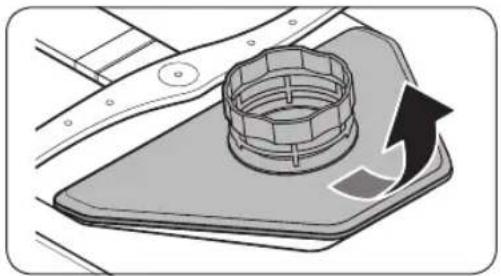

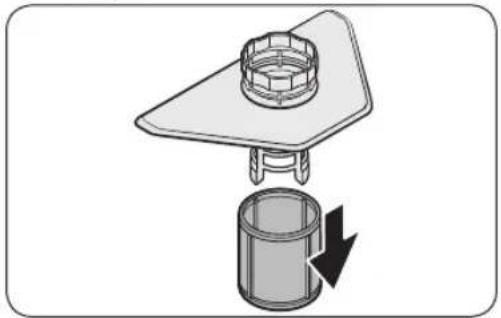

1. Remove the Coarse filter, and then the cylindrical micro filter underneath.

Diagram showing a mechanical component with a cylindrical base and a triangular top, connected to a circular arrow indicating rotation (no text or symbols present)

English26

Cleaning the door

To clean the edge around the door, you should use only a soft cloth dampened in warm water.

Also, never use abrasive cleaners or scouring pads on the outer surfaces. They will scratch the finish. Some papers towels can also scratch or leave marks on the surface.

WARNING

Never use a spray cleaner to clean the door panel. The spray can damage the door lock and electrical components. Do not use an abrasive cleaning agent or paper towels to clean the door. They can scratch the door or leave spots on the stainless steel surface.

Caring for the dishwasher

To clean the control panel, use a lightly dampened cloth then dry thoroughly. To clean the exterior, use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Long-term care

If you will not use the dishwasher for an extended period of time, first drain the unit completely, and then disconnect the water hose. Shut off the water supply valve and the circuit breaker. Water remaining in the hoses or the internal components can damage the dishwasher.

Cleaning and care

Protect against freezing

If your dishwasher is left in an unheated place during the winter:

1. Cut off electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain water from the inlet pipe and water valve. (Use a pan to catch the water.)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter from the bottom of the tub and use a sponge to dry up any water.

How to maintain your dishwasher

After every wash

- After every wash, turn off the water supply to the appliance and leave the door slightly ajar so that moisture and odors are not trapped inside.

Remove the plug

- Before cleaning or performing maintenance, always remove the plug from the socket.

No solvents or abrasive cleaners

- To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Use only a cloth and warm, soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little white vinegar, or a cleaning product made specifically for dishwashers.

When you go on vacation

- When you go on vacation, we recommend that you run a wash cycle with the dishwasher empty and then unplug the power cord, turn off the water supply and leave the door of the appliance slightly ajar. This will help the seals last longer and prevent odors from forming within the appliance.

Moving the appliance

- If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

- One of the factors that causes odors to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

English28

Cycles

Cycle chart

Cycle Auto Normal		Heavy Delicate	Express 60
Cycle sequence		Prewash ▶ Mainwash ▶ Rinse ▶ Hot Rinse ▶ Dry ▶ End
Temp[°F (°C)]	Main wash	131-140(55-60)	113-140(45-60)	149(65)	122(50)	140(60)
	Hot Rinse*Sanitize156 °F (69 °C)	126(52)	126(52)	131(55)	122(50)	122(50)
Water consumption[gal (l)]		2.4-4.7(9-17.7)	2.4-4.7(9-17.7)	4.7(17.7)	4.2(15.9)	3.4(12.8)
Cycle time (min.) 123-154 118-149 157 116 60

• When you select the Auto or Normal cycle, you can eliminate optional steps depending on the soil level of the dishes.
• The water consumption and wash time varies depending on the steps or options you add, and on the pressure and temperature of the supplied water.
• When you select any options, the cycle time can be changed.
• When the Rinse aid is empty, wash time and Last Rinse temperature will be increased.
• When you select the Sanitize option, drying will be added before the end of cycle.

Troubleshooting

Check these points if your dishwasher...

Problem Possible cause Solution
Will not start.	The door is not closed completely.	· Check if the door is latched and closed completely.
	No cycle is selected. · Select a proper cycle.
	The power cable is not connected.	· Connect the power cable properly.
	The water supply does not work.	· Check if the water supply valve is open.
	The Control Panel is locked.	· Unlock the Control Lock. (See page 12)
	A circuit breaker is open. · Reset the circuit breaker.
Is taking too long with an operation or cycle.	Cold water is being supplied.	· Make sure the water supply line is connected to a hot water supply. (Additional time is required to heat cold water.)
There are food particles remaining on dishes.(Not cleaning properly.)	You selected an inappropriate cycle.	· Select a cycle according to the number and soil level of the dishes, as directed in this manual.
	The water temperature is low.	· Connect the water supply line to a hot water supply.· For best performance, the temperature of the supplied water should be 120 °F (49 °C).
	Low water pressure.	· The water pressure should be between 20 and 120 psi (140-830 kPa).
	Dishwasher detergent was not used.	· Use automatic dishwasher detergent.· We recommend a powder or gel type dishwasher detergent.

English30-

Problem Possible	cause Solution
There are food particles remaining on dishes.(Not cleaning properly.)	Detergent remains in the dispenser.	Make sure large items such as cookie sheets, cutting boards, or containers, etc. are not blocking the detergent dispenser and preventing it from opening properly.Rearrange the dishes so they do not interfere with detergent dispenser operation.
	There is no rinse aid.	Check the dispenser and add rinse aid.Use liquid type rinse aid.
	A nozzle is clogged.	Clean the nozzle. See page 25.
	The dishes are improperly loaded.Too many dishes have been loaded.	Rearrange the dishes so they do not interfere with nozzle rotation and detergent dispenser operation.Load only an appropriate number of dishes.Load your dishes as recommended. (See pages 18 to 19)
Leaves glasses with a dim polish.	The water supplied is soft and too much detergent was used.	Underload the dishwasher and use a rinse aid to minimize this.
	Aluminum dishes were included in the wash load.	Remove the marks on the dishes using a low sensitivity cleaner.
Leaves a yellow or brown film on the inside of the dishwasher.	This is caused by coffee and tea soils.	Remove the soils using a spot cleaner.

Troubleshooting

Problem Possible cause Solution
Does not dry dishes well.	There is no rinse aid in the dispenser.	·Check the dispenser and add rinse aid.·Use a liquid type rinse aid.
	The temperature of the water is low when the dishwasher is running.	·Make sure that the water supply line is connected to a hot water supply.·Use rinse aid with the Sanitize option.
	Too many dishes have been loaded.	·Proper loading of items can affect drying.·Load your dishes as recommended. (See pages 18 to 19)
	Glasses and cups with concave bottoms hold water. This water may spill onto other items when unloading.	·After the cycle finishes, empty the lower rack first and then the upper rack. This will prevent water from dripping from the upper rack onto the dishes in the lower rack.
Has a bad odor.	Water was left over from an incomplete cycle.	·With the dishwasher empty, add detergent to the dispenser, and then run the Normal cycle to clean the dishwasher.
	The Drain Hose is obstructed.	·Contact a qualified service technician to remove any obstruction from the drain hose.
	The dishwasher is not used daily or soiled dishes are left in unit too long.	·With the dishwasher empty and no detergent in the dispenser, place a glass with 8 ounces of vinegar upright into the lower rack, and then run a Normal cycle.

English32-

Problem Possible cause Solution
Is too noisy.	Sound is generated when the dispenser cover is open and the drain pump is operating in an early stage.	This is normal operation.
	The dishwasher is not level.	Ensure the dishwasher is level.
	Foreign material (a screw, a plastic piece) is in the pump chamber.	Contact a qualified service technician to remove foreign material from the pump chamber.
	There is a ‘chopping’ sound because a nozzle is bumping against the dishes.	Rearrange the dishes.
Does not have a smoothly rotating nozzle.	The nozzle holes are clogged with food particles.	Clean the nozzle hole. See page 25.
	The nozzle is blocked by a dish or pot and cannot rotate.	After placing the dishes into the racks, rotate the nozzles by hand to check whether any of the dishes interfere with them.
Water won’t pump out of the dishwasher.	The drain is clogged.	Contact a qualified service technician to remove any obstruction from the drain hose and check the drain pump operation.
Has a bent upper rack after loading dishes.	The dishes are not loaded properly.	Load your dishes as recommended. (See pages 18 to 19)
Cannot close the door.	Auto ReleaseTM Dry mode is in operation.	Once the door opens in the Auto ReleaseTM Dry mode, the door cannot be closed manually for the next 2 minutes. You may close the door after 2 minutes.

Troubleshooting

Information codes

The control panel displays information codes to help you understand what is occurring with your dishwasher.

Code Action
LC	Leakage checkIf a water supply valve connection leak occurs, close the water supply valve and go to your house circuit breaker panel, set the dishwasher's circuit breaker switch to off, and then contact the installer to fix.If the problem continues, contact an authorized Samsung service center.
4C	Water supply checkCheck if the water supply valve is closed, the water supply is suspended, or the water inlet valve or line is frozen or clogged by foreign particles.Make sure the drain pump is working and the water in the set is drained and there are no drainage blockages.If the problem continues, close the water supply valve, and then contact an authorized Samsung service center.
tC	Thermistor checkTemperature sensor is broken (Short or Open circuit). If the problem continues, contact an authorized Samsung service center.
HC	High temperature heating checkThe product ensures that the temperature for hot water line is not too high and adjusts to the appropriate temperature (120 °F (49 °C) to 149 °F (65 °C)) automatically.If the problem continues, go to your house circuit breaker panel, set the dishwasher's circuit breaker switch to off, and then contact an authorized Samsung service center.
AC	PCB communication checkAbnormal communication between the main PCB and the sub PCB.If the problem continues, contact an authorized Samsung service center.

For any codes not listed above, call 1-800-SAMSUNG (726-7864).

English34

Appendix

Helping the environment

• Your dishwasher is manufactured from recyclable materials. If you decide to dispose of it, please observe local waste disposal regulations. Cut off the power cable so that the appliance cannot be connected to a power source.
• Remove the door so that animals and small children cannot get trapped inside the appliance.
• Do not exceed the detergent quantities recommended in the detergent manufacturers' instructions.

Specifications

Model DW50T6060US
Type Built-in Dishwasher
Power 120 V / 60 Hz only
Rated power uasge	Wash motor 26-50 W
	Heater 1000 W
Wash capacity 8 place setting
Used water pressure 20-120 psi (140-830 kPa)
Dimensions(Width × Depth × Height)		18 x 22 716 x 32 116 in.(450 x 570 x 815 mm)
Weight Unpacked 72.7 lb (33 kg)

Warranty

Warranty (U.S.A)

SAMSUNG DISHWASHER

LIMITED WARRANTY TO ORIGINAL PURCHASER WITH PROOF OF PURCHASE

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials or workmanship for the limited warranty period, starting from the date of original purchase, of:

One (1) Year All Parts and Labor,

Five (5) Years Printed Circuit Board, Racking, and Stainless Door Liner & Tub for leakage. (Parts Only)

This limited warranty is valid only on products purchased and used in the United States that have been installed, operated, and maintained according to the instructions attached to or furnished with the product. To receive warranty service, the purchaser must contact SAMSUNG at the address or phone number provided below for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center to receive warranty service.

SAMSUNG will provide in-home service within the contiguous United States during the warranty period at no charge, subject to availability of SAMSUNG authorized servicers within the customer's geographic area. If in-home service is not available, SAMSUNG may elect, at its option, to provide transportation of the product to and from an authorized service center. If the product is located in an area where service by a SAMSUNG authorized servicer is not available, you may be responsible for a trip charge or required to bring the product to a SAMSUNG authorized service center for service.

To receive in-home service, product must be unobstructed and accessible to the service agent.

During the applicable warranty period, a product will be repaired, replaced, or the purchase price refunded, at the sole option of SAMSUNG. SAMSUNG may use new or reconditioned parts in repairing a product, or replace the product with a new or reconditioned product. Replacement parts and products are warranted for the remaining portion of the original product's warranty or ninety (90) days, whichever is longer. All replaced parts and products are the property of SAMSUNG and you must return them to SAMSUNG.

English36

This limited warranty covers manufacturing defects in materials or workmanship encountered in normal household, noncommercial use of this product and shall not cover the following: damage that occurs in shipment, delivery, installation, and uses for which this product was not intended; damage caused by unauthorized modification or alteration of the product; product where the original factory serial numbers have been removed, defaced, changed in any way, or cannot be readily determined; cosmetic damage including scratches, dents, chips, and other damage to the product's finishes; damage caused by abuse, misuse, pest infestations, accident, fire, floods, or other acts of nature or God; damage caused by use of equipment, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG; damage caused by incorrect electrical line current, voltage, fluctuations and surges; damage caused by failure to operate and maintain the product according to instructions; in-home instruction on how to use your product; and service to correct installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e., house wiring, fuses, or water inlet hoses).

The cost of repair or replacement under these excluded circumstances shall be the customer's responsibility.

Visits by an authorized servicer to explain product functions, maintenance or installation are not covered by this limited warranty. Please contact SAMSUNG at the number below for assistance with any of these issues.

EXCLUSION OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary from state to state.

Warranty

LIMITATION OF REMEDIES

YOUR SOLE AND EXCLUSIVE REMEDY IS PRODUCT REPAIR, PRODUCT REPLACEMENT, OR REFUND OF THE PURCHASE PRICE AT SAMSUNG'S OPTION, AS PROVIDED IN THIS LIMITED WARRANTY. SAMSUNG SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO TIME WAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS, REMODELING EXPENSES, LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary from state to state.

SAMSUNG does not warrant uninterrupted or error-free operation of the product. No warranty or guarantee given by any other person, firm, or corporation with respect to this product shall be binding on SAMSUNG.

To obtain warranty service, please contact SAMSUNG at:

In USA

Samsung Electronics America, Inc.

85 Challenger Road

Ridgefield Park, NJ 07660

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS CANADA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:

One (1) Year All Parts and Labor,

Five (5) Years Printed Circuit Board, Racking, and Stainless Door Liner & Tub for leakage. (Parts Only)

This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the Canada. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center. SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability within the contiguous Canada.

In home service is not available in all areas.

To receive in-home service, product must be unobstructed and accessible to the service agent. If service is not available, SAMSUNG may elect to provide transportation of the product to and from an authorized service center.

SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.

This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product and shall not apply to the following: damage that occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning, or other acts of nature or God; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG that damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal and reinstallation; problems caused by pest infestations. This limited warranty does not cover problems resulting from incorrect electric current, voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or fixing installation errors. SAMSUNG does not warrant uninterrupted or error-free operation of the product.

Warranty

EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE.

WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER'S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.

English40

Some states or provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary from state to state or province to province.

To obtain warranty service, please contact SAMSUNG at:

In CANADA

Samsung Electronics Canada Inc.

2050 Derry Road West

Mississauga, Ontario L5N 0B9 Canada

www.samsung.com/ca/support (English)

www.samsung.com/ca_fr/support (French)

Memo

Memo

QR code image containing encoded data, no visible human-readable text

Scan the QR code* or visit www.samsung.com/spsn to view our helpful How-to Videos and Live Shows

*Requires reader to be installed on your smartphone

bit.ly/samsungdishwashers

QUESTIONS OR COMMENTS?

COUNTRY CALL OR VISIT US ONLINE AT
U.S.A- Consumer Electronics- Mobile Phones	1-800-SAMSUNG (726-7864)1-844-SAM-PAYS (726-7297)	www.samsung.com/us/support
CANADA	1-800-SAMSUNG(726-7864)1-844-SAM-PAYS (726-7297)	www.samsung.com/ca/support (English)www.samsung.com/ca_fr/support (French)

DD81-03054A-00

Lavavajillas

Manual del usuario

Serie DW50T6060

SAMSUNG

Contenidos

IMPORTANTE

Diagram of a mechanical assembly inside a storage unit, showing a component being inserted (no text or symbols present)

Three-step diagram showing mechanical assembly or assembly process, with no visible text or symbols

Technical line drawing of a mechanical or electrical enclosure with internal components and no visible text or symbols

8 puestos

Español18-

Technical line drawing of a mechanical assembly with multiple circular components and structural supports (no text or symbols)

8 puestos

Hand inserting a device into a plastic case with a black arrow indicating the action (no text or symbols present)

Diagram of a device being inserted into a tray, showing liquid level and internal components (no text or symbols)

3D diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a hand inserting a USB into a device (no text or symbols visible)

Illustration of a bottle pouring liquid into a tray with a lid, no text or symbols present

Diagram of a mechanical device with a black arrow indicating a specific component (no text or symbols present)

1. Cierre la tapa.

Technical diagram showing a mechanical assembly with an inset circular view of a rotating component (no text or symbols)

Diagram of a mechanical assembly with a rotating component and an arrow indicating direction (no text or symbols)

Mechanical component diagram showing a rotating knob with a curved arrow indicating rotation (no text or symbols)

Mechanical component diagram showing a cylindrical housing mounted on a base plate with an arrow indicating motion (no text or symbols)

Diagram showing a mechanical assembly with a central component and a downward arrow indicating rotation (no text or symbols)

Español26-

Ridgefield Park, NJ 07660

Samsung Electronics Canada Inc.

2050 Derry Road West

Mississauga, Ontario L5N 0B9 Canada

www.samsung.com/ca/support (English)

www.samsung.com/ca_fr/support (French)

Notas

Notas

SAMSUNG

QR code image containing encoded data, no visible human-readable text

Scan the QR code* or visit www.samsung.com/spsn to view our helpful How-to Videos and Live Shows

*Requires reader to be installed on your smartphone

bit.ly/samsungdishwashers

IMPORTANT

Diagram showing a mechanical assembly with an arrow pointing to a component, likely illustrating a process or assembly step.

Three-step diagram showing mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical or electrical enclosure with internal components and no visible text or symbols

8 couverts

Français18

Technical line drawing of a mechanical or electrical component assembly (no text or symbols)

8 couverts

Hand inserting a device into a plastic case with an arrow indicating the component (no text or symbols present)

Line drawing of a mechanical device with a lid pouring liquid into a tray (no text or symbols)

Diagram of a device casing with an arrow indicating direction (no text or symbols present)

Illustration of a hand inserting a device into a hard drive into a compact case (no text or symbols)

Illustration of a bottle pouring liquid into a tray with a lid, no text or symbols present

Diagram of a mechanical device with a black arrow indicating a component, no text or symbols present

Technical diagram showing a mechanical assembly with an inset circular view of a rotating component (no text or symbols)

Diagram of a mechanical assembly with a rotating component and an arrow indicating direction (no text or symbols)

Mechanical component diagram showing a rotating knob with a curved arrow indicating rotation (no text or symbols)

Mechanical component diagram showing a cylindrical housing mounted on a base plate with an arrow indicating motion (no text or symbols)

Diagram showing a mechanical assembly with a cylindrical component and a base, no text or symbols present

Français26

Ridgefield Park, NJ 07660

Samsung Electronics Canada Inc.

2050 Derry Road West

Mississauga, Ontario L5N 0B9 Canada

www.samsung.com/ca/support (English)

www.samsung.com/ca_fr/support (French)

Mémo

Mémo

SAMSUNG

QR code image containing encoded data, no visible human-readable text

Scan the QR code* or visit www.samsung.com/spsn to view our helpful How-to Videos and Live Shows

*Requires reader to be installed on your smartphone

bit.ly/samsungdishwashers

UNE QUESTION ? UN COMMENTAIRE ?

PAYS N° de téléphone SITE INTERNET
U.S.A- Consumer Electronics- Mobile Phones	1-800-SAMSUNG (726-7864)1-844-SAM-PAYS (726-7297)	www.samsung.com/us/support
CANADA	1-800-SAMSUNG (726-7864)1-844-SAM-PAYS (726-7297)	www.samsung.com/ca/support (English)www.samsung.com/ca_fr/support (French)

DD81-03054A-00
