USER MANUAL WD53DBA900HZ SAMSUNG

Laundry Combo Usermanual

WD53DBA9**H*

SAMSUNG

Contents

Safety information 4

What you need to know about the safety instructions 4

Important safety symbols 4

Important safety precautions 5

CALIFORNIA PROPOSITION 65 WARNING 6

Critical installation warnings 6

Installation cautions 8

Critical usage warnings 8

Usage cautions 10

Critical cleaning warnings 14

Care for preventing freezing 14

Regulatory notice 15

FCC Notice 15

IC Notice 17

Open Source Announcement 18

Installation 19

Unpacking your Laundry Combo 19

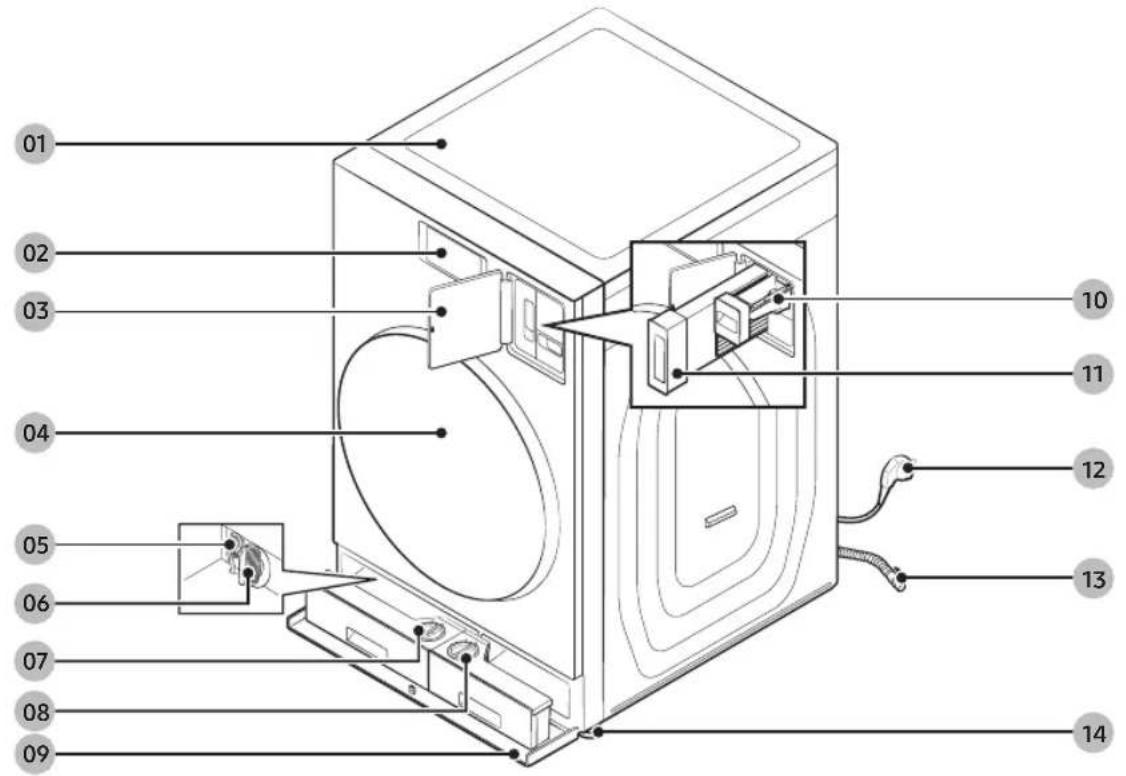

What's included 20

Installation requirements 22

Step-by-step installation 26

Before you start 31

Initial setup 31

Run Calibration (recommended) 31

Laundry guidelines 32

Detergent drawer guidelines 34

Operations 40

LCD panel 40

Operating a cycle 43

Cycle overview 44

Cycle chart 47

Settings 52

Special features 59

SmartThings 60

English2

Maintenance 62

Product Care 62

Self Clean+ 63

Self Dry 64

Emergency drain 65

Cleaning 67

Recovery from freezing 76

Care for an extended period of non-use 77

Cleaning the exterior 77

Cleaning the interior 77

Troubleshooting 78

Checkpoints 78

Information codes 84

Specifications 86

Fabric care chart 86

Protecting the environment 87

Declaration of conformity 87

Specification sheet 88

Safetyinformation

Congratulations on your new Samsung Laundry Combo. This manual contains important information on the installation, use and care of your appliance. Please take some time to read this manual to take full advantage of your Laundry Combo's many benefits and features.

What you need to know about the safety instructions

Please read this manual thoroughly to ensure that you know how to safely and efficiently operate the extensive features and functions of your new appliance. Please store the manual in a safe location close to the appliance for future reference. Use this appliance only for its intended purpose as described in this instructionmanual.

Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution and care when installing, maintaining and operating your Laundry Combo.

Because the following operating instructions cover various models, the characteristics of your Laundry Combo may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service center or find help and information onlineatwww.samsung.com.

Important safety symbols

What the icons and signs in this user manual mean:

WARNING

Hazards or unsafe practices that may result in severe personal injury, death and/or property damage.

CAUTION

Hazards or unsafe practices that may result in personal injury and/or property damage.

TE

Indicates that a risk of personal injury or material damage exists.

These warning signs are here to prevent injury to yourself and others.

Please follow them explicitly.

After reading this manual, store it in a safe place for future reference.

Read all instructions before using the appliance.

As with any equipment that uses electricity and moving parts, potential hazards exist. To safely operate this appliance, familiarize yourself with its operation and exercise care when using it.

SAVE THESE INSTRUCTIONS

English4

Important safety precautions

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

1. Read all instructions before using this appliance.
2. DO NOT wash or dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, other flammable or explosive substances as they give off vapors that could ignite or explode.
3. DO NOT use the appliance to dry clothes which have traces of any flammable substance, such as vegetable oil, cooking oil, machine oil, flammable chemicals, paint thinner, etc., or anything containing wax or chemicals, such as mops and cleaning cloths. Flammable substances may cause the fabric to catch fire by itself.
4. DO NOT store or use combustible materials, gasoline or other flammable liquids near the unit. Keep area around the air intake vent on the front of the unit and adjacent surrounding areas free from the accumulation of lint, dust and dirt.
5. Risk of Suffocation and Injury from Entrapment: Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.
6. Before the appliance is removed from service or discarded, remove the door to the washing or drying compartment.
7. DO NOT reach into the appliance if the tub or agitator is moving.
8. DO NOT install or store this appliance where it will be exposed to the weather.
9. DO NOT tamper with controls.
10. DO NOT repair or replace any part of the appliance or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.
11. DO NOT add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapours that could ignite or explode.
12. Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using a washing machine, turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
13. DO NOT use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.
14. Clean lint screen before or after each load.

SAVE THESE INSTRUCTIONS

English

Safety information

1. DO NOT use heat to dry articles containing foam rubber or similarly textured rubber-like materials.
2. Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust, and dirt.
3. The interior of the appliance should be cleaned periodically by qualified service personnel.
4. DO NOT place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire. To reduce the risk of fire due to contaminated loads, the final part of a tumble dryer cycle occurs without heat (cool down period). Avoid stopping a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
5. This appliance must be grounded. See "Electrical requirements" and "Grounding" in "Installation" section.
6. The control board, inlet valve and motors are intentionally not grounded and may present a risk of electric shock only during servicing.

- DO NOT contact these parts while the appliance is energized.

1. DO NOT operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts including a damaged cord or plug.
2. Unplug the appliance or turn off the circuit breaker before servicing. Pressing the Power button DOES NOT disconnect power.
3. DO NOT use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using a 3D printer).

CALIFORNIAPROPOSITION65WARNING

WARNING

CancerandReproductiveHarm-www.P65Warnings.ca.gov.

Criticalinstallationwarnings

WARNING

The installation of this appliance must be performed by a qualified technician or service company.

- Failure to do so may result in electric shock, fire, an explosion, problems with the appliance, or injury.

The appliance is heavy, therefore take care when lifting it.

SAVE THESE INSTRUCTIONS

English6

Plug the power cord firmly into a wall socket that meets local electrical specifications. Use the socket for this appliance only, and do not use an extension cord.

• Sharing a wall socket with other appliances using a power strip or extending the power cord may result in electric shock or fire.
• Ensure that the power voltage, frequency, and current are the same as those of the product specifications. Failure to do so may result in electric shock or fire.

Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis.

• Unplug the power plug and clean it with a dry cloth.
- Failure to do so may result in electric shock or fire.

Plug the power plug into the wall socket so that the cord is running towards the floor.

- If you plug the power plug into the socket in the opposite direction, the electric wires within the cable may be damaged and this may result in electric shock or fire.

Keep all packaging materials out of the reach of children as these may be dangerous.

• If a child places a bag over its head, it may suffocate.

When the appliance, power plug or power cord is damaged, contact your nearest service center.

This appliance must be properly grounded.

Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.

• This may result in electric shock, fire, an explosion, or problems with the appliance.
- Never plug the power cord into a socket that is not grounded correctly and make sure that it is in accordance with local and national regulations.

Do not install this appliance near a heater or any inflammable material.

Do not install this appliance in a humid, oily or dusty location, or in a location exposed to direct sunlight or water(raindrops).

Do not install this appliance in a location exposed to low temperatures.

- Frost may cause the tubes to burst.

Do not install this appliance in a location where gas may leak.

• This may result in electric shock or fire.

Do not install or keep the product exposed to the outdoor elements.

Do not use an electric transformer.

• This may result in electric shock or fire.

Do not use a damaged power plug, damaged power cord or loose wall socket.

• This may result in electric shock or fire.

Do not pull or excessively bend the power cord.

SAVE THESE INSTRUCTIONS

English

Safety information

Do not twist or tie the power cord.

Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.

• This may result in electric shock or fire.

Do not unplug the appliance by pulling the power cord.

• Unplug the power plug by holding the plug.
- Failure to do so may result in electric shock or fire.

This appliance should be positioned so that the power plug, the water supply taps, and the drain pipes are accessible.

Following the repair by a non-authorized service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certified service provider will not be covered by the warranty.

Installationcautions

CAUTION

Install your appliance on a solid, level floor that can support its weight.

- Failure to do so may result in abnormal vibrations, movement, noise, or problems with the appliance.

Criticalusagewarnings

WARNING

If the appliance is flooded, turn off the water and power supplies immediately and contact your nearest servicecenter.

• Do not touch the power plug with wet hands.
• Failure to do so may result in electric shock.

If the appliance generates a strange noise, a burning smell, or smoke, unplug the power cord immediately and contact your nearest service center.

- Failure to do so may result in electric shock or fire.

In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power plug. Do not touch the appliance or power cord.

- Donotuseaventilatingfan.

SAVE THESE INSTRUCTIONS

English8

• A spark may result in an explosion or fire.

Remove all door levers before disposing of the appliance.

• If trapped inside the appliance, children may suffocate to death.

Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the Laundry Combo before using it.

Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or other inflammable or explosive substances.

• This may result in electric shock, fire, or explosion.

Do not open the door by force while operating.

- Water flowing out of the Laundry Combo may result in burns or cause the floor to be slippery. This may result in injury.

- Opening the door by force may result in damage to the appliance or injury.

Do not sit on the appliance or lean against the doors.

• The appliance may fall over causing a serious injury.

Dry the laundry only after it was spun by an appropriate washing machine.

Do not dry laundry contaminated by inflammable materials such as gasoline, kerosene, benzene, thinner, alcohol, etc.

• This may result in electric shock, fire or explosion.

Do not touch the power plug with wet hands.

• This may result in electric shock.

Do not turn the appliance off by unplugging the power cord while an operation is in progress.

- Plugging the power cord into the wall socket again may cause a spark and result in electric shock or fire.

Do not let children climb in or onto the appliance.

• This may result in electric shock, burns or injury.

Do not insert your hand or a metal object under the Laundry Combo while it is operating.

- Thismayresultinjury.

Do not unplug the appliance by pulling the power cord. Always grip the plug firmly and pull it straight out of the outlet.

- Damage to the power cord may cause a short-circuit, fire and/or electric shock.

Do not attempt to repair, disassemble, or modify the appliance yourself.

- Do not use a fuse (such as copper, steel wire, etc.) other than a standard fuse.

- When the appliance needs to be repaired or reinstalled, contact your nearest service center.

- Failure to do so may result in electric shock, fire, problems with the appliance, or injury.

SAVE THESE INSTRUCTIONS

English

Safety information

If the water supply hose comes loose from the water tap and floods the appliance, unplug the power cord.

- Failure to do so may result in electric shock or fire.

Unplug the power cord when the appliance is not being used for long periods of time or during a thunder or lightningstorm.

- Failure to do so may result in electric shock or fire.

If any foreign substance enters into the appliance, unplug the power cord and contact your nearest Samsung Customer Service.

• This may result in electric shock or fire.

Keep your pets away from the appliance to prevent them from chewing any parts of the Laundry Combo, which may result in electric shock, fire, or injury.

Usagecautions

CAUTION

When the Laundry Combo is contaminated by a foreign substance such as detergent, dirt, food waste, etc., unplug the power cord and clean the Laundry Combo using a damp, soft cloth.

- Failure to do so may result in discoloration, deformation, damage, or rust.

The glass parts may break by a strong impact. Take care when using the Laundry Combo.

• If the glass is broken, it may result in injury.

Open the water tap slowly after a long period of non-use, water supply failure, or when reconnecting the water supply hose.

- The air pressure in the water supply hose or the water pipe may damage a part of the appliance or result in a water leak.

If a draining error occurs during an operation, check if there is a draining problem.

- If the Laundry Combo is used when it is flooded because of a draining problem, it may result in electric shockorfire.

Insert the laundry into the Laundry Combo completely so that the laundry does not get caught in the door.

- If laundry gets caught in the door, it may result in damage to the laundry or the appliance, or result in a waterfall.

Turn the water supply off when the Laundry Combo is not being used.

- Ensure that the screws on the water supply hose connector are properly tightened.

SAVE THESE INSTRUCTIONS

English10

Ensure that the rubber seal and front door glass are not contaminated by a foreign substance (such as waste, thread, hair, etc.).

- If a foreign substance is caught in the door or the door is not completely closed, it may cause a water leak.

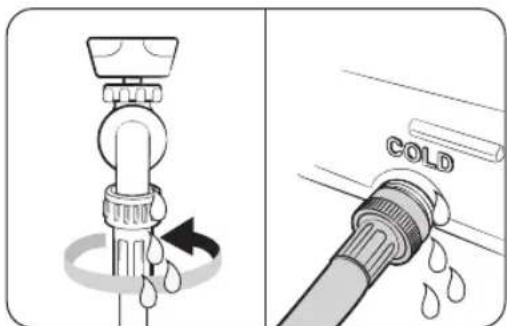

Open the water tap and check if the water supply hose connector is firmly tightened and that there is no water leak before using the appliance.

- If the screws on the water supply hose connector are loose, it may result in a water leak.

The appliance you have purchased is designed for domestic use only.

Using the appliance for business purposes qualifies as an appliance misuse. In this case, the appliance will not be covered by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages resulting from such misuse.

Do not stand on the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.

• This may result in electric shock, fire, problems with the appliance, or injury.

Do not spray volatile material such as insecticide onto the surface of the appliance.

- As well as being harmful to humans, this may result in electric shock, fire or problems with the appliance.

Do not place objects that generate electromagnetic fields near the Laundry Combo.

• This may result in injury due to a malfunction.

Water drained during a high-temperature wash or drying cycle is hot. Do not touch the water.

• This may result in burns or injury.

Draining time may vary depending on the water temperature. If the water temperature is too high, the draining process starts after the water cools down.

Do not wash, spin, or dry water-proof seats, mats, or clothing (*) unless your model has a special cycle for these items.

(*): Woollen bedding, rain covers, fishing vests, ski pants, sleeping bags, diaper covers, sweat suits, and bicycle, motor cycle and car covers, etc.

- Do not wash thick or hard mats even if the washing machine mark is on the care label. This may result in injury or damage to the Laundry Combo, walls, floor, or clothing due to abnormal vibrations.

- Do not wash throw rugs or doormats with rubber backing. The rubber backing may come off and stick to inside the drum, and this may result in malfunction such as a drainage error.

Do not operate the Laundry Combo when the detergent drawer is removed.

• This may result in electric shock or injury due to a water leak.

Do not touch the insides of the drum during or just after drying as it is hot.

- Thismayresultinburns.

SAVE THESE INSTRUCTIONS

English

Safety information

Do not touch the inside of the glass door and the drum after washing and drying as those parts may become hot and could cause burns.

Do not insert your hand into the detergent drawer.

• This may result in injury as your hand may be caught by the detergent input device.

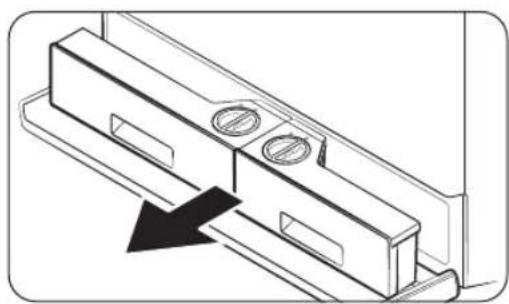

Remove the liquid detergent guide (applicable models only) when using powdered detergent.

- If not, water may leak through the front of the detergent drawer.

Do not place any objects (such as shoes, food waste, or animals) other than laundry into the Laundry Combo.

- This may result in damage to the Laundry Combo, or injury and death in the case of pets because of the abnormalvibrations.

Do not press the buttons using sharp objects such as pins, knives, fingernails, etc.

• This may result in electric shock or injury.

Do not wash or dry laundry contaminated by oils, creams or lotions usually found in skincare shops or massageclinics.

- This may cause the rubber seal to become deformed and result in a water leak.

Do not leave metal objects such as safety pins or hairpins in the drum for long periods of time.

• This may cause the drum to rust.

- If rust starts appearing on the surface of the drum, apply a (neutral) cleansing agent to the surface and use a sponge to clean it. Never use a metal brush.

Do not use dry cleaning detergent directly and do not wash, rinse, or spin laundry contaminated by dry cleaning detergent.

- This may result in spontaneous combustion or ignition due to the heat from the oxidation of the oil.

Donotusewaterfromwatercooling/heatingdevices.

• This may result in problems with the Laundry Combo.

Do not use natural hand-washing soap for the Laundry Combo.

- If it hardens and accumulates inside the Laundry Combo, it may result in problems with the appliance, discoloration, rust, or bad odors.

Place socks and brassieres in a washing net and wash them with the other laundry.

Do not wash large laundry items such as bedding in the washing net.

- Failure to do so may result in injury due to abnormal vibrations.

Donotusehardeneddetergent.

• If it accumulates inside the Laundry Combo, it may result in a water leak.

SAVE THESE INSTRUCTIONS

English12

Make sure that the pockets of all the clothing items are empty.

- Hard, sharp objects such as coins, safety pins, nails, screws, or stones can cause extensive damage to the appliance.

Do not wash or dry clothing with large buckles, buttons, or other heavy metal objects.

Sort the laundry by color on the basis of its colorfastness and select the recommended cycle, water temperature and additional functions.

• This may result in discoloration or fabric damage.

Take care that children's fingers are not caught in the door when closing it.

- Failure to do so may result in injury.

To prevent odors and mold, leave the door open after completing a cycle to allow the drum to dry.

To prevent limescale build-up, leave the detergent drawer open after a wash cycle and dry inside it.

Do not dry laundry containing forming rubber (latex) or similar rubber textures.

• If forming rubber is heated, it may start a fire.

If necessary, use the laundry net for small and lightweight laundry such as fabric tie belts, apron strings, and underwire bras which can break during a cycle.

Dryer sheets are compatible with this model, and are recommended for better drying performance.

Dryer sheets are also beneficial in reducing the static electricity generated during a drying cycle. Static electricity could lead to damaging laundry items and potentially the appliance.

Do not use the Laundry Combo near dangerous powders such as coal dust, wheat flour, etc.

• This may result in electric shock, fire or an explosion.

Do not touch the rear side of the appliance during or immediately after drying is complete.

- Theapplianceremainshotandmaycauseburns.

SAVE THESE INSTRUCTIONS

English

Safety information

Criticalcleaningwarnings

WARNING

Do not clean the appliance by spraying water directly onto it.

Do not use a strong acidic cleaning agent.

Do not use benzene, thinner or alcohol to clean the appliance.

• This may result in discoloration, deformation, damage, electric shock or fire.
Before cleaning or performing maintenance, unplug the appliance from the wall socket.
- Failure to do so may result in electric shock or fire.

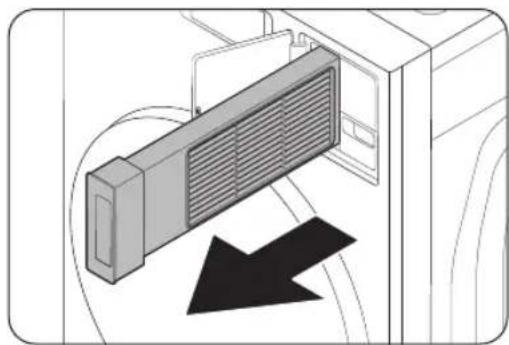

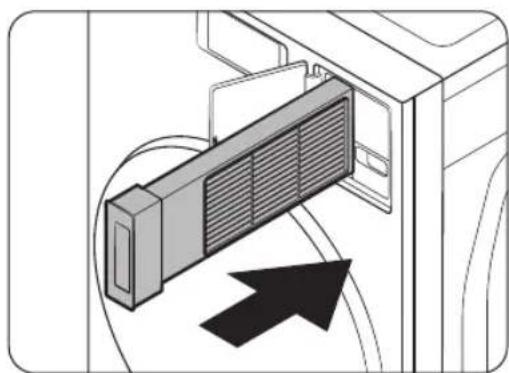

Clean the filter case before and after using the Laundry Combo.

Clean the inside of the product on a regular basis by asking an authorized service engineer.

Careforpreventingfreezing

WARNING

Install the Laundry Combo in an area where the temperature does not drop below a water-freezing temperature.

If draining directly using a long drain hose, water remaining inside the hose can freeze in winter. Make sure there is no water left inside the hose after use.

If the drain hose has frozen, wrap the hose with a towel soaked in warm water for approximately ten minutes to thaw it.

SAVE THESE INSTRUCTIONS

English14

Regulatorynotice

FCCNotice

CAUTION

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received including interference that cause undesired operation.

For products sold in the US and Canadian markets, only channels 1–11 are available. You cannot select any other channels.

FCCSTATEMENT:

This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorienting or relocating the receiving antenna
• Increasing the separation between the equipment and receiver
- Connecting the equipment to an outlet that is on a different circuit than the radio or TV.
- Consulting the dealer or an experienced radio/TV technician for help.

FCCRADIATIONEXPOSURESTATEMENT:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and its antenna(s) must not be colocated or operated in conjunction with any other antenna or transmitter.

SAVE THESE INSTRUCTIONS

English

Regulatory notice

FCC Compliance Statement (applicable models only)

Model	WD53DBA900HZ
Variantmodel	WD53DBA9**H*1st * and 2nd * : Number 0 through 9 indicates a specific feature.3rd * : Letter A through Z indicates the color of appliance.
Responsible Party - U.S. Contact Information	SamsungElectronicsAmerica,Inc.85ChallengerRoadRidgefield Park, NJ 07660Phone:1-800-SAMSUNG(726-7864)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

SAVE THESE INSTRUCTIONS

English16

ICNotice

The term "IC" before the radio certification number only signifies that Industry Canada technical specifications were met. Operation is subject to the following two conditions:

1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

For products sold in the US and Canadian markets, only channels 1–11 are available. You cannot select any other channels.

ICRADIATIONEXPOSURESTATEMENT:

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and its antenna(s) must not be colocated or operated in conjunction with any other antenna or transmitter.

SAVE THESE INSTRUCTIONS

English

Regulatory notice

OpenSourceAnnouncement

The software included in this product contains open source software. You may obtain the complete corresponding source code for a period of three years after the last shipment of this product by contacting our support team via http://opensource.samsung.com (Please use the "Inquiry" menu.)

It is also possible to obtain the complete corresponding source code in a physical medium such as a CD-ROM; a minimal charge will be required.

The following URL http://opensource.samsung.com/opensource/SMART_AT_051/seq/0 leads to the open source license information as related to this product. This offer is valid to anyone in receipt of this information.

QR code image containing encoded data, no visible human-readable text

SAVE THESE INSTRUCTIONS

English18-

Installation

Follow these instructions carefully to ensure proper installation of the Laundry Combo and to prevent accidents when doing laundry.

WARNING

Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing. Service personnel – Do not contact the following parts while the appliance is energized: Control board, heat sink, motor, inlet valve and pump.

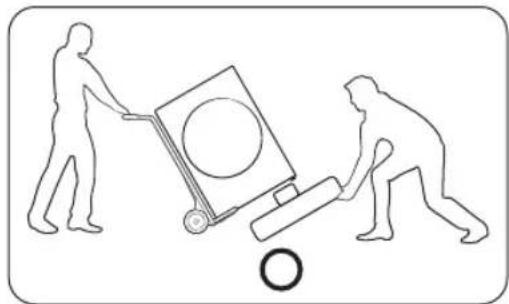

UnpackingyourLaundryCombo

Unpack your Laundry Combo and inspect it for shipping damage. Make sure you have received all the items shown on the next page. If your Laundry Combo was damaged during shipping, or you do not have all of the items, call 1-800-SAMSUNG (1-800-726-7864). To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the unit.

WARNING — Packing materials can be dangerous to children; Keep all packing material (plastic bags, polystyrene, etc.) well out of children's reach.

Illustration of two figures pushing a cart with a large box and a ring, no text or symbols present

CAUTION

You must have at least 2 people unpack the Laundry Combo. To remove the cushion bottom of the packing materials, do not tip the Laundry Combo over on its front side.

When you lay the Laundry Combo down to remove the carton base, protect the side of the Laundry Combo and lay it down carefully. Never lay your Laundry Combo on its backorfront.

Diagram illustrating a hand using a tool to clean or remove a washing machine, with no text labels and directional arrows.

CAUTION

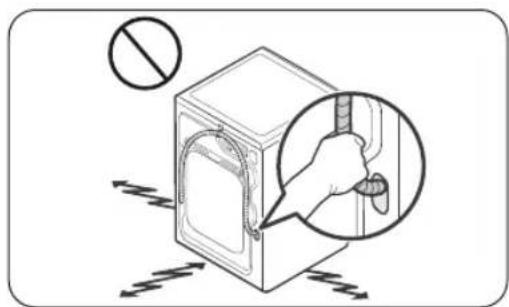

Do not grab or pull the drain hose to drag and move the product.

Installation

What'sincluded

Make sure all the parts are included in the product package. If you have a problem with the Laundry Combo or the parts, contact a local Samsung customer center or retailer.

The appearance of the actual product may differ from the image shown.

01 02 03 04 05 06 07 08 09 10 11 12 13 14

01 Worktop

02 LCD panel

03 Lint filter cover

04 Door

05 Emergency drain tube

06 Drain filter

07 Auto dispenser

08 Flex auto dispenser

09 Compartment cover

10 Manual bleach dispenser

11 Lint filter

12 Power plug

13 Drain hose

14 Levelling feet

English20-

Partssupplied

WrenchBoltcapsHoseguide

CabletieAnti-slippadsAquaPebble

Partssoldseparately

Simple line drawing of a coiled tube with two connectors (no text or symbols)

Simple line drawing of a tuning fork with a black handle and metal rod (no text or symbols)

WaterhosesApplianceBrush*

Toolsneededforinstallation

PhillipsscrewdriverLevelAdjustablepliersMeasuringtape

NOTE

• Bolt caps: The number (3 to 6) of bolt caps provided depends on the model.
• The appearance of the Laundry Combo and provided accessories may differ with the model.
  • To purchase an accessory or lost part, contact a local Samsung service center or retailer.
• * Appliance brush: Purchase a flexible cleaning brush designed to bend for cleaning the heat exchanger. (Minimum length: 680 mm)
  Water hoses and appliance brushes are not sold in Samsung service center or retailers.

English

Installation

CAUTION

• Do not reuse old water hoses, which may leak or burst, causing flooding and/or property damage.

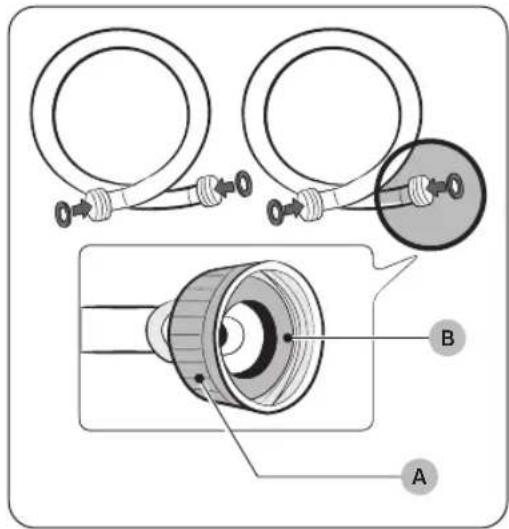

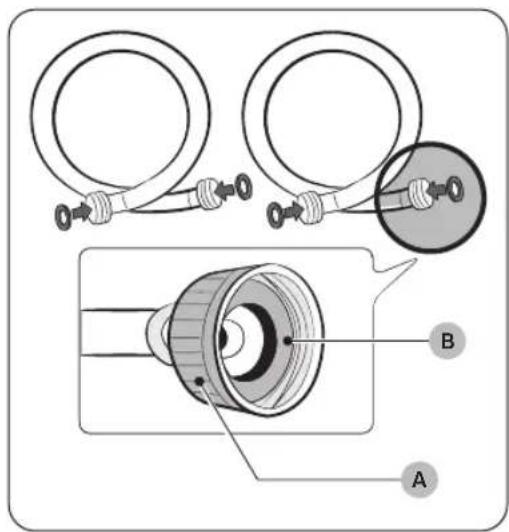

  • Make sure rubber washers are inserted in each coupling of both water hoses.

Installationrequirements

Electricalsupplyandgrounding

• AC 120 V / 60 Hz / 15 AMP fuse or circuit breaker is required.
- Use an individual branch circuit. Connect only the Laundry Combo to the circuit.

To ensure proper grounding, the Laundry Combo comes with a power cord featuring a three-prong grounding plug for use in a properly installed and grounded outlet.

Check with a qualified electrician or service person if you are not sure about the grounding.

Do not modify the provided plug. If it does not fit the outlet, call a qualified electrician to install a proper outlet.

WARNING

• DoNOTuseanextensioncord.
  • Use only the power cord that comes with the Laundry Combo.
• Do NOT connect the ground wire to plastic plumbing, gas lines, or hot water pipes.
• Improperly connected grounding conductors may cause electric shock.
• To prevent unnecessary risk of fire, electrical shock, or personal injury, all wiring and grounding must be done in accordance with local codes, or in the absence of local codes, in accordance with the National Electrical Code, ANSI/NFPA No. 70-Latest Revision (for the U.S.) or the Canadian Electrical Code CSA C22.1 – Latest Revisions and local codes and ordinances. It is your responsibility to provide adequate electrical service for your Laundry Combo.

Precautionsforusinga1-to-1powercordadapter(240Vto120V)

• Always connect the power cord and adapter properly. Do not alter or modify the connection.
- Do not use the adapter if the terminals of the adapter or power cord are at risk of water exposure.
- Use certified power cords and adapters that meet safety standards.
- Only use adapters and receptacles specifically designed for electric dryers.
- Recommended Specification: NEMA 14-30P to NEMA 5-15R.
- Consult a qualified electrician if necessary to ensure safety.
- Issues caused by external factors, including adapters, are not covered under the product warranty.

English22

Watersupply

The proper water pressure for this Laundry Combo is between 20-116 psi (137-800 kPa). Water pressure less than 20 psi (137 kPa) may cause the water valve not to close completely. Or, it may take longer to fill the drum, causing the Laundry Combo to turn off. Water taps must be within 4 ft. (122 cm) from the rear of the Laundry Combo so that the inlet hoses reach the Laundry Combo.

To reduce the risk of leaks:

• Make sure water taps are easily accessible.
- Turn off the taps when the Laundry Combo is not in use.
- Check for any leaks at the water inlet hose fittings on a regular basis.

CAUTION

Before using the Laundry Combo for the first time, check all connections at the water valve and taps for any leaks.

Drain

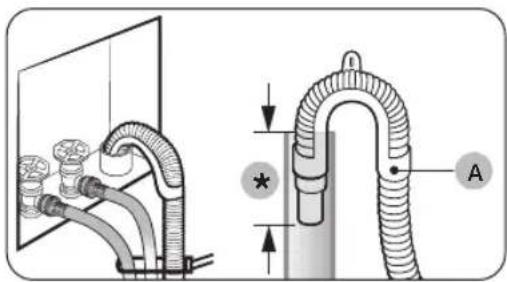

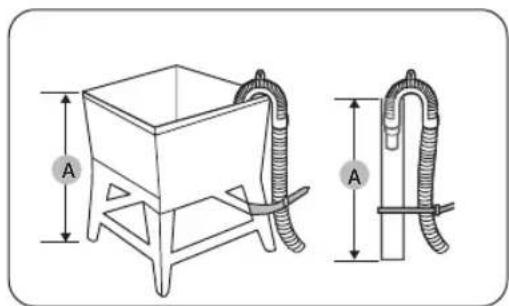

Samsung recommends a standpipe 18 in. (460 mm) high. The drain hose must be connected through the hose clip to the standpipe, and the standpipe must fully cover the drain hose.

Flooring

For best performance, the Laundry Combo must be installed on a solid floor. Wood floors may need to be reinforced to minimize vibration and/or unbalanced loads. Carpeting and soft tile surfaces do not provide good resistance to vibrations and may cause the Laundry Combo to move slightly during the spin cycle.

CAUTION

Do NOT install the Laundry Combo on a platform or a poorly supported structure.

Watertemperature

Do not install the Laundry Combo in areas where water may freeze as the Laundry Combo always retains some water in its water valves, pumps, and/or hoses. Frozen water can cause damage to belts, the pump, and other components of the Laundry Combo.

Installation

Dimensions

A B

Simple line drawing of a circular object and a rectangular container with a labeled circle (no text or symbols)

D

A. Overall height	43.7 in. (1110 mm)
B. Width	27 in. (686 mm)
C. Depth with door open	56.3 in. (1430 mm)
D. Depth	34.4 in. (875 mm)

Clearancerequirement

Alcoveorclosetinstallations

Minimum clearance for stable operation

Sides	Top	Rear	Front
1 in. (25 mm) 1 in. (25 mm) 2 in. (50 mm)		1 in. (25 mm)

Simple diagram of a door with two side panels and an attached meter labeled A (no text or symbols beyond basic labels)

A: If the Laundry Combo is installed in the same location with other washer or dryer, the front of the alcove or closet must have two unobstructed air openings for a combined minimum total area of 72 in. ^2 (465 cm ^2 ).

English24

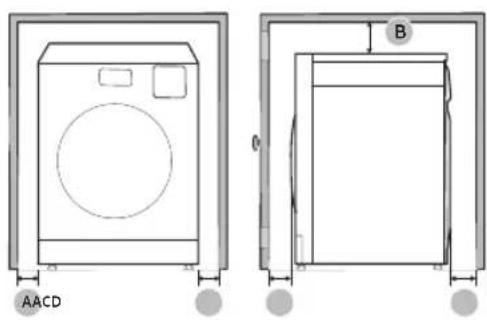

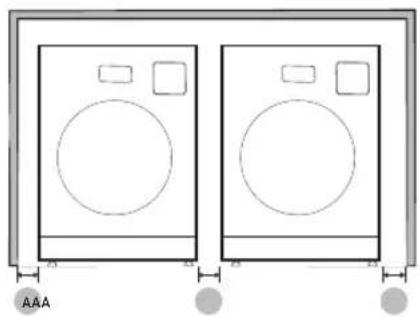

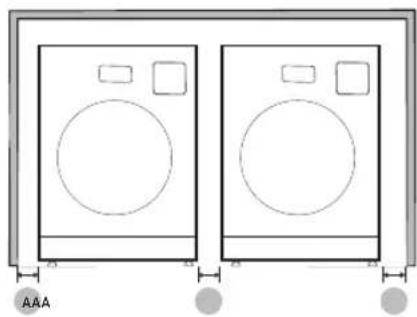

Customcabinetandside-by-sideinstallation

AACD B

A 1 in. (25 mm)

B 1 in. (25 mm)

C 1 in. (25 mm)

D 2 in. (50 mm)

Diagram of two washing machines with circular chambers and square tops, mounted on a frame (no text or symbols)

CAUTION

Please be aware of the following when installing and using the product.

• After plugging the power plug, make sure the power cord does not get pressed or pinched by the product while you push it into the final installation position.
• This could cause fire or electric shock.
• The product must be installed in a place where it can be easily plugged. Otherwise, an electrical leakage may occur and lead to electric shock or fire.
• Plug the power cord into a grounded 3-prong outlet.
• Never cut or remove the third (grounding) prong from the power cord under any circumstances.

Installation

Step-by-stepinstallation

STEP 1 Selectalocation

Locationrequirements:

• A solid, level surface without carpeting or flooring that may obstruct ventilation
- Nodirectsunlight
- Adequateroomforventilationandwiring
- Ambient temperature always higher than the freezing point (32 °F / 0 °C)
- Awayfromheatsources

STEP 2 Removetheshippingbolts

Illustration of a hand using a tool to adjust a circular component with directional arrows (no text or symbols)

1. After unpacking the product, remove all shipping bolts.

TE

Use the enclosed end of the supplied wrench to remove the shipping bolts.

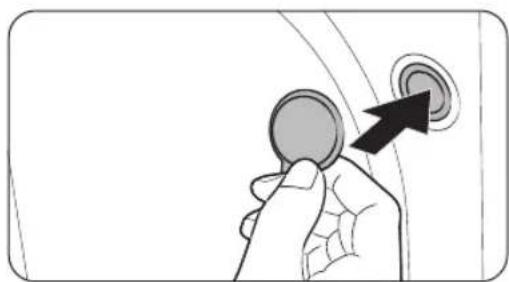

Hand holding a circular button with an arrow pointing to the right button (no text or symbols present)

1. Fill the holes with the supplied plastic bolt caps. Keep the shipping bolts for future use.

WARNING

• The shipping bolts secure the tub during product transportation and reduce the chance of suspension damage. Remove the shipping bolts before using the product and only reinsert them if you need to move the product.
• Packaging materials can be dangerous to children. Dispose all packaging material (plastic bags, polystyrene, etc.) outofchildren'sreach.

English26

STEP 3 Adjustthelevelingfeet

Diagram of a mechanical lever assembly with a handle and valve (no text or labels)

1. Gently slide the Laundry Combo into position. Excessive force may damage the leveling feet.
2. Using a wrench, turn the leveling feet clockwise or counterclockwise to adjust the height until the LaundryComboislevel.

Illustration of a hand using a tool to adjust a mechanical component with an arrow indicating rotation (no text or symbols present)

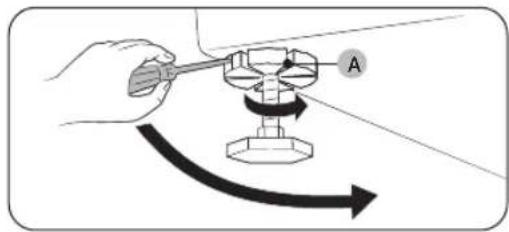

1. Using a flathead screwdriver, tighten the locking nuts (A).

TE

Use the open-end of the supplied wrench to adjust the levelingfeet.

STEP 4 Connectthewaterhose

Technical diagram showing mechanical assembly with labeled parts A and B, including coiled tubing and a central component.

CAUTION

• Make sure to use new water hoses and that rubber gaskets (B) are inside the couplings(A) at both ends of the hoses. Water hoses without the gaskets may leak.
• Allow 5 in. (127 mm) of space between the back of the Laundry Combo and the wall to prevent water hoses from being kinked. Kinked hoses may cause waterleaks.
• If there is a water leak, stop using the Laundry Combo and contact a local Samsung service center. A water leak may cause electric shock.
• Do not stretch the water hoses by force. If a hose is too short, replace the hose with a longer hose.

Installation

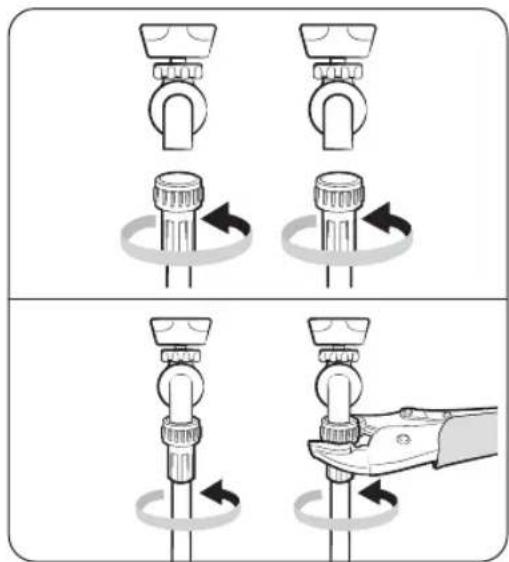

Diagram showing four steps of a valve adjustment mechanism with directional arrows indicating rotation or movement.

1. Attach the water hoses to the hot and cold water taps, and then hand tighten the water hose fittings until they are tight. Then, use pliers to tighten the fittings by an additional two-thirds of a turn. To avoid damaging the fittings, do not overtighten them.

2. Pull the water hoses to check if they are firmly connected.

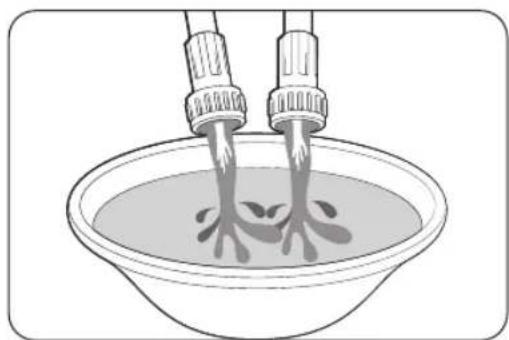

3. Put the other ends of the hoses into a bucket, and then open the water taps for 10 - 15 seconds to remove impurities. When done, close the taps.

Illustration of two pipettes pouring liquid into a bowl (no text or symbols)

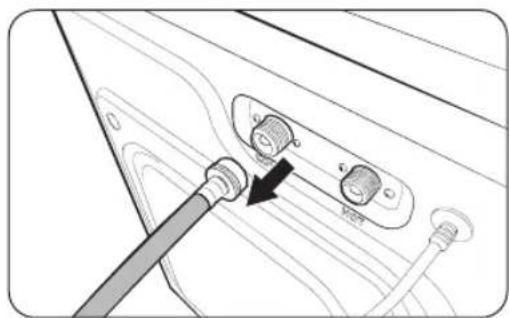

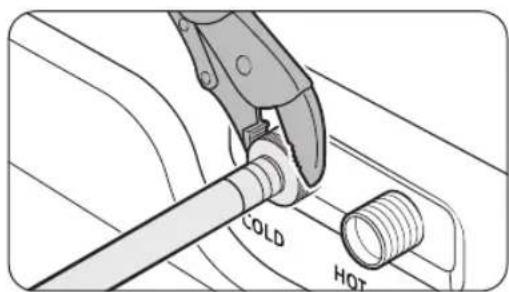

1. Attach the water hoses to the hot and cold water inlets on the back of the Laundry Combo, and then hand tighten the water hose fittings until they are tight. Then, use pliers to tighten the fittings by an additional two-thirds of a turn.

COLD HOT

TE

If you do not want to use the hot water supply hose, attach the water intake cap to the hot water supply intake. When you do a wash, tap Temp. and select Tap Cold.

English28

Diagram illustrating the change in water level from a faucet to a cold water outlet, with labeled components and directional arrows.

1. Openthewatertaps, and check for leaks.

STEP 5 Connectthedrainhose

Technical diagram showing a wooden box with coiled tubing and two side views labeled A, likely illustrating dimensions or assembly.

To a Laundry Tub or Drain Pipe

1. Check the height (A) of your drain system and make sure the minimum and maximum heights shown below are met.

Minimum 18 in. (46 cm)
Maximum 96 in. (245 cm)

NOTE

• Make sure to measure the height from the floor where the Laundry Combo is placed.
• Draining efficiency may be reduced if the drain system is at the maximum height.

• To prevent the Laundry Combo from siphoning water, do not use a drain system below the minimum height.

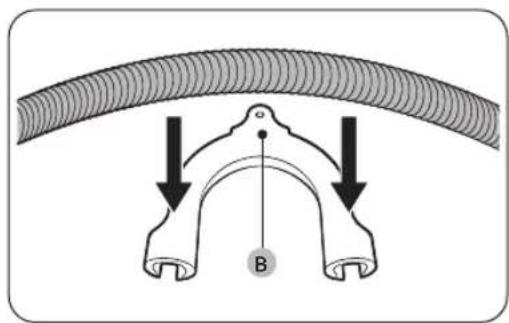

• Attach the drain hose to the plastic hose guide (B).

Diagram showing a curved structure with arrows indicating downward forces or movements, labeled with point B.

Installation

Technical diagram showing pipe installation and component positioning with labeled points A and a star symbol

(*): Min. 6 in. (152 mm), Max. 8 in. (203 mm)

1. Route the drain hose to the drain system.

CAUTION

• If using a standpipe, make sure the standpipe and drain hose connection is not airtight.

• If using a standpipe, make sure the drain hose is inserted at least 6 in. (152 mm) but no more than 8 in. (203 mm) into the standpipe.

• Securethedrainhosewithcableties.

Diagram illustrating a dental procedure with labeled components and directional arrows indicating flow or movement.

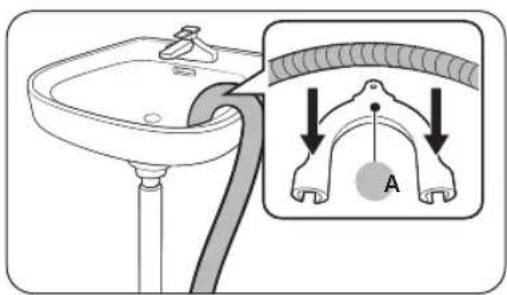

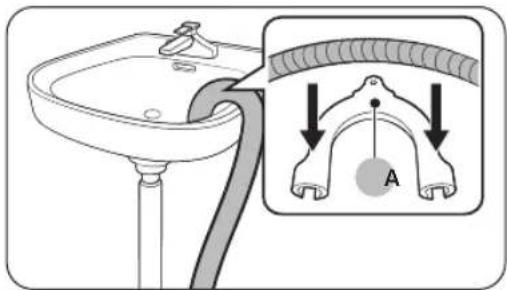

Over the edge of a wash basin

The drain hose must be placed no lower than 24 in. (60 cm) and no higher than 35 in. (90 cm) from the floor. To keep the spout of the drain hose bent, use the supplied plastic hose guide (A). Secure the guide to the wall using a hook to ensure stable drainage.

STEP 6 Poweron

Plug the power cord into an AC 120 V / 60 Hz / 15 AMP approved electrical outlet protected by a fuse or circuit breaker. Then, tap ⏻ to turn on the Laundry Combo.

English30

Beforeyoustart

Initialsetup

• When you turn on the Laundry Combo for the first time, the screen shows the initial setup process. Follow the on-screen instructions to complete it.
• Once you select a language, the language selection screen will not reappear. However, you must complete a wash cycle once to stop the tutorial screen from reappearing.

- You can change the language from the Settings menu. On the Home screen, tap ⚙ > General > Language to change the language.

• The initial setup includes language selection and a brief tutorial.
- Tap OK to skip to the next screen.

TE

If the initial setup screen does not appear during the first use of the product, it does not indicate a problem with the product. You can adjust the desired settings by selecting ⚙ > General from the Home screen, or reset the product to try running the initial setup process by selecting ⚙ > General > Reset > Reset all settings.

RunCalibration(recommended)

Calibration ensures accurate weight detection by the Laundry Combo. Make sure the drum is empty before runningcalibration.

1. Tap to turn the power on.
2. Tap 🙏 > Washer > Calibration.
3. Tap Start Calibration to start the calibration.

Before you start

Laundryguidelines

STEP 1 Sort

Sort the laundry according to these criteria:

• Care Label: Sort the laundry into cottons, mixed fibers, synthetics, silks, wools, and rayon.
  • Color: Separatewhitesfromcolors.
• Size: Mixing different sized items together in the drum improves the washing performance.
• Sensitivity: Wash delicate items separately. For pure, new woolen items, curtains, and silk items, check the labels on the items.

TE

Make sure to check the care label on all clothing, and sort clothing accordingly before starting the wash.

STEP 2 Empty pockets

Empty all the pockets of your laundry items

- Metal objects such as coins, pins, and buckles on clothing may damage other laundry items as well as thedrum.

Turnclothingwithbuttonsandembroideriesinsideout

• If pants or jacket zippers are open while washing, the drum may be damaged. Zippers should be closed and fixed with a string.
• Clothing with long strings may become entangled with other clothes. Make sure to tie the strings before starting the wash.

STEP 3 Usealaundrynet

• Brassieres (water washable) must be placed in a laundry net. Metal parts of the brassieres may break through and tear other laundry items.
• Small, light clothing such as socks, gloves, stockings, and handkerchiefs may become caught around the door. Place them inside a fine laundry net.
• Do not wash the laundry net by itself without other laundry. This may cause abnormal vibrations that could move the Laundry Combo and result in injury.

English32

STEP 4 Determinetheloadcapacity

Do not overload the Laundry Combo. Overloading may cause the Laundry Combo to wash improperly.

BOTE

When washing bedding or bedding covers, the wash time may be lengthened or the spin efficiency may be reduced.

For bedding or bedding covers, the recommended maximum spin level is Low or Medium, and the load capacity is 7 lb (3.0 kg) or less.

CAUTION

If the laundry is unbalanced and the "Unbalanced laundry detected" information code is displayed, redistribute the load. Unbalanced laundry may reduce spinning performance.

STEP 5 Addthecorrectdetergenttype

The type of detergent you use - general purpose, specifically for woolens, etc. - depends on the type of fabric (cotton, synthetic, delicate items, wool), color, wash temperature, and degree of soiling. Regardless of the specific type of detergent you use, always use "low suds" HE laundry detergent which is designed for automaticwashers.

NOTE

• Follow the detergent manufacturer's recommendations based on the weight of the laundry, the degree of soiling, and the hardness of the water in your local area. If you are not sure about the water hardness, contact your local water authority.
• Do not use detergent that tends to harden or solidify. This detergent may remain after the rinse cycle, blocking the drain outlet.

CAUTION

When washing wool using the Wool cycle, use only a neutral liquid detergent. Powdered detergent used with the Wool cycle can remain on the laundry and discolor it.

UseHEdetergentonly

For the best cleaning results, use a high efficiency detergent such as Tide HE, Wisk HE, Cheer HE or Gain HE*. High efficiency detergents contain suds suppressors that reduce or eliminate suds. When fewer suds are produced, the load tumbles more efficiently and cleaning is maximized. (* Brand names are trademarks of their respective manufacturers.)WARNINGFor best results, use HE detergents only. Do not use non-HE detergent, organic detergent, natural detergent or HE detergents with natural ingredients (such as vinegar,bakingsoda).

Before you start

Detergentdrawerguidelines

BOTE

Auto dispensers make laundry easier by dispensing the preset amount of washing agents without you having to pour it in every time, and it could be more economical because the exact amount will be dispensed each time of use, allowing less waste of washing agents.

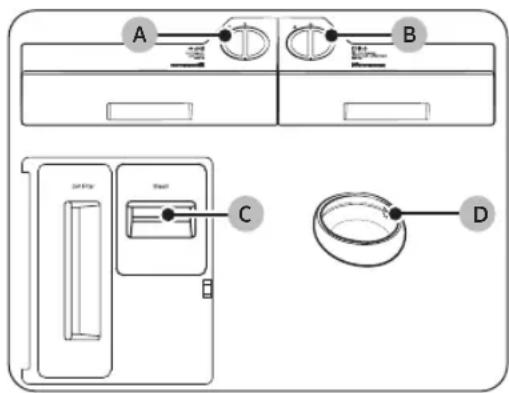

A B C D

A. Autodispenser

• You can use the general detergent in this compartment.
• Use liquid detergent only. Do not put powdered detergent or softener.

B. Flex auto dispenser

• You can set this dispenser to dispense detergent (General detergent or Specialty detergent) or softener.
• Use only neutral detergent in this dispenser if you have set the Detergenttype to Specialty detergent.

-Donotputpowdereddetergent.

C. Manual bleach compartment

- Add liquid chlorine bleach. Do not exceed the max line.

D. AquaPebble

• To use the Aqua Pebble, set the Amount option for Auto dispenser and Flex auto dispenser to Off.
• Do not use the Aqua Pebble for bleach or fabric softener.

CAUTION

• Do not operate the Laundry Combo without the dispensers in the detergent drawer.
• A water leak may cause electric shock or injury.
• Do not use the following types of detergent in the drawer.
• Tablet, capsule, ball, or net types.
• Do not use gel-type or viscous detergent/softener in the detergent drawer as they may not flow well.
• Read the detergent/softener manufacturer's instructions before using them in the Laundry Combo.
• Do not carry around the dispenser removed from the detergent drawer. Put the dispenser back in place.
• Otherwise, the dispenser may shake and cause the content to spill out.
• Empty the dispensers in the detergent drawer before moving the Laundry Hub to prevent any content from spilling out on the floor.
• Do not use chlorine bleach, which may damage the laundry.

English34-

• Use caution when inserting the Aqua Pebble as it is supposed to be balanced on top of the laundry at the beginning of the wash. Tipping the Aqua Pebble before the start of a wash may cause detergent residue to remain on the laundry at the end of the wash, causing discoloration of the laundry or reduced washing performance.
  • Before each wash, clean the Aqua Pebble before adding fresh detergent.
• Do not insert the Aqua Pebble into a folded item or between different laundry items.
• Do not use liquid or powdered chlorine bleach.
• Do not put or store cleaning agents such as detergent, bleach, or fabric softener on your Laundry Combo. Wipe up any spills immediately to prevent damage to the Laundry Combo, especially the finish and the LCD panel.

NOTE

• If the message "Needs refill" appears on the display, refill the corresponding dispenser.
• The detergent/softener is not automatically dispensed in the Wool, Delicates, and Activewear cycles if the Detergent type for Auto dispenser and Flex auto dispenser are set to General detergent. You must use the Aqua Pebble to put the detergent directly into the drum.
• However, If the Detergent type for Flex auto dispenser is set to Specialty detergent, the detergent will be dispensed automatically.
• Do not exceed the max line when filling detergent and softener.
• It may be hard to open the detergent drawer with just your fingertips. Grab the detergent drawer handle firmly with your hand and pull to open it.
• Push the detergent drawer all the way to the end to close it.
• If you feel the softener scent is weak, set the softener input amount to a higher level.

Before you start

Tousebleach

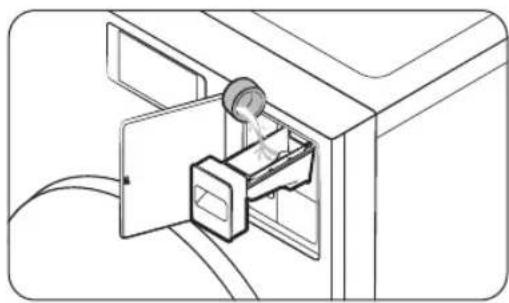

Line drawing of a mechanical device with a cylindrical component inserted into a housing (no text or symbols)

Add only liquid chlorine bleach to the Manualbleach dispenser. Do not exceed the max line.

CAUTION

• Do not add the liquid bleach without the liquid detergent guide in the Manual bleach dispenser.
• Do not add undiluted liquid chlorine bleach directly to the load or to the drum. It is a powerful chemical and can cause fabric damage, such as weakening of the fibers or color loss if not used properly.

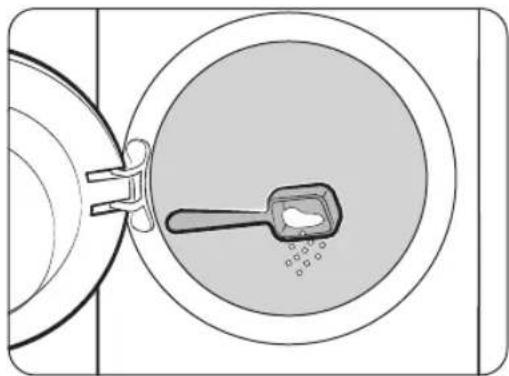

To use oxygen boosters or color-safe bleach

Diagram of a kitchen sink with a spatula inside, showing liquid and granules (no text or symbols)

Oxygen boosters or color-safe bleach can increase washing performance. Make sure to add the oxygen booster or color-safe bleach after putting the laundry into the drum.

NOTE

To use both powdered detergent and powdered oxygen booster or powdered color-safe bleach, it is more effective to put them together into the drum before loadingthelaundry.

TouseAquaPebble

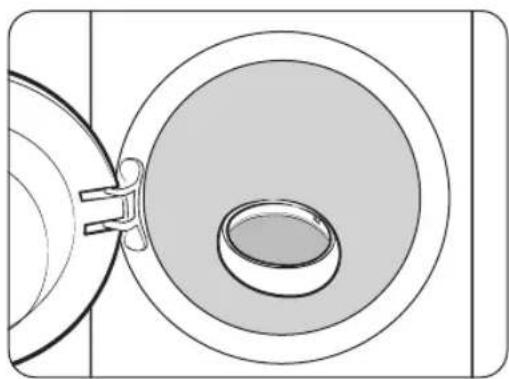

Diagram of a mechanical component with concentric circular layers and a central hole (no text or symbols)

Pour the recommended amount of liquid or powdered detergent (specialty detergent) into the Aqua Pebble, and then put the Aqua Pebble directly into the drum. There are two guidelines inside the Aqua Pebble to indicate 50 ml (1.69 fl oz) and 100 ml (3.38 fl oz). Do not exceed the 100 ml line.

English36

To apply washing agents to the Auto dispensers

DTE

If the message "Needs refill" appears on the display, refill the corresponding dispenser.

- The detection time may vary depending on the type of the detergent/softener.

Technical line drawing of a mechanical component with mounting holes and a black arrow indicating direction (no text or symbols)

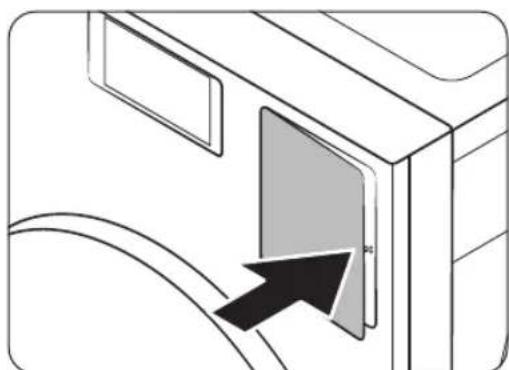

1. Press the Compartment cover to open it.

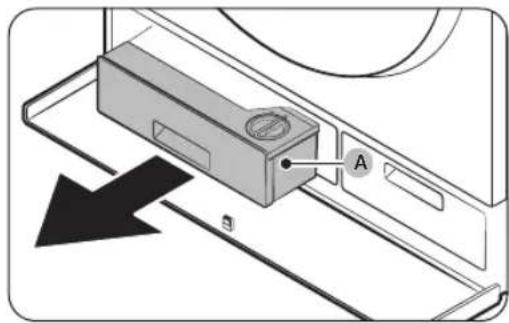

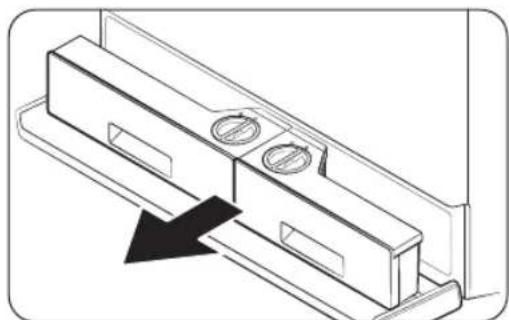

2. PullouttheAutodispensers

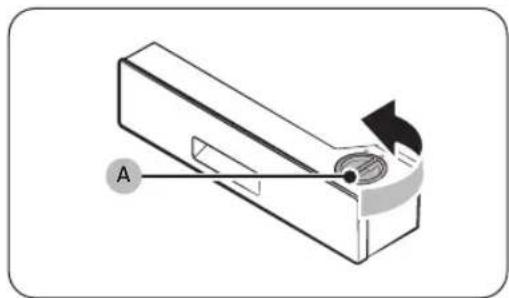

Mechanical component diagram showing a lever mechanism with labeled point A (no text or symbols beyond label)

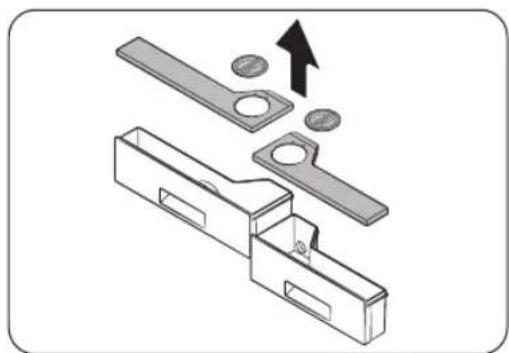

1. Turn the Auto dispenser cap (A) counterclockwise to open.

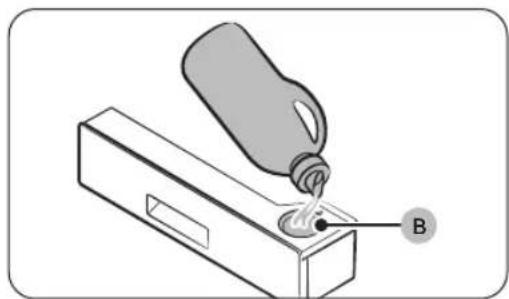

Illustration of a bottle pouring liquid into a container with label B (no text or symbols on the diagram itself)

1. Apply an appropriate amount of detergent to the Auto dispenser (B).

- After you finish, put the cap back and turn it clockwisetoclose.

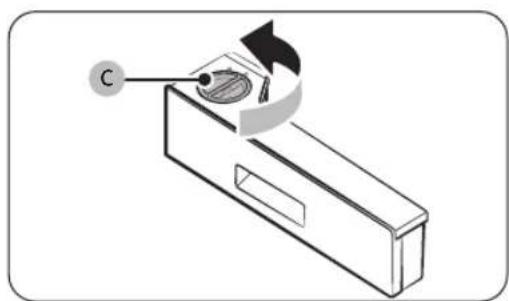

Diagram of a mechanical device with a circular component and directional arrow, no text or symbols present

1. Turn the Flex auto dispenser cap (C) counterclockwisetoopen.

Before you start

Illustration of a bottle pouring liquid into a container with label D (no text or symbols on the diagram itself)

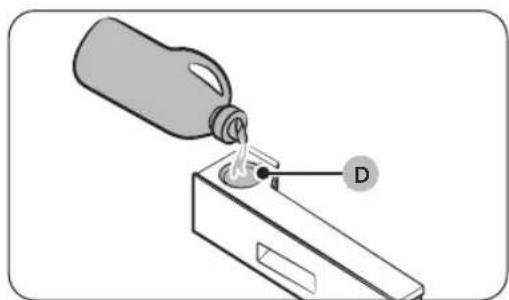

1. Apply an appropriate amount of detergent (General detergent or Specialty detergent) or softener to the Flex auto dispenser (D).

- After you finish, put the cap back and turn it clockwisetoclose.

Technical line drawing of a mechanical component with mounting holes and a black arrow indicating direction (no text or symbols)

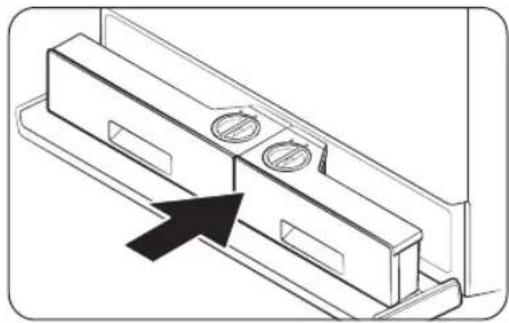

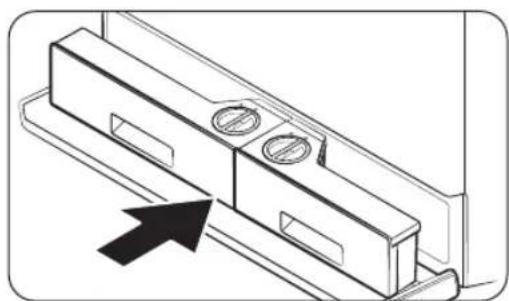

1. Push the Auto dispensers back into their positions.

2. ClosetheCompartmentcover.

English38

Dispensercare

You can check the detergent type used in each dispenser.

NOTE

On the Dispenser care screen, the current status of detergent and fabric softener is displayed and will alert you if any of the dispensers are running low. Follow the on-screen instructions to refill the detergent or fabricsoftener.

1. On the Home screen, tap Dispenser care to move to the Dispenser care screen.
2. Check the amount of detergent in each dispenser and fill the dispenser if the amount is low.
3. Tap to move to the Home screen.

Operations

WARNING

To reduce the risk of fire, electric shock, or injury to persons, read the Safety information before operating this Laundry Combo.

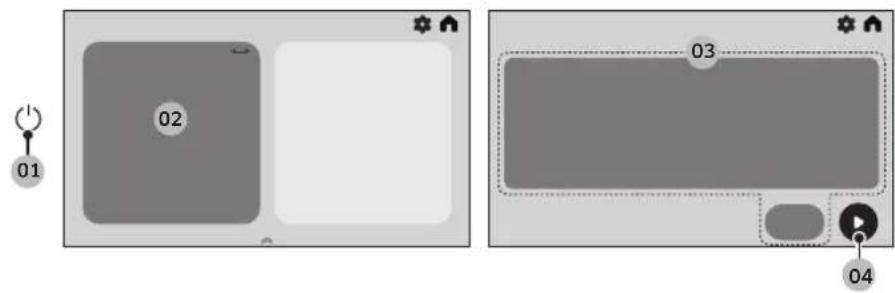

LCDpanel

01 02 03 04 05 06

01 Power	Tap to turn the Laundry Combo on or off.
02 Display	The display shows current cycle information and estimated time remaining, or an information message when a problem occurs.
03 SmartControl	Tap to activate or deactivate the Smart Control function.Touch and hold to enter pairing mode to connect to the SmartThings app.When the Smart Control function is activated, you can control your Laundry Combo remotely using the SmartThings app on your smartphone or tablet (Android or iOS).For more information onSmart Control, see page 59.
04 Appdockhandler	Drag the App dock handler upward to open the App dock.The App dock handler only appears on the Home screen.
05 Apptraybutton	Tap to view all available apps.App drawer: Tap App tray to open App drawer. You can open the App drawer toquicklyopentheSmartThings,Timer,Bixby,Weather,Ring,Internet,or Settingsapp.
06 Appdock	App dock displays the icons to allow easier access to the frequently used apps.Maximum five icons are displayed in the App dock and they are editable.

English40

Displayicondescriptions

	Home	Tap to go to the Home screen.
	Settings	TaptoentertheSettingsmenu.For more information on Settings, see page 52.
	DoorLock	This icon indicates the door is locked and cannot be opened.The door locks automatically during a cycle and this icon turns on.You can open the door when this icon disappears.
	Smart Control	This icon indicates that the Smart Control is on.
	Washer(WashOptions)	This icon appears during a wash-only cycle or a washing process. You can tap this icon to change the cycle settings.Tap the desired button to change the default wash cycle settings.Temp.: Tap to change the water temperature for the selected cycle.Spin: Tap to change the spin speed for the selected cycle.Rinse Hold & No Spin: The final rinse process is suspended so that the laundry remains in the water. To unload the laundry, run a drain or spin process.Drain & No Spin: The drum does not spin after the final drain process.Soil: Tap to change the soil level for the current cycle.Detergent: You can select the amount of the detergent to be dispensed during each wash cycle.Softener: You can select the amount of the softener to be dispensed during each wash cycle.Extra Rinse: Adds an additional rinse at the end of the cycle to remove laundry additives more thoroughly.- Tap to turn on or off this function.Bubble Soak: This function helps remove a wide variety of stubborn stains. With Bubble Soak selected, laundry is thoroughly soaked in water bubblesforeffectivewashing.-Taptoturnonoroffthisfunction.

Operations

[0W7T]	Dryer(DryOptions)	This icon appears during a dry-only cycle or a drying process. You can tap this icon to change the cycle settings.Tap the desired button to change the default dry cycle settings.Dryness: Tap to change the dry level. You can select from 4 different levels, but the available level depends on the selected cycle.Dry Time: Tap to change the cycle time.- Some cycles do not support a time setting.- You can set the drying time between 20 minutes and 240 minutes.However, available drying time depends on the selected cycle.Dry Prep: After the washing process is complete and before the drying process begins, the Laundry Combo pauses and alerts the user to remove items unsuitable for drying.- If you do not tap the pop-up message within the waiting period, the drying process will start automatically after waiting for 10 minutes.- Dry Prep is only available for the cycles that include both washing and dryingprocess.Wrinkle Prevent: Reduces wrinkles by rotating the drum intermittently after completing the dry cycle. Wrinkle Prevent provides approximately 180 minutes. The load is dry and can be removed at any time during the WrinklePreventcycle.-Taptoturnonoroffthisfunction.
	Washerand Dryer	This set of icons appears to show that you can set or have already set the wash and dry cycle settings.
	OpenDoor	Tap this button to open the door.The button deactivates when the door is open and reactivates when the doorisclosed.
[2726]	Start	You can start the operation.
	Pause	You can pause the operation.During the operation, tap the button to pause.

English42

Operatingacycle

01 02 03 04

1. Tap ⏻ to turn the power on.
2. Selectthedesiredcycle.

- For more information on Cycle overview, see page 44.

1. Changethedefaultcycleoptions.

For the washing process, tap Temp., Spin, Soil, Detergent, Softener, Extra Rinse, or Bubble Soak to change the default cycle settings.
For the drying process, tap Dryness, Dry Time, Dry Prep, or Wrinkle Prevent to change the default cyclesettings.
You cannot set the Dry Time for the Time Dry and Air Fluff cycle.

- You can select a wash-only cycle or dry-only cycle.

-YoucansettheDelayEndfunction.
- Not all cycles have additional functions available.

1. Tap ⬆ to start the operation.

- Once you set the cycle you want, the screen displays brief cycle descriptions and cycle duration. You can also check the cycle progress, remaining cycle time, and information codes.

TE

• To change the cycle, tap View All, and then select the desired cycle.
- After the dry cycle ends, the clothes may feel slightly damp or cool to the touch. This is because the combo is designed to dry clothes at low heat in a sealed drum. However, you don't need to worry as the clothes will feel completely dry once you take them out of the drum and shake them.

Operations

Cycleoverview

Cycledescriptions

You can add or delete cycles to personalize the cycle list in the My cycles option. See page 56 for more information.

BOTE

• Energy savings will vary depending on loads and cycles. Energy consumption could increase if the LCD screen is set to stay on all year long.
• If you have finished the wash cycle with a lower Spin setting, the laundry might not be fully dried after the dry cycle. In this case, run the Time Dry cycle additionally.
  • To ensure even drying results, you may need to reposition the items in the drum.
  • Use the Towels cycle if you need to dry only the towels.

Wash+Drycycles

Cycle	Description
Normal	For cottons, bed linens, table linens, underwear, towels, or shirts.The washing time and the rinse count are automatically adjusted according to the load.Defaultenergycyclefordrying:Normal- To access the Normal cycle on the LCD models, turn on the power, and select Cycle > Normal.
AI Opti Wash & Dry	The Laundry Combo detects the type, weight, and soil level of your laundry, and then selects the wash cycle settings accordingly. For example, the Laundry Combo will add more detergent*, washing time, and rinse count if your laundry is heavily soiled, and it will select appropriate settings to handle delicate items.*: We recommend enabling the Auto Dispense function if you use the AI Opti Wash & Dry cycle. Enable the Auto Dispense function if you want the Laundry Combo to adjust the detergent amount automatically according to the soil level of your laundry.- Based on internal testing using the AI Opti Wash & Dry cycle on an IEC 8 lb load. A turbidity sensor operates for all weight while fabric sensing operates for 8lb and under. Actual results may vary dependingonindividualuse.
SuperSpeed	The shortened time may differ depending on the load/options.For best performance, recommended load is 10 lb (4.5 kg) or lower.
Heavy Duty	For sturdy, colorfast fabrics and heavily soiled items.
SmallLoad	For lightly soiled items that you want to finish washing quickly.For best performance, recommended load is 4 lb (2.0 kg) or lower.

English44-

Cycle	Description
TidePODCold	The Tide POD Cold cycle provides deep cleaning as the detergent dissolves effectively even in cold water.Appropriate for the household laundry loads when used with Tide PowerPODs.
Delicates	For sheer fabrics, bras, lingerie (silk), and other handwash-only fabrics.Using specialty detergent in the Aqua Pebble or Flex auto dispenser isrecommended.
Steam Whites	For white items. You can wash with or without bleach.
SteamSanitize	For colorfast fabrics and heavily soiled laundry, this cycle heats the supplied water over 60 °C (140 °F) to clean deeply.If you stop running the cycle while the Laundry Combo is heating the water, the door remains locked for your safety.
Steam Normal	For washing everyday garments with steam.
Towels	For bath towels, washcloths, and mats.
Bedding	For bulky items such as comforters, blankets, and sheets.For best results, wash only 1 type of bedding.For bulky items, use liquid detergent and do not roll the items in the drum because they might get stuck in the drum.
Activewear	For exercise wear such as sports jerseys, training pants, shirts/tops and other performance clothing. This cycle provides effective soil removal with controlled drum rotation for special fabric care.Using specialty detergent in the Aqua Pebble or Flex auto dispenser isrecommended.
Wool	Specific for machine-washable wool for loads less than 4 lb (2.0 kg).TheWoolcyclefeaturesfinepulsatingandsoakingtoprotectthe wool fibres from shrinkage/distortion.Using specialty detergent in the Aqua Pebble or Flex auto dispenser isrecommended.
Colors	This cycle washes items in low-temperature water to prevent discoloration.
PermPress	For wash-and-wear, synthetic fabrics, and lightly to normally soiled items.
EcoCold	For normally and lightly soiled items. This cycle uses only cold water to save energy. Cold water also helps prevent fabric damage.
LessMicrofiber	Use this cycle to reduce the amount of microfibers generated during washingsyntheticclothes.

Operations

Cycle	Description
Spin Only	To perform the spin process only.
Rinse+Spin	Features an additional rinse process after fabric softener is applied tothelaundry.

Drycycles

Cycle	Description
Time Dry	You can set the cycle time from 20 minutes to 250 minutes.
Air Fluff	Tumbles the load in room temperature air.

ProductCarecycles

Cycle	Description
ProductCare	Self Clean+ (Wash cycle)• Cleans the drum by removing dirt and build-up from the drum.• Performanceevery30washes.• Makesurethedrumisempty.
	Self Dry (Dry cycle)You can sterilize the drum to maintain its cleanliness.• An alert message to perform the Self Dry cycle appears after every 40 uses. Use this cycle regularly to dry inside the drum and prevent odor.

English46

Cyclechart

Use this chart to set the best cycle and options for your laundry.

WashCyclechart

● : factory setting, ○ : can be selected

Cycle	Functions
	Temp.
	Extra Hot	Hot	Warm	Cold	Tap Cold
Normal	○	○	●	○	○
Al Opti Wash & Dry		○	●	○	○
Super Speed		○	●
Heavy Duty	○	●	○	○	○
Small Load		○	●	○	○
Tide POD Cold				○	●
Delicates			○	○	●
Steam Whites		●
Steam Sanitize	●
Steam Normal		●
Towels		○	●	○	○
Bedding			●	○	○
Activewear			●	○	○
Wool			●	○	○
Colors				●
Perm Press			●	○	○
Eco Cold				○	●
Less Microfiber				○	●
Spin Only
Rinse+Spin
Self Clean+	●

Operations

For best results, follow the load size recommendations for each dry cycle.

• Large load: Fill the drum to about ^3/_4 full. Do not add items over this level as they need to tumble freely.
• Medium load: Fill the drum to about ^1/2 full.
• Small load: Fill the drum with 3-5 items, not more than ^1/4 full.

Cycle	Recommended items	Load size	Dry level
Normal	Cotton, mixed loads of cotton and synthetic fabrics		Normal
Al Opti Wash & Dry	Cotton, mixed loads of cotton and synthetic fabrics		Normal
Super Speed	Synthetic fabrics		Normal
Heavy Duty	Heavy fabrics such as jeans, corduroys, heavy work clothes		Normal
Small Load	Small loads		Normal
Tide POD Cold	Cotton, mixed loads of cotton and synthetic fabrics		Normal
Delicates	Underwear, lingerie		Less
Steam Whites	Cotton, mixed loads of cotton and synthetic fabrics		More
Steam Sanitize	Bedding, curtains, children's clothing		More
Steam Normal	Cotton, mixed loads of cotton and synthetic fabrics		More
Towels	Bath towels and similar items		Normal
Bedding	Blankets, sheets, comforters, pillows		Normal
Activewear	Exercise wear, sports jerseys		Less
Wool	For machine washable and tumble dryable wool only		Damp
Colors	Cotton, mixed loads of cotton and synthetic fabrics		Normal
Perm Press	Wrinkle-free cotton, synthetic fabrics		Less
Eco Cold	-		Normal
Less Microfiber	The drying process is off as a default setting.	-	-
Time Dry	Any load		-
Air Fluff	All types of fabric		-
Self Dry	-	-	-

English50-

● : factory setting, ○ : can be selected

1. Tap.
2. Tap General or Washer.
3. Scroll through the screen to select the desired menu.
4. Change the settings or start the function.

TE

• To return to the Home screen, tap < on the top left corner, or ⚠ on the top right corner of the screen.
• If the selected function is not supported, the "Currently not supported" message is displayed, and the OK button is not activated.
• When you select an additional function, a brief help message appears for the first ten times of use.

Settingsmenudescription

General

Options	Descriptions
Samsungaccount	You can log in to your Samsung account or create a new Samsung account.
Connections	You can turn the Wi-Fi on or off. You can also start the Smart Control function.Wi-Fi: Tap to turn on or off the Wi-Fi.The Laundry Combo's Wi-Fi is off as a factory default setting.However, the Laundry Combo's Wi-Fi turns on automatically when you turn on the Laundry Combo for the first time. Then, the final Wi-Fi setting is maintained regardless of the Laundry Combo powerstatus.Once you turn on the Laundry Combo's Wi-Fi and connect to a network, the Laundry Combo remains connected to the network even when you turn off the power.The Wi-Fi indicates that the Laundry Combo is connected to the router through the Wi-Fi connection.Easy Connection: You can easily install the SmartThings app using the displayed QR code on the screen.You can connect to the SmartThings app and control your Laundry Comboremotely.

English52

Options	Descriptions
Lock	You can lock the control of the Laundry Combo to prevent children or infants from accidentally starting or setting the Laundry Combo.When Lock is enabled, the touch screen and the door become locked for safety.Youcanenable/disableLockinanyselectedcycle.Press and hold the Unlock button for 3 seconds to unlock.TOTEIf you want to put additional items into the Laundry Combo while Lockisenabled,youmustdisabletheLockfunctionfirst.You cannot open the door after a wash cycle when the Lock is on. Disable the function first, and then open the door and take out the laundry.- Turn on the power, tap > General > Lock and set the function to Off. Then, you will be able to open the door.
Sounds	YoucansettheSoundmode,Soundtheme,Volume,andVoicestyle.Sound mode: You can set the desired Sound mode from Voice, Tone, andMute.- If you set the Sound mode to Mute, the alert sound will not be turned off for safety purposes.Sound theme: You can select the desired Sound theme. Tap a theme once to preview the sound.Volume: You can adjust the volume for system and media sounds.- Sound mode will automatically change to Voice if you adjust the volume while the Sound mode is set to Mute.Voice style: You can select the desired Voice style. Tap a style once to previewthesound.
Homedevicenotifications	You can turn on or off the notifications for your home devices registered ontheSmartThingsapp.
Display	You can set the Brightness and Font size.
Display and style	You can set the Screen theme.

Operations

Options	Descriptions
Bixby	YoucansettheVoicewake-upandSoundfeedbackoptions.NOTEThe microphone for voice recognition is built into the Laundry Combo'sworktop.The best way to use the voice recognition function is to stand within 3 feet (1 meter) of the Laundry Combo, reduce any background noise, and speak loudly and clearly at a steady pace toward the built-in microphone.The voice recognition function may not work if you stand more than 3 feet (1 meter) away or if you speak too softly.
Microphone	You can enable or disable the use of the microphone.
Language	You can change the system language.
Dateandtime	You can set the time and date automatically or manually and set the desiredtimeformat.
Liquid units	You can select the liquid units.
Accessibility	You cansettheScreenreaderandVisibilityenhancementssettings.Screen reader: Enable this feature to receive voice guidance from your Laundry Combo.Turn on the power, tap- Accessibility - Screen reader, and tap On to enable the feature.When the Screen reader feature is enabled, tapping an item once will read it aloud, and tapping it twice will execute the action. You can also navigate the screen by swiping in any direction with two fingers.Some options in the menu may be unavailable while the Screen readerfeatureisenabled.NOTETo disable the feature, follow these instructions. (single tap: select / double-tap:execute):Selectat the top right of the screen and double-tap to enter the menu.In themenu, swipe the screen with two fingers to find and select Accessibility, and then double-tap to enter the menu.Select Screen reader, and double-tap to enter the menu.Select Off and double-tap to change the setting.Visibility enhancements: You can change the High contrast and Text size settings to enhance the visibility.

English54

Options	Descriptions
Softwareupdate	You can download and install the latest version of the software. Download begins automatically when the Laundry Combo is connected toWi-FI.
Support	You can check the user guide or start the remote support service.• Get remote support for all your needs related to your appliance.
Reset	You can reset network settings or reset all settings.• Reset network settings: Turn on the power, tap ⚙ - General - Reset- Reset network settings - Reset in that order.- This will reset the Wi-Fi and SmartThings connection settings.• Reset all settings: Turn on the power, tap ⚙ - General - Reset- Reset all settings - Reset in that order.- This will reset all the settings, including network settings and personaldata.- Your Laundry Combo resets to the factory setting.• Restart: Restart the device.
Aboutdevice	You can check the information of the Laundry Combo such as Status and Legalinformation.

Operations

Washer

Options	Descriptions
Drumlight	This turns on the light inside the drum so you can check the status of the items inside.
Autodispensers	You can select the dispenser mode and set the detergent type, concentration, and amount setting. The Laundry Combo automatically dispenses an adequate amount of detergent for the selected cycle.Dispenser mode: You can select the Dispenser mode. The default setting is General detergent and Softener.- You can select General detergent and Softener, General detergent and Specialty detergent, or General detergent and General detergent.Detergenttype- Auto dispenser: You can only select General detergent.- Flex auto dispenser: You can set this dispenser to dispense detergent (General detergent, Specialty detergent) or softener.Concentration: You can change the concentration level.- 1x > 2x > 3x - The default setting is 1x .Amount: You can select the amount of the detergent to be dispensed during each wash cycle.- Low > Medium > High- The default setting is Medium.TE- You can enable and disable automatic detergent dispensing and set the detergent amount to be dispensed for each cycle. You must put detergent manually if you disable the automatic detergent dispensing.For the cycles that require the use of special detergent, only the availableoptionsaredisplayed.

English56

Options	Descriptions
Pumpclean	You can use this function to clean detergent or softener residue buildup in the pump.Use this function after you empty and clean the dispenser.You can select fromAuto dispenser,Flex auto dispenser,or Auto dispenser/Flex auto dispenser.- Pour water up to the MAX line in the dispenser, and then tapStart cleaning.TEDuring the pump cleaning process, the drum rotates to drain water. When the pump cleaning process is complete, the water inside the dispenser(s)willdrainautomatically.
AutoOpenDoor	You can set the Laundry Combo door to open automatically after the cycleisfinished.The default setting isOpen immediately.However, if you perform only the washing process, theOpen 5 mins latersetting applies.You can select fromOpen 5 mins later,or Open immediately.TEAvailableoptionsfortheAutoOpenDoorfunctionareactiveonly when the function is on. The options are inactive when the function isoff.TheAutoOpenDoorfunctiondoesnotworkwhenLockisenabled.The door will not open at the end of the cycle if you have enabled the StayConnectfunctionintheSmartThingsapp.
Alpattern	This function saves frequently used cycles and settings. When you turn the function on, the Laundry Combo remembers the cycles you use most and their settings (Wash cycles:Temp.,Spin,andSoil/Dry cycles:DrynessandDry Time) and displays them in frequency order.The default setting isOn.Set it toOffif you do not want to use this function.When you turn off the function, all the saved data resets.
Mycycles	Add or remove cycles to create a personal cycle list.You can only edit a cycle to create a personal cycle when the Laundry Combo is not operating.TETheNormalandProductCarecyclecannotberemovedfromthelist ofcycles.YoucanalsoeditMycyclesintheSmartThingsapp.

Operations

Options	Descriptions
Calibration	You can run calibration again for accurate weight detection.Calibration does not start if the door is not closed properly.The drum rotates clockwise and counterclockwise for about 3 minutes.
Selfdiagnosis	You can use this function to check for abnormal signs on your Laundry Combo.If the Laundry Combo detects an error, an information code and solution is displayed on the LCD panel.

DelayEnd

You can set the Laundry Combo to finish your wash automatically at a later time, choosing a delay of between 5 hours to 24 hours.

1. Select a cycle and change the cycle settings as necessary.
2. Tap Delay End at the bottom of the Cycle screen.

3. Set the desired end time, and then tap OK.

4. Status shows in the display and the Laundry Combo tumbles the drum to sense the weight of the load (if load sensing is preset for the selected cycle). When load sensing is complete, the display shows the remaining time until the end of the wash cycle.

5. The time at which the operation ends may vary depending on the amount and condition of the laundry items.
   To cancel Delay End, tap Stop to restart the Laundry Combo.

English58

Specialfeatures

SmartControl

You can connect to the SmartThings app and control your Laundry Combo remotely.

ConnectingyourLaundryCombo

1. Download and open the SmartThings app on your smartphone or tablet (Android & iOS).
2. Tap to turn on the Laundry Combo.
3. Tap and hold ☑.

a. The Laundry Combo enters AP mode and connects to your smartphone or tablet.
b. Tap 🔒 to authenticate your Laundry Combo.
c. Once the authentication process is complete, your Laundry Combo is successfully connected to the app.

- You can use various features available in the SmartThings app.

TE

• If your Laundry Combo fails to connect with the SmartThings app, try again.
• Check your router if you experience any Internet connection problem after connecting your Laundry CombowiththeSmartThingsapp.
• If the Wi-Fi is off, tap and hold ⚙ > Connections, and then turn the Wi-Fi on.
• Turning the Laundry Combo's Wi-Fi on allows you connect to the Laundry Combo through the SmartThings app on your smartphone or tablet, regardless of the power status of the Laundry Combo. However, the Laundry Combo appears offline on the SmartThings app if the Laundry Combo's Wi-Fi is off.
• ClosethedoorbeforestartingtheSmartControlfunction.
• If you use your Laundry Combo for a while without connecting it to the SmartThings app, a pop-up message about Smart Control will show for 3 seconds on 20th, 40th, and 60th use.
• If the Laundry Combo's Wi-Fi is not connected to an AP (access point), the Wi-Fi will turn off when you turn of the power.

StayConnect

Set up the Stay Connect function in your SmartThings app to keep Smart Control turned on at the end of a cycle. Your Laundry Combo stays connected to the app so you can send additional instructions, whether you are at home or away.

1. If you turn on the Stay Connect function on the SmartThings app, the Laundry Combo will stay in standby power saving mode after completing a cycle.
2. The Stay Connect function will remain active for up to 24 hours if the door remains closed.
3. When the Stay Connect function is active, the Smart Control, Door Lock, and Wi-Fi icons are illuminated on the LCD display.
4. You can conveniently control your Laundry Combo, adding rinse, spin cycles using the SmartThings app.

English

Operations

TE

• The Laundry Combo switches to standby power saving mode when operation is paused even if the machine is not connected to the SmartThings app.
  • In some circumstances, only the Door Lock icon may be illuminated.

SmartThings

Wi-Ficonnection

On your smartphone or tablet, go to Settings and turn on the wireless connection and select an AP (Access Point).

• This appliance supports the Wi-Fi 2.4 GHz protocols.

Download

On an app market (Google Play Store, Apple App Store, Samsung Galaxy Apps), find the SmartThings app by searching for "SmartThings". Download and install the app on your device.

BOTE

The app is subject to change without notice for improved performance.

Login

You must first log into SmartThings with your Samsung account. To create a new Samsung account, follow the instructions on the app. You don't need a separate app to create your account.

NOTE

If you have a Samsung account, use the account to log in. A registered Samsung smartphone or tablet user automaticallylogsin.

English60-

ToregistryourappliancetoSmartThings

1. Make sure your smartphone or tablet is connected to a wireless network. If not, go to Settings and turn on the wireless connection and select an AP (Access Point).
2. Open SmartThings on your smartphone or tablet.
3. If a message of "A new device is found.", select Add.
4. If no message appears, select + and select your appliance in a list of devices available. If your appliance is not listed, select Device Type > Specific Device Model, and then add your appliance manually.
5. RegistryourappliancetotheSmartThingsappasfollows.

a. Add your appliance to SmartThings. Make sure your appliance is connected to SmartThings.

b. When registration is complete, your appliance appears on your smartphone or tablet.

If you're moving out, we recommend you completely wipe the appliance and do a network reset on it before you leave it behind.

If you're moving in, the easiest way to take control and remove the previous user's access is to add it to SmartThings yourself. But if you don't plan on using SmartThings, a network reset should be performed to protect your privacy. In rental properties, there's a regular change of ownership. To ensure resident privacy, Wi-Fi and/or other connectivity settings should be reset at each change of resident. Please refer to factory reset instructions in this manual.

Maintenance

Keep the Laundry Combo clean to prevent deteriorated performance and to preserve its life cycle.

WARNING

• Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing. Service personnel – Do not contact the following parts while the appliance is energized: Control board, heat sink, motor, inlet valve and pump.
• Sharp Edges - To reduce the risk of injury, use care when cleaning the condenser or evaporator coil fins.

ProductCare

The Product Care screen offers maintenance tips to keep your Laundry Combo clean and prolong the product life cycle.

You can check the remaining number of cycles until the next Self Clean+ and Self Dry duration, and start theSelfClean+orSelfDrycycle.

BOTE

If the Product Care cycle needs to be performed, a guide message will appear on the Home screen. Follow the on-screen instructions to run the Self Clean+ or Self Dry cycle.

1. On the Home screen tap Product Care to move to the Product Care screen.

2. Tap Clean now or Start cleaning under the desired option to start the care cycle.

3. All the options for the Product Care cycle are set automatically.

4. If both the drum and the heat exchanger require cleaning, all the necessary options for the Product Care cycle are set automatically.

5. Tap to move to the Home screen.

English62

SelfClean+

Certain usage and environmental conditions may result in some residue build-up or odor in the drum. To prevent this build-up or odor and keep the drum fresh and clean, perform the Self Clean+ cycle at least once a month or every 40 cycles. Perform the recommended procedure below when using the Self Clean+ cycle.

1. Tap. ⏻
2. On the cycle screen, select Product Care > Self Clean+.
3. TapCleannow.

CAUTION

If there is chlorine bleach left in the drum for an extended period of time, rust can occur.

TE

• The water temperature for Self Clean+ is defaulted to Extra Hot. This temperature cannot be changed.
• In the case where residue is present in the drum, add liquid chlorine bleach to the MAX level line in the Manual bleach compartment before starting the Self Clean+ cycle. Do not add the liquid chlorine bleach to the other compartments (This is only the case for Self Clean+ cycle).
• Do not exceed the max line. Do not use or mix any other detergent or chemicals during the Self Clean+ cycle. If necessary, run a Rinse+Spin cycle after the Self Clean+ cycle has completed to help remove any remaining residue.

SelfClean+reminder

• After every 40 cycles, the Laundry Combo displays the "Time to run Self Clean+ ▷ Press Clean now to start the Product care cycle." message for an hour to alert you to run the Self Clean+ cycle.
• It is recommended to run the cycle regularly for hygienic purposes.
• You will see the Self Clean+ alert message when the Laundry Combo completes a cycle. If you open the door, the message disappears, and the display shows the Self Clean+ cycle setting screen automatically. At this time, the LCD panel displays the recommended drying cycle.
• The reminder will appear on the LCD panel for 5 additional consecutive cycles before turning off. The next reminder will not appear until another 40 cycles have been completed.

Maintenance

SelfDry

1. Tap. ⏻
2. On the cycle screen, select Product Care > Self Dry.

3. TapCleannow.

4. When you start the Self Dry cycle, the calibration process is included in the cycle to enable more precise weightdetection.

5. If you leave the door open after the Self Dry cycle is completed, it helps maintain hygiene inside the LaundryCombo.
6. After every 30 uses, an alert message to perform the Self Dry cycle appears. Use this cycle regularly to dry inside the drum and prevent odor.

CAUTION

Make sure to empty the drum before using this cycle.

English64-

Emergencydrain

In case of a power failure, drain the water inside the drum before taking out the laundry.

Diagram showing a device with labeled components A and B, indicating directional movement or assembly.

1. Power off and unplug the Laundry Combo from the electrical outlet.
2. Press the Compartment cover to open it.

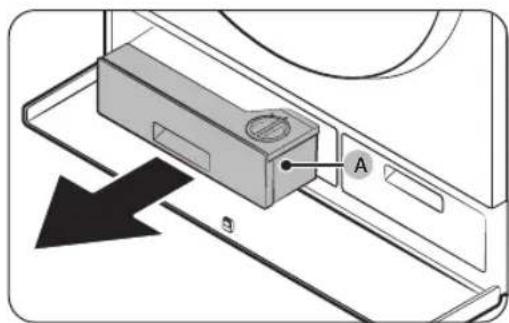

3. Pull out the Auto dispenser(A).

Diagram showing a mechanical assembly with labeled components and directional arrows, including a magnified inset view.

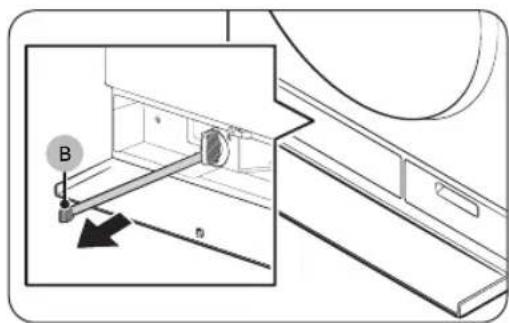

1. Put an empty, spacious container around the cover, and stretch the emergency drain tube to the container while holding the tube cap (B).

Diagram showing kitchen appliance installation with labeled component C and a close-up view of the bowl containing food.

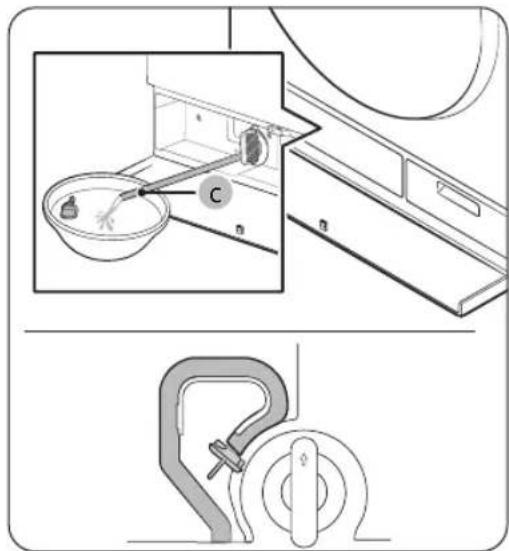

1. Open the tube cap and let water in the emergency drain tube (C) flow into the container.

2. When done, close the tube cap, and reinsert the tube. Then, closethefiltercover.

Maintenance

Diagram of a computer monitor with an attached drive and labeled ports (no text or symbols present)

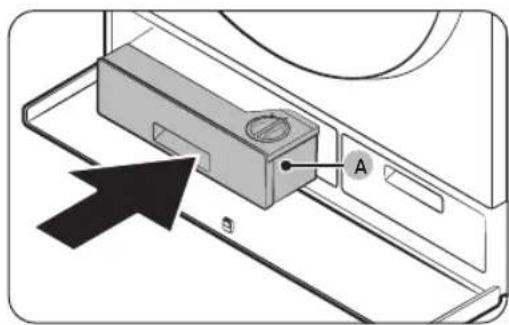

1. Insert the Auto dispenser (A) back into the place.
2. ClosetheCompartmentcover.

TE

Use a spacious container because the water in the drum may be more than expected.

English66

Cleaning

SurfaceoftheLaundryCombo

Use a soft cloth with a nonabrasive household detergent. Do not spray water onto the Laundry Combo.

Meshfilter

Clean the mesh filter of the water hose once or twice a year.

Diagram showing a cable inserted into a mechanical component with a directional arrow indicating assembly (no text or symbols present)

1. Turn off the Laundry Combo, and unplug the power cord.
2. Closethewatertap.
3. Loosen and disconnect the water hose from the back of the Laundry Combo. Cover the end of each hose with a cloth or towel to prevent water from gushing out.

CABLE HOT

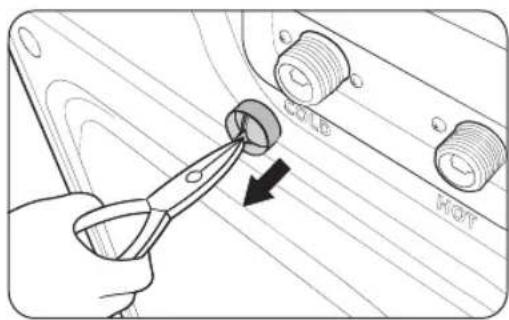

1. Use pliers to pull out the mesh filter from the inlet valve.
2. Submerge the mesh filter deeply in water so that the threaded connector is also submerged.
3. Dry the mesh filter completely in the shade.
4. Reinsert the mesh filter into the inlet valve, and reconnect the water hose to the inlet valve.
5. Openthewatertap.

BOTE

• If the mesh filter is clogged, an information code of "4C" appears on the screen.
• Clean the mesh filter of the water hose more frequently if water is provided by an aged water system or well.

Maintenance

Drainfilter

It is advisable to clean the drain filter every 2 months to prevent its clogging.

Diagram showing a device with labeled ports A and B, indicating a directional relationship or movement in the system.

1. Turn off the Laundry Combo, and unplug the power cord.

2. Drain the remaining water inside the drum. (For more information, see the Emergency drain section on page 65.)

3. Press the Compartment cover to open it.

4. Pull out the Auto dispenser(A).

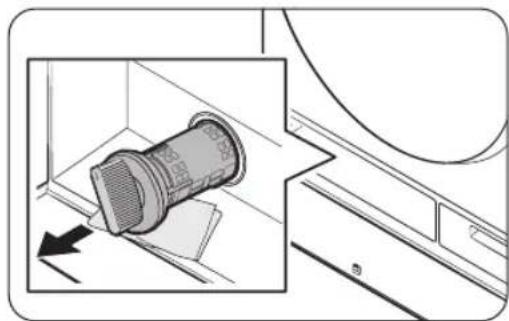

5. Turn the drain filter knob to the left, and drain off the remaining water.

Diagram showing a cylindrical component inserted into a housing, with an arrow indicating direction (no text or symbols present)

Line drawing of a sink with a showerhead and a tool, no text or symbols present

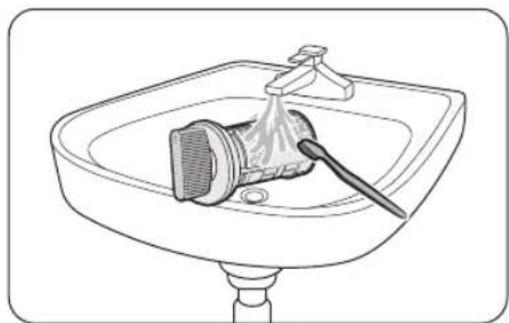

1. Clean the drain filter using a soft brush. While the drain filter is removed, make sure the impeller inside the drain pump is free of debris.

Diagram showing a mechanical component rotating around a window, with no visible text or symbols.

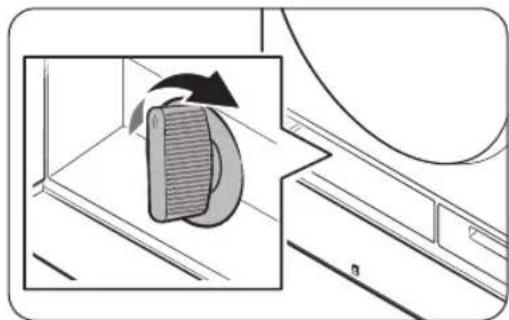

1. Reinsert the drain filter, and turn the filter knob to theright.

TE

Some drain filters feature a safety knob that is designed to prevent accidents by children. To open the safety knob of the drain filter, push in and turn it to the left. The spring mechanism of the safety knob helps open the filter.

English68

Diagram of a computer monitor with an attached control panel and labeled ports (no text or symbols present)

1. Insert the Auto dispenser (A) back into the place.
2. ClosetheCompartmentcover.

ROTE

If the drain filter is clogged, an information code of "5C" appears on the screen.

CAUTION

• Make sure the filter knob is closed properly after cleaning the filter. Otherwise, this may cause a leak.
- Make sure the filter is inserted properly after cleaning it. Otherwise, this may cause an operational failureoraleak.

Maintenance

Autodispensers

To prevent the detergent residue buildup in the automatic dispensers, clean the dispensers and their components once or twice a month, and whenever you refill or change the detergent or softener.

CAUTION

• Make sure to turn off the Laundry Combo and unplug the power cord before cleaning.
- If you are not going to use the Laundry Combo for a long time, empty the dispensers and clean them thoroughly.

Technical line drawing of a mechanical component with two circular holes and a black arrow indicating direction (no text or symbols)

1. Press the Compartment cover to open it.
2. PullouttheAutodispensers.

Mechanical assembly diagram showing a bracket with cutouts and a magnified view of a component (no text or symbols)

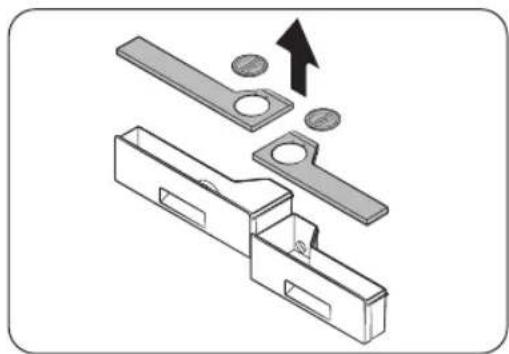

1. Remove the lids of both dispensers using the pull tabs at the back of each lid.

Line drawing of a bathroom sink with a toothbrush cleaning the surface (no text or symbols)

1. Clean the dispensers and all the other components under warm running water with a soft brush.

- Wipe all components with a dry towel or cloth aftercleaning

English70

Illustration showing two different kitchen sink behaviors: one with a drain and arrow, the other with a toothbrush cleaning a basin (no text or symbols)

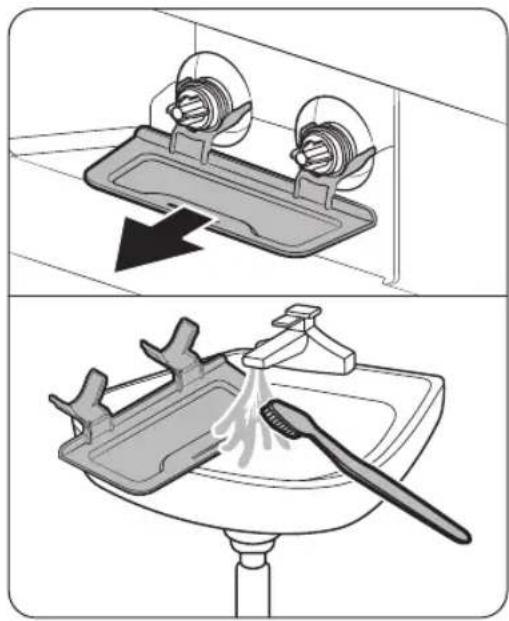

1. Remove the dispenser tray and clean it in running water to remove leaked detergent or softener. Then, putthetrayback.

Technical line drawing of a mechanical component with mounting holes and a black arrow indicating direction (no text or symbols)

1. Push the Auto dispensers back into their positions.

CAUTION

• Make sure the dispenser recess is completely dry before inserting Auto dispensers.
• Tightly attach the tops of both dispensers before inserting them back.

• If the Compartment cover is not tightly closed, detergent may leak. Make sure the auto dispensers are fully pushed in.

• ClosetheCompartmentcover.

CAUTION

Do not spray water into the dispenser recess. It may cause electronic shock or fire.

Maintenance

Doordiaphragm

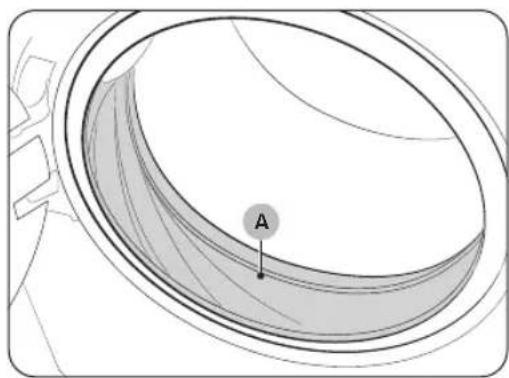

Diagram of a curved mechanical component with labeled point A, showing internal layered structure (no text or symbols beyond label)

1. Open the door, and then empty the drum.
2. Combine 3/4 cups of liquid chlorine bleach and 1 gallon of warm tap water.
3. Wearing rubber gloves, use a soft, clean cloth dipped in the water and bleach solution to clean the diaphragm.
4. Let stand for 5 minutes, and then wipe up and dry well.

CAUTION

Use bleach carefully and be sure to follow the bleach manufacturer's use and care instructions.

English72-

Heatexchanger

A dirty heat exchanger will hinder the product's performance and should be cleaned regularly.

An alert message appears every 180 uses to inform you to clean the heat exchanger. Clean the heat exchanger when you see the alert message.

BOTE

• Water droplets can form around the heat exchanger due to condensation caused by a temperature difference. This is normal and is not a sign of a leak.
• If you are not planning on using the Laundry Combo for a long period, open the Lint filter cover and ventilate.

Diagram of a door with a black arrow pointing to the door panel (no text or symbols present)

1. Press the right side of the Lint filter cover to open it.

Diagram of a computer ventilation unit with airflow direction indicated by an arrow (no text or symbols)

1. Pulloutthelintfilter.

Maintenance

Technical line drawing of a mechanical component with a black cable inserted into a housing (no text or symbols)

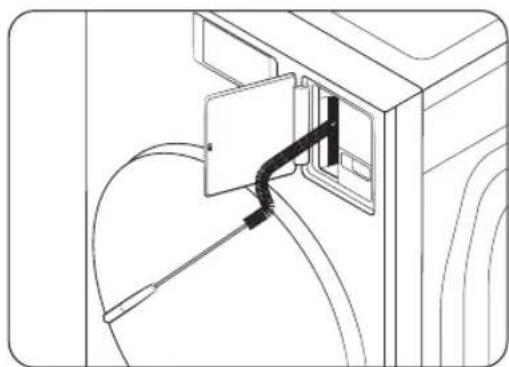

1. Clean the heat exchanger using an appliance brush.
2. After cleaning with a brush, using a vacuum with a crevice tool attachment will remove any other loose debris. Then wipe down the outer area with a damp cloth.

CAUTION

• To avoid physical injury and burns, do not touch or clean the heat exchanger with bare hands.
• When cleaning the heat exchanger, be careful not to damagethefins.

TE

If the heat exchanger is difficult to clean because it is completely dry, spray some water onto it and use a brush to clean it.

1. Insert the lint filter back into the place, and then closetheLintfiltercover.

Diagram of a computer ventilation unit with a grating insert and directional arrow (no text or symbols)

English74

Lintfilter

You must clean the lint filter every time after using the dry cycle. Not cleaning the lint filter could degrade the drying performance and affect the drying time.

Diagram of a server rack with a black arrow pointing to its side panel (no text or symbols present)

1. OpentheLintfiltercover.
2. Pulloutthelintfilter.

- Do not remove the rubber seal on the lint filter.

Two technical diagrams showing a device with internal structure and rotation arrows, no text or symbols present.

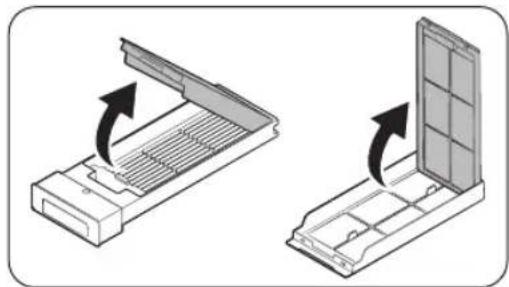

1. Open the outer filter, and then remove the inner filter.

Line drawing of a kitchen sink with a grater and a lid, showing internal compartments (no text or symbols)

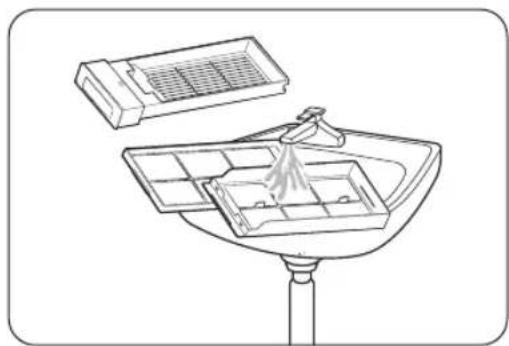

1. Remove lint on both inner and outer filters. Then, wash the filters in running water and completely dry thefiltersinashade.

Maintenance

Diagram of a server rack with ventilation slots and an arrow indicating direction (no text or symbols)

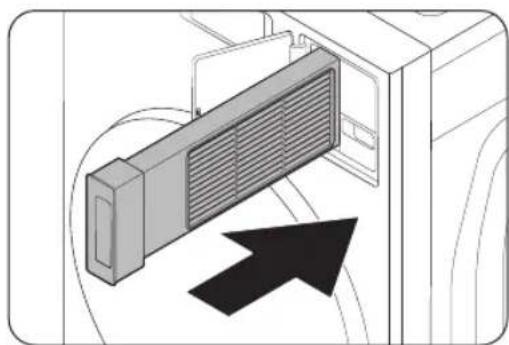

1. Put the inner filter into the outer filter in the correct direction.

2. Insert the assembled lint filter back into the place.

CAUTION

• Clean the lint filter after each load. Otherwise, the drying performance may decrease.
  • If the filter surface is wet, allow it to completely dry before use.
• Inserting the filter while it is wet may lead to the development of mold, unpleasant odors, or resulting in less efficient drying.
• When cleaning or removing the lint filter, do not shake or tap on the filter. Doing so can damage the filter.
• Opening the outer and inner filters carelessly and with excessive force can damage the filters.

TE

Water droplets can form around the heat exchanger because of condensation caused by a temperature difference. This is normal and is not a sign of a leak.

Recoveryfromfreezing

The Laundry Combo may freeze when the temperature in its location drops below 32^ F ( 0^ C).

1. Turn off the Laundry Combo, and then unplug the power cord.
2. Pour warm water over the water tap to loosen the water hose.
3. Disconnect the water hose, and then soak it in warm water.
4. Pour warm water into the drum and leave it for about 10 minutes.
5. Reconnect the water hose to the water tap.

TE

If the Laundry Combo still doesn't operate normally, repeat the steps above.

English76

Care for an extended period of non-use

Avoid leaving the Laundry Combo unused for an extended time. However, if you intend to leave the Laundry Combo unused for a long period of time, follow the directions below:

1. Tap. ⏻
2. On the cycle screen, select Rinse+Spin.
3. Empty the drum, and then tap and hold
4. When the cycle is complete, close the water taps and disconnect the water hoses.
5. Turn off the Laundry Combo, and then unplug the power cord.
6. Open the door to let air circulate through the drum.

Cleaningtheexterior

1. Turn off the water taps after finishing the day's washing.

This will shut off the water supply to your Laundry Combo and prevent the unlikely possibility of damage from escaping water. Leave the door open to allow the inside of your Laundry Combo to dry out.

1. Use a soft cloth to wipe up all detergent, bleach, or other spills as they occur. Clean the following as recommended below:

- LCD panel – Clean with a soft, damp cloth. Do not use abrasive powders or cleaning pads. Do not spray cleaners directly on the panel. - Cabinet–Cleanwithsoapandwater.

CAUTION

Make sure to turn off the Laundry Combo and unplug the power cord before cleaning.

Cleaningtheinterior

Clean the interior of your Laundry Combo periodically to remove any dirt, soil, odor, mold, mildew, or bacterial residue that may remain in your Laundry Combo as a result of washing clothes.

CAUTION

Failure to follow these instructions may result in unpleasant conditions, including odors and/or permanent stains on your Laundry Combo or laundry.

TE

Hard water deposits may be removed, if needed. Use a cleaner labeled "Washer safe".

Troubleshooting

If a problem persists, contact a service center. The number of the service center is on the label attached to the product.

Checkpoints

If you encounter a problem with the Laundry Combo, first check the table below and try these suggestions.

Problem	Action
Does not start.	Make sure the Laundry Combo is plugged in.Make sure the door is properly closed.Make sure the water taps are open.Tap to start the Laundry Combo.MakesureLockisnotactivated.Before the Laundry Combo starts to fill, it will make a series of clicking noises to check the door lock and will do quick drain.Check the fuse or reset the circuit breaker.Check if power is supplied properly.Lowvoltagedetected.- Check if the power cord is plugged in.Make sure laundry is not caught in the door.Cleanthefilter.
Water supply is insufficient, or no water is supplied.	Fullyopenthewatertap.Make sure the door is properly closed.Make sure the water supply hose is not frozen.Make sure the water supply hose is not kinked or clogged.Make sure there is sufficient water pressure.Make sure that the cold water tap and the hot water tap are properly connected.Clean the mesh filter as it may be clogged.
After a cycle, detergent remains in the detergent drawer.	Make sure the Laundry Combo is running with sufficient water pressure.Make sure the detergent is added to the center of the detergent drawer.Make sure the rinse cap is inserted properly.If using granular detergent, make sure the detergent selector is in the upperposition.Remove the rinse cap and clean the detergent drawer.

English78

Problem	Action
Excessivevibrationsor makes noise.	Make sure the Laundry Combo is installed on a level, solid floor that is not slippery. If the floor is not level, use the leveling feet to adjust the height of the Laundry Combo.Make sure the shipping bolts are removed.Make sure the Laundry Combo is not in contact with any other object.Make sure the laundry load is balanced.The motor can cause noise during normal operation.Overalls or clothes with metallic decorations can cause noise while being washed. This is normal.Metal objects such as coins can cause noise. After washing, remove these objects from the drum or filter case.The spinning process is not performing properly because there is not enough laundry or the load is unbalanced.- Add more laundry or redistribute the items, then tap Start to restart the washer. Or, turn off the product and turn it back on after 2-3 minutes, then try again.Removeanyitemsstuckinsidethelintfilter.
Does not drain and/or spin.	Make sure the drain hose is not kinked between the unit and drain system. If you encounter a drain problem, call for service.Make sure the drain filter is not clogged.Close the door and tap and holdFor your safety, the Laundry Combo will not tumble or spin unless the door is closed.Make sure the drain hose is not frozen or clogged.Make sure the drain hose is connected to a drain system that is not clogged.If the Laundry Combo is not supplied with sufficient power, the Laundry Combo will temporarily not drain or spin. As soon as the Laundry Combo regains sufficient power, it will operate normally.Make sure the drain hose is positioned correctly, depending on the connectiontype.Clean the drain filter as it may be clogged.

Troubleshooting

Problem	Action
The door does not open.	Tap to stop the Laundry Combo.It may take a few moments for the door lock mechanism to disengage.The door will not open until 3 minutes after the Laundry Combo has stopped or the power has been off.Make sure all the water in the drum is drained.The door may not open if water remains in the drum. Drain the drum and open the door manually.Make sure the door lock light is off. The door lock light turns off after the Laundry Combo has drained.PowerOffandrestarttheunit.
Excessivesuds.	Make sure you use the recommended types of detergent as appropriate.Use high efficiency (HE) detergent to prevent oversuding.Reduce the detergent amount for soft water, small loads, or lightly soiledloads.Non-HEdetergentisnotrecommended.
Cannot add additional detergent.	Make sure the remaining amount of detergent and fabric softener is not overthelimit.
Stops.	Plug the power cord into a live electrical outlet.Check the fuse or reset the circuit breaker.Close the door, and tap and hold to start the Laundry Combo. For your safety, the Laundry Combo will not tumble or spin unless the door isclosed.Before the Laundry Combo starts to fill, it will make a series of clicking noises to check the door lock and will do quick drain.There may be a pause or soak period in the cycle. Wait briefly, and the Laundry Combo may start.Make sure the mesh filter of the water supply hose at the water taps is not clogged. Periodically clean the mesh filter.If the Laundry Combo is not supplied with sufficient power, the Laundry Combo will temporarily not drain or spin. As soon as the Laundry Combo regains sufficient power, it will operate normally.

English80-

Problem	Action
Fills with the wrong water temperature.	Fullyopenbothaps.Make sure the temperature selection is correct.Make sure the hoses are connected to the correct taps. Flush water lines.Make sure the water heater is set to supply a minimum of 49 °C hot water at the tap. Also, check the water heater capacity and recovery rate.Disconnect the hoses and clean the mesh filter. The mesh filter may be clogged.While the Laundry Combo fills, the water temperature may change as the automatic temperature control feature checks incoming water temperature. This is normal.While the Laundry Combo fills, you may notice just hot and/or just cold water going through the dispenser when cold or warm temperatures are selected. This is a normal function of the automatic temperature control feature as the Laundry Combo determines the water temperature.
Load is wet at the end of a cycle.	Use the High or Extra High spin speed.Use high efficiency (HE) detergent to reduce oversuding.Load is too small. Small loads (one or two items) may become unbalanced and not spin completely.Make sure the drain hose is not kinked or clogged.
Leakswater.	Make sure the door is properly closed.Make sure all hose connections are tight.Make sure the end of the drain hose is correctly inserted and secured to the drain system.Avoidoverloading.Use high efficiency (HE) detergent to prevent oversuding.Checkthedrainhose.- Make sure the end of the drain hose is not placed on the floor.-Makesurethedrainhoseisnotclogged.
Items still wrinkled after WrinklePrevent (Wrinkle Away , WrinkleRelease)	Small loads of 1 to 4 items work best.Load fewer items. Load similar-type items.Take out the items immediately after drying is complete.

Troubleshooting

Problem	Action
The clothes have lint on them.	Always make sure the lint filter is clean before putting items into the Laundry Combo. When drying items that generate a large amount of lint, you may need to clean the lint filter in the middle of a cycle.Some fabrics (such as white towels) causes more lint and should be dried separately from fabrics that lint attaches easily (such as black linenpants).Check the inside of the pockets to make sure they are empty before drying.
Items are not dried.	Check all of the above. Additionally:Do not overload the Laundry Combo. If the Laundry Combo is overloaded, it could take longer for items to dry.Dryheavyfabricsseparatelyfromlightfabrics.The item(s) are too small and may not get enough spinning inside the drum.Cleanthefilter.Cleantheheatexchanger.If a drain hose is connected, make sure the water is draining properly.The load may be too small to tumble properly. Add a few towels and restartthedryer.
Items are not dried evenly.	Seams, pockets, and other parts of clothing are harder to dry than others. This is normal.Sortheavyandlightitemsseparately.
Hasodors.	Excessive suds collect in recesses and can cause foul odors.Run cleansing cycles to sanitise periodically.Cleanthedoorseal(diaphragm).Do not attempt to dry wet items after leaving them in the Laundry Combo for a long time.The Laundry Combo circulates ambient air inside and outside during the drying process to cool the system. Using the drying in a poorly ventilated area may, depending on the operating environment, raise the ambient humidity level and cause a damp, soggy smell to develop. Ensure proper ventilation when using the drying.Dry the interior of the Laundry Combo after a cycle has finished.
A message appears on the display to alert that dispenser is open.	Check if the detergent drawer is closed properly.- Open the detergent drawer and close it again. Make sure it's closed properly.

English82

Problem	Action
The "Needs refill" message does not disappear after refilling the detergent/softener.	After refilling the Auto dispenser and Flex auto dispenser, close the detergent drawer, and then tap and hold. Then, the Laundry Combo will start to detect the detergent/softener, and the message will disappear.Depending on the type of detergent/softener, the message may not disappearimmediately.
Detergent/softener is not dispensed.	Check if the Amount option for Auto dispenser or Flex auto dispenser is set to Off. The automatic dispensers do not dispense the detergent if the option is set to Off.Tap, select Auto dispenser or Flex auto dispenser, and then change the Amount option.TheautomaticdispensersaredisabledintheDelicates,Activewear,or Wool cycles. To dispense detergent in those cycles, tap, select Auto dispenser or Flex auto dispenser, and then change the Amount option.
Excessive or insufficient amount of detergent/ softener is dispensed.	Check the Amount option for Auto dispenser or Flex auto dispenser. Tap, select Auto dispenser or Flex auto dispenser, and then change the Amountoption.
Screen retention occurs while using the LCD screen.	When the temperature around the Laundry Combo is low, screen retention may occur while using the LCD. It will function normally when thetemperaturerises.

If a problem persists, contact a service center. The number of the service center is on the label attached to the product.

Troubleshooting

Informationcodes

If there is any problem, check the information message on the LCD screen and follow the on-screen instructions.

Problem	Code	Action
Check drainage	5C	The Laundry Combo isn't draining properly.Clean the drain filter, then tap Start to restart the Laundry Combo. Or, turn it off and on again after 2-3 minutes, then tryagain.TEIf you perform the Condenser Cleaning function without connecting the water supply hose, you may see the 5C code on the LCD display. In this case, please check the drainage andwatersupplystatus.
Check water supply	4C	Water isn't being supplied properly.Check the faucets, then tap Start to restart the Laundry Combo. Or, turn it on and off again after 2-3 minutes, then tryagain.
Please connect the hot/cold water hose connection correctly	4C2	The water is too hot. Some fabrics need to be protected.Check if the water supply hoses are properly connected, then tap Start to restart the Laundry Combo. Or, turn it off and on again after 2-3 minutes and try again.
Incorrect button state	BC2	A button on the Laundry Combo is still pressed in.Turn off the Laundry Combo, then turn it on again after 2-3 minutes and try again.
Open the door and evenly distribute the load	UB	The spinning process is not performing properly because there is not enough laundry or the load is unbalanced.Add more laundry or redistribute the items, then tap Start to restart the washer. Or, turn off the product and turn it back on after 2-3 minutes, then try again.
Waterproofitems detected	UB1	Yourlaundrycontainswaterproofitems.Remove those items, then tap Start to restart the Laundry Combo. Or, turn it off and on again after 2-3 minutes, then tryagain.
Door is open	DC	The door is open. Close it and try again.
Close the washer door and try again	DC6	AutoOpenDoorisntworkingproperly.If you turn off the power, the door will open. To use Auto Open Door , turn off Lock and Smart control in SmartThings.

English84-

Problem	Code	Action
The door switch lock/unlock is not working properly.	DC1	Turn off the Laundry Combo, then turn it on again after 2-3 minutes and try again.
		Thedoorswitchisn'tworkingproperly.Check for foreign substances around the door, then push the door closed and try again.
Check filter is inserted correctly	NC	Check if the filter is inserted correctly, then tap Start to restart the Laundry Combo. Or, turn it off and on again after 2-3 minutes, then try again.

If any information code keeps appearing on the screen, contact a local Samsung service center.

Specifications

Fabriccarechart

The following symbols provide garment care direction. The clothing care labels include symbols for drying, bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow care label directions to optimize garment life and reduce laundering problems.

Washcycle

	Normal
	Permanent press/Wrinkle resistant/Wrinklecontrol
	Gentle/Delicates
	Handwash

Watertemperature

••• Hot

•• Warm

• Cold

BOTE

The temperature range for Hot is 135 °F (57 °C) or below, 95 °F (35 °C) or below for Warm, and 68 °F (20 °C) or below for Cold. Wash water temperature must be a minimum of 60 °F (16 °C) for detergent activation and effective cleaning.

Bleach

	Any bleach (when needed)
	Only non-chlorine (color-safe) bleach (whenneeded)
	Tumbledry

Normal

	Permanent press/Wrinkle resistant/Wrinklecontrol
	Gentle/Delicates

Specialinstructions

	Line dry/Hang to dry
	Dripdry
	Dryflat

Heatsetting

	High
	Medium
	Low
	Anyheat
	Noheat/Air

Irondryorsteamtemperatures

	High
	Medium
	Low

English86

Warningsymbolsforlaundering

	Donotwash
	Donotwring
	Donotbleach
	Do not tumble dry
	No steam (added to iron)
	Donotiron

Dry-clean

	Dry-clean
	Donotdry-clean
	Line dry/Hang to dry
	Dripdry
	Dryflat

Protectingtheenvironment

• This appliance is manufactured from recyclable materials. If you decide to dispose of it, please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected to a power source. Remove the lid so that animals and small children cannot get trapped inside the appliance.
• Do not exceed the detergent quantities recommended in the detergent manufacturers' instructions.
  • Use stain removal products and bleaches before the wash cycle only when necessary.
• Save water and electricity by only washing full loads (the exact amount depends upon the program used).

Declarationofconformity

ThisappliancecomplieswithUL2157.

Specifications

Specificationsheet

Type			Frontloadingwasher
			WD53DBA9**H*
Capacity (Cu.ft)			5.3
Water pressure (psi (kPa))			20-116 (137-800)
NET weight (lb (kg))			317 (144.0)
Spin revolution			1150 rpm
Heating rating			900 W
Power consumption	Washing	120V	200W
	Washingand heating		1400W
	Spin550W
	Drain80W

NOTE

You can fill the tub with dry, unfolded clothes, but DO NOT OVERLOAD the tub.

English88-

LIMITEDWARRANTY(U.S.A.)

SAMSUNGWASHER

LIMITED WARRANTY TO ORIGINAL CONSUMER PURCHASER WITH PROOF OF PURCHASE AND/OR PROOF OF DELIVERY

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials or workmanship for the following limited warranty periods, starting on the date of delivery to the original consumer purchaser:

Parts and labor : One (1) year

Stainless tub part (Part Only) : Three (3) years

Washing DIT (Digital Inverter Motor) motor part (Part Only):

- Twenty(20)years

This limited warranty is valid only on products purchased and used in the United States that have been installed, operated, and maintained according to the instructions attached to or furnished with the product. To receive warranty service, the purchaser must contact SAMSUNG at the address or phone number provided below for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale and/or proof of delivery must be presented upon request to SAMSUNG or SAMSUNG's authorized service center to receive warranty service.

SAMSUNG will provide in-home service within the contiguous United States during the warranty period at no charge, subject to availability of SAMSUNG authorized servicers within the customer's geographic area. If in-home service is not available, SAMSUNG may elect, at its option, to provide transportation of the product to and from an authorized service center. If the product is located in an area where service by a SAMSUNG authorized servicer is not available, you may be responsible for a trip charge or required to bring the product to a SAMSUNG authorized service center for service.

To receive in-home service, product must be unobstructed and accessible to the service agent.

During the applicable warranty period, a product will be repaired, replaced, or the purchase price refunded, at the sole option of SAMSUNG. SAMSUNG may use new or reconditioned parts in repairing a product, or replace the product with a new or reconditioned product. Replacement parts and products are warranted for the remaining portion of the original product's warranty or ninety (90) days, whichever is longer. All replaced parts and products are the property of SAMSUNG and you must return them to SAMSUNG.

LIMITED WARRANTY (U.S.A.)

This limited warranty covers manufacturing defects in materials or workmanship encountered in normal household, noncommercial use of this product and shall not cover the following: damage that occurs in shipment, delivery, installation, and uses for which this product was not intended; damage caused by unauthorized modification or alteration of the product; product where the original factory serial numbers have been removed, defaced, changed in any way, or cannot be readily determined; cosmetic damage including scratches, dents, chips, and other damage to the product's finishes; damage caused by abuse, misuse, pest infestations, accident, fire, floods, or other acts of nature or God; damage caused by use of equipment, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG; damage caused by incorrect electrical line current, voltage, fluctuations and surges; damage caused by failure to operate and maintain the product according to instructions; in-home instruction on how to use your product; and service to correct installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e., house wiring, fuses, or water inlet hoses). The cost of repair or replacement under these excluded circumstances shall be the customer's responsibility.

Visits by an authorized servicer to explain product functions, maintenance or installation are not covered by this limited warranty. Please contact SAMSUNG at the number below for assistance with any of these issues.

EXCLUSIONOFIMPLIEDWARRANTIES

IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary from state to state.

English90-

LIMITATIONOFREMEDIES

YOUR SOLE AND EXCLUSIVE REMEDY IS PRODUCT REPAIR, PRODUCT REPLACEMENT, OR REFUND OF THE PURCHASE PRICE AT SAMSUNG'S OPTION, AS PROVIDED IN THIS LIMITED WARRANTY. SAMSUNG SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO TIME AWAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS, REMODELING EXPENSES, LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary from state to state.

SAMSUNG does not warrant uninterrupted or error-free operation of the product. No warranty or guarantee given by any other person, firm, or corporation with respect to this product shall be binding on SAMSUNG.

To obtain warranty service, please contact SAMSUNG at:

Samsung Electronics America, Inc.

85 Challenger Road

Ridgefield Park, NJ 07660

1-800-SAMSUNG(726-7864)

www.samsung.com/us/support

English

Warranty(CANADA)

SAMSUNGWASHER

LIMITEDWARRANTYTOORIGINALPURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS CANADA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:

Parts and labor : One (1) year

Washing DIT (Digital Inverter Motor) motor part (Part Only):

- Twenty(20)years

This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the Canada. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center. SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability within the Canada. In-home service is not available in allareas.

To receive in-home service, product must be unobstructed and accessible to the service agent. If service is not available, SAMSUNG may elect to provide transportation of the product to and from an authorized servicecenter.

SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer. This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product and shall not apply to the following: damage that occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning, or other acts of nature or God; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG that damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal and reinstallation; problems caused by pest infestations. This limited warranty does not cover problems resulting from incorrect electric current, voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or fixing installation errors. SAMSUNG does not warranty uninterrupted or error-free operation of the product.

EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE.

English92

NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER'S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.

Some provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.

This warranty gives you specific rights, and you may also have other rights, which vary from province to province.

To obtain warranty service, please contact SAMSUNG at:

Samsung Electronics Canada Inc.

2050 Derry Road West,

Mississauga, Ontario L5N 0B9 Canada

1-800-SAMSUNG(726-7864)

www.samsung.com/ca/support(English)

www.samsung.com/ca_fr/support(French)

FAX:[phone]

Visits by a Service Engineer to explain functions, maintenance, or installation are not covered by warranty.

Please contact your Samsung call agent for help with any of these issues.

Memo

Memo

SAMSUNG

ForWasherOnly

For Dryer Only

This product qualifies for ENERGY STAR in the factory default "Normal" setting. If you change the factory default setting or enable other features, power consumption could increase and exceed the limits qualified for ENERGY STAR.

QR code image containing encoded data, no visible human-readable text

Scan the QR code* or visit

www.samsung.com/spsn

to view our helpful

How-to Videos and Live Shows

*Requires reader to be installed on your smartphone

Scan this with your smartphone

QUESTIONSORCOMMENTS?

COUNTRY	CALL	OR VISIT US ONLINE AT
U.S.A1-800	-SAMSUNG(726-7864)www.samsung.com/us/support
CANADA1-800	-Samsung(726-7864)	www.samsung.com/ca/support(English)www.samsung.com/ca_fr/support(French)

Laundry Combo Manueld'utilisation

WD53DBA9**H*

SAMSUNG

Sommaire

QR code image containing encoded data, no visible human-readable text

CONSERVEZ SOIGNEUSEMENT CES CONSIGNES

Français

Installation

Illustration of two figures pushing a cart with a large screen and a ring nearby (no text or symbols)

ATTENTION

Diagram illustrating a hand using a tool to cut a device with a prohibition symbol, showing motion arrows and warning signs.

ATTENTION

09 Cacheducompartiment

Line drawing of a flexible hose with two connectors (no text or symbols)

Simple line drawing of a black-handled tool with a loop handle (no text or symbols)

Simple line drawing of a circular object and a rectangular object with a label 'C' (no text or symbols on the objects themselves)

D

Simple diagram of a door with two side slats and an attached meter labeled A (no text or symbols beyond basic labels)

Line drawing of two washing machines with circular vented seating and front-mounted buttons, no text or symbols present

ATTENTION

Illustration of a hand using a tool to adjust a circular component with directional arrows (no text or symbols)

Hand holding a circular button with an arrow pointing to the right button (no text or symbols present)

Diagram of a mechanical lever assembly with a handle and valve (no text or labels)

Illustration of a hand using a tool to adjust a mechanical component with an arrow indicating rotation (no text or symbols present)

Technical diagram showing mechanical assembly with labeled parts A and B, including coiled tubing and a central component.

ATTENTION

Diagram showing four steps of a valve adjustment mechanism with directional arrows indicating rotation or movement.

Illustration of two pipettes pouring liquid into a bowl (no text or symbols)

Technical line drawing of a wooden table with coiled tubing and two side views (no text or symbols)

Diagram showing a curved structure with arrows indicating downward forces or movements, labeled with point B and directional arrows.

REMARQUE

Technical diagram showing pipe installation and component positioning with labeled points A and a star symbol

(*) : minimum 6 po (152 mm), maximum 8 po (203mm)

Diagram illustrating a medical procedure with labeled anatomical structure A, showing a sink and tubing with directional arrows.

Line drawing of a mechanical device with a valve inserted into a housing (no text or symbols)

Diagram of a kitchen sink with a spatula inside, showing liquid level and lid (no text or symbols)

Diagram of a mechanical component with concentric circular layers and a central hole (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a black arrow indicating direction (no text or symbols)

Mechanical component diagram showing a lever mechanism with labeled point A (no text or symbols beyond label)

Illustration of a bottle pouring liquid into a container with label B (no text or symbols on the diagram itself)

Diagram of a mechanical device with a circular component and directional arrow, no text or symbols present

Illustration of a bottle pouring liquid into a container with label D (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with mounting holes and a black arrow indicating direction (no text or symbols)

1. Remettezlesdistributionsautomatiquesenplace.

2. Fermezlecacheducompartiment.

Avant de démarrer

Diagram showing a device with labeled components A and B, indicating directional movement or assembly.

Diagram showing a mechanical assembly with labeled components and directional arrows, including a magnified inset view.

Technical diagram showing a kitchen appliance with a component labeled 'C' and a close-up of its interior space.

Diagram of a computer monitor with an attached drive and labeled ports (no text or symbols present)

1. Remettez le distribution automatique (A) en place.
2. Fermezlecacheducompartiment.

MARQUE

SurfaceduLaundryCombo

Diagram of a mechanical component with a tool inserted, showing a bolt and adjustment knob (no text or symbols present)

Diagram showing a device with labeled ports A and B, indicating a directional relationship or movement in a container or device.

Diagram showing a mechanical component inserted into a housing, with an arrow indicating direction (no text or symbols present)

Line drawing of a sink with a showerhead and a brush, no text or symbols present

Diagram showing a device with a curved arrow and a meshed component, next to a partial view of a cabinet or rack (no text or symbols)

Diagram of a device component with labeled ports A and B, showing a cursor pointing to a button (no text or symbols beyond labels)

1. Remettez le distribution automatique (A) en place.
2. Fermezlecacheducompartiment.

REMARQUE

Technical line drawing of a mechanical component with two circular holes and a black arrow indicating direction (no text or symbols)

Technical illustration of a mechanical assembly with two parts and a directional arrow indicating movement (no text or symbols)

Line drawing of a cleaning or cleaning tool with a brush applying material to a sink (no text or symbols)

Illustration showing two different kitchen sink behaviors: one with a drain and leafy rim, the other with a brush cleaning sink (no text or symbols)

Technical line drawing of a mechanical component with two circular holes and an arrow indicating direction (no text or symbols)

1. Remettezlesdistributionsautomatiquesenplace.

ATTENTION

Diagram of a curved mechanical component with labeled point A, showing internal layered structure (no text or symbols beyond label)

Diagram of a door with an arrow pointing to the interior panel (no text or symbols)

Diagram of a computer ventilation unit with airflow direction indicated by an arrow (no text or symbols)

Technical line drawing of a mechanical component with a black cable inserted into a housing (no text or symbols)

Diagram of a computer ventilation unit with a grating and directional arrow indicating airflow or movement (no text or symbols)

Français76

Filtreàpeluches

Diagram of a server rack with a black arrow pointing to its side panel (no text or symbols present)

Two technical diagrams showing a device with internal structure and rotation arrows, no text or symbols present.

Line drawing of a kitchen sink with a grater and a lid, showing internal compartments (no text or symbols)

Diagram of a server rack with ventilation slots and a black arrow pointing to it (no text or symbols)

Ridgefield Park, NJ 07660

1-800-SAMSUNG(726-7864)

www.samsung.com/us/support

Français

Garantie(CANADA)

LAVE-LINGESAMSUNG

GARANTIELIMITÉEÀL'ACHETEURINITIAL

Samsung Electronics Canada Inc.

2050 Derry Road West,

Mississauga, Ontario L5N 0B9 Canada

1-800-SAMSUNG(726-7864)

www.samsung.com/ca/support(English)

www.samsung.com/ca_fr/support(French)

FAX:[phone]

QR code image containing encoded data, no visible human-readable text

Scan the QR code* or visit

www.samsung.com/spsn

to view our helpful

How-to Videos and Live Shows

*Requires reader to be installed on your smartphone

Scan this with your smartphone

DESQUESTIONSOUDESCOMMENTAIRES?

PAYS	APPELEZ LE	OU RENDEZ-VOUS SUR LE SITE
U.S.A	1-800-SAMSUNG (726-7864)	www.samsung.com/us/support
CANADA 1-800-Samsung (726-7864)		www.samsung.com/ca/support(English)www.samsung.com/ca_fr/support(French)

Laundry Combo Manualdelusuario

WD53DBA9**H*

SAMSUNG

Contenido

QR code image containing encoded data, no visible human-readable text

CONSERVE ESTAS INSTRUCCIONES

Español18

Instalación

Illustration of two figures pushing a cart with a large circular object and a ring nearby (no text or symbols)

PRECAUCIÓN

Diagram showing a hand using a tool to clean or store air quality, with a prohibition symbol and warning arrows.

PRECAUCIÓN

Simple line drawing of a coiled tube with two connectors (no text or symbols)

Simple line drawing of a tuning fork with a black handle and metal rod (no text or symbols)

ManguerasdeaguaCepilloparaelectrodomésticos*

Simple line drawing of a circular object and a rectangular object with a labeled circle (no text or symbols)

Simple line drawing of a rectangular frame with a circular label 'D' above it, no text or symbols present.

Simple diagram of a door with two side panels and an attached meter labeled A (no text or symbols beyond basic labels)

Technical line drawings of a washing machine and its side panel (no text or symbols)

A 1 pulg. (25 mm)

B 1 pulg. (25 mm)

C 1 pulg. (25 mm)

D 2 pulg. (50 mm)

Diagram of two washing machines with circular gauges and indicator lights, no text or symbols present

PRECAUCIÓN

Illustration of a hand using a tool to adjust a circular component with directional arrows (no text or symbols)

Hand holding a circular button with an arrow pointing to the right button (no text or symbols present)

Diagram of a mechanical lever assembly with a handle and valve (no text or labels)

Illustration of a hand using a tool to adjust a mechanical component with an arrow indicating rotation (no text or symbols present)

PASO 4 Conectarlamangueradeagua

Technical diagram showing mechanical assembly with labeled parts A and B, including coiled tubing and a central component.

PRECAUCIÓN

Diagram showing four steps of a valve adjustment mechanism with directional arrows indicating rotation or movement.

Illustration of two pipettes pouring liquid into a bowl (no text or symbols)

Diagram illustrating the process of a water tap with water droplets, showing fluid flow and cold oil level change.

Technical line drawing of a wooden table with coiled tubing and two side views (no text or symbols)

Diagram showing a curved structure with arrows indicating downward forces or movements, labeled with point B and directional arrows.

Instalación

Technical diagram showing pipe installation and component positioning with labeled points A and an asterisk indicating a feature.

(*): Mín. 6 pulg. (152 mm), Máx. 8 pulg. (203 mm)

Diagram showing a toilet sink with a tube inserted into a basin, labeled with point A and directional arrows indicating flow or movement.

Technical line drawing of a mechanical assembly with a valve inserted into a housing (no text or symbols)

Diagram of a kitchen sink with a spatula inside, showing liquid level and surrounding fixtures (no text or symbols)

Diagram of a mechanical component with concentric circles and a central ring (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a black arrow indicating direction (no text or symbols)

1. Presione la tapa del compartimento para abrirla.
2. Retirelosdispensadoresautomáticos.

Mechanical component diagram showing a lever mechanism with labeled point A (no text or symbols beyond label)

Illustration of a bottle pouring liquid into a container with label B (no text or symbols on the diagram itself)

Diagram of a mechanical device with a circular component and directional arrow, no text or symbols present

Illustration of a bottle pouring liquid into a container with label D (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with mounting holes and a black arrow indicating direction (no text or symbols)

Diagram showing a device with labeled components A and B, indicating directional movement or assembly.

Diagram showing a mechanical assembly with labeled components and directional arrows, including a magnified inset view.

Diagram showing kitchen appliance components with labeled parts and a close-up view of the interior space.

Diagram of a computer monitor with an attached drive and labeled ports (no text or symbols present)

Diagram showing a cable inserted into a mechanical component with a directional arrow (no text or symbols present)

Diagram showing a device with labeled ports A and B, indicating a directional relationship or movement between ports.

Diagram showing a cylindrical object being inserted into a container, with an arrow indicating direction (no text or symbols present)

Line drawing of a sink with a showerhead and a tool, no text or symbols present

Diagram showing a device with a curved arrow and a meshed component, next to a partial view of a cabinet or rack (no text or symbols)

Diagram of a computer monitor with an attached control panel and labeled ports (no text or symbols present)

Technical line drawing of a mechanical component with two circular holes and a black arrow indicating direction (no text or symbols)

1. Presione la tapa del compartimento para abrirla.
2. Retirelosdispensadoresautomáticos.

Technical illustration of a mechanical assembly with components and an upward arrow (no text or symbols)

Line drawing of a cleaning or cleaning tool with a brush applying material to a sink (no text or symbols)

Illustration showing two different kitchen sink behaviors: one with a drain and leafy rim, the other with a brush cleaning sink (no text or symbols)

Technical line drawing of a mechanical component with two circular holes and an arrow indicating direction (no text or symbols)

Diagram of a curved mechanical component with labeled point A, showing internal layered structure (no text or symbols beyond label)

Diagram of a door with an arrow pointing to the interior panel (no text or symbols)

Diagram of a computer ventilation system showing airflow direction and component placement (no text or symbols)

Line drawing of a mechanical component with a black cable inserted into a housing (no text or symbols)

Diagram of a ventilation duct inside a container with an arrow indicating direction (no text or symbols)

Mantenimiento

Filtroparapelusas

Diagram of a server rack with a black arrow pointing to its side panel (no text or symbols present)

Two technical diagrams showing a device with internal structure and rotation arrows, no text or symbols present.

Line drawing of a kitchen sink with a grater and a lid, showing internal compartments (no text or symbols)

Diagram of a server rack with a black arrow pointing to the outlet (no text or symbols present)
