USER MANUAL GLA1363WH BROAN

INSTALLATION, USE AND CARE MANUAL

3D rendering of a ceiling-mounted kitchen fixture with recessed lighting (no text or symbols visible)

GLA1 Series

3D rendering of a gray kitchen ventilation duct with ventilation grilles and ventilation grilles (no text or symbols visible)

GLA2 Series

Exterior view of a gray metal kitchen or ventilation unit with two recessed panels and mounting holes (no text or symbols visible)

MTR1 Series

Exterior view of a modern kitchen air conditioner unit (no text or symbols visible)

MTR2 Series

Serial number: Part# 1115880

Content

Page 3-6....Safety

Page 7-20....Installation

Page 21....Operation

Page 22......Maintenance and Cleaning

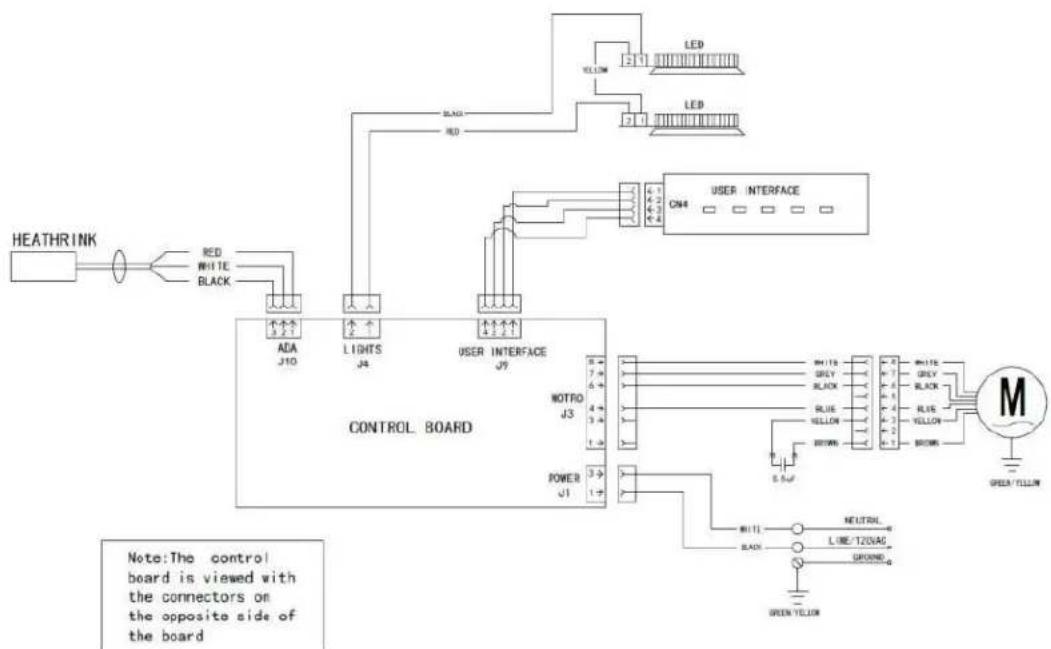

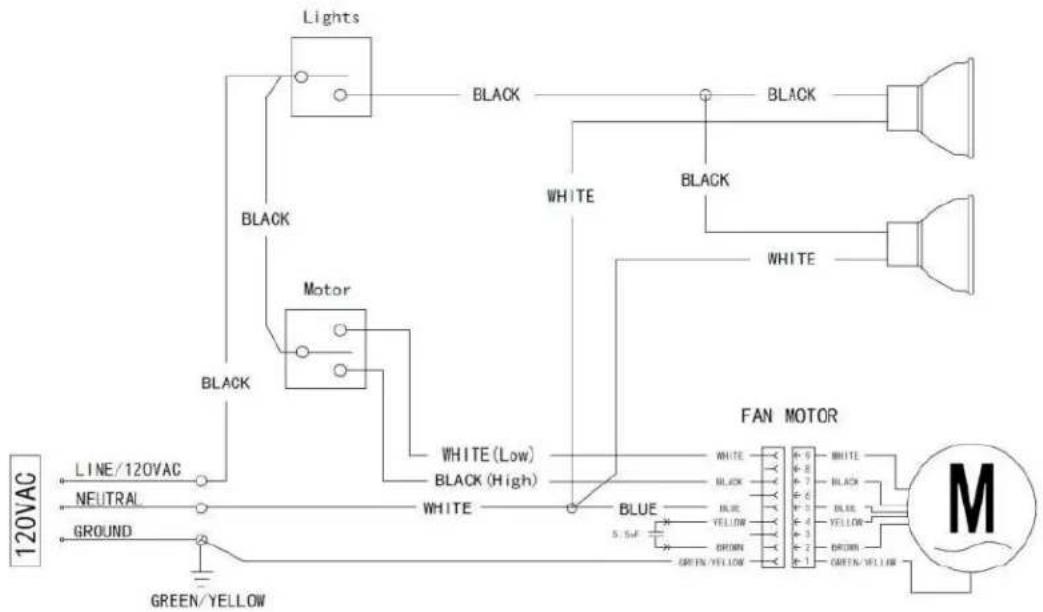

Page 23......Wiring Diagram

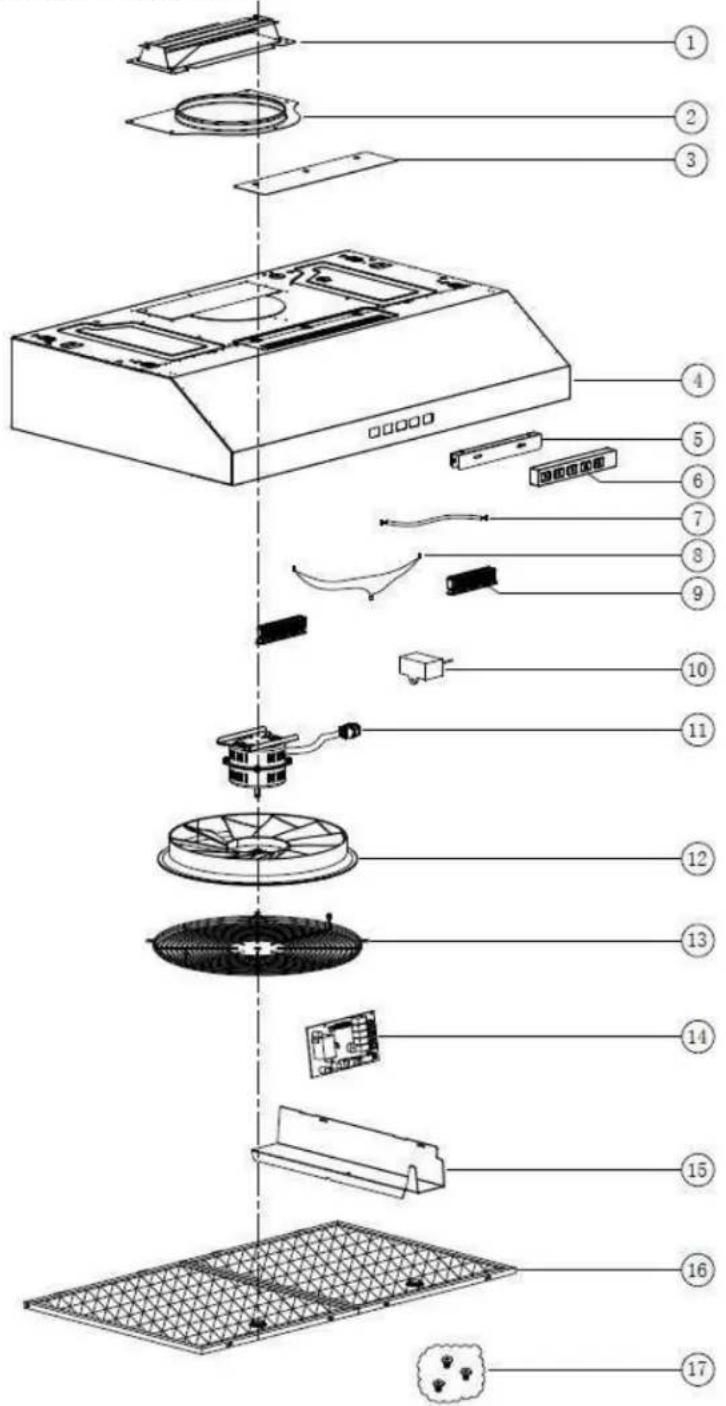

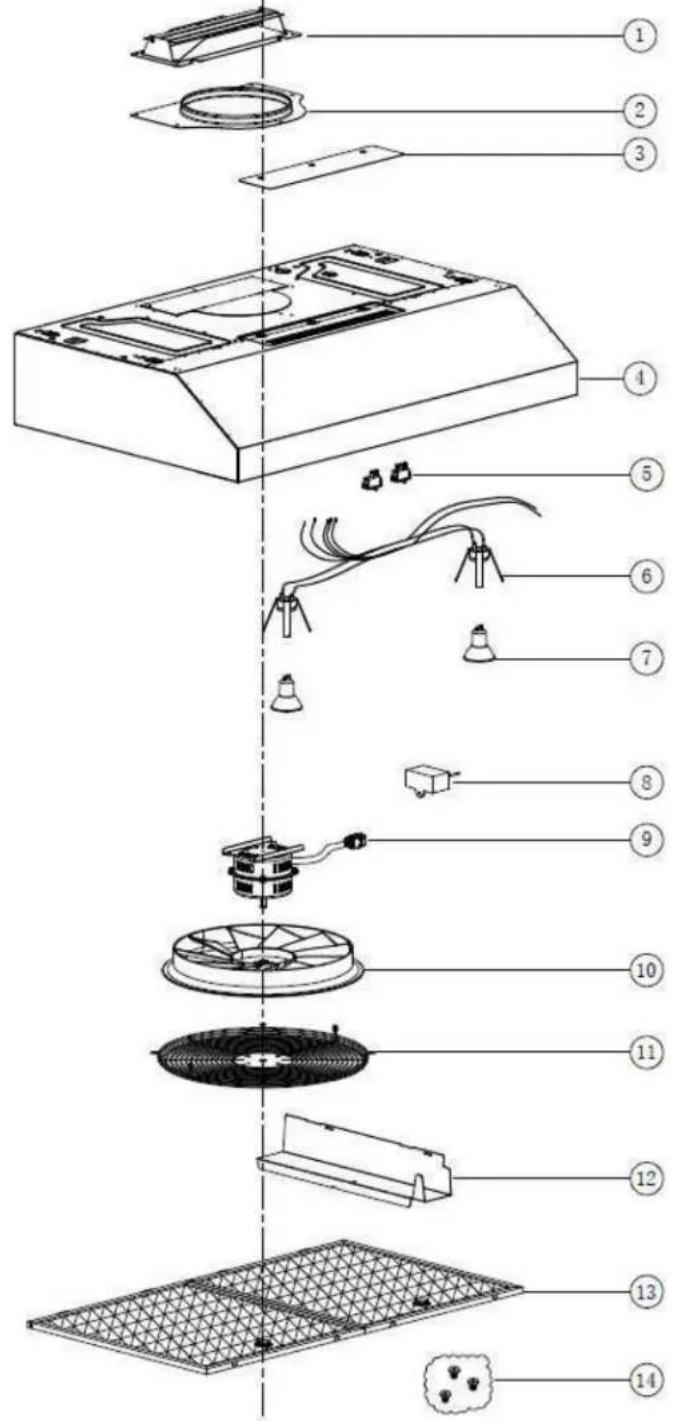

Page 24-25......Service Part

Page 26......Warranty

SAFETY

This manual explains the proper installation and use of your range hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference.

Never to do:

• Do not try to use the range hood without the grease filters or if the filters are excessively greasy.
• Do not install above a range with a high level grill.
• Do not leave frying pans unattended during use because overheated fats or oils might catch fire.
• Never leave naked flames under the range hood.

• If the range hood is damaged, do not attempt to use.
• Do not burn anything under the range hood.
• CAUTION: Accessible parts may become hot when used with cooking appliances.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. Range hoods and other cooking fume extractors may adversely affect the safe operation of appliances burning gas or other fuels (including those in other rooms) due to back flow of combustion gases. These gases can potentially result in carbon monoxide poisoning. After installation of a range hood or other cooking fume extractor, the operation of open flued gas appliances should be tested by a competent person to ensure that back

flow of combustion gases does not occur.

Always to do:

• Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.
• The range hood must be installed in accordance with the installation instructions and all measurements followed.
• All installation work must be carried out by a competent person or qualified electrician.
• Please dispose of the packing materials carefully. They could be risk to children.
• Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the range hood.
• Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

• If the voltage rating of the lamp is less than the rated voltage of the appliance, the voltage rating of the lamp shall also be marked on or near the lamp holder.

• Always follows the cooking equipment manufacturer's requirements regarding the ventilation needs.

• Range hood is for domestic use only.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Caution: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements.
• There is a fire risk if cleaning is not carried out in accordance with the instructions.
• Regulations concerning the discharge of air have to be fulfilled.

• Clean your appliance periodically by following the method given in the chapter MAINTENANCE.

• For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.

• Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.
• Regarding the information about how the appliance is to be fixed to its support, please refer to Operation section, the Installation procedures in this manual.
• WARNING: Danger of fire: do not store items on the cooking surfaces.
  •A steam cleaner is not to be used.
• NEVER try to extinguish a fire with water but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

WARNING

1. Before servicing or cleaning unit, unplug or disconnect the rangehood from the power supply.

2. TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

A. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface element.

1. TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:

A. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN – You may be burned.
C. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.
D. Use an extinguisher ONLY if:

1) You know you have a Class ABC extinguisher, and you already know how to operate it.
2) The fire is small and contained in the area where it started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit.

1. To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.

5. For the permanently-connected range hood

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

A. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
B. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

6. For the cord-connected range hood

WARNING: TO PROVIDE PROTECTION AGAINST ELECTRIC SHOCK, CONNECT TO PROPERLY GROUNDED OUTLETS ONLY.

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. If the SUPPLY CORD is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
5. For best capture of cooking fumes, the bottom of the hood MUST NOT BE LESS than 18" for electric range or 26" for gas range and at a recommended maximum of 30" above the cooking surface (at installer discretion).
6. Regulations concerning the discharge of air have to be fulfilled.
7. To reduce the risk of fire, electric shock or injury to persons, do not use replacement parts that have not been recommended by the manufacturer (e.g. Parts made at home using a 3D printer).

CAUTION:

1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
2. There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.
3. There is a fire risk if cleaning is not carried out in accordance with the instructions.
4. Accessible parts may become hot when used with cooking appliances.

INSTALLATION

WARNING

1. TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

GROUNDING INSTRUCTIONS

1. For the cord-connected rangehood

GROUNDING INSTRUCTIONS

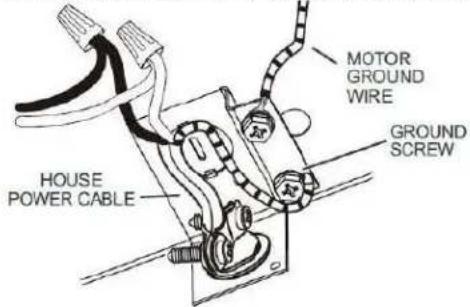

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING - Improper grounding can result in a risk of electric shock.

Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the appliance

1. For the permanently-connected rangehood

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

A. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
B. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

C. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

D. Ducted fans must always be vented to the outdoors.

E. If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a GFCI (Ground Fault Circuit Interrupter) – protected branch circuit.

F. Installation work and electrical wiring must be done by qualified person(s) in accordance with the National Electrical Code, ANSI/NFPA 70 and local codes. Before you begin installing, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

G. Connect power cable to house wiring inside of electrical outlet box. Conductor of product identified as grounded conductor (WHITE) to be connected to a grounded conductor (WHITE) of power supply, conductor of product identified as ungrounded conductor (BLACK) to be connected to an ungrounded conductor (BLACK) of power supply, conductor of product identified for equipment grounding (GREEN) to be connected to an equipment grounding

(GREEN) conductor. Secure power cable to wiring box with appropriate wire clamp and re-attach outlet box cover.

CAUTION

To reduce risk of fire and to properly exhaust air, be sure to duct air outside - Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.

For ADA compliance installation guidelines, please use kit HAWSK3 for GLA1 MTR1 series, HAWRK5 for GLA2 MTR2 series. Visit Broan website for installation instruction (ADA Instructions Intermediate Hoods)

Installation Preparation

Recommended Tools and Accessories for Installation:

• Measuring tape
  • Phillips screwdriver no. 2
  • Nutdriver or socket 11/32"
  • Flat blade screwdriver (to open knockout holes)
• Drill,1/8" drill bit and 1½" hole saw (to mark holes for ducting and cut electrical access hole)
• Wood shims (2) and wood screws (4) (required for standard installation to framed cabinet)
  • Saw (to cut holes for ducted application)
  • Sheet metal shears (ducted installation only, for duct adjustment)
  • Pliers (ducted installation only, for duct adjustment)
  • Metal foil duct tape (for ducted applications)
  • Scissors (to cut metal foil duct tape)
• Pencil
• Wire stripper
• Strain relief,1/2" diameter (to secure house wiring cable to the hood)
  • BP87Q Damper (needed if 7-in. round duct is used)

Install Ductwork (Ducted Installations Only)

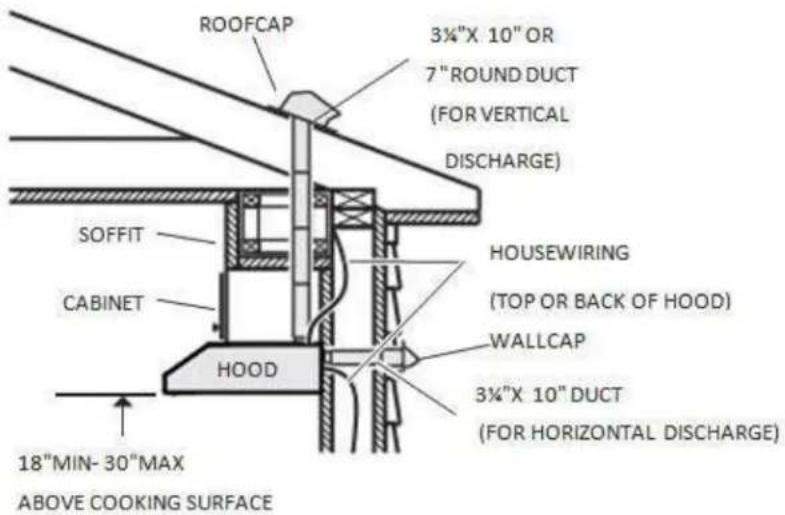

ROOFCAP 3¼"X 10" OR 7" ROUND DUCT (FOR VERTICAL DISCHARGE) SOFFIT HOUSEWIRING (TOP OR BACK OF HOOD) CABINET WALLCAP HOOD 3¼"X 10" DUCT (FOR HORIZONTAL DISCHARGE) 18"MIN- 30"MAX ABOVE COOKING SURFACE

NOTE: Distances over 30" are at the installer and user discretion.

1. Determine whether hood will discharge vertically (3 ^1/4 " x10" or 7" round), or horizontally (3 ^1/4 " x10" only).
2. Decide where the ductwork will run between the hood and the outdoors.
3. The ducting from this fan to the outside of the building has a strong effect on the air flow, noise and energy use of the fan. Use the shortest, straightest duct routing possible for best performance, and avoid installing the fan with smaller ducts than recommended. Insulation around the ducts can reduce energy loss and inhibit mold growth. Fans installed with existing ducts may not achieve their rated airflow. Refer to the table below to help you plan the most efficient installation.
4. Install wall cap or roof cap (sold separately); ensure there is no leak in house insulation.
5. Connect metal ductwork to cap and work back towards the hood location. Use 2" metal foil duct tape to seal the joints between ductwork sections.

31⁄4" X10"HORIZONTALMAXIMUMDUCT LENGTH	31⁄4" X10"VERTICALMAXIMUMDUCT LENGTH	7" ROUNDMAXIMUMDUCT LENGTH	ROOF ORWALL CAPWITH DAMPER	ELDOW(S)*(90° AND/OR45°)
90 ft. 94 ft.	78 ft. 1 0
82 ft. 86 ft.	65 ft. 1 1
74 ft. 79 ft.	51 ft. 1 2

* Standard elbows with 1" internal radius
NOTE: 6" round ducting is possible but may reduce exhaust efficiency.

Contents

Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the manufacturer. Make sure that the following items are included:

No.	ITEM PIC QTY
1 HOOD 1
2 7" ROUND DUCT 1
3 3 14 " x10" DUCT 1
4 PART BAG 1
5 GREASE FILTERS 2

NO.	PARTS BAG CONTAINING	PIC	QTY
1 EZ1	bracket	2
2	ST 3/16" x 11/16" screwLarge flat head self-tapping		6
3	ST 3/16" x 11/16" screwCountersunk self-tapping		4
4	ST 3/16" x 5/16" screwLarge flat head self-tapping		5

Prepare the Hood

NOTE: Since this manual covers many range hood models, some details in the following illustrations may slightly differ from your unit.

1. If present, remove all protective polyfilm from the hood and/or parts.

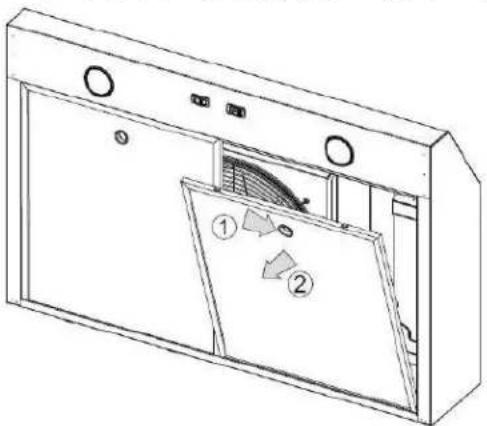

2. Remove the filters by pushing down ① and tilting filters out ②.

Technical diagram of a cabinet or enclosure with labeled components and directional arrows indicating movement or flow.

3.

Technical line drawing of a mechanical fan assembly with mounting holes and internal blades (no text or symbols)

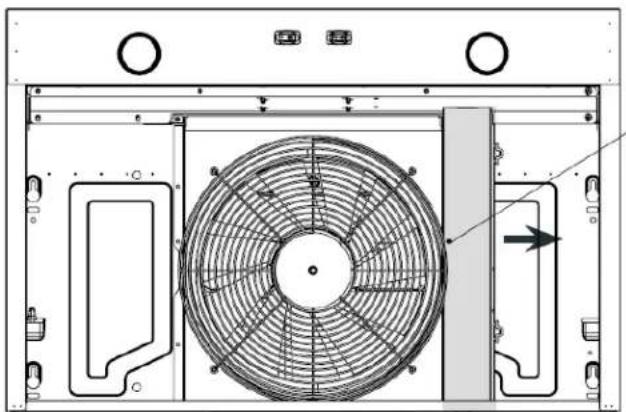

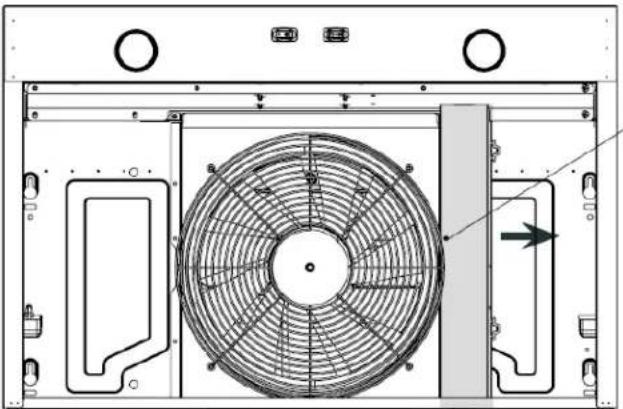

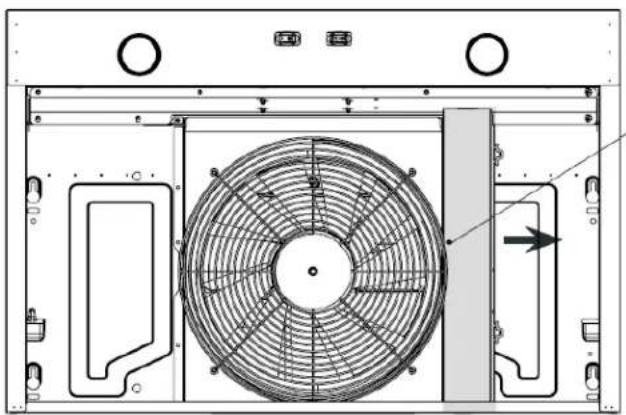

Remove the screw

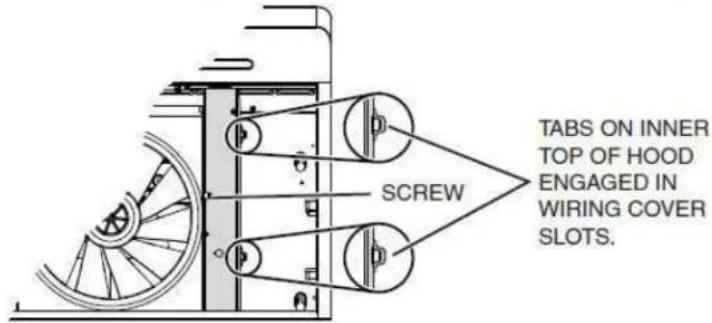

Push rightward to take off the wiring cover.

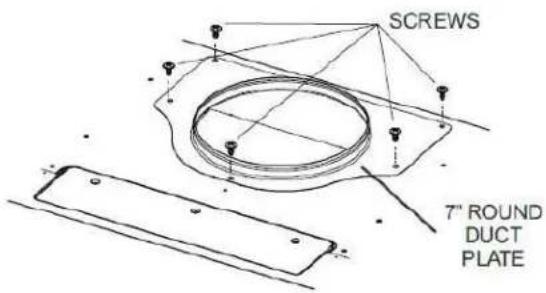

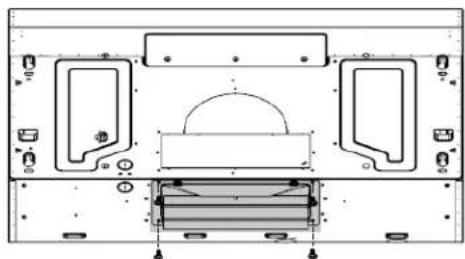

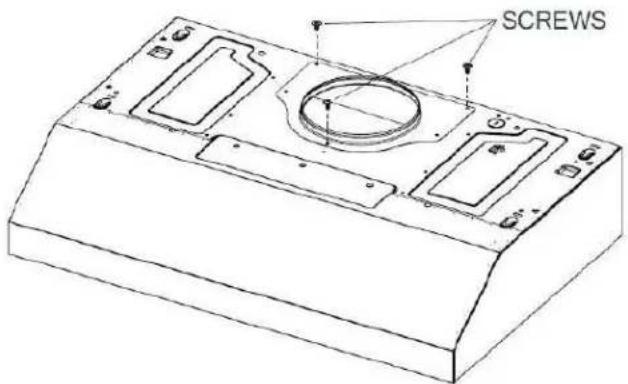

1. Use Phillips screwdriver to remove the 3 screws on the 7" round duct. Take off the 7" round duct.

SCREWS

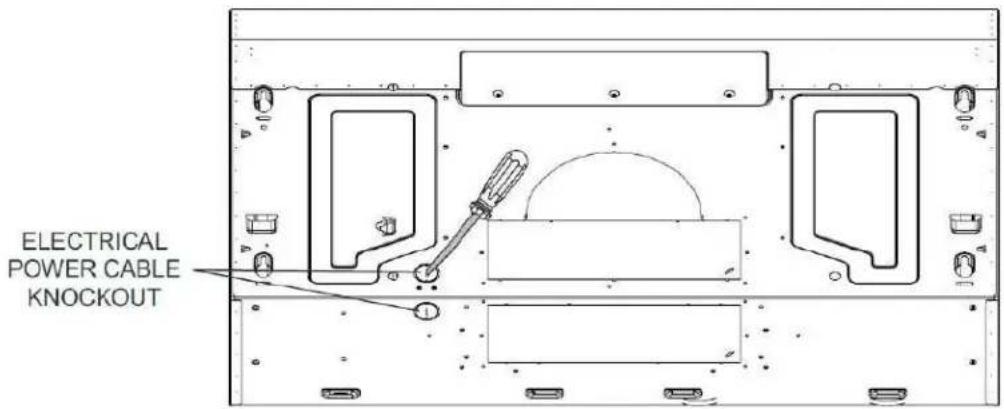

1. Remove Electrical Power Cable Knockout from top (vertical exhaust) or back (horizontal exhaust) of hood. For knockout removed from back of hood, install an appropriate strain relief, 1/2" diameter (not included).

ELECTRICAL POWER CABLE KNOCKOUT

5. FOR RECIRCULATION INSTALLATION ONLY

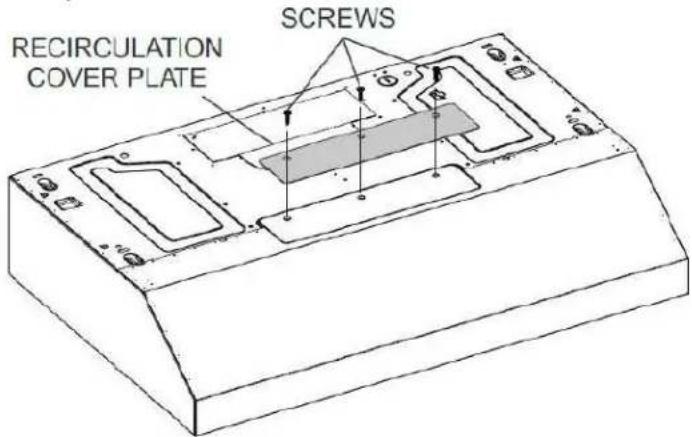

Remove 3 screws retaining the recirculation cover plate to the hood. This plate is not needed for recirculation. Discard or keep for future use. Peel off and discard the membrane covering the recirculation grille, ensuring the openings are totally cleared.

RECIRCULATION COVER PLATE SCREWS

6. FOR DUCTED INSTALLATION ONLY

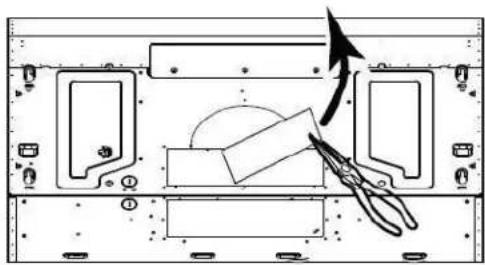

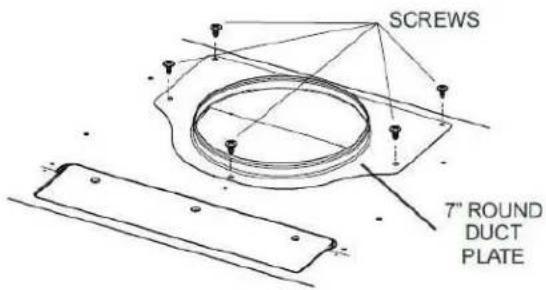

Remove 3 ^1/4 " x10" vertical, 3 ^1/4 " x10" horizontal or 7-inch round knockout plate as appropriate for your ducting method.

7" ROUND KNOCKOUT PLATE (ALSO REMOVE VERTICAL KNOCKOUT PLATE) VERTICAL KNOCKOUT PLATE 3¼" x HORIZONTAL KNOCKOUT PLATE

Diagram of a computer monitor internal frame with a pencil and scroll, showing no text or symbols

7. FOR DUCTED INSTALLATION ONLY

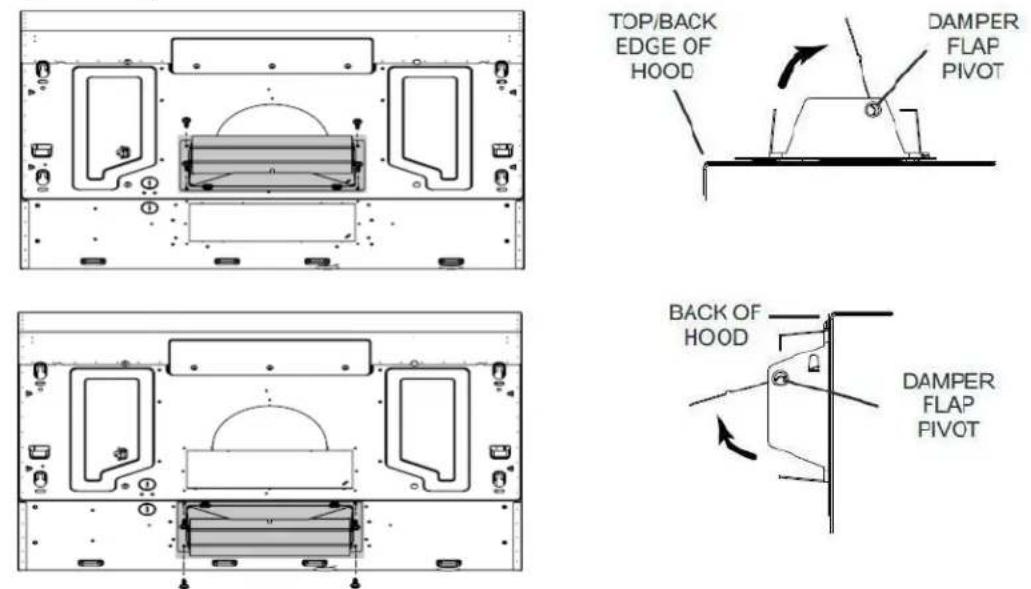

Use ST 3/16" x 5/16" screw to attach 3 ^1/4 " x10" Damper Assembly on top OR back of hood (if using 3 ^1/4 " x10" duct, see Figure 2 A) or 7" Round Duct Plate (if using 7-inch round duct, see Figure 3) over the knockout opening. When installed, the 3 ^1/4 "x 10" damper assembly must open as shown in Figure 2 B.

Figure 2 A Figure 2 B

Figure 3

SCREWS 7" ROUND DUCT PLATE

TIP: Insert a small length of duct over the 3¼"x 10" damper assembly (for rectangular ducting) or 7" round (for round ducting) and seal the joint using aluminum foil duct tape to ease connection with the house ductwork.

Prepare the Hood Location

This manual covers 2 kinds of installation: the standard (without EZ1 brackets) and the EZ1 one-person installation system (using included brackets).

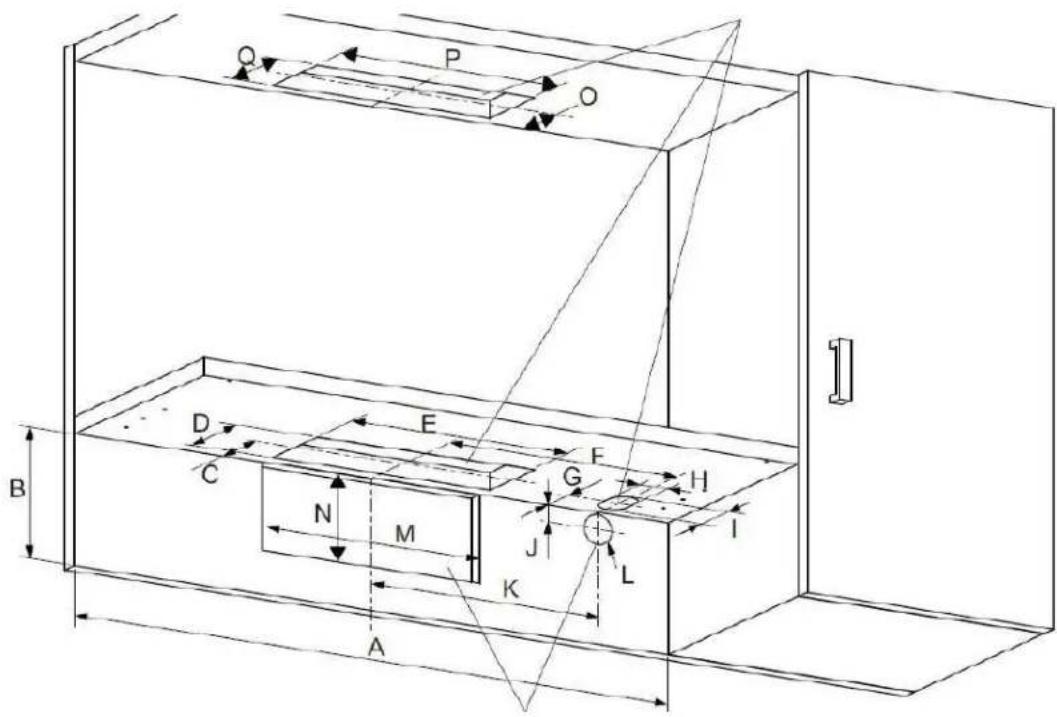

Cut the ducting holes and the hole for the wire to go through inside the cabinet, according to the ducting way you choose.

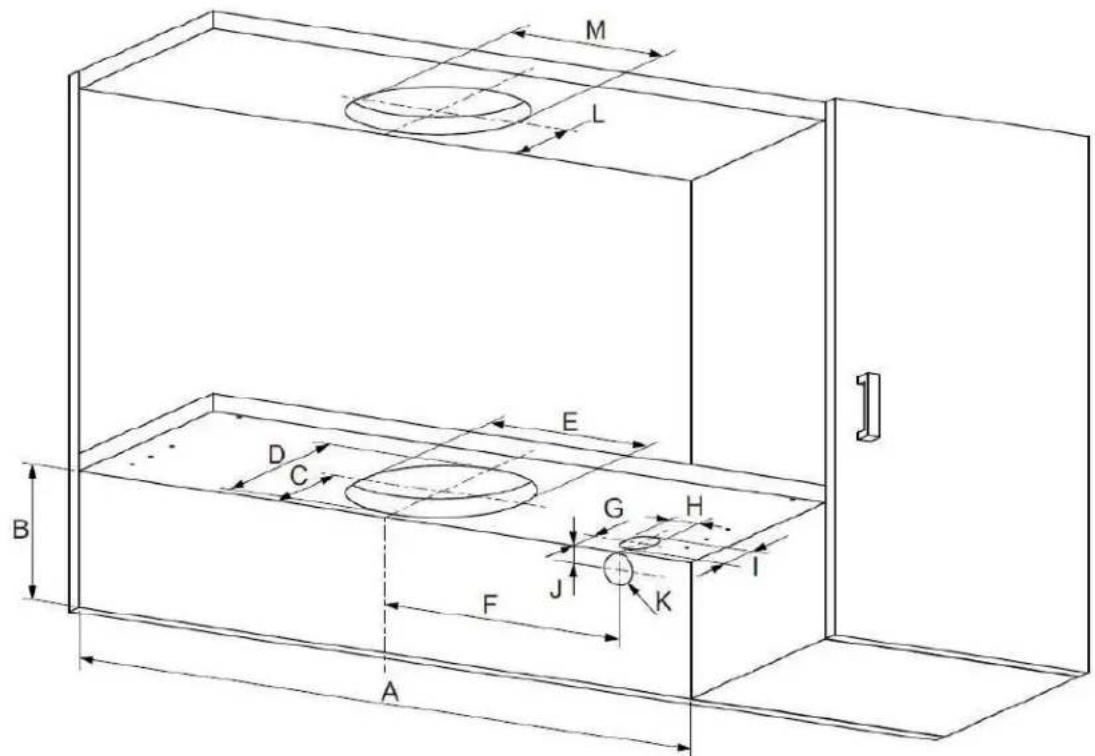

For 7" round duct

M L E D C G H I J K F B A

A=30 1/8"; B=6" for GLA, 5 1/8" for MTR; C=4 7/8"; D=8 7/16"; E=φ 7 7/8"; F=7 5/16"; G=1 3/4"; H=φ 1 3/8"; I=2 3/16"; J=13/16"; K=φ1 3/8"; L=4 9/16"; M=φ 7 7/8"

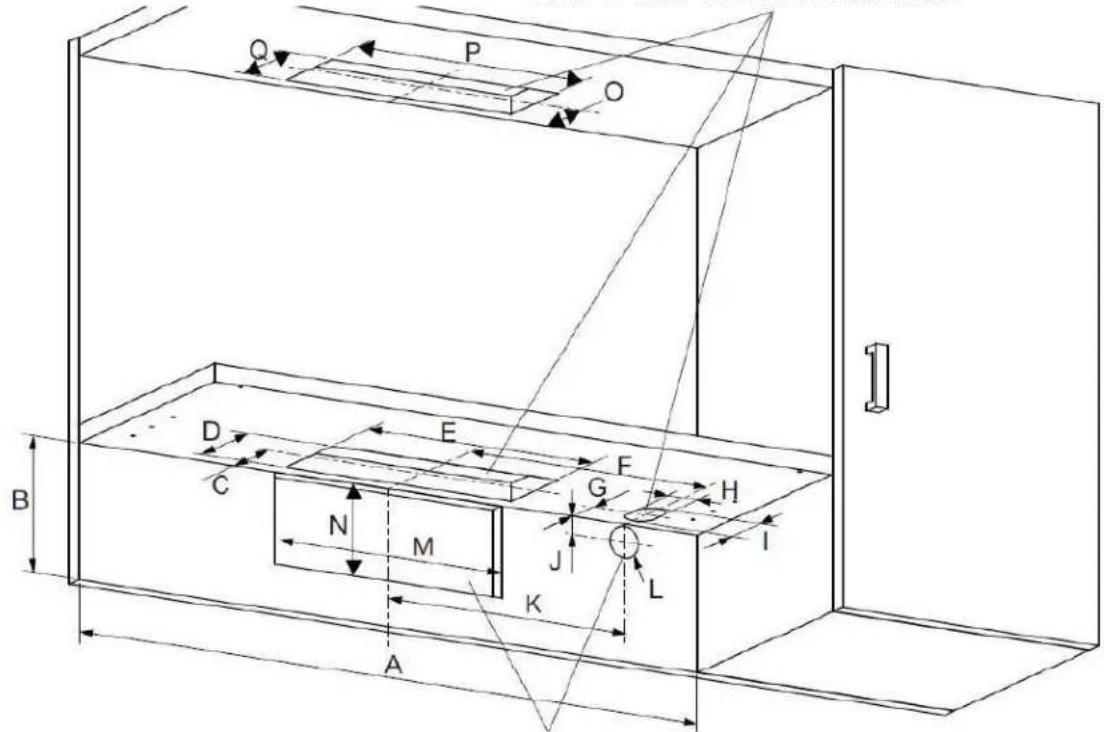

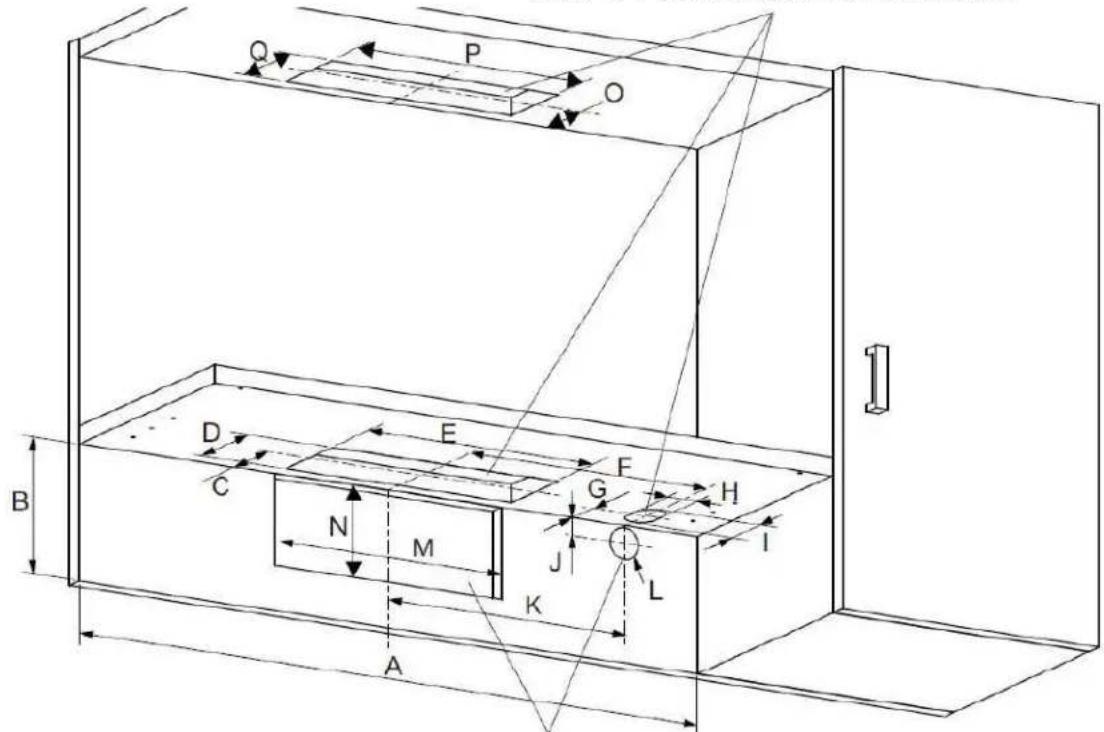

For 3 ^1/4 "x 10" duct
3¼"X 10" FOR VERTICAL DISCHARGE

P O Q D E F G H C N M J L K A B I

3¼"X 10" FOR HORIZONTAL DISCHARGE

A= 30 1/8"; B= 6" for GLA, 5 1/8 " for MTR ; C=2 15/16"; D=4 3/4"; E= 11";

F=7 5/16"; G=1 3/4"; H=φ 1 3/8"; I=φ 2 3/16"; J=13/16"; K=7 5/16"; L=φ 1 3/8";

M=11"; N=4"; O=2 15/16"; P=11"; Q=4 3/4"

Install the Hood (EZ1 Bracket)

1. Run house power cable between service panel and hood location.

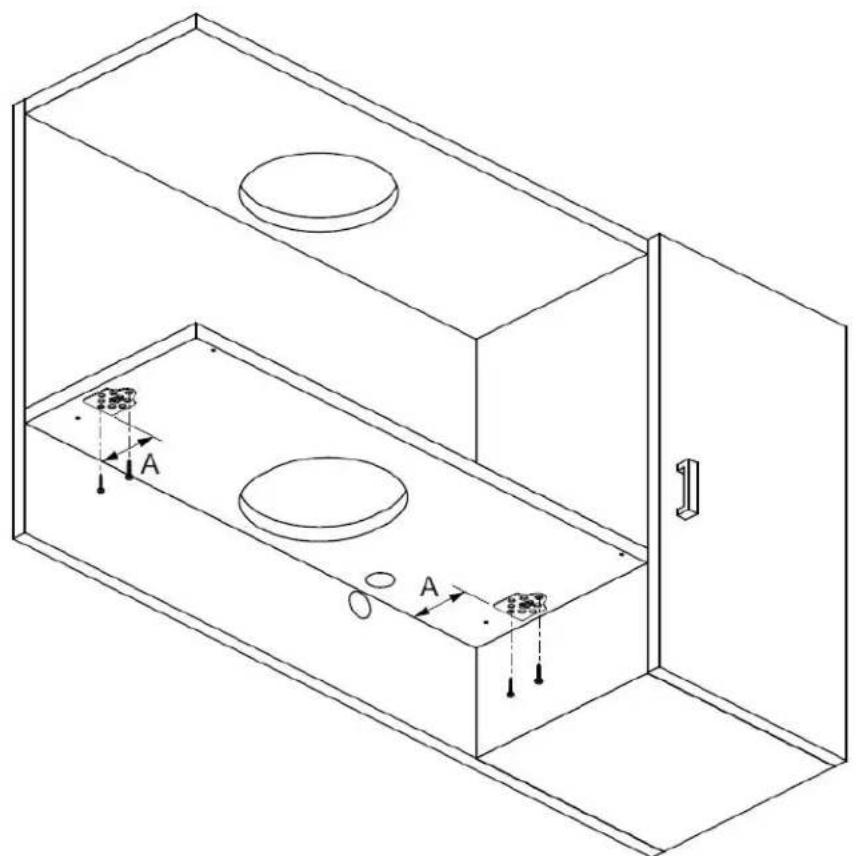

2. Use 4 pcs ST 3/16" x 11/16" screws (countersunk self tapping) to fix the 2 pcs EZ1 brackets onto the cabinet.

Isometric line drawing of a two-tiered rectangular enclosure with circular cutouts and labeled dimensions A (no text or symbols beyond labels)

A=3 3/8"

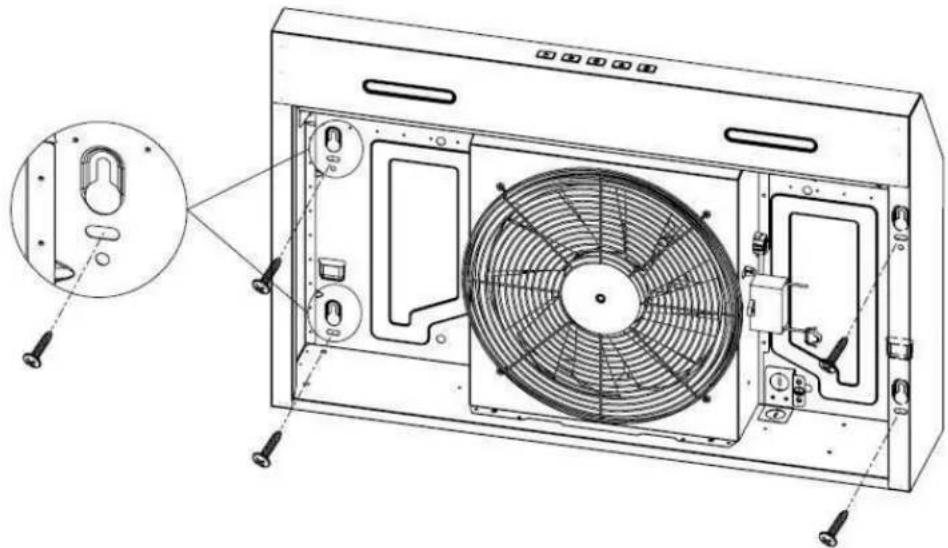

1. Lift the hood. Insert the A B positions of the hood into the EZ1 brackets.

1. TEMPORARILY hang the hood by the EZ1 brackets. While holding the hood, run the house power cable into the hood through the strain relief previously installed.

2. Fasten the hood by installing 4 pcs ST 3/16" x 11/16" screws (large flat head self tapping) into slots.

Technical line drawing of a computer air conditioner unit with fan and internal components, showing exploded view (no text or labels)

6. FOR DUCTED INSTALLATION ONLY

Connect the ductwork to the hood and use metal foil duct tape to make joints secure and air-tight. Make sure the damper assembly (or round duct plate) enters the ductwork and that the damper opens and closes freely.

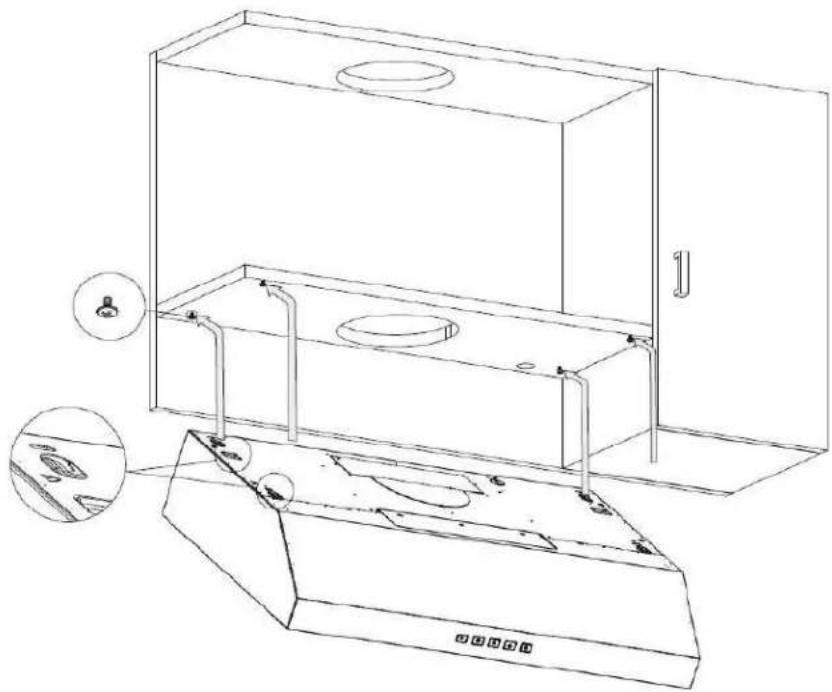

Install the Hood (Standard Installation)

1. Run house power cable between service panel and hood location.

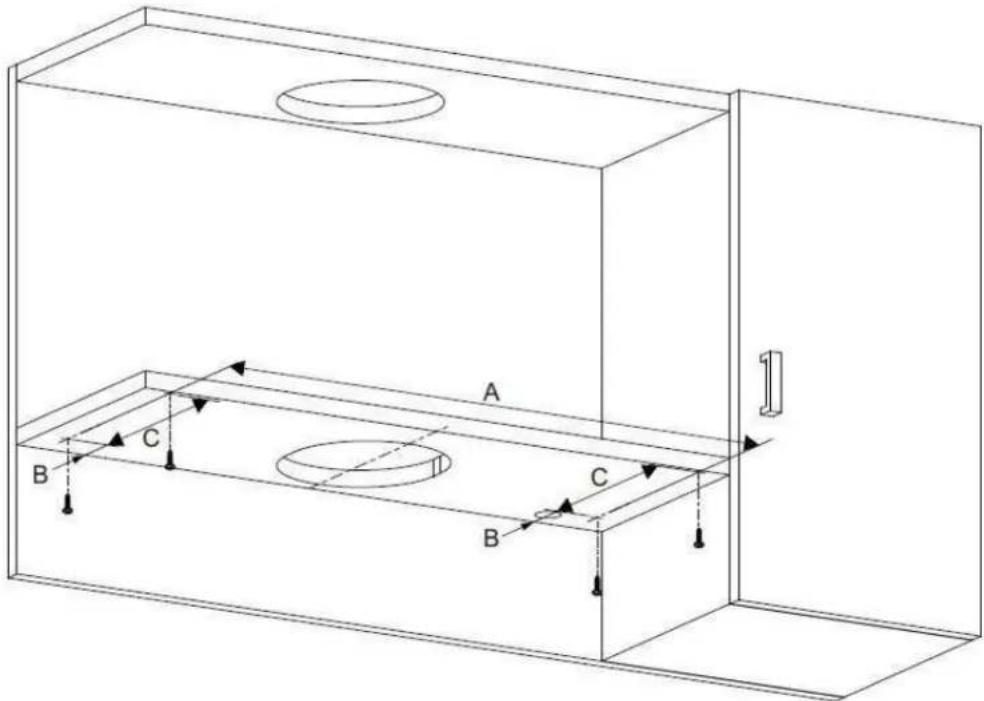

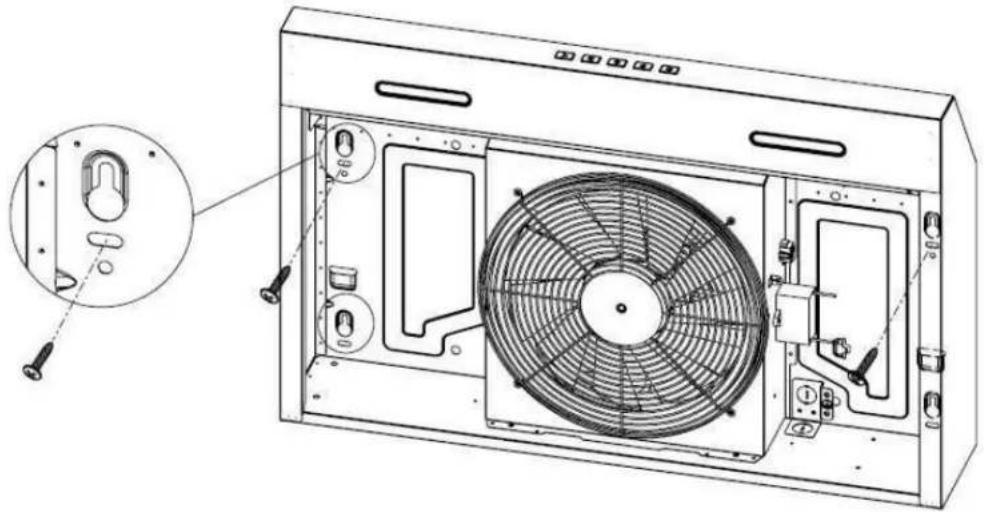

2. Installing 4 pcs ST 3/16" x 11/16" screws (large flat head self tapping) into the cabinet according to the positions on the below drawing.

A B C C B

A=27 1/4"; B=2 1/16"; C=9 1/16"

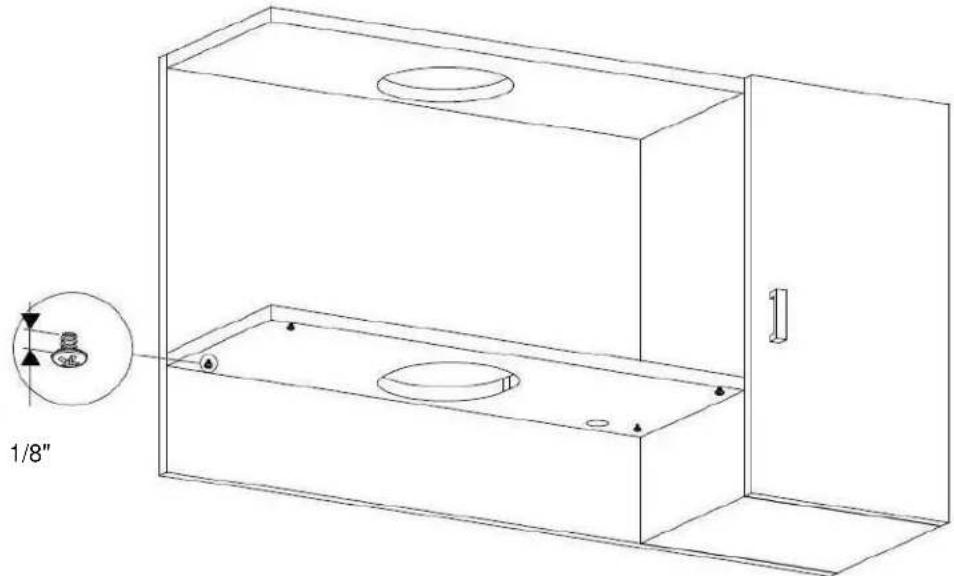

NOTICE: Leave1/8" between the screw head and the cabinet.

Technical line drawing of a two-tiered storage unit with a 1/8-inch side view and circular components (no text or symbols)

1. Lift the hood. Insert the 4 holes onto the screws. Slide the hood in place.

Technical line drawing of a kitchen appliance with internal components and a close-up inset showing internal parts (no text or symbols)

1. While holding the hood, run the house power cable into the hood through the strain relief previously installed.

2. Use 2 pcs ST 3/16" x 11/16" screws (large flat head self tapping) to fix the hood.

Technical line drawing of a server rack with fan and door components, showing internal structure and mounting bracket (no text or symbols)

1. Then tighten the other 4 pcs ST 3/16" x 11/16" screws that are installed at step 2.

7. (FOR DUCTED INSTALLATION ONLY)

Connect the ductwork to the hood and use metal foil duct tape to make joints secure and air-tight. Make sure the damper assembly (or round duct plate) enters the ductwork and that the damper opens and closes freely.

Connect the Wiring

WARNING

Risk of electric shock. Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally.

1. Connect House Power Cable to range hood wiring: BLACK to BLACK, WHITE to WHITE and GREEN or bare wire under GREEN ground screw.

1. Reinstall wiring cover and attach it to the hood using its retaining screw.

SCREW TABS ON INNER TOP OF HOOD ENGAGED IN WIRING COVER SLOTS.

Install the Filters

(FOR DUCTED INSTALLATION ONLY)

Re-install grease filters removed in step 1, under"Prepare the Hood".

(FOR NON-DUCTED INSTALLATION ONLY)

Purchase two non-ducted filters from your local distributor or retailer (see product specification label for filter type). Attach the non-ducted filters following instructions packed with the non-ducted filters.

OPERATION

Always turn your hood on before you begin cooking to establish an air flow in the kitchen. Let the blower run for a few minutes to clear the air after you turn off the range. This will help keep the whole kitchen cleaner and fresher. Operate the hood as follows:

A. Rocker Switch

1. Press to turn on blower at low speed
2. Press to turn blower off.
3. Press to turn on blower at high speed

1. Press to turn light on.
2. Press to turn light off.

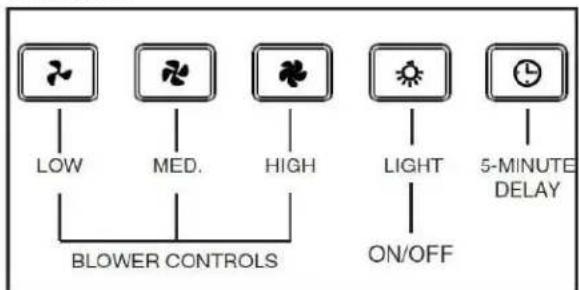

B. Soft Touch Control

1. Push the light button to turn the lights on and off. 1 ^st press, light on low lighting level. 2 ^nd press, light on high lighting level.

2. Push the blower controls to select low, medium, or high blower speed (for each speed selected, its indicating light will beam).

3. Press on the current blower speed another time to stop it.

4. While the blower is activated, press the 5-minute delay button once (its indicating light will beam) to get the hood running for 5 minutes and then turn off automatically. When the 5-minute delay is activated, changing the blower speed will cancel the 5-minute delay function. To cancel the delay off function before the end of the 5-minute cycle, press again on delay off push button or select an other blower speed.

MAINTENANCE AND CLEANING

Proper maintenance of the Range Hood will assure proper performance of the unit.

MOTOR

The motor is permanently lubricated and never needs oiling. If the motor bearings make excessive or unusual noise, replace the motor with the exact service motor. When replacing the motor, it is recommended to also change the fan blade.

GREASE FILTERS

The grease filters should be cleaned frequently. Use a warm dishwashing detergent solution.

Grease filters are dishwasher safe.

Clean all-metal filters in the dishwasher using a non-phosphate detergent.

Discoloration of the filters may occur if using phosphate detergents, or as a result of local water conditions - but this will not affect filter performance. This discoloration is not covered by the warranty. To minimize or prevent discoloration, hand wash filters using a mild detergent.

NON-DUCTED RECIRCULATION FILTERS

The non-ducted recirculation filters should be changed every 3 to 6 months.

Replace more often if your cooking style generates extra grease, such as frying and wok cooking. Refer to installation instructions included with non-ducted recirculation filters.

FAN BLADE

The fan blade should be cleaned frequently. Use a clean cloth soaked with warm detergent solution.

STAINLESS STEEL CLEANING

Do:

- Regularly wash with clean cloth or rag soaked with warm water and mild soap or liquid dish detergent.

- Always clean in the direction of original polish lines.

• Always rinse well with clear water (2 or 3 times) after cleaning. Wipe dry completely.

- You may also use a specialized household stainless steel cleaner.

Don't:

• Use any steel or stainless steel wool or any other scrapers to remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Allow dirt to accumulate.
• Let plaster dust or any other construction residues reach the hood. During construction/ renovation, cover the range hood to make sure no dust sticks to the stainless steel surface.

Avoid when choosing a detergent:

• Any cleaners that contain bleach will attack stainless steel.
• Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be used close to a range.

PAINTED FINISH CLEANING:

Clean with warm water and mild detergent only. If discoloration occurs, use a finish polish such as automotive polish. (DO NOT use rough abrasive cleaner or porcelain cleaner.)

WIRING DIAGRAM

GLA1& MTR1 series:

Lights BLACK BLACK Motor BLACK WHITE WHITE (Low) BLACK (High) FAN MOTOR LINE/120VAC NEUTRAL GROUND GREEN/YELLOW BLUE 5.5F WHITE BLACK BLUE YELLOW DRUMN GREEN/YELLOW WHITE BLACK BLACK WHITE M

GLA2& MTR2 series:

SERVICE PART

GLA1& MTR1 series:

Exploded view diagram of a kitchen appliance with numbered parts for identification

No.	Part Code Description Qty
1 S9	7020534	3-1/4" X 10" ADAPTOR/DAMPER (INCL.SCREWS)	1
2 SR	680508 7" ROUND	D DUCT ADAPTOR (INCL. SCREWS) 1
3	S1115687	RECIRCULATION COVER PLATE, WHITE (INCL.SCREWS)	1
	S1115688	RECIRCULATION COVER PLATE, BLACK (INCL.SCREWS)	1
	S1115689	RECIRCULATION COVER PLATE, STAINLESSSTEEL (INCL. SCREWS)	1
	S1115690	RECIRCULATION COVER PLATE, BLACKSTAINLESS (INCL. SCREWS)	1
5	S99030379 ROCKER SWITCH, GREY (SET OF 2) 1 set
	S1115672 ROCKER SWITCH, WHITE (SET OF 2) 1 set
	S1115673 ROCKER SWITCH, BLACK (SET OF 2) 1 set
6 S1	115671 Harness for rocker switch control 1 set
7 S1	110531 LED BULB GU10	2
8 S1	115679	CAPACITOR 5.5uF SINGLE BLOWER (INCL.HARDWARE)	1
9 S1	115680 MOTOR SINGLE BLOWER (INCL. HARDWARE)	1
10	S1115681 SINGLE BLOWER WHEEL W/ CLIP		1
11	S1115682 SINGLE BLOWER GUARD (INCL. SCREWS)		1
12	S1115683	WIRING COVER F/ SINGLE BLOWER (INCL.SCREW)	1
13	S99010434-002	GREASE FILTER - MICRO MESH 30" HOOD (SETOF 2)	1 set
14	S1115686 PA	PARTS BAG INCLUDING EZ1 BRACKETS	1 set

GLA2& MTR2 series:

Exploded view diagram of a multi-stage electronic device with numbered parts for identification

No.	Part Code Description Qty
1 S9	7020534	3-1/4" X 10" ADAPTOR/DAMPER (INCL. SCREWS)	1
2 SR	680508	7" ROUND DUCT ADAPTOR (INCL. SCREWS)	1
3	S1115687	RECIRCULATION COVER PLATE, WHITE (INCL. SCREWS)	1
	S1115688	RECIRCULATION COVER PLATE, BLACK (INCL. SCREWS)	1
	S1115689	RECIRCULATION COVER PLATE, STAINLESS STEEL (INCL. SCREWS)	1
	S1115690	RECIRCULATION COVER PLATE, BLACK STAINLESS (INCL. SCREWS)	1
5&6	S1115676	CAPTOUCH CONTROL, STAINLESS STEEL (INCL. SCREWS)	1
	S1115677	CAPTOUCH CONTROL, WHITE (INCL. SCREWS)	1
	S1115678	CAPTOUCH CONTROL, BLACK STAINLESS (INCL. SCREWS)	1
7&8 S	1115685	HARNESS KIT (INCL. CONTROL, LIGHT & POWER HARNESS)	1 set
9 S9	7020444 LED MODULE (PAIR) 1 set
10 S	115679	CAPACITOR 5.5uF SINGLE BLOWER (INCL. HARDWARE)	1
11 S	115680	MOTOR SINGLE BLOWER (INCL. HARDWARE)	1
12 S	115681 SINGLE BLOWER WHEEL W/ CLIP 1
13 S	115682	SINGLE BLOWER GUARD (INCL. SCREWS)	1
14 S	115683	MAIN PCB CAPTOUCH CONTROL (INCL. HARDWARE)	1
15 S	115675	WIRING COVER F/ SINGLE BLOWER (INCL. SCREW)	1
16 S	99010434-001	GREASE FILTER - MICRO MESH 24" HOOD (SET OF 2)	1 set
17 S	115686 PARTS BAG INCLUDING EZ1 BRACKETS 1 set

Limited Warranty

Warranty Period and Exclusions: Broan-NuTone LLC and Venmar Ventilation ULC (either being the "Company") warrants to the original consumer purchaser of its product ("you") that the product (the "Product") will be free from material defects in the Product or its workmanship for a period of one (1) year from the date of original purchase (or such longer period as may be required by applicable law). For Range Hood Product that includes built-in LED modules, the Company warrants the LED modules and driver to be free from material defects for a period of three (3) years from the date of purchase. The limited warranty period for any replacement parts provided by the Company and for any Products repaired or replaced under this limited

warranty shall be the remainder of the original warranty period (or such longer period as may be required by applicable law)

This warranty does not cover fluorescent lamp starters, tubes, halogen, incandescent and LED bulbs, fuses, filters, ducts, roof caps, wall caps and other accessories for ducting that may be purchased separately and installed with the Product. This warranty also does not cover (a) normal maintenance and service, (b) normal wear and tear, (c) any Products or parts which have been subject to misuse, abuse, abnormal usage, negligence, accident, improper or insufficient maintenance, storage or repair (other than repair by the Company), (d) damage caused by faulty installation, or installation or use contrary to recommendations or instructions, (e) any Product that has been moved from its original point of installation, (f) damage caused by environmental or natural elements, (g) damage in transit, (h) natural wear of finish, (i) Products in commercial or nonresidential use, or (j) damage caused by fire, flood or other act of God or (k) Products with altered, defaced or removed serial numbers. This warranty covers only Products sold to original consumers in the United States and Canada by the Company or its U.S. and Canadian distributors authorized by the Company.

This warranty supersedes all prior warranties and, subject to applicable law, is not transferable from the original consumer purchaser.

No Other Warranties: This Limited Warranty contains the Company's sole obligation and your sole remedy for defective products. The foregoing warranties are exclusive and in lieu of any other warranties and conditions, express or implied. THE COMPANY DISCLAIMS AND EXCLUDES ALL OTHER EXPRESS WARRANTIES AND CONDITIONS AND DISCLAIMS AND EXCLUDES ALL WARRANTIES AND CONDITIONS IMPLIED BY LAW, INCLUDING WITHOUT LIMITATION THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. To the extent that applicable law prohibits the exclusion of implied warranties or conditions, the duration of any applicable implied warranty or condition is limited to the period specified for the express warranty above. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Any oral or written description of the Product is for the sole purpose of identifying it and shall not be construed as an express warranty.

Whenever possible, each provision of this Limited Warranty shall be interpreted in such manner as to be effective and valid under applicable law, but if any provision is held to be prohibited or invalid, such provision shall be ineffective only to the extent of such prohibition or invalidity, without invalidating the remainder of such provision or the other remaining provisions of the Limited Warranty.

Remedy: During the applicable limited warranty period, the Company will, at its option, provide replacement parts for, or repair or replace, without charge, any Product or part thereof, to the extent the Company finds it to be covered by and in breach of this limited warranty under normal use and service. The Company will ship the repaired or replaced Product or replacement parts to you at no charge. You are responsible for all costs for removal, reinstallation and shipping, insurance or other freight charges incurred in the shipment of the Product or part to the Company. If you must send the Product or part to the Company, as instructed by the Company, you must properly pack the Product or part—the Company is not responsible for damage in transit. The Company reserves the right to utilize reconditioned, refurbished, repaired or remanufactured Products or parts in the warranty repair or replacement process. Such Products and parts will be comparable in function and performance to an original Product or part and warranted for the remainder of the original warranty period (or such longer period as may be required by applicable law).

Company reserves the right, in its sole discretion, to refund the money actually paid by you for the Product in lieu of repair or replacement. If the Product or component is no longer available, replacement may be made with a similar product of equal or greater value, at Company's sole discretion. This is your sole and exclusive remedy for breach of this limited warranty.

Exclusion of Damages: THE COMPANY'S OBLIGATION TO PROVIDE REPLACEMENT PARTS, OR REPAIR, REPLACE OR REFUND, AT THE COMPANY'S OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY AND THE COMPANY'S SOLE AND EXCLUSIVE OBLIGATION. THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL, INDIRECT, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE PRODUCT, ITS USE OR PERFORMANCE. Incidental damages include but are not limited to such damages as loss of time and loss of use. Consequential damages include but are not limited to the cost of repairing or replacing other property which was damaged if the Product does not work properly.

THE COMPANY SHALL NOT BE LIABLE TO YOU, OR TO ANYONE CLAIMING UNDER YOU, FOR ANY OTHER OBLIGATIONS OR LIABILITIES, INCLUDING, BUT NOT LIMITED TO, OBLIGATIONS OR LIABILITIES ARISING OUT OF BREACH OF CONTRACT OR WARRANTY, NEGLIGENCE OR OTHER TORT OR ANY THEORY OF STRICT LIABILITY, WITH RESPECT TO THE PRODUCT OR THE COMPANY'S ACTS OR OMISSIONS OR OTHERWISE.

Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from jurisdiction to jurisdiction. The disclaimers, exclusions, and limitations of liability under this warranty will not apply to the extent prohibited by applicable law.

This warranty covers only replacement or repair of defective Products or parts thereof at the Company's main facility and does not include the cost of field service travel and living expenses.

Any assistance the Company provides to or procures for you outside the terms, limitations or exclusions of this limited warranty will not constitute a waiver of such terms. Limitations or exclusions, nor will such assistance extend or revive the warranty.

The Company will not reimburse you for any expenses incurred by you in repairing or replacing any defective Product, except for those incurred with the Company's prior written permission.

How to Obtain Warranty Service: To qualify for warranty service, you must (a) notify the Company at the address or telephone number stated below within seven (7) days of discovering the covered defect, (b) give the model number and part identification and (c) describe the nature of any defect in the Product or part. At the time of requesting warranty service, you must present evidence of the original purchase date. If you cannot provide a copy of the original written limited warranty, then the terms of the Company's most current written limited warranty for your particular product will control. The most current limited written warranties for the Company's products can be found at www.broan-nutone.com and www.broan-nutone.ca.

Broan-NuTone LLC 926 West State Street, Hartford, Wisconsin, USA 53027 Broan-NuTone .com 800-558-1711

Venmar Ventilation ULC, 550 Lemire Blvd., Drummondville, Québec, Canada J2C 7W9 Broan-NuTone.ca 800-567-3855

BROAN®

MANUEL D'INSTALLATION, D'UTILISATION ET D'ENTRETIEN

Exterior view of a modern office building ceiling with recessed lighting (no signage or text)

Série GLA1

Exterior view of a modern kitchen ventilation duct (no text or symbols visible)

Série GLA2

3D rendering of a kitchen ventilation duct with mounting holes and ventilation grilles (no text or symbols)

Série MRT1

Exterior view of a gray stainless steel kitchen air conditioner unit (no text or symbols visible)

Série MRT2

Page 7-20....Installation

Technical diagram of a door with labeled components and directional arrows indicating movement or flow

3.

Technical line drawing of a mechanical fan assembly with mounting holes and internal blades (no text or symbols)

Retirer la vis

Diagram of a computer monitor with a scroll wheel and scissors inserted, showing internal components without any text or symbols.

6. INSTALLATION AVEC CONDUIT SEULEMENT

M L E D C G H I J K F B A

A = 30 1/8 po ; B = 6 po pour GLA, 5 1/8 po pour MTR ; C = 4 7/8 po ; D = 8 7/16 po ; E = φ 7 7/8 po ; F = 7 5/16 po ; G = 1 3/4 po ; H = φ 1 3/8 po ; I = 2 3/16 po ; J = 13/16 po ; K = φ 1 3/8 po ; L = 4 9/16 po ; M = φ 7 7/8 po

3 ^1/4 "X 10" POUR ÉVACUATION VERTICALE

Q P O D E F G H C N M J L K A B

3¼"X 10" POUR ÉVACUATION HORIZONTALE

A = 30 1/8 po ; B = 6 po pour GLA, 5 1/8 po pour MTR ; C = 2 15/16 po ; D = 4 3/4 po ; E = 11 po ; F = 7 5/16 po ; G = 1 3/4 po ; H = φ 1 3/8 po ; I = 2 3/16 po ; J = 13/16 po ; K = 7 5/16 po ; L = φ 1 3/8 po ; M = 11 po ; N = 4 po ; O = 2 15/16 po ; P = 11 po ; Q = 4 3/4 po

Isometric line drawing of a two-tiered rectangular enclosure with circular cutouts and labeled dimensions (no text or symbols)

A = 3 3/8 po

Technical line drawing of a computer air conditioner unit with internal fan and mounting bracket (no text or symbols)

6. INSTALLATION AVEC CONDUIT SEULEMENT

Technical line drawing of a kitchen appliance with internal components and a close-up inset showing internal parts (no text or symbols)

Technical line drawing of a computer fan assembly with internal components and a close-up inset showing the mounting bracket (no text or symbols present)

Risk of electric shock. Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally.

Exploded view diagram of a device with numbered parts, showing internal components like fan, lamp, and grid base.

N°	Référence pièce	Description Qté
1 S9	7020534	ADAPTATEUR/VOLET 3 14 PO X 10 PO (INCLUANT LES VIS)	1
2 SR	680508	PLAQUE POUR CONDUIT ROND DE 7 PO (INCLUANT LES VIS)	1
3	S1115687	PLAQUE DE GRILLE DE RECIRCULATION, BLANC (INCLUANT LES VIS)	1
	S1115688	PLAQUE DE GRILLE DE RECIRCULATION, NOIR (INCLUANT LES VIS)	1
	S1115689	PLAQUE DE GRILLE DE RECIRCULATION, INOX. (INCLUANT LES VIS)	1
	S1115690	PLAQUE DE GRILLE DE RECIRCULATION, INOX. NOIR (INCLUANT LES VIS)	1
5	S99030379	INTERRUPTEUR À BASCULE, GRIS (ENSEMBLE DE 2)	1 ensemble
	S1115672	INTERRUPTEUR À BASCULE, BLANC (ENSEMBLE DE 2)	1 ensemble
	S1115673	INTERRUPTEUR À BASCULE, NOIR (ENSEMBLE DE 2)	1 ensemble
6 S1	115671	Connecteur pour commande d'interrupteur à bascule	1 ensemble
7 S1	110531 AMPOULE DEL GU10 2
8 S1	115679	CONDENSATEUR 5,5 uF VENTILATEUR SIMPLE (INCLUANT LA VISSERIE)	1
9 S1	115680	MOTEUR VENTILATEUR SIMPLE à vérif dans MUE OG (INCLUANT LA VISSERIE)	1
10 S1	115681 HÉLICE AVEC ATTACHE 1
11 S1	115682	PROTECTION VENTILATEUR SIMPLE (INCLUANT LES VIS)	1
12 S1	115683	COUVERCLE DU COMPARTIMENT ÉLECTRIQUE POUR VENTILATEUR SIMPLE (INCLUANT LES VIS)	1
13	S99010434-002	FILTRE À GRAISSES - HOTTE DE 30" À MAILLAGE FIN (ENSEMBLE DE 2)	1 ensemble
14 S1	115686	SACHET DE PIÈCES INCLUANT LES SUPPORTS EZ1	1 ensemble

Exploded view diagram of a multi-stage electronic device with numbered parts for identification

N°	Référence pièce	Description Qté
1 S97020534		ADAPTATEUR/VOLET 3 1/4 PO x 10 PO (INCLUANT LES VIS).	1
2 SR680508		ADAPTATEUR DE CONDUIT ROND 7 PO (INCLUANT LES VIS)	1
3	S1115687	PLAQUE DE GRILLE DE RECIRCULATION, BLANC (INCLUANT LES VIS)	1
	S1115688	PLAQUE DE GRILLE DE RECIRCULATION, NOIR (INCLUANT LES VIS)	1
	S1115689	PLAQUE DE GRILLE DE RECIRCULATION, INOX. (INCLUANT LES VIS)	1
	S1115690	PLAQUE DE GRILLE DE RECIRCULATION, INOX. NOIR (INCLUANT LES VIS)	1
5 et 6	S1115676	COMMANDE CAPACITIVE À TOUCHES, INOX. (AVEC VIS)	1
	S1115677	COMMANDE CAPACITIVE À TOUCHES, BLANCHE (AVEC VIS)	1
	S1115678	COMMANDE CAPACITIVE À TOUCHES, NOIRE (AVEC VIS)	1
7 et 8 S1115685		ENSEMBLE CONNECTEUR (CONNECTEUR COMMANDE, ÉCLAIRAGE ET ALIMENTATION INCL.)	1 ensemble
9 S97020444 MODULE DEL (PAIRE)			1 ensemble
10 S1115679		CONDENSATEUR 5,5 uF VENTILATEUR SIMPLE (INCLUANT LA QUINCAILLERIE)	1
11 S1115680		MOTEUR VENTILATEUR SIMPLE (QUINCAILLERIE INCL.)	1
12 S1115681 HÉLICE AVEC ATTACHE 1
13 S1115682		PROTECTION VENTILATEUR SIMPLE (INCLUANT LES VIS)	1
14 S1115683		COMMANDE CAPTOUCH CARTE CIRCUIT IMPRIMÉ PRINCIPALE (INCLUANT LA QUINCAILLERIE)	1
15 S1115675		COUVERCLE DU BOÎTIER DE CÂBLAGE POUR VENTILATEUR SIMPLE (INCLUANT LES VIS)	1
16 S99010434-001		FILTRE À GRAISSES - HOTTE DE 30" À MAILLAGE FIN (ENSEMBLE DE 2)	1 ensemble
17 S1115686		SACHET DE PIÈCES INCLUANT LES SUPPORTS EZ1	1 ensemble

Garantie limitée

3D rendering of a ceiling-mounted HVAC unit with mounting holes and ventilation grilles (no text or symbols visible)

Serie GLA1

Exterior view of a modern kitchen ventilation duct (no text or symbols visible)

Serie GLA2

3D rendering of a gray kitchen air conditioner with two recessed panels and mounting holes (no text or symbols visible)

Serie MTR1

Exterior view of a gray stainless steel kitchen air conditioner unit (no text or symbols visible)

Serie MTR2

Technical diagram of a cabinet or enclosure with labeled parts, showing internal components and directional arrows.

3.

Technical line drawing of a mechanical fan assembly with mounting holes and internal blades (no text or symbols)

Retire el tornillo.

Diagram of a computer monitor with a scroll and scissors, showing internal components without any text or symbols.

Technical line drawing of a computer chassis with internal components and mounting holes (no text or symbols)

TOP/BACK EDGE OF HOOD DAMPER FLAP PIVOT

Technical line drawing of a mechanical assembly with no visible text or symbols

BACK OF HOOD DAMPER FLAP PIVOT

Figura 3

SCREWS 7" ROUND DUCT PLATE

M L E D C G H I J K F B A

A = 30 1/8 po ; B = 6 po para GLA, 5 1/8 po para MTR ; C = 4 7/8 po ; D = 8 7/16 po ; E = φ 7 7/8 po ; F = 7 5/16 po ; G = 1 3/4 po ; H = φ 1 3/8 po ; I = 2 3/16 po ; J = 13/16 po ; K = φ 1 3/8 po ; L = 4 9/16 po ; M = φ 7 7/8 po

P O D E F G H C N M J L I K A B

Isometric line drawing of a two-tiered rectangular enclosure with circular cutouts and labeled dimensions A (no text or symbols beyond labels)

A=3 3/8"

Technical line drawing of a computer air conditioner unit with fan and internal components, showing exploded view (no text or labels)

Technical line drawing of a two-tiered rectangular enclosure with circular cutouts and a 1/8" inset showing a small object (no text or symbols on the diagram itself)

Technical diagram of a cabinet with labeled components and an inset showing close-up views of the base panel.

Technical line drawing of an air conditioning unit with fan and internal components, showing a close-up inset (no text or symbols)

Risk of electric shock. Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally.

Exploded view diagram of a device with numbered parts, showing internal components like fan, lamp, and control panel.

Exploded view diagram of a refrigerator with numbered parts for identification

Broan-NuTone LLC 926 West State Street, Hartford, Wisconsin, USA 53027 Broan-NuTone.com 800-558-1711

Venmar Ventilation ULC, 550 Lemire Blvd., Drummondville, Québec, Canada J2C 7W9 Broan-NuTone.ca 800-567-3855
