USER MANUAL PMA400SS BROAN

INSTALLATION, USE & CARE INSTRUCTIONS

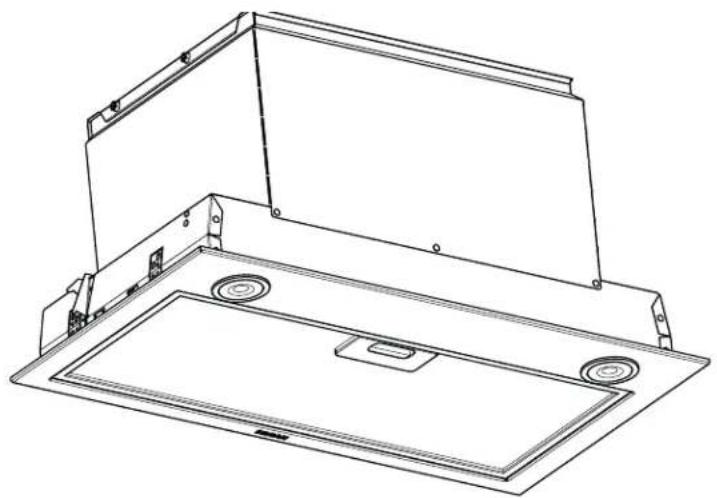

Technical line drawing of a mechanical enclosure or enclosure with mounting brackets and internal components (no text or symbols)

Serial number:

Safety 3-4

Installation....5-16

Recommended Tools and Accessories....5

Contents. 5

Install Ductwork (Ducted Installations Only) 6

Install the Wall Switches....6

Optional Liners 7

Remove the Adapter/Damper....7

Remove the Cabinet Brackets 7

Prepare the Cabinet 8-10

Prepare the Unit 11-12

Install the Unit....13-15

Connect Ductwork....15

Wiring....16

Install the Filter 16

Operation 17

Maintenance and Cleaning ....18

Grease Filter

Non-Ducted Recirculation Filter

Stainless Steel Cleaning

Wiring Diagram 19

Service Parts....20

Warranty 21

To register your product, please visit our website:

In the United States - broan-nutone.com

In Canada - broan-nutone.ca

For Technical Support, call:

In the United States - 800-637-1453

In Canada - 800-567-3855

Installer: Leave this manual with the homeowner.

READ AND SAVE THESE INSTRUCTIONS

Intended for domestic cooking only

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

• Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
• Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
• Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.

- Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

- When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

- Ducted fans must always be vented to the outdoors.

- Do not use this unit with any separate solid-state speed control device.

• To reduce the risk of fire, use only metal ductwork.

• This unit must be grounded.

- When installing, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.

- When applicable local regulations comprise more restrictive installation and/or certification requirements, the aforementioned requirements prevail on those of this document and the installer agrees to conform to these at his own expense.

WARNING

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

A. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface element.

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:\*

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - violent steam explosion will result.
4. Use an extinguisher ONLY if:
   A. You know you have a Class ABC extinguisher and you already know how to operate it.
   B. The fire is small and contained in the area where it started.
   C. The fire department is being called.
   D. You can fight the fire with your back to an exit.
   * Based on "Kitchen Fire Safety Tips" published by NFPA.

CAUTION

• For indoor residential use only.
• To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
  • Take care when using cleaning agents or detergents.
• Avoid using food products that produce flames under the Range Hood.
• For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
• To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
• Your hood motor has a thermal overload which will automatically shut off the motor if it becomes overheated. The motor will restart when it cools down. If the motor continues to shut off and restart, have the hood serviced.
• The bottom of the hood MUST NOT BE LESS than 24" and recommended at a maximum of 30" above the cooktop for best capture of cooking impurities.
• Use only with range hood cord connection kits that have been investigated and found acceptable for use with this model range hood.
• Please read specification label on product for further information and requirements.

RECOMMENDED TOOLS AND ACCESSORIES

• Measuring tape
  • Phillips screwdriver no. 2
• Nut driver or socket 3/8"
• Flat blade screwdriver (to open knockout holes)
• Saw (to cut holes in cabinet)
• Sheet metal shears
• Pliers
• Metal foil duct tape

• Scissors (to cut metal foil duct tape)
- Pencil
- Wire stripper
• 2 Strain reliefs, 7/8" diameter
• 8 Appropriate wire nuts
• 14/3 Cable (suitable for at least 90° C (194° F)
• 14/2 Cable (suitable for at least 90° C (194° F)
- Liner (optionnal)

CONTENTS

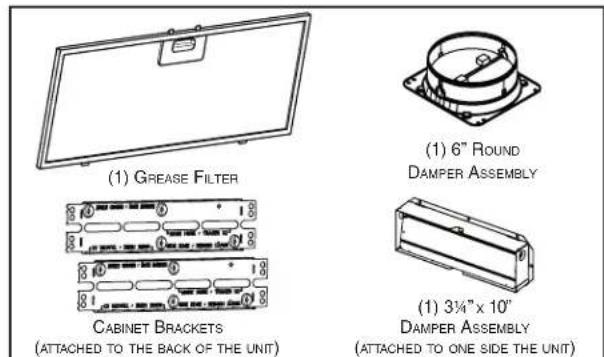

Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the manufacturer.

Make sure that the following items are included:

(1) ADAKIT (IN A SEPARATE BOX) CONTAINING:

(1) SINGLE
ROCKER SWITCH

(1) DOUBLE
ROCKER SWITCH

(1) DOUBLE GANG WALL PLATE
(1) PARTS BAG ^4 CONTAINING:

(4) No. 8-18 x 1/4"

METAL SCREWS

(8) No. 8-15 × 5/8"
RD. HD
WOOD SCREWS

(4) No. 8-32 x 1/4"
METAL SCREWS

(4) No. 6-18 x 3/4"
TRUSS HEAD
WOOD SCREWS
* FIND PARTS BAG BEHIND THE WIRING COMPARTMENT COVER.

INSTALL THE DUCTWORK (DUCTED INSTALLATION ONLY)

NOTE: To reduce the risk of fire, use only metal ductwork.

1. Decide where the ductwork will run between the powerpack insert and the outside. (FIG. 1)
2. The ducting from this fan to the outside of the building has a strong effect on the air flow, noise and energy use of the fan. Use the shortest, straightest duct routing possible for best performance, and avoid installing the fan with smaller ducts than recommended. Insulation around the ducts can reduce energy loss and inhibit mold growth. Fans installed with existing ducts may not achieve their rated airflow. Refer to the table below to help you plan the most efficient installation.
3. Install wall cap or roof cap (sold separately). Connect metal ductwork to cap and work back towards the powerpack insert location. Use 2" metal foil duct tape to seal the joints between ductwork sections.

MAXIMUM DUCT LENGTH RECOMMENDED TO ACHIEVE 80% EXHAUST EFFICIENCY

3 14 " x 10"HORIZONTAL MAXIMUM DUCT LENGTH	3 14 " x 10"VERTICAL MAXIMUM DUCT LENGTH	6" ROUND MAXIMUM DUCT LENGTH	ROOF OR WALL CAP WITH DAMPER	ELBOW(S)*(90° AND /OR 45°)
52 ft. 83 ft. 64 ft. 1 0
43 ft. 74 ft. 55 ft. 1 1
35 ft. 66 ft. 46 ft. 1 2

*Standard elbows with 1" internal radius.

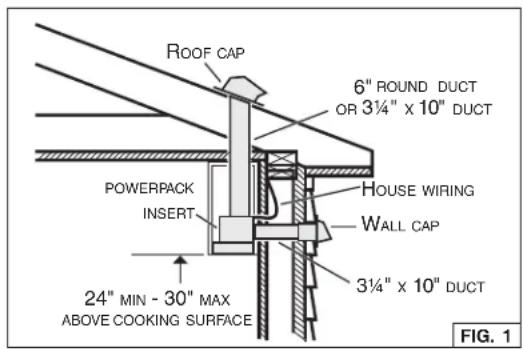

ROOF CAP 6" ROUND DUCT OR 3½" x 10" DUCT POWERPACK INSERT HOUSE WIRING WALL CAP 3½" x 10" DUCT 24" MIN - 30" MAX ABOVE COOKING SURFACE FIG. 1

INSTALL THE WALL SWITCHES

CAUTION

Only use included switches. Only use wires suitable for at least 90°C (194°F).

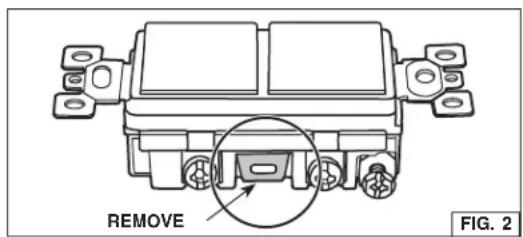

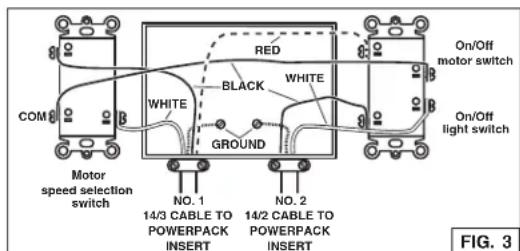

1. Unpack the wall switches from the box. Using pliers, remove the small tab on the double rocker switch (circled in FIG. 2).
2. Install both rocker switches at a convenient place for the user. Use one 14/3 cable and one 14/2 cable to wire the switch box to the powerpack insert (FIG. 3).

REMOVE FIG. 2

COM Motor speed selection switch NO. 1 14/3 CABLE TO POWERPACK INSERT RED WHITE GROUND ON/Off motor switch ON/Off light switch NO. 2 14/2 CABLE TO POWERPACK INSERT COM B B B B FIG. 3

OPTIONAL LINERS

For installations where the PMA400SS unit is less than 30" above cooktop, this powerpack insert should be mounted into a metal liner (FIG. 4) to protect cabinetry combustible material from heat, in order to meet building code requirements. This will allow easier cleaning and provide protection to the cabinetry. Refer to table at right to find the liner model corresponding to the cabinet style and width. Visit www.broan-nutone.com or www.broan-nutone.ca to view specific model information.

REMOVE THE ADAPTER/DAMPER

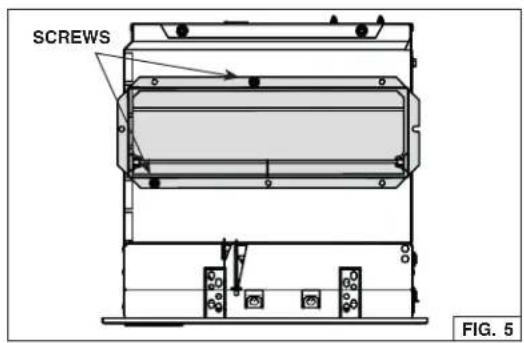

Detach and set aside the 3½" x 10" adapter/damper (grey part in FIG. 5) from the side of the powerpack insert by removing its 2 retaining screws. Discard the screws.

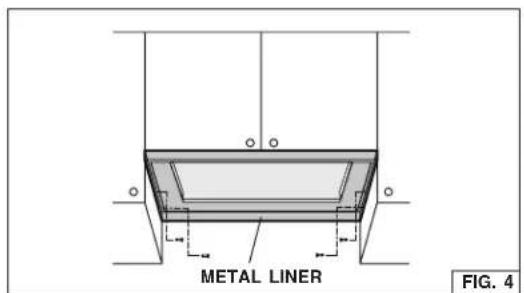

METAL LINER FIG. 4

LINER MODEL	CABINET NOMINAL WIDTH
LB30SS 30"
LB36SS 36"

SCREWS FIG. 5

REMOVE THE CABINET BRACKETS

Detach the cabinet brackets (grey part in FIG. 6) from the back of the powerpack insert by removing its 4 retaining screws. Discard the screws.

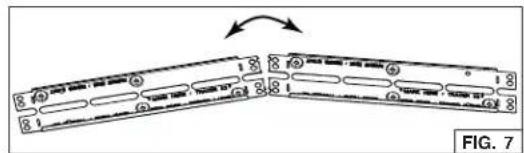

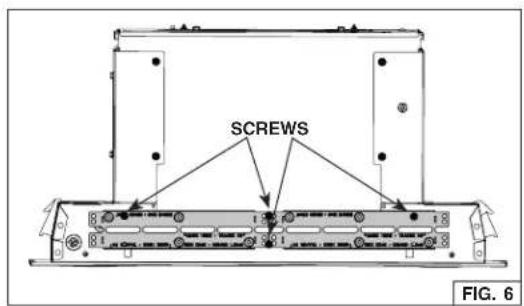

Fold up and down the bracket until it is split in two separate parts (FIG. 7). Keep the brackets for possible further use.

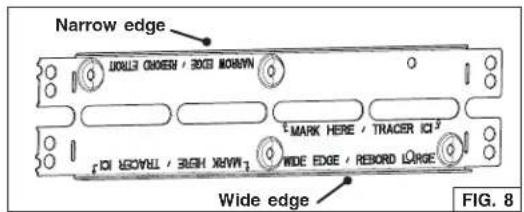

NOTE: Both cabinet brackets have one wide edge and one narrow edge (FIG. 8), to cover all installation configurations depending on cabinet widths.

SCREWS FIG. 6

FIG. 7

Narrow edge MARK HERE / TRACER ICI MARK HERE / TRACER ICI WIDE EDGE / RECORD LARGE Wide edge FIG. 8

PREPARE THE CABINET

WARNING

The cabinet must be secured to wall studs or other wooden framework behind the drywall to support the weight of this unit. Failure to do so may cause personal injury or damage to countertop or cooktop.

NOTES: A. The unit has to be installed inside the cabinet. If installing with one of the optional liners, use it as a template to cut the hole in the bottom of the cabinet.

B. The unit should be mounted centered laterally over the cooktop burners.

C. For back to front position, the unit must be mounted according to local building codes.

1. Cut a hole in the bottom of the cabinet, using the dimensions shown (FIG. 9), or use the optional liner as a template.
2. Where needed, install the metal liner.

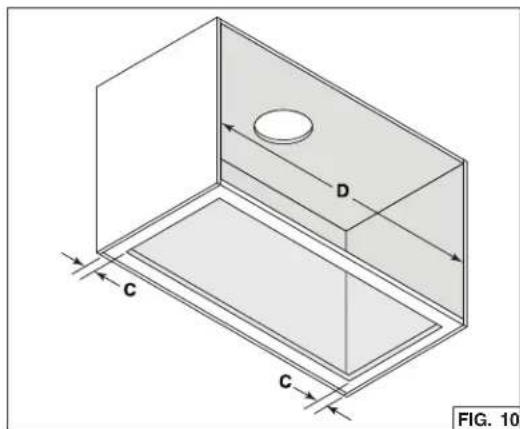

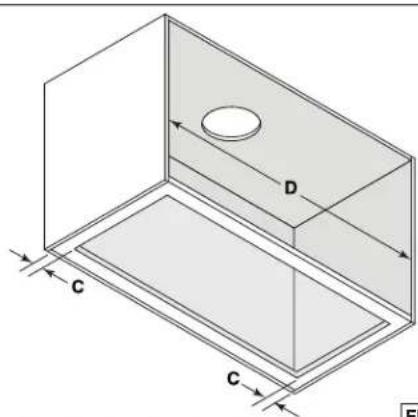

3. Measure the remaining material of the cabinet bottom sides (C) (FIG. 10), if it is 1/4" or more, there is no need to use the cabinet brackets. Go to step 8 on page 10.
4. When there is less than 1/4" remaining material (C), carefully remove those strips. Measure the cabinet inner width (D) (FIG. 10). Refer to the table below to see which cabinet bracket edge configuration must be used.

NARROW EDGE	WIDE EDGE
DFrom 19-9/16" to < 20"	DFrom 20" to 20-1/2"

1. Pay attention to the Ease of Install hooks location on the unit (distance given from unit front flange, FIG. 11). Measure and mark the position of the Ease of Install hooks (shown as E in FIG. 12 on next page) on both cabinet side walls.

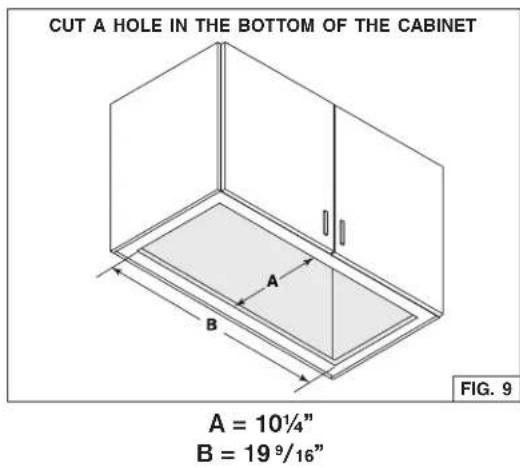

CUT A HOLE IN THE BOTTOM OF THE CABINET A = 10½" B = 19⁹/16" FIG. 9

D C C FIG. 10

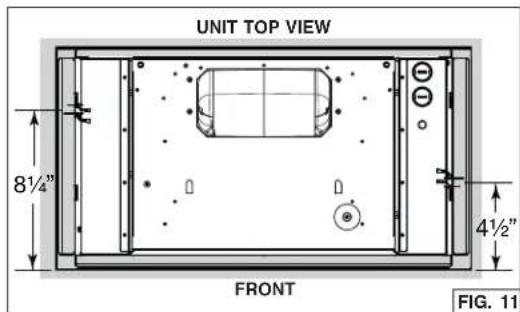

UNIT TOP VIEW 8½" 4½" FRONT FIG. 11

PREPARE THE CABINET (CONT'D)

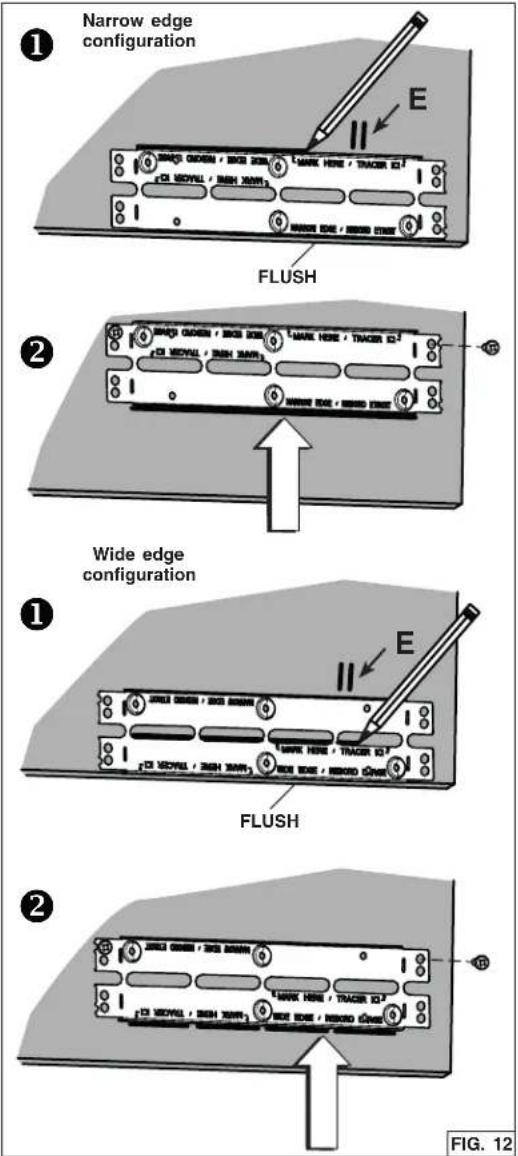

1. Install the cabinet brackets as follow (FIG. 12):

① Align the bracket flush with the bottom of the right cabinet side panel, with the hooks marked position (E) between the bottom embossed holes. For the narrow edge configuration, trace a line on the top of the bracket. For wide edge configuration, trace a line at the bottom of the central slots.

② Lift the bracket flush with the marked lined. Assemble the bracket to the cabinet side panel using 2 no. 8 x 5/8" wood screws (included in parts bag) through the upper holes.

NOTE: Do not use the embossed holes to attach the bracket to the cabinet.

③ Repeat steps ① to ② for the left cabinet side panel.

PREPARE THE CABINET (CONT'D)

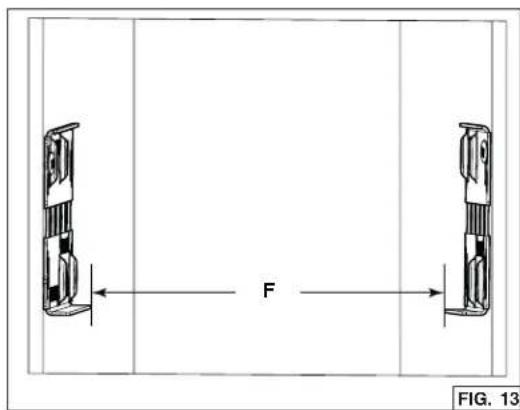

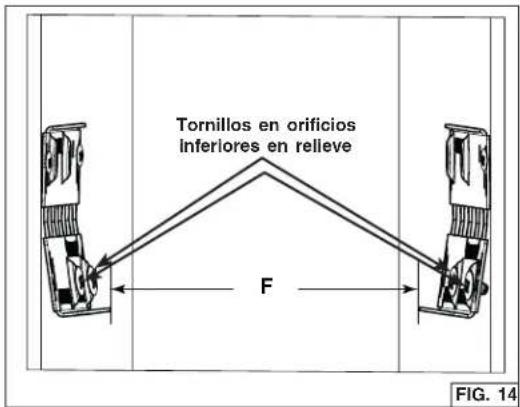

1. Measure the distance between both bottom bracket edges (F) (FIG. 13). The table below shows the appropriate distance needed.

NARROW EDGE	WIDE EDGE
FFrom 19-3/8"to < 19-9/16"	FFrom 19-9/16"to 19-13/16"

If the measured distance needs to be shortened, screw two no. 8-32 x 1/4" machine screws, in each bottom embossed cabinet brackets hole; this will slightly bend the bottom part of the brackets (FIG. 14). Screw both brackets until the appropriate distance is obtained.

F FIG. 13

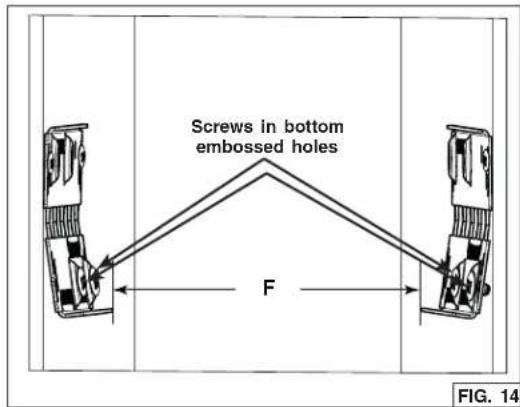

Screws in bottom embossed holes F FIG. 14

HORIZONTAL EXHAUST INSTALLATION ONLY

This powerpack insert is factory shipped to exhaust vertically; however, it is possible to make it exhaust horizontally (3¼" x 10" ducting only).

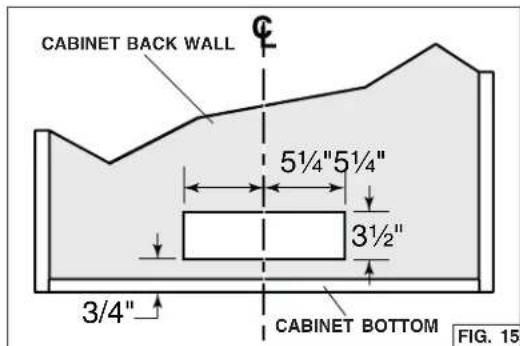

1. Cut the hole for the horizontal exhaust through the back wall of the cabinet using the dimensions shown. (FIG. 15).

CABINET BACK WALL 5½"5½" 3½" 3/4" CABINET BOTTOM FIG. 15

PREPARE THE UNIT

ALL INSTALLATIONS

1. If present, remove all protective polyfilm from the unit and/or parts.

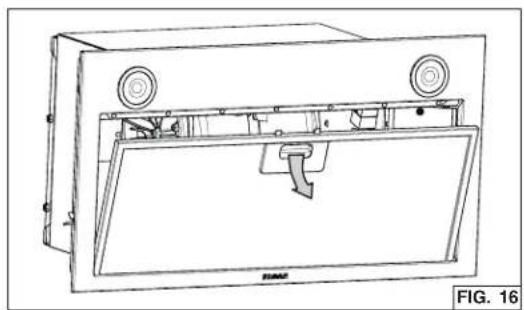

2. Remove the grease filter by pushing down on latch tab and tilting the filter downward (FIG. 16). Set aside the filter.

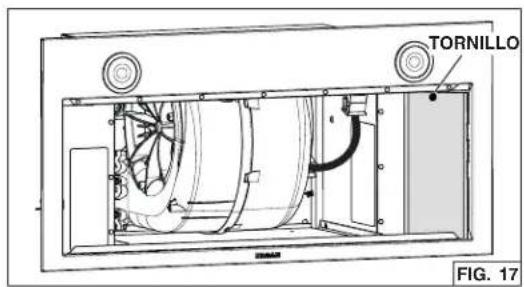

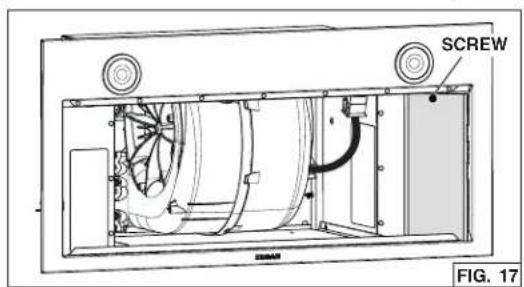

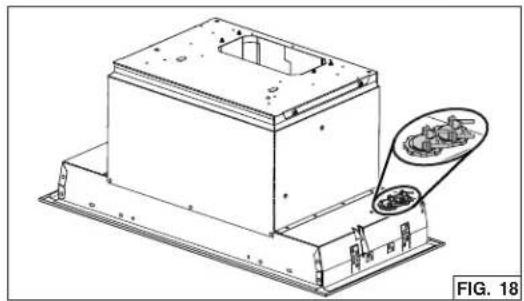

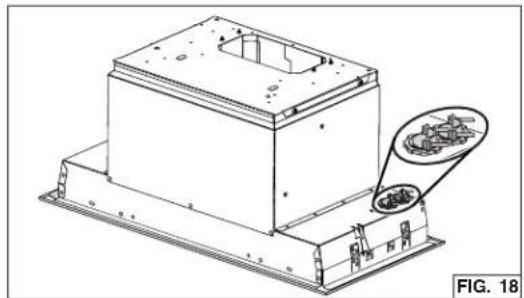

3. Disassemble the electrical compartment cover (grey part in FIG. 17) from inside the unit by removing its retaining screw. Remove the parts bag behind the cover. Set aside the parts bag and the cover along with its screw.

4. Punch out both knock-out holes. Install an appropriate 7/8" diameter strain relief (not included, grey parts in FIG. 18) in each hole. NOTE: The HCK44 cord connection kit (optional) can be used instead of the house power cable. Refer to the instruction packed with the HCK44 cord connection kit.

HORIZONTAL EXHAUST INSTALLATION ONLY

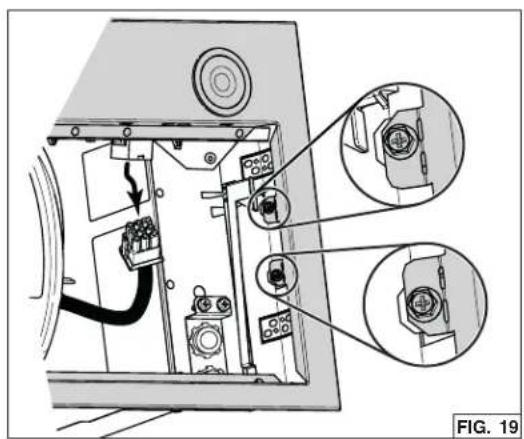

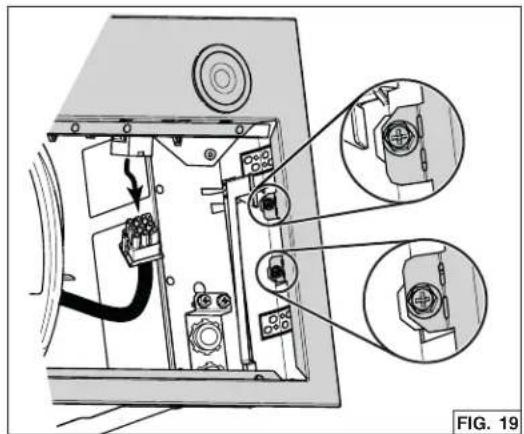

1. Unplug the blower cable from its connector on faceplate. Disassemble the faceplate from the unit by removing its 4 retaining screws (two per side, circled in FIG. 19). Set aside the faceplate along with its screws.

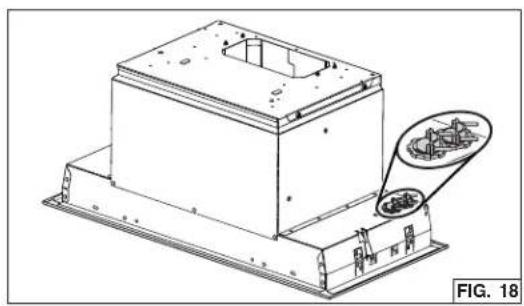

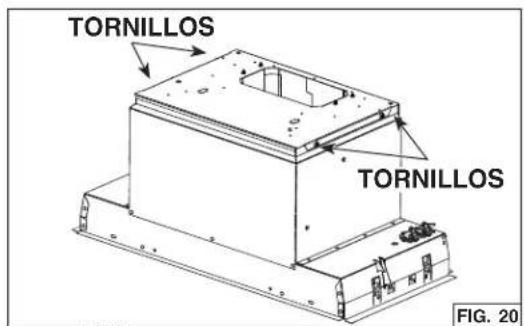

2. Remove the 4 screws (two per side) retaining the blower support plate to the top of the unit (FIG. 20). Carefully lift out and set aside the blower with its support plate. The blower will be reinstalled later in the unit.

Technical line drawing of a mechanical device with mounting holes and internal components (no text or symbols)

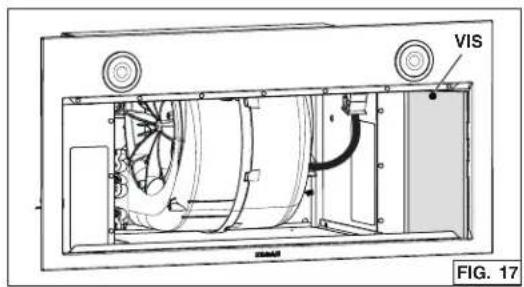

SCREW FIG. 17

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

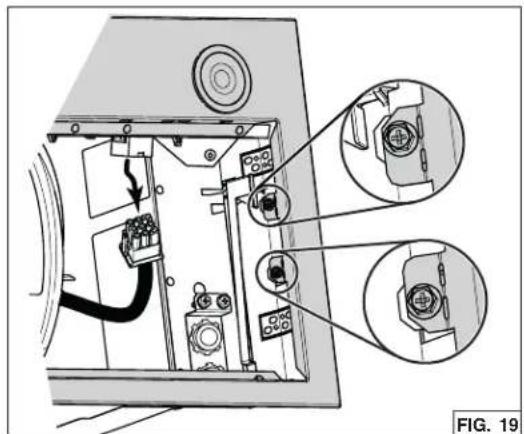

Technical diagram of an electronic device showing internal components and wiring (no text or symbols)

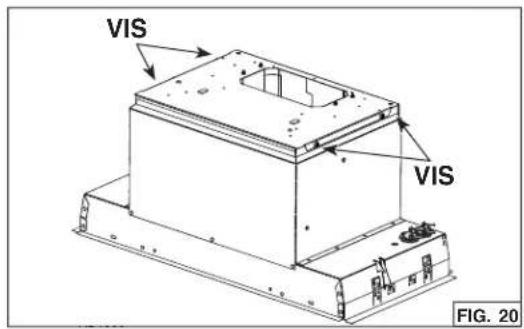

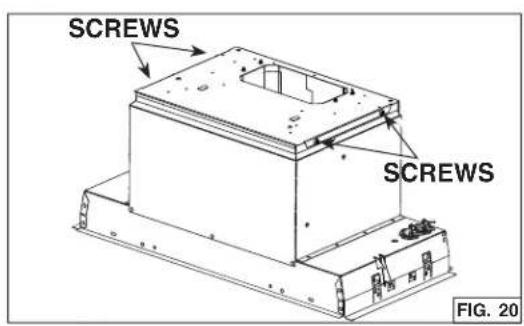

SCREWS SCREWS FIG. 20

PREPARE THE UNIT (CONT'D)

HORIZONTAL EXHAUST INSTALLATION ONLY (CONT'D)

1. From inside the unit, detach the back plate (grey part in FIG. 21) by removing its both retaining nuts using 3/8" diameter socket. Set aside the nuts and plate.

2. Install the back plate on top of the unit, where the blower support plate was. Orient the holes nearby the corners towards the back of the unit. Assemble to the top of the unit using 4 screws previously removed in step 6 (FIG. 22).

VERTICAL EXHAUST INSTALLATION ONLY

1. For rectangular ducting, use 2 included no. 8-18 x 1/4" metal screws to attach the included 3½" x 10" adapter damper on top of the unit, over the blower exhaust opening (FIG. 23).

NOTE: The damper hinge must be towards the front of the unit.

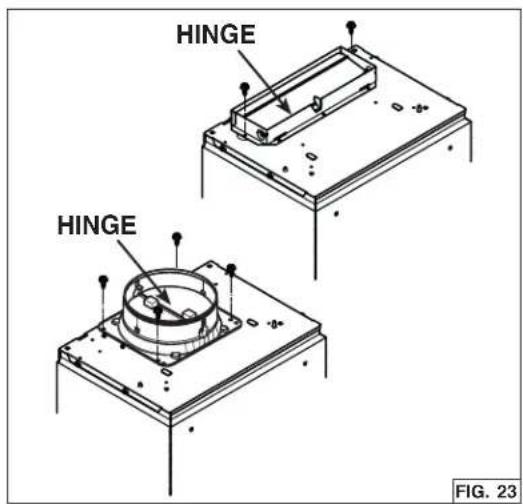

For round ducting, use 4 included no. 8-18 x 1/4" metal screws to attach the included 6-in. round adapter damper on top of the unit, over the blower exhaust opening (FIG. 23).

NOTE: The damper hinge must be parallel to the sides of the unit.

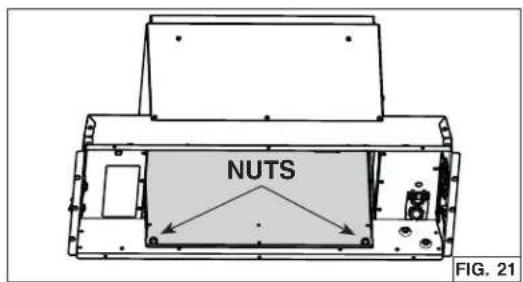

NUTS FIG. 21

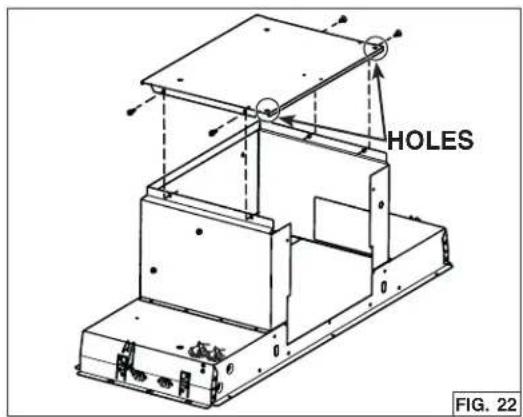

HOLES FIG. 22

HINGE HINGE FIG. 23

INSTALL THE UNIT

1. Run house power cable between service panel and unit location. Stub out a 2-foot length of power cable inside the cabinet. Insert the power cable in the unit through one of the 7/8" diameter strain relief previously installed.

NOTE: Not necessary if the optional HCK44 cord connection kit is used.

2 Stub out a 2-foot length of both 14/2 cable and 14/3 cable coming from switches. Insert the 14/2 cable and the 14/3 cable in the unit through the other 7/8" diameter strain relief previously installed.

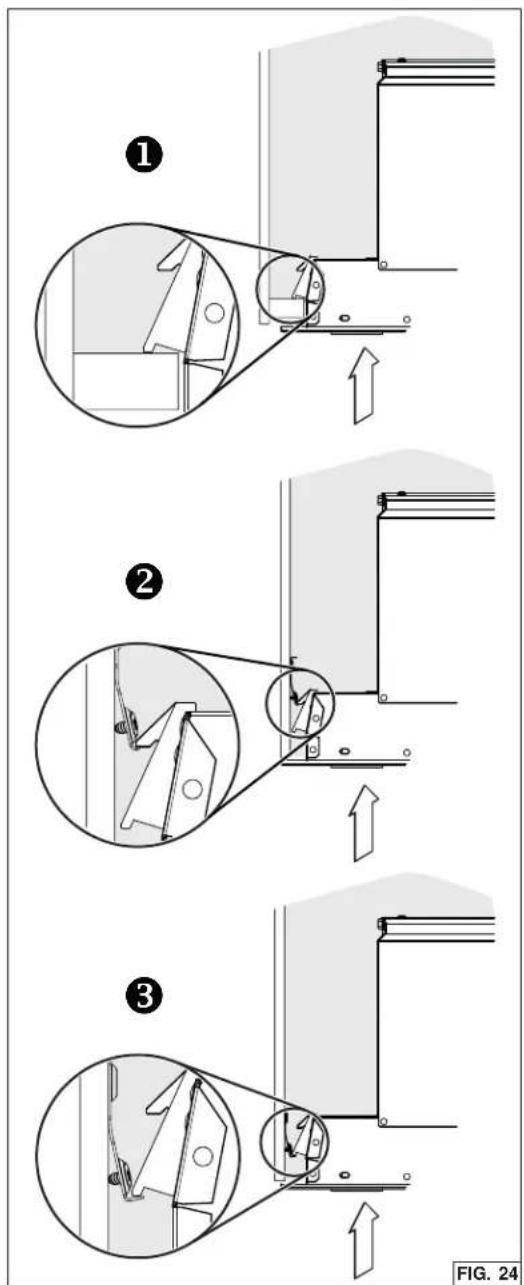

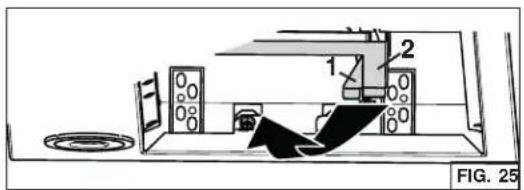

3. Insert the unit in the cabinet, until you feel a 'click' from both sides of the unit, confirming that the Ease of Install Hooks rest on the top of the cabinet bottom sides ①, or cabinet brackets ② or ③ (FIG. 24). Move the unit from left to right, from rear to front and up to ensure the Ease of Install Hooks are retaining the unit inside the cabinet.

NOTE: The unit will be protruding below the cabinetry until tightened.

NOTE: If, for any reason, the unit has to be removed from the cabinet, it is possible to disengage the Ease of Install Hooks. To do so, while holding and pushing on one side of the unit, lift simultaneously Ease of Install Hooks levers (1 and 2, grey parts in FIG. 25) in the other side of the unit until the hooks are retracted.

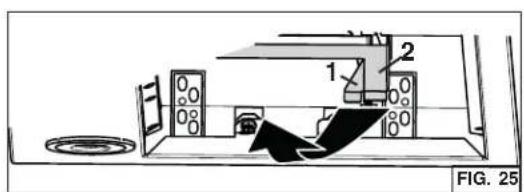

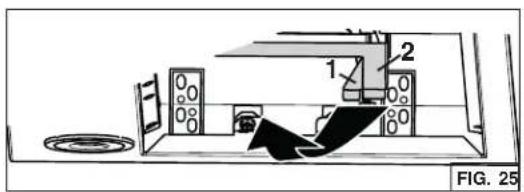

Technical diagram illustrating three-step mechanical assembly steps with labeled components and directional arrows

1 2 FIG. 25

INSTALL THE UNIT (CONT'D)

1. Lift the unit until contact is made between the unit flange and cabinet. Secure the unit to the cabinet using 4 no. 8 x 5/8" wood screws included in parts bag (2 screws per side). Use upper or lower holes (1, 2, 3, 4, 5 or 6) (FIG. 26).

WARNING

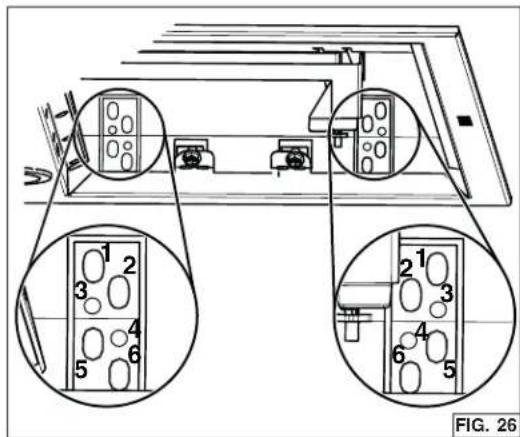

The Ease of Install Hooks TEMPORARILY hold the unit in place. The unit MUST BE secured to the cabinet using the included 4 screws.

WARNING

Never use this unit as a shelf.

FIG. 26

HORIZONTAL EXHAUST INSTALLATION ONLY

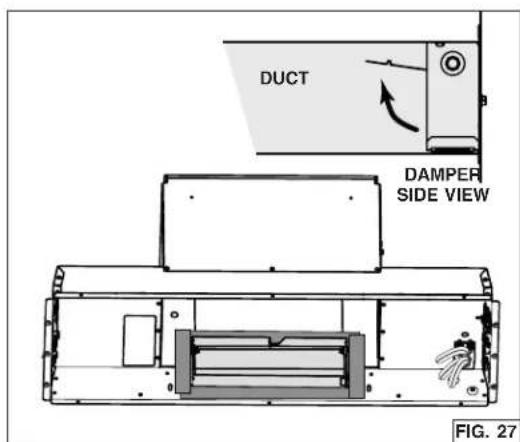

1. From inside the unit, slide the 3¼" x 10" adapter/damper in the horizontal duct, then attach it to the unit using aluminum duct tape all around the joint (FIG. 27). Ensure the damper opens as shown in damper side view.

DUCT DAMPER SIDE VIEW FIG. 27

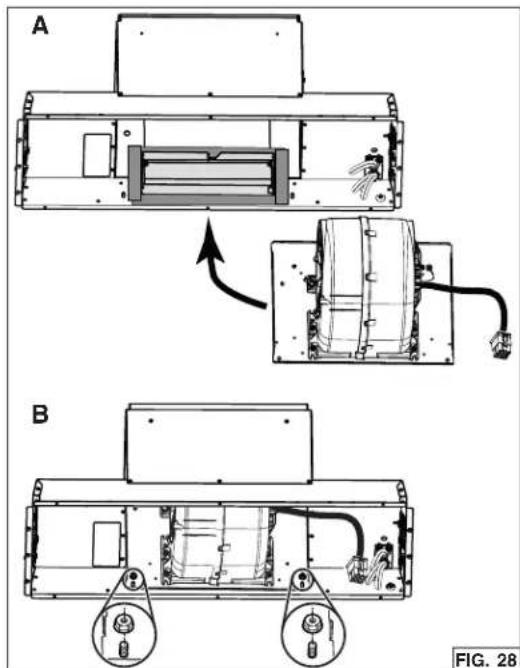

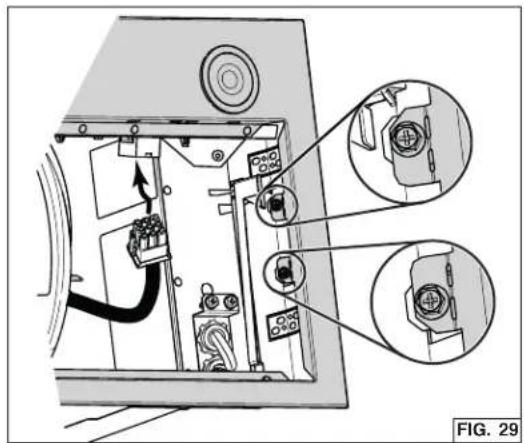

1. Insert the blower with its support plate inside the unit, where the back plate was initially (A). Attach to the unit using 2 nuts previously removed in step 7 on page 12 (B) (FIG. 28).

A B FIG. 28

INSTALL THE UNIT (CONT'D)

HORIZONTAL EXHAUST INSTALLATION ONLY (CONT'D)

1. Reinstall and secure the faceplate to the unit using its 4 retaining screws (two per side). Plug the blower cable to its connector on faceplate (FIG. 29).

Technical diagram of an electronic device showing internal components and wiring, with no readable text or symbols.

CONNECT DUCTWORK

VERTICAL EXHAUST INSTALLATION ONLY

Ducted Installation

Use 6-in. round or 3 14'' × 10'' metal duct to connect the adapter damper on the top of the unit to the ductwork above (FIG. 30). Seal the joint using aluminum duct tape.

Non-Ducted Installation

A non-duct kit is required for this type of installation (purchase separately, model number: HARKPM21). To install, follow the instructions packed with the kit.

Technical illustration showing a cylindrical component being lowered into a rectangular housing, with no text or symbols present.

WIRING

WARNING

Risk of electric shock. Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally.

NOTES: 1. Use appropriate wire nuts (not included) for wire connections.

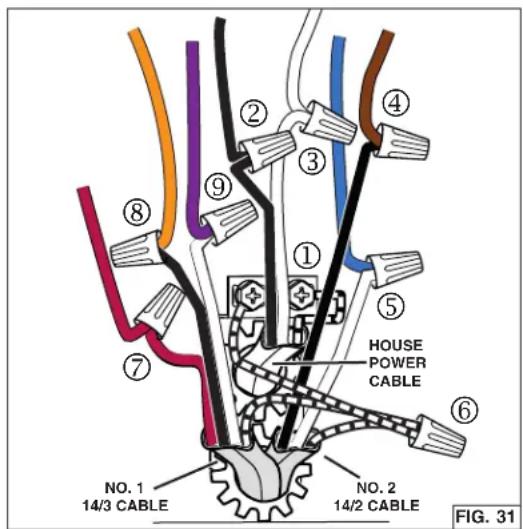

1. Refer to FIG. 31 for wire connections.

2. Connect GREEN or bare wire from house power cable to one of the unit GREEN ground screw (①).

3. Connect house power cable to unit wiring: BLACK to BLACK (②) and WHITE to WHITE (③).
4. Connect No. 2 14/2 cable to unit wiring: BLACK to BROWN (④) and WHITE to BLUE (⑤).
5. Using a short ground wire (not provided), connect GREEN or bare wires from no. 1 and no. 2 cables to the other unit GREEN ground screw (⑥).
6. Connect No. 1 14/3 cable to unit wiring: RED to RED (⑦), BLACK to ORANGE (⑧) and WHITE to PURPLE (⑨).

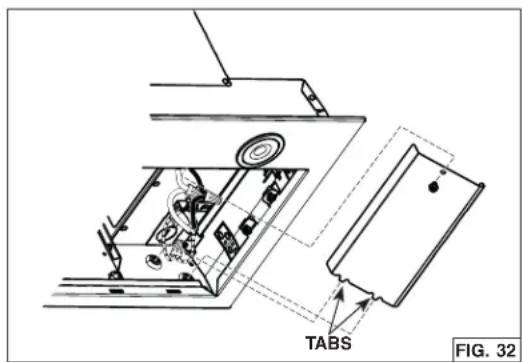

7. Reinstall the electrical cover in the unit; ensuring the bottom tabs are inserted in their embossed location. Secure in place using its retaining screw (FIG. 32).

NOTE: Not all wires shown.

CAUTION

Take care not to pinch wires while reinstalling wiring cover.

HOUSE POWER CABLE NO. 1 14/3 CABLE NO. 2 14/2 CABLE FIG. 31

TABS FIG. 32

INSTALL THE FILTER

Ducted Installation

Reinstall the grease filter.

Non-Ducted Installation

Attach the non-ducted filter (included with the HARKPM21 non-duct kit) to the back of the grease filter using clips (provided with non-ducted filter). To order a new non-ducted filter, use service part number S99010464.

OPERATION

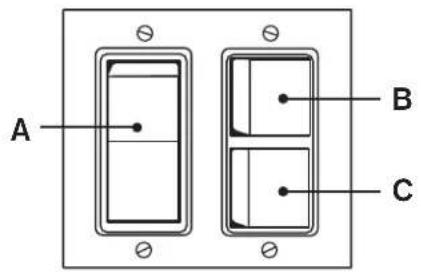

A: Blower Speed Selection Switch:

This 3-way rocker switch controls the blower speed.

Upper position: High speed.

Lower position: Low speed.

B: ON/OFF Blower Switch:

This rocker switch turns the blower ON and OFF.

Left position: OFF.

Right position: ON.

C: ON/OFF Light Switch:

This rocker switch turns the LED lights ON and OFF.

Left position: OFF.

Right position: ON.

HEAT SENTRY™

Your unit is equipped with a HEAT SENTRY™ thermostat.

This thermostat is a device that will turn on or speed up the blower if it senses excessive heat above the cooking surface.

1) If blower is OFF - it turns blower ON to HIGH speed.

2) If blower is ON at a lower speed setting - it turns blower up to HIGH speed.

When the temperature level drops to normal, the blower will return to its original setting.

! WARNING

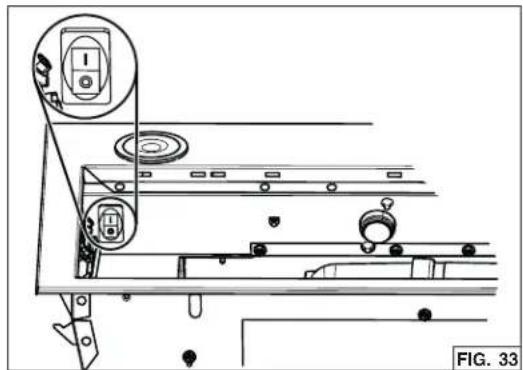

The HEAT SENTRY thermostat can start the blower even if the hood is turned OFF. When this occurs, it is impossible to turn the blower OFF with its switch. If you must stop the blower, set the main power switch (located behind the filters, on inner side of the unit faceplate) in OFF position (if it is possible to do so safely). See inset in FIG. 33.

A B C

Technical line drawing of a mechanical assembly with no visible text or symbols

MAINTENANCE

ALWAYS SWITCH OFF THE ELECTRICITY SUPPLY BEFORE CARRYING OUT ANY OPERATIONS ON THE APPLIANCE.

Grease Filte

The grease filter should be cleaned frequently. Use a warm dishwashing detergent solution. Grease filter is dishwasher safe.

Clean the filter in the dishwasher using a non-phosphate detergent. Discoloration of the filter may occur if using phosphate detergents, or as a result of local water conditions - but this will not affect filter performance. This discoloration is not covered by the warranty. To minimize or prevent discoloration, hand wash filter using a mild detergent.

Non-Ducted Recirculation Filter

The Non-Ducted Recirculation filter should be changed every 3 to 6 months. Replace more often if your cooking style generates extra grease, such as frying and wok cooking.

STAINLESS STEEL CLEANING

Do:

• Regularly wash with clean cloth or rag soaked with warm water and mild soap or liquid dish detergent.
• Always clean in the direction of original polish lines.
• Always rinse well with clear water (2 or 3 times) after cleaning. Wipe dry completely.
• You may also use a specialized household stainless steel cleaner.

Don't:

• Use any steel or stainless steel wool or any other scrapers to remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Allow dirt to accumulate.
• Let plaster dust or any other construction residues reach the unit. During construction/renovation, cover the unit to make sure no dust sticks to the stainless steel surface.

Avoid when choosing a detergent:

• Any cleaners that contain bleach will attack stainless steel.
• Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be used close to a range.

PMA400SS


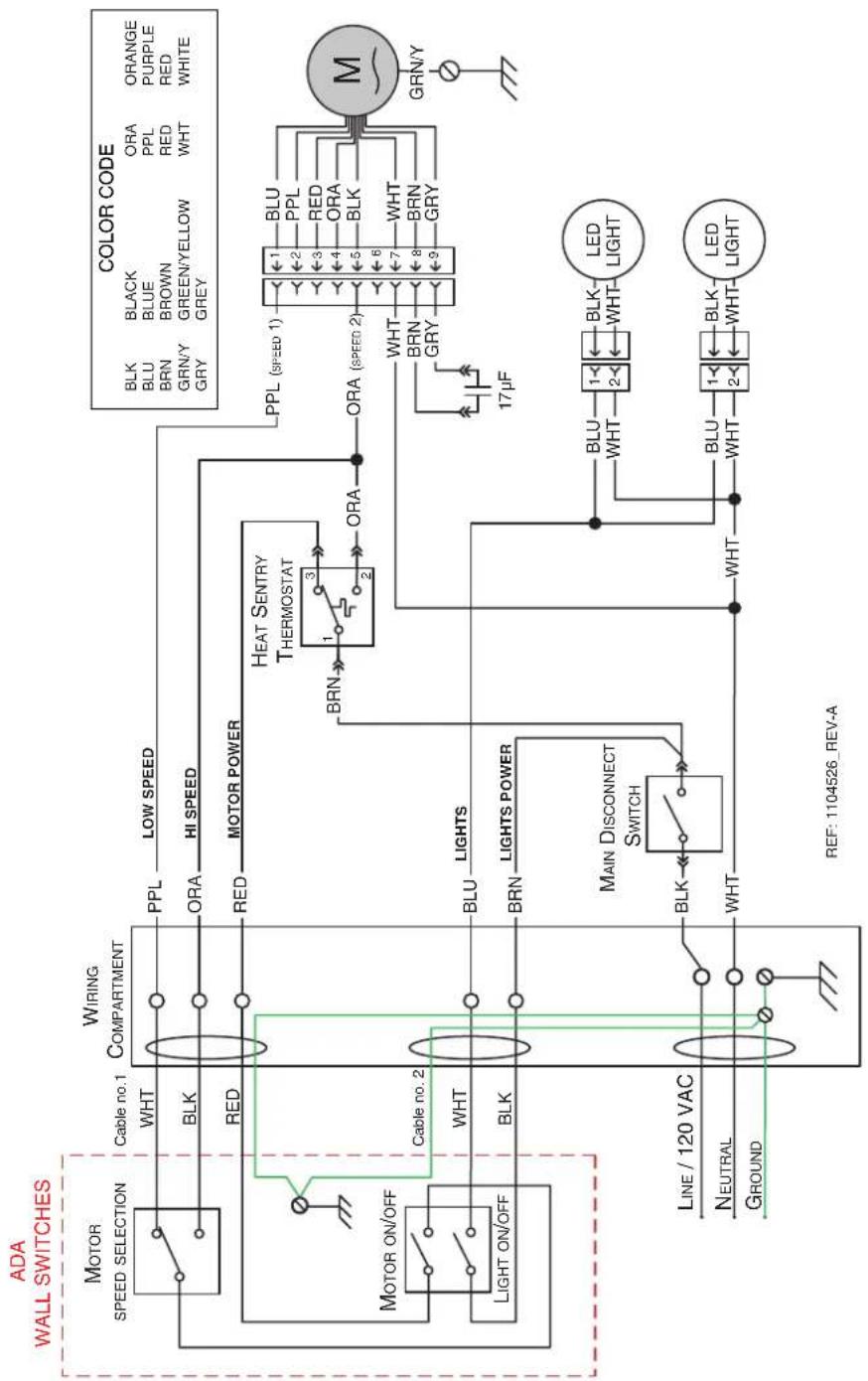

WIRING DIAGRAM
INSTALLATION AND USE & CARIE INSTRUCTIONS

PMA400SS

00SS 1 2 3 4 5 6 7 8 9 10 11

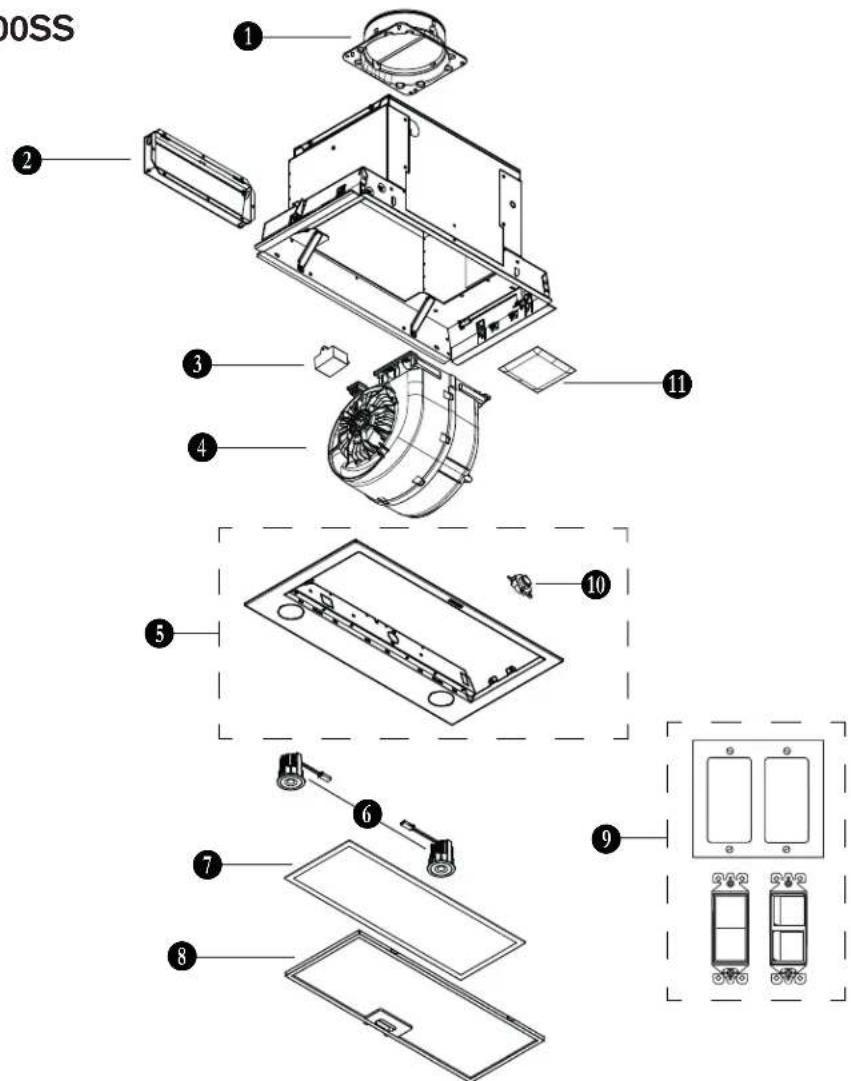

KEY NO.	PART NUMBER	DESCRIPTION	QTY.
1	SV08487	6-IN. ROUND ADAPTER / DAMPER	1
2	SR740014	3 14 " x 10" ADAPTER / DAMPER	1
3	S99271702	CAPACITOR 17 μF	1
4	S97021510	BLOWER ASS'Y 400 CFM	1
5	S98012198-807	FACEPLATE (INCLUDING ITEM 10)	1
6	S99271693	LED MODULE ASSEMBLY (PAIR)	1
7 S99010464		CHARCOAL FILTER WITH CLIPS (NOT SHOWN) (NON-DUCTED INSTALLATION ONLY, INCLUDED IN NON-DUCT KIT NO. HARKPM21)	1
8	S99010400	MICROMESH GREASE FILTER	1
9	S1106348	ADA KIT	1
10	S99030381	HEAT SENTRY THERMOSTAT	1
11 S1	104978	PARTS BAG INCLUDING: 4 No. 8-18 x 1/4" METAL SCREWS, 4 No. 8-32 x 1/4" METAL SCREWS, 8 No. 8 x 5/8" ROUND HEAD WOOD SCREWS, 4 No. 6-18 x 3/4" TRUSS HEAD WOOD SCREWS.	1

Limited Warranty

Warranty Period and Exclusions: Broan-NuTone LLC and Venmar Ventilation ULC (either being the "Company") warrants to the original consumer purchaser of its product ("you") that the product (the "Product") will be free from material defects in the Product or its workmanship for a period of one (1) year from the date of original purchase (or such longer period as may be required by applicable law). For Range Hood Product that includes built-in LED modules, the Company warrants the LED modules and driver to be free from material defects for a period of three (3) years from the date of purchase. The limited warranty period for any replacement parts provided by the Company and for any Products repaired or replaced under this limited warranty shall be the remainder of the original warranty period (or such longer period as may be required by applicable law).

This warranty does not cover fluorescent lamp starters, tubes, halogen, incandescent and LED bulbs, fuses, filters, ducts, roof caps, wall caps and other accessories for ducting that may be purchased separately and installed with the Product. This warranty also does not cover (a) normal maintenance and service, (b) normal wear and tear, (c) any Products or parts which have been subject to misuse, abuse, abnormal usage, negligence, accident, improper or insufficient maintenance, storage or repair (other than repair by the Company), (d) damage caused by faulty installation, or installation or use contrary to recommendations or instructions, (e) any Product that has been moved from its original point of installation, (f) damage caused by environmental or natural elements, (g) damage in transit, (h) natural wear of finish, (i) Products in commercial or nonresidential use, or (j) damage caused by fire, flood or other act of God or (k) Products with altered, defaced or removed serial numbers. This warranty covers only Products sold to original consumers in the United States and Canada by the Company or its U.S. and Canadian distributors authorized by the Company.

This warranty supersedes all prior warranties and, subject to applicable law, is not transferable from the original consumer purchaser.

No Other Warranties: This Limited Warranty contains the Company's sole obligation and your sole remedy for defective products. The foregoing warranties are exclusive and in lieu of any other warranties and conditions, express or implied. THE COMPANY DISCLAIMS AND EXCLUDES ALL OTHER EXPRESS WARRANTIES AND CONDITIONS, AND DISCLAIMS AND EXCLUDES ALL WARRANTIES AND CONDITIONS IMPLIED BY LAW, INCLUDING WITHOUT LIMITATION THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. To the extent

that applicable law prohibits the exclusion of implied warranties or conditions, the duration of any applicable implied warranty or condition is limited to the period specified for the express warranty above. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Any oral or written description of the Product is for the sole purpose of identifying it and shall not be construed as an express warranty.

Whenever possible, each provision of this Limited Warranty shall be interpreted in such manner as to be effective and valid under applicable law, but if any provision is held to be prohibited or invalid, such provision shall be ineffective only to the extent of such prohibition or invalidity, without invalidating the remainder of such provision or the other remaining provisions of the Limited Warranty.

Remedy: During the applicable limited warranty period, the Company will, at its option, provide replacement parts for, or repair or replace, without charge, any Product or part thereof, to the extent the Company finds it to be covered by and in breach of this limited warranty under normal use and service. The Company will ship the repaired or replaced Product or replacement parts to you at no charge. You are responsible for all costs for removal, reinstallation and shipping, insurance or other freight charges incurred in the shipment of the Product or part to the Company. If you must send the Product or part to the Company, as instructed by the Company, you must properly pack the Product or part—the Company is not responsible for damage in transit. The Company reserves the right to utilize reconditioned, refurbished, repaired or remanufactured Products or parts in the warranty repair or replacement process. Such Products and parts will be comparable in function and performance to an original Product or part and warranted for the remainder of the original warranty period (or such longer period as may be required by applicable law).

Company reserves the right, in its sole discretion, to refund the money actually paid by you for the Product in lieu of repair or replacement. If the Product or component is no longer available, replacement may be made with a similar product of equal or greater value, at Company's sole discretion. This is your sole and exclusive remedy for breach of this limited warranty.

Exclusion of Damages: THE COMPANY'S OBLIGATION TO PROVIDE REPLACEMENT PARTS, OR REPAIR, REPLACE OR REFUND, AT THE COMPANY'S OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY AND THE COMPANY'S SOLE AND EXCLUSIVE OBLIGATION. THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL, INDIRECT, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE PRODUCT, ITS USE OR PERFORMANCE. Incidental damages include but are not limited to such damages as loss of time and loss of use. Consequential damages include but are not limited to the cost of repairing or replacing other property which was damaged if the Product does not work properly.

THE COMPANY SHALL NOT BE LIABLE TO YOU, OR TO ANYONE CLAIMING UNDER YOU, FOR ANY OTHER OBLIGATIONS OR LIABILITIES, INCLUDING, BUT NOT LIMITED TO, OBLIGATIONS OR LIABILITIES ARISING OUT OF BREACH OF CONTRACT OR WARRANTY, NEGLIGENCE OR OTHER TORT OR ANY THEORY OF STRICT LIABILITY, WITH RESPECT TO THE PRODUCT OR THE COMPANY'S ACTS OR OMISSIONS OR OTHERWISE.

Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from jurisdiction to jurisdiction. The disclaimers, exclusions, and limitations of liability under this warranty will not apply to the extent prohibited by applicable law.

This warranty covers only replacement or repair of defective Products or parts thereof at the Company's main facility and does not include the cost of field service travel and living expenses.

Any assistance the Company provides to or procures for you outside the terms, limitations or exclusions of this limited warranty will not constitute a waiver of such terms, limitations or exclusions, nor will such assistance extend or revive the warranty.

The Company will not reimburse you for any expenses incurred by you in repairing or replacing any defective Product, except for those incurred with the Company's prior written permission.

How to Obtain Warranty Service: To qualify for warranty service, you must (a) notify the Company at the address or telephone number stated below within seven (7) days of discovering the covered defect, (b) give the model number and part identification and (c) describe the nature of any defect in the Product or part. At the time of requesting warranty service, you must present evidence of the original purchase date. If you cannot provide a copy of the original written limited warranty, then the terms of the Company's most current written limited warranty for your particular product will control.

The most current limited written warranties for the Company's products can be found at www.broan-nutone.com and www.broan-nutone.ca.

Broan-NuTone LLC 926 West State Street, Hartford, WI 53027 www.broan-nutone.com 800-637-1453

Venmar Ventilation ULC, 550 Lemire Blvd., Drummondville, Québec, Canada J2C 7W9 www.broan-nutone.ca 1-800-567-3855

Hotte encastrée

Technical line drawing of a rectangular enclosure or enclosure with mounting brackets and internal components (no text or symbols)

N° de série :

1106307A

Sécurité....3-4

Installation....5-16

Au Canada : broan-nutone.ca

VIS FIG. 5

RETRAIT DES SUPPORTS D'ARMOIRE

VIS FIG. 6

F FIG. 13

Technical line drawing of a mechanical device with mounting holes and internal components (no text or symbols)

Technical line drawing of an industrial machine with visible internal components and labeled parts (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Technical diagram of an electronic device showing internal components and wiring, with no visible text or symbols.

VIS VIS FIG. 20

PRÉPARATION DE L'APPAREIL (SUITE)

INSTALLATION EN ÉVACUATION HORIZONTALE SEULEMENT (SUITE)

Technical diagram illustrating three-step mechanical assembly steps with labeled components and directional arrows

1 2 FIG. 25

INSTALLATION DE L'APPAREIL (SUITE)

Technical diagram of an electronic device showing internal components and wiring, with no readable text or symbols.

RACCORDEMENT DU CONDUIT

INSTALLATION EN ÉVACUATION VERTICALE SEULEMENT

Technical illustration showing a cylindrical component being inserted into a housing, with arrows indicating direction (no text or symbols present)

BRANCHEMENT ÉLECTRIQUE

! AVERTISSEMENT

Technical line drawing of a mechanical assembly with no visible text or symbols

ENTRETIEN

TOUJOURS COUPER L'ALIMENTATION ÉLECTRIQUE AVANT D'EFFECTUER UNE QUELCONQUE OPÉRATION SUR CET APPAREIL.

Filtre à graisses

Broan-NuTone LLC 926 West State Street, Hartford, WI 53027 www.broan-nutone.com 800 637-1453

Venmar Ventilation ULC, 550 boul. Lemire, Drummondville, Québec, Canada J2C 7W9 www.broan-nutone.ca 1 800 567-3855

Campana empotrable

Número de modelo: PMA400SS

Technical line drawing of a mechanical enclosure or frame structure with mounting brackets and circular components (no text or symbols)

Número serial :

BROAN®

Seguridad 3-4

Instalación....5-16

Isometric line drawing of a rectangular enclosure with labeled dimensions A and B (no text or symbols beyond labels)

FIG. 9
A = 10 ^1/4 pulg.
B = 19 ^9 /16 pulg.

Isometric diagram of a rectangular container with labeled dimensions C and D, showing internal structure and a circular hole (no text or symbols beyond labels)

FIG. 10

Technical line drawing of two mechanical components with dimension label F, no readable text or symbols present

Technical line drawing of a mechanical device with mounting holes and internal components (no text or symbols)

TORNILLO FIG. 17

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Technical diagram of an electronic device showing internal components and wiring, with no visible text or symbols.

TORNILLOS TORNILLOS FIG. 20

Technical diagram illustrating three-step mechanical assembly steps with labeled components and directional arrows

1 2 FIG. 25

Technical diagram of an electronic device showing internal components and wiring, with no readable text or symbols.

Diagram showing two mechanical assembly steps: one with a cylinder and arrow, the other with a rectangular block and arrow (no text or symbols)

CONEXIÓN ELÉCTRICA

ADVERTENCIA

Technical line drawing of a mechanical assembly with no visible text or symbols

MANTENIMIENTO

Broan-NuTone LLC 926 West State Street, Hartford, WI 53027 www.broan-nutone.com 800-637-1453

Venmar Ventilation ULC, 550 Lemire Blvd., Drummondville, Québec, Canada J2C 7W9 www.broan-nutone.ca 1-800-567-3855
