GB Original operating instructions Wet and dry vacuum cleaner
D
Gefahr!
When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

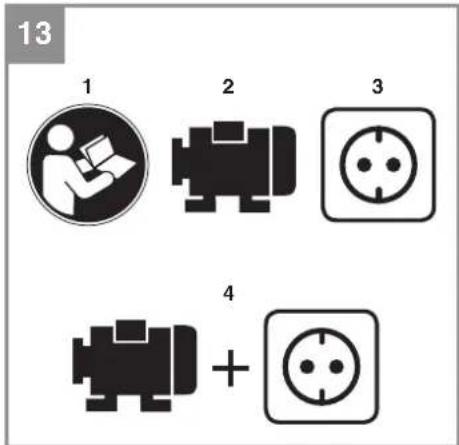

Explanation of the symbols used (see Fig. 13)
- Danger! - Read the operating instructions to reduce the risk of injury.
- Nominal output
- Max. power consumption of the automatic socket-outlet
- Max. total power consumption
1. Safety regulations
WARNING!
Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fi re and/or serious injury.
Save all warnings and instructions for future reference.
- Danger! read the operating instructions before assembling and using the appliance for the first time.
- Check that the mains voltage is the same as the mains voltage specified on the rating plate.
- Pull out the power plug in the following circumstances: whenever the appliance is not in use, before opening the appliance and before all cleaning and maintenance work.
• Never clean the appliance with solvents. - Never pull the plug out of the socket by pulling the cable.
- Never leave the appliance unattended when operational.
- Keep away from children.
Take care to ensure that the power cable does not get damaged by being run over, crushed, pulled or suchlike. -
Do not use the machine if the power cable is in a less than perfect condition.
-
If the power cable has to be replaced, the replacement must comply with the design specifications of the manufacturer.
• Power cable: H 05 VV - F 3 x 1.5 mm² - Never vacuum the following: burning matches, smoldering ash and cigarette butts, combustible, caustic, inflammable or explosive substances, vapor or liquids.
- This appliance is not suitable for vacuuming dust which can be harmful to health.
• Store the appliance in a dry indoor location.
• Never use the appliance if it is damaged. - Only allow the appliance to be serviced by an authorized after sales service outlet.
- Only use the appliance to carry out work for which has been designed.
• Take extra care when cleaning steps. - Use only genuine accessories and spare parts.
This equipment is not designed to be used by people (including children) with limited physical, sensory or mental capacities or those with no experience and/or knowledge unless they are supervised by a person who is responsible for their safety or they have received instructions from such a person in to how to use the equipment safely. Children must always be supervised in order to ensure that they do not play with the equipment.
2. Layout and items supplied
2.1 Layout (Fig. 1-3)
- Handle
- ON/OFF/Automatic switch
- Head
- Filter cage
- Safety float valve
- Automatic socket-outlet for electric tools
- Locking hook
- Tank
- Suction hose connection
- Blow connector
- Flexible suction hose
- 2-piece suction tube
- Dual purpose nozzle
- Castors
- Pleated filter
- Foamed plastic filter
- Hook for cable store
- Wheels
- Water drain screw
GB
20. Adapter
- Fastening screws on the handle
- Accessory holder
- Crevice nozzle
- Collection bag
2.2 Items supplied
Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.
- Open the packaging and take out the equipment with care.
- Remove the packaging material and any packaging and/or transportation braces (if available).
- Check to see if all items are supplied.
- Inspect the equipment and accessories for transport damage.
- If possible, please keep the packaging until the end of the guarantee period.
Danger!
The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!
- Handle
- Suction hose
• 2-piece suction tube
• Dual purpose nozzle - Castor (2x)
• Pleated filter with cover
• Foamed plastic filter - Wheel (2x)
Adapter
• Fastening screw for handle (2x) - Crevice nozzle
Collection bag
• Original operating instructions
The equipment comes with a chain (z) on the tank bottom. The chain helps to prevent static charging during use.
3. Proper use
The wet and dry vacuum cleaner is designed for wet and dry vacuuming using the appropriate fi liter. The equipment is not suitable for the vacuuming of combustible, explosive or harmful substances.
The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.
4. Technical data
Mains voltage....220-240V \~ 50/60 Hz
Nominal output: 900 W
Max. power consumption
Automatic socket-outlet: 2000 W
Max. total power consumption: 2900 W
Tank volume: 30 l
L_pA sound pressure level 78 dB(A)
K_pA uncertainty 2 dB
Weight: 5.9 kg
5. Before starting the equipment
Warning!
Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.
The equipment may be connected only to a shock-proof socket-outlet.
5.1 Assembling the equipment
Fitting the equipment head (Fig. 6)
The equipment head (3) is fastened to the tank (8) by the locking hooks (7). To remove the equipment head (3), open both of the locking hooks (7) and take off the equipment head (3). When fitting the equipment head (3), make sure that both of the locking hooks (7) lock into place correctly.
GB
Fitting the wheels (Fig. 5)
Fit the wheels in accordance with Fig. 5.
Fitting the handle (Fig. 4)
Use a screwdriver to fit the handle (1) using both screws (21).
5.2 Fitting the fi Iters
Notice!
Never use the wet and dry vacuum cleaner without a filter.
Always ensure that the filters are securely seated.
Fitting the foam fi Iter (Fig. 7)
For wet vacuuming, slip the supplied foam fi liter (16) over the fi liter basket (Fig. 2/4). The pleated filter (15) already fitted upon delivery is not suitable for wet vacuuming.
Fitting the pleated fi Iter (Fig. 8)
For dry-vacuuming, slip the pleated filter (Fig. 15) over the filter basket (Fig. 2/4). The pleated filter (15) is suitable for dry-vacuuming only.
Fitting the dirt bag (Fig. 8a)
For vacuuming fi ne, dry dirt it is recommended that you also fi t the dirt bag. This will ensure that the pleated fi iter (15) does not clog up so quickly and help maintain the vacuuming power. It also makes it easier to dispose of the dust. Slip the dirt bag over the vacuuming hole. The dirt bag is suitable for dry-vacuuming only.
5.3 Fitting the suction hose (Fig. 9-12)
Connect the suction hose (11) to the corresponding connector on the wet and dry vacuum cleaner, depending on the application required.
Vacuuming
Connect the suction hose (11) to the suction hose connector (9).
Blowing
Connect the suction hose (11) to the blow connector (10).

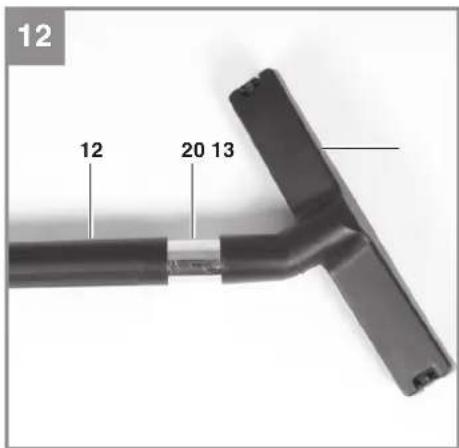

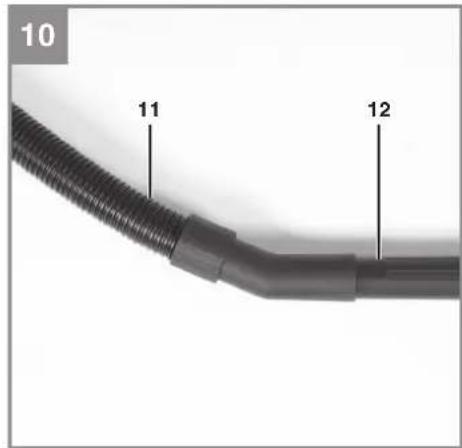

To extend the suction hose (11) you can attach one or more of the elements which make up the 2-part suction tube (12) to the suction hose (11).
5.4 Suction nozzles
Combination nozzle (13)
The dual-purpose nozzle (13) is for vacuuming solids and liquids over medium to large areas.
Crevice nozzle (Fig. 11)
The crevice nozzle (23) is designed for vacuuming solids and liquids in corners, edges and other areas that are difficult to access.
6. Operation
6.1 ON/OFF switch (Fig. 2/2)
Switch position 0: Off
Switch position I: Normal mode
Switch position AUTO: Automatic mode
6.2 Dry vacuuming
For dry-vacuuming, use the pleated filter (15). In addition, you can also fit the dirt bag. (See point 5.2)
Always ensure that the filters are securely seated.
6.3 Wet vacuuming
For wet-vacuuming, use the foam fi lter (16) (see point 5.2).
Check that the filter is securely seated at all times.
Water drain screw (Fig. 1)
To make the tank (8) easier to empty after wet vacuuming, it is fitted with a water drain screw (19). Open the water drain screw (19) by turning it anticlockwise and drain the liquid.
When wet vacuuming, the floating safety switch (5) closes when the maximum tank level is reached. At the same time, the suction noise of the equipment will change and become louder. You must then switch off the equipment and empty the tank.
Danger!
The wet and dry vacuum cleaner is not suitable for the vacuuming of combustible liquids. For wet vacuuming, use only the supplied foam filter.
6.4 Automatic mode
Connect the power cable of your electric tool to the automatic socket-outlet (6) and connect the suction hose (11) to the vacuuming connector of your electric tool. Check that the connections are secure and air-tight.
Set the switch (2) on the wet and dry vacuum cleaner to position „AUTO“ (automatic mode). The moment you switch on the electric tool, the wet and dry vacuum cleaner switches on as well. When you switch off the electric tool, the wet and
GB
dry vacuum cleaner switches off as well after a pre-set delay.
6.5 Blowing
Connect the suction hose (11) to the blow connector (10) on the wet and dry vacuum cleaner.
7. Replacing the power cable
Danger!
If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.
8. Cleaning, maintenance and ordering of spare parts
Danger!
Always pull out the mains power plug before starting any cleaning work.
8.1 Cleaning
- Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible.
• We recommend that you clean the equipment immediately after you use it.
8.2 Cleaning the equipment head (3)
Clean the equipment regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be aggressive to the plastic parts in the equipment.
8.3 Cleaning the tank (8)
The tank can be cleaned with a damp cloth and some soft soap or under running water, depending on the amount of dirt.
8.4 Cleaning the filters
Cleaning the pleated fi Iter (15)
Clean the pleated filter (15) regularly by carefully patting it and cleaning it with a fine brush or hand brush.
Cleaning the foam fi Iter (16)
Clean the foam filter (16) with a little soft soap under running water and allow it to air-dry.
8.5 Maintenance
At regular intervals and before each use, check that the filters in the wet and dry vacuum cleaner are securely fitted.
8.6 Ordering replacement parts:
Please quote the following data when ordering replacement parts:
• Type of machine
• Article number of the machine
• Identification number of the machine
- Replacement part number of the part required For our latest prices and information please go to www.Einhell-Service.com
9. Disposal and recycling
The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.
10. Storage
Store the equipment and accessories out of children's reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30^ . Store the electric tool in its original packaging.
GB
Disposal
Power tools, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.
Do not dispose of power tools and batteries/rechargeable batteries into household waste!
Only for EU countries:
According to the Directive 2012/19/EU on waste electrical and electronic equipment and its transposition into national law, power tools that are no longer usable, and, according to the Directive 2006/66/EC, defective or drained batteries must be collected separately and disposed of in an environmentally correct manner.
If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.
Only for United Kingdom:
According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) and the Waste Batteries and Accumulators Regulations 2009 (SI 2009/890) (as amended), products that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.
The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the Einhell Germany AG.
Subject to technical changes.
GB
Service information
We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.
Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.
| Category Example | |
| Wear parts* Combination nozzle, crevice nozzle, upholstery nozzle, electric tool adapter, etc. | |
| Consumables* | Pleated filter, foam filter, dirt bag, additional filter, etc. |
| Missing parts | |
* Not necessarily included in the scope of delivery!
In the effect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:
• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.
