USER MANUAL STAR_ATFE_10 Fromm & Starck

Technical diagram of a structural frame assembly with numbered components and directional arrows indicating assembly or movement.

Teileliste

VII 8 E VIII 2 L F P T E x24

W1 X 5 6 7 7 ① B ↑ S ↑ T ② U XI

Methode 1 (W1)

LD A V 1 2 3 M A

LD - LED-Display

Description of the parameter	Value of the parameter
Product name	CORNER ELECTRIC SIT STAND DESK FRAME
Model	STAR_ATFE_10
Supply voltage [V~] / Frequency [Hz]	230/50
Rated power [W].	450
Safety class	II
Dimensions [Width x Depth x Height; mm]	Left side: 1160x680x580Right side: 1160x680x580
Weight [kg]	33
Number of legs	3
Maximum load [kg]	150
Height adjustment range [mm]	580-1230
Height adjustment range [mm]	Left side: 1160-1860Right side: 1160-1860
Maximum travel [mm]	650
Work cycle*: on/off [min]	2/18
Maximum adjustment speed [mm/s]	34

*CAUTION: After every 2 minutes of continuous motor operation, allow the unit to cool down and remain idle for at least 18 minutes.

1. General Description

The instruction manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

PLEASE CAREFULLY READ AND UNDERSTAND THIS INSTRUCTION MANUAL BEFORE OPERATION,

To ensure long and reliable operation of the unit, make sure to operate and maintain it properly in accordance with the guidelines in this instruction manual. The technical data and specifications contained in this instruction manual are up to date. The manufacturer reserves the right to make changes in order to improve the quality.

Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way so that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

CE	The product complies with applicable safety standards.
	Please read the instructions before use.
	Recyclable product.
	CAUTION! or WARNING! or REMINDER! describing a situation.(general warning sign).
	CAUTION! Warning of electric shock!
	Safety class II equipment with double insulation.
	For indoor use only.

CAUTION! The illustrations in this instruction manual are for reference only and may differ from the actual product in some details.

The original instruction manual is in the German language version. Other language versions are translations from German.

2. Safety of use

CAUTION! Read all safety warnings and all instructions. Failure to follow warnings and instructions could result in serious injury or even death.

The term "unit" or "product" in the warnings and in the description of the instructions refers to the CORNER ELECTRIC SIT STAND DESK FRAME

2.1. Electrical safety

a) The plug of this unit must fit into the outlet. Do not modify the plug in any way. Original plugs and matching outlets reduce the risk of electric shock.

b) Do not touch the unit with wet or damp hands.

c) Do not use the cord in an unintended manner. Never use it to carry the unit or to pull the plug out of the socket. Keep the cord away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cords increase the risk of electric shock.

d) If you cannot avoid using the unit in a wet environment, use a residual current unit (RCD). Using an RCD reduces the risk of electric shock.

e) Do not use the unit if the power cord is damaged or shows signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service department.

f) To avoid electric shock, do not immerse the cable, plug, or unit itself in water or other liquid. Do not use the unit on wet surfaces.

2.2. Safety in the workplace

a) Keep the work area tidy and well lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing and use common sense when using the appliance.

b) If you find any damage or irregularities in the operation of the unit, immediately turn it off and report it to an authorized person.

c) If you have any doubts as to whether the product is working properly or if it is damaged, contact the manufacturer's service department.

d) Only the manufacturer's service department can repair the unit. Do not carry out repairs yourself!

e) In case of open flames or fire, use only dry powder or snow (CO2) fire extinguishers to extinguish the live equipment.

f) Keep these instructions for use for future reference. If the unit is to be passed on to a third party, the operating instructions must also be handed over together with the unit.

g) Keep the packaging and small assembly parts out of the reach of children.

h) When using this unit together with other units, also follow the other instructions for use.

2.3. Personal safety

a) The unit is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the unit.

b) The unit may be operated by persons who are physically fit, capable of operating it and appropriately trained, and who have read this instruction manual and have been trained in occupational safety and health.

c) The unit is not a toy. Children should be watched to ensure that they do not play with the unit.

2.4. Safe use of the unit

a) Do not overload the unit. Use tools that are suitable for the application. A correctly selected unit will do a better and safer job for which it was designed.

b) Do not use the appliance if the ON/OFF switch does not function properly (does not turn on and off). Units that cannot be controlled by the switch are unsafe, cannot operate, and must be repaired.

c) Unplug the unit before making adjustments, changing accessories, or putting it away. This precaution reduces the risk of accidental start-up.

d) Keep unused equipment out of the reach of children and out of the reach of anyone unfamiliar with the unit or this instruction manual. These units are dangerous in the hands of inexperienced users.

e) Keep the unit in good working condition. Check before each use for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the appliance). If damaged, have the appliance repaired before use.

f) Keep the unit out of the reach of children.

g) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.

h) To ensure the designed operational integrity of the unit, do not remove factory-installed covers or loosen screws.

i) When transporting or moving the unit from storage to the place of use, observe the health and safety rules for manual handling applicable in the country where the unit is used.

j) Avoid situations in which the machine stops under heavy loads during operation. This can cause overheating of the drive elements and consequent damage to the equipment.

k) Do not touch any moving parts or accessories unless the unit is unplugged.

I) Do not move, shift, or rotate the machine while in operation.

m) Clean the unit regularly to prevent permanent dirt build-up.

n) The unit is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.

o) Do not tamper with the unit to alter its performance or design.

p) Keep the unit away from sources of fire and heat.

q) Do not overload the unit.

r) Exceeding the maximum allowable load may result in damage to the product.

s) Inappropriate use of the product, such as sitting on the work top, may result in product damage and/or personal injury.

t) Sitting on the desk top is prohibited to prevent serious injury.

u) Do not move or lie under the desk structure during adjustment. Do not sit or stand on the desk frame. Use extreme caution when making adjustments.

v) Check regularly whether the adjustment mechanism of the desk is working properly and remove any obstacles which may block the smooth adjustment of the desk.

w) Make sure that cables, connections and plugs do not interfere with the use of the product.

x) When adjusting the height of the desk, make sure that the lead wires are of sufficient length. The cables and connections that are too short may hinder height adjustment or damage other equipment.

CAUTION! Although the product has been designed to be safe, with adequate safeguards, and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the unit. You are advised to use caution and common sense when using this product.

3. Rules of use

The product is intended for supporting and adjusting the height of a desktop.

The user is responsible for any damage resulting from misuse.

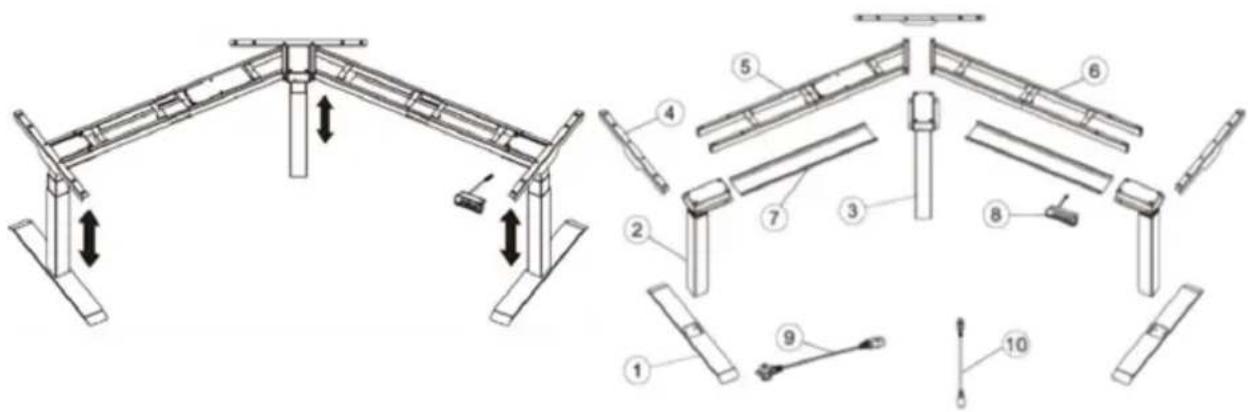

3.1. Description

Technical diagram of a structural frame assembly with numbered components and directional arrows indicating assembly or movement.

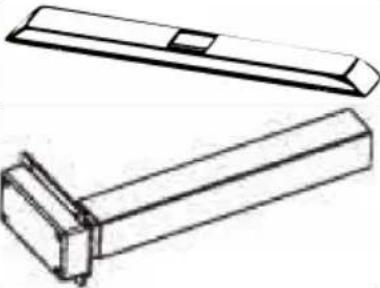

Parts list

No.	Image		Name	Number
1			Foot	2
2			The first lifting column	2
3			The second lifting column	1
4			Side bracket	3
5			Left cross bar	1
6			Right cross bar	1
7			Cable tray	2
8			Control panel	1
9			Power cord	1
10			Signal cable	1
11			Control box	1

Accessories list

No.A	Picture	TypeM6	Number6
B		M6	8
C		M6	8
D		M6	20
E		St4.2	24
F		Allen key 4x4mm	1

3.2. Preparation for operation

POSITIONING OF THE UNIT

The ambient temperature must not exceed 40^ C and ambient humidity should not exceed 85%. Place the unit in a way that ensures good air circulation. Keep the unit away from any hot surfaces. Always use the appliance on an even, stable, clean, fireproof and dry surface.

Place the unit in such a way that the mains plug can be reached at any time. Ensure that the power supply to the unit corresponds to that specified on the identification plate!

ASSEMBLY OF THE UNIT

Prior to installation, prepare and secure an appropriate space. It is recommended to use a protective mat or pad to prevent scratching the product/floor.

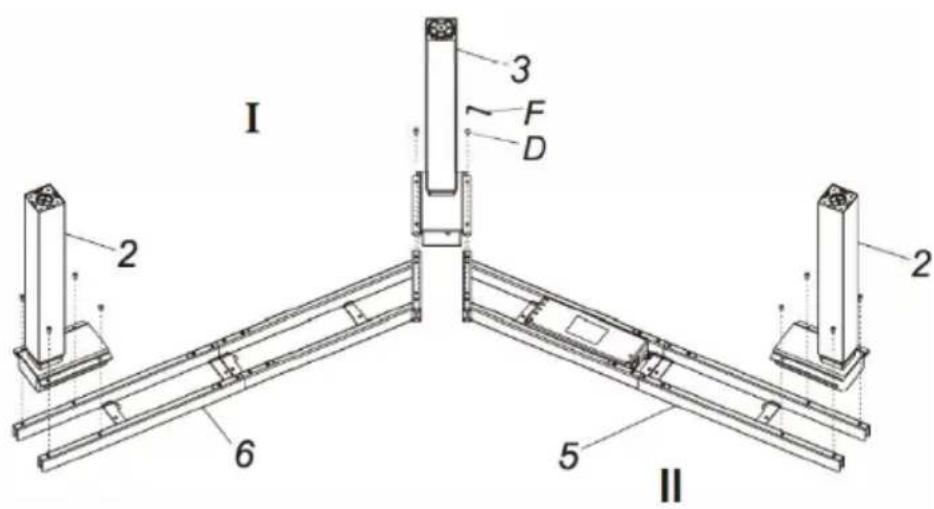

Step 1:

I 2 3 F D 2 6 5 II

I. Install crossbeams (5) and (6).

II. Connect lifting columns (2) and (3) to crossbeams (5) and (6) and tighten the screws (D) using the wrench (F).

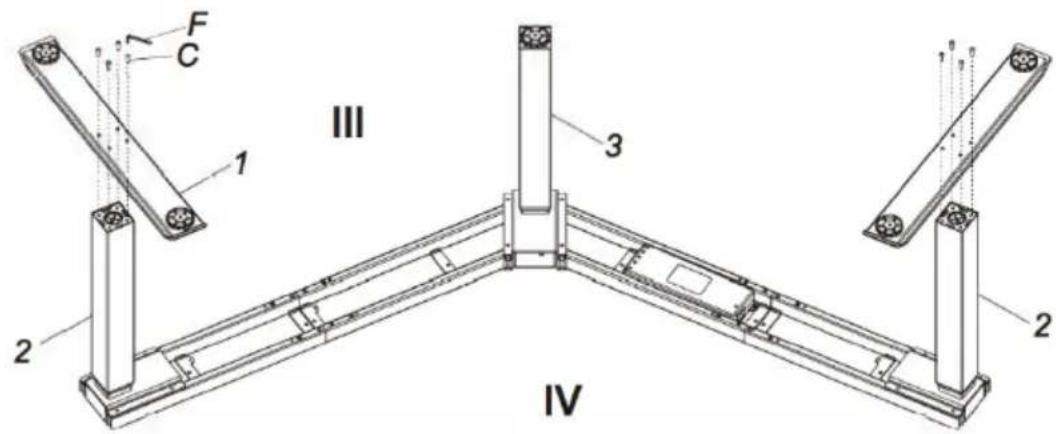

Step 2:

F C 1 III 3 2 2 IV

III. Install the feet (1).

IV. Connect the feet (1) to the lifting columns (2) and use the wrench (F) to tighten the screws (C).

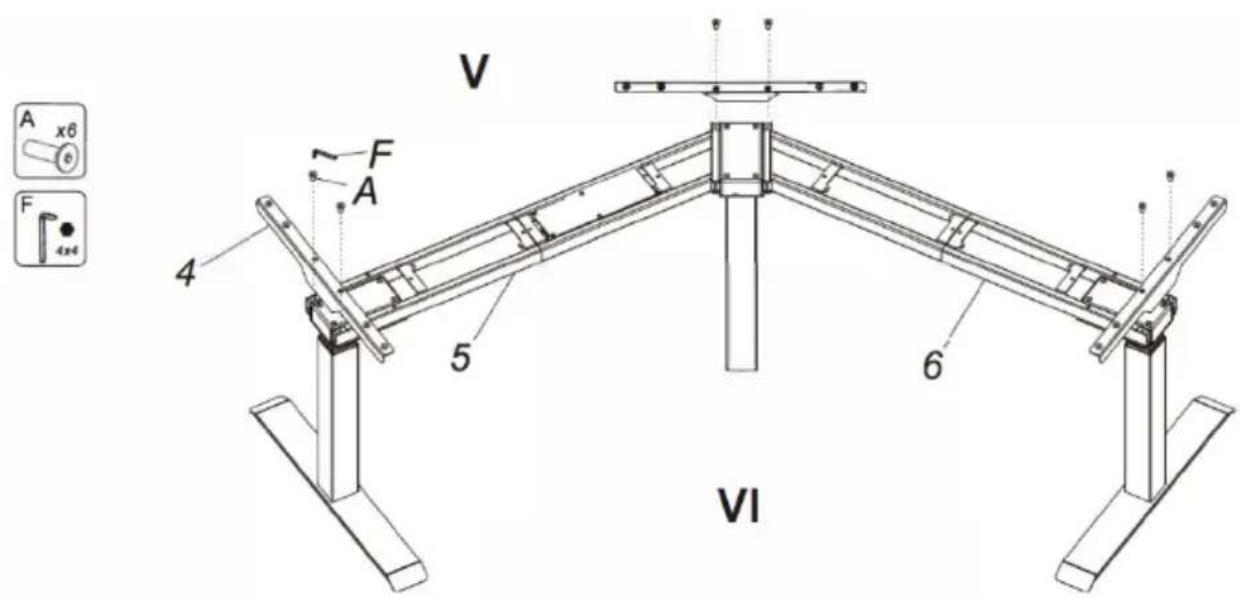

V A x6 F A 4 5 6 VI

Step 3:

V. Install side brackets (4).

VI. Attach the side brackets (4) to the crossbeams (5) and (6); use the wrench (F) to tighten the screws (A).

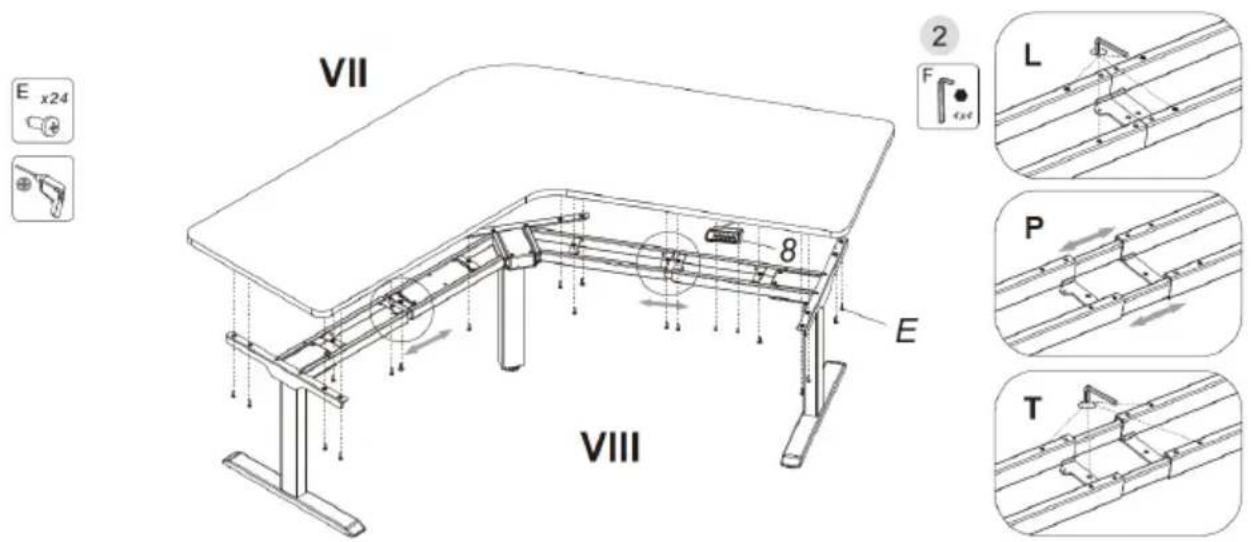

Step 4:

VII 8 E VIII 2 L F P T E x24

VII. Install the desk top, the control box (14) and the control panel (9).

VIII. If an extension of the crossbeam is required, proceed as follows:

• loosen (L),
• move (P),
• tighten (T).

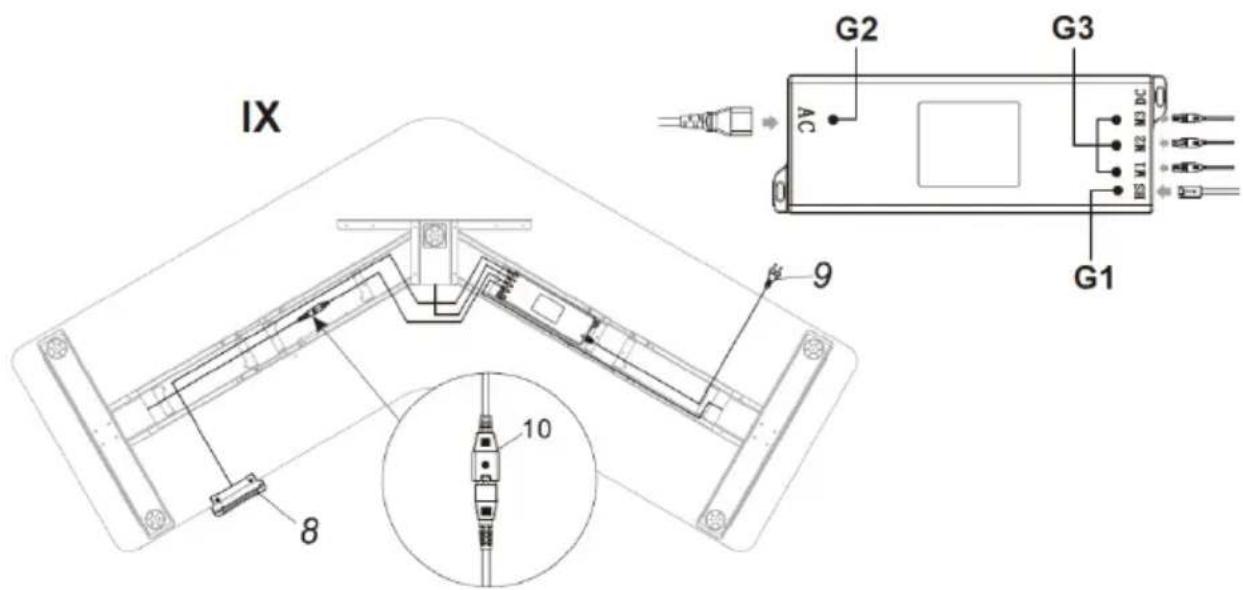

Step 5:

IX G2 G3 AC 9 8 10 G1

IX. Connect all cables to the sockets in the control box (11):

• connect the signal cable from the control panel to the socket (G1),
• connect the power cord to the socket (G2),
• connect the signal cable from the lifting column to the socket (G3).

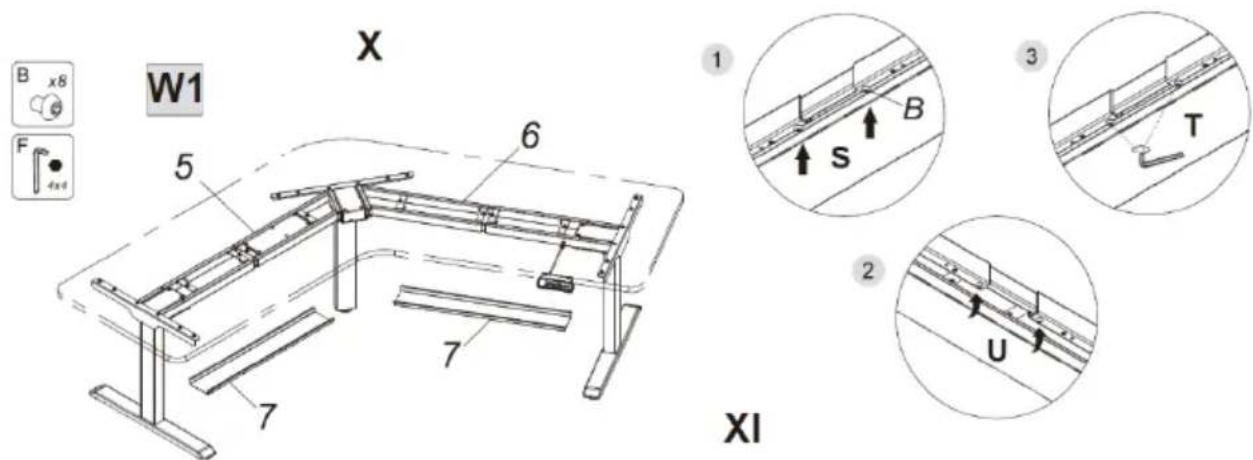

Step 6-A

W1 X 5 6 7 7 ① B ↑ S ↑ T ② U XI

Method no. 1 (W1)

X. Install the cable trays (7).

XI. First tighten the bolts (B) into the left crossbeam (5) with the wrench (F); do not tighten it completely.

Proceed according to the following 3 steps:

1. slide (S) one side of the cable tray (9) onto the screws (B),
2. slide (U) the other side of the tray onto the screws (B),
3. tighten (T) the screws (B) with the wrench (F).

The cable tray (7) is installed on the right crossbeam (6) in the same manner.

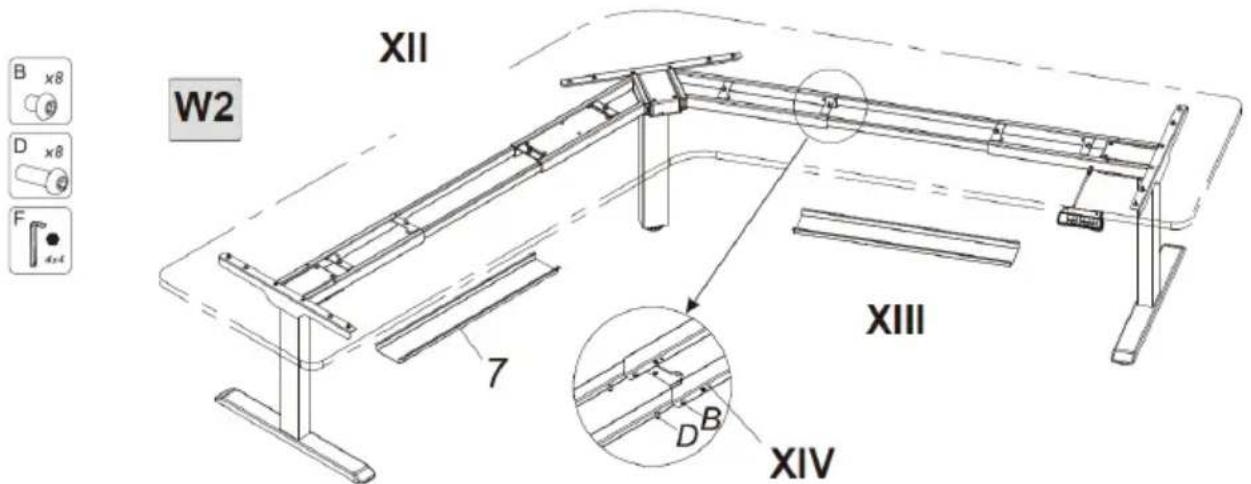

Step 6-B

W2 XII XIII 7 DB XIV

Method no. 2 (W2)

XII. Install the cable trays (7).

XIII. The cable tray (7) should be installed in the middle of the beam joint when the frame is elongated by more than 1,720 mm.

XIV. The length of the crossbeam should not exceed the position of the end opening.

Method no. 1 (W1) in step 6-A applies also to the assembly of the cable tray (7).

3.3. Working with the unit

Height adjustment:

1. Connect the plug to a power outlet.
2. Use the buttons on the control panel to adjust the height.

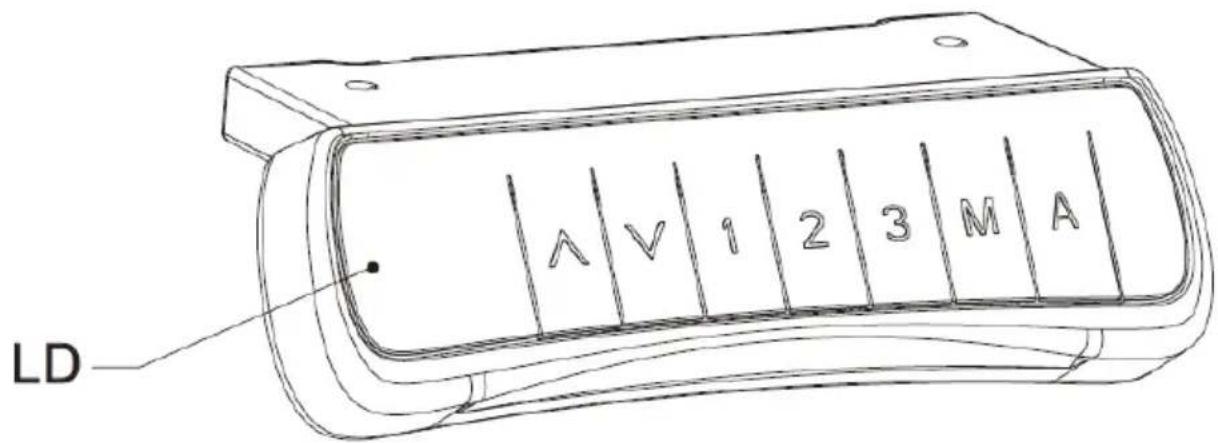

CONTROL PANEL DESCRIPTION:

LD 1 V 1 2 3 M A

LD - LED display board

There are 7 buttons on the control panel:

▲ : up height adjustment button up

▼ : down height adjustment button

1 : button of the first height saved by the user
2 : button of the second height saved by the user
3 : button for the third height saved by the user

M : height memory button

A : button to set an alarm reminding the user to change the position

Control panel operation:

• Height adjustment function:

The height can be adjusted with ▲ or ▼ buttons. The current height is shown on the LED display.

• Height memory function:

a. By pressing ▲ or ▼ you can set the desired height. To memorize the height, press M; – S- will be displayed on the screen. When you press 1, 2 or 3, a height will be assigned to the pressed button and S-1, S-2 or S-3 will be displayed respectively.
b. By pressing 1, 2 or 3 the stored height will be automatically set.

- Reminder function:

a. To activate the reminder function, press A - ON or on will be displayed.
b. Two seconds later, press ▲ or ▼, to set the reminder time only when the display screen is flashing. The default reminder time is 45 minutes, displayed

as _45. Press any button to save the time setting, or wait 5 seconds for the system to save the time automatically. During the countdown, any operation will restart the clock. When the countdown is complete, the display will show _00, and the buzzer will beep for 10 seconds.

c. Within the 10-second reminder signal, press any button to reactivate the timer that was set (point b). If no action is taken during the 10-second reminder signal, another reminder signal will sound after 5 minutes. If there is no operation during the second beep, the position change reminder function will be deactivated.

d. To deactivate the position change reminder function, press and hold A for three seconds. The LED display will show OFF or oFF.

- Collision avoidance settings:

a. To set anti-collision sensitivity, press and hold ▲ and ▼ simultaneously for 5 seconds. There are 4 levels: A-3, A-2, A-1, A-0.

b. Anti-collision sensitivity on the display: A-0 – the anti-collision sensitivity function is disabled, A-1 – low sensitivity, A-2 – medium sensitivity, A-3 – high sensitivity. The default setting is A-3.

c. When the desktop comes into contact with another object while the height is being adjusted, it will stop immediately and retract to avoid damage.

d. Press and hold ▲ and ▼ simultaneously for 5 seconds. If the above code does not appear on the display, the anti-collision function is inactive.

- To reset:

a. If ASf or rSt is displayed on the screen, press and hold ▼. The desktop will move to the lowest or highest position, and then move in the opposite direction until it stops. When the display shows the height, release the ▼ button. Once reset, the desk can be used normally.

b. When an error code occurs, short press ▼, in order to move to the ASf or rSt status, and perform the resetting operation (as in step a).

c. If the desk still does not function properly after the above steps have been completed, please contact Customer Service.

3.4. Cleaning and maintenance

a) Pull the mains plug and let the unit cool down completely before cleaning, adjusting or replacing accessories and when the unit is not in use.

b) Use only non-corrosive cleaning agents for cleaning the surfaces.

c) After each cleaning, all the parts should be dried well before the unit is used again.

d) Store the unit in a dry and cool place protected from moisture and direct sunlight.

e) Do not spray the unit with a stream of water or immerse it in water.

f) Perform regular inspections of the unit checking technical fitness and any damages.

g) Use a soft cloth for cleaning.

h) Use a soft, damp cloth for cleaning.

i) Do not use sharp and/or metal objects (e.g. a wire brush or metal spatula) for cleaning, as these may damage the surface of the material from which the unit is made.

DISPOSAL OF USED UNITS.

At the end of its useful life, this product should not be disposed of with normal household waste but should be taken to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, operating instructions or packaging. The materials used in this unit are recyclable according to their marking. You will be making an important contribution to protecting our environment by reusing, recycling or otherwise disposing of used units.

Your local administration will provide you with information about the appropriate disposal point for used units.

TROUBLESHOOTING

Problem	Possible cause	Action
No response when pressing ▲ or ▼ buttons after connecting power.	No cable connection.	Make sure that all cables are securely connected.
Slow lifting speed or skidding while the desktop is being lowered.	Overloaded desk - maximum load: 150 kg.	Ensure that the desk's load does not exceed 150 kg.
The engine does not run as described in the instruction.	Motor problem.	Contact the supplier or the retailer.
Overwork	Exceeded duty cycle: maximum switch-on 2 min / switch-off 18 min.	Restart after disconnecting from power for 18 minutes.
Insufficient height when raising / lowering.	Change of factory settings.	Press and hold the M and 3 buttons simultaneously, for at least three seconds, until you hear two continuous beeps, indicating that thefactory settings have been restored.

Dane techniczne

Technical diagram of a structural frame assembly with numbered components and directional arrows indicating assembly or movement.

Lista części

D x12 0 F 4x4 I 2 3 F D 2 6 5 II

LD 1 V 1 2 3 M A

Technical diagram of a structural frame assembly with numbered components and directional arrows indicating assembly or movement.

Seznam dílů

LD 1 2 3 M A

LD - LED displej

Technical diagram of a structural frame assembly with numbered components and directional arrows indicating assembly or movement.

Liste des pièces

VII 8 E VIII 2 L F x24 P T

LD 1 2 3 M A

LD – Écran LED

Technical diagram of a structural frame assembly with numbered components and directional arrows indicating assembly or movement.

Elenco delle parti

D x12 F 4x4 I 2 3 F D 2 6 5 II

I. Montare le traverse (5) e (6).

VII 8 E VIII 2 L P T E x24

LD 1 2 3 M A

LD - Display a LED

Technical diagram of a structural frame assembly with numbered components and directional arrows indicating assembly or movement.

D x12 0 F 4x4 I 2 3 F D 2 6 5 II

VII E 8 E VIII 2 L F 4x4 P T E x24

LD 1 2 3 M A

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

Alkatrészek listája

LD 1 V 1 2 3 M A

LED kijelző

Technical diagram of a structural frame assembly with numbered components and directional arrows indicating assembly or movement.

Liste over komponenter

APPARATETS PLACERING

VII 8 E VIII 2 L F x24 P T

VII. Installer bordpladen, kontrolpanelet (14) og kontrolboksen (9).

LD 1 2 3 M A

LD - LED display

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
